Costway CB10153 User manual

EN DE FR ES IT PL
www.costway.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Visit us: www.costway.com
Follow Costway
Please give us a chance to make it right and do better！
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
USER’S MANUAL
Mobile File Cabinet
CB10153

Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: [e-mail]
UK: [e-mail]
Before You StartBefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
www.costway.com
02

Serial Number Part Name Part Quantity
1
2
3
4
5
6
7
9
10
11
12
13
14
8
15
16
Back panel
Left panel
Right panel
Inner frame
Top panel
Foot stand
Bottom panel
Locking bar
Small drawer panel
Rear block of small drawer
Front panel of small drawer
Big drawer panel
Front block of big drawer
Rear block of big drawer
Front panel of big drawer
Iron baffle
X1
X1
X1
X1
X1
X2
X1
X1
X2
X2
X2
X1
X1
X1
X1
X1
www.costway.com
03

Serial Number Part Name Part Quantity
A
B
C
D
E
F
G
I
J
K
L
M
N
H
O
P
X22
Self-tapping screw
Caster
Wrench
Left slide way
Right slide way
Left slide rail
Right slide rail
Lock
Self-tapping screw
Pulley
Non-slip gasket
Cap nut
Round head screw
Spacer
Bottom wheel
Pencil case
X4
X1
X2
X2
X1
X1
X1
X10
X8
X4
X4
X4
X4
X1
X1
www.costway.com
04

www.costway.com
1.Fix the left panel (2) and the right
panel (3) to the back panel (1) with
screws.
4. Install 2 foot stands (6) to the bottom
panel (7). 5. Install the assembled bottom panel
(7) to the the left panel (2) and the right
panel (3), and fix them with screws.
7. Install the locking bar (8) into the
right panel (3), and insert the lower part
of the locking bar into the right panel.
8. Install the left and
right slide ways (D and
E) to the left and right
panels (2 and 3)
respectively, and
install the pulleys (J).
6. Install 4 castors (B) to the left panel
(2) and the right panel (3), and then
tighten them with a wrench.
2.Fix the inner frame (4) to the left and
right panels (2 and 3) with screws. 3. Install the top panel (5) from top to
bottom, and fix it to the left and right
panels (2 and 3) with screws.
D Left X2 E Right X2
9. As shown in the figure,
disassemble the left and
right slide rails (F and G)
respectively.
05

www.costway.com

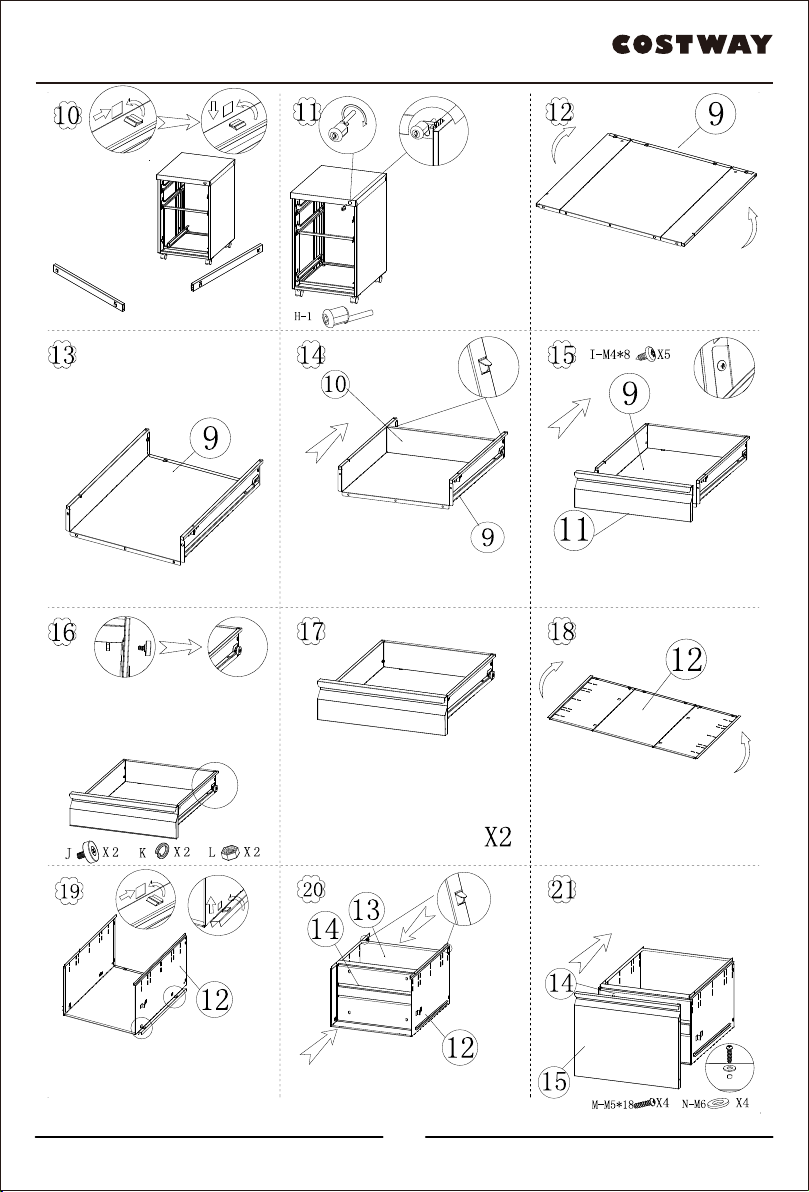

10. Install the
left and right
slide rails (F and
G) to the left
and right panels
(2 and 3)
respectively.
F Left X1 G Right X1
11. As shown in the
figure, turn the
lock(H) clockwise
and install it on the
top panel (5) after
turning. Note that the
locking bar (8) needs
to be installed on the
lock.
14. As shown in the figure,
install the rear block of small
drawer (10) to the small drawer
panel (9) and fasten it in place.
12. As shown in the figure, fold up
the left and right sides of the small
drawer panel (9) to 90 degrees as
shown in Figure 13.
15. As shown in the figure, connect the
front panel of small drawer (11) to the
small drawer panel (9) with screws.
16. As shown in the figure, fix
pulleys (J) to the left and right sides
of the small drawer panel (9) with
gaskets and cap nuts. 17. Repeat steps 12-16 to complete
the installation of 2 small drawers.
18. As shown in the figure, fold up
the left and right sides of the big
drawer panel (12) to 90 degrees as
shown in Figure 19.
19. As shown in the figure, install the
disassembled left and right inner rails
on the left and right sides of the big
drawer panel (12) respectively.
20. As shown in the figure, install the
front block and rear block (13 and 14) to
the big drawer panel (12) and fasten the
front block of big drawer (13) in place.
21. As shown in the figure,
connect the front panel (15) to
the front block of big drawer
(14) with screws.
06

www.costway.com
22. As shown in the figure, fix the
bottom wheel (O) to the front panel of
drawer (15) with screws. 23. Install the iron baffle (16) to the big
drawer panel (12).
24. Install one side of iron baffle (16) to
the big drawer panel (12) first.
25. Install the other side of iron baffle
(16) to the big drawer panel (12) first. 26. The large drawer assembly is completed. 27. Install the large drawer on the
cabinet.
28. When the big drawer is drawn
out, the bottom wheel will fall to the
ground to prevent tipping.
29. Install 2 small drawers.
30. In the
first small
drawer,
install the
pencil case
(P).
07

Welcome to visit our website and purchase our quality products!
We would like to extend our hearelt thanks to
all of our customers for taking me to assemble
this product and giving us valuable feedbacks.
With your inspiring rating, COSTWAY will be more consistent to offer you
EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
US office: Fontana, California
UK office: Ipswich
www.costway.com
Reward Points
Exclusive Customer Service
Personalized Recommendaons
Permanent Shopping Cart
Order History
www.costway.com
08
