Costway NP10633WL-BN User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Rectangular Propane Fire Pit
NP10633WL-BN
USER’S MANUAL

INSTALLER: Leave this manual with
the appliance.
CONSUMER: Retain this manual for
future reference.
WARNING
Do not store or use
gasoline, or other
flammable vapors and
liquids, in the vicinity of
this or any other appliance.
An LP-cylinder not
connected for use shall not
be stored in the vicinity of
this or any other appliance.
WARNING:
For Outdoor Use Only.
Installation and service
must be performed by a
qualified installer, service
agency, or the gas supplier.
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
WARNING:
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or
loss of life.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
● Shut off gas to the appliance.
● Extinguish any open flame.
● If odor continues, leave the area
immediately.
● After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions
could result in fire or explosion, which
could cause property damage,
personal injury, or death.
02

ANS Z21.97 CSA 2.41-2017
Outdoor Decorative Gas Appliances
IMPORTANT SAFETY INFORMATION
1. The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1 NFPA
54; National Fuel Gas Code; Natural Gas and Propane Installation
Code, CSA B149.1; or Propane Storage and Handling Code, CSA
B149.2, as applicable.
2. The appliance must be isolated from the gas supply piping system
by closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psi (3.5 kPa).
3. The appliance area must be kept clear and free from combustible
materials, gasoline, and other flammable vapors and liquids.
4. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any
gas control that has been under water.
5. Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns or
clothing ignition.
Young children should be carefully supervised when they are in the
area of the appliance.
03

6. Clothing or other flammable materials should not be hung from
the appliance or placed on or near the appliance.
Any guard or other protective device removed for servicing the
appliance shall be replaced prior to operating the appliance.
Installation and repair should be done by a qualified service person.
The appliance should be inspected before use and at least
annually by a qualified service person. More frequent cleaning
may be required as necessary. It is imperative that the control
compartment, burners, and circulating air passageways of the
appliance are kept clean.
9. CAUTION: The propane gas pressure regulator provided with this
appliance must be used. This regulator is set for an outlet
pressure of 11 inches water column.
10. DO NOT burn solid fuels in this appliance.
11. This outdoor gas appliance is for Outdoor Use ONLY.
12. This outdoor gas appliance is not intended to be installed in or on
recreational vehicles and/or boats.
13. This outdoor appliance is not for use on wood decks or other
flammable surfaces.
14. Before each use of this gas appliance, open the door and/or the
propane Tank Drawer and inspect the hose. If there is evidence of
excessive abrasion or wear or if the hose is damaged, the hose
assembly must be replaced prior to the appliance being put into
operation. Use only the replacement hose assembly specified in
this manual.
15. Make sure to leak test.
04

16. Before each use of this gas appliance, inspect the burner. The
burner must be replaced prior to the appliance being put into
operation if it is evident that the burner is damaged. Use only the
replacement burner specified in this manual.
17. Make sure to properly locate the gas hose including locating the
hose out of pathways where people may trip over it or in areas
where the hose may be subject to accidental damage.
18. Keep the fuel supply hose away from any heated surface.
19. Never use this appliance closer than 10 feet from anything
flammable, including houses or overhead tree branches.
20. Never use gasoline, kerosene, or any other liquid fuel to start a
fire.
21. Always maintain a safe distance from the fire.
22. Always supervise children around the fire.
23. Never leave a fire unattended.
24. The appliance is hot during and after use, always allow ample
cooling time before touching or moving.
05

1. The propane supply cylinder to be used must be constructed and
marked in accordance with the U.S. Department of Transportation
(D.O.T.) Specifications for propane cylinders, or the Standard for
Cylinders, Spheres and Tubes for Transportation of Dangerous
Goods and Commission, CAN/CSA-B339, as applicable.
2. The propane supply cylinder to be used must have a listed
overfilling prevention device (See Figure 1).
3. The propane supply cylinder to be used must have a cylinder
connection device compatible with the connection for the
appliance.
4. A self-contained propane cylinder for use with this appliance must
have a capacity of 20 Ibs cylinder (Height approximately 18 in.,
Tank Body approximately 12 in. diameter, Base approximately 8 in.
diameter).
5. The cylinder supply system must be arranged for vapor withdrawal.
6. The cylinder used must include a collar to protect the cylinder
valve.
7. This appliance shall be used only outdoors in a well-ventilated
space and shall not be used in a building, garage or any other
enclosed space.
8. When this appliance is not in use, the gas must be turned off at
the supply cylinder.
9. Storage of this appliance indoors is permissible only if the cylinder
is disconnected and removed from the appliance.
IMPORTANT SAFETY INFORMATION ABOUT
PROPANE GAS
06

10. Cylinders must be stored outdoors in a well-ventilated area out of
the reach of children. Disconnected cylinders must have threaded
valve plugs tightly installed and must not be stored in a building,
garage or any other enclosed areas.
11. This appliance is certified by CSA (Canadian Standards
Association) to ANS Z21.97 CSA 2.41-2017, Outdoor Decorative
Gas Appliances.
Standard 20 lb.tank
Figure 1
WARNING: This product can
expose you to chemicals
including lead, which is
known to the State of
California to cause cancer,
and carbon monoxide, which
is known to the State of
California to cause birth
defects or other reproductive
harm. For more information,
go to:
www.P65Warnings.ca.gov.
Rated Heat Input
(Liquid Propane & Natural Gas)
Clearance to combustible surfaces
50,000 BTU/hr
Propane Regulator Pressure 11 inches water column
Natural Gas Inlet Pressure 7 inches water column
Sides: 24in. (610mm),
Top: 72in. (1829mm)
SPECIFICATIONS
07

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A 1 pc
B 1 pc
C1 pc
D 1 pc
Door
Lid
Fire table
Weather cover
E 1 pack
Lava rock
F 1 pcNatural gas orifice
D
F
E
A
B
C
08

ASSEMBLY INSTRUCTIONS
1. Carefully unpack all parts from the box and compare parts with the
package content listed above, making sure all parts are present
before beginning assembly of the product. If any part is missing or
damaged, do not attempt to assemble the product. Contact
customer service for replacement parts.
2. Open the box of lava rocks, put the lava rocks (E) into the fire bowl
of the fire table (B) (See Figure 2). A gas fire pit requires 13.2 lbs
lava rocks.
WARNING: keep children away during assembly, as this item
contains lava rocks, which are small pieces and can be swallowed by
children.
NOTE: leave the pilot box uncovered by the lava rock.
CAUTION: Please be advised that this fire pit is equipped with
natural lava rock that may crackle or pop the first time it is used.
The lava rock has been pre-heat treated to release any natural
inherent moisture. However, in rare cases on first time use, the
lava rock may pop or burst causing small pieces of hot rock to
potentially be a projectile. These hot pieces could cause injury or
property damage. As a precaution, please follow these
instructions the first time the fire pit is used:
09

(1). On first use, do not stand over or near the fire pit once lit.
(2). Light the fire pit and let it run on high for 20 minutes.
(3). Once lit, do not go within 12 feet of the fire pit for at least
the first 20 minutes on the first use to ensure any residual
moisture trapped in the rocks gets released.
(4). After the first heating cycle there is little further concern. It is
rare that any crackling will happen on the first use, this is
simply a precaution.
(5). Keep lava rock covered and dry while not in use to prevent
additional moisture from getting in the rocks.
(6). If lava rocks are exposed to moisture after first use, run the
burner on low to gradually warm and dry the rocks before
repeating steps 1 through 3.
Figure 2
pilot box
E
B
10

3. Open the door. Place the gas cylinder into the gas cylinder support
and connect the regulator by turning the black handle clockwise to
tighten. To remove the regulator, turn the black handle
counter-clockwise. Secure the gas cylinder by tightening clockwise
the retention point found on gas cylinder support, so that the gas
cylinder cannot move from side to side or fall down. The knob on
the control panel is turned all the way to the “OFF” position when
the fire pit is NOT in use (see Figure 3).
retention
point
black handle
Figure 3
4. Attach the door (C) with fire table (B) tenderly (See Figure 4).
B
C
Figure 4
11

5. Once the firepit has cooled completely after use, carefully place the
lid (A) onto the fire bowl and use the weather cover (D) to protect
your fire pit from the elements (See Figure 5).
WARNING: Allow 30 minutes after use for fire pit to cool down
before placing the lid to prevent scalding.
D
A
Figure 5
12

NATURAL GAS CONVERSION STOP
Natural gas conversion must be performed only by natural gas
provider or a service company.
2. Unscrew and disconnect the propane orifice from the bellows (see
Figure 7). Propane orifice (2.21 mm diameter size) is painted with
red mark.

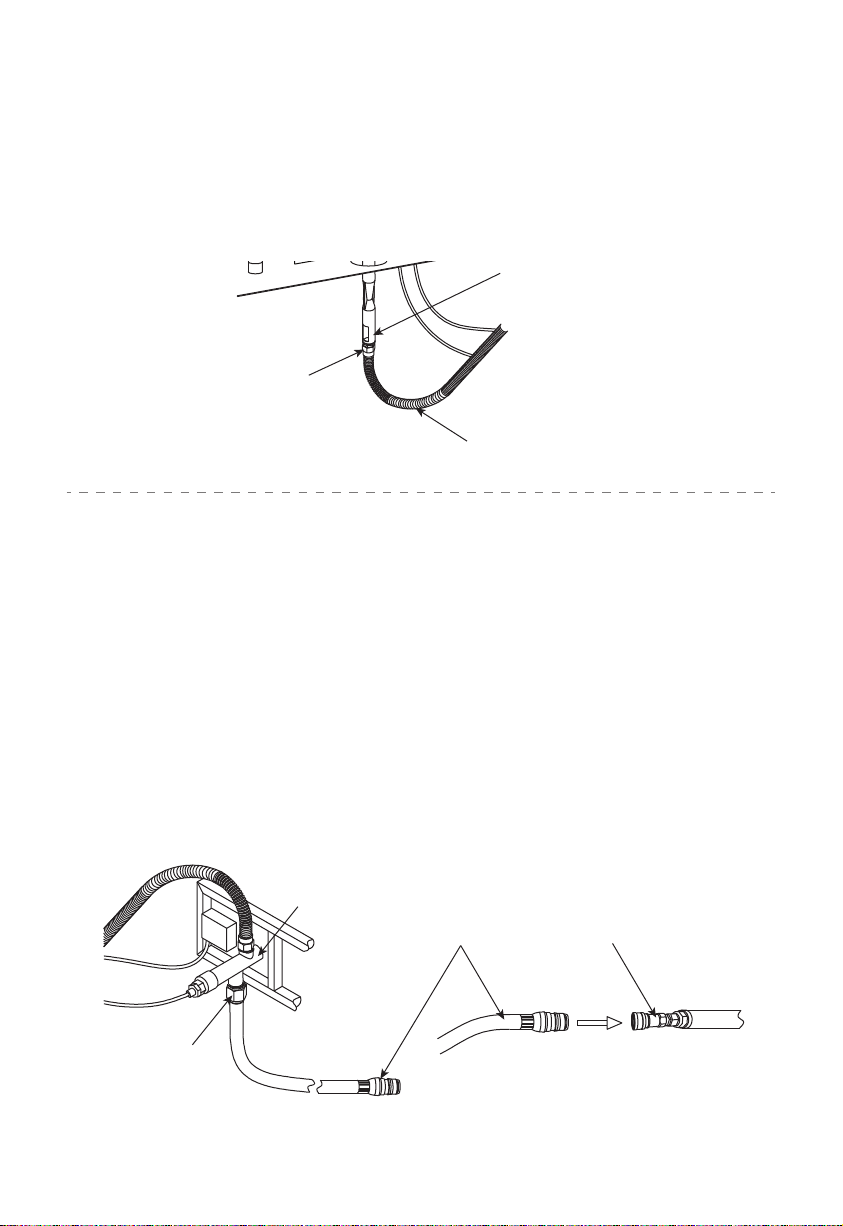

1. Disconnect the propane hose from the gas valve (see Figure 6).
Caution: The propane tank shall be shut off prior to disconnecting
the propane hose, before proceeding with the conversion.
Figure 6
gas valve
propane hose
Figure 7
propane
orifice bellows
propane
orifice
bellows
13

3. Replace the propane orifice with the natural gas orifice and screw
the natural gas orifice to the bellows tightly. Then connect and
tighten the natural gas orifice to the inlet tube (see Figure 8). The
Natural gas orifice (4.18 mm diameter size ) is painted with a black
mark.
4. Connect the natural gas hose to the gas valve by screwing
clockwise tightly (see Figure 9). Plug the natural gas fixture into
the natural gas supply system (see Figure 10). The conversion kit
should be CSA certified. Below are several suggested CSA certified
conversion kits for your reference.
(1). Part# DH22 / QH1, manufacturer: KSUN
or (2). Part# WH02 / KJ50A2, manufacturer: Laite
or (3). Part# KJ-3/8G-3/8 / KJ-3/8G, manufacturer: Wanan
The natural gas orifice is included in the package. Please follow the
instructions for gas conversion.
Figure 8
inlet tube
bellows
natural gas orifice
Figure 9 Figure 10
gas valve
natural
gas hose
natural
gas fixture
natural gas
supply system
14

5. Stick and cover the conversion label onto the propane rating plate
(see Figure 11).
WARNING: This conversion kit shall be installed by a
qualified technician in accordance with the manufacturer’s
instructions and all applicable codes and requirements of the
Authority Having Jurisdiction.
If the information in these instructions is not followed
exactly, a fire, explosion or production of carbon monoxide
may result causing property damage, personal injury or loss
of life. The qualified technician is responsible for the proper
installation of this kit. The installation is not proper and
complete until the operation of the converted appliance is
checked as specified in the manufacturer’s instructions
supplied with the kit.
conversion label
propane rating plate
Figure 11
15

BATTERY
Make sure the control knob is in the “OFF” position. Unscrew the push
button cap on the ignitor module located on the control panel to
access the battery compartment. The ignitor module requires one
AAA size battery, (see Figure 12).
BATTERY IS NOT INCLUDED.
WARNING:
1. Please observe proper polarity and use the correct battery type
when installing or replacing the battery. Improper installation could
result in ignition failure.
2. Please remove the battery if consumed or if product is to be left
unused for a long period of time.
1 AAA
1.5V
IGNITOR
( Encendedor )
OFF (APG.)
MAX
(MÁX.)
ON/MIN
(ENC./MÍN.)
LIGHTING INSTRUCTIONS
1. Push in gas control knob slightly and turn to “OFF”.
2. Turn gas control knob to “ON/MIN”.
3. Push in gas control knob all the wayand hold.
Continue to press the ignition button for 15
seconds.
4. If the burner does not light in 15 seconds,
release the knob and it will pop back out.
Wait 5 minutes before attempting to light
the burner again, repeat step 1 to 3.
TO TURN OFF GAS
1. Push in gas control knob slightly and turn
to “OFF”.
PARA CERRAR EL GAS
1. Presione ligeramente la perilla de control del gas y gírela a la
posición “APG” (apagado)
INSTRUCCIONES DE ENCENDIDO
1. Presione ligeramente la perilla de control del gas y
gírela a la posición “APG” (apagado).
2. Gire la perilla de control del gas a “ENC/MÍN”(encendido/mínimo).
3. Presione la perilla de control del gas hasta el fondo y mantenga
presionada.
Siga presionando el botón de encendido durante 15 segundos.
4. Si el quemador no se enciende en 15 segundos, suelte la
perilla y esta volverá a su posición hacia afuera. Espere 5
minutos antes de intentar encender el quemador
nuevamente, repita los pasos 1 al 3.
Figure 12
16

LEAK TEST
To prevent fire or explosion hazard when testing for a leak:
1. Always perform the leak test as described below before lighting
this appliance or each time the cylinder is connected for use.
2. Do not smoke or allow other sources of ignition in the area while
conducting a leak test.
3. Conduct the leak test outdoors in a well-ventilated area.
4. Do not use matches, lighters or a flame to check for leaks.
5. Do not use this appliance until any and all leaks are corrected. If
you are unable to stop a leak, disconnect the propane supply and
call a gas appliance service shop or your local propane gas supplier.
cylinder / regulator connection
(Figure 13) gas valve / bellows
connection (Figure 15)
natural gas fixture / natural gas
supply system connection
(Figure 14)
17

To perform a leak test:
1. Make 2~3 oz. of leak solution by mixing one part liquid dishwasher
detergent and three parts water. Noted: make sure control knob is
“OFF”.
2. Apply several drops of solution where the cylinder attaches to
regulator, (see Figure 13), inspect the solution at the connection
looking for bubbles. If NO bubbles appear, the connection is secure.
If bubbles appear, the connection has the leak, disconnect the
regulator, reconnect, perform another leak check. If you continue
to see bubbles after several attempts, cylinder valve is defective
and should be returned to cylinder’s supplier.
3. Apply several drops of solution where natural gas fixture attaches
to natural gas supply system connection (see Figure 14), If NO
bubbles appear, the connections are secure. If bubbles appear, the
connection has the leak, disconnect, reconnect, perform another
leak check. If you continue to see bubbles after several attempts,
the conversion hose is defective and should replace with a new
one.
gas valve / regulator
hose connection
(Figure 16)
inlet tube / bellows
connection
(Figure 17)
18

4. Apply several drops of solution where gas valve attaches to
bellows, (see Figure 15), where gas valve attaches to regulator
hose, (see Figure 16), and where inlet tube attaches to bellows,
(see Figure 17). If NO bubbles appear, the connections are secure.
If bubbles appear, the connection has the leak, disconnect,
reconnect, perform another leak check. If you continue to see
bubbles after several attempts, both parts are defective and should
replace with the new ones.
LIGHTING INSTRUCTIONS
1. Push in gas control knob slightly and turn to “OFF”.
2. Turn gas control knob to “ON/MIN”.
3. Push in gas control knob all the way and hold. Continue to press
the ignition button for 15 seconds.
4. If the burner does not light in 15 seconds, release the knob and it
will pop back out. Wait 5 minutes before attempting to light the
burner again and repeat step 1 to 3.
1. Push in gas control knob slightly and turn to “OFF”.
WARNING: For your safety, read and follow the Lighting Instructions in
this manual and in the Rating Plate on the appliance. IMPROPER
LIGHTING PROCEDURES COULD RESULT IN A FIRE HAZARD OR
EXPLOSION HAZARD OR PROPERTY DAMAGE, INJURY OR LOSS OF LIFE.
TO TURN OFF GAS
19

gas control knob
ignition button
1 AAA
1.5V
IGNITOR
( Encendedor )
OFF (APG.)
MAX
(MÁX.)
ON/MIN
(ENC./MÍN.)
LIGHTING INSTRUCTIONS
1. Push in gas control knob slightly and turn to “OFF”.
2. Turn gas control knob to “ON/MIN”.
3. Push in gas control knob all the wayand hold.
Continue to press the ignition button for 15
seconds.
4. If the burner does not light in 15 seconds,
release the knob and it will pop back out.
Wait 5 minutes before attempting to light
the burner again, repeat step 1 to 3.
TO TURN OFF GAS
1. Push in gas control knob slightly and turn
to “OFF”.
PARA CERRAR EL GAS
1. Presione ligeramente la perilla de control del gas y gírela a la
posición “APG” (apagado)
INSTRUCCIONES DE ENCENDIDO
1. Presione ligeramente la perilla de control del gas y
gírela a la posición “APG” (apagado).
2. Gire la perilla de control del gas a “ENC/MÍN”(encendido/mínimo).
3. Presione la perilla de control del gas hasta el fondo y mantenga
presionada.
Siga presionando el botón de encendido durante 15 segundos.
4. Si el quemador no se enciende en 15 segundos, suelte la
perilla y esta volverá a su posición hacia afuera. Espere 5
minutos antes de intentar encender el quemador
nuevamente, repita los pasos 1 al 3.
Figure 18
Observe Flame Height When Lit: The burner will display blue and
yellow flames. These flames should be a blue / yellow color between
1~2 in. height, (see Figure 19). These flames should not be yellow or
produce thick smoke.
This would indicate an obstruction of airflow through the burners. The
flames should be blue with straight yellow tops.
Figure 19
Yellow
Yellow
Light Blue
Light Blue
Blue Blue
Good Bad
20
