Costway HW68604 User manual

USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
8 PIECE RATTAN SOFA SET
HW68604

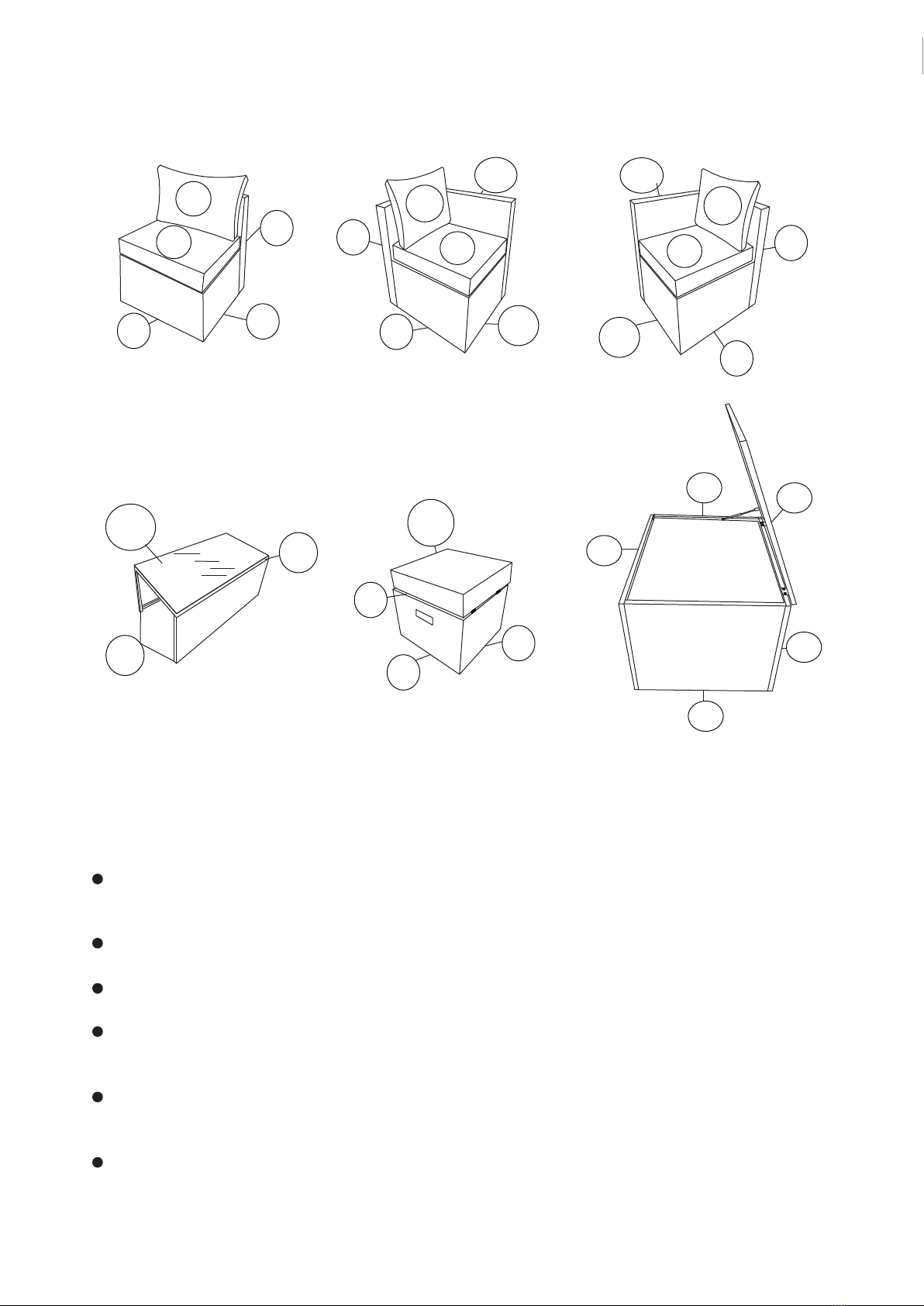

Before You Start
Read each step carefully before starting. It is very important to
ensure each step followed in correct order, otherwise assembly
difficulties may occur.
Most of board parts are labeled or stamped on the raw edges. Have
a check to make sure all parts are included.
Work in a spacious area, preferably on a carpet close to where the
unit will be used.
Keep the handtools close at hand. Do not use power tools to
assemble your furniture. They may scratch or damage the parts.

B
C
D
F
H1
E1
A
Z1Z2
Y1Y 2
H2
E2 D
Z2
Y2
G
K
I
N
O
M
U
S
TQ
R
X1 X2
Notice
50% Tighten before fixing all screws, Allen wrench is recommended instead of an electric
drill.
Place the item on a flat ground to adjust and make sure it remains stable.
Tighten up all screws with tools gradually.
If the screws are not aligned with holes during assembly, please loosen all the other
screws to 50% and continue the assembly process.
If the item is not stable, please loosen all the screws, adjust it on a flat ground and tight-
en up all screws again.
Note: If one or some screws are fully tightened during assembly, chances are the others
will not be aligned with holes. In addition, all the holes are designed to be relatively larger
to provide more space for the adjustment of the screws.
01

1 pc
H1 2 pcs
O
2 pcs
2 pcs 2 pcs 2 pcs
1 pc
1 pc 1 pc
Q

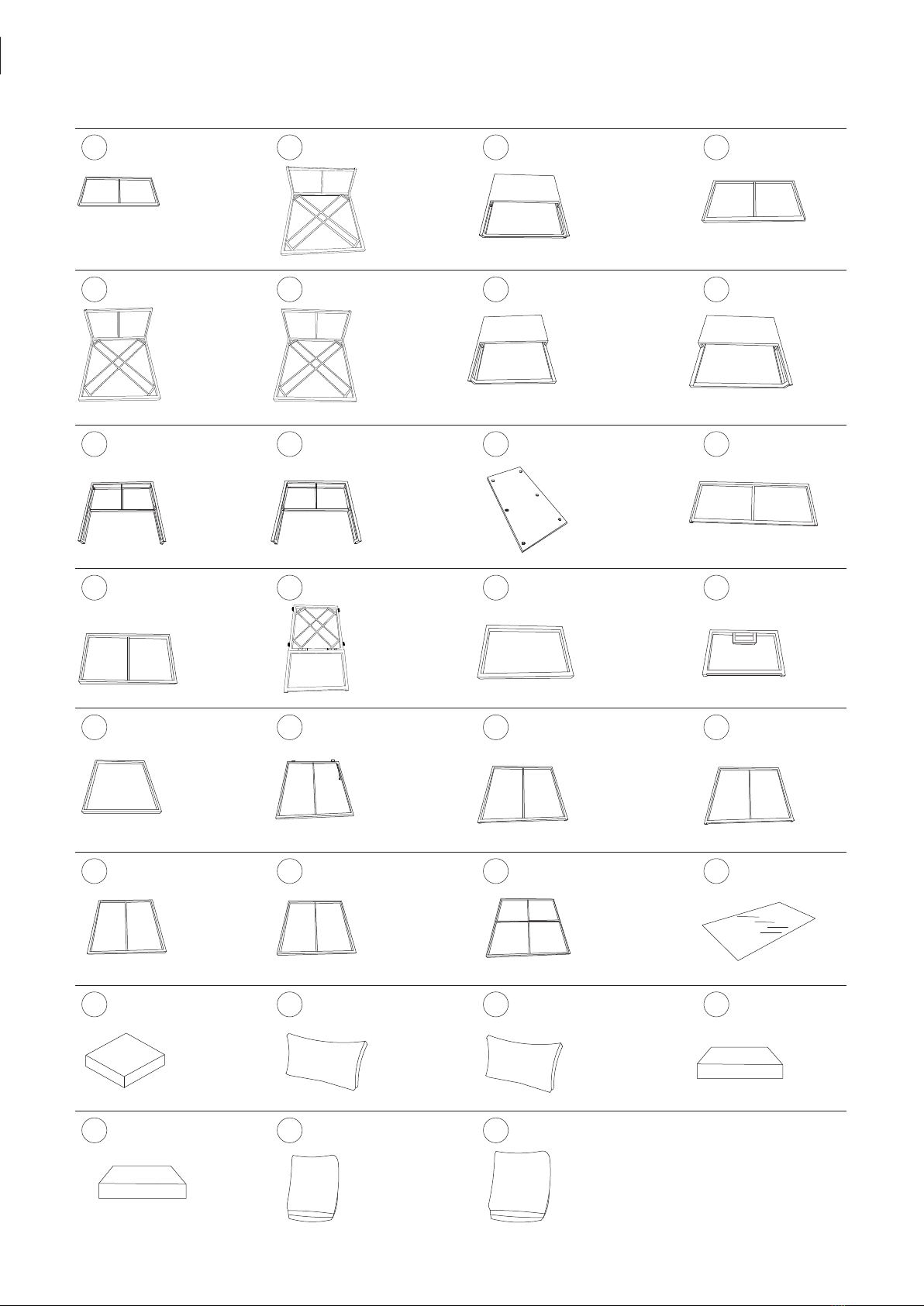

Part List
4 pcs B
A2 pcs D
C2 pcs
1 pc
2 pcs
E1 E2 1 pc G
F
1 pc
1 pc H2 1 pc K
I
1 pc
L2 pcs
1 pc M2 pcs
cp1
R1 pc
scp4
N
PS
cp1 1 pc
TUVX1
2 pcs
X2 Y1 Y2 Z1
2 pcs 1 pc 1 pc
Z2 W1 W2
02

2
3
4
5
6
7
8
Bolt
Bolt
Bolt M6 x 30 mm
M6
M6
M4
03
Nut
1
M6 x 45mm
Bolt M6 x 35 mm
M6 x 15 mm
9
10
Hardware List
Steel washers
Bolt
11 Allen key
Wrench
Bolt
M10
Plastic washers
M6 x 8 mm
Description
Hardware
Spec Qty
M6 x 25 mm
109 pcs
2 pcs
22 pcs
1pc
2 pcs
4 pcs
4pcs
15 pcs
8pcs
M6 x 60 mm
14 pcs
46pcs

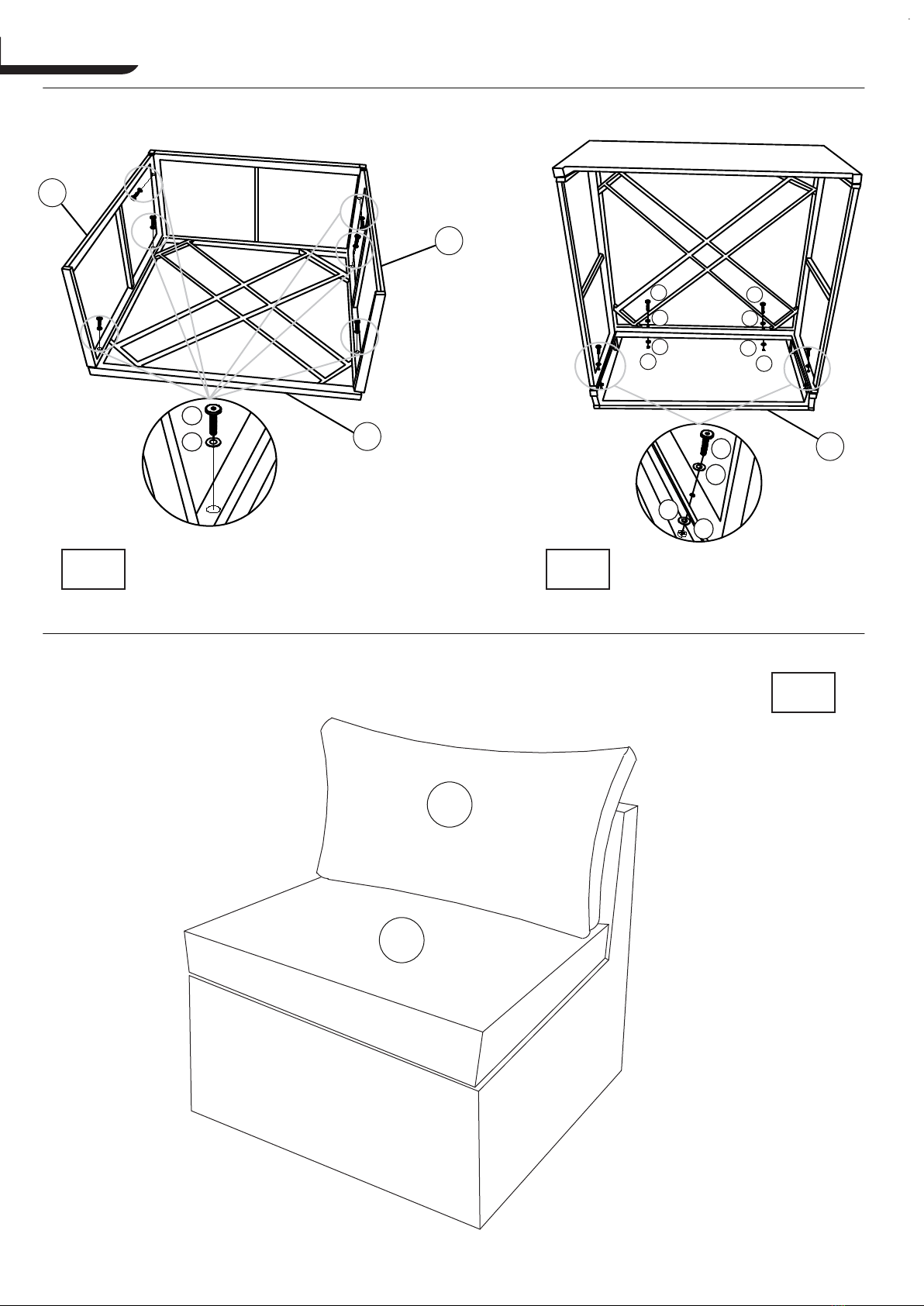

STEP 1
STEP 3
Finished
STEP 2
Z1
Y
1
x2
04
x2 x2
A
A
BC
4
8
2
8
89
9
8
8
8
8
9
1
1

Finished
3
8
Z2
Y2
STEP 4
STEP 6 STEP 7
STEP 5
05
E1
H1
8
1
89
4
8
8
1
9
8
9
D
F
99
8
8
8
88
8
2
2
1

Finished
Z2
Y2
STEP 8
STEP 10 STEP 11
STEP 9
06
38
D
E2
G
H2
4
8
8
1
8
9
8
1
98
9
99
8
8
8
88
8
2
21

Finished
X1
STEP 12
STEP 14
STEP 13
07
KK
I
L
8
3
5
8

Finished
X 2
STEP 15
STEP 17
STEP 16
08
x2 x2
x2
N
NM
O
P
8
4
8
4
4
4
8

Finished
8
8
8
4
8
4
4
4
V
2
2
2
2
2
STEP 18
STEP 20 STEP 21
STEP 19
09
R
U
S
838
88
3
3
3
3
3
T
8
8
Q
8
3
7
6
6
W1
Install part W1 then arrange all cushions inside storage
X2
Y1
Y2
Z1
Z2

Finished
W2
STEP 22
STEP 23
STEP 24
10

11

Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary. Should you choose to use polish, test first
in an inconspicuous area.Using solvents of any kind on your furniture may
damage the finish. Never use water to clean your furniture as it may cause
damage to the finish.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill
gently. Avoid rubbing. Check bolts/screws periodically and tighten them if
necessary.
Please protect your outdoor furniture with a cover when not in use since
Long-term sunlight exposure will result in the damage on the surface. In addition
to sunlight damage, wood and metal frame suffers when exposed to extremes in
temperature and humidity. Proper care and cleaning at home will extend the life
of your purchase Following these important and helpful tips will enhance your
furniture as it ages.
Further advice about wood
furniture care

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
EN
DE
FR
ES
IT
PL
With your inspiring rating, COSTWAY will be more consistent to offer you EASY
SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN
SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu
bieten!
Avec votre évaluation inspirante, COSTWAY continuera à fournir une EXPÉRIENCE
D’ACHAT PRATIQUE, des PRODUITS DE QUALITÉ et un SERVICE EFFICACE !
Con su calificación inspiradora, COSTWAY será más consistente para ofrecerle
EXPERIENCIA DE COMPRA FÁCIL, BUENOS PRODUCTOS y SERVICIO EFICIENTE.
Con la tua valutazione incoraggiante, COSTWAY sarà più coerente per offrirti
ESPERIENZA DI ACQUISTO FACILE, BUONI PRODOTTI e SERVIZIO EFFICIENTE!
Dzięki twojej opinii COSTWAY będzie mógł oferować jeszcze WYGODNIEJSZE
ZAKUPY, LEPSZE PRODUKTY i SPRAWNIEJSZĄ OBSŁUGĘ KLIENTA.
32-Inch Propane Fire Pit Table
NP10618
USER’S MANUAL
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg FR office: Saint Vigor d'Ymonville PL office: Gdańsk

DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• lf odor continues, leave the area immediately.
• After leaving the area, call your professional or fire department.
Failure to follow these instructions could result in fire or explosion,
which could cause property damage, personal injury, or death.
For outdoor use only.
Installation and service must be performed by a qualified installer,
qualified technician, or the gas supplier.
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance. An LP-cylinder not
connected for use shall not be stored in the vicinity of this or any
other appliance.
WARNING
lmproper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to the owner's
information manual provided with this appliance. For assistance or
additional information consult a qualified installer, qualified technician
or the gas supplier.
WARNING
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or
loss of life.
WARNING
WARNING
INSTALLER:
Leave this manual with
the appliance.
CONSUMER:
Retain this manual for
future reference.
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
DANGER
CARBON MONOXIDE HAZARD
Before you assemble or operate this unit, please carefully read this
entire manual. Failure to do so may result in a fire, explosion, injury
or death.
02 03

WARNING
• The installation of this unit must adhere to local codes or Propane
Storage and Handling Code, CSA B149.2.
• THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product
shall be used outdoors, in a ventilated space and shall not be used in
any enclosed area.
• This unit is to be used with propane gas only! (sold separately)
• Do not attach a remote gas supply to this unit.
• Only use propane gas for this unit.
• Solid fuels shall not be burned in this appliance.
• When igniting this unit, stay away from the burner as the flame will
light up and may cause injury.
● LP GAS WARNING: Do not use any more than 1/4in depth lava
rocks/pumice stones/LavaGlass®above the burner holes. Doing so
will suffocate the flame.
● If the propane gas tank is leaking gas, you may hear, see, or smell
a hiss. Do the following:
1. Disconnect the propane gas tank. 2. Do not attempt to fix the
problem yourself. 3. Contact professional or fire department for help.
● Applying too much propane may result in gas pooling and will not
burn. Allow fresh air into the unit so that the remaining gas may
escape.
● Do not use a flame to check for gas leaks.
● Manifold pressure: 11 inches w.c. (2.74kPa).
● Use LP propane tanks with the following dimensions: diameter 12
in, height 18 in - capacity 20 lbs.
● You must use a propane tank that has a collar to protect the gas
valve.
● DO NOT fill tank over 80 percent full.
● The tank system must be set up for vapor withdrawal.
● Discontinue use if any part of the propane tank is damaged. Rust
and dents may be hazardous and should be inspected by a gas
supplier.
● Do not burn anything other than the provided materials for this fire
table.
● Keep away from the unit for the first 20 minutes after igniting your
unit for the first time, as lava rocks/pumice stones/L avaGlass®could
pop out and cause injury. Should any rocks pop out, discard them.
● Always ensure that lava rocks/pumice stones/LavaGlass®are
completely dry before use. Failure to do so will cause them to crack
or pop.
● Do not operate unit until all parts are fully assembled.
● Do not paint or color any part of this heating unit.
● Unit may be hot while in use, do not attempt to move it while in
use.
● Never leave this heating unit unattended while in use.
● This unit is not intended for cooking.
● Keep any flammable items away and do not use any other fireplace
cover for this unit.
● Keep a safe distance to avoid burning skin or clothing.
● Do not sit or rest hands or feet on this heating unit.
● Never place hands or fingers on upper portion of this unit while in
use.
● Keep all electrical cords and fuel supply hose away from heated
surfaces.
● Combustible material should not be within 60 inches of the top of
the unit, or within 48 inches around the entire unit.
● Keep the appliance area clear and free from combustible material,
gasoline and other flammable vapors and liquids.
● If the flame goes out while burning, turn the gas valve off. Wait 5
minutes before repeating the initial lighting procedure. Once you
have a flame started, hold down the control knob for 1 minute.
● Do not add water into the unit.
04 05

● Do not operate unit if any part has been under water. Immediately
call a qualified service technician to inspect the appliance and replace
any part of the control system and any gas control that has been
under water.
• Do not disconnect any part while unit is in use.
• Do not store a spare propane tank on or near this unit.
• If the heating unit is indoors, detach the propane tank and leave
outdoors.
● Do not operate on a boat or vehicle. This unit must be used on a
flat surface and outdoors ONLY.
● Always remove protective cover before operating (if applicable).
● Do not set the protective cover over the unit until it is turned off
and completely cooled down.
• Check for leaks after not using the unit for long periods of time.
• Children should never operate this unit. Children must be
supervised while near this unit.
• Keep gas tank at least 5 feet away from unit when lit. (if external
tank)
• Maximum gas supply: 250 psi; Min. gas supply: 10 psi.
● All installation and repair should be done by a qualified
professional. This unit should be inspected annually and cleaned
regularly.
● Inspect all elements of this heating unit before each use. If there is
damage, the burner must be replaced.
● Keep the hose out from any pathways to eliminate any accidental
damage. (if external tank)
● Be aware of the hazards of high temperatures and stay away from
the unit to avoid any burns or injury.
● The gas supply tank should be constructed and marked with the
specifications for the LP gas tanks of the U.S. Department of
Transportation or the National Standard of Canada CAN/CSA- B339,
LP gas tanks, spheres and tubes for Transportation of Dangerous
Goods.
● The LP gas tank must have a listed overfilling prevention device and
a QCCI or Type I, (CGA791) LP gas tank connection.
● This heating appliance should not be used on plastic or artificial
wood decks.
● Children and adults should be alerted to the hazards of high surface
temperatures and should stay away to avoid burns or clothing
ignition.
● Young children should be carefully supervised when they are in the
area of the appliance.
● Clothing or other flammable materials should not be hung from the
appliance or placed on or near the appliance.
● Any guard or other protective device removed for servicing the
appliance shall be replaced prior to operating the appliance.
● Installation and repair should be done by a qualified service person.
The appliance should be inspected before use and at least annually
by a qualified service person. More frequent cleaning may be required
as necessary. It is imperative that the control compartment, burners
and circulating airways of the appliance are kept clean.
IF APPLICABLE:
● Allow heating item to cool completely before placing on lid.
● DO NOT use heating item while lid is installed. Always remove the
lid while heating item is in use.
Only use the regulator and hose assembly provided with this unit.
Replacement parts must be supplied directly by the manufacturer.
Inspect the burner before use of this unit. If the burner shows any
kind of damage, do not operate the appliance. For assistance with
repair or replacement of the burner or any other parts, please contact
COSTWAY.
NOTE: You must follow all steps to properly assemble this heating
item. Make sure the gas valve is turned “OFF” before assembling.
Do NOT attempt to assemble without proper tools.
06 07

Min. Clearance
48 in. (121.9 cm)
Min. Clearance
60 in. (152.4 cm)
Min. Clearance
48 in. (121.9 cm)
Metal Stand
Control Knob
Glass panel
Protective
Cover
Combustible materials should not be within 60 inches of the
top of the unit, or within 48 inches around the entire unit.
Table Leg
A x1
Table Leg
B x1
Table Leg
C x1
E x2
Table Leg
D x1
Panel
G x1
Panel
H x1
Door
I x1 J x1
Table Lid
K x1
Fire Table
with Burner
L x1
M x1
lava rocks
N x9
Screw(M6*12MM)
O x1
Screwdriver
P x24
M6 Washer
Q x4
Screw(M6*25MM)
R x12
Screw(M6*35MM)
S x1
F x1
08 09

R x12
N x1
P x12
Attach the panels E,E,G to the legs A,B,C,D
using 12 pcs M6x35mm screws (R) and 12
pcs M6 washers (P).
Attach the metal stand (I) to the legs A,B,C,D
using 4 pcs M6x25mm screws (Q) and 4 pcs
M6 washers(P).
Attach the door (H) to the legs A,D
using 1 pc M6x12mm screw (N) .
C
B
E
A
H
G
D
D
E
N x8
P x8
Attach the fire table (K) to the legs A,B,C,D
using 8 pcs M6x12mm screws (N) and 8 pcs
M6 washers(P).
C
B
K
D
Do not lock the screws until the assembly is complete.
1
2 4
3
10 11
I
C
B
A
DQ x4
P x4
A
