Costway EP23889US User manual

USER'S MANUAL
Cordless vacuum cleaner
EP23889US

※ Vacuum Cleaner Components List

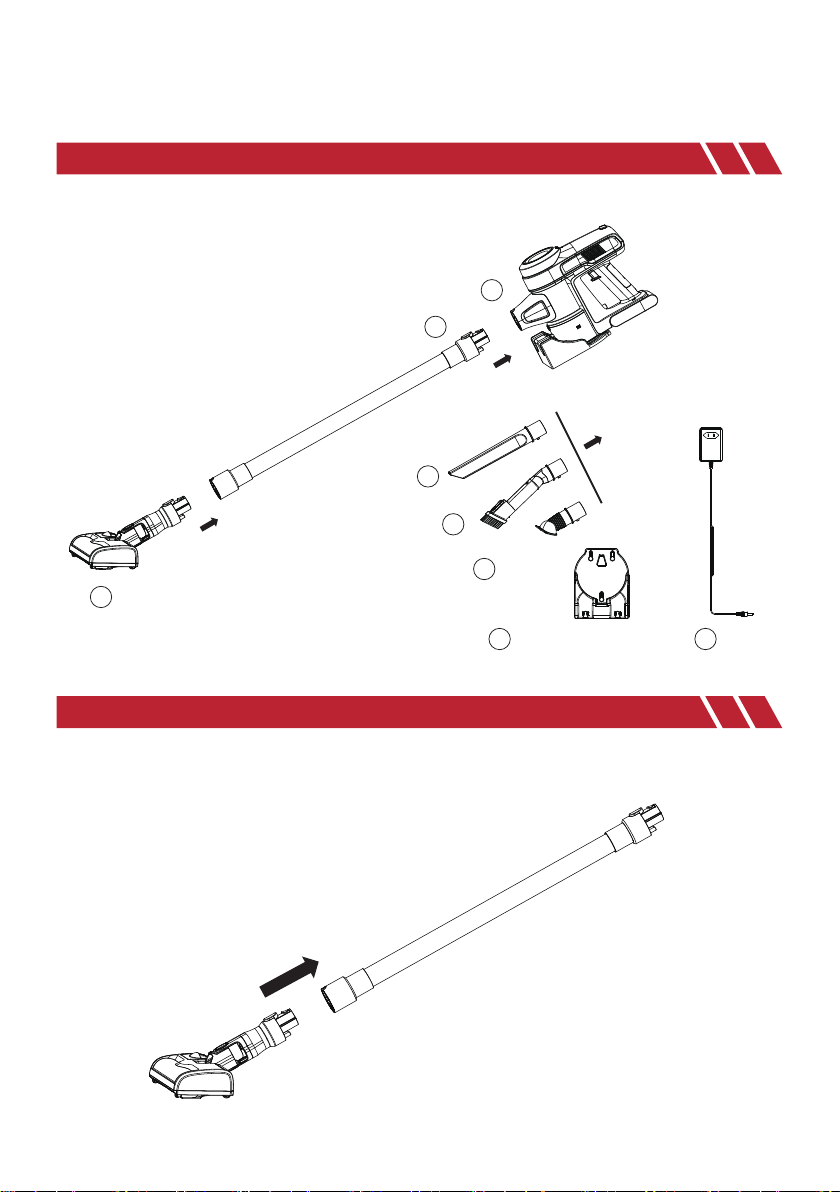

※ Installation before using
1. Attach the Metal Rod to the Motorized Floor Head as below .
1
Installation method of handstick vacuum cleaner
1
2
3
4
5
6
87
Main Unit
Metal Rod
Motorized Floor Head
Long Crevice Tool
2-in-1 Multi Brush
Bed Cleaning Nozzle
Wall-Mounting Base Adaptor

※ Instruction of Battery Charging
2. Connect the Metal Rod to the Main Unit as below.
2
If the blue power indictor keeps flashing, it means battery is short of power.Please
connect the Main Unit to the power supply for charging.
1. Please turn off the Main Unit and place it horizontally.
2. Please insert the adaptor plug to the power socket
3. Please insert the charging connector into the DC jack on the machine
4. Blue LED normally being on,normally charging.
5. Blue LED being off, power is full.
6. Unplug the adaptor from the power socket and disconnect the Main Unit from the
adaptor.

※ How to use as a hand-held vacuum cleaner
3
△Warning：
Please note that DC Jack on the Main Unit can not be wet with water, which will
cause the Main Unit damaged.
Please do not charge or store the machine at temperatures below 32℉ or above
104℉. Otherwise, which will cause the performance reduced.
Plese note that it is normal that the body of the adaptor will be warm during the the
process of charging.
1. Take the accessory of 2-in-1 Multi Brush as an example.Attach the accessory
to the Main Unit as showed.
2. Please keep pressing the trigger for continuous use and releasing
the trigger for stopping working.

※ Instruction of Use together with Main Unit and Motorized Floor Head
4
2. When cleaning the bottom of the table or other narrow areas, avoid getting
stuck in the furniture and damaging the swivel shaft with too much force.
1. The Metal Rod can be flexibly rotated left and right, back and forth during normal
use.

5

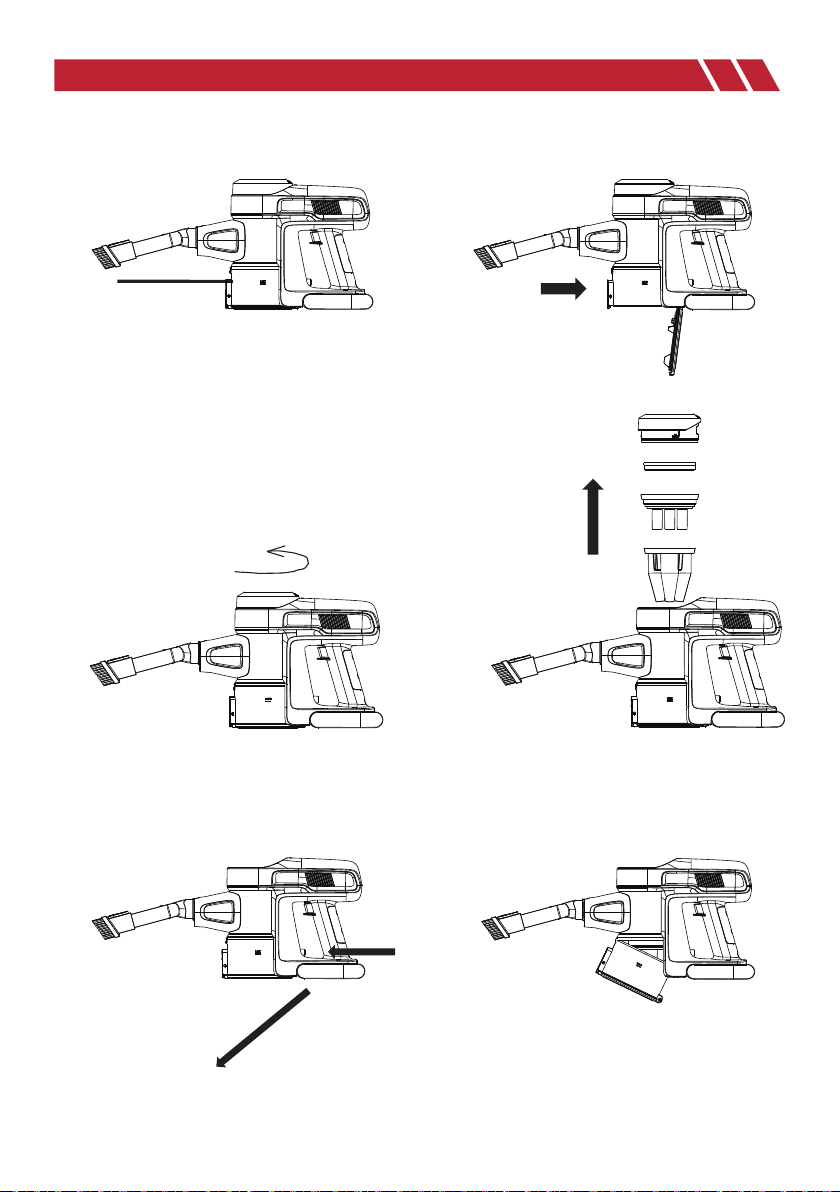

※ Instruction of Use (Dumping and Cleaning dust bin)
Max line Press
1. Please press the button on the dust bin to release the dust.
Counter clockwise rotation Take out the
components
inside the dust bin .
2. Turn the trim cover counterclockwise to the open position,
then vertically take out the filter, the cyclone cover and the
cyclone pipe in proper order as below.
3. Please press the dust bin release button, then remove the dust cup according
to the direction as below.
Press
Push the
bottom part
of the dust bin
Remove the bottom of
the dust bin

6
※ Instruction of Use ( Clean the Brush Bar of the Motorized Floor Head)
4. Please rotate the cyclone cover clockwise and remove it according to the direction
as below.
5. After the components are washed and dried completely, please assemble them
back to the dust bin. Please note that Step 2 to Step 4 do not be required for
every use .
Clean the internal of the cup only if it is heavy dirty inside.
Clockwise rotation
Take out
1. Please press the latch of cover , rotate
the brush bar and take it out of the floor
head.
2. Please clean the brush bar. If the
brush bar is wrapped by hair or
other debris during use, scissors
can be be used to cut the hair or
the other debris.

7

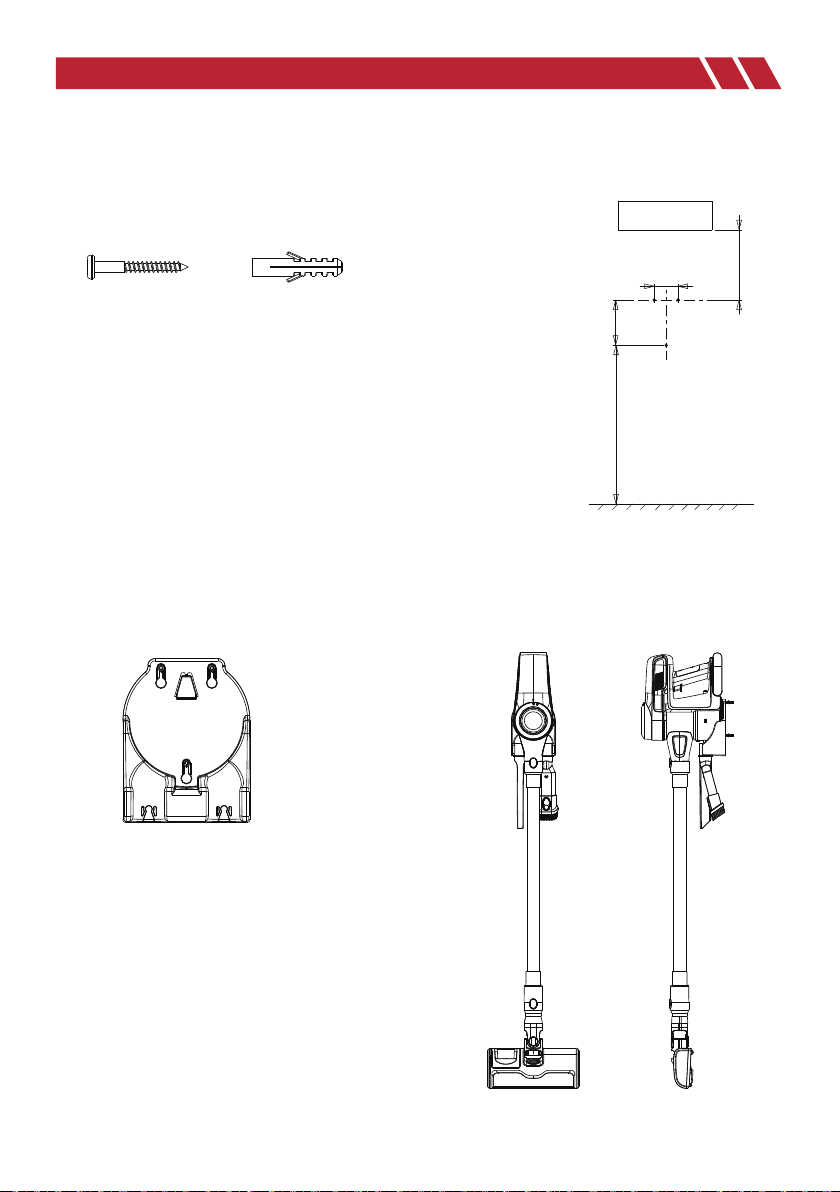

※ Instruction of Use ( Wall-Mounting Base Assembly)
Furniture
floor
1. Screw the bolt into the wall according to the dimension in the diagram (mm).
Screw Expansion Bolt
Screw Options：
4*28 Self-tapping screw only for wood wall;
6*30 Expansion Bolt is needed together with
4*28 self-tapping screw for concrete wall.
2. Please hang the Wall-Mounting
Base to the wall.
3. Hang the Vacuum Cleaner onto
the Wall-Mounting Base.
220.0
1090.0
50.0
94.0

8
※ Instruction of Use (Battery Pack Change)
1. Please press the dust bin release button, then remove the dust cup according
to the direction as below.
2. Twist-off 3 screws on the Main Unit, and then take out the battery Pack .
press
Take out
push the
dust cup
Screw2
Screw3
Take out the
battery
Local
magnification
screw 1

9
Charging power supply
Battery
Power
Charging time
Cumulative working time
Suction
Dust capacity
Clean width
Clean efficiency
Size
Features
Net weight
Input：100-240V AC 50-60Hz,Output：26.2V DC,650mA
Li-Ion 21.6V 6cells 2.0AH
110W
3.0H± 0.5H,appliance is fully charged when blue lights are extinguished.
30±5min
5±0.5KPa
550ml
208mm
99%
260*229*1240mm
Smart control, power shortage protection and Charging full indication
2650g
Specifications
△Warnings:
1.The machine can be only used indoors. Please read the Instruction Manual
carefully before using it.
2.The machine can be used on flat hard floor and thin carpet. Please do not use it on
uneven floor.
3.The machine can be used for particles or dust less than 10mm of diameter.
4.The machine cannot be used for cleaning liquids, organic solvents, construction
wastes or metal wastes.
5.In order to protect the battery with long life time, the machine must be recharged
after more than 30 minutes since the battery is discharged completely.
6.Please keep the machine and all the accessories in a dry and cool place.
7.If the machine is not used for 6 months,discharge the machine firstly and then
recharge it.
8.The motor and the battery can be in the best status after discharging and charging
three times.
9.The battery pack must be removed from the machine before discarding the machine.
10.The appliance must be powered off before taking out the battery pack.
11.The batteries should be disposed of safely.
※Please turn off the machine if you want to clean or maintain the machine.
※Do not wash the Main Unit in the water.
※Please clean the machine with soft wet cloth. Neutral detergent can be used.
※Do not use gasoline, alcohol, lacquer thinner or other strong irritation lotion to clean
the machine.
Troubles Shooting
Before returning the machine, please read the instructions carefully and check the
following points.
Please contact the dealer
Troubles Reasons Solution
The working time is very short after
every full charge Battery life time is over Please contact the dealer to replace the battery
Blue light flashes during operation Power Shortage Please recharge the machine
Red light flashes during discharging Battery failure
