Costway EP24519US User manual

www.costway.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Visit us: www.costway.com
Follow Costway
Please give us a chance to make it right and do better！
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP!
USER’S MANUAL
Vacuum Cleaner
EP24519US

2
www.costway.com
3
www.costway.com
Contact Us!
Do NOT return this item.
Contact our friendly customer service department for help first.
E-mail
US: [e-mail]
UK: [e-mail]
Before You StartBefore You Start
Please read all instructions carefully.
Retain instructions for future reference.
Seperate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.
SAFETY PRECAUTION
1.This appliance can be used by Children aged from 8years and above and above persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
Children without supervision.
2.This appliance is designed for domestic use only.
3.Do not pull on the connection cord, but rather on the plug, to separate the appliance from the
mains.
4.Do not use outdoor.
5.Do not leave the appliance unattended when it is switched on, as this may be a source of
danger.
6.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
7.Following objects are strictly banned, otherwise the vacuum cleaner will be damaged or fire
calamity will be caused, which bring such accidents as human body injuries;
A: Don’t pick up large or sharp broken such as glasses,
B: Don’t pick up harming or erodent liquids(solvent, corrosive, detergent…),
C: Don’t pick up inflammable or explosive substance such as gasoline or alcohol.
8.Check the device and connections regularly for visible damage.
9.Never attempt to open the device or the mains adapter yourself or to replace the connecting
cable. Always have repairs to the device carried out by a specialist workshop. There is consider-
able danger to the user if repairs are faulty.
10.Do not trap the mains adapter cable and when using the adapter, pay attention to where the
cable is to prevent any danger of tripping over it. Keep the cable away from heated surface(eg:
cooker surface).
11.Do not touch the mains adapter and cable with wet hands.
12.Do not point the Vacuum Cleaner at persons or animals when in operation.
13.Only use the mains adapter or dry surface in buildings.
14.Only use the device with the accessories supplied.
15.Please keep these instructions in a safe place. Use only with the provided adaptor.
16.The appliance must only be supplied at safety extra low voltage corresponding to the marking
on the appliance.
17.This appliance includes Li-ion batteries; do not incinerate the batteries or expose to high
temperatures, as they may explode.
18.This appliance is only charged with the adaptor delivered together.

4
www.costway.com
5
www.costway.com

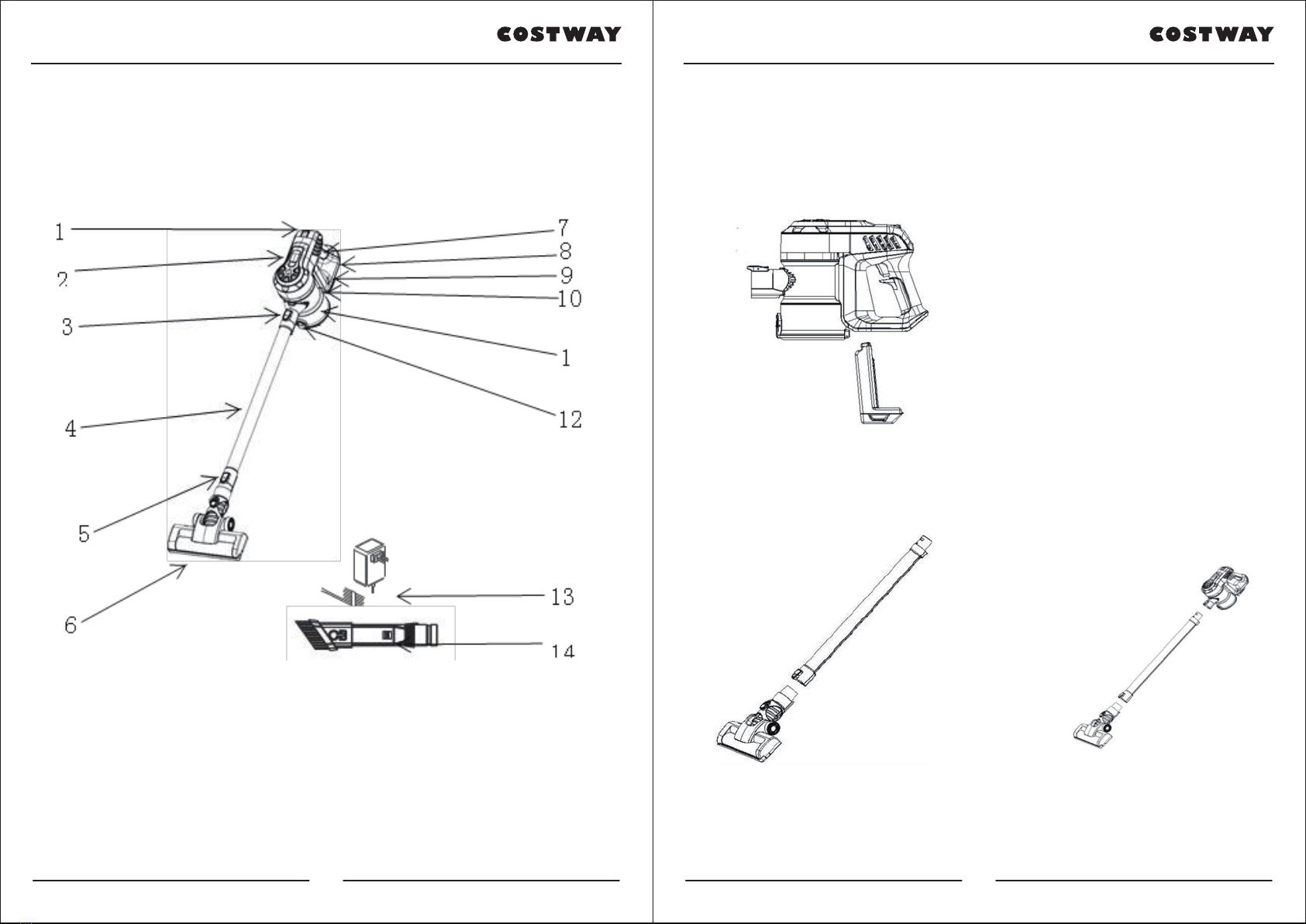

COMPONENTS
1.Outlet plate 10.Li-ion Battery Pack
2.LED Indicator 11.Dust cup
3.Release button of Metal tube 12.Release button to open the dust cup cover
4.Tube set 13.Adaptor
5.Brush Release button 14. 2 IN 1 Accessories
6.Electric brush assembly
7.On/Off switch
8.Main body
9.Release button of battery
COMPONENTS ASSEMBLY
Check that all the parts in the box.(See page…)
Step 1:
Install the battery pack as the below picture, the ”clicking” lock sound proves okay.
Step 2:
Install the electric brush by inserting it
into the tube carefully.
Step 3:
Install the tube with the brush by inserting
it into the Vacuum Suction tube.

6
www.costway.com
7
www.costway.com
Step 4:
Install the 2 IN 1 accessories to the Suction tube or tube of the Vacuum Cleaner as the
below drawings.
Vacuuming floors and carpets
You should regularly check that the nozzle cushions and the brush roller are clean in order to
avoid scratching sensitive floors.
Following step 1 to Step 3 to assemble the whole unit and then start the device by pushing the
on/off button.
Vacuuming tables, furniture, car seats etc.
To clean the tables, furniture, car seats or some cornets, just remove the tube by pressing the
release button. And following step 4 to install the 2 in 1 tools, then press the on/off button to
start the cleaning.
CHARGING
Insert the adaptor into the mains socket(Note: Always make sure that the device is turned off)
and then connect to the device. The indicator light will flash once the device has made contact
with the adaptor.
It takes around 4 hours to fully charge the battery before
the first use, the light will appear “flash” during charging,
and the three grid power will keep lighting(white light) once
the machines are fully charged. In order to ensure that it is
always ready for use, the device should be left on
connection with the adaptor when not being used.
The adaptor may become warm during charging-this is
normal.
P.S: The LED light(three grid power) keeping light means the machines are fully charged, the
light will extinguish one by one when the power is not full gradually; When the voltage is too low,
the machine will become automatic power-off to protect the battery, it means the machines
should be charged.
HOW EMPTYING/CLEANING
1.Remove the accessories from the body by pressing the release button.
2.Press the release button to open
the dust cup cover, drop out the
trash into the dust bin.
3.Detach the dust cup by twisting according to the
direction, clean the cyclone part by toothbrush,
Make sure that the parts are dry before they are
assembled back for next using.
FOR CLEAN OR REPLACE THE HEPA FILTER
4.Detach the dust cup by twisting according to the direction, take out the HEPA filter to wash
it under the flowing water, Dry it in air naturally before next time using(Make sure the HEPA is
dry before next time using).
Or detach the dust cup of the Vacuum Cleaner to replace the HEPA filter.
RE-INSTALL THE COMPONENTS
Firstly re-install the dust cup back to the unit following up the opposite procedures when
detaching the dust cup, then install the HEPA filter, the tube set, brush or 2 in 1 tools for next
time using.

9
Welcome to visit our website and purchase our quality products!
Reward Points
Exclusive Customer Service
Personalized Recommendaons
Permanent Shopping Cart
Order History
We would like to extend our hearelt thanks to
all of our customers for taking me to assemble
this product and giving us valuable feedbacks.
www.costway.com
Your suggestions and comments for COSTWAY are really important to us!
We sincerely solicit you to go back to our shop and leave a good rating in just a
simple click. It would be quite encouraging if you could kindly do so like below:
February 24, 2019
Great products so far. Fast delivery, easy setup, and working without any issues.
Great products so far
With your inspiring rating, COSTWAY will be more consistent to offer you
EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
US office: Fontana, California
UK office: Ipswich
www.costway.com
8
www.costway.com
HOW TO CLEAN THE ROLLER BRUSH
If the roller brush becomes blocked or jammed for any person, the Vacuum will be lower down.
The roller brush may then need to be cleaned. Switch off the device firstly, and then carefully use
a pair of scissors or a sharp knife to remove any items such as the threads that may have become
entangled.
If the roller brush needs to be taken out for cleaning, push slip button on the bottoms of the brush
by finger or a coin, remove slip button as the below picture, take out the roller brush for cleaning,
afterwards, Put the slip button on roller brush and lock it by finger.
Cleaning of wheel axles: If a wheel is jammed by threads or dirt: Remove the wheels by
carefully prizing them loose using a screwdriver inserted into the cavity. Remove threads or
any other objects that may have become jammed in the wheels axles. Reassemble the wheels
by pressing them tightly together.
P.S: There are the two speed control for this machine, the low speed control(standard), and
the high speed control, once the on/off knob is on, the machine will enter into the standard
working mode firstly for the normal cleaning.
Once pressing the on/off knob again during operation, the machine will be switched into the
high speed working mode for the higher Suction to clean the carpet, crevice or the other hard
to clean places,
If pressing the on/off knob for the 3rd time(during operation), it means turn off the machine, ie:
If the machines are on the standard working model, pressing the on/off knob twice
continuously to be off, Pressing the on/off one time to be off when it is on the high speed
working mode.
Basic Technical Data
Battery: Li-ion 22.2V 2500mAh
Adaptor: Input 100-240V, 50/60Hz
Output: 28V 500mA
Charge: 4-5Hours
Operating time: 15-23mins
Vacuum: above 13KPa
