USER'S MANUAL
Vacuum Cleaner
GX10006US

1. Important Safeguards
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTRUE REFERENCE.
1.1 This appliance has been designed for domestic dry vacuum
cleaning only. Do not pick up liquids or use on wet surfaces for
fear of damage to the appliance.
1.2 Never immerse the charger or unit in water to avoid danger.
1.3 Keep the appliance and accessories away from hot
surfaces like hot gas or microwave-oven.
1.4 Do not block the appliance opening or hinder air flow so as
not to affect its heat dissipation effect.
1.5 Do not pick up anything that is flammable, burning or
smoking, like cigarette end, matchstick or ashes with waste
heat.
1.6 The charger has been designed for a special voltage.
Always check that the mains voltage is the same as that stated
on the rating plate.
1.7 Do not use the appliance if the charger or power cord
shows any signs of damage or aging.
1.8 Only use batteries and chargers supplied by manufacture.
Never use any of them provided by other company.
1.9 Ensure the appliance is power off before cleaning, or may
cause accidental electric shock.
1.10 Repairs should be carried out by a service agent in
accordance with relevant safety regulations if battery can not
be charged normally; The battery can not be removed for other
purposes.
/1.11 The battery pack should be carefully and safely disposed
of in accordance with local regulations; Never dispose in the
fire or water as this may increase the risk of explosion or
contamination.
02

1.12 The appliance only can be used by children or persons
with reduced physical capabilities if they have been given
supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
1.13 Misuse or use of any accessory or attachment other than
manufacture’s recommended, may present a risk of personal
injury.
1.14 Do not use the appliance for other purposes.
1.15 Do not use the appliance outdoors.
For Household Use Only
2. Product Display
03

3.Product Assembly
For the convenience of transportation and storage, main unit,
carpet brush, flodable tube, charger stand, small brush, flat
crevice nozzle are packaged separately. Please follow the
steps below for assembling when using the product for the first
time.
flodable tube and carpet brush assembly
To install the carpet brush into the flodable tube, align both of
them to make sure the tab on the carpet brush matches the
guides on the tube,and insert one into the other until they are
firmly fixed.To disassemble them,press the carpet brush
connector release button and pull from the flodable tube while
you hold the carpet brush.
1
2
3
4
5
6
Main Unit
HEPA Filter
Filter Screen Cover
Dust Cup
Flodable Tube
Battery Pack
7
8
9
10
11
Charger
Charger Stand
Small Brush
Flat Crevice Nozzle
Carpet Brush
04

flodable tube and main unit assembly
When the flodable tube and the carpet brush are
assembled,introduce the top end of the flodable tube into the
main unit until it clicks into place.
05

Charger stand assembly
Place the charger stand on the selected wall area. And then
mount the charger stand to the wall with 4 pieces of M4*20
taper screws. The small brush and flat crevice nozzle can also
be hung onto the charger stand when not in use.
Handstick Vacuum Cleaner

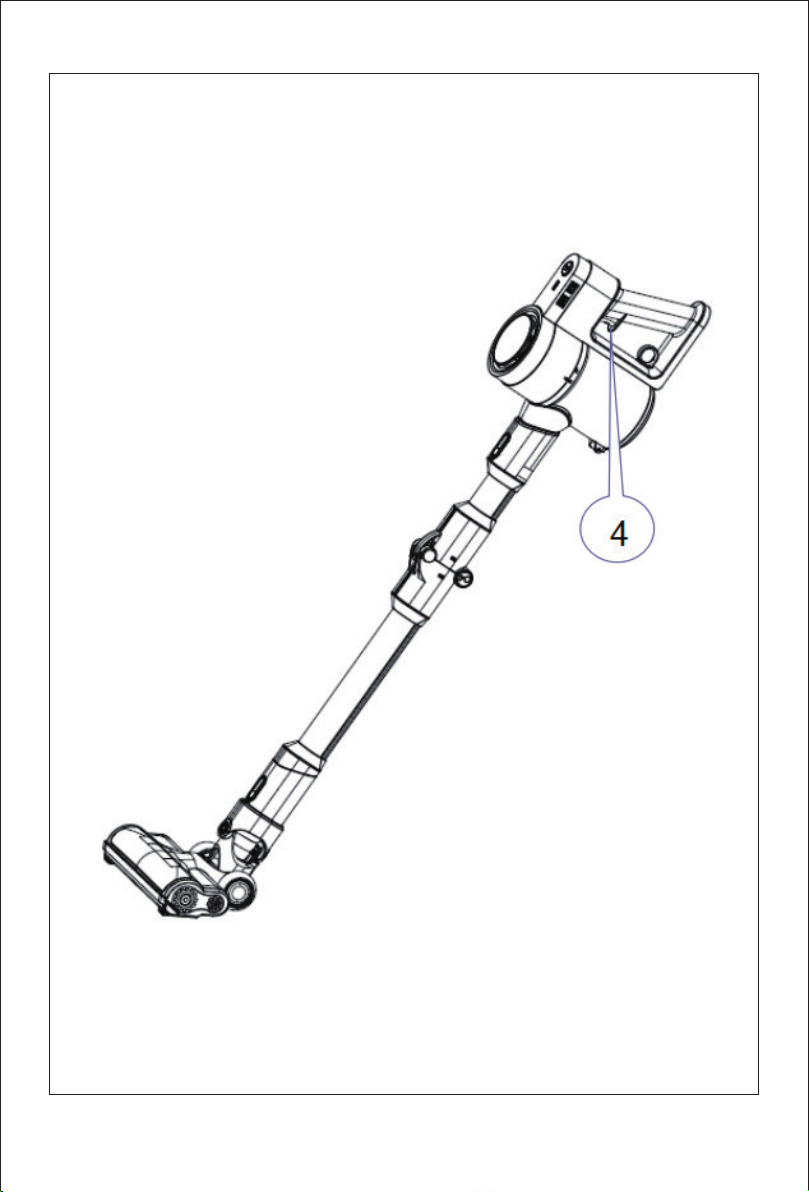

1.Press the On/off button to turn the device on.
06

2.Press the power push button to select the desired power
level:low or high.It will automatically operate in high power
mode.The power level can be adjusted at any moment by
pressing this button.
Note
1.When battery is fully charged,the battery indicator will light
up.
2.When battery is low,the battery indicator will flash.
07

3.Press the On/off button again to turn the device off.
08

Handheld Vacuum Cleaner
Once the main unit has been disassembled from the foldable
tube, the device can be used handheld.
1.Press the connector release button to disassemble the
foldable tube from the main unit.
2.Press the On/off button to turn the device on.
3.Press the power push button to select the desired power
level.It will automatically operate in high power mode.The
power level can be adjusted at any moment by pressing this
button.
4.Press the On/off button again to turn the device off.
09

Accessories
The device includes different accessories that allow cleaning
different types of surfaces,objects and dirt.Some of them are
suitable for the handstick vacuum cleaner and others are
preferably used with the handheld one.
Carpet Brush
Assemble this brush to the handstick vacuum cleaner. This
brush can be used to clean carpet. And this brush can be used
on both handheld part and overall unit.
Small Brush For Furniture
This accessory is used with the handheld or handstick vacuum
cleaner and allows cleaning furniture without damaging it and
reaching less accessible dirt in corners.
10

Accessory For Corners
This accessory has been specifically designed for cleaning
corners, crevices, floor base, ledges etc.
11

Foldable Tube
Press the release key to bend the aluminum tube.
4. Battery Charging
It is important to charge it when the battery is low.While
charging,the battery indicator will flash blue.The charging time
is 3.5-5.5 hours approx.
1. When hung from the wall bracket,connect the cord to the
power supply and allow the device to charge.
2. Disconnect it from the charger when the battery indicator is
lit up in green.
12

5. Cleaning & Maintenance
1.Do not use abrasive scouring pads,powders or cleaners to
clean the product.
2.Use a soft, damp and clean cloth to clean the product’s outer
housing.
3.Do not let water enter into the vacuum cleaner.
4.Keep the appliance in a cool,dry place and out of reach from
children.
5.Do not immerse the device in water and do not clean any of
its parts in the dishwasher.

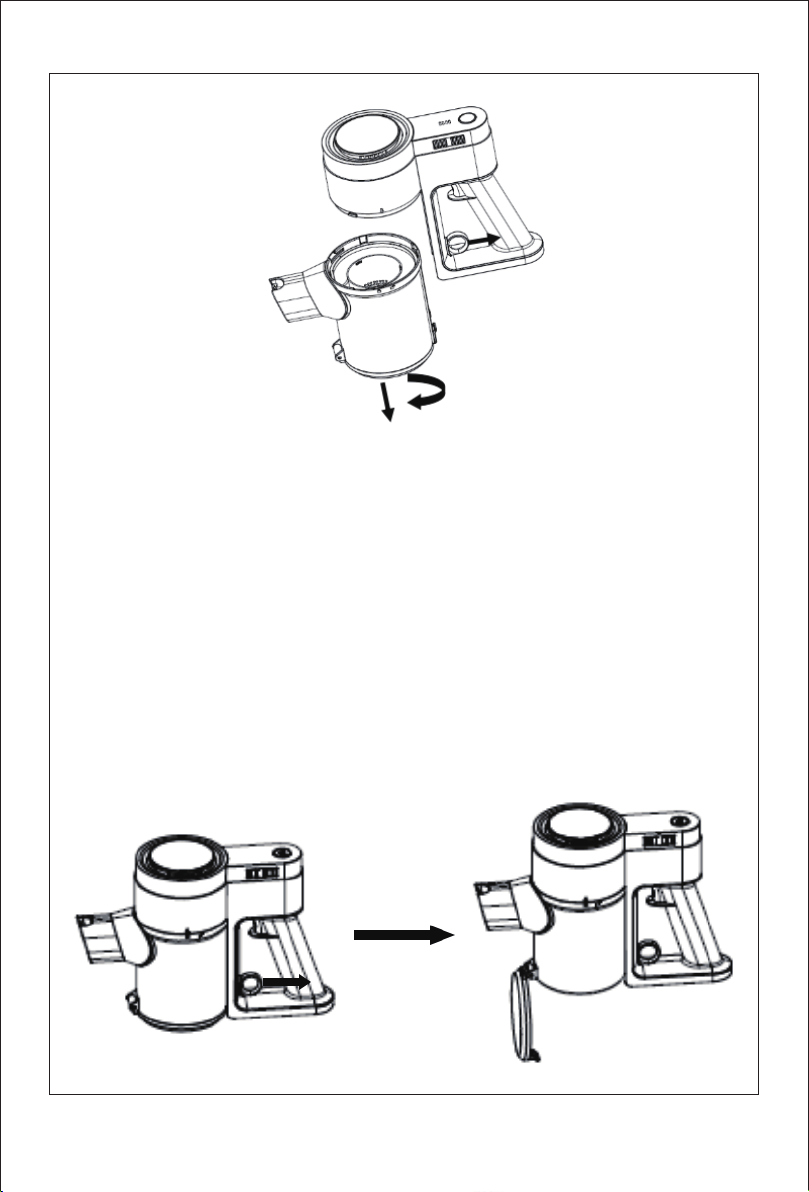

Dust Cup
1.To empty the dust cup,first disassemble the main unit from
the rest of the unit.To do so,pull the dust cup release button in
the direction as shown below and separate the dust cup from
the main unit.
13

Open the cover and empty it.If necessary,shake it gently to
remove all the dust.To clean it,use water or soap if necessary
to remove dust.
2.The one touch easy-clean dust cup of the vacuum cleaner is
fast, convenient and hygienic.(dust disposal: Hold the vacuum
cleaner above a dust bin. Pull the dust release ring with a
finger so that the dust cup cover pivots down and the dust
inside the dust cup will fall out into the dust bin.)
14

Recommendation: It is suggested to clean the dust cup after
each use.
Filters
It is suggested to clean the filters regularly to ensure maximum
efficiency.They can be cleaned with warm water.Dry them
thoroughly before installing them back in the device.

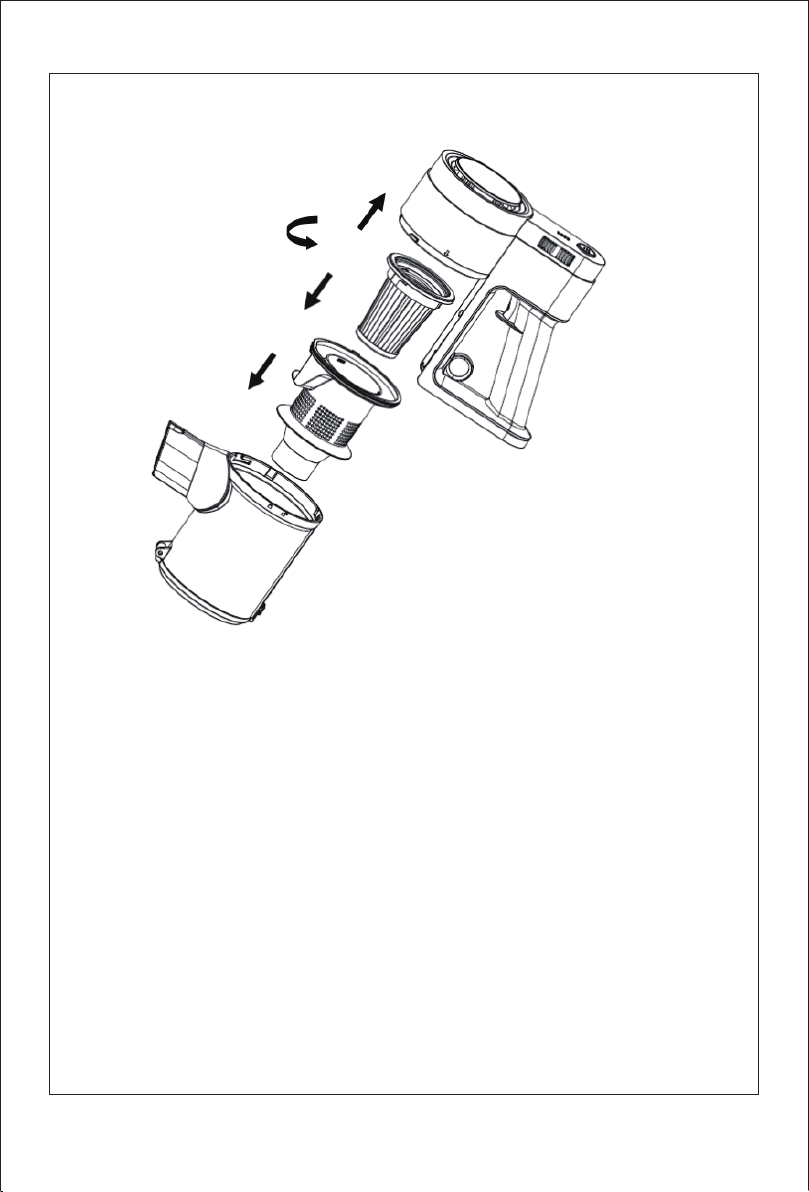

To take filters out:
1.Open the dust cup following the instructions on the before
section.
2.Pull from the tab located on the top of the handheld vacuum
cleaner and remove the HEPA filter.
3.Wash all of them with warm water.
4.Allow them to dry completely before installing and using them
again.
15

5.Reassemble all the components back in their place.
Carpet Brush
Recommendation: It is important to clean the brush regularly
to avoid hair and other foreign objects from tangling and to
prevent blockages.
1.Press the brush release button on the bottom part of the
suction base and remove the brush.
2.Wash it with lukewarm water,do not use detergents or soap.
3.Make sure it is completely dry before installing it back to the
device.
4.To remove tangles hair, use a razor to cut the hair then pull it
off, and re-insert the groove back into the carpet brush.
16

6.Technical Specification
ENVIRONMENT-FRIENDLY DISPOSAL
You can help protect the environment!
Please remember to respect the local
regulations:
Hand in the non-working electrical
equipment to an appropriate waste disposal
centre.
Product Model
Working Voltage
Rated Power
JOD-S-270050A1
/HCX1501-2700500U
Charging Period
Electrical Brush Rated
Power
GX10006US
DC 21.6V
110W
Battery Charger Output
Battery Charger Input 100-240V/50/60Hz
27V/500mA
15W
3.5－5.5 h
Battery Charger Model
17
