USER MANUAL
HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120

1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 |F: 480.966.6728 |E: [email protected] |www.covid.com
USER MANUAL
HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120
Page 1
Contents
Introduction............................................................................................................................. 2
Package Contents .................................................................................................................... 2
Features ................................................................................................................................. 2
Panel Description..................................................................................................................3-4

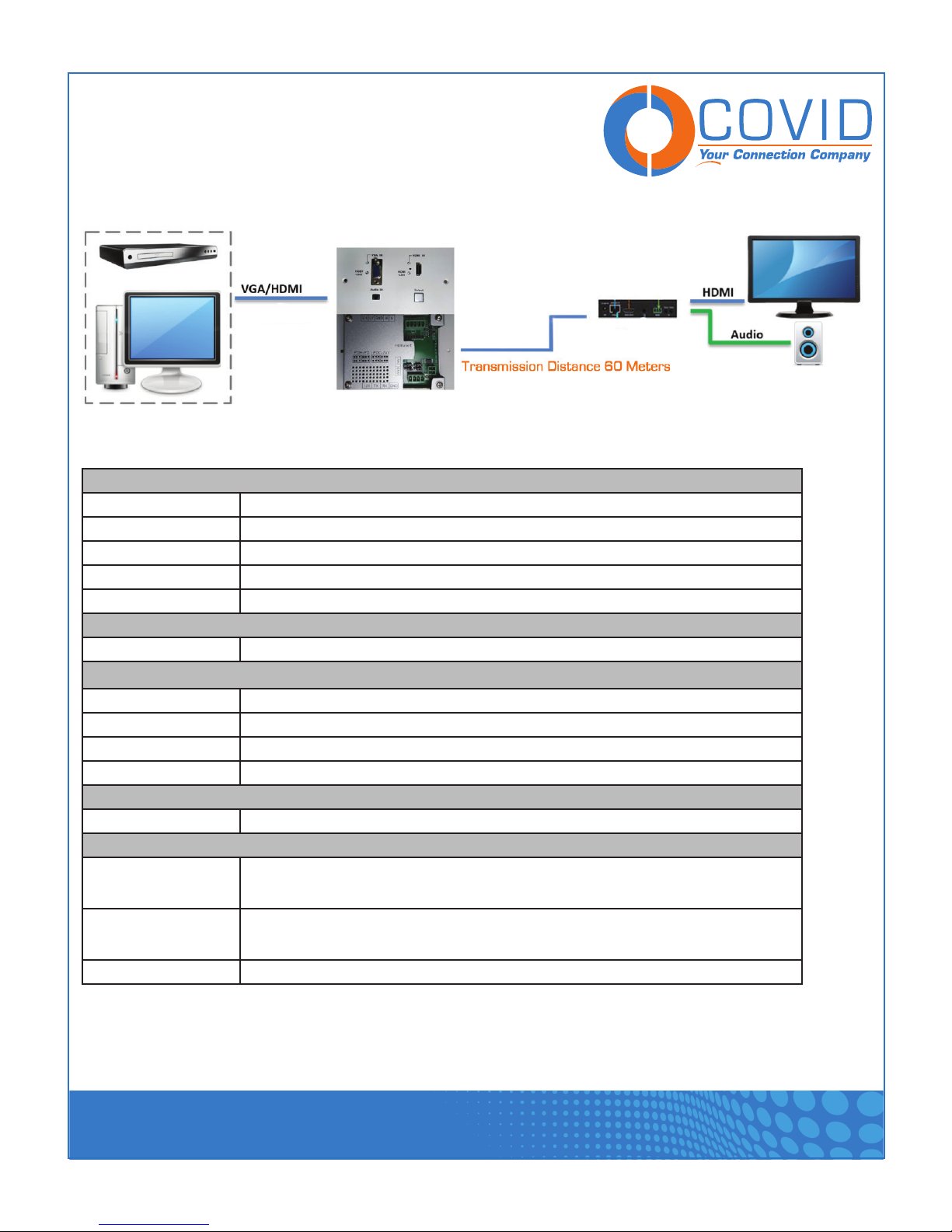

Connection and Installation ....................................................................................................... 5

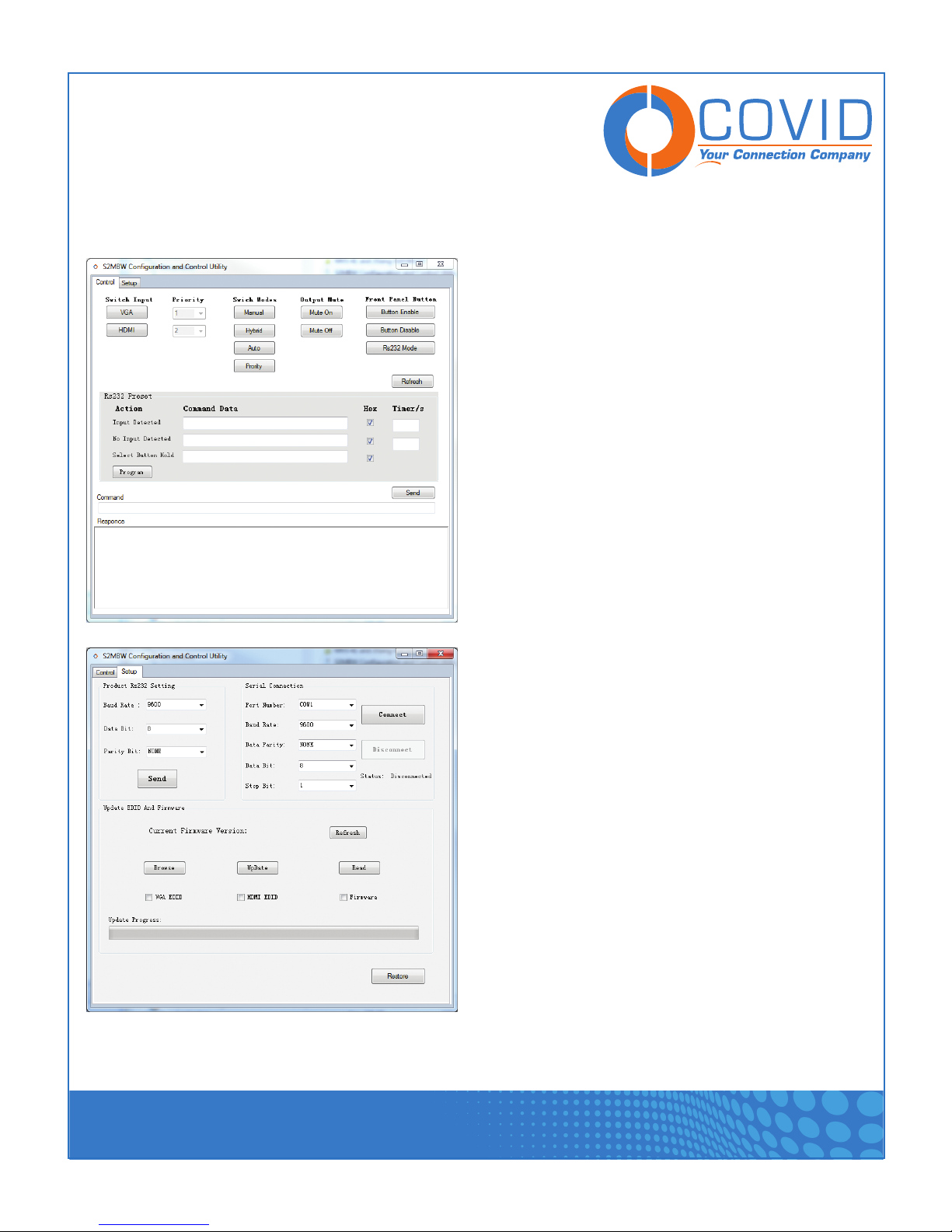

Configuration Control Software.................................................................................................. 6
Switching Modes ..................................................................................................................... 7
Select Button Functions............................................................................................................ 8
Power Options......................................................................................................................... 9
Closed Contact & Talley Diagram ............................................................................................. 10
RS232 Command Table .......................................................................................................... 11
EDID Settings...................................................................................................................12-13
Safety Information.................................................................................................................. 14
Warranty .............................................................................................................................. 14
Return and RMA Policies ........................................................................................................ 14

1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 |F: 480.966.6728 |E: [email protected] |www.covid.com
USER MANUAL
HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120
Page 2
Introduction
The S2MBW-120 is a multi-format HDBase-t switcher in a 2 gang wall plate format. The S2MBW-120 has
one HDMI, one VGA with audio inputs, and a single HDBase-T output. The ability to switch between HDMI and
VGA make this a good fit as a small extender solution or as a headend to a larger matrix solution. It sup-
ports multiple switching modes to fit any need, and has a built-in audio embedder so that you can send your
analog stereo audio with your VGA signal across the HDBase-T link. The S2MBW-120 is able to be remotely
controlled thru RS232 commands and/or contact closure to provide for remote control needs. The unit also
supports Talley feedback for remote mounting and integration into control panels.
Package Contents
•2×S2MBW-120
•1×24V DC power adapter
•1×User manual
Features
•Transmit VGA or HDMI up to 1080p@60Hz over one Cat 5e/6 cable;
•Supports Resolutions up to 4K@30Hz
•HDCP Compliant;
•Internal or live EDID Modes for each Input port;
•Embedded Analog audio for the VGA input;
•Support for RS232 commands sent from HDBase-T receiver or local connection;
•Support for Simple Rs232 Room Control;
•Support for button/contact closure Control;
•Manual, Auto switching modes;
•Status LED for all connections on front;
•Remotely or Locally Powered; (Support for POH-PD and POC)
•US 2 GANG and European standard available.

1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 |F: 480.966.6728 |E: [email protected] |www.covid.com
USER MANUAL
HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120
Page 3

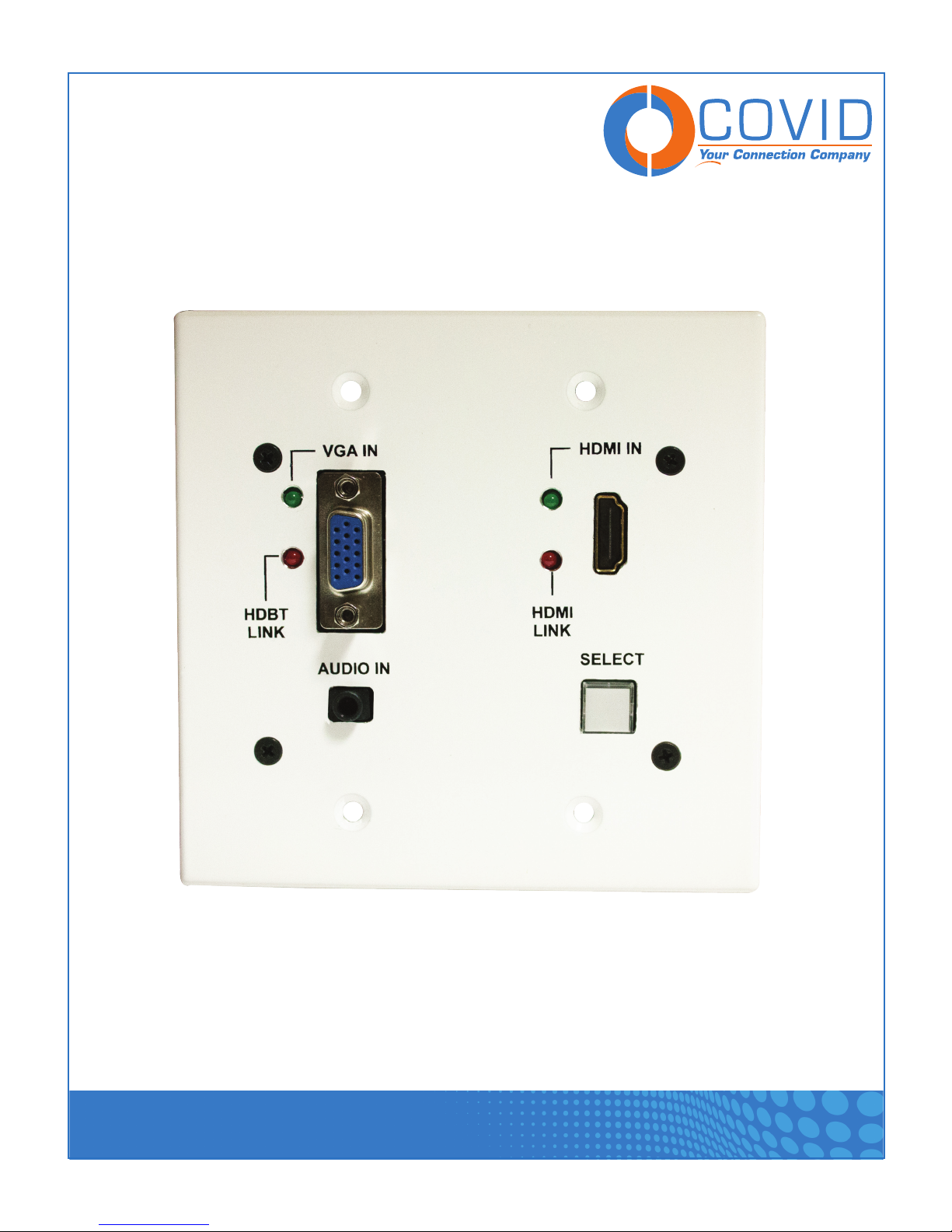

Panel Description
1. VGA IN LED - VGA input signal LED, LED will flicker when signal is present but not active, when signal is
active LED will be solid.
HDBT-Link LED - Light will be solid when connection to Rx is successful.
2. HDMI IN LED - HDMI input signal LED, LED flickers when signal is present but not active, LED is solid when
signal is active
HDMI-Link LED - Light will be solid when a complete HDMI path is present from source to display
3. VGA Signal input interface - Input for VGA sources

1723 W. 4th Street Tempe Arizona 85281
P: 800.638.6104 |F: 480.966.6728 |E: [email protected] |www.covid.com
USER MANUAL
4. HDMI Signal input interface - Input for HDMI sources
5. Audio IN - Input for audio that is embedded onto VGA input
6. Select button - Signal switching selection button
7. Switching Contacts - Signal switching contact and status LED contacts
8. 7PIN header - Used for system updates
9. Power selection pin headers - Sets the way the S2MBW-120 handles remote power
10. Power interface - DC/24V input voltage range DC20-28V
11. RS232 interface - RS232 Control instruction
12. HDBT interface - HDBT output port.
HDMI & VGA SWITCHER/HDBT EXTENDER - S2MBW-120
Page 4
