CPI 3180 Series User manual

4096-668
October 01, 2020
ASSEMBLY MANUAL
Revision D
Assembly Instruction for
Series 3180 1.8M Ka-Band Antenna
SATCOM & Antenna Technologies, Inc.
1700 Cable Drive NE
Conover, NC 28613 USA
t [phone]
f [phone]
www.cpii.com

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
1.8M Ka-BAND Rx/Tx
SERIES 3180 ANTENNA SYSTEM
D
Updated to CPI format.
10/01/20
R.F.
C
Add Conover Address
6/1/16
RAH
B
Revised and updated.
03/22/12
R.F.
A
Revised Company Name and Logo
6/1/09
RAH
-
ORIGINAL RELEASE
8/25/04
REV.
DESCRIPTION
DATE
APPROVED

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
TABLE OF CONTENTS
SECTION TITLE
I GENERAL INFORMATION
1.0 Introduction
1.1 Unpacking And Inspection
1.2 Freight Damage
1.3 Missing Or Damaged Material
1.4 Suggested Tool List
1.5 Mechanical Alignment Tools
1.6 Site Selection
1.7 Suggested Mast & Foundation
II ANTENNA SYSTEM
2.0 Antenna Assembly
III FEED AND FEED SUPPORT
3.0 Feed And Feed Support Assembly
IV ANTENNA POINTING
4.0 Alignment To Satellite
4.1 Initial Alignment
4.2 Fine Tuning
V MAINTENANCE
5.0 Maintenance Overview
5.1 Periodic Inspection
5.2 Reflector
5.3 Mount And Reflector Support
5.4 Feed System

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
SECTION I GENERAL INFORMATION
1.0 INTRODUCTION
This manual describes the assembly and installation of CPI’s 1.8M antenna system with Az/El mount. The
CPI 1.8M is a rugged, reliable antenna system, which will operate with high efficiency and at the same time
successfully withstand the effects of the environment. The basic 1.8M antenna consists of an offset reflector,
reflector support, feed support structure and Az/El positioner.
These instructions are listed by sections that cover all areas of assembly and installation. Additional sections
are included in the manual to provide information on antenna alignment to the satellite and maintenance.
1.1 UNPACKING AND INSPECTION
The antenna containers should be unpacked and inspected at the earliest date to ensure that all material has
been received and is in good condition.
1.2 FRIEGHT DAMAGE
Any damage to materials while in transit should be immediately directed to the freight carrier. He will
instruct you on matters regarding any freight damage claims.
1.3 MATERIAL - MISSING OR DAMAGED
Any questions regarding missing or damaged materials that is not due to the freight carrier should be directed
to CPI’s Customer Service Department at:
CPI Satcom & Antenna Technologies
1700 Cable Drive NE
CONOVER NC 28613 USA
Phone [phone]
www.cpii.com

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
1.4 SUGGESTED TOOL LIST
The following tools are suggested for the antenna installation.
HARDWARE SIZE
SAE WRENCH SIZE
METRIC WRENCH
SIZE
MAXIMUM REC.
TORQUE
1/4" BOLT
7/16"
11mm
6.5 ft-lbs
5/16" BOLT
1/2"
13 mm
12 ft-lbs
1/2" BOLT
3/4"
20 mm
45 ft-lbs
3/4" BOLT
1-1/8”
29 mm
145 ft-lbs
NOTE: The Minimum Torque applied should not be less than 10% of maximum recommended torque.
1.5 MECHANICAL ALIGNMENT TOOLS
The following tools are suggested for the initial alignment to the satellite.
1) COMPASS
2) INCLINOMETER
3) 10" CRESCENT WRENCH
4) SCREWDRIVER, STANDARD BLADE
1.6 SITE SELECTION
In order to achieve maximum performance of your antenna system, it is important to select the correct
location for the antenna. The following guidelines should be observed when selecting a site for the instal-
lation.
1. The line of site to the satellite should be clear of any obstructions, such as trees or buildings.
2. The site should be relatively flat and level for ease of installation and access to the antenna.
3. The site should be checked for underground obstruction, such as buried cables or pipes.
4. All local building codes should be adhered to (i.e. grounding, foundation requirements, zoning
rules, setbacks, etc.).

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
1.7 SUGGESTED MAST & FOUNDATION
The required interface from the foundation to the mount is 5” schedule 80 pipe
(5.56”O.D.). A suggested in-ground foundation is shown in Figure 1.
FIGURE 1.
NOTES:
1. 2 x 2 x 1/4 HRS Angle and schedule 80 pipe should conform with ASTM A36 structural steel.
2. All concrete should conform to building code standards and have a minimum compressive strength of 3000
PSI at 28 days. (Per ACI-318-77)
3. Soil bearing capacity should be no less than 2000 PSF.
4. Concrete should be poured against undisturbed soil.
5. Allow concrete 24 hours set time before installation of antenna.
6. The antenna should be properly grounded to meet applicable local codes.
7. Minimum depth as shown or extend to local frost line.
(CPI DOES NOT REPRESENT OR WARRANT THAT ANY PARTICULAR DESIGN OR SIZE OF
FOUNDATION IS APPROPRIATE FOR ANY LOCALITY OR EARTH STATION INSTALLATION.)
A
5” SCH 80 PIPE
(5.56” O.D.)
24.0”
2-5
TYP 2
52.0”
72.0”
See Note #7
A
12.0”
SECTION A-A
2” x 2” x 1 / 4” HRS Angle
12” Long (TYP 2 PLACES)
30.5 cm Long (TYP 2
PLACES)

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
SECTION II ANTENNA ASSEMBLY
PARTS LIST - 1.8M ANTENNA PARTS LIST
ITEM
PART NO.
DESCRIPTION
QTY
1
VARIES
1.8M REFLECTOR
1
2
0490-814
REFLECTOR SUPPORT
1
3
0185-358
ASSEMBLY, 1.8M Az/El
1
4
0185-357
ASSEMBLY, 1.8M ELEVATION ADJ. ROD
1
5
0211-918
BRACKET, TAILPIECE SUPPORT
1
6
0162-193
SLEEVE, ELEVATION PIVOT
1
7
8043-048
BOLT, ½-13 X 6.00 CARRIAGE
4
8
8033-014
BOLT, ½-13 X 1.75 HEX
1
9
8201-030
½” FLATWASHER
6
10
8202-043
½” LOCKWASER
5
11
8104-007
½” HEX NUT
5
12
8035-012
BOLT, ¾-10 X 1.50 HEX
2
13
8035-016
BOLT, ¾-10 X 2.00 HEX
2
14
8201-047
¾” FLATWASER
4
15
8202-045
¾” LOCKWASER
4
16
8031-044
BOLT, 5/16-18 X 5.50 HEX
2
17
8201-041
5/16” FLATWASHER
4
18
8202-041
5/16” LOCKWASER
2
19
8101-009
NUT, 5/16 HEX
2
CAUTION: During the assembly procedure, the sequence of instructions must be followed. DO NOT
TIGHTEN ANY HARDWARE UNTIL INSTRUCTED.

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
2.0 ANTENNA ASSEMBLY
Follow the steps below in the order shown to assemble the antenna. Because of the weight and
size of some of the antenna components, a minimum two person crew is recommended. Do not
tighten any hardware until instructed to do so.
Installing the AZ/EL assembly onto the mast pipe
1. Use a ½-inch open-end wrench to loosen the eight canister set screws until they are flush with
the inside wall of the canister.
2. Lift the AZ/EL assembly (Item #3) and slide the canister over the top of the mast pipe.
3. Rotate the AZ/EL assembly until the reflector side is oriented in the general direction of the
satellite as shown.
4. Snug the eight canister set screws enough to prevent the assembly from rotating. Do not
tighten until instructed to do so later in the assembly.
Toward
Satellite
1/2-Inch Set Screws
Typical 8 Places
AZ/El Assembly
(Item #3)
Mast Pipe
Canister

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
Installing the reflector support
1. Lift the reflector support (Item #2) and position the two mounting plates onto the AZ/El
assembly. Look for the elevation mounting bracket and ensure that it is rotated to the top of
the reflector support.
2. Install a ¾-10 x 2.00-Inch bolt with flat washer and lock washer (Items #13, 14, 15) on each
side of the reflector support.
Elevation
Bracket
Elevation
Bracket
3/4-inch Hardware
2 Places
(Items #13, 14, 15)
Reflector Support
(Item #2)
AZ/EL
Assembly

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
3. Attach the elevation adjustment rod (Item #4) to the elevation mounting bracket of the
reflector support with the elevation pivot sleeve, ½-13 x 1.75-inch bolt, two flat washers, and
hex nut (Items #6, 8, 9, 10, 11).
4. Raise the reflector support until the elevation adjustment block is aligned between the
mounting plates at the back of the AZ/El assembly.
5. Install a ¾-10 x 1.50-inch bolt, flat washer, and lock washer (Items #12, 14, 15) from each
side of the assembly.
1/2-inch Hardware and
Pivot Sleeve
(Items #6, 8, 9, 10, 11)
Elevation Adjustment
Rod Assembly
(Item #4)
Elevation
Adjustment
Block
3/4-inch Hardware
2 Places
(Items #12, 14, 15)

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
6. Attach the tailpiece support bracket (Item #5) to the reflector support by using (2) 5/16 x
5.50-inch bolts, (4) 5/16-inch flat washers, (2) 5/16-inch lock washers and (2) 5/16-inch hex
nuts (Items #16, 17, 18, 19).
7. Snug but do not tighten the two 5/16-inch bolts that attach the tailpiece support bracket to the
reflector support until after feed support installation (Section III).
Reflector Support
Tailpiece Support
Bracket
(Item #5)
5/16-Inch Hardware
2 Places
(Items #16, 17, 18, 19)
Reflector Support
Tailpiece Support
Bracket
(Item #5)

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA

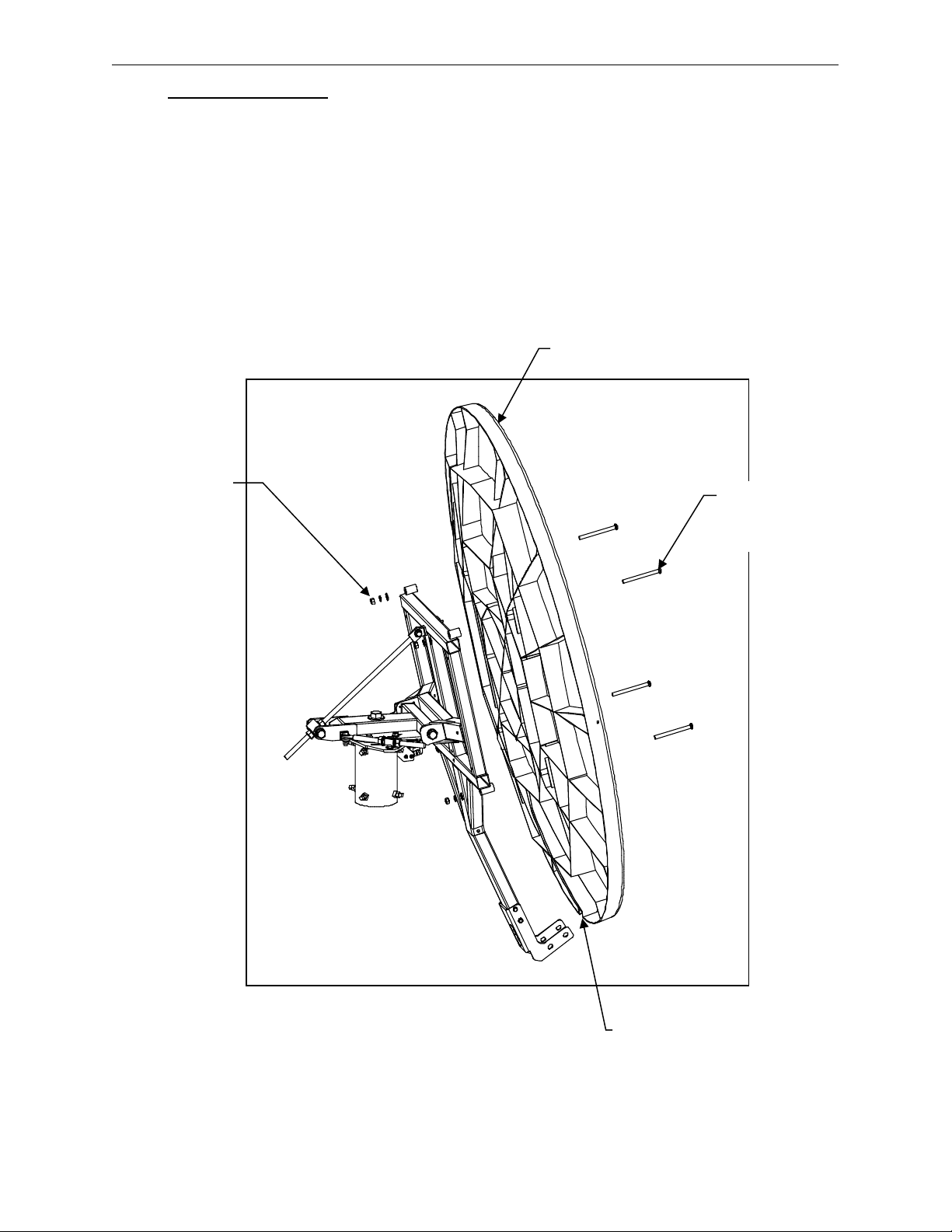

Attaching the reflector
1. Orient the reflector (Item #1) so that the feed support pocket is at the bottom.
2. Lift the reflector and position onto the reflector support.
3. Attach by inserting a 1/2-13 x 6.00-inch carriage bolt (Item #7) through each of the four holes
in the reflector from the front to the back and through the mounting holes of the reflector
support.
4. Secure with a flat washer, lock washer, and hex nut (Items #9, 10, 11) on each of the four
carriage bolts.
5. Tighten securely.
Reflector (Item #1)
Flat Washer, Lock
Washer and Nut
4 Places
(Item #9, 10, 11)
1/2-Inch Carriage Bolt
4 Places
(Item #7)
Feed Support
Pocket at Bottom

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
SECTION III FEED AND FEED SUPPORT ASSEMBLY
These instructions are intended as a general reference for feed and feed support assembly. If
your antenna system has specific feed or feed support installation instructions, please refer to
them at this time.
PARTS LIST - 1.8M FEED SYSTEM PARTS LIST
ITEM
PART NO.
DESCRIPTION
QTY
1
VARIES
ASSEMBLY, KA-BAND FEED
1
2
VARIES
FEED SUPPORT
1
3
0176-304
FEED ROD
2
4
8031-044
BOLT, 5/16-18 X 5.50 HEX
2
5
8031-008
BOLT, 5/16-18 X 1.00 HEX
5
6
8031-024
BOLT, 5/16-18 X 3.25 HEX
1
7
8201-041
5/16“ FLATWASHER
16
8
8202-041
5/16” LOCKWASER
8
9
8101-009
5/16” HEX NUT
8

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
Attaching the feed support
1. Place the feed support (Item #2) between the mounting ears of the tailpiece and into the
pocket at the bottom of the reflector.
2. Insert a 5/16-18 x 1.00-inch bolt and flat washer (Items #5, 7) through the hole in the feed
support and the hole in the top of the pocket of the reflector and secure with a flat washer,
lock washer and hex nut (Items #7, 8, 9) on the back of the reflector. Do not tighten.
3. With the feed support attached to the reflector, install a 5/16-18 x 5.50-inch bolt and flat
washer (Item #4, 7) through the two holes in the tailpiece and feed support and secure with a
flat washer, lock washer and hex nut (Items #7, 8, 9) on each bolt. Do not tighten.
BACK VIEW
Reflector
Feed Support
Pocket
Feed Support
(Item #2)
5/16-18 x 5.50” Bolt and
Flat Washer
2 Places (Items #4, 7)
Tailpiece Support
Bracket
5/16-18 x 1.00” Bolt
and Flat Washer
2 Places
(Items #5, 7)
5/16” Bolt, Flat Washer,
and Hex Nut
2 Places
(Items #7, 8, 9)
5/16” Bolt, Flat Washer,
and Hex Nut
2 Places
(Items #7, 8 , 9)

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
4. Attach a feed rod to the mounting hole in the side of the reflector with a 5/16-18 x 1.00-inch
bolt and flat washer (Items #5, 7) and secure with a flat washer, lock washer, and hex nut
(Items #7, 8, 9) on the back side of the reflector.
5. Repeat with the remaining feed rod on the opposite side of the reflector.
6. Raise the two feed rods and attach to the feed support with a 5/16-18 x 3.25-inch bolt and flat
washer (Items #6, 7) through one feed rod, through the hole in the feed support and through
the other feed rod and secure with flat washer, lock washer and hex nut (Items #7, 8, 9).
Feed Rod
2 Places
Reflector
5/16-18 x 2.75-
Inch
Hardware
5/16-18 x 1.00-Inch
Hardware Each Side

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
7. Tighten securely the three 5/16-inch bolts used to attach the feed system to the reflector and
the 5/16-inch bolt used to attach the feed rods to the feed support at this time.
8. Tighten securely the two 5/16” bolts attaching the tailpiece to the feed support and the two
5/16” bolts attaching the tailpiece to the reflector support at this time.
Attaching the feed assembly
1. Attach feed assembly with its’ mounting bracket to the end of the feed support with a 5/16 x
1.00” bolt and flat washer (Items #5, 7) in each of the mounting bracket holes aligning them
with the two holes in the end of the feed support.
2. Secure with a flat washer, lock washer, and hex nut (Items #7, 8, 9) on the bottom of the feed
support. Tighten securely.
3. Note: Depending on the configuration of your feed assembly, it may vary in physical
appearance from the illustration below. The mounting bracket will correctly position the feed
on the feed support using the two mounting holes.
Feed Support
Feed Assembly
W/Mounting Bracket
(Item #1)
5/16” Flat Washer, Lock Washer,
and Hex Nut
2 Places
(Items #7, 8, 9)
5/16” Bolt and Flat Washer
2 Places
(Items #5, 7)

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
SECTION IV ANTENNA POINTING
4.0 Alignment To Satellite
CPI’s 1.8 meter Az/El mount requires that the antenna be aligned to the satellite orbital arc
initially by a trained installer.
4.1 Initial Alignment
The 1.8 meter offset reflector contains a 17.35oelevation offset look angle. Therefore,
when the reflector aperture is perpendicular to the ground, the antenna is actually looking
17.35° in elevation.
1) Aligning to satellite: Attach an inclinometer to the reflector support structure as
shown in figure 4.1. Add 17.35° to the reading on the inclinometer to accommodate
the reflector’s offset angle.
2) Raise or lower the antenna to find the desired elevation by turning the 3/4" nuts
located at the elevation block. Position the top nut so that it will not interfere with
adjustment. Turn the bottom nut clockwise to increase elevation and counter
clockwise to decrease elevation.
3) After the correct elevation angle is set, rotate the antenna in azimuth by loosening
the canister and turning the entire assembly on the mast pipe. Rotate azimuth until
a signal is reached.
4.2 Fine Tuning
Peak the antenna signal by fine adjustments made in both azimuth and elevation.
Securely tighten the eight canister set screws.
Use the bottom hex nut of the elevation adjustment rod to slowly raise and lower the antenna until
maximum signal is achieved.
Next, use the azimuth adjustment rod hex nuts to adjust left and right until maximum signal is
achieved.
Repeat steps #2 and #3 until maximum signal is achieved.
Securely tighten all hardware used for adjustment.

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
FIGURE 4.1
Inclinometer

4096-668
CPI Satcom & Antenna Technologies 1.8M Ka-BAND Rx/Tx ANTENNA
SECTION V MAINTENANCE
5.0 Maintenance Overview
After installation, the antenna requires only periodic inspection. It is anticipated that
maintenance, if required, will be minimal and easily handled by a local or in-house
maintenance staff. The materials used in the construction of this Earth Station Antenna
virtually eliminate any maintenance repairs.
5.1 Periodic Inspection
It is suggested that a periodic inspection be performed at least every six months.
NOTE: After any very severe weather conditions, inspection of the antenna should be
performed to determine if foreign objects have caused damage or if survival specifications
have been exceeded.
This inspection should include the following:
1) Check all bolting locations - all bolts should be tight.
2) Check all structural members - repair or replace if damaged.
3) Check the foundation anchor bolts - they must be secure and with no failure signs
in foundation.
4) Check for corrosion - on the reflector structure and mount.
5.2 Reflector
CPI’s reflector does not require any maintenance. The composite construction of the
reflector is virtually impervious to any damages that could be caused by weather or other
atmospheric conditions.
It is only necessary to inspect for any physical damage done by vandalism or very severe
weather conditions.
Should any damage be detected to a portion of the reflector, contact the Customer Service
Department at CPI for recommendations involving reflector repair.
