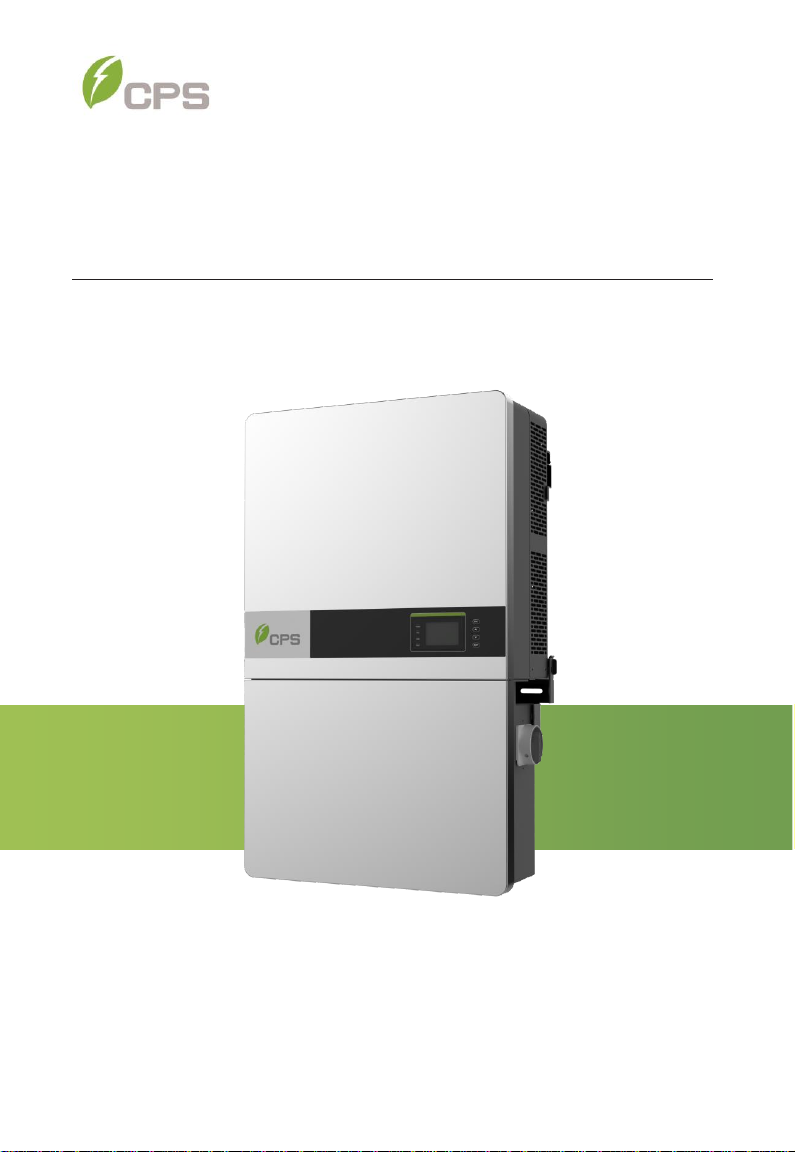

CPS SCA25KTL-DO/US-208 User manual

CPS SCA Series Grid-tied PV Inverter
CPS SCA25KTL-DO/US-208
Installation and Operation Manual – Rev 1.2
CHINT POWER SYSTEMS AMERICA CO.
Revision 1.2 - June 2023

Table of Contents
BEFORE YOU START….............................................................................. 1
1IMPORTANT SAFETY INSTRUCTIONS .............................................. 3
2OVERVIEW .................................................................................... 9
2.1 INVERTER FOR GRID-TIED PV SYSTEMS......................................................9
2.2 PRODUCT FEATURES ...........................................................................10
2.3 PRODUCT PROTECTION AND FUNCTIONS.................................................11
2.4 SMART INVERTER FUNCTIONS...............................................................12
2.5 APPEARANCE AND MAIN ITEM DESCRIPTION...........................................13
2.6 SCHEMATIC DIAGRAM AND CIRCUIT DESIGN............................................14
2.7 ANTI-ISLANDING DETECTION................................................................15
2.8 DC GROUND FAULT PROTECTION ..........................................................15
2.9 SURGE SUPPRESSION ..........................................................................16
2.10 DC ARC-FAULT PROTECTION.................................................................16
2.11 MODULE-LEVEL RAPID SHUTDOWN.......................................................16
3INSTALLATION ..............................................................................17
3.1 RECOMMENDATIONS BEFORE INSTALLATION ............................................19
3.2 MECHANICAL INSTALLATION .................................................................22
3.2.1 Dimensions.............................................................................22
3.2.2 Installation Method ...............................................................22
3.2.3 Installation Space Requirement .............................................24
3.2.4 Mounting the Inverter onto the Bracket ................................28
3.3 ELECTRICAL INSTALLATION....................................................................36
3.3.1 Removing/Replacing the Wiring Box Cover: ..........................36
3.3.2 Wiring Box..............................................................................38
3.3.3 DC and Ground Connection....................................................41
3.3.4 AC and Ground Connection ....................................................50

3.4 COMMUNICATION CONNECTION...........................................................57
3.4.1 Description of the Communication Board.............................. 58
3.4.2 RS485 Communication........................................................... 58
3.4.3 RS485 Network Set-up ........................................................... 59
3.4.4 Communication Wiring.......................................................... 61
4USER INTERFACE.......................................................................... 62
4.1 DESCRIPTION OF LCD PANEL ...............................................................62
4.2 OPERATION STATE..............................................................................64
4.3 INTERFACE TYPES ...............................................................................65
5COMMISSIONING ........................................................................ 67
5.1 MECHANICAL INSTALLATION CHECK .......................................................67
5.2 CONDUCTOR CONNECTIONS CHECK .......................................................67
5.3 ELECTRICAL CHECK.............................................................................67
5.4 COMMISSIONING STEPS ......................................................................68
6MAIN MENU AND OPERATION..................................................... 74
6.1 MEASUREMENT DATA......................................................................... 74
6.2 SETTING...........................................................................................76
6.2.1 System Parameters ................................................................ 78
6.2.2 Control Command.................................................................. 80
6.2.3 Protect Parameters................................................................ 83
6.2.4 LVRT/HVRT Parameters.......................................................... 88
6.2.5 Power Derating Setup............................................................ 93
6.2.6 Reactive Power Derating Setup ............................................. 97
6.2.7 Arc Parameters .................................................................... 102
6.2.8 Other Parameters ................................................................ 103
6.3 POWER ON/OFF............................................................................108
6.3.1 Manual Power ON/OFF........................................................ 108

6.3.2 Automatic Turn ON/OFF.......................................................108
6.4 HISTORY RECORD .............................................................................109
6.5 DEVICE INFORMATION.......................................................................110
6.6 START-UP.......................................................................................111
6.7 SHUT-DOWN ..................................................................................111
6.8 OPERATION MODE ...........................................................................111
6.9 GRID-TIED POWER GENERATION .........................................................112
6.10 FIRMWARE UPGRADE .......................................................................113
7FAULT SHUTDOWN AND TROUBLESHOOTING .............................116
7.1 LED FAULT AND TROUBLESHOOTING....................................................116
7.2 LCD FAULT AND TROUBLESHOOTING....................................................117
8MAINTENANCE AND DE-INSTALLATION.......................................123
8.1 PRODUCT MAINTENANCE ..................................................................123
8.1.1 Check Electrical Connections................................................123
8.1.2 Clean the Air Vent Grate ......................................................123
8.1.3 Replace the Cooling Fans .....................................................123
8.1.4 Replace the Inverter .............................................................126
8.2 DE-INSTALLING THE INVERTER.............................................................128
9ACCESSORIES..............................................................................130
9.1 SHADE COVER (SSC-60ST) ...............................................................130
9.1.1 Protection from Harsh Conditions........................................130
9.1.2 Increased Energy Production ...............................................130
9.2 Y-COMB TERMINAL BLOCK (OPTIONAL)...............................................131
10 TECHNICAL DATA ........................................................................132
10.1 DATASHEET .....................................................................................132
10.2 MEASUREMENT TOLERANCES .............................................................135
10.3 PRODUCTION GRAPHS ......................................................................136
10.3.1 High Temperature Derating Graph ......................................136

10.3.2 Altitude Derating Graph ...................................................... 136
10.3.3 Grid Voltage Derating Graph............................................... 137
10.3.4 PV Voltage Derating Graph.................................................. 138
10.3.5 Reactive Power Capability ................................................... 139
11 LIMITED WARRANTY.................................................................. 140

1
Before You Start…
Scope
This Installation and Operation manual contains important information, safety
guidelines, detailed planning and setup information for installation, as well as
information about configuring, operating and troubleshooting the CPS
SCA25KTL-DO/US-208 3-Phase String Inverters. Here after in this manual this
equipment may be referred to simply as the inverters. Be sure to read this
manual carefully before operating or servicing the inverters.
Audience
The information in Chapters 2 “Overview”, 4 “User Interface”, 6 “Main Menu
and Operation”, 7 “Faut Shutdown and troubleshooting”, and 9 ”Accessories”
is intended for the owner and operator of the inverter, and does not require any
special training or qualifications. The information in Chapters 3 ”Installation”, 5
“Commissioning”, 8 ”Maintenance and De-installation”is intended for qualified
personnel only. Qualified personnel have training, knowledge, and experience
in:
▪Installing electrical equipment and PV power systems (up to
1000VDC).
▪Applying all local installation codes.
▪Analyzing and eliminating the hazards involved in performing
electrical work.
▪Selecting and using Personal Protective Equipment (PPE).
Installation, commissioning, troubleshooting, and maintenance of the inverter
must be done only by qualified personnel.

2
Thank you for choosing a CPS SCA25KTL-DO/US-208 3-Phase String Inverter.
This PV Inverter is a high performance and highly reliable product specifically
designed for the North American Solar market.
Instructions inside this user manual will help you solve most installation and
operation difficulties. Installation, commissioning, troubleshooting, and
maintenance of the inverter must be performed by qualified personnel. If you
encounter any problems during installation or operation of this unit, first check
the user manual before contacting CPS Customer Service. This user manual
is applicable for the following models:
CPS SCA 25KTL-DO/US-208
Please keep this user manual on hand for quick reference.
The manual will be periodically updated or revised due to the product
development or improvement. The latest version of this manual can be
acquired via the website at www.chintpowersystems.com.

3
1 Important Safety Instructions
(SAVE THESE INSTRUCTIONS)
Please read this user manual carefully before installation of the inverter. CPS
reserves the right to refuse warranty claims for equipment damage if the user
fails to install the product according to the instructions in this manual.
Failure to follow these instructions and other relevant safety procedures may
result in voiding of the warranty and/or damage to the inverter or other property!
Warnings and symbols in this document
DANGER:
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING:
WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION:
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE:
NOTICE indicates a hazardous situation which, if not avoided,
could result in the inverter working abnormally or property loss.
INSTRUCTION:
INSTRUCTION indicates important supplementary information or
provides skills or tips that can be used to help you solve a
problem or save you time.

4
Warnings and Markings on the product
CAUTION:
Risk of electric shock from energy stored in capacitor.
Do not remove cover until 5 minutes after disconnecting all
sources of supply.
CAUTION:
Risk of electric shock, do not remove cover. No user
serviceable parts inside. Refer servicing to qualified service
personnel.
WARNING:
Electric shock hazard. The DC conductors of this
photovoltaic system are ungrounded and may be energized.
CAUTION:
Risk of Electric Shock.
a) Both ac and dc voltage sources are terminated inside this
equipment. Each circuit must be individually disconnected
before servicing.
b) When the photovoltaic array is exposed to light, it supplies
a dc voltage to this equipment.
WARNING:
Electric Shock Hazard.
The DC conductors of this photovoltaic system are normally
ungrounded but will become intermittently grounded without
indication when the inverter measures the PV array isolation.
CAUTION:
Hot surfaces. To reduce the risk of burns. Do not touch.

5
Warnings and Markings on the product (cont'd)
WARNING:
For continued protection against risk of fire,
replace only with same type and ratings of fuse.
WARNING:
HAZARDOUS VOLTAGE AREA UNDER THE
PLASTIC COVER.
DO NOT OPEN FUSE HOLDERS UNDER
LOAD!
PERSONAL PROTECTIVE EQUIPMENT
MUST BE USED/WORN BEFORE
ACCESSING FUSES!
WARNING:
High touch current.
Earth connection essential before connecting
supply.
INFORMATION:
For more details please see the user manual.

6
WARNING:
All the installation and wiring connections must be performed
by qualified technical personnel. Disconnect the inverter from
the PV modules and the AC grid before maintaining or
servicing the equipment.
Risk of electric shock and fire. Use only with PV modules
that have a maximum system voltage of rating of 1000VDC or
higher.
Electric shock Hazard. The DC conductors of this
photovoltaic system are normally ungrounded but will become
intermittently grounded without indication when the inverter
performs the PV array isolation measurement.
Shock Hazard. The inverter is energized from both AC and
DC sources. Disconnect all energy sources before servicing.
For continued protection against risk of fire, replace only with
same type and ratings of fuse.
DANGER:
Disconnect the inverter from the AC grid and PV modules
before removing covers or opening the equipment. Wait at
least 5 minutes after disconnecting from the DC and AC
sources before servicing or maintaining the inverter. Ensure
hazardous high voltage and energy inside the inverter has
been discharged prior to servicing.
NOTICE:
The inverters are designed to only interconnect with an AC
power source as part of the public electric utility grid. Do not
connect the AC output of the inverters directly to any private
electric utility power equipment. The inverters are to be
installed with floating or ungrounded PV arrays only.

7
CAUTION:
CPS SCA 25KTL-DO/US-208 inverter weighs approximately
56kg (123.5 pounds). The wirebox portion weighs
approximately 15kg (33 pounds).
Ensure the mounting bracket is properly installed before
hanging the inverter and wirebox on the bracket. A team of two
is recommended to lift and place the inverter and wirebox into
position.
INSTRUCTION:
Please check with your local electric utility supply company
before selecting a grid standard. If the inverter is operated with
an incorrect grid standard, the electric utility supply company
may cancel the interconnection agreement.
Placing the inverter into operation before the overall system
complies with the national codes, rules and safety regulations
of the application is also not permitted.
WARNING:

8
If there is a fault and it is safe to access the inverter:
1. Read/record the fault code(s) displayed on the LCD interface.
2. Turn OFF the inverter via the LCD/Keypad or Remote access.
3. Turn OFF the AC feed breaker.
4. Turn OFF the AC Switch.
5. If possible, read the DC MPPT currents displayed on the LCD interface:
a. If the MPPT current is <20A or the irradiation is obviously low, turn OFF
the DC switch.
b. If it is safe to open the wire-box, proceed with troubleshooting
procedures listed in Table 7-1. Make sure appropriate safety
precautions and PPE are used.
6. If it is not possible to read the DC MPPT currents through the LCD interface,
and no fire, smoke, or voltage (AC or DC) to ground is present in the
enclosure:
a. Follow general safety practices including PPE to open the wire-box.
b. Measure the DC current on each string. If zero, open the fuse holder for
each string reading approximately zero amps.
c. If the DC current is >0.25A, do not open the fuse holder.
d. When all possible fuses are open, measure the total MPPT current. If it
is <20A, turn OFF the DC switch.
e. If turning OFF the DC switch causes smoke, then (if safe) turn the DC
switch back ON and wait until low irradiation ~30min prior to sunset to
continue troubleshooting.
If there is a fault and it is unsafe to access the inverter:
1. Notify someone else. Initiate emergency mitigation plan if necessary. a. If
smoke or fire exists, procure a fire extinguisher.
2. If a fire has escaped the inverter enclosure – notify 911 immediately!
3. Turn OFF the AC feed breaker as soon as possible/safe.
4. If safe but conditions are deteriorating, consider:
a. Using the fire extinguisher.
b. Cutting the string conductors – one cable at a time with insulated cutters
(while wearing appropriate PPE).
5. Monitor conditions until low irradiation ~30min prior to sunset. If safe,
turn OFF AC and DC switches on the inverter and proceed with normal
troubleshooting procedures listed in Table 7-1.
WARNING: The DC Switch is rated to break loads under normal
operating conditions. However, a DC short circuit could be hazardous,
and the following procedures should be followed before turning OFF
the DC Switch under fault conditions.

9
2 Overview
2.1 Inverter for grid-tied PV systems
CPS SCA 25KTL-DO/US-208 3-Phase transformerless string inverters are
designed for use with an UNGROUNDED PV array in carport, commercial
rooftop, and large utility scale PV grid-tied systems. The system is generally
made up of PV modules, a 3-Phase String Inverter with a fused
combiner/disconnect, and AC power distribution equipment (Figure 2-1). The
inverter converts the available DC energy from the PV modules to AC power
by synchronizing the output current to the same frequency and phase as the
AC grid. All or part of the AC power is supplied to local loads, and the surplus
power is exported to the electric utility grid.
AC Grid
Bidirectional
electric meter
AC power
distribution
equipment
Figure 2-1: Grid-tied PV System

10
2.2 Product Features
▪High Conversion Efficiency: Advanced 3-level conversion topology
with Space-Vector PWM; Max. efficiency: 97%, CEC efficiency: 96.5%.
▪Grid Adaptability: Selectable grid standards: IEEE 1547-2018, ISO-NE,
CA Rule 21, and HECO; Reactive Power; >0.99 PF (±0.8 adjustable),
Selectable Apparent Power rating enables Full Active Power rating to
+/-0.91 PF, and optional local or remote Active Power Curtailment.
▪Flexible Communication: Supports standard CPS Modbus RS485,
SunSpec Modbus, and HTTPS/XML communications via FlexOM
gateway card to ensure compatibility with 3rd party monitoring and
control systems. The FlexOM gateway card enables further
command/control as well as remote firmware upgrades. (FlexOM
gateway card is optional accessory. Refer to FlexOM gateway card
manual for further detailed information.)
▪Wide DC input voltage range: Operating DC Input Voltage Range: 200-
950VDC; Max DC input voltage: 1000VDC.
▪Long Service Life: Designed with thin-film and electrolytic capacitors to
extend inverter's service life.
▪3 MPPTs: Multi-channel MPPT (Maximum Power Point Tracker) enables
maximum design flexibility and energy harvest optimization over the life
of the system.
▪Separable Wirebox: The SCA25KTL-DO/US-208 includes a rapid
shutdown wirebox with integrated PLC transmitter for use with APS RSD-
S-PLC/RSD-D products.
▪High Protection Degree: Powder coated aluminum NEMA 4X enclosure
meets the demanding needs of both indoor and outdoor use.
▪Intelligent Integration: Integrated DC/AC disconnect switches, and up
to 6 fused string inputs eliminate the need for external DC combiner
boxes, simplifying installation and the need for DC BOS equipment.

11
2.3 Product Protection and Functions
✓AC output voltage and frequency monitoring
✓Anti-islanding detection with bi-directional frequency perturbation
✓DC input and AC output over-voltage protection
✓DC input and AC output over-current protection
✓DC input insulation to ground monitoring
✓DC injection of AC output
✓DC Arc-fault detection and circuit interruption
✓Leakage current to ground monitoring
✓Internal enclosure temperature monitoring
✓IGBT power module temperature monitoring
✓Load rejection over voltage (LROV) protection
✓No neutral connection required - delta connection permitted with
external AC GFCI
✓PVRSS certified rapid shutdown compliant to 2017/2020 NEC

12
2.4 Smart Inverter Functions
The CPS SCA25KTL-DO/US-208 3-Phase String Inverters employ Smart
Inverter (Grid Support) Functions in compliance with UL1741-SA, SA8-
SA18 and UL1741-SB standards. The default activation status is
indicated below.
Smart Inverter Function
IEEE1547-2018
Rule 21
ISO-NE
Anti-islanding
Enabled
Enabled
Enabled
Low/High Voltage Ride-
Through
Enabled
Enabled
Enabled
Low/High Frequency Ride-
Through
Enabled
Enabled
Enabled
Dynamic Volt/VAR Operation
Enabled
Enabled
Disabled
Ramp Rate
Enabled
Enabled
Enabled
Fixed Power Factor
Disabled
Disabled
Disabled
Reconnect by “Soft-Start”
Enabled
Enabled
Enabled
Frequency-Watt
Enabled
Enabled
Disabled
Volt/Watt
Enabled
Enabled
Disabled

13
2.5 Appearance and Main Item Description
Figure 2-2 Diagram of the Inverter Assembly
Main Items of the Inverter:
①Main inverter enclosure
②Inverter wirebox
③Inverter mounting bracket
④Cooling fans
⑤LED indicator lights
⑥User LCD display
⑦User Key buttons
⑧DC switch: DC power on/off
⑨AC switch: AC power on/off

14
2.6 Schematic Diagram and Circuit Design
The basic electrical schematic diagram of the CPS SCA 25KTL-DO/US-208
3-Phase String Inverters are shown in Error! Reference source not
found.. The input from PV source circuits passes through surge protection
circuitry, DC EMI wave filters, and independent DC-DC boost circuitry to
achieve maximum power point tracking and boost the voltages to a common
DC bus. The inverter uses line voltage and frequency measurements to
synchronize to the grid and converts the available PV energy to AC power
by injecting balanced 3-phase AC current into the electric utility grid. Any
high frequency AC component is removed by passing through a two-stage
relay and EMI wave filter to produce high quality AC power.
WIRE BOX INVERTER POWER HEAD
L1
L2
L3
N
PV1+
PV1+
PV1-
PV1-
MPPT1
MPPT2
AC
Output
PV Input
PV2+
PV2+
PV2-
PV2-
AC
Switch
Fuses
MPPT3
PV3+
PV3+
PV3-
PV3-
DC SPD
PV1+
DC Switch
Three
level
inverter
AFD
PV2+
PV3+
PV-
PE
Type ⅢMOV
Transmitter Vin
GND
AC/DC Power
Supply
Figure 2-3 CPS SCA25KTL-DO/US-208 Inverter Schematic, RSD Wire-box
The Rapid Shutdown wirebox has been designed specifically for
2017/2020 NEC Rapid Shutdown applications. This wirebox includes a
powerline communications transmitter for use with APS RSD-S-PLC/RSD-D
products. The integrated PLC transmitter is powered by AC at the inverter
output. This PLC transmitter sends a “keep alive” signal to the MLPE devices
