Operator's Manual
Model No. 486.24414
48" GT DOZER BLADE
For Garden Tractors with 23" Tires
®
CAUTION:
Before using this prod uct,
read this manual and fol low all Safe ty
Rules and Operating In struc tions.
• Safety
• Assembly
• Operation
• Maintenance
• Parts
PRINTED IN U.S.A.
FORM NO. 49810 (REV. 3/06)
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
CAUTION:
DO NOT
use this Dozer Blade
on Lawn Tractors or on Garden Tractors with
less than 23-inch diameter tires.
STOP
DO NOT RETURN TO STORE
For Missing Parts or Assembly
Questions Call 1-866-576-8388

2
Look for this symbol to point out important safety precautions. It means — Attention!! Become
alert!! Your safety is involved.
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment.
Exercise caution at all times when using power equipment.
1. Read the tractor and dozer blade owners manuals and know how to operate your tractor before using the tractor with
the dozer blade attachment.
2. Never operate the tractor and dozer blade without wearing proper clothing suited to weather conditions and operation of
controls.
3. Never allow children to operate the tractor and dozer blade. Do not allow adults to operate without proper instructions.
4. Always begin with transmission in fi rst (low) gear and gradually increase speed as required.
SAFETY
ONE YEAR
FULL
WARRANTY
When operated and maintained according to the instructions supplied with it, if this Dozer Blade fails due to a defect in
material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free rep
air
(or
replacement if repair proves impossible).
If this product is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., D817WA, Hoffman Estates, IL 60179
WARRANTY
TABLE OF CONTENTS
MAINTENANCE
...........................................................
16
TROUBLESHOOTING
..................................................
16
STORAGE
....................................................................
17
ACCESSORIES
............................................................
17
REPAIR PARTS ILLUSTRATION
.................................
18
REPAIR PARTS LIST
...................................................
19
PARTS ORDERING/SERVICE
..................
BACK COVER
SAFETY RULES
.............................................................
2
WARRANTY
...................................................................
2
CARTON CONTENTS
....................................................
3
FULL SIZE HARDWARE CHART
................................
4-5
ASSEMBLY
................................................................
6-13
OPERATION
.................................................................
14
SERVICE AND ADJUSTMENTS
..................................
15
MODEL NUMBER: 486.24414
SERIAL NUMBER: __________________
DATE OF PURCHASE: __________________
The model number and serial numbers will be found on a
decal attached to the dozer blade.
You should record both the serial number and the date of
purchase and keep in a safe place for future reference.

3

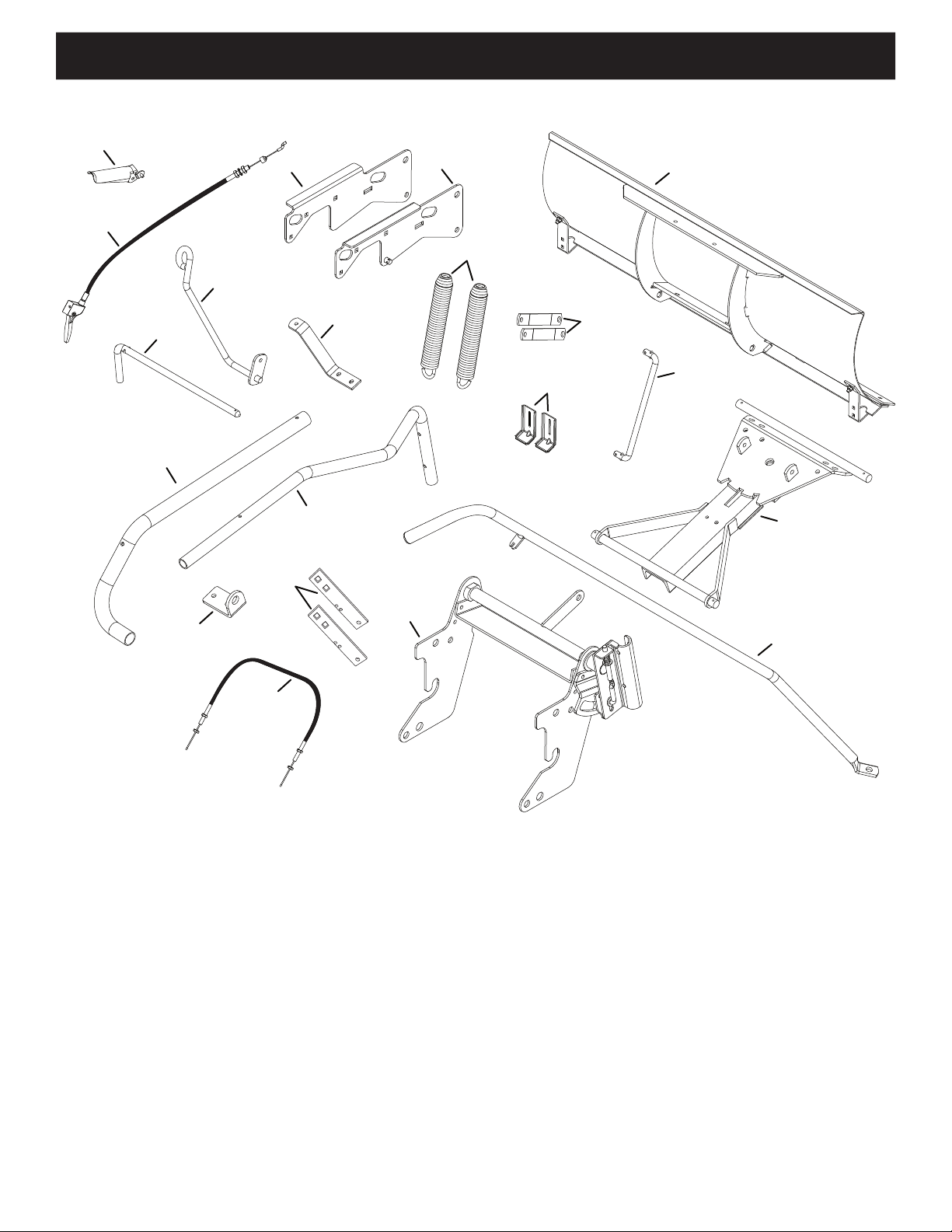

CARTON CONTENTS
1. Grip Assembly
2. Trigger with Cable
3. Left Side Plate
4. Right Side Plate
5. Blade Assembly
6. Attachment Rod
7. Handle Guide
8. Blade Pivot Bracket
9. Trip Spring (2)
10. Lift Link (2)
11. Skid Shoe (2)
12. Lift Rod
13. Pivot Plate
14. Upper Lift Handle
15. Lower Lift Handle
CARTON CONTENTS
16. Lift Bracket
17. Angle Lock Bar (2)
18. Frame Assembly
19. Handle Assembly
20. Control Cable
1
2
6
14
15
18
16
20
17
7
8
9
345
19
10
12
11
13

4

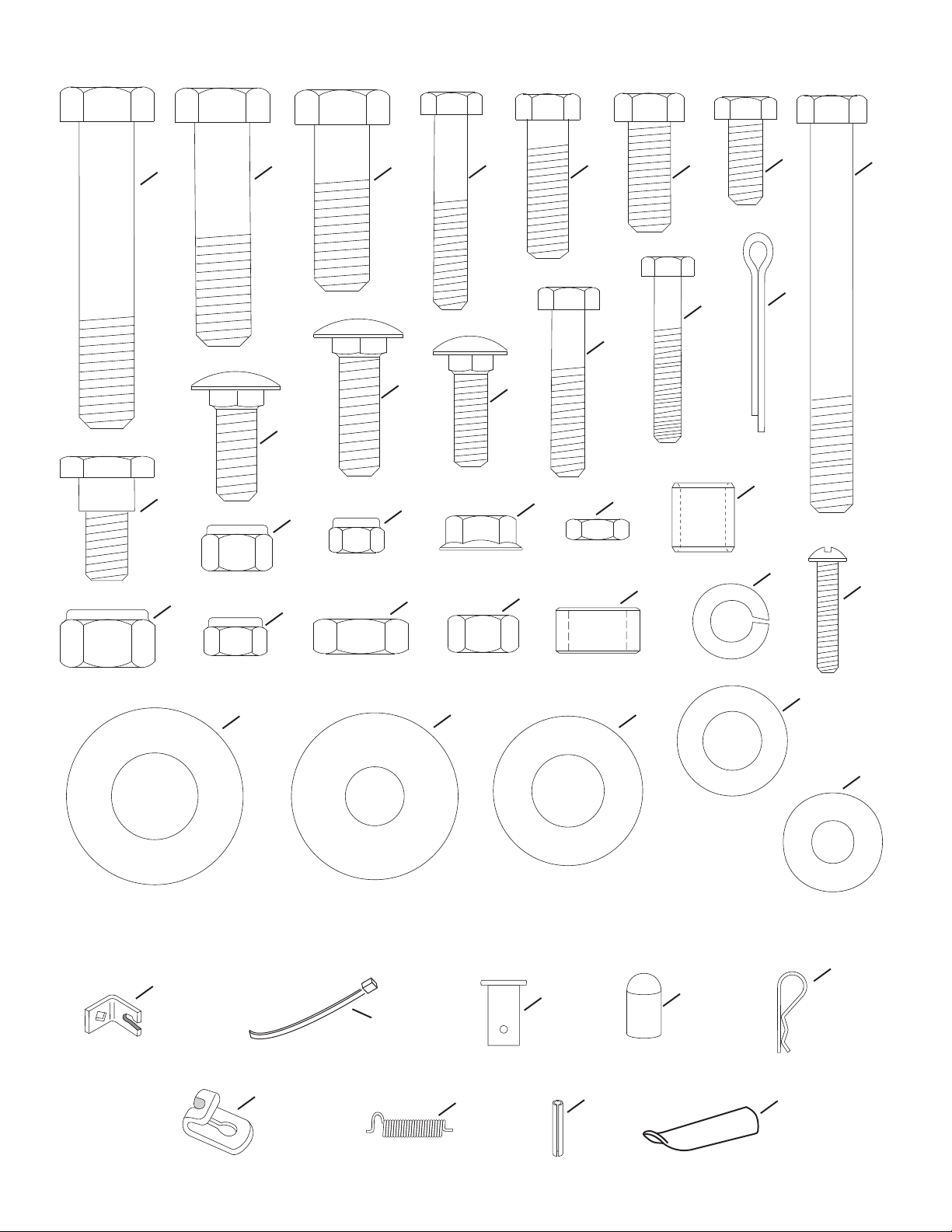

SHOWN FULL SIZE
NOT SHOWN FULL SIZE
A
I
P
BB CC DD EE
FF
GG
KK
HH
LL
II
MM NN
JJ
J
QRSTU
AA
VWXY
Z
KL
M
NO
B C D EFGH
OO

5
REF. QTY. DESCRIPTION
REF. QTY. DESCRIPTION
REF. QTY. DESCRIPTION
REF. QTY. DESCRIPTION
REF. QTY. DESCRIPTION
REF. QTY. DESCRIPTION
CONTENTS OF PARTS PACKAGE
A 2 Hex Bolt, 1/2" x 2-3/4"
A 2 Hex Bolt, 1/2" x 2-3/4"
A 2 Hex Bolt, 1/2" x 2-3/4"
B 2 Hex Bolt, 1/2" x 2"
B 2 Hex Bolt, 1/2" x 2"
B 2 Hex Bolt, 1/2" x 2"
C 2 Hex Bolt, 1/2" x 1-1/2"
C 2 Hex Bolt, 1/2" x 1-1/2"
C 2 Hex Bolt, 1/2" x 1-1/2"
D 2 Hex Bolt, 5/16" x 1-3/4"
D 2 Hex Bolt, 5/16" x 1-3/4"
D 2 Hex Bolt, 5/16" x 1-3/4"
E 2 Hex Bolt, 3/8" x 1-1/4"
E 2 Hex Bolt, 3/8" x 1-1/4"
E 2 Hex Bolt, 3/8" x 1-1/4"
F 4 Hex Bolt, 3/8" x 1"
F 4 Hex Bolt, 3/8" x 1"
F 4 Hex Bolt, 3/8" x 1"
G 2 Hex Bolt, 5/16" x 3/4"
G 2 Hex Bolt, 5/16" x 3/4"
G 2 Hex Bolt, 5/16" x 3/4"
H 2 Hex Bolt, 3/8" x 3-1/2
H 2 Hex Bolt, 3/8" x 3-1/2
H 2 Hex Bolt, 3/8" x 3-1/2
I 1 Shoulder Bolt
I 1 Shoulder Bolt
I 1 Shoulder Bolt
J 6 Carriage Bolt, 3/8" x 1"
J 6 Carriage Bolt, 3/8" x 1"
J 6 Carriage Bolt, 3/8" x 1"
K 2 Carriage Bolt, 3/8" x 1-1/4"
K 2 Carriage Bolt, 3/8" x 1-1/4"
K 2 Carriage Bolt, 3/8" x 1-1/4"
L 6 Carriage Bolt, 5/16" x 1
L 6 Carriage Bolt, 5/16" x 1
L 6 Carriage Bolt, 5/16" x 1
M 1 Hex Bolt, 5/16" x 1-1/2"
M 1 Hex Bolt, 5/16" x 1-1/2"
M 1 Hex Bolt, 5/16" x 1-1/2"
N 2 Hex Bolt, 1/4" x 1-1/2"
N 2 Hex Bolt, 1/4" x 1-1/2"
N 2 Hex Bolt, 1/4" x 1-1/2"
O 4 Cotter Pin
O 4 Cotter Pin
O 4 Cotter Pin
P 4 Nylock Nut, 1/2"
P 4 Nylock Nut, 1/2"
P 4 Nylock Nut, 1/2"
Q 10 Nylock Nut, 3/8"
Q 10 Nylock Nut, 3/8"
Q 10 Nylock Nut, 3/8"
R 3 Nylock Nut, 1/4"
R 3 Nylock Nut, 1/4"
R 3 Nylock Nut, 1/4"
S 1 Whizlock Hex Nut, 3/8"
S 1 Whizlock Hex Nut, 3/8"
S 1 Whizlock Hex Nut, 3/8"
T 2 Hex Jam Nut, 5/16"
T 2 Hex Jam Nut, 5/16"
T 2 Hex Jam Nut, 5/16"
U 1 Long Spacer
U 1 Long Spacer
U 1 Long Spacer
V 11 Nylock Nut, 5/16"
V 11 Nylock Nut, 5/16"
V 11 Nylock Nut, 5/16"
W 4 Hex Nut, 1/2"
W 4 Hex Nut, 1/2"
W 4 Hex Nut, 1/2"
X 4 Hex Nut, 3/8"
X 4 Hex Nut, 3/8"
X 4 Hex Nut, 3/8"
Y 2 Short Spacer
Y 2 Short Spacer
Y 2 Short Spacer
Z 4 Lock Washer, 3/8"
Z 4 Lock Washer, 3/8"
Z 4 Lock Washer, 3/8"
AA 1 Oval Screw, #10 x 1"
AA 1 Oval Screw, #10 x 1"
AA 1 Oval Screw, #10 x 1"
BB 2 Washer, 3/4"
BB 2 Washer, 3/4"
BB 2 Washer, 3/4"
CC 8 Washer, 1/2" Large
CC 8 Washer, 1/2" Large
CC 8 Washer, 1/2" Large
DD 6 Washer, 5/8" SAE
DD 6 Washer, 5/8" SAE
DD 6 Washer, 5/8" SAE
EE 4 Washer, 1/2"
EE 4 Washer, 1/2"
EE 4 Washer, 1/2"
FF 4 Washer, 5/16"
FF 4 Washer, 5/16"
FF 4 Washer, 5/16"
GG 1 Cable Mount Bracket
GG 1 Cable Mount Bracket
GG 1 Cable Mount Bracket
HH 2 Nylon Tie
HH 2 Nylon Tie
HH 2 Nylon Tie
II 2 Clevis Pin
II 2 Clevis Pin
II 2 Clevis Pin
JJ 2 Plastic Cap
JJ 2 Plastic Cap
JJ 2 Plastic Cap
KK 7 Haircotter Pin
KK 7 Haircotter Pin
KK 7 Haircotter Pin
LL 2 Cable End Fitting
LL 2 Cable End Fitting
LL 2 Cable End Fitting
MM 1 Extension Spring
MM 1 Extension Spring
MM 1 Extension Spring
NN 1 Spring Pin
NN 1 Spring Pin
NN 1 Spring Pin
OO 1 Plastic Grip
OO 1 Plastic Grip
OO 1 Plastic Grip

6
TOOLS REQUIRED FOR ASSEMBLY
(1) 7/16" Wrench
(1) 1/2" Wrench
(1) 9/16" Wrench
(1) 3/4" Wrench
(1) Adjustable Wrench
(1) Phillips Screwdriver
(1) Hammer
• Remove all parts and hardware packages from the
carton. Lay out parts and hardware and identify using
the illustrations on pages 3 and 4.
NOTE:
Not all of the supplied parts and hardware will be
needed for one particular tractor. Unneeded items may be
discarded after assembly has been completed.
NOTE:
Right hand (RH) and left hand (LH) are
determined from the operator's position while seated on
the tractor.
REMOVE
BROWNING SHIELD
FIGURE 2
FIGURE 3
5/16" NYLOCK
NUT (V)
3/8" NYLOCK
NUT (Q)
5/16" x 1" CARRIAGE
BOLT (L)
3/8" x 1" CARRIAGE
BOLT (J)
ENGINE MOUNTING
PLATE
LARGE 1/2"
WASHER (CC)
(SEE NOTE)
ASSEMBLY
STEP 2:
(SEE FIGURE 2)
•
Remove the tractor hood. Refer to your tractor owners
manual for instructions on how to properly remove
the hood.
• Remove the browning shield from the front of the
tractor as shown. Hold onto the shield as you remove
the second bolt to prevent it from falling.
NOTE:
Reinstall the browning shield before using your
tractor.
CAUTION:
Do not
begin assembling
until the tractor engine, muffl er and exhaust
defl ector have been allowed to cool off.
STEP 1:
(SEE FIGURE 1)
• Look under the front of your tractor. If there is a single
mower deck suspension bracket located underneath
the middle of the front axle, continue on to step 2. If
your tractor does not have a mower deck suspension
bracket underneath the middle of the front axle, skip
to step 5 on page 7 for tractors with dual suspension
brackets.
MOWER DECK
SUSPENSION
BRACKET
FIGURE 1
INSTRUCTIONS FOR TRACTORS WITH SINGLE
FRONT DECK SUSPENSION BRACKET
STEP 3:
(SEE FIGURE 3)
• Fasten the R.H. Side Plate (bend facing out) to the
front three holes in the tractor frame using three 3/8"
x 1" carriage bolts (J), three large 1/2" washers (CC)
(see note) and three 3/8" nylock nuts (Q).
For the rear
hole, use a 5/16" x 1" carriage bolt (L), a large 1/2"
washer (CC) and a 5/16" nylock nut (V).
Place the
1/2" washers (V) between the tractor frame and the
side plate. Tighten all bolts. Repeat for L.H. side plate.
• Reinstall the browning shield removed in fi gure 2.
NOTE:
If the third bolt goes through an engine mounting
plate (dotted lines) leave the 1/2" washer off that bolt.

7
STEP 4:
(SEE FIGURE 4)
• Place a 1/2" washer (EE) and then a short spacer (Y)
onto a 1/2" x 1-1/2" hex bolt (C). Install the bolt in the
bottom hole at the front of the
R.H. side plate and secure
it with a 1/2" nylock nut (P). Repeat for the L.H. side
plate.
•
Skip to step 8
on page 8.
FIGURE 4
1/2" WASHER (EE)
1/2" X 1-1/2"
HEX BOLT (C)
1/2" NYLOCK
NUT (P)
SPACER (Y)
REMOVE BOLTS
FROM THESE HOLES
FRONT
SUSPENSION
BRACKET
REMOVE NUT & WASHER
AND LEAVE BOLT (IF PRESENT)
3/8" NYLOCK NUT (Q)
(IF NEEDED)
3/8" x 1"
HEX BOLT (F)
3/8" LOCK
WASHER (Z)
REMOVE NUT & WASHER
AND LEAVE BOLT (IF PRESENT)
1/2" WASHER (EE)
1/2" X 1-1/2"
HEX BOLT (C)
1/2" NYLOCK
NUT (P)
SPACER (Y)

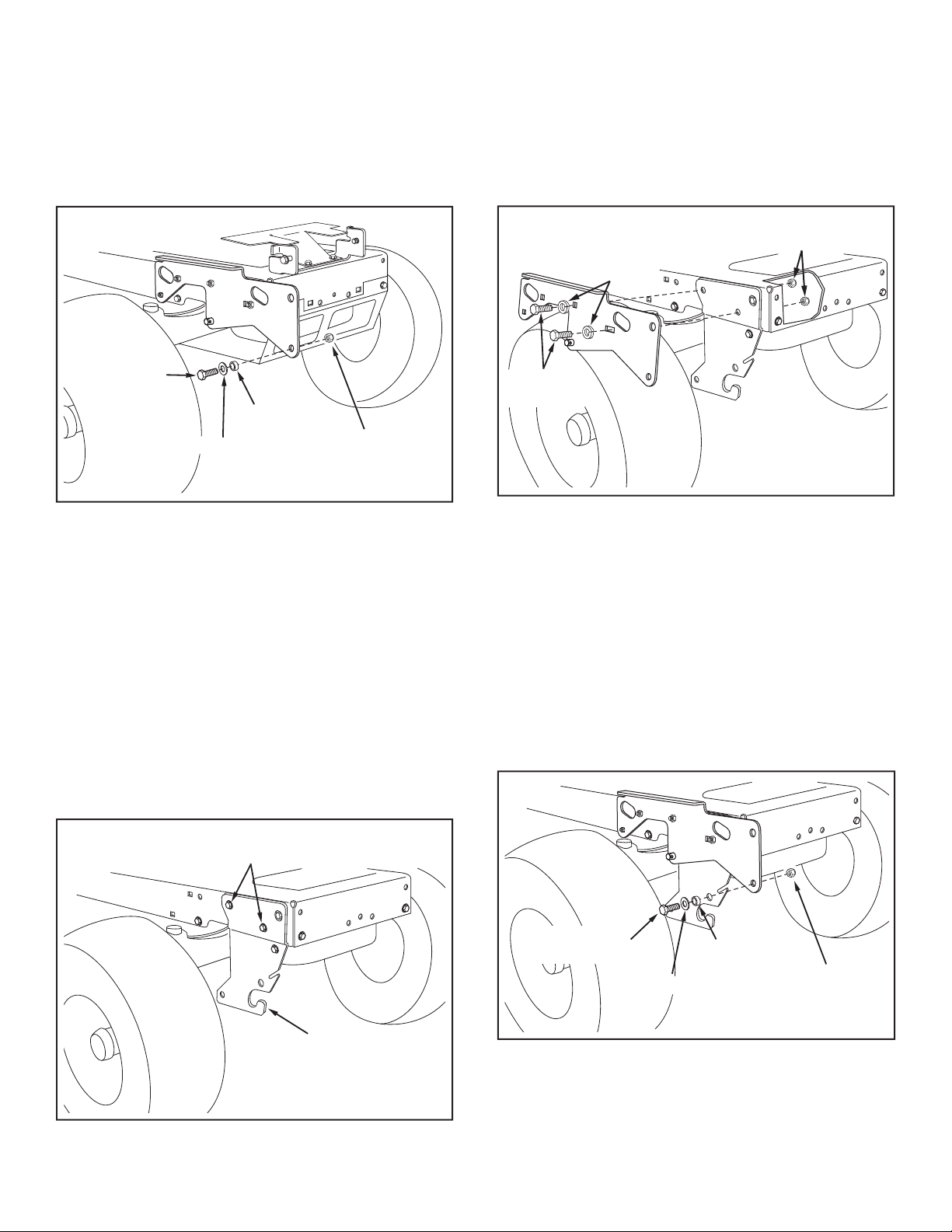

STEP 5:
(SEE FIGURE 5)
• Remove bolts from holes shown in illustration if they
are present.
FIGURE 5
STEP 6:
(SEE FIGURE 6)
• Fasten the R.H. side plate (bend facing out) to the two
holes indicated in the tractor frame. Use two 3/8" x 1"
hex bolts (F) and 3/8" lock washers (Z). If the bolts
insert loosely into the tractor frame, use two 3/8" nylock
nuts (Q) on the inside of the frame. Repeat for the L.H.
side.
FIGURE 6
FIGURE 7
STEP 7:
(SEE FIGURE 7)
• Place a 1/2" washer (EE) and then a short spacer (Y)
onto a 1/2" x 1-1/2" hex bolt (C). Install the bolt in the
bottom hole at the front of the R.H. side plate and secure
it with a 1/2" nylock nut (P). Repeat for the L.H. side
plate.
•
Go to step 8
on page 8.
INSTRUCTIONS FOR TRACTORS WITH DUAL
FRONT DECK SUSPENSION BRACKETS

8
STEP 8:
(SEE FIGURE 8)
•
Install a 1/2" x 2" hex bolt (B) and two 1/2" hex nuts
(W) in the outer hole in each side of the pivot plate.
Temporarily adjust the hex nuts so that both bolt
heads extend about an inch and a half above the
pivot plate.
STEP 10:
(SEE FIGURE 10 and 11)
•
Assemble the two angle lock bars together using a
3/8" x 1-1/4" carriage bolt (E) and a 3/8" nylock nut
(Q) in the top square holes.
Do not tighten.
•
Assemble the straight hook
end of the angle lock
spring into the small holes in the angle lock bars.
Insert the lock bars down into the lock bar slot in
the channel pivot plate assembly.
STEP 9:
(SEE FIGURE 9)
•
Assemble the round hook end of the angle lock
spring into the hole in the washer
as shown.
FIGURE 8
FIGURE 9
FIGURE 10
FIGURE 11
WASHER
ANGLE LOCK
SPRING
CHANNEL/PIVOT
PLATE ASSEMBLY
MOUNT
ROD
CHANNEL/PIVOT
PLATE ASSEMBLY
3/8" X 1-1/4"
CARRIAGE BOLT
(TOP HOLE) (E)
ANGLE LOCK
SPRING
ANGLE LOCK
BARS
FRONT
LOCK BAR
SLOT
SPRING PIN
HOLE
3/8" NYLOCK
NUT (Q)
• Align the angle lock bars with the welded bracket
on the bottom of the channel. Use a hammer to
drive the spring pin (NN) through the angle lock
bars and into the slot in the welded bracket.
•
Tighten the nylock nut on the carriage bolt.
NOTE:
The angle lock bars should pivot freely. When
they are pulled all the way back the pivot plate assembly
should be unlocked and free to pivot to the right or left
notches.
FRONT
POSITION
NOTCH
1/4" X 1"
SPRING PIN (NN)
LOCK
BARS
ANGLE
LOCK BARS
1/2" X 2" BOLT (B)
1/2" HEX NUTS (W)
INSTRUCTIONS FOR ALL TRACTORS

9
STEP 12:
(SEE FIGURE 13)
•
Select the control cable with two threaded ends.
Select the threaded end that has no rubber cap
or nuts and assemble a 5/16" hex jam nut (T)
approximately 3/4" onto the threads. Insert the
threaded end of the cable through the round hole
in the cable mount bracket (GG) and secure it with
another 5/16" hex jam nut (T).
Tighten
the second
nut while keeping the fi rst nut in place.
•
Assemble the ball end of the cable wire up through
the hole in a cable end fi tting (LL) and then slide it
back inside the curled edge of the fi tting.
STEP 13:
(SEE FIGURE 14)
•
Attach the cable end fi tting (LL) and the long spacer
(U) to the left hand hole in the channel and lift bracket
using a 1/4" x 1-1/2" hex bolt (N) and 1/4" nylock nut
(R).
Tighten
, keeping the cable end fi tting align ed
with the threaded end of the cable.
FIGURE 12
FIGURE 14
STEP 14:
(SEE FIGURE 15)
•
Attach the lift bracket to the right hand hole in the
channel, next to the long spacer. Use a 5/16" x 3/4"
hex bolt (G) and 5/16" nylock nut (V).
•
Attach the frame assembly to the channel assembly.
Fit one side of the frame assembly onto the 3/4" rod
of the channel and then fi t the other side onto the rod.
Secure each side with a 3/4" washer (BB) and a 1/8"
x 1-1/4" cotter pin (O).
STEP 11:
(SEE FIGURE 12)
•
Assemble a 3/8" x 1-1/4" carriage bolt (E) through
the cable mount bracket (GG) and then mount it
from the left side to the square holes in the angle
lock bars. Secure the bracket at the angle
shown in
fi gure 14
with a 3/8" nylock nut (Q).
CABLE MOUNT
BRACKET (GG)
ANGLE
LOCK
BARS
3/8" X 1-1/4"
CARRIAGE BOLT (E)
3/8" NYLOCK NUT (Q)
CHANNEL
LIFT BRACKET
LONG SPACER (U)
1/4" X 1-1/2"
HEX BOLT (N)
1/4" NYLOCK NUT (R)
CABLE END
FITTING (ll)
CABLE MOUNT BRACKET
FIGURE 13
CONTROL CABLE END
CABLE
MOUNT
BRACKET (GG) 3/4"
5/16" HEX
JAM NUTS (T)
CABLE END
FITTING (LL)
BALL END
CABLE
FIGURE 15
LIFT BRACKET
3/4" ROD
3/4" WASHER (BB)
1/8" x 1-1/4"
COTTER PIN (O)
5/16" X 3/4" BOLT (G)
5/16" NYLOCK
NUT (V)
FRAME ASSEMBLY

10
COTTER
PIN (O)
LIFT ROD
1/2" WASHER (EE)
WELDED ARM
FIGURE 16

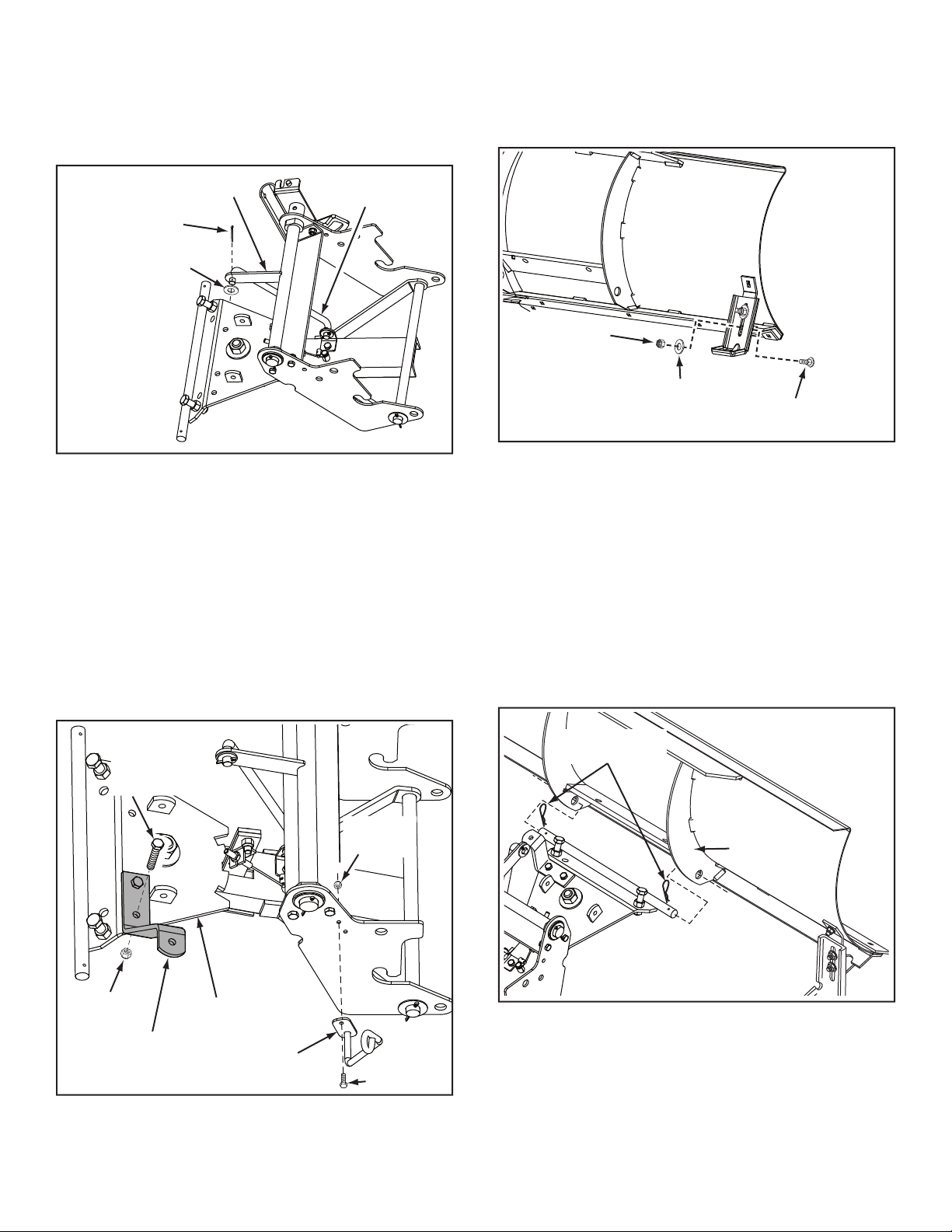

STEP 15:
(SEE FIGURE 16)
• Attach the ends of the lift rod to the lift bracket on the
channel and the welded arm on the frame assembly.
Use two 1/2" washers (EE) and 1/8" x 1-1/4" cotter
pins (O).
5/16" x 1" CARRIAGE
BOLT (L)
5/16" WASHER (FF)
5/16" NYLOCK
NUT (V)
FIGURE 18
STEP 17:
(SEE FIGURE 18)
• Attach the skid shoes to the blade using four 5/16"
x 1" carriage bolts (L), 5/16" fl at washers (FF) and
5/16" nylock nuts (V). Do not tighten yet.
FIGURE 17
3/8" NYLOCK
NUT (Q)
BLADE PIVOT
BRACKET
PIVOT PLATE
ASSEMBLY
5/16" X 3/4"
BOLT (G)
5/16" NYLOCK
NUT (V)
HANDLE GUIDE
3/8" x 1-1/4"
BOLT (E)
STEP 16:
(SEE FIGURE 17)
• Assemble the blade pivot bracket to the pivot plate
assembly using two 3/8" x 1-1/4" bolts (E) and 3/8"
nylock nuts (Q).
• Assemble the handle guide to the frame assembly
using a 5/16" x 3/4" bolt (G) and 5/16" nylock nut (V).
BLADE MOUNT
GUSSET
LARGE HAIRPIN
COTTER (KK)
STEP 18:
(SEE FIGURE 19)
• Align the channel pivot plate assembly behind the
blade and guide the ends of the mounting rod, one
end at a time, into the holes at the bottom of the
blade mount gussets. Secure the mounting rod with
two large hairpin cotters (KK).
FIGURE 19

11
3/4"
CONTROL CABLE END
HANDLE
ASS'Y. HANDLE
GUIDE
JAM NUTS
RUBBER CAP
STEP 22:
(SEE FIGURE 23)
• Remove the rubber cap and the fi rst jam nut from
the threaded end of the control cable and slide them
onto the control cable wire. Adjust the second jam nut
on the threads so that it is approximately 3/4" from
end. Assemble threaded end of cable through the
cable mount ear and secure it with the fi rst jam nut.
Reinstall the rubber cap onto the threaded cable end.
FIGURE 23
SPRING ASSEMBLY
3/8" HEX NUT (X)
PLASTIC CAP (JJ)
SPRING
MOUNT EAR
STOP BOLT
1-1/2"
1"

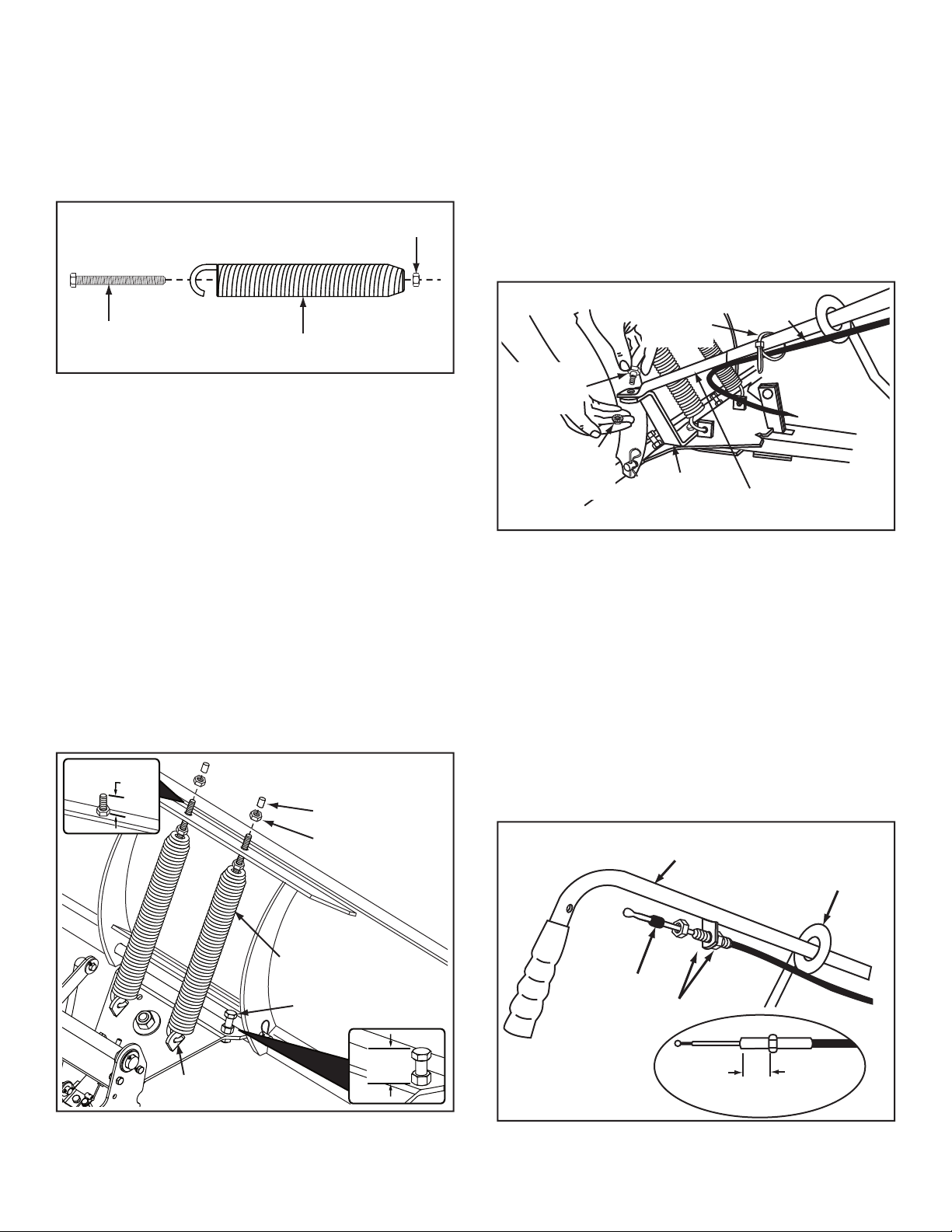

STEP 20:
(SEE FIGURE 21)
• Hook the spring assemblies into the spring mount
ears on the pivot plate. Insert the end of each bolt
up through the holes in the top of the blade and
assemble a 3/8" hex nut (X) onto each trip spring.
Tighten both nuts on each bolt so that approximately
1" of the bolt extends through the top of the blade.
• Assemble the plastic caps (JJ) onto the bolts.
• Adjust the stop bolts in the pivot plate so that the
bolts extend equally 1-1/2" above the pivot plate,
creating tension on the spring assemblies.
FIGURE 21
SHOULDER
BOLT (I)
3/8" HEX
WHIZLOCK
NUT (S) BLADE
PIVOT
BRACKET
HANDLE
TUBE
PLASTIC
TIE (HH)
CONTROL
CABLE
FIGURE 22
STEP 21:
(SEE FIGURE 22)
• Slide the handle assembly through the handle guide
so that the fl attened end rests on the blade pivot
bracket.
• Secure the end of the handle to the top side of the
blade pivot bracket with the shoulder bolt (I) on top
and a 3/8" hex whizlock nut (S) underneath.
• Secure cable to handle tube with a plastic tie (HH)
near bottom of handle. Cut off extra plastic on end.
3/8" X 3-1/2"
HEX BOLT (H) BLADE TRIP SPRING
3/8" HEX NUT (X)
FIGURE 20
STEP 19:
(SEE FIGURE 20)
• Insert each 3/8" x 3-1/2" hex bolt (H) into a blade trip
spring.
• Assemble a 3/8" hex nut (X) onto the end of each 3/8"
x 3-1/2" hex bolt (H) leaving the nut about 2" from the
end of the bolt.

12
1/4" x 1-1/2"
BOLT (N)
1/4" NYLOCK
NUT (R)
FIGURE 25

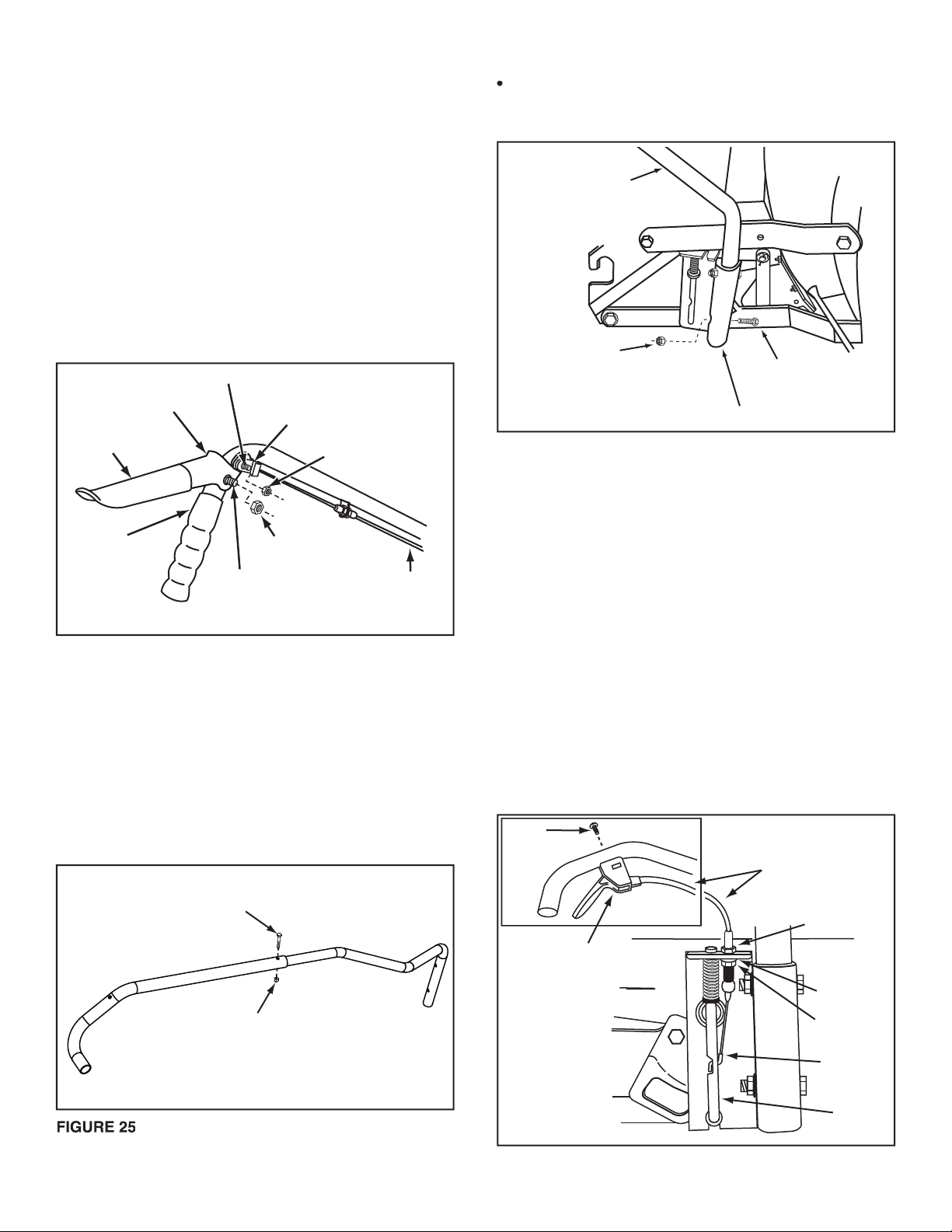

STEP 24:
(SEE FIGURE 25)
• Assemble the upper lift handle onto the lower lift
handle and fasten using a 1/4" x 1-1/2" bolt (N) and
1/4" nylock nut (R).
OVAL
SCREW (AA) LIFT RELEASE
CABLE
HEX NUT
JAM NUT
LOCK
WASHER
CABLE
WIRE
INDEX
LIFT
ROD
TRIGGER
ASSEMBLY
LIFT HANDLE
LIFT BRACKET
5/16" X 1-3/4"
HEX BOLT (D)
5/16" NYLOCK
NUT (V)
FIGURE 26
STEP 25:
(SEE FIGURE 26)
•
Attach the lower lift handle to the right side of the
frame assembly using two 5/16" x 1-3/4" hex bolts (D)
and 5/16" nylock nuts (V).
FIGURE 27
STEP 26:
(SEE FIGURE 27)
• Install the trigger assembly to the lift handle using an
oval screw (AA).
• Connect the hooked end of the cable wire into the
index lift rod. Install the threaded end of the cable into
the notch in the top of the lift bracket, placing one jam
nut on each side of the notch with the lock washer
below the notch.
• Adjust the jam nuts so that when the trigger on the lift
handle is squeezed, the bottom of the index lift rod
raises enough to release from the latched position.
The index lift rod should also lower far enough to lock
in the latched position when the trigger is released.
• Secure cable to handle with a plastic tie (HH) to
prevent cable from interfering with tractor. Cut off
extra plastic on end of tie.
GRIP ASSEMBLY
HANDLE
ASSEMBLY
5/16" X 1-1/2"
HEX BOLT (M)
CABLE END
FITTING (LL)
1/4" WELD BOLT
5/16" NYLOCK
NUT (V)
CABLE
1/4" NYLOCK
NUT (R)
GRIP (OO)
FIGURE 24
STEP 23:
(SEE FIGURE 24)
• Assemble grip (OO) to grip assembly.
• Assemble grip assembly to handle assembly using a
5/16" x 1-1/2" hex bolt (M) and 5/16" nylock nut (V).
• Assemble the ball end of the cable wire (shown in
fi gure 23) up through the hole in a cable end fi tting
(LL) and then slide it back inside the curled edge of
the fi tting.
• Assemble cable end fi tting (LL) over 1/4" weld bolt on
grip assembly and secure with one 1/4" nylock nut (R)
and then back nut off 1/2 turn.
NOTE:
Do not over tighten 1/4" nylock nut, cable end
fi tting must pivot freely.

13

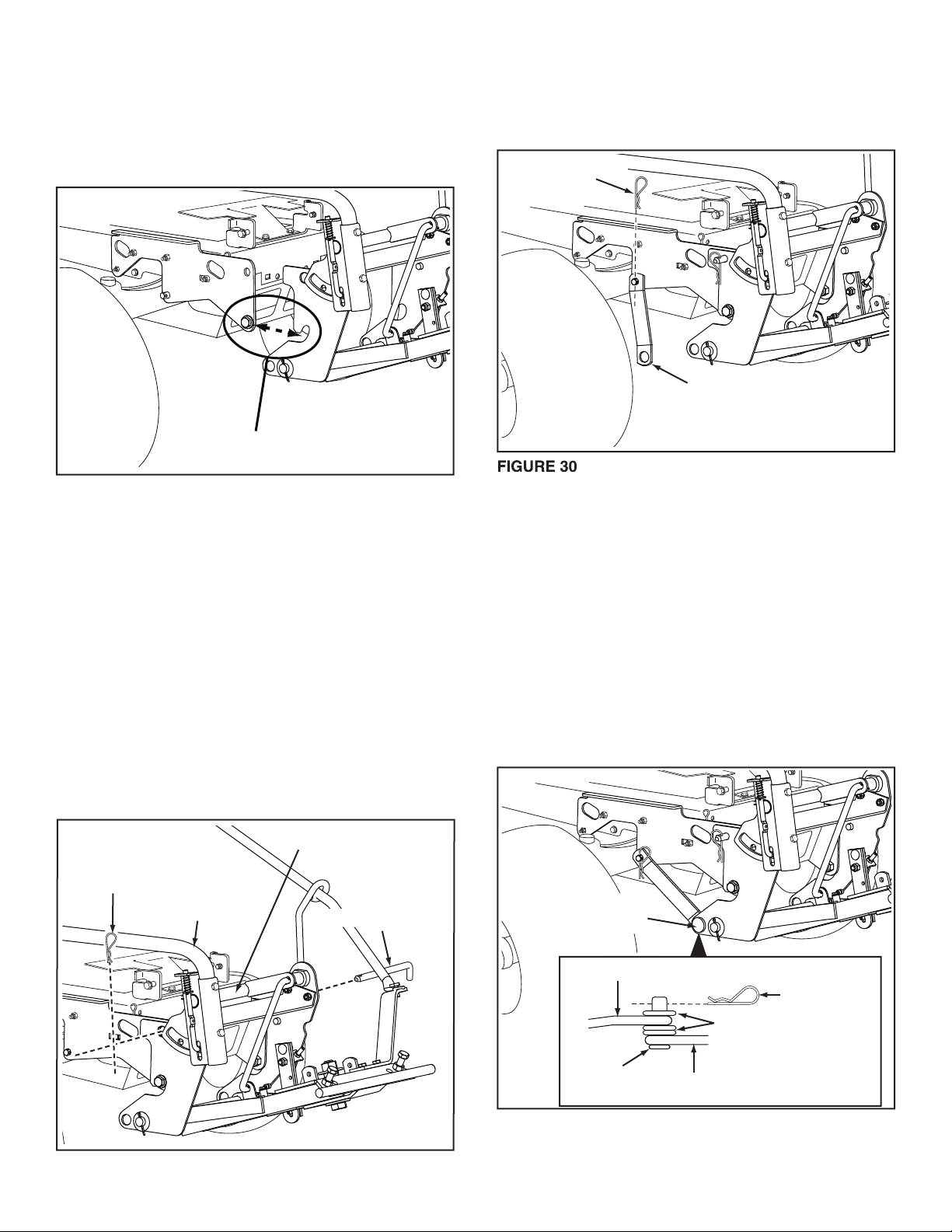

MOUNTING BLADE TO TRACTOR
STEP 1:
(SEE FIGURE 28)
• Attach the frame assembly to the frame brackets by
sliding the notches in the frame assembly onto the
shoulder bolts on the frame brackets.
ATTACH FRAME ASSEMBLY
TO SHOULDER BOLTS
FIGURE 28
LIFT LINK
HAIRCOTTER
PIN (KK)
FIGURE 30
CLEVIS
PIN (II)
HAIRCOTTER
PIN (KK)
LIFT LINK
CLEVIS
PIN (II) FRAME ASSEMBLY
5/8" WASHERS (DD)
FIGURE 31
LIFT
HANDLE ATTACHMENT ROD
HAIRCOTTER
PIN (KK)
ROUND BAR
FIGURE 29
STEP 4:
(SEE FIGURE 31)
• Attach the lift links to the frame assembly:
A. Insert a clevis pin (II) through the frame assembly
from the outside.
B. Place two 5/8" washers (DD) onto the clevis pin.
C. Place the end of the lift link onto the clevis pin.
D. Place a 5/8" washer (DD) onto the clevis pin
and secure with a haircotter pin (KK).
STEP 3:
(SEE FIGURE 30)
• Attach the small holes of the lift links to the welded
pins on the frame bracket and secure with haircotter
pins (KK). The lift link should angle to the inside.
STEP 2:
(SEE FIGURE 29)
• Stand on the right side of the blade. Squeeze the
trigger on the lift handle and lift the handle. Release
the trigger, but do not allow handle to lower into
locked position.
• Stand on the left side of the blade. Grip the round bar
at the top of the frame assembly and lift up to align
the holes in the frame assembly with the holes in the
frame brackets.
• From the left side, insert the attachment rod through
the holes in the frame assembly and the frame
brackets and secure with a haircotter pin (KK).
NOTE:
Blade hidden in illustration for better view.

14
OPERATION
WARNING:
Hidden objects can cause
sudden stops or change in direction
CONTROLS
Become familiar with all of the controls and adjustments
on the tractor and dozer blade before operating. Refer to
tractor owners manual for tractor controls. Controls for
operating dozer blade are as follows:

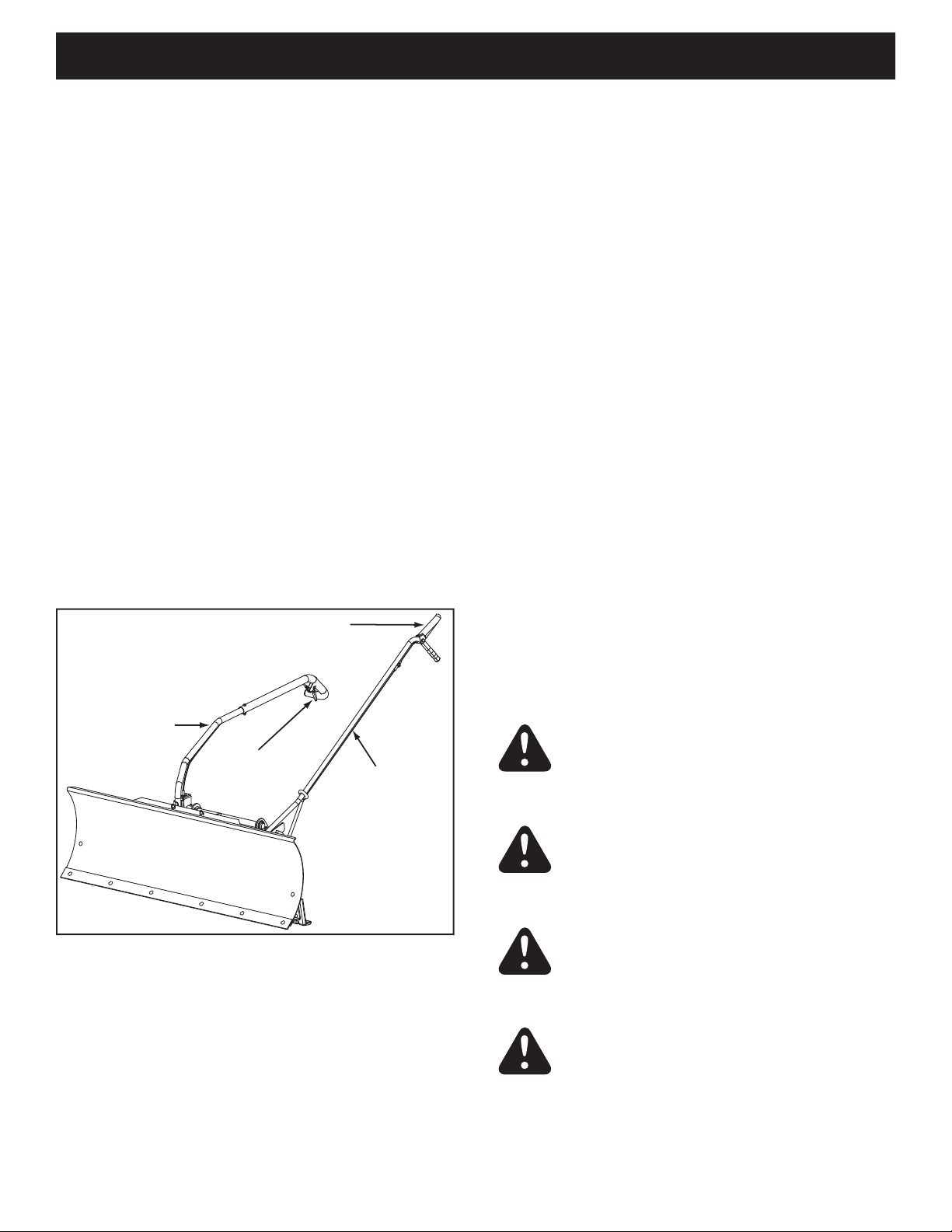

LIFT HANDLE: (Figure 32)
Located on right hand side of tractor. To raise the
dozer blade, push the lift handle down until blade
locks in the up position. To lower the dozer blade,
push down slightly on the lift handle, depress trigger
and then lift up on handle to lower the blade.
BLADE ANGLE HANDLE: (Figure 32)
Located on the left hand side of tractor. When dozer
blade is in the
up
position, depress grip assembly
and push or pull on handle to swivel blade to the right
or left. Release grip assembly to lock the blade in the
left, center or right position.
NOTE:
Always raise dozer blade and lock in up position
before moving blade angle handle.
CAUTION:
Know the terrain. Avoid
exceptionally sharp slopes or drop-offs
which may be hidden by the snow.
WARNING:
Never run the dozer blade
into heavy material at high speed.
LIFT HANDLE
BLADE ANGLE
HANDLE
LIFT HANDLE
TRIGGER
GRIP ASSEMBLY
FIGURE 32
• Prepare the tractor engine for cold weather by
following the instructions furnished with the tractor.
• Inspect the area to be worked carefully before
operating the dozer blade. Avoid pipes, roots, curbs or
other heavy obstructions.
• Always begin transmission in fi rst (low) gear and
gradually increase speed as required.
•
Operate tractor at reduced speed when dozer blade
trip springs
are locked out.
Refer to Service and
Adjustment section.
• If blade is stored in heated area, allow tractor blade
to adjust to outdoor temperature before operating to
reduce icing on the metal surfaces.
• For improved show removal performance, coat the
blade with automotive type paste wax.
CAUTION:
Always lower blade to
ground before leaving tractor
NOTE:
Wheel weights and tire chains should be used
with your dozer to improve traction. For additional traction,
install wheel weight on rear of draw bar using a weight
bracket kit and one wheel weight from a wheel weight kit.
These accessories are available at your nearest Sears
retail or catalog sales.
USING THE DOZER BLADE

15

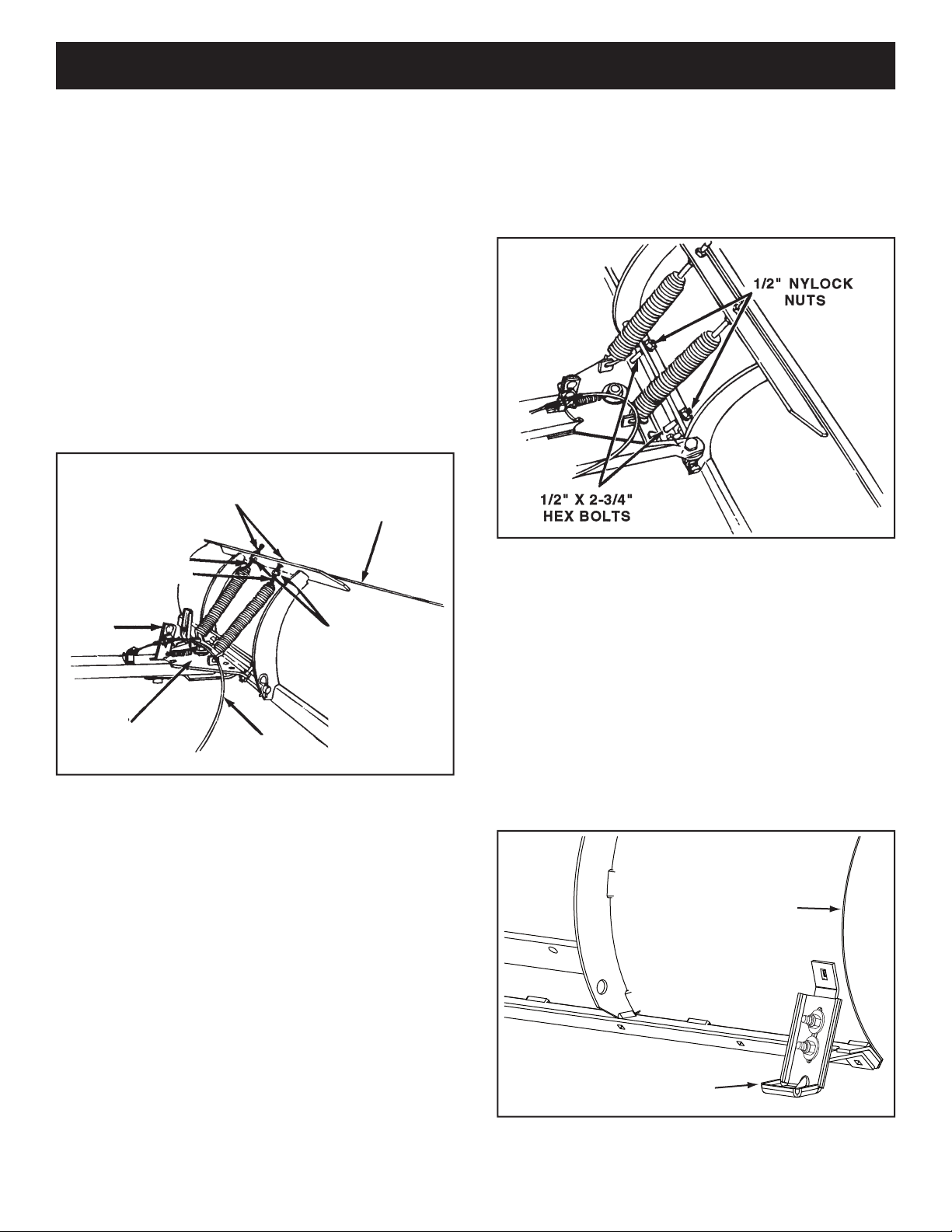

DOZER SPRING LOCKOUT: (Figure 34)
To lock dozer blade spring trip action for heavy dozer
work, install two 1/2" x 2-3/4" hex bolts (A) (included
in hardware package.) Secure with two 1/2" nylock
nuts (P).
BLADE SHOE ADJUSTMENT: (Figure 35)
Blade shoes on end of blade may be raised for clean
dozing on smooth surfaces or lowered to raise the
blade to work on rough or uneven areas. Make sure
both shoes are set evenly and nuts are tightened
securely
(P)
(A)
FIGURE 34
BLADE
SHOE
BLADE
FIGURE 35
BLADE ANGLE LOCK BARS: (Figure 33)
If angle lock bars DO NOT completely disengage
from slots in pivot plate assembly, adjustment of cable
is required.
ADJUST BLADE SPRINGS: (Figure 33)
To change spring tension, stand in front of blade
assembly and adjust the nuts at the upper end of the
springs. Turn counter clockwise to decrease tension
and clockwise to increase tension.
Adjust spring adjustment nuts approximately 1"
from end when moving snow or other light material.
Keep spring tension light for safety. This frees the
blade to spring trip and return if a hidden obstacle is
encountered.
SPRING ADJUSTMENT
NUTS (OUTSIDE)
SPRING ADJUSTMENT
NUTS (INSIDE)
BLADE
ASSEMBLY
PIVOT PLATE
ASSEMBLY CABLE
LOCK
BARS
SPRING
ADJUSTMENT
BOLTS
FIGURE 33
SERVICE AND ADJUSTMENTS

16
SCRAPER
BAR
BLADE
ASSEMBLY
CARRIAGE BOLTS
AND NUTS
FIGURE 36
CHECK FOR LOOSE FASTENERS
• During the operating season, check all bolts, nuts and
hairpin cotters to be sure they are secure.
CHECK SCRAPER AND SHOES FOR WEAR
• During the operating season, check the scraper and
shoes for wear before each use. After extensive use
and wear, the scraper bar may be reversed to utilize
the unused top edge. See fi gure 36.
CLEAN BLADE
•
During the operating season, clean the blade off after
each use. Touch up any bare metal with paint or
apply a light coat of grease or rust preventive.
LUBRICATE BLADE
• Oil all pivot points each season so they will work
freely.
CUSTOMER RESPONSIBILITIES
• Read and follow the maintenance schedule and the maintenance procedures listed in this section.
Service Dates
Check for loose fasteners X
Check for loose fasteners X
Check scraper and shoes for wear X
Check scraper and shoes for wear X
Check scraper and shoes for wear X
Check scraper and shoes for wear X
Check scraper and shoes for wear X
Clean Blade X X
Clean Blade X X
Clean Blade X X
Clean Blade X X
Clean Blade X X
Clean Blade X X
Lubricate Blade X
Lubricate Blade X
Lubricate Blade X
Lubricate Blade X
Lubricate Blade X
Lubricate Blade X
Lubricate Blade X
Lubricate Blade X
MAINTENANCE SCHEDULE
MAINTENANCE SCHEDULE
Fill in dates as you
complete regular service.
complete regular service.
Before each use
Before each use
After each use
Every season
Before storage
Before storage
MAINTENANCE
CAUSE
PROBLEM
CORRECTION
Blade is diffi cult to pivot.
Blade is diffi cult to pivot.
Blade is diffi cult to raise.
Blade is diffi cult to raise.
Blade will not unlock to pivot.
Blade will not unlock to pivot.
TROUBLESHOOTING
Lift mechanism is binding. Lubricate pivot points.
Lift mechanism is binding. Lubricate pivot points.
Handle tube is binding on lift rod. Lubricate lift handle rod.
Handle tube is binding on lift rod. Lubricate lift handle rod.
Lock mechanism is out of adjustment Refer to the Operation section on
Lock mechanism is out of adjustment Refer to the Operation section on
and is not disengaging. page 14.
and is not disengaging. page 14.

17
RECOMMENDATIONS WHEN STORING
• When the dozer is not being used, remove all dirt and
rust and touch up with paint.
• Apply a light coat of grease or rust prevention to the
blade and oil pivot points.
• Store in an area where it is protected from weather.
• Store in a dry area, protected from weather.
REMOVING DOZER BLADE FROM TRACTOR
1. Lower blade to ground with blade in the center
(straight ahead) position.
2. Refer to fi gure 37 below:
A. Remove cotter pins and lift links from side plates.
B. Remove attachment rod from blade frame
assembly.
C. Pull blade frame assembly from side plates.
NOTE:
Frame brackets do not require removal unless a
different attachment is mounted to front of tractor.
CLEVIS
PIN
ATTACHMENT ROD
LIFT LINK
HAIRPIN
COTTER
FIGURE 37
STORAGE
ACCESSORIES AND ATTACHMENTS
WHEEL
WEIGHT
TIRE CHAINS
WEIGHT BR
A
CKET
FOR DR
A
W
AW A
B
AR
SN
O
W CAB
These and other accessories are recommended for use with your unit. Call 1-800-4-MY-HOME® to fi nd out if they are available.
If available, they may be purchased at most Craftsman outlets or by calling 1-800-4-MY-HOME®.

18
1
2
3
3
5
5
5
5
4
6
7
7
8
9
76
76
5
3
5
10
41
40
63
51
67
67
51
65
64
81
62
24
34
59
59
26
25
22
38
3736
37
36
16
60
50
17
18
61
19 86
5
21 A
45
50
89
73 20
44
44
15
28
27
74
5
5
30
29
31
33
32
31
31
74
11
68
50
5
79
11
12
14
58
53
47
64
54
54
46
46
46
43
42
65
65
78
78
78
49
49
49
57
39
75
75
76
71 85
82
83
84
77
46
55
56
23
80 35
23
45
60
66
48
52
52 A
69
70
49
87
88
48
49
72
3

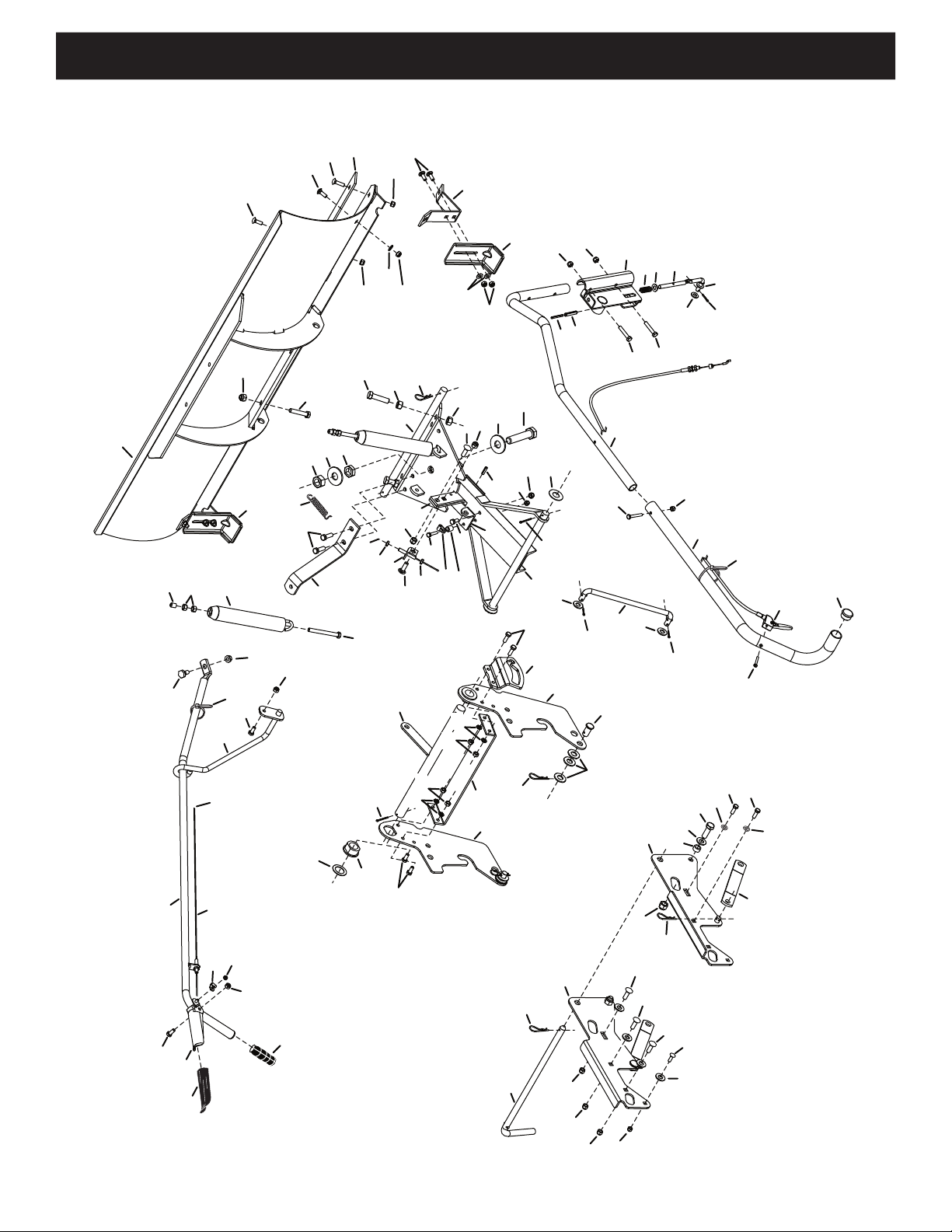

REPAIR PARTS
REPAIR PARTS FOR MODEL 486.24414 - 48" DOZER BLADE

19
47 43510 2 Hex Bolt, 1/2" x 2-3/4"
48 710-0305 2 Carriage Bolt, 3/8" x 1-1/4"
49 HA21362 10 Nylock Hex Nut, 3/8"
50 47189 3 Nylock Hex Nut, 1/4"
51 43001 4 Hex Bolt, 3/8" x 1"
52 712-0256 2 Hex Jam Nut, 5/16"
53 41596 2 Hex Bolt, 1/2" x 2"
54 712-0206 4 Hex Nut, 1/2"
55 711-0309 2 Clevis Pin, 5/8" x 1.2"
56 R19212113 6 Washer, 5/8" SAE
57 R19172410 8 Washer, 1/2" x 1-1/2"
58 43087 2 Hex Bolt, 3/8" x 1-1/4"
59 43081 6 Washer, 5/16"
60 43648 2 Hex Bolt, 1/4" x 1-1/2"
61 49266 1 Oval Screw, #10 x 1"
62 47364 2 Spacer, .52" x .75" x .4"
63 43020 2 Hex Bolt, 1/2" x 1-1/2"
64 712-3083 4 Nylock Nut, 1/2"
65 R19171616 4 Washer, 1/2" x 1" (Small)
66 25688 1 Lift Rod Bracket
67 43003 4 Lock Washer, 3/8"
68 43349 1 Spring Pin, 1/4" x 1"
69 05762 1 Cable Mount Bracket
70 43348 1 Extension Spring
71 48106 1 Shoulder Bolt
72 23658 1 Spacer, .39" x .56" x .62"
73 43085 1 Hex Bolt, 5/16" x 1-1/2"
74 43084 2 Hex Bolt, 5/16" x 1-3/4"
75 43182 2 Hex Bolt, 5/16" x 3/4"
76 43010 4 Cotter Pin, 1/8" x 1-1/4"
77 44072 1 Whizlock Hex Nut, 3/8"
78 43350 6 Carriage Bolt, 3/8" x 1"
79 43009 2 Washer, 3/4"
80 24298 1 Lift Bracket
81 25725 2 Lift Link
82 R9466R 2 Trip Spring
83 44071 2 Hex Bolt, 3/8" x 3-1/2"
84 43015 4 Hex Nut, 3/8"
85 44074 2 Plastic Cap
86 62561 1 Release Grip Ass'y.
87 23151 2 Angle Lock Bar (Short)
88 23646 1 Blade Pivot Bracket
89 731-0869 1 Plastic Grip
49810 1 Owners Manual
1 65379 1 48" Blade Ass'y.
2 25701 2 Skid Shoe Bracket
3 44326 12 Carriage Bolt, 5/16-18 x 1"
4 43682 2 Carriage Bolt, 5/16-18 x 1-1/4"
5 47810 19 Nylock Hex Nut, 5/16"
6 23639 1 Wear Plate 48"
7 R3132J 2 Skid Shoe
8 62556 1 Pivot Plate Ass'y.
9 65358 1 Channel Ass'y.
10 710-0741 1 Hex Bolt 3/4-10 x 3-1/2"
11 1540-162 2 Washer 3/4"
12 40436 1 Hex Jam Nut, 3/4-10
14 40598 1 Hex Lock Nut, 3/4-10
15 49264 1 Lift Handle Tube (Lower)
16 49265 1 Lift Handle Tube (Upper)
17 47674 1 Tube Plug
18 49912 1 Trigger & Lift Cable Ass'y.
19 7071 1 Handle Grip
20 65348 1 Handle Ass'y.
21 49808 1 Control Cable
22 65359 1 Lift Ass'y.
23 24312 2 Mounting Bracket
24 741-0192 2 Flange Bearing (w/ Flats)
25 43093 1 Cotter Pin, 1/8 x 1-1/2"
26 43601 1 Washer, 1.59" x 1.032" x 0.60"
27 47368 1 Spring Pin, 5/16" x 1-3/4"
28 47369 1 Spring Pin, 3/16" x 1-3/4"
29 63773 1 Bracket Handle Lift Ass'y.
30 732-0306 1 Compression Spring
31 R19131316 3 Washer, 3/8" x 13/16" x 1/16"
32 142 1 Cotter Pin, 1/8" x 3/4"
33 48049 1 Index Lift Rod
34 43063 2 Hex Bolt, 5/16" x 1"
35 43840 2 Hex Bolt, 5/16" x 1-1/4"
36 43064 4 Hex Lock Nut, 5/16"
37 43086 4 Lock Washer, 5/16"
38 25666 1 Spacer Bracket
39 65436 1 Tube Guide Bracket Ass'y.
40 65403 1 Side Plate (Left Hand)
41 65402 1 Side Plate (Right Hand)
42 49819 1 Lift Rod
43 47066 1 Attachment Rod
44 726-0178 2 Nylon Tie
45 746-0260 2 Cable End Fitting
46 43343 7 Haircotter Pin, 3/32" x 2-5/16"
PART NO. QTY. DESCRIPTION
1 65379 1 48" Blade Ass'y.
2 25701 2 Skid Shoe Bracket
3 44326 12 Carriage Bolt, 5/16-18 x 1"
4 43682 2 Carriage Bolt, 5/16-18 x 1-1/4"
5 47810 19 Nylock Hex Nut, 5/16"
6 23639 1 Wear Plate 48"
7 R3132J 2 Skid Shoe
8 62556 1 Pivot Plate Ass'y.
9 65358 1 Channel Ass'y.
10 710-0741 1 Hex Bolt 3/4-10 x 3-1/2"
11 1540-162 2 Washer 3/4"
12 40436 1 Hex Jam Nut, 3/4-10
14 40598 1 Hex Lock Nut, 3/4-10
15 49264 1 Lift Handle Tube (Lower)
16 49265 1 Lift Handle Tube (Upper)
17 47674 1 Tube Plug
18 49912 1 Trigger & Lift Cable Ass'y.
19 7071 1 Handle Grip
20 65348 1 Handle Ass'y.
21 49808 1 Control Cable
22 65359 1 Lift Ass'y.
23 24312 2 Mounting Bracket
24 741-0192 2 Flange Bearing (w/ Flats)
25 43093 1 Cotter Pin, 1/8 x 1-1/2"
26 43601 1 Washer, 1.59" x 1.032" x 0.60"
27 47368 1 Spring Pin, 5/16" x 1-3/4"
28 47369 1 Spring Pin, 3/16" x 1-3/4"
29 63773 1 Bracket Handle Lift Ass'y.
30 732-0306 1 Compression Spring
31 R19131316 3 Washer, 3/8" x 13/16" x 1/16"
32 142 1 Cotter Pin, 1/8" x 3/4"
33 48049 1 Index Lift Rod
34 43063 2 Hex Bolt, 5/16" x 1"
35 43840 2 Hex Bolt, 5/16" x 1-1/4"
36 43064 4 Hex Lock Nut, 5/16"
37 43086 4 Lock Washer, 5/16"
38 25666 1 Spacer Bracket
PART NO. QTY. DESCRIPTION
1 65379 1 48" Blade Ass'y.
2 25701 2 Skid Shoe Bracket
3 44326 12 Carriage Bolt, 5/16-18 x 1"
4 43682 2 Carriage Bolt, 5/16-18 x 1-1/4"
5 47810 19 Nylock Hex Nut, 5/16"
6 23639 1 Wear Plate 48"
7 R3132J 2 Skid Shoe
8 62556 1 Pivot Plate Ass'y.
9 65358 1 Channel Ass'y.
10 710-0741 1 Hex Bolt 3/4-10 x 3-1/2"
11 1540-162 2 Washer 3/4"
12 40436 1 Hex Jam Nut, 3/4-10
14 40598 1 Hex Lock Nut, 3/4-10
15 49264 1 Lift Handle Tube (Lower)
16 49265 1 Lift Handle Tube (Upper)
17 47674 1 Tube Plug
18 49912 1 Trigger & Lift Cable Ass'y.
19 7071 1 Handle Grip
20 65348 1 Handle Ass'y.
21 49808 1 Control Cable
22 65359 1 Lift Ass'y.
23 24312 2 Mounting Bracket
24 741-0192 2 Flange Bearing (w/ Flats)
25 43093 1 Cotter Pin, 1/8 x 1-1/2"
26 43601 1 Washer, 1.59" x 1.032" x 0.60"
27 47368 1 Spring Pin, 5/16" x 1-3/4"
28 47369 1 Spring Pin, 3/16" x 1-3/4"
29 63773 1 Bracket Handle Lift Ass'y.
30 732-0306 1 Compression Spring
31 R19131316 3 Washer, 3/8" x 13/16" x 1/16"
32 142 1 Cotter Pin, 1/8" x 3/4"
33 48049 1 Index Lift Rod
34 43063 2 Hex Bolt, 5/16" x 1"
35 43840 2 Hex Bolt, 5/16" x 1-1/4"
36 43064 4 Hex Lock Nut, 5/16"
37 43086 4 Lock Washer, 5/16"
38 25666 1 Spacer Bracket
39 65436 1 Tube Guide Bracket Ass'y.
40 65403 1 Side Plate (Left Hand)
41 65402 1 Side Plate (Right Hand)
42 49819 1 Lift Rod
43 47066 1 Attachment Rod
44 726-0178 2 Nylon Tie
45 746-0260 2 Cable End Fitting
46 43343 7 Haircotter Pin, 3/32" x 2-5/16"
PART NO. QTY. DESCRIPTION
1 65379 1 48" Blade Ass'y.
2 25701 2 Skid Shoe Bracket
3 44326 12 Carriage Bolt, 5/16-18 x 1"
4 43682 2 Carriage Bolt, 5/16-18 x 1-1/4"
5 47810 19 Nylock Hex Nut, 5/16"
6 23639 1 Wear Plate 48"
7 R3132J 2 Skid Shoe
8 62556 1 Pivot Plate Ass'y.
9 65358 1 Channel Ass'y.
10 710-0741 1 Hex Bolt 3/4-10 x 3-1/2"
11 1540-162 2 Washer 3/4"
12 40436 1 Hex Jam Nut, 3/4-10
14 40598 1 Hex Lock Nut, 3/4-10
15 49264 1 Lift Handle Tube (Lower)
16 49265 1 Lift Handle Tube (Upper)
17 47674 1 Tube Plug
18 49912 1 Trigger & Lift Cable Ass'y.
19 7071 1 Handle Grip
20 65348 1 Handle Ass'y.
21 49808 1 Control Cable
22 65359 1 Lift Ass'y.
23 24312 2 Mounting Bracket
24 741-0192 2 Flange Bearing (w/ Flats)
25 43093 1 Cotter Pin, 1/8 x 1-1/2"
26 43601 1 Washer, 1.59" x 1.032" x 0.60"
27 47368 1 Spring Pin, 5/16" x 1-3/4"
28 47369 1 Spring Pin, 3/16" x 1-3/4"
29 63773 1 Bracket Handle Lift Ass'y.
30 732-0306 1 Compression Spring
31 R19131316 3 Washer, 3/8" x 13/16" x 1/16"
32 142 1 Cotter Pin, 1/8" x 3/4"
33 48049 1 Index Lift Rod
34 43063 2 Hex Bolt, 5/16" x 1"
35 43840 2 Hex Bolt, 5/16" x 1-1/4"
36 43064 4 Hex Lock Nut, 5/16"
37 43086 4 Lock Washer, 5/16"
38 25666 1 Spacer Bracket
39 65436 1 Tube Guide Bracket Ass'y.
40 65403 1 Side Plate (Left Hand)
41 65402 1 Side Plate (Right Hand)
42 49819 1 Lift Rod
43 47066 1 Attachment Rod
44 726-0178 2 Nylon Tie
45 746-0260 2 Cable End Fitting
46 43343 7 Haircotter Pin, 3/32" x 2-5/16"
47 43510 2 Hex Bolt, 1/2" x 2-3/4"
48 710-0305 2 Carriage Bolt, 3/8" x 1-1/4"
49 HA21362 10 Nylock Hex Nut, 3/8"
50 47189 3 Nylock Hex Nut, 1/4"
51 43001 4 Hex Bolt, 3/8" x 1"
52 712-0256 2 Hex Jam Nut, 5/16"
53 41596 2 Hex Bolt, 1/2" x 2"
54 712-0206 4 Hex Nut, 1/2"
55 711-0309 2 Clevis Pin, 5/8" x 1.2"
56 R19212113 6 Washer, 5/8" SAE
57 R19172410 8 Washer, 1/2" x 1-1/2"
58 43087 2 Hex Bolt, 3/8" x 1-1/4"
59 43081 6 Washer, 5/16"
60 43648 2 Hex Bolt, 1/4" x 1-1/2"
61 49266 1 Oval Screw, #10 x 1"
62 47364 2 Spacer, .52" x .75" x .4"
63 43020 2 Hex Bolt, 1/2" x 1-1/2"
64 712-3083 4 Nylock Nut, 1/2"
65 R19171616 4 Washer, 1/2" x 1" (Small)
66 25688 1 Lift Rod Bracket
67 43003 4 Lock Washer, 3/8"
68 43349 1 Spring Pin, 1/4" x 1"
69 05762 1 Cable Mount Bracket
70 43348 1 Extension Spring
71 48106 1 Shoulder Bolt
72 23658 1 Spacer, .39" x .56" x .62"
73 43085 1 Hex Bolt, 5/16" x 1-1/2"
74 43084 2 Hex Bolt, 5/16" x 1-3/4"
75 43182 2 Hex Bolt, 5/16" x 3/4"
76 43010 4 Cotter Pin, 1/8" x 1-1/4"
77 44072 1 Whizlock Hex Nut, 3/8"
78 43350 6 Carriage Bolt, 3/8" x 1"
79 43009 2 Washer, 3/4"
80 24298 1 Lift Bracket
81 25725 2 Lift Link
82 R9466R 2 Trip Spring
83 44071 2 Hex Bolt, 3/8" x 3-1/2"
84 43015 4 Hex Nut, 3/8"
85 44074 2 Plastic Cap
86 62561 1 Release Grip Ass'y.
87 23151 2 Angle Lock Bar (Short)
88 23646 1 Blade Pivot Bracket
89 731-0869 1 Plastic Grip
49810 1 Owners Manual
REF.
NO.
PART NO. QTY. DESCRIPTION
1 65379 1 48" Blade Ass'y.
2 25701 2 Skid Shoe Bracket
3 44326 12 Carriage Bolt, 5/16-18 x 1"
4 43682 2 Carriage Bolt, 5/16-18 x 1-1/4"
5 47810 19 Nylock Hex Nut, 5/16"
6 23639 1 Wear Plate 48"
7 R3132J 2 Skid Shoe
8 62556 1 Pivot Plate Ass'y.
9 65358 1 Channel Ass'y.
10 710-0741 1 Hex Bolt 3/4-10 x 3-1/2"
11 1540-162 2 Washer 3/4"
12 40436 1 Hex Jam Nut, 3/4-10
14 40598 1 Hex Lock Nut, 3/4-10
15 49264 1 Lift Handle Tube (Lower)
16 49265 1 Lift Handle Tube (Upper)
17 47674 1 Tube Plug
18 49912 1 Trigger & Lift Cable Ass'y.
19 7071 1 Handle Grip
20 65348 1 Handle Ass'y.
21 49808 1 Control Cable
22 65359 1 Lift Ass'y.
23 24312 2 Mounting Bracket
24 741-0192 2 Flange Bearing (w/ Flats)
25 43093 1 Cotter Pin, 1/8 x 1-1/2"
26 43601 1 Washer, 1.59" x 1.032" x 0.60"
27 47368 1 Spring Pin, 5/16" x 1-3/4"
28 47369 1 Spring Pin, 3/16" x 1-3/4"
29 63773 1 Bracket Handle Lift Ass'y.
30 732-0306 1 Compression Spring
31 R19131316 3 Washer, 3/8" x 13/16" x 1/16"
32 142 1 Cotter Pin, 1/8" x 3/4"
33 48049 1 Index Lift Rod
34 43063 2 Hex Bolt, 5/16" x 1"
35 43840 2 Hex Bolt, 5/16" x 1-1/4"
36 43064 4 Hex Lock Nut, 5/16"
37 43086 4 Lock Washer, 5/16"
38 25666 1 Spacer Bracket
39 65436 1 Tube Guide Bracket Ass'y.
40 65403 1 Side Plate (Left Hand)
41 65402 1 Side Plate (Right Hand)
42 49819 1 Lift Rod
43 47066 1 Attachment Rod
44 726-0178 2 Nylon Tie
45 746-0260 2 Cable End Fitting
46 43343 7 Haircotter Pin, 3/32" x 2-5/16"
47 43510 2 Hex Bolt, 1/2" x 2-3/4"
48 710-0305 2 Carriage Bolt, 3/8" x 1-1/4"
49 HA21362 10 Nylock Hex Nut, 3/8"
50 47189 3 Nylock Hex Nut, 1/4"
51 43001 4 Hex Bolt, 3/8" x 1"
52 712-0256 2 Hex Jam Nut, 5/16"
53 41596 2 Hex Bolt, 1/2" x 2"
54 712-0206 4 Hex Nut, 1/2"
55 711-0309 2 Clevis Pin, 5/8" x 1.2"
56 R19212113 6 Washer, 5/8" SAE
57 R19172410 8 Washer, 1/2" x 1-1/2"
58 43087 2 Hex Bolt, 3/8" x 1-1/4"
59 43081 6 Washer, 5/16"
60 43648 2 Hex Bolt, 1/4" x 1-1/2"
61 49266 1 Oval Screw, #10 x 1"
62 47364 2 Spacer, .52" x .75" x .4"
63 43020 2 Hex Bolt, 1/2" x 1-1/2"
64 712-3083 4 Nylock Nut, 1/2"
65 R19171616 4 Washer, 1/2" x 1" (Small)
66 25688 1 Lift Rod Bracket
67 43003 4 Lock Washer, 3/8"
68 43349 1 Spring Pin, 1/4" x 1"
69 05762 1 Cable Mount Bracket
70 43348 1 Extension Spring
71 48106 1 Shoulder Bolt
72 23658 1 Spacer, .39" x .56" x .62"
73 43085 1 Hex Bolt, 5/16" x 1-1/2"
74 43084 2 Hex Bolt, 5/16" x 1-3/4"
75 43182 2 Hex Bolt, 5/16" x 3/4"
76 43010 4 Cotter Pin, 1/8" x 1-1/4"
77 44072 1 Whizlock Hex Nut, 3/8"
78 43350 6 Carriage Bolt, 3/8" x 1"
79 43009 2 Washer, 3/4"
80 24298 1 Lift Bracket
81 25725 2 Lift Link
82 R9466R 2 Trip Spring
83 44071 2 Hex Bolt, 3/8" x 3-1/2"
84 43015 4 Hex Nut, 3/8"
85 44074 2 Plastic Cap
86 62561 1 Release Grip Ass'y.
87 23151 2 Angle Lock Bar (Short)
88 23646 1 Blade Pivot Bracket
89 731-0869 1 Plastic Grip
49810 1 Owners Manual
47 43510 2 Hex Bolt, 1/2" x 2-3/4"
48 710-0305 2 Carriage Bolt, 3/8" x 1-1/4"
49 HA21362 10 Nylock Hex Nut, 3/8"
50 47189 3 Nylock Hex Nut, 1/4"
51 43001 4 Hex Bolt, 3/8" x 1"
52 712-0256 2 Hex Jam Nut, 5/16"
53 41596 2 Hex Bolt, 1/2" x 2"
54 712-0206 4 Hex Nut, 1/2"
55 711-0309 2 Clevis Pin, 5/8" x 1.2"
56 R19212113 6 Washer, 5/8" SAE
57 R19172410 8 Washer, 1/2" x 1-1/2"
58 43087 2 Hex Bolt, 3/8" x 1-1/4"
59 43081 6 Washer, 5/16"
60 43648 2 Hex Bolt, 1/4" x 1-1/2"
61 49266 1 Oval Screw, #10 x 1"
62 47364 2 Spacer, .52" x .75" x .4"
63 43020 2 Hex Bolt, 1/2" x 1-1/2"
64 712-3083 4 Nylock Nut, 1/2"
65 R19171616 4 Washer, 1/2" x 1" (Small)
66 25688 1 Lift Rod Bracket
67 43003 4 Lock Washer, 3/8"
68 43349 1 Spring Pin, 1/4" x 1"
69 05762 1 Cable Mount Bracket
70 43348 1 Extension Spring
71 48106 1 Shoulder Bolt
72 23658 1 Spacer, .39" x .56" x .62"
73 43085 1 Hex Bolt, 5/16" x 1-1/2"
74 43084 2 Hex Bolt, 5/16" x 1-3/4"
75 43182 2 Hex Bolt, 5/16" x 3/4"
76 43010 4 Cotter Pin, 1/8" x 1-1/4"
77 44072 1 Whizlock Hex Nut, 3/8"
78 43350 6 Carriage Bolt, 3/8" x 1"
79 43009 2 Washer, 3/4"
80 24298 1 Lift Bracket
81 25725 2 Lift Link
82 R9466R 2 Trip Spring
83 44071 2 Hex Bolt, 3/8" x 3-1/2"
84 43015 4 Hex Nut, 3/8"
85 44074 2 Plastic Cap
86 62561 1 Release Grip Ass'y.
87 23151 2 Angle Lock Bar (Short)
88 23646 1 Blade Pivot Bracket
89 731-0869 1 Plastic Grip
49810 1 Owners Manual
REF.
NO.
REPAIR PARTS FOR MODEL 486.24414 - 48" DOZER BLADE
PART NO. QTY. DESCRIPTION
PART NO. QTY. DESCRIPTION
PART NO. QTY. DESCRIPTION
PART NO. QTY. DESCRIPTION
PART NO. QTY. DESCRIPTION

® Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC
® Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC
MC Marque de commerce / MD Marque déposée de Sears Brands, LLC © Sears Brands, LLC
Get it fixed, at your home or ours!
Your Home
For repair – in your home – of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME®(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR®
(1-888-784-6427)
Au Canada pour service en français:
1-800-LE-FOYERMC
(1-800-533-6937)
www.sears.ca
