Femco WEATHER-BRAKE 2145 User manual

INSTRUCTIONS
WEATHER - BRAKE
2145
FITS
General Offices
1132 W. 1ST STREET
McPherson, KS 67460
Phone: [phone]
Web: www.femcomfg.com Form No. 286307300 / 06-2002
New Holland TN

PARTS LIST
1. 720902901 Motor Cover
2. 720903001 Door L.H.
3. 720903101 Door R.H.
4. 712106701 Yoke
5. 711167201 Door Latch
6. 720903201 Yoke Bracket
7. 711763001 Door Post L.H.
8. 711763101 Door Post R.H.
9. 712181101 Windshield R.H.
10. 712181301 Windshield L.H.
11. 711181301 Windshield Angle
12. 711181401 Windshield Flat
13. 720735000 Side Window
14. 711389800 Windshield
NOTE
Carefully study the photo diagrams showing the loca-
tion of each part. Leave all hardware loose until in-
structed to tighten.

1. Remove three (3) screws (A) from top of dash.
2. Attach yoke bracket (B) to top of dash using three (3)
#8 x 1” screws and washers.
3. Tighten screws.
YOKE BRACKET
1. Attach door post (A) to foot rest using two (2) 1/4” x 1”
bolts, fender washers, and nuts.
2. Repeat procedure for the other side.
DOOR POSTS
1. Lay motor cover (A) over hood of tractor.
2. Insert 3” hem (B) down over door posts.
3. Arrange motor cover around hood of tractor.
MOTOR COVER
B
A
A
A
B

1. Attach windshield (A) to door posts and yoke using
two (2) 1/4” x 1” bolts and nuts. Head of bolt inside
nut outside.
2. Check to see if top of door posts and windshield is
straight up and down.
3. TIGHTEN ALL BOLTS.
WINDSHIELD ATTACHMENT
1. Attach left and right window frames using two (2) #10
x 1/2” bolts and nuts.
2. Slide glass into the channel of the windshield.
3. Attach flat strip and angle strip to the windshield using
two (2) #10 x 1/2” bolts and nuts.
4. TIGHTEN BOLTS.
WINDSHIELD ASSEMBLY
1. Insert yoke (A) into top 3” hem of motor cover.
2. Attach yoke to yoke bracket using two (2) 1/4” x 3/4”
bolts and nuts. Head of bolt outside, nut inside
3. TIGHTEN THESE BOLTS ONLY.
YOKE
A
A

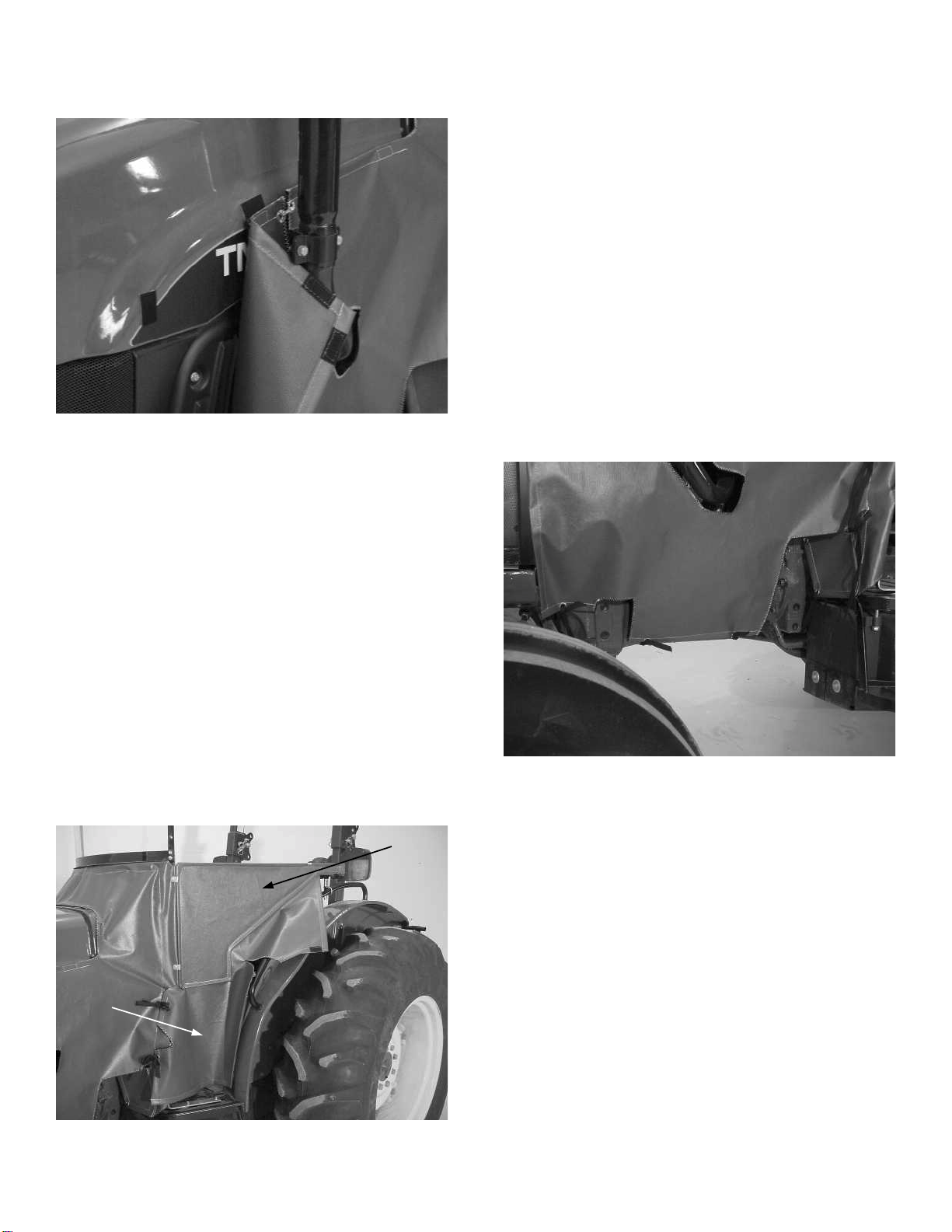

1. Cut plastic Dual Lock into 2” lengths.
2. Surface must be cleaned with a mild detergent to as-
sure proper application of Dual Lock strips.
NOTE: Do not peel the backing from the Dual Lock.
3. Apply cut Dual Lock to all Dual Lock sewn to motor
cover.
4. Attach “S” hooks to grommets back of exhaust pipe.
Crimp one side of “S” hook.
5. Arrange motor cover to tractor. Peel backing from
Dual Lock and apply to tractor. Repeat this procedure
for all Dual Lock.
Dual Lock® a registered trademark of 3M Co.
Cloth straps are not to be attached to any moving, rotat-
ing or heat generating points of the tractor. Any excess
cloth is to be cut off.
1. Tie cloth straps to bottom of motor cover and route
under tractor and tie to the other side of the motor
cover.
CLOTH STRIPS
1. Locate holes in door post and cut holes in the fabric.
2. Hold door (A) to door post and bottom of windshield.
3. Mark location of holes in door post to door.
4. Cut 5/8” slots next to wire frame of door and attach to
door using two (2) #10 x 3/4” bolts, nuts, and clips.
5. Tie door flap (B) to the motor cover.
6. Repeat procedure for the other side.
DOOR POSTS TC35 - TC45
A
B

1. Position door wire in loop of latch (A) and attach using
one (1) “U” bolt and nuts to grab handle on door.
2. CHECK AND TIGHTEN ALL BOLTS.
ATTACHMENT OF BRACE R.H. TC35 - TC45
1. Mark location of holes in windshield to side window
(A).
2. Cut 5/8” slots next to wire frame of window and attach
to windshield using four (4) #10 x 3/4” bolts, nuts, and
clips.
3. At location (B), cut a 5/8” slot in bottom side of win-
dow and top of doors and attach using two (2) #10 x
3/4” bolts, nuts, and clips.
4. TIGHTEN ALL BOLTS.
SIDE WINDOWS
A
A
B
