Winton WHB Series User manual

Owner Manual
Winton Hole Borer
WHB Series
IMPORTANT: Read all instrucons before using this aachment

2
Congratulations on the purchase of your new attachment!
Before you get started, we have provided a helpful space to jot down a
few important details:
This manual should be considered a permanent part of this attachment
and therefore should remain with it even if the attachment is
subsequently sold.
The manufacturer continually seeks advancements in its product design
and quality. Therefore, while this manual contains the most current
product information available at the time of printing, there may be minor
discrepancies between your attachment and this manual.
If you have any questions concerning this manual, please consult your
local dealer.
Model number: WHB
Serial number:
Date of purchase:
Factory reference: HMD-L

3
Safety Information
Before installation/maintenance, ensure tractor and attachment are
stationary with the hydraulic lift system in a neutral position, and the
ignition key removed. Read and understand this manual before
operating any machinery to avoid equipment damage. Failure to
follow all safety standards can result in severe injury or death.
1. Regularly check condition and service of your attachment.
2. Regularly check/tighten all bolts, nuts and screws.
3. Never consume alcohol/drugs while operating machinery.
4. This attachment is for use with compact tractors only, within the power
range specied, and at the recommended speed at all times.
5. Always keep the PTO output from the tractor at 540 rpm. Reduce the
speed when working on hillsides/rough terrain.
6. Only use for the indicated purpose. Do not use to transport personnel
or livestock.
7. Always wear protective gloves, ear and eye protection and tie back long
hair. Do not wear loose clothing.
8. Check the operating area is clear of debris that can cause damage.
9. Keep spectators at a safe distance.
10. Do not run the engine in an enclosed area.
11. Do not leave any machinery unattended while operating.
12. Do not touch moving parts.
13. Stop the engine immediately if excessive vibration occurs.
14. When travelling, keep the PTO turned o.
15. Ensure the engine is switched o before any maintenance. Be aware
components can be hot after operation.
16. Always repair/replace any defective parts.
17. Do not modify the attachment in any way as this may impair the
operation and overall safety.
18. Pay attention to any sharp/pointed parts when servicing.
19. Ensure all safety guards are in place and in good condition.
20. Keep all safety signs clean and legible. Replace missing/illegible signs.

4
Safety Information (Continued)
Attachment Pre-use Checks
Upon receipt of your new attachment and again within the rst 4 hours of
use (the ‘shake in’ period), we recommend the following:
1. Check/tighten all bolts, nuts and screws (and those securing blades).
2. Check the tension of any belt(s), and adjust if required.
3. Apply grease to grease points if necessary.
4. Check engine oil level, top-up if required but do not overll.
Tractor Pre-use Checks
1. Check the attachment is properly attached to the tractor. Ensure
secure pins are used on the linkage mounting pins.
2. Add extra weights to the front of the tractor (or wheel weights) if
required.
3. Check the tractor PTO turns freely and the attachment’s PTO drive
shaft can extend easily. Apply grease to PTO drive shaft.
4. Check the chain of the PTO shaft is in good condition, and attach
chain to a secure point on the tractor.
5. Before installing the PTO shaft, the tractor and attachment should be
stationary, with the key removed from the ignition.
6. Install/secure all safety guards, doors and covers before operating.
7. Bystanders should leave the immediate area before connecting the
drive from the tractor.
Post-use Regular Checks
Safety precaution: Be aware components can be hot after operation.
Allow attachment to cool before performing checks.
1. Check blades, belts and wearing parts. Ensure they are not damaged
and blades are secure in their mounts. Repair or replace as required.
2. Clean the attachment, and check for/clear any entangled material
around any moving parts.
3. Check rotor and roller bearings, apply grease if required.

5
Safety Information………………………………………………………………………..page 3-4
Specications…………………………………………………………………………………..page 6
Installation………….………………………………………………………………………..page 7-9
Operating Instructions…………………………………………………………………..page 10
Auger Blade & Tip Replacement…………………………………………………….page 11
Gear Oil Change & Check………...…………………………………………………….page 12
Servicing & Maintenance………………………………………………………………..page 13
Parts Diagram & List………………………………………………………………….Page 14-15

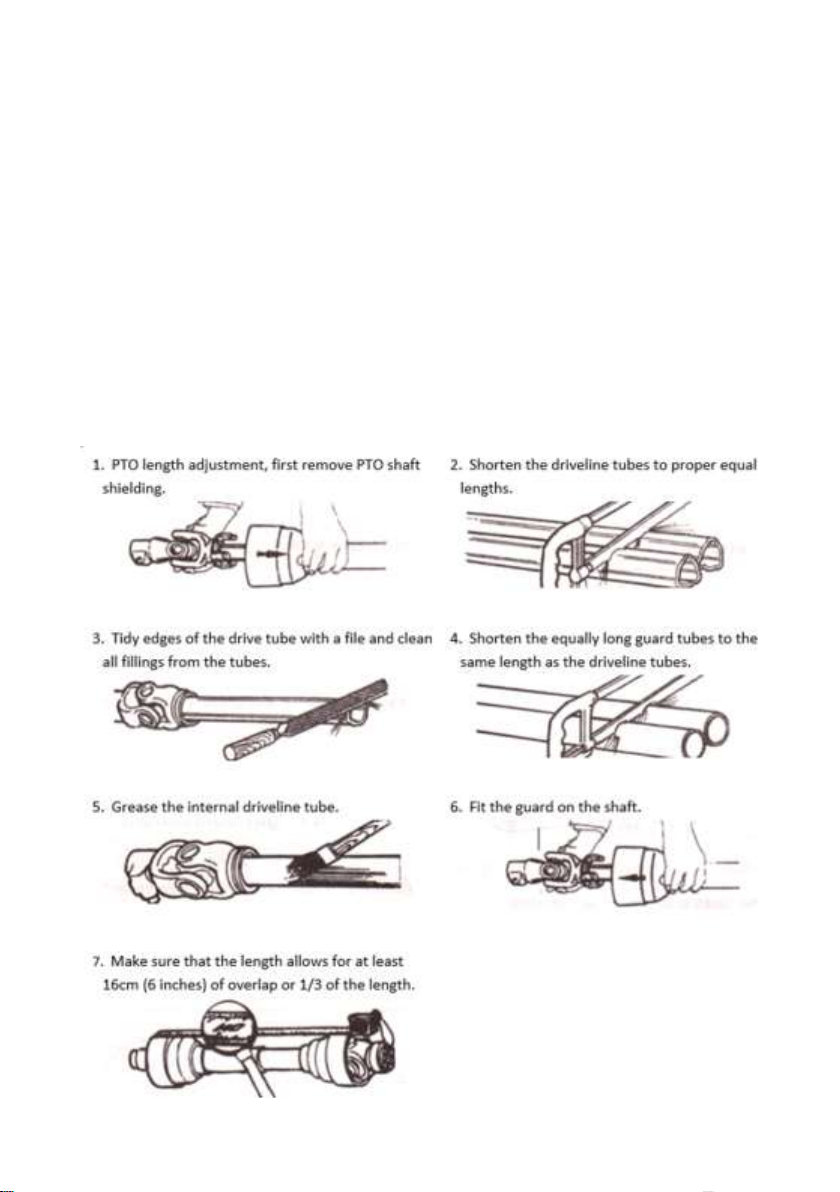

Attaching & Resizing PTO Shaft………………………………………………………page 16
Winton Product Warranty……………………………………………………………...page 17
Contents

6
Specications
Model WHB Unit WHB06 WHB09 WHB12
Weight - 138kg 148kg 158kg
No. Of Blades - 224
Working Width - 6 inches 9 inches 12 inches
PTO Turning Speed 540 RPM
Recommended Tractor HP 20-50HP
Dims 177x79cm
PTO Shaft Size 130-160cm
Linkage Size Category 1

7
Installation
Before installation/maintenance, the tractor and attachment should
be stationary with the hydraulic lift system in a neutral position and
the ignition key removed.
You will need to refer to Components Diagram opposite on page 8 and
Installation Diagram 10 Steps on page 9. You will also require a second
person to assist with installation.
Step 1: Position your tractor on at ground and in line with your
attachment. Connect the lower link points on the attachment’s A frame (A)
to the tractor’s lower linkage arms.
Step 2: Attach the main support arm (B) to the tractor’s top link area using
the top link pin. The top point of the hole borer should x directly to the
top linkage point on the tractor. If you have a top linkage arm tted you
will need to remove this to access the mounting point.
Step 3: Connect the A frame (A) to the outer pivot hole (pivot hole furthest
from the tractor) under the main boom (B).
Step 4: Raise and lower the tractor’s linkage to check the range of
movement. Moving the pivot pin closer to the tractor will increase the
height the arm (B) will lift.
Step 5: Attach the gear box (C) [input PTO shaft facing the tractor] to the
arm (B) by aligning the holes and inserting the mounting pin.
Step 6: Check the length of the PTO drive shaft by separating the
telescopic shaft and attaching one section to the tractor PTO and the other
to the digger gear box. Hold both sections together and parallel. Lower the
main arm 1 so the gearbox input shaft is aligned to the PTO shaft. Ensure
the PTO shaft has a clearance of at least 150mm.
Repeat the process at the maximum lift height of the boom. The minimum
overlap must be 300mm when working and the driveline must be able to
travel at least 30mm.This operation will determine the correct operating
length of the drive shaft. The shaft may need to be cut to size.

8
B
A
C
D
Step 7: Connect the PTO drive shaft to the gear box (C) and the other end
to the tractor PTO. Check that it correctly meshes at both ends. Always cou-
ple the two ends of the driveline and check they are locked in place. Com-
pletely insert the sprung lock pins into the grooves in the PTO shaft on both
the tractor and attachment sides. If a shear bolt or slip clutch safety system
is used on the PTO shaft, this should be mounted on the implement end.
Steps 8 and 9: Connect the auger (D) to the output shaft of the gear box (C)
with the shear pins. Tighten the nuts securely.
Step 10: Raise and lower the linkage carefully to ensure sucient ground
clearance can be maintained. Adjust the tractor’s ‘sway chains’ or linkage
adjusters to prevent any sideways movement.
Components Diagram:

9
A
B
C
Skid adjustment
Roller adjustment
Installation Diagram 10 Steps

10
Operating Instructions
For compacted ground and denser soil types, operate the
attachment at a slower speed to achieve the best nish and to avoid
any damage to the attachment.
Lower the tractor lift arms until the blades are near the ground, without
touching the ground. Regulate the working depth using the height of the
tractor’s lower linkage arms. Then engage the PTO drive to the rated
speed (540 rpm).
Slowly lower the lift arms to the ground to allow the blades to gradually
cut into the soil (do not drop the machine suddenly to the ground). If you
nd the machine is struggling on the surface, then reduce the speed the
auger is being lowered. Then lift the auger out of the soil to release loose
soil, and then lower again, repeat this step as many times as necessary.
Never run the PTO or attachment when the tractor is in motion.
Do not reverse with the attachment unless this is strictly necessary. If
unavoidable rst disengage the PTO and ensure the immediate area is
clear.
Never lift the attachment more than 25cm from the ground with the PTO
driveline engaged, because this can damage the driveline.

11

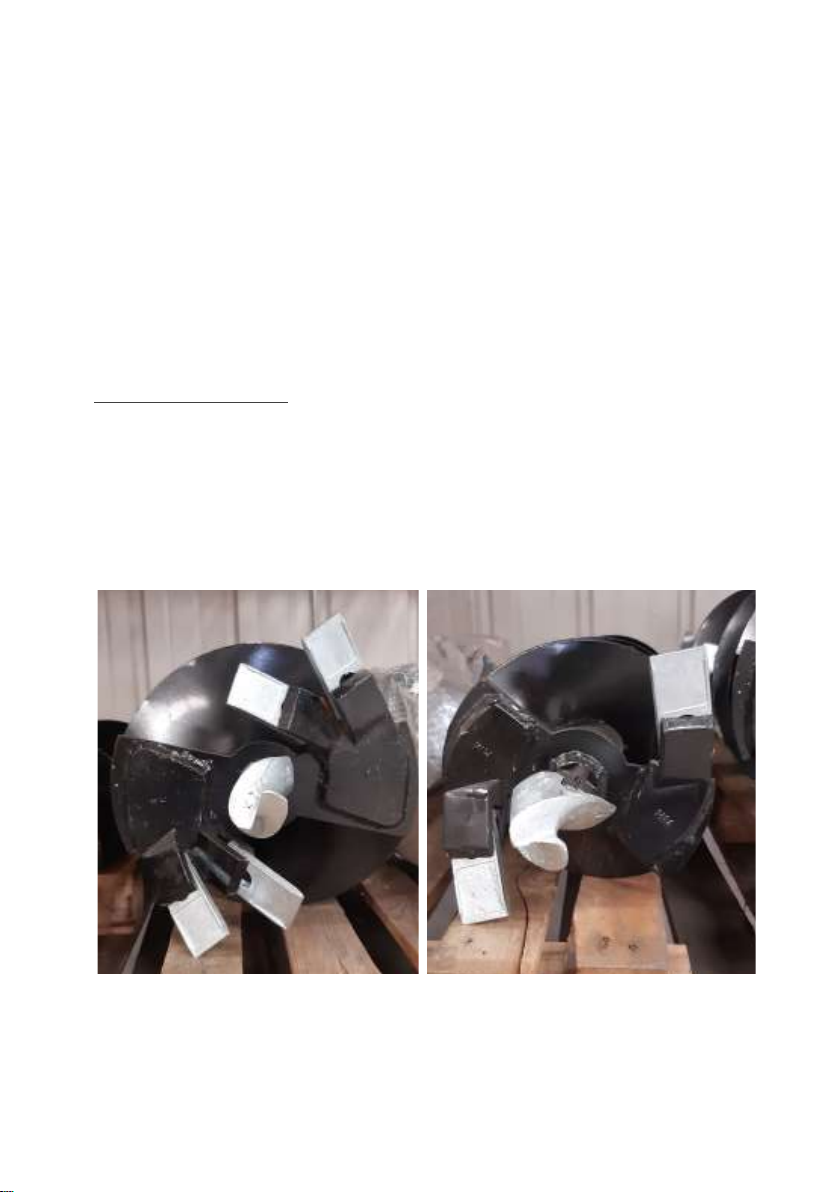

Auger Blade & Tip Replacement
Before installation/maintenance, the tractor and attachment should
be stationary with the hydraulic lift system in a neutral position and
the ignition key removed.
You may wish to remove the auger from the attachment to change the
blades. To do this, remove the pin securing the auger. If the auger is to
remain attached then suciently lift the machine so that the blades can be
accessed easily. Use rigid supports to ensure the attachment is stable
before carrying out any work. Always replace any damaged/worn/blunt
blades.
To change the blades:
1. The blade teeth are held in using the rubber tube, pull the blade out
from the unit to release this.
2. Insert the new blade and rubber tube.
3. To remove the auger tip, unscrew the securing nut and bolt.
4. Replace the blade and then replace the nut and screw.

12
Gear Oil Change & Check
Before installation/maintenance, the tractor and attachment should
be stationary with the hydraulic lift system in a neutral position and
the ignition key removed. Always follow the manufacturer’s
instructions for oils and lubricants.
Do not mix old and new oils together, or mix dierent oil types. Always
dispose of oils correctly and safely. After use, the attachment should be left
to cool down for 10 minutes before checking oil levels. Ensure the gearbox
is at/level when checking oil levels.
Gear Oil Grade 80w90 gear oil (or equivalent)
Gearbox Oil Level Approx. 0.5 litres to level plug
First Oil Change 50 hours use
Oil Change Frequency 250 hours/yearly (whichever is rst)

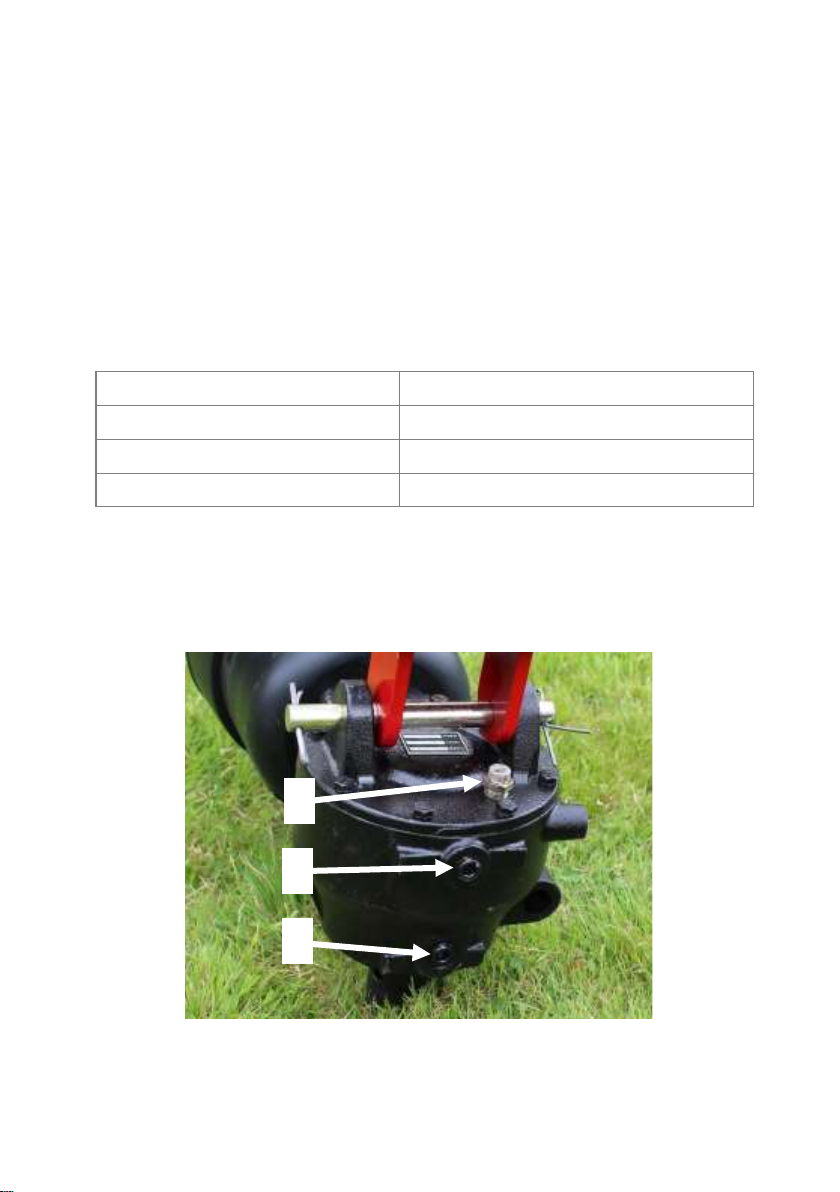

Remove breather/ller plug (1) and level plug (2). The oil level should be up
to the edge of level plug (2). If required, top up with oil using ller hole (1).
Replace both plugs (1) and (2). If draining and replacing oil, then remove
drain plug (3) and let the oil drain out. Replace drain plug (3).
2
1
3

13
Servicing & Maintenance
Store all lubricants away from excessive heat, dust, moisture and
contaminants. Before maintenance, the tractor and attachment
should be stationary with the hydraulic lift system in a neutral
position and the ignition key removed.

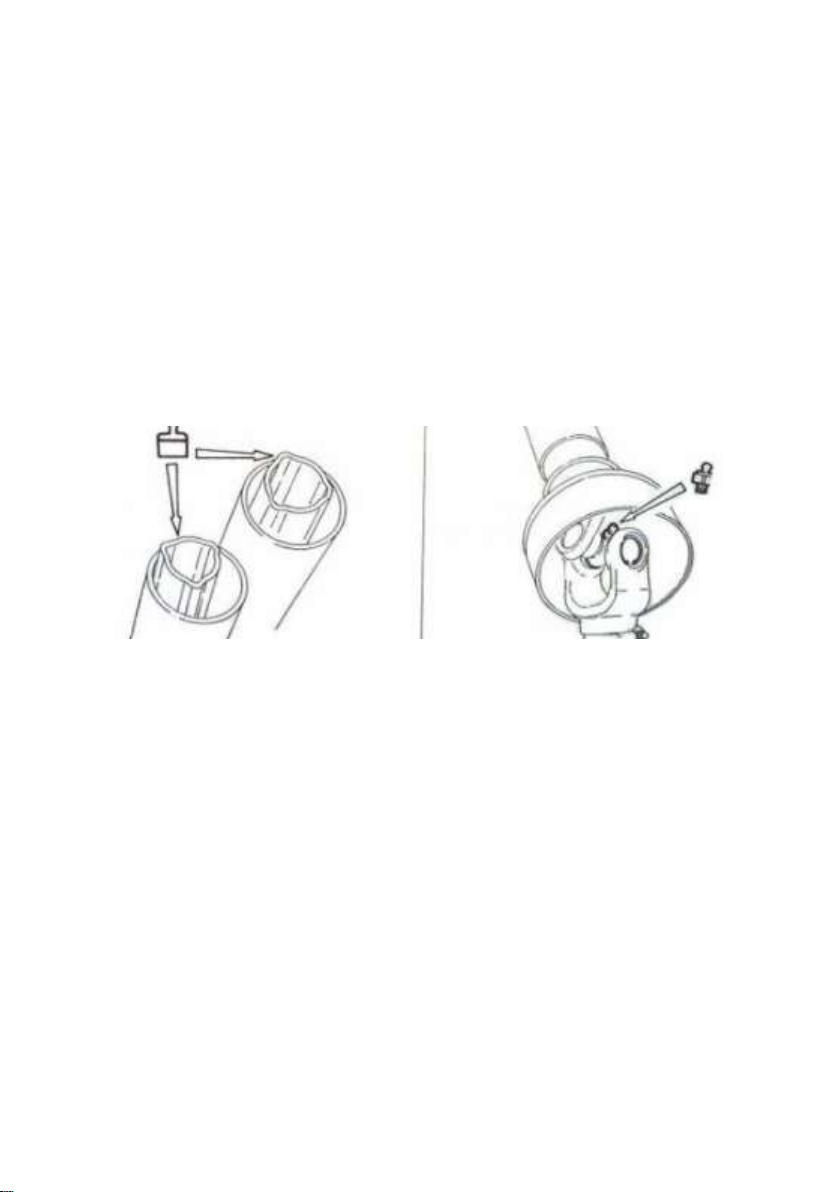

Wipe grease nipples with a clean cloth before greasing to avoid injecting
any dirt/grit. Press a multi-purpose lithium-based grease into each grease
nipple 3 to 5 times. Use a handheld grease gun for best results. Replace or
repair broken grease points immediately. Grease both lubrication points
on either end of the PTO shaft, and apply grease to the inner shaft.

14
Parts Diagram

15
Parts List for Diagram
Diag.
No No Part No Part Description Qty
1703820090 RB-00.102 Lower linkage pin 2
2 700080010 200.56.011 Lock/linch pin 3
3803800002 WX-L-03-001 A frame bracket 1
4 703800010 WX-L-00-101 A frame top pin 1
5 501011099 GB/T 5783 M8x20 Bolt M8x20 4
6 506010055 GB/T 97.1 8 Plain washer 8 4
7 803820041 WX-HL-13-001 PTO protection hood 1
8803820063 WX-HL-09-001 Gear box 1
9803800011 WX-L-02-001 Frame arm 50 1
10 703340017 ZL-25.104 Pin large 2
11 703830001 WX-HL50-00-101 Gear box to arm bolt 1
12 501010762 GB/T 5782 M12x90 Bolt M12x90 2
13 503010763 GB/T 889.1 M12 Nut M12 2
14 506010057 GB/T 97.1 12 Plain washer M12 2
15 Auger (various sizes) 1
16 703820003 WX-HL-00-107 Securing rubber bar 2/4
17 703820002 WX-HL-00-106 Blade 2/4
18 501011102 GB5783-M8X35 Bolt M8x35 1
19 703820004 WX-HL-00-108 Auger tip 1
20 503010761 DIN985-M8 Nut M8 1

16
Attaching & Resizing PTO Shaft
Before installation/maintenance, the tractor and attachment should
be stationary with the ignition key removed. Ensure all safety guards
are in place and cover the PTO shaft when extended, ensure the
sprung locking collar slides freely and is securely in the groove on the
PTO. Always replace worn/damaged PTO shafts.
Most PTO driven attachments are supplied with a standard size PTO shaft
which often requires resizing. Firstly, attach the rotovator to the tractor
without the PTO shaft, then raise the linkage so the PTO shaft is level/
horizontal. Measure the length between the tractor PTO and the
rotovator’s shaft. If the compressed (closed) PTO shaft length exceeds the
one measured here then the driveline will need to be cut.

17
Winton Product Warranty
We always strive to create great products, but when something does go
wrong we have a strong network of resellers on hand throughout the UK
to help out.
Warranty Claims
Your Winton reseller will require the following information to process
your claim:
Your invoice/order details - to include date of purchase
Machine model number
Machine serial number
Details of the fault
Images/videos of the fault
Terms & Conditions
All products purchased as new are covered under our 12 month warranty
from the date of purchase. During this period Winton will repair or
replace defective parts free of charge. This warranty is given on the
proviso that the product has been used and maintained according to the
Owners Manual. Warranty is carried out on a return to reseller/
manufacturer basis and excludes any labour/delivery/collection costs.
Exclusions
• Wearing parts are excluded; including but not limited to blades, belts
and bearings.
• Modication of the product in any way will cease the manufacturer’s
warranty.
• The machine is warranted for one year to the original purchaser,
resale within the period will cease the warranty.
• Damage in transit is not covered. Claims will need to be made
through the courier or your Winton reseller directly.
• Compensation for down-time, labour or loss of earnings is not
covered by the warranty.
• No warranty extension will be granted for replacement parts tted.
• Damage caused by continued use of a faulty machine will not be
covered.
Your Winton reseller will provide their own terms and conditions upon
purchase, consult these for any additional queries.

18
Notes

19
Notes

Published: August 2021
