AXIS 4 &AXIS 5 - 6
Operator’s / Parts Manual
REV: 18-1

• Warranty ------------------------------------------------------------------------------------------
• Registration -------------------------------------------------------------------------------------
• Safety ----------------------------------------------------------------------------------------------
• Decals ---------------------------------------------------------------------------------------------
• Operation-Attaching --------------------------------------------------------------------------
• Operation Procedures ------------------------------------------------------------------------
• Operation Transport ---------------------------------------------------------------------------
• Attaching other brands and models of cutters -----------------------------------------
• AXIS 4 Parts -------------------------------------------------------------------------------------
• AXIS 5-6 Parts ----------------------------------------------------------------------------------
• PTO Parts ---------------------------------------------------------------------------------------
• Gearbox Parts ----------------------------------------------------------------------------------
• PTO Drive Line Dimension ------------------------------------------------------------------
• Maintenance -------------------------------------------------------------------------------------
• Bolt Torque Chart -------------------------------------------------------------------------------
• Notes ----------------------------------------------------------------------------------------------
Table of Contents
2
3
5-6
7
8
9
10-11
12-13
14-15
16-17
18
19
20
21
22
23

2
Warranty
Effective on products retailed on or after November 1, 2017
Two Year Limited Consumer Warranty
Five Year Limited Consumer Warranty on Gearboxes
90 Day Limited Commercial Warranty including Gearboxes
Commercial includes rental and industrial applications.
Warranty begins at the time of customer delivery and is activated upon warranty registration receipt
at MK Martin Enterprise Inc.
Warranty coverage is null and void unless the Warranty Registration form has been completed
in full and is on fi le at
MK Martin Enterprise Inc.
Keep your registration copy in a safe place, it is required as proof of warranty activation.
This new and unused product is warranted by MK Martin Enterprise Inc. to be free from defects in material and workmanship under
normal use and regular service as described in the owner’s manual, for a consumer period of 2 years and 5 years for gearboxes,
from the date of delivery, and commercial period of 90 days, including gearboxes, from the date of delivery. Warranty is limited to
the replacement of parts and / or repair of the product.
If issues develop within the warranty period with the product, contact the local dealer from which you purchased the unit. Only
MK
Martin
authorized dealers may make repairs to the product or affect the replacement of defective parts, unless otherwise approved
by
MK Martin . Repairs / replacement will be done at no charge within a reasonable time after the receipt of the product.
This warranty does not cover the following items:
1. Normal replacement of service items.
2. Normal maintenance or adjustments.
3. Machines or parts lost or damaged during shipment,
4. Accessory items / parts not supplied by
MK Martin
5. Damages resulting from:
 misuse, negligence, accident, theft or  re
 use of improper or insuf cient fuel,  uids or lubricants
 use of after market parts or accessories, unless approved by
MK Martin
 modi cations, alteration, tampering or improper repair
 any device or accessories installed by other than an authorized dealer.
6. Tires are covered by the manufacturer of the tire and the warranty period speci ed by that manufac-
turer. Please contact the tire manufacturer for warranty on these items.
MK Martin Enterprise Inc. shall not, in any event, be liable for any losses, damages or costs; to include pro ts, travel, transportation,
pick up, delivery, towing cost, tow vehicle, loss of use, whether special, incidental, consequential or otherwise, in any way. Unit or
parts are returned at the customer’s expense.
Include a copy of your completed Warranty Registration form with any claim as proof of warranty activation.
There are no warranties, expressed or implied, other than those speci ed herein. No agent, employee or other person has any
authority to vary any of the foregoing provisions.
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on  le at MK Martin Enterprise Inc.
Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc.
3950 Stef er Rd.  Elmira  Ontario, Canada  N3B 2Z3  Email : [email protected]  Fax : [phone]  Tel : [phone]
230817

3
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
---------------------------------------------------------------------------------------------------------------------
Purchaser’s warranty protection is valid only when this completed form or a copy of this form
is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged
delivery of equipment and owner’s / operator’s manual and has accepted the condition of the
equipment.
Date of delivery to purchaser -------------------------------------------------------
Type of Equipment -------------------------------------------------------------------
Model # ------------------------------- Serial # -------------------------------------
Retailer’s Signature Indicates
• Equipment was properly assembled as directed by manufacturer
• Equipment was tested for functionality and operates properly
• Purchaser was instructed in safe and proper operating procedures
• Warranty was explained to purchaser
• Purchaser was given the operators manual
Retailer
Signature ----------------------------------------------------------------
Company ---------------------------------------------------------------
Address ---------------------------------------------------------------
-------------------------------------------------------------
Purchaser’s signature indicates
• Acceptance of equipment fully assembled
• Received operator’s manual
• Clearly understands conditions of warranty
• Received instructions of safe and proper operation of equipment
Purchaser
Signature -----------------------------------------------------------
Company ---------------------------------------------------------
Mailing address -------------------------------------------------
City ------------------------------------------ Prov/State -------- Postal Code/Zip ---------------
Available phone number -----------------------------------------
Warranty is valid only when it has been received by manufacturer at address above

4
-------------------------------------------------------------------------------------------------------------------------
Postage
Stamp
M K Martin Enterprise Inc
3950 Stef er Rd
Elmira ON CA N3B 2Z3
Fold Here
Please Cut and Return to M K Martin Enterprise Inc
Fold And Tape here Do not tape all edges or use staples
Warranty Registration

5
Safety
Take Note! This safety symbol is found throughout this manual to call your attention to instruc-
tions involving yourself and others working around the machine.
• Failure to follow these instructions can result in injury or death
This symbol means
-- Attention!
-- Become Alert!
-- Your Safety is involved!
Signal words are used in this manual.
Caution: Indicates a potentially hazardous situation that may result in injury.
Warning: Indicates a hazardous situation that could result in serious injury or death.
Danger: Indicates a hazardous situation that needs to be avoided. It is you the operator that
needs to be aware of these dangers.
If you have any questions not answered in this manual please contact your dealer or
M K Martin Enterprise Inc Tel: [phone]
3950 Stef er Rd 1-855-664-2752
Elmira On Ca N3B 2Z3 Fax: [phone]
e-mail [email protected]
www.mkmartin.ca

6
Safety it’s in Your Interest!
• It is the responsibility of the operator to read and understand the Safety instructions before
operating the equipment.
• Clear the area of people and animals before starting the unit.
• Do not allow riders
• Wear appropriate ear and eye protection before starting equipment.
• Apply tractor weights to the tool arm weight bar when using heavy equipment.
• When transporting machine, collapse cutter and install safety pin to prevent breakaway
feature from accidentally disengaging
Do Not Modify This Equipment In Any Way!
Unauthorized modication may impair the function of the machine or jeop-
ardize the safety of the operator!
Think SAFETY!
Work SAFELY!

7
AXIS Decal Locations
THIRD ANGLE PROJECTION
1
2
4
3
5678
9
3
3
5
4
3
1
Folder
S:\Solidworks\Solidworks_Dennis\Walco Tool Arm\Axis\23592.SLDASM
DWG. NO.
REV
Model
SCALE 1:48
SHEET 3 OF3
DATE DRAWN
MATERIAL
23592
February-12-13 4:18:58 PM
DESCRIPTION
Axis Tool Arm Assy 5-6
S:\Solidworks\Solidworks_Dennis\Walco Tool Arm\Axis\
A-03
Weight(lbs.)
0
Width Height Length
0 0 647.97 0
Blank Size Unit of Measure
ITEM ID.
23592
Config ID
23592
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
#5 - Before any operation of main-
tenance a/o adjustment, stop, brake
the tractor on level ground, lower the
machine to the ground and read the
instruction manual.
#3 - Grease
#7 - DANGER of possible shearing
of limbs. Keep a safe distance from
the machine while it is working.
#2 - DANGER of being caught by
the PTO shaft. Do not go near the ro-
tating members of the machine while
in operation.
#1 - Before operating machine,
carefully read the instruction manual
#8 - DANGER of being crushed.
Stay a safe distance from the machine.
#4 - MK Martin
Made in Canada
#9 -
AXIS decal - x2
#6 - DANGER. Avoid uid escaping
under pressure, Consult manual for
service procedures.

8
Operation Attaching
The Axis Tool Arm was designed to be used in conjunction with a rotary cutter or similar device.
The main function is to cut grass in roadside ditches or on other inclines. For the Axis Tool Arm
to work effectively a tractor with a three point hitch must be used. Using a tractor That does not
have substantial weight can result in unsafe conditions, as some tractors are not heavy enough
to handle the added weight on the rear and side.
For AXIS 4 a tractor with a CAT#1 three point hitch or CAT#2 with bushings must be used.
For AXIS 5-6 a tractor with a CAT#2 or CAT#3 three point hitch must be used. Using a CAT#1
tractor can result in unsafe conditions.
Attaching

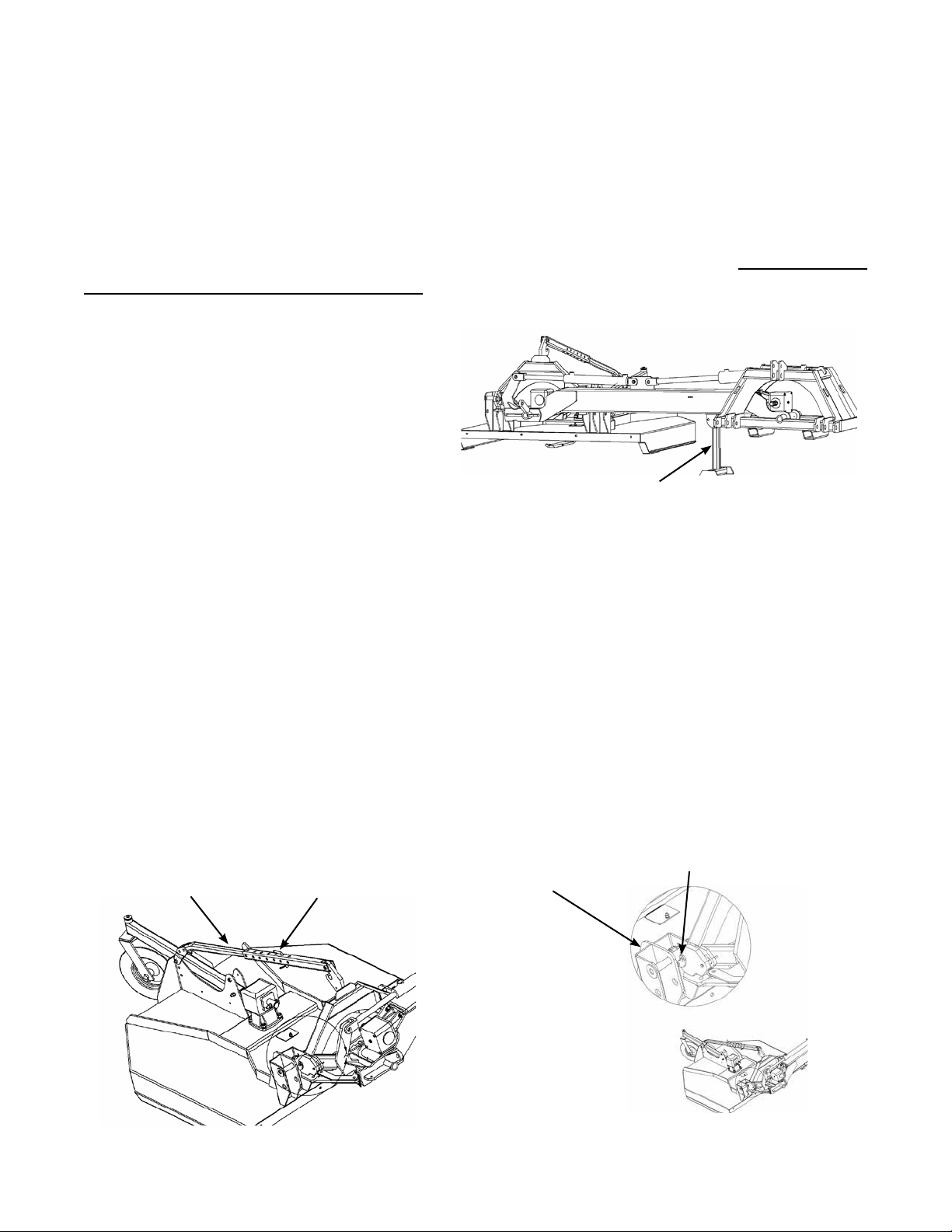

1. Attach Axis Tool Arm to the tractors three
point hitch arms.
2. Install stabilizer bars to prevent side drift
of the Axis Tool Arm when in operation.
3. Attach hydraulic hoses to the tractor re-
motes. (2 required)
4. Attach PTO (cut to length if required)
See PTO drive line dimension Page
5. Raise three point hitch until drive line is horizontal, collapse jack stand and secure into po-
sition with pin.
6. Cycle the cylinders to ensure the correct hose conguration.
PTO not shownJack Stand
Cutter Attachment
1. Remove Cutter “A” Frame
2. If required, remove Hitch Clamps from Axis Tool Arm (6) bolts and place on Cutter Hitch Pins
3. Attach Cutter on Axis Tool Arm. Ensure Hitch Clamp bolts are secure.
4. Install Stabilizer Bar from Axis Tool Arm “A” Frame to Cutter Gauge Wheel bracket (as de-
scribed elsewhere in the manual.)
5. Insert Retainer Pin on Stabilizer Arm to retain cutter horizontally.
6. Attach PTO from Cutter to Axis Tool Arm (cut to length as required) to t equipment See PTO
drive line dimension Page
Stabilizer Bar Retainer Pin
Hitch Clamp PlateShown with
Pulsar Hitch
Stabilizer Bar has a Slotted hole on inside member that is used to allow the cutter gauge wheel
to oat along the ground.

9
Operating Procedures

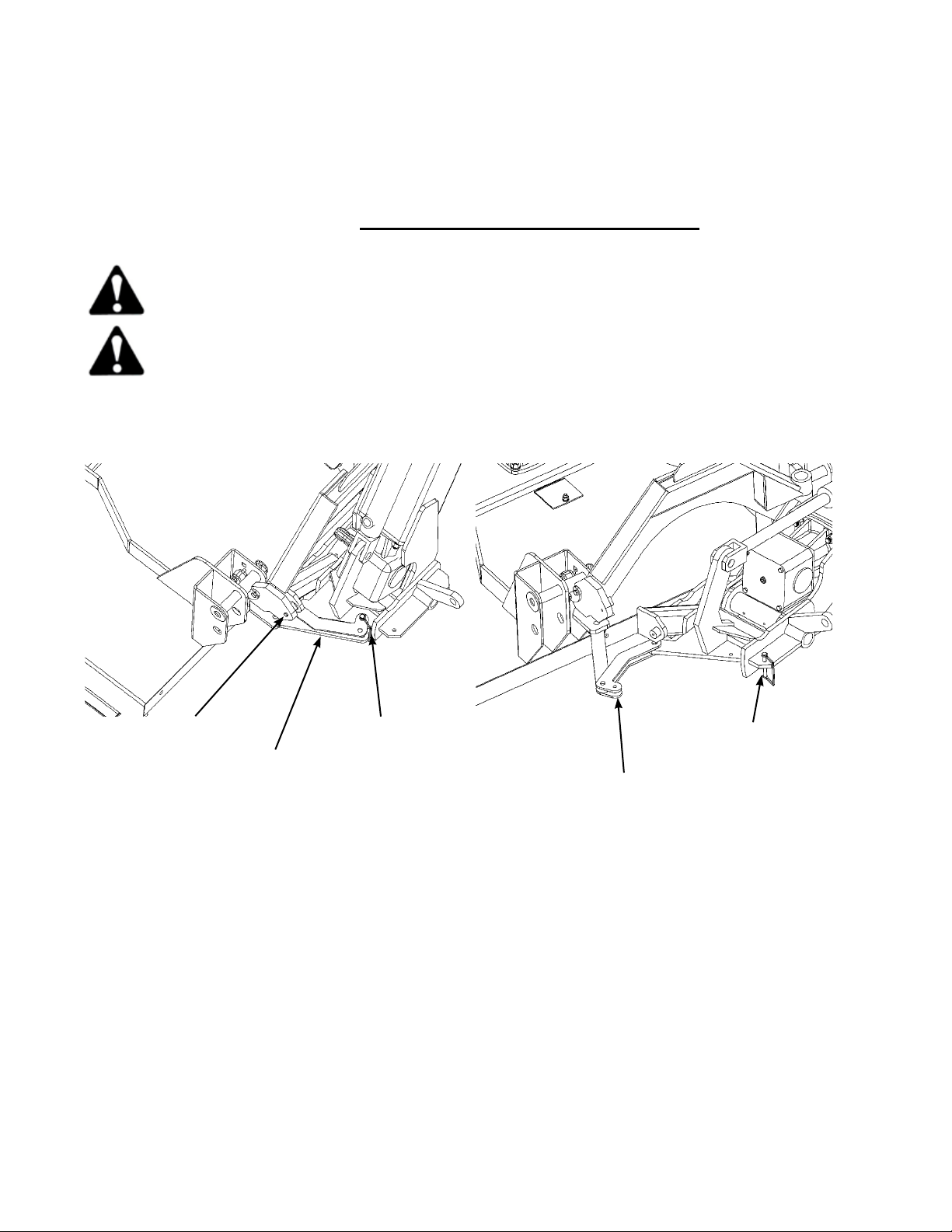

• The Axis Tool Arm is equipped with a PO check valve in the main cylinder lines to prevent the
arm from drifting when in operation.
• Rotating action of the cutter hitch allows the cutter to follow the contour of the ground. Posi-
tion the cutter control valve to oat position.
• If the attachment encounters a rigid object, the breakaway device will disengage. When this
happens STOP the PTO and stop the tractor and remove the keys! Manually return the
cutter to it’s correct position and replace the Shearbolt (1/4”x3”) Grade #2. [Fig # 1]
Do not operate or have the cutter running in a raised position!
Do not exceed PTO Speed of 540 RPM!
1/4”x3” gr#2 shearbolt
Breakaway Device in locked position
Lock Pin Lock Pin Storage
When in operation
Shearbolt removed
for visual only
Breakaway Device
Fig #1 Fig #2

10
Operation Transport

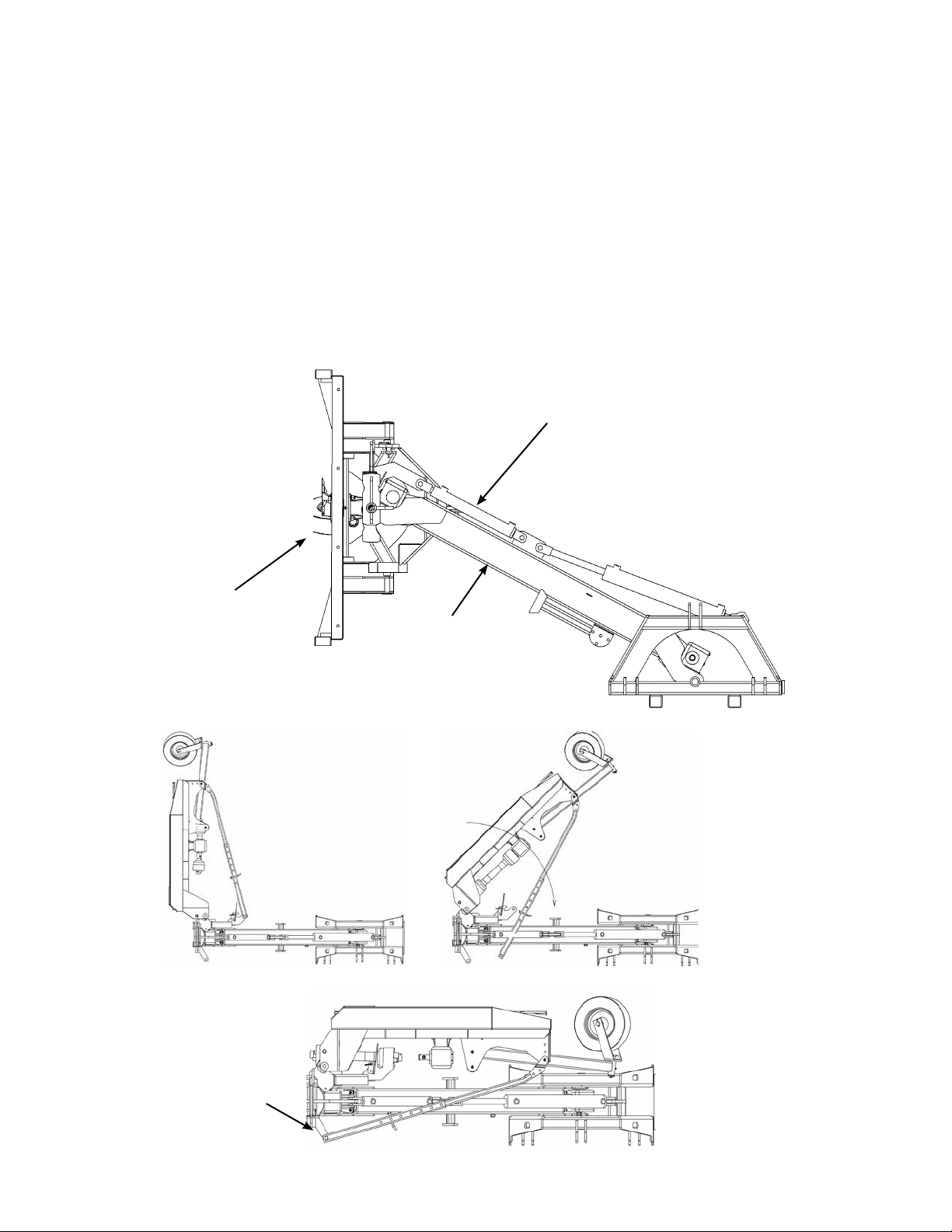

1. Rotate the Axis Too Arm “A” Frame Cylinder to the collapsed position. [Fig #3]
2. Install Breakaway Lock pin to secure the deck in transport. [Fig # 1]
3. Raise Main Arm until Deck is in a vertical position. [Fig # 3]
4. Detach Cutter PTO Drive from Axis Tool Arm Gearbox
5. Remove top link pin from Stabilizer Bar and carefully swing the cutter toward the tractor [Fig
4,5,6]
6. Attach the Stabilizer Bar to opposite side of “A” Frame hitch [Fig # 6]
7. Insert PTO into Cradle Bracket [Fig #7]
8. Raise the Main Arm until cutter is positioned at rear of tractor. [Fig #8]
#1 Cylinder collapsed
#3 Main Beam
Vertical Deck
Front View
Top View Top View
Top View
Stabilizer Arm
pinned in Trans-
port position
Fig #3
Fig # 4 Fig # 5
Fig # 6

11
PTO Storage for Transport
PTO Cradle
Transport Position
Counterweight arm Extended
Fig # 7
Fig # 8
Fig # 9
Fig # 9
If counterweight needs to be added for extra
stability, the arm can be extended and tractor
weights can be added.

12
Attaching Stabilizer Arm to Cutter
Various attachment brackets are supplied with the Axis Tool bar to attach the Stabilizer Bar to
the cutter. Cutter with a single Wheel Beam
Shown with Wheel Beam adjustment
bolt sharing stabilizer-bar bracket
Cutter with “A” Frame Wheel Bracket
Cutter with 90° Adjuster Plate
Customer may need to drill bolt hole to at-
tach stabilizer bar.
As required.
Cutter with at 0° Adjuster Plate
Customer may need to drill bole hole to attach
stabilizer bar.
When attaching at bottom of plate as shown,
check to ensure that the gearbox has clearance.

13
Stabilizer Arm Brackets supplied with Tool bar
Stabilizer Bar as shown for illustration only
Customer may need to modify or adapt bracket to t
Stabilizer Arms for Cutters

14
Item # Part # Description Qty
1795-560240 3/8 PTO Pin 1
2795-400250 Breakaway Assembly 1
3OL Bolt 1/4-20 x 2 1/2 Gr#2 1
4795-400260 Attachment “A” Frame 1
5795-560310 Upper Hitch Pin 1
6795-560130 1/2” Bent Pin 2
7795-400280 Stabilizer Bar Assembly 1
8795-560270 “A” Frame Pivot 1
9OL 3/16 Lynch Pin 1
10 OL 1/8” Hairpin 2
11 795-400300 Hitch Pin Clevis 2
12 OL Nylon Locknut 3/8-16 6
13 OL Bolt 3/8-16 x 2 6
14 OL Cylinder Pin 4
15 690-0606 90° M-ORB9/16-18/F-NPSM3/8-18 2
16 795-560212 1/4” Hydraulic Hose x 84//M-NPT3/8 ea end 1
Axis 4 Tool Arm Parts

15
Item # Part # Description Qty
17 795-560220 2 x 16 Welded Cylinder 1
18 795-560211 1/4” Hydraulic Hose x 84 // M-NPT3/8-18 ea end 1
19 OL Nylon Locknut 1/4” 1
20 OL Setscrew 3/8-16 x 1/2 6
21 30885 Main Beam 1
22 OL Nylon Locknut 1/2” 1
23 795-400190 Drive Shaft 1
24 OL 3/8 Key-stock 2
25 795-560160 Main Pivot Shaft 1
26 795-560180 Chain Coupler 2
27 OL 1/4” Key-stock 2
28 795-560170 Gearbox 2
29 OL Lockwasher 5/8” 8
30 OL Nut 5/8-11 8
31 795-400100 Main Frame 1
32 795-400110 Weight Bar 1
33 795-400140 Hitch Lift Pin 2
34 OL 7/16 Lynch Pin 2
35 OL 1/4-28 Grease Fitting 5
36 6901-0806 90°M-ORB3/4/F-NPSM3/8-18 2
37 OL Bolt 1/2-13x3 1/2 1
38 795-560213 1/4” Hydraulic Hose x 16 1/2 //M - NPT3/8-18 ea end 1
39 6900-0806 M-ORB3/4-16/F - MPSM3/8 3
40 795-560200 PO Check 1
41 6401-0806 M-ORB3/4-16/M-NPT3/8-18 1
42 795-400230 Pivot Shaft 1
43 795-560150 Input PTO 1
44 795-560120 Jack Stand 1
45 795-560195 3 x 24 Welded Cylinder 1
46 795-560210 1/4” Hydraulic Hose x 48” // M-NPT3/8-18 ea end 2
Axis 4 Tool Arm Parts

16

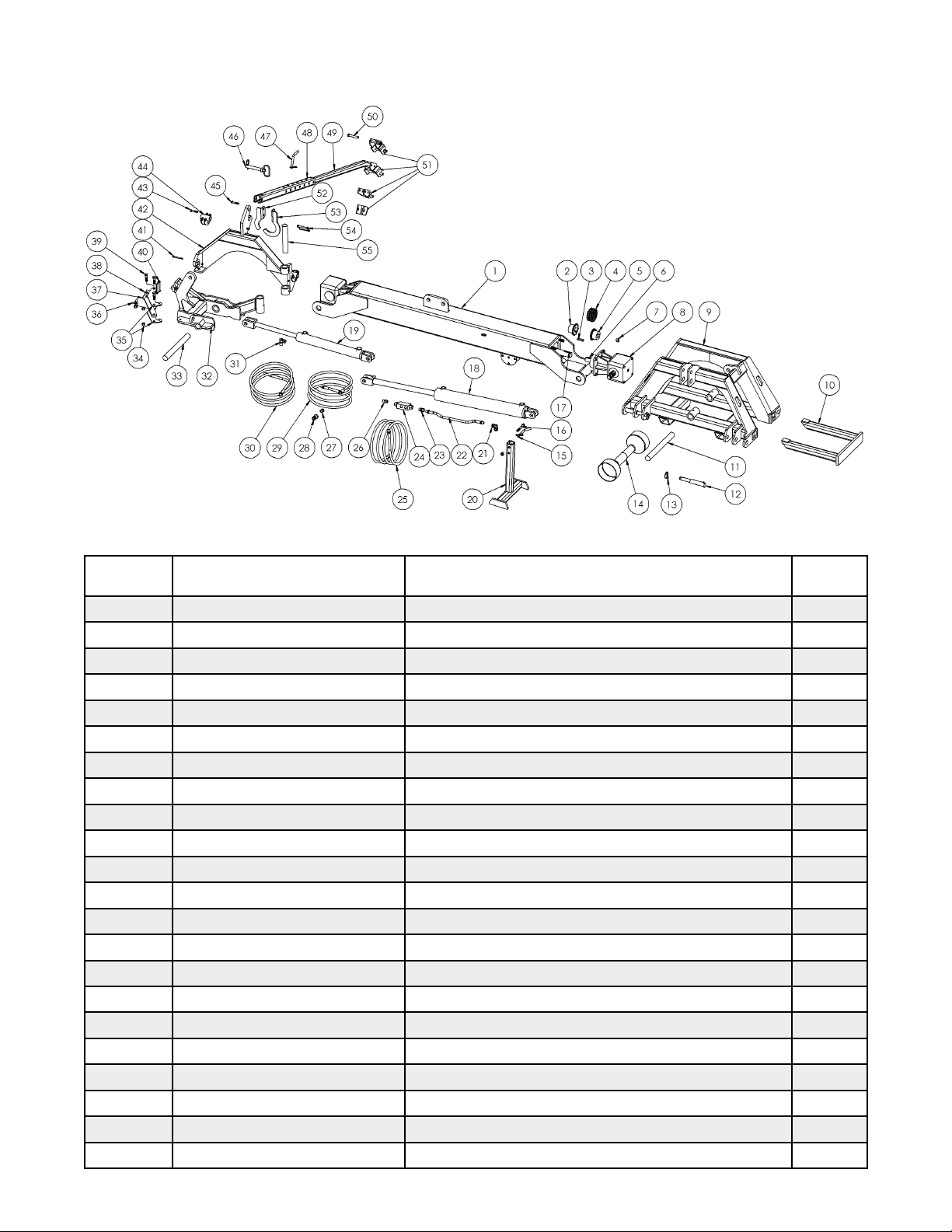

Axis 5-6 Tool Arm Parts
Item # Part # Description Qty
132711 Main Arm 1
224067 Chain Coupler Sprocket 1 1/2 Shaft 2
330889 3/8 Shaft Key 2
4519-68211528 Coupling Chain 2
524068 Chain Coupler Sprocket 1 1/4 Shaft 2
630890 1/2 Shaft Key 2
7OL 5/8 Nut, Lockwasher 8
8795-560170 Gearbox 2
9795-560100 Main Frame 1
10 795-560110 Weight Bar 1
11 795-560160 Main Pivot Shaft 1
12 795-560140 Hitch Pin 2
13 OL Lynch Pin 2
14 795-560150 Input PTO 1
15 OL 1/2” Bent Pin 1
16 OL Bolt 1/2x3 1/2 c/w ln 1
17 795-560190 Main Drive Shaft 1
18 795-560195 3x24 Hydraulic Cylinder 1
19 795-560220 2x16 Hydraulic Cylinder 1
20 795-560120 Jack Stand 1
21 TLM576 90° Elbow 2
22 795-560213 16 1/2” Hydraulic Hose 1

17
Item # Part # Description Qty
23 HF0611-06-06 Straight Swivel 3
24 795-560200 PO Check Valve 1
25 795-560210 48” Hydraulic Hose 2
26 X2-1116-06-06 Straight Adapter 1
27 5406-0806 Reducer Bushing 4
28 S71-4 Pioneer M Coupler 4
29 795-560211 84” Hydraulic Hose 1
30 795-560212 103” Hydraulic Hose 1
31 HF0691-06-06 90° Swivel Adapter 2
32 32730 * Cutter Hitch Base 1
33 795-560230 Pivot Shaft 1
34 OL 1/2 Locknut 3
35 30869 Breakaway Link 2
36 OL 1/2” Flatwasher 1
37 32745 Breakaway Link Bar 1
38 30879 Spacer 1
39 OL Bolt 1/2x2 3
40 OL 3/8x2 1/2 PTO Pin 1
41 OL 1/4x3 c/w ln 1
42 32740 * Cutter Hitch 1
43 OL Bolts 3/8x2 c/w ln 6
44 795-560300 Hitch Pin Clevis 2
45 OL Bolt 3/8x2 c/w ln 1
46 795-560310 Upper Hitch Pin 1
47 OL 1/2” Bent Pin 1
48 23570 Stabilizer Strut Extension 1
49 23572 Lower Stabilizer Bar 1
50 OL Bolt 1/2x3 c/w ln 2
51 23575 Cutter Adapter 1 set
52 32738 PTO Cradle 1 1
53 32737 PTO Cradle 2 1
54 OL PTO Pin 3/8x2 1/2 1
55 795-560270 A Frame Pivot Shaft 1
Note Part with * Sold a Assembly
Axis 5-6 Tool Arm Parts

18
T50 PTO
Item # Description Part # Qty.
1Complete Collar Yoke 141.025.363.1 1
2Cross Journal Assy 180.015.130 2
30 Complete Shear Yoke 143.250.016.1 1
31 Guard Retaining Collar for Outer Tube 8180.015.288 1
33 Special Plastic Bolt 8180.014.240 6
37 Guard Retaining Collar of Inner Tube 8180.015.289 11
38 Safety Chain 180.016.025 2
40 Complete Guard with Instruction Manual 142.250.372.7521 1
61 Special Grease Nipple 8180.012.418 3
71 Bolt & Nut M10x55 cl. 8.8 165.000.511 1
72 Grease Fitting 190.000.020 1
73 Bolt & Nut M12x1.25x70 cl. 8.8 165.000.525 2
200 Collar Kit for 1 3/8” Yoke 165.000.628 1
Danger Label for Outer Tube 190.000.216 1
Danger Label for Outer Guard Tube 190.000.215 1
PTO Instruction Manual 190.000.371 1
Axis Tool Arm PTO Parts
