Craftmade Fresco FRS52-LED User manual

PRINTED IN CHINA
READTHESE INSTRUCTIONS AND
AND SAVETHEM FOR FUTURE USE
Installation Guide
For Model:
FRS52-LED Table of Contents:
Safety Tips. pg. 2
UnpackingYour Fan.pg.3
Parts Inventory.pg.3
Installation Preparation.pg.4
Hanging Bracket Installation.pg.4
Fan Assembly.pgs.5 - 6
Wiring.pgs.6 - 7
Canopy Assembly.pg.8
Blade Assembly.pg.8
Light Kit Assembly.pg.9

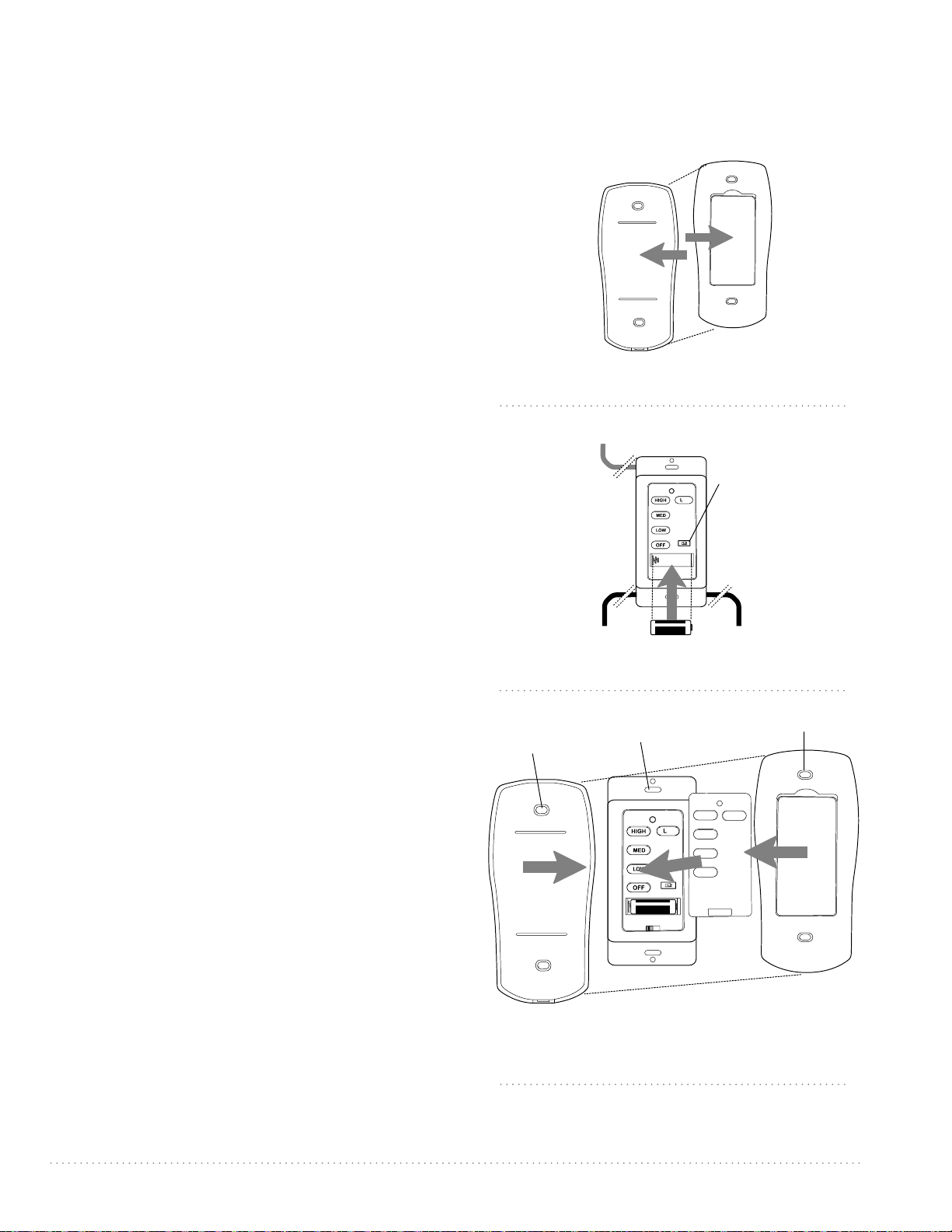

Assembly of Handheld Remote Control.
pg.10
Automated Learning Process./
Activating Code.pg.11

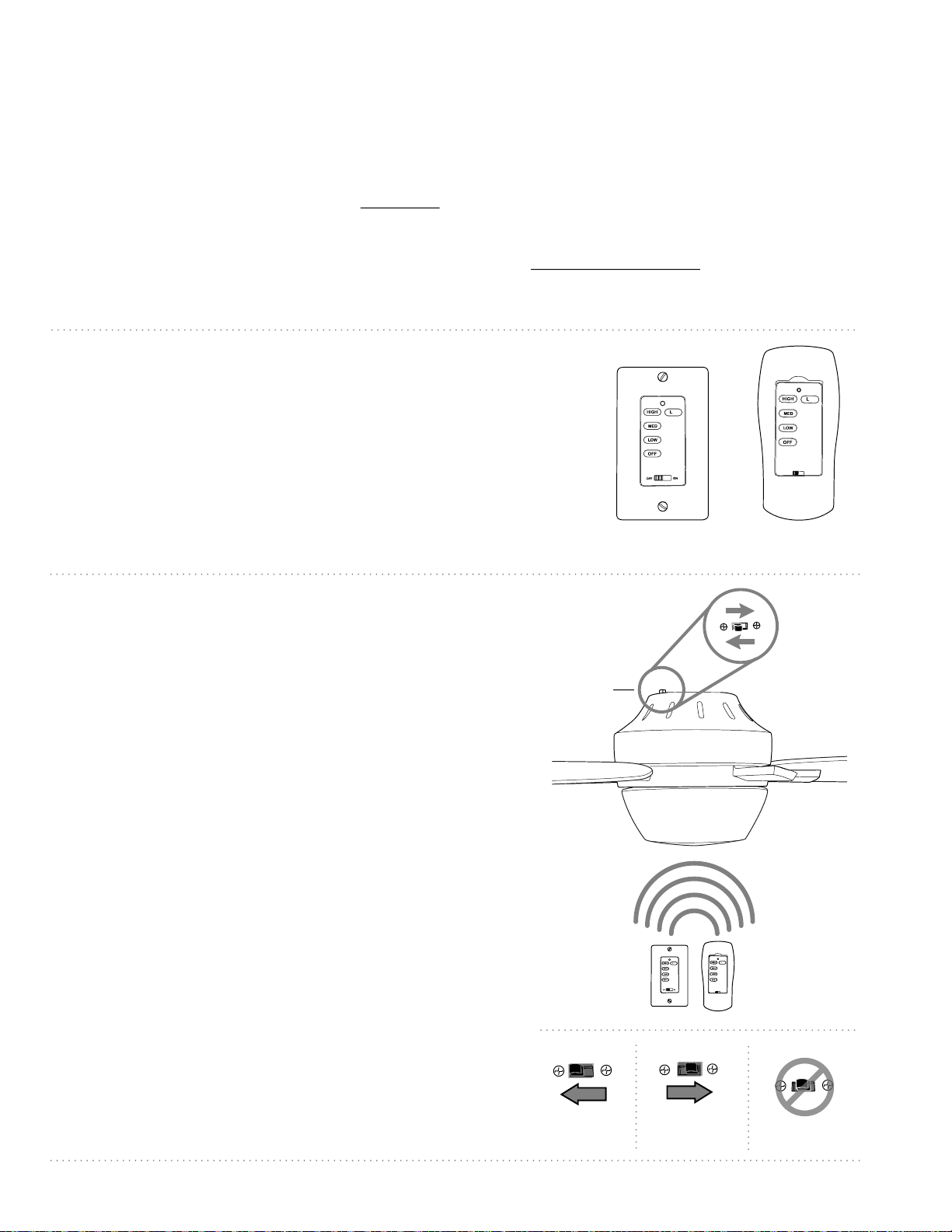

Remote Control Operation.pg.11
TestingYour Fan.pg.11
Troubleshooting.pg.12
Warranty. pg. 12
Parts Replacement.pg.12
net weight of fan:18.3 lb (8.3 kg)
Fresco
page 1
E192641

SAFETYTIPS.
page 2
WARNING: To reduce the risk of electrical shock,turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan
installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLINGYOUR FAN AND SAVETHESE INSTRUCTIONS.
CAUTION: To avoid personal injury,the use of gloves may be necessary while handling fan parts with sharp edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances,the National Electrical Code,and ANSI/NFPA 70-1999. If you are
unfamiliar with electrical wiring or if the house/building wires are different colors than those referred to in the instructions,please use a
qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate,and at least seven (7) feet (2.13 meters) of
clearance between the floor and the fan blade tips. The fan should be mounted so that the tips of the blades are at least thirty (30) inches
(76 centimeters) from walls or other upright structures.
4. The outlet box and ceiling support joist used must be securely mounted,and capable of supporting at least 35 pounds (16 kilograms). The outlet
box must be supported directly by the building structure.Use only CUL (Canada) or UL (USA) that are marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire,electrical shock,or personal injury,mount to the outlet box marked "Acceptable for Fan Support of 15.9 kg (35 lb)
or less," and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not
acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire,electrical shock,or personal injury,wire connectors provided with this fan are designed to accept only one
12 gauge house wire and two lead wires from the fan.If your house wire is larger than 12 gauge or there is more than one housewire to connect to
the corresponding fan lead wires,consult an electrician for the proper size wire connectors to use.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and marked suitable for use with the
model fan you are installing. Switches must be UL general use switches. Refer to the instructions packaged with the light kits and switches
for proper assembly.
6. After installation is complete,check that all connections are absolutely secure.
7. After making electrical connections,spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should
be spread apart with the grounded conductor and the equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of serious bodily injury,DO NOT use power tools to assemble any part of the fan,including the blades.
WARNING: To reduce the risk of fire or electrical shock,do not use this fan with any solid state speed control device or control fan speed with a full
range dimmer switch. [Using a full range dimmer switch to control fan speed will cause a loud humming noise from fan.]
8. Do not operate the reverse switch until the fan has come to a complete stop.[Note:If using remote control with reverse capability,reverse fan
blade direction only when on LOW speed.]
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury,do not bend the blade arms during assembly or after installation. Do not insert objects into the path
of the blades.
WARNING: To avoid personal injury or damage to the fan and other items,be cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades.A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
WARNING: To reduce the risk of personal injury,use only parts provided with this fan. The use of parts OTHER than those provided with this fan
will void the warranty.
WARNING: This fan MUST be installed with the safety cable provided with the fan.Failure to use the safety cable provided may result in personal injury,
damage to the fan or damage to other property.
CAUTION: Do NOT tamper with or attempt to repair LED component of fixture. The light source is designed for this specific application and should not
be serviced by untrained personnel. If any servicing is required,call our customer service department.
11. Light kit is dimmable to 10% with select dimmers.
Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. [The equipment refers
to the remote and/or wall control and/or LED light kit.]
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can
radiate radio frequency energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio
communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct
the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The LED light kit complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) this LED light kit may not cause
harmful interference,(2) this LED light kit must accept any interference received,including interference that may cause undesired operation.
Distributed by:Craftmade,650 S.Royal Lane,Coppell,TX,75019;1-800-486-4892
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that
may occur. It must be understood that common sense and caution are necessary factors in the installation and operation of this fan.

page 3

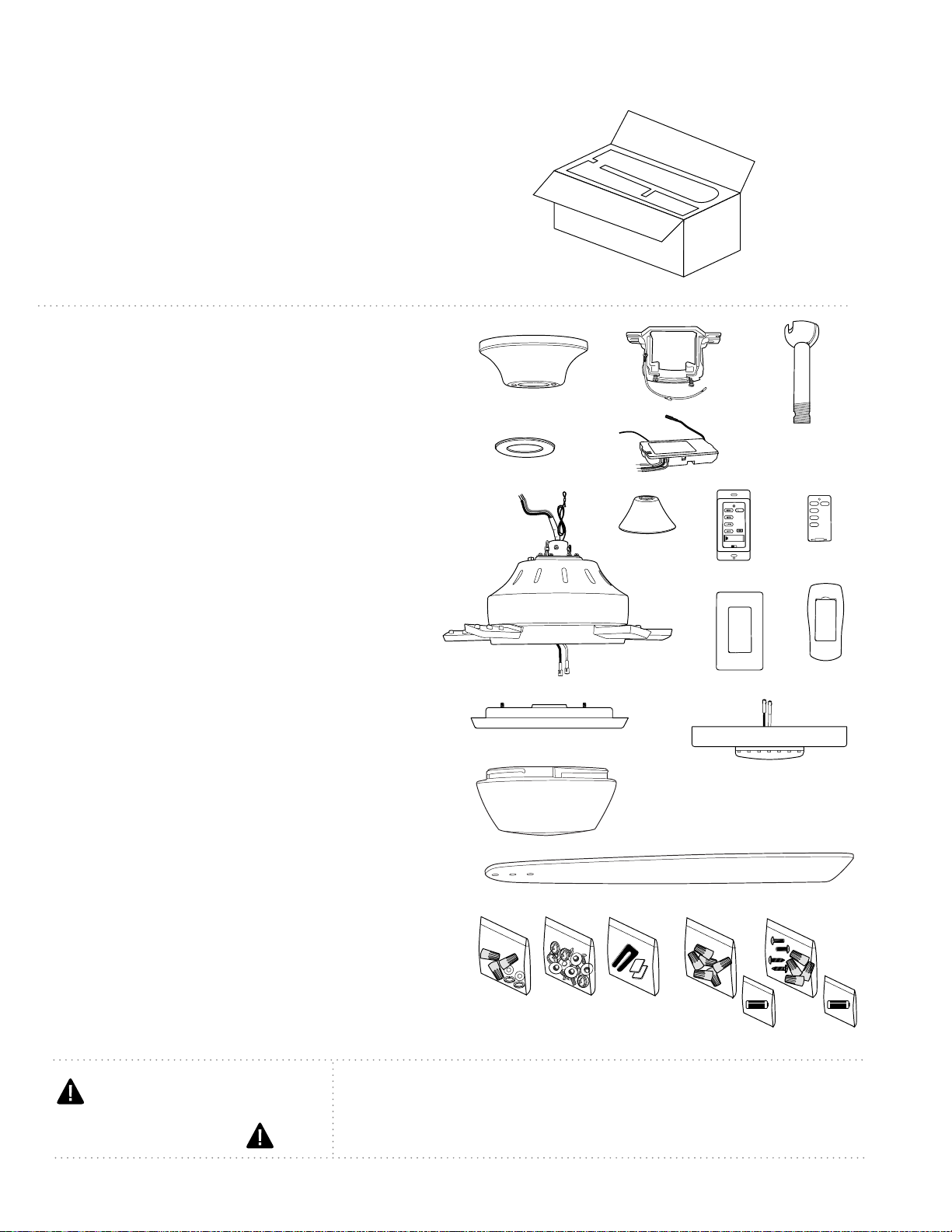

1.UnpackingYour Fan.
Carefully open the packaging.Remove items
from Styrofoam inserts.Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish.Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
2.Parts Inventory.
a. canopy.1 piece
b. hanging bracket.1 piece
c. downrod and hanging ball.1 piece
d. canopy cover.1 piece
e. remote control receiver.1 piece
f. yoke cover.1 piece
g. wall control.2 pieces
h. faceplate.3 pieces
i. motor housing.1 piece
j.wall plate.1 piece
k.remote control cover.1 piece
l. fitter plate.1 piece
m. LED light kit.1 piece
n. shade.1 piece
o. blade.5 pieces
p. hardware packs
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
w/ wall controls
a
i
b
l
e
fg
d
c
j
h
n
o
p
m
k
11
-
DIM ON

3.Installation Preparation.
4.Hanging Bracket Installation.
page 4
ON
OFF
ON
OFF
Turn off circuit breakers to current fixture from
breaker panel and be sure operating light switch is
turned to the OFF position.
WARNING:Failuretodisconnectpowersupplypriorto
installationmayresultinseriousinjury.
Remove existing fixture.
WARNING:Whenusinganexistingoutletbox,besure
theoutletboxissecurelyattachedtothebuilding
structureandcansupportthefullweightofthefan.
Ensureoutletboxisclearlymarked"SuitableforFan
Support."Ifnot,itmustbereplacedwithanapproved
outletbox.Failuretodosocanresultinseriousinjury.
CAUTION:Besureoutletboxisproperlygroundedand
thataground(GREENorbare)wireispresent.
Install hanging bracket to outlet box using original
screws, spring washers and flat washers provided
with new or original outlet box.* If installing on a
vaulted ceiling, face opening of hanging bracket
towards high point of ceiling. Arrange electrical
wiring around the back of the hanging bracket.
*NOTE:Itisveryimportantthatyouusetheproper
hardwarewheninstallingthehangingbracketasthis
willsupportthefan.
Vaulted ceiling
angle is not to
exceed 25 degrees.
downrod
installation flushmount
installation
7 feet
(2.13 m) (76 cm)
30
inches
blade edge
To prevent personal injury and damage,ensure
that the hanging location allows the blades a
clearance of 7 feet (2.13m) from the floor and
30in.(76cm) from any wall or obstruction.
This fan is suitable for room sizes up to
400 square feet (37.2 square meters).
Installation requires these tools:
Phillips screwdriver,flathead screwdriver,
adjustable pliers or wrench,stepladder,wire
cutters,and rated electrical tape.
This fan can be mounted with a downrod
on a regular (no-slope) or vaulted ceiling. The
hanging length can be extended by purchasing
a longer downrod (0.5in./1.27cm diameter).Other
installation,such as flushmount,isnot available
for this fan.
hanging bracket
spring washers
outlet box screws
flat washers
12ft.- 20ft.
12ft.- 20ft.
(3.66m - 6.1m)
(3.66m - 6.1m)

downrod
page 5
5.Fan Assembly.
Remove hanging ball from downrod provided by
loosening set screw on hanging ball.Lower hanging
ball and remove stop pin and then slide hanging ball
off of the downrod.[Refertodiagram1.]
Loosen yoke set screws and nuts at top of motor
housing. Remove pin and clip from motor housing
yoke.[Refertodiagram2.]
Tip: To prepare for threading electrical wires through
downrod, apply a small piece of electrical tape to the
ends of the electrical wires--this will keep the wires
together when threading them through the
downrod.[Refertodiagram2.]
Determine the length of downrod you wish to use.
Thread safety cable and electrical wires through
threaded end of downrod and pull extra wire slack
from the upper end of the downrod.[Referto
diagram2.]
Thread downrod into the motor housing yoke until
holes for pin and clip in downrod align with holes in
yoke--makesurewiresdonotgettwisted. Re-insert pin
and clip that were previously removed. Tighten yoke
set screws and nuts securely. [Refertodiagram2.]
Slide yoke cover, canopy cover and canopy over
downrod.[Refertodiagram3.] (Note:Canopy cover
must be turned with smooth side toward the motor
housing.)
Thread safety cable and wires through hanging ball
and then slide hanging ball over downrod--the top
of the downrod should be noted as having a set
screw hole;use this hole when setting the set screw.
Insert stop pin into top of downrod and raise
hanging ball.Be sure stop pin aligns with slots on
the inside of the hanging ball.Tighten set screw
securely.[Refertodiagram4.]
WARNING:Failure to tighten set screw (on hanging
ball) completely could result in the fan becoming
loose and possibly falling.
["Fan Assembly" continued on next page.]
NOTE:Theimportantsafetyprecautionsand
instructionsappearinginthemanualarenotmeantto
coverallpossibleconditionsandsituationsthatmay
occur.Itmustbeunderstoodthatcommonsenseand
cautionarenecessaryfactorsintheinstallationand
operationofthisfan.
set screw
hanging ball
stop pin
diagram2
diagram1
diagram3
diagram4
motor
housing
downrod
electrical wiring safety cable
pin
clip
canopy
canopy cover
yoke
cover
set screw hole
hanging ball
stop pin
yoke set screw
and nut
motor housing

page 6
5.Fan Assembly.(cont.)
safety cable
wood ceiling
joist
wood screw
and washer
safety cable loop
motor housing
With the hanging bracket secured to the outlet box and
able to support the fan,you are now ready to hang your
fan.Grab the fan firmly with two hands.Slide downrod
through opening in hanging bracket and let hanging ball
rest on the hanging bracket.Turn the hanging ball slot
until it lines up with the hanging bracket tab.
WARNING:Failure to align slot in hanging ball with tab in
hanging bracket may result in serious injury or death.
Tip: Seek the help of another person to hold the
stepladder in place and to help lift the fan up to you once
you are set on the ladder.
Find a secure attachment point (wood ceiling joist highly
recommended) and secure safety cable.It will be
necessary to use a heavy duty wood screw,washer and
lock washer (not supplied) with the safety cable loop.If
necessary,adjust the loop at the end of the safety cable.
The loop at the end of the safety cable should just fit over
the threads on the wood screw. Testsafetycablebypulling
onlooseendofsafetycablewithpliers.Ifthesafetycable
slips,theloopmustbeadjustedtighter.Extra cable slack can
be left in ceiling area.
hanging ball slot
hanging bracket tab
6.Wiring.
(wiringforreceiver)
white supply wire
black supply wire
black
black
white
blue
blue
white
from receiver
black
AC IN L
AC IN N
white
white
ground (green
or bare)
from fan
from receiver
antenna
from ceiling
receiver
ground
(green or bare)
WARNING:Turn off circuit breakers to current fixture
from breaker panel and be sure switch is turned to the
OFF position.
CAUTION: Besureoutletboxisproperlygroundedand
thatagroundwire(GREENorBare)ispresent.
MakesureallelectricalconnectionscomplywithLocal
CodesorOrdinancesandtheNationalElectricalCode.If
youareunfamiliarwithelectricalwiringorifthe
house/buildingwiresaredifferentcolorsthanthose
referredtointhediagramtotheright,pleaseusea
qualifiedelectrician.
Note: Excessleadwirelengthfromthefancanbecut
tothedesiredlengthandthenstripped.
When downrod is secured in place on the hanging
bracket,wire the RECEIVER with wire connectors
providedasshownindiagramatright.
Tip:While you are wiring,keep in mind that wires must
not obstruct receiver from sliding into hanging bracket.
*Wrap each wire connector separately with electrical
tape as an extra safety measure.
Gently insert receiver (flat side up) into hanging
bracket and carefully push wires and taped wire
connectors into outlet box.Let antenna rest outsideof
hanging bracket.
["Wiring" continued on next page.]
black

page 7
6.Wiring.(cont.)
[PLEASE NOTE:Wall and/or handheld remote
control must be used for fan to operate.Ifyoudo
notwishtousethewallcontrol,pleaseproceedto
Section7onthefollowingpagetocontinuewith
faninstallation.]

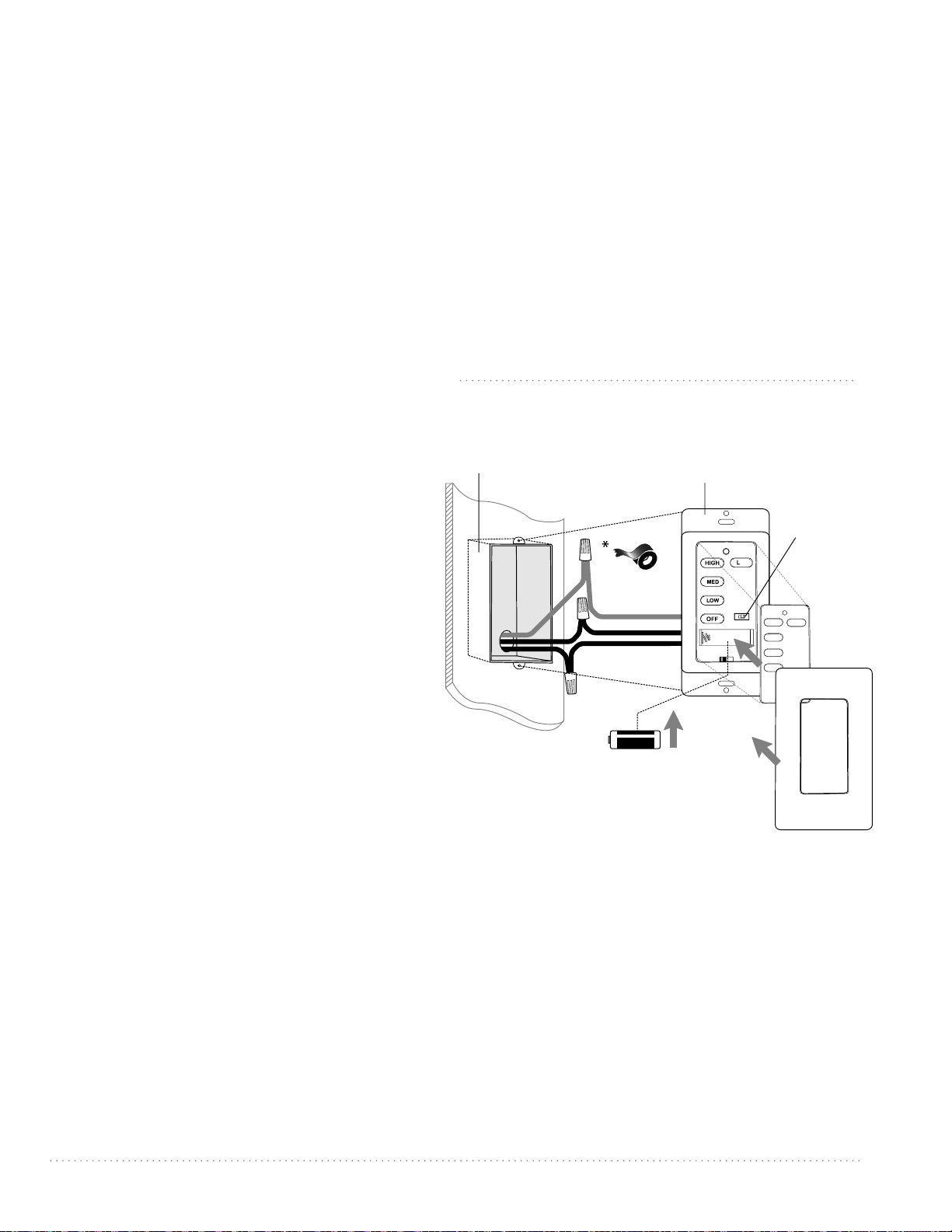

To install wall control,remove existing wall
switch.Wire one of the wall controls with wire
connectors provided asshownindiagramat
right.
*Wrap each wire connector separately with
electrical tape as an extra safety measure.Gently
push wires and taped wire connectors into
outlet box.
Install one 12-volt battery (included) in wall
control.
IMPORTANT:Wall control will not function
unless battery is installed.
WARNING: Battery is to be inserted with the
correct polarity.
Since this fan comes with an LED light kit,the
dimmer switch (labeled DIM andON) has been
pre-set to the "ON" position (DIM).If you do not
wish to have dimming capability,please move
the switch to the "OFF" position (ON).
Select a faceplate (almond or white) and press
firmly onto front of wall control.Attach wall
control to outlet box and secure with screws
from original wall switch.Attach wall plate
(included) to wall control using 2 screws
provided with the wall control.
Modifications not approved by the party responsible for compliance
could void the user's authority to operate the equipment.
*NOTE:This equipment has been tested and found to comply with the limits for a Class B
digital device,pursuant to Part 15 of the FCC Rules.These limits are designed to provide
reasonable protection against harmful interference in a residential installation.This
equipment generates,uses and can radiate radio frequency energy and,if not installed and
used in accordance with the instructions,may cause harmful interference to radio
communications.However, there is no guarantee that interference will not occur in a
particular installation.If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on,the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
(wiringforwallcontrol)
black (OUT to fan)
green
black
(AC IN from
breaker box)
black
(TO POWER supply)
black
green/
green/
bare
bare
ground
ground
green/
bare
ground
wall
control
face-
plate
12V battery
dimmer
switch
wall plate
11
-
DIM ON
outlet
box

page 8
8.Blade Assembly.
WARNING:To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble
the blades.If screws are overtightened,blades
may crack and break.
Time Saver:Washers for blade screws can be
set on each blade screw prior to installing the
blades.
Locate 15 blade attachment screws/fiber
washers in hardware pack.Align holes in
blade with corresponding holes in blade
arm on topside of motor housing.Insert
3 blade attachment screws/fiber washers with
fingers first and then,starting with the screw
in the middle,tighten screws securely with a
Phillips screwdriver.Repeat procedure for the
remaining blades.
NOTE:Tighten blade attachment screws twice
a year.
blade attachment
screws/fiber washers
blade
motor
housing
7.Canopy Assembly.
Locate 2 screws on underside of hanging bracket
and remove screw closest to the open end of the
hanging bracket.Partially loosen the other screw.
Lift canopy to hanging bracket.Place rounded part
of slotted hole in canopy over loosened screw in
hanging bracket and push up.Twist canopy to lock.
Re-insert screw that was removed and then tighten
both screws securely.
Slide canopy cover up to canopy,aligning rounded
part of slotted holes in canopy cover with screw
heads in bottom of canopy.Turn canopy cover to
the right (clockwise) until it stops.
*Remember that antenna for remote control
receiver must rest outsideof hanging bracket.
canopy
screw
hanging bracket
canopy cover
screw
antenna

9.Light Kit Assembly.
Remove 1 screw from motor plate on
underside of motor housing and partially
loosen the other 2 screws. Align slotted holes
in fitter plate with loosened screws in motor
plate, allowing molex connections from
motor housing to come through hole in
middle of fitter plate--removeanddiscard
plasticthatholdsthese2wirestogether. Twist
fitter plate to lock. Re-insert screw that was
just removed and securely tighten all 3
screws with Phillips screwdriver.
Connect WHITE wire from motor housing to
WHITE wire from LED light kit.Connect
BLACK (or BLUE) wire from motor housing to
BLACK wire from LED light kit.[NOTE:It may
be necessary to push back sleeve on wires to
be certain of wire colors.] Be sure molex
connections snap together securely.
Remove 1 screw from underside of fitter plate
and partially loosen the other 2 screws.
Carefully arrange wiring within fitter plate.
Align slotted holes in LED light kit with
loosened screws in fitter plate. Twist LED light
kit to lock. Re-insert screw that was
previously removed and tighten all 3 screws
securely.
Align grooves on shade with nodules on
inside of LED light kit.Turn shade to the
RIGHT (clockwise) until it no longer turns.
NOTE:Pull down VERYGENTLYon shade to
make sure that shade is secured completely.
motor
housing
shade
groove
nodule
fitter plate
LED light kit
molex
connections
fitter plate
molex
connections
motor plate
motor
housing
page 9

page 10
10.Handheld Remote Control Assembly.
INORDERTOUSETHEHANDHELDREMOTECONTROL,
PLEASECONTINUEWITHSECTION10forremotecontrol
assemblyinstructions.Ifyouhavealreadyinstalledthewall
controlbutdonotwishtousethehandheldremotecontrol,
pleaseproceedtoSection11.
Gently pull on remote control cover to separate top and
bottom parts.[Refertodiagram1.]
In order to use wall control as a handheld remote control,
cut each wire on wall control (that was not previously
used)--use wire cutters to cut off each wire as close to the
wall control as possible.[Refertodiagram2.]
Install one 12-volt battery (included) in wall control.
[Refertodiagram2.]
WARNING: Battery is to be inserted with the correct
polarity.
Since this fan comes with an LED light kit,the dimmer
switch (labeled DIM andON) has been pre-set to the
"ON" position (DIM).If you do not wish to have dimming
capability,please move the switch to the "OFF" position
(ON).[Refertodiagram2.]
Attachblack faceplate to front of wall control;press
down firmly.[Refertodiagram3.]
Align holes in wall control with posts located on inside of
TOP part of remote control cover and press together
firmly.Place wall control into BOTTOM part of remote
control cover,aligning posts in top of remote control
cover with post holes in the bottom.[Refertodiagram3.]
(NOTE:Make sure to align narrower ends of remote
control cover before closing.) Squeeze top and bottom of
remote control cover together until you hear a click at
each end,indicating that the remote control cover has
closed completely.
IMPORTANT:Store the handheld remote control away
from excess heat or humidity.To prevent damage to
handheld remote control,remove the battery if handheld
remote control will not be used for long periods.
NOTE: Batteries are NOT rechargeable. Remove batteries
with low or no charge and dispose of properly.
CAUTION:“DO NOT DISPOSE OF BATTERIES IN FIRE,
BATTERIES MAY EXPLODE OR LEAK.”- When disposing of
household alkaline batteries,it is best to check with your
local and state recycling or household hazardous waste
coordinators concerning the specifics of the program in
your area.You may also locate a recycling center by
calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org
for more information.
WARNING: ChokingHazard - Small parts.Keep batteries
away from children.
(top)
(bottom)
remote control
cover
diagram1
diagram2
diagram3
dimmer
switch
wall control
wire
wire wire
12V battery
11
-
DIM ON
11
-
DIM ON
wall
control
face-
plate
remote control
cover,BOTTOM
post
hole
post
hole
remote control
cover,TOP

12.Remote Control Operation.
11.Automated Learning Process./Activating Code.
CAUTION:Thewalland/orhandheldremotecontrolcanbeprogrammedtomultiplereceiversorfans.
Ifthisisnotdesired,turnwallswitchofftoanyotherprogrammablereceiverorfan.
Restore electrical power and then,if using wall control,set slider switch on wall control to the ON
position.Within 60 seconds of turning on the wall control,press and hold the OFF button on the
wall control for 5 seconds (or until light blinks twice or fan blades begin to turn).
Turnpoweroffagain forat least5seconds and then turn power back on. Within 60 seconds of
restoring the power,press and hold the OFF button on the front of the handheld remote control
for 5 seconds (or until light blinks twice or fan blades begin to turn).
Test the light and fan functions to confirm the learning process is complete--seeSection13below.
It is recommended that you test fan before finalizing
installation. Restore power from circuit box and light
switch (if applicable). Test wall control (optional installation)
by locating ON/OFF slider switch on wall control, then set to
the ON position. Test light and dimmer function and then
test fan speeds. Next, locate handheld remote control. Test
the light ON/OFF function by pressing the L1 button; test the
dimmer function by pressing the L1 button and holding it
down for up to 5 seconds. Test fan speeds with the different
fan speed buttons. If the wall and/or handheld remote control
operate(s) all of the functions of the fan and light, battery/
batteries has (have) been installed correctly. If the wall and/
or handheld remote control do (does) not operate all of the
fan/light functions, refer to "Troubleshooting" section to solve
any issues before contacting Customer Service.
Turn fan completely off beforemoving the reverse switch
(located on top of motor housing).Set reverse switch to
recirculate air depending on the season:
- LEFT position in summer (diagram1)
- RIGHT position in winter (diagram2)
A ceiling fan will allow you to raise your thermostat setting in
summer and lower your thermostat setting in winter without
feeling a difference in your comfort.
Important:Reverse switch must be set either completelyLEFT
orcompletelyRIGHTfor fan to function.If the reverse switch is
set in the middle position (diagram3),fan will not operate.
NOTE:If the wall control/handheld remote control interferes
with other appliances,turnoffpower first and then go back
to the instructions in Section 11 above.
13.TestingYour Fan.
ON/OFF slider switch - turns wallcontrol ON or OFF
(switch not functional on handheld remote)
HIGH button - turns fan to HIGH speed
MED button - turns fan to MEDIUM speed
LOW button - turns fan to LOW speed
OFF button - turns fan OFF
L1 button -turns lightkitON/OFF when pressed once;
dimslight kit when pressed and held down
motor
housing
reverse
switch
page 11
wall control handheld
remote control
diagram1 diagram2 diagram3
11
-
11
-
11
-
11
-

Troubleshooting. Warranty.
Parts Replacement.
CRAFTMADE™ LIFETIME LIMITEDWARRANTY:
CRAFTMADE warrants this fan to the original household
purchaser for indoor use under the following provisions:
1-YEARWARRANTY:CRAFTMADE will replace or repair
any fan which has faulty performance due to a defect in
material or workmanship.Contact Craftmade Customer
Service at 1-800-486-4892 to arrange for return of fan.
Return fan,shipping prepaid,to Craftmade. Wewill repair
or ship you a replacement fan,and we will pay the return
shipping cost.
5-YEARWARRANTY:CRAFTMADE will repair or replace,at
no charge to the original purchaser,any fan motor that
fails to operate satisfactorily when failure results from
normal use.
RETURN FAN MOTOR ONLY,shipping prepaid,to
Craftmade Industries.We will repair or ship purchaser a
replacement motor and Craftmade will pay the return
shipping cost.
6-YEAR to LIFETIME LIMITEDWARRANTY:CRAFTMADE
will repair the fan,at no charge for labor only to the
original purchaser,if the fan motor fails to operate
satisfactorily when failure results from normal use.Parts
used in the repair will be billed to the purchaser at
prevailing prices at time of repair.
The purchaser shall be responsible for all costs incurred
in the removal,reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical,physical,electrical or water abuse results in
causing the malfunction.Deterioration of finishes or
other parts due to time or exposure to salt air is
specifically exempted under this warranty.
Neither Craftmade nor the manufacturer will assume
any liability resulting from improper installation or use of
this product.In no case shall the company be liable for
any consequential damages for breach of this,or any
other warranty expressed or implied whatsoever.This
limitation as to consequential damages shall not apply in
states where prohibited.
Problem:Fan fails to operate.
Solutions:
1.Check wall switch to fan/wall control.
2.Check to be sure wall control (optional use) is wired
properly.
3.Check to be sure fan is wired properly.
4.Learning process between fan,handheld remote
control and,if applicable,wall control may not have
been successful and code was not activated.Turn
off power and repeat instructions in Section 11
(page 11).
5.Check that red light on handheld remote control
turns on when a button is pressed indicating that the
battery is good.
Problem:Light kit not lighting.
Solutions:
1.Check wall switch to fan/wall control.
2.Check that wires in canopy are wired properly.
3.Verify that molex connections in LED light kit are
connected properly.
4.Learning process between fan,handheld remote
control and,if applicable,wall control may not have
been successful and code was not activated.Turn
off power and repeat instructions in Section 11
(page 11).
Problem:Fan operates but light fails.
Solutions:
1.Check that wires in canopy are wired properly.
2.Verify that molex connections in LED light kit are
connected properly.
Problem:Fan and light fail to operate with wall
control (optional) and/or handheld remote control.
Solutions:
1.Check battery power in handheld remote control.
2.Learning process between fan,handheld remote
control and,if applicable,wall control may not have
been successful and code was not activated.Turn
off power and repeat instructions in Section 11
(page 11).
3.If using optional wall control,check that battery in
wall control is still good.
Problem:Fan wobbles.
Solutions:
1. Use the balancing kit in one of the hardware packs.
Ifnobladebalancingkitisprovided,pleasecall
CustomerSupport,at1-800-486-4892,torequestone.
2. Check to be sure set screw(s) on motor housing
yoke is (are) tightened securely.
3.Check to be sure set screw on hanging ball is
tightened securely.
For parts and information,please refer to
"Parts Inventory" on page 3.
Craftmade Customer Support:
1-800-486-4892
www.craftmade.com
WARNING:Failuretodisconnectpowersupply
priortotroubleshootinganywiringissuesmay
resultinseriousinjury.
page 12
KHLI2011
