INSTALLATION AND USER GUIDE
HUNTLEY Complete 2-Piece Toilet
TT-7250HC-W
Read all instructions carefully before proceeding.

A B C
D E F
G H I
J K L
M ON P Q

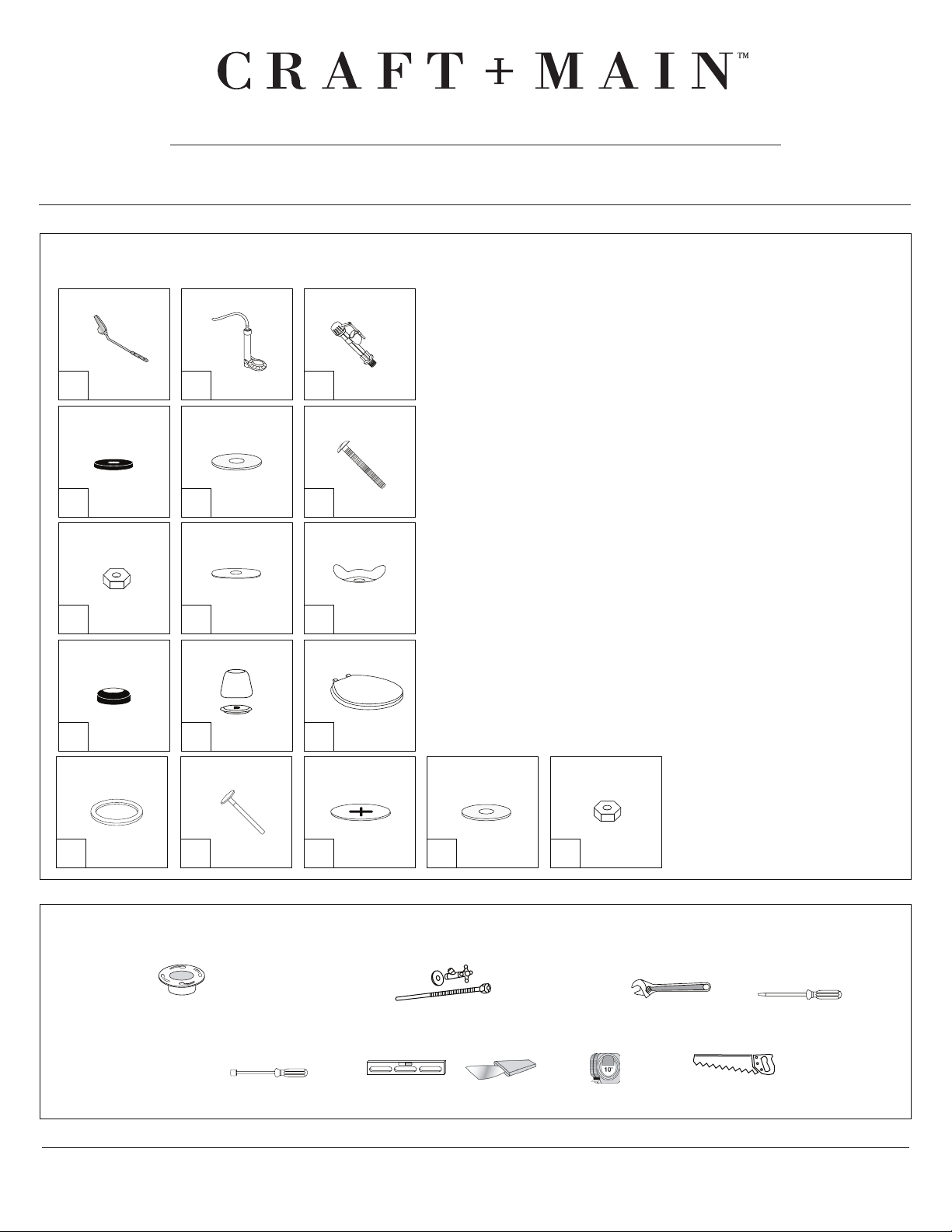

TOOLS & MATERIALS REQUIRED
HARDWARE & PARTS LIST
A Complete Lever
B Complete Flush Valve with Flapper (Installed)
C Complete Fill Valve with Float (Installed)
D Rubber Bolt Washers
E Metal Washers
F Metal Tank Bolts
G MetalNuts
H Oval Washers
I Wing Nuts
J Large Rubber Sealing Gasket
K Plastic Bolt Caps& Washers
L Plastic toilet Seat
M Sealing Ring(11/16" Wax)
N Floor Bolts
O Plastic Retaining Washers
P Metal Washers
Q Tightening Nuts
x1
x1
x1
x2
x4
x2
x2
x2
x2
x1
x2
x1
x1
x2
x2
x2
x2
PUTTY KNIFE TAPE MEASURE
FLOOR FLANGE (MAY ALREADY BE
INSTALLED IF REPLACING EXISTING TOILET)
ADJUSTABLE WRENCH FLATHEAD SCREWDRIVER
LEVELNUT DRIVER OR SOCKET SET HAND SAW
WATER SUPPLY KIT (NOT NEEDED IF REPLACING TOILET)
2
JUNE 15, 2023
© 2023 FGI Industries, Ltd. | CRAFT + MAIN™ and logo design are trademarks of FGI Industries, Ltd.
USA: www.craftandmain.com | CANADA: www.craftandmain.ca
INSTALLATION AND USER GUIDE
HUNTLEY Complete 2-Piece Toilet
TT-7250HC-W

3
REMOVING OLD TOILET
STEP 1
INSTALLATION PROCEDURE
STEP 2
JUNE 15, 2023
© 2023 FGI Industries, Ltd. | CRAFT + MAIN™ and logo design are trademarks of FGI Industries, Ltd.
USA: www.craftandmain.com | CANADA: www.craftandmain.ca
Turn o the water supply. Flush the toilet to empty the tank. Remove any water left in the tank or bowl.
Disconnect the supply line from the tank. Remove decorative caps. Unscrew nuts that attach the toilet to the floor.
Remove toilet.
Make sure the water supply valve is shut o before installation. Remove old floor bolts from floor flange. Clean any
old wax, putty, etc. from base area.
Install new floor bolts (N) into floor flange. Use plastic retaining washers (O) to hold bolts in full length, upright
position. You can pre-cut the floor bolts to the desired length to put on the bolt cap by doing the following:
Temporarily install floor bolts and set the toilet and place the washers and nuts onto the bolts. Then mark the length
needed. Take toilet out of the place and remove the floor bolts. Cut the floor bolts to the desired length.

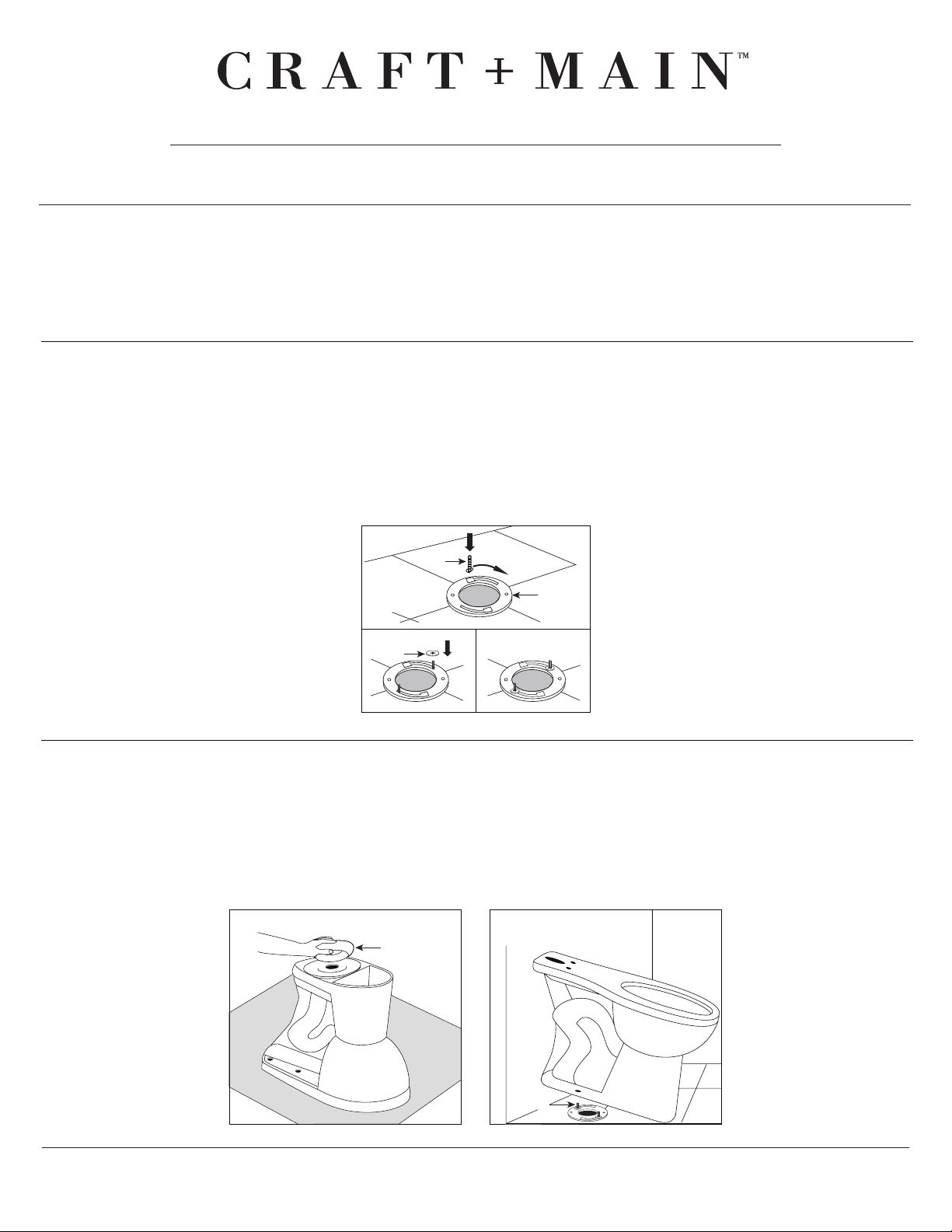

STEP 3 INSTALLATION PROCEDURE
Turn toilet bowl upside down onto a soft surface. Place a new wax ring (M) around the raised outlet ring of the bowl
with the rounded (tapered) end of the ring facing the toilet, and press firmly enough so the wax ring adheres to the
bowl. (Figure 1)
Lower the toilet onto the floor bolts (N), so the bolts protrude through mounting holes in base of toilet. (Figure 2)
Using a rocking motion, press the bowl down to position the toilet onto the flange.
INSTALLATION AND USER GUIDE
HUNTLEY Complete 2-Piece Toilet
TT-7250HC-W
Floor
Flange
N
O
M
Figure 1 Figure 2
N

4
JUNE 15, 2023
© 2023 FGI Industries, Ltd. | CRAFT + MAIN™ and logo design are trademarks of FGI Industries, Ltd.
USA: www.craftandmain.com | CANADA: www.craftandmain.ca
Install plastic cap washers (K), followed by metal washers (P) and nuts (Q) onto the floor-bolts (N). Tighten the
bolts alternately until toilet is firmly seated on the floor. Install the plastic bolt caps (K).
CAUTION: DO NOT OVERTIGHTEN NUTS, SEVERE DAMAGE MAY OCCUR.
STEP 4 INSTALLATION PROCEDURE
INSTALLING THE TANK
STEP 5
Place a metal washer (E) followed by a rubber washer (D) onto each
bolt (F). Insert the bolts (F) with washers (E & D) through the holes
inside the tank.
Place a metal washer (E) followed by a metal nut (G) onto each bolt
(F) protruding from the bottom of the tank. Tighten the metal nuts
(G) to create a proper and secure seal.
Attach the rubber sealing gasket (J) to the center drain hole under
the tank. Gently place the tank on the toilet bowl with the bolts (F)
protruding out through the holes in the bowl.
Place an oval metal washer (H) followed by a wing nut (I) onto each
of the protruding bolts (F). Tighten the wing nuts (I) enough so that
the tank sits flat on the toilet bowl.
Make sure the tank is parallel to the wall and straight on the toilet
bowl.
CAUTION: DO NOT OVERTIGHTEN NUTS. SEVERE DAMAGE
MAY OCCUR.
G
D
E
F
H
I
J
INSTALLATION AND USER GUIDE
HUNTLEY Complete 2-Piece Toilet
TT-7250HC-W
K
K
N
P
Q

5
JUNE 15, 2023
© 2023 FGI Industries, Ltd. | CRAFT + MAIN™ and logo design are trademarks of FGI Industries, Ltd.
USA: www.craftandmain.com | CANADA: www.craftandmain.ca
INSTALLING TANK LEVER
STEP 6
Turn clockwise to remove plastic nut from the lever arm.
Insert lever arm through the hole on the side of tank. The lever should be pointing to the back side of the toilet.
Screw the plastic nut counter clockwise to tighten it.
Hook the chain onto the lever into the furthest hole from the lever. With the lever at rest, the chain should only
be long enough for flapper to close.
NOTE: All CRAFT + MAIN toilets come preset and do not need to be adjusted.
INSTALLING TOILET SEAT
STEP 7
Place the seat on the toilet, aligning the holes of the seat with the holes in the back of the toilet bowl.
Insert the screw through the toilet seat holes on the bowl and secure it with the nuts/washers from the bottom
of the toilet. (Figure 3)
Tighten up the nuts from the bottom of toilet, use a regular screwdriver to tighten to fit. (Figure 4)
CAUTION: DO NOT OVERTIGHTEN THE SCREW AS IT MAY CAUSE DAMAGE ON SEAT.
Push the decorative cap down.
Please note: Do not push down on the seat with force, doing so may damage the smooth close mechanism.
Figure 3 Figure 4
INSTALLATION AND USER GUIDE
HUNTLEY Complete 2-Piece Toilet
TT-7250HC-W

6
JUNE 15, 2023
© 2023 FGI Industries, Ltd. | CRAFT + MAIN™ and logo design are trademarks of FGI Industries, Ltd.
USA: www.craftandmain.com | CANADA: www.craftandmain.ca
CONNECTING WATER SUPPLY
TROUBLESHOOTING
REPAIR PARTS:
Connect water supply line (new or existing) between shuto valve and tank inlet water fitting. Tighten coupling nuts
securely.
NOTE: DO NOT OVERTIGHTEN.
Turn on supply valve and allow tank to fill until float rises to shuto position.
Check for leakage at fittings, tighten or correct as needed.
Problem: Poor Flush, the water level is below water line mark.
Solution: Fine tune the fill valve adjustment rod to increase or decrease the water level in the tank.
Problem: Continuous water running.
Solution: It may occur if the flush seal is not completely closed. Verify if there is any obstruction with the flush seal
and that the seal is in contact with the valve lip.
Fill Valve w/Float
Flush Valve w/Flapper
Large Rubber Gasket
Tank Lever
Toilet Seat
STEP 8
!
Wipe the outside of the toilet gently with a damp cloth and blot dry with a soft towel. Make sure that the complete surface is
cleaned and completely dry. NOTE: IMPROPER CARE MAY CAUSE THE WARRANTY TO BECOME INVALID.
