THANK YOU FOR CHOOSING KALLISTA
We appreciate your commitment to KALLISTA quality products. Please take a moment to review this manual
before you install your KALLISTA product. If you encounter any installation or performance problems, please do
not hesitate to contact us at the phone number listed at the bottom of the page.
IMPORTANT INFORMATION
CAUTION: Risk of personal injury. If the new toilet is not installed immediately, temporarily place a rag
in the closet ange. Hazardous gases may leak from the ange opening if it is not blocked.
CAUTION: Risk of product damage. The tank-to-bowl connection bolts must be securely tightened. Use
a long screwdriver to tighten them. A short screwdriver may not be sufcient due to the conned space in
the tank.
NOTE: If a baseboard causes the rough-in to be less than 12″ (30.5 cm), it must be cut or removed to allow
space for the toilet.
IMPORTANT! Do not lift or rock the bowl after placement. If you break the watertight seal, you must install a
new wax seal.
NOTE: The toilet pictured in the installation steps may differ from the model being installed.
Observe all local plumbing and building codes.
KALLISTA reserves the right to make revisions in the design of products without notice, as specied in the 
Price Book.

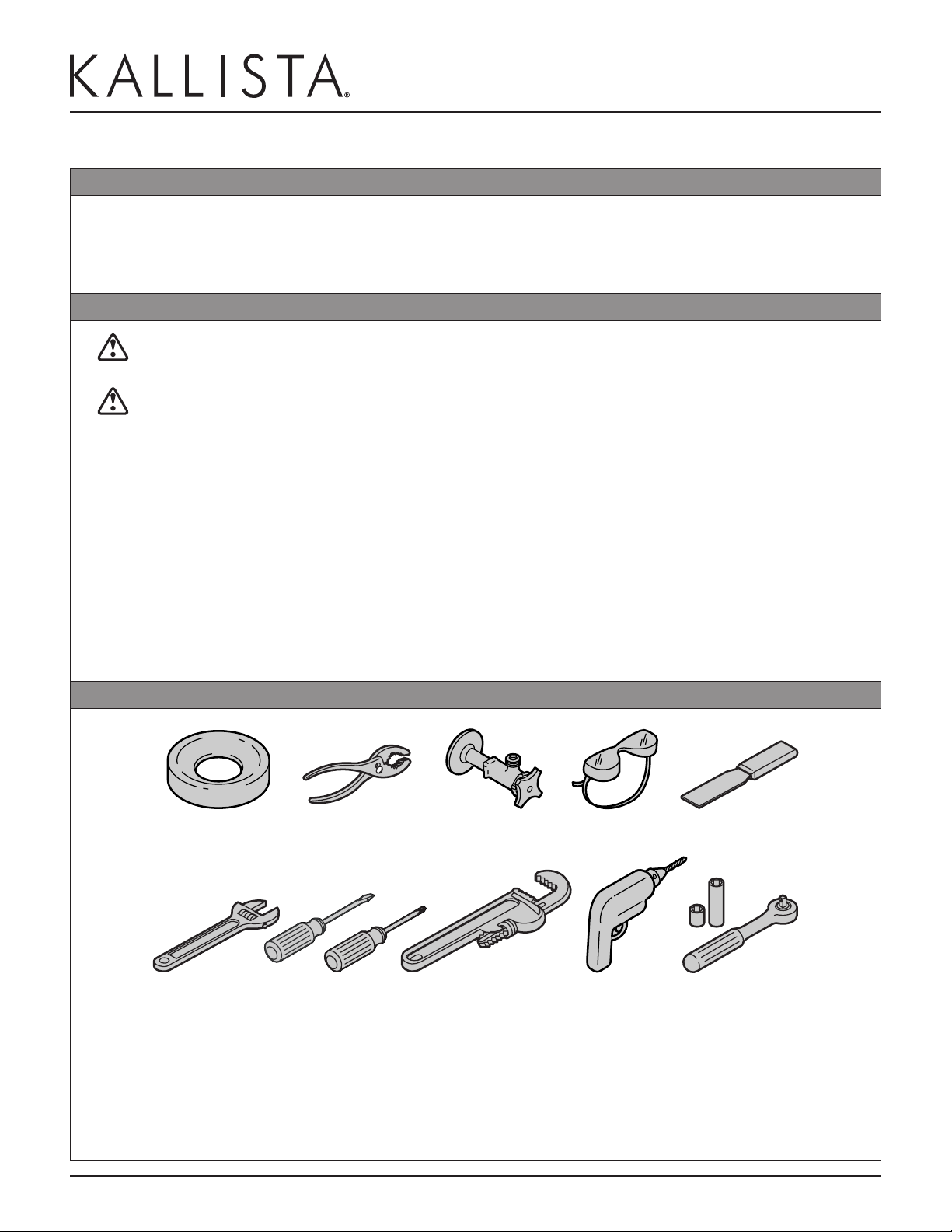

TOOLS
3/8”
Wax Seal

INSTALLATION INSTRUCTIONS
Toilet
1142313_2_A
3 of 9
Questions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX [phone].
INSTALLATION
Install or relocate the supply and outlet as necessary to conform to the roughing-in dimensions.1.
8-1/2” (21.6 cm)
11-13/16”
(30 cm)
16-3/16”
(41.1 cm)
14-5/16”
(36.3 cm)
34”
(86.3 cm)
3/8” NPT
Supply
11”
(28 cm)
7-1/2”
(19.1 cm)
10-13/16”
(27.5 cm)
6-5/8”
(16.8 cm)
3/8” D. Mounting Holes
12” (30.5 cm) Minimum
Rough-in
If replacing a toilet, remove the2.
old wax.
3.
Template
Tape in place and drill holes.4.
Mark here
with tape.
3/8”
5.
Anchor
8-1/2”
(21.6 cm)
11-13/16”
(30 cm)
3/8” NPT Supply
5” (12.7 cm) range for existing supply
Position brackets as shown on the6.
template and install.

INSTALLATION INSTRUCTIONS
Toilet
1142313_2_A
4 of 9
Questions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX [phone].
INSTALLATION
7.
Conrm correct alignment
between toilet hole and bracket.
8. 9.
10. Slide nut onto the supply hose, with ared end last and run hose through toilet wall.11.
12.
Hose Guide

INSTALLATION INSTRUCTIONS
Toilet
1142313_2_A
5 of 9
Questions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX [phone].
INSTALLATION

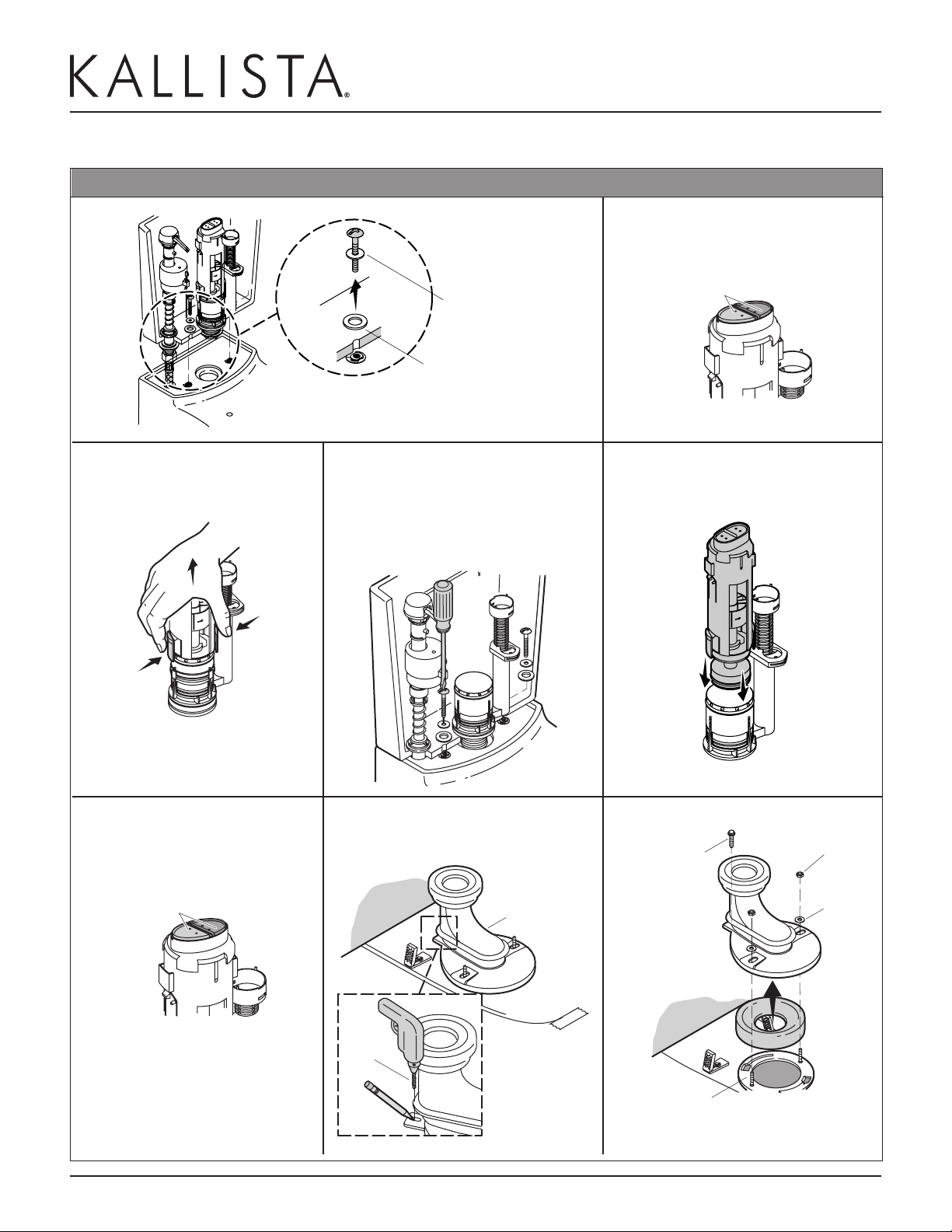

13.
Metal Washer
Rubber Washer
Note the position of the colored14.
buttons for reinstallation.
Buttons
Squeeze the tabs and pull15.
straight up on the canister.
Thread the bolts into the bowl16.
through the bolt holes in the bottom
of the tank. Tighten the bolts using a
screwdriver.
Do not overtighten.
Reinstall the canister so it snaps into17.
place.
Rotate the canister so that the18.
colored buttons are in their
original positions.
Buttons
Mark hole location, drill 3/16” pilot19.
hole.
3/16”
Trapway
20.
5/16” X 1-3/4”
Retaining Screw
Nut
Washer
T-Bolt

INSTALLATION INSTRUCTIONS
Toilet
1142313_2_A
6 of 9
Questions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX [phone].
INSTALLATION
Carefully tilt backward21.
until trapway and
outlet touch.
Apply weight evenly.22.
Do not move after placement!
Watertight seal may be broken!
Carefully thread the screws into the brackets, until toilet is23.
secure. Alternately tighten left and right sides to prevent
pulling the toilet off center. Install cap to cover screw.
Do not overtighten.
Cap Screw
Bushing
Caulk around base.24.
Caulk
Connect supply and turn on the water.25.
3/8” Supply

INSTALLATION INSTRUCTIONS
Toilet
1142313_2_A
7 of 9
Questions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX [phone].
INSTALLATION

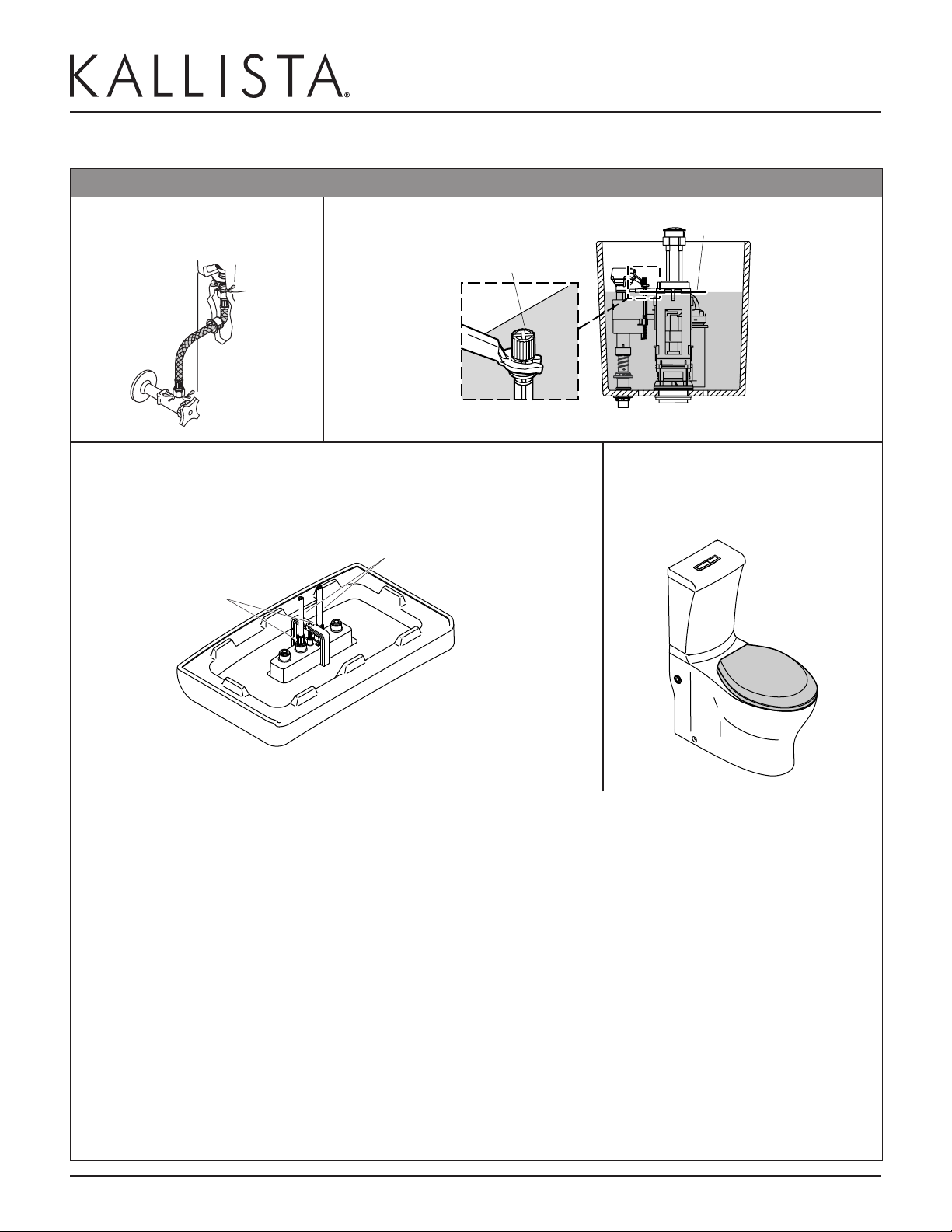

Flush several times and check26.
for leaks.
27.
Turn here to adjust the
water level.
Waterline
Install the tank lid and the seat. Flush the toilet and check for proper ush. If 28.
necessary, loosen the lock nuts and adjust the ush rod lengths as described in
the troubleshooting section.
Locknuts
Push Button Rods
Periodically check for leaks29.
for several days following the
installation.

INSTALLATION INSTRUCTIONS
Toilet
1142313_2_A
8 of 9
Questions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX [phone].
TROUBLESHOOTING GUIDE
SYMPTOMS Recommended Action
Poor ush.1. Adjust the tank water level to match the waterline.A.
Fully open the water supply shut-off valve.B.
Clear obstructions from the trapway, jet, or bowl rim holes.C.
Clear obstructions in the soil pipe or vent pipe.D.
Remove the tank lid, loosen the locknuts on the push button assembly and unscrew the push button rodsE.
slightly to lengthen them. Replace the tank lid and ush. Repeat adjustment until the ush is acceptable,
tighten the locknut.
No ush.2. Make sure the push button rods are in place. Adjust as needed, following the directions in step E. above.A.
The ll valve turns 3.
on/off by itself with-
out the toilet being
ushed, or it runs
allowing water to
enter the tank.
Remove the tank lid, loosen the locknuts on the push button assembly and screw in the push button rodsA.
slightly to shorten them. Replace the tank lid and ush. Repeat adjustment until the ush is acceptable, tighten
the locknut.
Clean or replace the ush valve seal if it is worn, dirty, or misaligned with the valve seat or ush valve seat is B.
damaged.
Remove the tank and tighten the ush valve nut if ush valve gasket is leaking. Do not overtighten. If leakage C.
continues replace the gasket.
Clean the ll valve seat/seat washer of debris or replace the piston/seat washer assembly.D.
Replace the ll valve if the valve oat sinks.E.
Adjust the tank water level if it is too high.F.
Long tank ll cycle.4. Fully open the water supply shut-off valve.A.
Clean the valve inlet, valve head, or supply line. Flush the lines.B.
Noisy tank ll cycle.5. Partially close the water supply shut-off valve if the water pressure to the toilet is too high. Check the toiletA.
performance following any such adjustment.
Remove dirt or obstructions from the valve head. Flush the lines.B.

INSTALLATION INSTRUCTIONS
Toilet
1142313_2_A
9 of 9
Questions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX [phone].

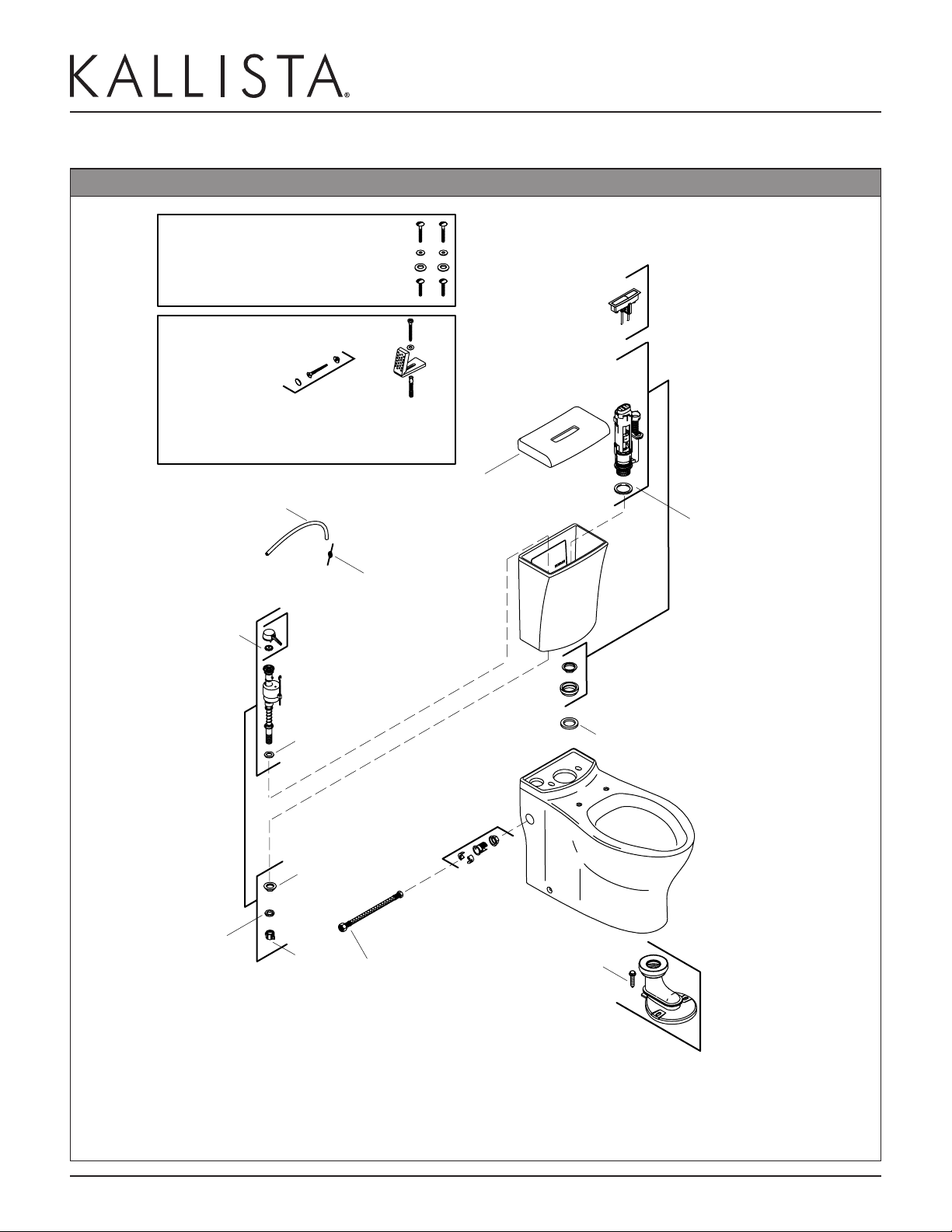

SERVICE PARTS
**Finish/color code must be specified when ordering.
1111827
Tank Accessory Pack
1081365**
Floor Mountng
Kit (2 ea.)
1042615**
Hold Down Kit (2 ea.)
1013337
Tube
83143
Seal
1139002
Fill Valve
83451
Cap
85307
Washer
51261
Clip
42398
Washer
1057941
Locknut
42397
Nut
1111746-A
Retaining Screw
1107584
Gasket
1068389
Water Supply Hose
1084387**
Inlet Cover
1131814-**
Tank Lid
1139600
Trapway
1036170
Locknut and Gasket
1036161
Seal
1132466
Flush Valve
P70314-00-**
Push Button Assembly
