Craftsman 919.166700 User manual

Operators Manual
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, IL 60170 U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
Permanently Lubricated
Two-Stage
Twin-V
Portable
AIR COMPRESSOR
• Safety Guidelines
• Assembly
• Operation
• Maintenance
• Service and Adjustments
• Troubleshooting
• Español
D23012 Rev. 0 12/21/00
Model No.
919.166700

2 - ENGD23012
TABLE OF CONTENTS
FULL ONE YEAR WARRANTY
AIR COMPRESSOR
If this air compressor fails due to a defect in material or workmanship within one year from the date of
purchase, RETURN IT TO THE NEAREST SEARS REPAIR CENTER THROUGHOUT THE UNITED
STATES AND SEARS WILL REPAIR IT, FREE OF CHARGE. If purchased from Orchard Supply
Hardware, return to the nearest Orchard Store and Orchard will repair it, free of charge.
If this air compressor is used for commercial or rental purposes, the warranty will apply for ninety
days from the date of purchase.
This warranty gives you specific legal rights and you may have other rights which vary from state to
state.
Sears, Robebuck and Co., Deptr. 817WA, Hoffman Estates, Il 60170
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . .3-6
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8
Contents of Carton . . . . . . . . . . . . . . . . . . . . .7
Tool Required for Assembly . . . . . . . . . . . . . .7
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Assemble Wheels . . . . . . . . . . . . . . . . . . . . . .8
Assemble Rubber Feet . . . . . . . . . . . . . . . . . .8
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . .9
Location of Air Compressor . . . . . . . . . . . . . .9
Grounding Instructions . . . . . . . . . . . . . . . . . .9
Extension Cords . . . . . . . . . . . . . . . . . . . . . . .9
Voltage and Circuit Protection . . . . . . . . . . . .9
OPERATING PROCEDURES . . . . . . . . . . . .10-12
Know Your Air Compressor . . . . . . . . . . . . .10
Description of Operation . . . . . . . . . . . . . . .10
Portable "Quadraport" Control Panel . . . . . .11
To operate "Quadraport" attached . . . . . . . .11
To operate "Quadraport" at remote location 11
How to Stop . . . . . . . . . . . . . . . . . . . . . . . . .12
Before Starting
Break-in Procedure . . . . . . . . . . . . . . . .12
Before Each Start-Up . . . . . . . . . . . . . . . . . .12
How to Start . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . .13-14
Customer Responsibilities . . . . . . . . . . . . . .13
To Check Safety Valve . . . . . . . . . . . . . . . . .13
To Drain Tank . . . . . . . . . . . . . . . . . . . . . . . .13
Air Filter - Inspection and Replacement . . . .13
Air Compressor Pump Intake and
Exhaust Valves . . . . . . . . . . . . . . . . . . . . . . .14
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
SERVICE AND ADJUSTMENTS . . . . . . . . . . . .15
To Replace or Clean Check Valve . . . . . . . . .15
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
TROUBLESHOOTING GUIDE . . . . . . . . . . .17-19
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . .20-37
HOW TO ORDER REPAIR PARTS . . .Back Cover

3 - ENG D23012
SAFETY GUIDELINES - DEFINITIONS
Indicates an imminently hazardous
situation which, if not avoided, will
result in death or serious injury.
Indicates a potentially hazardous
situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous
situation which, if not avoided,
may result in minor or moderate injury.
Used without the safety alert
symbol indicates a potentially
hazardous situation which, if not avoided, may result
in property damage.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY
AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUC-
TIONS BEFORE USING THIS EQUIPMENT.
RISK OF EXPLOSION OR FIRE
ALWAYS OPERATE THE COMPRESSOR IN A WELL
VENTILATED AREA FREE OF COMBUSTIBLE MATERI-
ALS, GASOLINE OR SOLVENT VAPORS.
IF SPRAYING FLAMMABLE MATERIALS, LOCATE COM-
PRESSOR AT LEAST 20 FEET AWAY FROM SPRAY
AREA. AN ADDITIONAL LENGTH OF HOSE MAY BE
REQUIRED.
STORE FLAMMABLE MATERIALS IN A SECURE
LOCATION AWAY FROM COMPRESSOR.
NEVER PLACE OBJECTS AGAINST OR ON TOP OF
COMPRESSOR. OPERATE COMPRESSOR IN AN
OPEN AREA AT LEAST 12 INCHES AWAY FROM ANY
WALL OR OBSTRUCTION THAT WOULD RESTRICT THE
FLOW OF FRESH AIR TO THE VENTILATION OPENINGS.
OPERATE COMPRESSOR IN A CLEAN, DRY, WELL VEN-
TILATED AREA. DO NOT OPERATE UNIT INDOORS OR
IN ANY CONFINED AREA.
ALWAYS REMAIN IN ATTENDANCE WITH THE PROD-
UCT WHEN IT IS OPERATING.
IT IS NORMAL FOR ELECTRICAL CONTACTS WITHIN
THE MOTOR AND PRESSURE SWITCH TO SPARK.
IF ELECTRICAL SPARKS FROM COMPRESSOR COME
INTO CONTACT WITH FLAMMABLE VAPORS, THEY
MAY IGNITE, CAUSING FIRE OR EXPLOSION.
RESTRICTING ANY OF THE COMPRESSOR VENTILA-
TION OPENINGS WILL CAUSE SERIOUS OVERHEATING
AND COULD CAUSE FIRE.
UNATTENDED OPERATION OF THIS PRODUCT COULD
RESULT IN PERSONAL INJURY OR PROPERTY DAM-
AGE.
WHAT CAN HAPPEN HOW TO PREVENT IT
SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the sym-
bols below. Please read the manual and pay attention to these sections.

4 - ENGD23012
HAZARD
RISK OF BURSTING
DRAIN TANK DAILY OR AFTER EACH USE. IF TANK
DEVELOPS A LEAK, REPLACE IT IMMEDIATELY WITH A
NEW TANK OR REPLACE THE ENTIRE COMPRESSOR.
NEVER DRILL INTO, WELD, OR MAKE ANY MODIFICA-
TIONS TO THE TANK OR ITS ATTACHMENTS.
THE TANK IS DESIGNED TO WITHSTAND SPECIFIC
OPERATING PRESSURES. NEVER MAKE ADJUST-
MENTS OR PARTS SUBSTITUTIONS TO ALTER THE
FACTORY SET OPERATING PRESSURES.
FOR ESSENTIAL CONTROL OF AIR PRESSURE,YOU
MUST INSTALL A PRESSURE REGULATOR AND PRES-
SURE GAUGE TO THE AIR OUTLET (IF NOT
EQUIPPED) OF YOUR COMPRESSOR. FOLLOW THE
EQUIPMENT MANUFACTURERS RECOMMENDATION
AND NEVER EXCEED THE MAXIMUM ALLOWABLE PRES-
SURE RATING OF ATTACHMENTS. NEVER USE COM-
PRESSOR TO INFLATE SMALL LOW-PRESSURE
OBJECTS SUCH AS CHILDREN’S TOYS, FOOTBALLS,
BASKETBALLS, ETC.
1. FAILURE TO PROPERLY DRAIN CONDENSED
WATER FROM THE TANK, CAUSING RUST AND
THINNING OF THE STEEL TANK.
2. MODIFICATIONS OR ATTEMPTED REPAIRS TO
THE TANK.
3. UNAUTHORIZED MODIFICATIONS TO THE
UNLOADER VALVE, SAFETY VALVE, OR ANY
OTHER COMPONENTS WHICH CONTROL TANK
PRESSURE.
4. EXCESSIVE VIBRATION CAN WEAKEN THE AIR
TANK AND CAUSE RUPTURE OR EXPLOSION.
ATTACHMENTS & ACCESSORIES:
EXCEEDING THE PRESSURE RATING OF AIR TOOLS,
SPRAY GUNS, AIR OPERATED ACCESSORIES, TIRES
AND OTHER INFLATABLES CAN CAUSE THEM TO
EXPLODE OR FLY APART, AND COULD RESULT IN SERI-
OUS INJURY.
WHAT CAN HAPPEN HOW TO PREVENT IT
AIR TANK: THE FOLLOWING CONDITIONS COULD LEAD TO A WEAKENING OF THE TANK, AND
RESULT IN A VIOLENT TANK EXPLOSION AND COULD CAUSE PROPERTY DAMAGE OR SERIOUS
INJURY.
RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN HOW TO PREVENT IT
THE COMPRESSED AIR STREAM CAN CAUSE SOFT
TISSUE DAMAGE TO EXPOSED SKIN AND CAN PRO-
PEL DIRT, CHIPS, LOOSE PARTICLES AND SMALL
OBJECTS AT HIGH SPEED, RESULTING IN PROPERTY
DAMAGE OR PERSONAL INJURY.
ALWAYS WEAR ANSI Z87.1 APPROVED SAFETY
GLASSES WITH SIDE SHIELDS WHEN USING THE
COMPRESSOR.
NEVER POINT ANY NOZZLE OR SPRAYER TOWARD
ANY PART OF THE BODY OR AT OTHER PEOPLE OR
ANIMALS.
ALWAYS TURN THE COMPRESSOR OFF AND BLEED
PRESSURE FROM THE AIR HOSE AND TANK BEFORE
ATTEMPTING MAINTENANCE, ATTACHING TOOLS OR
ACCESSORIES.

5 - ENG D23012
HAZARD
RISK TO BREATHING
AIR OBTAINED DIRECTLY FROM THE COMPRESSOR
SHOULD NEVER BE USED TO SUPPLY AIR FOR
HUMAN CONSUMPTION. IN ORDER TO USE AIR PRO-
DUCED BY THIS COMPRESSOR FOR BREATHING, SUIT-
ABLE FILTERS AND IN-LINE SAFETY EQUIPMENT
MUST BE PROPERLY INSTALLED. IN-LINE FILTERS
AND SAFETY EQUIPMENT USED IN CONJUNCTION
WITH THE COMPRESSOR MUST BE CAPABLE OF
TREATING AIR TO ALL APPLICABLE LOCAL AND FED-
ERAL CODES PRIOR TO HUMAN CONSUMPTION.
WORK IN AN AREA WITH GOOD CROSS-VENTILA-
TION. READ AND FOLLOW THE SAFETY INSTRUC-
TIONS PROVIDED ON THE LABEL OR SAFETY DATA
SHEETS FOR THE MATERIAL YOU ARE SPRAYING.
USE A NIOSH/MSHA APPROVED RESPIRATOR
DESIGNED FOR USE WITH YOUR SPECIFIC APPLICA-
TION.
THE COMPRESSED AIR DIRECTLY FROM YOUR COM-
PRESSOR IS NOT SAFE FOR BREATHING. THE AIR
STREAM MAY CONTAIN CARBON MONOXIDE, TOXIC
VAPORS, OR SOLID PARTICLES FROM THE TANK.
BREATHING THESE CONTAMINANTS CAN CAUSE
SERIOUS INJURY OR DEATH.
SPRAYED MATERIALS SUCH AS PAINT, PAINT SOL-
VENTS, PAINT REMOVER, INSECTICIDES, WEED
KILLERS, CONTAIN HARMFUL VAPORS AND POISONS.
WHAT CAN HAPPEN HOW TO PREVENT IT
RISK OF ELECTRICAL SHOCK
NEVER OPERATE THE COMPRESSOR OUTDOORS WHEN
IT IS RAINING OR IN WET CONDITIONS.
NEVER OPERATE COMPRESSOR WITH PROTECTIV-
COVERS REMOVED OR DAMAGED.
ANY ELECTRICAL WIRING OR REPAIRS REQUIRED ON
THIS PRODUCT SHOULD BE PERFORMED BY AUTHO-
RIZED SERVICE CENTER PERSONNEL IN ACCOR-
DANCE WITH NATIONAL AND LOCAL ELECTRICAL
CODES.
MAKE CERTAIN THAT THE ELECTRICAL CIRCUIT TO
WHICH THE COMPRESSOR IS CONNECTED PROVIDES
PROPER ELECTRICAL GROUNDING, CORRECT VOLT-
AGE AND ADEQUATE FUSE PROTECTION.
YOUR AIR COMPRESSOR IS POWERED BY ELECTRIC-
ITY. LIKE ANY OTHER ELECTRICALLY POWERED
DEVICE, IF IT IS NOT USED PROPERLY IT MAY CAUSE
ELECTRIC SHOCK.
REPAIRS ATTEMPTED BY UNQUALIFIED PERSONNEL
CAN RESULT IN SERIOUS INJURY OR DEATH BY
ELECTROCUTION.
ELECTRICAL GROUNDING: FAILURE TO PROVIDE
ADEQUATE GROUNDING TO THIS PRODUCT COULD
RESULT IN SERIOUS INJURY OR DEATH FROM ELEC-
TROCUTION. SEE GROUNDING INSTRUCTIONS.
WHAT CAN HAPPEN HOW TO PREVENT IT

6 - ENGD23012
HAZARD
RISK FROM MOVING PARTS
NEVER OPERATE THE COMPRESSOR WITH GUARDS
OR COVERS WHICH ARE DAMAGED OR REMOVED.
ANY REPAIRS REQUIRED ON THIS PRODUCT SHOULD
BE PERFORMED BY AUTHORIZED SERVICE CENTER
PERSONNEL.
MOVING PARTS SUCH AS THE PULLEY, FLYWHEEL
AND BELT CAN CAUSE SERIOUS INJURY IF THEY
COME INTO CONTACT WITH YOU OR YOUR CLOTHING.
ATTEMPTING TO OPERATE COMPRESSOR WITH
DAMAGED OR MISSING PARTS OR ATTEMPTING TO
REPAIR COMPRESSOR WITH PROTECTIVE SHROUDS
REMOVED CAN EXPOSE YOU TO MOVING PARTS AND
CAN RESULT IN SERIOUS INJURY.
WHAT CAN HAPPEN HOW TO PREVENT IT
RISK OF FALLING
WHAT CAN HAPPEN HOW TO PREVENT IT
A PORTABLE COMPRESSOR CAN FALL FROM A TABLE,
WORKBENCH OR ROOF CAUSING DAMAGE TO THE
COMPRESSOR AND COULD RESULT IN SERIOUS
INJURY OR DEATH TO THE OPERATOR.
ALWAYS OPERATE COMPRESSOR IN A STABLE
SECURE POSITION TO PREVENT ACCIDENTAL MOVE-
MENT OF THE UNIT. NEVER OPERATE COMPRESSOR
ON A ROOF OR OTHER ELEVATED POSITION. USE
ADDITIONAL AIR HOSE TO REACH HIGH LOCATIONS.
RISK OF PROPERTY DAMAGE WHEN TRANSPORTING
COMPRESSOR
WHAT CAN HAPPEN HOW TO PREVENT IT
OIL CAN LEAK OR SPILL AND COULD RESULT IN FIRE
OR BREATHING HAZARD, SERIOUS INJURY OR DEATH
CAN RESULT. OIL LEAKS WILL DAMAGE CARPET, PAINT
OR OTHER SURFACES IN VEHICLES OR TRAILERS.
ALWAYS PLACE COMPRESSOR ON A PROTECTIVE
MAT WHEN TRANSPORTING TO PROTECT AGAINST
DAMAGE TO VEHICLE FROM LEAKS. REMOVE COM-
PRESSOR FROM VEHICLE IMMEDIATELY UPON ARRIVAL
AT YOUR DESTINATION.
(Fire, Inhalation, Damage to Vehicle Surfaces)
RISK OF BURNS
WHAT CAN HAPPEN HOW TO PREVENT IT
TOUCHING EXPOSED METAL SUCH AS THE COM-
PRESSOR HEAD OR OUTLET TUBES, CAN RESULT IN
SERIOUS BURNS.
NEVER TOUCH ANY EXPOSED METAL PARTS ON
COMPRESSOR DURING OR IMMEDIATELY AFTER
OPERATION. COMPRESSOR WILL REMAIN HOT FOR
SEVERAL MINUTES AFTER OPERATION.
DO NOT REACH AROUND PROTECTIVE SHROUDS OR
ATTEMPT MAINTENANCE UNTIL UNIT HAS BEEN
ALLOWED TO COOL.
For units requiring oil in pump or gasoline engines

7 - ENG D23012
ASSEMBLY
Contents of Carton
1 - Air Compressor
2 - Wheels
2 - Shoulder Bolts, 3/8-16
2 - Hex Nuts, 3/8-16
2 - Rubber Bumpers
2 - Screws, 1/4-20 x .75
1 - Quick Connect
1 - Safety Check Valve
Tools Required for Assembly
1 - 9/16” socket or open end wrench
1 - 1/2” socket or open end wrench
GLOSSARY
Become familiar with these terms before operating
the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a unit of
measure of air delivery.
PSIG: Pounds per square inch gauge; a unit of
measure of pressure.
ASME: American Society of Mechanical Engineers;
made, tested, inspected and registered to meet the
standards of the ASME.
Code Certification: Products that bear one or
more of the following marks: UL, CUL, ETL, CETL,
have been evaluated by OSHA certified independent
safety laboratories and meet the applicable
Underwriters Laboratories Standards for Safety.
Cut-In Pressure: While the motor is off, air tank
pressure drops as you continue to use your acces-
sory. When the tank pressure drops to the factory
set low pressure the motor will restart automatically.
The low pressure at which the motor automatically
restarts is called “cut-in” pressure.
Cut-Out Pressure: When an air compressor is
turned on and begins to run, air pressure in the air
tank begins to build. It builds to a factory set high
pressure before the motor automatically shuts off -
protecting your air tank from pressure higher than
its capacity. The high pressure at which the motor
shuts off is called “cut-out” pressure.
Branch Circuit: Circuit carrying electricity from
electrical panel to outlet.
ACCESSORIES
This unit is capable of powering the following Accessories. The accessories are available through the current
Power and Hand Tool Catalog or full-line Sears stores.
Accessories
• In Line Filter
• Tire Air Chuck
• Quick Connector Sets
(various sizes)
• Air Pressure Regulators
• Oil Fog Lubricators
• Air Hose:
1/4", 5/16”, or 3/8" OR
1/2" I.D. in various
lengths

8 - ENGD23012
THE WHEELS AND HANDLE
DO NOT PROVIDE ADE-
QUATE CLEARANCE, STABILITY OR SUPPORT
FOR PULLING THE UNIT UP AND DOWN
STAIRS OR STEPS. THE UNIT MUST BE LIFT-
ED, OR PUSHED UP A RAMP.
It may be necessary to brace
or support one end of the
outfit when attaching the wheels and the rubber
feet, because the air compressor will have a ten-
dency to tip.
1. Place shoulder bolt (C) through wheel (B) and
position it into the hole of the mounting bracket
(protruding hub to the inside). Thread nut (A)
onto shoulder bolt and tighten firmly with a
9/16” wrench. Repeat to install second wheel.
ED
A
B
C
2. Attach the rubber feet (D) to the bottom of the
front bracket using the screws (E) provided.
3. Rotate handle into operating position as shown.
NOTE: Handles will lock into place.

9 - ENG D23012
GROUNDING INSTRUCTIONS
RISK OF ELECTRICAL
SHOCK. In the event of
a short circuit, grounding reduces the risk of
shock by providing an escape wire for the
electric current. This air compressor must be
properly grounded.
The portable air compressor is equipped with a cord
having a grounding wire with an appropriate ground-
ing plug (see following illustrations). The plug must
be used with an outlet that has been installed and
grounded in accordance with all local codes and
ordinances.
1. The cord set and plug with this unit contains a
grounding pin. This plug MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used must be
installed and grounded in accordance with all local
codes and ordinances.
2. Make sure the outlet being used has the same
configuration as the grounded plug. DO NOT
USE AN ADAPTER. See illustration.
3. Inspect the plug and cord before each use. Do
not use if there are signs of damage.
4. If these grounding instructions are not com-
pletely understood, or if in doubt as to whether
the compressor is properly grounded, have the
installation checked by a qualified electrician.
Grounding Pin
Grounded
Outlets
Plug
INSTALLATION
HOW TO SET UP YOUR UNIT
Location of the Air Compressor
Locate the air compressor in a clean, dry and well
ventilated area. The air compressor should be locat-
ed at least 12" away from the wall or other obstruc-
tions that will interfere with the flow of air. The air
compressor pump and shroud are designed to allow
for proper cooling. The ventilation openings on the
compressor are necessary to maintain proper oper-
ating temperature. Do not place rags or other con-
tainers on or near these openings.The air filter must
be kept clear of obstructions which could reduce air
flow to the air compressor.
IMPROPER GROUNDING
CAN RESULT IN ELEC-
TRICAL SHOCK.
Do not modify the plug provided. If it does
not fit the available outlet, a correct outlet
should be installed by a qualified electrician.
Repairs to the cord set or plug MUST be
made by a qualified electrician.
Extension Cords
Use extra air hose instead of an extension cord to
avoid voltage drop and power loss to the motor, and
to prevent overheating.
If an extension cord must be used, be sure it is:
• a 3-wire extension cord that has a 3-blade
grounding plug, and a 3-slot receptacle that will
accept the plug on the product
• in good condition
• no longer than 50 feet
• 12 gauge (AWG) or larger. (Wire size increases
as gauge number decreases. 10 AWG and 8
AWG may also be used. DO NOT USE 14 OR 16
AWG.)
Voltage and Circuit Protection
Refer to the Parts Manual for the voltage and mini-
mum branch circuit requirements.
Certain air compressors can be operated on a 15
amp circuit if the following conditions are met.
1. Voltage supply through branch circuit is 15
amps.
2. Circuit is not used to supply any other electrical
needs (lights, appliances, etc.).
3. Extension cords comply with specifications.
4. Circuit is equipped with a 15 amp circuit breaker
or 15 amp time delay fuse. NOTE: If compressor
is connected to a circuit protected by fuses, use
only time delay fuses. Time delay fuses should
be marked “D” in Canada and “T” in the US.
If any of the above conditions cannot be met, or if
operation of the compressor repeatedly causes
interruption of the power, it may be necessary to
operate it from a 20 amp circuit. It is not necessary
to change the cord set.

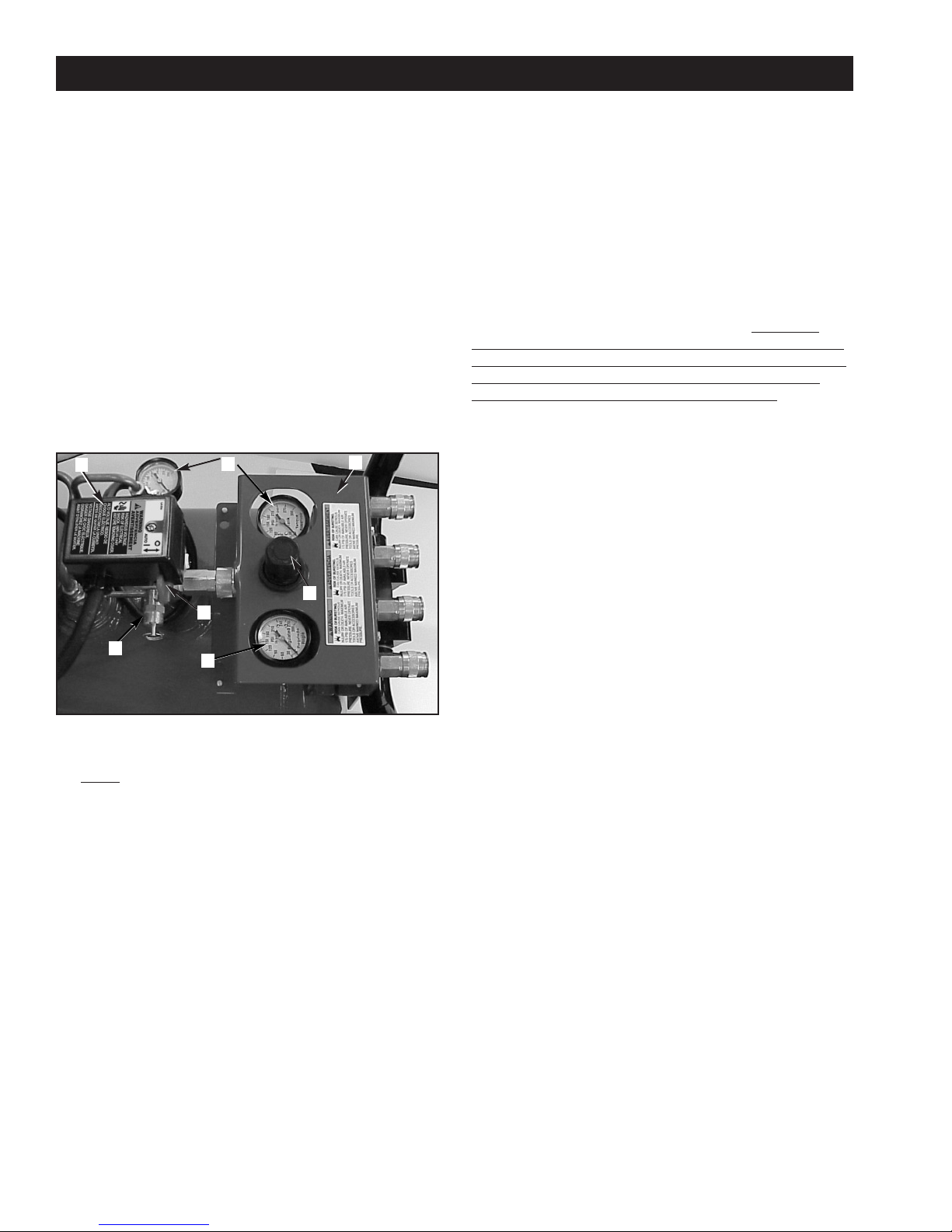

10 - ENGD23012
OPERATION
Know Your Air Compressor
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illus-
trations with your unit to familiarize yourself with the location of various controls and adjustments. Save this
manual for future reference.
Drain Valve (not shown): The drain valve is located
at the base of the air tank and is used to drain con-
densation at the end of each use.
Motor Thermal Overload Protector (not shown):
The electric motor has an automatic thermal over-
load protector. If the motor overheats for any reason,
the thermal overload protector will shut off the motor.
The motor must be allowed to cool before restarting.
ON/AUTO - OFF Switch (A): Turn this switch ON to
provide automatic power to the pressure switch and
OFF to remove power at the end of each use.
Air Intake Filter (not shown): This filter is
designed to clean air coming into the pump. This fil-
ter must always be clean and ventilation openings
free from obstructions. See "Maintenance".
Air Compressor Pump (not shown): Compresses
air into the air tank.
Check Valve (not shown): When the air compres-
sor is operating, the check valve is “open”, allowing
compressed air to enter the air tank. When the air
compressor reaches “cut-out” pressure, the check
valve “closes”, allowing air pressure to remain inside
the air tank.
Pressure Release Valve (not shown): The pres-
sure release valve located on the side of the pres-
sure switch, is designed to automatically release
compressed air from the compressor head and the
outlet tube when the air compressor reaches “cut-
out” pressure or is shut off. The pressure release
valve allows the motor to restart freely. When the
motor stops running, air will be heard escaping from
this valve for a few seconds. No air should be heard
leaking when the motor is running, or continuous
leaking after unit reaches cut-out pressure.
Pressure Switch (B): The pressure switch automati-
cally starts the motor when the air tank pressure
drops below the factory set “cut-in” pressure. It
stops the motor when the air tank pressure reaches
the factory set “cut-out” pressure.
Safety Valve (C): If the pressure switch does not
shut off the air compressor at its cut-out pressure
setting, the safety valve will protect against high
pressure by “popping out” at its factory set pressure
(slightly higher than the pressure switch cut-out set-
ting).
Outlet Pressure Gauge (D): The outlet pressure
gauge indicates the air pressure available at the out-
let side of the regulator. This pressure is controlled
by the regulator and is always less than or equal to
the tank pressure. All four outlets operate at this
pressure.
Tank Pressure Gauge (E): The tank pressure
gauge indicates the reserve air pressure in the tank.
The “quadraport” is equipped with an tank pressure
gauge to be read at a remote location.
Regulator (F): Controls the air pressure shown on
the outlet pressure gauge. Pull the knob out and turn
clockwise to increase pressure and counterclockwise
to decrease pressure. When the desired pressure is
reached push knob in to lock in place.
Portable “Quadraport” Control Panel (G): Permits
remote air regulation and control closer to work area,
includes four high-flow industrial/automotive style
compatible quick-connects, large gauges, and a
G
E
C
B
D
F
A

4. Attach 3/8” hoses
(A) with 1/4”
industrial quick-
connect plugs (B)
to the outlets
(C). One to
four tools can
be used at the
same time.
5. The “quadra-
port” can be
temporarily or
permanently
mounted at
the work site using
the three
mounting
11 - ENG D23012
Portable “Quadraport” Control Panel
The “Quadraport” allows remote air regulation and
control closer to the work area.
To operate “Quadraport” attached:
1. Attach 3/8” hoses (A) with 1/4” industrial quick-
connect fittings (B) to the outlets (C). One to
four tools can be used at the same time.
Note
Always use pipe sealant tape when connecting
hoses or fittings to prevent air leaks.
To operate “Quadraport” at a remote location:
CAN CAUSE SERIOUS
INJURY OR DEATH. TANK
MAY CONTAIN 175 PSI OF AIR PRESSURE.
NEVER CONNECT ACCESSORIES TO UNREGU-
LATED AIR. NEVER OPERATE TOOLS OR
ACCESSORIES ABOVE MARKED MAXIMUM
PRESSURE.
Reduce air pressure in tank
to 60 psi maximum before
removing or connecting “quadraport” and when
connecting hose to tank quick-connect coupler.

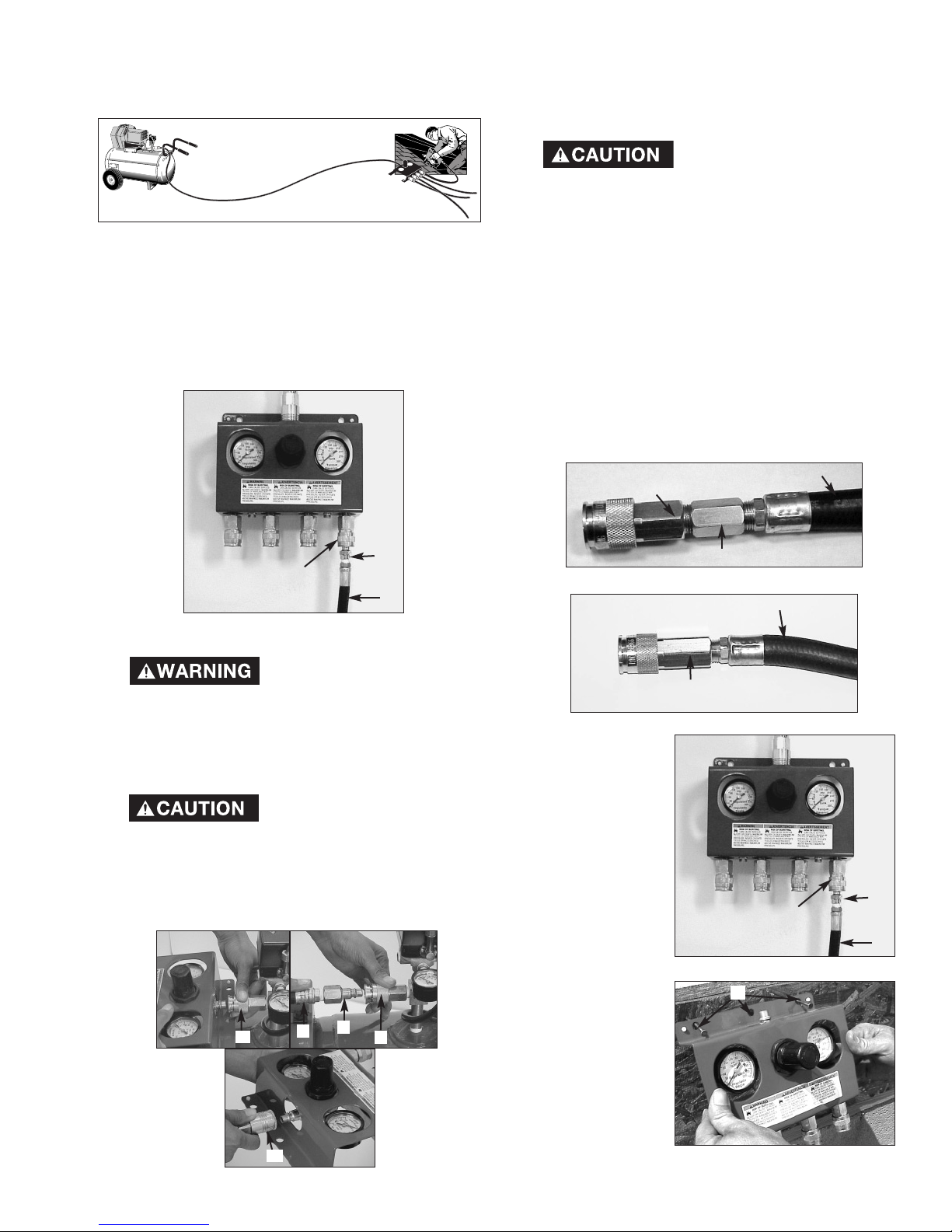

1. Hold “quadraport” and pull quick-connect cou-
pler (D) back to release and remove as shown.
2. Attach one end of a 1/2” hose (E) with 3/8”
quick-connect back flow safety check valve
(F) (provided in kit) as shown. Make sure quick-
connect coupler is secure.
To prevent possible injury,
ALWAYS use back flow
safety check valve included with unit to
connect “quadraport” to hose for use at a
remote location. If replacement back flow
safety check valve is needed refer to the
Parts Manual.
Note
Always use pipe sealant tape when
connecting hoses or fittings to prevent air
leaks.
3. Attach the other end of the 1/2” hose (E) with
3/8” universal quick connect body (G) to the
“quadraport” as shown. NOTE: As shown below
to assemble 3/8” universal quick connect
body to hose.
B
C
A
DD
E
3/8" Universal
quick connect body
Connector
Hose
3/8" Universal
quick connect body
Hose
OR
G
Operates
attached... or at a
remote location
F
F
B
C
A

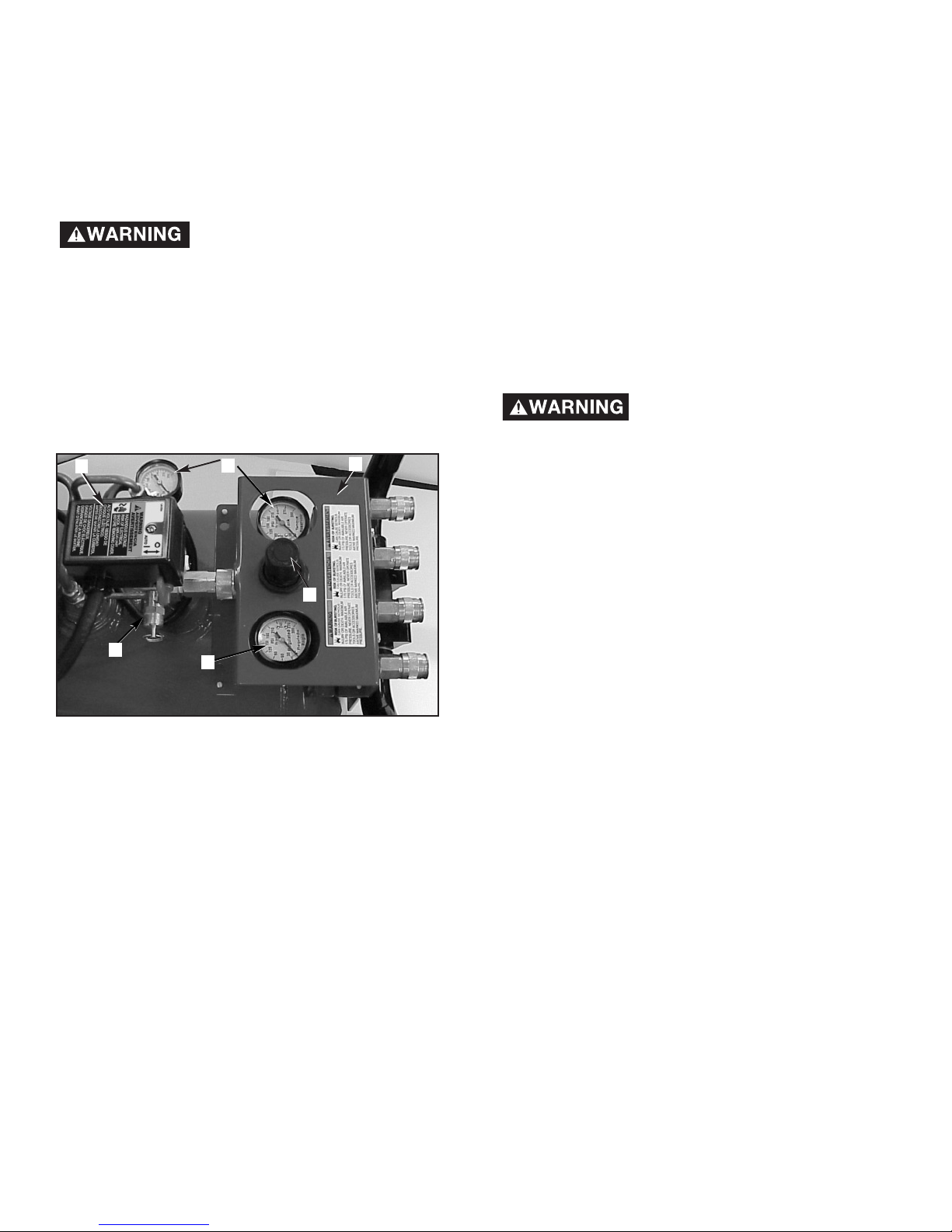

12 - ENGD23012
How to Start:
1. Turn the On/Auto/Off lever to “AUTO” and allow
tank pressure to build. Motor will stop when
tank pressure reaches “cut-out” pressure.
2. Pull the regulator knob out and turn clockwise
to increase pressure. When the desired pressure
is reached push knob in to lock in place. The
compressor is ready for use.
NOTE: Always operate the air compressor in well-
ventilated areas free of gasoline or other com-
bustible vapors. If the compressor is being used to
operate a sprayer DO NOT place near the spray
Before Starting
Break-in Procedure
Serious damage may result if the
following break-in instructions
are not closely followed.
This procedure is required before the air compres-
sor is put into service and when the check valve or
a complete compressor pump has been replaced.
1. Make sure the On/Auto/Off lever is in the "OFF"
position.
NOTE: Your unit could be damaged if the pressure
switch lever is in the ON/AUTO position.
2.
Plug the power cord into the correct branch cir-
cuit receptacle.
(Refer to Voltage and Circuit
Protection paragraph in the Installation section
of this manual.)
3. Open the drain valve fully (counter-clockwise) to
permit air to escape and prevent air pressure
build up in the air tank during the break-in peri-
od.
4. Move the On/Auto/Off lever to "ON/AUTO" posi-
tion. The compressor will start.
5. Run the compressor for 15 minutes. Make sure
the drain valve is open and there is minimal air
How to Use Your Unit
How to Stop:
1. Set the On/Auto/Off lever to “OFF”.
Before Each Start-Up:
1. Place On/Auto/Off lever to “OFF”.
2. Pull regulator knob out, turn counter-clockwise
until it stops. Push knob in to lock in place.
3. Attach hose and accessories. See the Portable
"Quadraport" Control Panel paragraph in this
section.
Too much air pressure
causes a hazardous risk of
bursting. Check the manufacturer’s maximum
pressure rating for air tools and accessories.
The regulator outlet pressure must never exceed
the maximum pressure rating.
pressure build-up in tank.
6. After 15 minutes, move the On/Auto/Off lever to
"OFF" position and close the drain valve (clock-
wise).
7. Move the On/Auto/Off lever to "ON/AUTO" posi-
tion. The air receiver will fill to “cut-out” pres-
sure and the motor will stop.
G
E
C
B
D
F

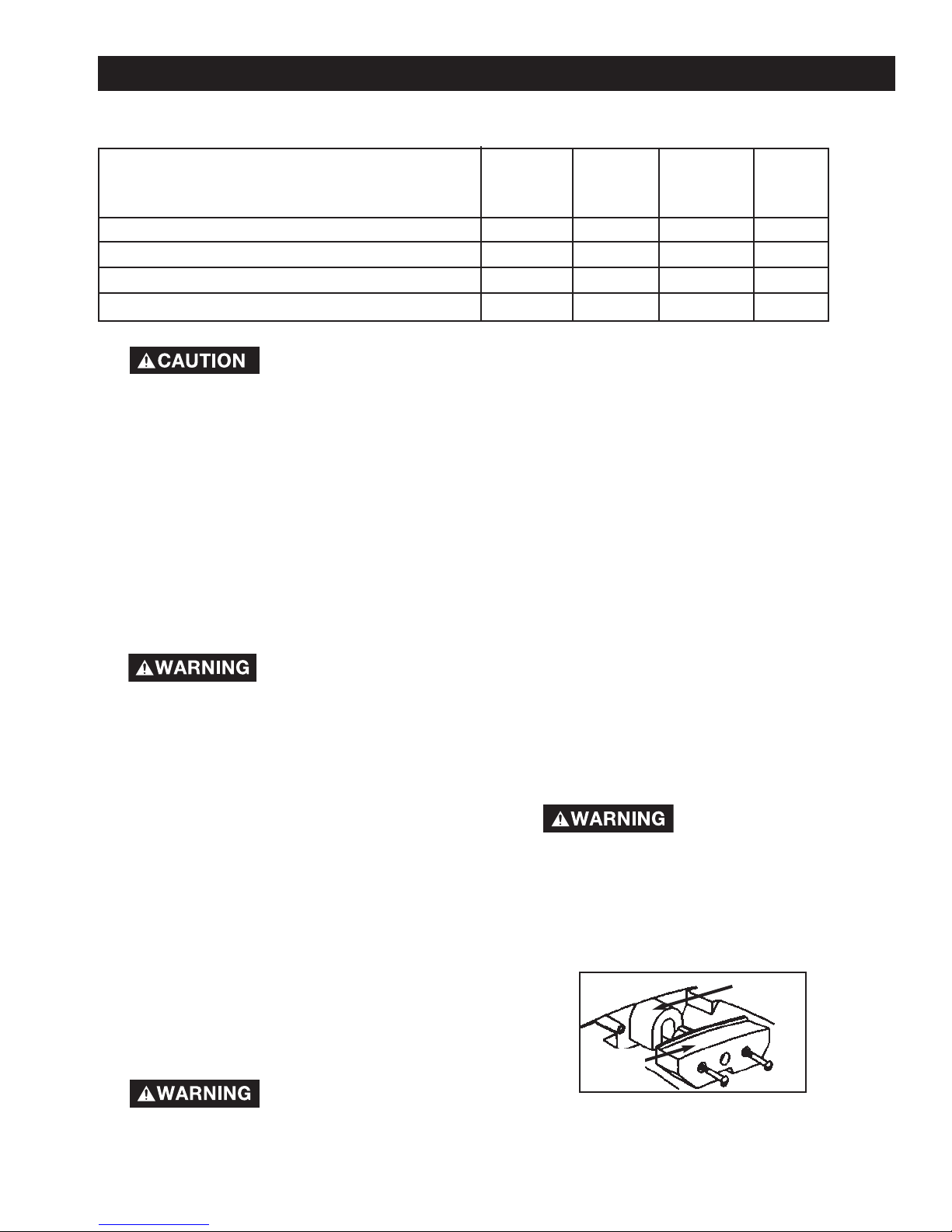

13 - ENG D23012
Air Filter - Inspection and Replacement
Hot surfaces. Risk of
burn. Compressor heads
are exposed when filter cover is removed.
Allow compressor to cool prior to servicing.
A dirty air filter will not allow the compressor to
operate at full capacity. Keep the air filter clean at
all times.
1. Remove the air filter cover.
2. Remove the air filter and make sure it is clean.
IMPORTANT: Do not operate the compressor with
the air filter removed.
MAINTENANCE
Customer Responsibilities
Daily or
after
each use
Before
each use
Check Safety Valve
Drain Tank
Air Filter
Air compressor pump intake and exhaust valves
To Check Safety Valve
If the safety valve does
not work properly, over-
pressurization may occur, causing air tank
rupture or an explosion. Before starting
compressor, pull the ring on the safety valve
to make sure that the safety valve operates
freely. If the valve is stuck or does not oper-
ate smoothly, it must be replaced with the
same type of valve.
To Drain Tank
1. Set the On/Auto/Off lever to “OFF”.
2. Pull the regulator knob out and turn clockwise
to set the outlet pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing air to bleed
from the tank until tank pressure is approximate-
ly 20 psi. Release safety valve ring.
5. Drain water from air tank by opening drain valve
(counter-clockwise) on bottom of tank.
Water will condense in
the air tank. If not
drained, water will corrode and weaken the
air tank causing a risk of air tank rupture.
Air Filter
●
●
Frequently
●
NOTE: See “Operation” section for the location of controls.
To ensure efficient operation and longer life of the air compressor outfit, a routine maintenance schedule
should be prepared and followed. The following routine maintenance schedule is geared to an outfit in a nor-
mal working environment operating on a daily basis. If necessary, the schedule should be modified to suit the
conditions under which your compressor is used. The modifications will depend upon the hours of operation
and the working environment. Compressor outfits in an extremely dirty and/or hostile environment will require
a greater frequency of all maintenance checks.
Unit cycles automatically when power is on. When performing maintenance, you
may be exposed to voltage sources, compressed air, or moving parts. Personal
injuries can occur. Before performing any maintenance or repair, disconnect power source from the
compressor and bleed off all air pressure.
Yearly
●
6. After the water has been drained, close the
drain valve (clockwise). The air compressor can
now be stored.
NOTE: If drain valve is plugged, release all air pres-
sure. The valve can then be removed, cleaned, the
reinstalled.
Air Filter
Cover

14 - ENGD23012
3. If dirty, rinse air filter with warm water and
squeeze dry.
4. Replace air filter and air filter cover.
NOTE: If the air filter is extremely dirty it will need to
be replaced. Refer to the “Repair Parts” for the cor-
rect part number.
Motor
The motor has an automatic reset thermal overload
protector. If the motor overheats for any reason, the
overload protector will shut off the motor. The
motor must be allowed to cool down before restart-
ing. The compressor will automatically restart after
the motor cools.
If the overload protector shuts the motor off fre-
quently, check for a possible voltage problem. Low
voltage can also be suspected when:
1. The motor does not get up to full power or
speed.
2. Fuses blow out when starting the motor; lights
dim and remain dim when motor is started and
Air Compressor Pump Intake and
Exhaust Valves
Once a year have a Trained Service Technician
check the air compressor pump intake and exhaust

15 - SP D23012

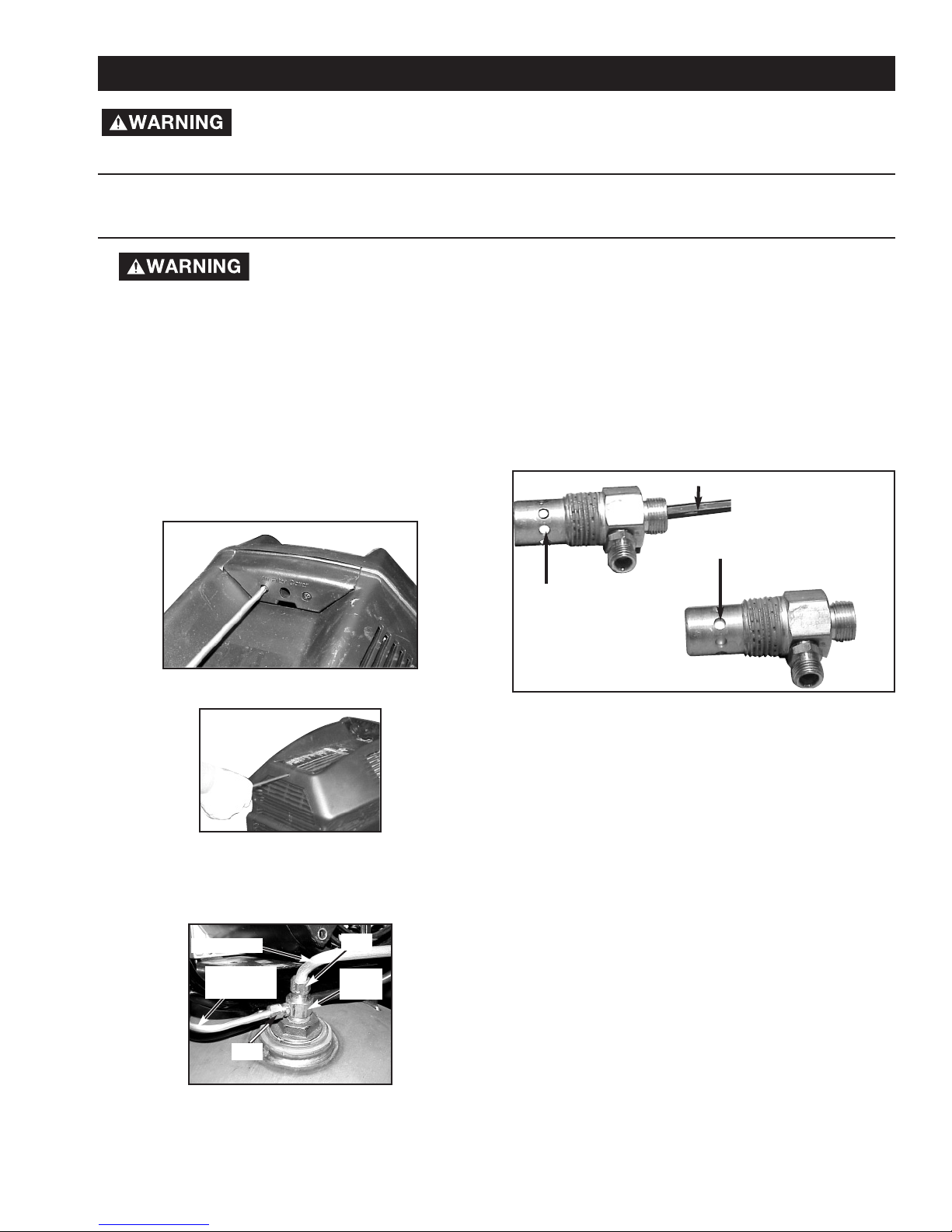

6. Using an adjustable wrench loosen pressure
relief tube nut at air tank and pressure switch.
Carefully move pressure relief tube away from
check valve.
7. Unscrew the check valve (turn counterclock-
wise) using a 7/8” open end wrench. Note the
orientation for reassembly.
8. Using a screwdriver, carefully push the valve
disc up and down. NOTE: The valve disc should
move freely up and down on a spring which
holds the valve disc in the closed position, if not
the check valve needs to be cleaned or
replaced.
9. Clean or replace the check valve. A solvent,
such as paint or varnish remover can be used to
clean the check valve.
10. Apply sealant to the check valve threads.
Reinstall the check valve (turn clockwise).
11. Replace the pressure release tube. Tighten nuts.
12. Replace the outlet tube and tighten nuts.
13. Replace the shroud and air filter.
14. Perform the Break-in Procedure. See “Break-in
Procedure” in the Operation section.
SERVICE AND ADJUSTMENTS
Unit cycles automatically when power is on. When doing Maintenance, you may be
exposed to voltage sources, compressed air or moving parts. Personal injuries can occur.
Before performing any Maintenance or repair, unplug the compressor and bleed off all air pressure.
ALL MAINTENANCE AND REPAIR OPERATIONS NOT LISTED MUST BE PERFORMED
BY TRAINED SERVICE TECHNICIAN.
To Replace or Clean Check Valve
1. Release all air pressure from air tank. See “To
Drain Tank” in the Maintenance section.
2. Unplug outfit.
3. Using a phillips screwdriver remove the air filter
cover.
4. Remove the rear shroud using T-20 torx wrench.
5. Using an adjustable wrench loosen outlet tube
nut at air tank and pump. Carefully move outlet
tube away from check valve.
Before servicing:
●Unplug or disconnect electrical supply to the
air compressor.
●Bleed tank of pressure.
●Allow the air compressor to cool.
Outlet
Chec
k
Nut
Nut
Pressure
Relief
In closed position
disc is visible.
In open position
nothing is visi-
Screwdrive

16 - ENGD23012
STORAGE
Before you store the air compressor, make sure you
do the following:
1. Review the "Maintenance" section on the
preceding pages and perform scheduled
maintenance as necessary.
2. Set the “ON/AUTO” lever to “OFF”.
3. Turn the regulator counterclockwise and set the
outlet pressure to zero.
4. Remove the air tool or accessory.
TANK CAN CONTAIN 175
PSI OF AIR PRESSURE.
ALWAYS STAND CLEAR WHEN BLEEDING
AIR THROUGH SAFETY VALVE.
5. Pull ring on safety valve allowing air to bleed
from the tank until tank pressure is
approximately 20 psi. Release safety valve ring.
6. Drain water from air tank by opening drain cock
valve on bottom of tank.
WATER WILL CONDENSE IN
THE AIR TANK. IF NOT
DRAINED, WATER WILL CORRODE AND
WEAKEN THE AIR TANK CAUSING A RISK OF
AIR TANK RUPTURE.
7. After the water has been drained, close the
drain cock or drain valve.
NOTE
If drain cock valve is plugged, release all air
pressure. The valve can then be removed,
cleaned, then reinstalled.
8. Protect the electrical cord and air hose from
damage (such as being stepped on or run over).

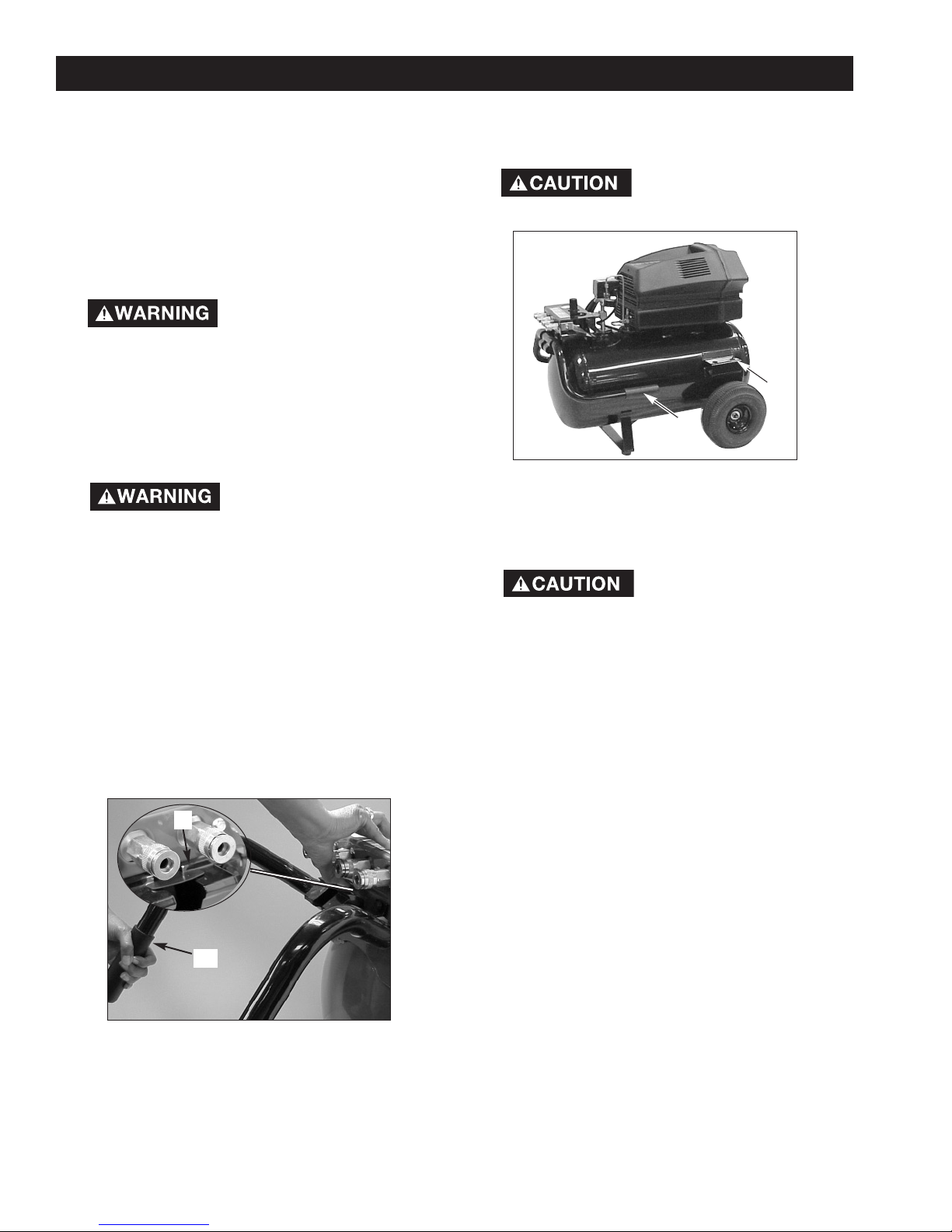

9. While lifting tab (A) rotate handle (B) into
storage position.
10. Store the air compressor in a clean and dry
location.
To Transport unit
1. Fold handles into storage position.
The unit is too heavy to
be lifted by one person.
Use two people to lift unit.
2. Locate the lift handles (C) on each side of the
unit.
3. With a person on each side, carefully lift unit
using handle (B) and lift handle (C).
Always lift with legs not
back.
B
A
C
B

17 - ENG D23012
TROUBLESHOOTING
Performing repairs may expose voltage sources, moving parts or compressed air sources,
moving parts or compressed air sources. Personal injury may occur. Prior to attempting
any repairs, unplug the air compressor and bleed off all air tank air pressure.
PROBLEM CAUSE CORRECTION
Pressure switch does not shut off
motor when compressor reaches
“cut-out” pressure.
Pressure switch “cut-out” too
high.
Move On/Auto/Off lever to the
“OFF” position, if the outfit does
not shut off contact a Trained
Service Technician.
Contact a Trained Service
Technician.
Excessive tank pressure - safety
valve pops off.
Tube fittings are not tight Tighten fittings where air can be
heard escaping. Check fittings
with soapy water solution. DO
NOT OVERTIGHTEN.
Air leaks at fittings.
Air leaks at pressure switch
release valve.
Defective pressure switch
release valve.
Contact a Trained Service
Technician.
Air leaks in air tank or at air tank
welds.
Defective air tank. Air tank must be replaced. Do
not repair the leak.
Do not drill into, weld or other-
wise modify air tank or it will
weaken. The tank can rupture or
explode.
Air leaks between head and
valve plate.
Leaking seal. Contact a Trained Service
Technician.
Air leaks at or inside check valve Check valve seat damaged. A defective check valve results in
a constant air leak at the pres-
sure release valve when there is
pressure in the tank and the
compressor is shut off. Replace
check valve. Refer the “To
Replace or Clean Check Valve” in
the “Service and Adjustment”
Pressure reading on the regulat-
ed pressure gauge drops when
an accessory is used.
It is normal for “some” pressure
drop to occur. If there is an excessive amount
of pressure drop when the
accessory is used, adjust the
regulator following the instruc-
tions in the “Description of
Operation” paragraph in the
“Operation Section.
NOTE: Adjust the regulated
pressure under flow conditions

18 - ENGD23012
PROBLEM CAUSE CORRECTION
Possible defect in safety valve. Operate safety valve manually by
pulling on ring. If valve still
leaks, it should be replaced.
Defective check valve. Remove and clean, or replace.
Knocking Noise.
Compressor is not supplying
enough air to operate acces-
Prolonged excessive use of air.
Compressor is not large enough
for air requirement.
Hole in hose.
Check valve restricted.
Air leaks.
Restricted air intake filter
Decrease amount of air usage.
Check the accessory air require-
ment. If it is higher than the
SCFM or pressure supplied by
your air compressor, you need a
larger compressor.
Check and replace if required.
Remove and clean, or replace.
Tighten fittings.
Clean or replace air intake filter.
Do not operate the air compres-
sor with the filter removed. Refer
to the “Air Filter” paragraph in
the “Maintenance “ section.
Damaged regulator ReplaceRegulator knob has continuous
air leak.
Regulator will not shut off air out-
let.
Damaged regulator Replace

19 - ENG D23012
Motor will not run.
Fuse blown, circuit breaker
tripped.
1. Check fuse box for blown
fuse and replace as neces-
sary. Reset circuit breaker.
Do not use a fuse or circuit
breaker with higher rating
than that specified for your
particular branch circuit.
2. Check for proper fuse. You
should use a time delay fuse.
3. Check for low voltage condi-
tions and/or proper extension
cord.
4. Disconnect the other electri-
cal appliances from circuit or
operate the compressor
on its own branch circuit.
PROBLEM CAUSE CORRECTION
Motor overload protection switch
has tripped
Let motor cool off and overload
switch will automatically reset.
Tank pressure exceeds pressure
switch “cut-in” pressure.
Motor will start automatically
when tank pressure drops below
“cut-in” pressure of pressure
switch.
Extension cord is wrong length
or gauge.
Check for proper gauge wire and
cord length.
Loose electrical connections. Check wiring connection inside
pressure switch and terminal box
area.
Have checked by a Trained
Service Technician.
Check valve stuck open. Remove and clean, or replace.
Possible defective motor or
starting capacitor.
Have checked by a Trained
Service Technician. Do not oper-
ate the compressor in the paint
spray area. See flammable vapor
warning.
Paint spray on internal motor
parts.
Bleed the line by pushing the
lever on the pressure switch to
the “off” position; if the valve
does not open, replace switch.
Pressure release valve on pres-
sure switch has not unloaded
head pressure.

20 - SPD23012
CONTENIDO
GARANTÍA . . . . . . . . . . . . . . . . . . . . . . . . .20
NORMAS DE SEGURIDAD . . . . . . . . . . . . .21-24
GLOSARIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ACCESORIOS . . . . . . . . . . . . . . . . . . . . . . . . .25
ENSAMBLADO . . . . . . . . . . . . . . . . . . . . . . .25-26
Contenido de la caja . . . . . . . . . . . . . . . . . .25
Herramientas requeridas para el Ensamblado25
INSTALACIÓN . . . . . . . . . . . . . . . . . . . . . . . . . .27
Ubicación del compresor de aire . . . . . . . . . .8
Instrucciones para conectar a tierra . . . . . .27
Extensiones eléctricas . . . . . . . . . . . . . . . . .27
Protección del voltaje y del circuito . . . . . . .27
PROCEDIMIENTOS OPERATIVOS . . . . . . .28-30
Panel portátil de control “Quadraport” . . . .29
Para operar el “Quadraport” . . . . . . . . . . . . . . .
estando adosado: . . . . . . . . . . . . . . . . . . . .29
Cómo detenerla . . . . . . . . . . . . . . . . . . . . . . .30
GARANTÍA COMPLETA POR UN AÑO
COMPRESOR DE AIRE
Si este compresor de aire fallara por defectos en materiales o mano de obra dentro del lapso de un año a partir
de la fecha de su compra, DEVUÉLVALO AL CENTRO DE REPARACIONES SEARS MAS CERCANO DENTRO DE
LOS ESTADOS UNIDOS, Y SEARS LO REPARARÁ, LIBRE DE CARGO. Si se hubiese comprado a Orchard Supply
Hardware, devuélvalo al comercio Orchard más cercano y Orchard lo reparará, libre de cargo.
Si este compresor de aire fuese utilizado para propósitos comerciales o de alquiler, la garantía solo tendrá
validez por noventa días a partir de la compra.
Esta garantía le otorga derechos legales específicos, aunque usted podrá tener otros derechos que podrían vari-
ar entre estados.
Sears, Roebuck and Co., Deptr. 817WA, Hoffman Estates, II 60170
Procedimiento para el asentamieno . . . . . .30
Antes de cada puesta en marcha. . . . . . . . . . . .30
Cómo poner en marcha . . . . . . . . . . . . . . . . . . .30
MANTENIMIENTO . . . . . . . . . . . . . . . . . . . .31-32
Cómoverificar la válvula de seguridad . . . . .31
Cómo drenar el tanque . . . . . . . . . . . . . . . .31
Filtro de Aire - Inspección y reemplazo . . . .31
Válvulas de entrada y escape de la bomba
del compresor de aire . . . . . . . . . . . . . . . . .32
Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
SERVICIOS Y REGULACIONES . . . . . . . . . . . .33
Para reemplazar o limpiar la válvula
de retención . . . . . . . . . . . . . . . . . . . . . . . . .33
ALMACENAJE . . . . . . . . . . . . . . . . . . . . . . . . . .34
GUÍA DE DIAGNÓSTICO DE PROBLEMAS 35-37
COMO SOLICITAR PIEZAS PARA
REPARACIÓN . . . . . . . . . . . . . . . . . . . .contratapa
