Craftsman 919.167320 User manual

Owner's Manuam
PermanentJy Lubricated
SingJe Stage
PortabJe
AIR COMPRESSOR
o
o
o
o
o
o
o
Safety Guidelines
Assembmy
Operation
Maintenance
Service and Adjustments
Repair Parts
CAUT|ON: Read the Safety Guidelines
and All instructions CarefulIy Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, mL60179 U.S.A.
Visit our Oraftsman website: www.sears.com/craftsman
A10819 Re\J.0 1d18/05

WARRANTY ................................................ 2
SPECIFICATION CHART ..................................... 3
SAFETY GUIDELINES ...................................... 3-8
GLOSSARY ................................................ 9
ACCESSORIES ............................................ 9
DUTY CYCLE .............................................. 9
ASSEMBLY ............................................... 10
INSTALLATION ......................................... 10-11
OPERATION ........................................... 12-14
MAINTENANCE ......................................... 15-16
SERVICE AND ADJUSTMENTS ............................ 17-18
STORAGE ................................................ 19
TROUBLESHOOTING GUIDE ............................. 20-22
REPAIR PARTS ......................................... 24-27
ESPANOL .............................................. 28-51
NOTES/NOTAS ......................................... 49-50
REPAIR PROTECTION AGREEMENTS ......................... 51
HOW TO ORDER REPAIR PARTS ...................... back cover
FULL ONE YEAR WARRANTY AIR COMPRESSOR
If this CRAFTSMAN Air Compressor fails due to a defect in material or
workmanship within one year from the date of purchase, Sears will at
its option repair or replace it free of charge= Contact your nearest Sears
Service Center (1-800-4-MY-HOME _) to arrange for repair, or return the Air
Compressor to the place of purchase for replacement=
If this Air Compressor is used for commercial or rental purposes, this warranty
applies for only ninety days from the date of purchase,
This warranty gives you specific legal rights and you may have other rights
which vary from state to state,
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
A10819 2= ENG

Model No. 919.167320
Running HP 2.0
Bore 2.38"
Stroke 1.35"
Voltage-Single Phase 120V/60HZ
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity 33
Approx. Cutqn 120
Approx. Cut-out 150
SCFM @ 40 psig 8.6
SCFM @ 90 psig 6.4
Refer to Glossary for abbreviations.
|
This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. To help you recognize this
information, we use the symbols below. Please read the manual and pay
attention to these symbols.
_ Indicates a potentially
hazardous situation
situation which, if not avoided, will result which, if not avoided, _ result in minor
in death or serious injury, or moderate ir_i_
which, if not avoided, could result in
death or serious i_uLury.
_Used without the
safety alert symbol
indicates a potentially hazardous situation
which, if not avoided, may result in
re err duma e=
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains
chemicals known (to the State of California} to cause cancer, birth defects
or other reproductive harm. Some exampme of these chemicals are:
lead from mead=based paints
crystalline silica from bricks and cement and other masonry products
arsenic and chromium from chemically=treated Bumber
Your risk from these exposures varies, depending on how often you do
this type of work. To reduce your exposure to these chemicals: work in
a wen ventilated area, and work with approved safety equipment, atways
wear MSNA/NIOSN approved, proper_y fitting face mask or respirator when
using such tooms.
When using air tools, basic safety precautions shoumd always be followed
to reduce the risk of of personaJ injury.
3= ENG A10819

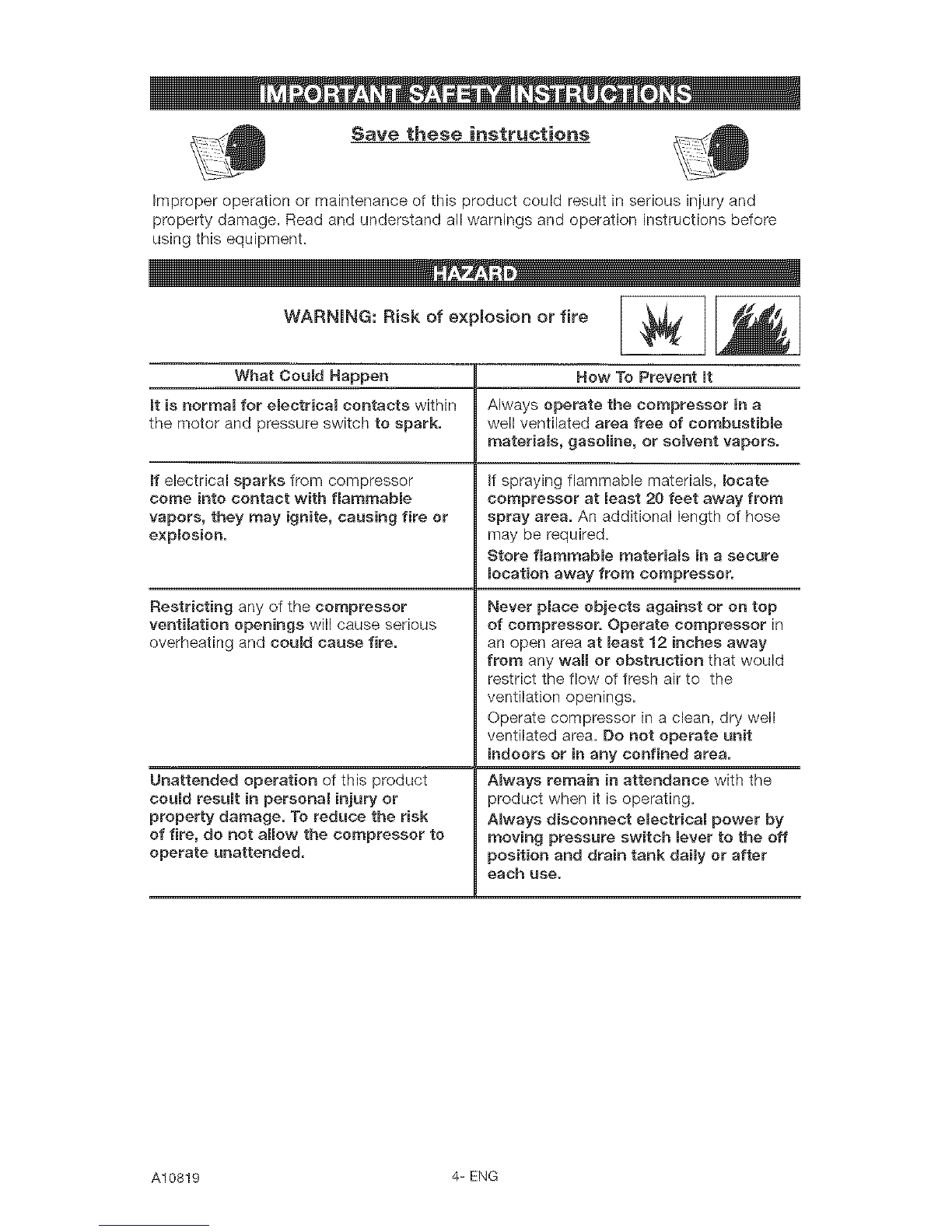

Save these instructions
Improper operation or maintenance of this product could result in serious injury and
property damage. Read and understand all warnings and operation instructions before
using this equipment.
..... m
WARNING: Risk of explosion or fire ,_j
What Could Happen How To Prevent It
mtis normal for eBectrical contacts within Always operate the compressor in a
the motor and pressure switch to spark, well ventilated area free of combustibie
materiams, gasoline, or somvent vapors.
mfelectrical sparks from compressor if spraying flammable materials, locate
come into contact with flammabRe compressor at Roast 20 feet away from
vapors, they may ignite, causing fire or spray area. An additional length of hose
e×plosion, may be required.
Store flammable materials in a secure
location away from compressor.
Restricting any of the compressor
ventilation openings will cause serious
overheating and could cause fire.
Unattended operation of this product
could result in personal injury or
property damage. To reduce the risk
of fire, do not allow the compressor to
operate unattended.
Never place objects against or on top
of compressor. Operate compressor in
an open area at least 12 inches away
from any wall or obstruction that would
restrict the flow of fresh air to the
ventilation openings.
Operate compressor in a clean, dry well
ventilated area. Do not operate unit
indoors or in any confined area.
ABways remain in attendance with the
product when it is operating.
ABways disconnect eRectrical power by
moving pressure switch lever to the off
position and drain tank daily or after
each use.
A10819 4= ENG

WARNING: Risk of Bursting
Air Tank: The following conditions could lead to a weakening of the tank, and result
in a violent tank explosion and could cause property damage or serious injury.
What Coumd Happen
Failure to properRy drain condensed
water from tank, causing rust and
thinning of the steel tank.
Modifications or attempted repairs to
the tank.
Unauthorized modifications to the
unloader valve, safety valve, or any
other components which contrem tank
pressure.
Excessive vibration can weaken the
air tank and cause rupture or
explosion
ATTACHMENTS & ACCESSORIES:
Exceeding the pressure rating of air
tools, spray guns, air operated
accessories, tires, and other inflatables
can cause them to expmode or fly apart,
and could result in serious injury.
Now To Prevent It
Drain tank daily or after each use. If tank
develops a leak, replace it immediately
with a new tank or replace the entire
compressor
Never drill into, weld, or make any
modifications to the tank or its
attachments.
The tank is designed to withstand specific
operating pressures. Never make
adjustments or parts substitutions to
alter the factory set operating
pressures,
For essential control of air pressure, you
must install a pressure regulator and
pressure gauge to the air outlet (if not
equipped} of your compressor. Follow the
equipment manufacturers recommendation
and never exceed the maximum allowable
pressure rating of attachments. Never use
compressor to inflate small low
pressure objects such as children's
toys, footballs, basketballs, etc.
iiiiiii_ _
WARNING: Risk from Flying Objects
What Could Happen How To Prevent It
The compressed air stream can cause
soft tissue damage to exposed skin and
can propel dirt, chips, loose particles,
and small objects at high speed,
resulting in property damage or personal
injury.
Always wear ANSI Z87.1 approved
safety glasses with side shields when
using the compressor.
Never point any nozzRe or sprayer
toward any part of the body or at other
people or animals.
Always turn the compressor off and
bleed pressure from the air hose and tank
before attempting maintenance, attaching
tools or accessories.
5= ENG A10819

WARNmNG: Risk of Electricam Shock
What Coumd Happen
Your air compressor is powered by
electricity. Like any other electrically
powered device, if it is not used
properly it may cause electric shock.
Repairs attempted by unqualified
personnel can result in serious injury
or death by electrocution.
Electrical Grounding: Failure to provide
adequate grounding to this product
could result in serious injury or death
from eRectrocution.
See grounding instructions.
How To Prevent it
Never operate the compressor outdoors
when it is raining or in wet conditions.
Never operate compressor with
protective covers removed or damaged.
Any emectrical wiring or repairs required
on this product should be performed by
authorized service center personnel in
accordance with national and local
electrical codes.
Make certain that the electrical circuit
to which the compressor isconnected
provides proper electrical grounding,
correct voltage and adequate fuse
protection.
WARNING: Risk to Breathing
What Could
The compressed air directly from your
compressor is not safe for breathing.
The air stream may contain carbon
monoxide, toxic vapors, or solid
particles from the tank. Breathing these
contaminants can cause serious injury
or death.
Sprayed materials such as paint, paint
solvents, paint remover, insecticides,
weed killers, may contain harmful
vapors and poisons.
How To Prevent It
Air obtained directly from the compressor
should never be used to supply air for
human consumption. In order to use air
produced by this compressor for
breathing, suitable filters and in-line
safety equipment must be properly
installed. In-line filters and safety
equipment used in conjunction with the
compressor must be capable of treating
air to all appBicable local and federam
codes prior to human consumption.
Work in an area with good cross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials
you are spraying. Use a NmOSH/MSHA
approved respirator designed for usa
with your specific application.
A10819 6- ENG

WARNING: Risk of Burns
What Could Happen How To Prevent It
Touching exposed metal such as the
compressor head or outlet tubes, can
result in serious burns.
Never touch any exposed metal parts
on compressor during or immediately
after operation. Oompreasor will remain
hot for several minutes after operation.
Do not reach around protective shrouds
or attempt maintenance until unit has
been allowed to cool.
WARNING: Risk from Moving Parts _
What Could Happen How To Prevent Jt
Moving parts such as the pulley, Never operate the compressor with
flywheel, and belt can cause serious guards or covers which are damaged or
injury if they come into contact with you removed.
or your clothing.
Attempting to operate compressor with Any repairs required on this product
damaged or missing parts or should be performed by authorized
attempting to repair compressor with service center personnel.
protective shrouds removed can expose
you to moving parts and can result in
serious injury.
WARNING: Risk of Failing
What Could Happen
A portable compressor can fall from
a table, workbench, or roof causing
damage to the compressor and could
result inserious injury or death to the
operator.
How To Prevent It
Always operate compressor in a stable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other elevated
position. Use additionaB air hose to
reach high locations.
7-ENG A10819

WARNING: Risk of Serious Injury or Property Damage
When Transporting Compressor
(Fire, t_halation, Damage to Vehicle Surfaces)
What Could Happen
OiRcan leak or spill and could result in
fire or breathing hazard; serious injury or
death can result, oil leaks will damage
carpet, paint or other surfaces in vehicles
or trailers.
How To Prevent it
Always place COMPRESSOR on a
protective mat when transporting to
protect against damage to vehicle from
leaks. Remove COMPRESSOR from
vehicle immediately upon arrival at your
destination.
WARNING: Risk of Unsafe Operation
What Could Happen
Unsafe operation of your air compressor
could lead to serious injury or death to
you or others.
How To Prevent it
Review and understand all instructions
and warnings in this manual.
Become famiRiar with the operation and
controls of the air compressor.
Keep operating area clear of all persons,
pets, and obstacles.
Keep chiRdren away from the air
compressor at aH times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all times.
Never defeat the safety features of this
product.
Equip area of operation with a fire
extinguisher.
Do not operate machine with missing,
broken, or unauthorized parts.
SAVE THESE INSTRUCTIONS
A10819 8-ENG

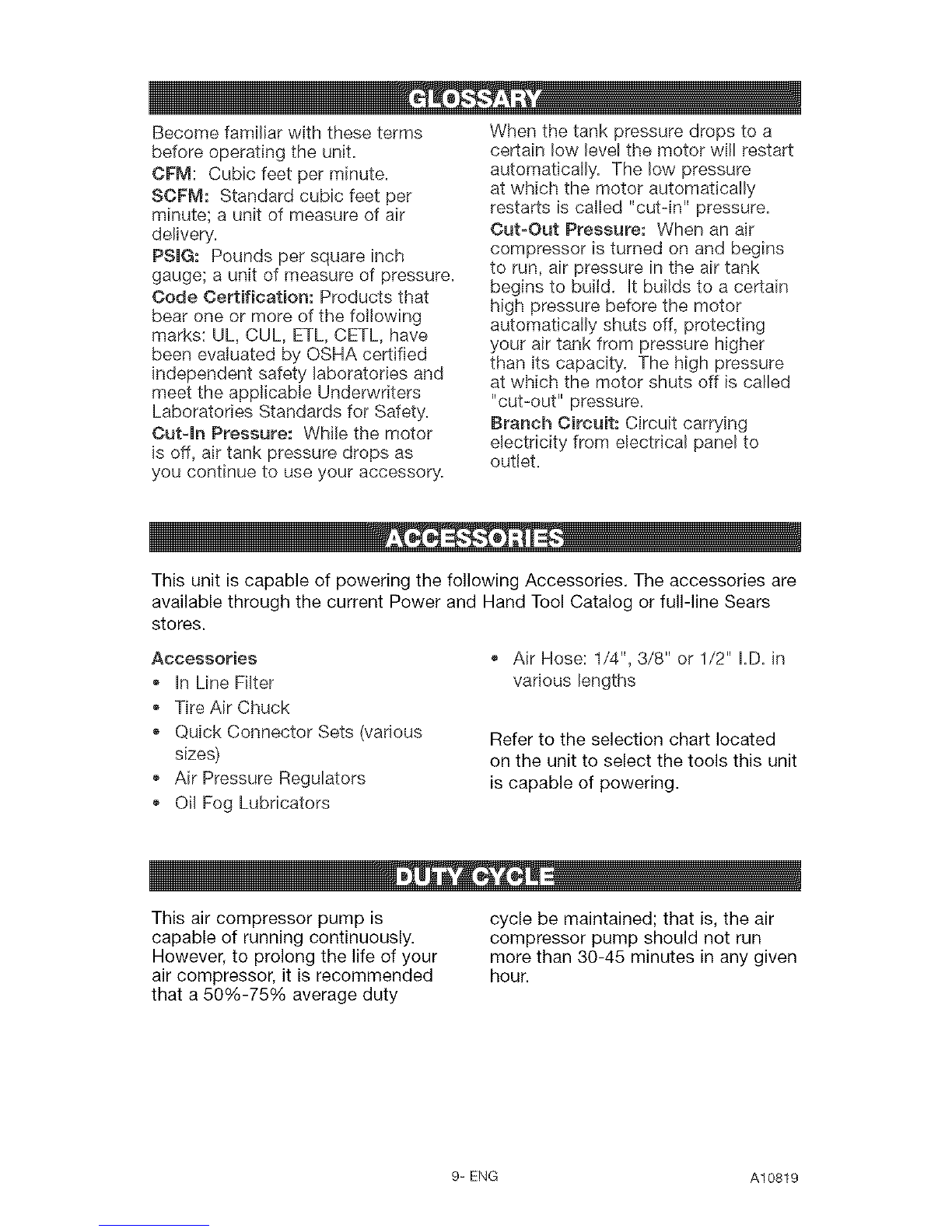

Become familiar with these terms
before operating the unit.
OFM: Cubic feet per minute.
SCFM: Standard cubic feet per
minute; a unit of measure of air
delivery.
PSlG: Pounds per square inch
gaugel a unit of measure of pressure.
Code Certification: Products that
bear one or more of the following
marks: UL, CUL, ETL, CETL, have
been evaluated by OSHA certified
independent safety laboratories and
meet the applicable Underwriters
Laboratories Standards for Safety.
Cut-in Pressure: While the motor
is off, air tank pressure drops as
you continue to use your accessory.
When the tank pressure drops to a
certain low level the motor will restart
automatically. The low pressure
at which the motor automatically
restarts is called "cut-in" pressure.
Cut-Out Pressure: When an air
compressor is turned on and begins
to run, air pressure in the air tank
begins to build. It builds to a certain
high pressure before the motor
automatically shuts off, protecting
your air tank from pressure higher
than its capacity. The high pressure
at which the motor shuts off is called
"cut-out" pressure.
Branch Circuit: C+rcuit carrying
electricity from electrical panel to
outlet.
This unit is capable of powering the following Accessories. The accessories are
available through the current Power and Hand Tool Catalog or full-line Sears
stores.
Accessories
® In Line Filter
+ Tire Air Chuck
® Quick Connector Sets (various
sizes)
® Air Pressure Regulators
® Oil Fog Lubricators
® Air Hose: 1/4", 3/8" or 1/2" LD. in
various lengths
Refer to the selection chart located
on the unit to select the tools this unit
is capable of powering.
This air compressor pump is
capable of running continuously.
However, to prolong the life of your
air compressor, it is recommended
that a 50%-75% average duty
cycle be maintained; that is, the air
compressor pump should not run
more than 30-45 minutes in any given
hour.
9+ ENG A10819

',,_ iiil....

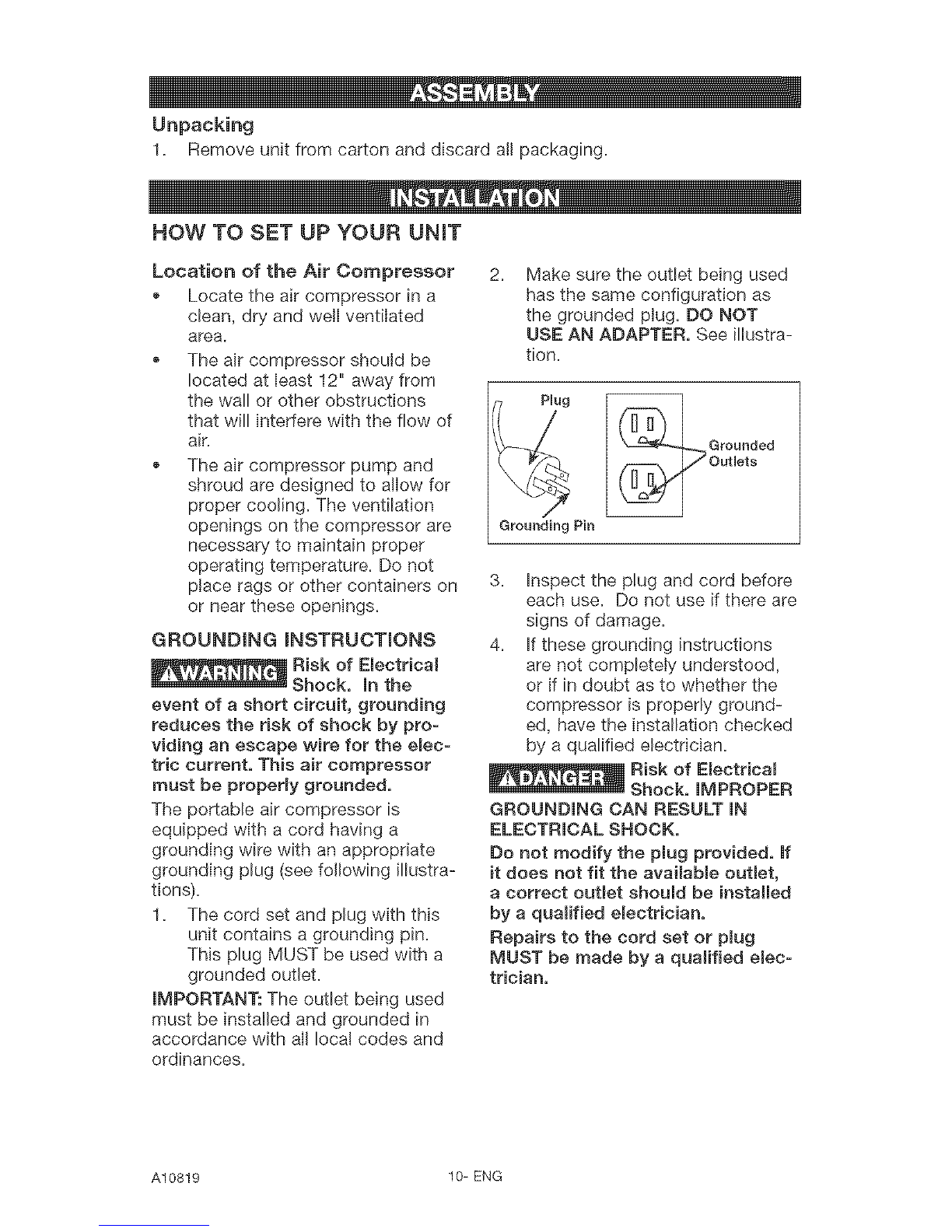

Unpacking
1. Remove unit from carton and discard all packaging.
HOW TO SET UP YOUR UNmT
Location of the Air Compressor
® Locate the air compressor in a
clean, dry and well ventilated
area.
, The air compressor should be
located at least 12" away from
the wall or other obstructions
that will interfere with the flow of
ain
® The air compressor pump and
shroud are designed to allow for
proper cooling. The ventilation
openings on the compressor are
necessary to maintain proper
operating temperature. Do not
place rags or other containers on
or near these openings.
GROUNDING INSTRUCTIONS
_Riek of Electrical
Shock. In the
event of a short circuit, grounding
reduces the risk of shock by pro-
viding an escape wire for the elec-
tric current. This air compressor
must be propermy grounded.
The portable air compressor is
equipped with a cord having a
grounding wire with an appropriate
grounding plug (see following illustra-
tions).
1. The cord set and plug with this
unit contains a grounding pin.
This plug MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used
must be installed and grounded in
accordance with all loca! codes and
ordinances.
Make sure the outlet being used
has the same configuration as
the grounded plug. DO NOT
USE AN ADAPTER. See illustra-
tion.
Grounding Pin
Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
If these grounding instructions
are not completely understood,
or if in doubt as to whether the
compressor is properly ground-
ed, have the installation checked
by a qualified electrician.
GROUNDING CAN RESULT IN
ELECTRICAL SHOCK,
Do not modify the plug provided. If
it does not fit the avaiBable outlet,
a correct outBet should be installed
by a quaBified electrician.
Repairs to the cord set or pBug
MUST be made by a qualified emec-
trician.
A10819 10-ENG

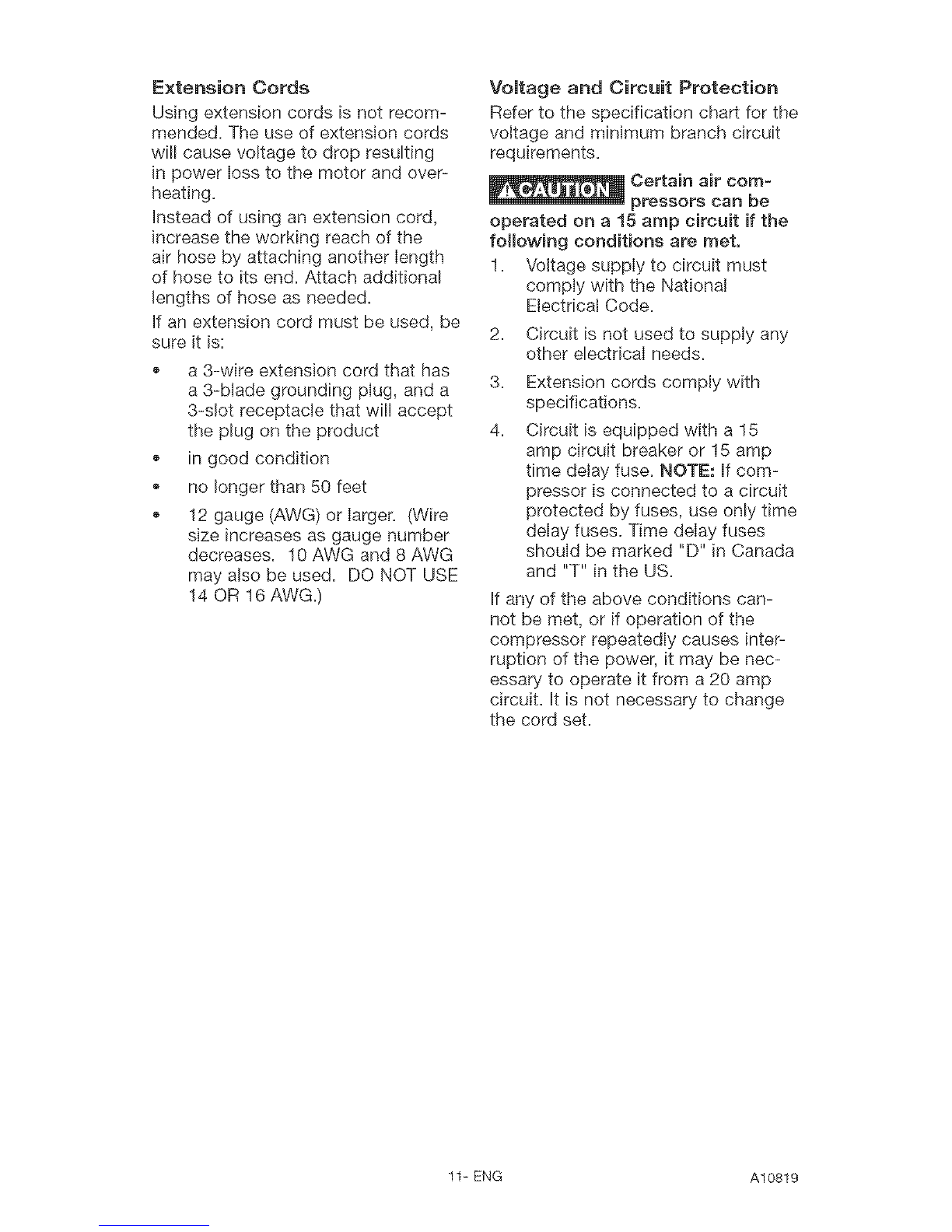

Extension Cords
Using extension cords is not recom-
mended. The use of extension cords
will cause voltage to drop resulting
in power Ioss to the motor and over-
heating.
Instead of using an extension cord,
increase the working reach of the
air hose by attaching another length
of hose to its end. Attach additional
lengths of hose as needed.
If an extension cord must be used, be
sure it is:
® a 3-wire extension cord that has
a 3-blade grounding plug, and a
3-slot receptacle that will accept
the plug on the product
® in good condition
® no longer than 50 feet
® 12 gauge (AWG) or larger. (Wire
size increases as gauge number
decreases. 10 AWG and 8 AWG
may also be used. DO NOT USE
14 OR 16 AWG.)
Voltage and Circuit Protection
Refer to the specification chart for the
voltage and minimum branch circuit
requirements.
operated on a 15 amp circuit if the
following conditions are met,
1. Voltage supply to circuit must
comply with the National
Electrical Code.
2. Circuit is not used to supply any
other electrical needs.
3.
4.
Extension cords comply with
specifications.
Circuit is equipped with a 15
amp circuit breaker or 15 amp
time delay fuse. NOTE: if com-
pressor is connected to a circuit
protected by fuses, use only time
delay fuses. Time delay fuses
should be marked "D" in Canada
and "T" in the US.
If any of the above conditions can-
not be met, or if operation of the
compressor repeatedly causes inter-
ruption of the power, it may be nec-
essary to operate it from a 20 amp
circuit, it is not necessary to change
the cord set.
11-ENG A10819

Know Your Air Compressor
READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to famiIiarize yourself with
the !ocation of various controls and adjustments. Save this manual for future
reference. Pressure Sank OutRet
Switch Pressure
Gauge
Safety VaRve
Description of Operation
Become familiar with these controls
before operating the unit.
On/Auto/Off Lever: Turn this switch
to "On/Auto" to provide automatic
power to the pressure switch and
"Off" to remove power at the end of
each use.
Pressure Switch: The pressure
switch automatically starts the
motor when the air tank pressure
drops below the factory set "cut-in"
pressure, it stops the motor when the
air tank pressure reaches the factory
set "cut-out" pressure.
Safety Valve: if the pressure switch
does not shut off the air compressor
at its "cut-out" pressure setting, the
safety valve will protect against high
pressure by "popping out" at its
factory set pressure (slightly higher
than the pressure switch "cut-out"
setting).
Outlet Pressure Gauge: The outlet
pressure gauge indicates the air
pressure avaiIabb at the outlet side
of the reguIator. This pressure is
controlled by the regulator and is
always Iess than or equa! to the tank
pressure.
Tank Pressure Gauge: The tank
pressure gauge indicates the reserve
air pressure in the tank.
Regulator: Controls the air pressure
shown on the outtet pressure
gauge. Pull the knob out and turn
cIockwise to increase pressure
and countercIockwise to decrease
pressure. When the desired pressure
is reached push knob in to lock in
pJace.
Drain Vamve:The drain valve is
located at the base of the air tank
and is used to drain condensation at
the end of each use.
Drain
Vamve
Cooming System (not shown): This
compressor contains an advanced
design cooling system. At the heart of
this cooting system is an engineered
fan. it is perfectly norma! for this fan
to blow air through the vent hotes
in large amounts. You know that the
cooling system is working when air is
being expelled.
A10819 12-ENG

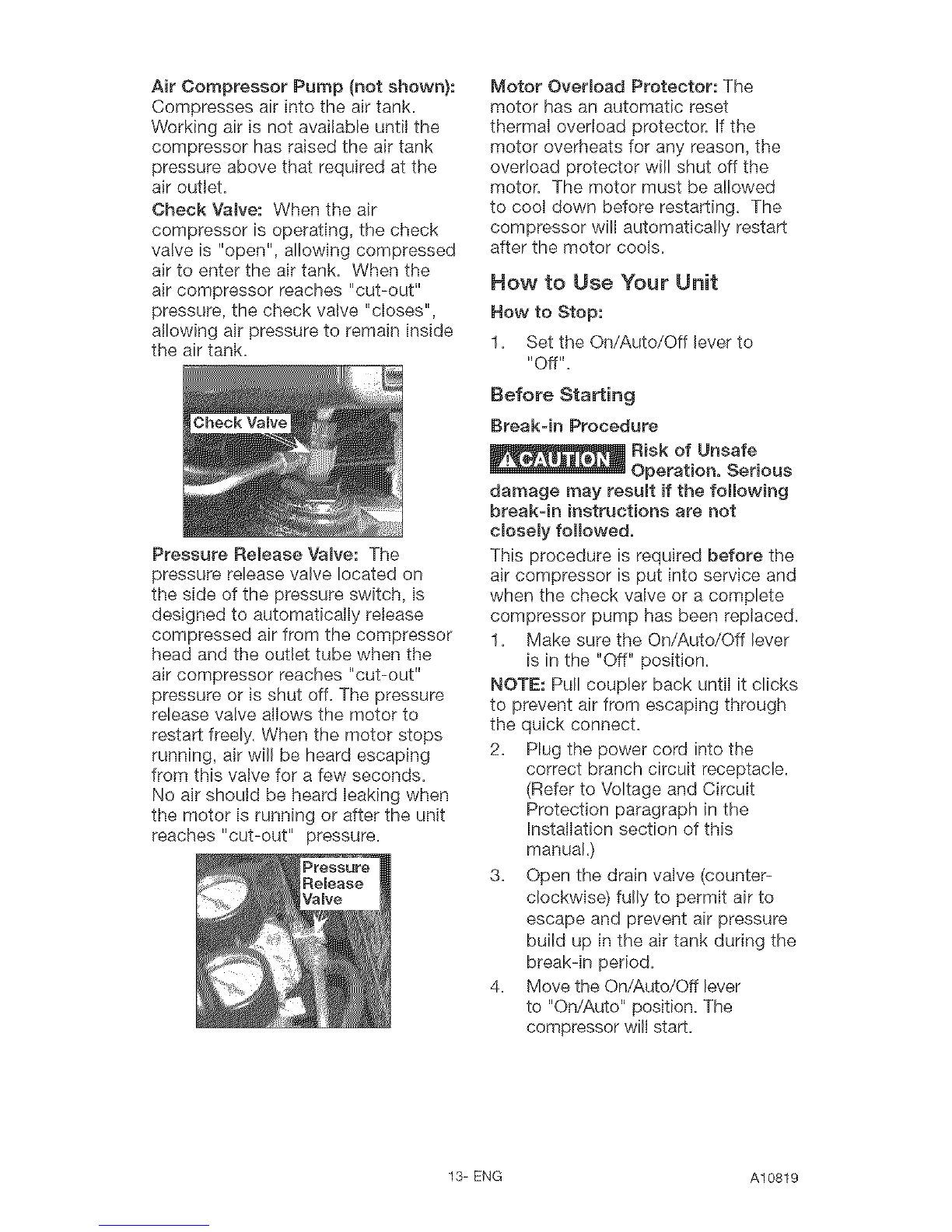

Air Compressor Pump (not shown):
Compresses air into the air tank.
Working air is not available until the
compressor has raised the air tank
pressure above that required at the
air outlet.
Check Vatve: When the air
compressor is operating, the check
valve is "open", allowing compressed
air to enter the air tank. When the
air compressor reaches "cut-out"
pressure, the check valve "closes",
allowing air pressure to remain inside
the air tank.
Motor Overload Protector: The
motor has an automatic reset
thermai overioad protector, if the
motor overheats for any reason, the
overload protector will shut off the
motor. The motor must be allowed
to coot down before restarting. The
compressor will automatically restart
after the motor cools.
How to Use Your Unit
Now to Stop:
1. Set the On/Auto/Off lever to
"Off".
Before Starting
Break_in Procedure
Pressure Release Valve: The
pressure release valve located on
the side of the pressure switch, is
designed to automaticalIy release
compressed air from the compressor
head and the outlet tube when the
air compressor reaches "cut-out"
pressure or is shut off. The pressure
release valve alIows the motor to
restart freely. When the motor stops
running, air will be heard escaping
from this valve for a few seconds.
No air should be heard leaking when
the motor is running or after the unit
reaches "cut-out" pressure.
damage may resuBt if the following
break_in instructions are not
closely followed.
This procedure is required before the
air compressor is put into service and
when the check valve or a complete
compressor pump has been replaced.
1. Make sure the On/Auto/Off lever
is in the "Off" position.
NOTE: Pull coupler back until it clicks
to prevent air from escaping through
the quick connect.
2. Plug the power cord into the
correct branch circuit receptacle.
(Refer to Voltage and Circuit
Protection paragraph in the
InstalIation section of this
manual.)
3. Open the drain valve (counter-
clockwise) fully to permit air to
escape and prevent air pressure
build up in the air tank during the
break-in period.
4. Move the On/Auto/Off lever
to "On/Auto" position. The
compressor will start.
13-ENG A10819

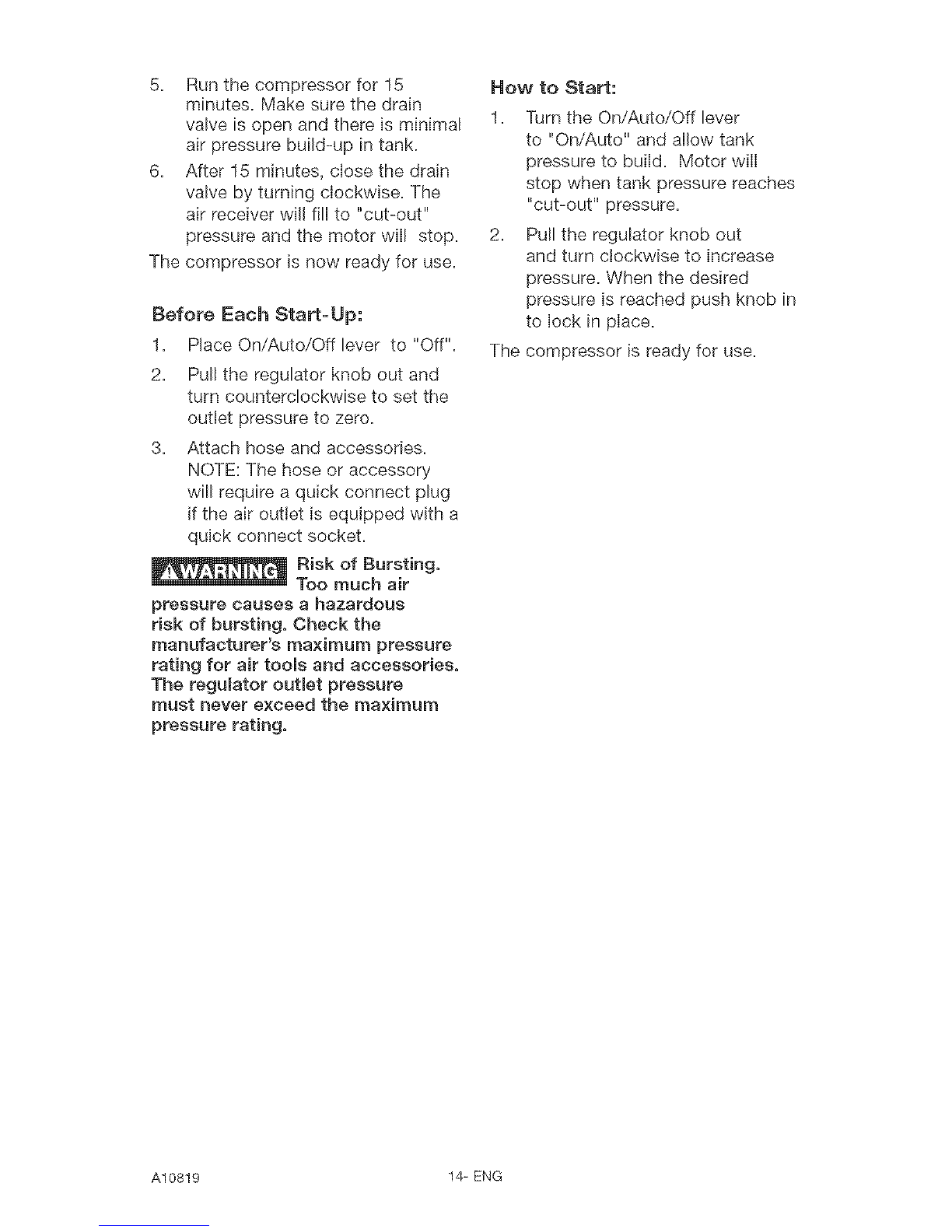

5. Run the compressor for 15
minutes. Make sure the drain
valve is open and there is minimal
air pressure build-up in tank.
6. After 15 minutes, close the drain
valve by turning clockwise. The
air receiver will fill to "cut-out"
pressure and the motor will stop.
The compressor is now ready for use.
Before Each Start=Up:
1, Place On/Auto/Off lever to "Off".
2. Pull the regulator knob out and
turn counterclockwise to set the
outlet pressure to zero.
3. Attach hose and accessories.
NOTE: The hose or accessory
will require a quick connect plug
if the air outlet is equipped with a
quick connect socket.
Risk of Bursting,
Too much air
pressure causes a hazardous
risk of bursting, Check the
manufacturer's maximum pressure
rating for air tools and accessories.
The regumator outNet pressure
must never exceed the maximum
pressure rating,
Bow to Start:
1. Turn the On/Auto/Off lever
to "On/Auto" and allow tank
pressure to build. Motor will
stop when tank pressure reaches
"cut-out" pressure.
2. Pull the regulator knob out
and turn clockwise to increase
pressure. When the desired
pressure is reached push knob in
to lock in place.
The compressor is ready for use.
A10819 14-ENG

Customer Responsibilities
Check Safety Valve
Drain Tank
Air Filter
Air compressor pump intake
and exhaust valves
Before Daily Every
or after
each each 100 Yearly
use use hours
@
@
1- more frequent in dusty or humid conditions
Risk of Unsafe
Operation, Unit
cycles automatically when power
is on, When servicing, you may
be exposed to voltage sources,
compressed air, or moving parts.
Before servicing unit unpBug or
disconnect emectricamsupply to
the air compressor, bleed tank
of pressure, and allow the air
compressor to cool.
To ensure efficient operation and
longer Iife of the air compressor, a
routine maintenance schedule should
be prepared and followed. The
above routine maintenance schedule
is geared to an air compressor
in a normal working environment
operating on a daily basis. If
necessary, the schedule should
be modified to suit the conditions
under which your air compressor is
used. The modifications wilI depend
upon the hours of operation and the
working environment. Compressors
in an extremely dirty and/or hostile
environment wil! require a greater
frequency of all maintenance checks.
To Check Safety Valve
Risk of Bursting,
If the safety va{ve
does not work properly, over-
pressurization may occur, causing
air tank rupture or an expBosion.
1. Before starting compressor, pull
the ring on the safety valve to
make sure that the safety valve
operates freely. If the valve
is stuck or does not operate
smoothly, it must be replaced
with the same type of valve.
To Drain Tank
1. Set the On/Auto/Off lever to "Off"
and unplug unit.
2. PuiI the regulator knob out and
turn counterclockwise to set the
outlet pressure to zero.
3. Remove the air tool or accessory.
4. PulI ring on safety valve allowing
air to bleed from the tank until
tank pressure is approximately
20 psi. Release safety valve ring.
5. Drain water from air tank by
opening drain valve (counter-
clockwise) on bottom of tank.
NOTE: See "Operation" section for
the location of controls. condense in the air tank, If not
drained, water will corrode and
weaken the air tank causing a risk
of air tank rupture,
15-ENG A10819

6. After the water has been drained,
close the drain valve (clockwise).
The air compressor can now be
stored.
NOTE: If drain valve is plugged,
release alI air pressure. The valve
can then be removed, cleaned, the
reinstalled.
Air Filter inspection and
Replacement
_Not surfaces,
Risk of burn,
Oompressor heads are exposed
when fimter cover is removed,
AHow compressor to coomprior to
servicing,
Keep the air fimter
cmean at all times,
Do not operate the air compressor
with the air filter removed,
A dirty air filter will not allow the
compressor to operate at full
capacity. Keep the air filter clean at
a!l times.
1. Remove the air filter and make
sure it is clean.
IMPORTANT: Do not operate the
compressor with the air filter removed.
2. If dirty, rinse air filter with warm
water and squeeze dry.
3. Replace air filter.
4. Replace filter cover.
NOTE: If the air filter is extremely dirty
it will need to be replaced. Refer to
the "Repair Parts" for the correct part
number.
Air Compressor Pump mntake
and Exhaust Valves
Once a year have a Trained Service
Technician check the air compressor
pump intake and exhaust valves.
A10819 16-ENG

Aimmaintenance and repair
operations not misted must be
performed by Trained Service
Technician.
Risk of Unsafe
Operation. Unit
cycles automatically when power
is on. When servicing, you may
be exposed to vomtage sources,
compressed air, or moving parts.
Before servic{ng unit unp{ug or
d}sconnect electrical supply to
the a}r compresso5 bmeedtank
of pressure, and allow the a}r
compressor to cool
To Replace or Clean Check
Valve
1. Release all air pressure from air
tank. See "To Drain Tank" in the
Maintenance section.
2. Set the On/Auto/Off lever to "Off"
and unplug unit.
3. Using an adjustable wrench,
loosen outlet tube nut at air tank
and pump. Carefully move outlet
tube away from check valve.
5. Unscrew the check valve (turn
counterclockwise) using a 7/8"
open end wrench. Note the
orientation for reassembly.
6. Using a screwdriver, carefully
push the valve disc up and
down. NOTE: The valve disc
should move freely up and down
on a spring which holds the valve
disc in the closed position; if
not the check vane needs to be
cleaned or replaced.
river ,
position _
nothing is
visible.
In dosed position
disc is visible.
7. Clean or replace the check
valve. A solvent, such as paint or
varnish remover can be used to
clean the check valve.
8. Apply sealant to the check valve
threads. Reinstall the check valve
(turn clockwise).
9. Replace the pressure release
tube. Tighten nuts.
10. Replace the outlet tube and
tighten nuts.
11. Perform the Break-in Procedure.
See "Break-in Procedure" in the
Operation section.
Using an adiustable wrench,
loosen pressure relief tube nut
at air tank and pressure switch.
Carefully move pressure relief
tube away from check valve.
17-ENG A10819

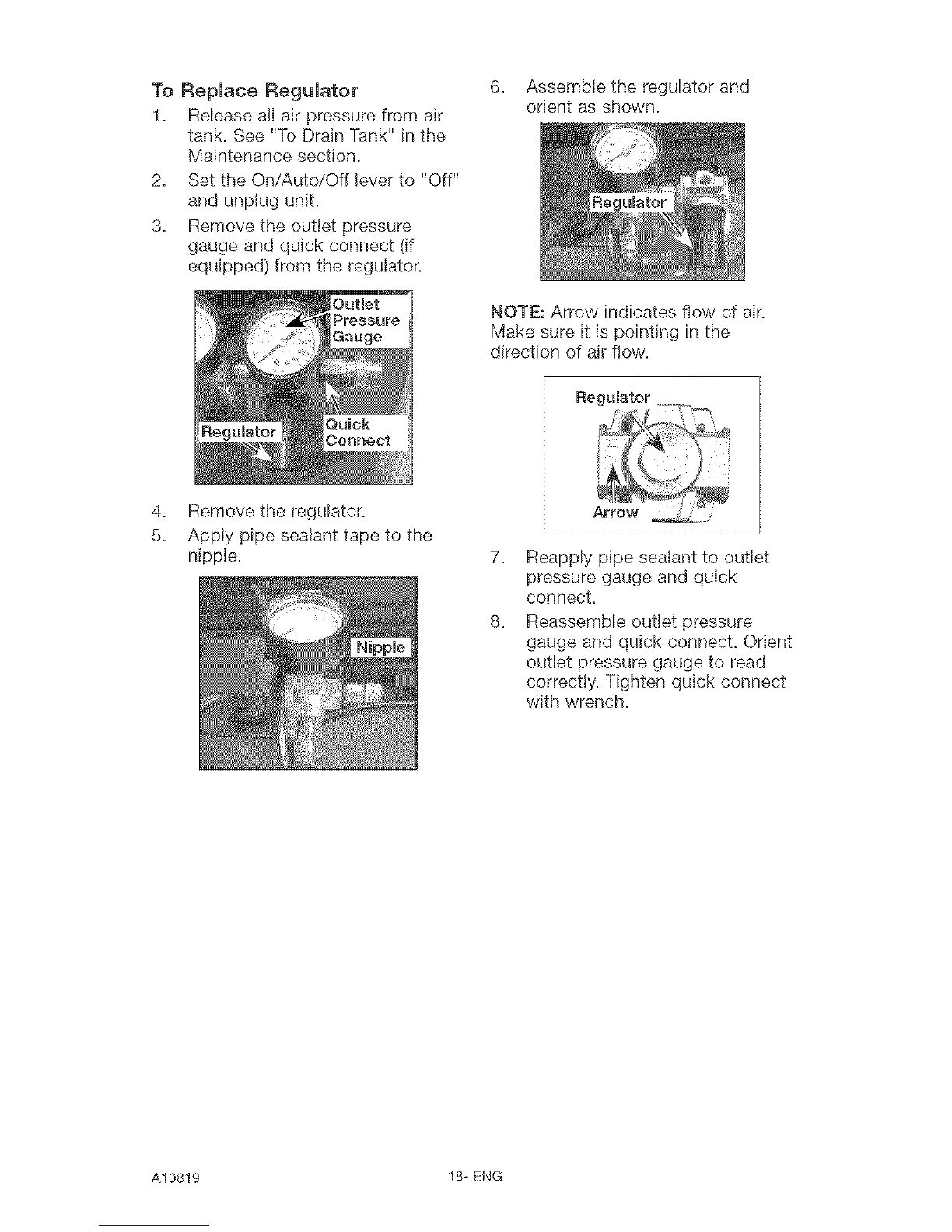

To Replace Regulator
1. Release all air pressure from air
tank, See "To Drain Tank" in the
Maintenance section,
2. Set the On/Auto/Off lever to "Off"
and unplug unit.
3. Remove the outlet pressure
gauge and quick connect (if
equipped) from the regulator.
4. Remove the regulaton
5. Apply pipe sealant tape to the
nipple,
6. Assemble the regulator and
orient as shown.
NOTE: Arrow indicates flow of air.
Make sure it is pointing in the
direction of air flow.
Regulator
7=
8=
Reapply pipe sealant to outlet
pressure gauge and quick
connect.
Reassemble outlet pressure
gauge and quick connect, Orient
outlet pressure gauge to read
correctly. Tighten quick connect
with wrench.
A10819 18= ENG

Before you store the air compressor,
make sure you do the following:
1. Review the "Maintenance"
section on the preceding
pages and perform scheduled
maintenance as necessary.
2. Set the On/Auto/Off Iever to
"Off" and unplug unit.
3. Turn the regulator
counterclockwise and set the
outlet pressure to zero.
4. Remove the air tool or
accessory.
5. Pull ring on safety valve allowing
air to bleed from the tank until
tank pressure is approximately
20 psi. Release safety valve ring.
6. Drain water from air tank by
opening drain valve on bottom of
tank.
_Risk of Bursting.
Water will
condense in the air tank. If not
drained, water will corrode and
weaken the air tank causing a risk
of air tank rupture and possibme
serious persona_ injury.
7. After the water has been
drained, close the drain or drain
valve.
NOTE: If drain valve is plugged,
release all air pressure. The valve
can then be removed, cleaned, and
reinstalled.
8. Protect the electrical cord and
air hose from damage (such as
being stepped on or run over).
Wind them loosely around
the compressor handle. (If so
equipped)
9. Store the air compressor in a
clean and dry location.
19-ENG A10819

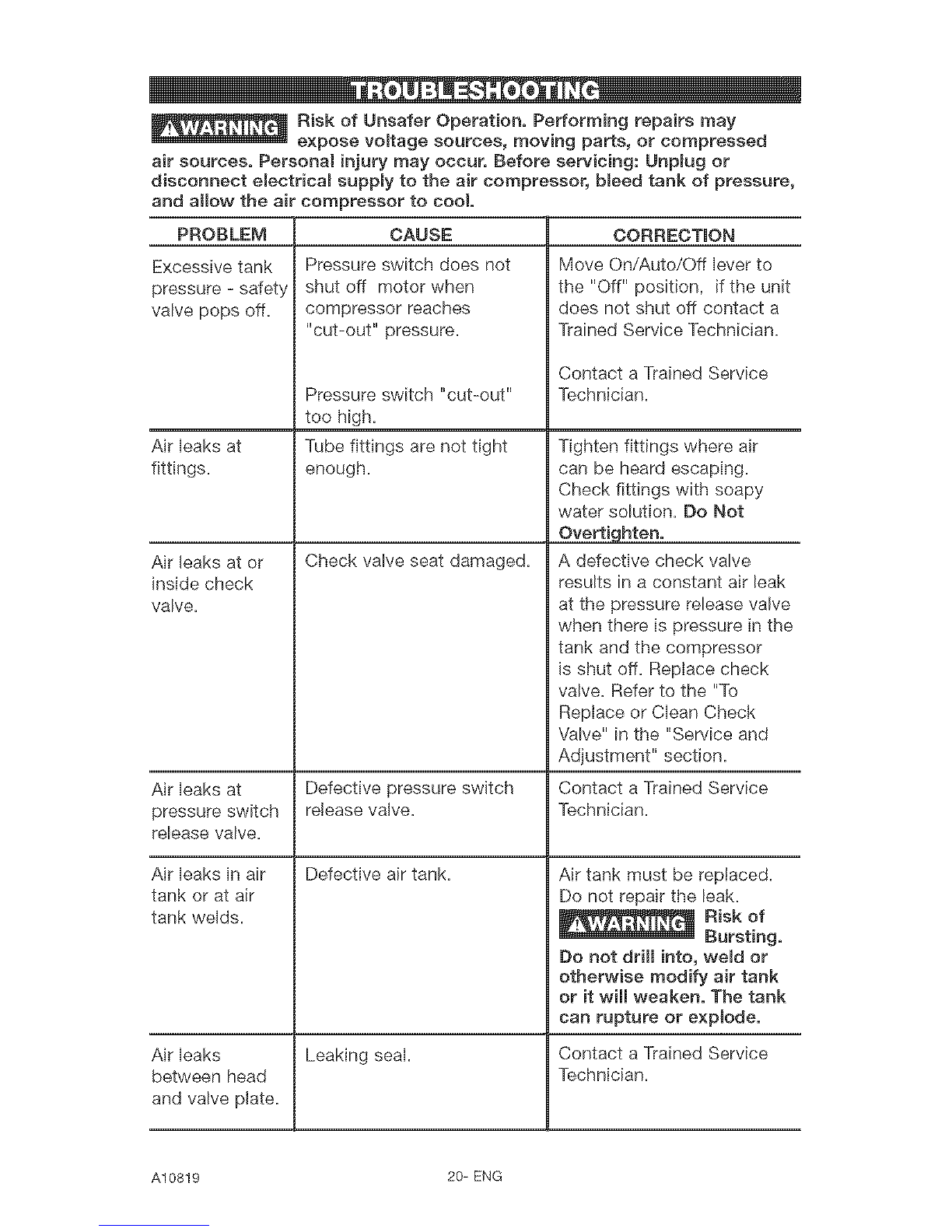

_Risk of Unsafer Operation. Performing repairs may
expose voltage sources, moving parts, or compressed
air sources. Personal injury may occur. Before servicing: Unpmug or
disconnect electricam suppmy to the air compressor, bleed tank of pressure,
and allow the air compressor to cool
PROBLEM
Excessive tank
pressure - safety
valve pops off.
Air leaks at
fittings.
Air leaks at or
inside check
valve.
Air leaks at
pressure switch
release valve.
Air leaks in air
tank or at air
tank welds.
CAUSE
Pressure switch does not
shut off motor when
compressor reaches
"cut-out" pressure.
Pressure switch "cut-out"
too high.
Tube fittings are not tight
enough.
Check vane seat damaged.
Defective pressure switch
release valve.
Defective air tank.
Leaking seal.
Air leaks
between head
and valve plate.
CORRECTION
Move On/Auto/Off lever to
the "Off" position, if the unit
does not shut off contact a
Trained Service Technician.
Contact a Trained Service
Technician.
Tighten fittings where air
can be heard escaping.
Check fittings with soapy
water solution. Do Not
Overtighten.
A ddective check valve
results in a constant air leak
at the pressure release valve
when there is pressure in the
tank and the compressor
is shut off. Reptace check
valve. Refer to the "To
Replace or Clean Check
Valve" in the "Service and
Adjustment" section.
Contact a Trained Service
Technician.
Air tank must be replaced.
Do not repair the leak.
_Risk of
Bursting.
Do not drill into, wemd or
otherwise modify air tank
or it will weaken. The tank
can rupture or explode.
Contact a Trained Service
Technician.
A10819 20-ENG
