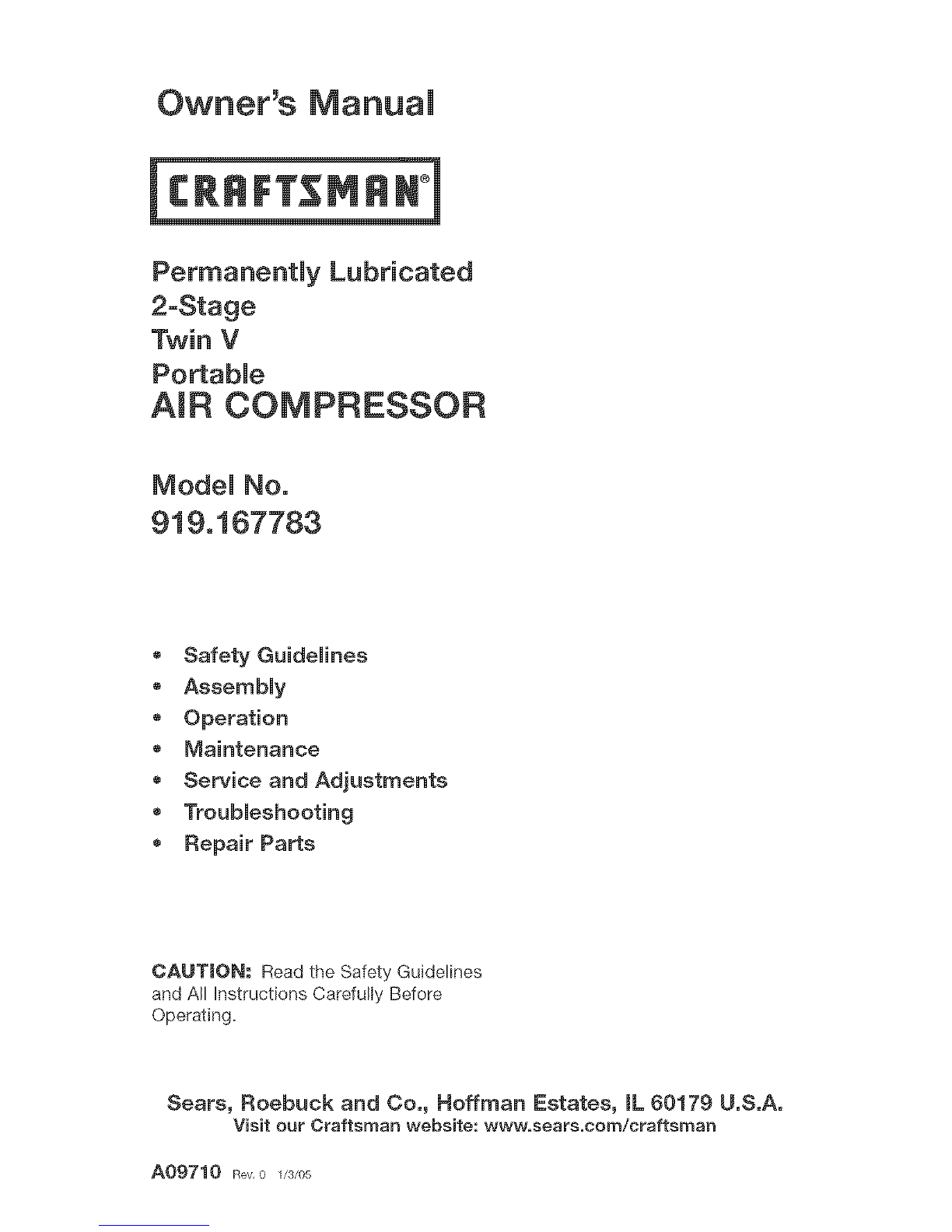

Craftsman 919.167783 User manual

Owner's Manuam
PermanentJy Lubricated
2-Stage
Twin V
AIR COMPRESSOR
o
o
o
o
o
o
o
Safety Guidelines
Assembly
Operation
Maintenance
Service and Adjustments
Repair Parts
CAUTmON, Read the Safety Guidelines
and All hstructions Carefully Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, mL(}0179 U.S.A.
Visit our Craftsman website: www, sears,com/craftsman
A09710 R_v,o1/s/o._

WARRANTY ................................................ 2
SPECIFICATION CHART ..................................... 3
SAFETY GUiDELiNES ...................................... 3-8

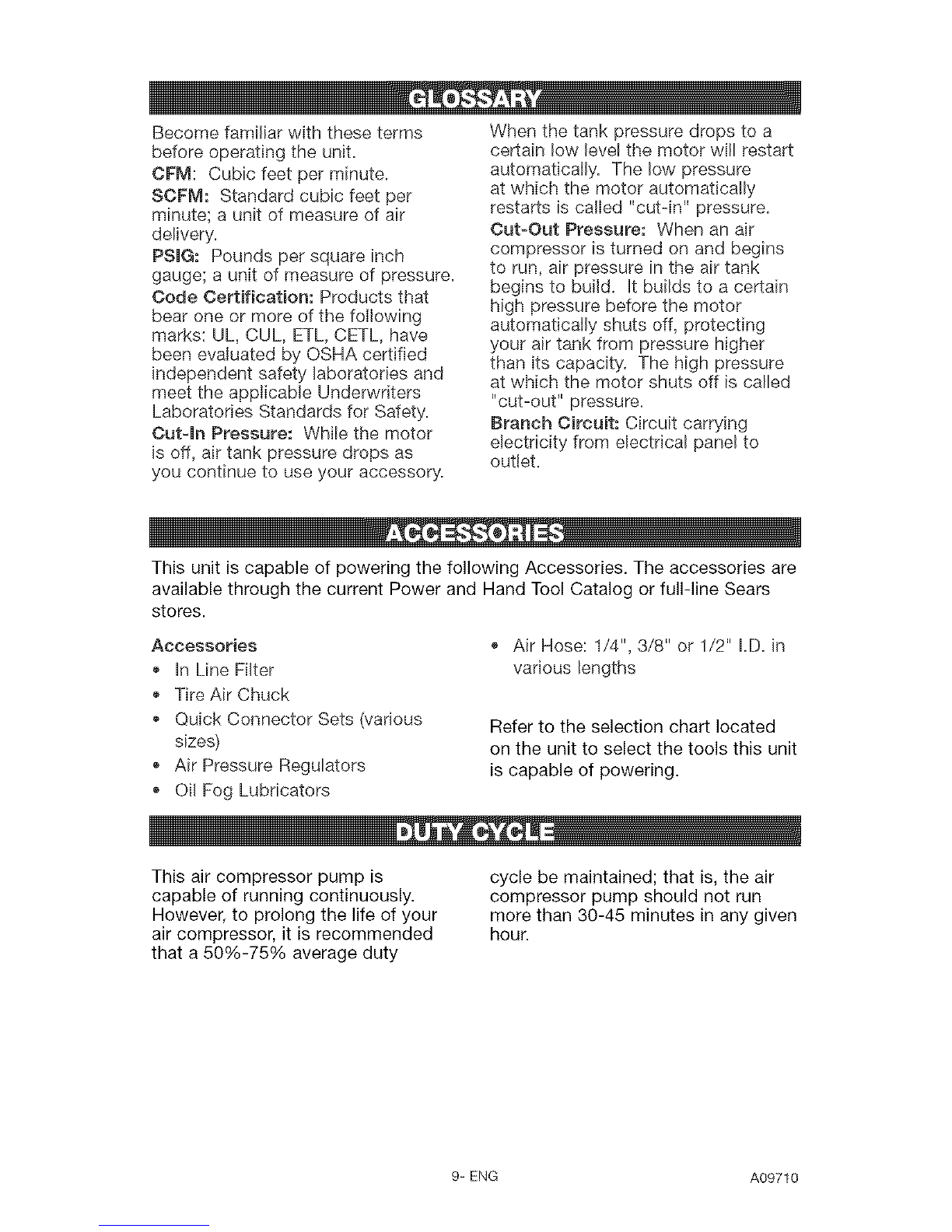

GLOSSARY ................................................ 9
ACCESSORIES ............................................ 9
DUTY CYCLE .............................................. 9

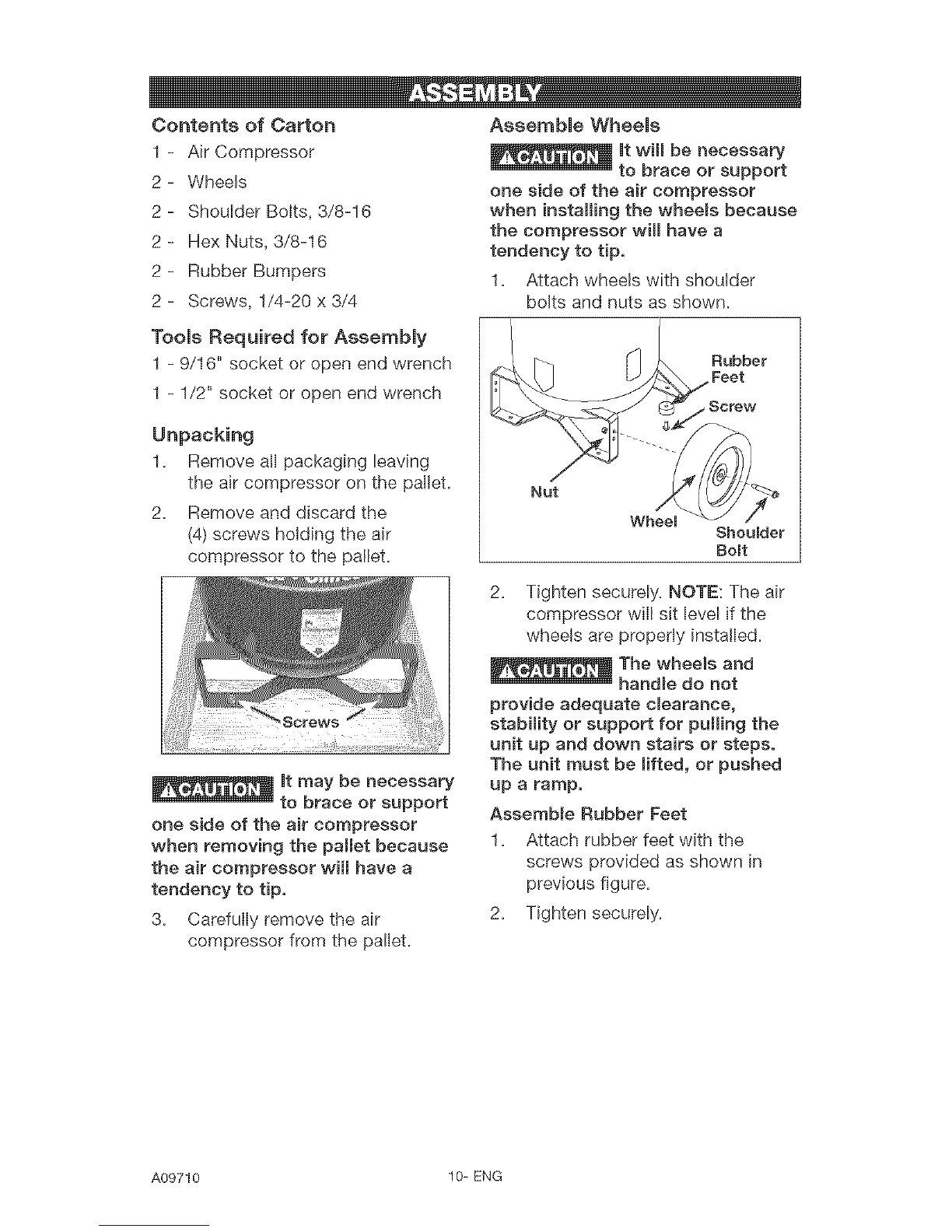

ASSEMBLY ............................................... 10

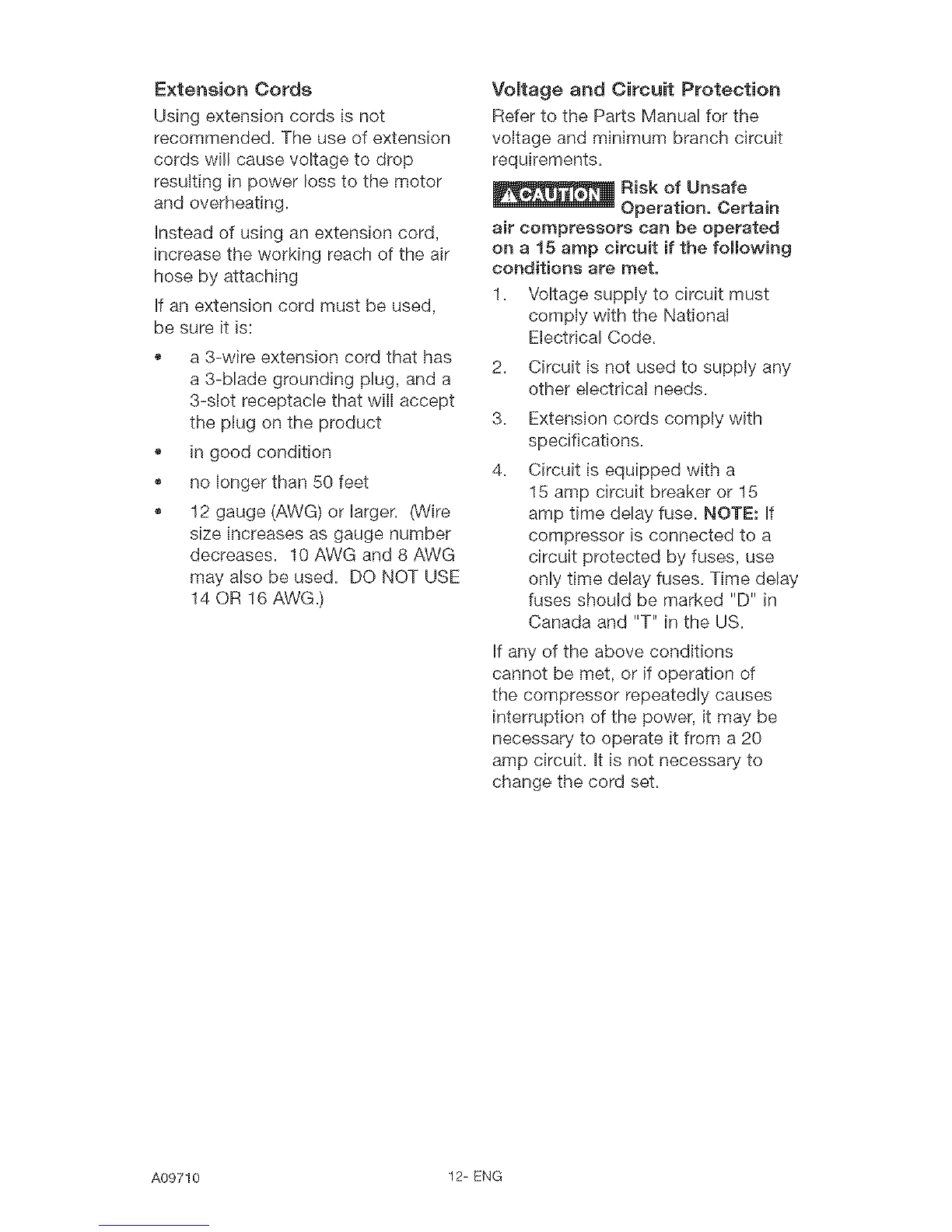

iNSTALLATiON ......................................... 11-12
OPERATION ........................................... 13-15

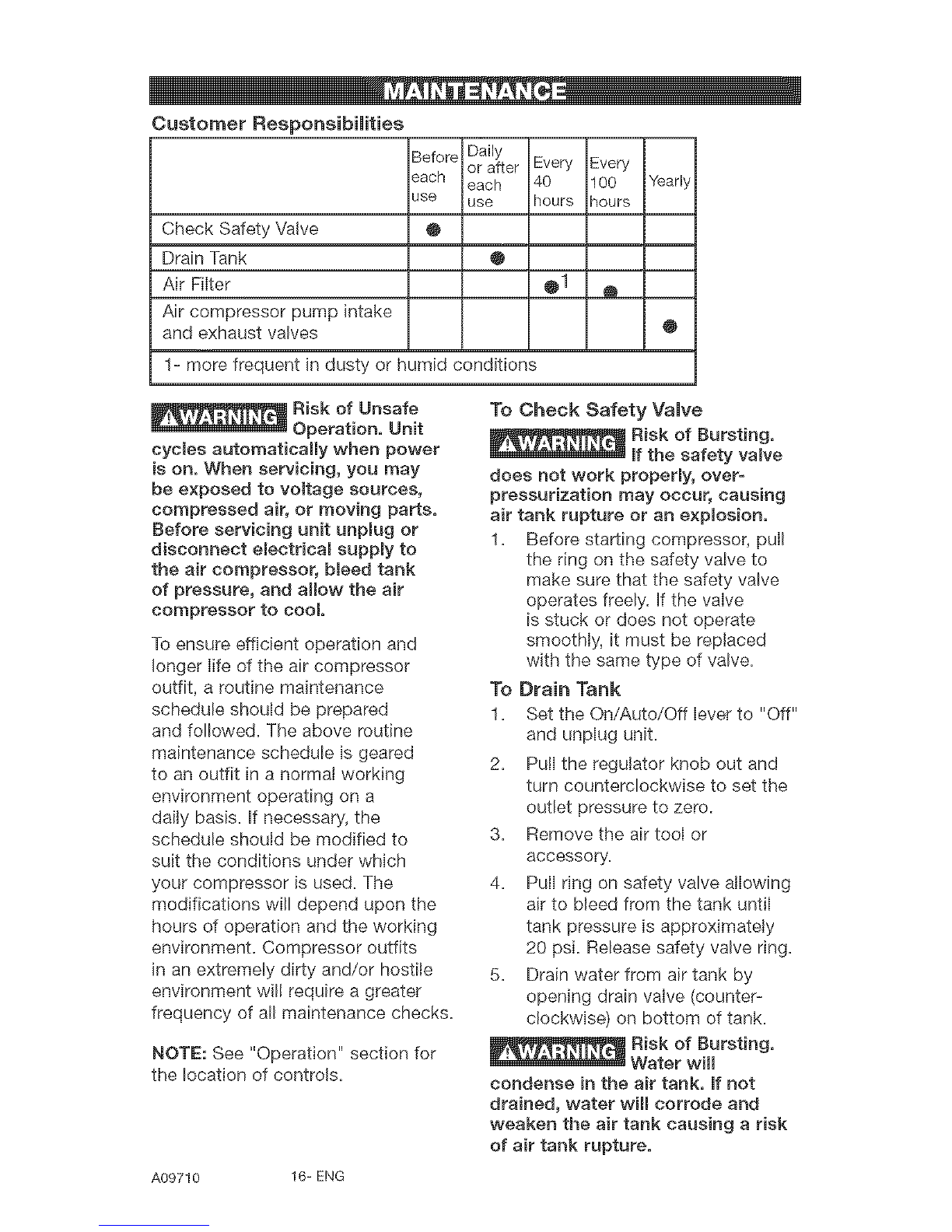

MAINTENANCE ......................................... 16-17
SERVICE AND ADJUSTMENTS ............................ 18-19
STORAGE ................................................ 20
TROUBLESHOOTING GUIDE ............................. 21-23
REPAIR PARTS ......................................... 24-27
ESPANOL .............................................. 28-49
NOTES/NOTAS ............................................ 50
REPAIR PROTECTION AGREEMENTS ......................... 51
HOW TO ORDER REPAIR PARTS ...................... back cover
FULL ONE YEAR WARRANTY AIR COMPRESSOR
If this CRAFTSMAN Air Compressor fails due to a defect in materiaJ or
workmanship within one year from the date of purchase, Sears will at
its option repair or replace it free of charge. Contact your nearest Sears
Service Center (1-800-4-MY-HOME ®) to arrange for repair, or return the Air
Compressor to the place of purchase for replacement.
if this Air Compressor is used for commercial or rental purposes, this warranty
applies for oniy ninety days from the date of purchase.
This warranty gives you specific legal rights and you may have other rights
which vary from state to state.
Sears, Roebuck and Co,, Dept, 817WA, Hoffman Estates, IL 60179
A09710 2= ENG

Model No, 919-167783
Running HP 1.6
Bore 2.375"
Stroke High Pressure .54"
Low Pressure 1.45"
Voltage-Single Phase 120
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity - Gallons 25 ASME
Approximate Cut-in Pressure 145
Approximate Cut-out Pressure 175
Refer to Glossary for abbreviations.
This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. To help you recognize this
information, we use the symbols below. Please read the manual and pay
attention to these sections.
Indicates an
imminently hazardous
situation which, if not avoided, will
result in death or serious in'UL_Q¢.
Indicates a potentially
hazardous situation
which, if not avoided, coumd result in
death or serious injury..
Indicates a potentially
hazardous situation
which, if not avoided, _ result in
minor or moderate injury.
Used without the
safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in _ge.
n
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known (to the State of
California) to cause cancer, birth defects or other reproductive harm. Some example of
these chemicals are:
_' lead from lead-based paints
_' crystalline silica from bricks and cement and other masonry products
® arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work
with approved safety equipment, always wear MSHA/NIOSH approved, properly fitting
face mask or respirator when using such tools.
When using air tools, basic safety precautions should always be followed to reduce the
risk of personal injury.
3-ENG A09710

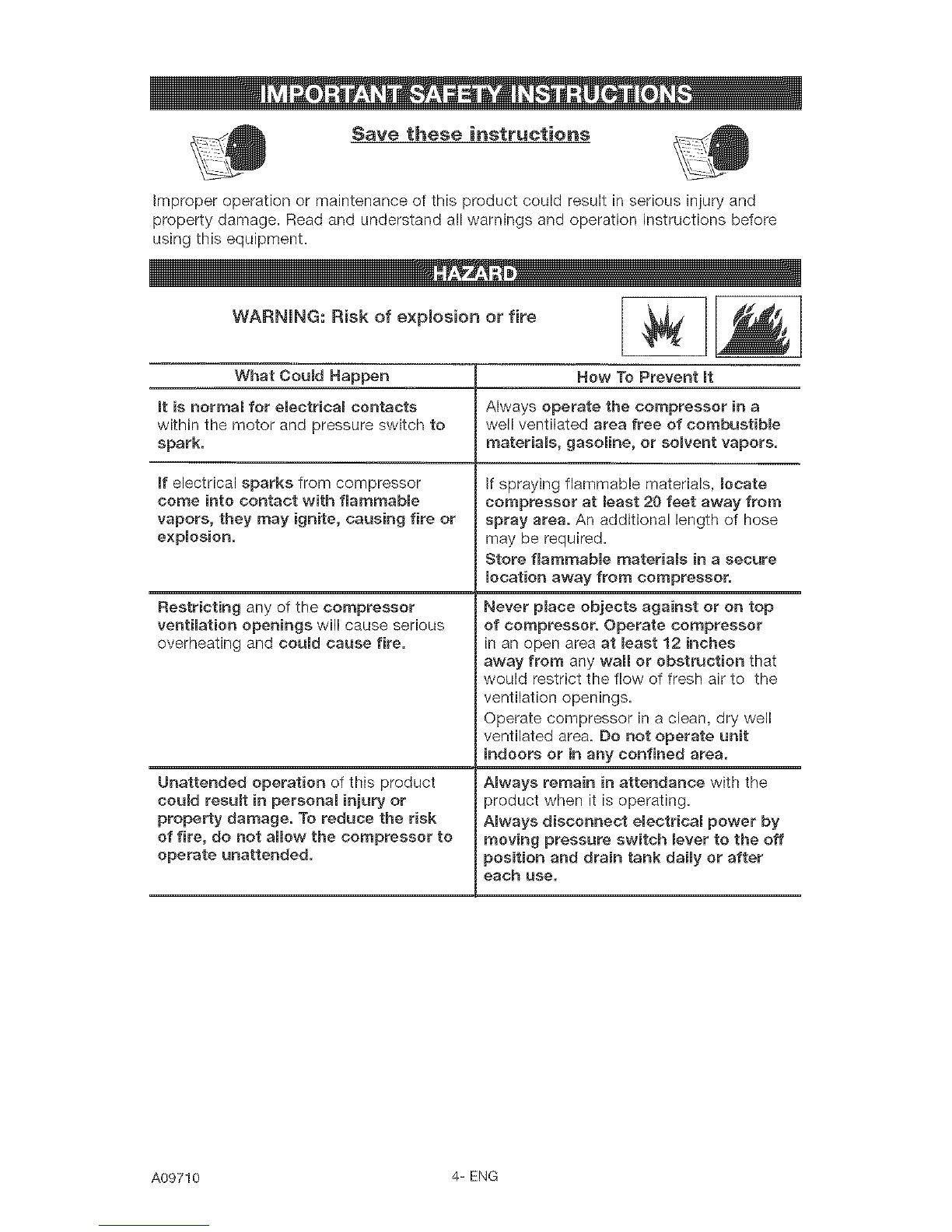

Save these instructions
improper operation or maintenance of this product could result in serious injury and
property damage. Read and understand all warnings and operation instructions before
using this equipment.
WARNING: Risk of explosion or fire _,i
What Could Happen
mtis normaB for eBectricam contacts
within the motor and pressure switch to
spark.
mfelectrical sparks from compressor
come into contact with flammable
vapors, they may ignite, causing fire or
explosion.
Restricting any of the compressor
ventilation openings will cause serious
overheating and could cause fire.
Unattended operation of this product
could result in personal injury or
property damage. To reduce the risk
of fire, do not allow the compressor to
operate unattended.
How To Prevent mt
Always operate the compressor in a
well ventilated area free of combustible
materiams, gasoline, or somvent vapors.
if spraying flammable materials, locate
compressor at meast 20 feet away from
spray area. An additional length of hose
may be required.
Store flammable materials in a secure
location away from compressor.
Never place objects against or on top
of compressor. Operate compressor
in an open area at least 12 inches
away from any wall or obstruction that
would restrict the flow of fresh air to the
ventilation openings.
Operate compressor in a clean, dry well
ventilated area. Do not operate unit
indoors or in any confined area.
ABways remain in attendance with the
product when it is operating.
ABways disconnect eBectrical power by
moving pressure switch lever to the off
position and drain tank daily or after
each use,
A09710 4= ENG

WARNING: Risk of Bursting _1
Air Tank: The following conditions could lead to a weakening of the tank, and result
in a violent tank explosion and could cause property damage or serious injury.
What Could NaoDen
Failure to properRy drain condensed
water from tank, causing rust and
thinning of the steel tank.
Modifications or attempted repairs to
the tank.
Unauthorized modifications to the
unRoader valve, safety vaBve, or any
other components which control tank
pressure,
Excessive vibration can weaken the
air tank and cause rupture or
explosion
ATTACHMENTS & ACCESSORIES:
Exceeding the pressure rating of
air toeBs, spray guns, air operated
accessories, tires, and other inflatables
can cause them to explode or fly apart,
and could result in serious injury.
Now To Prevent It
Drain tank daily or after each use.
If tank develops a leak, replace it
immediately with a new tank or replace
the entire compressoc
Never drill into, weld, or make any
modifications to the tank or its
attachments.
The tank is designed to withstand specific
operating pressures. Never make
adjustments or parts substitutions
to amter the factory set operating
pressures,
For essential control of air pressure,
you must install a pressure regulator
and pressure gauge to the air outBet
(if not equipped) of your compressor.
Follow the equipment manufacturers
recommendation and never exceed the
maximum allowable pressure rating of
attachments. Never use compressor
to inflate small low pressure objects
such as children's toys, footballs,
basketballs, etc.
WARNING: Risk from Flying Objects
What Coumd Happen Now To Prevent It
The compressed air stream can cause
soft tissue damage to exposed skin
and can propel dirt, chips, loose
particmes, and small objects at high
speed, resulting in property damage or
personal injury.
Always wear ANSI Z87.1 approved safety
gBasses with side shields when using the
compressor
Never point any nozzle or sprayer
toward any part of the body or at other
people or animals.
Always turn the compressor off and
bleed pressure from the air hose and tank
before attempting maintenance, attaching
tools or accessories.
5-ENG A09710

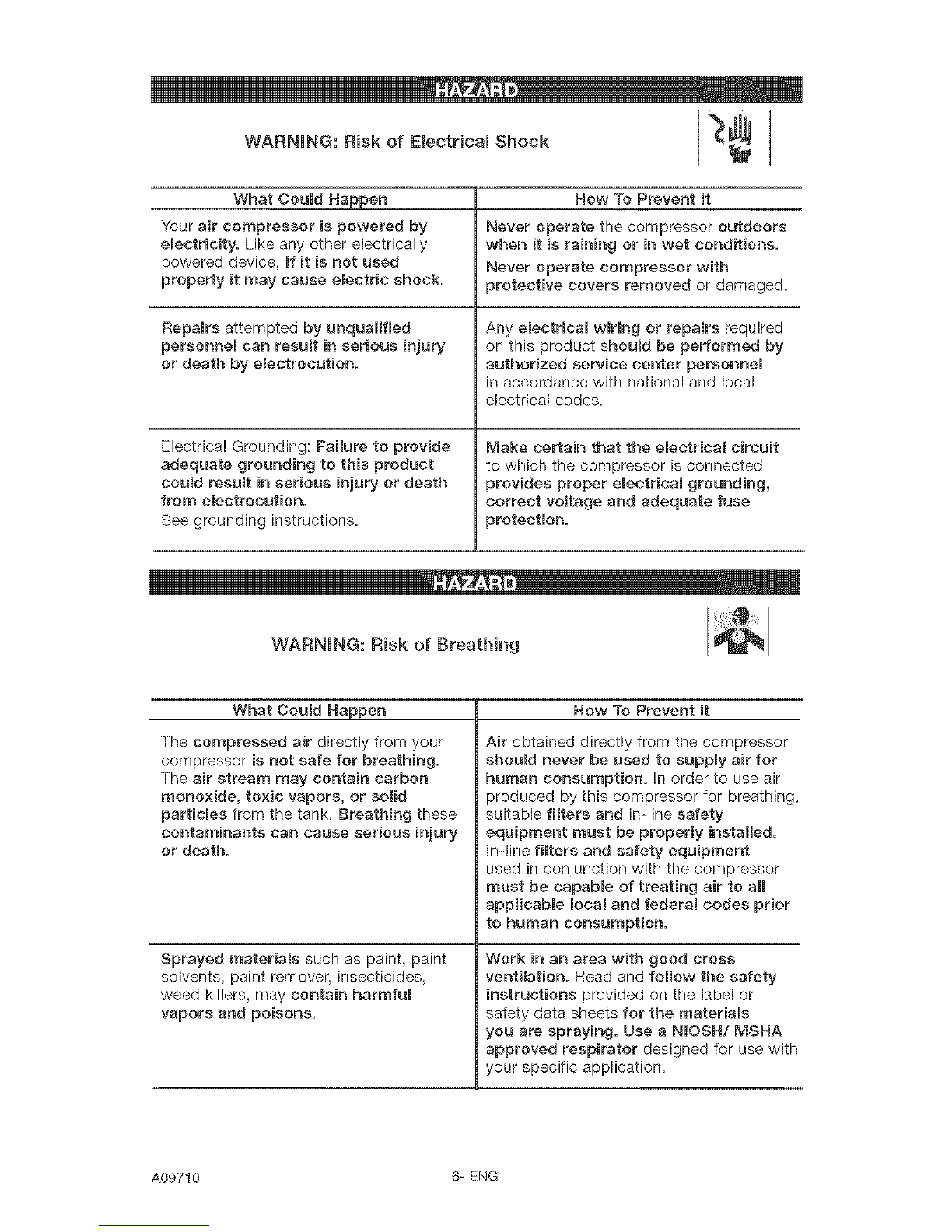

WARNING: Risk of Electrical Shock
What Ceumd Happen
Your air compressor is powered by
electricity. Like any other electrically
powered device, If it is not used
properly it may cause electric shock.
Repairs attempted by unqualified
personnel can result in serious injury
or death by electrocution.
Electrical Grounding: Failure to provide
adequate grounding to this product
could result in serious injury or death
from electrocution.
See grounding instructions.
Now To Prevent mt
Never operate the compressor outdoors
when it is raining or in wet conditions.
Never operate compressor with
protective covers removed or damaged.
Any emectrical wiring or repairs required
on this product should be performed by
authorized service center personneB
in accordance with national and local
electrical codes.
Make certain that the electrical circuit
to which the compressor is connected
provides proper eBectrical grounding,
correct voltage and adequate fuse
protection.
WARNING: Risk of Breathing
What Could
The compressed air directly from your
compressor is not safe for breathing.
The air stream may contain carbon
monoxide, toxic vapors, or solid
particles from the tank. Breathing these
contaminants can cause serious injury
or death.
Sprayed materials such as paint, paint
solvents, paint remover, insecticides,
weed killers, may contain harmful
vapors and poisons.
Now To Prevent It
Air obtained directly from the compressor
should never be used to supply air for
human consumption. In order to use air
_roduced by this compressor for breathing,
suitable filters and in-line safety'
equipment must be property installed.
In-line filters and safety equipment
used in conjunction with the compressor
must be capable of treating air to aH
applicable local and federal codes prior
to human consumption.
Work in an area with good cross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials
you are spraying. Use a NIOSN/MSNA
approved respirator designed for use with
your specific application.
A09710 6- ENG

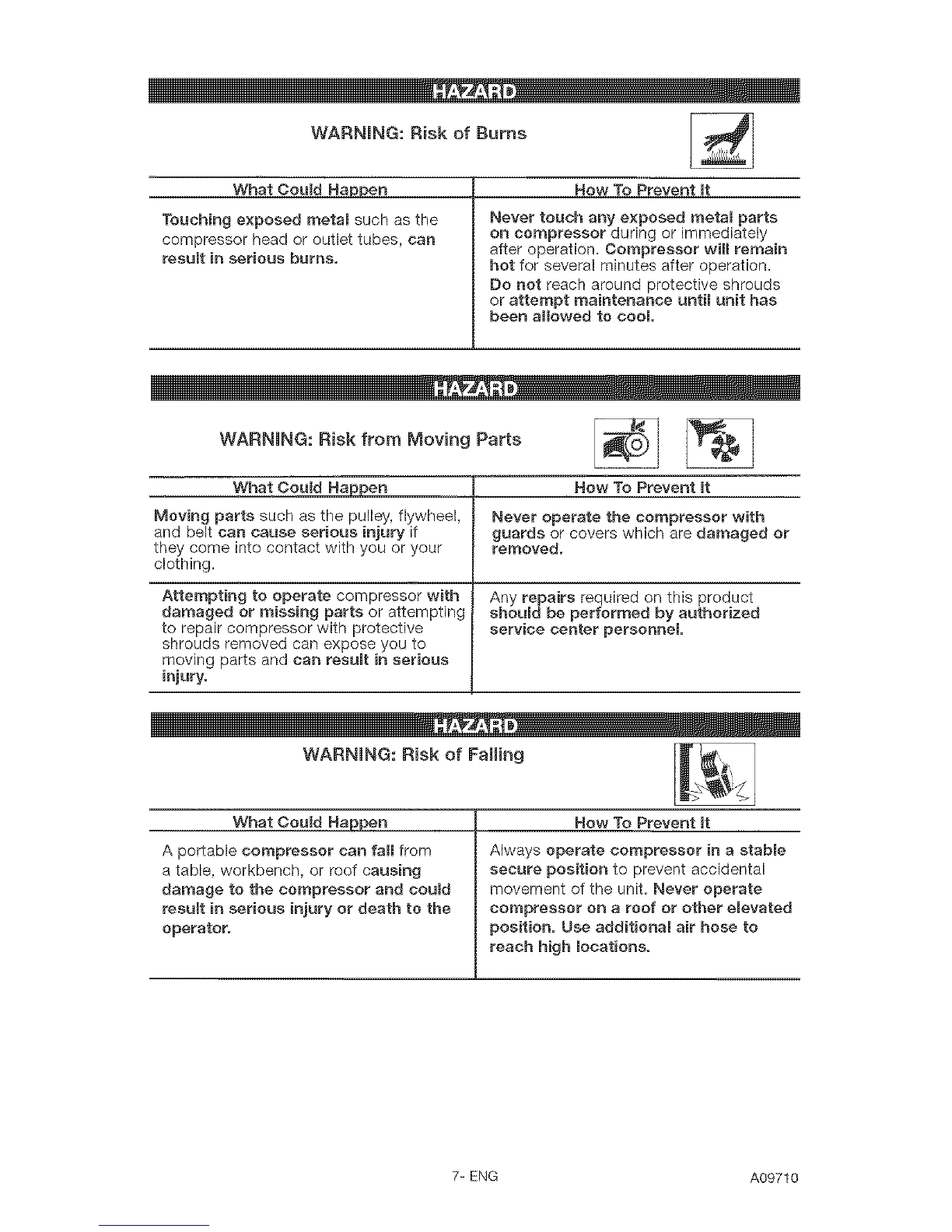

WARNING: Risk of Burns
What Could Happen
Touching exposed metal such as the
compressor head or outlet tubes, can
result in serious burns.
How To Prevent It
Never touch any exposed met.a[ parts
on compressor during or immediately
after operation. Compressor will remain
hot for several minutes after operation.
Do not reach around protective shrouds
or attempt maintenance until unit has
been allowed to cool
WARNING: Risk from Moving Parts
What Could Happen
Moving parts such as the pulley, flywheel,
and belt can cause serious injury if
they come into contact with you or your
clothing.
Attempting to operate compressor with
damaged or missing parts or attempting
to repair compressor with protective
shrouds removed can expose you to
moving parts and can result in serious
injury.
Never operate the compressor with
guards or covers which are damaged or
removed.
Any repairs required on this product
should be performed by authorized
service center personnel
WARNING: Risk of Failing
What Could Hap.pen
A portable compressor can fail from
a table, workbench, or roof causing
damage to the compressor and could
result in serious injury or death to the
operator.
How To Prevent It
Always operate compressor in a stable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other eRevated
position. Use additionam air hose to
reach high mocations.
7-ENG A09710

WARNmNG: Risk of Serious mnjury or Property Damage When _B]
Transporting Compressor
(Fire, InhMatien, Damage to Vehicle Surfaces)
What Could Happen
Oil can leak or spill and could result
in fire or breathing hazard; serious
injury or death can result, oil leaks will
damage carpet, paint or other surfaces
in vehicles or trailers.
Row To Prevent it
Always place COMPRESSOR on a
protective mat when transporting to
protect against damage to vehicle from
leaks. Remove COMPRESSOR from
vehicle immediately upon arrival at your
destination.
'm_D
WARNING: Risk of Unsafe Operation
What Could Happen ........
Unsafe operation of your air compressor
could lead to serious injury or death to
you or others.
Now To Prevent mt
Review and understand all instructions
and warnings in this manual.
Become familiar with the operation and
controBs of the air compressor.
Keep operating area dear of all persons,
pets, and obstacles.
Keep chiRdren away from the air
compressor at aH times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at aH times.
Never defeat the safety features of this
product.
Equip area of operation with a fire
extinguisher.
Do not operate machine with missing,
broken, or unauthorized parts.
SAVE THESE mNSTRUCTmONS
A09710 8- ENG

Become familiar with these terms
before operating the unit.
CFM: Cubic feet per minute.
SOFM: Standard cubic feet per
minute; a unit of measure of air
delivery.
PSlG: Pounds per square inch
gauge; a unit of measure of pressure.
Code Certification: Products that
bear one or more of the following
marks: UL, CUL, ETL, CETL, have
been evaluated by OSHA certified
independent safety laboratories and
meet the applicable Underwriters
Laboratories Standards for Safety.
Cut-In Pressure: While the motor
is off, air tank pressure drops as
you continue to use your accessory.
When the tank pressure drops to a
certain low level the motor will restart
automatically. The low pressure
at which the motor automatically
restarts is called "cut-in" pressure.
Cut-Out Pressure: When an air
compressor is turned on and begins
to run, air pressure in the air tank
begins to build. It builds to a certain
high pressure before the motor
automatically shuts off, protecting
your air tank from pressure higher
than its capacity. The high pressure
at which the motor shuts off is called
"cut-out" pressure.
Branch Circuit: Circuit carrying
electricity from electrical panel to
outlet.
This unit is capable of powering the following Accessories. The accessories are
available through the current Power and Hand Tool Catalog or full-line Sears
stores.
Accessories
® in Line Filter
® Tire Air Chuck
Quick Connector Sets (various
sizes)
Air Pressure Regulators
® Oil Fog Lubricators
® Air Hose: 1/4", 3/8" or 1/2" LD. in
various lengths
Refer to the selection chart located
on the unit to select the tools this unit
is capable of powering.
This air compressor pump is
capable of running continuously.
However, to prolong the life of your
air compressor, it is recommended
that a 50%-75% average duty
cycle be maintained; that is, the air
compressor pump should not run
more than 30-45 minutes in any given
hour.
9-ENG A09710

g
Contents of Carton
1 - Air Compressor
2- Wheels
2 - Shoulder Bolts, 3/8-16
2 - Nex Nuts, 3/8-16
2 - Rubber Bumpers
2 - Screws, 1/4-20 x 3/4
Assemble Wheels
It win be necessary
to brace or support
one side of the air compressor
when installing the wheeBs because
the compressor will have a
tendency to tip,
1. Attach wheels with shoulder
bolts and nuts as shown.
Tools Required for Assembly
1 - 9/16" socket or open end wrench
1 - 1/2" socket or open end wrench
Unpacking
1_ Remove all packaging leaving
the air compressor on the pallet.
2. Remove and discard the
(4) screws holding the air
compressor to the pallet.
_} Rubber
Feet
Wheel
,Screw
Shoulder
Bolt
one side of the air compressor
when removing the pallet because
the air compressor win have a
tendency to tip,
3. Carefully remove the air
compressor from the pallet.
2. Tighten securely. NOTE: The air
compressor wilI sit level if the
wheels are properiy installed.
The wheems and
handme do not
provide adequate c_earance,
stability or support for pulling the
unit up and down stairs or steps,
The unit must be mifted, or pushed
up a ramp,
Assembme Rubber Feet
1. Attach rubber feet with the
screws provided as shown in
previous figure.
2. Tighten securely.
A09710 10- ENG

NOW TO SET UP YOUR IMPORTANT: The outletbeingused
UNiT
Location of the Air Compressor
Locate the air compressor in a
clean, dry and well ventilated area.
The air compressor should be
located at least 12" away from the
wail or other obstructions that will
interfere with the flow of air. The
air compressor pump and shroud
are designed to allow for proper
cooling. The ventilation openings
on the compressor are necessary
to maintain proper operating
temperature. Do not place rags or
other containers on or near these
openings.The air filter must be kept
clear of obstructions which could
reduce air flow to the air compressor.
GROUNDING INSTRUCTmONS
Risk of Electrical
Shock, In the
event of a short circuit, grounding
reduces the risk of shock by
providing an escape wire for
the electric current. This air
compressor must be propermy
grounded,
The portable air compressor is
equipped with a cord having a
grounding wire with an appropriate
grounding plug (see following
illustrations). The plug must be used
with an outlet that has been installed
and grounded in accordance with all
local codes and ordinances.
1. The cord set and plug with this
unit contains a grounding pin.
This ptug MUST be used with a
grounded outlet.
must be installed and grounded in
accordance with all local codes and
ordinances.
2. Make sure the outlet being used
has the same configuration
as the grounded plug. DO
NOT USE AN ADAPTER, See
illustration.
3. Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
Groundiing Pin
4. If these grounding instructions
are not completely understood,
or if in doubt as to whether
the compressor is properly
grounded, have the installation
checked by a qualified
electrician.
Risk of Electrical
Shock, Improper
grounding can resumt in electricam
shock,
Do not modify the pBug provided, If
it does not fit the available outBet,
a correct outlet shouBd be installed
by a quaBified electrician,
Repairs to the cord set or pmug
MUST be made by a quamified
emectrician,
11-ENG A09710

Extension Cords
Using extension cords is not
recommended. The use of extension
cords will cause voltage to drop
resulting in power loss to the motor
and overheating.
Instead of using an extension cord,
increase the working reach of the air
hose by attaching
If an extension cord must be used,
be sure it is:
a 3-wire extension cord that has
a 3-blade grounding plug, and a
3-slot receptacle that will accept
the plug on the product
in good condition
no longer than 50 feet
12 gauge (AWG) or larger. (Wire
size increases as gauge number
decreases. 10 AWG and 8 AWG
may also be used. DO NOT USE
14 OR 16 AWG.)
Voltage and Circuit Protection
Refer to the Parts Manual for the
voltage and minimum branch circuit
requirements.
Risk of Unsafe
Operation, Certain
air compressors can be operated
on a 15 amp circuit if the following
conditions are met,
1. Voltage supply to circuit must
comply with the National
Electrical Code.
2. Circuit is not used to supply any
other electrical needs.
3. Extension cords comply with
specifications.
4. Circuit is equipped with a
15 amp circuit breaker or 15
amp time delay fuse. NOTE: If
compressor is connected to a
circuit protected by fuses, use
only time delay fuses. Time delay
fuses should be marked "D" in
Canada and "T" in the US.
If any of the above conditions
cannot be met, or if operation of
the compressor repeatedly causes
interruption of the power, it may be
necessary to operate it from a 20
amp circuit. It is not necessary to
change the cord set.
A09710 12-ENG

Know Your Air Compressor
READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to famiIiarize yourself with
the location of various controls and adjustments. Save this manual for future
reference.
Safety Valve
Description of Operation
Become familiar with these controls
before operating the unit.
On/Auto/Off Switch: Turn this switch
"On/Auto" to provide automatic
power to the pressure switch and
"Off" to remove power at the end of
each use.
Pressure Switch: The pressure
switch automatically starts the
motor when the air tank pressure
drops below the factory set "cut-in"
pressure, it stops the motor when the
air tank pressure reaches the factory
set "cut-out" pressure.
Safety Vamve: if the pressure switch
does not shut off the air compressor
at its "cut-out" pressure setting, the
safety valve will protect against high
pressure by "popping out" at its
factory set pressure (slightly higher
than the pressure switch "cut-out"
setting).
Outlet Pressure Gauge: The outlet
pressure gauge indicates the air
pressure avaiIable at the outlet side
of the reguIatoK This pressure is
controlled by the regulator and is
always less than or equal to the tank
pressure.
Tank Pressure Gauge: The tank
pressure gauge indicates the reserve
air pressure in the tank.
Regulator: ControIs the air pressure
shown on the outlet pressure
gauge. Pull the knob out and turn
clockwise to increase pressure
and counterclockwise to decrease
pressure. When the desired pressure
is reached push knob in to lock in
place.
Universam Quick-Connect Body:
The universal quick-connect body
accepts the three most popular styIes
of quick-connect plugs: industrial,
automotive (Tru-flate), and ARC. One
hand push-to-connect operation
makes connections simple and easy.
Brain Vamve:The drain valve is
located at the base of the air tank
and is used to drain condensation at
the end of each use.
13-ENG A09710

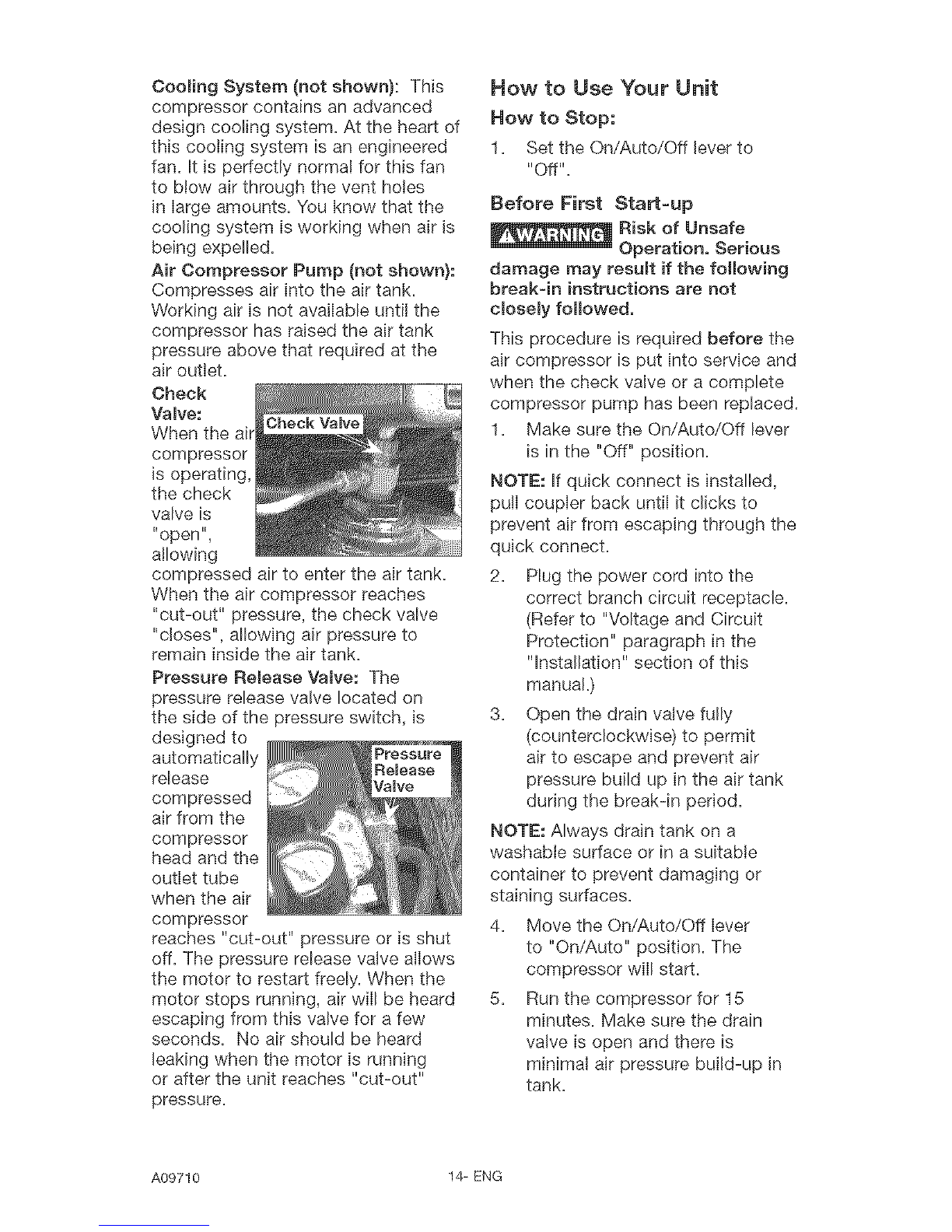

Cooming System (not shown}: This
compressor contains an advanced
design cooling system. At the heart of
this cooting system is an engineered
fan. It is perfectly normal for this fan
to blow air through the vent holes
in large amounts. You know that the
cooling system is working when air is
being expelled.
Air Compressor Pump (not shown}:
Compresses air into the air tank.
Working air is not available until the
compressor has raised the air tank
pressure above that required at the
air outlet.
Check
Valve:
When the air
compressor
is operating,
the check
valve is
"open",
allowing
compressed air to enter the air tank.
When the air compressor reaches
"cut-out" pressure, the check valve
"closes", allowing air pressure to
remain inside the air tank.
Pressure Release Vatve: The
pressure release valve located on
the side of the pressure switch, is
designed to
automatically
release
compressed
air from the
compressor
head and the
outlet tube
when the air
compressor
reaches "cut-out" pressure or is shut
off. The pressure release valve allows
the motor to restart freely. When the
motor stops running, air wilI be heard
escaping from this valve for a few
seconds. No air should be heard
leaking when the motor is running
or after the unit reaches "cut-out"
pressure.
How to Use Your Unit
How to Stop:
1= Setthe On/Auto/Off leverto
"Off"=
Before First Start-up
Risk of Unsafe
Operation, Serious
damage may resumt if the following
breakqn instructions are not
cloeemy followed,
This procedure is required before the
air compressor is put into service and
when the check valve or a complete
compressor pump has been replaced.
1= Make sure the On/Auto/Off lever
is in the "Off" position=
NOTE: If quick connect is installed,
pull coupler back until it clicks to
prevent air from escaping through the
quick connect=
2= Plug the power cord into the
correct branch circuit receptacle=
(Refer to "Voltage and Circuit
Protection" paragraph in the
"Installation" section of this
manual.)
3= Open the drain valve fully
(counterclockwise) to permit
air to escape and prevent air
pressure build up in the air tank
during the break-in period=
NOTE: Always drain tank on a
washabie surface or in a suitable
container to prevent damaging or
staining surfaces=
4= Move the On/Auto/Off lever
to "On/Auto" position= The
compressor will start.
5= Run the compressor for 15
minutes= Make sure the drain
valve is open and there is
minimal air pressure build-up in
tank=
A09710 14-ENG

6. After 15 minutes, close the drain
valve (clockwise). The air receiver
wilI fill to "cut-out" pressure and
the motor will stop.
The compressor is now ready for use.
Before Each Start=Up:
1. Place On/Auto/Off lever to "Off".
2. Pu!I regulator knob out, turn
counterclockwise until it stops.
Push knob in to lock in place.
3. Attach hose and accessories.
NOTE: The hose or accessory
wilI require a quick connect ptug
if the air outlet is equipped with a
quick connect.
pressure causes a hazardous risk of
bursting, Check the manufacturer's
maximum pressure rating for air
roomsand accessories, The reguJator
out_et pressure must never exceed
the maximum pressure rating,
Bow to Start:
1. Turn the On/Auto/Off lever
to "On/Auto" and allow tank
pressure to build. Motor will
stop when tank pressure reaches
"cut-out" pressure.
2. PulI the regulator knob out
and turn clockwise to increase
pressure. When the desired
pressure is reached push knob in
to Iock in place.
NOTE: Always operate the air
compressor in welI-ventilated areas
free of gasoline or other combustible
vapors. If the compressor is being
used to operate a sprayer DO NOT
place near the spray area.
The compressor is ready for use.
15-ENG A09710

Customer Responsibilities Before Daily
or after Every Every
each each 40 100 Yearly
use use hours qours
Check Safety Valve @
Drain Tank @
Air Filter @1 Q
Air compressor pump intake
and exhaust valves @
1- more frequent in dusty or humid conditions
cycles automatically when power
is on, When servicing, you may
be exposed to voltage sources,
compressed air, or moving parts,
Before servicing unit unpmug or
disconnect electricam supply to
the air compressor, b_eed tank
of pressure, and allow the air
compressor to cool,
To ensure efficient operation and
longer life of the air compressor
outfit, a routine maintenance
schedule should be prepared
and followed. The above routine
maintenance schedule is geared
to an outfit in a normal working
environment operating on a
dally basis. If necessary, the
schedule should be modified to
suit the conditions under which
your compressor is used. The
modifications will depend upon the
hours of operation and the working
environment. Compressor outfits
in an extremely dirty and/or hostile
environment wil! require a greater
frequency of all maintenance checks.
NOTE: See "Operation" section for
the location of controls.
To Check Safety Valve
does not work properly, over-
pressurization may occur, causing
air tank rupture or an explosion,
1. Before starting compressor, pull
the ring on the safety valve to
make sure that the safety valve
operates freely. If the valve
is stuck or does not operate
smoothly, it must be replaced
with the same type of valve.
To Drain Tank
1. Set the On/Auto/Off lever to "Off"
and unplug unit.
2. Pull the regulator knob out and
turn counterclockwise to set the
outlet pressure to zero.
3. Remove the air tool or
accessory.
4. Pull ring on safety valve allowing
air to bleed from the tank until
tank pressure is approximately
20 psi. Release safety valve ring.
5. Drain water from air tank by
opening drain valve (counter-
clockwise) on bottom of tank.
condense in the air tank, If not
drained, water will corrode and
weaken the air tank causing a risk
of air tank rupture,
A09710 16- ENG

6. After the water has been drained,
close the drain valve (clockwise).
The air compressor can now be
stored.
NOTE: If drain valve is plugged,
release all air pressure. The valve
can then be removed, cleaned, the
reinstalled.
Air Filter Inspection and
Replacement
and cylinder smeeve are very hot,
Do not touch, AHow compressor to
cool prior to servicing.
A dirty air filter will not allow the
compressor to operate at full
capacity. Keep the air filter clean at
a!l times.
1. Remove the air filter cover.
2. Remove the air filter and make
sure it is clean.
IMPORTANT: Do not operate
the compressor with the air filter
removed.
3. If dirty, rinse air filter with warm
water and squeeze dry.
4. Replace air filter and air filter
cover
NOTE: If the air filter is extremely
dirty it will need to be replaced. Refer
to the "Repair Parts" for the correct
part number.
Air Compressor Pump Intake
and Exhaust Valves
Once a year have a Trained Service
Technician check the air compressor
pump intake and exhaust valves.
Motor
The motor has an automatic reset
thermal overload protector. If the
motor overheats for any reason, the
overload protector will shut off the
motor. The motor must be allowed
to cool down before restarting. The
compressor wi!l automatically restart
after the motor cools.
if the overload protector shuts the
motor off frequently, check for a
possible voltage problem. Low
voltage can also be suspected when:
1. The motor does not get up to fuji
power or speed.
2. Fuses blow out when starting
the motoK lights dim and remain
dim when motor is started and is
running.
17-ENG A09710

ALL MAINTENANCE AND REPAIR
OPERATIONS NOT LISTED MUST
BE PERFORMED BY A TRAINED
SERVICE TECHNICIAN.
cycles automatically when power
is on. When servicing, you may
be exposed to voltage sources,
compressed air, or moving parts.
Before servicing unit unplug or
disconnect emectdcamsupply to
the air compressor, b_eed tank
of pressure, and allow the air
compressor to cool
To RepJace or CJean Check
VaJve
1. Release all air pressure from air
tank. See "To Drain Tank" in the
"Maintenance" section.
2. Set the On/Auto/Off lever to "Off"
and unpiug unit.
3. Using a phillips screwdriver,
remove the air filter cover.
4. Remove the rear shrouds using
T-20 torx wrench.
5. Using an adjustable wrench,
loosen outlet tube nut at air tank.
Carefuily move outlet tube away
from check valve.
6. Using an adjustable wrench
loosen pressure relief tube nut at
air tank. Carefully move pressure
relief tube away from check
valve.
7. Unscrew the check valve (turn
counterclockwise) using a 7/8"
open end wrench. Note the
orientation for reassembly.
8. Using a screwdriver, carefully
push the valve disc up and
down. NOTE: The valve disc
should move freely up and down
on a spring which hoids the valve
disc in the closed position; if
not the check valve needs to be
cleaned or replaced.
position
nothing is _ ....
visibBe.
mnclosed position
disc is visibme.
9. Clean or replace the check
valve. A solvent, such as paint or
varnish remover can be used to
clean the check valve.
10. Apply sealant to the check valve
threads. Reinstall the check valve
(turn clockwise).
11. Replace the pressure release
tube. Tighten nut.
12. Replace the outlet tube and
tighten nut.
13. Replace the shroud and air filter.
14. Perform the Break-in Procedure.
See "Break-in Procedure" in the
"Operation" section.
A09710 18- ENG

To Replace Regulator
1= Release alI air pressure from air
tank, See "To Drain Tank" in the
"Maintenance" section=
2. Set the On/Auto/Off lever to "Off"
and unplug unit.
3. Remove the outlet pressure
gauge and quick connect (if
equipped) from the regulator.
4. Remove the regulator.
6. Assemble the regulator and
orient as shown.
NOTE: Arrow indicates flow of
air. Make sure it is pointing in the
direction of air flow.
Apply pipe sealant tape to the
nipple. 7=
8=
Reapply pipe sealant to outlet
pressure gauge and quick
connect.
Reassemble outlet pressure
gauge and quick connect. Orient
outlet pressure gauge to read
correctly. Tighten quick connect
with wrench.
19= ENG A09710

Before you store the air compressor,
make sure you do the following:
1. Review the "Maintenance"
section on the preceding
pages and perform scheduled
maintenance as necessary.
2. Set the On/Auto/Off Iever to "Off"
and unptug unit.
3. Turn the regulator
counterclockwise and set the
outlet pressure to zero.
4. Remove the air toot or accessory.
5. PulI ring on safety valve alIowing
air to bleed from the tank untiI
tank pressure is approximately
20 psi. Release safety valve ring.
6. Drain water from air tank by
opening drain valve on bottom of
tank.
_Risk of Bursting,
Water will
condense in the air tank, if not
drained, water will corrode and
weaken the air tank causing a risk
of air tank rupture.
7. After the water has been
drained, close the drain or drain
vaIve.
NOTE: If drain valve is plugged,
release aII air pressure. The valve
can then be removed, cleaned, and
reinstalIed.
8. Protect the electrical cord and
air hose from damage (such as
being stepped on or run over).
Wind them Ioosely around
the compressor handte, df so
equipped)
9. Store the air compressor in a
clean and dry location.
A09710 20-ENG
