Owner's Manuam
OiJ Lubricated
SingJe Stage
HorizontaJ PortabJe
AIR COMPRESSOR
o
o
o
o
o
o
o
o
Safety Guidelines
Assembmy
Operation
Maintenance
Service and Adjustments
Repair Parts
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
visit our craftsman website: www.sears.com/craftsman
A09713 Rev.0 1/3/0._

WARRANTY ................................................ 2
SPECiFiCATiON CHART ..................................... 3
SAFETY GUiDELiNES ...................................... 3-8
GLOSSARY ................................................ 9
ACCESSORIES ............................................ 9
DUTY CYCLE .............................................. 9
ASSEMBLY ............................................ 10-12
iNSTALLATiON ......................................... 12-13
OPERATION ........................................... 14-16
MAINTENANCE ......................................... 17-19
SERVICE AND ADJUSTMENTS ............................ 20-22
STORAGE ................................................ 23
TROUBLESHOOTING GUIDE ............................. 24-27
REPAIR PARTS ......................................... 28-31
ESPANOL .............................................. 32-57
NOTES .................................................. 58
REPAIR PROTECTION AGREEMENTS ......................... 59
NOW TO ORDER REPAIR PARTS ...................... Back Cover
FULL ONE YEAR WARRANTY AIR COMPRESSOR
Hfthis CRAFTSMAN Air Compressor fails due to a defect in materiaJ or
workmanship within one year from the date of purchase, Sears will at
its option repair or replace it free of charge. Contact your nearest Sears
Service Center (1-800-4-MY-HOME ®) to arrange for repair, or return the Air
Compressor to the place of purchase for replacement.
If this Air Compressor is used for commercia! or rental purposes, this warranty
applies for only ninety days from the date of purchase.
This warranty gives you specific legal rights and you may have other rights
which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Noffman Estates, IL 60179
A09713 2= ENG

Modet No, 919o195411
Running HP 2,0
Bore 2.875"
Stroke 2.0"
Voitage-Singte Phase 120/240
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity 25 gallons
Approximate Cut-in Pressure 120
Approximate Cut-out Pressure 150
SCFM @ 40 psig 8,6
SCFM @ 90 psig 6,8
Refer to Glossary for abbreviations.
H
This manual contains information that is important for you to know and
understand. This information relates to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROBLEMS. To help you recognize this
information, we use the symbols below= Please read the manual and pay
attention to these sections.
Indicates an
imminently hazardous
situation which, if not avoided, will
result in death or serious in'aLlOt.
Indicates a potentially
hazardous situation
which, if not avoided, coamd result in
death or serious injury..
Indicates a potentially
hazardous situation
which, if not avoided, _ result in
minor or moderate in'ujAry.
Used without the
safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in _ge=
n
Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities contains chemicals known (to the State of
California) to cause cancer, birth defects or other reproductive harm. Some example of
these chemicals are:
_' lead from lead-based paints
_' crystalline silica from bricks and cement and other masonry products
® arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: work in a well ventilated area, and work
with approved safety equipment, always wear MSHA/NIOSH approved, properly fitting
face mask or respirator when using such tools.
When using air tools, basic safety precautions should always be followed to reduce the
risk of personal injury.
3-ENG A09713

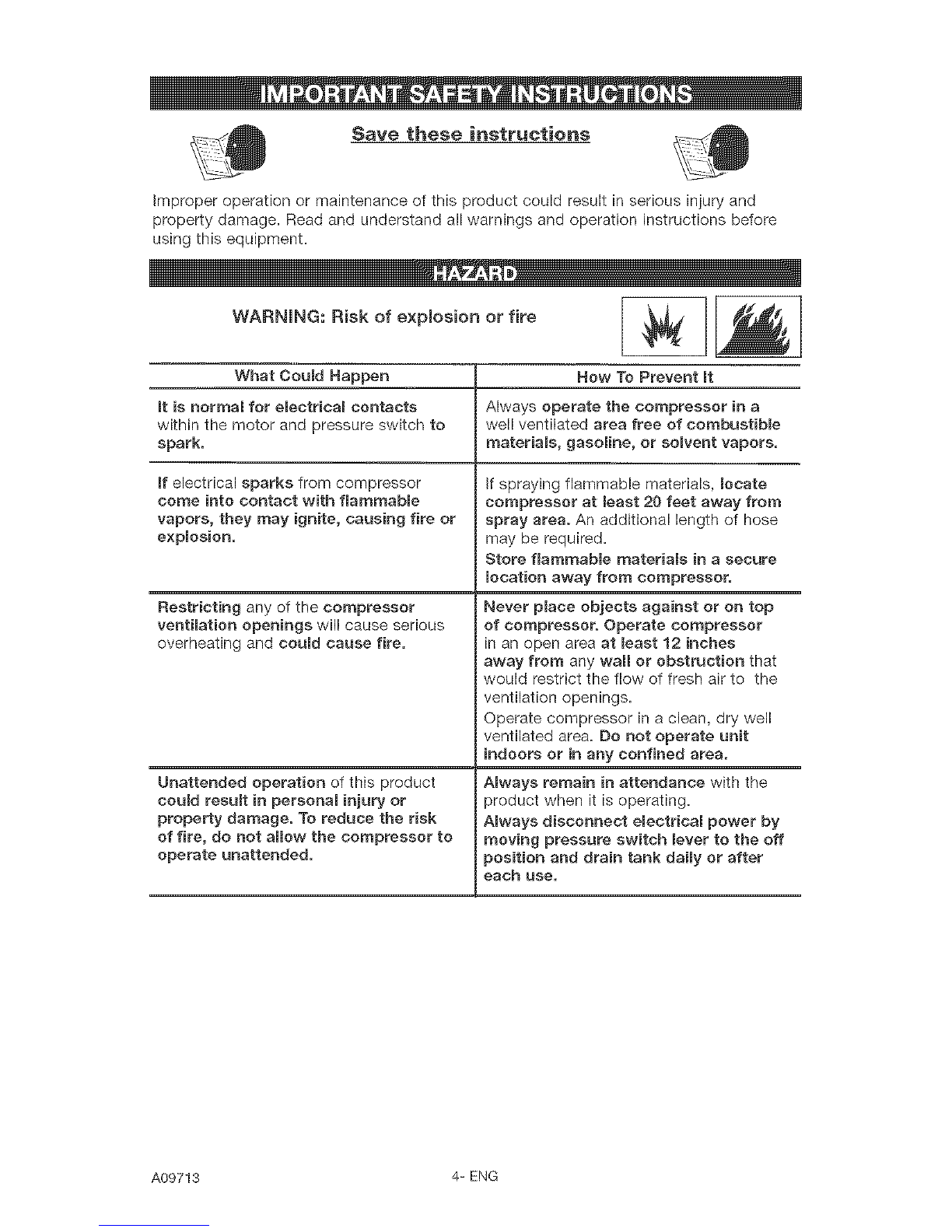

Save these instructions
improper operation or maintenance of this product could result in serious injury and
property damage. Read and understand all warnings and operation instructions before
using this equipment.
WARNING: Risk of explosion or fire _,i
What Could Happen
mtis normaB for eBectricam contacts
within the motor and pressure switch to
spark.
mfelectrical sparks from compressor
come into contact with flammable
vapors, they may ignite, causing fire or
explosion.
Restricting any of the compressor
ventilation openings will cause serious
overheating and could cause fire.
Unattended operation of this product
could result in personal injury or
property damage. To reduce the risk
of fire, do not allow the compressor to
operate unattended.
How To Prevent mt
Always operate the compressor in a
well ventilated area free of combustible
materiams, gasoline, or somvent vapors.
if spraying flammable materials, locate
compressor at meast 20 feet away from
spray area. An additional length of hose
may be required.
Store flammable materials in a secure
location away from compressor.
Never place objects against or on top
of compressor. Operate compressor
in an open area at least 12 inches
away from any wall or obstruction that
would restrict the flow of fresh air to the
ventilation openings.
Operate compressor in a clean, dry well
ventilated area. Do not operate unit
indoors or in any confined area.
ABways remain in attendance with the
product when it is operating.
ABways disconnect eBectrical power by
moving pressure switch lever to the off
position and drain tank daily or after
each use,
A09713 4= ENG

WARNING: Risk of Bursting _1
Air Tank: The following conditions could lead to a weakening of the tank, and result
in a violent tank explosion and could cause property damage or serious injury.
What Could NaoDen
Failure to properRy drain condensed
water from tank, causing rust and
thinning of the steel tank.
Modifications or attempted repairs to
the tank.
Unauthorized modifications to the
unRoader valve, safety vaBve, or any
other components which control tank
pressure,
Excessive vibration can weaken the
air tank and cause rupture or
explosion
ATTACHMENTS & ACCESSORIES:
Exceeding the pressure rating of
air toeBs, spray guns, air operated
accessories, tires, and other inflatables
can cause them to explode or fly apart,
and could result in serious injury.
Now To Prevent It
Drain tank daily or after each use.
If tank develops a leak, replace it
immediately with a new tank or replace
the entire compressoc
Never drill into, weld, or make any
modifications to the tank or its
attachments.
The tank is designed to withstand specific
operating pressures. Never make
adjustments or parts substitutions
to amter the factory set operating
pressures,
For essential control of air pressure,
you must install a pressure regulator
and pressure gauge to the air outBet
(if not equipped) of your compressor.
Follow the equipment manufacturers
recommendation and never exceed the
maximum allowable pressure rating of
attachments. Never use compressor
to inflate small low pressure objects
such as children's toys, footballs,
basketballs, etc.
WARNING: Risk from Flying Objects
What Coumd Happen Now To Prevent It
The compressed air stream can cause
soft tissue damage to exposed skin
and can propel dirt, chips, loose
particmes, and small objects at high
speed, resulting in property damage or
personal injury.
Always wear ANSI Z87.1 approved safety
gBasses with side shields when using the
compressor
Never point any nozzle or sprayer
toward any part of the body or at other
people or animals.
Always turn the compressor off and
bleed pressure from the air hose and tank
before attempting maintenance, attaching
tools or accessories.
5-ENG A09713

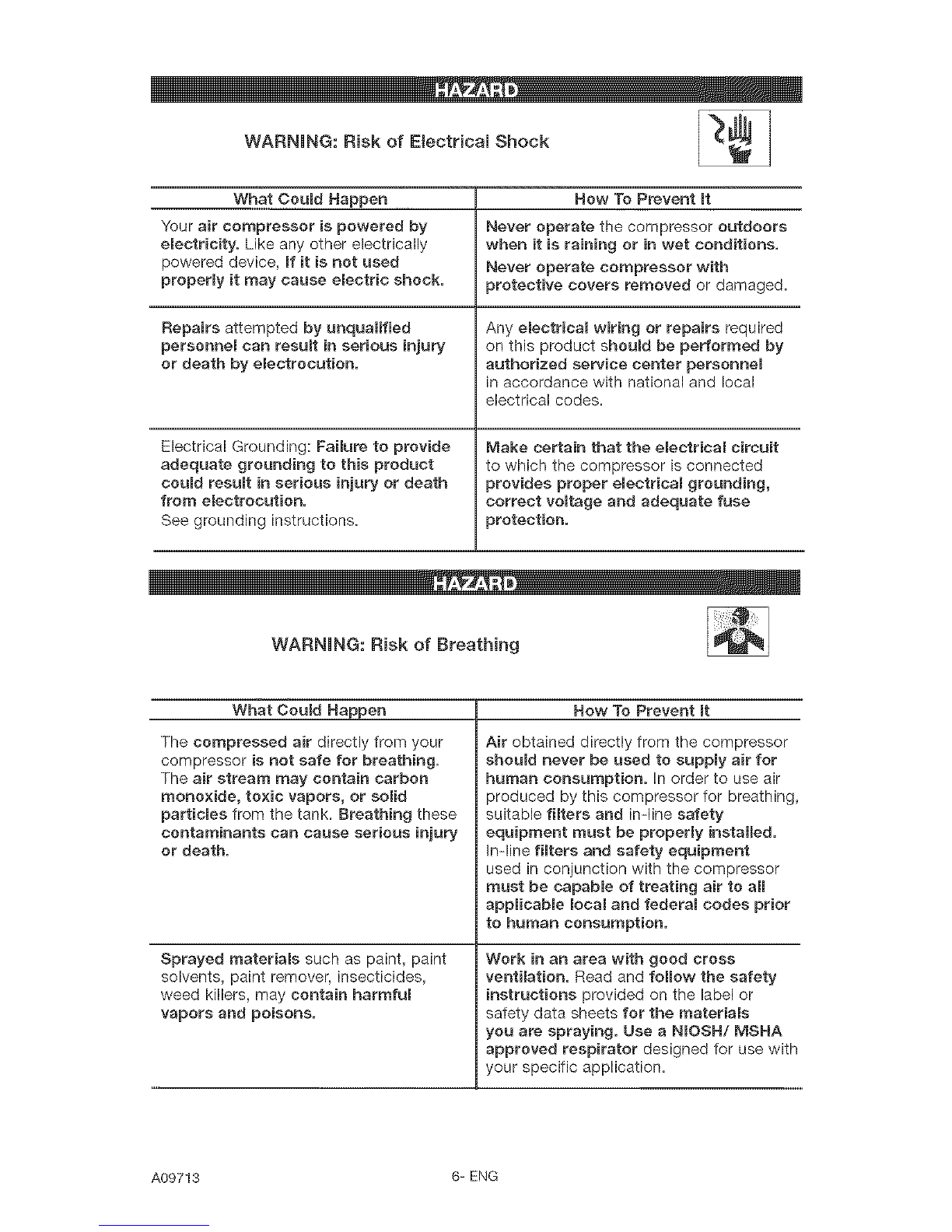

WARNING: Risk of Electrical Shock
What Ceumd Happen
Your air compressor is powered by
electricity. Like any other electrically
powered device, If it is not used
properly it may cause electric shock.
Repairs attempted by unqualified
personnel can result in serious injury
or death by electrocution.
Electrical Grounding: Failure to provide
adequate grounding to this product
could result in serious injury or death
from electrocution.
See grounding instructions.
Now To Prevent mt
Never operate the compressor outdoors
when it is raining or in wet conditions.
Never operate compressor with
protective covers removed or damaged.
Any emectrical wiring or repairs required
on this product should be performed by
authorized service center personneB
in accordance with national and local
electrical codes.
Make certain that the electrical circuit
to which the compressor is connected
provides proper eBectrical grounding,
correct voltage and adequate fuse
protection.
WARNING: Risk of Breathing
What Could
The compressed air directly from your
compressor is not safe for breathing.
The air stream may contain carbon
monoxide, toxic vapors, or solid
particles from the tank. Breathing these
contaminants can cause serious injury
or death.
Sprayed materials such as paint, paint
solvents, paint remover, insecticides,
weed killers, may contain harmful
vapors and poisons.
Now To Prevent It
Air obtained directly from the compressor
should never be used to supply air for
human consumption. In order to use air
_roduced by this compressor for breathing,
suitable filters and in-line safety'
equipment must be property installed.
In-line filters and safety equipment
used in conjunction with the compressor
must be capable of treating air to aH
applicable local and federal codes prior
to human consumption.
Work in an area with good cross
ventilation. Read and follow the safety
instructions provided on the label or
safety data sheets for the materials
you are spraying. Use a NIOSN/MSNA
approved respirator designed for use with
your specific application.
A09713 6-ENG

WARNING: Risk of Burns
What Could Happen
Touching exposed metal such as the
compressor head or outlet tubes, can
result in serious burns.
How To Prevent It
Never touch any exposed met.a[ parts
on compressor during or immediately
after operation. Compressor will remain
hot for several minutes after operation.
Do not reach around protective shrouds
or attempt maintenance until unit has
been allowed to cool
WARNING: Risk from Moving Parts
What Could Happen
Moving parts such as the pulley, flywheel,
and belt can cause serious injury if
they come into contact with you or your
clothing.
Attempting to operate compressor with
damaged or missing parts or attempting
to repair compressor with protective
shrouds removed can expose you to
moving parts and can result in serious
injury.
Never operate the compressor with
guards or covers which are damaged or
removed.
Any repairs required on this product
should be performed by authorized
service center personnel
WARNING: Risk of Failing
What Could Hap.pen
A portable compressor can fail from
a table, workbench, or roof causing
damage to the compressor and could
result in serious injury or death to the
operator.
How To Prevent It
Always operate compressor in a stable
secure position to prevent accidental
movement of the unit. Never operate
compressor on a roof or other eRevated
position. Use additionam air hose to
reach high mocations.
7-ENG A09713

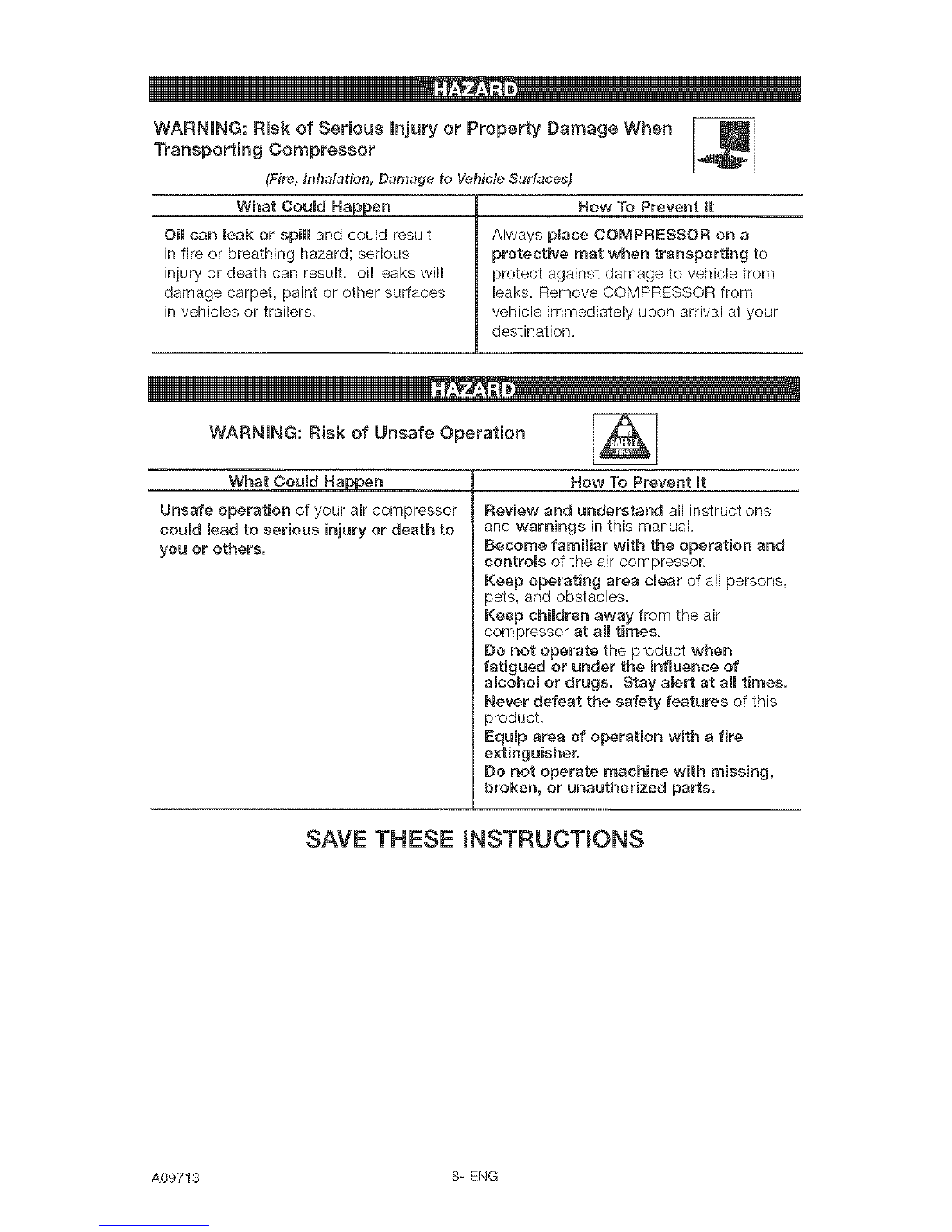

WARNmNG: Risk of Serious mnjury or Property Damage When _]
Transporting Compressor
(Fire, Inhalation, Damage to Vehicle Surfaces)
What Could Happen
Oil can Reak or spill and could result
in fire or breathing hazard; serious
injury or death can result, oil leaks will
damage carpet, paint or other surfaces
in vehicles or trailers.
How To Prevent it
Always place COMPRESSOR on a
protective mat when transporting to
protect against damage to vehicle from
leaks. Remove COMPRESSOR from
vehicle immediately upon arrival at your
destination.
'm_D
WARNING: Risk of Unsafe Operation
What Could Happen ........
Unsafe operation of your air compressor
could lead to serious injury or death to
you or others.
How To Prevent mt
Review and understand all instructions
and warnings in this manual.
Become familiar with the operation and
controBs of the air compressor.
Keep operating area dear of all persons,
pets, and obstacles.
Keep chiRdren away from the air
compressor at aH times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at aH times.
Never defeat the safety features of this
product.
Equip area of operation with a fire
extinguisher.
Do not operate machine with missing,
broken, or unauthorized parts.
SAVE THESE mNSTRUCTmONS
A09713 8- ENG

Become familiar with these terms When the tank pressure drops to a
before operating the unit. certain low level the motor will restart
CFM: Cubic feet per minute, automatically. The low pressure
BCFM: Standard cubic feet per at which the motor automatically
minute; a unit of measure of air restarts is called "cut-in" pressure.
delivery. Cut-Out Pressure: When an air
PSlG: Pounds per square inch compressor is turned on and begins
gauge; a unit of measure of pressure, to run, air pressure in the air tank
begins to build. It builds to a certain
Code Certification: Products that high pressure before the motor
bear one or more of the following automatically shuts off, protecting
marks: UL, CUL, ETL, CETL, have your air tank from pressure higher
been evaluated by OSHA certified than its capacity. The high pressure
independent safety laboratories and at which the motor shuts off is called
meet the applicable Underwriters "cut-out" pressure.
Laboratories Standards for Safety. Branch Circuit: Circuit carrying
Cut-In Pressure: While the motor electricity from electrical panel to
is off, air tank pressure drops as outlet.
you continue to use your accessory.
This unit is capable of powering the following Accessories. The accessories are
available through the current Power and Hand Tool Catalog or full-line Sears
stores.
Accessories
In Line Filter
Tire Air Chuck
Quick Connector Sets (various
sizes)
o Air Pressure Regulators
® Oil Fog Lubricators
® Air Hose:l/4", 3/8" or 1/2" inside
diameter in various lengths
Refer to the selection chart located
on the unit to select the tools this unit
is capable of powering.
This air compressor pump is
capable of running continuously.
However, to prolong the life of your
air compressor, it is recommended
that a 50%-75% average duty
cycle be maintained; that is, the air
compressor pump should not run
more than 30-45 minutes in any given
hour.
9-ENG A09713

Contents of Carton
1 - Air Compressor
2- Wheels
2 - Shoulder Bolts, 3/8-16
2 - Nex Nuts, 3/8-16
1- Handle
1 - Handle Grip
2 - Cap Screws
2 - 1/4-20 Nex Nuts
2 - Retainer Clips
2 - Flat Washers
2 - Rubber Bumpers
2 - Screws, 1/4-20 x 3/4
Tools Required for Assembly
1 - 9/16" socket or open end wrench
1 - 1/2" socket or open end wrench
3.
Open End
Of Handle
Slowly push the open ends of
the handle onto both tabs at the
same time. Continue pushing the
handle into the saddle until the
holes on the side of the saddle
and handte are in line.
Remove unit from carton and discard
all packaging. NOTE: Save all parts
bags.
To Install Handle
The wheels and
handme do not
provide adequate clearance,
stability, or support for pulling the
unit up and down stairs or steps,
The unit must be mifted or pushed
up a ramp, Do not miftthe unit by
the manifomd assembly; the unit
coumd be damaged,
1. To make installation easier,
submerge handle grip into warm
soapy water. Remove handle
grip from soapy water and slide
onto handle.
A09713
Insert the open ends of the
handle under the saddle. Before
attaching handIe, you may have
to pul! the open ends of the
handle apart so they fit tightly
against the side of the saddle.
Looking in from the open end of
the saddle, position the handle
toward the two bent tabs, on the
inside walls of the saddle. 10- ENG

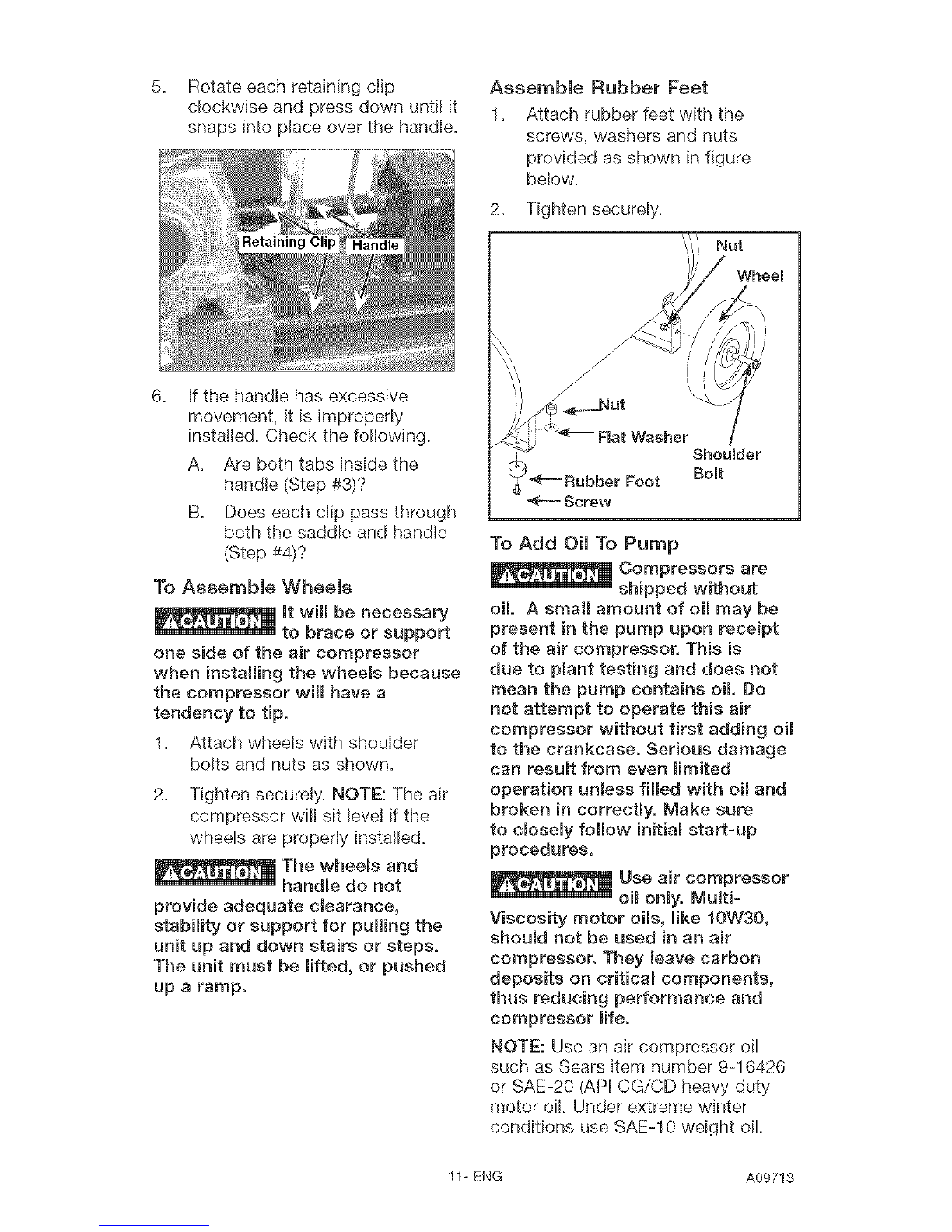

4. Guide the straight end of each
retaining clip through the saddIe
hole and both handle holes.

5. Rotateeachretainingclip
clockwiseandpressdownuntilit
snapsintoplaceoverthehandle.
Ifthehandlehasexcessive
movement,itisimproperly
installed.Checkthefollowing.
A. Arebothtabsinsidethe
handle(Step#3)?
B. Doeseachclippassthrough
boththesaddleandhandle
(Step#4)?
ToAssembleWheels
Itwillbenecessary
to braceorsupport
onesideoftheaircompressor
wheninstallingthewheelsbecause
thecompressorwillhavea
tendencytotip,
1. Attachwheelswithshoulder
boltsandnutsasshown.
2. Tightensecurely.NOTE:Theair
compressorwillsitlevelifthe
wheelsareproperlyinstalled.
Thewheeisand
handmedonot
provideadequateclearance,
stabilityorsupportforpullingthe
unitupanddownstairsorsteps,
Theunitmustbelifted, or pushed
up a ramp,
Assemble Rubber Feet
1. Attach rubber feet with the
screws, washers and nuts
provided as shown in figure
below.
2. Tighten securely.
TT1I Nut
WheeR
/
Shoulder
Bolt
To Add Oil To Pump
_ Compressors are
shipped without
oil, A small amount of oil may be
present in the pump upon receipt
of the air compressor. This is
due to plant testing and does not
mean the pump contains oil Do
not attempt to operate this air
compressor without first adding oil
to the crankcase, Serious damage
can result from even Bimited
operation unBess filled with oil and
broken in correctly. Make sure
to closeBy follow initial start-up
procedures,
Use air compressor
oiBonBy, Mu_ti=
Viscosity motor oils, like lOW30,
should not be used in an air
compressor. They meavecarbon
deposits on criticaB components,
thus reducing performance and
compressor mife,
NOTE: Use an air compressor oil
such as Sears item number 9-16426
or SAE-20 (API CG/CD heavy duty
motor oil. Under extreme winter
conditions use SAE-10 weight oil.
11-ENG A09713

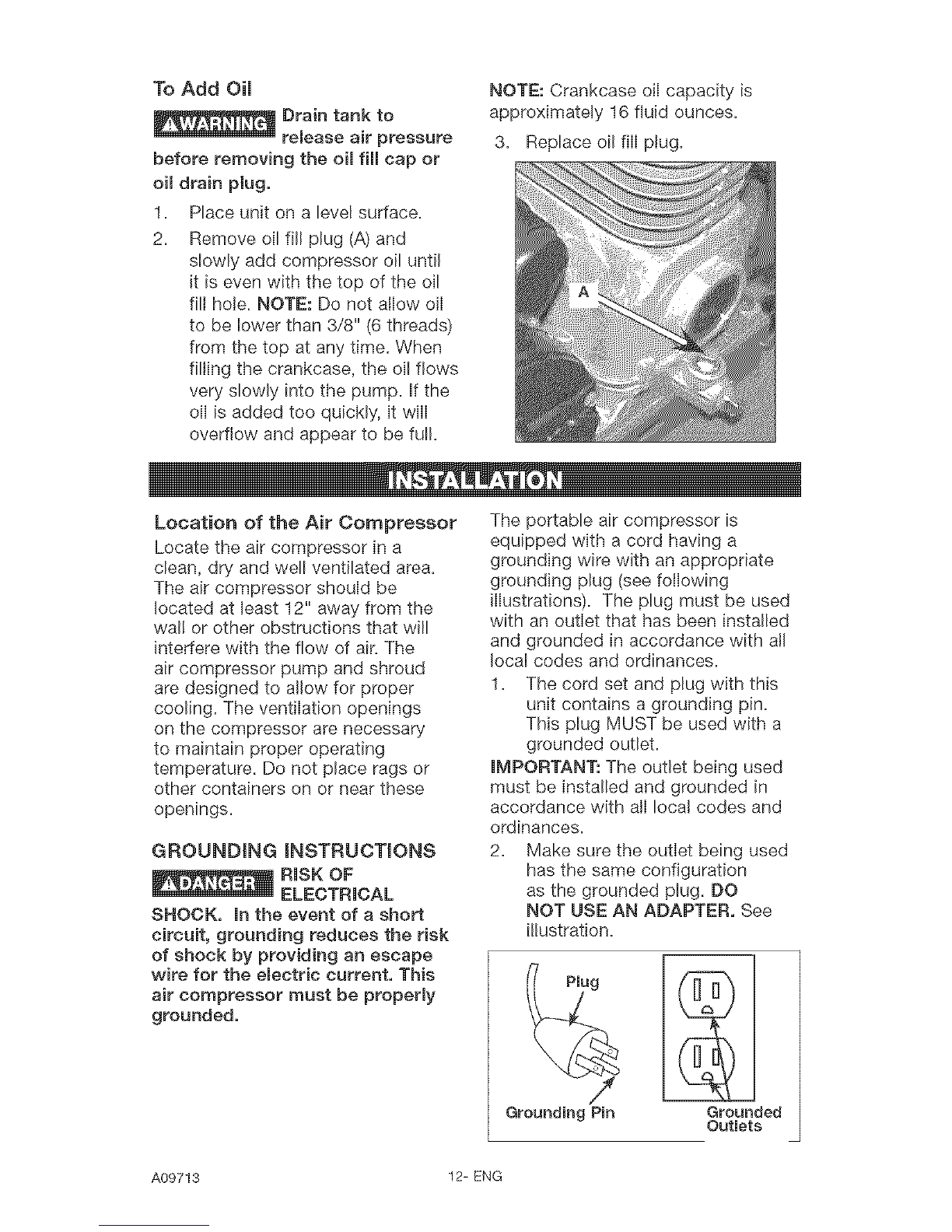

To Add Oil
Drain tank to
remease air pressure
before removing the o{I fill cap or
oil drain plug.
1. Place unit on a level surface.
2. Remove oil fill plug (A) and
slowly add compressor oil until
it is even with the top of the oil
fill hole. NOTE: Do not allow oil
to be lower than 3/8" (6 threads)
from the top at any time. When
filling the crankcase, the oil flows
very slowly into the pump. If the
oil is added too quickly, it will
overflow and appear to be full.
NOTE: Crankcase oil capacity is
approximately 16 fluid ounces.
3. Replace oil fill plug.
Location of the Air Compressor
Locate the air compressor in a
clean, dry and well ventilated area.
The air compressor should be
located at least 12" away from the
wal! or other obstructions that will
interfere with the flow of air. The
air compressor pump and shroud
are designed to allow for proper
cooling. The ventilation openings
on the compressor are necessary
to maintain proper operating
temperature. Do not place rags or
other containers on or near these
openings.
GROUNDING INSTRUCTIONS
RISK OF
ELECTRICAL
SHOCK. In the event of a short
circuit, grounding reduces the r{sk
of shock by providing an escape
wire for the electric current. This
air compressor must be properly
grounded.
The portable air compressor is
equipped with a cord having a
grounding wire with an appropriate
grounding plug (see foiIowing
iIIustrations). The plug must be used
with an outlet that has been installed
and grounded in accordance with all
local codes and ordinances.
1. The cord set and plug with this
unit contains a grounding pin.
This plug MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used
must be installed and grounded in
accordance with all local codes and
ordinances.
2. Make sure the outlet being used
has the same configuration
as the grounded plug. DO
NOT USE AN ADAPTER. See
illustration.
Grounded
Outlets
A09713 12-ENG

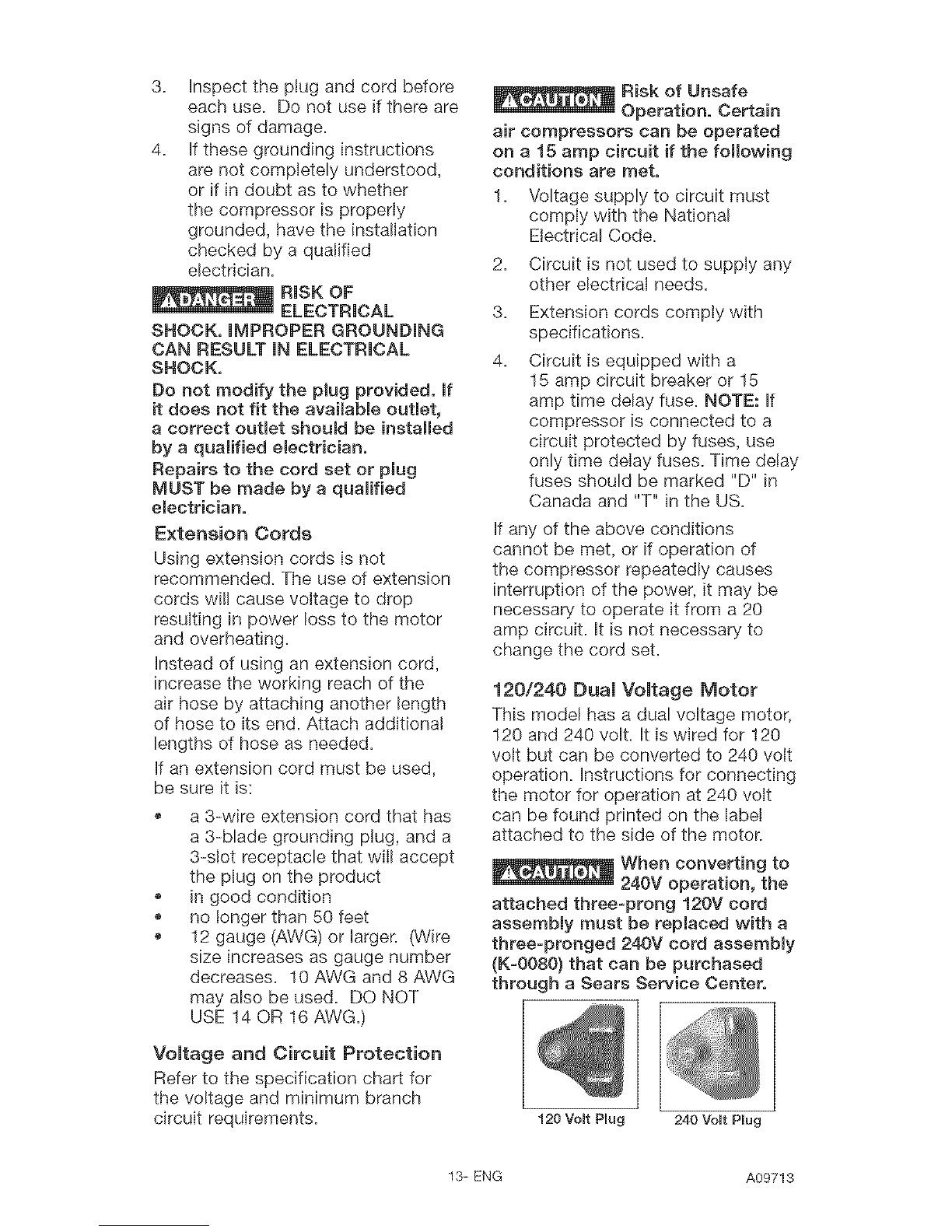

3. Hnspect the plug and cord before
each use. Do not use if there are
signs of damage.
4. Hfthese grounding instructions
are not completely understood,
or if in doubt as to whether
the compressor is properly
grounded, have the installation
checked by a qualified
electrician.
RISK OF
ELECTRICAL
SHOCK, IMPROPER GROUNDING
CAN RESULT IN ELECTRICAL
SHOCK,
Do not modify the plug provided, If
it does not fit the avaimable outlet,
a correct outmet should be installed
by a qualified electrician.
Repairs to the cord set or plug
MUST be made by a qualified
emectr{cian.
Extension Cords
Using extension cords is not
recommended. The use of extension
cords will cause voltage to drop
resulting in power loss to the motor
and overheating.
Hnstead of using an extension cord,
increase the working reach of the
air hose by attaching another length
of hose to its end. Attach additiona!
lengths of hose as needed.
Hfan extension cord must be used,
be sure it is:
a 3-wire extension cord that has
a 3-blade grounding plug, and a
3-slot receptacle that wilI accept
the plug on the product
in good condition
no longer than 50 feet
12 gauge (AWG) or larger. (Wire
size increases as gauge number
decreases. 10 AWG and 8 AWG
may also be used. DO NOT
USE 14 OR 16 AWG.)
Voltage and Circuit Protection
Refer to the specification chart for
the voltage and minimum branch
circuit requirements.
air compressors can be operated
on a 15 amp circuit if the following
conditions are met.
1. Voltage supply to circuit must
comply with the National
Electrical Code.
2. Circuit is not used to suppiy any
other electdcaI needs.
3.
4.
Extension cords comply with
specifications.
Circuit is equipped with a
15 amp circuit breaker or 15
amp time delay fuse. NOTE: If
compressor is connected to a
circuit protected by fuses, use
only time deIay fuses. Time delay
fuses should be marked "D" in
Canada and "T" in the US.
If any of the above conditions
cannot be met, or if operation of
the compressor repeatedly causes
interruption of the power, it may be
necessary to operate it from a 20
amp circuit. It is not necessary to
change the cord set.
120/240 Dual Voltage Motor
This model has a dual voltage motor,
120 and 240 volt. It is wired for 120
voit but can be converted to 240 volt
operation. Instructions for connecting
the motor for operation at 240 volt
can be found printed on the Iabel
attached to the side of the motor.
When converting to
240V operation, the
attached three-prong 120V cord
assembly must be repmaced with a
three-pronged 240V cord assembmy
(K-O080) that can be purchased
through a Sears Service Center.
120 Vo{t PHug 240 Voff Plug
13-ENG A09713

Know "four Air Compressor
READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the !ocation of various controls and adjustments. Save this manual for future
reference. On/Auto/Off
Switch
On/Auto/Off Switch: Turn this switch
"On/Auto" to provide automatic
power to the pressure switch and
"Off" to remove power at the end of
each use.
Pressure Switch: The pressure
switch automatically starts the
motor when the air tank pressure
drops below the factory set "cut-in"
pressure. The pressure switch stops
the motor when the air tank pressure
reaches the factory set "cut-out"
pressure.
Safety Valve: if the pressure switch
does not shut off the air compressor
at its "cut-out" pressure setting, the
safety vaIve wil! protect against high
pressure by "popping out" at its
factory set pressure (slightly higher
than the pressure switch "cut-out"
setting).
Outlet Pressure Gauge: The outlet
pressure gauge indicates the air
pressure available at the outlet side
of the regulaton This pressure is
controlled by the regulator and is
always less than or equal to the tank
pressure.
A09713 14-ENG
Tank Pressure Gauge: The tank
pressure gauge indicates the reserve
air pressure in the tank.
Regulator: Controis the air pressure
shown on the outlet pressure
gauge. Pull the knob out and turn
cIockwise to increase pressure
and countercIockwise to decrease
pressure. When the desired pressure
is reached push knob in to lock in
place.
Universal Quick=Connect Body:
The universal quick-connect body
accepts the three most popular styies
of quick-connect plugs: industrial,
automotive (Tru-fiate), and ARC. One
hand push-to-connect operation
makes connections simple and easy.
Brain Vamve:The drain valve is
located at the base of the air tank
and is used to drain condensation at
the end of each use.
Valve

Cooling System (not shown): This
compressor contains an advanced
design cooling system. At the heart of
this cooling system is an engineered
fan. It is perfectly normal for this fan
to blow air through the vent hobs
in large amounts. You know that the
cooling system is working when air is
being expelled.
Air Compressor Pump (not shown):
Compresses air into the air tank.
Working air is not available until the
compressor has raised the air tank
pressure above that required at the
air outlet.
Check Valve: When the air
compressor is operating, the check
valve is "open", allowing compressed
air to enter the air tank. When the
air compressor reaches "cut-out"
pressure, the check valve "c!oses",
allowing air pressure to remain inside
the air tank.
Check Valve
Pressure Release Valve: The
pressure release valve, located on
the side of the pressure switch, is
designed to automatically release
compressed air from the compressor
head and the outlet tube when the
air compressor reaches "cut-out"
pressure or is shut off. The pressure
release valve allows the motor to
restart freely. When the motor stops
running, air will be heard escaping
from this valve for a few seconds. No
air should be heard leaking when the
motor is running or after unit reaches
"cut-out" pressure.
Air Intake Filter (not shown) This
filter is designed to clean air coming
into the pump. This filter must
always be clean and ventilation
openings free from obstructions. See
"Maintenance".
Bow to Use "Your Unit
Bow to Stop:
1. Set the On/Auto/Off leverto
"Off".
Before First Start=up
Risk of Unsafe
Operation, Serious
damage may result if the following
break=in instructions are not
emosety foBIowed,
This procedure is required before the
air compressor is put into service and
when the check valve or a complete
compressor pump has been replaced.
Break_in instructions
1. Make sure the On/Auto/Off lever
is in the "Off" position.
NOTE: If quick connect is installed,
pull coupler back until it clicks to
prevent air from escaping through the
quick connect.
2. Plug the power cord into the
correct branch circuit receptacle.
(Refer to "Voltage and Circuit
Protection" paragraph in the
"Installation" section of this
manua!.)
3. Open the drain valve fully
(counterclockwise) to permit
air to escape and prevent air
pressure build-up in the air tank
during the break-in period.
4. Move the On/Auto/Off lever
to "On/Auto" position. The
compressor will start.
5. Run the compressor for 20
minutes. Make sure the drain
valve is open and there is
minimal air pressure build-up in
tank.
15-ENG A09713

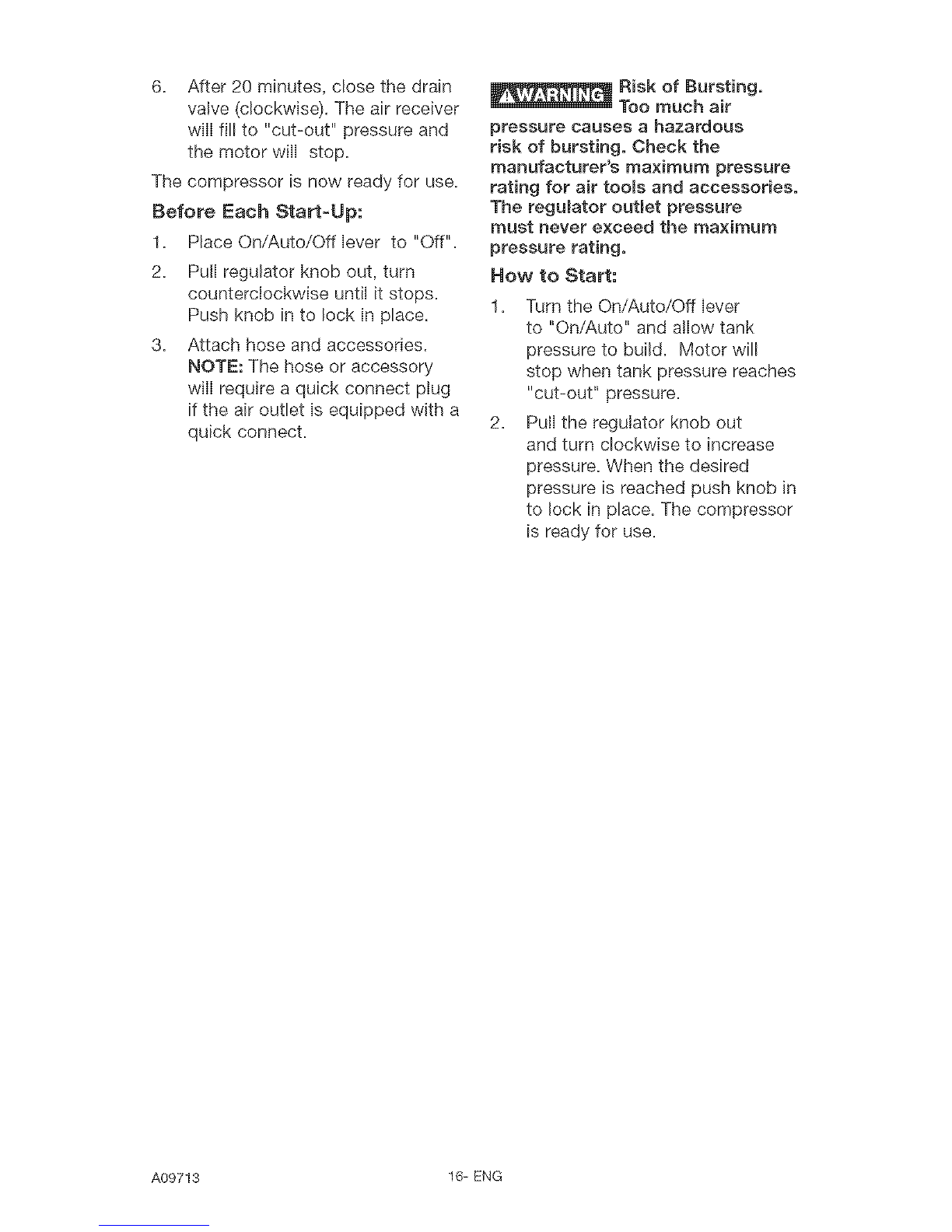

6. After 20 minutes, close the drain
valve (clockwise). The air receiver
wilI fill to "cut-out" pressure and
the motor wilI stop.
The compressor is now ready for use.
Before Each Start-Up:
1. Place On/Auto/Off lever to "Off".
2. Pull regulator knob out, turn
counterclockwise until it stops,
Push knob in to lock in place,
3. Attach hose and accessories,
NOTE: The hose or accessory
will require a quick connect ptug
if the air outlet is equipped with a
quick connect.
Risk of Bursting,
Too much air
pressure causes a hazardous
risk of bursting, Check the
manufacturer's maximum pressure
rating for air tools and accessories,
The reguBator outlet pressure
must never exceed the maximum
pressure rating,
Bow to Start:
1. Turn the On/Auto/Off lever
to "On/Auto" and allow tank
pressure to build. Motor will
stop when tank pressure reaches
"cut-out" pressure.
2. PulI the regulator knob out
and turn clockwise to increase
pressure. When the desired
pressure is reached push knob in
to lock in place. The compressor
is ready for use.
A09713 16-ENG

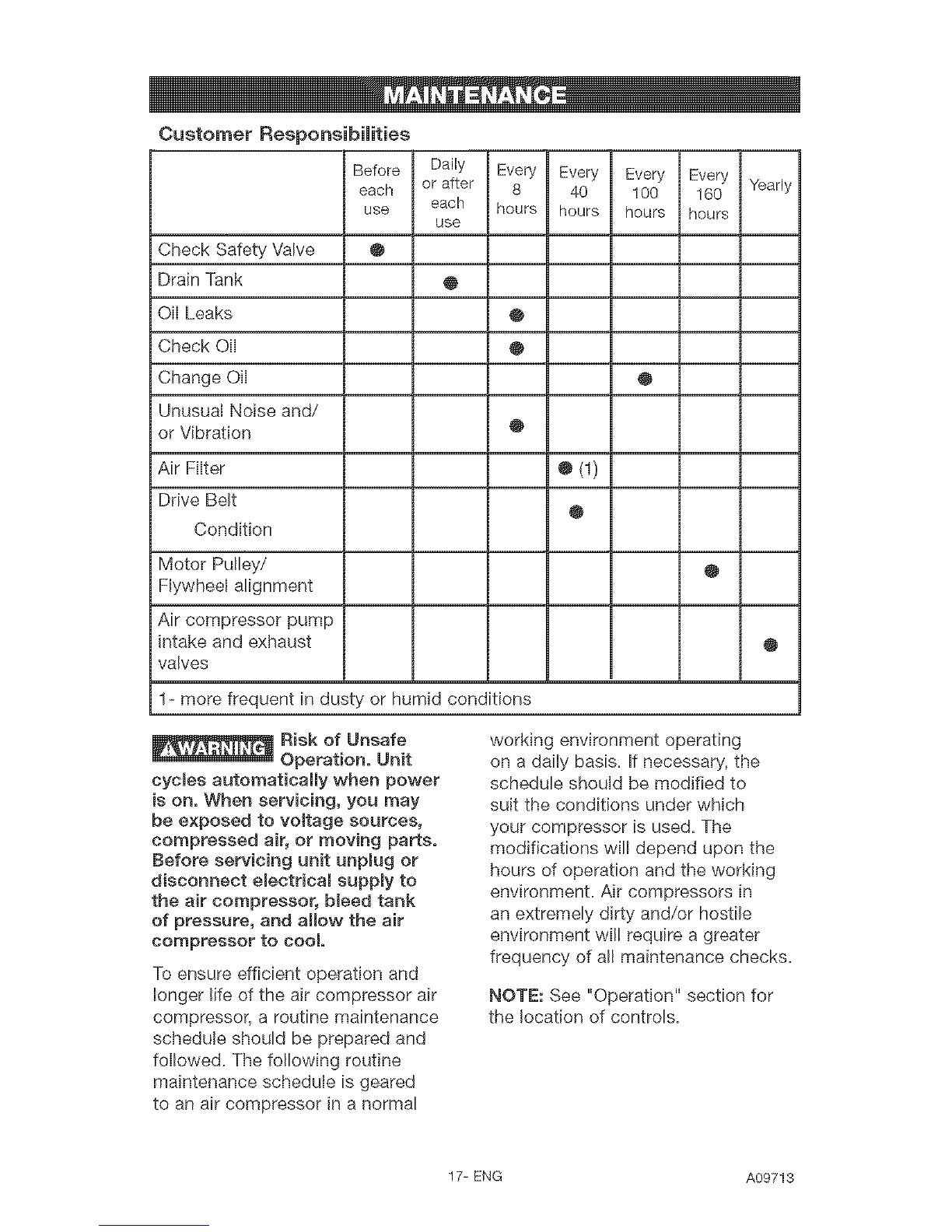

Customer Responsibilities
Before Daily Eve_ Every
each or after 8 40
use each hours hours
use
Check Safety Valve @
Drain Tank @
j OiI Leaks @
Check Oil @
Change Oil
Unusual Noise and/
or Vibration @
Air Filter
Drive Belt
Condition
Motor Pulley/
Flywheel alignment
Air compressor pump
intake and exhaust
valves
1- more frequent in dusty or humid conditions
® (1)
@
Every Every
100 160
hours hours
O
Yearly
Risk of Unsafe
Operation, Unit
cycles automatically when power
is on, When servicing, you may
be exposed to voltage sources,
compressed air, or moving parts,
Before servicing unit unpmug or
disconnect emectdcamsuppmy to
the air compressor, bleed tank
of pressure, and allow the air
compressor to cool,
To ensure efficient operation and
longer life of the air compressor air
compressor, a routine maintenance
schedule should be prepared and
followed. The following routine
maintenance schedule is geared
to an air compressor in a normal
working environment operating
on a daily basis. If necessary, the
schedule should be modified to
suit the conditions under which
your compressor is used. The
modifications will depend upon the
hours of operation and the working
environment. Air compressors in
an extremely dirty and/or hostile
environment wil! require a greater
frequency of all maintenance checks.
NOTE: See "Operation" section for
the location of controls.
17-ENG A09713

To Check Safety Valve
Risk of Bursting,
if the safety valve
does not work properly, over=
pressurization may occur, causing
air tank rupture or an explosion,
1. Before starting compressor, pull
the ring on the safety valve to
make sure that the safety valve
operates freely. If the valve
is stuck or does not operate
smoothly, it must be replaced
with the same type of valve.
To Drain Tank
1, Set the On/Auto/Off lever to "Off"
and unplug unit=
2. Puff the regulator knob out and
turn clockwise to set the outlet
pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing
air to bleed from the tank until
tank pressure is approximately
20 psi. Release safety valve ring.
5. Drain water from air tank by
opening drain valve (counter-
clockwise) on bottom of tank.
Risk of Bursting,
Water will condense
in the air tank, if not drained, water
will corrode and weaken the air
tank causing a risk of air tank
rupture,
6. After the water has been drained,
close the drain valve (clockwise).
The air compressor can now be
stored.
NOTE: If drain valve is plugged,
release all air pressure. The valve
can then be removed, cleaned, and
reinstalled.
oil
Risk of Bursting,
Brain tank to remease
air pressure before removing the
oil fill cap or oil drain pmug,
Ohecking
1= Place unit on a Ievet surface.
2= Remove the oil fill plug (A). The
oil tevet should be even with the
top of the fiII hole and no Iower
than 6 threads from the top of fill
hole.
2. If needed, slowly add oiI until it
reaches the top of fill hole.
NOTE: Use an air compressor oil
such as SAE-20 (API CG/CD heavy
duty motor oik Under extreme winter
conditions use SAE-10 weight oil.
Changing
1. Place unit on a level surface.
2. Remove the oil fill plug (A).
3. Remove the oil drain plug (B) and
drain oil into a suitable container.
4. Replace the ell drain plug (B) and
tighten secure.
NOTE: Use an air compressor oil
such as SAE-20 (API CG/CD heavy
duty motor oiI. Under extreme winter
conditions use SAE-10 weight oil.
5. Slowly fill crankcase to the top of
the fill hole. Crankcase capacity
is 16 fluid ounces (473.2 ml).
6. Replace oil fil! plug (A) and
tighten securely
A09713 18-ENG

Air Filter inspection and
Replacement
Risk of Burns,
Compressor head
and cyminder smeeve are very hot,
Do not touch. AHow compressor to
cool prior to servicing.
A dirty air filter will not allow the
compressor to operate at fall
capacity. Keep the air filter clean at
all times.
1. Remove the air filter cover.
2. Remove the air filter from filter
COV@K
IMPORTANT: Do not operate
the compressor with the air filter
removed.
3. Place new air filter into filter
cover. Refer to the "Repair Parts"
for the correct part number.
4. Replace air filter cover and lock
into place.
Motor Pulley/Flywheel
NOTE: Once the motor pulley has
been moved from its factory set
location, the grooves of the flywheel
and puIIey must be aligned to within
1/16" to prevent excessive belt wear.
The air compressor flywheel and
motor pulley must be in-line (in the
same plane) within 1/16" to assure
belt retention within flywheel belt
grooves. To check alignment,
perform the following steps:
1. Unplug air compressor from
power source.
2. Remove belt guard.
3. Place a straightedge against the
outside of the flywheel and the
motor drive pulley.
4. Measure the distance between
the edge of the belt and the
straightedge at points A1 and A2
in figure. The difference between
measurements should be no
more than 1/16".
5. If the difference is greater or Iess
than 1/16" loosen the set screw
holding the motor drive pulley to
the shaft and adjust the patIey's
position on the shaft until the A1
and A2 measurements are within
1/16" of each other.
6. Torque the motor drive pulley set
screw to 70-80 in.qbs.
7. Visually inspect the motor
drive pulley to verify that it is
perpendicular to the drive motor
shaft. Points B1 and B2 of Figure
should appear to be equal. If
they are not, loosen the setscrew
of the motor drive putIey and
equalize B1 and B2, using care
not to disturb the belt alignment
performed in step 2.
8. Retighten the motor drive paIley
setscrew to 70-80 in.qbs.
9. Reinstall belt guard.
Air Compressor Pump mntake
and Exhaust Valves
Once a year have a Trained Service
Technician check the air compressor
pump intake and exhaust valves.
19-ENG A09713

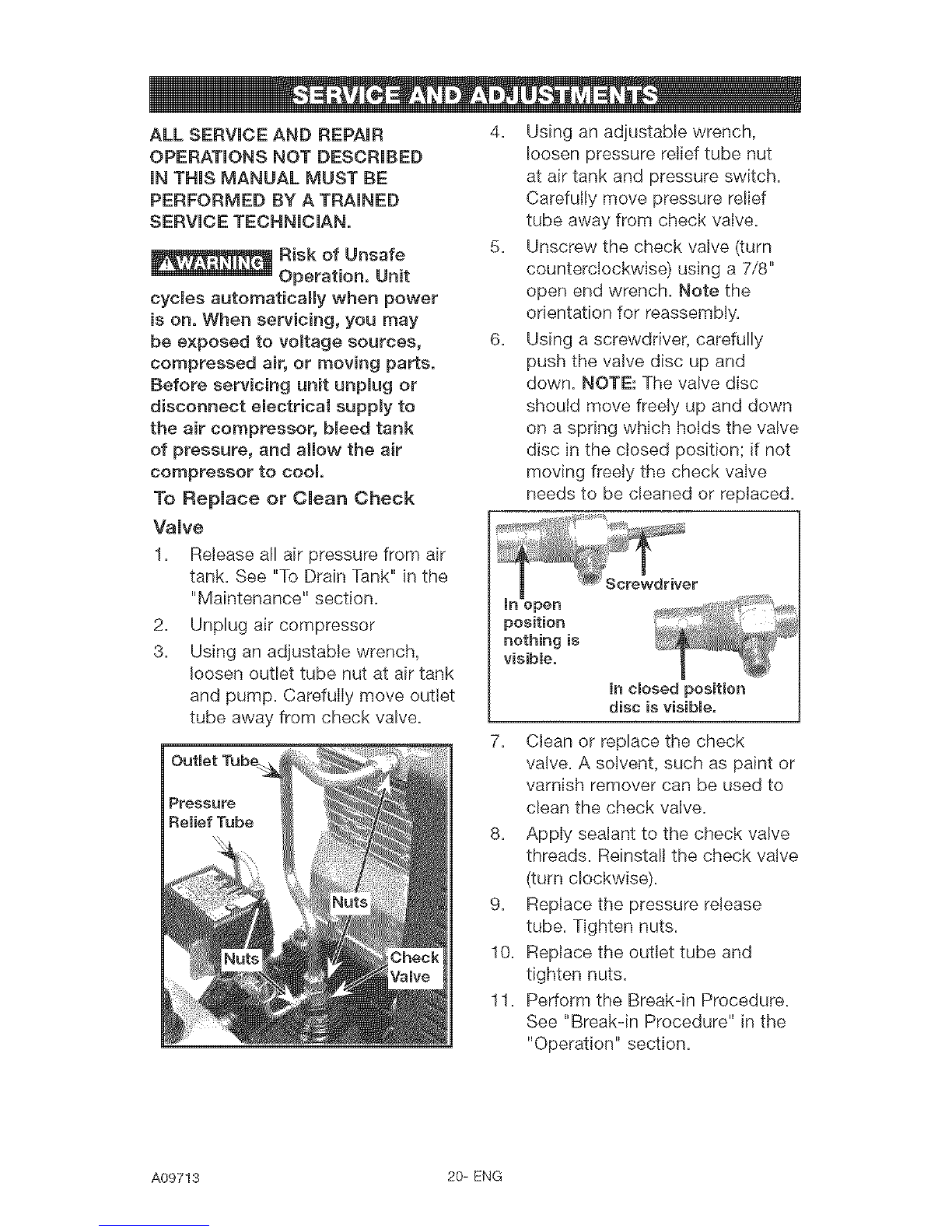

ALL SERVICE AND REPAIR
OPERATIONS NOT DESCRIBED
iN THiS MANUAL MUST BE
PERFORMED BY ATRAINED
SERVICE TECHNiCiAN.
cycmes automatically when power
is on, When servicing, you may
be exposed to voltage sources,
compressed air, or moving parts,
Before servicing unit unplug or
disconnect electrica_ supply to
the air compressor, bleed tank
of pressure, and allow the air
compressor to cool
To Replace or Clean Check
Valve
1. Reiease all air pressure from air
tank. See "To Drain Tank" in the
"Maintenance" section.
2= Unplug air compressor
3= Using an adjustable wrench,
loosen outlet tube nut at air tank
and pump. Carefully move outlet
tube away from check valve.
4= Using an adjustable wrench,
loosen pressure retief tube nut
at air tank and pressure switch=
Carefully move pressure relief
tube away from check valve.
5. Unscrew the check valve (turn
counterclockwise) using a 7/8"
open end wrench. Note the
orientation for reassembty.
6. Using a screwdriver, carefully
push the valve disc up and
down. NOTE: The valve disc
should move freely up and down
on a spring which hoids the valve
disc in the closed position; if not
moving freely the check valve
needs to be cleaned or replaced=
'. Screwdriver
In open
position ........... ,
nothing is
visible. mndosed position
disc isvisible.
7. Clean or replace the check
valve. A solvent, such as paint or
varnish remover can be used to
clean the check valve.
8= Apply sealant to the check valve
threads. Reinstall the check valve
(turn clockwise).
9= Replace the pressure release
tube= Tighten nuts=
10. Replace the outlet tube and
tighten nuts.
11= Perform the Break-in Procedure.
See "Break-in Procedure" in the
"Operation" section=
A09713 20-ENG
