Craftsman 919.195412 User manual

Owner’s Manual
Oil Lubricated
Single Stage
Horizontal Portable
AIR COMPRESSOR
• Safety Guidelines
• Assembly
• Operation
• Maintenance
• Troubleshooting
• Repair Parts
Model No.
919.195412
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website: www.sears.com/craftsman
1000003598 7/16/07

2- ENG
1000003598
TABLE OF CONTENTS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SPECIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SAFETY GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DUTY CYCLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14
OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-17
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-20
SERVICE AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-23
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-27
REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-31
ESPAÑOL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-57
NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
REPAIR PROTECTION AGREEMENTS . . . . . . . . . . . . . . . . . . . . . . . . . 59
HOW TO ORDER REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . .Back Cover
ONE YEAR FULL WARRANTY
If this product fails due to a defect in material or workmanship within one year
from the date of purchase, Sears will at its option repair or replace it free of
charge. Contact Sears at 1-800-4-MY-HOME®to arrange for repair, or return it
to the place of purchase for replacement.
If this product is used for commercial or rental purposes, this warranty applies
for only ninety days from the date of purchase.
This warranty gives you specific legal rights and you may have other rights
which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
WARRANTY

3- ENG 1000003598
SPECIFICATION TABLE
Model No. 919.195412
Running HP *1.8
Bore 2.875" (73.0 mm)
Stroke 2.0" (50.8 mm)
Voltage-Single Phase 120/240
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity 25 gallons (94.6 L)
Approximate Cut-in Pressure 120 PSI
Approximate Cut-out Pressure 150 PSI
SCFM @ 40 PSIG *7.4
SCFM @ 90 PSIG *5.8
* Tested per ISO 1217
Refer to Glossary for abbreviations.
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and under-
stand. This information relates to protecting YOUR SAFETY and PREVENTING
EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these symbols.
Indicates an
imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
Indicates a
potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Indicates a
potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
Used without the
safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in property damage.
IMPORTANT SAFETY INSTRUCTIONS
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals
known to the State of California to cause cancer, birth defects or other
reproductive harm. Some example of these chemicals are:
• lead from lead-based paints
• crystalline silica from bricks and cement and other masonry products
• arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, always wear
OSHA/MSHA/NIOSH approved, properly fitting face mask or respirator
when using such tools.
When using air tools, basic safety precautions should always be followed to
reduce the risk of of personal injury.

4- ENG
1000003598
This product contains chemicals, including lead, known to
the State of California to cause cancer, and birth defects
or other reproductive harm. Wash hands after handling.
Do not operate this unit until you read and
understand this instruction manual for safety,
operation and maintenance instructions.
SAVE THESE INSTRUCTIONS
HAZARD
RISK OF EXPLOSION OR FIRE
What can happen How to prevent it
• It is normal for electrical contacts
within the motor and pressure
switch to spark.
• Always operate the compressor in a
well ventilated area free of combus-
tible materials, gasoline, or solvent
vapors.
• If electrical sparks from compressor
come into contact with flammable
vapors, they may ignite, causing fire
or explosion.
• If spraying flammable materials,
locate compressor at least 20 feet
(6.1 m) away from spray area. An
additional length of air hose may be
required.
• Store flammable materials in a
secure location away from com-
pressor.
• Restricting any of the compressor
ventilation openings will cause seri-
ous overheating and could cause
fire.
• Never place objects against or on
top of compressor.
• Operate compressor in an open
area at least 12" (30.5 cm) away
from any wall or obstruction that
would restrict the flow of fresh air to
the ventilation openings.
• Operate compressor in a clean, dry
well ventilated area. Do not operate
unit indoors or in any confined area.
• Unattended operation of this prod-
uct could result in personal injury
or property damage. To reduce the
risk of fire, do not allow the com-
pressor to operate unattended.
• Always remain in attendance with
the product when it is operating.
• Always turn off and unplug unit
when not in use.

5- ENG 1000003598
HAZARD
RISK TO BREATHING (ASPHYXIATION)
What can happen How to prevent it
• The compressed air directly from
your compressor is not safe for
breathing. The air stream may con-
tain carbon monoxide, toxic vapors,
or solid particles from the air tank.
Breathing these contaminants can
cause serious injury or death.
• Air obtained directly from the com-
pressor should never be used to
supply air for human consumption.
In order to use air produced by this
compressor for breathing, suitable
filters and in-line safety equipment
must be properly installed. In-line
filters and safety equipment used
in conjunction with the compressor
must be capable of treating air to all
applicable local and federal codes
prior to human consumption.
• Sprayed materials such as paint,
paint solvents, paint remover, insec-
ticides, weed killers, may contain
harmful vapors and poisons.
• Work in an area with good cross
ventilation. Read and follow the
safety instructions provided on the
label or safety data sheets for the
materials you are spraying. Always
use certified safety equipment:
OSHA/MSHA/NIOSH respiratory
protection designed for use with
your specific application.
HAZARD
RISK OF SERIOUS INJURY OR PROPERTY DAMAGE
WHEN TRANSPORTING COMPRESSOR
• Oil can leak or spill and could
result in fire or breathing hazard;
serious injury or death can result.
oil leaks will damage carpet, paint
or other surfaces in vehicles or
trailers.
• Always place compressor on a
protective mat when transport-
ing to protect against damage to
vehicle from leaks. Remove com-
pressor from vehicle immediately
upon arrival at your destination.
HAZARD
RISK OF BURSTING
Air Tank: The air tank on your Air Compressor is designed and may be UM coded
[for units with air tanks greater than 6" (152.4 mm) diameter] according to ASME
Section VIII, Div. 1 rules. All pressure vessels should be inspected once every two
years. To find your state pressure vessels inspector, look under the Division of Labor
and Industries in the government section of a phone book .
The following conditions could lead to a weakening of the air tank, and result in a
violent air tank explosion:

6- ENG
1000003598
What can happen How to prevent it
• Failure to properly drain condensed
water from air tank, causing rust
and thinning of the steel air tank.
• Drain air tank daily or after each
use. If air tank develops a leak,
replace it immediately with a new air
tank or replace the entire compres-
sor.
• Modifications or attempted repairs
to the air tank. • Never drill into, weld, or make any modifications to the air tank or its
attachments. Never attempt to
repair a damaged or leaking air
tank. Replace with a new air tank.
• Unauthorized modifications to the
safety valve or any other compo-
nents which control air tank pres-
sure.
• The air tank is designed to with-
stand specific operating pressures.
Never make adjustments or parts
substitutions to alter the factory set
operating pressures.
Attachments & accessories:
• Exceeding the pressure rating of
air tools, spray guns, air operated
accessories, tires, and other inflata-
bles can cause them to explode or
fly apart, and could result in serious
injury.
• Follow the equipment manufactur-
ers recommendation and never
exceed the maximum allowable
pressure rating of attachments.
Never use compressor to inflate
small low pressure objects such as
children’s toys, footballs, basket-
balls, etc.
Tires:
• Over inflation of tires could result in
serious injury and property damage. • Use a tire pressure gauge to check the tires pressure before each use
and while inflating tires; see the tire
sidewall for the correct tire pressure.
NOTE: Air tanks, compressors and simi-
lar equipment used to inflate tires can fill
small tires similar to these very rapidly.
Adjust pressure regulator on air supply to
no more than the rating of the tire pres-
sure. Add air in small increments and
frequently use the tire gauge to prevent
over inflation.
HAZARD
RISK OF ELECTRICAL SHOCK
What can happen How to prevent it
• Your air compressor is powered by
electricity. Like any other electrically
powered device, if it is not used
properly it may cause electric
shock.
• Never operate the compressor
outdoors when it is raining or in wet
conditions.
• Never operate compressor with
protective covers removed or
damaged.

7- ENG 1000003598
• Repairs attempted by unqualified
personnel can result in serious
injury or death by electrocution.
• Any electrical wiring or repairs
required on this product should be
performed by authorized service
center personnel in accordance with
national and local electrical codes.
• Electrical Grounding: Failure to
provide adequate grounding to
this product could result in serious
injury or death from electrocution.
Refer to "Grounding Instructions"
paragraph in the Installation
section.
• Make certain that the electrical
circuit to which the compressor
is connected provides proper
electrical grounding, correct voltage
and adequate fuse protection.
HAZARD
RISK FROM FLYING OBJECTS
What can happen How to prevent it
• The compressed air stream can
cause soft tissue damage to
exposed skin and can propel dirt,
chips, loose particles, and small
objects at high speed, resulting in
property damage or personal injury.
• Always wear certified safety equip-
ment: ANSI Z87.1 eye protection
(CAN/CSA Z94.3) with side shields
when using the compressor.
• Never point any nozzle or sprayer
toward any part of the body or at
other people or animals.
• Always turn the compressor off
and bleed pressure from the air
hose and air tank before attempt-
ing maintenance, attaching tools or
accessories.
HAZARD
RISK OF HOT SURFACES
What can happen How to prevent it
• Touching exposed metal such as
the compressor head, engine head,
engine exhaust or outlet tubes, can
result in serious burns.
• Never touch any exposed metal
parts on compressor during or
immediately after operation.
Compressor will remain hot for
several minutes after operation.
• Do not reach around protective
shrouds or attempt maintenance
until unit has been allowed to cool.

8- ENG
1000003598
HAZARD
RISK FROM MOVING PARTS
What can happen How to prevent it
• Moving parts such as the pulley, fly-
wheel, and belt can cause serious
injury if they come into contact with
you or your clothing.
• Never operate the compressor with
guards or covers which are dam-
aged or removed.
• Keep your hair, clothing, and gloves
away from moving parts. Loose
clothes, jewelry, or long hair can be
caught in moving parts.
• Air vents may cover moving parts
and should be avoided as well.
• Attempting to operate compressor
with damaged or missing parts or
attempting to repair compressor
with protective shrouds removed
can expose you to moving parts
and can result in serious injury.
• Any repairs required on this product
should be performed by authorized
service center personnel.
HAZARD
RISK OF UNSAFE OPERATION
What can happen How to prevent it
• Unsafe operation of your air com-
pressor could lead to serious injury
or death to you or others.
• Review and understand all instruc-
tions and warnings in this manual.
• Become familiar with the operation
and controls of the air compressor.
• Keep operating area clear of all per-
sons, pets, and obstacles.
• Keep children away from the air
compressor at all times.
• Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all
times.
• Never defeat the safety features of
this product.
• Equip area of operation with a fire
extinguisher.
• Do not operate machine with miss-
ing, broken, or unauthorized parts.

9- ENG 1000003598
HAZARD
RISK OF INJURY FROM LIFTING
What can happen How to prevent it
• Serious injury can result from
attempting to lift too heavy an
object.
• The compressor is too heavy to be
lifted by one person. Obtain assis-
tance from others before lifting.
HAZARD
RISK FROM NOISE
What can happen How to prevent it
• Under some conditions and dura-
tion of use, noise from this product
may contribute to hearing loss.
• Always wear certified safety equip-
ment: ANSI S12.6 (S3.19) hearing
protection.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE

10- ENG
1000003598
ACCESSORIES
This unit is capable of powering the following Accessories. The accessories are
available through the current Power and Hand Tool Catalog or full-line Sears
stores.
GLOSSARY
Become familiar with these terms
before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per min-
ute; a unit of measure of air delivery.
PSIG: Pounds per square inch gauge;
a unit of measure of pressure.
Code Certification: Products that
bear one or more of the following
marks: UL, CUL, ETL, CETL, have
been evaluated by OSHA certified
independent safety laboratories and
meet the applicable Standards for
Safety.
Cut-In Pressure: While the motor
is off, air tank pressure drops as you
continue to use your accessory. When
the tank pressure drops to a certain
low level the motor will restart auto-
matically. The low pressure at which
the motor automatically restarts is
called "cut-in" pressure.
Cut-Out Pressure: When an air com-
pressor is turned on and begins to
run, air pressure in the air tank begins
to build. It builds to a certain high
pressure before the motor automati-
cally shuts off, protecting your air tank
from pressure higher than its capacity.
The high pressure at which the motor
shuts off is called "cut-out" pressure.
Branch Circuit: Circuit carrying elec-
tricity from electrical panel to outlet.
Accessories
• In Line Filter
• Tire Air Chuck
• Quick Connector Sets (various
sizes)
• Air Pressure Regulators
• Oil Fog Lubricators
• Air Hose:1/4" (6.4 mm), 3/8"
(9.5 mm) or 1/2" (12.7 mm) inside
diameter in various lengths
Refer to the selection chart located
on the unit to select the tools this unit
is capable of powering.
DUTY CYCLE
This air compressor pump is capable
of running continuously. However,
to prolong the life of your air com-
pressor, it is recommended that a
50%-75% average duty cycle be
maintained; that is, the air compres-
sor pump should not run more than
30-45 minutes in any given hour.

11- ENG 1000003598
ASSEMBLY
CONTENTS OF CARTON
1 - Air Compressor
2 - Wheels
2 - Shoulder Bolts, 3/8-16
2 - Hex Nuts, 3/8-16
1 - Handle
1 - Handle Grip
2 - Cap Screws
2 - 1/4-20 Hex Nuts
2 - Retainer Clips
2 - Flat Washers
2 - Rubber Bumpers
2 - Screws, 1/4-20 x 3/4" (19 mm)
TOOLS REQUIRED FOR
ASSEMBLY
1 - 9/16" (14 mm) socket or open
end wrench
1 - 1/2" (13 mm) socket or open end
wrench
UNPACKING
Remove unit from carton and discard
all packaging. NOTE: Save all parts
bags.
TO INSTALL HANDLE
The wheels and
handle do not
provide adequate clearance,
stability, or support for pulling the
unit up and down stairs or steps.
The unit must be lifted or pushed
up a ramp. Do not lift the unit by the
manifold assembly; the unit could
be damaged.
1. To make installation easier, sub-
merge handle grip into warm
soapy water. Remove handle grip
from soapy water and slide onto
handle.
2. Insert the open ends of the
handle under the saddle. Before
attaching handle, you may have
to pull the open ends of the han-
dle apart so they fit tightly against
the side of the saddle. Looking in
from the open end of the saddle,
position the handle toward the
two bent tabs, on the inside walls
of the saddle.
Bent Tabs Saddle Open End
Of Handle
Open End
Of Saddle
3. Slowly push the open ends of
the handle onto both tabs at the
same time. Continue pushing the
handle into the saddle until the
holes on the side of the saddle
and handle are in line.
Saddle Hole
Handle Hole
Bent Tabs
Open End
Of Handle
4. Guide the straight end of each
retaining clip through the saddle
hole and both handle holes.
Retaining Clip
Handle
Inserted
On Tabs

12- ENG
1000003598
5. Rotate each retaining clip clock-
wise and press down until it
snaps into place over the handle.
Retaining Clip Handle
6. If the handle has excessive
movement, it is improperly
installed. Check the following.
A. Are both tabs inside the
handle (Step #3)?
B. Does each clip pass through
both the saddle and handle
(Step #4)?

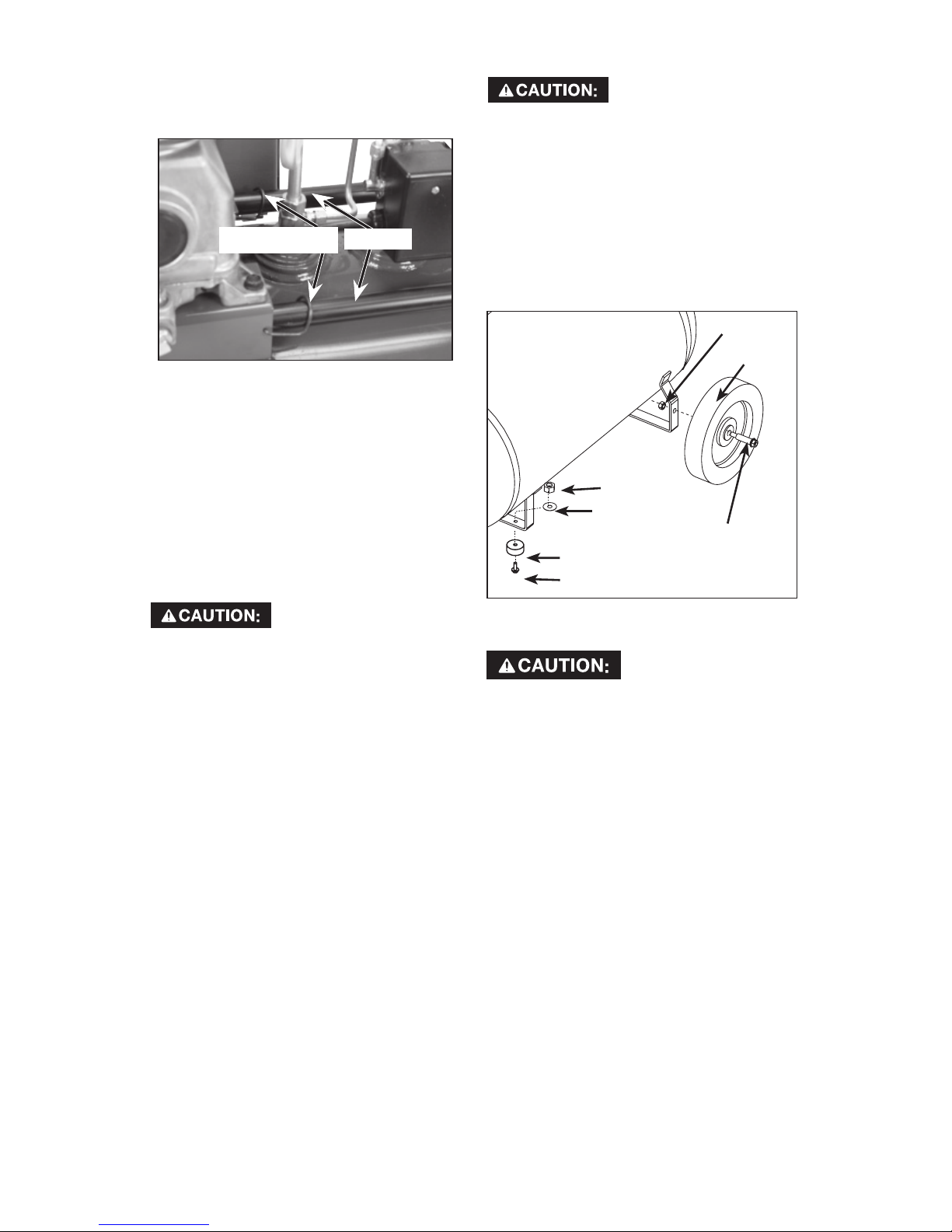

TO ASSEMBLE WHEELS
It will be necessary
to brace or support
one side of the air compressor when
installing the wheels because the
compressor will have a tendency to
tip.
1. Attach wheels with shoulder bolts
and nuts as shown.
2. Tighten securely. NOTE: The air
compressor will sit level if the
wheels are properly installed.
The wheels and
handle do not
provide adequate clearance, stability
or support for pulling the unit up and
down stairs or steps. The unit must
be lifted, or pushed up a ramp.
ASSEMBLE RUBBER FEET
1. Attach rubber feet with the
screws, washers and nuts pro-
vided as shown in figure below.
2. Tighten securely.
Screw
Nut
Wheel
Shoulder
Bolt
Flat Washer
Rubber Foot
Nut
OIL FOR PUMP
This compressor was
shipped with oil in
the pump crankcase. Check oil before
operating air compressor, see Check
Oil under Maintenance.

13- ENG 1000003598
INSTALLATION
LOCATION OF THE AIR
COMPRESSOR
• Locate the air compressor in a
clean, dry, and well ventilated
area.
• Place on a solid surface to pre-
vent rocking or tipping.
• The air compressor should be
located at least 12" (
30.5 cm)
away from the wall or other
obstructions that will interfere
with the flow of air.
• The air filter must be kept clear of
obstructions which could reduce
air flow to the air compressor.
• The air compressor requires
fresh air flow for proper cool-
ing. DO NOT ALLOW THE
COMPRESSOR TO GET WET.
GROUNDING INSTRUCTIONS
RISK OF
ELECTRICAL
SHOCK. In the event of a short
circuit, grounding reduces the risk
of shock by providing an escape
wire for the electric current. This
air compressor must be properly
grounded.
The portable air compressor is
equipped with a cord having a ground-
ing wire with an appropriate grounding
plug (see following illustrations). The
plug must be used with an outlet that
has been installed and grounded in
accordance with all local codes and
ordinances.
1. The cord set and plug with this
unit contains a grounding pin.
This plug MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used
must be installed and grounded in
accordance with all local codes and
ordinances.
2. Make sure the outlet being used
has the same configuration as the
grounded plug. DO NOT USE AN
ADAPTER. See illustration.

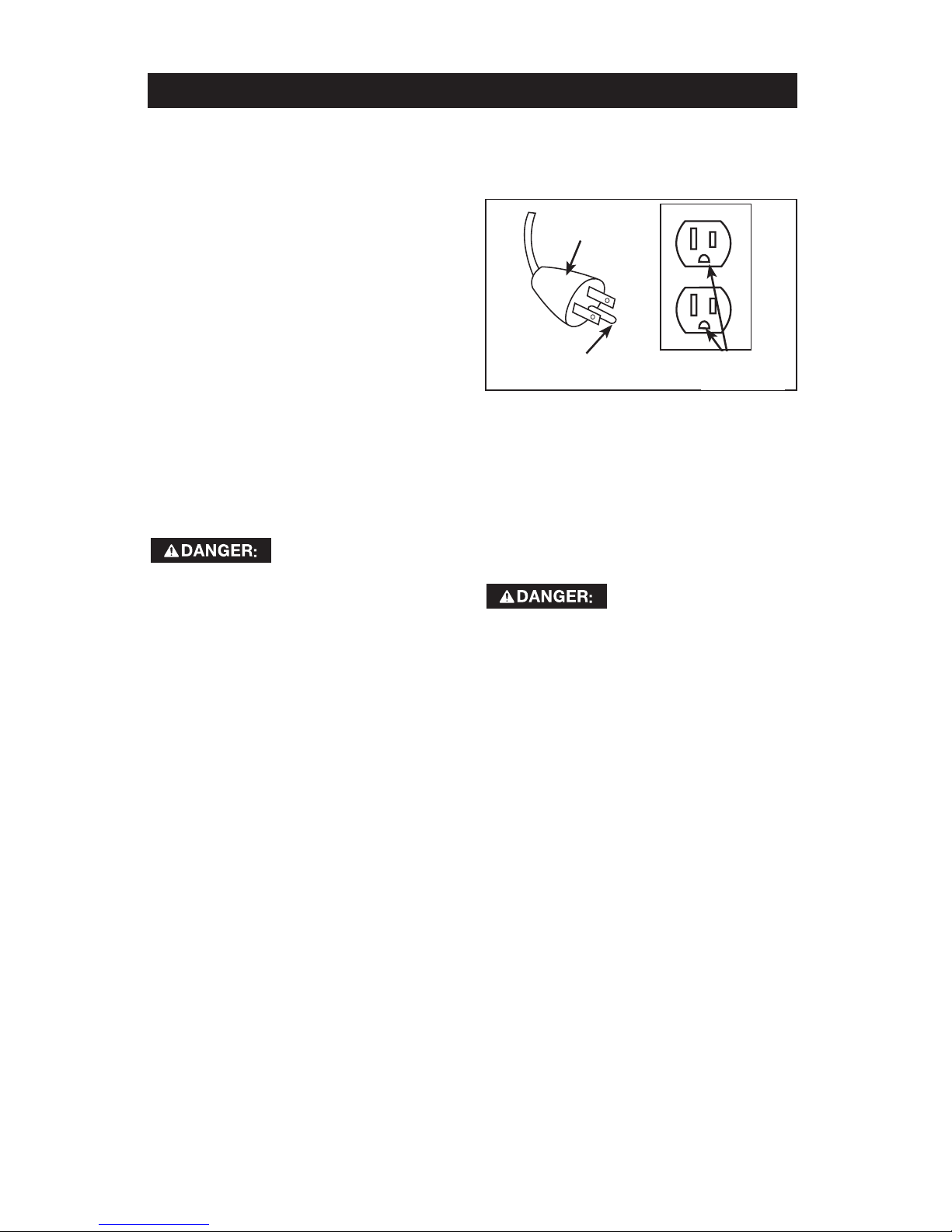

Grounding Pin Grounded
Outlets
Plug
3. Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
4. If these grounding instructions are
not completely understood, or if in
doubt as to whether the compres-
sor is properly grounded, have the
installation checked by a qualified
electrician.
RISK OF
ELECTRICAL
SHOCK. IMPROPER GROUNDING
CAN RESULT IN ELECTRICAL
SHOCK.
Do not modify the plug provided. If
it does not fit the available outlet, a
correct outlet should be installed by
a qualified electrician.
Repairs to the cord set or plug
MUST be made by a qualified
electrician.
EXTENSION CORDS
Using extension cords is not
recommended. The use of extension
cords will cause voltage to drop
resulting in power loss to the motor
and overheating.

14- ENG
1000003598
Instead of using an extension cord,
increase the working reach of the
air hose by attaching another length
of hose to its end. Attach additional
lengths of hose as needed.
If an extension cord must be used, be
sure it is:
• a 3-wire extension cord that has a
3-blade grounding plug, and a 3-
slot receptacle that will accept the
plug on the product
• in good condition
• no longer than 50 feet
• 12 gauge (AWG) or larger. (Wire
size increases as gauge number
decreases. 10 AWG and 8 AWG
may also be used. DO NOT USE
14 OR 16 AWG.)
VOLTAGE AND CIRCUIT
PROTECTION
Refer to the specification chart for the
voltage and minimum branch circuit
requirements.
Risk of Unsafe
Operation. Certain
air compressors can be operated
on a 15 amp circuit if the following
conditions are met.
1. Voltage supply to circuit must
comply with the National
Electrical Code.
2. Circuit is not used to supply any
other electrical needs.
3. Extension cords comply with
specifications.
4. Circuit is equipped with a 15 amp
circuit breaker or 15 amp time
delay fuse. NOTE: If compressor
is connected to a circuit protect-
ed by fuses, use only time delay
fuses. Time delay fuses should be
marked "D" in Canada and "T" in
the US.
If any of the above conditions cannot
be met, or if operation of the compres-
sor repeatedly causes interruption
of the power, it may be necessary to
operate it from a 20 amp circuit. It is
not necessary to change the cord set.
120/240 DUAL VOLTAGE MOTOR
This model has a dual voltage motor,
120 and 240 volt. It is wired for 120
volt but can be converted to 240 volt
operation. Instructions for connecting
the motor for operation at 240 volt can
be found printed on the label attached
to the side of the motor.
When converting to
240V operation, the
attached three-prong 120V cord
assembly must be replaced with a
three-pronged 240V cord assembly
(K-0080) that can be purchased
through a Sears Service Center.
240 Volt Plug
120 Volt Plug

15- ENG 1000003598
Regulator: Controls the air pressure
shown on the outlet pressure gauge.
Pull the knob out and turn clockwise
to increase pressure and counterclock-
wise to decrease pressure. When the
desired pressure is reached push knob
in to lock in place.
Universal Quick-Connect Body: The
universal quick-connect body accepts
the three most popular styles of quick-
connect plugs: Industrial, automotive
(Tru-flate), and ARO. One hand push-
to-connect operation makes connec-
tions simple and easy.
-
-
Drain Valve: The
Drain
Valve
drain valve is
located at the
base of the air
tank and is used
to drain conden-
sation at the end of each use.
Cooling System (not shown): This
compressor contains an advanced
design cooling system. At the heart of
this cooling system is an engineered
fan. It is perfectly normal for this fan to
blow air through the vent holes in large
amounts. You know that the cooling
system is working when air is being
expelled.
On/Auto/Off Switch: Turn this switch
"On/Auto" to provide automatic power
to the pressure switch and "Off" to
remove power at the end of each use.
Pressure Switch: The pressure switch
automatically starts the motor when
the air tank pressure drops below the
factory set "cut-in" pressure. The pres-
sure switch stops the motor when the
air tank pressure reaches the factory
set "cut-out" pressure.
Safety Valve: If the pressure switch
does not shut off the air compressor
at its "cut-out" pressure setting, the
safety valve will protect against high
pressure by "popping out" at its fac-
tory set pressure (slightly higher than
the pressure switch "cut-out" setting).
Outlet Pressure Gauge: The outlet
pressure gauge indicates the air pres-
sure available at the outlet side of the
regulator. This pressure is controlled by
the regulator and is always less than or
equal to the tank pressure.
Tank Pressure Gauge: The tank pres-
sure gauge indicates the reserve air
pressure in the tank.
OPERATION
KNOW YOUR AIR COMPRESSOR
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with
the location of various controls and adjustments. Save this manual for future ref-
erence.
Regulator
On/Auto/Off
Switch
Safety
Valve
Outlet
Pressure
Gauge
Tank
Pressure
Gauge
Pressure
Switch
Quick
Connect

16- ENG
1000003598
Air Compressor Pump (not shown):
Compresses air into the air tank.
Working air is not available until the
compressor has raised the air tank
pressure above that required at the air
outlet.
Check Valve: When the air compres-
sor is operating, the check valve is
"open", allowing compressed air to
enter the air tank. When the air com-
pressor reaches "cut-out" pressure,
the check valve "closes", allowing air
pressure to remain inside the air tank.
Check Valve
Pressure
Release
Valve
Pressure Release Valve: The pres-
sure release valve, located on the side
of the pressure switch, is designed to
automatically release compressed air
from the compressor head and the
outlet tube when the air compressor
reaches "cut-out" pressure or is shut
off. The pressure release valve allows
the motor to restart freely. When the
motor stops running, air will be heard
escaping from this valve for a few
seconds. No air should be heard
leaking when the motor is running or
after unit reaches "cut-out" pressure.
Air Intake Filter (not shown) This
filter is designed to clean air coming
into the pump. This filter must always
be clean and ventilation openings free
from obstructions. See Maintenance.
Motor: This motor has a manual ther-
mal overload protector. If the motor
overheats for any reason, the overload
protector will shut off the motor. The
motor must be allowed to cool down
before restarting.
To restart:
1. Place the Reset
Button
On/Auto/Off
lever in the
"Off" pos-
tion.
2. Allow the
motor to
cool.
3. Depress the
red reset button on the motor.
4. Place the On/Auto/Off lever in the
"On/Auto" postion to restart the
motor.
HOW TO USE YOUR UNIT
How to Stop
1. Set the On/Auto/Off switch to
"Off".
Before Starting
Do not operate this
unit until you read
and understand this instruction
manual for safety, operation and
maintenance instructions.
Break-in Procedure
Risk of Unsafe
Operation. Serious
damage may result if the following
break-in instructions are not closely
followed.
This procedure is required before the
air compressor is put into service and
when the check valve or a complete
compressor pump has been replaced.
1. Make sure the On/Auto/Off switch
is in the "Off" position.
2. Check oil level in pump. See "Oil"
paragraph in the Maintenance
section for instructions.
NOTE: If quick connect is installed,
pull coupler back until it clicks to
prevent air from escaping through the
quick connect.
3.
Plug the power cord into the cor-
rect branch circuit receptacle.
(Refer to Voltage and Circuit
Protection paragraph in the
Installation section of this manual.)

17- ENG 1000003598
4. Open the drain valve (counter-
clockwise) fully to permit air to
escape and prevent air pressure
build up in the air tank during the
break-in period.
5. Move the On/Auto/Off switch to
"On/Auto" position. The compres-
sor will start.
6. Run the compressor for 20 min-
utes. Make sure the drain valve
is open and there is minimal air
pressure build-up in tank.
7. After 20 minutes, close the drain
valve by turning clockwise. The air
receiver will fill to "cut-out" pres-
sure and the motor will stop.
The compressor is now ready for use.
Before Each Start-Up
1. Set the On/Auto/Off switch to
"Off".
2. Pull regulator knob out, turn
counterclockwise until it stops.
Push knob in to lock in place.
3. Attach hose and accessories.
NOTE: The hose or accessory will
require a quick connect plug if the
air outlet is equipped with a quick
connect socket.
Risk of unsafe
operation. Firmly
grasp air hose in hand when
installing or disconnecting to
prevent hose whip.
Risk of unsafe
operation. Do not
use damaged or worn accessories.
Risk of Bursting.
Too much air
pressure causes a hazardous risk of
bursting. Check the manufacturer’s
maximum pressure rating for air
tools and accessories. The regulator
outlet pressure must never exceed
the maximum pressure rating.
Risk of unsafe
operation.
Compressed air from the unit may
contain water condensation and
oil mist. Do not spray unfiltered air
at an item that could be damaged
by moisture. Some air tools and
accessories may require filtered
air. Read the instructions for the air
tools and accessories.
How to Start
1.
Set the On/Auto/Off switch to
"On/Auto" and allow tank pressure
to build. Motor will stop when tank
pressure reaches "cut-out" pres-
sure.
2. Pull the regulator knob out and
turn clockwise to increase pres-
sure. When the desired pressure
is reached push knob in to lock in
place.
If any unusual
noise or vibration
is noticed, stop the compressor
immediately and have it checked by
a trained service technician.
The compressor is ready for use.

18- ENG
1000003598
MAINTENANCE
CUSTOMER RESPONSIBILITIES
Before
each
use
Daily
or
after
each
use
Every
8
hours
Every
40
hours
Every
100
hours
Every
160
hours
Yearly
Check Safety Valve •
Drain Tank •
Oil Leaks •
Check Pump Oil •
Change Pump Oil •
Unusual Noise and/
or Vibration •
Air Filter • 1
Drive Belt-Condition •
Motor Pulley/Flywheel
alignment •
Air compressor
pump intake and
exhaust valves
•
Inspect air lines and
fittings for leaks *
Head Bolts - Check the torques of the head bolts after the first five hours of operation.
1- more frequent in dusty or humid conditions
Risk of Unsafe
Operation. Unit
cycles automatically when power
is on. When servicing, you may
be exposed to voltage sources,
compressed air, or moving parts.
Before servicing unit unplug or
disconnect electrical supply to
the air compressor, bleed tank
of pressure, and allow the air
compressor to cool.
To ensure efficient operation and lon-
ger life of the air compressor, a routine
maintenance schedule should be pre-
pared and followed. The above routine
maintenance schedule is geared to an
air compressor in a normal working
environment operating on a daily basis.
If necessary, the schedule should be
modified to suit the conditions under
which your air compressor is used.
The modifications will depend upon
the hours of operation and the work-
ing environment. Compressors in an
extremely dirty and/or hostile environ-
ment will require a greater frequency of
all maintenance checks.
NOTE: See Operation section for the
location of controls.
TO CHECK SAFETY VALVE
Risk of Bursting.
If the safety valve
does not work properly, over-
pressurization may occur, causing
air tank rupture or an explosion.
Risk from Flying
Objects. Always
wear certified safety equipment:
ANSI Z87.1 eye protection (CAN/
CSA Z94.3) with side shields.

19- ENG 1000003598

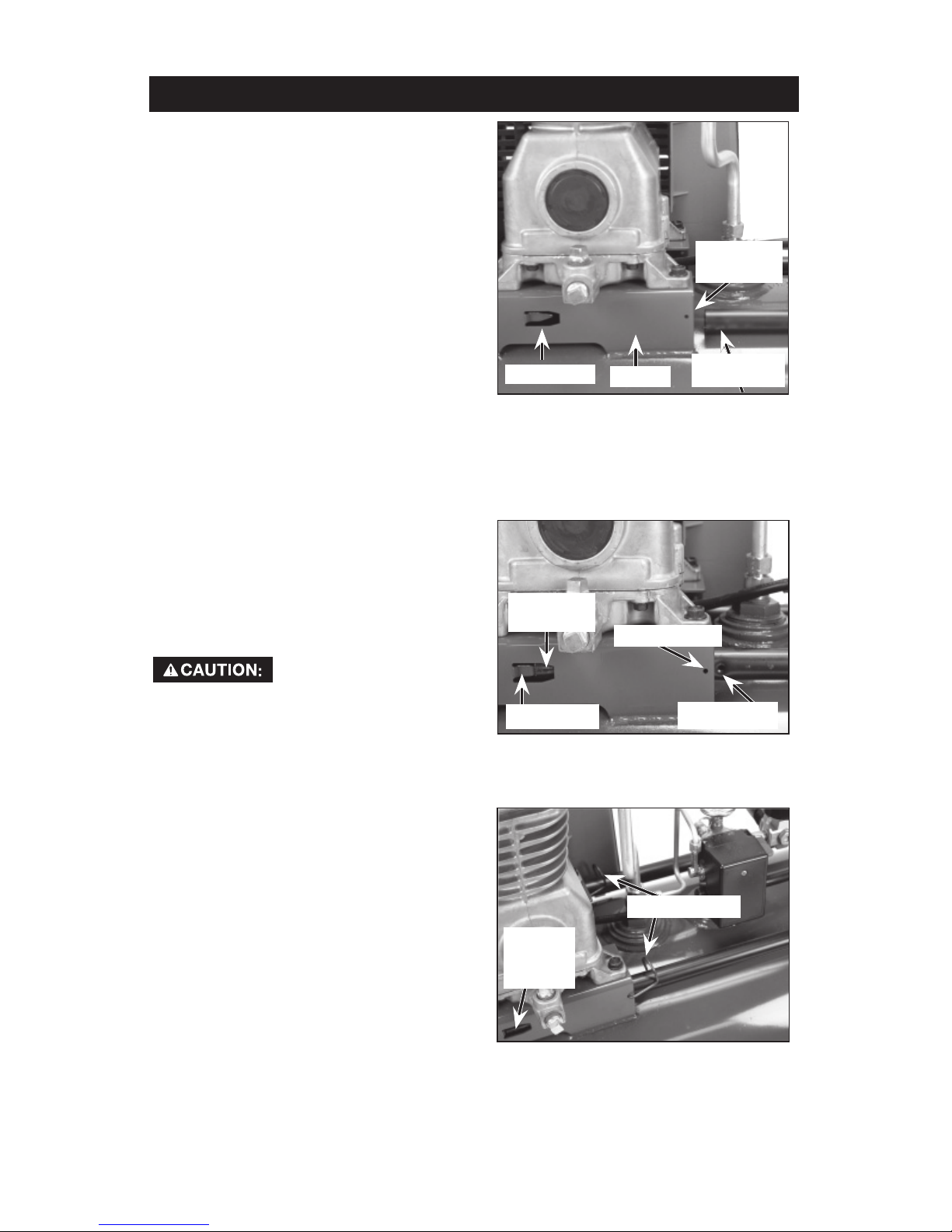

OIL
This compressor
was shipped with
oil in the pump crankcase. Check
oil before operating air compressor,
see Check Oil under Maintenance.
Risk of Bursting.
Drain tank to release
air pressure before removing the oil
fill cap or oil drain plug.
Use air
compressor oil
only. Multi-weight automotive
engine oils like 10W30 should
not be use in air compressors.
They leave carbon deposits on
critical components, thus reducing
performance and compressor life.
Checking
1. Place unit on a level surface.
2. Remove the oil fill plug (A). The oil
level should be even with the top
of the fill hole and no lower than 6
threads from the top of fill hole.
A
B
2. If needed, slowly add oil until it
reaches the top of fill hole.
NOTE: Use 30W compressor oil or
a heavy duty SAE 30W, non-deter-
gent, SF grade or better oil DO NOT
use multi-weight automotive engine
oils, they will reduce compressor life.
Under extreme winter condition use
SAE-10 weight oil.
Changing
1. Place unit on a level surface.
2. Remove the oil fill plug (A).
3. Remove the oil drain plug (B) and
drain oil into a suitable container.
4. Replace the oil drain plug (B) and
tighten secure.
Before starting compressor, pull the
ring on the safety valve to make sure
that the safety valve operates freely. If
the valve is stuck or does not operate
smoothly, it must be replaced with the
same type of valve.
TO DRAIN TANK
Risk of Unsafe
Operation. Risk
from noise. Air tanks contain high
pressure air. Keep face and other
body parts away from outlet of
drain. Use ANSI Z87.1 eye protection
(CAN/CSA Z94.3) when draining as
debris can be kicked up into face.
Use ear protection [(ANSI S12.6
(S3.19) hearing protection] as air
flow noise is loud when draining.
1. Set the On/Auto/Off switch to
"Off".
2. Pull the regulator knob out and
turn clockwise to set the outlet
pressure to zero.
3. Remove the air tool or accessory.
4. Pull ring on safety valve allowing
air to bleed from the tank until
tank pressure is approximately 20
PSI. Release safety valve ring.
5. Drain water from air tank by open-
ing drain valve on bottom of tank.
Risk of Bursting.
Water will
condense in the air tank. If not
drained, water will corrode and
weaken the air tank causing a risk
of air tank rupture.
Risk of Property
Damage. Drain
water from air tank may contain oil
and rust which can cause stains.
6. After the water has been drained,
close the drain valve. The air com-
pressor can now be stored.
NOTE: If drain valve is plugged,
release all air pressure. The valve can
then be removed, cleaned, the rein-
stalled.

20- ENG
1000003598
NOTE: Use 30W compressor oil or a
heavy duty SAE 30W, non-detergent,
SF grade or better oil DO NOT use
multi-weight automotive engine oils,
they will reduce compressor life. Under
extreme winter condition use SAE-10
weight oil.
5. Slowly fill crankcase to the top of
the fill hole. NOTE: Crankcase oil
capacity is approximately 16 fluid
ounces (0.5 L).
6. Replace oil fill plug (A) and tighten
securely.
AIR FILTER INSPECTION AND
REPLACEMENT
Risk of Burns.
Compressor head
and cylinder sleeve are very hot. Do
not touch. Allow compressor to cool
prior to servicing.
A dirty air filter will not allow the com-
pressor to operate at full capacity.
Keep the air filter clean at all times.
1. Remove the air filter cover.
2. Remove the air filter from filter
cover.
IMPORTANT: Do not operate the
compressor with the air filter removed.
3. Place new air filter into filter cover.
Refer to the "Repair Parts" for the
correct part number.
4. Replace air filter cover and lock
into place.
MOTOR PULLEY/FLYWHEEL
ALIGNMENT
NOTE: Once the motor pulley has
been moved from its factory set loca-
tion, the grooves of the flywheel and
pulley must be aligned to within 1/16"
(1.6 mm) to prevent excessive belt
wear.
The air compressor flywheel and motor
pulley must be in-line (in the same
plane) within 1/16" (1.6 mm) to assure
belt retention within flywheel belt
grooves. To check alignment, perform
the following steps:
1. Unplug air compressor from
power source.
2. Remove belt guard.
3. Place a straightedge against the
outside of the flywheel and the
motor drive pulley.

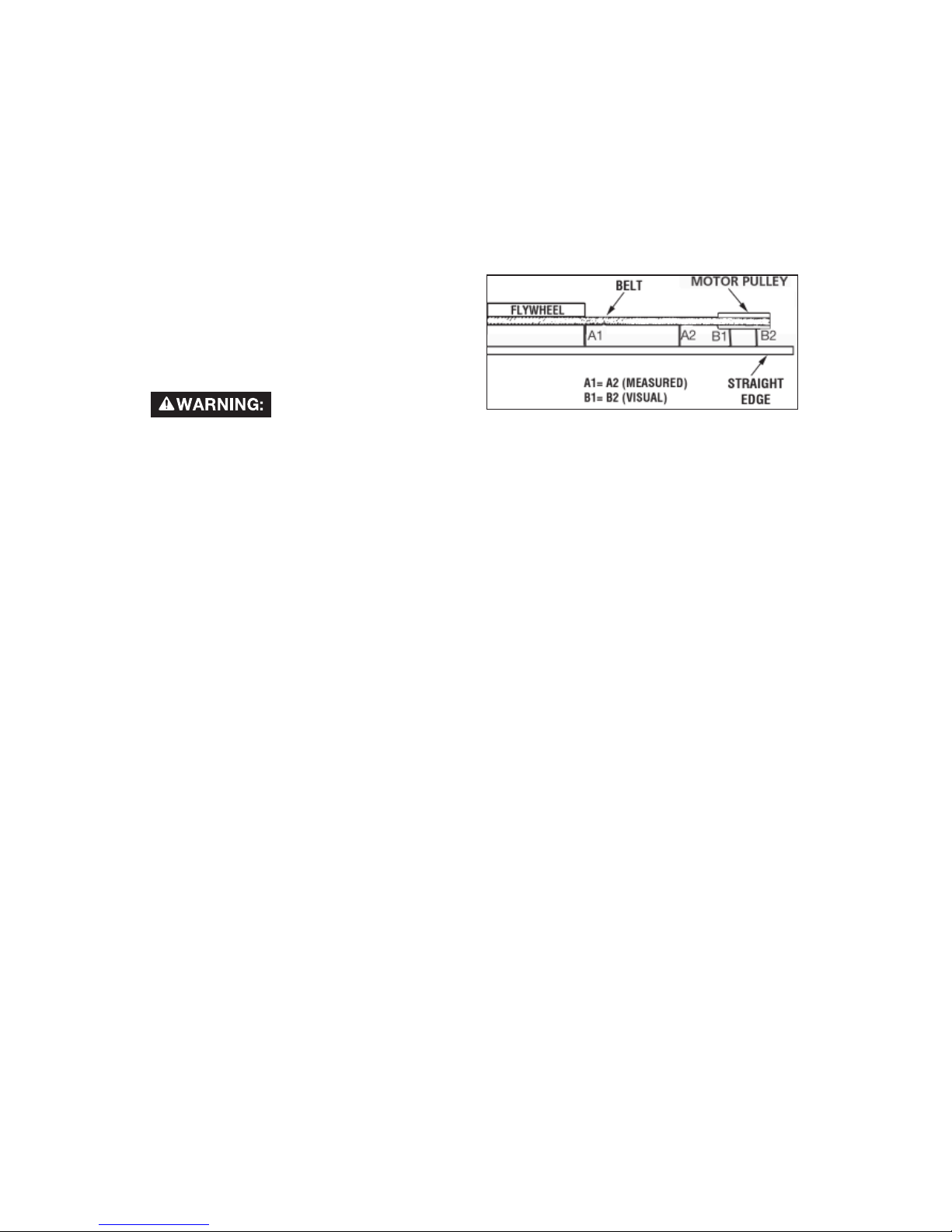

4. Measure the distance between
the edge of the belt and the
straightedge at points A1 and A2
in figure. The difference between
measurements should be no more
than 1/16" (1.6 mm).
5. If the difference is greater or less
than 1/16" (1.6 mm) loosen the
set screw holding the motor drive
pulley to the shaft and adjust the
pulley’s position on the shaft until
the A1 and A2 measurements
are within 1/16" (1.6 mm) of each
other.
6. Torque the motor drive pulley set
screw to 70-80 in.-lbs.
7. Visually inspect the motor drive
pulley to verify that it is perpen-
dicular to the drive motor shaft.
Points B1 and B2 of Figure should
appear to be equal. If they are
not, loosen the setscrew of the
motor drive pulley and equalize B1
and B2, using care not to disturb
the belt alignment performed in
step 2.
8. Retighten the motor drive pulley
setscrew to 70-80 in.-lbs.
9. Reinstall belt guard.
AIR COMPRESSOR PUMP
INTAKE AND EXHAUST VALVES
Once a year have a Trained Service
Technician check the air compressor
pump intake and exhaust valves.
