Craftsman 919.722010 User manual

120V
INFLATOR
Model No.
919.722010
Owner’s Manual
• Safety Guidelines
• Assembly
• Operation
• Maintenance
• Troubleshooting
• Repair Parts
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
D29496 Rev. 0 9/05/03

2- ENG
D29496
TABLE OF CONTENTS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
SPECIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
SAFETY GUIDELINES-DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . .3-8
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-13
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
FRANÇAIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-31
HOW TO ORDER REPAIR PARTS . . . . . . . . . . . . . . . . . . . . . .back cover
WARRANTY
FULL ONE YEAR WARRANTY ON INFLATORS
If this inflator fails due to a defect in material or workmanship within one year
from the date of purchase, RETURN IT TO THE NEAREST SEARS SERVICE
CENTER THROUGHOUT CANADA AND SEARS WILL REPAIR IT, FREE OF
CHARGE.
If this inflator is used for commercial or rental purposes, the warranty will
apply for ninety days (90) from the date of purchase.
This Craftsman inflator warranty gives you specific legal rights and you may
have other rights which vary from province to province.
Sears Canada, Inc., Toronto, Ont. M5B 2B8

3- ENG D29496
SPECIFICATION CHART
Model No. 919.722010
Bore 1.875
Stroke 1.25
Voltage/Hertz/Phase 120/60/1
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
SCFM@ 30 psig 2.5
Maximum Pressure 125 PSI
SAFETY GUIDELINES - DEFINITIONS
Indicates an
imminently hazardous
situation which, if not avoided, will
result in death or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, could result in
death or serious injury.
Indicates a potentially
hazardous situation
which, if not avoided, may result in
minor or moderate injury.
Used without the
safety alert symbol
indicates a potentially hazardous
situation which, if not avoided, may
result in property damage.
This manual contains information that is important for you to know and understand. This information
relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you
recognize this information, we use the symbols below. Please read the manual and pay attention to
these sections.
IMPORTANT SAFETY INSTRUCTIONS
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known (to the State of California) to
cause cancer, birth defects or other reproductive harm. Some example of these chemicals are:
Glead from lead-based paints
Gcrystalline silica from bricks and cement and other masonry products
Garsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, always wear MSHA/NIOSH approved, properly fitting face mask or respirator when using
such tools.
When using air tools, basic safety precautions should always be followed to reduce the risk of
personal injury.
SAVE THESE INSTRUCTIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN
SERIOUS INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL
WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.

4- ENG
D29496
IMPORTANT SAFETY INSTRUCTIONS
Save these instructions
Improper operation or maintenance of this product could result in serious injury and
property damage. Read and understand all warnings and operation instructions before
using this equipment.
HAZARD
WARNING: Risk of explosion or fire
How To Prevent It
What Could Happen
It is normal for electrical contacts
within the motor to spark.
If electrical sparks from inflator come
into contact with flammable vapors,
they may ignite, causing fire or
explosion.
Restricting any of the inflator ventilation
openings will cause serious overheating
and could cause fire.
Unattended operation of this product
could result in personal injury or
property damage. To reduce the risk of
fire, do not allow the inflator to operate
unattended.
Always operate the inflator in a well
ventilated area free of combustible
materials, gasoline, or solvent vapors.
Store flammable materials in a secure
location away from inflator.
Never place objects against or on top
of inflator. Operate inflator in an open
area at least 12 inches away from any
wall or obstruction that would restrict the
flow of fresh air to the ventilation
openings.
Operate inflator in a clean, dry well
ventilated area. Do not operate unit in
any confined area.
Always remain in attendance with the
product when it is operating.
Always disconnect electrical power by
moving on/off switch to the off position
and unplug the power cord.

5- ENG D29496
WARNING: Risk of Bursting
How To Prevent It
What Could Happen
WARNING: Risk from Flying Objects
The inflator air stream can cause soft
tissue damage to exposed skin and
can propel dirt, chips, loose particles,
and small objects at high speed,
resulting in property damage or personal
injury.
Always wear ANSI Z87.1 approved safety
glasses with side shields when using the
inflator.
Never direct compressed air toward any
part of the body or at other people or
animals.
Always turn the inflator off before
attempting maintenance, attaching tools,
or accessories.
HAZARD
HAZARD
Follow the equipment manufacturers
recommendation and never exceed the
maximum allowable pressure rating of
attachments or inflatable items.
ATTACHMENTS & ACCESSORIES:
Exceeding the pressure rating of air
operated accessories, tires, inflatable
balls, and other inflatables items can
cause them to explode or fly apart, and
could result in serious injury.
How To Prevent It
What Could Happen
Always remain in attendance when
inflating tires, inflatable balls, inflatable
toys, and other inflatable items. Be
prepared to stop inflator when item is fully
inflated, sometimes in a matter of
seconds.
Unattended tires, inflatable balls,
inflatable toys, and other inflatable
items can over inflate very quickly
sometimes in a matter of seconds and
result in personal injury or property
damage.

6- ENG
D29496
WARNING: Risk to Breathing
WARNING: Risk of Electrical Shock
HAZARD
HAZARD
Your inflator is powered by electricity.
Like any other electrically powered
device, if it is not used properly it may
cause electric shock.
Repairs attempted by unqualified
personnel can result in serious injury
or death by electrocution.
Electrical Grounding: Failure to provide
adequate grounding to this product
could result in serious injury or death
from electrocution.
See grounding instructions.
Never operate the inflator outdoors when
it is raining or in wet conditions.
Never operate inflator with protective
covers removed or damaged.
Any electrical wiring or repairs required
on this product should be performed by
authorized service center personnel in
accordance with national and local
electrical codes.
Make certain that the electrical circuit to
which the inflator is connected provides
proper electrical grounding, correct
voltage, and adequate fuse protection.
The compressed air directly from your
inflator is not safe for breathing. The air
stream may contain carbon monoxide,
toxic vapors, or solid particles from the
tank. Breathing these contaminants
can cause serious injury or death.
Air obtained directly from the inflator
should never be used to supply air for
human consumption. In order to use air
produced by this inflator for breathing,
suitable filters and in-line safety
equipment must be properly installed.
In-line filters and safety equipment used
in conjunction with the inflator must be
capable of treating air to all applicable
local and federal codes prior to human
consumption.
How To Prevent It
What Could Happen
How To Prevent It
What Could Happen
Always replace damaged or worn
electric cords before operating inflator.
When operating inflator outdoors use
GFCI outlet.

7- ENG D29496
WARNING: Risk of Burns
Touching exposed metal such as the
inflator head or outlet tubes, can result
in serious burns.
Never touch any exposed metal parts
on inflator during or immediately after
operation. Inflator will remain hot for
several minutes after operation.
Do not reach around protective shrouds
or attempt maintenance until unit has
been allowed to cool.
WARNING: Risk from Moving Parts
Never operate the inflator with guards
or covers which are damaged or
removed.
Moving parts such as the pulley, flywheel,
and belt can cause serious injury if they
come into contact with you, your clothing,
loose hair, or jewelery.
WARNING: Risk of Falling
An inflator can fall from a table,
workbench, or roof causing damage to
the inflator and could result in serious
injury or death to the operator.
Always operate inflator in a stable
secure position to prevent accidental
movement of the unit. Never operate
inflator on a roof or other elevated
position.
HAZARD
HAZARD
HAZARD
Any repairs required on this product
should be performed by authorized
service center personnel.
Attempting to operate inflator with
damaged or missing parts or attempting
to repair inflator with protective shrouds
removed can expose you to moving parts
and can result in serious injury.
How To Prevent It
What Could Happen
How To Prevent It
What Could Happen
How To Prevent It
What Could Happen

8- ENG
D29496
Review and understand all instructions
and warnings in this manual.
Become familiar with the operation and
controls of the inflator.
Keep operating area clear of all persons,
pets, and obstacles.
Keep children away from the inflator at all
times.
Do not operate the product when
fatigued or under the influence of
alcohol or drugs. Stay alert at all times.
Never defeat the safety features of this
product.
Equip area of operation with a fire
extinguisher.
Do not operate machine with missing,
broken, or unauthorized parts.
WARNING: Risk of Unsafe Operation
Unsafe operation of your inflator could
lead to serious injury or death to you
or others.
HAZARD
SAVE THESE INSTRUCTIONS
How To Prevent It
What Could Happen
GLOSSARY
ACCESSORIES
Become familiar with these terms
before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per
minute; a unit of measure of air
delivery.
PSIG: Pounds per square inch
gauge; a unit of measure of pressure.
Code Certification: Products that
bear one or more of the following
marks: UL, CUL, ETL, CETL, have
been evaluated by OSHA certified
independent safety laboratories and
meet the applicable Underwriters
Laboratories Standards for Safety.
Branch Circuit: Circuit carrying
electricity from electrical panel to
outlet.
Inflation Needle: Used to inflate
sport balls.
Extension Nozzle: Used to inflate
small inflatable items such as air rafts
and beach balls.
This unit is capable of powering the following Accessories. Accessories
included with your inflator:
High Flow Inflator/Deflator adapter
body with three nozzles and seal
ring: Used to inflate or deflate air
mattresses, small boats, inflatable
toys, and other inflatable items that
use a large volume of low-pressure air.

9- ENG D29496
1. The cord set and plug with this
unit contains a grounding pin.
This plug MUST be used with a
grounded outlet.
IMPORTANT: The outlet being used
must be installed and grounded in
accordance with all local codes and
ordinances.
2. Make sure the outlet being used
has the same configuration as
the grounded plug. DO NOT
USE AN ADAPTER. See
illustration.
3. Inspect the plug and cord before
each use. Do not use if there are
signs of damage.
4. If these grounding instructions
are not completely understood,
or if in doubt as to whether the
inflator is properly grounded,
have the installation checked by
a qualified electrician.
GROUNDING INSTRUCTIONS
Risk of Electrical
Shock. In the
event of a short circuit, grounding
reduces the risk of shock by
providing an escape wire for the
electric current. This inflator must
be properly grounded.
The inflator is equipped with a cord
having a grounding wire with an
appropriate grounding plug (see
following illustrations). The plug must
be used with an outlet that has been
installed and grounded in accordance
with all local codes and ordinances.
HOW TO SET UP YOUR
UNIT
Grounding Pin
Grounded
Outlets
Plug
INSTALLATION
Location of the inflator
Locate the inflator in a clean, dry and
well ventilated area. The inflator
pump and housing are designed to
allow for proper cooling. The
ventilation openings on the inflator
are necessary to maintain proper
operating temperature. Do not place
rags or other containers on or near
these openings.
Contents of Carton
1 - Inflator equipped with hose and
universal valve adapter
1 - Accessories Kit
1- Inflator Needle
1 - Extension Nozzle
1 - High Flow Inflator/Deflator
adapter body with three
nozzles and seal ring
ASSEMBLY
To Remove Inflator from Carton
1. Grasp handle and lift the inflator
out of the carton.
2. Remove all packaging from
inflator and discard.

10- ENG
D29496
Voltage and Circuit Protection
Refer to the specification chart for the
voltage and minimum branch circuit
requirements.
Certain inflators can be operated on a
15 amp circuit if the following
conditions are met.
1. Voltage supply through branch
circuit is 15 amps.
2. Circuit is not used to supply any
other electrical needs (lights,
appliances, etc.).
3. Extension cords comply with
specifications.
4. Circuit is equipped with a 15
amp circuit breaker or 15 amp
time delay fuse. NOTE: If inflator
is connected to a circuit
protected by fuses, use only time
delay fuses. Time delay fuses
should be marked “D” in Canada
and “T” in the US.
If any of the above conditions cannot
be met, or if operation of the inflator
repeatedly causes interruption of the
power, it may be necessary to
operate it from a 20 amp circuit. It is
not necessary to change the cord set.
Risk of Electrical
Shock. IMPROPER
GROUNDING CAN RESULT IN
ELECTRICAL SHOCK.
Do not modify the plug provided. If
it does not fit the available outlet, a
correct outlet should be installed
by a qualified electrician.
Repairs to the cord set or plug
MUST be made by a qualified
electrician.
Extension Cords
If an extension cord must be used, be
sure it is:
• a 3-wire extension cord that has
a 3-blade grounding plug, and a
3-slot receptacle that will accept
the plug on the product
• in good condition
• no longer than 50 feet
• 16 gauge (AWG) or larger. (Wire
size increases as gauge number
decreases. 14, 12, 10, and 8
AWG may also be used.

11- ENG D29496
OPERATION
Know Your inflator
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the
location of various controls and adjustments. Save this manual for future reference.
Description of Operation
On/Off Switch: Used to turn inflator
on and off.
Pressure Gauge: Gives the pressure
reading in PSI.
Universal Valve Adapter: Used with
accessories included with inflator and
standard tire valves.
Inflation Needle: Attaches directly
to the universal valve adapter to
inflate sport balls.
Extension Nozzle: Attaches directly
to the universal valve adapter to
inflate small inflatable items such as
air rafts and beach balls.
High Flow Inflator/Deflator Adapter
Body: Used with inflator/deflator
nozzles it attaches directly to the
universal valve adapter to inflate or
deflate air mattresses, small boats,
inflatable toys, and other inflatable
items that use a large volume of low-
pressure air.
Inflator/Deflator Nozzles: Used with
the high flow inflator/deflator adapter
body.
Seal Ring: used with inflator/deflator
nozzles to prevent air from leaking out
of inflatables with very large air inlets.
On/Off Switch Pressure Gauge
Hose with
Universal
Valve
Adapter
Universal Valve Adapter
High Flow Inflator/Deflator
Adapter Body
Seal Ring Inflation
Needle
Extension
Nozzle
Nozzles to be used
with the High Flow
inflator/Deflator
adapter body
Risk of Bursting.
Unattended tires,
inflatable balls, inflatable toys, and
other inflatable items can over-
inflate very quickly, sometimes in a
matter of seconds, and result in
personal injury or property damage.

12- ENG
D29496
5. Insert nozzle into inflatable and
then start inflator, see "How to
Start" paragraph.
NOTE: If inflatable is not getting firm
enough, place thumb over the
"deflation" outlet to allow air to go
directly into the inflatable.
Risk of Bursting.
DO NOT over-
inflate. Keeping thumb over
"Deflation" outlet could cause
inflatable to over-inflate. Use
caution when placing thumb over
"Deflation" outlet.

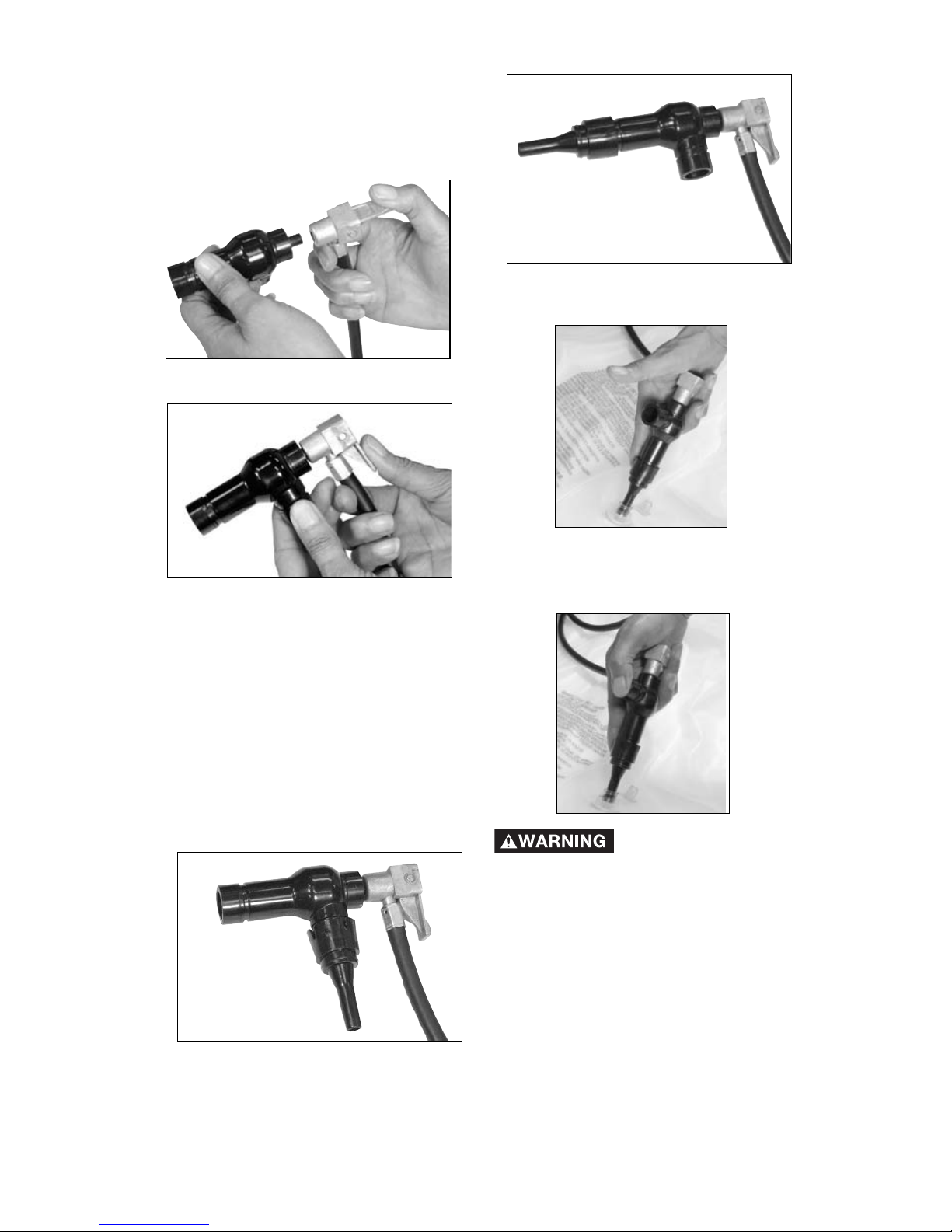

How to use High Flow
Inflator/Deflator Adapter Body
1. Place the universal valve adapter
over high flow inflator/deflator
adapter body as shown.
2. Press lever on universal valve
adapter down to lock in place.
3. Choose nozzle to be used to
inflate or deflate. NOTE: The seal
ring may be used with any of the
nozzles to prevent air from leaking
out of inflatables with very large air
inlets.
4. The high flow inflate/deflate
adapter body attachment has an
"inflation" outlet and "deflation"
outlet. Attach the nozzle to the
preferred outlet. NOTE:
"Inflation" and "Deflation" are
marked at outlets.
Nozzle
attached to
"deflation"
outlet
Nozzle
attached to
"inflation"
outlet

13- ENG D29496
How to Start:
1. Place On/Off switch to "OFF".
2. Plug the power cord into the
grounded outlet.
NOTE: Before turning the inflator on
know the desired pressure (measured
in PSI).
3. Place On/Off switch to “ON” to
start inflator. If using the pressure
gauge watch it closely and when
it reaches the desired pressure
place the on/off switch in the
"OFF" position.
IMPORTANT: Watch inflatable
carefully while filling; do not overfill.
NOTE: The pressure gauge on the
unit is for general reference only.

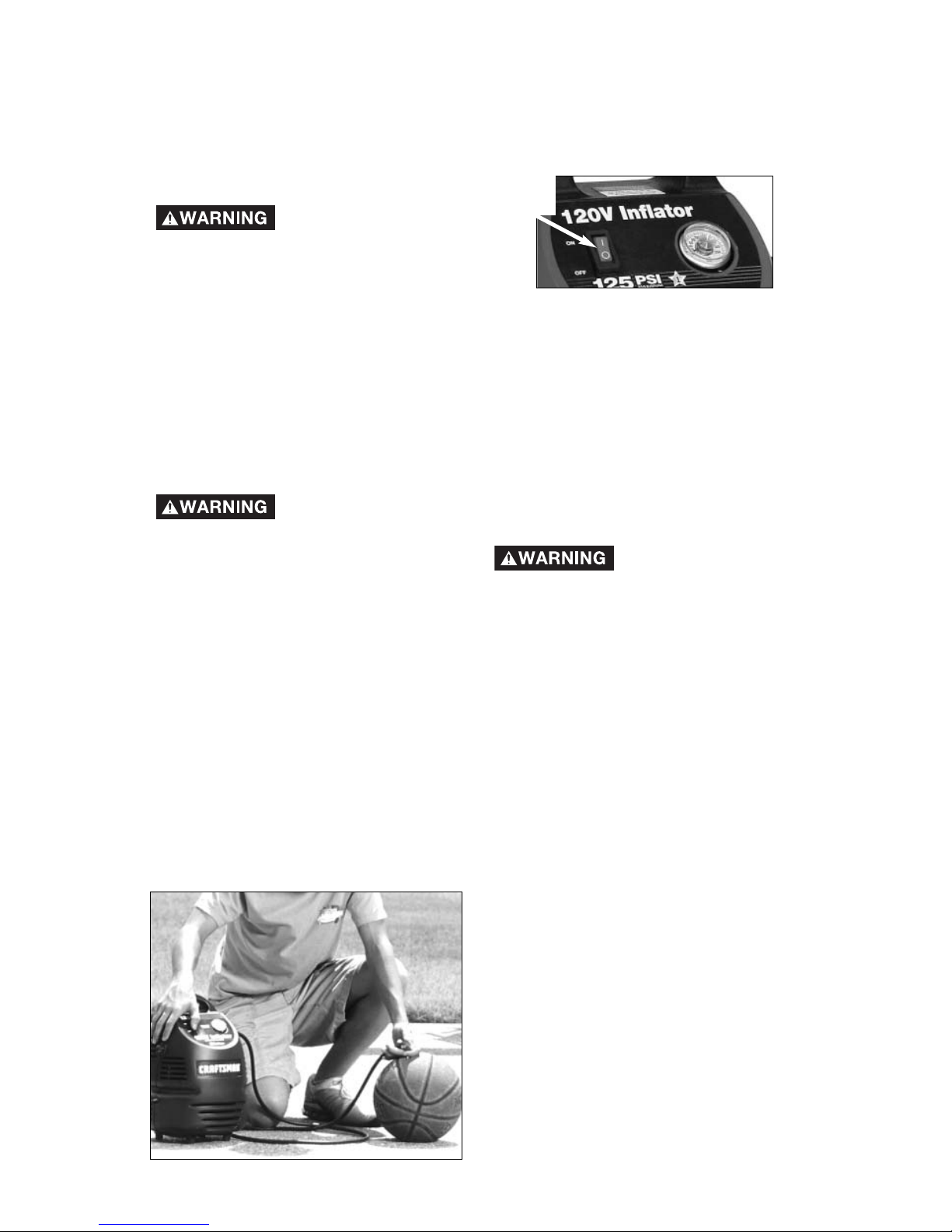

How to Inflate Sport Balls
Risk of Bursting.
Most sports balls
with no initial air will fill in less than
10 seconds. Watch sport balls
carefully while filling, do not
overfill.
1. Place inflator needle into the
universal valve adapter and press
lever on universal valve adapter
down to lock in place.
2. Insert inflator needle into sport
ball to be inflated.
3. Place On/Off switch in the "ON"
position. When sport ball is firm
place On/Off switch in the "OFF"
position. IMPORTANT: Most
sports balls with no initial air
will fill in less than 10 seconds.
How to Inflate Tires
1. Place the universal valve adapter
over tire valve stem.
2. Press lever on universal valve
adapter down to lock in place.
Risk of Flying
Objects/Bursting
Objects. Over inflating tire could
cause the tire to burst or the
universal valve adapter to pop off
the valve stem and become a
projectile. Use a tire pressure
gauge to ensure an accurate tire
pressure reading, because the
pressure gauge on the unit is for
general reference only.
3. See "How to Start" instructions
to start inflator.
Before Starting:
1. Place On/Off switch to “OFF”.
2. Attach inflation needle, extension
nozzle, or high flow
inflator/deflator adapter body to
universal valve adapter.
3. Insert inflation needle, extension
nozzle, or high flow
inflator/deflator adapter body with
desired nozzle into inflatable.
Risk of Bursting.
Too much air
pressure causes a hazardous risk
of bursting. Check the
manufacturer's maximum pressure
rating for objects being inflated.
Carefully follow the "How to Start"
instructions.
How to Use Your Unit
How to Stop:
1. Set the On/Off switch to “OFF”.
On/Off
Switch

14- ENG
D29496

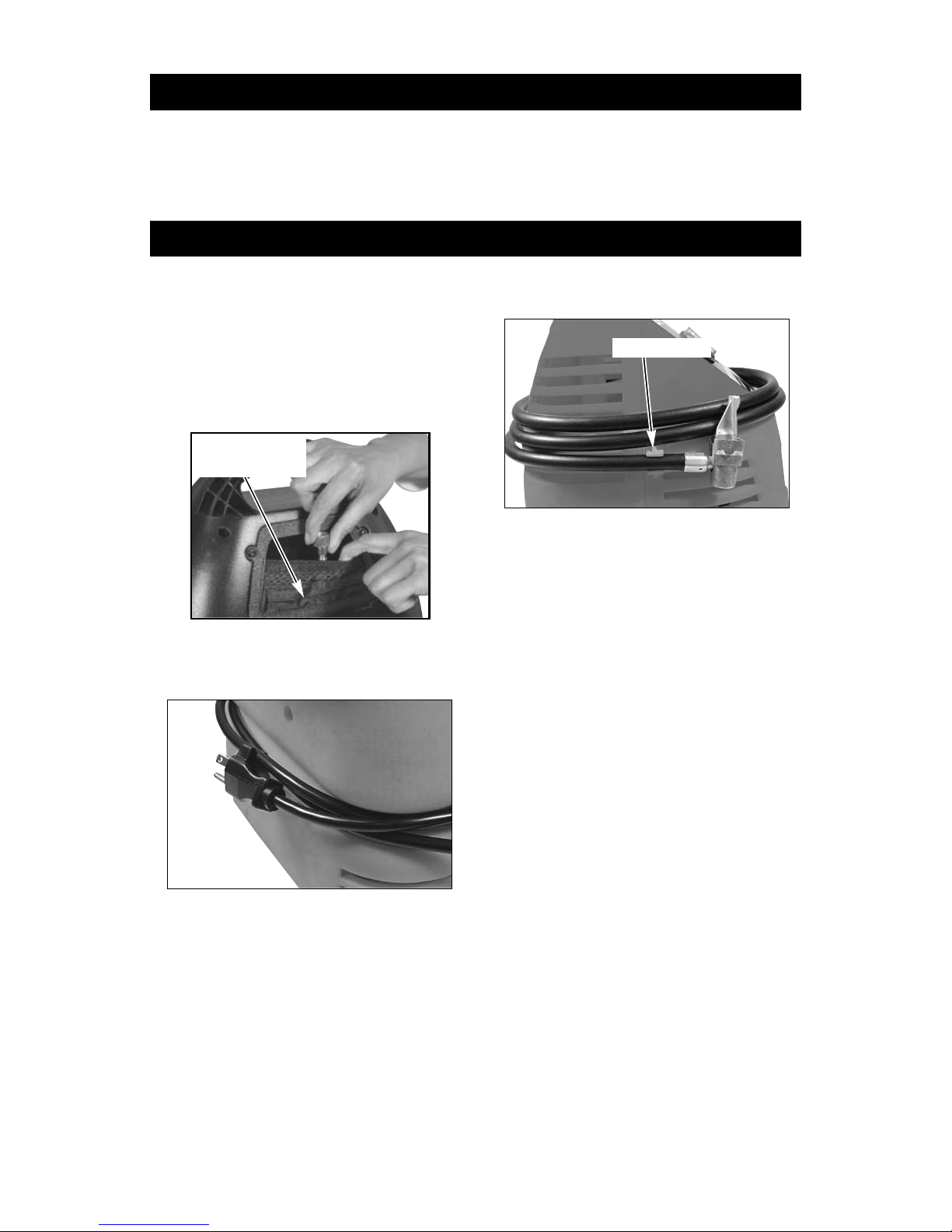

MAINTENANCE
STORAGE
1. Set the On/Off switch to "OFF"
and unplug the cord.
2. Store accessories in the storage
bag located on back of unit. The
storage bag has a smaller
compartment to hold smaller
accessories.
3. Wind the electrical cord loosely
around the inflator and snap it
onto itself for storage.
4. Coil the air hose around shroud
and snap into hose snap.
5. Store the inflator in a clean and
dry location.
Cleaning
1. Place the On/Off switch to "OFF"
and unplug the cord.
2. Wipe plastic parts clean using
mild soap and warm water.
Hose Snap
Smaller
Compartment

15- ENG D29496
TROUBLESHOOTING
PROBLEM CAUSE CORRECTION
Risk of Unsafe Operation. Voltage sources, moving parts,
or compressed air sources are exposed when repairing
the inflator. Personal injury can occur. Unplug the inflator before
attempting any repairs.
Motor will not
run. Fuse blown, circuit breaker
tripped.
1. Check fuse box for blown
fuse and replace as
necessary. Reset circuit
breaker. Do not use a fuse
or circuit breaker with
higher rating than that
specified for your
particular branch circuit.
2. Check for proper fuse.
You should be using a
“Time Delay” fuse.
3. Check for low voltage
problem.
4. Check the extension cord.
5. Disconnect the other
electrical appliances from
circuit or operate the
inflator on its own branch
circuit.
Faulty motor.
Extension cord is wrong
length or gauge.
Check the extension cord.
Contact a Trained Service
Technician.

17- FR D29496
GARANTIE COMPLÈTE D'UN AN SUR LES GONFLEUR
Si ce gonfleur ne fonctionne pas à cause d'un défaut de matériau ou de fabrication
dans une période d'un an à compter de la date d'achat, RETOURNEZ-LE AU CENTRE
DE SERVICE APRÈS-VENTE SEARS LE PLUS PROCHE AU CANADA ET SEARS LE
RÉPARERA SANS FRAIS.
Si ce gonfleur est utilisé à des fins commerciales ou comme appareil de location, cette
garantie s'applique pour une période de quatre-vingt-dix (90) jours à compter de la date
d'achat.
Cette garantie sur le gonfleur de Craftsman vous confère des droits particuliers. Il se
peut que vous ayez d'autres droits qui varient d'une province à l'autre.
Sears Canada, Inc., Toronto, Ont. M5B 2B8
GARANTIE
TABLE DES MATIÈRES
GARANTIE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
TABLEAU DES SPÉCIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
MESURES DE SÉCURITÉ - DÉFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . . .18
CONSIGNES DE SÉCURITÉ IMPORTANTES . . . . . . . . . . . . . . . . . . . . .19-23
LEXIQUE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ACCESSOIRES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ASSEMBLAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25
UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-28
ENTRETIEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
RANGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
DÉPANNAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
PIÈCES DE RECHANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
COMMANDE DE PIÈCES DE RECHANGE . . . . . . . . . . . . . .couverture arrière

18- FR
D29496
La poussière produite par le ponçage électrique, le sciage, le
meulage, le perçage et autres activités de construction peut
contenir des produits chimiques qui sont reconnus, par l'état de la Californie, de causer
le cancer, les anomalies congénitales ou autres maux de reproduction. Ces produits
chimiques comprennent, entre autres :
Gle plomb provenant des peintures à base de plomb
Gla silice cristalline provenant de briques, de béton ou d'autres produits de
maçonnerie
Gl'arsenic et le chrome provenant du bois de charpente traité chimiquement
Le risque d'exposition à ces produits dépend de la fréquence d'exécution de ce genre de
travaux. Afin de réduire l'exposition à ces produits chimiques, travaillez dans un endroit
bien aéré et utilisez de l'équipement de sécurité approuvé, portez toujours un masque
facial ou respirateur homologué MSHA/NIOSH bien ajusté lorsque vous utilisez de tels
outils.
Lorsque vous utilisez un outil pneumatique, il faut toujours suivre les mesures de sécurité
de base afin de réduire le risque de blessures corporelles.
MESURES DE SÉCURITÉ - DÉFINITIONS
Indique un danger
imminent qui, s'il n'est
pas évité, causera de graves blessures
ou la mort.
Indique la
possibilité
d'un danger qui, s'il n'est pas évité,
pourrait causer de graves blessures ou
la mort.
Ce guide contient des renseignements importants que vous devez bien saisir. Cette
information porte sur VOTRE SÉCURITÉ et sur LA PRÉVENTION DE PROBLÈMES
D'ÉQUIPEMENT. Afin de vous aider à identifier cette information, nous avons utilisé les
symboles ci-dessous. Veuillez lire attentivement ce guide en portant une attention
particulière à ces symboles.
Indique la
possibilité d'un
danger qui, s'il n'est pas évité, peut
causer des blessures mineures ou
moyennes.
Sans le symbole
d'alerte. Indique la
possibilité d'un danger qui, s'il n'est pas
évité, peut causer des dommages à la
propriété.
TABLEAU DES SPÉCIFICATIONS
N° de modèle 919.722010
Alésage 1,875 po (47,6 mm)
Course 1,25 po (31,8 mm)
Tension/Hertz/Phase 120/60/1
Exigences minimales du circuit de dérivation 15 A
Genre de fusibles À retardement
Pi3/min standard (SCFM) à 30 psi 2,5
Pression maximale 125 PSI
CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVEZ CES INSTRUCTIONS
TOUTE UTILISATION OU ENTRETIEN INAPPROPRIÉ DE CE PRODUIT PEUT CAUSER
DES BLESSURES ET DES DOMMAGES MATÉRIELS. LISEZ ATTENTIVEMENT TOUS
LES AVERTISSEMENTS ET TOUTES LES INSTRUCTIONS D'UTILISATION AVANT
D'UTILISER CET APPAREIL.

19- FR D29496
DANGER
AVERTISSEMENT : Risque d'explosion ou d'incendie
Prévention
Risque
Les étincelles qui proviennent des
contacts électriques du moteur sont
considérées normales.
Si des étincelles électriques du gonfleur
entrent en contact avec des vapeurs
inflammables, elles peuvent
s'enflammer, provoquant un incendie
ou une explosion.
Toute obstruction des orifices
d'aération du gonfleur entraînera une
surchauffe dangereuse et risque de
causer un incendie.
Si cet appareil fonctionne sans
supervision, cela risque de causer des
blessures graves ou des dommages à
la propriété. Pour réduire le risque
d'incendie, ne jamais laisser le gonfleur
fonctionner sans supervision.
Toujours utiliser le gonfleur dans un
endroit bien aéré, loin de toute matière
combustible et des vapeurs d'essence
ou de solvants.
Entreposer les matières inflammables
dans un endroit sécuritaire, loin du
gonfleur.
Ne jamais placer des objets contre ou
sur le gonfleur. Utiliser le gonfleur dans
un endroit ouvert, à au moins 30 cm (12
pouces) de tout mur ou obstruction qui
réduit le débit d'air frais vers les orifices
d'aération.
Utiliser le gonfleur dans un endroit propre,
sec et bien aéré. Ne pas utiliser
l'appareil dans un endroit clos.
Toujours rester à proximité de l'appareil
lorsqu'il est en fonction.
Toujours couper l'alimentation
électrique en plaçant l'interrupteur
marche/arrêt « On/Off » en position
d'arrêt « Off » et débranchez le cordon
d'alimentation électrique.
CONSIGNES DE SÉCURITÉ IMPORTANTES
Un emploi ou un entretien non appropriés de ce produit peut causer des blessures
graves et des dommages à la propriété. Lire attentivement tous les avertissements et les
directives d'utilisation avant d'utiliser cet appareil.
Conservez ces instructions

20- FR
D29496
AVERTISSEMENT : Risque d'éclatement
Prévention
Risque
AVERTISSEMENT : Risque de projection d'objets
Le jet d'air comprimé peut causer des
lésions aux tissus de la peau exposée
et peut projeter de la saleté, des
copeaux, des particules libres et de
petits objets à haute vitesse, ce qui
risque de causer des dommages
matériels ou des blessures.
Porter toujours des lunettes de
protection homologuées ANSI Z87.1
avec des écrans latéraux lors de
l'utilisation du gonfleur.
Ne jamais diriger l'air comprimé vers
une partie quelconque du corps, vers
d'autres personnes ou vers des
animaux.
Toujours mettre le gonfleur hors fonction
avant d'entamer l'entretien ou d'attacher
des outils ou accessoires.
DANGER
DANGER
Suivre les recommandations du fabricant de
l'équipement et ne jamais excéder la
pression nominale maximale spécifiée
pour les accessoires ou les objets gonflables.
FIXATIONS ET ACCESSOIRES :
Le fait d'excéder la pression nominale
des accessoires pneumatiques, pneus,
balles et autres objets gonflables risque
de provoquer l'explosion de ces
derniers et la projection de pièces, ce qui
risque de causer des blessures graves.
Prévention
Risque
Toujours rester près de l'appareil en
gonflant des pneus, balles, jouets ou
autres objets gonflables. Soyez prêt à
arrêter le gonfleur lorsque l'objet est
suffisamment gonflé, parfois dans
seulement quelques secondes.
Les pneus, balles, jouets et autres
objets gonflables peuvent devenir
surgonflés très rapidement, parfois dans
seulement quelques secondes, ce qui
risque de causer des blessures ou des
dommages matériels.

21- FR D29496
AVERTISSEMENT : Risque par inhalation
AVERTISSEMENT : Risque de choc électrique
DANGER
DANGER
Votre gonfleur est alimenté par
électricité. Comme avec tous les
appareils électriques, si l'appareil n'est
pas utilisé de façon appropriée, il peut
causer des chocs électriques.
Toute réparation effectuée par une
personne non qualifiée peut entraîner
des blessures graves ou la mort par
électrocution.
Mise à la terre : Le défaut d'établir une
mise à la terre appropriée pour cet
appareil peut entraîner des blessures
graves ou la mort par électrocution.
Voir les directives de mise à la terre.
Ne jamais faire fonctionner le gonfleur à
l'extérieur lorsqu'il pleut ou dans des
conditions humides.
Ne jamais faire fonctionner le gonfleur
sans les couvercles de protection ou
lorsque ceux-ci sont endommagés.
Tout câblage électrique ou toute
réparation requis sur cet appareil devrait
être effectué par le personnel d'un
centre de service après-vente autorisé,
conformément aux codes électriques
nationaux et locaux.
S'assurer que le circuit électrique
alimentant le gonfleur fournit une mise à
la terre électrique appropriée, une
tension appropriée et une protection
adéquate par fusibles.
L'air comprimé de votre gonfleur n'est
pas sécuritaire pour l'inhalation. Le jet
d'air peut contenir du monoxyde de
carbone, des vapeurs toxiques ou des
particules solides du réservoir.
L'inhalation de ces contaminants peut
causer des blessures graves ou la
mort.
L'air obtenu directement du gonfleur ne
devrait jamais être utilisé comme source
d'air pour les être humains. Si l'air
produit par ce gonfleur sera utilisé pour la
respiration, il faut installer des filtres
appropriés ainsi que du matériel de
sécurité. Les filtres en ligne et le
matériel de sécurité utilisés avec le
gonfleur doivent être dans la mesure de
traiter l'air de façon à ce qu'il réponde à
toutes les normes nationales et locales
applicables avant d'être utilisé pour les
êtres humains.
Prévention
Risque
Prévention
Risque
Toujours remplacer les cordons
électriques endommagés ou usés avant
d'utiliser le gonfleur.
Utiliser une prise électrique à DFT si
vous utilisez le gonfleur à l'extérieur.
