Craftsman 315.212900 User manual

Operator's Manual
Ip..,,ss.°...I
356 mm (14 in.) ABRASIVE CUT-OFF MACHINE
Model No.
315.212900
Save this manual for
future reference.
CAUTION: Read and follow
all Safety Rules and Operating
Instructions before first use of
this product.
Customer Help Line: 1-800-932-3188
• Safety
•Features
• Adjustments
• Operation
•Maintenance
•Parts List
Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
983000-037
4-02

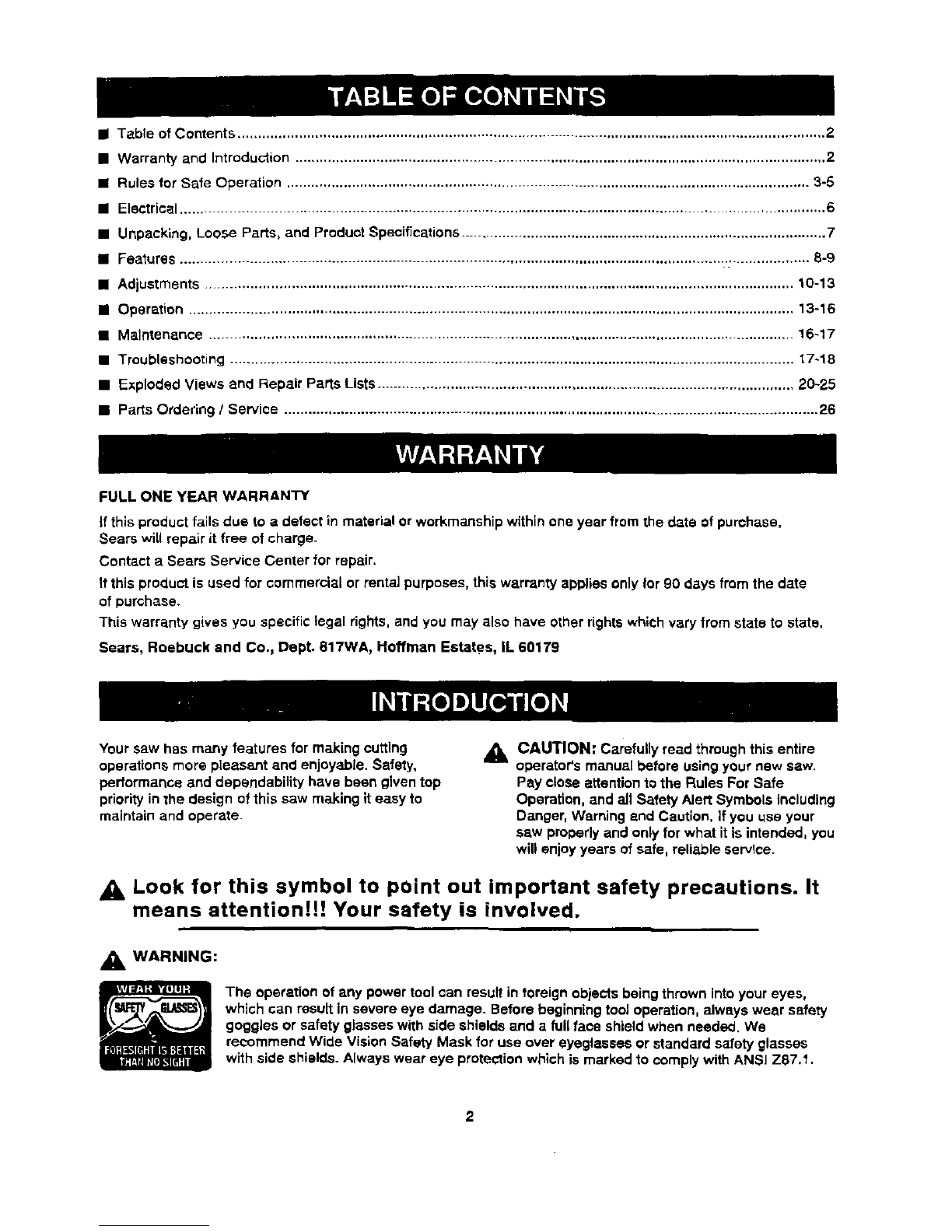

i Table of Contents ................................................................................................................................................. 2
• Warranty and Introduction ................................................................................................................................... 2
• Rules for Safe Operation ................................................................................................................................. 3-5

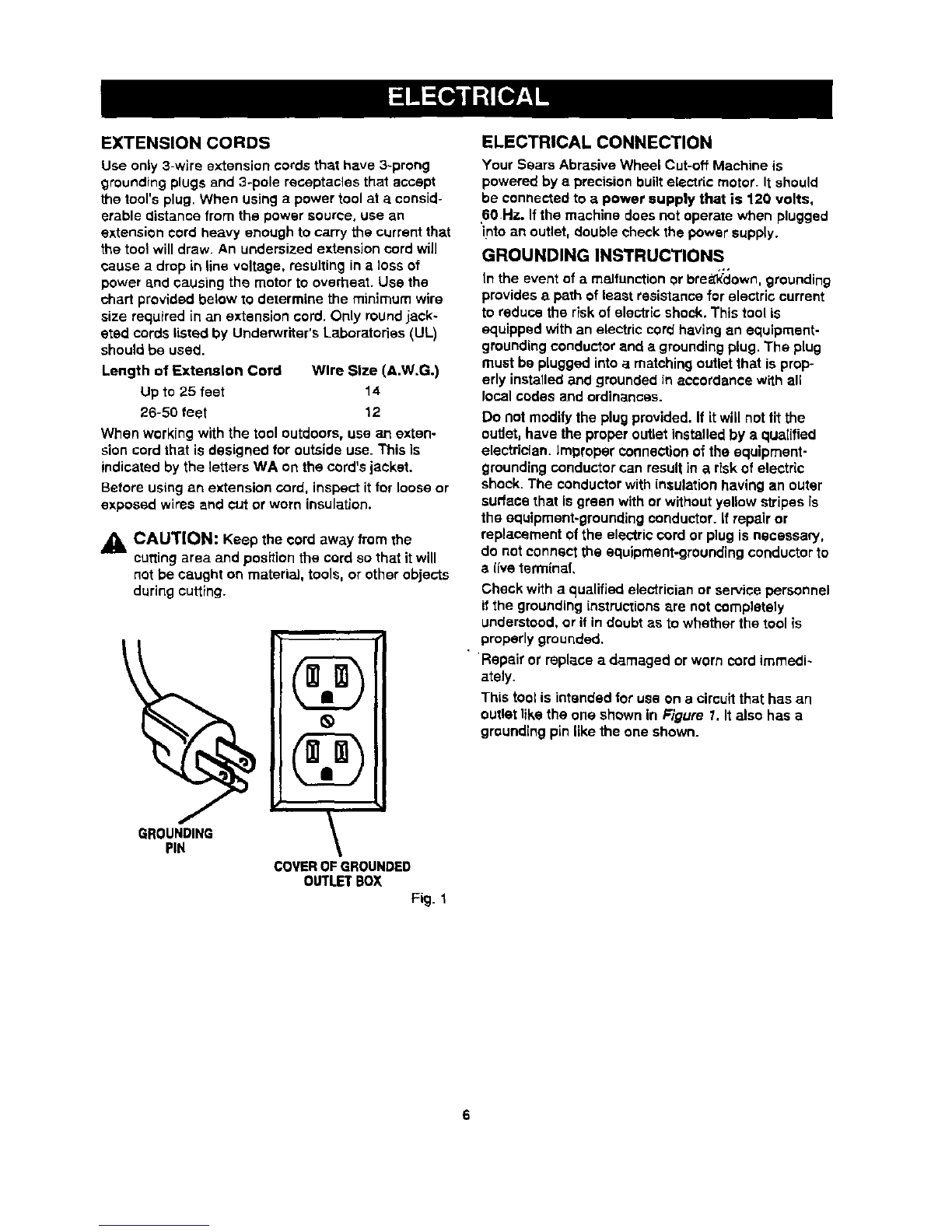

•Electricel ............................................................................................................................................................. 6

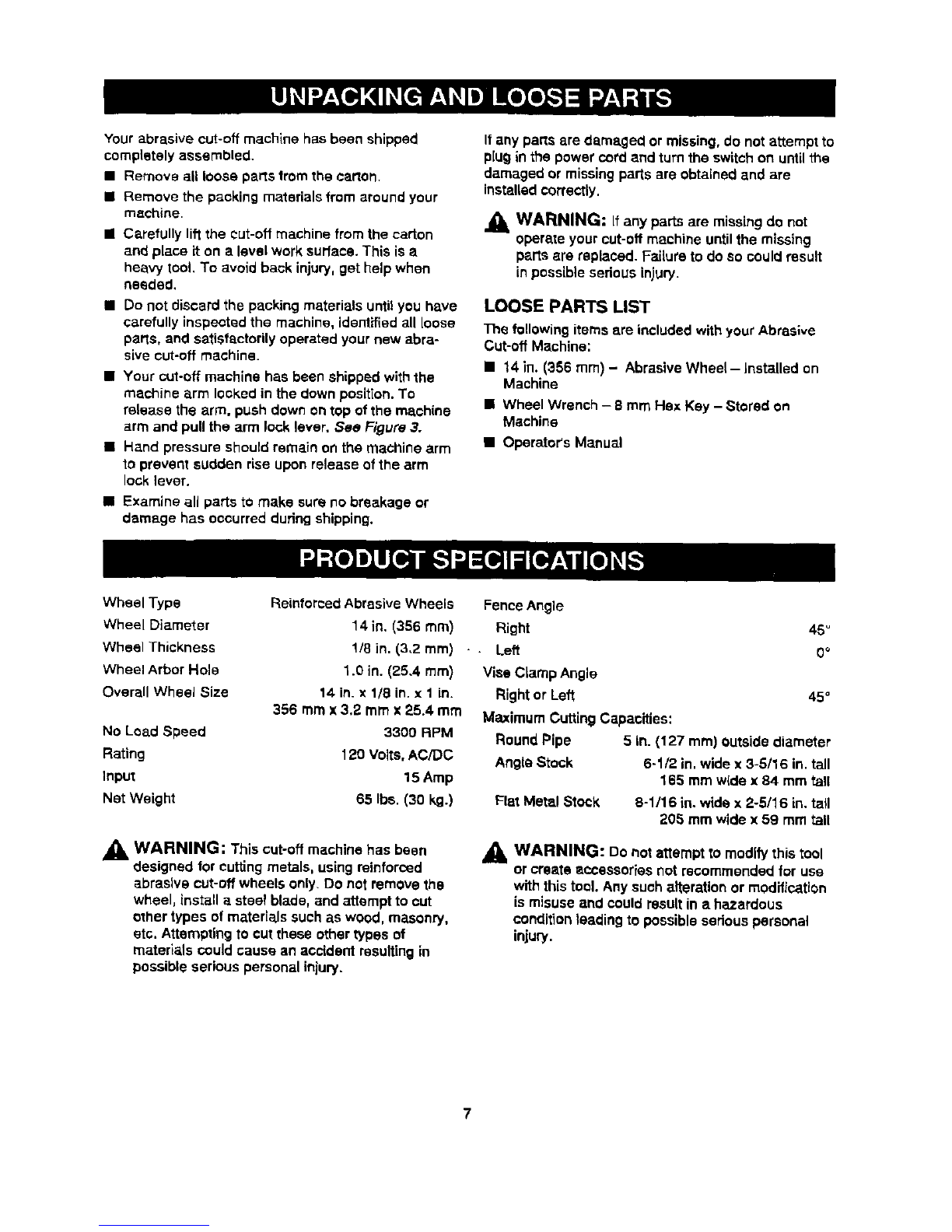

•Unpacking, Loose Parts, and Product Specifications .......................................................................................... 7

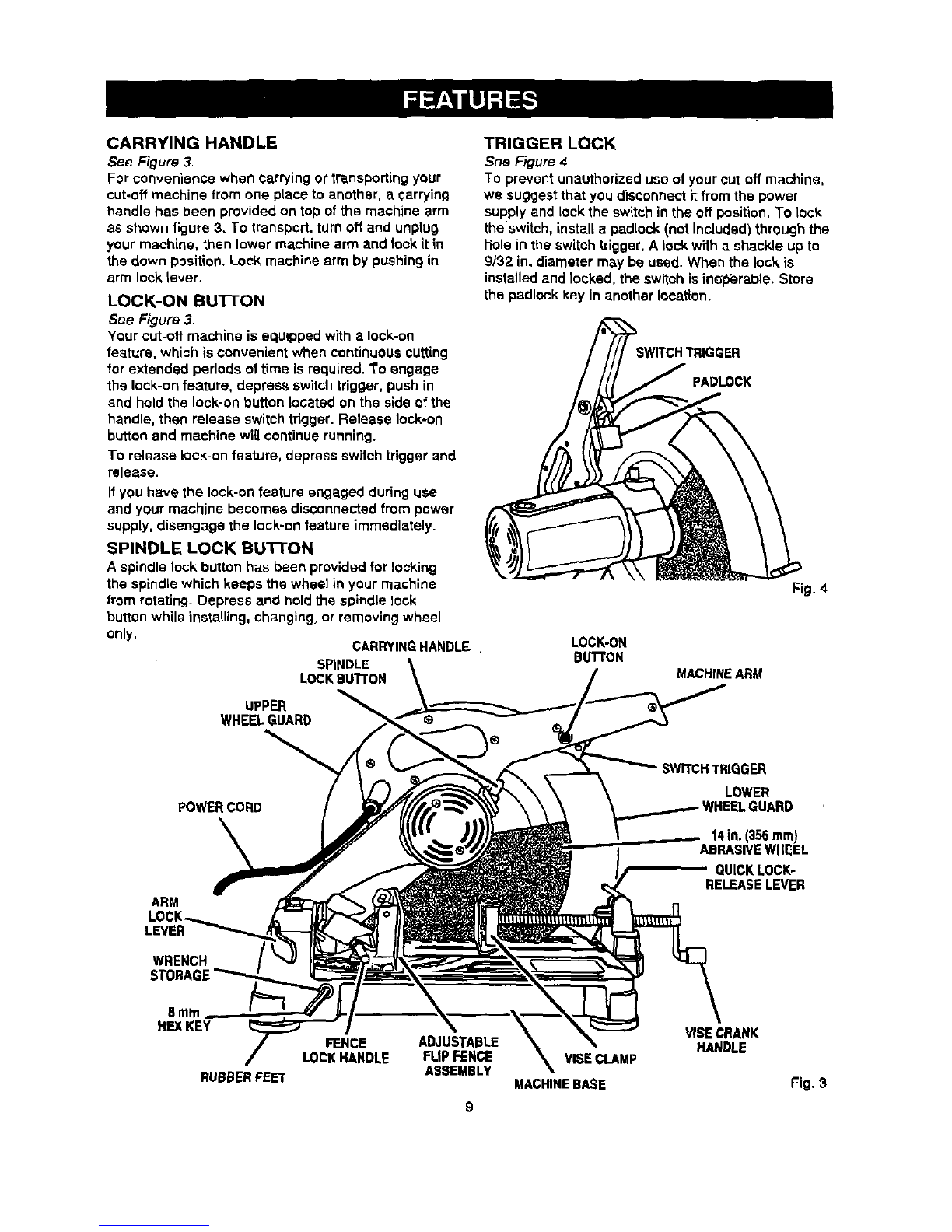

• Features ........................................................................................................................................................... 8-9

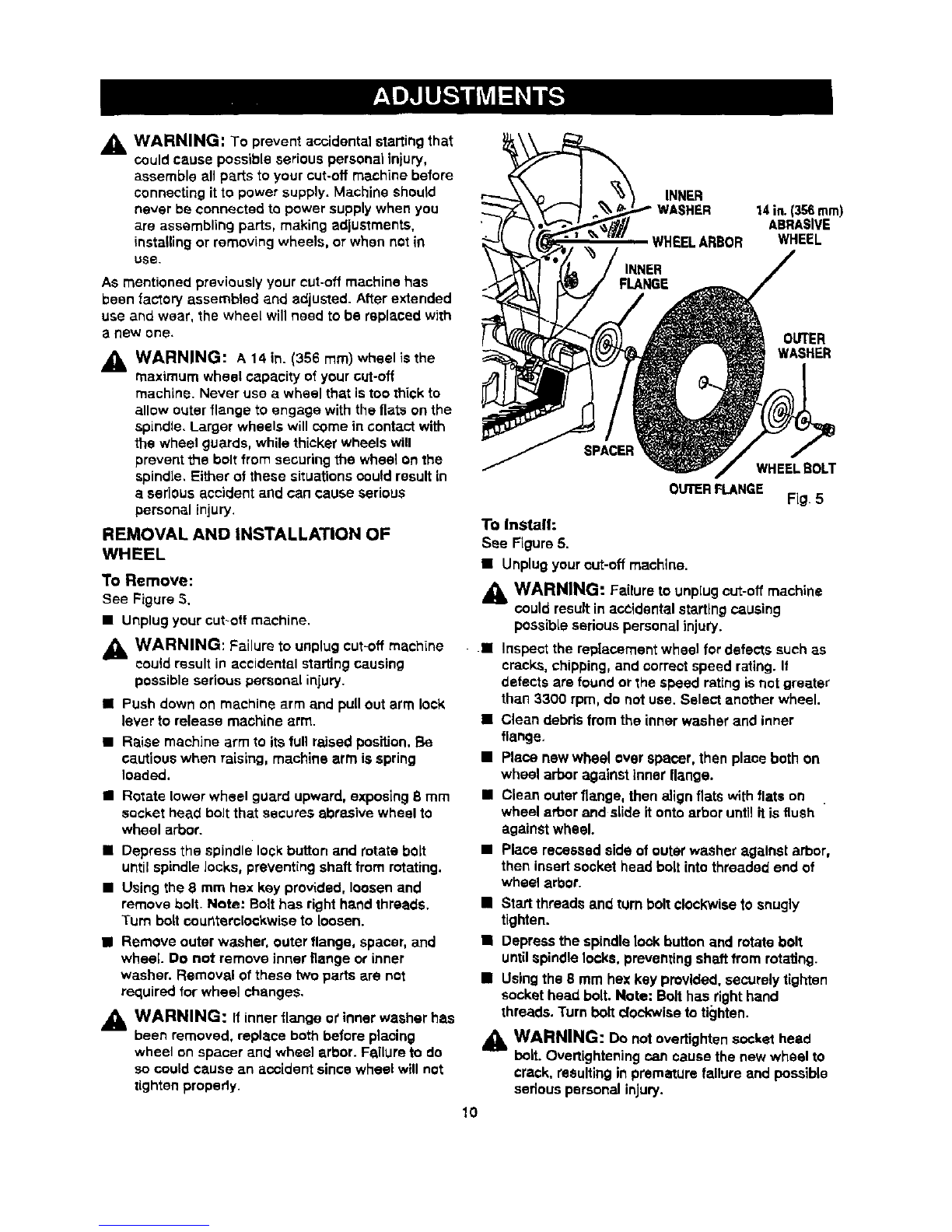

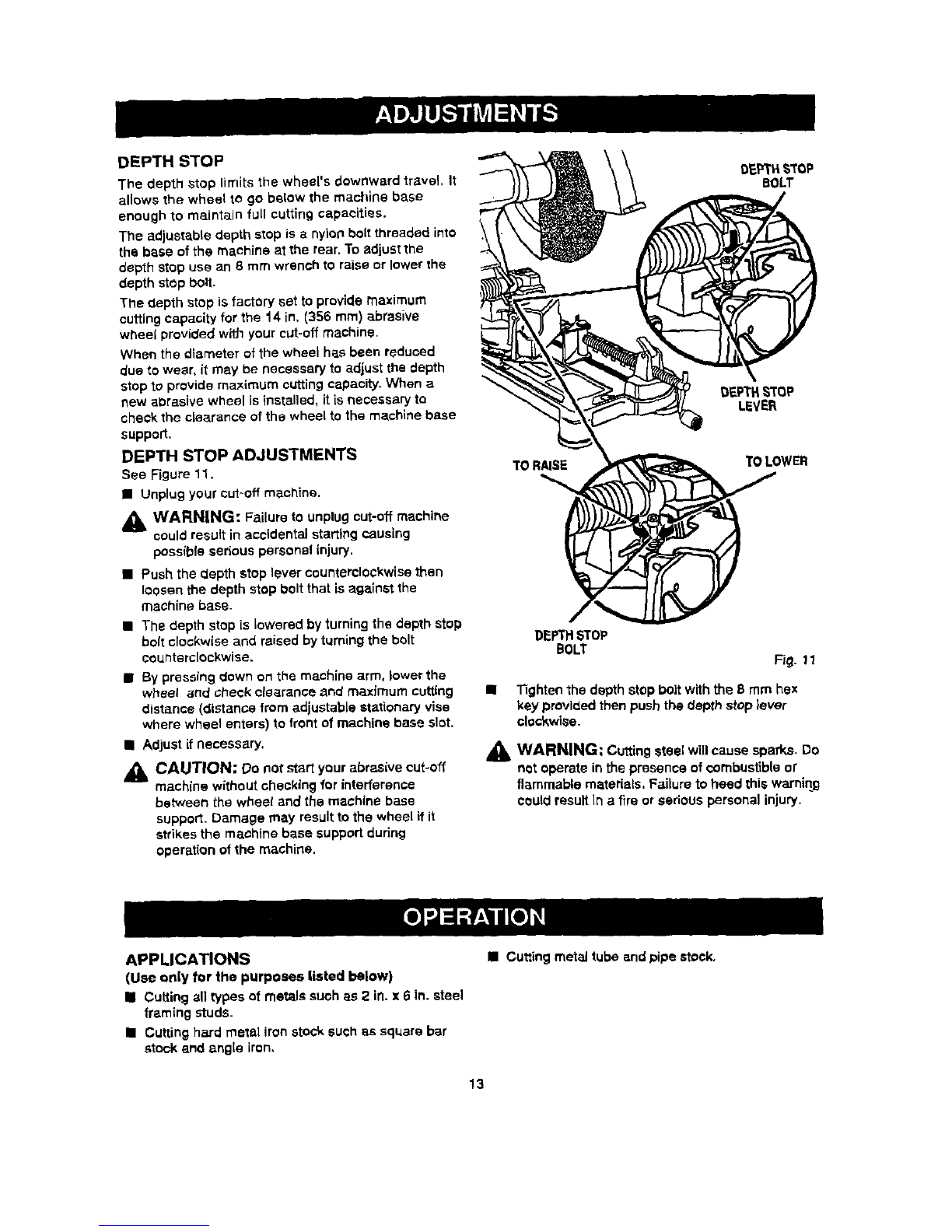

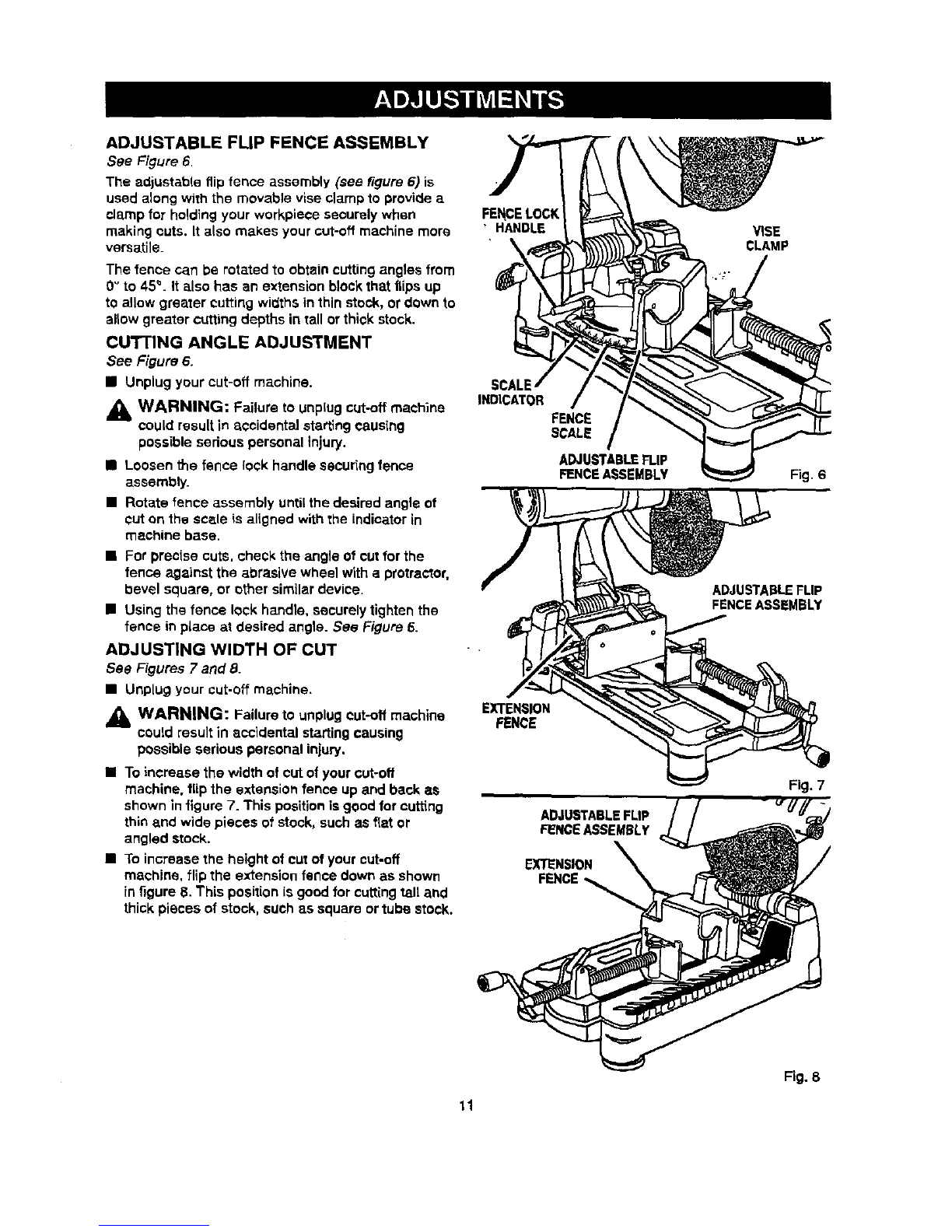

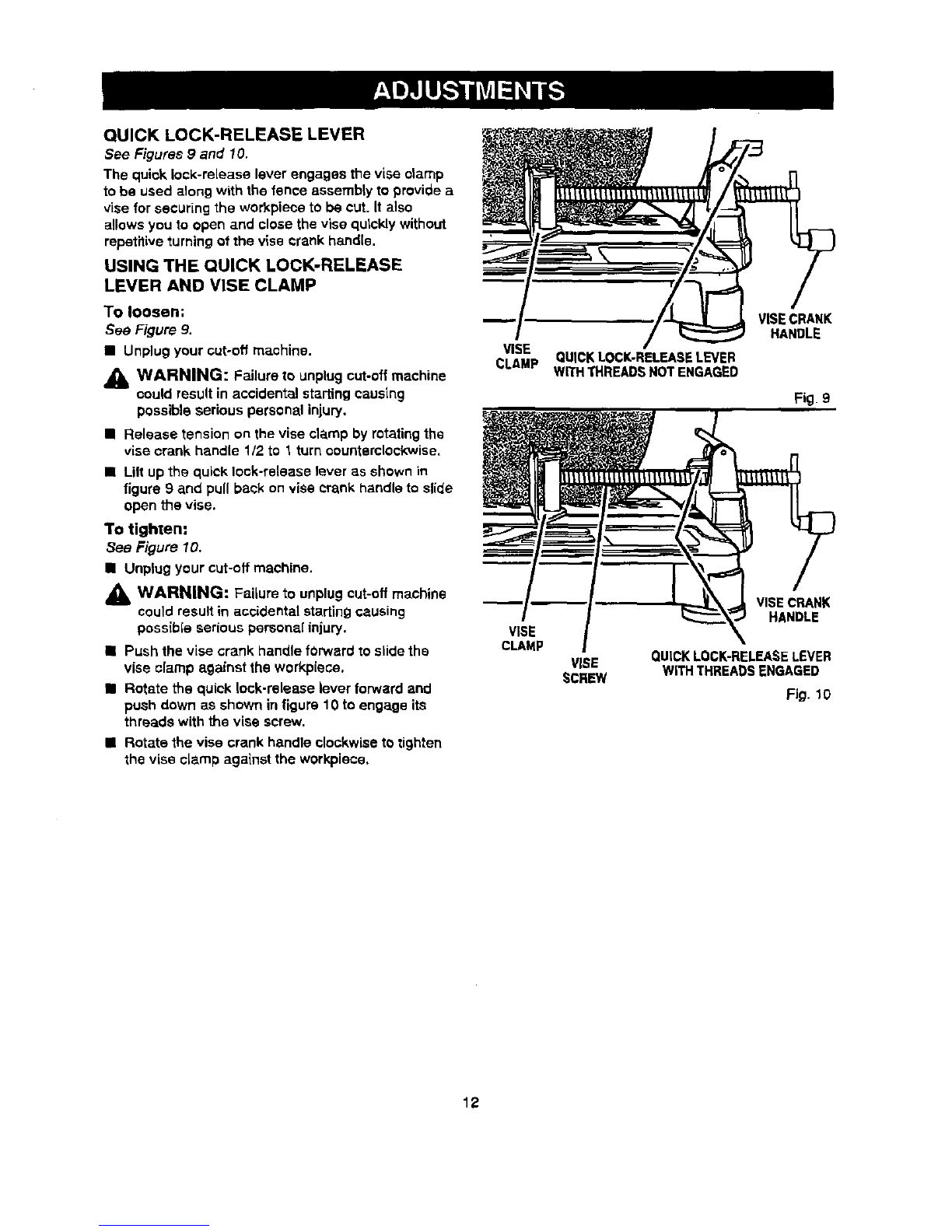

•Adjustments ................................................................................................................................................. 10-13

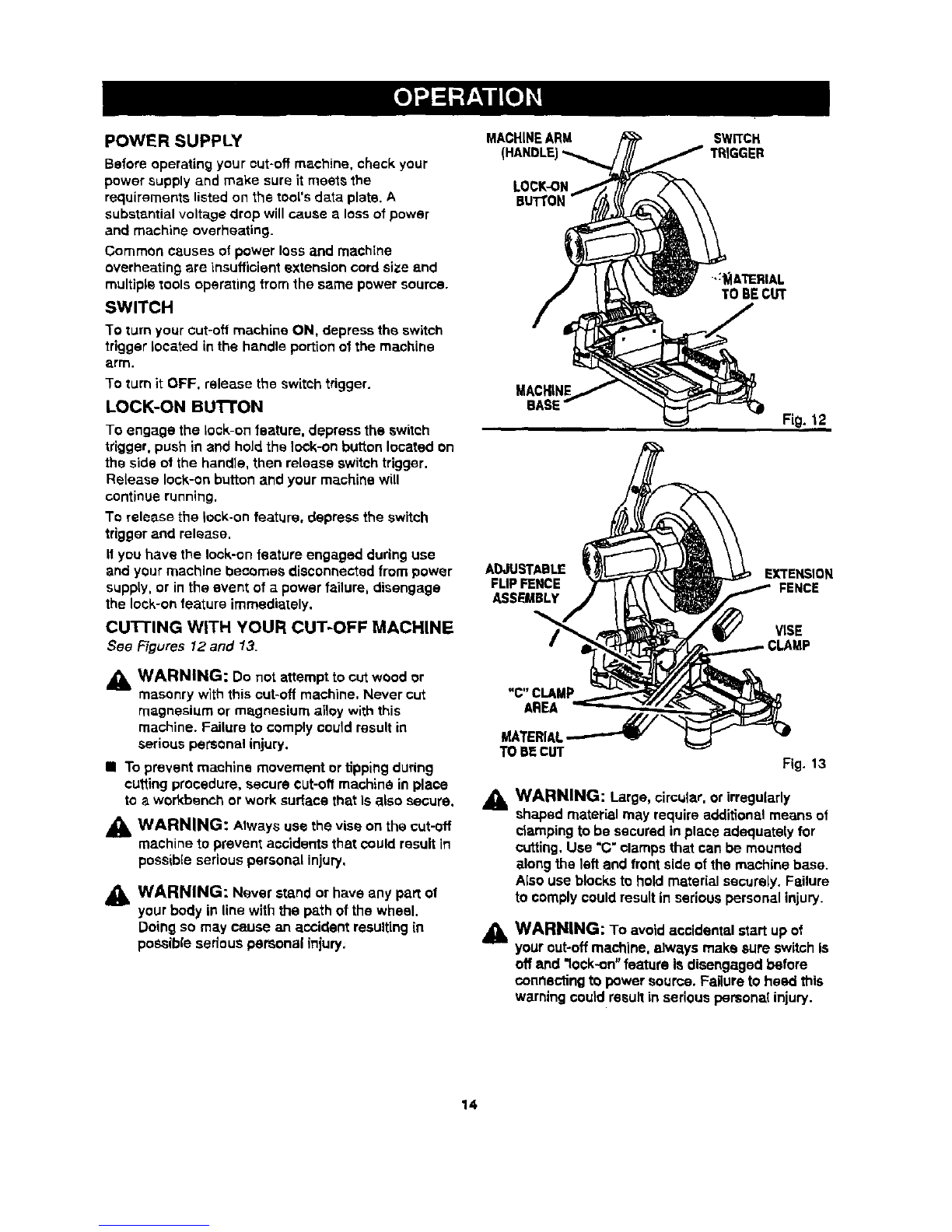

• Operation ..................................................................................................................................................... 13-16

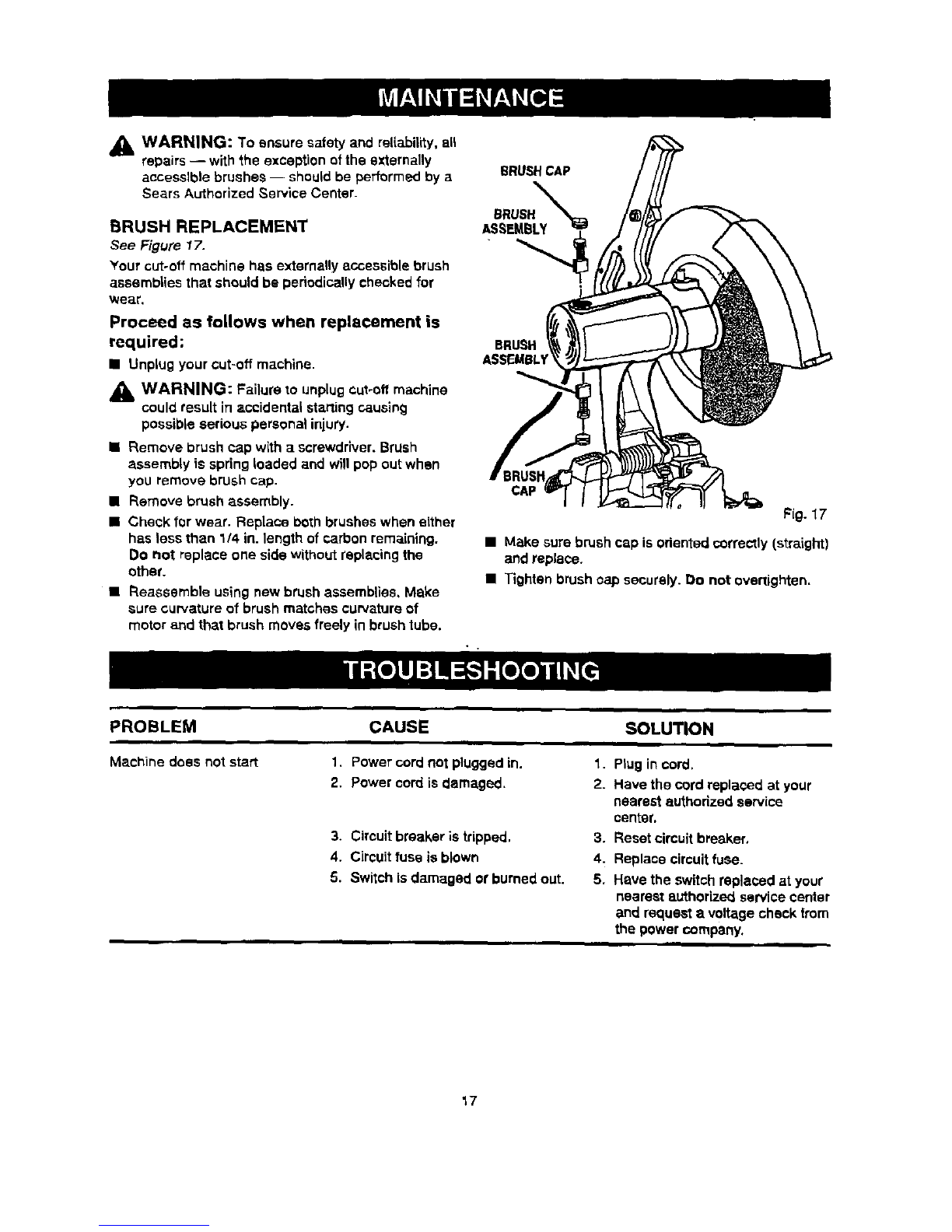

• Maintenance ................................................................................................................................................ 16-17
• Troubleshooting ........................................................................................................................................... 17-18
• Exploded Views and Repair Parts Lists ....................................................................................................... 20-25
•Parts Ordering /Service .................................................................................................................................... 26
FULL ONE YEAR WARRANTY
If this product fails due to adefect in material or workmanship within one year from the date of purchase,
Sears will repair it free of charge-
Contact a Sears SerVice Center for repair.
It this product is used for commercial or rental purposes, this warranty applies only for g0 days from the date
of purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state,
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Your saw has manyfeatures for makingcutting
operationsmore pZeasantand enjoyable, Safety,
pedormance and dependability have been giventop
priorityin 'thedesign ofthis saw making iteasy to
maintainand operate.
_, CAUTION: Carefully read through this entire
operator's manua[ before using your new saw.
Pay close attention to the Rules For Safe
Operation, and all Safety Alert Symbols including
Danger, Warning and Caution. if you use your
saw prot0erly and only for what it is intended, you
will enjoy years of safe, reliable service.
Look for this symbol to point out important safety precautions. It
means attention!!! Your safety is involved.
j_ WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning tool operation, always wear safety
goggles or safety glasses with side shields and a full face shield when needed. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses
with side shields_ A[ways wear eye protection which is marked to comply with ANSI Z87,1.

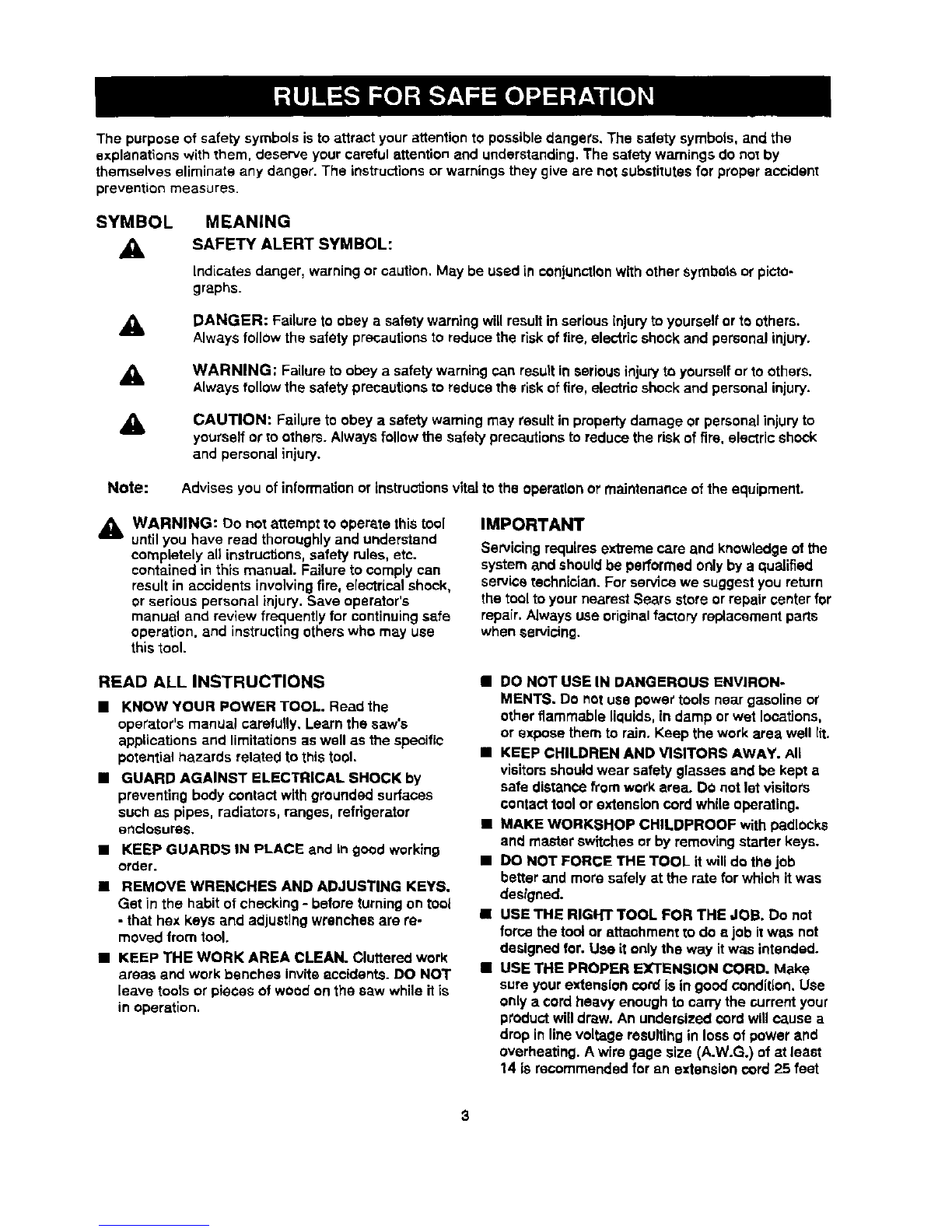

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the
explanations with them. deserve your careful attention and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident
prevention measures.
SYMBOL
AMEANING
SAFETY ALERT SYMBOL:
Indicates danger, warning or caution. May be used in conjunctionwith other symbols or picto-
graphs.
DANGER: Failure to obey asafetywarningwillresult inseriousinjury toyourselforto others.
Always follow the safety precautionsto reducethe riskoffire,electric shockand personalinjury.
A
A
WARNING; Failure to obey a safety warning can resuR in serious injuw to yourself or to others.
Always follow the safety precautions to reduce the risk of fire, electric shock and persona] injury.
CAUTION: Failure to obey a safety warningmay result in propertydamage or personalinjuryto
yourself or to others.Alwaysfollow the safety precautionstoreducethe riskof fire,electricshook
and personal injury.
Note: Advisesyou ofinformation orinstructionsvitalto theoperationor maintenanceofthe equipment.
_k WARNING: Do not attempf to operate this tool
until you have read thoroughly and understand
completely all instructions, safety rules, etc.
contained in this manual. Failure to comply can
result in accidents involving tire, electrical shock,
or serious personal injury. Save operator's
manual and review frequently for continuing safe
operation, and instructing others who may use
this tool.
IMPORTANT
Servicingrequires extremecare and knowledgeof the
system and shouldbe performedonlybya qualified
servicetechnician.Forservicewe suggestyou return
thetooltoyournearest Sears storeor repair centerfor
repair,Alwaysuseoriginalfactory replacement parts
when servicing.
READ ALL INSTRUCTIONS
•KNOW YOUR POWER TOOL. Read the
operator'smanual carefully.Learnthe saw's
applicationsand limitationsas well as the specific
poten'_ialhazards relatedto thistool.
•GUARD AGAINST ELECTRICAL SHOCK by
preventing bodycontact withgroundedsurfaces
such as pipes, radiators,ranges, refrigerator
enclosures,
•KEEP GUARDS IN PLACE and In good working
order.
•REMOVE WRENCHES AND ADJUSTING KEYS.
Get in the habit of checking -before turning on tool
-that hex keys and adjusting wrenches are re-
moved from tool.
•KEEP THE WORK AREA CLEAN. Clutteredwork
areas and work benches Invite accidents. DO NOT
leave tools or pieces of woodon the saw while itis
in operation.
•DO NOT USE IN DANGEROUS ENVIRON-
MENTS. Do not use power tools near gasoline or
other flammable IJcluids,in damp or wet locations,
or expose them to rain. Keep the work area well lit.
•KEEP CHILDREN AND VISITORS AWAY. All
visitors should wear satety gIasses and be kept a
safe distance from work area. Do not let visitors
contact tool or extension cord while operating.
•MAKE WORKSHOP CHILDPROOF with padlocks
and master switches or by removing starter keys.
• DO NOT FORCE THE TOOL it will do the job
better and more safely at the rate for which it was
designed.
•USE THE RIGHT TOOL FOR THE JOB. Do not
force the tool or attachment to do ajob itwas not
designed for, Use it only the way itwas intended.
•USE THE PROPER EXTENSION CORD. Make
sure your extension cord is in good condition. Use
only a cord heavy enough to carry the current your
product will draw. An undersized cord will cause a
drop in line voltage resulting in loss of power and
overheating. Awire gage size (A.W.G.) of at least
14 is recommended for an extension cord 25 feet
3

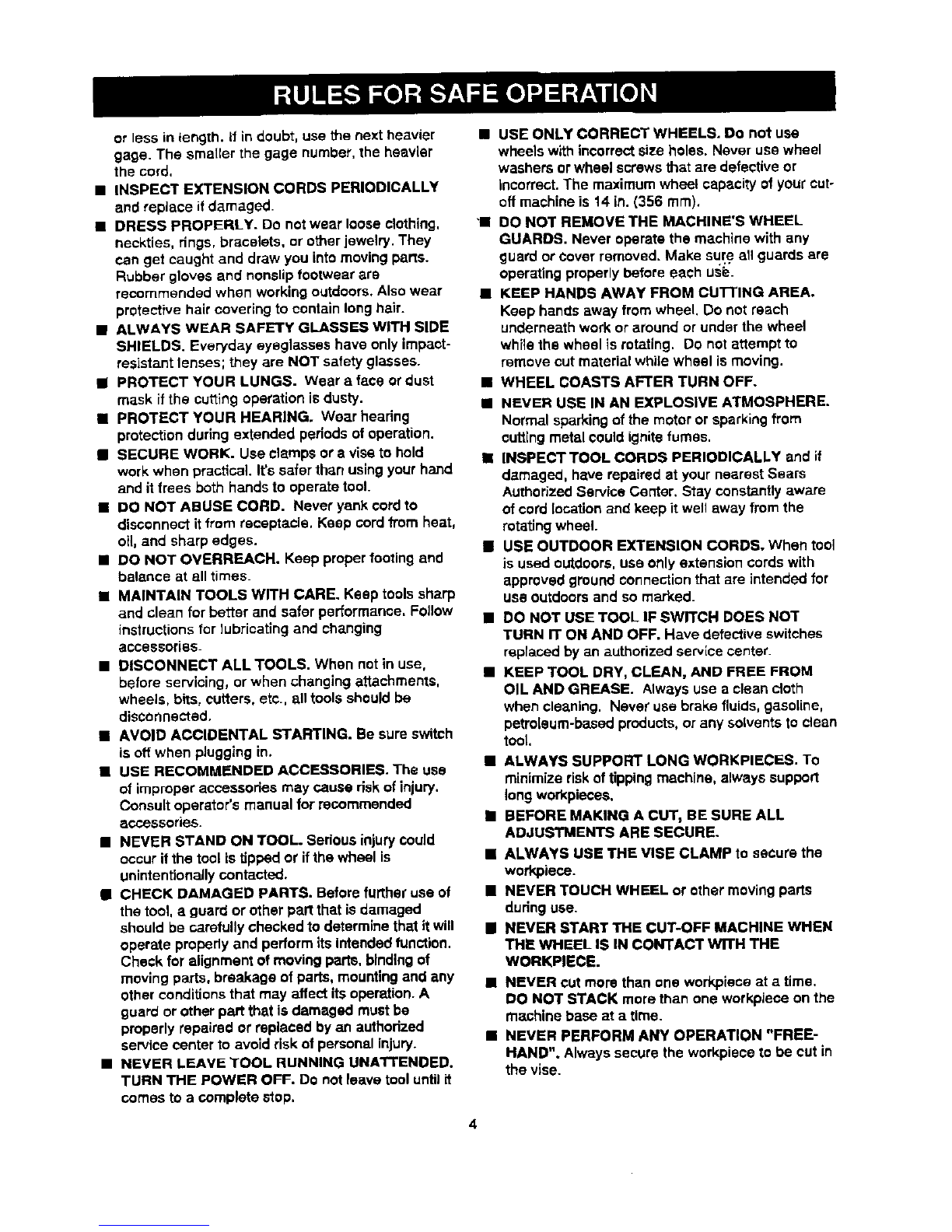

or less in length, tf in doubt, use the next heavier
gage. The smatler the gage number, the heavier
the cord,
•INSPECT EXTENSION CORDS PERIODICALLY
and replace if damaged.
•CRESS PROPERLY- DO not wear loose clothing,
neckties, dngs, bracelets, or other jewelry. They
can get caught and draw you into moving parts.
Rubber gloves and nonslip footwear are
recommended when working outdoors. Also wear
protective hair covering to contain long hair.
•ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS. Everyday eyeglasses have only impact-
resistant lenses; they are NOT safety glasses.
•PROTECT YOUR LUNGS. Wear a face or dust
mask if the cutting operation is dusty.
•PROTECT YOUR HEARING. Wear hearing
protection during extended periods of operation,
• SECURE WORK. Use clamps or a vise to hold
work when practical. It's eefer than using your hand
and it frees both hands to operate tool.
• DO NOT ABUSE CORD. Never yank cord to
disconnect it from receptacle, Keep cord _'om heat,
oil, and sharp edges.
• DO NOT OVERREACH. Keep proper tooting and
balance at all times.
•MAINTAIN TOOLS WITH CARE. Keep tools sharp
and clean for better and safer performance, Follow
instructions for lubricating and changing
accessories-
•DISCONNECT ALL TOOLS. When net in use,
before servicing, or when changing attachments,
wheels, bits, cutters, etc., all tools should be
disconnected.
•AVOID ACCIDENTAL STARTING. Be sure switch
is off when plugging in.
•USE RECOMMENDED ACCESSORIES. The use
of improper accessories may cause risk of injury.
Consult operator's manual for recommended
accessories.
•NEVER STAND ON TOOL. Serious injury could
occur it the tool is tipped or if the wheel is
unintentionally contacted.
•CHECK DAMAGED PARTS. Before further use of
the tool, a guard or other par that is damaged
should be carefully checked to determine that it will
operate properly and perform its Intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting and any
other conditions that may affect its operation. A
guard or other part that is damaged must be
properly repaired or replaced by an authorized
service center to avoid risk of personal injury.
•NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN THE POWER OFF. Do not leave tool until it
comes to a complete step,
•USE ONLY CORRECT WHEELS. Do not use
wheels with incorrect size holes. Never use wheel
washers or wheel screws that are defective or
Incorrect, The maximum wheel capacity of your cut-
off machine is 14 in. (356 ram).
'= DO NOT REMOVE THE MACHINE'S WHEEL
GUARDS. Never operate the machine with any
guard or cover removed. Make sure all guards are
operating properly before each us_'.
mKEEP HANDS AWAY FROM CUTTING AREA.
Keep hands away from wheel. Do not reach
underneath work or around or under the wheel
whi(e the wheel is rotating. Do not attempt to
remove cut material whiSe wheel is moving.
•WHEEL COASTS AFTER TURN OFF.
•NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking of the motor or sparking from
cutting metal could ignite fumes.
•INSPECTTOOL CORDS PERIODICALLY and if
damaged, have repaired at your nearest Sears
Authorized Service Center. Stay constantly aware
of cord location and keep it well away from the
rotating wheel.
•USE OUTDOOR EXTENSION CORDS. When tool
is used outdoors, use only extension cords with
approved ground connection that are intended for
use outdoors and so marked.
•DO NOT USE TOOL IF SWITCH DOES NOT
TURN IT ON AND OFF. Have defective switches
rep(aced by an authorized serv[ce center.
•KEEP TOOL DRY, CLEAN, AND FREE FROM
OIL AND GREASE. Always use a clean cloth
when cleaning. Never use brake fluids, gasoline,
petroleum-based products, or any solvents to clean
tool.
mALWAYS SUPPORT LONG WORKPIECES. To
minimize risk of tipping machine, always support
long workpieces.
•BEFORE MAKING A CUT, BE SURE ALL
ADJUSTMENTS ARE SECURE.
mALWAYS USE THE VISE CLAMP to secure the
workpiece.
•NEVER TOUCH WHEEL or other moving parts
during use.
•NEVER START THE CUT-OFF MACHINE WHEN
THE WHEEL IS IN CONTACT WITH THE
WORKPIECE.
mNEVER cut more than one workpieca at a time,
DO NOT STACK more than one work.piece on the
machine base at a time.
•NEVER PERFORM ANY OPERATION "FREE-
HAND". Always secure the workpiece to be cut in
the vise.

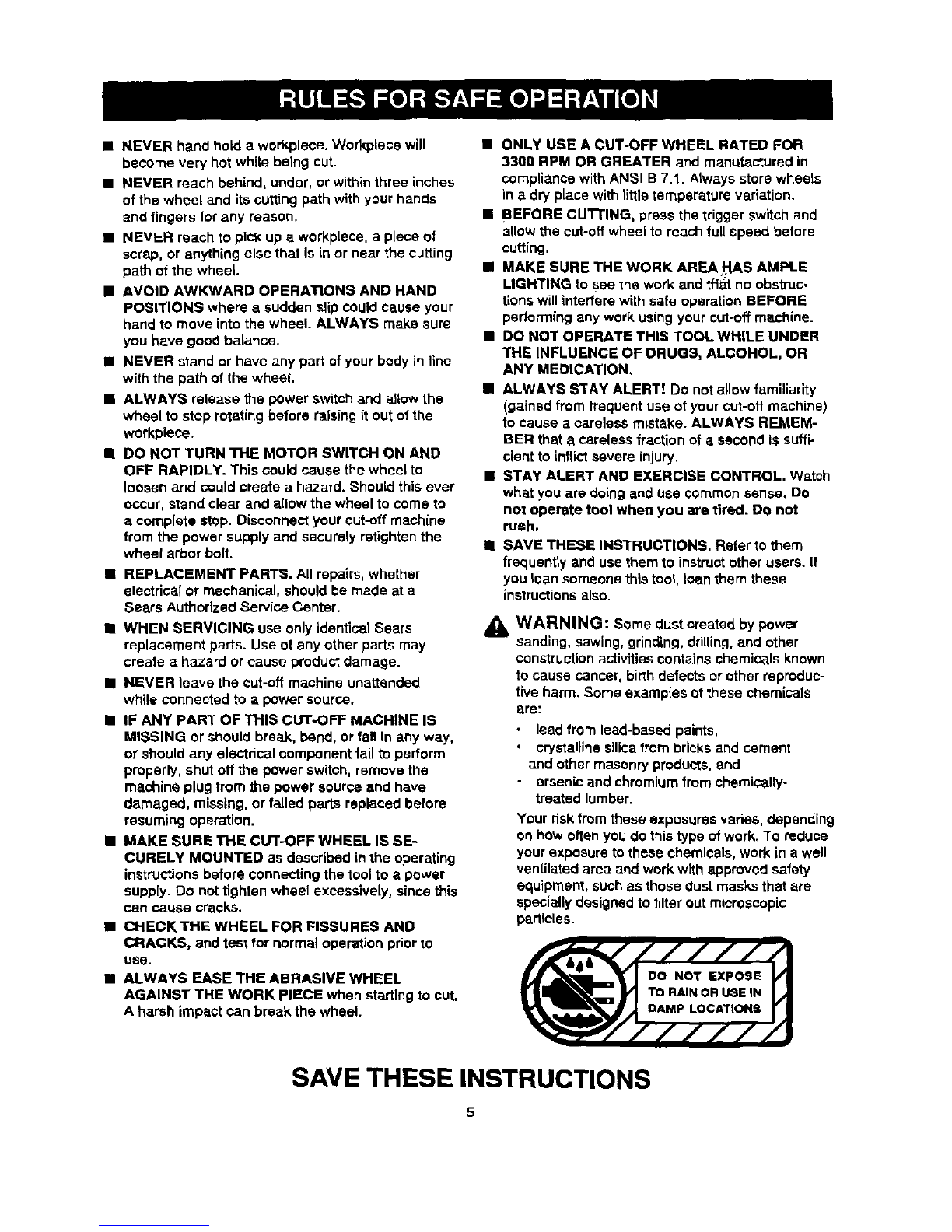

• NEVERhand hold a workplace. Workpiece will
become very hot while being cut.
•NEVER reach behind, under, or within three inches
of the wheel and its cutting path with your hands
and fingers for any reason.
•NEVER reach to pick up aworkplace, apiece of
scrap, or anything else that is in or near the cutting
path of the wheel.
• AVOID AWKWARD OPERATIONS AND HAND
POSITIONS where a sudden slip could cause your
band to move into the wheel. ALWAYS make sure
you have good balance.
•NEVER stand or have any part of your body in line
with the path of the wheel.
•ALWAYS release the power switch and aJlow the
wheel to stop relating before raising it out of the
workpiece.
•DO NOT TURN THE MOTOR SWITCH ON AND
OFF RAPIDLY. This could cause the wheel to
loosen and could create a hazard. Should this ever
occur, stand clear and allow the wheel to come to
a complete stop. Disconnect your cut-off machine
from the power supply and securely retighten the
wheel arbor bolt.
•REPLACEMENT PARTS. All repairs, whether
electrical or mechanical, should be made at a
Sears Authorized Service Center.
• WHEN SERVICING use only identical Sears
replacement parts. Use of any other parts may
create a hazard or cause product damage.
• NEVER leave the cut-off machine unattended
while connected to a power source.
•IF ANY PART OF THIS CUT-OFF MACHINE IS
MISSING or should break, bend, or fail in any way,
or should any electrical component fail to perform
properly, shut off the power switch, remove the
machine plug from the power source and have
damaged, missing, or failed parts replaced before
resuming operation.
•MAKE SURE THE CUT-OFF WHEEL IS SE-
CURELY MOUNTED as described in the operating
instructions before connecting the tool to a power
supply. Do not tighten wheel excessively, since this
can cause cracks.
•CHECKTHE WHEEL FOR FISSURES AND
CRACKS, and test for normal operation prior tO
use.
•ALWAYS EASE THE ABRASIVE WHEEL
AGAINST THE WORK PIECE when starting to cut.
A harsh impact can break the wheel.
•ONLY USE A CUT-OFF WHEEL RATED FOR
3300 RPM OR GREATER and manufactured in
compliance with ANSi B 7.1. Always store wheels
in adry place with tittle temperature variation.
•BEFORE cUTrlNG, press the trigger switch and
allow the cut-off wheel to reach full speed before
cutting.
•MAKE SURE THE WORK ARF.A I:_S AMPLE
LIGHTING to see the work and tf'l_t no obstruc,
tlons will interfere with safe operation BEFORE
performing any work using your cut-off machine.
•DO NOT OPERATE THIS TOOL WHILE UNDER
THE INFLUENCE OF DRUGS, ALCOHOL, OR
ANY MEDICATION,
• ALWAYS STAY ALERT! DO not allow familiarity
(gained from frequent use of your cut-off machine)
to cause a careless mistake. ALWAYS REMEM-
BER that acareless fraction of asecond is suffi-
cient to inflict severe injury
•STAY ALERT AND EXERCISE CONTROL. Watch
what you are doing and use common sense, DO
not operate toot when you are tired. DO not
rush.
•SAVE THESE INSTRUCTIONS. Refer to them
frequently and use them to instruct other users. If
you loan someone this tool, loan them these
instructions also
_1 WARNING: some dustcreated by power
sanding, sawing, grinding,drilling,and other
constructionactivities containschemic_.lsknown
tocause cancer, birth defectsorotherreproduc-
tive harm. Some examples ofthese chemicals
are:
lead from lead-based paints,
crystalline silica from bricks and cement
and other masonry products, and
arsenic and chromium from chemically-
treated lumber.
Your riskfrom these exposuresvaries,depending
on how oftenyoudo this typeofwork,To reduce
yourexposuretothese chemicals,work in a well
ventilatedarea and workwithapgroved safety
equipment,suchas those dust masksthatare
speciallydesignedto filter out microscopic
particles.
SAVE THESE INSTRUCTIONS
5

EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong
grounding plugs and 3-pole receptacles that accept
the tool's plug. When using apower tool at aconsid-
erable distance from the power source, use an
extension cord heavy enough to carry the current that
the tool will draw. An undersized extension cord wiJl
cause a drop in line voltage, resulting in aloss of
power and causing the motor to overheat. Use the
chart provided below to determine the minimum wire
size required in an extension cord. Only round jack-
eted cords listed by UndeP,vriter's Laboratories (UL)
should be used.
Length of Extension Cord Wire Size (A.W.G.)
Up to 25 feet 14
26-50 feet 12
When working with the tool outdoors, use an exten-
sion cord that is designed for outside use. This is
indicated by the letters WA on the cord's jacket.
Before using an extension cord, inspect it for loose or
exposed w_rss and cut or worn insulation.
CAUTION: Keep the cord away from the
cu'_ingarea and position the cord so that itwill
notbe caught on material, tools, or otherobjects
duringcutting.
COVEROF GROUNDED
OUTLET BOX
Fig. 1
ELECTRICAL CONNECTION
Your Sears Abrasive Wheel Cut-off Machine is
powered by a precision built electric motor. It should
be connected to apower supply that is 120 volts,
60.Hz. If the machine does not operate when plugged
into art outlet, double check the power supply.
GROUNDING INSTRUCTIONS
In the event of a malfunction or bre_:ciown, grounding
provides a path of least resistance for electric current
to reduce the risk of electric shock. This tool is
equipped with an electric cord having an equipment-
grounding conductor and agrounding plug. The plug
must be plugged into a matching outlet that is prop-
erly installed and grounded in accordance with all
local cedes and ordinances.
Do not modifythe plugprovided.If itwillnot fit the
outlet, have the properoutletinstalledby • qual{fied
electdcfan.Improper connectionof the equipment-
groundingconductorcan resultin a riskof electric
shock.The conductorwith insulationhaving an outer
sudaco that isgreen withor withoutyellowstripesis
the equipment-groundingconductor.Ifreps.iror
replacement ofthe electriccordor plug isnecessary,
do not connectthe equipment-groundingconductorto
aliveten'ninal,
Check with aqualified electrician or service personnel
it the grounding instructions _,re not completely
understood, or if in doubt as to whether the tool is
properly grounded.
"Repair or repl_ee a damaged or worn cord immedi-
ately.
This tool is intended for use on a circuit that has an
outlet like the one shown in Figure 1. It also has a
grounding pin like the one shown.
6

Your abrasive cut-off machine has been shipped
completely assembled.
•Remove all loose parts from the carton.
•Remove the packing materials from around your
machine
•Carefully Ii_the cut-off machine from the carton
and place it on alevel work surface. This is a
heavy Ioo1. To avoid back injury, get help when
needed,
•Do not discard the packing materials until you have
carefully inspected the machine, identified all loose
parts, and satisfactorily operated your new abra-
sive cut-off machine.
• Your cut-off machine has been shipped with the
machine a.rm looked in the down position. To
release the arm. push clown on top of the machine
arm and pull the arm lock lever. See Figure 3.
•Hand pressure should remain on the machine arm
to prevent sudden rise upon release of the arm
lock lever.
•Examine allparts to make sure no breakage or
damage has occurredduringshipping.
If any partsare damaged or missing, do not attempt to
plug in thepowercordand turnthe switchon untilthe
damagedor missing parts areobtainedand are
installedcorrectly.
._ WARNING: If anyparts are missingdo not
operateyour cut-offmachineuntilthe missing
partsare replaced. F_tura to do so couldresult
inpossibleserious injury.
LOOSE PARTS LIST
The following itemsare includedwith your Abrasive
Cut-offMachine;
[] 14 in. (356 ram) - AbrasiveWheel- installed on
Machine
•Wheel Wrench - 8 mm Hax Kay - Storedon
Machine
•Operator'sManual
Wheel Type
Wheel Diameter
Wheel Thickness
Wheel Arbor Hole
Overall Wheel Size
No Load Speed
Rating
Input
Net Weight
ReinforcedAbrasive Wheels FenceAngle
14 in. (356 ram) Right
1/8 in. (3,2 ram) - • Left
1.0 in. (25,4 ram)
14in. x1/ain, xtin.
356 mm x 3,2 mm x 25.4 mm
3300 RPM
120 Volts,AC/DC
15 Amp
65 Ibs. (30 kg.)
Vise Clamp Angle
Rightor Left
MaximumCuttingCapacities:
45U
0o
45°
RoundPipe
AngleStock
Flat Metal Stock
5in. (127 mm) OUtside diameter
6-t/2 in. wide x3-5/16 in. tall
165 mm wide x 84 mm tall
8-1/16 in. wide x2-5/16 in. tall
205 mm wide x 59 mm tall
,_ WARNING: This cut-offmachine has been
designed for cuffingmetals, usingreinforced
abrasive cut-off wheels only, Do not remove the
wheel, install a steel blade, and attemptto cut
other types ofmaterialssuch as wood, masonry.
etc. Attemptingto cutthese othertYpes of
materialscouldcause an accidentresultingin
possibleserious personalinjury.
_, WARNING: Do notattemptto modify this tool
or create accessories not recommendedfor use
withthistool. Any suchalterationor modification
is misuseand could resultin a hazardous
conditionleadingto possiblesedouspersonal
injury.
7

KNOWYOURABRASIVECUT-OFF
MACHINE
See Figures2and 3.
Beforeattempting to use your machine,familiarize
yourselfwith all operatingfeatures and safety require-
ments.
WARNING: Do not e,ow familiarity with your
machine to make you careless.Remember that
a careless fraction of a secondissufficientto
inflictsevere injury.
MOTOR
See Figure2.
This machine has a strongmotorwithsufficientpower
to handletough cuffingjobs. It also has externatly
accessible brushes for ease of servicing,
14 in. (356 mm) ABRASIVE WHEEL
See Figure2.
A14 in. (356 ram) abrasive wheel is included with
yourcut-offmachine. Itwillcut materials up to S in.
(127 ram) thickor 8 in. (203 ram) wide, depending
uponthe thickness or widthofthe materialand the
setting at whichthe cut isbeing made.
SELF-RETRACTING LOWER WHEEL
GUARD
See Figure 2.
The lewer wheel guard provides protection from each
sideof the wheel It retractsover the upperwheel
guard as the wheel is lowered intothe workplace.
VISE CLAMP
See Figure 2.
F,viseclamp has been providedwith yourcut-off
machine. It is locatedon the end of the visescrew and
providesgreatercontTolbyclampingthe workpieceto
thefence. It also preventstheworkp:_cefrom creep.
ingtowardthe wheel duringa cutting operation.
ADJUSTABLE FLIP FENCE ASSEMBLY
see Figure 2.
The fence on yourcut-offmachine has been provided
tosupportthe workplaceand provide clamping
support tothe vise for holdingyourworkpiecesecurely
when making all cuts.It is an adjustable flipfence
assemblythat has been providedto make your cut-off
machine more versatile. Itadjusts45" to the rightfor
making angled cuts. It has an extensionblockthat flips
downwhen making cutsintall or thickstock, such as
square stock or tube stock. The extensionfence flips
up out ofthe way when making cutsin stock that is
thin or wide, such as angle stock.
QUICK LOCK-RELEASE LEVER
see Figure2.
A quick lock-re]easeleverhasbeen providedon your
cut-offmachine.Thisfeature allowsyou to openand
c]osethe viseclampquickJywithoutrepetitiveturningof
the vise crank handle.
MACHINEARM
SWITCHTRIGGER
MOTOR
LOWER
WHEELGUARD
ADJUSTABLE
FUPFENCE
EXTENSION
FENCE
GUICKLOCK-
RELEASELEVER
14 In, (356 ram)
ABRASIVEWHEEL
VISE
CRANKHANDLE V_ECLAMP
VISESCREW Fig. 2
B

CARRYING HANDLE
See Figure 3.
For convenience when carrying or trensporting your
cut-off machine from one place to another, a carrying
handle has been provided on top of the machine arm
as shown figure 3. To transport, turn off and unplug
your machine, then lower machine arm and look it in
the down position. Lock machine arm by pushing in
arm lock lever.
LOCK-ON BU'I-ION
See Figure 3.
Your cut-off machine is equipped with a lock-on
feature, which is convenient when continuous cutting
for extended periods o1'time is required. To engage
the lock-on feature, depress switch trigger, push in
and hold the lock-on button located on the side of the
handle, then release switch trigger. Release lock-on
button and machine wi{I continue running.
To release lock-on feature, depress switch trigger and
release.
If you have the lock-on feature engaged during use
and your machine becomes disconnected from power
supply, disengage the lock-on feature immediately.
SPINDLE LOCK BU'FI'ON
Aspindle lock button has been provided for locking
the spindle which keeps the wheel in your machine
from rotating. Depress and hold the spindle lock
button while installing, changing, or removing wheel
only. CARRYINGHANDLE
SPINDLE
LOCK BuI'rON
UPPER
WHEELGUARD
TRIGGER LOCK
See Figure 4.
To prevent unauthorizeduseof yourcut-offmachine,
we suggestthatyou disconnect itfromthe power
supplyand lockthe switchin theoff position.To lock
the switch,install epadlock (not included)throughthe
hole in the switch trigger. A lockwithashackle up to
9/32 in, diametermay be used.When the lock is
installedand locked, the switchisino'l_bra.ble.Store
thepadlock key in another location.
PADLOCK
Fig, 4
LOCK-ON
BUTTON MACHINEARM
ARM
LEVER
WRENCH
POWERCOHD
SWRCHTRIGGER
LOWER
14in.(356mm)
ABRASWEWHEEL
OUICKLOCK-
RELEASELEVER
Bmm
HEXKEY
RUBBERFEET
FENCE
LOCK HANDLE ADJUSTABLE
FUPFENCE
ASSEMBLY VISE CLAMP
MACHINEBASE
_SECRANK
HANDLE
Fig, 3
9

_, WARNING: To prevent accidental starting that
could cause possible serious personal injury,
assemble all parts to your cut.off machine before
connecting it to power supply. Machine should
never be connected to power supply when you
are assembling parts, making adjustments,
installing or removing wheels, or when not in
use.
As mentioned previously your cut-off machine has
been factory assembled and adjusted. After extended
use and wear, the wheel will need to be replaced with
a flew one,
_i, WARNING: A14 in. (356 am) wheel is the
maximum wheel capacity of your cut-off
machine. Never use awheel that is too thick to
allow outer flange to engage with the flats on the
spindle. Larger wheels will come in contact with
the wheel guards, while thicker wheels will
prevent the bolt from securing the wheel on the
spindle, Either of these situations gould result in
a serious accident and can cause serious
personal injury.
REMOVAL AND INSTALLATION OF
WHEEL
To Remove:
See FigureS.
•Unplug your cut-off machine.
_1= WARNING: Failure to unplug cut-off m_chine
could result in accidental starting causing
possible serious perSonal injury.
•Pushdown on machine arm and pull out arm lock
lever to release machine arm.
•Raise machine arm to its full raised position. Be
cautious when raising, machine arm is spring
loaded,
•Rotate lower wheel guard upward, exposing 8 mm
socket head bolt that secures abrasive wheel to
wheel arbor.
•Depress the spindle lock button and rotate bait
uhtJl spindle Jacks, preventing shaft from rotating.
•Using the 8 mm hex key provided, loosen and
remove bolt. Note: Bolt has right hand threads.
Turn bolt counterclockwise to loosen.
•Remove outer washer, outer flange, spacer, and
wheel. Do not remove inner flange or inner
washer. Removal of these two parts are not
required for wheel changes.
,_ WARNING: If inner flange or inner washer has
been removed, replace both before placing
wheel on spacer and wheel arbor. Failure to do
so could cause an accident since wheel will not
tighten property.
INNER
WASHER 14in.(356mm)
ABRASIVE
WHEELARBOR WHEEL
OUTER
WASHER
SPACER WHEEL BOLT
OUTERFLANGE Fig. 5
TO Install:
See Figure 5.
• Unplug your cut-off machine.
_i, WARNING: Failureto unplugcut-off machine
could result in accidentalstartingcausing
possibleseriouspersonalinjury.
.i Inspect the replacementwheel for defectssuch as
cracks, chipping,and correct speed rating.If
defectsare found or the speed rating isnot greater
than 3300 rpm, do riot use. Select another wheel,
•Clean debrisfromthe innerwasher and inner
flange.
•Place newwheel over spacer,then place both on
wheel arbor againstinner flange.
•Clean outerflange, then alignflats withflatson
wheel arbor and slideit ontoarbor untilitis flush
againstwheel.
•Place recessed side ofouterwasher against arbor,
then insertsockethead boltintothreaded end of
wheel arbor.
[] Startthreadsand turn boltclockwiseto snugly
tighten.
•Depressthe spindlelock buttonand rotatebolt
untilspindlelocks,preventingshaftfrom rotating.
•Usingthe 8 mm hexkey provided,securelytighten
sockethead bolt. Note: Bolthas right hand
threads.Turn boltclack'wiseto tighten.
WARNING: Do not overflghten socket head
bolt Overtightening can cause the new wheel to
crack, resulting in prematurefailure and possible
seriouspersonalinjury.
10

ADJUSTABLE FLIP FENCE ASSEMBLY
See Figure6.
The adjustableflip fence assembly (see figure 6) is
used along withthe movablevise clampto providea
clampfor ho(dingyourworkplacesecurelywhen
makingcuts. Italso makes yourcut-off machine more
versatile_
The fence can be rotated to obtaincuttingangles from
0_to 45% It also has an extensionblockthatflips up
to allowgreater cutting widthsin thinstock,or downto
al$owgreater cuttingdepths in tall orthick stock.
CUTTING ANGLE ADJUSTMENT
See Figure 6.
[] Unplug yourcut-off machine.
_1= WARNING; Failureto unp(ugcut-offmachine
couldresultin accidental startingcausing
possibleserious personalinjury.
•Loosen me fence lock handle securing fence
assembly.
•Rotate fence assembly until the desired angle of
cut on the scale is aligned with the indicator in
machine base.
•For precise cuts, check the angleof cutfor the
fence againstthe abrasive wheel with a protractor.
bevel square, or othersimilardevice.
[] Using thefence lock handle,securelytighten the
fence in place at desired angle. See Figure6.
ADJUSTING WIDTH OF CUT
See Figures 7and 8.
•Unplug yourcut-off machine,
_1, WARNING: Failureto unplugcut-offmachine
could resultin accidental startingcausing
possibleseriouspersonal injury.
•To increase the width of cut of your cut-off
machine, flip the extension fence up and back as
shown in figure 7. This position is good for cuffing
thin and wide pieces of stock, such as fiat or
angled stock.
•To increase the height of cut of your cut-off
machine, flip the extension fence clown as shown
(n figure 8. This position (s good for cufng tall and
thick pisces of stock, such as square or tubs stock.
FENCELOCK
•HANDLE
SCALI
INDICATOR FENCE
SCALE
ADJUSTABLEFLIP
FENCEASSEMBLY
EXTENSION
FENCE
ADJUSTABLEFLIP
FENCEASSEMBLY
VISE
CLAMP
ADJUSTABLEFLIP
FENCEASSEMBLY
Fig. 7
11
Fig. 8

QUICK LOCK-RELEASE LEVER
See Figures 9 and 10.
The quiok lock-re[ease lever engages the vise olamp
to be used along with the fence assembly to provide a
vise for securing the workplace to be cut. It also
allows you to open and close the vise quickly without
repetitive turning of the vise crank handle.
USING THE QUICK LOCK-RELEASE
LEVER AND VISE CLAMP
To loosen;
See Figure 9.
• Unplugyourcut-off rcaohine.
,_ WARNING: Failureto unplugcut-offmachine
could resultin accidentalstartingcausing
possibleserious personalinjury,
•Release tension on the vise clamp byrotatingthe
visecrank handle 1/2 to 1turncounterclockwise.
•Lilt up the quick lock-release lever as shown in
figure 9and pull back onvise crank handle to slide
open thevise.
To tighten:
See Figure 10.
•Unplug your cut-offmachine.
_1_ WARNING: Failure to unplug cut-off machine
could result in accidentat starting causing
poss(ble serious persona[ injury.
•Push the vise crank handle forward to slide the
vise clamp against the workpiece.
•Rotate the quick lock-release lever forward and
push down as shown in figure 10 to engage its
threads with _e vise screw.
•Rotate the vise crank handle clockwise to tighten
the vise clamp against the work,piece,
_SE
CLAMP
VISE
CLAMP
QUICKLOC_RELEASELEVER
WlTHTHREAD5 NOTENGAGED
V_ECRANK
HANDLE
Fig. 9
_SE CRANK
HANDLE
USE
SCREW
QUICKLOC_RELEASE LEVER
WITHTHREADSENGAGED
Fig. 10
12

DEPTH STOP
The depth stop limits the wheel's downward travel, It
allows the wheel to go below the machine base
enough to maintain full cutting capacities.
The adjustable depth stop is a nylo¢=bolt threaded into
the base of the machine at the rear. To adjust the
depth stop use an 8 mm wrench to raise or lower the
depth step bolt.
The depth step is factory set to provide maximum
cuffing capacity for the 14 in, (356 ram) abrasive
whee( provided with your cut-off machine.
When the diameter of the wheel has been reduced
due to wear, it may be necessary to adjust the depth
stop to provide ma;,_imum cutting capacity. When a
new a_rasive wheel is installed, it is necessary to
check the clearance of the wheel to the machine base
Support,
DEPTH STOP ADJUSTMENTS
See Figure 11.
•Unplug your cut-off machine.
_WARNING: Failure to unplug cut-off machine
could result in accidental starting causing
possible serious personal injury.
• Push the depth stop lever counterclockwise then
loosen the depth stop bolt that is against the
machine base.
•The depth stop is lowered by turning the depth stop
bolt clockwise and raised by turning the bolt
counterclockwise.
•By pressing down on the machine arm, lower the
wheel and check clearance and maximum cutting
distance (distance from adjustable stationary vise
where wheel enters) to front of machine base slot.
•Adjust it necessary.
,_ CAUTION: Do not startyourabrasive cut-off
machinewithoutchecking for interference
between the wheel and the machine base
support. Damage may result to the wheel if it
strikes the machine base support during
operation of the machine,
DEPTHSTOP
LEVER
TO RAISE TO LOWER
DEPTHSTOP
BOLT Fig. fl
• Tighten the depthStOpboltwith the B mm hex
key providedthen push the depthstop lever
clockwise.
_l, WARNING: Cutting steel will causesparks. DO
not operate in the presence ofcombustibleor
flammable msterials. Failureto heed thiswarning
couldresultin a fireor serious personalinjury.
APPLICATIONS
(use only for the purposes listed below)
•Cuttingall types of metals such as 2 in.x 6in. steel
framing studs.
•Cuttinghard metal iron stocksuch as square bar
stock and angle iron,
•Cutting metaltube and pipe stock.
13

POWER SUPPLY
Beforeoperating your cut-offmachine, checkyour
powersupply and make sure it meets the
requirementslistedon the tool's data plate.A
substantial voltagedrop willcause aloss ofpower
and machine overheating.
Common causes of powerloss and machine
overheatingare insufficient extensioncordsize and
multipletools operating fromthe same power source.
SWITCH
To turn your cut-off machine ON, depress the switch
trigger located in the handle portion of the machine
arm.
To turn it OFF, release the switchtrigger.
LOCK-ON BLrrrON
To engage the lock-on feature, depress the switch
trigger, push in and hold the lock-on button located on
the side of the handle, then release switch trigger.
Release lock-on button and your machine will
continue running.
To release the lock-on feature, depress the switch
trigger and release.
If you have the lock-on feature engaged during use
and your machine becomes disconnected from power
supply, or in the event of a power failure, disengage
the lock-on feature immediately.
CU'FFING WITH YOUR CUT-OFF MACHINE
See Figures 12 and 13.
_k WARNING: Do not attempt to cut wood or
masonry with this cut-off machine. Never cut
magnesium or magnesium alloy with this
machine. Failure to comply could result in
serious personal injury.
• Toprevent maohlne movement ortippingduring
cuttingprocedure,secure cut-of/machine in place
to aworkbenchor work sudace thatis also secure.
_1, WARNING: Always use the vise on the cut-off
machine to prevent accidents that could result in
possible serious personal injury,
_I, WARNING: Never stand or have any part ot
yourbody in line with the path ofthe wheel.
Doingso may cause an accident resultingin
poSsible sedouspersonal injury;
MACHINEARM
(HANDLE)
LOCK-ON
BUTTON
SWITCH
TRIGGER
':MATERIAL
TOBECUT
MACHINE
BASE - Fig. 12
ADJUSTABLE EXTENSION
FLIP FENCE FENCE
ASSEMBLY
A
VISE
"C"CLAMP
AREA
MATERIAL
TOBECUT Fig. 13
WARNING: Large, circular,or irregularly
shaped material may requireadditionalmeans of
clampingto be securedin place adequately for
cutting,Use "C" clampsthat canbe mounted
alongthe leftand frontside ofthe machine base.
Alsouse blocksto holdmaterial securely. Failure
tocomplycouldresultin seriouspersonalinjury.
WARNING: To avoidaccidentalstartup of
yourout-off machine, always make sure switchis
offand "lock-on"feature is disengagedbefore
connectingtopowersource. Failureto heed this
warningcould result in seriouspersonalinjury.
14

CUT-OFF
See Figures 14 and 15.
Acut-off is made by cutting across the width of the
workpiece. A straight crosscut is made with the
adjustable flip fence set at the zero degree position.
Ang]ed cut-offs are made with the adjustable flip
fence assembly set at some angle other than zero.
To cut with your cut-off machine:
• Firmly secure the matedal to be cut using the
machine's vise (adjustable flip fence assembly,
extension fence, and vise clamp).
•Using the fence lock handle, loosen the adjustable
flip fence assembly. See Figures 14 and 15.
II Rotate the adjustable flip fence assembly to the
angle needed,
• Retighten fence lock handle,
_1, WARNING: To avoid seriouspersonalinjury,
always tighten fence lock handle securelybefore
makinga cut. Failureto do so could resultin
movement ofthe workpiecowhilemaking a cut.
•Place the workpiece flat on the machine base with
one surface securely against the adjustable flip
fence.
III Aligncuttingline on the workpiecewiththe edge of
the abrasive wheel.
•Push in the vise crank handle to set the vise clamp
against the workplace. Turn the vise crank handle
1/2 to 1 turn clockwise to securely clamp the
workplace to the fence.
_1, WARNING: To avoid serious personal injury,
keep your hands at least 3 in. (76.2 mm) from
wheel.
II When cutting long pieces, support the opposite
end of the materiel with e roller stand or with a
work surface level with the machine base.
,_, WARNING: Never perform any cutting
operationfreehand (without placing workpieoe in
the vise). Material will get hot during cutting
operation, Keep hands off of metal being cut to
avoid serious personal injury.
•Before turning on machine, perform a dry run of
the cutting operation just to make sure that no
problems will occur when the cUt is made.
II Start the machine by grasping the handle and fully
squeezing the switch trigger. Allow several
seconds for the wheel to build up to full speed
before letting it come into contact with the material
to be cut,
MACHINEARM swn'cH
TRIGGER
FENCE
LOCK
HANDLE "MATERIAL
TO BE CUT
VISE
CRANK
HANDLE
Fig. 14
ADJUSTABLE
FLIPFENCE
EXTENSION
FENCE
VISE
CLAMP
"C" CLAMP
AREA
MATERIAL_"
TO BE CUT
Fig. 15
• Once itreaches full speed slowly lowerthe handle
ofthe machine arm untilthe cut-offwheel comes in
contact withthe material beingcut. Continueto
use steady and even pressureto obtain auniform
cutthroughthe workplace.Never force the wheel
intothe matedal being cut.
II When the cutiscomplete, release the switch
triggerand allow the wheel to stop rotatingbefore
raisingthe wheel out of workpiece.
_1, WARNING: Do not touchthe cutmaterial until
itcoolsor you can be burned. Failure to heed
this warningcould resultIn sedouspersonal
injury.
15

MOUNTING HOLES
Your cut-off machine should be permanently mounted
to afirm supporting surface such as workbench. The
four bolt holes that secure the feet on the bottom of
the base can be used for this purpose. Using a 6 mm
hex key, remove bolts, washers, and feet from bottom
of cut-off machine. The four mounting holes should be
bolted securely using 8rnm machine bolts, lock
washers, and flat washers (not included). Bolts should
be of sufficient length to accommodate reck washers,
flat washers, thickness of the workbench, and suffi-
ciently engage bolt hole threads in bottom of the
base.
Tighten all four bolts securely.
The hole pattern for mounting to a workbench is
shown in figure 16, Carefully check the workbench
after mounting to make sure that no movement can
occur during use. If any tipping, sliding, or walking is
noted, secure work bench to the floor before operat-
ing,
HOLE PATI'ERNFOR MOUNTINGSURFACE
G
0in.
Lo 17-1/8
O
7/16in, DIA.
HOLE
1
Fig. 16
,_ WARNING: Always make sure your cut-off
machine is securely mounted to a workbench or
an approved workstand. Failure to do so could
result in an accident resulting in possible serious
personal injury.
_, WARNING: When servicing, use only identical
Sears replacement parts. Use of any other part
may create a hazard or cause product damage.
GENERAL
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various
types of commercial solvents and may be damaged
by their use. Use a clean cloth to remove dirt, carbon
dust, etc.
CAUTION: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating
oils, etc. come in contact with plastic parts. They
contain chemicals that can damage, weaken or
destroy plastic.
LUBRICATION
Allof the bearingsin thistoolare lubricatedwith a
sufficientamount ofhigh grade lubricantfor the IHoof
the unitunder normal operatingconditions.Therefore,
no further lubrication is required.
EXTENSION CORDS
The use ofany extensioncordwillcause some lossof
power. To keep the loss to a minimum and to prevent
tool overheating,use an extension cord that is heavy
enough to carryJhecurrentthe toolwilldraw.
'Awire gagesize (A.W.G.)ofat least14 isrecommended
for an extension cord25 feet or less in length. When
workingoutdoors,useanextensioncordthat issuitable
for outdooruse. The cord'sjacket willbe marked WA.
AWARNING: Keep extension cordsaway from
thecuttingarea and positionthe cordso Mat it
willnotget caughton materials, tools, etc.,
duringcutting operation.
_, WARNING: Check extension cordsbefore
each use. Ifdamaged, replace immediately,
Never use tool with a damaged cord since
touching the damaged area could cause
electrical shock resulting in serious injury.
_IL WARNING: Alwayswear safety gogglesor
safety glasses withside shieldsduringpower
tooloperationor when blowingdust. Ifoperation
isdusty,also wear a dust mask,
16

WARNING: To ensure safety and reliability, all
repairs --with the exception of the externally
accessible brushes -- should be performed by a
Sears Authorized Service Center.
BRUSH REPLACEMENT
.See Figure 17.
Your cut-off machine has externally accessible brush
assemblies that should be periodically checked for
wear,
Proceed as follows when replacement is
required;
•Unplugyour cut-off machine.
_1, WARNING: Failureto unplugcut-oftmachine
could resultin z,ccidentaistarting causing
possibleserious personalinjury.
•Remove brush cap with ascrewdriver. Brush
assembly is spring loaded and will pop out when
you remove brush cap.
•Remove brush assembly.
•Check for wear. Replace both brushes when either
has less than 1/4 in. length of carbon remaining.
Do not replace one side without replacing the
other.
• Reassemble using new brush assemblies, Make
sure curvature of brush matches curvature of
motor and that brush moves freely in brush tube.
BRUSHCAP
BRUSH
ASSEMBLY
Fig. 17
•Make sure brushcap isorientedcorrectly(straight)
and replace.
• Tightenbrushcap securely. Do not overtighten.
PROBLEM CAUSE SOLUTION
Machine does not start 1, Powercordnot pluggedin,
2, Power cordis damaged,
:3. Circuit breaker is tripped.
4. Circuit fuse is blown
5. Switch is damaged or burned out.
1. Plug incord,
2. Have the cordreplaced at your
nearest authorized service
center.
3. Reset circuitbreaker,
4. Replace circuitfuse_
5. Have the switchreplaced at your
nearest authorized service center
and requesta voltage checkfrom
the powercompany.
17

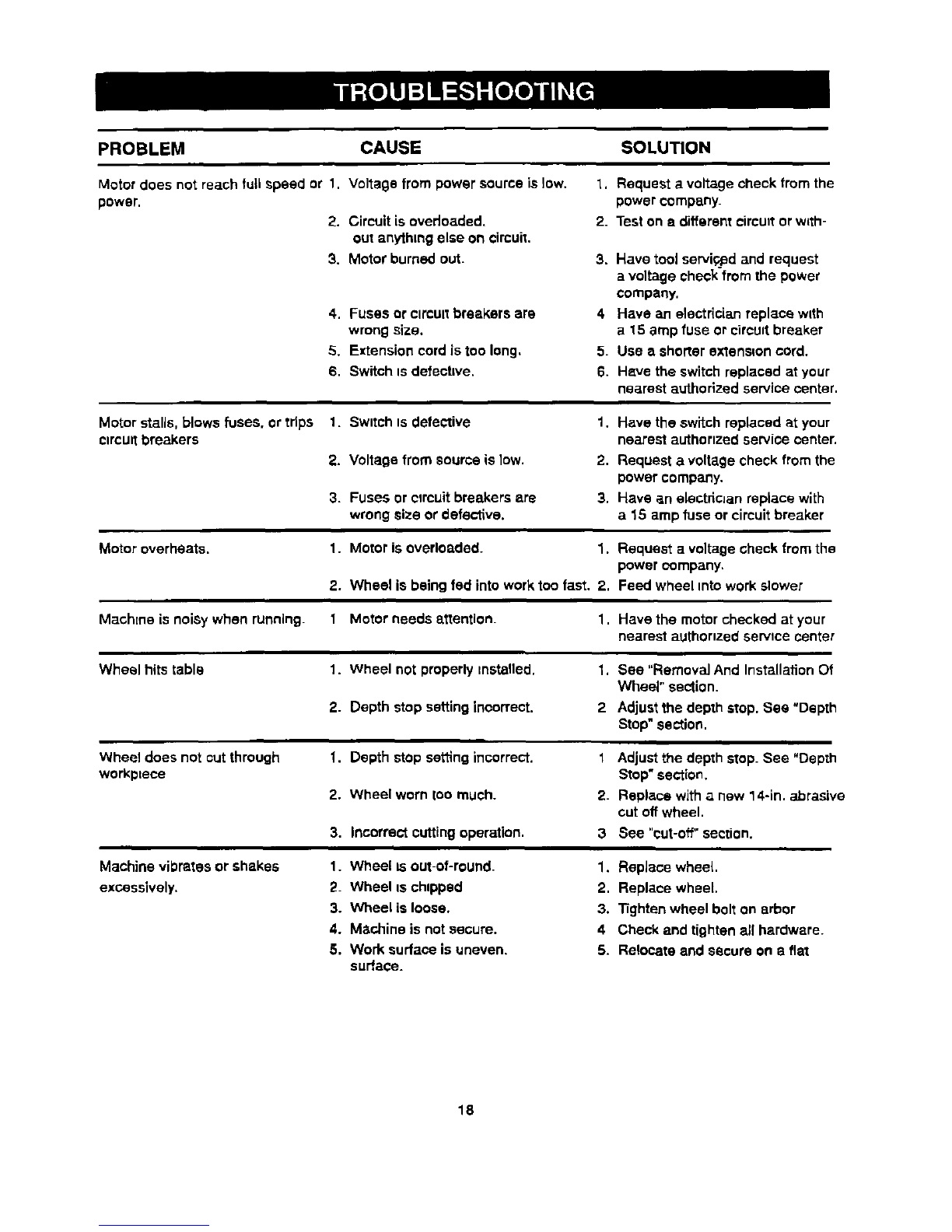

PROBLEM CAUSE SOLUTION
Motor does not reach fall speed or 1. Voltagefrom power sourceislow.
power. 2.
9.
Circuit is overloaded.
out anything else on circuit.
Motor burned out.
4. Fuses or circuit breakers are
wrong size.
5. Extension cord is too long.
6. Switch is defective.
1. Request a voltage check from the
power company.
2. Test on e different circuit or with-
3. Have tool servir,.pd and request
a voltage check from the power
company.
4 Have an electrician replace with
a '(5 amp fuse or circuit breaker
5. Use ashorter extensmn cord.
6. Have the switch replaced at your
nearest authorized service center.
Motor stalls, blows fuses, or trips
c_rcu_breakers 1. Switch is defective
2. Voltage from source is low.
3. Fuses or circuit breakers are
wrOng size or defective.
1. Have the switch replaced at your
nearest authorized service center.
2. Request a voltage check from the
power company.
3. Have an electdcJan replace with
a 15 amp fuse or circuit breaker
Motor overheats. 1. Motor is overloaded. 1. Request a voltage check from the
power company.
2. Wheel is being fed into worktoo fast. 2. Feed wheel into work slower
Machine is noisy when running. 1 Motor needs attention. 1. Havethe motor checked at your
nearest author=zealservice center
Wheel hits table 1. Wheel not properly metalled.
2. Depth stop setting incorrect.
1. See "Removal And InstallationOf
Wheel" section.
2 Adjustthe depthstop. See "Depth
Stop"section.
Wheel does not cut through
workpteee f. Depth stop setting incorrect.
2. Wheel worn Ioo much.
3. Incorrect cutting operation.
1Adjust the depth stop. See "Depth
Stop" section.
2. Replace with a new 14-in. abrasive
cut off wheel.
3 See "cut-off" section.
Machine vibratesor shakes
excessively.
1. Wheel Is out-of-round.
2. Wheel is chipped
3. Wheel isloose.
4. Machine is not secure.
5. Work surfaceis uneven.
surface.
1. Replace wheel
2. Replace wheel.
3. Tighten wheel bolt on erbor
4 Check and tighten all hardware.
5. Re!ocate and secure on aflat
18

__ i nl
i
iw
19

CRAFTSMAN 14 in. (356 mm) ABRASIVE CUT-OFF MACHINE- MODEL NO, 212900
14 15 16
19
2524 23
27 26
21
12 30
O
4
2
10
8
29
11
11
3FIGURE A
