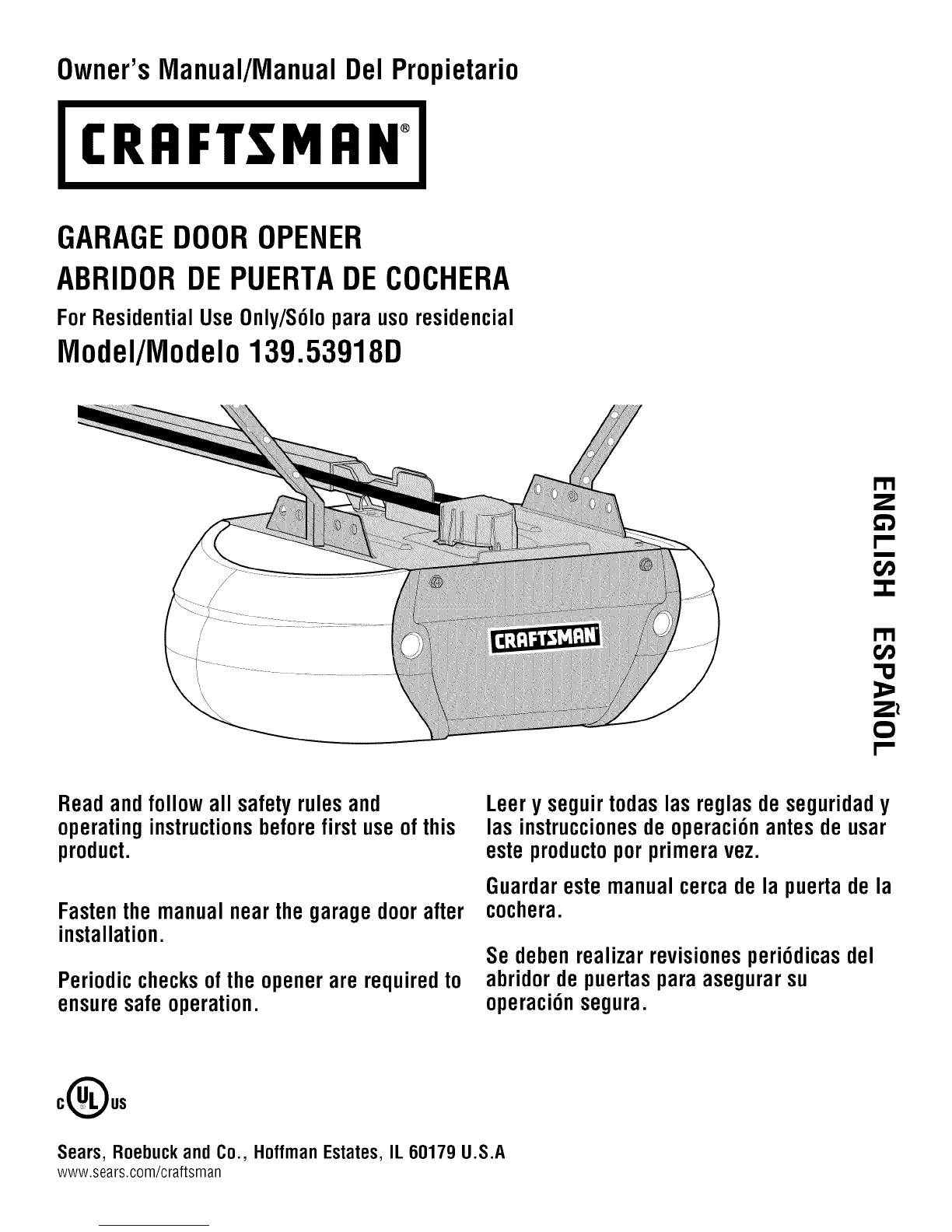

Craftsman 139.53918D User manual

Owner'sManual/ManualDel Propietario
CRFIFTSMRN°
GARAGEDOOROPENER
ABRIDORDEPUERTADECOCHERA
ForResidentialUse0nly/S61oparausoresidencial
Model/Modelo139.53918D
I"11
z
I"11
'13
;Z=,
Z_
Readandfollowall safetyrulesand
operatinginstructionsbeforefirstuseofthis
product.
Fastenthe manualnearthegaragedoorafter
installation.
Periodic checksof the openerare requiredto
ensuresafeoperation.
Leery seguirtodaslas reglasde seguridady
lasinstruccionesde operaci6n antesde usar
este productoporprimeravez.
Guardarestemanualcercade la puerta de la
cochera.
Se debenrealizarrevisionesperi6dicas del
abridorde puertas para asegurarsu
operaci6n segura.
cQus
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
www.sears.com/craftsman

TABLE OF CONTENTS
Introduction 2-7
Safetysymbol review and signal word review ............... 2
Preparing your garagedoor ............................. 3
Tools needed ........................................ 3
Planning .......................................... 4-5
Carton inventory ...................................... 6
Hardware inventory.................................... 7
Assembly 8-11
Assemblethe rail and install the trolley .................... 8
Fastenthe rail to the motor unit .......................... 9
Install the idler pulley .................................. 9

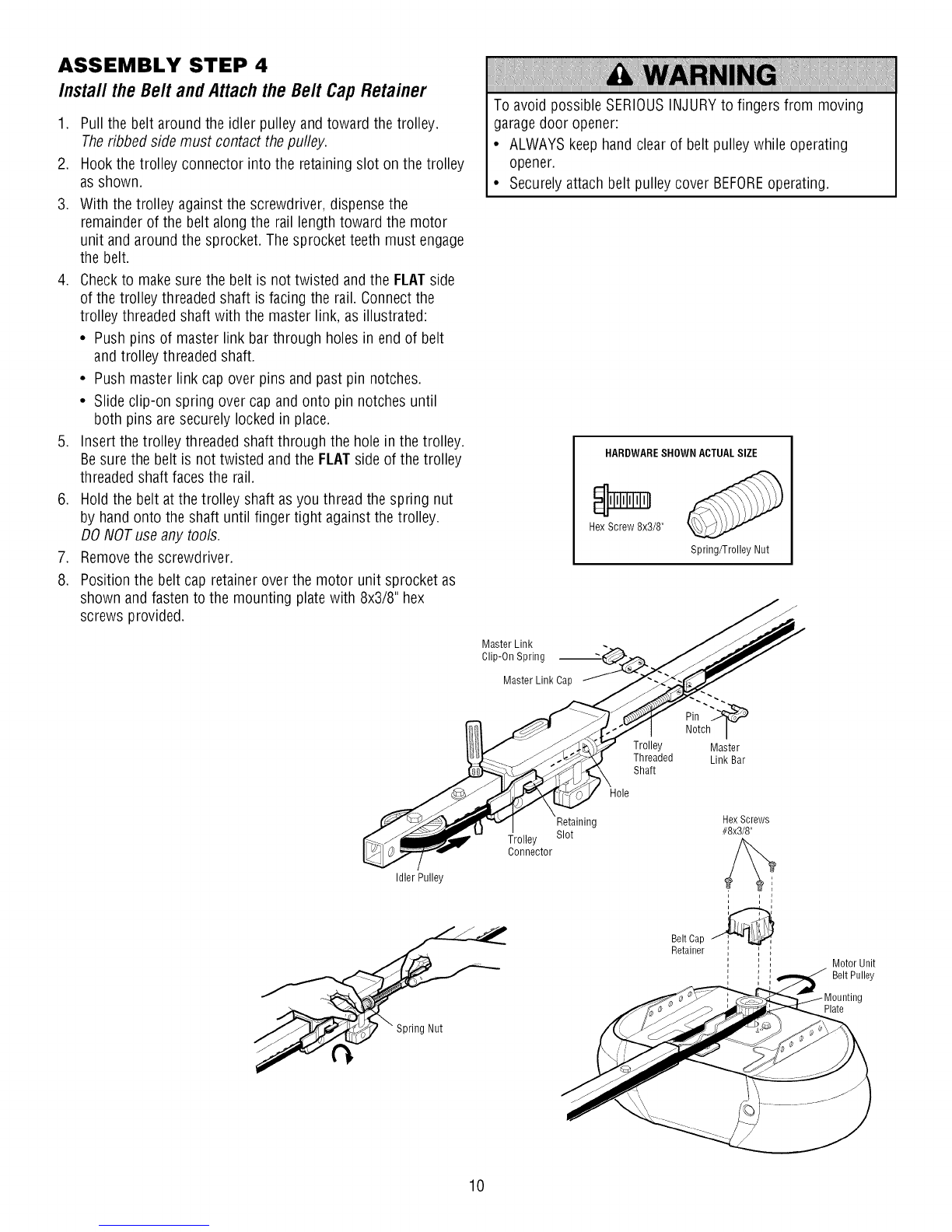

Install the belt and attachthe belt cap retainer.............. 10

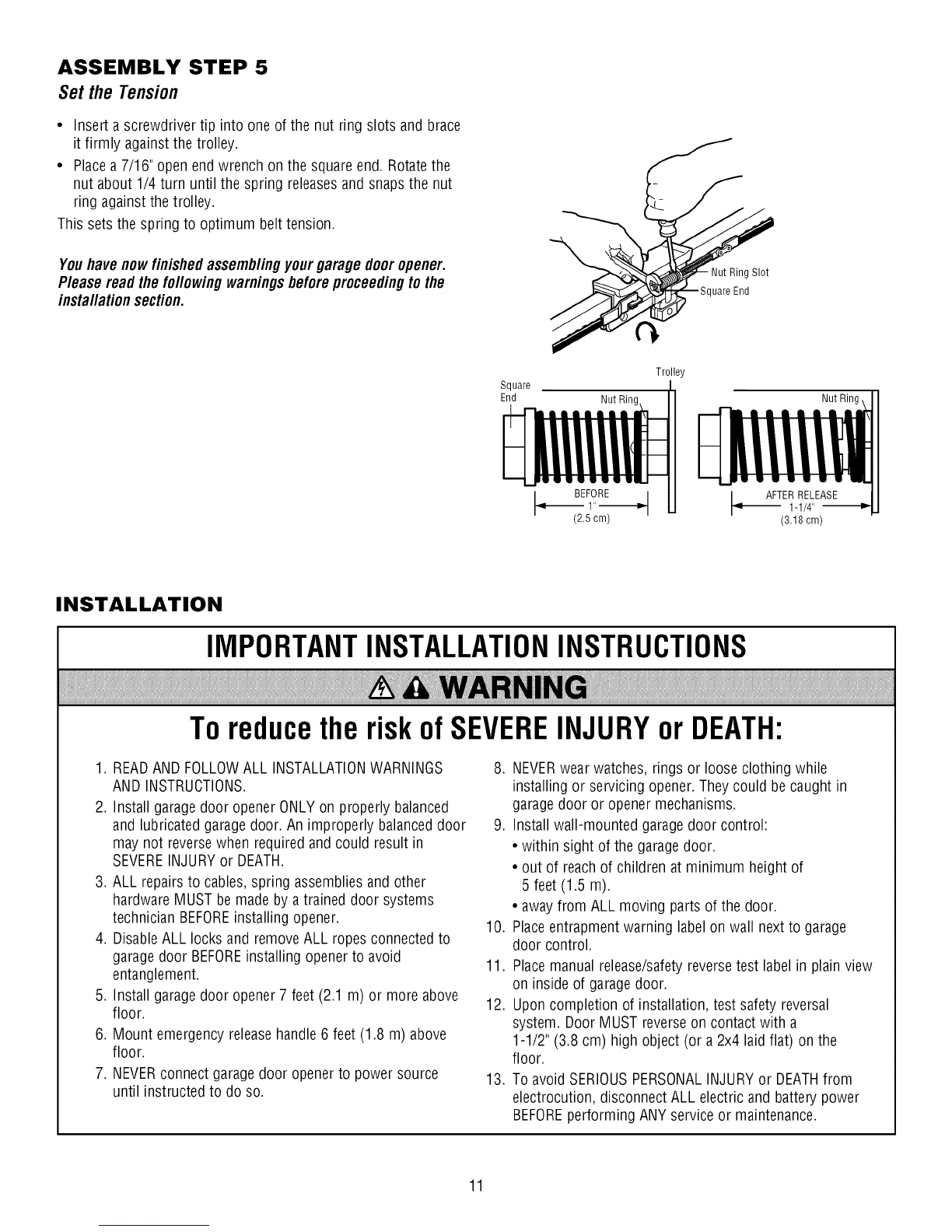

Setthe tension ...................................... 11
Installation 11-26
Installation safety instructions .......................... 11

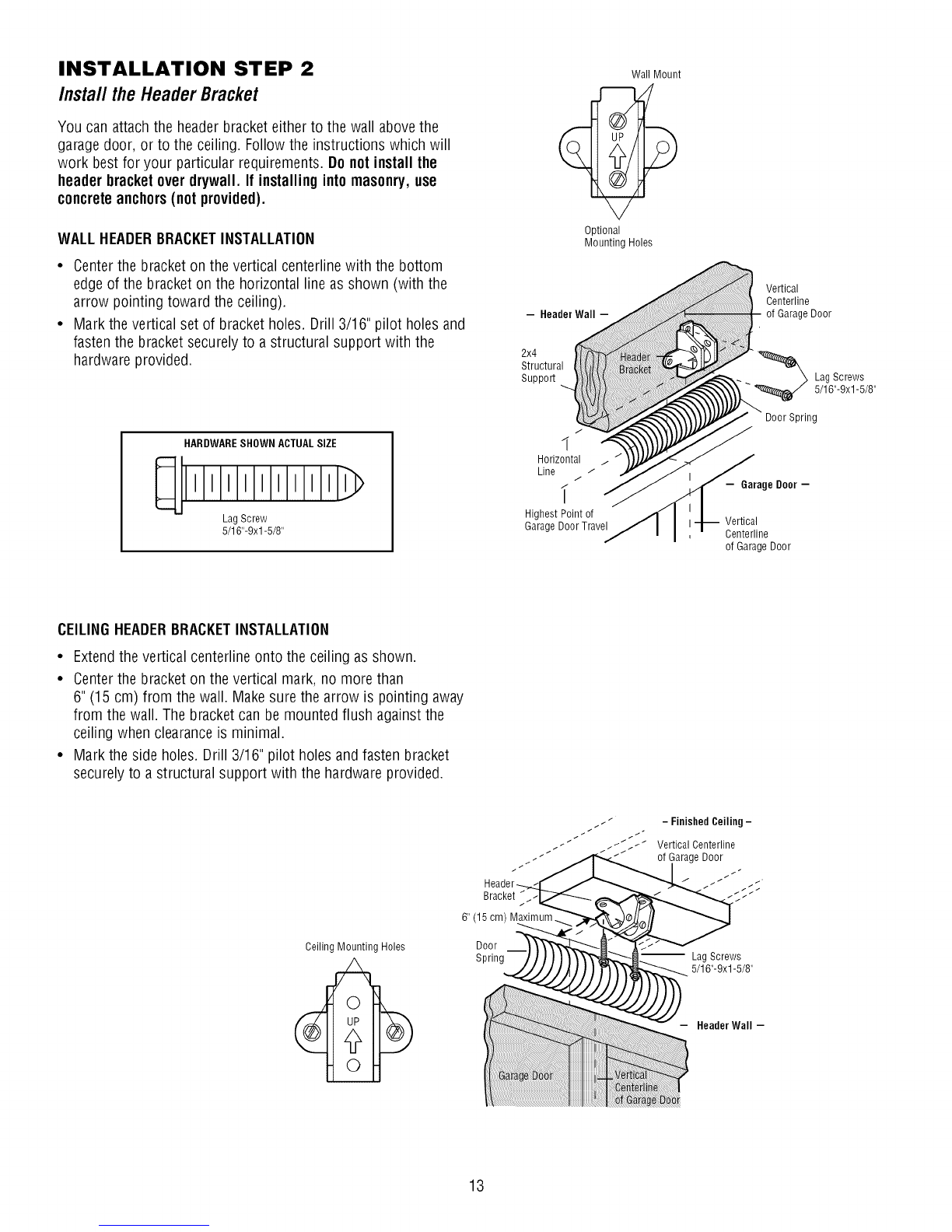

Determinethe headerbracket location .................... 12
Install the headerbracket .............................. 13
Attach the rail to the headerbracket...................... 14

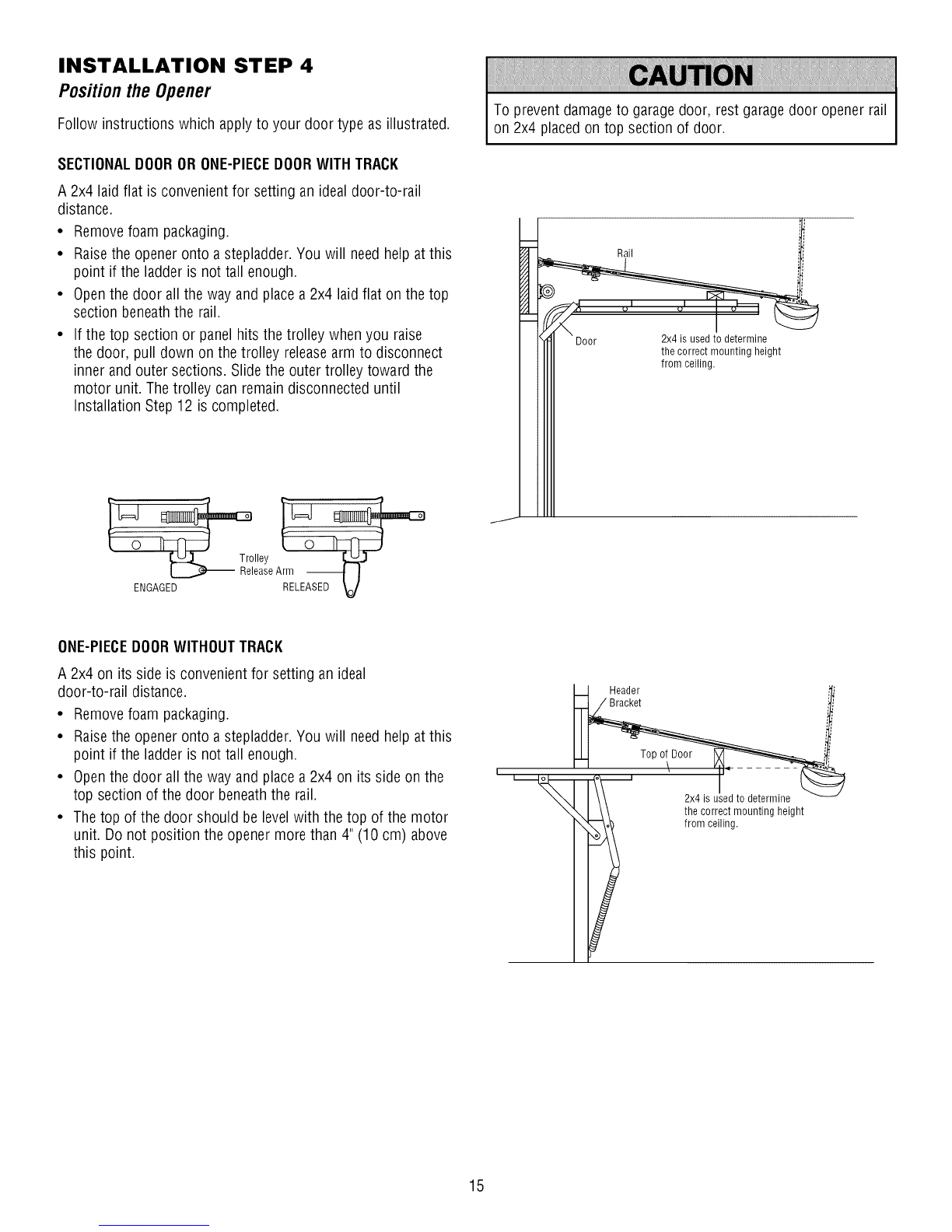

Position the opener................................... 15
Hangthe opener ..................................... 16
Install the door control ................................ 17
Install the battery .................................... 18
Install the lights ..................................... 18
Attach the emergencyreleaserope and handle ............. 18
Electrical requirements................................ 19
Install The Protector System® ....................... 20-22
Fastenthe door bracket ............................ 23-24
Connectthe door arm to thetrolley ................... 25-26
Adjustment 27-29
Program the travel limits .............................. 27
Setthe force ........................................ 28
Testthe safety reversalsystem.......................... 29
TestThe Protector System®............................ 29
Operation 30-36
Operationsafety instructions ........................... 30
Using your garagedoor opener ......................... 30
Using the wall-mounted door control ..................... 31
Careofyour opener .................................. 32
To open the door manually............................. 32
Battery backup ...................................... 33
Having a problem (Troubleshooting) ..................... 34
Diagnostic chart ..................................... 35
Smart Control Panel¢ messages......................... 36
Programming 37-38
To add or reprograma hand-held remote control ........... 37
To eraseall codes from motor unit memory ............... 37
3-Button remotes .................................... 37
To add, reprogram or changea
KeylessEntry PIN.................................... 38
Repair Parts 39-40
Rail assembly parts .................................. 39
Installation parts ..................................... 39
Motor unit assembly parts ............................. 40
Accessories 41
Warranty 41
Repair Parts & Service Back Cover
INTRODUCTION
SafetySymbolReviewand Signal WordReview
This garage door opener has beendesignedand tested to offer safe serviceprovided it is installed, operated,maintained and tested in
strict accordancewith the instructions and warnings contained in this manual.
Mechanical
Electrical
Whenyou seethese SafetySymbols and Signal Words on the
following pages,they will alertyou to the possibility of serious
injury or deathif you do not comply with the warnings that
accompanythem. Thehazardmay come from something
mechanicalor from electric shock. Readthe warnings carefully.
Whenyou seethis Signal Word on the following pages, it will
alertyou to the possibility of damageto your garagedoor and/or
the garagedoor opener if you do not comply with the cautionary
statements that accompany it. Readthem carefully.

Preparingyourgaragedoor
Beforeyou begin:
• Disablelocks.
• Removeany ropes connectedto garage door.
• Complete the following test to makesure your garagedoor
is balancedand is not sticking or binding:
1. Lift the door about halfway asshown. Releasethe door. If
balanced,it should stay in place,supported entirely by its
springs.
2. Raiseand lower the door to seeif there is any binding or
sticking.
If your door binds, sticks, or is out of balance,call a trained
door systems technician.
To prevent possible SERIOUSINJURYor DEATH:
• ALWAYScall atrained door systems technician if garagedoor
binds, sticks, or is out of balance.An unbalancedgaragedoor
may not reversewhen required.
• NEVERtry to loosen, move or adjust garagedoor, door
springs, cables,pulleys, brackets or their hardware,ALL of
which are under EXTREMEtension.
• DisableALL locks and removeALL ropes connectedto garage
door BEFOREinstalling and operating garagedoor opener to
avoid entanglement.
To prevent damageto garage door and opener:
• ALWAYSdisable locks BEFOREinstalling and operating the
opener.
• ONLYoperategaragedoor opener at 120V, 60 Hzto avoid
malfunction and damage.
SectionalDoor
One-Piece Door
Tools needed
During assembly, installation and adjustment of the opener,
instructions will call for handtools as illustrated below.
Stepladder
Level (optional) Tape Measure
Drill 3/16", 5/16"
_1 and 5/32"
8_ _/°2c'_e5t/s8"a,7d/lW6"r,e;/clh"
and 1/4"
Pencil Hack Saw
Wire Cutters
Pliers
Claw Hammer
Screwdriver
Adjustable End Wrench

P_nnmg

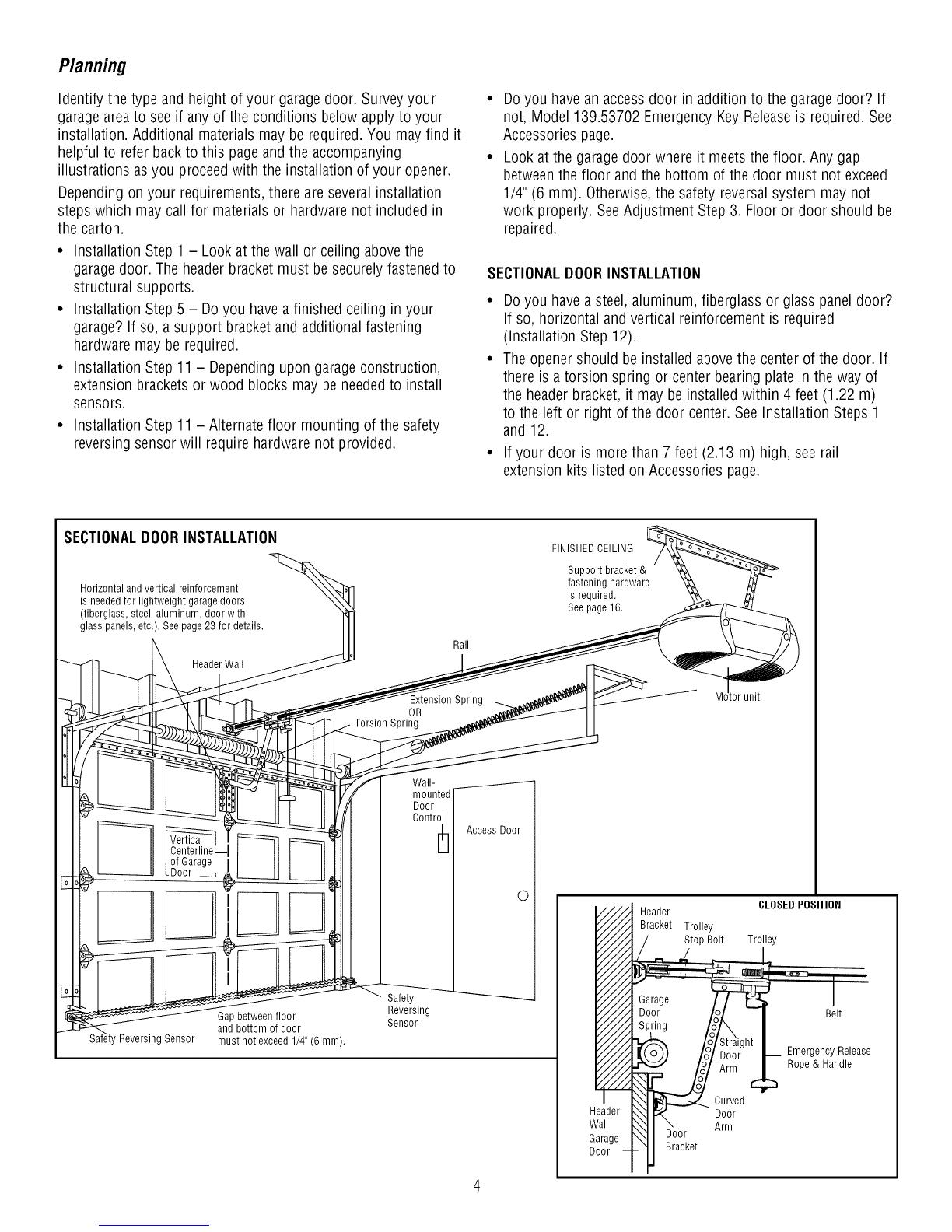

Identify the type and height of your garagedoor. Surveyyour
garageareato see if any of the conditions below apply to your
installation. Additional materials may be required.You may find it
helpful to referback to this pageand the accompanying
illustrations asyou proceedwith the installation of your opener.
Dependingon your requirements,there are several installation
steps which may call for materialsor hardware not included in
the carton.
• Installation Step 1 - Lookat the wall or ceiling abovethe
garagedoor. Theheader bracketmust be securelyfastenedto
structural supports.
• Installation Step 5 - Doyou havea finished ceiling in your
garage? If so, a support bracketand additionalfastening
hardware may be required.
• Installation Step 11 - Dependingupon garageconstruction,
extension brackets or wood blocks may be neededto install
sensors.
• Installation Step 11 - Alternate floor mounting of the safety
reversingsensor will require hardwarenot provided.
Doyou havean access door in addition to the garagedoor? If
not, Model 139.53702 EmergencyKeyReleaseis required.See
Accessoriespage.
Lookat the garage door where it meetsthe floor. Any gap
betweenthe floor and the bottom of the door must not exceed
1/4" (6 mm). Otherwise,the safety reversal system may not
work properly. SeeAdjustment Step 3. Floor or door should be
repaired.
SECTIONALDOORINSTALLATION
• Doyou havea steel, aluminum, fiberglass or glass panel door?
If so, horizontal and vertical reinforcement is required
(Installation Step 12).
• Theopener should be installed abovethe center of the door. If
there is a torsion spring or center bearing plate in the way of
the header bracket, it may be installed within 4 feet (1.22 m)
to the left or right of the door center. See Installation Steps 1
and 12.
• If your door is morethan 7 feet (2.13 m) high, see rail
extension kits listed on Accessories page.
SECTIONALDOORINSTALLATION
Horizontal andvertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 23 for details.
Header Wall
Reversing Sensor
Gap between floor
and bottom of door
mustnotexceed1/4"(6 mm).
Rail
Extension Spring
OR
Torsion Spring
Wall-
mounted
Door
Control
Safety
Reversing
Sensor
Access Door
0
FINISHEDCEILING
Support bracket &
fastening hardware
is required.
See page16.
Header
Bracket Trolley
Stop Bolt
Header
Wall
Garage
Door Bracket
Curved
Door
Arm
tor unit
CLOSEDPOSITION
Trolley
Belt
Emergency Release
Rope & Handle

Planning(Continued)

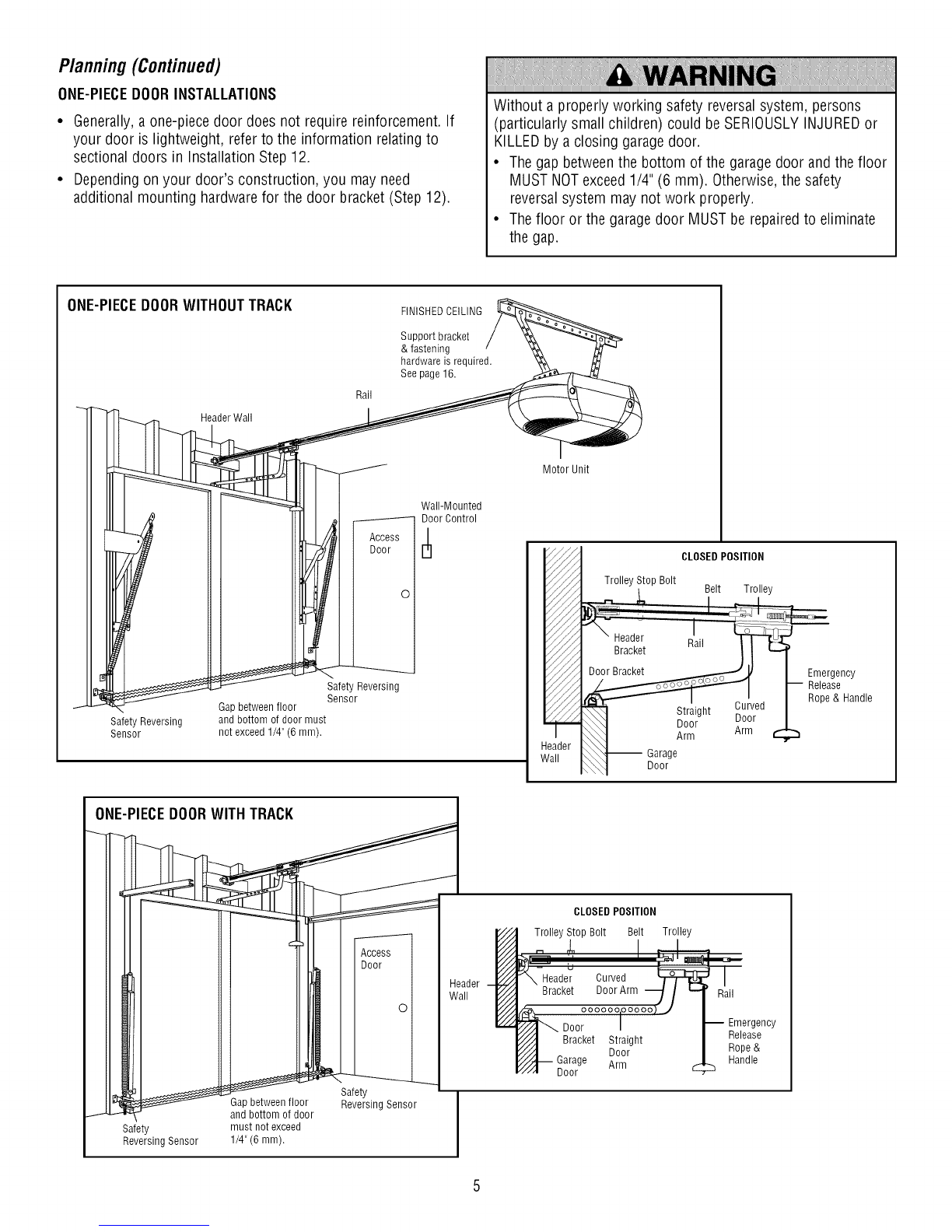

ONE-PIECEDOORINSTALLATIONS
•Generally,a one-piecedoor does not require reinforcement. If
your door is lightweight, refer to the information relatingto
sectional doors in Installation Step 12.
• Dependingon your door's construction, you may need
additional mounting hardwarefor the door bracket (Step 12).
Without a properly working safety reversalsystem, persons
(particularly small children) could be SERIOUSLYINJUREDor
KILLEDby a closing garagedoor.
• Thegap betweenthe bottom of the garage door and the floor
MUSTNOTexceed1/4" (6 mm). Otherwise,the safety
reversalsystem may not work properly.
• Thefloor or the garage door MUSTbe repairedto eliminate
the gap.
ONE-PIECEDOORWITHOUTTRACK
SafetyReversing
Sensor
Header Wall
Rail
J
Access
Door
o
Safety Reversing
Sensor
Gap between floor
and bottom of door must
not exceed 1/#' (6 mm).
FINISHEDCEILING
Support bracket
& fastening
hardware is required.
See page 16.
Wall-Mounted
Door Control
Motor Unit
CLOSEDPOSITION
Trolley Stop Bolt
,_ Belt Trolley
I
r uracKet _ J/ I Emergency
I-- Release
it liirght ii_e d _Rope & Handle
_ Garage °
_,_ Door
ONE-PIECEDOORWITH TRACK
Gap between floor
and bottom of door
Safety must not exceed
Reversing Sensor 1/4" (6 mm).
Access
Door
ol
Safety
Reversing Sensor
Header
Wall
CLOSEDPOSITION
Trolley Stop Bolt Belt Trolley
Door
Bracket
Garage
Door
Rail
Straight Release
Door Rope &
Arm Handle

CartonInventory
Your garagedoor opener is packagedin one carton which
contains the motor unit and all parts illustrated below.
Accessorieswill depend on the model purchased.If anything is
missing, carefully check the packing material. Parts may be stuck
in the foam. Hardwarefor assemblyand installation is shown on
the next page.Savethe carton and packing material until
installation and adjustment is complete.
Smart Control Panel®
SECURITY+®
3 Function Remote Control (2)
Belt Cap Retainer Trolley
Battery
Motor Unit with 2 Light Lenses
Rail
Center/Back
Sections
Rail
Front (header)
Section
Idler Pulley
Header Bracket
Belt
Door Bracket
Safety Reversing
Sensor Bracket (2) The Protector System ®
(2) Safety Reversing Sensors
(1 Sending Eyeand 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Curved Door
Arm Section
2-Conductor BellWire
White & White/Red
Safety Labels
and
Literature
SECURITY+®
Keyless Entry
Io
i 1°
_PI,,
Io
Io
%
Hanging Brackets
Straight Door
Arm Section

HardwareInventory
Separateall hardwareand group as shown below for the assembly and installation procedures.
ASSEMBLYHARDWARE
Spring/Trolley Nut (1) Lock Nut Lock Washer Nut
1/4"-20 (2) 3/8" (1) 3/8" (1)
I©
Trolley Threaded Shaft (1)
Master
Link (2)
Idler Bolt (1)
INSTALLATIONHARDWARE
©
Carriage Bolt Wing Nut Ring
1/4"-20xl/2" (2) 1/4"-20 (2) Fastener (3)
1111111111_
Lag Screw
5/16"-9xl -5/8" (2) Hex Bolt 5/16"-18x7/8" (4)
Nut 5/16"-18 (4)
Lock Washer 5/16" (5)
111111111111_>
Lag Screw
5/16"-18xl-7/8" (2)
_ IIlllllllllllMlllllIlllll_
Screw
6ABx1-1/4" (2)
Self-Threading Screw
1/4"-14x5/8" (2)
Handle
Insulated
Staples (30)
_ IIIIIIIIIIIIIIIIIIlll
Screw 6-32x1" (2)
Drywall Anchors (2) Rope
Clevis Pin
5/16"x1-1/2" (1) Clevis Pin
5/16"x1" (1) Clevis Pin 5/16"x1-1/4"(1)
on

ASSEMBLY STEP 1
Assemble the Rail and Install the Trolley
To avoidinstallationdifficulties,do notrunthe garagedoor
openeruntil instructedto do so.
Thefront rail has a cut out "window" at the door end
(seeillustration). Theholeabove this windowis larger onthe
top ofthe raft than on the bottom. A smaller hole 3-1/2" (8.9 cm)
away is close to the rail edge.Rotate the back rail so it hasa
similar hole close to the oppositeedge,about 4-3/4" (12 cm)
from the far end.
1. Removethe straight door arm and hanging bracket
packagedinside the front rail and set asidefor Installation
Steps 5 and 12.
NOTE:Toprevent INJURY while unpacking the rail carefully
remove thestraight door arm stored within the rail section.
2. Align the rail sections on a flat surface asshown and slide the
taperedends into the larger ones. Tabs along the side will lock
into place.
To prevent INJURY from pinching, keephandsand fingers
away from the joints while assembling the rail.
3. Placethe motor unit on packingmaterial to protect the cover,
and rest the back end of the rail on top. Forconvenience,put a
support under the front end of the rail.
4. As a temporary stop, insert a screwdriver into the hole
10" (25 cm) from the front end of the rail, as shown.
5. Checkto besure there are 4 plastic wear pads insidethe inner
trolley. If they becameloose during shipping, checkall packing
material. Snapthem back into position asshown.
6. Slide the trolley assembly along the rail from the back end to
the screwdriver.
Trolley
)ered
End
)ered
End
)ered
End
E3ackRails
(TO MOTOR UNIT)
rewdrive_
"11 /// Tabs
Window O///
Cut-Ou_ /// FrontRail
Idler _,//_._'/ (TO DOOR)
Pulley
Hole _ i
_ered
End
InnerTrolley __
v _ WearPads

ASSEMBLY STEP 2
Fastenthe Rail to the MotorUnit
•Inserta 1/4"-20xl-3/4 bolt into the cover protection bolt hole
on the back end of the rail as shown. Tighten securelywith a
1/4"-20 lock nut. DONOTovertighten.
• Removethe two bolts from the top of the motor unit.
• Placethe "U" bracket,flat side down, on the motor unit and
align the bracketholes with the bolt holes. Fastenwith the
previously removed bolts.
• Align the rail assemblywith the top of the motor unit. Slide the
rail end onto the "U" bracket, all the way to thestops that
protrude on the top and sides of the bracket.
HARDWARESHOWNACTUALSIZE
Lock Nu@
Bolt 1/4"-20xl-3/4" 1/4"-20
To avoid SERIOUSdamageto garagedoor opener, use ONLY
those bolts/fasteners mounted in the top of the opener.
"U" Bracket
Bolt
I
Cover
Protection
Bolt Hole X
Bolts _ UnitBelt Pulley
SLIDE RAIL TO STOPS
ONTOPAND SIDES
OFBRACKET
Lock Nut I
ASSEMBLY STEP 3
Install theIdler Pulley
• Laythe belt besidethe rail, as shown. Graspthe end with the
hookedtrolley connector and pass approximately 12" (30 cm)
of beltthrough the window. Keepthe ribbed side toward the
rail, and allow it to hang until Assembly Step 5.
• Removethe tapefrom the idler pulley. The inside center should
be pre-greased.If dry, regreaseto ensure proper operation.
• Placethe idler pulley into the window as shown.
• Insertthe idler bolt from the top through the rail and pulley.
Tighten with a 3/8" lock washer and nut underneaththe rail
until the lock washer is compressed.
• Rotatethe pulley to be sure it spins freely.
• Inserta 1/4"-20xl-3/4 bolt into the trolley stop hole in the front
of the rail as shown. Tighten securelywith a 1/4"-20 lock nut.
Grease
_ _. __ Inside Pulley
- _ Idler Pulley
Lock Washer 3/8"-_
Nut 3/8"
Trolley
Connector
Bolt
I
Idler _ Lock
Pulley , Nut
Idler Bo_ _]
HARDWARESHOWNACTUALSIZE
Bolt 1/4"-20xl-3/4" Lock Nut 1/4"-20 Nut 3/8" Lock Washer 3/8"

ASSEMBLY STEP 4
Insta// the Be/t and Attach the Be/t CapRetainer
1. Pull the belt around the idler pulley and toward the trolley.
Theribbed side must contact thepufley.
2. Hookthe trolley connector into the retaining slot on the trolley
as shown.
3. With the trolley against the screwdriver, dispensethe
remainderof the belt along the rail length toward the motor
unit and around the sprocket. Thesprocket teeth must engage
the belt.
4. Checkto makesure the belt is not twisted andthe FLATside
of the trolley threadedshaft is facing the rail. Connectthe
trolley threaded shaft with the masterlink, as illustrated:
• Pushpins of master link bar through holes in end of belt
and trolley threaded shaft.
• Pushmaster link capover pins and past pin notches.
• Slide clip-on spring over cap and onto pin notches until
both pins are securely locked in place.
5. Insert thetrolley threadedshaft through the hole in the trolley.
Besure the belt is not twisted and the FLAT sideof the trolley
threaded shaftfaces the rail.
6. Holdthe belt atthe trolley shaft asyou thread the spring nut
by hand onto the shaft until finger tight against the trolley.
DONOT useany tools.
7. Removethe screwdriver.
8. Position the beltcap retaineroverthe motor unit sprocket as
shown and fasten to the mounting platewith 8x3/8" hex
screws provided.
To avoid possible SERIOUSINJURYto fingers from moving
garagedoor opener:
• ALWAYSkeephandclearof belt pulley while operating
opener.
• Securely attachbelt pulleycover BEFOREoperating.
HARDWARESHOWN ACTUALSIZE
Hex Screw 8x3/8"
Spring/Trolley Nut
Master Link
Clip-On Spring
Master Link Cap
Pin ._
Notch|
Trolley Master
Threaded Link Bar
Shaft
Hole
Retaining
Trolley Slot
Connector
HexScrews
#8x3/8"
Idler Pulley
BeltCap
Retainer Motor Unit
Belt Pulley
Plate
10

ASSEMBLY STEP 5
Set the Tension
•Insert a screwdriver tip into one of the nut ring slots and brace
it firmly against the trolley.
• Placea 7/16" open end wrench on the squareend. Rotatethe
nut about 1/4 turn until the spring releasesand snapsthe nut
ring against the trolley.
This sets the spring to optimum belt tension.
Youhave nowfinishedassemblingyourgaragedooropener.
P/ease read thefollowingwarningsbeforeproceedingtothe
insta//ationsection.
Square
End Nut Rinc
(2.5cm)
f
f
-- Nut Ring Slot
Square End
Trolley
ER RELEASE
1-1/4"
(3.18 cm)
Nut Rin,
INSTALLATION
IMPORTANTINSTALLATIONINSTRUCTIONS
Toreducethe riskofSEVEREINJURYorDEATH:
1. READAND FOLLOWALL INSTALLATIONWARNINGS
AND INSTRUCTIONS.
2. Install garagedoor opener ONLYon properly balanced
and lubricated garage door. An improperly balanceddoor
may not reversewhen required and could result in
SEVEREINJURYor DEATH.
3. ALL repairsto cables,spring assemblies and other
hardware MUSTbe made by a trained door systems
technician BEFOREinstalling opener.
4. DisableALL locks and remove ALL ropesconnectedto
garage door BEFOREinstalling opener to avoid
entanglement.
5. Install garagedoor opener 7 feet (2.1 m) or more above
floor.
6. Mount emergencyreleasehandle 6 feet (1.8 m) above
floor.
7. NEVERconnect garagedoor opener to power source
until instructed to do so.
8. NEVERwear watches, rings or looseclothing while
installing or servicing opener.They could be caught in
garagedoor or opener mechanisms.
9. Installwall-mounted garage door control:
• within sight of the garage door.
• out of reachof children at minimum height of
5 feet (1.5 m).
• awayfrom ALL moving parts of the door.
10. Placeentrapmentwarning label on wall next to garage
door control.
11. Placemanual release/safetyreversetest label in plain view
on inside of garage door.
12. Uponcompletion of installation, test safety reversal
system. Door MUST reverseon contact with a
1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the
floor.
13. To avoid SERIOUSPERSONALINJURYor DEATHfrom
electrocution, disconnect ALL electric and battery power
BEFOREperforming ANY serviceor maintenance.
11

INSTALLATION STEP 1
Determinethe HeaderBracketLocation
To prevent possible SERIOUSINJURYor DEATH:
•HeaderbracketMUST be RIGIDLYfastenedto structural
support on headerwall or ceiling, otherwise garagedoor
might not reversewhen required. DONOTinstall header
bracket over drywall.
• Concreteanchors MUST be usedif mounting headerbracket
or 2x4 into masonry.
• NEVERtry to loosen, move or adjust garagedoor, springs,
cables, pulleys,brackets, or their hardware,ALL of which are
under EXTREMEtension.
• ALWAYScall a trained door systems technician if garage
door binds, sticks, or is out of balance.An unbalanced
garagedoor might not reversewhen required.
Installation procedures vary according to garagedoor types.
Follow the instructions which applyto your door.
1. Closethe door and mark the insidevertical centerline of the
garagedoor.
2. Extendthe line onto the headerwall abovethe door.
Youcanfastenthe headerbracketwithin 4 feet (1.22 m) of
the left or rightof the doorcenter onlyif a torsionspringor
center bearingplate is in theway; or youcanattach itto the
ceiling (see page 13) whenclearanceis minimal. (It may be
mountedon thewall upsidedownif necessary,to gain
approximately1/2" (1 cm).)
If you needto install the headerbracket on a 2x4 (on wall or
ceiling), use lag screws (not provided) to securelyfasten the
2x4 to structural supports as shown hereand on page13.
3. Openyour door to the highest point of travel asshown. Draw
an intersecting horizontal line on the headerwall abovethe
high point:
• 2" (5 cm) abovethe high point for sectionaldoor and
one-piecedoor with track.
• 8" (20 cm) abovethe high point for one-piecedoor without
track.
This heightwill provide travel clearancefor the top edgeof the
door.
NOTE:If the total number of inches exceedsthe heightavailable
in your garage,use themaximum height possible, or referto
page 13for ceiling installation.
Unfinished
Ceiling
HeaderWall
Vertical Centerline
of GarageDoor
Header Wall Track
Highest Point
of Travel
Door
Sectional door with curvedtrack
all
_Highest
Hardware
One-piecedoorwithouttrack:
jambhardware
OPTIONAL
CEILING
MOUNT
!FOR
HEADER
BRACKET
2x4 Structural
Supports
Y
e"
HeaderWall Track
t
T
One-piece door with horizontal track
Header Wall
:- 8" (20 cm)
" -;" ", Highest
I_#..-;" ,',Point
41-:-_'_/I._-" ',',of Travel
Door ',
One-piece door without track:
pivot hardware
12

INSTALLATION STEP 2
Install theHeaderBracket
You can attachthe headerbracketeither to the wall abovethe
garagedoor, or to the ceiling. Followthe instructions which will
work bestfor your particular requirements. Donot install the
headerbracketoverdrywall. If installingintomasonry,use
concreteanchors(not provided).
WALLHEADERBRACKETINSTALLATION
•Centerthe bracket on the vertical centerline with the bottom
edge of the bracket on the horizontal line asshown (with the
arrow pointing toward the ceiling).
• Mark thevertical set of bracket holes. Drill 3/16" pilot holesand
fastenthe bracketsecurely to a structural support with the
hardware provided.
HARDWARESHOWNACTUALSIZE
LagScrew
5/16"-9xl -5/8"
- Header Wall -
2x4
Structural
SuppoR
J
1
Horizontal
Line i
Highest Point of
GarageDoor Travel
Wall Mount
Optional
Mounting Holes
Vertical
Centerline
of Garage Door
_ Lag Screws
5/16"-9xl -5/8"
Door Spring
- Garage Door -
Vertical
Centerline
of GarageDoor
CEILINGHEADERBRACKETINSTALLATION
• Extendthe vertical centerline onto the ceiling as shown.
• Centerthe bracket on the vertical mark, no more than
6" (15 cm) from the wall. Make sure the arrow is pointing away
from the wall. The bracketcan be mounted flush against the
ceiling when clearanceis minimal.
• Mark the side holes. Drill 3/16" pilot holes and fasten bracket
securelyto a structural support with the hardwareprovided.
Ceiling Mounting Holes
i
Bracket
6" (15 cm) M
-FinishedCeiling-
VerticalCenterline
ofGarageDoor
Door
Spring " Lag Screws
5/16"-9xl -5/8"
HeaderWall -
13

INSTALLATION STEP 3
AttachtheRail to the HeaderBracket
•Position the opener on the garagefloor below the header
bracket. Usepacking material asa protective base.
NOTE:If the door spring is in the way,you will need help. Have
someone hold the opener securely on atemporary support to
allow the rail to clear the spring.
• Position the rail bracket againstthe headerbracket.
• Align the bracket holesand join with a clevis pin as shown.
• Inserta ring fastenerto secure.
Header Wall
Header Bracket
Idler Pulley
__ Garage
Door
Clevis Pin
Ring
Fastener
Mounting
Hole
OpenerCarton or
-- Temporary
Support
HARDWARESHOWN ACTUALSIZE
ol
ClevisPin5/16"x1-1/2" © Ring Fastener
14

INSTALLATION STEP 4
Positionthe Opener
Follow instructions which applyto your door type as illustrated.
SECTIONALDOORORONE-PIECEDOORWITH TRACK
A 2x4 laid flat is convenient for setting an ideal door-to-rail
distance.
• Removefoam packaging.
• Raisethe opener onto a stepladder.You will need help at this
point if the ladder is not tall enough.
• Openthe door all the way and placea 2x4 laid flat on the top
section beneaththe rail.
• If the top section or panel hits the trolley whenyou raise
the door, pull down on the trolley releasearm to disconnect
inner and outer sections. Slide the outer trolley toward the
motor unit. Thetrolley can remain disconnected until
Installation Step 12 is completed.
To prevent damageto garage door, rest garagedoor opener rail
on 2x4 placedon top section of door.
Rail
Door 2x4 is usedto determine
the correct mounting height
from ceiling.
Iley
ReleaseAml -- _ J
ENGAGED RELEASED _j
ONE-PIECEDOORWITHOUTTRACK
A 2x4 on its side is convenientfor setting an ideal
door-to-rail distance.
• Removefoam packaging.
• Raisethe opener onto a stepladder.You will need help at this
point if the ladder is not tall enough.
• Openthe door all the way and placea 2x4 on its side on the
top section of the door beneaththe rail.
• Thetop of the door should be levelwith thetop of the motor
unit. Donot position the opener more than 4" (10 cm) above
this point.
L_ Header
15

INSTALLATION STEP 5
Hangthe Opener
Threerepresentativeinstallations are shown. Yours may be
different. Hangingbrackets should be angled (Figure 1) to provide
rigid support. On finished ceilings (Figures 2 and 3), attach a
sturdy metal bracketto structural supports before installing the
opener.This bracketand fastening hardwareare not provided.
1. Measurethe distancefrom eachside of the motor unit to the
structural support.
2. Cut both piecesof the hanging bracketto required lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of eachbracketto a support with
5/16"-18xl -7/8" lag screws.
5. Fastenthe opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Checkto make sure the rail is centered over the door (or in line
with the headerbracket if the bracket is not centeredabove
the door).
7. Removethe 2x4. Operatethe door manually. If the door hits
the rail, raisethe header bracket.
NOTE:DONOT connectpower to opener at this time.
HARDWARESHOWN ACTUALSIZE
@
Hex Bolt
5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"
To avoid possible SERIOUSINJURYfrom a falling garage door
opener,fasten it SECURELYto structural supports of the
garage.Concreteanchors MUST be usedif installing ANY
brackets into masonry.
Figure1
)orts
Measure ',
Distance
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Lag Screws
5/16"-18xl -7/8"
Figure2
Hidden .- -_ _
Bracket Support _--_
(Not Provided) ---" 1'' _---- _-_-
. -. -_" *" - _- L- _L_- ..... FINISHEDCEILING
_ ._ _-- _ LagScrews
-722_ ....
_\_ __(Not Provided)
_---_\o_ - - - - -j---- - - j_/_/"'_ SoIt5/16"-18x7/8"
- .--'_'_'-- LIo/ Lock Washer 5/16"
Bolt 5/ - \_'_& _/_ NutR5/16"-116,,_18X7/8,\_\ Ilol
N°uCtk5W_qeer5/16' ___J_'"__(___
Figure3
LagScrews
5/16"-18xl -7/8"
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
FINISHED CEILING
(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
16

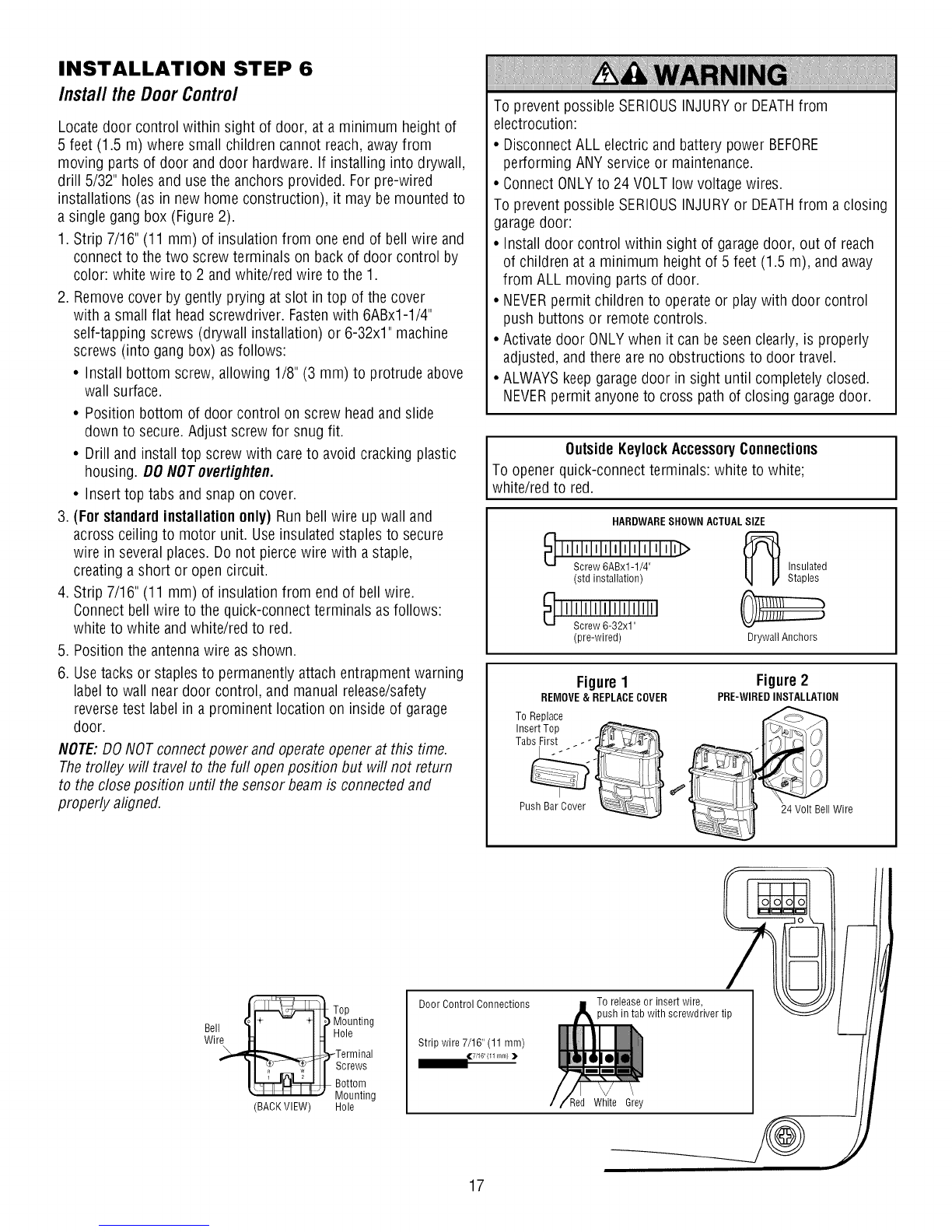

INSTALLATION STEP 6
Install theDoorControl
Locate door control within sight of door, at a minimum height of
5 feet (1.5 m) where small children cannot reach, awayfrom
moving parts of door and door hardware. If installing into drywall,
drill 5/32" holes and usethe anchors provided. Forpre-wired
installations (as in new home construction), it may be mounted to
a single gang box (Figure2).
1. Strip 7/16" (11 mm) of insulation from one end of bell wire and
connect to the two screwterminals on back of door control by
color: white wire to 2 and white/red wire to the 1.
2. Removecover by gently prying at slot in top of the cover
with a small flat headscrewdriver. Fastenwith 6ABx1-1/4"
self-tapping screws (drywall installation) or 6-32x1" machine
screws (into gang box) as follows:
• Install bottom screw, allowing 1/8" (3 mm) to protrude above
wall surface.
• Position bottom of door control on screw headand slide
down to secure.Adjust screw for snug fit.
• Drill and install top screw with care to avoid cracking plastic
housing. DONOTovertighten.
• Insert top tabs and snap on cover.
3. (For standard installation only} Runbell wire up wall and
across ceiling to motor unit. Use insulated staplesto secure
wire in several places. Donot piercewire with a staple,
creating a short or open circuit.
4. Strip 7/16" (11 mm) of insulation from end of bell wire.
Connectbell wire to the quick-connect terminals asfollows:
white to white and white/red to red.
5. Position the antennawire as shown.
6. Usetacks or staplesto permanently attachentrapment warning
label to wall near door control, and manual release/safety
reversetest label in a prominent location on inside of garage
door.
NOTE:DONOT connectpower and operateopenerat this time.
Thetrolley will travel to the furl open position but will not return
to the close position until thesensor beamis connectedand
properly aligned.
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution:
• DisconnectALL electric and battery power BEFORE
performing ANYserviceor maintenance.
• ConnectONLYto 24 VOLTlow voltage wires.
To prevent possible SERIOUSINJURYor DEATHfrom a closing
garagedoor:
• Install door control within sight of garagedoor, out of reach
of children at a minimum height of 5 feet (1.5 m), and away
from ALL moving parts of door.
• NEVERpermit children to operateor play with door control
push buttons or remote controls.
• Activate door ONLYwhen it can be seenclearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYSkeepgaragedoor in sight until completely closed.
NEVERpermit anyoneto cross path of closing garagedoor.
Outside KeylockAccessoryConnections
To opener quick-connect terminals: white to white;
white/red to red.
HARDWARESHOWNACTUALSIZE
_ Insulated
(std installation) Staples
(pre-wired) Drywall Anchors
Figure1Figure2
REMOVE& REPLACECOVER PRE-WIREDINSTALLATION
To Replace
Insert Top
Push Bar Cover I Wire
_Top
. .. _1+ -- +1 ) Mounting
ueu |1 I | Hole
Wire H I_ '
__Terminal
II TI/ screws
I_ Bottom
" ' " Mounting
(BACKVIEW) Hole
DoorControlConnections
Strip wire 7/16" (11 mm)
_7/16" (11 ram)
To release or insert wire,
_ushin tab with screwdriver tip
\
:led White Grey
17

INSTALLATION STEP 7
Install the Battery
•Make sure motor unit is unplugged.
• Using a Phillips headscrewdriver, removethe battery cover on
the motor unit.
• Partially insert batteryinto motor unit with terminals facing
out.
• Oonnectthe red (+) and black (-) wires from motor unit to
corresponding terminals on battery.
• Verify the batterywires are seated in the channel.
• Replacebattery cover.
ALWAYSwear protective gloves and eyeprotection when
changing the battery or working around the battery
compartment.
_i_e ryCover
INSTALLATION STEP 8
Install theLights
• Pressthe releasetabs on both sides of lens. Gentlyrotate lens
back and downward until the lens hinge is in thefully open
position. Do not removethe lens.
• Install up to a 100 watt maximum light bulb in eachsocket.
Light bulb size should be A19, standard neck only. Thelights
will turn ONand remain lit for approximately 4-1/2 minutes
when power is connected.Thenthe lights will turn OFF.
• Reversethe procedureto close the lens.
• If the bulbs burn out prematurelydue to vibration, replacewith
a garage door opener bulb. UseA19, standard neck garage
door opener for replacement.
NOTE:Useonly standard light bulbs. Theuseof short neck or
speciality light bulbs may overheatthe endpanel or light socket.
To prevent possible OVERHEATINGof the endpanelor light
socket:
• DONOTuse short neck or specialty light bulbs.
• DONOTuse halogen bulbs. UseONLYincandescent.
To prevent damageto the opener:
• DONOTuse bulbs larger than IOOW.
• ONLYuseA19 size bulbs.
1O0Watt
Standard Light Bulb
ReleaseTab /
Hinge
100 Watt (Max)_'_
Standard Light Bulb _...._
18

INSTALLATION STEP 9
Attachthe EmergencyRelease RopeandHandle
• Threadone end of the rope through the hole in the top of the
red handleso "NOTICE"readsright side up asshown. Secure
with an overhand knot at least 1" (2.5 cm) from the end of the
rope to prevent slipping.
• Threadthe other end of the rope through the hole in the release
arm of the outer trolley.
• Adjust rope length so the handle is 6 feet (1.83 m) abovethe
floor. Ensurethat the rope and handle clearthe tops of all
vehiclesto avoid entanglement.Securewith an overhandknot.
NOTE:If it is necessary to cut the rope, heatseal the cut end with
a match or lighter to prevent unraveling.
To prevent possible SERIOUSINJURYor DEATHfrom a falling
garagedoor:
• If possible, useemergency releasehandleto disengage
trolley ONLYwhen garagedoor is CLOSED.Weak or broken
springs or unbalanceddoor could result in an open door
falling rapidly and/or unexpectedly.
• NEVERuseemergency releasehandle unless garagedoorway
is clear of persons and obstructions.
• NEVERusehandle to pull door open or closed. If rope knot
becomes untied, you could fall.
Trolley
I
INSTALLATION STEP 10
Electrical Requirements
To avoidinstallationdifficulties,do notrunthe openerat this
time.
To reducethe risk of electric shock, your garagedoor opener has
a grounding type plug with a third grounding pin. This plug will
only fit into a grounding type outlet. If the plug doesn't fit into the
outlet you have, contact a qualified electricianto install the proper
outlet.
Emergency _ ,_verhandnot
Release Handle
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution or fire:
• DisconnectALL electric and battery power BEFORE
performing ANY serviceor maintenance.
• Garagedoor installation and wiring MUSTbe in compliance
with ALL local electrical and building codes.
• NEVERusean extension cord, 2-wire adapter,or change
plug in ANYway to make it fit outlet. Besure the opener
is grounded.
PERMANENTWIRING
CONNECTION
If permanent wiringis requiredbyyourlocal code,refer to the
followingprocedure.
To make a permanent connection through the 7/8" hole in the top
of the motor unit:
• Removethe motor unit cover screws and set the cover aside.
• Removethe attached3-prong cord.
• Connectthe black (line) wire to the screw on the brass
terminal; the white (neutral) wire to the screw on the silver
terminal; and the ground wire to the green ground screw.
The openermustbe grounded.
• Reinstallthe cover.
To avoidinstallationdifficulties,do notrunthe openerat this
time.
Ground Tab
Green
Ground Screw
Ground Wire Wire
White Wire Black Wire
19

INSTALLATION STEP 11
Install TheProtectorSystem®
Thesafety reversingsensormustbeconnectedand aligned
correctlybeforethe garagedooropenerwill movein the down
direction.
IMPORTANTINFORMATIONABOUT
THESAFETYREVERSINGSENSOR
When properly connectedand aligned, the sensor will detect an
obstacle in the pathof its electronic beam. Thesending eye (with
an amber indicator light) transmits an invisible light beamto the
receiving eye (with a green indicator light). If an obstruction
breaks the light beamwhile the door is closing, the door will stop
and reverseto full open position, and the opener lights will flash
10 times.
Theunits must be installed inside the garageso that the sending
and receivingeyes face eachother across the door, no morethan
6" (15cm) abovethefloor. Either can be installed on the left or
right of the door as long as the sun nevershines directly into the
receiving eye lens.
Themounting brackets are designedto clip onto thetrack of
sectional garagedoors without additional hardware.
Besure power is not connectedto the garagedoor opener
BEFOREinstalling the safety reversing sensor.
To prevent SERIOUSINJURYor DEATHfrom a closing garage
door:
•Correctly connect and align the safety reversingsensor. This
required safety device MUSTNOTbe disabled.
• Install the safety reversing sensor so beamis NOHIGHER
than 6" (15 cm) abovegaragefloor.
If it is necessaryto mount the units on the wall, the brackets
must be securelyfastenedto a solid surface such asthe wall
framing. Extensionbrackets (seeaccessories) areavailableif
needed.If installing in masonry construction, add a pieceof wood
at eachlocation to avoid drilling extra holesin masonry if
repositioning is necessary.
Theinvisible light beam path must be unobstructed. No part of
the garagedoor (or door tracks, springs, hinges, rollers or other
hardware) may interrupt the beamwhile the door is closing.
I
I
I
I
I
I
I
I
Safety Reversing Sensor
6" (15 cm) max.
above floor
Invisible Light Beam
Protection Area Safety Reversing Sensor
6" (15 cm) max,
abovefloor
Facingthe doorfrom insidethegarage
2O
