TABLE OF CONTENTS
Introduction 2- 7
Safety symbol and signal word review ........................... 2
Preparing your garage door ........................................... 3
Tools needed .................................................................. 3
Planning ..................................................................... 4-5
Carton inventory ............................................................. 6
Hardware inventory ........................................................ 7
Assembly 8-11
Assemble the rail and install the trolley .......................... 8
Fasten the rail to the motor unit and
install the idler pulley ...................................................... 9
Install the chain/cable ................................................... 10
Tighten the chain .......................................................... 11
Installation 11-26
Installation safety instructions ...................................... 11
Determine the header bracket location ........................ 12
Install the header bracket ............................................. 13
Attach the rail to the header bracket ............................ 14
Position the opener ...................................................... 15
Hang the opener ........................................................... 16
Install the door control .................................................. 17
Install the lights ............................................................. 18
Attach the emergency release rope and handle .......... 18
Electrical requirements ................................................. 19
Install The Protector System °.................................. 20-22
Fasten the door bracket .......................................... 23-24
Connect the door arm to the trolley ......................... 25-26
Adjustment 27-29
Adjust the travel limits .................................................. 27
Adjust the force ............................................................ 28
Test the safety reversal system .................................... 29
Test The Protector System _.......................................... 29
Operation 30-34
Operation safety instructions ........................................ 30
Using your garage door opener ................................... 30
Using the wall-mounted Door Control .......................... 31
To open the door manually ........................................... 31
Care of your garage door opener ................................. 32
Having a problem? ....................................................... 33
Diagnostic chart ............................................................ 34
Programming 35-36
To add or reprogram a hand-held remote control ........ 35
To erase all codes ........................................................ 35
3-Function Remotes ..................................................... 35
To add, reprogram or change
a Keyless Entry PIN ..................................................... 36
Repair Parts 37-38
Rail assembly parts ...................................................... 37
Installation parts ........................................................... 37
Motor unit assembly parts ............................................ 38
Accessories 39
Warranty
Repair Parts and
Service
39
Back Cover
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal Words
on the following pages, they will alert you to the
possibility of serious injury or death if you do not
comply with the warnings that accompany them. The
hazard may come from something mechanical or from
electric shock. Read the warnings carefully.
When you see this Signal Word on the following pages, it
will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply
with the cautionary statements that accompany it. Read
them carefully.

Preparing your garage door
Before you begin:
•Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
1. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place,
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
Toprevent possible SERIOUSINJURYor DEATH:
• ALWAYScall a trained door systems technician if garage
door binds, sticks, or is out of balance.An unbalanced
garage door may not reverse when required.
• NEVERtry to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, all of
which are under EXTREMEtension.
• DisableALL locks and removeALL ropesconnected to
garage door BEFOREinstalling and operating garage door
opener to avoid entanglement.
To prevent damageto garagedoor and opener:
• ALWAYSdisable locks BEFOREinstalling and operating
the opener.
• ONLYoperategarage door opener at 120V,60 Hzto avoid
malfunction and damage.
Sectional Door
One-Piece Door Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
Stepladder
Level (optional) Pencil
Tape Measure
Dr_ Wire Cutters
Drill 3/16", 5/16"
and 5/32"
_0 s2'c _5t/8"a,7116W':e9/ih'' Pliers
and 1/4"
Hack Saw
Screwdriver
Adjustable End Wrench

Planning
Identify the type and height of your garage door. Survey
your garage area to see if any of the conditions below
apply to your installation. Additional materials may be
required. You may find it helpful to refer back to this page
and the accompanying illustrations as you proceed with
the installation of your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
• Installation Step 1 - Look at the wall or ceiling above
the garage door. The header bracket must be securely
fastened to structural supports.
• Installation Step 5 - Do you have a finished ceiling in
your garage? If so, a support bracket and additional
fastening hardware may be required.
• Installation Step 10 - Depending upon garage
construction, extension brackets or wood blocks may
be needed to install sensors.
• Installation Step 10 - Alternate floor mounting of the
safety reversing sensor will require hardware not
provided.
Do you have an access door in addition to the garage
door? If not, Model 53702 Emergency Key Release is
required. See Accessories page.
Look at the garage door where it meets the floor. Any
gap between the floor and the bottom of the door must
not exceed 1/4" (6 mm). Otherwise, the safety reversal
system may not work properly. See Adjustment Step 3.
Floor or door should be repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical
reinforcement is required (Installation Step 11).
• The opener should be installed above the center of the
door. If there is a torsion spring or center bearing plate
in the way of the header bracket, it may be installed
within 4 feet (1.22 m) to the left or right of the door
center. See Installation Steps 1 and 11.
• If your door is more than 7 feet (2.13 m) high, see rail
extension kits listed on Accessories page.
SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 23 for details.
Header Wall
Slack in chain tension
is normal when
garage door is closed.
Extension Spring
OR
Torsion Spring
FINISHED CEILING
Su
fastening hardware
is required.
See page 16.
M unit
Wall-
mounted
Door
Control
Safety Reversing Sensor
Safety Reversing
Gap between floor Sensor
and bottom of door
must not exceed 1/4" (6 mm).
Access Door
O

Planning (Continued)
ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require
reinforcement. If your door is lightweight, refer to the
information relating to sectional doors in Installation
Step 11.
• Depending on your door's construction, you may need
additional mounting hardware for the door bracket
(Step 11).
Without a properly working safety reversal system, persons
(particularly small children) could be SERIOUSLYINJURED
or KILLEDby a closing garage door.
• Thegap between the bottom of the garagedoor and the
floor MUST NOTexceed 1/4"(6 mm). Otherwise, the
safety reversal system may not work properly.
• Thefloor or the garage door MUSTbe repairedto
eliminate the gap.
ONE-PIECE DOOR WITHOUT TRACK FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 16.
t
Safety Reversing Sensor
Header Wall Rail
Slack in chain tension
is normal when garage
_-_ door is closed.
Wall-mounted
----------- Door Control
Access E_
Door
O
Safety Reversing
Sensor
Gap between floor
and bottom of door must not exceed 1/4" (6 mm).
I ONE-PIECE DOOR WITH TRACK
Motor Unit
CLOSED POSITION
Trolley Stop Bolt Cable Trolley
rEmergency
Release
Rope & Handle
Safety
Reversing Sensor
Reversing
Gap between floor Sensor
and bottom of door
must not exceed 1/4" (6 ram).
CLOSED POSITION
Trolley Stop Bolt Cable
J \Header Curved
Bracket Door Arm--_ /L_
ooooooooooo) j
/_ Door I
V_/-/i] " Bracket Straight
Door
Y/z'l--- Garage Arm
Y,/'_ Door
Chain
Rail
Emergency
Release
J Rope &
Handle

Carton Inventory
Your garage door opener is packaged in one carton
which contains the motor unit and all parts illustrated
below. Accessories will depend on the model purchased.
If anything is missing, carefully check the packing
material. Parts may be stuck in the foam. Hardware for
assembly and installation is shown on the next page.
Save the carton and packing material until installation
and adjustment is complete.
Premium Control Console
Chain Spreader
SECURITY÷ ®
3-Function Remote Control (2)
Trolley
SECURITY÷ ®
Keyless Entry
Rail
Center/Back
Sections
Motor Unit with 2 Light Lenses
Idler Pulley
Safety Sensor
Bracket (2)
Chain and Cable
Header Bracket Door Bracket
The Protector System ®
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached
Curved Door
Arm Section
2-Conductor Bell Wire
White & White/Red
Safety Labels
and
Literature
31
01.
Hanging Brackets
Straight Door
Arm Section

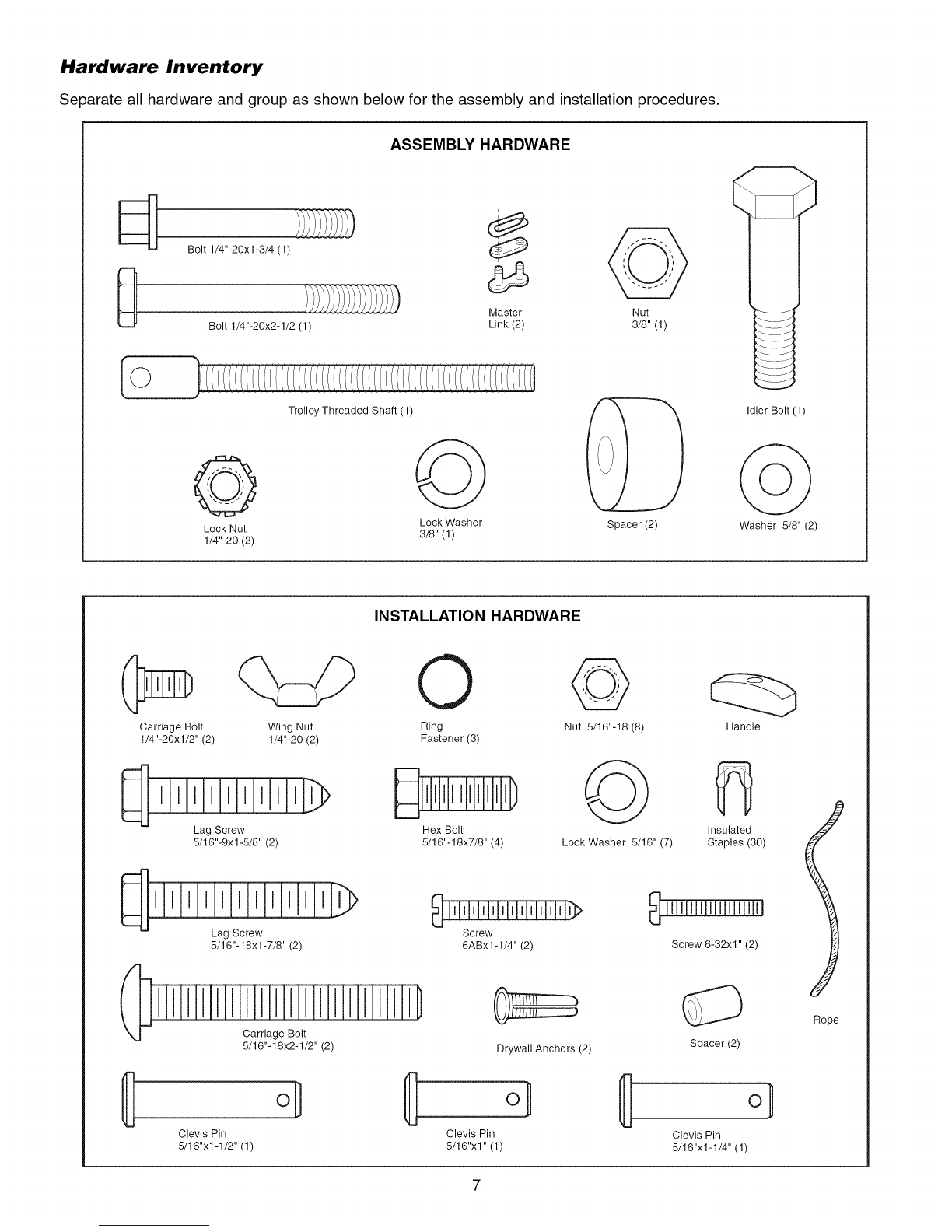

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
ASSEMB_ HARDWARE
Bolt 1/4"-20xl-3/4 (1)
Master Nut
Bolt 1/4"-20x2-1/2 (1) Link (2) 3/8" (1)
Trolley Threaded Shaft (1)
@ @
Lock Washer
Lock Nut 3/8" (1)
1/4"-20 (2) Spacer (2)
Idler Bolt (1)
Washer 5/8" (2)
INSTALLATION HARDWARE
Carriage Bolt
1/4"-20xl/2" (2) Wing Nut 1/4"-20 (2)
Lag Screw
5/16"-9xl -5/8" (2)
Lag Screw
5/16"-18xl-7/8" (2)
Carriage Bolt
5/16"-18x2-1/2" (2)
Clevis Pin
5/16"x1-1/2" (1)
O
Ring
Fastener (3)
Hex Bolt
5/16"-18x7/8" (4)
@
Nut 5/16"-18 (8)
@
Lock Washer 5/16" (7)
Screw
6ABx1-1/4" (2)
Drywall Anchors (2)
o_
Clevis Pin
5/16"x1" (1)
Handle
Insulated
Staples (30)
Screw 6-32x1" (2)
Spacer (2)
o_
Clevis Pin
5/16"x1-1/4" (1)
Rope

ASSEMBLY STEP 1
Assemble the Rail & Install the Trolley
To avoid installation difficulties, do not run the
garage door opener until instructed to do so.
The front rail has a cut out "window" at the door end (see
illustration). The hole above this window is larger on
the top of the rail than on the bottom. A smaller hole
3-1/2" (8.9 cm) away is close to the rail edge. Rotate the
back rail so #has a similar hole close to the opposite
edge, about 4-3/4" (12 cm) from the far end.
1. Remove the straight door arm and hanging bracket
packaged inside the front rail and set aside for
Installation Step 5 and 12. NOTE: Toprevent INJURY
while unpacking the rail carefully remove the straight
door arm stored within the rail section.
2. Align the rail sections on a flat surface as shown and
slide the tapered ends into the larger ones. Tabs along
the side will lock into place.
Toprevent INJURYfrom pinching, keephandsand fingers
away from the joints while assemblingthe rail.
3. Place the motor unit on packing material to protect the
cover, and rest the back end of the rail on top. For
convenience, put a support under the front end of the
rail.
4. As a temporary trolley stop, insert a screwdriver into
the hole 10" (25 cm) away from the front of the rail, as
shown.
5. Check to be sure there are 4 plastic wear pads inside
the inner trolley. If they became loose during shipping,
check all packing material. Snap them back into
position as shown.
6. Slide the trolley assembly along the rail from the back
end to the screwdriver.
Trolley
_red
End
KEEP LARGER
HOLE ON TOP
red
End
FRONT RAIL
(TOP)
#
red
End
_red
End
Back Rails
(TO MOTOR UNIT)
Outer Trolley
Inner Trolley
_'_ Wear Pads

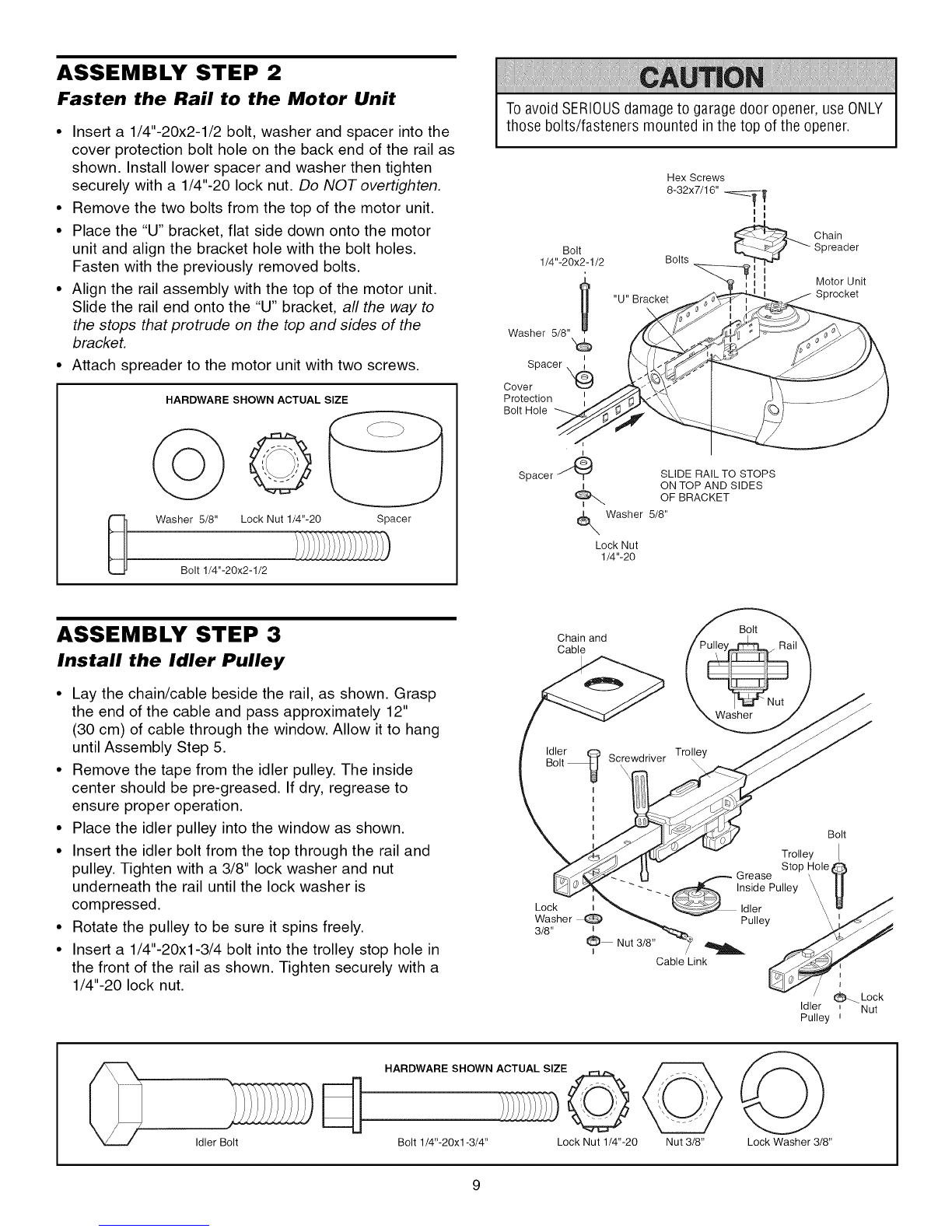

ASSEMBLY STEP 2
Fasten the Rail to the Motor Unit
•Insert a 1/4"-20x2-1/2 bolt, washer and spacer into the
cover protection bolt hole on the back end of the rail as
shown. Install lower spacer and washer then tighten
securely with a 1/4"-20 lock nut. Do NOT overtighten.
• Remove the two bolts from the top of the motor unit.
• Place the "U" bracket, flat side down onto the motor
unit and align the bracket hole with the bolt holes.
Fasten with the previously removed bolts.
• Align the rail assembly with the top of the motor unit.
Slide the rail end onto the "U" bracket, all the way to
the stops that protrude on the top and sides of the
bracket.
• Attach spreader to the motor unit with two screws.
0
Lock Nut 1/4"-20
HARDWARE SHOWN ACTUAL SIZE
Washer 5/8" Spacer
Bolt 1/4"-20x2-1/2
Toavoid SERIOUSdamageto garage door opener,use ONLY
those b01ts/fastenersmounted in the top of the opener.
Bolt
1/4"-20x2-1/2
u
Washer 5/8"
Spacer
Cover X,@
Protection
Bolt Hole
Hex Screws
832x7/16" -_Ti _
_ Chain
_ Spreader
Bolts I
_= Motor Unit
Sprocket
Spacer J "_'_" SLIDE RAIL TO STOPS
t ON TOP AND SIDES
OF BRACKET
_ Washer 5/8"
Lock Nut
1/4"-20
ASSEMBLY STEP 3
Install the Idler Pulley
• Lay the chain/cable beside the rail, as shown. Grasp
the end of the cable and pass approximately 12"
(30 cm) of cable through the window. Allow it to hang
until Assembly Step 5.
• Remove the tape from the idler pulley. The inside
center should be pre-greased. If dry, regrease to
ensure proper operation.
• Place the idler pulley into the window as shown.
• Insert the idler bolt from the top through the rail and
pulley. Tighten with a 3/8" lock washer and nut
underneath the rail until the lock washer is
compressed.
• Rotate the pulley to be sure it spins freely.
• Insert a 1/4"-20xl-3/4 bolt into the trolley stop hole in
the front of the rail as shown. Tighten securely with a
1/4"-20 lock nut.
Chain and
Cable
Bolt
Washer
Idler_ Trolley
Bolt _ Screwdriver
I
I
I
I
IBolt
Trolley
Stop Hole
_/_-- Grease
-- _lnside Pulley _\
Lock i "_ Idler \\
Washer _ Pulley
3/8" I
I Nut 3/8" _ __j
Cable Link
t
_Lock
Idler ,Nut
Pulley i
Idler Bolt
HARDWARE SHOWN ACTUAL SIZE
Bolt 1/4"-20x1-3/4" Lock Nut 1/4"-20 Nut 3/8" Lock Washer 3/8"

ASSEMBLY STEP 4
Install the Chain/Cable
1. Pull the cable around the idler pulley and toward the
trolley.
2. Connect the cable to the retaining slot on the trolley, as
shown (Figure 1):
• From below, push pins of master link bar up through
cable link and trolley slot.
• Push master link cap over pins and past pin notches.
• Slide clip-on spring over cap and onto pin notches
until both pins are securely locked in place.
3. With the trolley against the screwdriver, dispense the
remainder of the cable/chain along the rail toward the
motor unit into the slot on the chain spreader, around
the sprocket onto the chain spreader and continuing to
the trolley assembly. The sprocket teeth must engage
the chain (Figure 2).
4. Check to make sure the chain is not twisted, then
connect it to the threaded shaft with the remaining
master link.
5. Thread the inner nut and lock washer onto the trolley
threaded shaft (Figure 3).
6. Insert the trolley threaded shaft through the hole in the
trolley. Be sure the chain is not twisted (Figure 4).
7. Loosely thread the outer nut onto the trolley threaded
shaft.
8. Remove the screwdriver.
Chain
2Spreader
I-igure "u" Bracket
Bolt Motor Unit
Sprocket
Toavoid possible SERIOUSINJURYto fingers from moving
garage door opener:
• ALWAYSkeephand clearof sprocket while operating
opener.
• Securely attach chain spreaderBEFOREoperating.
Dispensing Carton
_ea_e Cihspin2s?dgCabIe
to Prevent Kinking.
Keep Chain and Cable
Taut When Dispensing
II
Figure 1Master Link_
Clip-On Spring'ff_q, Master
Link Cap_ _
Master Link
Clip-On Spring _ Master J_,_
L,nk cap
I i _ i II
i _ II I
ly
__'_ Th_edl i Pin
Cable ___._¢_ Shaft i i /Notch
Link _ _-_:_Jjq_4Ji_ \ i ! J
J__/ \ _ Master
JL_ _ ',Ruond _t_ Link Bar
_ _._', _, \ -Hole
Idler _ ..-___/JI,-vl ;\Slotted
Pu ,,ey_Jj,,_ U ! i Hole
i I
i i
i_Master
Cable _ Link Bar
Figure 3
.J_" Inner Nut
•_" Lock 5/16"
Washer
5/16"
Trolley
Threaded
Shaft
Figure 4
Trolley
Threaded
Shaft
Round
Hole
10

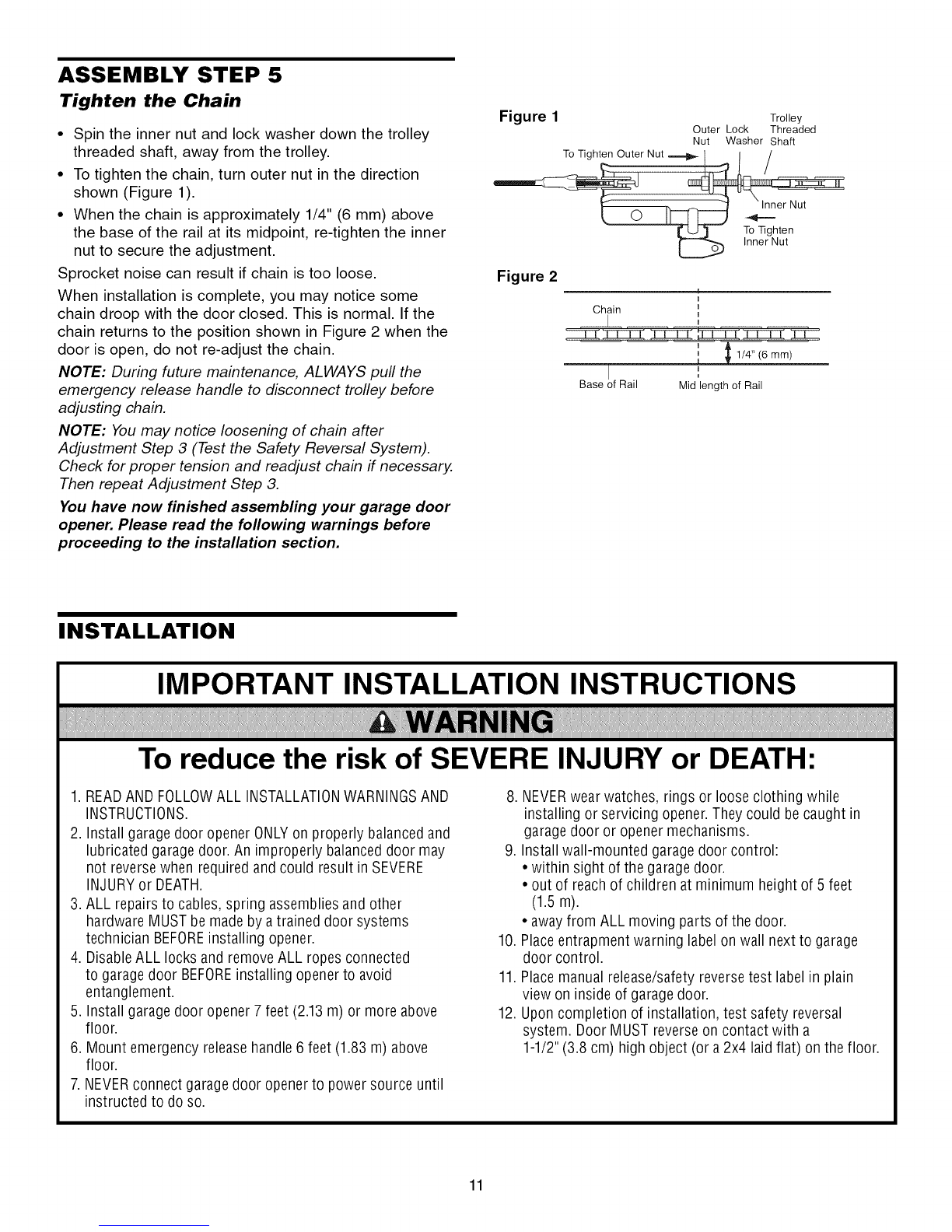

ASSEMBLY STEP 5
Tighten the Chain
•Spin the inner nut and lock washer down the trolley
threaded shaft, away from the trolley.
• To tighten the chain, turn outer nut in the direction
shown (Figure 1).
• When the chain is approximately 1/4" (6 mm) above
the base of the rail at its midpoint, re-tighten the inner
nut to secure the adjustment.
Sprocket noise can result if chain is too loose.
When installation is complete, you may notice some
chain droop with the door closed. This is normal. If the
chain returns to the position shown in Figure 2 when the
door is open, do not re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the
emergency release handle to disconnect trolley before
adjusting chain.
NOTE: You may notice loosening of chain after
Adjustment Step 3 (Test the Safety Reversal System).
Check for proper tension and readjust chain if necessary.
Then repeat Adjustment Step 3.
You have now finished assembling your garage door
opener. Please read the following warnings before
proceeding to the installation section.
Figure 1 Trolley
Outer Lock Threaded
Nut Washer Shaft
Figure 2 1
Chain
Base of Rail
1/4" (6 mm)
Mid length of Rail
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READAND FOLLOWALL INSTALLATIONWARNINGSAND
INSTRUCTIONS.
2. Install garage door opener ONLYon properly balanced and
lubricated garage door. An improperly balanceddoor may
not reversewhen required and could result in SEVERE
INJURYor DEATH.
3. ALL repairs to cables, spring assemblies andother
hardware MUSTbe madeby atrained door systems
technician BEFOREinstalling opener.
4. Disable ALL locks and remove ALL ropes connected
to garage door BEFOREinstalling opener to avoid
entanglement.
5. Install garage door opener 7 feet (2.13m) or more above
floor.
6. Mount emergency releasehandle 6 feet (1.83 m) above
floor.
7.NEVERconnect garage door opener to power source until
instructed to do so.
8. NEVERwear watches, rings or loose clothing while
installing or servicing opener.They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garagedoor control:
• within sight of the garagedoor.
• out of reachof children at minimum height of 5 feet
(1.5m).
• awayfrom ALL moving parts of the door.
10. Placeentrapment warning label on wall next to garage
door control.
11. Placemanualrelease/safety reversetest label in plain
view on inside of garage door.
12. Uponcompletion of installation, test safety reversal
system. Door MUST reverseon contact with a
1-1/2"(3.8 cm) high object (or a 2x4 laid flat) on the floor.
11

INSTALLATION STEP 1
Determine the Header Bracket
Location
Toprevent possible SERIOUSINJURYor DEATH:
•Headerbracket MUSTbe RIGIDLYfastened to structural
support on headerwall or ceiling, otherwise garage door
might not reversewhen required. DONOTinstall header
bracket over drywall.
• Concreteanchors MUST be usedif mounting header
bracket or 2x4 into masonry.
• NEVERtry to loosen, move or adjust garagedoor,
springs, cables, pulleys, brackets, or their hardware, all of
which are under EXTREMEtension.
• ALWAYScall atrained door systems technician if garage
door binds, sticks, or is out of balance.An unbalanced
garage door might not reverse when required.
Installation procedures vary according to garage door
types. Follow the instructions which apply to your door.
1. Close the door and mark the inside vertical centerline
of the garage door.
2. Extend the line onto the header wall above the door.
You can fasten the header bracket within 4 feet
(1.22 m) of the left or right of the door center only if
a torsion spring or center bearing plate is in the
way; or you can attach it to the ceiling (see
page 13) when clearance is minimal. (It may be
mounted on the wall upside down if necessary, to
gain approximately 1/2" (1 cm).
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3. Open your door to the highest point of travel as shown.
Draw an intersecting horizontal line on the header wall
above the high point:
• 2" (5 cm) above the high point for sectional door and
one-piece door with track.
• 8" (20 cm) above the high point for one-piece door
without track.
This height will provide travel clearance for the top
edge of the door.
NOTE: If the total number of inches exceeds the height
available in your garage, use the maximum height
possible, or refer to page 13 for ceiling installation.
Header Wall
Unfinished
Ceiling _ CEILINGOPTIONALBRACKETHEADERFORMOUNT
Vertical Centerline
of Garage Door
2x4 Structural
Suppor[s
Header Wall
_---'r-i---2" (5 cm) Track
Highest Point
of Travel
--Door
Sectional door with curved track
Header Wall Track
nt
One-piece door with horizontal track
_Wall
0oor °Ci:hos
Point
_Hardware i of Travel
One-piece door without track:
jamb hardware
Doe
Header Wall
8" (20 ore)
Highest
Point
of Travel
Pivot
One-piece door without track:
pivot hardware
12

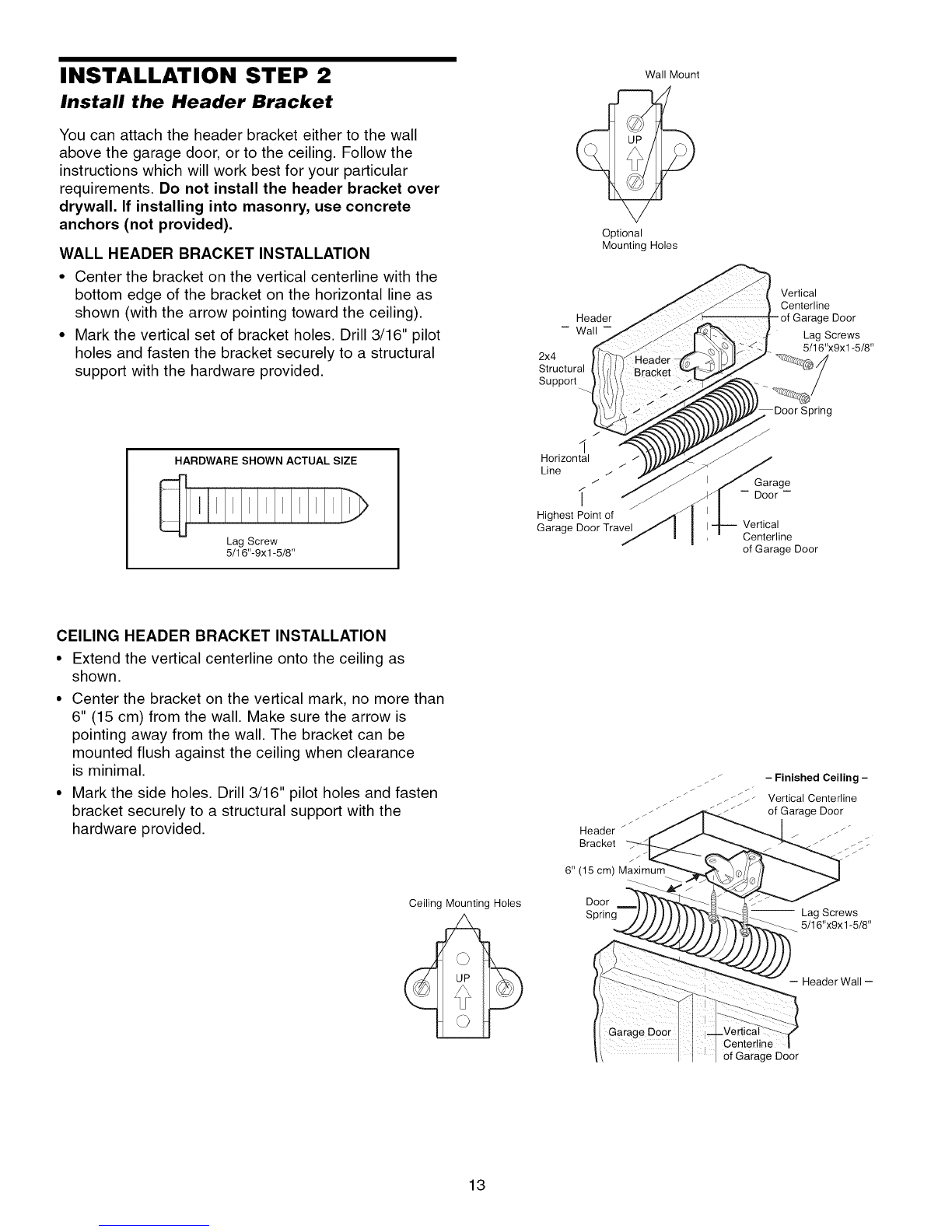

INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements. Do not install the header bracket over
drywall. If installing into masonry, use concrete
anchors (not provided).
WALL HEADER BRACKET INSTALLATION
•Center the bracket on the vertical centerline with the
bottom edge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).
• Mark the vertical set of bracket holes. Drill 3/16" pilot
holes and fasten the bracket securely to a structural
support with the hardware provided.
HARDWARE SHOWN ACTUAL SIZE
Lag Screw
5/16"-9xl -5/8"
Header
- Wall-
2x4
Structural
Support
I
Horizontal
Line
j
Highest Point of
Garage Door Travel
Wall Mount
Optional
Mounting Holes
Vertical
Centerline Door
Lag Screws
5/16"x9x1-5/8"
Spring
Garage
-- Door-
Vertical
Centerline
of Garage Door
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more than
6" (15 cm) from the wall. Make sure the arrow is
pointing away from the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/16" pilot holes and fasten
bracket securely to a structural support with the
hardware provided.
Ceiling Mounting Holes
i
Header _
Bracket
6" (15 cm) Maximurr
Door
Spring
- Finished Ceiling -
Vertical Centerline
of Garage Door
-- Lag Screws
5/16"x9x1-5/8"
-- Header Wall --
Center!ine
of Garage Door
13

Wall
Header Bracket
Idler Pulley
INSTALLATION STEP 3
Attach the Rail to the Header Bracket
NOTE: (Optional) With some existing installations, you
may re-use the old header bracket with the two plastic
spacers included in the hardware bag. Place the spacers
inside the bracket on each side of the rail, as illustrated.
• Position the opener on the garage floor below the
header bracket. Use packing material as a protective
base. NOTE: If the door spring is in the way you'll
need help. Have someone hold the opener securely on
a temporary support to allow the rail to clear the
spring.
• Position the rail bracket against the header bracket.
• Align the bracket holes and join with a clevis pin
5/16"x1-1/2" as shown.
• Insert a ring fastener to secure.
0
Mounting
Hole
Existing
Header Bracket 0
Spacer j
Mou¢
Hole
OPTION WITH
SOME EXISTING
INSTALLATIONS
Door
°°__ __ Opener Carton or
_.._Temporary
_Suppor[
HARDWARE SHOWN ACTUAL SIZE
oD0
Clevis Pin 5/16"x1-1/2" Ring Fastener
14

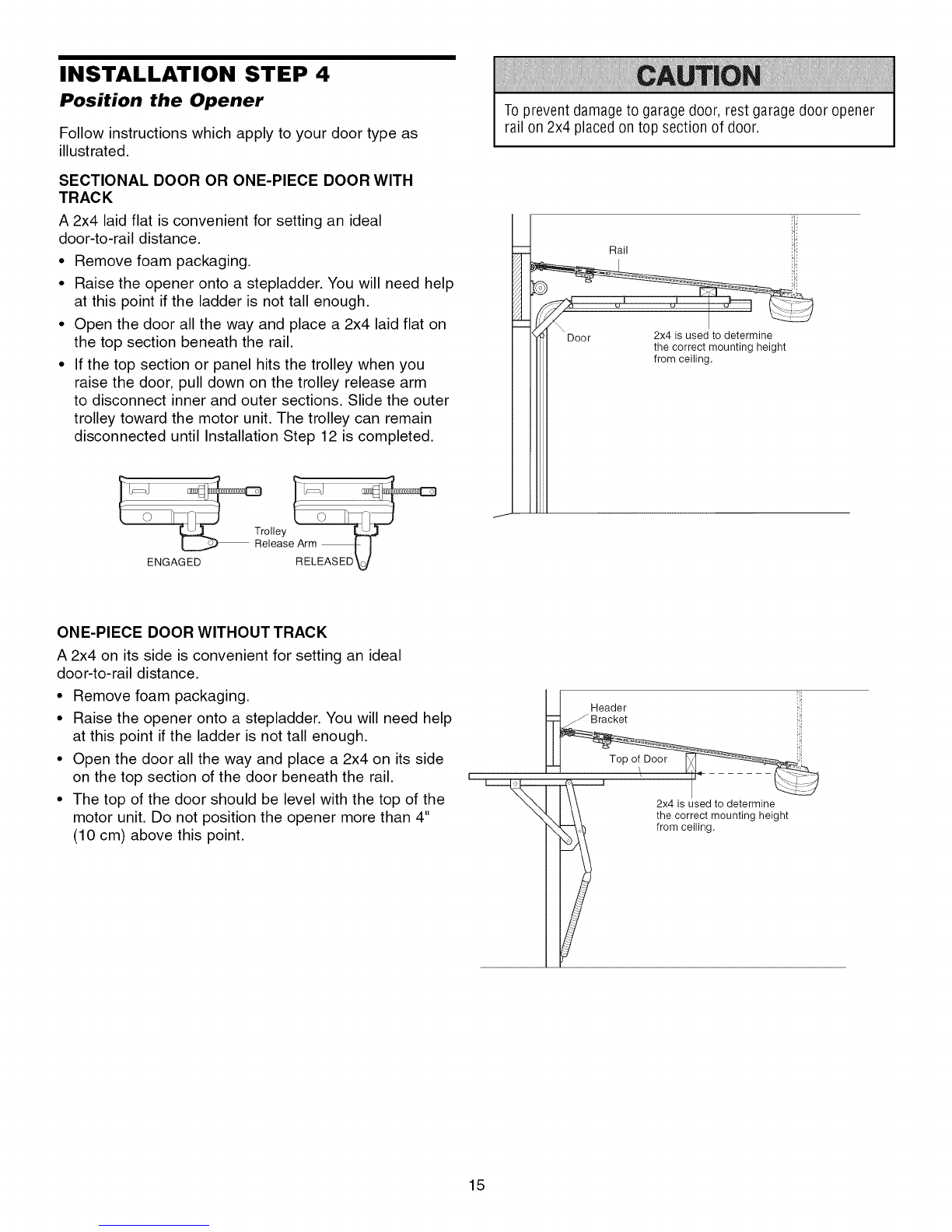

INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 2x4 laid flat is convenient for setting an ideal
door-to-rail distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 laid flat on
the top section beneath the rail.
• If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the outer
trolley toward the motor unit. The trolley can remain
disconnected until Installation Step 12 is completed.
Toprevent damageto garagedoor, rest garage door opener
rail on 2x4 placedon top section of door.
Rail
ENGAGED
ONE-PIECE DOOR WITHOUT TRACK
A 2x4 on its side is convenient for setting an ideal
door-to-rail distance.
• Remove foam packaging.
• Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 on its side
on the top section of the door beneath the rail.
• The top of the door should be level with the top of the
motor unit. Do not position the opener more than 4"
(10 cm) above this point.
L-.- I
Header !ii
2x4 is used to determine
the correct mounting height
from ceiling.
15

INSTALLATION STEP 5
Hang the Opener
Three representative installations are shown. Yours may
be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished ceilings
(Figure 2 and Figure 3), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor unit
to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18xl -7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the door
(or in line with the header bracket if the bracket is not
centered above the door).
7. Remove the 2x4. Operate the door manually. If the
door hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
HARDWARE SHOWN ACTUAL SIZE
Lag Screw 5/16"-18xl -7/8"
Hex Bolt
5/16"- 18x7/8" Nut 5/16"- 18 Lock Washer 5/16"
Toavoid possible SERIOUSINJURYfrom afalling garage
door opener,fasten it SECURELYto structural supports of
the garage.Concreteanchors MUST be used if installing any
brackets into masonry.
Figure 1
/Supports
Measure ',
Distance Lag Screws
5/16"- 18x 1-7/8"
Bolt 5/16"-18x7/8" ,,
Lock Washer 5/16"
Nut 5/16"-18
Figure 2
Bolt 5/16"-18x7/8"
Lock Washer 5/16'
Nut 5/16"-18
FmNISHED CEmLING
SS-(Not Provided)
......... Bolt 5/16"- 18x7/8"
Lock Washer 5/16"
Nut 5/16"-18
Figure 3
Lag Screws
5/16"-18xl -7/8".
Bolt 5/16"- 18x7/8"
Lock Washer 5/18"
Nut 5/16"-18
(Not Provided)
Lock Washer 5/18"
Nut 5/16"-18
16

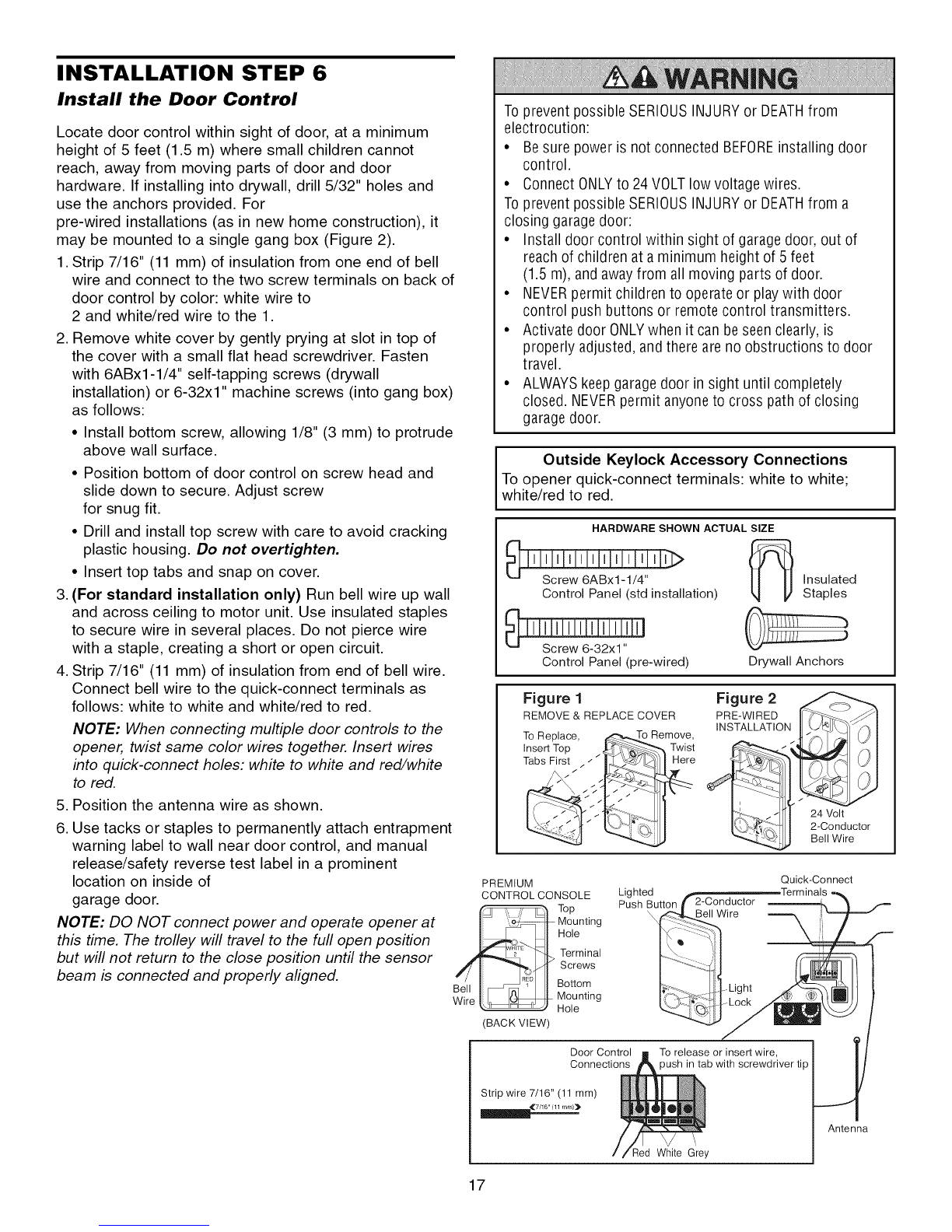

INSTALLATION STEP 6
Install the Door Control
Locate door control within sight of door, at a minimum
height of 5 feet (1.5 m) where small children cannot
reach, away from moving parts of door and door
hardware. If installing into drywall, drill 5/32" holes and
use the anchors provided. For
pre-wired installations (as in new home construction), it
may be mounted to a single gang box (Figure 2).
1. Strip 7/16" (11 mm) of insulation from one end of bell
wire and connect to the two screw terminals on back of
door control by color: white wire to
2 and white/red wire to the 1.
2. Remove white cover by gently prying at slot in top of
the cover with a small flat head screwdriver. Fasten
with 6ABx1-1/4" self-tapping screws (drywall
installation) or 6-32x1" machine screws (into gang box)
as follows:
• Install bottom screw, allowing 1/8" (3 mm) to protrude
above wall surface.
• Position bottom of door control on screw head and
slide down to secure. Adjust screw
for snug fit.
• Drill and install top screw with care to avoid cracking
plastic housing. Do not overtighten.
• Insert top tabs and snap on cover.
3. (For standard installation only) Run bell wire up wall
and across ceiling to motor unit. Use insulated staples
to secure wire in several places. Do not pierce wire
with a staple, creating a short or open circuit.
4. Strip 7/16" (11 mm) of insulation from end of bell wire.
Connect bell wire to the quick-connect terminals as
follows: white to white and white/red to red.
NOTE: When connecting multiple door controls to the
opener, twist same color wires together. Insert wires
into quick-connect holes: white to wh#e and red/wh#e
to red.
5. Position the antenna wire as shown.
6. Use tacks or staples to permanently attach entrapment
warning label to wall near door control, and manual
release/safety reverse test label in a prominent
location on inside of
garage door.
NOTE: DO NOT connect power and operate opener at
this time. The trolley will travel to the full open position
but will not return to the close position until the sensor
beam is connected and properly aligned.
Toprevent possible SERIOUSINJURYor DEATHfrom
electrocution:
• Besure power is not connected BEFOREinstalling door
control.
• Connect ONLYto 24 VOLTlow voltage wires.
Toprevent possible SERIOUSINJURYor DEATHfrom a
closing garage door:
• Install door control within sight of garage door, out of
reachof children at aminimum height of 5 feet
(1.5 m), and away from all moving parts of door.
• NEVERpermit children to operate or playwith door
control push buttons or remote control transmitters.
• Activate door ONLYwhen it can be seenclearly, is
properly adjusted, and there are no obstructions to door
travel.
• ALWAYSkeepgarage door in sight until completely
closed. NEVERpermit anyoneto cross path of closing
garage door.
Outside Keylock Accessory Connections
To opener quick-connect terminals: white to white;
white/red to red.
HARDWARE SHOWN ACTUAL SIZE
Control Panel (std installation)
Control Panel (pre-wired)
insulated
Staples
DrywallAnchors
Figure 1
REMOVE & REPLACE COVER
TOReplace,
Insert Top
Tabs First / _ _' Twist
Here
Figure 2
PRE-WIRED
INSTALLATION
24 Volt
2-Conductor
Bell Wire
PREMIUM Quick-Connect
Lighted _Terminals
CONTROL CONSOLE Push Button jr 2-Conductor
Top
I _t Mounting
Ho,e
,,_L_ _ _ Terminal
/I "_1_[ Screws
BellI_"_ _ I Bottom
Wire I __ Mounting I;_.'_.-_ L_ Li!
"_ Hole ....Lc
(BACK VIEW)
Door Control To release or insert wire,
Connections 3ush in tab with screwdriver tip
Strip wire 7/16" (11 mm)
7/16" (11 mrn)_
\
_ed White Grey
Antenna
17

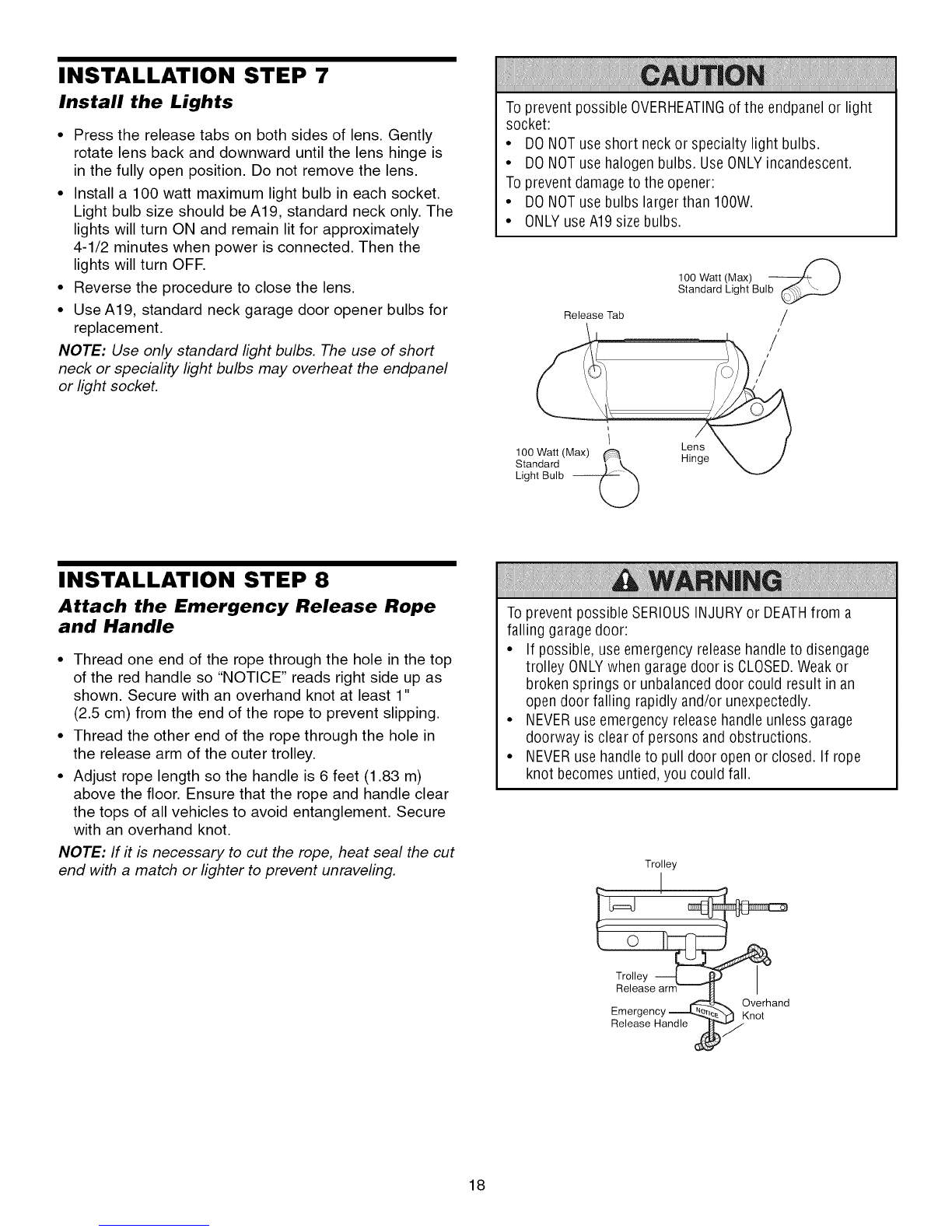

INSTALLATION STEP 7
Install the Lights
•Press the release tabs on both sides of lens. Gently
rotate lens back and downward until the lens hinge is
in the fully open position. Do not remove the lens.
• Install a 100 watt maximum light bulb in each socket.
Light bulb size should be A19, standard neck only. The
lights will turn ON and remain lit for approximately
4-1/2 minutes when power is connected. Then the
lights will turn OFR
• Reverse the procedure to close the lens.
• Use A19, standard neck garage door opener bulbs for
replacement.
NOTE: Use only standard light bulbs. The use of short
neck or speciality light bulbs may overheat the endpanel
or light socket.
Toprevent possible OVERHEATINGof the endpanel or light
socket:
• DONOTuseshort neck or specialty light bulbs.
• DONOTuse halogen bulbs. UseONLYincandescent.
Toprevent damageto the opener:
• DONOTuse bulbs largerthan IOOW.
• ONLYuseA19 size bulbs.
Release Tab
100 Watt (Max)
Standard Light Bulb
/
/
/
/
100 Watt (Max)
Standard
Light Bulb --
Lens
Hinge
INSTALLATION STEP 8
Attach the Emergency Release Rope
and Handle
• Thread one end of the rope through the hole in the top
of the red handle so "NOTICE" reads right side up as
shown. Secure with an overhand knot at least 1"
(2.5 cm) from the end of the rope to prevent slipping.
• Thread the other end of the rope through the hole in
the release arm of the outer trolley.
• Adjust rope length so the handle is 6 feet (1.83 m)
above the floor. Ensure that the rope and handle clear
the tops of all vehicles to avoid entanglement. Secure
with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal the cut
end with a match or lighter to prevent unraveling.
To prevent possible SERIOUSINJURYor DEATHfrom a
falling garage door:
• If possible, use emergency releasehandleto disengage
trolley ONLYwhen garage door is CLOSED.Weakor
broken springs or unbalanceddoor could result in an
open door falling rapidly and/or unexpectedly.
• NEVERuseemergency releasehandle unless garage
doorway is clear of persons and obstructions.
• NEVERusehandle to pull dooropen or closed. If rope
knot becomes untied, you could fall.
Trolley
!
Release arm
Emergency _ _verhandnot
Release Handle d
18

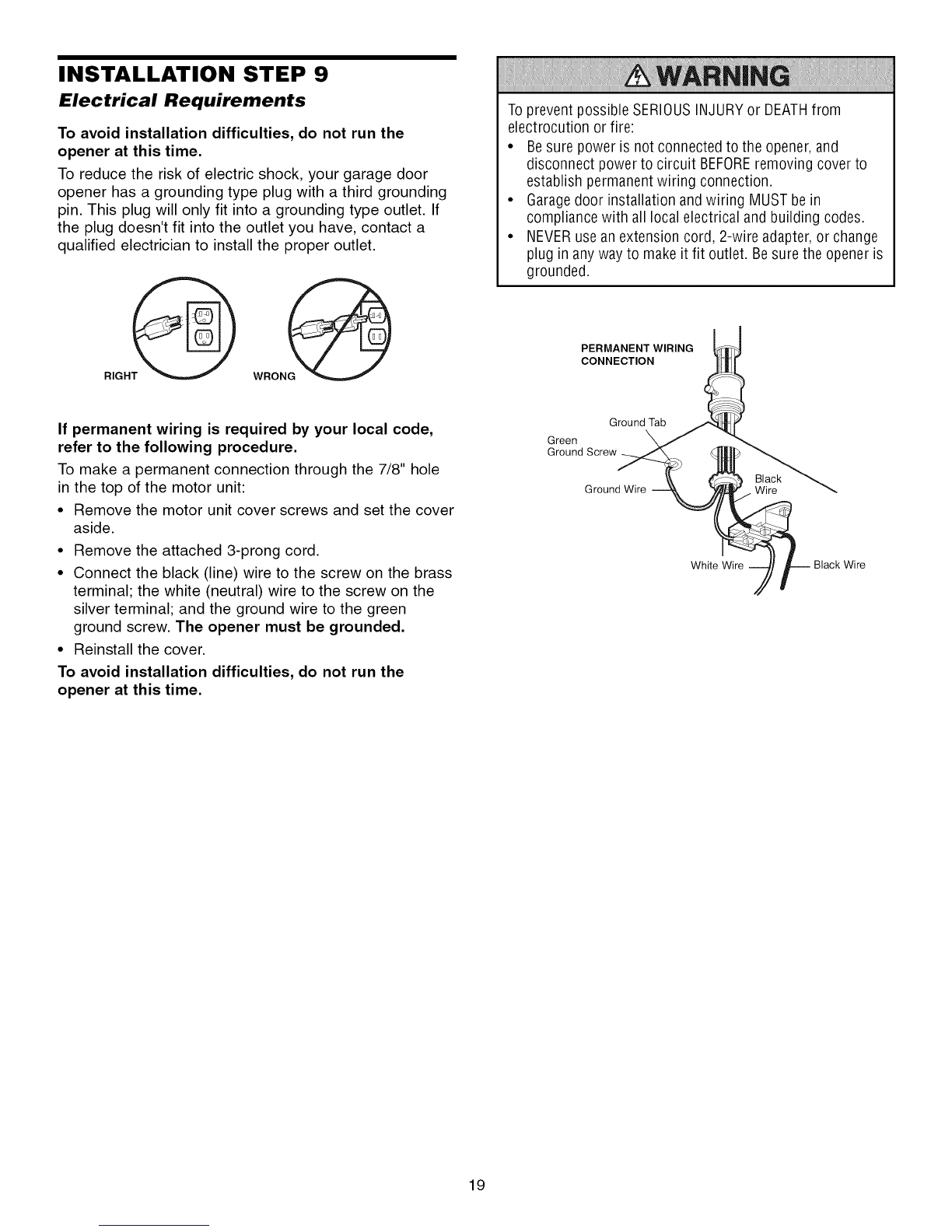

INSTALLATION STEP 9
Electrical Requirements
To avoid installation difficulties, do not run the
opener at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third grounding
pin. This plug will only fit into a grounding type outlet. If
the plug doesn't fit into the outlet you have, contact a
qualified electrician to install the proper outlet.
Toprevent possible SERIOUSINJURYor DEATHfrom
electrocution or fire:
• Besure power is not connected to the opener,and
disconnect power to circuit BEFOREremoving cover to
establish permanent wiring connection.
• Garagedoor installation and wiring MUSTbe in
compliance with all local electrical and building codes.
• NEVERuse an extension cord, 2-wire adapter,or change
plug in anyway to make it fit outlet. Be surethe opener is
grounded.
PERMANENT WIRING
CONNECTION
If permanent wiring is required by your local code,
refer to the following procedure.
To make a permanent connection through the 7/8" hole
in the top of the motor unit:
• Remove the motor unit cover screws and set the cover
aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the brass
terminal; the white (neutral) wire to the screw on the
silver terminal; and the ground wire to the green
ground screw. The opener must be grounded.
• Reinstall the cover.
To avoid installation difficulties, do not run the
opener at this time.
Ground Tab
Green
Ground Screw
Black
Ground Wire Wire
White Wire Black Wire
19

INSTALLATION STEP 10
Install The Protector System ®
The safety reversing sensor must be connected and
aligned correctly before the garage door opener will
move in the down direction.
IMPORTANT INFORMATION ABOUT
THE SAFETY REVERSING SENSOR
When properly connected and aligned, the sensor will
detect an obstacle in the path of its electronic beam. The
sending eye (with an amber indicator light) transmits an
invisible light beam to the receiving eye (with a green
indicator light). If an obstruction breaks the light beam
while the door is closing, the door will stop and reverse to
full open position, and the opener lights will flash
10 times.
The units must be installed inside the garage so that the
sending and receiving eyes face each other across the
door, no more than 6" (15 cm) above the floor. Either can
be installed on the left or right of the door as long as the
sun never shines directly into the receiving eye lens.
The mounting brackets are designed to clip onto the
track of sectional garage doors without additional
hardware.
Be sure power is not connected to the garagedoor opener
BEFOREinstalling the safety reversing sensor.
Toprevent SERIOUSINJURYor DEATHfrom a closing
garage door:
• Correctly connect and align the safety reversing sensor.
This required safety device MUSTNOTbedisabled.
• Install the safety reversing sensor so beamis NOHIGHER
than 6" (15 cm) abovegarage floor.
If it is necessary to mount the units on the wall, the
brackets must be securely fastened to a solid surface
such as the wall framing. Extension brackets (see
accessories) are available if needed. If installing in
masonry construction, add a piece of wood at each
location to avoid drilling extra holes in masonry if
repositioning is necessary.
The invisible light beam path must be unobstructed. No
part of the garage door (or door tracks, springs, hinges,
rollers or other hardware) may interrupt the beam while
the door is closing.
Facing the door from inside the garage
20
