Craftsman 580.326301 User manual

Manual
GENERATOR
CUSTOMER
HELPUNE
HOURS: Non. - Fri. 8 a.m. to 5 p.m. (CT)
1.11PRECAUCI6N
Antes de utilizare]producto,leaeste
manual y siga todas las Reglas de
Seguridad e Instrucciones de Uso.
Sears, Roebuck and Co., Hoffman Estates, _L 60179 U.S.A.
Visit our Craftsman website: www.craftsman.com
Part No. 196822GS Draft 4 (11/08/2005)
oSafety
oAssembly
oOperation
oMaintenance
o Parts
oEspaSol

WARRANTY .................................... 2
SAFETY RULES ............................... 3-4
FEATURES AND CONTROLS ...................... 5
ASSEMBLY ................................... 6-7
OPERATION ................................. 8-11
SPECIFICATIONS ............................... 12
MAINTENANCE .............................. 13o15
STORAGE ..................................... 16

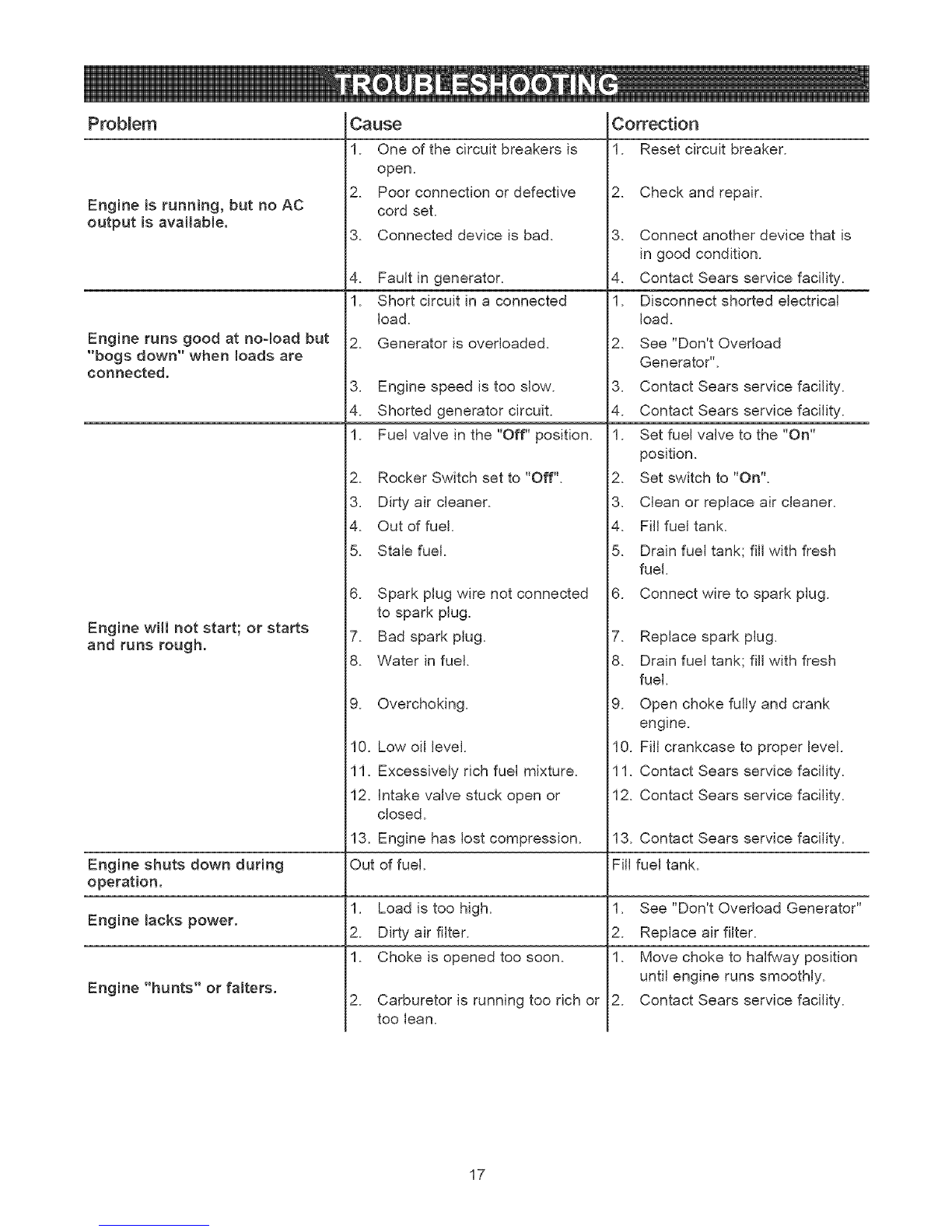

TROUBLESHOOTING ............................ 17
SCHEMATIC DIAGRAM .......................... 18
WIRING DIAGRAM .............................. 19
REPLACEMENT PARTS ....................... 20°28
NOTES ....................................... 29
EMISSION CONTROL WARRANTY .............. 30o31
ESPA!_OL ................................... 32o51
HOW TO ORDER PARTS ................ BACK PAGE

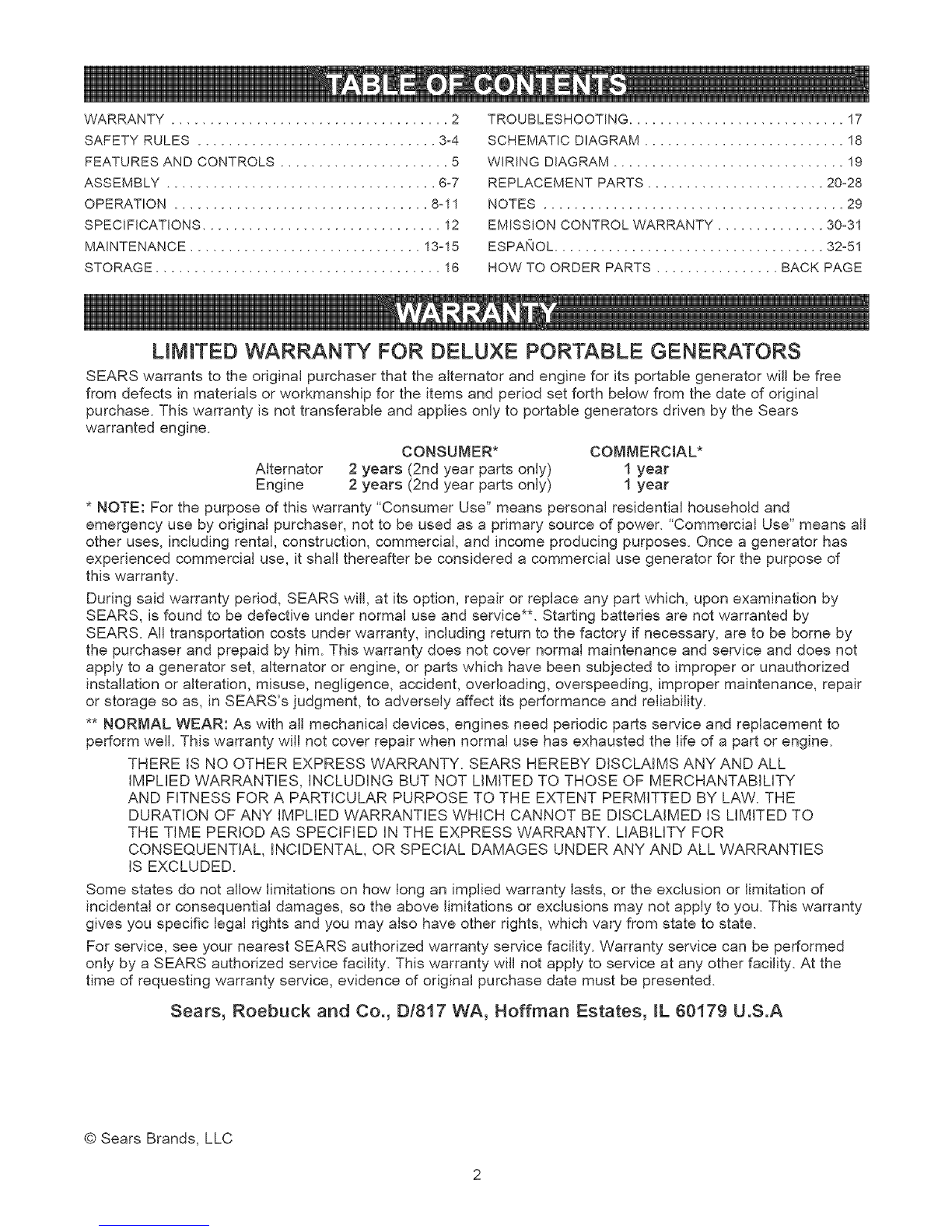

LIMITED WARRANTY FOR DELUXE PORTABLE GENERATORS
SEARS warrants to the original purchaser that the alternator and engine for its portable generator will be free
from defects in materials or workmanship for the items and period set forth below from the date of original
purchase. This warranty is not transferable and applies only to portable generators driven by the Sears
warranted engine. CONSUMER* COMMERCIAL*
Alternator 2 years (2nd year parts only) 1 year
Engine 2 years (2nd year parts only) 1 year
* NOTE: For the purpose of this warranty "Consumer Use" means personal residential household and
emergency use by original purchaser, not to be used as a primary source of power. "Commercial Use" means all
other uses, including rental, construction, commercial, and income producing purposes. Once a generator has
experienced commercial use, it shall thereafter be considered a commercial use generator for the purpose of
this warranty.
During said warranty period, SEARS will, at its option, repair or replace any part which, upon examination by
SEARS, is found to be defective under normal use and service**. Starting batteries are not warranted by
SEARS. All transportation costs under warranty, including return to the factory if necessary, are to be borne by
the purchaser and prepaid by him. This warranty does not cover normal maintenance and service and does not
apply to a generator set, alternator or engine, or parts which have been subjected to improper or unauthorized
installation or alteration, misuse, negligence, accident, overloading, overspeeding, improper maintenance, repair
or storage so as, in SEARS's judgment, to adversely affect its performance and reliability.
** NORMAL WEAR: As with all mechanical devices, engines need periodic parts service and replacement to
perform well. This warranty will not cover repair when normal use has exhausted the life of a part or engine.
THERE IS NO OTHER EXPRESS WARRANTY. SEARS HEREBY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THOSE OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE TO THE EXTENT PERMITTED BY LAW. THE
DURATION OF ANY IMPLIED WARRANTIES WHICH CANNOT BE DISCLAIMED IS LIMITED TO
THE TIME PERIOD AS SPECIFIED IN THE EXPRESS WARRANTY. LIABILITY FOR
CONSEQUENTIAL, INCIDENTAL, OR SPECIAL DAMAGES UNDER ANY AND ALL WARRANTIES
IS EXCLUDED.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights, which vary from state to state.
For service, see your nearest SEARS authorized warranty service facility. Warranty service can be performed
only by a SEARS authorized service facility. This warranty will not apply to service at any other facility. At the
time of requesting warranty service, evidence of original purchase date must be presented.
Sears, Roebuck and Co., Dt817 WA, Hoffman Estates, [L 60179 U.S.A
© Sears Brands, LLC

This is the safety alert symbol. It is used to alert you to potentiam personal inju_' hazards.
Obey all safety messages that foltow this symbol to avoid possible injury or death.
ii_!_l;ij Read this manuat carefully and become
familiar with your generator. Know its
applications, its limitations, and any hazards
involved.
The safety alert symbol (,&) is used with a signal
word (DANGER, CAUTION, WARNING), a pictorial
and/or a safety message to alert you to hazards.
DANGER indicates a hazard which, if not avoided, wil/
result in death or serious injury. WARNING indicates a
hazard which, if not avoided, could result in death or
serious injury. CAUTION indicates a hazard which, if
not avoided, might result in minor or moderate injury.
CAUTION, when used without the alert symbol,
indicates a situation that could result in equipment
damage. FoJlow safety messages to avoid or reduce
the risk of injury or death.
WARNING
The engine exhaust from this product contains
chemicams known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
• This generator does not meet U. S. Coast Guard
Regulation 33CFR-183 and should not be used on
marine applications.
• Failure to use the appropriate U. S. Coast Guard
approved generator could result in bodily injury and/or
property damage.
Hazard Symbols and Meanings
Explosion Fire Electrical Shock
Toxic Fumes Hot Surface Kickback
WARNtNG
Operate generator ONLY outdoors.
Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes or other openings.
DO NOT operate generator inside any building or
enclosure (even if doors or windows are open), including
the generator compartment of a recreational vehicle (RV).
WARNING
When using generator for backup power, notify utility
company. Use approved transfer equipment to isolate
generator from electric utility.
Use a ground circuit fault interrupter (GFCI) in any damp
or highly conductive area, such as metal decking or steel
work.
DO NOT touch bare wires or receptacles.
DO NOT use generator with electrical cords which are
worn, frayed, bare or otherwise damaged.
DO NOT operate generator in the rain or wet weather.
DO NOT handle generator or electrical cords while
standing in water, while barefoot, or while hands or feet
are wet.
DO NOT allow unqualified persons or children to operate
or service generator.
WARNtNG
When starting engine, pull cord slowly until resistance is
felt and then pull rapidly to avoid kickback.
NEVER start or stop engine with electrical devices
plugged in and turned on.

WARNING
WHEN ADDING OR DRAINmNG FUEL
Turn generator OFF and let it cool at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
Fill or drain fue! tank outdoors.
DO NOT overfill tank. Allow space for fuel expansion.
Keep fuel away from sparks, open flames, pilot lights,
heat, and other ignition sources.
DO NOT light a cigarette or smoke.
WHEN STARTING EQUIPMENT
Ensure spark plug, muffler, fuel cap and air cleaner are
in place.
DO NOT crank engine with spark plug removed.
If fue! spills, wait until it evaporates before starting engine.
WHEN OPERATING EQUIPMENT
Do not tip engine or equipment at angle which causes
fuel to spill.
DO NOT choke carburetor to stop engine.
This generator is not for use in mobile equipment or
marine applications.
WHEN TRANSPORTmNG OR REPAIRING EQUIPMENT
Transport/repair with fuel tank EMPTY or with fuel shutof
valve OFF.
Disconnect spark plug wire.
WHEN STORBNG FUEL OR EQUIPMENT WITH FUEL IN
TANK
Store away from furnaces, stoves, water heaters, clothes
dryers or other appliances that have pilot light or other
ignition source because they can ignite fuel vapors.
WARNING
DO NOT touch hot surfaces and avoid hot exhaust gases.
Allow equipment to cool before touching.
Keep at least 5 ft. (152 cm) clearance on all sides of
generator including overhead.
Reflective exhaust heat may damage fuel tank causing fire.
Code of Federal Regulation (CFR) Title 36 Parks,
Forests, and Public Property require equipment powered
by an internal combustion engine to have a spark
arrester, maintained in effective working order, complying
to USDA Forest service standard 5100-1C or later
revision. In the State of California a spark arrester is
required under section 4442 of the California Public
resources code. Other states may have similar laws.
WARNING
WHEN ADJUSTmNG OR MAKING REPAIRS TO YOUR
GENERATOR
*Disconnect the spark plug wire from the spark plug and
place the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
Use approved spark plug tester.
DO NOT check for spark with spark plug removed.
CAUTION
DO NOT tamper with governed speed. Generator
supplies correct rated frequency and voltage when
running at governed speed.
DO NOT modify generator in any way.
CAUTION
See "Don't Overload Generator".
Start generator and let engine stabilize before connecting
electrical loads.
Connect electrical loads in OFF position, then turn ON
for operation.
Turn electrical loads OFF and disconnect from generator
before stopping generator.
CAUTION
Use generator only for intended uses.
If you have questions about intended use, ask dealer or
contact Sears.
Operate generator only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
dirt, or corrosive vapors.
DO NOT insert any objects through cooling slots.
If connected devices overheat, turn them off and
disconnect them from generator.
Shut off generator if:
-electrical output is lost;
-equipment sparks, smokes, or emits flames;
-unit vibrates excessively.

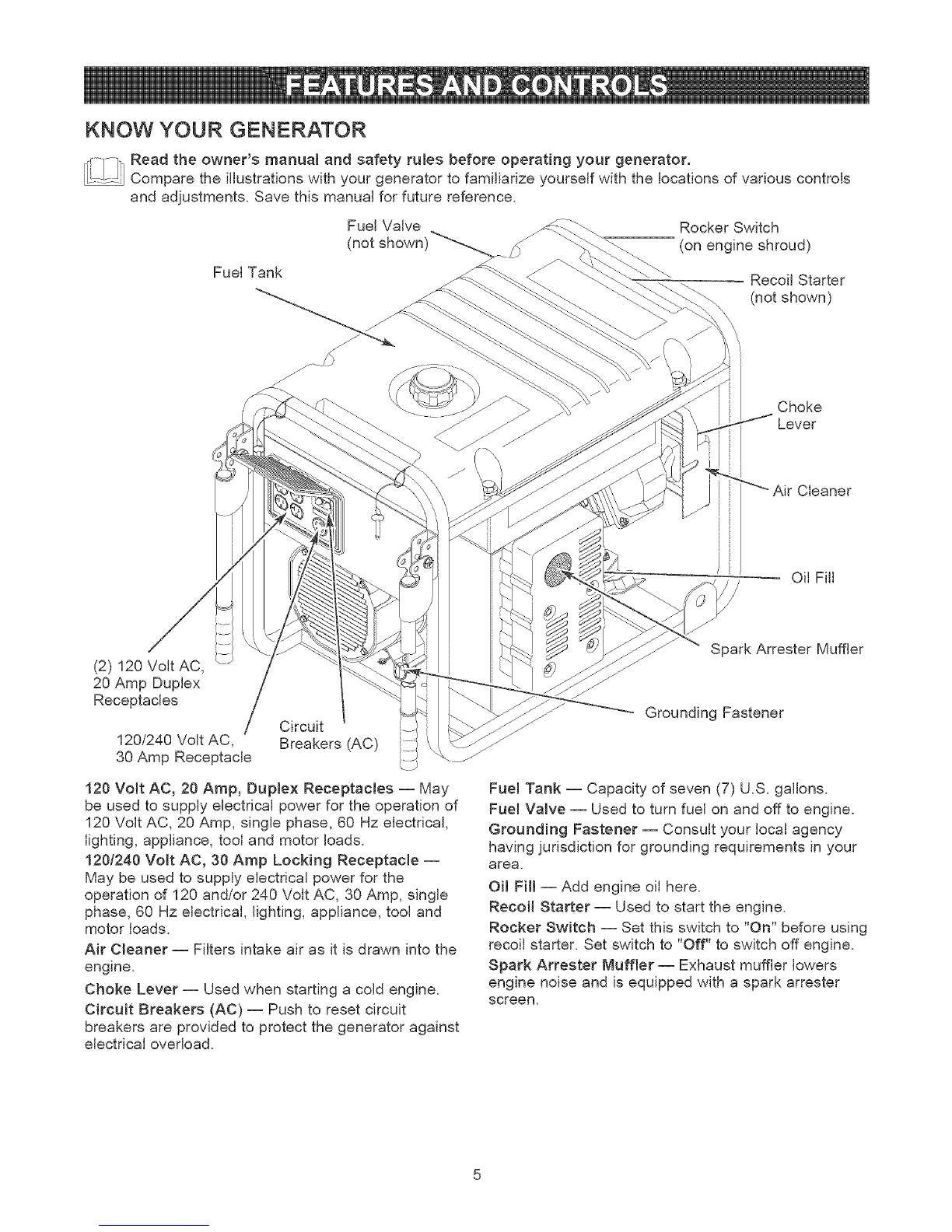

KNOW YOUR GENERATOR
_Read the owner's manua{ and safety rules before operating your generator,
....... Compare the illustrations with your generator to familiarize yourself with the locations of various controls
and adjustments. Save this manual for future reference.
Fuel Valve
(not shown)_./)
Fuel Tank
Rocker Switch
(on engine shroud)
Recoil Starter
(not shown)
Choke
Lever
iCleaner
Oil Fill
(2) 120 Volt AC,
20 Amp Duplex
Receptacles /
120/240 Volt AC,
30 Amp Receptacle
Circuit
Breakers (AC)
120 Volt AC, 20 Amp, Duplex Receptacles -- May
be used to supply electrical power for the operation of
120 Volt AC, 20 Amp, single phase, 60 Hz electrical,
lighting, appliance, tool and motor loads.
1201240 Volt AC, 30 Amp Locking Receptacle --
May be used to supply electrical power for the
operation of 120 and/or 240 Volt AC, 30 Amp, single
phase, 60 Hz electrical, lighting, appliance, tool and
motor loads.
Air Cleaner -- Filters intake air as it is drawn into the
engine.
Choke Lever -- Used when starting a cold engine.
CircuEt Breakers (AC) -- Push to reset circuit
breakers are provided to protect the generator against
electrical overload.
Spark Arrester Muffler
Grounding Fastener
Fue_ Tank -- Capacity of seven (7) U.S. gallons.
Fuel Valve -- Used to turn fuel on and off to engine.
Grounding Fastener -- Consult your local agency
having jurisdiction for grounding requirements in your
area.
Oil Fill -- Add engine oil here.
Recoil Starter -- Used to start the engine.
Rocker Switch -- Set this switch to "On" before using
recoil starter. Set switch to "Off" to switch off engine.
Spark Attester Muffler- Exhaust muffler lowers
engine noise and is equipped with a spark attester
screen.

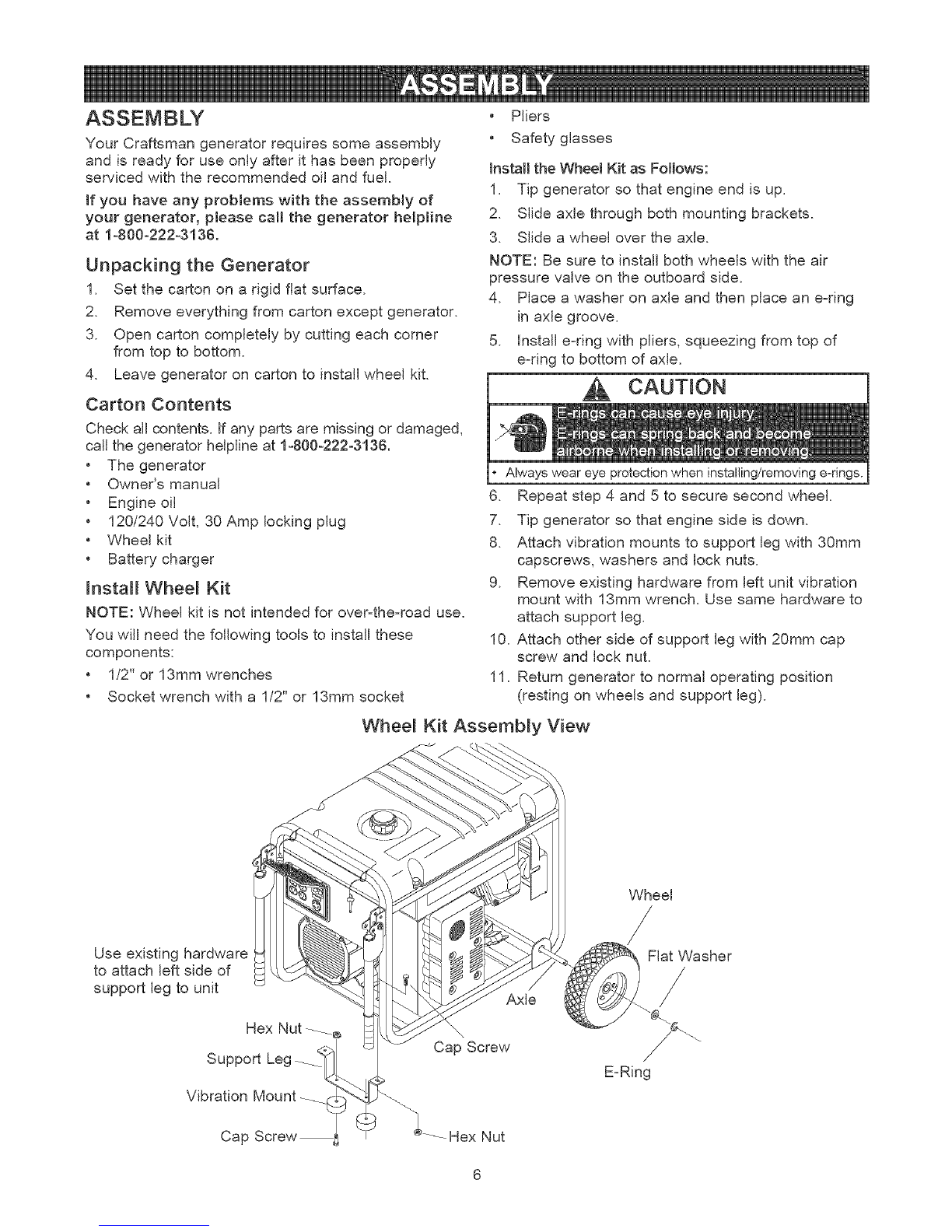

ASSEMBLY
Your Craftsman generator requires some assembly
and is ready for use only after it has been properly
serviced with the recommended oil and fuel.
If you have any problems with the assembly of
your generator, please call the generator helpline
at 1-800-222-3136.
Unpacking the Generator
1. Set the carton on a rigid flat surface.
2. Remove everything from carton except generator.
3. Open carton completely by cutting each corner
from top to bottom.
4. Leave generator on carton to install wheel kit.
Carton Contents
Check all contents. If any parts are missing or damaged,
call the generator helpline at 1-800-222-3136.
The generator
Owner's manual
Engine oil
120/240 Volt, 30 Amp locking plug
Wheel kit
Battery charger
Install Wheel Kit
NOTE: Wheel kit is not intended for over-the-road use.
You will need the following tools to install these
components:
• 1/2" or 13mm wrenches
• Socket wrench with a 1/2" or 13mm socket
• Pliers
• Safety glasses
Install the Wheel Kit as Follows:
1. Tip generator so that engine end is up.
2. Slide axle through both mounting brackets.
3. Slide a wheel over the axle.
NOTE: Be sure to install both wheels with the air
pressure valve on the outboard side.
4. Place a washer on axle and then place an e-ring
in axle groove.
5. Install e-ring with pliers, squeezing from top of
e-ring to bottom of axle.
CAUTION
Always wear eye when
6. Repeat step 4 and 5 to secure second wheel.
7. Tip generator so that engine side is down.
8. Attach vibration mounts to support leg with 30mm
capscrews, washers and lock nuts.
9. Remove existing hardware from left unit vibration
mount with 13mm wrench. Use same hardware to
attach support leg.
10. Attach other side of support leg with 20mm cap
screw and lock nut.
11. Return generator to normal operating position
(resting on wheels and support leg).
Whee_ Kit Assembly View
Wheel
Use existing hardware
to attach left side of
support leg to unit
Hex Nut _e
Support Leg
Vibration Mount
Axle
\
Cap Screw
Flat Washer
/
E-Ring
Cap Hex Nut

12.Checkthatallfastenersaretightandtiresareinflated
tovaluemarkedontireorwithin15and40psi.
Check Battery /Attach Negative Battery
Wire
The sealed battery on the generator is fully charged and
pre-installed except for the negative (black) battery cable.
You will need an 8mm wrench to install the negative
battery cable.
To instalk
1. Cut off tie wrap securing loose end of negative
(black) cable.
2. Remove screw, lock washer and flat washer on
negative battery terminal.
3. Slide lock washer, flat washer and negative
battery cable over screw.
Negative
battery cable
Flat Washer,
Lock Washer
Positive battery cable
4. Reattach screw to negative battery terminal and
tighten.
5. Verify that connections to battery and generator
are tight and secure.
BEFORE STARTING THE
Add Engine Oi_
CAUTmON! Any attempt to crank or start the engine
before it has been properly serviced with the
recommended oil may result in an engine failure.
1. Place generator on a level surface.
2. Clean area around oil fill and remove yellow oil fill
cap.
3. Using oil funnel (optional), slowly pour entire
contents of provided oil bottle (26 oz.) into oil fill
opening.
4. Replace oil fill cap and fully tighten. Wipe up any
spilled oil.
NOTE: See the section "Oil" on page 14 to review oil
recommendations.
Add Fuem
NOTE: This gasoline engine is certified to operate on
gasoline. Exhaust Emission Control System: EM
(Engine Modifications).
WARNING
WHEN ADDING FUEL
Turn generator OFF and let it coo! at least 2 minutes
before removing fue! cap. Loosen cap slowly to relieve
pressure in tank.
Fil!fuel tank outdoors.
DO NOT overfill tank. Allow space for fuel expansion.
Keep fue! away from sparks, open flames, pilot lights,
heat, and other ignition sources.
DO NOT light a cigarette or smoke.
1. Use clean, fresh, regular UNLEADED gasoline
with a minimum of 85 octane with equipment. DO
NOT use fuel which contains Methanol. DO NOT
mix oil with fuel.
2. Clean area around fuel fill cap, remove cap.
3. Slowly add regular unleaded fuel to fuel tank. Be
careful not to overfill. Allow about 1.5" of tank
space for fuel expansion, as shown here.
4. Install fuel cap and wipe up any spilled fuel.
CAUTRON! Alcohol-blended fuels (called gasohol,
ethanol or methanol) can attract moisture, which leads
to separation and formation of acids during storage.
Acidic gas can damage the fuel system of an engine
while in storage.
To avoid engine problems, the fuel system should be
emptied before storage of 30 days or longer. Drain the
fuel tank, start the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel next season.
See "Storage" on page 16 for additional information.
NEVER use engine or carburetor cleaner products in
the fuel tank as permanent damage may occur.

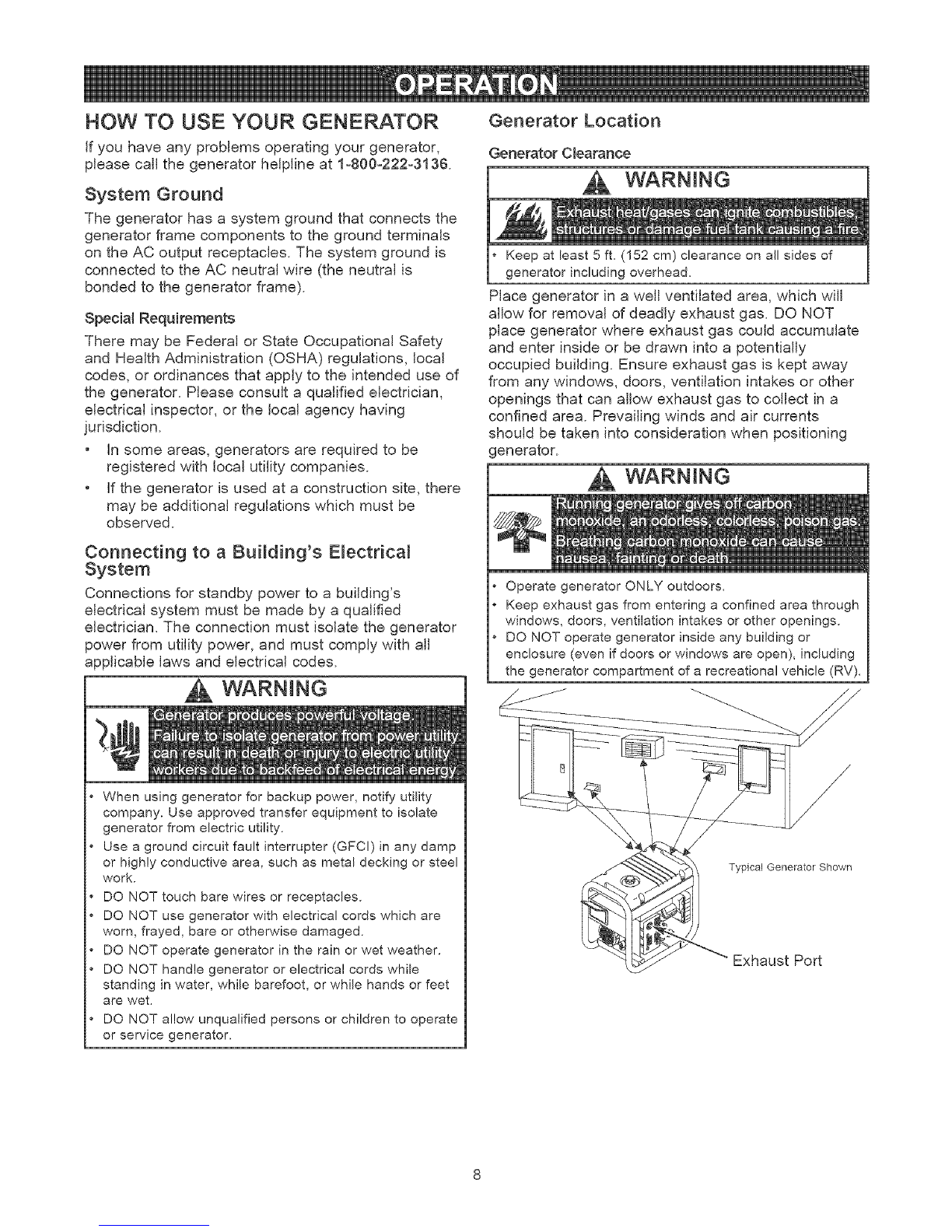

HOW TO USE YOUR GENERATOR
if you have any problems operating your generator,
please call the generator helpline at 1=800-222-3136.
System Ground
The generator has a system ground that connects the
generator frame components to the ground terminals
on the AC output receptacles. The system ground is
connected to the AC neutral wire (the neutral is
bonded to the generator flame).
Special Requirements
There may be Federal or State Occupational Safety
and Health Administration (OSHA) regulations, local
codes, or ordinances that apply to the intended use of
the generator. Please consult a qualified electrician,
electrical inspector, or the local agency having
jurisdiction.
• in some areas, generators are required to be
registered with local utility companies.
• if the generator is used at a construction site, there
may be additional regulations which must be
observed.
Connecting to a BuHding's E_ectrica_
System
Connections for standby power to a building's
electrical system must be made by a qualified
electrician. The connection must isolate the generator
power from utility power, and must comply with all
applicable laws and electrical codes.
WARNING
When using generator for backup power, notify utility
company. Use approved transfer equipment to isolate
generator from electric utility.
Use a ground circuit fault interrupter (GFCI) in any damp
or highly conductive area, such as metal decking or steel
work.
DO NOT touch bare wires or receptacles.
DO NOT use generator with electrical cords which are
worn, frayed, bare or otherwise damaged.
DO NOT operate generator in the rain or wet weather.
DO NOT handle generator or electrical cords while
standing in water, while barefoot, or while hands or feet
are wet,
DO NOT allow unqualified persons or children to operate
or service generator.
Generator Location
Generator Clearance
WARNING
Keep at least 5 ft. (152 cm) clearance on all sides of
generator including overhead.
Place generator in a well ventilated area, which will
allow for removal of deadly exhaust gas. DO NOT
place generator where exhaust gas could accumulate
and enter inside or be drawn into a potentially
occupied building. Ensure exhaust gas is kept away
from any windows, doors, ventilation intakes or other
openings that can allow exhaust gas to collect in a
confined area. Prevailing winds and air currents
should be taken into consideration when positioning
generator.
WARNING
Operate generator ONLY outdoors.
Keep exhaust gas from entering a confined area through
windows, doors, ventilation intakes or other openings.
DO NOT operate generator inside any building or
enclosure (even if doors or windows are open), including
the generator compartment of a recreational vehicle (RV).
Typical Generator Shown
Exhaust Port

TO START THE ENGINE
IMPORTANT: AM_ays unplug the battery float charger
before starting the generator.
Disconnect all electrical loads from the generator. Use
the following start instruction steps by numerical order:
1. Make sure unit is on a level surface.
IMPORTANT: Failure to start and operate unit on a
level surface will cause the unit not to start or shut
down during operation.
2. Turn fuel valve to "On" position. Fuel valve handle
should be vertical (pointing toward the ground) for
fuel to flow.
Fuel Valve is shown
in the On position
3. Place choke lever in "Choke" position.
4. Set rocker switch to "On" position.
\ Rocker Switch is shown
in the On position
5A. For electric starting, press start switch on
generator cradle until engine starts. To prolong life
of starter components, press starter button for no
more than 5 seconds, then pause for 1 minute.
• if engine starts, proceed to step 7.
• if engine fails to start, proceed to step 6.
NOTE: If battery is discharged, use manual starting
instructions.
5B. For manual starting, grasp recoil handle and pull
slowly until slight resistance is felt. Then pull
rapidly one time only to start engine.
•if engine starts, proceed to step 7.
•if engine fails to start, proceed to step 6.
m,wAR.I.G ]
.
When starting engine, pull cord slowly until resistance is
felt and then pull rapidly to avoid kickback.
NEVER start or stop engine with electrical devices
plugged in and turned on.
Move choke lever to "Half" choke position, and
pull recoil handle twice.
•If engine fails to start, repeat steps 5 thru 7.
7. Slowly move choke lever to "Run" position. If
engine falters, move choke lever to "Half" choke
position until engine runs smoothly, and then to
"Run" position.
IMPORTANT: If engine floods, place choke lever in
"Run" position and crank until engine starts.
NOTE: If engine starts after 3 pulls but fails to run, or
if unit shuts down during operation, make sure unit is
on a level surface and check for proper oil level in
crankcase. This unit may be equipped with a low oil
orotection device.
WARNING
DO NOT touch hot surfaces and avoid hot exhaust gases.
Allow equipment to coo! before touching.
Keep at least 5 ft. (152 cm) clearance on all sides of
generator including overhead.
Reflective exhaust heat may damage fue! tank causing fire.
Code of Federal Regulation (CFR) Title 36 Parks,
Forests, and Public Property require equipment powered
by an internal combustion engine to have a spark
arrester, maintained in effective working order, complying
to USDA Forest service standard 5100olC or later
revision. In the State of California a spark arrester is
required under section 4442 of the California Public
resources code. Other states may have similar laws.
CONNECTING ELECTRICAL LOADS
• DO NOT connect 240 Volt loads to 120 Volt
receptacles.
• DO NOT connect 3=phase loads to the generator.
• DO NOT connect 50 Hz loads to the generator.
• Let engine stabilize and warm up for a few minutes
after starting.
• Plug in and turn on the desired 120 and/or 240 Volt
AC, single phase, 60 Hz electrical loads.
• DO NOT OVERLOAD GENERATOR. See "Don't
Overload Generator".
CAUTION
See "Don't Overload Generator".
Start generator and let engine stabilize before connecting
electrical loads.
Connect electrical loads in OFF position, then turn ON
for operation.
Turn electrical loads OFF and disconnect from generator
before stopping generator.

TO STOP THE ENGINE
1. Unplug all electrical loads from generator panel
.
3.
receptacles. NEVER start or stop engine with
electrical devices plugged in and turned on.
Let engine run at no-load for several minutes to
stabilize internal temperatures of generator.
Move rocker switch to "Off" position.

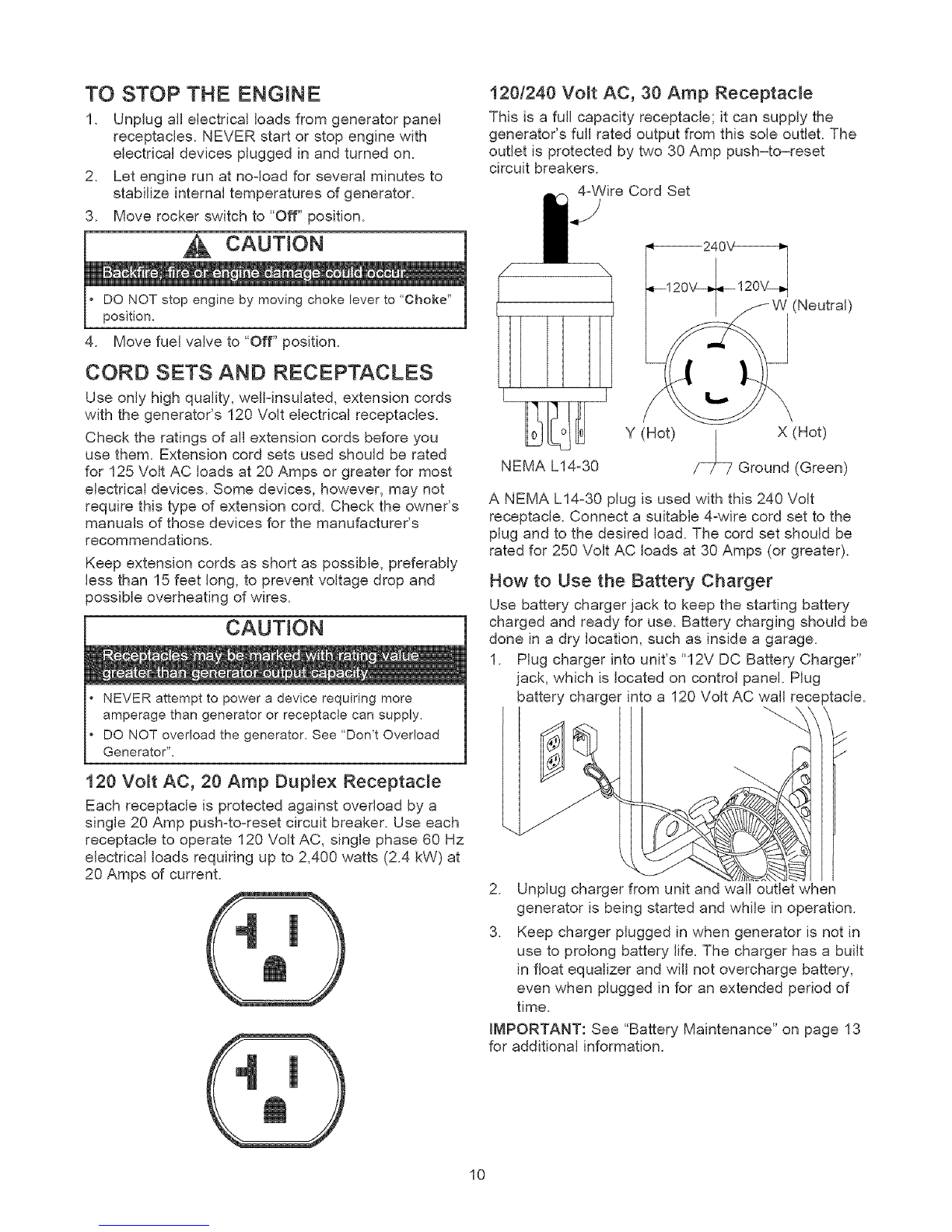

CAUTION
•DO NOT stop engine by moving choke lever to 'Choke"
position.
4. Move fuel valve to "Off" position.
CORD SETS AND RECEPTACLES
Use only high quality, weGinsulated, extension cords
with the generator's 120 Volt electrical receptacles.
Check the ratings of all extension cords before you
use them. Extension cord sets used should be rated
for 125 Volt AC loads at 20 Amps or greater for most
electrical devices. Some devices, however, may not
require this type of extension cord. Check the owner's
manuals of those devices for the manufacturer's
recommendations.
Keep extension cords as short as possible, preferably
less than 15 feet long, to prevent voltage drop and
possible overheating of wires.
CAUTION i
• NEVER attempt to power a device requiring more
amperage than generator or receptacle can supply,
• DO NOT overload the generator, See "Don't Overload
Generator",
120 Volt AC, 20 Amp Dupmex Receptacle
Each receptacle is protected against overload by a
single 20 Amp push-to-reset circuit breaker. Use each
receptacle to operate 120 Volt AC, single phase 60 Hz
electrical loads requiring up to 2,400 watts (2.4 kW) at
20 Amps of current.
120/240 Volt AC, 30 Amp Receptacle
This is a full capacity receptacle; it can supply the
generator's full rated output from this sole outlet. The
outlet is protected by two 30 Amp push-to-reset
circuit breakers.
4-Wire Cord Set
/
1
NEMA L14-30
(Neutral)
Y (Hot) _ X (Hot)
Ground (Green)
A NEMA L14-30 plug is used with this 240 Volt
receptacle. Connect a suitable 4-wire cord set to the
plug and to the desired load. The cord set should be
rated for 250 Volt AC loads at 30 Amps (or greater).
How to Use the Battery Charger
Use battery charger jack to keep the starting battery
charged and ready for use. Battery charging should be
done in a dry location, such as inside a garage.
1. Plug charger into unit's "12V DC Battery Charger"
jack, which is located on control panel. Plug
battery charger into a 120 Volt AC wall rece )tacle.
y
2. Unplug charger from unit and wall outlet when
generator is being started and while in operation.
3. Keep charger plugged in when generator is not in
use to prolong battery life. The charger has a built
in float equalizer and will not overcharge battery,
even when plugged in for an extended period of
time.
IMPORTANT: See "Battery Maintenance" on page 13
for additional information.
10

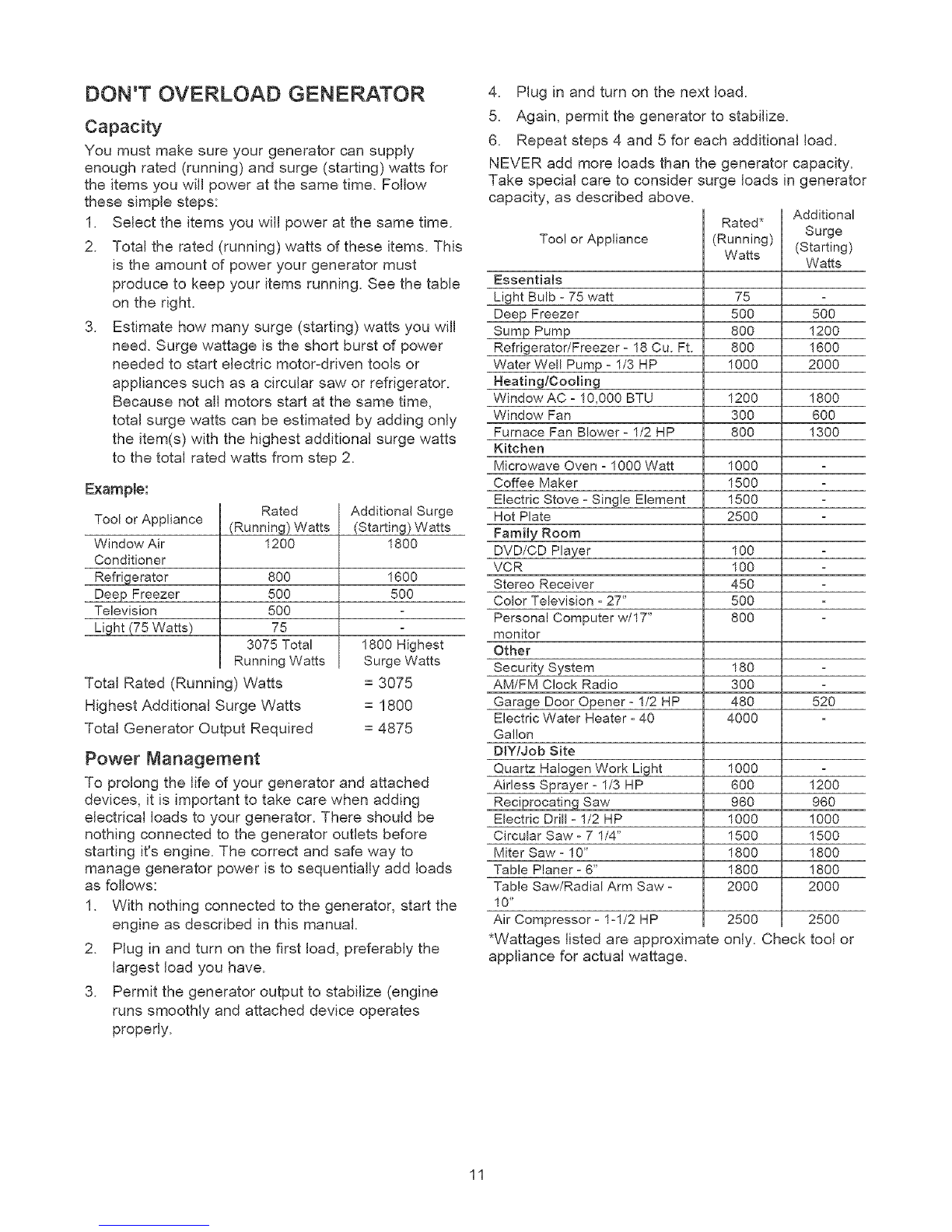

DON'T OVERLOAD GENERATOR
Capacity
You must make sure your generator can supply
enough rated (running) and surge (starting) watts for
the items you will power at the same time. Follow
these simple steps:
1. Select the items you will power at the same time.
2. Total the rated (running) watts of these items. This
is the amount of power your generator must
produce to keep your items running. See the table
on the right.
3. Estimate how many surge (starting) watts you will
need. Surge wattage is the short burst of power
needed to start electric motor-driven tools or
appliances such as a circular saw or refrigerator.
Because not all motors start at the same time,
total surge watts can be estimated by adding only
the item(s) with the highest additional surge watts
to the total rated watts from step 2.
Example:
Tool or Appliance
Window Air
Conditioner
Refrigerator
Deep Freezer
Television
Li ht z75 Watts
Rated
(Running) Watts
1200
8OO
5OO
5OO
75
3075 Total
Running Watts
Total Rated (Running) Watts
Highest Additional Surge Watts
Total Generator Output Required
Power Management
Additional Surge
(Starting) Watts
1800
1600
500
1800 Highest
Surge Watts
= 3075
= 1800
= 4875
To prolong the life of your generator and attached
devices, it is important to take care when adding
electrical loads to your generator. There should be
nothing connected to the generator outlets before
starting it's engine. The correct and safe way to
manage generator power is to sequentially add loads
as follows:
1. With nothing connected to the generator, start the
engine as described in this manual.
2. Plug in and turn on the first load, preferably the
largest load you have.
3. Permit the generator output to stabilize (engine
runs smoothly and attached device operates
properly.
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
NEVER add more loads than the generator capacity.
Take special care to consider surge loads in generator
capacity, as described above.
Too! or Appliance
Essentials
Light Bulb -75 watt
Deep Freezer
Sump Pump
Refrigerator/Freezer- 18 Cu. Ft.
Water Well Pump -1/3 HP
Heating/Cooling
Window AC -10,000 BTU
Window Fan
Furnace Fan Blower- 1/2 HP
Kitchen
Microwave Oven -1000 Watt
Coffee Maker
Electric Stove -Single Element
Hot Plate
Family Room
DVD/CD Plaver
VCR
Stereo Receiver
Color Television - 27"
Personal Computer w/17"
monitor
Other
Security System
AM/FM Clock Radio
Garage Door Opener -1/2 HP
Electric Water Heater -40
Gallon
D_Y/Job Site
Quartz Haloqen Work Light
Airless Sprayer -1/3 HP
Reci rocatin Saw
Electric Drill -1/2 HP
Circular Saw -7 1/4"
Miter Saw -10"
Table Planer -6"
Table Saw/Radial Arm Saw -
10"
Air Compressor -1-1/2 HP
*Wattages listed are approximate only.
appliance for actual wattage.
Additional
Rated* Surge
(Running) (Starting)
Watts Watts
75
500 500
800 1200
800 1600
1000 2000
1200 1800
300 600
800 1300
1000
1500
1500
2500
100
100
45O
5OO
8OO
180
3OO
480 520
4000
1000
600 1200
960 960
1000 1000
1500 1500
1800 1800
1800 1800
2000 2000
2500 2500
Check tool or
11

ENGINE TECHNICAL INFORMATION
This is a single cylinder, overhead valve(OHV), air
cooled engine, it is a low emissions engine.
in the State of California, Model Series 210000
engines are certified by the California Air Resources
Board to meet emissions standards for 250 hours.
Such certification does not grant the purchaser, owner
or operator of this engine any additional warranties
with respect to the performance or operational life of
this engine. The engine is warranted solely according
to the product and emmisions warranties stated
elsewhere in this manual.
Power Ratings
The power ratings for an individual engine model are
initially developed by starting with SAE (Society of
Automotive Engineers) code J1940 (Small Engine
Power & Torque Rating Procedure) (Revision 2002-
05). Given both the wide array of products on which
our engines are placed, and the variety of
environmental issues applicable to operating the
equipement, it may be that the engine you have
purchased will not develop the rated horsepower when
used in a peice of power equipment (actual "on-site"
power). This difference is due to a variety of factors
including, but not limited to, the following: differences
in altitude, temperature, barometric pressure, humidity,
fuel, engine lubrication, maximum governed engine
speed, individual engine to engine variability, design of
the particular peice of power equipment, the manner in
which the engine is operated, engine run-in to reduce
friction and clean out of combustion chambers,
adjustments to the valves and carburetor, and other
factors. The power ratings may also be adjusted
based on comparisons to other similar engines
utilizedin similar applications, and will thereforenot
necessarily match the values derived using the
foregoing codes.
PRODUCT SPECIFICATIONS
Generator Specifications
Wattage .................... 6300 Watts (6.3 kW)
Starting Wattage ............. 9100 Watts (9.1 kW)
Rated AC Voltage ............ 120/240 Volts
Rated AC Current
at 240 Volts ............... 26.3 Amperes
at 120 Volts ............... 52.5 Amperes
Rated Frequency ............. 60 Hz at 3600 rpm
Phase ...................... Single Phase
Unit Weight ................. 198 Ibs,
Engine Specifications
Rated Horsepower ............ 11 at 3600 rpm
Bore ....................... 3,3 in. (83,81 mm)
Stroke ...................... 2,438 in. (61,67 mm)
Displacement ................ 20,85 in. (342 cc)
Spark Plug
Type: ................. Champion RC12YC or
Equivalent
Set Gap To: ............ 0,030inch (0.76mm)
Armature Air Gap: ............ 0,008-0,012 in.
(0 20-0,30ram)
Valve clearance withvalve springs installedand piston 1/4 in.
(6 mm) past top dead center (checkwhen engine iscold).
Intake ...................... 0,004-0,006 in.
(0.!0o0.!5 mm)
Exhaust .................... 0,004-0,006 in.
(0,!0-0,15 mm)
Fuel Capacity ................ 7 U.S. gallons
Oil Capacity ................. 28 fL oz,
Oil Type:
Above 40° F ............... SAE 30
Below 40° F ............... SAE 5W-30 or 10W-30
12

OWNER'S RESPONSIBILITIES
Follow the hourly or calendar intervals, whichever occurs first.
More frequent service is recuired when operating in adverse conditions noted below.
MABNTENANCE SCHEDULE
FtLL tN DATES AS YOU
COMPLETE REGULAR SERVICE
MAINTENANCE TASK
Check oil level
Clean debris
Change engine oil
Service air cleaner
Service spark plug
Service spark arrester
Clean cooting system
Prepare for storage
SERVICE DATES
Before Every 25 Hours
Each Use or Yearly
X
x
X 2
Every 50 Hours
or Year y
X 1
Every 100
Hours or Yearly
x
x
x 2
If unit is to remain idle for longer than 30 days.
SERVICE DATES
Change oil after the first (5) operating hours and every 50 hours or every year, whichever occurs first, thereafter.
Change sooner when operating under dirty or dusty conditions.
Replace more often under dirty or dusty conditions.
GENERAL RECOMMENDATIONS
Regular maintenance will improve the performance
and extend the life of the generator. See any
authorized Sears dealer for service.
The generator's warranty does not cover items that
have been subjected to operator abuse or negligence.
To receive full value from the warranty, the operator
must maintain generator as instructed in this manual.
Some adjustments will need to be made periodically to
properly maintain your generator.
All service and adjustments should be made at least
once each season. Follow the requirements in the
"Maintenance Schedule" chart above.
NOTE: Once a year you should clean or replace the
spark plug and replace the air filter. A new spark plug
and clean air filter assure proper fuel-air mixture and
help your engine run better and last longer.
EMISSION CONTROL
Maintenance, replacement or repair of the emission
control devices and systems may be performed by any
non-road engine repair establishment or individual.
GENERATOR MAINTENANCE
Generator maintenance consists of keeping the unit
clean and dry. Operate and store the unit in a clean dry
environment where it will not be exposed to excessive
dust, dirt, moisture or any corrosive vapors. Cooling air
slots in the generator must not become clogged with
snow, leaves, or any other foreign material.
Check the cleanliness of the generator frequently and
clean when dust, dirt, oil, moisture or other foreign
substances are visible on its exterior surface.
NOTE: DO NOT use a garden hose to clean
generator. Water can enter the engine fuel system and
cause problems. In addition, if water enters the
generator through cooling air slots, some of the water
will be retained in voids and cracks of the rotor and
stator winding insulation. Water and dirt buildup on the
generator internal windings will eventually decrease
the insulation resistance of these windings.
Generator Cleaning
Daily or before use, clean accumulated debris from
generator. Keep linkage, spring and controls clean.
Keep area around and behind muffler free from any
combustible debris.
Generator parts should be kept clean to reduce the
risk of overheating and ignition of accumulated debris.
• Use a damp cloth to wipe exterior surfaces clean.
CAUTION
DO NOT expose generator to excessive moisture, dust,
dirt, or corrosive vapors,
DO NOT insert any objects through cooling slots,
• Use a soft bristle brush to loosen caked on dirt, oil, etc.
• Use a vacuum cleaner to pick up loose dirt and debris.
Battery Maintenance
Other than trickle charging, described elsewhere, no
maintenance is required for the battery. Keep the
battery and terminals clean and dry.
IMPORTANT: Battery charging should be performed
in a dry location, such as inside a garage.
13

ENGINE MAINTENANCE
WARNING
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
GENERATOR
Disconnect the spark plug wire from the spark plug and
place the wire where it cannot contact spark plug.
WHEN TESTING FOR ENGINE SPARK
Use approved spark plug tester.
DO NOT check for spark with spark plug removed,
Oil Recommendations
NOTE: When adding oil to the engine crankcase, use
only high quality detergent oil rated with API service
classification SF, SG, SH, SJ or higher. DO NOT use
special additives.
1. Choose a viscosity according to the following table:
J
100
C 30 2Q 10 0 10 20 30 40
STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT O_L CHANGE
NOTE: Synthetic oil meeting ILSAC GF-2, API
certification mark and API service symbol with "SJ/CF
ENERGY CONSERVING" or higher, is an acceptable
oil at all temperatures. Use of synthetic oil does not
alter required oil change intervals.
* The use of multi-viscosity oils (5W-30, 10W-30, etc.)
in temperatures above 40°F (4°C) will result in higher
than normal oil consumption. When using a multi-
viscosity oil, check oil more frequently.
** If using SAE 30 oil in temperatures below 40°F
(4°C), it will result in hard starting and possible engine
bore damage due to inadequate lubrication.
Checking Oil Levet
Oil level should be checked prior to each use or at least
every 5 hours of operation. Keep oil level maintained.
1. Make sure generator is on a level surface.
2. Remove oil fill cap and wipe clean with cloth.
3. Verify{ oil is at the point of overflowing at oil fill
opening.
Adding Engine Oim
1. Make sure generator is on a level surface.
2. Check oil level as described in "Checking Oil Level".
3. If needed, slowly pour oil into oil fill opening to the
point of overflowing at oil fill cap.
Changing Engine OH
Change the oil after the first 5 hours of operation.
Change oil every 50 hours thereafter. If you are using
your generator under extremely dirty or dusty conditions,
or in extremely hot weather, change the oil more often.
CAUTION
Used motor oil has been shown to cause skin cancer in
certain laboratory animals.
Thoroughly wash exposed areas with soap and water.
KEEP OUT OF REACH OF CHILDREN.
DON'T POLLUTE. CONSERVE
RESOURCES. RETURN USED OIL TO
COLLECTION CENTERS.
Change the oil while the engine is still warm from
running, as foitows:
1. Make sure unit is on a level surface.
2. Disconnect the spark plug wire from the spark
plug and place the wire where it cannot contact
spark plug.
3. Clean area around oil drain plug. The oil drain plug
is located at base of engine, opposite carburetor.
4. Remove oil drain plug and drain oil completely into
a suitable container.
5. Reinstall oil drain plug and tighten securely.
Remove oil fill cap.
6. Slowly pour oil (about 28 oz.) into oil fill opening to
the point of overflowing at oil fill cap. DO NOT
overfill.
7. Reinstall oil fill cap. Finger tighten cap securely.
8. Wipe up any spilled oil.
CJeantRep_ace Spark P_ug
Change the spark plug every 100 hours of operation
or once each year, whichever comes first. This will
help your engine to start easier and run better.
1. Clean area around spark plug.
2. Remove and inspect spark plug.
3. Check electrode gap with wire feeler gauge and set
spark plug gap to 0.030 inch (0.76mm) if necessary.
4. Replace spark plug if electrodes are pitted, burned
or porcelain is cracked. Use a recommended
replacement plug.
NOTE: You can purchase a new spark plug by calling
1-800-366-PART.
14

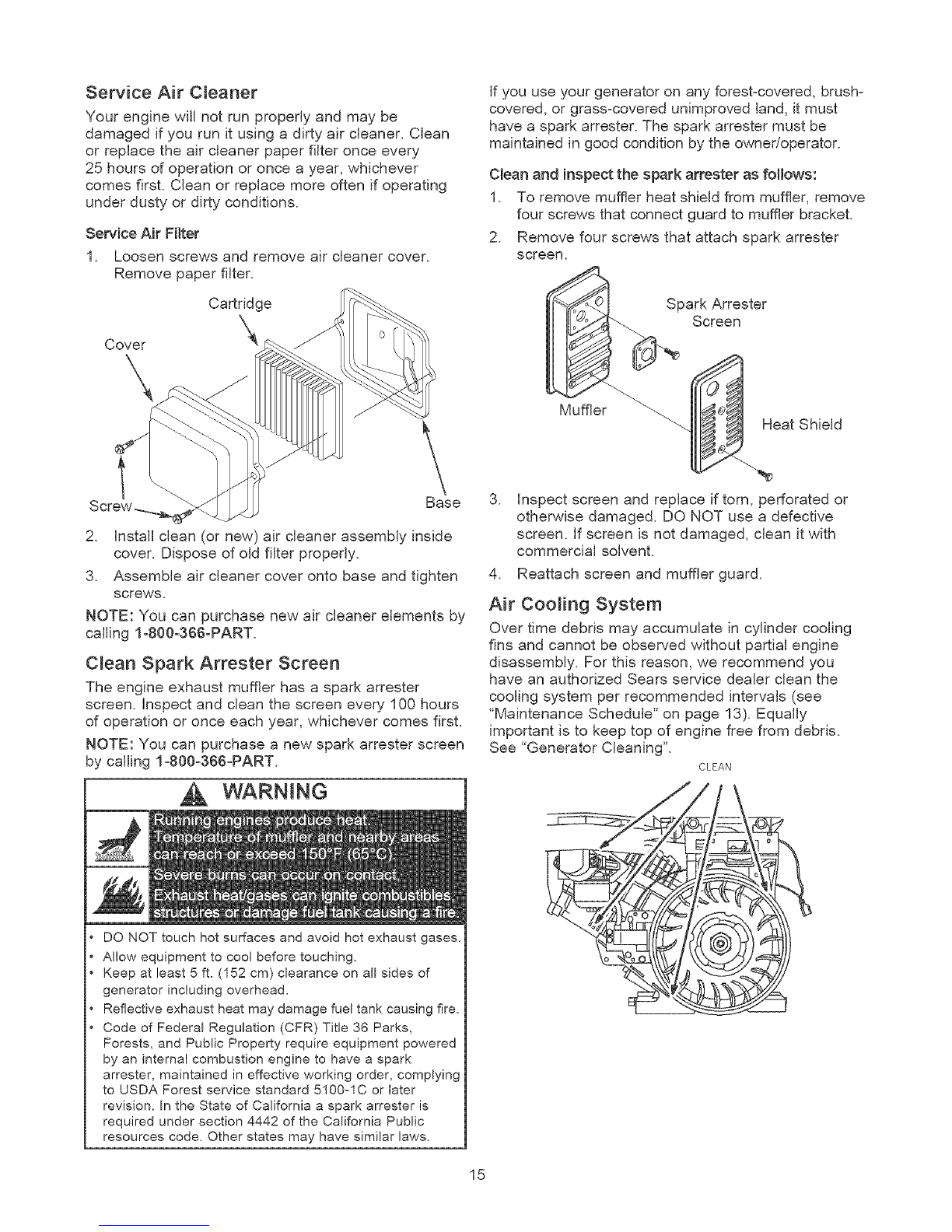

Service Air Cleaner
Your engine will not run properly and may be
damaged if you run it using a dirty air cleaner. Clean
or replace the air cleaner paper filter once every
25 hours of operation or once a year, whichever
comes first. Clean or replace more often if operating
under dusty or dirty conditions.
Service Air Filter
1. Loosen screws and remove air cleaner cover.
Remove paper filter.
Cartridge
Cover X_
Base
2. Install clean (or new) air cleaner assembly inside
cover. Dispose of old filter properly.
3. Assemble air cleaner cover onto base and tighten
screws.
NOTE: You can purchase new air cleaner elements by
calling 1-800-366-PART.
Cmean Spark Attester Screen
The engine exhaust muffler has a spark arrester
screen. Inspect and clean the screen every 100 hours
of operation or once each year, whichever comes first.
NOTE: You can purchase a new spark arrester screen
by calling 1-800-366-PART.
WARNING
if you use your generator on any forest-covered, brush-
covered, or grass-covered unimproved land, it must
have a spark arrester. The spark arrester must be
maintained in good condition by the owner/operator.
Clean and inspect the spark attester as follows:
1. To remove muffler heat shield from muffler, remove
four screws that connect guard to muffler bracket.
2. Remove four screws that attach spark arrester
screen.
Mumlr_NSpark Arrester
Screen .
eat Shield
3. inspect screen and replace if torn, perforated or
otherwise damaged. DO NOT use a defective
screen. If screen is not damaged, clean it with
commercial solvent.
4. Reattach screen and muffler guard.
Air Coo_ing System
Over time debris may accumulate in cylinder cooling
fins and cannot be observed without partial engine
disassembly. For this reason, we recommend you
have an authorized Sears service dealer clean the
cooling system per recommended intervals (see
"Maintenance Schedule" on page 13). Equally
important is to keep top of engine free from debris.
See "Generator Cleaning". CLEAN
DO NOT touch hot surfaces and avoid hot exhaust gases.
Allow equipment to cool before touching.
Keep at least 5 ft. (152 cm) clearance on all sides of
generator including overhead.
Reflective exhaust heat may damage fuel tank causing fire.
Code of Federal Regulation (CFR) Title 36 Parks,
Forests, and Public Property require equipment powered
by an internal combustion engine to have a spark
arrester, maintained in effective working order, complying
to USDA Forest service standard 5100-1C or later
revision. In the State of California a spark arrester is
required under section 4442 of the California Public
resources code. Other states may have similar laws.
15

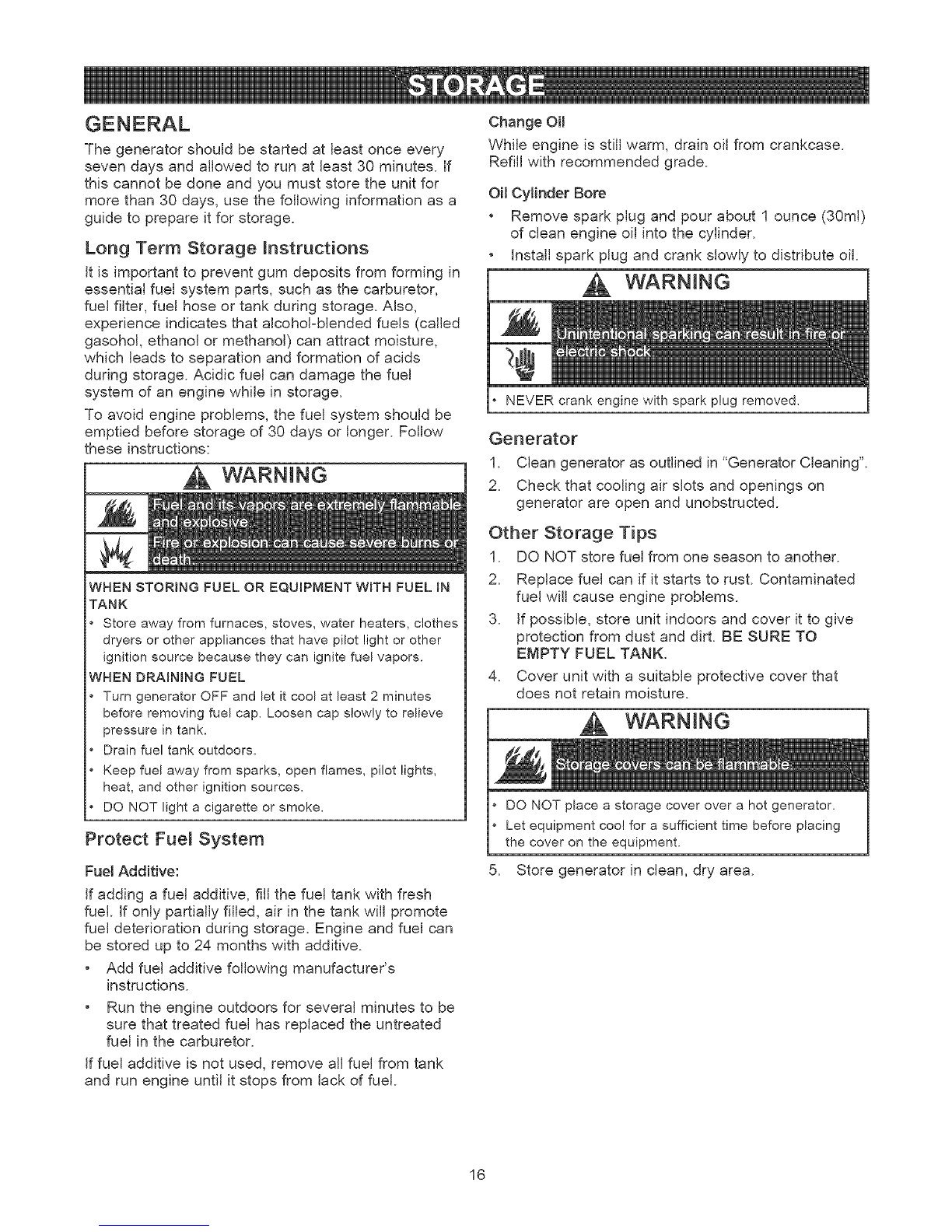

Thegeneratorshouldbestartedatleastonceevery
sevendaysandallowedtorunatleast30minutes.If
thiscannotbedoneandyoumuststoretheunitfor
morethan30days,usethefollowinginformationasa
guidetoprepareitforstorage.
Long Term Storage _nstructions
it is important to prevent gum deposits from forming in
essential fuel system parts, such as the carburetor,
fuel filter, fuel hose or tank during storage. Also,
experience indicates that alcohol-blended fuels (called
gasohol, ethanol or methanol) can attract moisture,
which leads to separation and formation of acids
during storage. Acidic fuel can damage the fuel
system of an engine while in storage.
To avoid engine problems, the fuel system should be
emptied before storage of 30 days or longer. Follow
these instructions:
WARNING
WHEN STORING FUEL OR EQUIPMENTWITH FUEL IN
TANK
Store away from furnaces, stoves, water heaters, clothes
dryers or other appliances that havepilot light or other
ignition source because they can ignite fuel vapors.
WHEN DRAiNiNG FUEL
Turn generator OFF and let itcool at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve
pressure in tank.
Drain fuel tank outdoors.
Keep fuel away from sparks, open flames, pilot lights,
heat, and other ignition sources,
DO NOT light a cigarette or smoke.
Protect Fue_ System
Fuel Additive:
If adding a fuel additive, fill the fuel tank with fresh
fuel. If only partially filled, air in the tank will promote
fuel deterioration during storage. Engine and fuel can
be stored up to 24 months with additive.
• Add fuel additive following manufacturer's
instructions.
• Run the engine outdoors for several minutes to be
sure that treated fuel has replaced the untreated
fuel in the carburetor.
If fuel additive is not used, remove all fuel from tank
and run engine until it stops from lack of fuel.
Change OH
While engine is still warm, drain oil from crankcase.
Refill with recommended grade.
OHCylinder Sore
• Remove spark plug and pour about 1 ounce (30ml)
of clean engine oil into the cylinder.
• Install spark plug and crank slowly to distribute oil.
WARNING
NEVER crank enqine with spark plug removed,
Generator
1. Clean generator as outlined in "Generator Cleaning".
2. Check that cooling air slots and openings on
generator are open and unobstructed.
Other Storage Tips
1. DO NOT store fuel from one season to another.
2. Replace fuel can if it starts to rust. Contaminated
fuel will cause engine problems.
3. If possible, store unit indoors and cover it to give
protection from dust and dirt. BE SURE TO
EMPTY FUEL TANK.
4. Cover unit with a suitable protective cover that
does not retain moisture.
.
DO NOT place a storage cover over a hot generator.
Let equipment cool for a sufficient time before placing
the cover on the equipment.
Store generator in clean, dry area.
16

Prob{em
Engine Bsrunning, but no AC
output is available.
EngBne runs good at no-load but
"bogs down" when loads are
connected.
C_use
One of the circuit breakers is
open.
Poor connection or defective
cord set.
3. Connected device is bad.
.Fault in generator.
Short circuit in a connected
load.
Generator is overloaded.
3. Engine speed is too slow.
4. Shorted generator circuit.
Fuel valve in the "Off" position.
Rocker Switch set to "Off".
3. Dirty air cleaner.
4. Out of fuel.
5. Stale fuel.
Correction
Reset circuit breaker.
Check and repair.
3. Connect another device that is
in good condition.
4. Contact Sears service facility.
Disconnect shorted electrical
load.
See "Don't Overload
Generator".
3. Contact Sears service facility.
4. Contact Sears service facility.
Set fuel valve to the "On"
position.
Set switch to "On".
6. Spark plug wire not connected
Engine will not start; or stars
and runs rough.
3. Clean or replace air cleaner.
4. Fill fuel tank.
5. Drain fuel tank; fill with fresh
fuel.
6. Connect wire to spark plug.
to spark plug.
7. Bad spark plug.
8. Water in fuel.
9. Overchoking.
7. Replace spark plug.
8. Drain fuel tank; fill with fresh
fuel.
9. Open choke fully and crank
engine.
10. Low oil level.
11. Excessively rich fuel mixture.
12. Intake valve stuck open or
closed.
13. Engine has lost compression.
Engine shuts down during Fill
operation.
Load is too high.
Engine lacks power. Dirty air filter.
Choke is opened too soon.
Engine "hunts" or ratters. Carburetor is running too rich or
too lean.
0. Fill crankcase to proper level.
1. Contact Sears service facility.
2. Contact Sears service facility.
3. Contact Sears service facility.
fuel tank.
See "Don't Overload Generator"
Replace air filter.
Move choke to halfway position
until engine runs smoothly.
Contact Sears service facility.
17

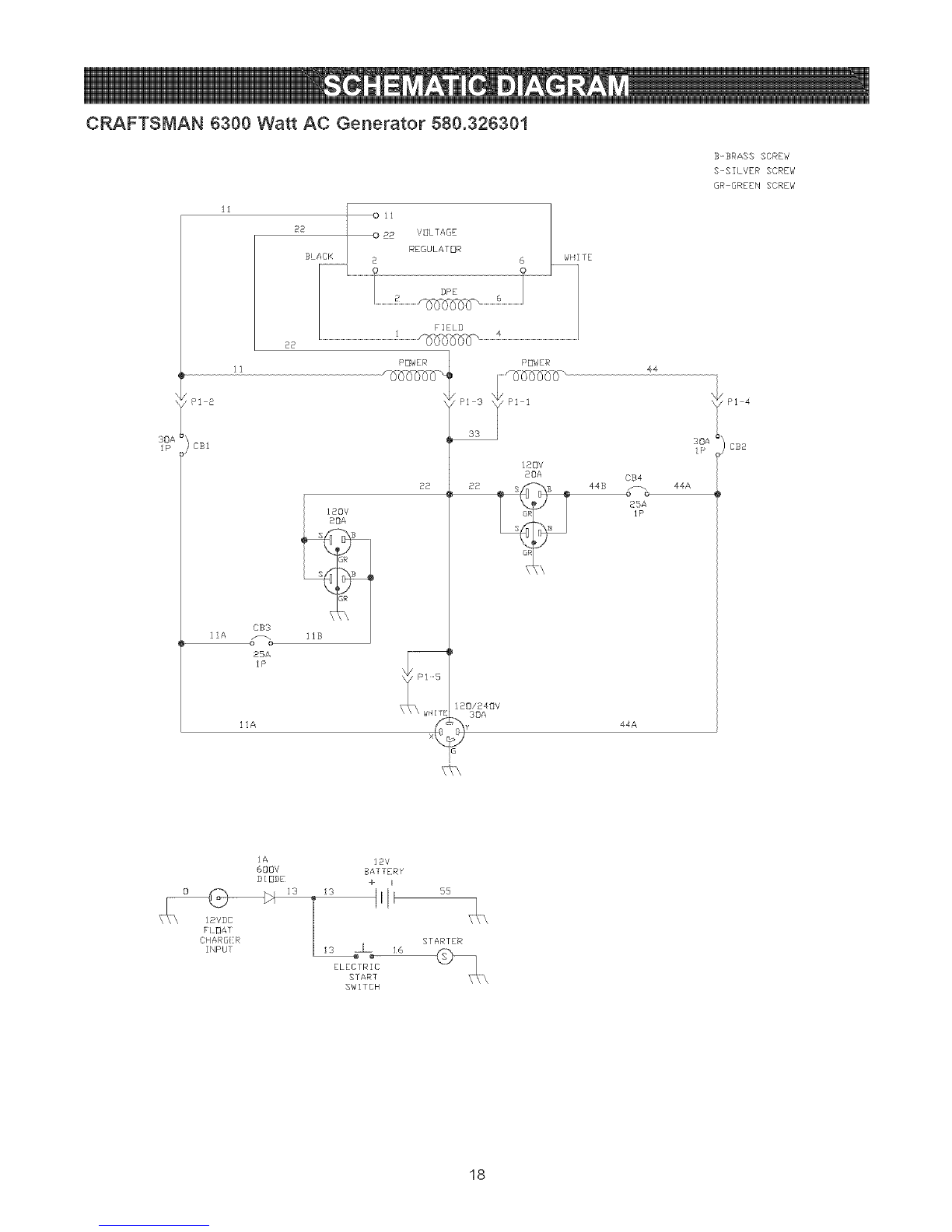

CRAFTSMAN B300 Watt AC Generator 580.326301
11
22
B-SRAS$ SCREW
S-SILVER SCREW
GR OREEN SCREW
IP
22
POWER
PI 2
CSl
S B
GR
EB3
25A
IP
11A
22
120/248V
30A
POWER
120V
20A
44
30A
IP
CB4
44B _-_o 44A
25A
1P
44A
CB2
\32
_IOAT
CHAR@!!KR
INPUT
IA
600V
DIODE
12V
BATTERY
+ i
iiI ss
STARTER
_s l_6
ELECTRIC
START
SW]TCH
18

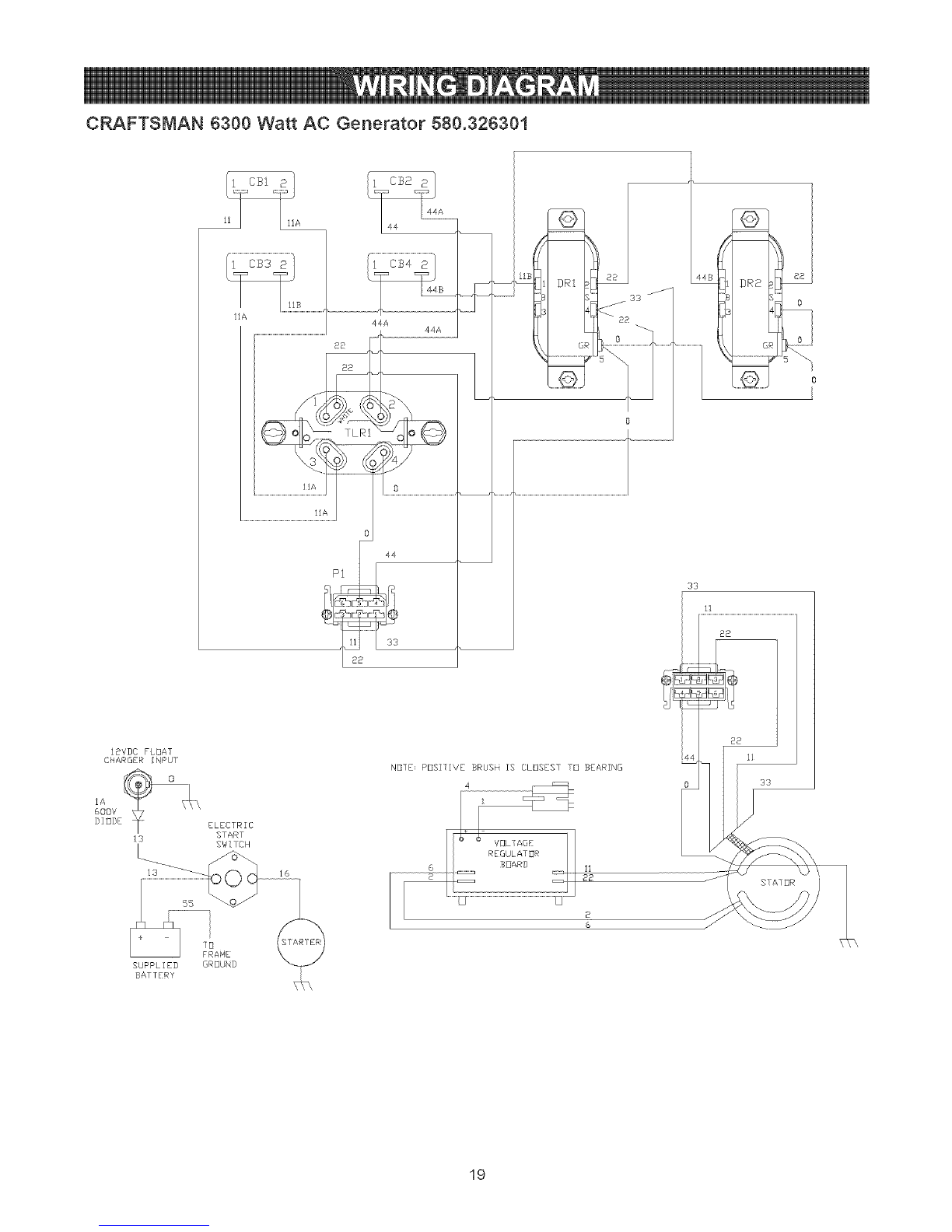

CRAFTSMAN 6300 Watt AC Generator 580.326301
IBVDC FLOAT
CHARGER [NPUr
SUPPLIED
BATTERY
22
]_A 8
0
44
pi
33
33
ELECTRIC
START
SWITCH
NEITE: PBSITIVE BRUSH IS CLUSEST TO BEARING
_2
GROUND
11
22
STATOR
19

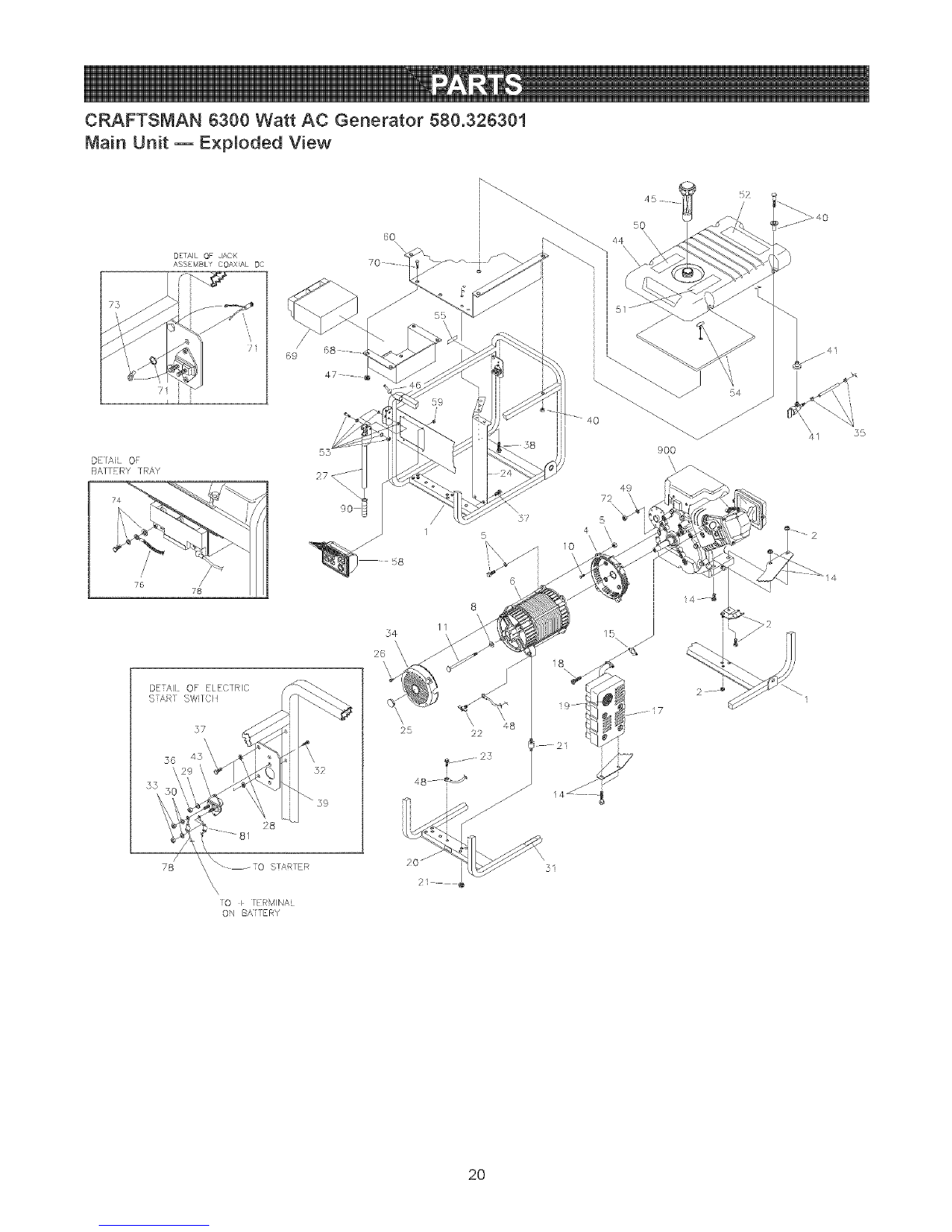

CRAFTSMAN 6300 Watt AC Generator 580.326301
Main Unit m E×p_oded View
DETAIL OF JACK
ASSEMBLY COAXAL 9C
71 i i
i i i
DEIAiL OF
BATTERY TRAY
75 78
DETAIl OF ELECTRIC
S;AR SWI/CI!
37
\
}6 45 52
_39
78 STARTER
\\\[0 tIERMINAI
ON BAiTERY
9O
5q\
26
55
X
6
8\
// \
\ \\
25 22
52
/
50
44
9OO
\\
5
4\\
72 49
41
2O
