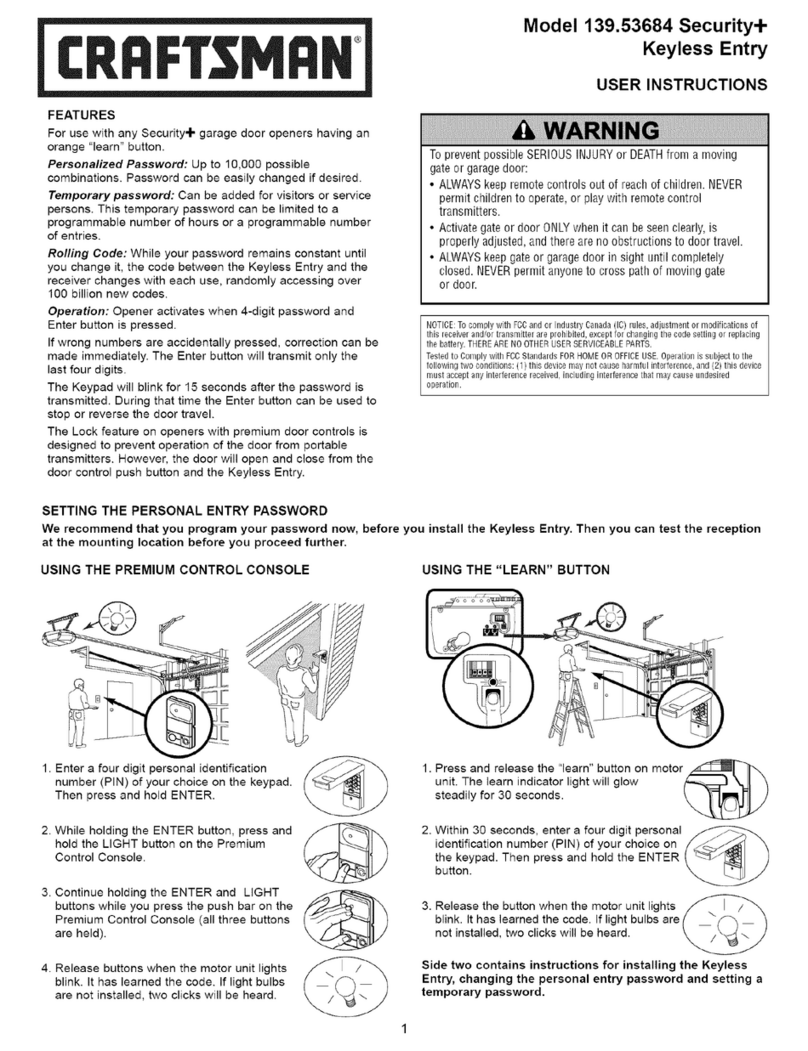

Craftsman SECURITY + 139.53684 User manual

Features
For use with any SECURITY ✚compatible
garage door opener receiver.
Personalized Password: Up to 10,000
possible combinations. Password can be easily
changed if desired.
Temporary password: Can be added for visitors or service
persons. This temporary password can be limited to a programmable
number of hours or a programmable number of entries.
Rolling Code: While your password remains constant until you
change it, the code between the Keyless Entry and the receiver
changes with each use, randomly accessing over 100 billion new
codes.
Operation: Opener activates when 4-digit password and Enter button
is pressed.
If wrong numbers are accidentally pressed, correction can be made
immediately. The Enter button will transmit only the last four digits.
The Keypad will blink for 15 seconds after the password is
transmitted. During that time the Enter button can be used to stop or
reverse the door travel.
The Lock feature on openers with premium door controls is designed
to prevent operation of the door from portable transmitters.
However, the door will open and close from the door control push
button and the Keyless Entry.
To comply with FCC rules, adjustment or modification of receiver and/or
transmitter is prohibited, except for changing the password setting and replacing
the transmitter battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Installation
The recommended
mounting locations for
sectional and one-piece
doors are shown in
Figure 3. You can select
another location if you
prefer. However, the
keypad
must be
installed within sight of
the door.
For a one-piece door,
use the optional location shown in the
illustration (on the
edge of the door jamb) to avoid injury
as the door swings up and out.
Test the reception of the Keyless Entry by operating your
opener from the selected location. Change the location if
necessary.
Open the keypad and remove the
battery compartment screw and
cover to access the bottom
mounting hole
(Figure 4).
Center the keypad at eye level
against the selected location. Mark
4 1/4" up the centerline from the
bottom and drill a 1/8" pilot hole.
Install top mounting screw, allowing
1/8" to protrude above surface.
Position keypad on screw head and
adjust for snug fit.
With cover open so bottom
mounting hole is visible, use a punch to
mark hole. Remove keypad and drill 1/8" pilot hole. Replace
keypad and complete installation with bottom screw, using
care to avoid cracking plastic housing.
Do not overtighten.
Replace the battery cover.
Side two contains instructions for changing the personal
entry password and setting a temporary password.
Door Jamb Edge
(Optional Location 
for 1-Piece Door)
Keypad
Door Jamb Face
SECTIONAL DOOR ONLY
KEYPAD MUST BE INSTALLED 
WITHIN SIGHT OF THE DOOR
Exterior Front Wall
1-Piece or 
Sectional Door
Clavier
LE CLAVIER DOIT ÊTRE POSÉ DE FAÇON
QUE LA PORTE SOIT VISIBLE DU CLAVIER
Mur avant extérieur 
Porte rigide ou articulée
Bordure étroite
du montant de porte
(emplacement en option
pour les portes rigides)
Face du montant
PORTE ARTICULÉE SEULEMENT
Installation typique
d'une porte articulée
Typical
Sectional Door
installation
Setting the Personal Entry Password
We recommend that you program your password now, before
you install the Keyless Entry. Then you can test the reception
at the mounting location before you proceed further.
Choose a 4-digit password using the numbers from 0 to 9 (a
number can be used more than once, for example, 4,0, 4,1.)
If you have a Premium Control Console:
1. With the door closed, press the four buttons for
the password, then press and
hold Enter.
2. Press and hold the light button on the door
control,
Figure 1 .
3. Press and hold the door control push button.
4. After the opener light flashes, release all
buttons.
If you do not have a Premium Control Console:
1. Enter the four digit password desired, then press and hold
Enter.
2. Press and release the SRT (learn) button on the door
opener panel,
Figure 2 .
3. After the opener light flashes, release the Enter button.
Test by pressing your password, then press Enter. The door
should begin to move.
This procedure can be repeated with a different password for
use with a second garage door opener.
The Chamberlain Group, Inc.
Digital Keyless Entry
Replace Battery
7/18/95 - 7/29/96
Battery
Bottom
mounting hole
Battery
Cover
Keypad
Cover
Pile
Trou de
fixation au bas
Couvercle du
compartiment
de la pile
Couvercle
du clavier
The Chamberlain Group, Inc.
Digital Keyless Entry
7/8/95 - 7/27/96
SECURITY✚Garage Door Opener
KG KG
1
3
9
75
1
3
9
75
123
Orange 
SRT (learn)
Button
Yellow 
Indicator
Light
Children operating or playing with a garage door opener can
injure themselves or others.
The garage door could close and
cause serious injury or death.
Do not allow children to operate the
wall push button(s) or remote control(s).
A moving garage door could injure or kill someone under it.
Activate the opener only when you can see the door clearly, it is
free of obstructions, and is properly adjusted.
WARNING
CAUTION
WARNING
AVERTISSEMENT
ATTENTION
AVERTISSEMENT
WARNING
AVERTISSEMENT
1
®
Model 139.53684
Keyless Entry
Figure 2
Figure 1
Figure 3
Figure 4
The Chamberlain Group, Inc.
3 Button Wall Control
Front View
5/1/95
LOCK
LIGHT
Light
Door Control
Push button
Security✚
Garage Door Opener

© 1996, Sears Roebuck & Company
114A2111B All Rights Reserved Printed in Mexico
Changing the Personal Entry Password
Press the four buttons for the present password, then
press #.
The opener light will flash twice.
Press the new 4-digit password you have chosen, then press
Enter.
The opener light will flash once when the password has been
learned.
Test by pressing the new password, then press Enter. The
door should move.
Setting a Temporary Password
In addition to your personal entry password which works at
all times, a 4-digit temporary password can be added for the
convenience of visitors or service persons. This allows
authorized persons a way to gain temporary access. After a
programmed number of hours or number of activations, this
temporary password expires and will no longer open the
door. The temporary password can be used to
close the door
even after it has expired. To set a temporary password:
1. Enter your personal entry password, then press ✳.
The opener light will flash three times. Release the buttons.
2. Press the temporary 4-digit password you have chosen,
then press Enter.
The opener light will flash four times.
3. To set the number of
hours this temporary password will
work, press the number of hours (up to 255), then
press ✳.
OR
3. To set the number of
times this temporary password will
work, press the number of times (up to 255), then press #.
The opener light will flash once when the temporary
password has been learned.
Test by pressing the four buttons for the temporary
password, then press Enter. The door should move. If the
temporary password was set to a certain number of
openings, remember that the test has used up one opening.
To clear the temporary password, repeat steps 1-3, setting
the number of hours or times to 0 in step 3.
Battery
The 9 Volt battery should produce power for at least one
year. Replace when keypad illumination becomes dim.
Replacement Parts:
Keypad Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31D431
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10A2
Battery Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131B430
When ordering parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
For the repair or replacement parts you need
Call 7 am – 7 pm, 7 days a week
1-800-366-PART
(1-800-366-7278)
