Craftsman 917.292391 User manual

Owner's Manual
CRAFTS[MAN+
5.5 HP
24 INCH TINE WIDTH l
FRONT TINE
TILLER
Model No.
917.292391
•Safety
•Assembly
•Operation
•Maintenance
•Espa6ol
•Repair Parts
CAUTION:
Read and follow all Safety
Rules and Instructions before
operating this equipment,
Sears, Roebuck and Co., Hoffman Estates, II 60179
Visit our Craftsman website:www.sears.com/craftsman

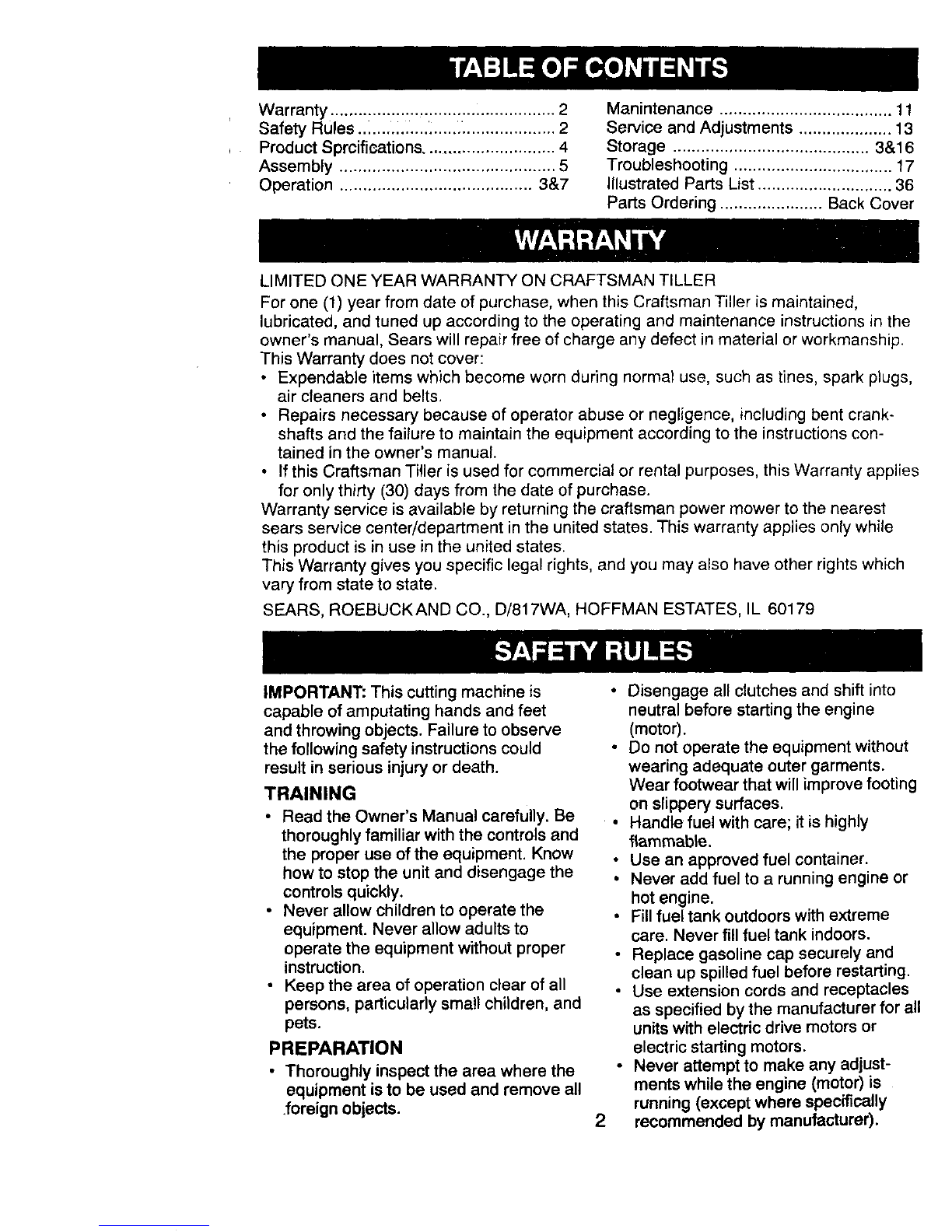

Warranty................................................2
SafetyRules..I.....,,...:....L: ................... 2
Product Sprcifications ............................ 4
Assembly .............................................. 5
Operation ......................................... 3&7

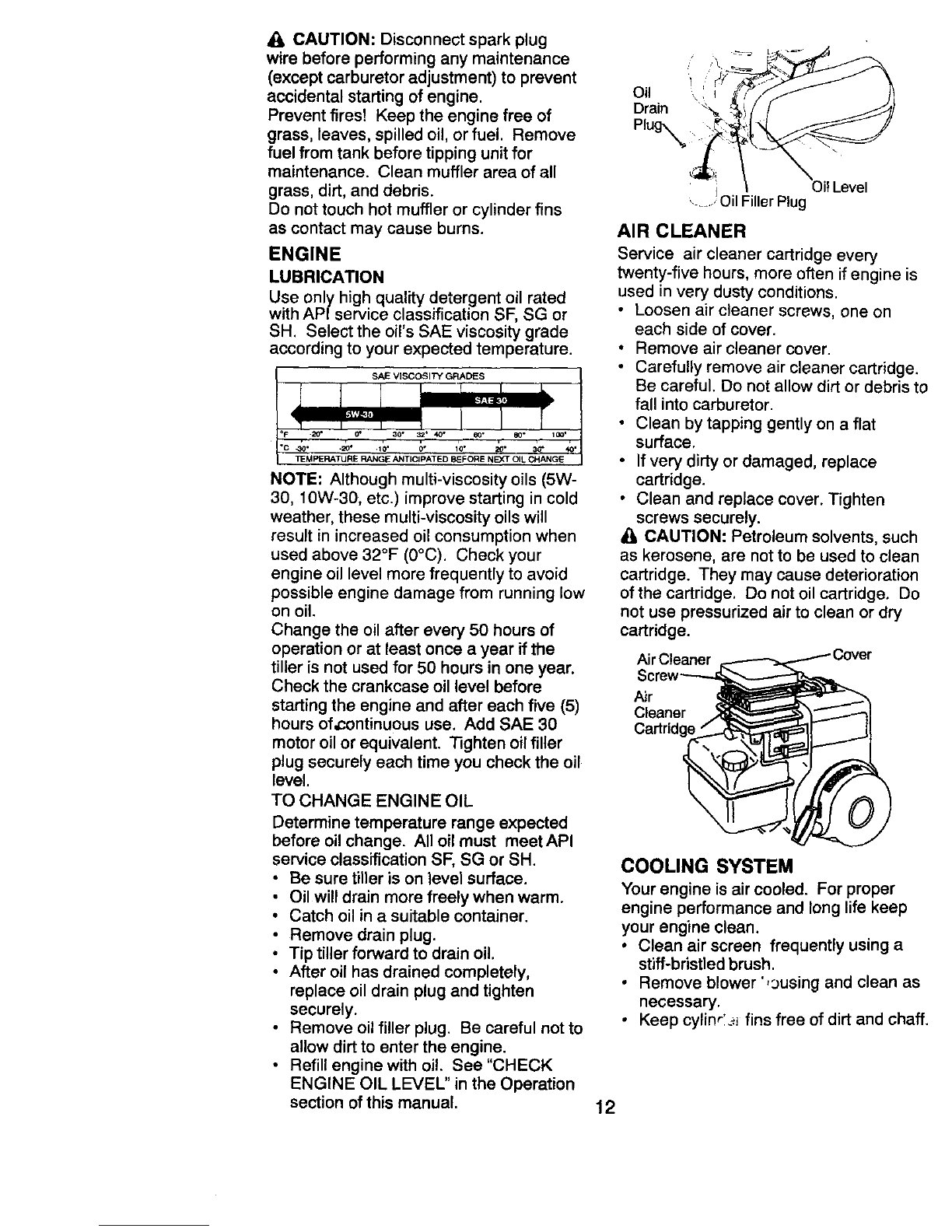

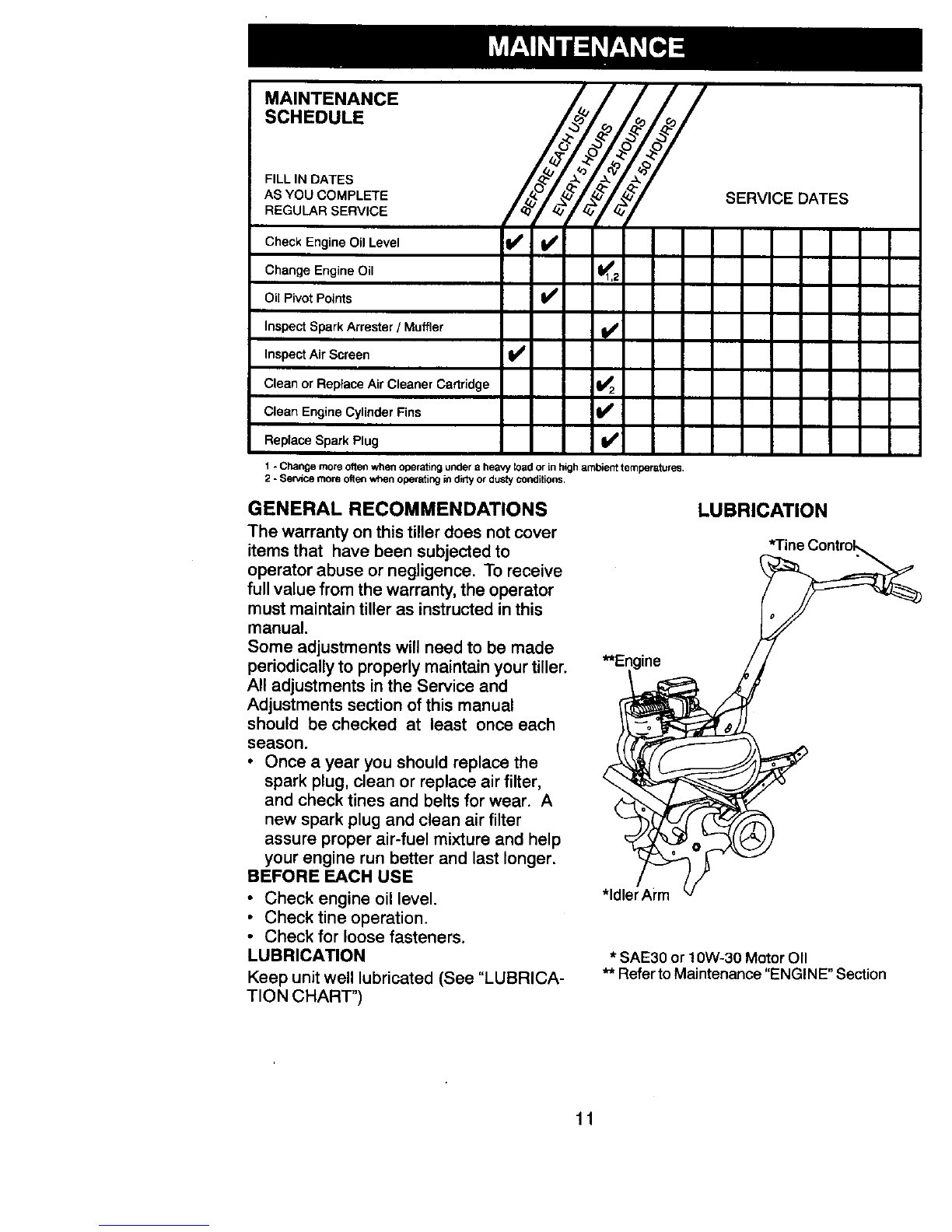

Manintenance ..................................... 11
Service and Adjustments .................... 13

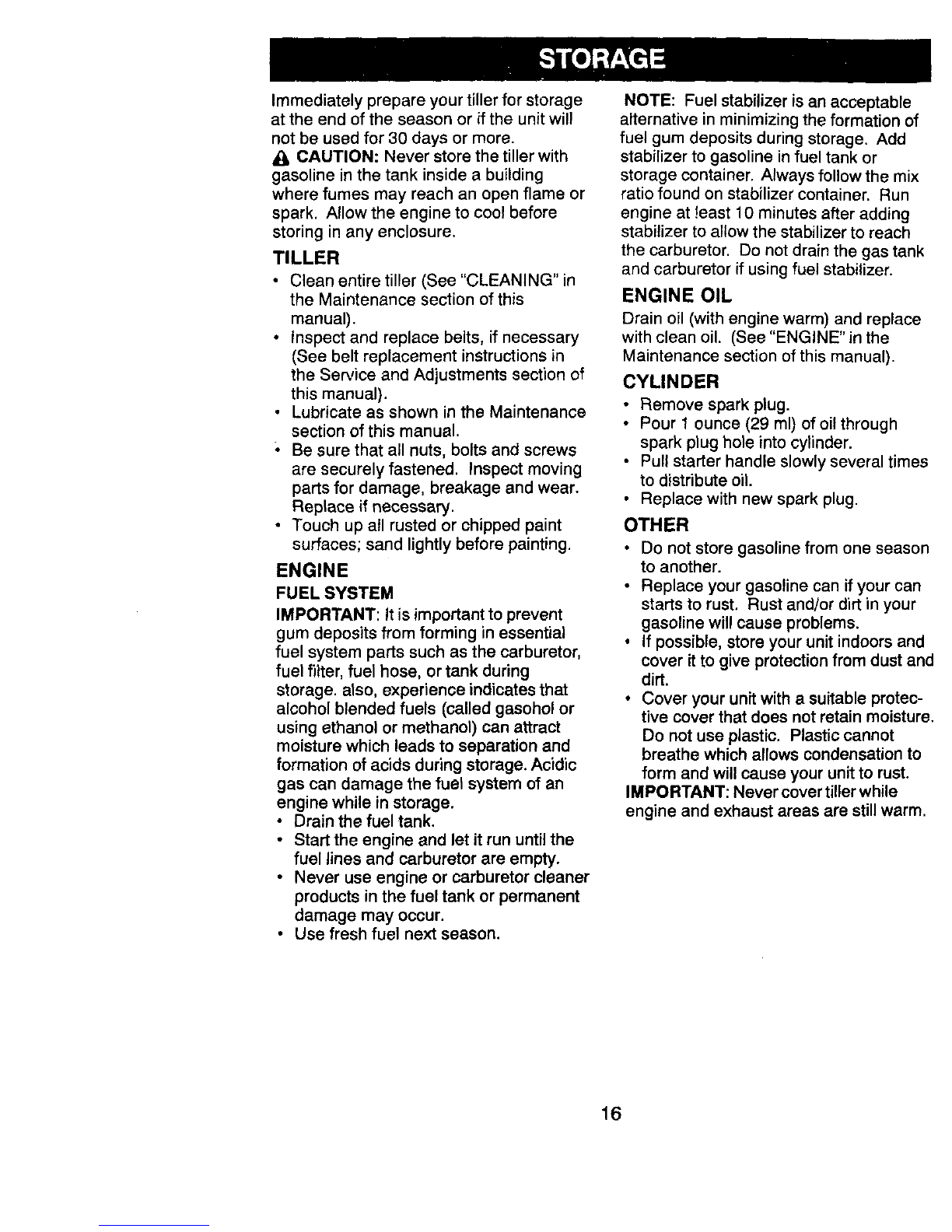

Storage .......................................... 3&16

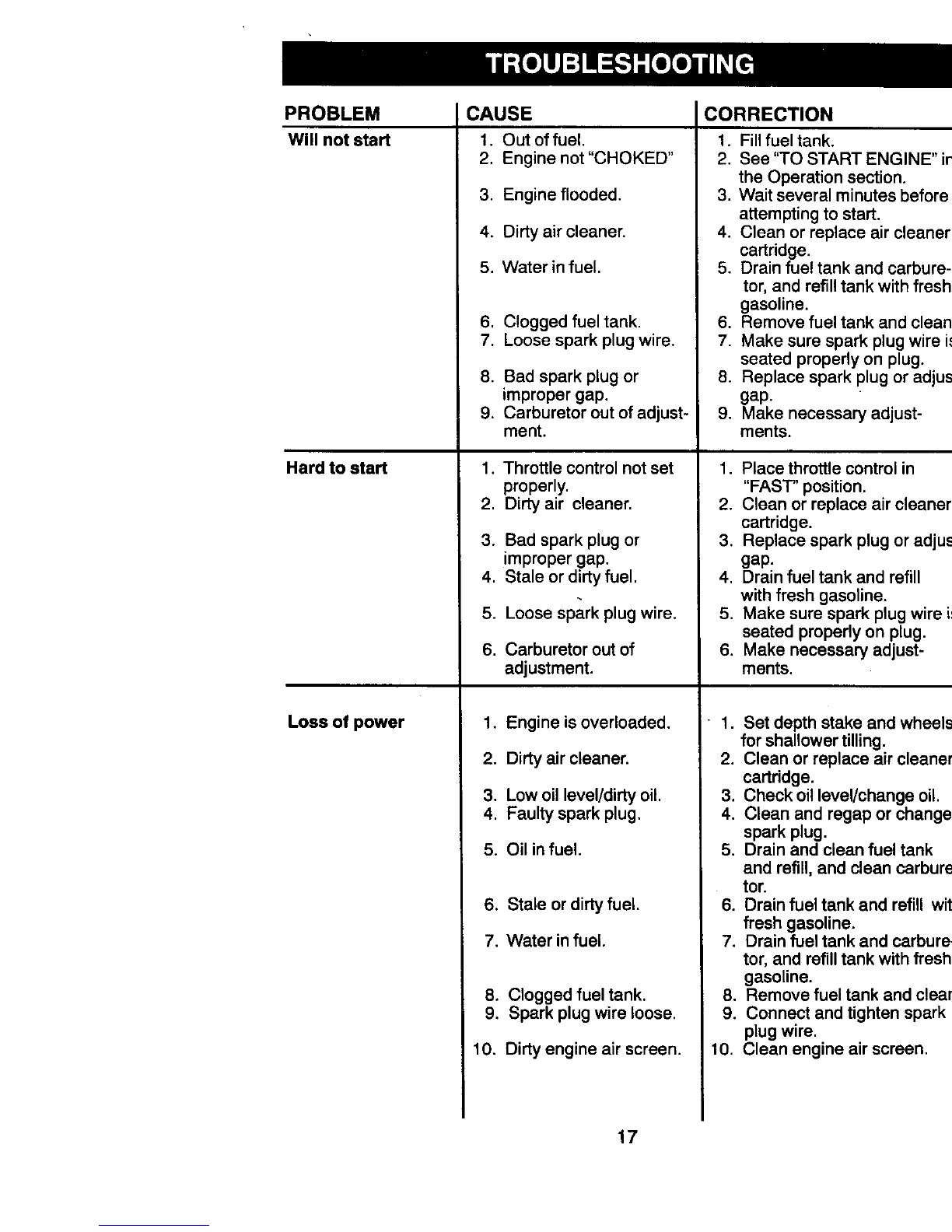

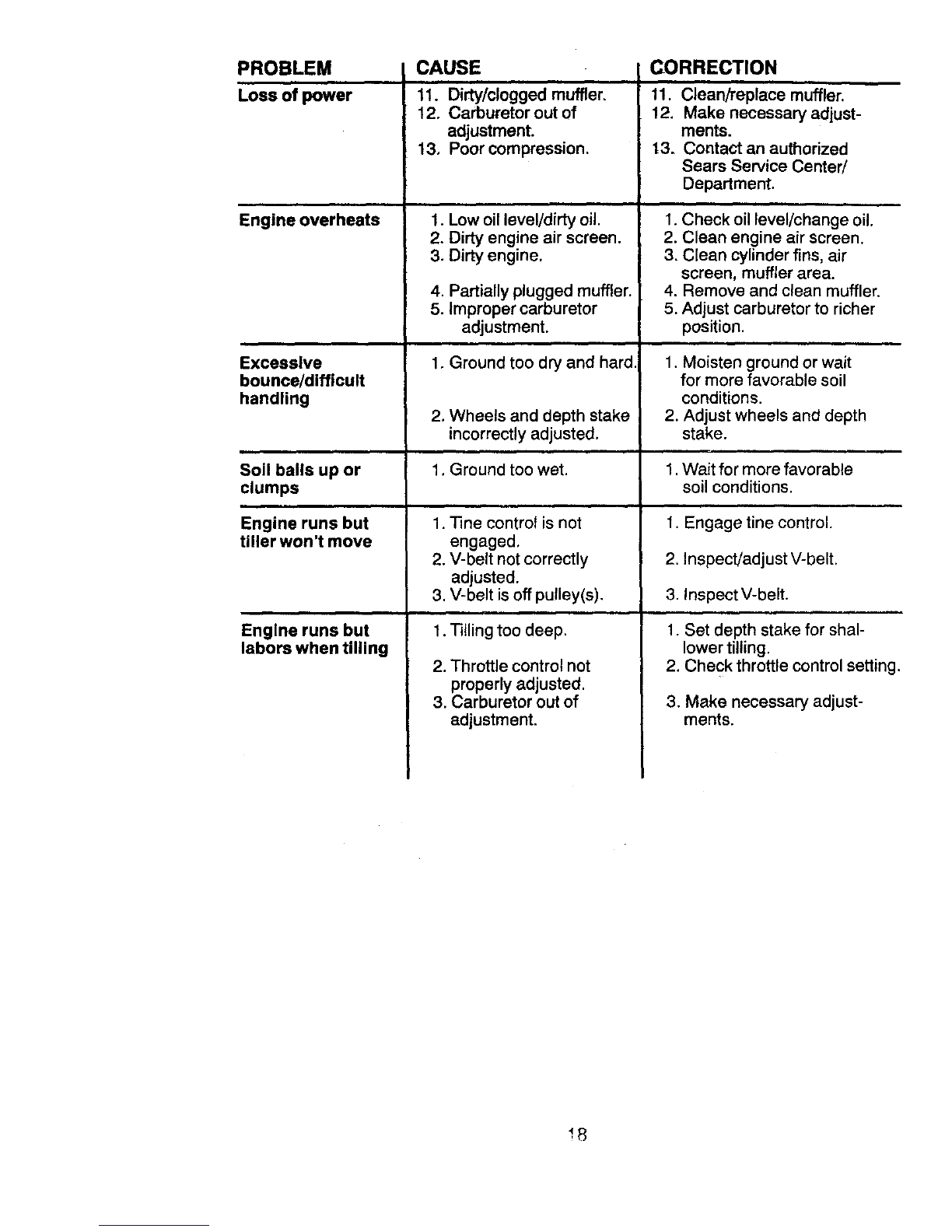

Troubleshooting .................................. 17

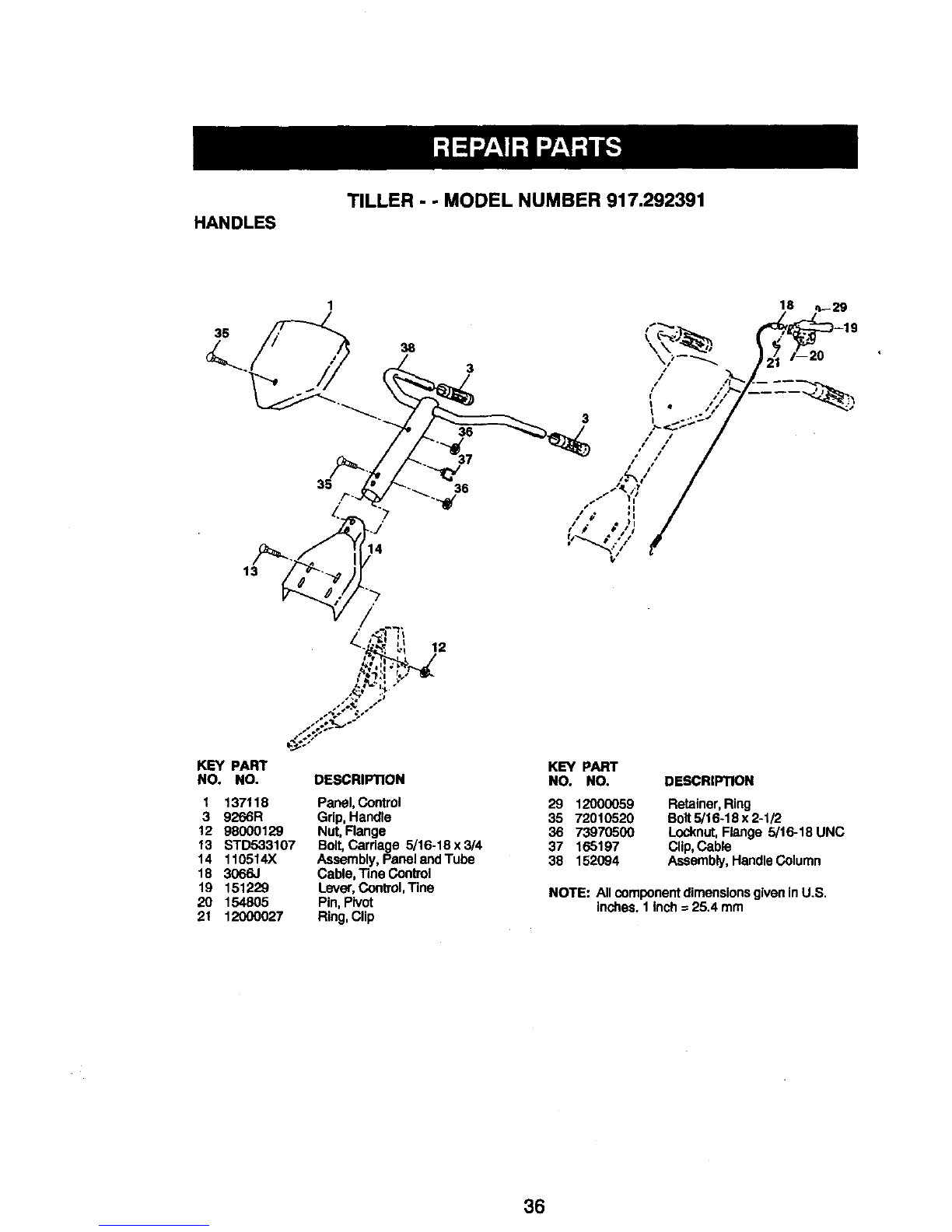

Illustrated Parts List ............................. 36
Parts Ordering ...................... Back Cover
LIMITED ONE YEAR WARRANTY ON CRAFTSMAN TILLER
For one (1) year from date of purchase, when this Craftsman Tiller is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in the
owner's manual, Sears will repair free of charge any defect in material or workmanship.
This Warranty does not cover:
• Expendable items which become worn during normat use, such as tines, spark plugs,
air cleaners and belts.
• Repairs necessary because of operator abuse or negligence, including bent crank-
shafts and the failure to maintain the equipment according to the instructions con-
tained in the owner's manual.
•If this Craftsman Ti!ler is used for commercial or rental purposes, this Warranty applies
for only thirty (30) days from the date of purchase.
Warranty service is available by returning the craftsman power mower to the nearest
sears service center/department in the united states. This warranty applies only while
this product is in use in the united states.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCKAND CO., D/817WA, HOFFMAN ESTATES, IL 60179
IMPORTANT." This cutting machine is •
capable of amputating hands and feet
and throwing objects. Failure to observe
the following safety instructions could •
result in serious injury or death.
TRAINING
• Read the Owner's Manual carefully. Be
thoroughly familiar with the controls and
the proper use of the equipment. Know
how to stop the unit and disengage the
controls quickly.
• Never allow children to operate the
equipment. Never allow adults to
operate the equipment without proper
instruction.
• Keep the area of operation clear of all
persons, particularly small children, and
pets.
PREPARATION
• Thoroughly inspect the area where the
equipment is to be used and remove all
.foreign objects. 2
Disengage all clutches and shift into
neutral before starting the engine
(motor).
Do not operate the equipment without
wearing adequate outer garments.
Wear footwear that will improve footing
on slippery surfaces.
Handle fuel with care; it is highly
flammable.
Use an approved fuel container.
Never add fuel to a running engine or
hot engine.
Fill fuel tank outdoors with extreme
care. Never fill fuel tank indoors.
Replace gasoline cap securely and
clean up spilled fuel before restarting.
Use extension cords and receptacles
as specified by the manufacturer for all
units with electric drive motors or
electric starting motors.
Never attempt to make any adjust-
ments while the engine (motor) is
running (except where specifically
recommended by manufacturer).

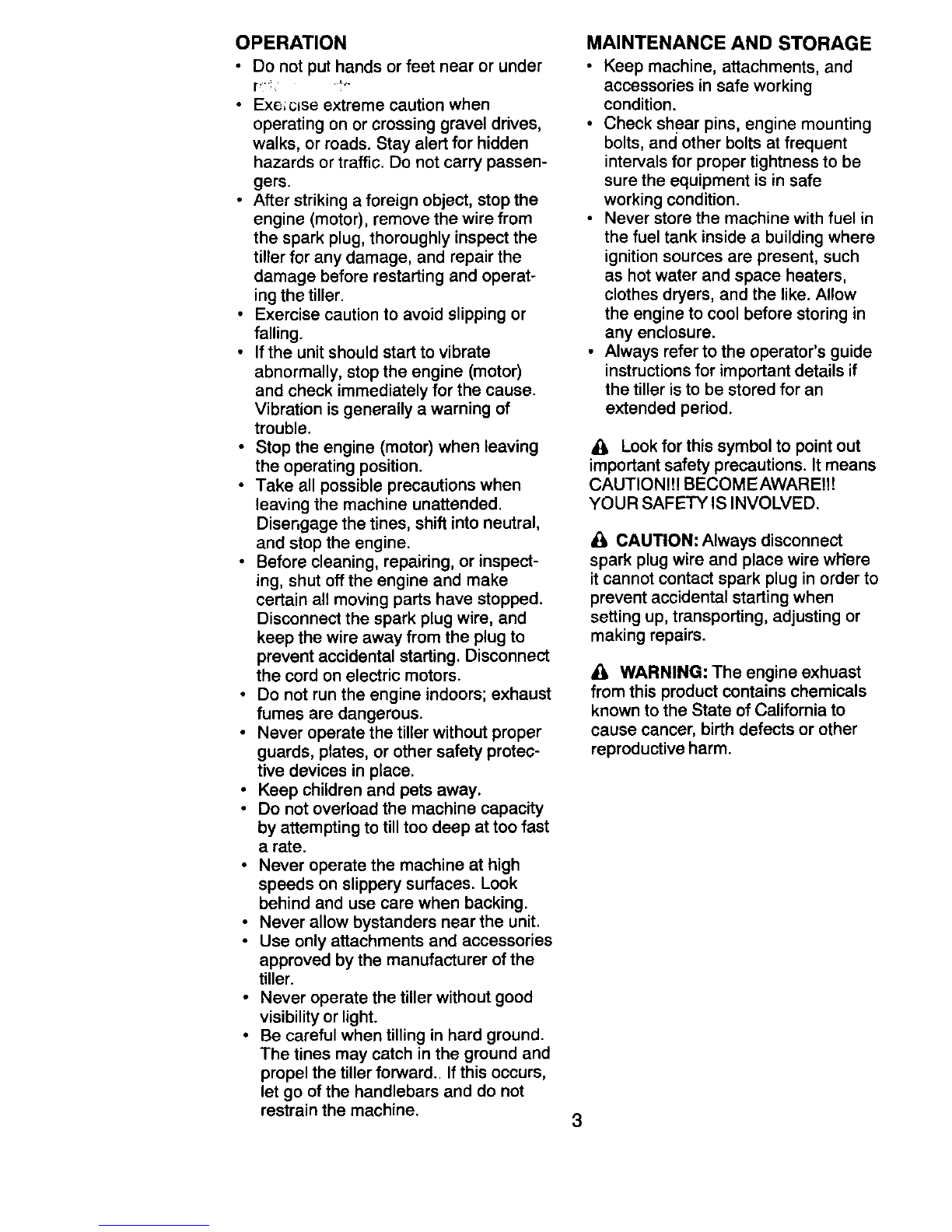

OPERATION
•Do not put hands or feet near or under
• Exe;clse extreme caution when
operating on or crossing gravel drives,
walks, or roads. Stay alert for hidden
hazards or traffic. Do not carry passen-
gers.
• After striking a foreign object, stop the
engine (motor), remove the wire from
the spark plug, thoroughly inspect the
tiller for any damage, and repair the
damage before restarting and operat-
ing the tiller.
• Exercise caution to avoid slipping or
falling.
•If the unit should start to vibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a warning of
trouble.
•Stop the engine (motor) when leaving
the operating position.
• Take all possible precautions when
leaving the machine unattended.
Disengage the tines, shift into neutral,
and stop the engine.
• Before cleaning, repairing, or inspect-
ing, shut offthe engine and make
certain all moving parts have stopped.
Disconnect the spark plug wire, and
keep the wire away from the plug to
prevent accidental starting. Disconnect
the cord on electric motors.
• Do not run the engine indoors; exhaust
fumes are dangerous.
• Never operate the tiller without proper
guards, plates, or other safety protec-
tive devices in place.
• Keep children and pets away.
• Do not overload the machine capacity
by attempting to till too deep at too fast
a rate.
• Never operate the machine at high
speeds on slippery surfaces. Look
behind and use care when backing.
• Never allow bystanders near the unit.
Use only attachments and accessories
approved by the manufacturer of the
tiller.
• Never operate the tiller without good
visibility or light.
• Be careful when tilling in hard ground.
The tines may catch in the ground and
propel the tiller forward.. If this occurs,
let go of the handlebars and do not
restrain the machine.
MAINTENANCE AND STORAGE
• Keep machine, attachments, and
accessories in safe working
condition.
• Check shear pins, engine mounting
bolts, and other bolts at frequent
intervals for proper tightness to be
sure the equipment is in safe
working condition.
Never store the machine with fuel in
the fuel tank inside a building where
ignition sources are present, such
as hot water and space heaters,
clothes dryers, and the like. Allow
the engine to cool before storing in
any enclosure.
•Always refer to the operator's guide
instructions for important details if
the tiller is to be stored for an
extended period.
Look for this symbol to point out
important safety precautions. It means
CAUTION!H BECOMEAWARE!!!
YOUR SAFETY IS INVOLVED.
CAUTION: Always disconnect
spark plug wire and place wire where
it cannot contact spark plug in order to
prevent accidental starting when
setting up, transporting, adjusting or
making repairs.
_, WARNING: The engine exhuast
from this product contains chemicals
known to the State of California to
cause cancer, birth defects or other
reproductive harm.
3

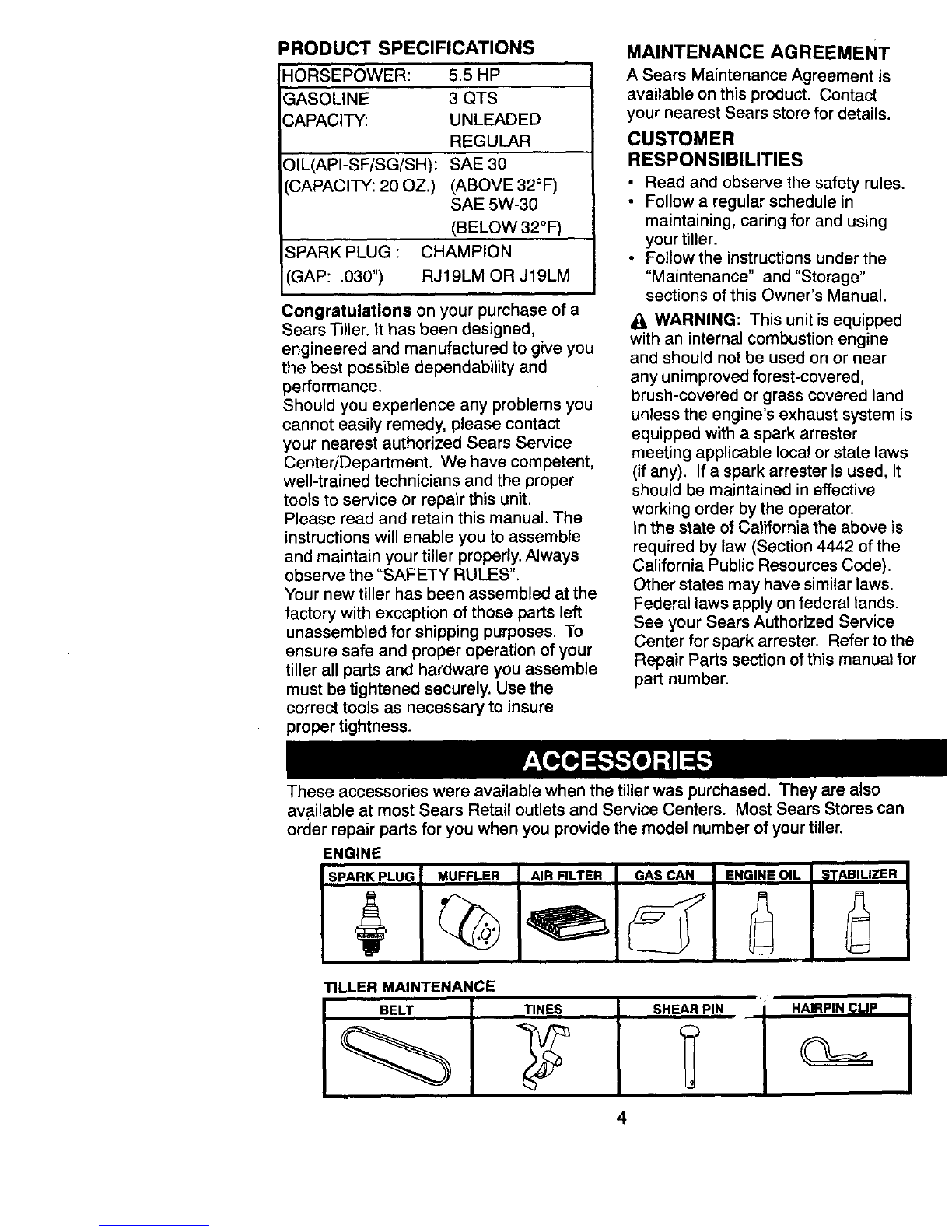

PRODUCT SPECIFICATIONS
HORSEPOWER: 5.5 HP
GASOLINE 3 QTS
CAPACITY: UNLEADED
REGULAR
OIL(API-SF/SG/SH): SAE 30
CAPACITY: 20 OZ.) (ABOVE 32°F)
SAE 5W-30
(BELOW 32°F)
SPARK PLUG : CHAMPION
(GAP: .030") RJ19LM OR J19LM
Congratulations on your purchase of a
Sears ]31ter. It has been designed,
engineered and manufactured to give you
the best possible dependability and
performance.
Should you experience any problems you
cannot easily remedy, please contact
your nearest authorized Sears Service
Center/Department. We have competent,
well-trained technicians and the proper
tools to service or repair this unit.
Please read and retain this manual. The
instructions will enable you to assemble
and maintain your tiller properly. Always
observe the "SAFETY RULES".
Your new tiller has been assembled at the
factory with exception of those parts left
unassembled for shipping purposes. To
ensure safe and proper operation of your
tiller all parts and hardware you assemble
must be tightened securely. Use the
correct tools as necessary to insure
proper tightness.
MAINTENANCE AGREEMENT
ASears Maintenance Agreement is
available on this product. Contact
your nearest Sears storefor details.
CUSTOMER
RESPONSIBILITIES
•Read and observe the safety rules.
•Follow a regular schedule in
maintaining, caring for and using
your tiller.
• Follow the instructions under the
"Maintenance" and "Storage"
sections of this Owner's Manual.
.q, WARNING: This unit is equipped
with an internal combustion engine
and should not be used on or near
any unimproved forest-covered,
brush-covered or grass covered land
unless the engine's exhaust system is
equipped with a spark arrester
meeting applicable local or state laws
(if any). If a spark arrester is used, it
should be maintained in effective
working order by the operator.
In the state of California the above is
required by law (Section 4442 of the
California Public Resources Code).
Other states may have similar laws.
Federal laws apply on federal lands.
See your Sears Authorized Service
Center for spark arrester. Refer to the
Repair Parts section of this manual for
part number.
These accessories were available when the tiller was purchased. They are also
available at most Sears Retail outlets and Service Centers. Most Sears Stores can
order repair parts for you when you provide the model number of your tiller.
ENGINE
JSPA_LUG I _MUFFLER Jl_AIRFILTER IIGASCAN ENGINEOIL STABILIZER
TILLER MAINTENANCE
SHEAR_PIN IHAIRPIN_CLIP ]
4

Your new tiller has been assembled at the factory with exception of those parts left
unassembled for shipping purposes. To ensure safe and proper operation of your tiller
all parts and hardware you assemble must be tightened securely. Use the correct tools
as necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly
easier. Standard wrench sizes are listed.
(1) Utility knife
(1) Pair of pliers
(2) 1/2 Wrench
OPERATOR'S POSITION
When right or left hand is mentioned in
this manual, it means when you are in
the operating position (standing behind
tiller handles).
FRONT
OPERATOR'S
POSITION
RIGHT
CONTENTS OF.HARDWARE PACK
m
(1) Manual
@
(2) Lock
Washers 5/16
@
(2) Flange Eocknuts
5/16-18 UNC
©
(2) Hex Nuts
5/16-18
(1) Plastic
Cable Clip_
(1) Bottle Engine Oil
U--;;;;;;:--
5/16-18 x 1-1/4
0
(2) Carriage Bolts 5/16-18 UNC x 2-3/8 Gr. 5
5

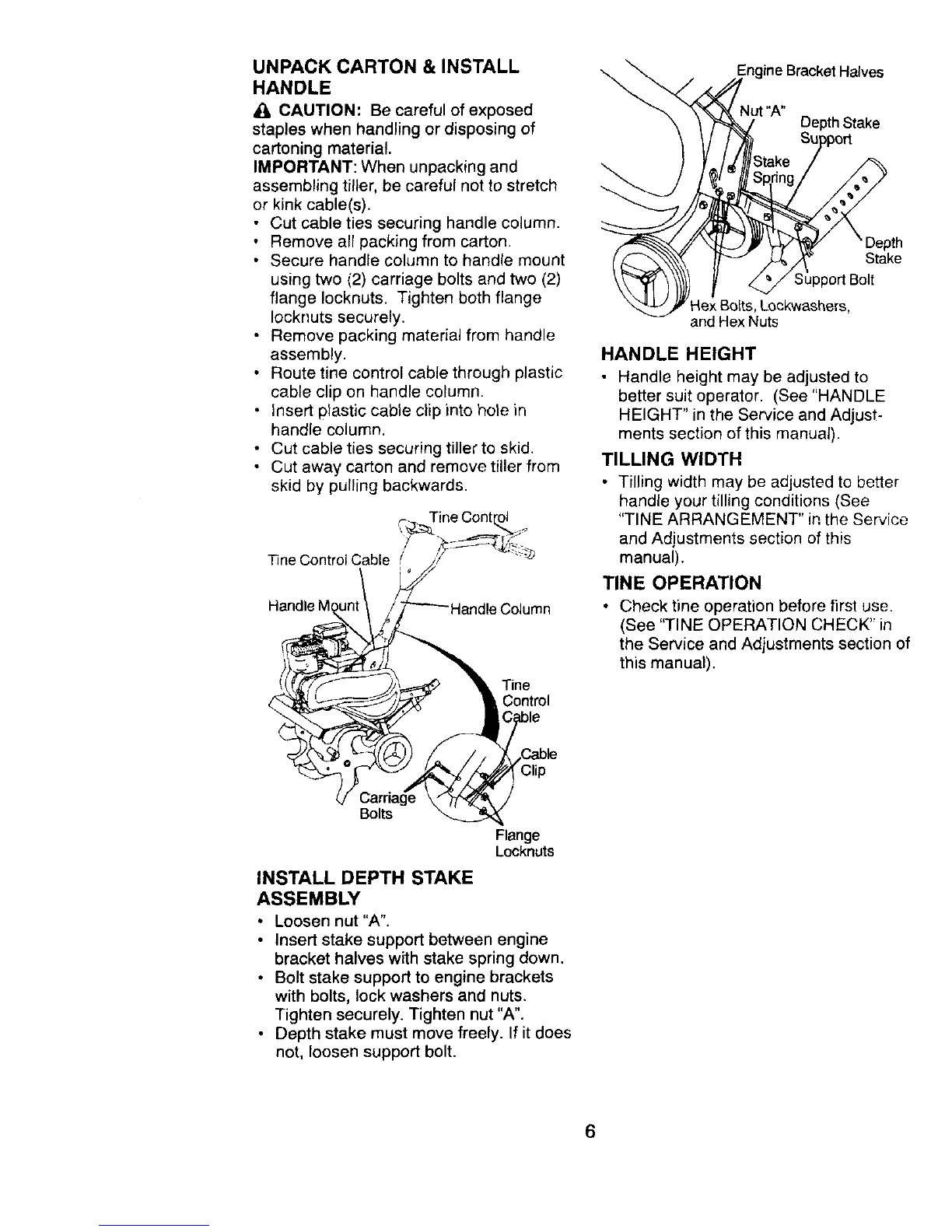

UNPACK CARTON & INSTALL
HANDLE
_, CAUTION: Be careful of exposed
staples when handling or disposing of
cartoning material.
IMPORTANT: When unpacking and
assembling tiller, be careful not to stretch
or kink cable(s).
•Cut cable ties securing handle column.
•Remove all packing from carton.
• Secure handle column to handle mount
using two (2) carriage bolts and two (2)
flange Iocknuts. Tighten both flange
Iocknuts securely.
• Remove packing material from handle
assembly.
• Route tine control cable through plastic
cable clip on handle column.
• insert plastic cable clip into hole in
handle column.
• Cut cable ties securing tiller to skid.
• Cut away carton and remove tiller from
skid by pulling backwards.
C Tine Control
7:_-_®
Tine Control Cable (
Handle Mq
Tine
\alves
qut "A" Depth Stake
Stake
Bolt
Hex Bolts, Lockwashers,
and Hex Nuts
HANDLE HEIGHT
• Handle height may be adjusted to
better suit operator. (See "HANDLE
HEIGHT" in the Service and Adjust-
ments section of this manual).
TILLING WIDTH
• Tilling width may be adjusted to better
handle your tilling conditions (See
"TINE ARRANGEMENT" in the Service
and Adjustments section of this
manual).
TINE OPERATION
• Check tine operation before first use.
(See "TINE OPERATION CHECK" in
the Service and Adjustments section of
this manual).
Bolts Flange
Locknuts
INSTALL DEPTH STAKE
ASSEMBLY
•Loosen nut "A".
• Insert stake support between engine
bracket halves with stake spring down.
• Bolt stake support to engine brackets
with bolts, lock washers and nuts.
Tighten securely. Tighten nut "A".
• Depth stake must move freely. If it does
not, loosen support bolt.
6

These symbols may appear on your Tiller or in literature supplied with the product. Learn
and understand their meeting.
TFLUNG FORWARD NEUTRAL REVERSE CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL STOp O
OR WARNING ON OFF
KNOW YOUR TILLER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR
TILLER.
Compare the illustrations with your tiller to familiarize with the location of various controls
and adjustments. Save this manual for future reference.
Choke Control
Depth Stake
Tine Shield
Recoil Starter
Handle 0
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards
Institute.
FORWARD TINE CONTROL- Engages
tines in forward direction.
CHOKE CONTROL - Used when starting
acold engine.
THROTTLE CONTROL - Used to control
engine speed.
DEPTH STAKE - Controls forward speed
and the depth at which tiller will dig.
RECOIL STARTER HANDLE -Used to
start the engine.
7

The operation of any tiller can result in foreign objects thrown into the eyes,
which can result in severe eye damage. Always wear safety glasses or eye
shields before starting your tiller and while tilling. We recommend a wide
vision safety mask over spectacles or standard safety glasses.
HOW TO USE YOUR TILLER
Know how to operate all controls before
adding fuel and oil or attempting to start
engine.
STOPPING
TINES
•Release tine control to stop movement.
ENGINE
• Move throttle control to "STOP"
position.
• Never use choke to stop engine.
Forward "FineControl "OFF"
(DOWN) Positiol
,.,Choke
Control
Throttle
Control
TINE OPERATION
•Squeeze tine control to handle.
TILLING
The speed and depth of tilling is regulated
by the position of the depth stake and
wheel height.
The depth stake should always be below
the wheels for digging. It serves as a
brake to slow the tiller's forward motion to
enable the tines to penetrate the ground.
Also, the more the depth stake is lowered
into the ground the deeper the tines will
dig.
DEPTH STAKE
Adjust depth stake by removing the
hairpin clip and clevis pin. Change depth
stake to desired position. Replace the
clevis pin and hairpin clip.
•For normal tilling, set depth stake at the
second or third hole from the top.
WHEELS
Adjust wheels by removing the hairpin
clip and clevis pin. Change wheel
position. Replace the hairpin clip and
clevis pin.
• For normal tilling, set wheels at the
second or third hole from the top.
f._ Hairpin Clip and
"_ C_evisPin
// /_t" Depth Stake
P Y=_'_/ Stake \/_
_p and
Clevis Pin
TO TRANSPORT
CAUTION: Before lifting or transport-
ing, allow tiller engine and muffler to cool.
Disconnect spark plug wire. Drain
gasoline from fuel tank.
AROUND THE YARD
•Tip depth stake forward until it is held by
the stake spring.
•Push tiller handles down, raising tines
off the ground.
•Push or pull tiller to desired location.
AROUND TOWN
•Disconnect spark plug wire.
• Drain fueltank.
• Transport in upright position to prevent
oil leakage.
BEFORE STARTING ENGINE
IMPORTANT: Be very careful not to allow
dirt to enter the engine wher, checking or
adding oil or fuel. Use clean oil and fuel
and store in approved, clean, covered
containers, use clean fill funnels.
FILL ENGINE WITH OIL
• Remove hangtao flrom engine.
• With engine lev,-, remove engine oil
filler plug.
• Fill engine with oil to point of overflow-
ing. For approximate capacity see
"PRODUCT SPECIFICATIONS".
•Tilt tiller back on its wheels and then re-
8level.

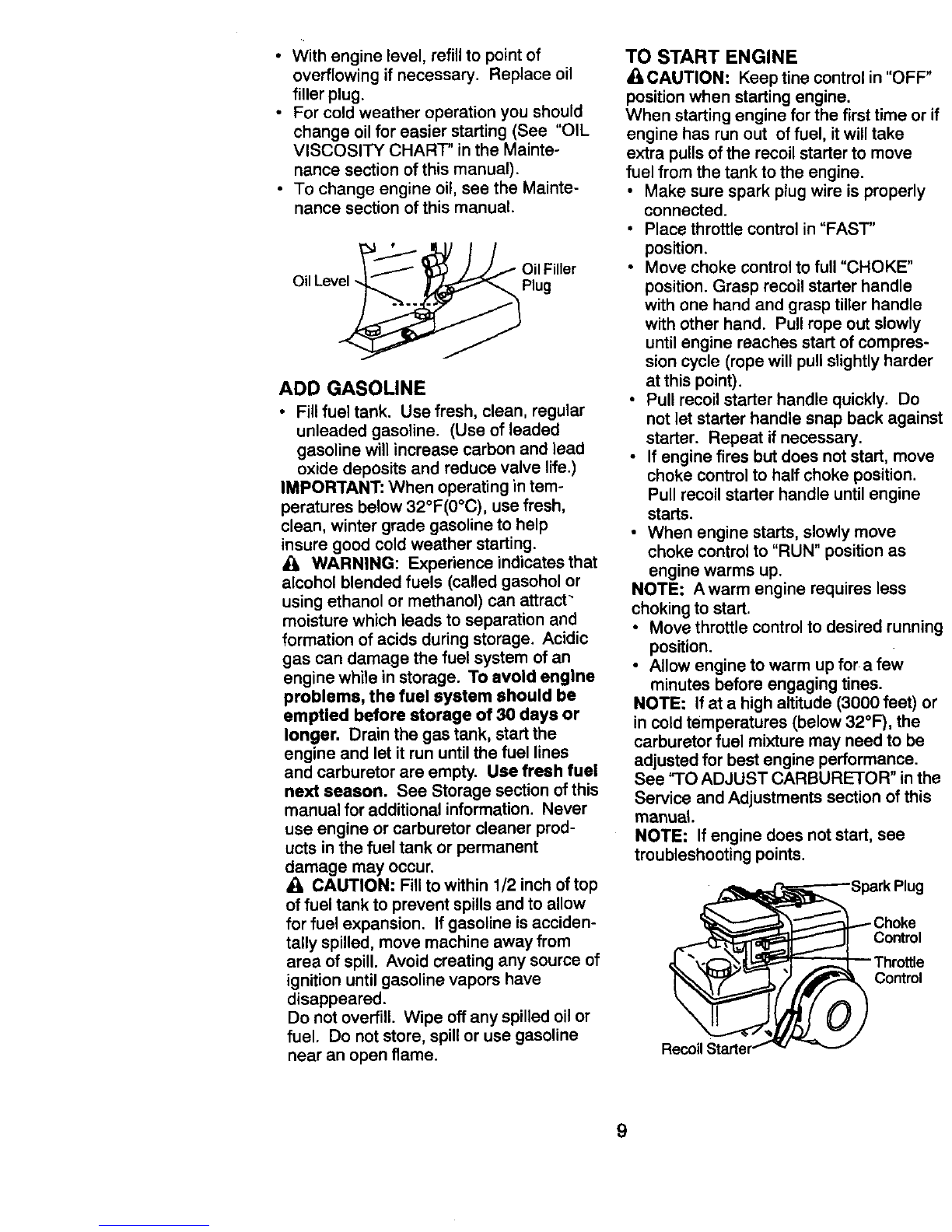

•With engine level, refill to point of
overflowing if necessary. Replace oil
filler plug.
•For cold weather operation you should
change oil for easier starting (See "OIL
VISCOSITY CHART" in the Mainte-
nance section of this manual).
• To change engine oil, see the Mainte-
nance section of this manual.
Oil Filler
Oil Level Plug
ADD GASOLINE
•Fill fuel tank. Use fresh, clean, regular
unleaded gasoline. (Use of leaded
gasoline will increase carbon and lead
oxide deposits and reduce valve life.)
IMPORTANT: When operating in tem-
peratures below 32°F(0°C), use fresh,
clean, winter grade gasoline to help
insure good cold weather starting.
_1= WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract"
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
empUed before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage section of this
manual for additional information. Never
use engine or carburetor cleaner prod-
ucts in the fuel tank or permanent
damage may occur.
_i, CAUTION: Fill to within 1/2 inch of top
of fuel tank to prevent spills and to allow
for fuel expansion. If gasoline is acciden-
tally spilled, move machine away from
area of spill. Avoid creating any source of
ignition until gasoline vapors have
disappeared.
Do not overfill. Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open flame.
TO START ENGINE
_'_CAUTION: Keep tine control in "OFF"
position when starting engine.
When starting engine for the first time or if
engine has run out of fuel, it will take
extra pulls of the recoil starter to move
fuel from the tank to the engine.
•Make sure spark plug wire is properly
connected.
•Place throttle control in "FAST"
position.
•Move choke control to full "CHOKE"
position. Grasp recoil starter handle
with one hand and grasp tiller handle
with other hand. Pull rope out slowly
until engine reaches start of compres-
sion cycle (rope will pull slightly harder
at this point).
•Pull recoil starter handle quickly. Do
not let starter handle snap back against
starter. Repeat if necessary.
• If engine fires but does not start, move
choke control to half choke position.
Pull recoil starter handle until engine
starts.
•When engine starts, slowly move
choke control to "RUN" position as
engine warms up.
NOTE: Awarm engine requires less
choking to start,
•Move throttle control to desired running
position.
• Allow engine to warm up for a few
minutes before engaging tines.
NOTE: If at a high altitude (3000 feet) or
in cold temperatures (below 32°F), the
carburetor fuel mixture may need to be
adjusted for best engine performance.
See 'TO ADJUST CARBURETOR" in the
Service and Adjustments section of this
manual.
NOTE: If engine does not start, see
troubleshooting points.
:_!_Spark Plug
_Choke
__ Control
_'_" _y_JJ_ Throttle
9

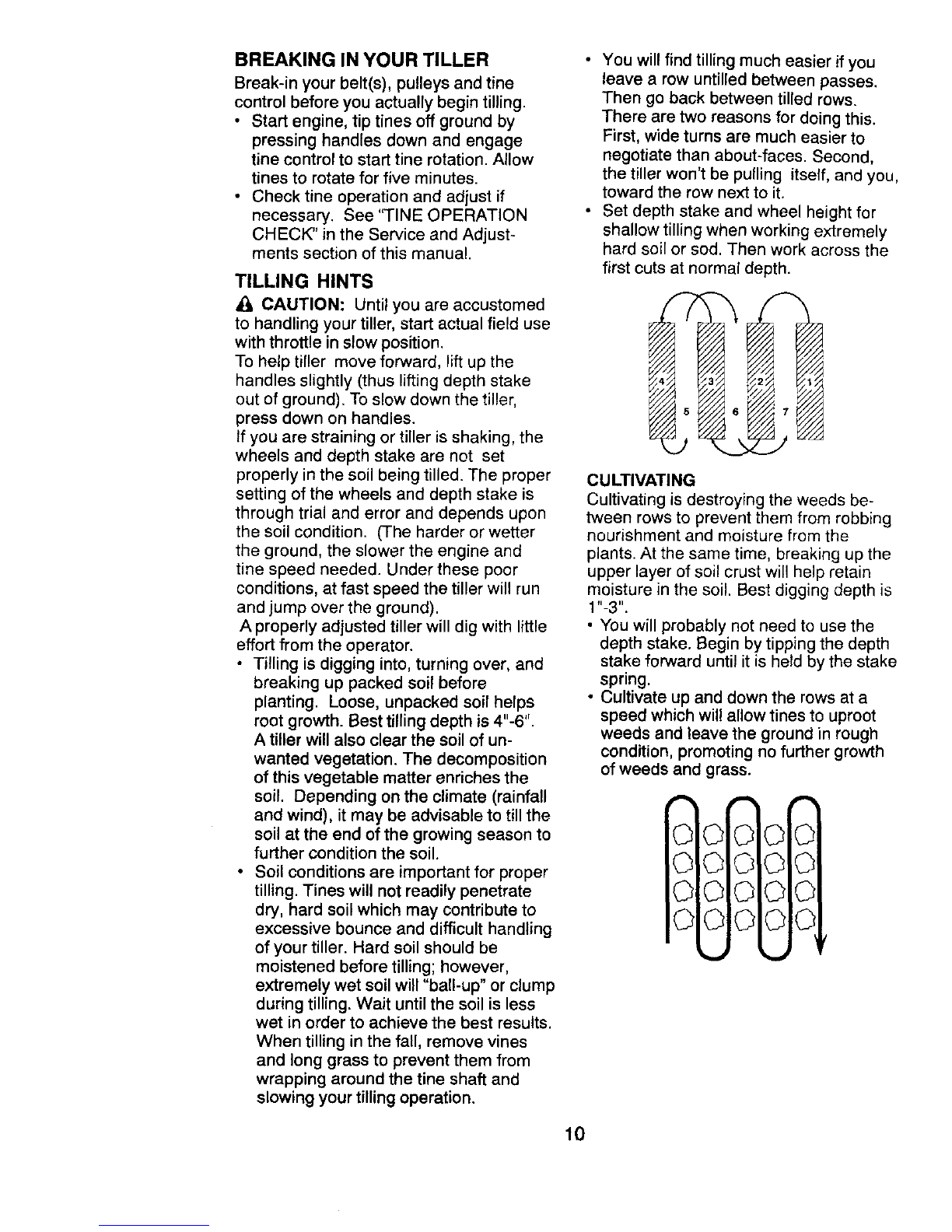

BREAKING IN YOUR TILLER
Break-in your belt(s), pulleys and tine
control before you actually begin tilling.
•Start engine, tip tines off ground by
pressing handles down and engage
tine control to start tine rotation. Allow
tines to rotate for five minutes.
• Check tine operation and adjust if
necessary. See "TINE OPERATION
CHECK" in the Service and Adjust-
ments section of this manual.
TILLING HINTS
_, CAUTION: Until you are accustomed
to handling your tiller, start actual field use
with throttle in slow position.
To help tiller move forward, lift up the
handles slightly (thus lifting depth stake
out of ground). To slow down the tiller,
press down on handles.
If you are straining or tiller is shaking, the
wheels and depth stake are not set
properly in the soil being tilled. The proper
setting of the wheels and depth stake is
through trial and error and depends upon
the soil condition. (The harder or wetter
the ground, the slower the engine and
tine speed needed. Under these poor
conditions, at fast speed the tiller will run
and jump over the ground).
A properly adjusted tiller will dig with little
effort from the operator.
• Tilling is digging into, turning over, and
breaking up packed soil before
planting. Loose, unpacked soil helps
root growth. Best tilling depth is 4"-6".
A tiller will also clear the soil of un-
wanted vegetation. The decomposition
of this vegetable matter enriches the
soil. Depending on the climate (rainfall
and wind), it may be advisable to till the
soil at the end of the growing season to
further condition the soil.
• Soil conditions are important for proper
tilling. Tines will not readily penetrate
dry, hard soil which may contribute to
excessive bounce and difficult handling
of your tiller. Hard soil should be
moistened before tilling; however,
extremely wet soil will "baU-up" or clump
during tilling. Wait until the soil is less
wet in order to achieve the best results.
When tilling in the fall, remove vines
and long grass to prevent them from
wrapping around the tine shaft and
slowing your tilling operation.
• You will find tilling much easier if you
leave a row untilled between passes.
Then go back between tilled rows.
There are two reasons for doing this.
First, wide turns are much easier to
negotiate than about-faces. Second,
the tiller won't be pulling itself, and you,
toward the row next to it.
• Set depth stake and wheel height for
shallow tilling when working extremely
hard soil or sod. Then work across the
first cuts at normal depth.
CULTIVATING
Cultivating is destroying the weeds be-
tween rows to prevent them from robbing
nourishment and moisture from the
plants. At the same time, breaking up the
upper layer of soil crust will help retain
moisture in the soil. Best digging depth is
1"-3".
• You will probably not need to use the
depth stake. Begin by tipping the depth
stake forward until it is held by the stake
spring.
• Cultivate up and down the rows at a
speed which wil! allow tines to uproot
weeds and leave the ground in rough
condition, promoting no further growth
of weeds and grass.
oo, o
O Ol© Oi
O O1© OIO
O OIO OIO
10

MAINTENANCE X/;b
SCHEDULE
F,L.,.° TES
AS YOU COMPLETE SERVICE DATES
SE.V,CE 1<=7 .1
Check Engine Oil Level ¥1 I_
Change Engine Oil _1,2
Oil Pivot Points I_
Inspect Spark Arrester /Muffler I_
Inspect Air Screen I_
Cleanor ReplaceAir Cleaner Cartridge 1_2
Clean Engine Cylinder Fins I_
ReplaceSpark Plug I_i
1-Change more often when operating under a heavy load or in high ambient temperatures.
2-Sen,ice more often when operating in did'i ordusty conditions.
GENERAL RECOMMENDATIONS
The warranty on this tiller does not cover
items that have been subjected to
operator abuse or negligence. To receive
full value from the warranty, the operator
must maintain tiller as instructed in this
manual.
Some adjustments will need to be made
periodically to properly maintain your tiller.
All adjustments in the Service and
Adjustments section of this manual
should be checked at least once each
season.
• Once a year you should replace the
spark plug, clean or replace air filter,
and check tines and belts for wear. A
new spark plug and clean air filter
assure proper air-fuel mixture and help
your engine run better and last longer.
BEFORE EACH USE
• Check engine oil level.
• Check tine operation.
•Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRICA-
TION CHART')
LUBRICATION
*SAE30 or !0W-30 Motor OII
** Refer to Maintenance "ENGINE" Section
11

CAUTION: Disconnect spark plug
wire before performing any maintenance
(except carburetor adjustment) to prevent
accidental starting of engine.
Prevent fires! Keep the engine free of
grass, leaves, spilled oil, or fuel. Remove
fuel from tank before tipping unit for
maintenance. Clean muffler area of all
grass, dirt, and debris.
Do not touch hot muffler or cylinder fins
as contact may cause burns.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with AP/service classification SF, SG or
SH. Select the oil's SAE viscosity grade
according to your expected temperature.
SAE VISCOSITY GRADES
.20' .10. 0' 10"
11EMPERATUR£ RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi-viscosity oils (5W-
30, 10W-30, etc.) improve starting in cold
weather, these multi-viscosity oils will
result in increased oil consumption when
used above 32°F (0°C). Check your
engine oil level more frequently to avoid
)ossible engine damage from running low
on oil.
Change the oil after every 50 hours of
operation or at least once a year if the
tiller is not used for 50 hours in one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of,continuous use. Add SAE 30
motor oil or equivalent. "13ghten oil filler
plug securely each time you check the oil
level.
TO CHANGE ENGINE OIL
Determine temperature range expected
before oil change. All oil must meetAPI
service classification SF, SG or SH.
Be sure tiller is on level surface.
Oil will drain more freely when warm.
Catch oil in a suitable container.
Remove drain plug.
Tip tiller forward to drain oil.
After oil has drained completely,
replace oil drain plug and tighten
securely.
• Remove oil filler plug. Be careful not to
allow dirt to enter the engine.
• Refill engine with oil. See "CHECK
ENGINE OIL LEVEL" in the Operation
section of this manual.
......!Oil Filler Plug Oif Level
AIR CLEANER
Service air cleaner cartridge every
twenty-five hours, more often if engine is
used in very dusty conditions.
• Loosen air cleaner screws, one on
each side of cover.
• Remove air cleaner cover.
• Carefully remove air cleaner cartridge.
Be careful. Do not allow dirt or debris to
fall into carburetor.
• Clean by tapping gently on a flat
surface,
•If very dirty or damaged, replace
cartridge.
• Clean and replace cover. Tighten
screws securely.
_I, CAUTION: Petroleum solvents, such
as kerosene, are not to be used to clean
cartridge. They may cause deterioration
of the cartridge, Do not oil cartridge. Do
not use pressurized air to clean or dry
cartridge.
Air Cleaner _.._..,_<....--_ Cover
Screw_",,,-_m_ _
hJr
Cleaner _b=_"
Cartridg_ __, , ! I_
COOLING SYSTEM
Your engine is air cooled. For proper
engine performance and long life keep
your engine clean.
•Clean air screen frequently using a
stiff-bristled brush.
• Remove blower ',:)using and clean as
necessary.
•Keep cylin<_J fins free of dirt and chaff.
12

Muffler _. Cylinder FinBiower
.oos,no
,_ .'-_\_._._1I""- _' /Air
"_ _1:_/_ ) Screen
MUFFLER
Do not operate tiller without muffler. Do
not tamper with exhaust system. Dam-
aged mufflers or spark arresters could
create a fire hazard. Inspect periodically
and replace if necessary. If your engine is
equipped with a spark arrester screen
assembly, remove every 50 hours for
cleaning and inspection. Replace if
damaged.
SPARK PLUG
Replace spark plugs at the beginning of
each tilling season or after every 50 hours
of use, whichever comes first. Spark plug
type and gap setting are shown in
"PRODUCT SPECIFICATIONS".
TRANSMISSION
Your transmission is sealed and will not
require lubrication unless serviced.
CLEANING
•Clean engine, wheels, finish, etc. of all
foreign matter.
• Keep finished surfaces and wheels free
of all gasoline, oil, etc.
• Protect painted surfaces with automo-
tive type wax.
We do not recommend using a garden
hose to clean your unit unless the muffler,
air filter and carburetor are covered to
keep water out. Water in engine can
result in ashortened engine life.
/I, CAUTION: Disconnect spark plug
wire from spark plug and place wire
where it cannot come into contact with
plug.
TILLER
TO ADJUST HANDLE HEIGHT
Factory assembly has provided lowest
handle height. Select handle height best
suited for your Ulling conditions. Handle
height will be different when tiller digs into
soil.
•If a higher handle height is desired,
loosen the four nuts securing handle
panel to engine brackets.
•Slide handle panel to desired location.
• Tighten the four nuts securely.
ne Brackets
(Also 2
on left side
oftiller)
TINE ARRANGEMENT
Your outer tines can be assembled in
several different ways to suit your tilling or
cultivating needs.
CAUTION: "13nes are sharp. Wear
gloves or other protection whe n handling
tines.
NORMAL TILLING -24" PATH
•Assemble holes "A" in tine hubs to
holes "B" in tine shaft,
_'Clevis Pin OuterTine_
HairpinClip Inner "nne
MID-WIDTH TILLING -22" PATH
•Assemble holes "A" in tine hubs to
holes "C" in tine shaft.
13

NARROW TILLING/CULTIVATING - 12-
3/4" PATH
•Remove outer tines.
NOTE: When reassembling outer tines,
be sure right tine assembly (marked "R")
and left tine assembly (marked "L") are
mounted to correct side of tine shaft.
TINE OPERATION CHECK
CAUTION: Disconnect spark plug
wire from spark plug to prevent starting
while checking tine operation.
For proper tine operation, tine control
lever must be against control body and all
slack removed from inner wire of control
cable when control is in the "OFF" (up)
position.
If lever and cable are loose, loosen cable
clip at lower end of cable. Pull up on
cable to remove slack, without extending
spring on end of cable, and retighten
cable clip.
FINAL CHECK "OFF" POSITION
• With tine control "OFF" (up), push down
on handle to raise tines off the ground.
•Slowly pull recoil starter handle while
observing tines. Tines should not
rotate.
•If tines rotate, inner wire of control
cable is too tight which is extending
lower spring and engaging tines.
Loosen cable clip and push down on
cable only enough to relieve spring
tension. Tighten cable clip.
•Recheck in "OFF" position and adjust if
necessary.
FINAL CHECK "ON" POSITION
•With tine control "ON" (held down to
handle) push down on handle to raise
tines off the ground.
•Slowly pull recoil starter handle while
observing tines. Tines should rotate
forward.
If tines do not rotate, inner wire of
control cable is too loose. Loosen
cable clip and pull cable up to remove
slack and retighten clip.
•Recheck in "ON" position and adjust if
necessary.
NOTE: If "ON" position check required
adjustment, recheck "OFF" position
adjustment to insure tines do not rotate
when control is "OFF" (up).
"l]ne Control "OFF" Position
_ne Control Cable
C '_ _'
able Clip ,
:3J!l
TO REMOVE BELT GUARD
• Remove cap nut and washer from side
of belt guard.
• Loosen (do not remove) tine shield nut
on underside of tine shield and cap nut
on top of belt guard.
• Pull belt guard out and away from unit.
• Replace belt guard by reversing above
procedure. Be sure slot in bottom of
belt guard is under head of tine shield
bolt and all nuts are tightened securely.
BeltGuard
TO REPLACE V-BELT
Replace V-belt if it has stretched consid-
erably or if it has cracks or frayed edges,
Belt guard must be removed to service
belt. See "TO REMOVE BELT GUARD"
in this section of manual.
BELT REMOVAL
• Remove V-belt from transmission
pulley first and then from engine pulley.
14

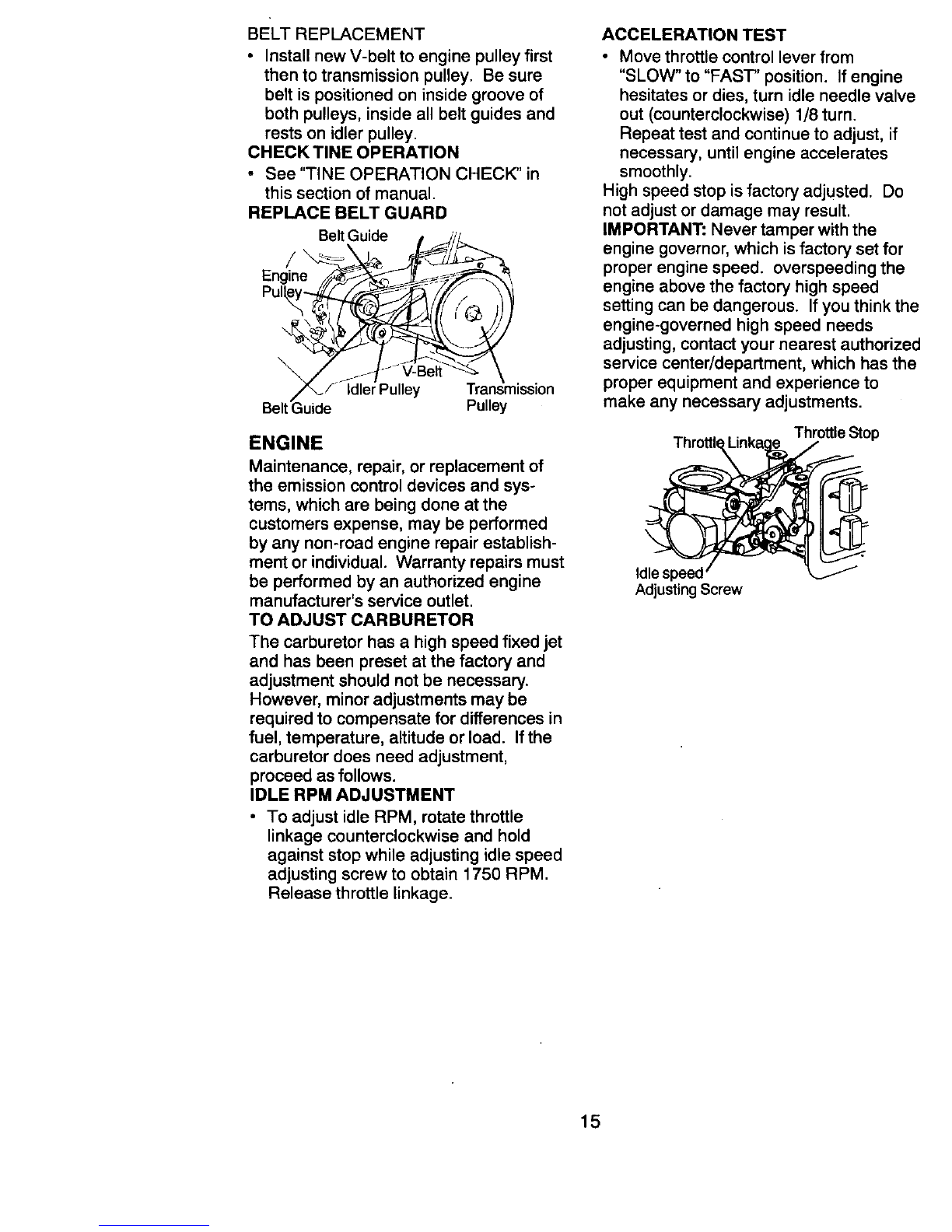

BELT REPLACEMENT
• Install new V-belt to engine pulley first
then to transmission pulley. Be sure
belt is positioned on inside groove of
both pulleys, inside all belt guides and
rests on idler pulley.
CHECK TINE OPERATION
• See "TINE OPERATION CHECK" in
this section of manual.
REPLACE BELT GUARD
Belt Guide
Engine
\Idler Pulley Transmission
Pulley
ENGINE
Maintenance, repair, or replacement of
the emission control devices and sys-
tems, which are being done atthe
customers expense, may be performed
by any non-road engine repair establish-
ment or individual. Warranty repairs must
be performed by an authorized engine
manufacturer's service outlet.
TO ADJUST CARBURETOR
The carburetor has ahigh speed fixed jet
and has been preset at the factory and
adjustment should not be necessary.
However, minor adjustments may be
required to compensate for differences in
fuel, temperature, altitude or load. If the
carburetor does need adjustment,
proceed as follows.
IDLE RPM ADJUSTMENT
•To adjust idle RPM, rotate throttle
linkage counterclockwise and hold
against stop while adjusting idle speed
adjusting screw to obtain 1750 RPM.
Release throttle linkage.
ACCELERATION TEST
•Move throttle control lever from
"SLOW" to "FAST' position. If engine
hesitates or dies, turn idle needle valve
out (counterclockwise) 1/8 turn.
Repeat test and continue to adjust, if
necessary, until engine accelerates
smoothly.
High speed stop is factory adjusted. Do
not adjust or damage may result.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed, overspeeding the
engine above the factory high speed
setting can be dangerous. If you think the
engine-governed high speed needs
adjusting, contact your nearest authorized
service center/department, which has the
proper equipment and experience to
make any necessary adjustments.
Throttle ThrottleStop
Idlespeed
AdjustingScrew
15

Immediately prepare your tiller for storage
at the end of the season or if the unit will
not be used for 30 days or more.
_1, CAUTION: Never store the tiller with
gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
TILLER
•Clean entire tiller (See "CLEANING" in
the Maintenance section of this
manual).
• Inspect and replace belts, if necessary
(See belt replacement instructions in
the Service and Adjustments section of
this manual).
• Lubricate as shown in the Maintenance
section of this manual.
•Be sure that all nuts, bolts and screws
are securely fastened. Inspect moving
parts for damage, breakage and wear.
Replace if necessary.
• Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
ENGINE
FUELSYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as the carburetor,
fuel filter, fuel hose, or tank during
storage, also, experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage.
• Drain the fuel tank.
• Start the engine and let it run until the
fuel lines and carburetor are empty.
°Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
•Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at !east 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean oil. (See "ENGINE" in the
Maintenance section of this manual).
CYLINDER
• Remove spark plug.
• Pour 1 ounce (29 ml) of oil through
spark plug hole into cylinder.
• Pull starter handle slowly several times
to distribute oil.
• Replace with new spark plug.
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust, Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and
dirt.
• Cover your unit with a suitable protec-
tive cover that does not retain moisture.
Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover tiller while
engine and exhaust areas are still warm.
16

PROBLEM CAUSE
Will not start 1. Out offuel,
Hard to start
Loss of power
2. Engine not"CHOKED"
3. Engine flooded.
4. Dirty air cleaner.
5. Water in fuel.
6. Clogged fuel tank.
7. Loose spark plug wire.
8. Bad spark plug or
improper gap.
9. Carburetor out of adjust-
ment.
1. Throttle control not set
properly.
2. Dirty air cleaner.
3. Bad spark plug or
improper gap.
4. Stale or dirty fuel.
5. Loose spark plug wire.
6. Carburetor out of
adjustment.
1. Engine is overloaded.
2. Dirty air cleaner.
3. Low oil level/dirty oil,
4. Faulty spark plug.
5. Oil in fuel.
6. Stale or dirty fuel.
7. Water in fuel.
8. Clogged fuel tank.
9. Spark plug wire loose.
10. Dirty engine air screen.
CORRECTION
1. Fill fuel tank.
2. See "TO START ENGINE" in
the Operation section.
3. Wait several minutes before
attempting to start.
4. Clean or replace air cleaner
cartridge.
5. Drain fue! tank and carbure-
tor, and refill tank with fresh
gasoline.
6. Remove fuel tank and clean.
7. Make sure spark plug wire is
seated properly on plug.
8. Replace spark plug or adjusl
gap.
9. Make necessary adjust-
ments.
1. Place throttle control in
"FAST' position.
2. Clean or replace air cleaner
cartridge.
3. Replace spark plug or adjus
gap.
4. Drain fuel tank and refill
with fresh gasoline.
5. Make sure spark plug wire i_
seated properly on plug.
6. Make necessary adjust-
ments.
1. Set depth stake and wheels
for shallower tilling.
2. Clean or replace air cleaner
cartridge.
3. Check oil level/change oil.
4. Clean and regap or change
spark plug.
5. Drain and clean fuel tank
and refill, and clean carbure
tor.
6. Drain fuel tank and refill witl
fresh gasoline.
7. Drain fuel tank and carbure-
tor, and refill tank with fresh
gasoline.
8. Remove fuel tank and clean
9. Connect and tighten spark
plug wire.
10. Clean engine air screen.
17

PROBLEM
Loss of power
Engine overheats
Excessive
bounce/difficult
handling
Soil balls up or
clumps
Engine runs but
tiller won't move
Engine runs but
labors when tilling
CAUSE
i i
11.
12.
13,
Dirty/clogged muffler.
Carburetor out of
adjustment.
Poor compression.
i
Low oil level/dirty oil.
Dirty engine air screen.
Dirty engine.
Partially plugged muffler.
improper carburetor
adjustment.
Ground too dry and hard.
Wheels and depth stake
incorrectly adjusted.
Ground too wet.
.
2.
3.
4.
5.
1.
2,
1,
1. -I]ne control is not
engaged,
2. V-belt not correctly
adjusted.
3. V-belt is off pulley(s).
1. 1311ingtoo deep.
2. Throttle control not
properly adjusted.
3. Carburetor out of
adjustment.
CORRECTION
11. Clean/replace muffler.
12. Make necessary adjust-
ments.
13, Contact an authorized
Sears Service Center/
Department.
1. Check oil level/change oil.
2. Clean engine air screen.
3. Clean cylinder fins, air
screen, muffler area.
4. Remove and clean muffler.
5. Adjust carburetor to richer
position.
1. Moisten ground or wait
for more favorable soil
conditions.
2. Adjust wheels and depth
stake.
1. Wait for more favorable
soil conditions.
1. Engage tine control,
2. Inspect/adjust V-belt.
3. Inspect V-belt.
1. Set depth stake for shal-
lower tilling.
2. Check throttle control setting.
3. Make necessary adjust-
ments.
!8

HANDLES TILLER --MODEL NUMBER 917.292391
1
35 38
35 36
KEY PART
NO. NO. DESCRIPTION
I 137118 Panel,Control
3 9266R Grip, Handle
12 98000129 Nut,Range
13 STD533107 Bolt,Cardnge 5/16-18x3/4
14 110514X Assembly, Panel and Tube
t8 3066J Cable, Tine Control
19 151229 Lever, Control,Tine
20 154805 Pin, Pivot
21 12000027 Ring,Clip
3
/ /
KEY PART
NO. NO. DESCRIPTION
29 12000059
35 72010520
36 73970500
37 165197
38 152094
Retainer, Ring
Bolt5/16-18 x 2-1/2
Locknut,Flange 5/16-18 UNC
Clip,Cable
Assembly, HandleColumn
NOTE: All component dimensionsgivenin U.S.
Inches. 1Inch = 25.4 mm
36

TILLER -- MODEL NUMBER 917.292391
BELT GUARD AND PULLEY ASSEMBLY
KEY PART
NO. NO.
1 23230506
2130812
3 17211006
4 74610812
5 17490440
6 165770
7165503
8 139155
9 165768)(558
10 1O9227)(
DESCRIPTION
ScrewSat 5/16-18 x 3/8
Patch
Sheave, Engine
Screw, Tap Hex Head
Bolt,Hex Head 1/2-20 x3/4
Bolt, Thd Roller
1/4-20x2-1/2
Shield, InnerBeltGuard
Screw HexWsh Hd
#8-18 x 1/2
SpacerSplit
.327 x .718 x2.0
Guard, Belt
Pad, Idler
KEY PART
NO. NO. DESCRIPTION
11 9484R Clip, Cable
12 9t80R V-Belt
13 12000028 Ring, Retainer
14 151223 Sheave, Transmisison
15 165504 NutJ Clip #8
16 120(_036 Ring, K]ip
17 STD541237 Nut, Hex, Jam 3/8-16
t8 161806 Pulley,Idler
19 162290 Arm, Idler
20 STD523712 Bolt,Hex Head
3/8-16 x 1-1/'4
21 106968X Shaft, IdlerArm
25 73350500 Nut, Hex, Jam 5/16-18
NOTE: All component dimensionsgiven inU.S.
inches. 1inch =25.4 mm
37
