Craftsman CMCPW350 User manual

final page size: 8.5 x 5.5 in
IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.
POUR TOUTE QUESTION OU TOUT COMMENTAIRE, NOUS CONTACTER.
SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.
1-888-331-4569 WWW.CRAFTSMAN.COM
CMCPW350
INSTRUCTION MANUAL GUIDE D’UTILISATION MANUAL DE INSTRUCTIONES
V20 Power Cleaner
Laveuse à pression V20
Lavadora a Presión V20

English (original instructions) 5
Français (traduction de la notice d’instructions originale) 15
Español (traducido de las instrucciones originales) 26

1
Fig. A CMCPW350
Components
1 Main handle
2 Power cleaner unit
3 Water intake
4 Trigger lock
5 Battery port cover
6 On/Off trigger
7 Quick connect filter
8 Pressure spray wand
9 Quick connect collar
10 Multi‑spray nozzle
11 Soap bottle
12 Suction hose
13 Quick connect hose connector
14 Float ball
15 Garden hose adapter
16 Short watering wand
Composants
1 Poignée principale
2 Laveuse à pression
3 Arrivée d’eau
4 Verrou de la gâchette
5 Capot du logement des blocs‑piles
6 Gâchette
7 Filtre à raccord rapide
8 Lance d’arrosage à pression
9 Collier de raccord rapide
10 Buse d’arrosage à jet multiple
11 Bouteille de savon
12 Boyau d’aspiration
13 Raccord du boyau à raccord rapide
14 Flotteur
15 Adaptateur de boyau de jardin
16 Lance d’arrosage courte
Componentes
1 Manija principal
2 Unidad de lavadora a presión
3 Entrada de agua
4 Bloqueo de gatillo
5 Cubierta de puerto de batería
6 Gatillo ON/OFF (Encendido/
Apagado)
7 Filtro de conexión rápida
8 Varilla de rocío a presión
9 Collar de conexión rápida
10 Boquilla de rocío múltiple
11 Botella de jabón
12 Manguera de succión
13 Conector de manguera de
conexión rápida
14 Bola de flotador
15 Adaptador de manguera de jardín
16 Varilla de riego corta
1
2
3
4
5
6
7
10
8
14
12
9
11
15
16
13

2
Fig.B Fig.C
Fig.D Fig.E
Fig.F
3
7
2
8
2
7
15
11
75–100% charged
Chargé de 75 à 100 %
75–100% cargada
51–74% charged
Chargé de 51 à 74 %
51–74% cargada
< 50% charged
Chargé de < 50 %
< 50% cargada
Pack needs to be charged
Le bloc‑piles doit être rechargé
La batería tiene que cargarse
Indicators
Charging
Bloc‑piles en Cours
de Chargement
Unidad en Proceso de Carga
Fully Charged
Bloc‑piles Chargé
Unidad Cargada
Hot/Cold Pack Delay
Suspension de Charge Contre
le Chaud/Froid
Restraso por Unidad Caliente/
Fría

3
Fig.H
Fig.G
Fig.I Fig.J
Fig.K Fig.L
18
17
19
4
6
12
9
10
2
1
20
14
7
13
8
5

4
Fig.N
Fig.O
12
20
3
7
21
Fig.M
22
23

5
ENGLISH
2) Electrical Safety
a ) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed orgrounded.
b ) Do not expose pressure washers to rain or wet
conditions. Water entering a pressure washer will
increase the risk of electricshock.
3) Personal Safety
a ) Stay alert, watch what you are doing and use
common sense when operating a pressure
washer. Do not use a pressure washer while
you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention
while operating pressure washers may result in serious
personalinjury.
b ) Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non‑skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personalinjuries.
c ) Prevent unintentional starting. Ensure the switch
is in the off‑position before connecting to the
battery pack, picking up or carrying the tool.
Carrying pressure washers with your finger on the
switch or energizing pressure washers that have the
switch on invitesaccidents.
d ) Do not overreach. Keep proper footing and
balance at all times. This enables better control of the
pressure washer in unexpectedsituations.
e ) Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in movingparts.
f ) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of asecond.
4) Pressure Washer Use and Care
a ) Do not use the pressure washer if the switch does
not turn it on and off. Any pressure washer that
cannot be controlled with the switch is dangerous and
must berepaired.
b ) Remove the battery pack from the pressure
washer before making any adjustments,
changing accessories, or storing pressure
washers. Such preventive safety measures reduce the
risk of starting the pressure washeraccidentally.
c ) Store idle pressure washers out of the reach of
children and do not allow persons unfamiliar
with the pressure washer or these instructions to
operate the pressure washer. Pressure washers are
dangerous in the hands of untrainedusers.
d ) Maintain pressure washers and accessories.
Check for misalignment or binding of moving
parts, breakage of parts and any other condition
that may affect the pressure washer’s operation.
If damaged, have the pressure washer repaired
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with this
pressure washer. Failure to follow all instructions
listed below may result in electric shock, fire and/or
seriousinjury.
SAVE ALL WARNINGS
AND INSTRUCTIONS FOR
FUTUREREFERENCE.
The term “power tool” in the warnings refers to your
battery‑operated (cordless) powertool.
1) Work Area Safety
a ) Keep work area clean and well lit. Cluttered or dark
areas inviteaccidents.
b ) Do not operate pressure washers in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Pressure washers
create sparks which may ignite the dust orfumes.
c ) Keep children and bystanders away while
operating a pressure washer. Distractions can cause
you to losecontrol.
Definitions: Safety Alert Symbols andWords
This instruction manual uses the following safety alert
symbols and words to alert you to hazardous situations and
your risk of personal injury or propertydamage.
DANGER: Indicates an imminently hazardous
situation which, if not avoided, will result in death or
seriousinjury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or
seriousinjury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderateinjury.
(Used without word) Indicates a safety relatedmessage.
NOTICE: Indicates a practice not related to
personal injury which, if not avoided, may result in
propertydamage.
Intended Use
This power cleaner is intended for cleaning boats, cars, decks,
driveways, grills, house siding, motorcycles, patios, and
outdoorfurniture.
DO NOT use under wet conditions or in presence of flammable
liquids orgases.
DO NOT let children come into contact with the tool. Supervision
is required when inexperienced operators use thistool.
English (original instructions)
WARNING: Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
seriousinjury.
WARNING: To reduce the risk of injury, read the
instructionmanual.

ENGLISH
6
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
When using this appliance, basic safety
precautions should always be followed including
thefollowing:
• Read all the instructions before using theproduct.
• To reduce the risk of injury, close supervision is
necessary when a product is used nearchildren.
• Know how to stop the product and bleed
pressures quickly. Be thoroughly familiar with
thecontrols.
• Stay alert – watch what you aredoing.
• Do not operate the product when fatigued or under
the influence of alcohol ordrugs.
• Keep operating area clear of allpersons.
• Do not overreach or stand on unstable support.
Keep good footing and balance at alltimes.
• Follow the maintenance instructions specified in
themanual.
WARNING: Risk of Injection or Injury– Do Not Direct
Discharge Stream AtPersons.

WARNING: Risk of Injection or Severe Injury – Keep
Clear of Nozzle – Do Not Direct Discharge Stream
at Persons – This Product Is To Be Used Only By
TrainedOperators.
SAVE THESE INSTRUCTIONS
WARNING: Read this entire manual before attempting
to assemble, operate or install the product.
WARNING: This unit was designed for specific
applications. It should not be modified and/or used for
any application other than that which it was designed.
NOTICE: Always store your pressure washer in
a location where the temperature will not fall
below40°F(4°C). freeze damage is not covered by the
warranty.
1 . Avoid accidental starts. Move switch on unit to OFF
position before connecting or disconnecting batterypack.
2 . Water spray must never be directed towards any electric
wiring or fatal electric shock mayoccur.
3 . The narrow pin point stream is very powerful. It is not
recommended for use on painted surfaces, wood surfaces
or items attached with an adhesivebacking.
4 . Keep operating area clear of all persons andanimals.
5 . Always use both hands when operating pressure washer to
maintain complete control of thewand.
6 . Do not touch nozzle or water spray while operating.
Never place hands in front ofnozzle.
7. Wear safety goggles while operating. Wear
protective clothing and footwear to protect against
accidentalspraying.
8 . Disconnect battery pack when not in use and prior to the
detaching of the high pressurehose.
9 . Do not operate or store this product in temperatures
below 40°F(4°C). Freeze damage is not covered by
thewarranty.
before use. Many accidents are caused by poorly
maintained pressurewasher.
e ) Use the pressure washer, accessories and tool bits
etc. in accordance with these instructions, taking
into account the working conditions and the
work to be performed. Use of the pressure washer for
operations different from those intended could result in
a hazardoussituation.
f ) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpectedsituations.
5) Battery Tool Use and Care
a ) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another batterypack.
b ) Use pressure washers only with specifically
designated battery packs. Use of any other battery
packs may create a risk of injury andfire.
c ) When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together may
cause burns or afire.
d ) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
orburns.
e ) Do not use a battery pack or tool that is damaged
or modified. Damaged or modified batteries may
exhibit unpredictable behavior resulting in fire,
explosion or risk ofinjury.
f ) Do not expose a battery pack or tool to
fire or excessive temperature. Exposure to
fire or temperature above 265°F (130°C) may
causeexplosion.
g ) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instructions.
Charging improperly or at temperatures outside the
specified range may damage the battery and increase
the risk offire.
6) Service
a ) Have your pressure washer serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the pressure
washer ismaintained.
b ) Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized serviceproviders.

7
ENGLISH
READ ALL INSTRUCTIONS
Important Safety Instructions for All
Battery Packs
WARNING: Read all safety warnings, instructions,
and cautionary markings for the battery pack,
charger and product. Failure to follow the
warnings and instructions may result in electric
shock, fire and/or seriousinjury.
• Do not charge or use the battery pack in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Inserting or removing the battery
pack from the charger may ignite the dust orfumes.
• NEVER force the battery pack into the charger. DO
NOT modify the battery pack in any way to fit into a
non‑compatible charger as battery pack may rupture
causing serious personal injury. Consult the chart
at the end of this manual for compatibility of batteries
andchargers.
• Charge the battery packs only in
CRAFTSMANchargers.
• DO NOT splash or immerse in water or otherliquids.
• DO NOT allow water or any liquid to enter batterypack.
• Do not store or use the tool and battery pack in
locations where the temperature may reach or
exceed 104°F (40°C) (such as outside sheds or metal
buildings in summer). For best life store battery packs in
a cool, drylocation.
BATTERIES AND CHARGERS
The battery pack is not fully charged out of the carton.
Before using the battery pack and charger, read the
safety instructions below and then follow charging
proceduresoutlined. When ordering replacement battery
packs, be sure to include the catalog number andvoltage.
The label on your tool may include the following symbols. The
symbols and their definitions are asfollows:
BPM.................... beats per minute
V.........................volts
min.....................minutes
jor DC............direct current
…/min.............. per minute
RPM.................... revolutions per
minute
A.........................amperes
Hz .......................hertz
W........................watts
Wh...................... watt hours
no.......................no load speed
n.........................rated speed
c.....................safety alert symbol
h.....................wear respiratory
protection
f.....................wear eye protection
i.....................Class II Construction
(double insulated)
g.....................wear hearing
protection
a.....................read all
documentation
n.....................avoid staring at
light
lor AC............alternating current
Ah....................... amp hours
battery pack will stand upright but may be easily
knockedover.
• Air vents often cover moving parts and should be
avoided. Loose clothes, jewelry or long hair can be caught
in movingparts.
Additional Safety Information
WARNING: Never modify the power tool or any part of
it. Damage or personal injury couldresult.
WARNING: ALWAYS use safety glasses. Everyday
eyeglasses are NOT safety glasses. Also use face or dust
mask if operation is dusty. ALWAYS WEAR CERTIFIED
SAFETYEQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratoryprotection.
WARNING: Some dust contains chemicals known
to State of California to cause cancer, birth defects
or other reproductive harm. Some examples of these
chemicals are:
• compounds in fertilizers,
• compounds in insecticides, herbicides
andpesticides,
• arsenic and chromium from chemically
treatedlumber.
To reduce your exposure to these chemicals, wear
approved safety equipment such as dust masks that
are specially designed to filter out microscopicparticles.
WARNING: Use of this tool can generate and/or
disperse dust, which may cause serious and permanent
respiratory or other injury. Always use NIOSH/OSHA
approved respiratory protection appropriate for
the dust exposure. Direct particles away from face
andbody.
WARNING: Always wear proper personal hearing
protection that conforms to ANSI S12.6 (S3.19)
during use. Under some conditions and duration
of use, noise from this product may contribute to
hearingloss.
CAUTION: When not in use, place tool on its
side on a stable surface where it will not cause a
tripping or falling hazard. Some tools with a large
10.Carefully observe all chemical instructions and
warnings before using. Use only approved pressure
washer cleaners. Do not use bleach, chlorine,
or any cleaners containing acids. Always follow
manufacturer’s label recommendations for proper
use of cleaners. Always protect eyes, skin and respiratory
system fromcleaners.
11 . The pressure washer should not be used in areas
where gas vapors may be present. An electric spark
could cause an explosion orfire.
12 . To prevent accidental discharge, the spray gun should be
secured by locking the trigger when not inuse.
13 . Use only hoses and accessories rated for pressure
higher than your pressure washer’s psi. Never use with
any other manufacturer’s accessories orcomponents.
14 . Never defeat the safety features of thisproduct.
15 . Do not operate machine with missing, broken or
unauthorisedparts.
16 . Never spray flammable liquids or use pressure washer in
areas containing combustible dust, liquid, orvapors.

ENGLISH
8
Important Safety Instructions for All
Battery Chargers
WARNING: Read all safety warnings, instructions,
and cautionary markings for the battery pack,
charger and product. Failure to follow the
warnings and instructions may result in electric
shock, fire and/or seriousinjury.
• DO NOT attempt to charge the battery pack with
any chargers other than a CRAFTSMAN charger.
CRAFTSMAN chargers and battery packs are specifically
designed to worktogether.
• These chargers are not intended for any uses other
than charging CRAFTSMAN rechargeable battery
packs. Charging other types of battery packs may cause
them to overheat and burst, resulting in personal injury,
property damage, fire, electric shock orelectrocution.
• Do not expose the charger to rain orsnow.
• Do not allow water or any liquid to entercharger.
• Pull by the plug rather than the cord when
disconnecting the charger. This will reduce the risk of
damage to the electric plug andcord.
• Make sure that the cord is located so that it will not
be stepped on, tripped over or otherwise subjected to
damage orstress.
• Do not use an extension cord unless it is absolutely
necessary. Use of improper extension cord could result in
risk of fire, electric shock orelectrocution.
• When operating a charger outdoors, always provide
a dry location and use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electricshock.
• An extension cord must have adequate wire size
(AWG or American Wire Gauge) for safety. The smaller
the gauge number of the wire, the heavier the cord and
thus the greater its capacity. An undersized cord will
cause a drop in line voltage resulting in loss of power and
overheating. The following table shows the correct size
to use depending on total length of all extension cords

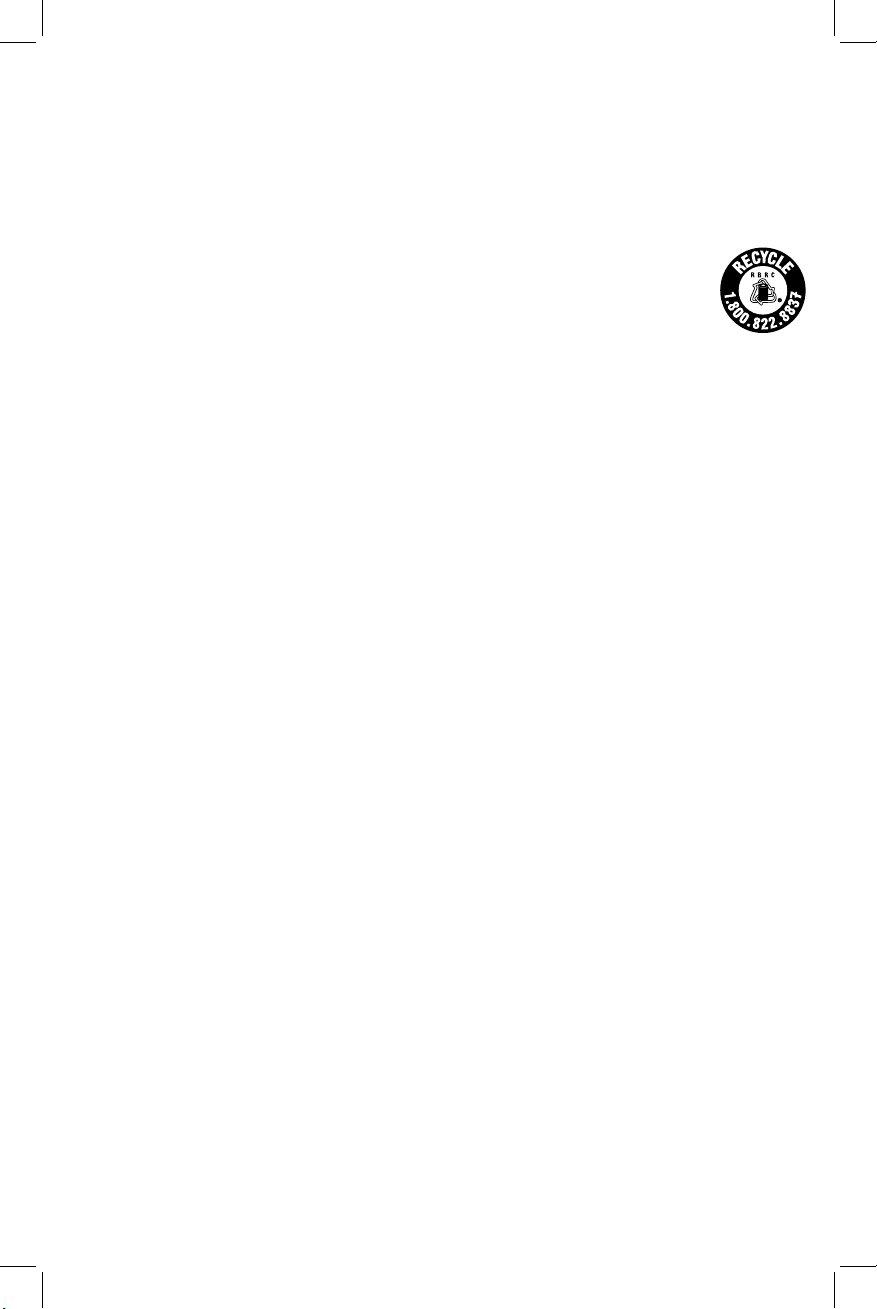

The RBRC® Seal
Please take your spent battery packs to an
authorized service center or to your local
retailer for recycling. In some areas, it is
illegal to place spent battery packs in the
trash. You may also contact your local recycling center for
information on where to drop off the spent battery pack. Do
not place in curbside recycling. For more information visit
www.call2recycle.org. or call the toll free number in the
RBRC®Seal.
RBRC® is a registered trademark of Call 2Recycle,Inc.
with loose nails, screws, keys, coins, hand tools, etc.
When transporting individual battery packs, make
sure that the battery terminals are protected and well
insulated from materials that could contact them and
cause a short circuit. NOTE: Li‑ion battery packs should
not be put in checked baggage on airplanes and must
be properly protected from short circuits if they are in
carry‑onbaggage.
NOTE: Do not store the battery packs in a tool with
the trigger switch locked on. Never tape the trigger
switch in the ONposition.
• Do not incinerate the battery pack even if it is severely
damaged or is completely worn out. The battery pack
can explode in a fire. Toxic fumes and materials are created
when lithium‑ion battery packs areburned.
• Do not expose a battery pack or appliance to fire or
excessive temperature. Exposure to fire or temperature
above 265°F (130°C) may causeexplosion.
• Follow all charging instructions and do not charge the
battery pack or appliance outside of the temperature
range specified in the instructions. Charging improperly
or at temperatures outside of the specified range may
damage the battery and increase the risk offire.
• If battery contents come into contact with the skin,
immediately wash area with mild soap and water. If
battery liquid gets into the eye, rinse water over the open
eye for 15minutes or until irritation ceases. If medical
attention is needed, the battery electrolyte is composed of a
mixture of liquid organic carbonates and lithiumsalts.
• Contents of opened battery cells may cause
respiratory irritation. Provide fresh air. If symptoms
persist, seek medicalattention.
• Battery liquid may be flammable if exposed to spark
orflame.
• Never attempt to open the battery pack for any
reason. If the battery pack case is cracked or
damaged, do not insert into the charger. Do not crush,
drop or damage the battery pack. Do not use a battery pack
or charger that has received a sharp blow, been dropped,
run over or damaged in any way (e.g., pierced with a nail,
hit with a hammer, stepped on). Damaged battery packs
should be returned to the service center forrecycling.
Storage Recommendations
The best storage place is one that is cool and dry, away
from direct sunlight and excess heat or cold. Store the fully
charged battery pack out of thecharger.
Battery Pack Cleaning Instructions
Dirt and grease may be removed from the exterior of the
battery pack using a cloth or soft non‑metallic brush. Do not
use water or any cleaningsolutions.
Fuel Gauge Battery Packs (Fig.B)
Some battery packs include a fuel gauge. When the
fuel gauge button is pressed and held, the LED lights
will indicate the approximate level of charge remaining.
This does not indicate tool functionality and is subject to
variation based on product components, temperature, and
end‑userapplication.
Transportation
WARNING: Fire hazard. Do not store, carry, or
transport the battery pack so that metal objects
can contact exposed battery terminals. For
example, do not place the battery pack in aprons,
pockets, tool boxes, product kit boxes, drawers, etc.,

9
ENGLISH
Wall Mounting
Some CRAFTSMAN chargers are designed to be wall
mountable or to sit upright on a table or work surface. If wall
mounting, locate the charger within reach of an electrical
outlet, and away from a corner or other obstructions which
may impede air flow. Use the back of the charger as a
template for the location of the mounting screws on the wall.
Mount the charger securely using drywall screws (purchased
separately) at least 1”(25.4mm) long, with a screw head
diameter of 0.28–0.35”(7–9mm), screwed into wood to an
optimal depth leaving approximately 7/32”(5.5 mm) of the
screw exposed. Align the slots on the back of the charger
with the exposed screws and fully engage them in theslots.
suspending charging until the battery pack has reached an
appropriate temperature. The charger then automatically
switches to the pack charging mode. This feature ensures
maximum battery packlife.
A cold battery pack may charge at a slower rate than a warm
batterypack.
The hot/cold pack delay will be indicated by the green light
continuing to blink but with the red light continuously
ON. Once the battery pack has reached an appropriate
temperature, the red light will turn OFF and the charger will
resume the chargingprocedure.
Electronic Protection System
Li‑Ion tools are designed with an Electronic Protection
System that will protect the battery pack against overloading,
overheating or deep discharge. The tool will automatically
turn off and the battery pack will need to berecharged.
Important Charging Notes
1. The charger and battery pack may become warm to the
touch while charging. This is a normal condition, and
does not indicate a problem.To facilitate the cooling of
the battery pack after use, avoid placing the charger or
battery pack in a warm environment such as in a metal
shed or an uninsulatedtrailer.
2. If the battery pack does not charge properly:
a. Check operation of receptacle by plugging in a lamp
or other appliance;
b. Check to see if receptacle is connected to a light
switch which turns power off when you turn out
the lights;
c. If charging problems persist, take the tool, battery
pack and charger to your local servicecenter.
3. You may charge a partially used pack whenever you
desire with no adverse effect on the batterypack.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger
from the AC outlet before cleaning. Dirt and grease
may be removed from the exterior of the charger using
a cloth or soft non‑metallic brush. Do not use water or
any cleaningsolutions.
plugged together, and nameplate ampere rating. If in
doubt, use the next heaviergauge.
Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet
(meters)
120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
Ampere Rating
American Wire Gauge
More Than Not More
Than
0 6 18 16 16 14
610 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
• Do not place any object on top of the charger or place
the charger on a soft surface that might block the
ventilation slots and result in excessive internal heat.
Place the charger in a position away from any heat source.
The charger is ventilated through slots in the top and the
bottom of thehousing.
• Do not operate the charger with a damaged cord
orplug. Have them replacedimmediately.
• Do not operate the charger if it has received a sharp
blow, been dropped or otherwise damaged in any
way. Take it to an authorized servicecenter.
• Do not disassemble the charger; take it to an
authorized service center when service or repair
is required. Incorrect reassembly may result in a risk of
electric shock, electrocution orfire.
• The charger is designed to operate on standard
120V household electrical power. Do not attempt to
use it on any other voltage. This does not apply to the
vehicularcharger.
• Foreign materials of a conductive nature, such as, but
not limited to, grinding dust, metal chips, steel wool,
aluminum foil or any buildup of metallic particles
should be kept away from the charger cavities and
ventilation slots.
• Always unplug the charger from the power supply
when there is no battery pack in thecavity.
Charging a Battery (Fig.C)
1. Plug the charger into an appropriate outlet.
2. Insert and fully seat battery pack. Green charging light
will continuously blink whilecharging.
3. Charging is complete when the green charging light
remains continuously ON. Battery pack can be left in
charger or removed.
WARNING: Only charge batteries in air temperature
over 40° F (4.5° C) and below 105° F (+40.5°C).
4. Charger will not charge a faulty battery pack, which
may be indicated by the light staying OFF. Take charger
and battery pack to an authorized service center if light
staysOFF.
NOTE: Refer to label near charging light on charger for
blinkpatterns.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot
or too cold, it automatically starts a Hot/Cold Pack Delay,

ENGLISH
10
1. To connect the quick connect hose adapter15 to a
garden hose, thread the quick connect hose adapter
onto the end of the garden hose. Tighten the garden
hose byhand.
NOTE: Avoid cross threading when installing the hose.
Cross threading will causeleaks.
NOTE: Before connecting the garden hose to the
power cleaner, run water through the garden hose for
thirty seconds to clear any debris from the mouth of
thegarden pressurehose.
2. To connect the quick connect hose adapter15 to the
quick connect filter7 on the power cleaner2, push
the quick connect hose adapter firmly onto the quick
connectfilter.
NOTE: Before use, gently tug on the garden hose to
ensure the connection issecured. Make sure the quick
connect hose adapter is flush with the quick connect
filter as shown in Figure F.
3. Always disconnect the garden hose afterusage. To
disconnect, pull back the collar on the quick connect
hose adapter and remove from the quick connectfilter.
To Attach the Suction Hose (Fig.F, G)
Use the suction hose to pull water from a bucket or other
fresh watersource.
NOTICE: Do not use to suction soap, chemicals, dirty
or corrosive liquids, such as window cleaner, plant food,
fertilizers or bleach. Do not use saltwater.
1. To connect the quick connect hose adapter13 on the
end of the suction hose to the quick connect filter7
on the power cleaner2, push the quick connect hose
adapter firmly onto the quick connectfilter.
NOTE: Before use, gently tug on the garden hose to
ensure the connection issecured. Make sure the quick
connect hose adapter on the end of the suction hose
is flush with the quick connect filter as shown in the
FigureFinset.
2. Place other end of suction hose with filter on it into
container of fresh water or a fresh water source. Adjust
the float ball14 on the suction hose so the filter20
stays covered in theliquid.
3. Select the correct nozzle to be used. NOTE:Turn the
nozzle to low pressure setting forwatering. See How to
Use the Multi‑Spray Nozzleparagraph.
4. After the job being performed is complete, place the
suction hose into container of clean water and draw the
clean water through the system torinse.
Attachments (Fig.E)
• Insert the end of the attachment into the opening on
the power cleaner2. Push in and turn the attachment
clockwise until its secured into workingposition.
• To remove the attachment, push in and turn the
attachment counterclockwise and pull from the power
cleaner2.
NOTE: Other accessories are available for use with this power
cleaner, refer to the Accessoriessection.
Attaching Quick Connect Filter (Fig.D)
This power cleaner must be used with the quick connect
adapters. The garden or suction hose can only be attached
when the quick connect filter7 isinstalled.
1. To connect the quick connect filter7 to the power
cleaner2, place the end of the quick connect filter onto
the water intake3. Tighten the quick connect filter
byhand.
NOTE: Avoid cross threading when installing the hose.
Cross threading will causeleaks.
SPECIFICATIONS
Maximum Pounds per Square Inch 350
Rated Gallons per Minute 0.5
Battery 20V DC
Inlet Hose 20 ft (6 m)
Pressure of Inlet Water 0‑80 PSI
Inlet Water Cold Tap
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start‑up can causeinjury.
VersaTrack™
WARNING: Do not charge batteries while charger is
hung onTrackwall.
CRAFTSMAN chargers can be stored on CRAFTSMAN
VersaTrack™ Trackwall. Hooks and accessories are sold
separately. Please refer to the VersaTrack™ Trackwall accessory
sheet for furtherinformation.
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
To Attach the Garden or Suction Hose
(Fig.F, G)
Connecting the garden hose or suction hose will depend on
the job to beperformed.
To Attach Garden Hose (Fig.F)
This power cleaner must be used with the quick
connectadapters.
To Attach Nozzle to Spray Wand (Fig.H)
DANGER: Risk of fluid injection. Do not direct
discharge stream toward persons, unprotected skin,
eyes or any pets or animals. Serious injury willoccur.
WARNING: Flying objects could cause risk of serious
injury. DO NOT attempt to change nozzles while power
cleaner is running. Turn power cleaner off before
changingnozzles.
To connect the nozzle to the spray wand8, pull the quick
connect collar9 toward the spray wand and insert the

11
ENGLISH
Pressure Washing
Preparing Surface for Cleaning
• Remove objects from the area which could create
ahazard.
• Ensure that all doors and windows are closed tight. Protect
all plants and trees in the adjacent area with a drop cloth
ensuring that they will not be harmed by anyoverspray.
• Pre‑rinse cleaning area with freshwater.
• Use only detergents formulated for pressurewashers.
• Always test detergent in an inconspicuous area beforeuse.
Speed Selector (Fig.A, K)
This power cleaner gives you the choice to operate at a lower
pressure for more delicate jobs, or accelerate the power
cleaner speed for high‑performancecleaning.
To accelerate, pull the speed selector19 back toward the
main handle1 into the "HI" position. This mode is best for
applications that need higherPSI.
For lower pressure, push the speed selector forward
toward the spray wand8 into the "LO" position. This mode
is best for larger projects that require more time tocomplete.
NOTE: When in "HI" mode, runtime will be decreased as
compared to when pressure cleaner is in "LO"mode.
Proper hand position requires one hand on the main
handle1 and the other hand on the power cleaner's2
body asshown.
Proper Hand Position (Fig. J)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position asshown.
WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
appropriate nozzle. Release the quick connect collar to lock
the nozzle inplace.
To ensure nozzle is locked into place, give the nozzle a firm
tug after the quick connect collar has locked intoplace.
NOTE: The multi‑spray nozzle is supplied with this
power cleaner, other nozzles are available, refer to the
Accessoriessection.
How to Use the Multi‑Spray Nozzle
There are five spray pattern settings located on the
Multi‑Spray nozzle.To select a spray pattern, rotate the
spray selector to the desired setting. DO NOT change spray
patterns with the power cleaner powered on. Refer to the
following chart to choose the correct nozzle for the job to
beperformed.
Nozzle Uses Surfaces*
Powerful pinpoint for
spot cleaning of hard,
unpainted surfaces or for
high reach areas
Unpainted metal or
concrete. DO NOT use
on wood
Intense cleaning of
unpainted hard surfaces
Grills, driveways, concrete
or brick walkways,
unpainted brick or stucco
Standard cleaning nozzle
for most applications
Yard tools, sidewalks, lawn
furniture, unpainted siding,
stucco, gutters and eaves,
concrete, brick surfaces
Cleaning of painted or
delicate surfaces
Auto/RV, marine, wood,
painted brick and stucco,
vinyl, painted siding
Low pressure setting for
most watering needs
Low pressure spray is safe
for all surfaces
*NOTICE: The high pressure spray from your power
cleaner is capable of causing damage to surfaces such
as wood, glass, automobile paint, auto striping and
trim, and delicate objects such as flowers and shrubs.
Before spraying, check the item to be cleaned to assure
yourself that it is strong enough to resist damage from
the force of thespray.
Installing and Removing the Battery Pack
(Fig.I)
NOTE: For best results, make sure your battery pack is
fullycharged.
To Install the Battery Packs
1. Lift and hold the battery port cover5 up to expose the
batteryport.
2. Align the battery pack with the rails inside the tool’s
handle and slide it into the handle until the battery pack
is firmly seated in the tool and ensure that it does not
disengage.
3. Close the battery port cover5. Ensure the cover is fully
latched into position before startingtool.
To Remove the Battery Pack
1. Lift and hold the battery port cover5 up to expose the
battery pack17.
2. Press the battery release button18 on the battery
pack17 and firmly pull the battery pack17out oftool.
3. Insert the battery into the charger as described in the
charger section of thismanual.
OPERATION
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start‑up can causeinjury.

ENGLISH
12
Nozzle (Fig.A, H)
If the nozzle10 becomes clogged with foreign materials,
such as dirt, excessive pressure may develop. If the nozzle
becomes partially clogged or restricted, the pump pressure
will pulsate. Clean the nozzleimmediately.
1. Shut off the power cleaner2 and and remove the
battery and turn off the watersupply.
2. Pull trigger6 on main handle1 to relieve any
waterpressure.
3. Open the nozzle as wide as it willopen.
4. Unclog any debris from thenozzle.
5. Run water from a faucet or garden hose through
thenozzle.
Suction Hose (Fig.N)
1. To clean the suction hose 12, shut off the
powercleaner.
2. Pull trigger switch to relieve any waterpressure.
3. Decouple the suction hose12 from the powercleaner.
4. To clean the suction hose, use water from a garden hose
to thoroughly rinse out the suction hose and allow it
todry.
Suction Hose Filter (Fig.N)
• Turn the filter20 on the end of the suction hose12
counterclockwise and remove. Remove the strainer from
inside of the filter. Rinse all of the parts with clean water
andreassemble.
Quick Connect Filter (Fig.O)
1. Pull back the collar on the quick connect hose
adapter13 and remove the garden or suction hose from
the quick connect filter7 .
2. Remove the quick connect filter from the powercleaner.
3. Inside the quick connect filter7 is a screen filter21.
Remove the screen filter and rinse with clean water
andreassemble.
Cleaning
WARNING: Blow dirt and dust out of all air vents with
clean, dry air at least once a week. To minimize the risk
of eye injury, always wear ANSI Z87.1approved eye
protection when performingthisprocedure.
WARNING: Never use solvents or other harsh
chemicals for cleaning the non‑metallic parts of the
tool. These chemicals may weaken the plastic materials
used in these parts. Use a cloth dampened only with
water and mild soap. Never let any liquid get inside the
tool; never immerse any part of the tool into aliquid.
MAINTENANCE
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start‑up can causeinjury.
Shutdown (Fig.A)
1. To stop the power cleaner, release thetriggerand remove
thebattery .
2. Turn off water at thefaucet.
3. Discharge residual pressure by squeezing the trigger6
until no more water comes out of the spray wand8.
4. Disconnect the garden hose from the water intake3 and
drainhose.
5. Remove garden hose from power cleaner by pulling
back the collar on the quick connect hose adapter and
removing it from the quick connectfilter.
Cleaning a Surface (Fig.L)
WARNING: Risk of injury from spray. Always engage
the trigger lock when gun is not in use. Failure to do so
could cause accidentalspraying.
1. To start the power cleaner, disengage the trigger
lock‑off4 and squeeze the trigger6.
NOTE: The best angle for spraying water against a
cleaning surface is 45°. Spraying head on tends to cause
dirt particles to embed in the surface. When working on
vertical surfaces, it is best to apply detergent starting at
the bottom and working upwards which will prevent the
detergent from sliding down and causingstreaks.
2. To stop the power cleaner, release thetrigger.
NOTE: Excessive pump pressure may be the result of
clogged nozzle. Always turn off the power cleaner and
remove the battery before attempting to unclog a nozzle
WARNING: Never draw from water that contains
chemicals. Only draw from fresh watersources.
Preparing the Power Cleaner (Fig.L)
IMPORTANT: D isengage the trigger lock‑off4,squeeze the
trigger6 and hold the trigger for 30seconds to purge the
system of air. If air is still found in the water stream, continue to
run water through the sprayhandle.
1. Disengage the trigger lock‑off4 .
2. Squeeze the trigger6.
Preparing Power Cleaner Unit for Use
DANGER: Risk of fluid injection and laceration.
When using the high‑pressure setting, DO NOT allow
the high‑pressure spray to come in contact with
unprotected skin, eyes, or with any pets or animals.
Serious injury willoccur.
CAUTION: Before operation:
• Connect the water supply to the power cleaner.
For instructions on connecting the water supply
to the power cleaner, please refer to Attaching
Garden or Suction Hose under Assembly
andAdjustments.
• Connect the attachment. For instructions on
connecting the pressure spray wand, please
refer to Attachments under Assembly
andAdjustments.

13
ENGLISH
Three Year Limited Warranty
CRAFTSMAN will repair or replace, without charge, any
defects due to faulty materials or workmanship for three
years from the date of purchase (two years for batteries).
This warranty does not cover part failure due to normal wear
or tool abuse. For further detail of warranty coverage and
warranty repair information, visit www.craftsman.com
or call 1-888-331-4569. This warranty does not apply to
accessories or damage caused where repairs have been
made or attempted by others. THIS LIMITED WARRANTY
IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED
WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states do not allow
limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential
damages, so these limitations may not apply to you. This
warranty gives you specific legal rights and you may have
other rights which vary in certain states orprovinces.
2YEARS FREE SERVICE ON CRAFTSMAN
BATTERYPACKS
CMCB201, CMCB2011, CMCB2015
3YEARS FREE SERVICE ON CRAFTSMAN
BATTERYPACKS
CMCB202, CMCB204, CMCB205, CMCB206
NOTE: Battery warranty voided if the battery pack is
tampered with in any way. CRAFTSMAN is not responsible for
any injury caused by tampering and may prosecute warranty
Register Online
Thank you for your purchase. Register your product nowfor:
• WARRANTY SERVICE: Registering your product will
help you obtain more efficient warranty service in case
there is a problem with yourproduct.
• CONFIRMATION OF OWNERSHIP: In case of
an insurance loss, such as fire, flood or theft, your
registration of ownership will serve as your proof
ofpurchase.
• FOR YOUR SAFETY: Registering your product will
allow us to contact you in the unlikely event a safety
notification is required under the Federal Consumer
SafetyAct.
• Register online at www.craftsman.com/registration
Repairs
The charger and battery pack are notserviceable. There are
no serviceable parts inside the charger or batterypack.
WARNING: To assure product SAFETY and RELIABILITY,
repairs, maintenance and adjustment (including brush
inspection and replacement, when applicable) should
be performed by a CRAFTSMAN factory service center
or a CRAFTSMAN authorized service center. Always use
identical replacementparts.
NOTE: VersaTrack™ accessories for use with your tool are
available at extra cost from your local dealer or authorized
service center. If you need assistance in locating any
accessory, please contact CRAFTSMAN, call 1-888-331-4569.
VersaTrack™ (Fig. M)
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start‑up can causeinjury.
WARNING: To reduce the risk of serious personal
injury, do not use a damaged VersaTrack™ hang hook
or VersaTrack™ Trackwall. A damaged VersaTrack™
hang hook or VersaTrack™ Trackwall will not support
the weight of thetool.
WARNING: To reduce the risk of serious personal
injury, ensure the screw holding the VersaTrack™ hang
hook is securelytightened.
WARNING: To reduce the risk of serious personal
injury, DO NOT suspend tool overhead or suspend
objects from the hang hook. ONLY suspend tool on the
VersaTrack™ Trackwall using the hanghook.
WARNING: Ensure that the tool weight does not
exceed the maximum rated weight of 20lb (9 kg) for
the selected VersaTrack™hook.
WARNING: When hanging objects on a VersaTrack™
Trackwall rail, adequately space the tools in order to
not exceed 75lb (35 kg) per linearfoot.
IMPORTANT: When attaching the VersaTrack™ hang hook,
use only the screw that is provided. Be sure to securely
tighten the screw. VersaTrack™ accessories mount compatible
tools securely to the VersaTrack™Trackwallsystem.
1. Turn the tool off, remove the battery pack
and accessories.
CAUTION: Any product with exposed cutting teeth
must have them covered securely if it is to be on
theVersaTrack™Trackwall.
2. Attach the hang hook22 on thetool.
a. Place the VersaTrack™ hang hook onto the mounting
location at the base of thetool.
b. Use a screwdriver to secure the hang hook with the
provided screw23. Do not use any other screw forthis.
Accessories
WARNING: Since accessories, other than those
offered by CRAFTSMAN, have not been tested with
this product, use of such accessories with this tool
could be hazardous. To reduce the risk of injury, only
CRAFTSMAN recommended accessories should be used
with thisproduct.
Recommended accessories for use with your tool are available
at extra cost from your local dealer or authorized service
center. If you need assistance in locating any accessory, please
contact CRAFTSMAN call 1-888-331-4569 .
Storage
• Always completetely empty water from the suction hose,
power cleaner, spray wand, nozzles.
• Store in a dry, covered location above freezing
temperature. STOREINDOORS.

ENGLISH
14
fraud to the fullest extent permitted bylaw.
90DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of
your CRAFTSMAN Power Tool or Nailer for any reason, you
can return it within 90days from the date of purchase with a
receipt for a full refund – no questionsasked.
LATIN AMERICA: This warranty does not apply to products
sold in Latin America. For products sold in Latin America,
see country specific warranty information contained in
the packaging, call the local company or see website for
warrantyinformation.
FREE WARNING LABEL REPLACEMENT: If your warning
labels become illegible or are missing, call 1-888-331-4569
for a freereplacement.

FRANÇAIS
15
b ) Ne pas utiliser de laveuses à pression en
atmosphères explosives, comme en présence de
liquides, de gaz ou de poussières inflammables.
Les laveuses à pression créent des étincelles qui peuvent
enflammer la poussière ou lesvapeurs.
c ) Gardez les enfants et les passants éloignés
lorsque vous utilisez une laveuse à pression. Les
distractions peuvent vous faire perdre lecontrôle.
2) Sécurité électrique
a ) Évitez le contact du corps avec les surfaces
reliées ou mises à la terre comme les tuyaux, les
radiateurs, les cuisinières et les réfrigérateurs. Il y
a un risque accru de choc électrique si votre corps est
relié ou mis à laterre.
b ) Ne pas exposer la laveuse à pression à la pluie
ou en conditions mouillées. L’eau qui pénètre
dans une laveuse à pression augmente le risque de
chocélectrique.
3) Sécurité personnelle
a ) Demeurez alerte et surveillez ce que vous faites
en faisant preuve de bon sens lorsque vous
utilisez une laveuse à pression. Ne pas utiliser
une laveuse à pression lorsque vous êtes fatigué
ou sous l'influence de drogues, de l'alcool ou de
médicaments. Un moment d’inattention pendant
l’utilisation d’une laveuse à pression peut entraîner une
blessure corporellegrave.
b ) Utiliser un équipement de protection
individuelle. Portez toujours une protection
oculaire. Un équipement protecteur comme un
masque anti‑poussière, des chaussures de sécurité
antidérapantes, un casque de sécurité ou une
protection auditive utilisé en conditions appropriées
réduira les blessurescorporelles.
c ) Empêchez le démarrage non intentionnel.
Assurez‑vous que l’interrupteur est en position
d’arrêt avant de connecter le bloc‑pile, ramasser
ou transporter l’outil. Transporter la laveuse à
pression avec le doigt sur la gâchette ou mettre la
laveuse à pression sous tension quand la gâchette est
active invite lesaccidents.
d ) Ne pas trop vous étirer. Maintenez vos pieds bien
d'aplomb sur le sol et un bon équilibre en tout
temps. Cela permet un meilleur contrôle de la laveuse
à pression dans des situationsimprévues.
e ) Portez des vêtements appropriés. Ne pas porter
des vêtements amples ou des bijoux. Gardez
vos cheveux, vos vêtements et vos gants hors de
portée des pièces en mouvement. Des vêtements
amples, les bijoux ou les cheveux longs peuvent se
coincer dans des pièces quidéplacent.
f ) Ne pas laisser votre connaissance acquise suite
l’utilisation fréquente des outils vous permettre de
baisser la garde et ignorer les principes de sécurité de
l’outil. Un acte irréfléchi peut causer une blessure grave
en une fraction deseconde.
CONSIGNES DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT: lisez tous les avertissements de
sécurité, toutes les instructions, les illustrations
et les caractéristiques fournis avec cette laveuse
à pression. Ne pas suivre toutes les instructions
indiquées ci‑dessous peut conduire à un choc
électrique, un incendie et/ou des blessuresgraves.
CONSERVEZ TOUS LES
AVERTISSEMENTS ET TOUTES
LES INSTRUCTIONS POUR
RÉFÉRENCEULTÉRIEURE.
Le terme «outil électrique» dans les avertissements fait
référence à votre outil électrique fonctionnant sur pile (sansfil).
1) Sécurité de l’aire de travail
a ) Gardez la zone de travail propre et bien éclairée.
Les zones encombrées ou sombres favorisent
lesaccidents.
Définitions: symboles et termes
d'alarmessécurité
Ces guides d'utilisation utilisent les symboles et termes
d'alarmes sécurité suivants pour vous prévenir de situations
dangereuses et de risques de dommages corporels
oumatériels.
DANGER : indique une situation dangereuse
imminente qui, si elle n’est pas évitée, entraînera la
mort ou des blessuresgraves.
AVERTISSEMENT : indique une situation
potentiellement dangereuse qui, si elle n’est pas évitée,
pourrait entraîner la mort ou des blessuresgraves.
ATTENTION : indique une situation potentiellement
dangereuse qui, si elle n’est pas évitée, pourrait
entraîner des blessures légères oumodérées.
(Si utilisé sans aucun terme) Indique un message
propre à lasécurité.
AVIS : indique une pratique ne posant aucun risque
de dommages corporels mais qui par contre, si rien
n’est fait pour l’éviter, pourrait poser des risques de
dommagesmatériels.
Utilisation prévue
Cette laveuse à pression est conçue pour le nettoyage de
bateaux, d'autos, d’entrées, de grilles, de parements de
maison, de motos, de patios et de meublesextérieurs.
NE PAS utiliser en conditions mouillées ou en présence de
liquides ou de gazinflammables.
NE PAS laisser les enfants entrer en contact avec l’outil. Une
supervision est requise lorsque des utilisateurs inexpérimentés
utilisent cetoutil.
Français (traduction de la notice d’instructions originale)
AVERTISSEMENT : lire tous les avertissements
de sécurité et toutes les directives. Le non‑respect
des avertissements et des directives pourrait se
solder par un choc électrique, un incendie et/ou une
blessuregrave.
AVERTISSEMENT : afin de réduire le risque de
blessures, lire le mode d’emploi del’outil.

FRANÇAIS
16
CONSIGNES DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT:
lorsque vous utilisez cet appareil,
des consignes de sécurité élémentaires devraient
toujours être prises, incluant les suivantes:
• Lisez toutes les instructions avant d’utiliser
leproduit.
• Afin de réduire le risque de blessures, une
surveillance nécessaire lorsqu’un produit est utilisé
près desenfants.
• Sachez comment arrêter le produit et purger
la pression rapidement. Soyez très familier avec
lescommandes.
• Demeurez vigilant: regardez ce que vousfaites.
• Ne pas utiliser le produit lorsque vous êtes fatigué
ou sous l’influence de l’alcool ou dedrogues.
• Gardez toutes les personnes à l’écart de la zone
detravail.
• Ne pas trop s’étirer ou se tenir debout sur
un support instable. Maintenez vos pieds bien
d'aplomb sur le sol et un bon équilibre en touttemps.
• Suivez les instructions d’entretien indiquées dans
leguide.
AVERTISSEMENT: risque d’injection ou de blessure. Ne
pas diriger le jet vers despersonnes.

AVERTISSEMENT: risque d’injection ou de blessure
grave. Tenez‑vous à l’écart de la buse. Ne pas diriger
le jet vers des personnes. Ce produit doit être utilisé
seulement par des utilisateursformés.
CONSERVEZ CES INSTRUCTIONS
AVERTISSEMENT: lisez l'intégralité de ce guide avant
de tenter d’assembler, d’utiliser ou d’installer le produit.
consultez aussi un médecin. Le liquide éjecté de la
pile peut entraîner une irritation ou desbrûlures.
e ) Ne pas utiliser un bloc‑piles ou un outil qui est
endommagé ou qui a été modifié. Les piles
endommagées ou modifiées peuvent avoir un
comportement imprévisible entraînant un incendie,
une explosion ou un risque deblessure.
f ) Ne pas exposer le bloc‑piles ou l’outil au feu ou à
une température excessive. L’exposition au feu ou
à une température supérieure à 265°F (130°C) peut
provoquer uneexplosion.
g ) Suivez les instructions de recharge et ne pas
recharger le bloc‑piles ou l’outil hors de la plage
de températures indiquée dans les instructions.
Recharger le bloc‑piles de façon inappropriée ou
hors des températures de la plage indiquée pourrait
l'endommager et augmenter le risque d’incendie.
6) Réparer
a ) Faites réparer votre laveuse à pression par un
réparateur qualifié utilisant seulement des pièces
de rechange identiques. La sécurité de la laveuse à
pression est ainsimaintenue.
b ) Ne jamais réparer des blocs‑piles endommagés. La
réparation de blocs‑piles doit seulement être effectuée
par le fabricant ou les prestataires de serviceagréés.
4) Utilisation et entretien de la laveuse à
pression
a ) Ne pas utiliser la laveuse à pression si la gâchette
ne fonctionne pas normalement. Toute laveuse à
pression qui ne peut être contrôlée avec la gâchette est
dangereuse et doit êtreréparée.
b ) Retirez le bloc‑piles de la laveuse à pression
avant d’effectuer tout ajustement, changer les
accessoires ou ranger la laveuse à pression. Ces
mesures de sécurité préventives réduisent le risque de
démarrage accidentel de la laveuse àpression.
c ) Entreposez les laveuses à pression arrêtées
hors de portée des enfants et ne laissez pas les
personnes qui ne connaissent pas la laveuse à
pression ou ces instructions utiliser la laveuse à
pression. Les laveuses à pression sont dangereuses
entre les mains d’utilisateurs nonformés.
d ) Entretenez les laveuses à pression et les
accessoires. Vérifiez si les pièces en mouvement
sont mal alignées ou fixes, si des pièces sont
brisées et tout autre état qui peut affecter le
fonctionnement de la laveuse à pression. Si
elle est endommagée, faites réparer la laveuse
à pression avant utilisation. De nombreux
accidents sont causés par des laveuses à pression
malentretenues.
e ) Utilisez la laveuse à pression, les accessoires et
les barreaux conformément aux instructions, en
tenant compte des conditions de travail et du
travail à effectuer. Utiliser la laveuse à pression pour
des travaux différents de ceux pour lesquels elle est
conçue peut entraîner une situationdangereuse.
f ) Gardez vos mains et les surfaces de préhension
sèches, propres et libres de graisse et de
poussière. Les mains et les surfaces de prise glissante
ne permettent pas la manutention et le contrôle
sécuritaires de l’outil dans les situationsimprévues.
5) Utilisation et entretien des outils à
piles
a ) Rechargez seulement avec le chargeur indiqué
par le fabricant. Un chargeur est approprié pour un
type de bloc‑piles et peut créer un risque d’incendie s’il
est utilisé avec un bloc‑piles d'un autretype.
b ) Utilisez des laveuses à pression seulement avec
des blocs‑piles spécialement conçus. Utiliser
d'autres blocs‑piles peut créer un risque de blessure
oud’incendie.
c ) Lorsque vous n’utilisez pas le bloc‑piles, gardez‑le hors
de portée d’autres objets métalliques, comme les
trombones, les pièces de monnaie, les clés, les
clous, les vis et autres petits objets métalliques
qui peuvent connecter une borne à une autre.
Faire un court‑circuit entre les bornes des piles peut
entraîner des brûlures ou unincendie.
d ) En conditions abusives, du liquide peut être
éjecté de la pile; évitez le contact. Si un contact
se produit accidentellement, rincez avec de l’eau.
Si du liquide entre en contact avec les yeux,

FRANÇAIS
17
Renseignements de sécurité
supplémentaires
AVERTISSEMENT: ne jamais modifier l’outil électrique
ou toute pièce de celui‑ci. Cela pourrait entraîner des
dommages matériels ou des blessurescorporelles.
AVERTISSEMENT: portez TOUJOURS des lunettes
de sécurité. Les lunettes de tous les jours NE SONT
PAS des lunettes de sécurité. Utilisez également un
masque facial ou anti‑poussière pour les opérations
poussiéreuses. PORTEZ TOUJOURS UN ÉQUIPEMENT DE
SÉCURITÉ CERTIFIÉ:
• Protection oculaireANSI Z87.1 (CAN/CSA Z94.3),
• Protection auditive ANSI S12.6 (S3.19),
• Protection respiratoire NIOSH/OSHA/MSHA.
AVERTISSEMENT: certaines poussières contiennent
des produits chimiques reconnus dans l’État de la
Californie pour causer le cancer et des anomalies
congénitales ou autres effets nuisibles sur la
reproduction. Certains exemples de ces produits
chimiques sont:
• des composants de fertilisants,
• des composants d'insecticides, d'herbicides et de
pesticides,
• l’arsenic et le chrome provenant du bois de
construction traité chimiquement.
Pour réduire votre exposition à ces produits chimiques,
portez un équipement de sécurité approuvé, comme un
masque anti‑poussière spécialement conçu pour filtrer
les particules microscopiques.
AVERTISSEMENT: l’utilisation de cet outil peut
générer et/ou disperser de la poussière qui peut causer
des lésions respiratoires graves et permanentes ou
d’autres blessures. Utilisez toujours une protection
respiratoire approuvée par NIOSH/OSHA appropriée
pour l’exposition à la poussière. Dirigez les particules
loin du visage et ducorps.
AVERTISSEMENT: portez toujours une protection
auditive personnelle appropriée conforme à ANSI
S12.6 (S3.19) durant l’utilisation. Dans certaines
conditions et selon la durée d’utilisation, le bruit
provenant de ce produit peut contribuer à la perte
del’audition.
ATTENTION : lorsque vous ne l’utilisez pas, placez
l’outil sur le côté sur une surface stable là où cela
n’entraînera pas un risque de trébuchement ou de
chute. Certains outils avec de gros bloc‑piles tiennent
debout, mais ils peuvent facilement êtrerenversés.
• Les évents couvrent souvent des pièces qui se
déplacent et doivent être évités. Les vêtements amples,
les bijoux ou les cheveux longs peuvent se coincer dans des
pièces enmouvement.
16 . Ne jamais vaporiser des liquides inflammables ou utiliser
laveuse à pression dans des endroits comportant de la
poussière, du liquide ou des vapeurscombustibles.
AVERTISSEMENT: l’unité a été conçue pour des
applications spécifiques. Elle ne doit pas être modifiée
et/ou utilisée pour toute autre application que celles
pour lesquelles elle a été conçue.
REMARQUE: entreposez toujours votre laveuse à
pression dans un endroit où la température ne tombera
pas sous40°F(4°C). Les dommages dus au gel ne sont
pas couverts par la garantie.
1 . Évitez le démarrage accidentel. Déplacez la gâchette
à la position Arrêt avant de brancher ou de débrancher le
bloc‑piles.
2 . Le jet d’eau ne doit jamais être dirigé vers un câblage
électrique, au risque de provoquer un choc électriquefatal.
3 . Le jet très précis étroit est très puissant. Il est
déconseillé pour l’utilisation sur des surfaces peintes, en
bois ou des articles ayant un dosadhésif.
4 . La zone de travail doit être exempte de personnes
etd’animaux.
5 . Utilisez les deux mains lorsque vous faites fonctionner la
laveuse à pression pour maintenir le contrôle complet de
lalance.
6 . Ne pas toucher la buse ou le pulvérisateur d’eau
pendant l’utilisation. Ne jamais placer les mains à
l’avant de labuse.
7. Portez des lunettes de sécurité pendant l’utilisation.
Portez des vêtements et des chaussures de protection
contre la pulvérisationaccidentelle.
8 . Déconnectez le bloc‑piles lorsqu'il n’est pas utilisé ou avant
de détacher le boyau de hautepression.
9 . Ne pas utiliser ou entreposer ce produit à des
températures inférieures à 40°F(4°C). Les dommages
dus au gel ne sont pas couverts par lagarantie.
10.Suivez attentivement toutes les instructions et
les avertissements des produits chimiques avant
l’utilisation. Utilisez seulement des laveuses à
pression approuvées. Ne pas utiliser d'eau de
Javel, de chlore ou tout autre nettoyant contenant
des acides. Suivez toujours les recommandations
des étiquettes du fabricant pour une utilisation
appropriée des laveuses. Protégez vos yeux, votre peau et
votre système respiratoire des laveuses
11 . La laveuse à pression ne doit pas être utilisée dans
des endroits où des vapeurs et des gaz peuvent
être présents. Une étincelle électrique peut causer une
explosion ou unincendie.
12 . Pour prévenir une décharge accidentelle, le pistolet doit
être sécurisé en verrouillant la gâchette lorsque lorsqu'il
estinutilisé.
13 . Utilisez seulement les boyaux et les accessoires
classés pour une pression plus élevée que le psi de
votre laveuse à pression. Ne jamais utiliser avec des
accessoires ou des composantes d'autresfabricants.
14 . Ne jamais défaire les dispositifs de sécurité de ceproduit.
15 . Ne pas utiliser la machine avec des pièces manquantes,
brisées ou nonautorisées.

FRANÇAIS
18
endroit frais etsec.
REMARQUE: Ne pas ranger les blocs‑piles dans un
outil avec la gâchette verrouillée. Ne jamais coller la
gâchette avec du ruban adhésif en positionMarche.
• Ne pas brûler le bloc‑piles même s’il est gravement
endommagé ou est entièrement usé. Le bloc‑piles
peut exploser au cours d’un incendie. Des vapeurs et des
matières toxiques sont produites lorsque les blocs‑piles au
lithium‑ion sontbrûlés.
• Ne pas exposer de bloc‑piles ou l’outil aux flammes
ou à des températures excessives. L’exposition aux
flammes ou à une température au‑dessus de 129°C
(265°F) pourrait causer uneexplosion.
• Si le liquide des piles entre en contact avec la peau,
lavez immédiatement avec de l'eau et du savon doux.
Si le liquide vient en contact avec les yeux, rincez à l'eau
courante durant 15minutes, ou jusqu'à ce que l'irritation
cesse, en gardant les yeux ouverts. Pour information de
consultation médicale, l'électrolyte des piles est composé
d'un mélange organique liquide et de sels delithium.
• Le contenu des piles peut causer une irritation
respiratoire. Faites circuler de l'air frais. Si les symptômes
persistent, consultez unmédecin.
• Le liquide des piles peut être inflammable s’il est
exposé aux étincelles ou auxflammes.
• Ne jamais tenter d'ouvrir le bloc‑piles pour quelque
raison que ce soit. Si le boîtier du bloc‑piles est fendu
ou endommagé, ne pas l'insérer dans le chargeur. Ne
pas écraser, échapper ou endommager le bloc‑piles. Ne pas
se servir d'un bloc‑piles ou chargeur qui a subi un impact,
a été échappé, renversé par un véhicule ou endommagé
d'une façon ou d'une autre (par ex. perforé par un clou,
frappé par un marteau, sur lequel on a marché). Les
blocs‑piles endommagés devraient être amenés/expédiés
au centre de service pourrecyclage.
Recommandations d’entreposage
Le meilleur lieu pour l'entreposage est un endroit frais et sec
loin de la lumière directe du soleil et de la chaleur ou du froid
excessif. Entreposez le bloc‑piles entièrement chargé hors
duchargeur.
Instructions de nettoyage du bloc‑piles
La saleté et la graisse peuvent être retirées des surfaces
extérieures du bloc‑piles à l'aide d'un linge ou d’une
brosse souple non métallique. Ne pas utiliser d'eau ou de
solutionnettoyante.
Blocs‑piles du niveau de la jauge de carburant
(Fig. B)
Certains blocs‑piles incluent une jauge de carburant.
Lorsque vous appuyez et maintenez, les voyants DEL
indiqueront le niveau approximatif de charge restante. Cela
n’indique pas la fonctionnalité de l’outil et peut varier selon
les accessoires utilisés, la température et l'utilisation de
l’utilisateurfinal.
LISEZ TOUTES LES INSTRUCTIONS
Consignes de sécurité importantes pour
les blocs‑piles
AVERTISSEMENT : lisez toutes les consignes
de sécurité, les instructions et les symboles
d’avertissements du bloc‑piles, du chargeur et du
produit. Ne pas suivre les avertissements et les
instructions peut entraîner un choc électrique, un
incendie et/ou des blessuresgraves.
• Ne pas charger ou utiliser le bloc‑piles en
atmosphères explosibles comme la présence de
liquides inflammables, de gaz ou de poussière. Insérer
ou retirer la pile du bloc‑piles peut enflammer la poussière
ou lesvapeurs.
• Ne JAMAIS forcer le bloc‑piles dans le chargeur.
NE PAS modifier le bloc‑piles de quelque façon
que ce soit dans un chargeur non compatible
puisque le bloc‑piles peut se briser causant une
blessurecorporelle. Consultez le tableau à la fin de ce
guide pour la compatibilité des blocs‑piles et deschargeurs.
• Chargez les blocs‑piles seulement dansCRAFTSMAN.
• NE PAS éclabousser ou immerger dans l’eau ou tout
autreliquide.
• NE PAS laisser l’eau ou tout liquide entre dans le bloc‑piles.
• Ne pas entreposer ou utiliser l’outil et le bloc‑piles
dans des endroits où la température peut atteindre
ou excéder 40°C (104°F) (comme les remises
extérieures ou les édifices en métal durant l’été). Pour
une meilleure durée de vie, entreposez le bloc‑piles dans un
PILES ET CHARGEURS
Le bloc‑piles n’est pas entièrement chargé lorsqu’il sort de
la boîte. Avant d'utiliser le bloc‑piles et le chargeur, lisez
attentivement les instructions de sécurité suivantes, puis
suivez les procédures de chargement énoncées. Lorsque vous
commandez des blocs‑piles de remplacement, assurez‑vous
d’inclure le numéro du catalogue et latension.
L’étiquette sur votre outil peut comporter les symboles suivants.
Les symboles et les définitions sont les suivants:
BPM.................... battements par
minute
V.........................volts
min.....................minutes
jou CC...........courant continu
…/min.............. par minute
Tr/min ................tours par minute
A.........................ampères
Hz .......................hertz
W........................watts
Wh...................... Wattheures
non.....................vitesse à vide
n.........................vitesse nominale
c.....................symbole d’alertes
de sécurité
h.....................portez une
protection
respiratoire
f.....................portez une
protection oculaire
i.....................Construction de
classe II (à isolation
double)
g.....................portez une
protection auditive
a.....................lisez toute la
documentation
n.....................évitez de fixer la
lumière
lou CA........... courant alternatif
Ah....................... ampères‑heures
