Craig CHT915 User manual

Model: CHT915

This unit has a long cord that can easily be tripped on or pulled on, causing injury,Please make sure

Plastic Base
Washer
Screw
POWER SOURCE
INSTALLATION
AC/DC adapter
to the wall outlet having AC 100-240~;50/60 Hz.
Assemble the plastic base to the main body with the supplied screw and washer as the figure above.
Insert the small plug from supplied AC/DC adaptor to DC IN jack
on the rear of the unit and insert the AC/DC adaptor
Placing on Floor in Vertical
NOTE:This AC/DC adapter is intended to be correctly
operated in a vented indoor wall outlet. To the DC IN jack on the rear of unit.

Speaker Net
Remote Sensor
Speakers
Placing on Floor in Vertical (Continued):
The Speaker Net can be take out and reassembled as the figure above.
4

Placing on Table in Horizontal
Fig.1
4
To place the unit on a flat surface such like table, insert the 2 (two) supplied
as the Fig.1 below.
Small Slot
Fig.2
Insert the 2 (Two) supplied Plastic Stands into the inner small slot as the Fig. 2 above.
Plastic
Brackets into the small slot of the holder on the rear of unit

Wall Mount
1. Wall mount the unit to the wooden wall
as the Fig.1 below:
Holes distance:31.6 inches
Fig.1
Fig.2
Wooden Wall
supplied screws
supplied bracket
in same horizontal level
Big Slot
B : Put the sound bar onto the Metallic Brackets as Fig.2 below.
Make sure they are firm and stable.
A : Mounted the 2 (Two) supplied Metallic Brackets on the wooden wall by
the 4 (Four) supplied screws
5
supplied screws
supplied bracket

INSTALLATION
A.Mark the position of the mounting holes on the wall using a pencil.
B.Drill appropriate holes by powerful electric drill on wall.
C.Insert the supplied plastic inserts into the holes by hammer.
2. Mount on Wall
D.Mounted the supplied Metallic Brackets to the holes with supplied screws.
6
E.Put the unit to the Metallic Brackets as the figure below.
Wall
Big Slot
Mark and drill 4 holes with 31.6 inches distance
in same horizontal level.
Wall Mount (Continued):

MAIN UNIT
12
13
10
8
7
9
56
1. INDICATOR
2. AUX IN 2 jack
3. SOURCE button
5. EQ (Equalizer) button
8. / TUNE+ button
10. / TUNE- button
7. POWER button
LOCATION OF CONTROLS
AUX IN 2
EQ VOL- VOL+
TUNE- TUNE+
POWER
SOURCE
1
2
34
990.5
99.0
4. VOL- (Volume Down) button
6. VOL+ (Volume Up) button
DC IN

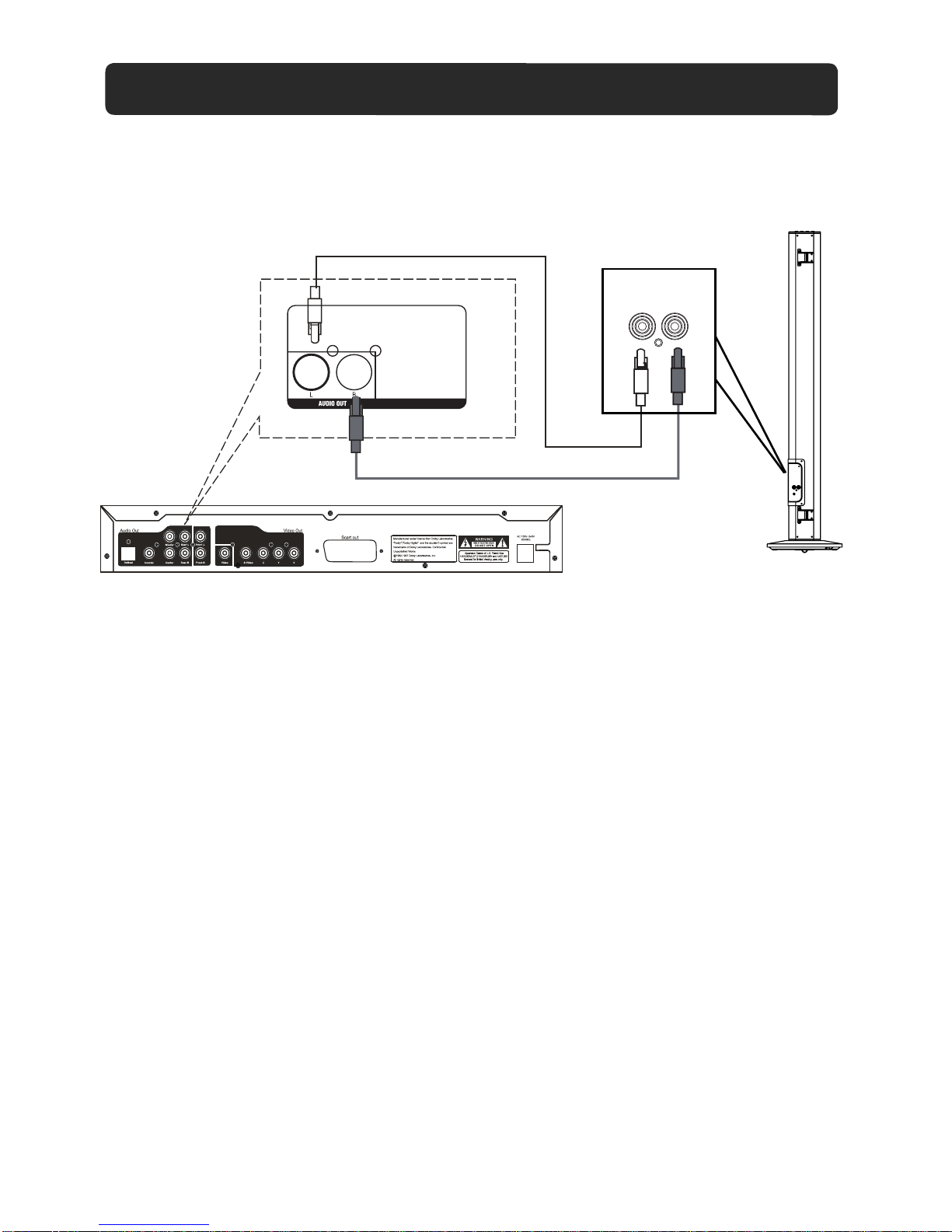

AUX IN 1
R
L
ANT
11
11. FM Antenna
12. AUX IN 1 jacks
13. DC IN jack
9. (Play/Pause) button
INDICATOR
AUX IN 1
R
L
ANT
DC IN
DC 16V, 1.8A
7

REMOTE CONTROL
2
3
SOURCE
EQ
TUNE- TUNE+
VOL
POWER
8
7
6
5
4
1
2
3
1. POWER button
2. / TUNE - button
3. VOL (Volume)+/- buttons
4. SOURCE button
5. (Mute) button
6. / TUNE+ button
7. (Play/Pause) button
8. EQ (Equalizer) button
LOCATION OF CONTROLS
8
