Creative CB2530 User manual

Language TOC.fm Page i Tuesday, January 25, 2005 4:31 PM
English. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Türkçe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
i

Language TOC.fm Page ii Tuesday, January 25, 2005 4:31 PM
ii

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 1 Tuesday, January 25, 2005 4:39 PM
Creative Digital Wireless
Headphones CB2530
Adjustable headband
POWER LED
ON/OFF
switch
Battery cap
VOLUME jog dial
Bluetooth LED
1

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 2 Tuesday, January 25, 2005 4:39 PM
Audio Adapter
POWER/Bluetooth
LED
ON/OFF button
3.5mm
minijack
2

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 3 Tuesday, January 25, 2005 4:39 PM
Getting Started
1
1Insert batteries in your headphones

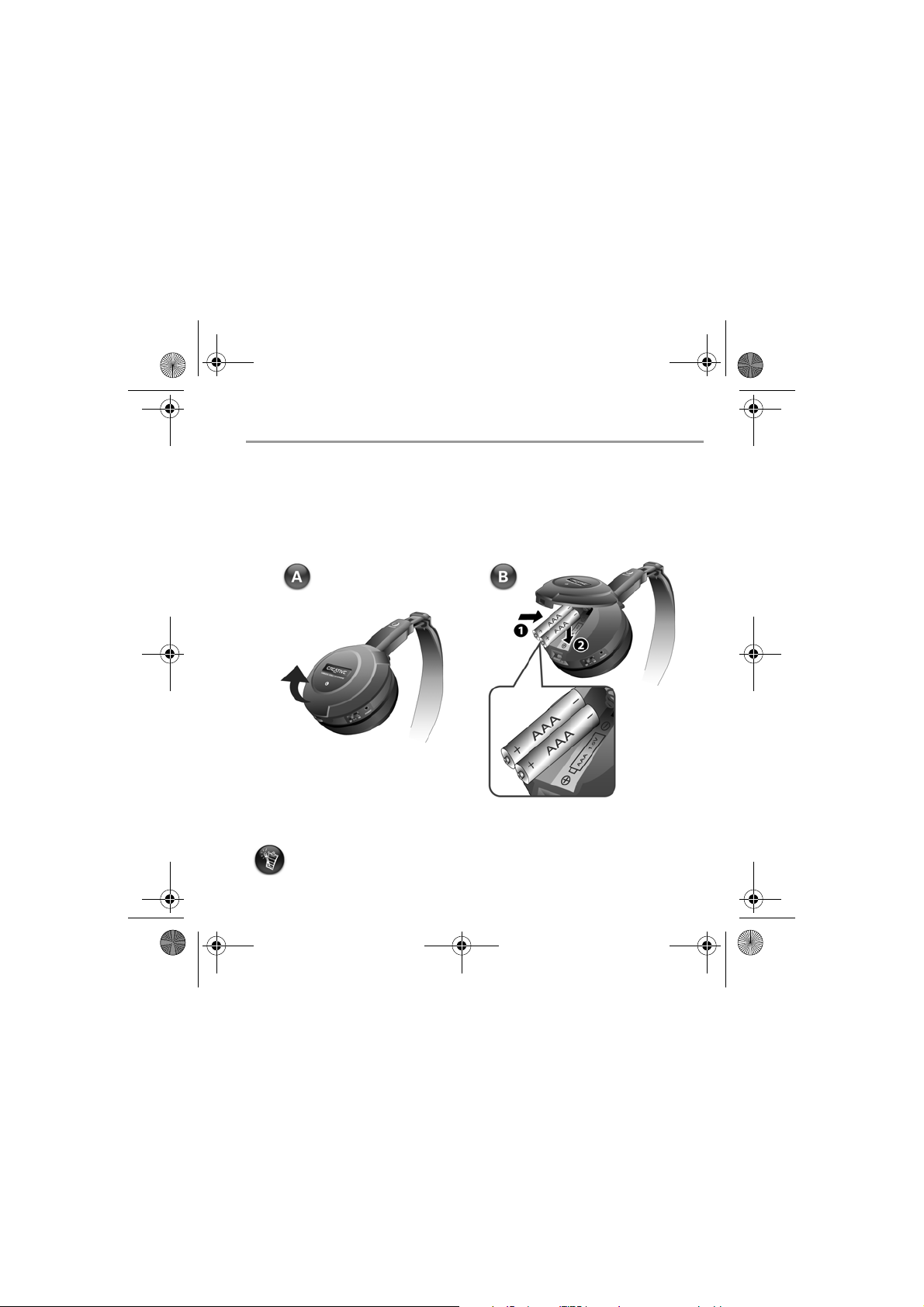

1. Lift the battery cap on the left headphone and insert the batteries as shown in Figure 1.
Figure 1
Your Creative Digital Wireless Headphones are supplied with three AAA batteries (two
for headphones and one for audio adapter).
3

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 4 Tuesday, January 25, 2005 4:39 PM
2
2Insert a battery in your audio adapter
1. Slide the audio adapter cover back and insert the battery as shown in Figure 2.
Figure 2
3
3Change the headphone ring (optional)
To remove the ring, push the ring tab down and lift it away from the headphone, as shown
in Figure 3.
Figure 3
4

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 5 Tuesday, January 25, 2005 4:39 PM
4
4Pair your headphones and audio adapter

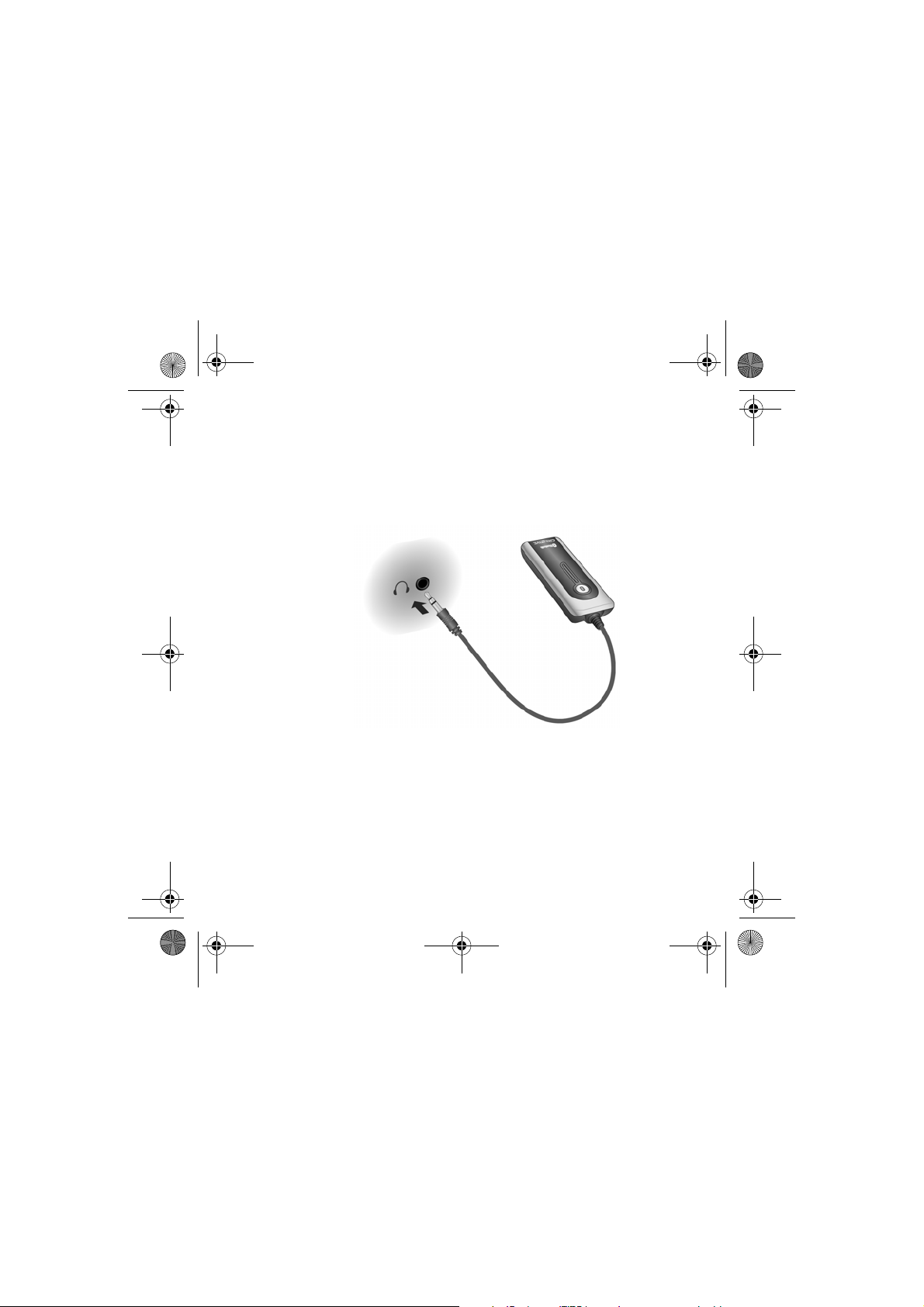

1. Connect your audio adapter's 3.5 mm minijack to the headphone jack of your audio
output device, as shown in Figure 4.
Figure 4
2. On your audio adapter, press and hold the ON/OFF button until the POWER/
Bluetooth LED lights up in blue.
5

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 6 Tuesday, January 25, 2005 4:39 PM
3. Switch on your headphones. The POWER LED lights up in red. The Bluetooth LED
lights up in blue.
When the Bluetooth LEDs on your audio adapter and headphones blink, the devices are
paired and connected.
• You can pair the headphones and audio adapter before or after connecting the audio
adapter’s minijack to the headphone jack.
• Make sure that your headphones are within the working distance of the audio
adapter. When the headphones are out of working range, the Bluetooth LED on both
the headphones and the audio adapter remains lit in blue.
• To reconnect the headphones and the audio adapter, bring the two devices closer.
• When battery levels are too low, during the last 10 minutes before your headphones
turn off,
• the POWER LED blinks red.
• your headphones beep every 30 seconds.
• Pairing your headphones with a new device can take up to 15 seconds. Subsequent
pairing with the same device will take significantly less time.
6

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 7 Tuesday, January 25, 2005 4:39 PM
Using Your Headphones
1
1Adjust the headphone volume
To increase the To mute the
volume, turn the audio, press the
VOLUME jog VOLUME jog dial.
dial toward the
plus + sign.
To d e c r e a s e t h e
volume, turn the
VOLUME jog dial
toward the
minus – sign.
Figure 5
2
2Turn off your headphones and adapter
1. Switch off your headphones.
2. On your audio adapter, press and hold the ON/OFF button until the POWER/
Bluetooth LED blinks.
• If the audio adapter is not connected to your headphones for more than two
minutes, the audio adapter automatically turns off.
7

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 8 Tuesday, January 25, 2005 4:39 PM
General Specifications
Bluetooth version
1.2
Bluetooth 2.4 GHz Class 2 Radio, up to a radius of 10 meters
(Varies depending on environment)
Supported Bluetooth profile
Advanced Audio Distribution Profile (A2DP)
Audio adapter weight
20 g (including battery)
Headphone weight
203 g (including batteries)
Battery type
AAA Alkaline or rechargeable
Play time*
Up to 7 hours
*may vary depending on operation mode and battery specifications.
8

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 9 Tuesday, January 25, 2005 4:39 PM
Frequently Asked Questions
I can't pair my headphones and audio adapter.
Try the following:
• Make sure that the batteries are fresh and are inserted correctly.
• Switch off both audio adapter and headphones.
• Make sure that there are no other Bluetooth devices within 10 meters, while you are
pairing them.
• Turn on both the audio adapter and the headphones when they are within one meter of
each other.
Can I use the headphones with my Personal Digital Assistant (PDA) or mobile
phone?
Yes, you can use the headphones with your PDA or mobile phone, as long as it supports
A2DP. For more information on Bluetooth profiles, refer to the User's Guide for your PDA
or mobile phone.
How far away from my audio adapter can I be when using my Creative
Bluetooth Stereo Headphones?
When using your headphones with the audio adapter, make sure that you are within 10
meters (32.8 feet) of your audio adapter. Your headphones work best when there are no
obstructions, such as walls or other electronic devices, between your headphones and the
audio adapter. If you use your headphones too far away from the audio adapter, you may
hear some crackling sounds.
What causes interference when using the headphones?
Devices that operate within the 2.4 GHz frequency spectrum (for example, cordless
phones and some wireless networking devices) may cause interference or crackling sounds
while you are using your headphones.
9

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 10 Tuesday, January 25, 2005 4:39 PM
Will my headphones interfere with my computer or car's electronic devices?
You should not experience interference when using your headphones near such devices.
For more information on international Bluetooth standards, go to www.bluetooth.com.
Can I wear or use my headphones in the rain or when taking a shower?
Your headphones are NOT waterproof. Exposing your headphones to water may cause
permanent damage.
Keep this document for future reference.
Please note that your warranty rights are not dependent on product registration.
Copyright © 2005 Creative Technology Ltd. All rights reserved. Information in this document is subject to change without
notice and does not represent a commitment on the part of Creative Technology Ltd. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording,
for any purpose without the written permission of Creative Technology Ltd. Copyright © 2005 Creative Technology Ltd.
Bluetooth is a registered trademark of the Bluetooth SIG, Inc., USA. All other products are trademarks or registered
trademarks of their respective owners and are hereby recognised as such. All specifications are subject to change without
prior notice. Actual contents may differ slightly from those pictured.
10

Digital Wireless Headphones CB2530 CLA_Eng only.fm Page 11 Tuesday, January 25, 2005 4:39 PM
Safety Information
General Safety
• Do not listen to audio at high volume levels for prolonged periods of time.
Servicing
Do not attempt to service the product on your own. Refer all servicing to your local
Customer Support Services center.
For removable batteries
• The battery must be recycled or disposed of properly. Contact local agencies for
recycling and disposal information.
• Do not allow metal objects to touch the terminals of your battery.
• If there is leakage, an offensive odor, discoloration or deformation during charging or
use, remove the battery and do not use it again. Clean your hands well before touching
food or sensitive areas, for example, your eyes.
Improper handling of your headphones and audio adapter may void the warranty.
For more information on Creative Customer Support Services and Warranty go to
www.europe.creative.com/support
11

30'LJLWDO:LUHOHVV+HDGSKRQHV&%&/$B(QJRQO\IP3DJH 7XHVGD\-DQXDU\
&UHDWLYH᭄ᄫ᮴㒓㘇ᴎ&%
㞾䗖ᑨ༈ᏺ
⬉⑤/('
ᓔ݇
⬉∴Ⲫ
䷇䞣䇗㡖
㪱⠭/('
12

30'LJLWDO:LUHOHVV+HDGSKRQHV&%&/$B(QJRQO\IP3DJH 7XHVGD\-DQXDU\
䷇乥䗖䜡఼
⬉⑤  㪱⠭/('
ᓔ  ݇ᣝ䪂
PP
ᖂൟᦦ༈
13

30'LJLWDO:LUHOHVV+HDGSKRQHV&%&/$B(QJRQO\IP3DJH 7XHVGD\-DQXDU\
Փ⫼ܹ䮼
1
1ᇚ⬉∴ᬒܹ㘇ᴎ
 ᠧᓔᎺ㘇ᴎⱘ⬉∴Ⲫˈབ೒᠔⼎ᬒܹ⬉∴DŽ
೒
ᙼⱘ&UHDWLYH᭄ᄫ᮴㒓㘇ᴎ⬅㡖$$$⬉∴կ⬉ ˄㡖⫼Ѣ㘇ᴎˈ㡖⫼Ѣ
䷇乥䗖䜡఼˅DŽ
14

30'LJLWDO:LUHOHVV+HDGSKRQHV&%&/$B(QJRQO\IP3DJH 7XHVGD\-DQXDU\
2
2ᇚ㡖⬉∴ᬒܹ䷇乥䗖䜡఼
 ⒥ࡼ䷇乥䗖䜡఼ⱘৢⲪˈབ೒᠔⼎ᬒܹ⬉∴DŽ
೒
3
3᳈ᤶ㘇ᴎ೜ ˄ৃ䗝˅
㽕পϟ㘇ᴎ೜ˈᣝϟㇻ⠛ˈᇚ݊Ң㘇ᴎϞপϟˈབ೒᠔⼎DŽ
೒
15

30'LJLWDO:LUHOHVV+HDGSKRQHV&%&/$B(QJRQO\IP3DJH 7XHVGD\-DQXDU\
4
4䜡㘇ᴎ䷇乥䗖䜡఼
 ᇚ䷇乥䗖䜡఼ⱘPPᖂൟᦦ༈䖲᥹㟇䷇乥䕧ߎ䆒໛ⱘ㘇ᴎᦦᄨˈབ೒᠔
⼎DŽ
೒
 ᣝԣ䷇乥䗖䜡఼Ϟⱘᓔ ݇ᣝ䪂ˈⳈࠄ⬉⑤ 㪱⠭/('㪱㡆⚍҂DŽ
16

30'LJLWDO:LUHOHVV+HDGSKRQHV&%&/$B(QJRQO\IP3DJH 7XHVGD\-DQXDU\
 ᠧᓔ㘇ᴎDŽ⬉⑤/('㑶㡆⚍҂DŽ㪱⠭/('㪱㡆⚍҂DŽ
ᔧ䷇乥䗖䜡఼㘇ᴎϞⱘ㪱⠭/('䮾⚕ᯊˈ߭䆒໛䜡ᑊ䖲᥹དDŽ
•ᙼৃҹ೼ᇚ䷇乥䗖䜡఼ⱘᖂൟᦦ༈䖲᥹㟇㘇ᴎᦦᄨПࠡ៪Пৢ䜡呺ܟ亢䷇
乥䗖䜡఼DŽ
•䇋⹂ֱ㘇ᴎ໘Ѣ䷇乥䗖䜡఼ⱘ᳝ᬜ㣗ೈݙDŽᔧ㘇ᴎ೼᳝ᬜ㣗ೈ໪ᯊˈ㘇ᴎ䷇
乥䗖䜡఼Ϟⱘ㪱⠭/('㪱㡆ᣕ㓁⢊ᗕDŽ
•㽕䞡ᮄ䖲᥹㘇ᴎ䷇乥䗖䜡఼ˈՓ䖭ϸϾ䆒໛䴴䖥ϔѯDŽ
•ᔧ⬉∴⬉䞣ϡ䎇ᯊˈ೼㘇ᴎ݇䯁ࠡⱘߚ䩳䞠ˈ
•⬉⑤/('㑶㡆䮾⚕DŽ
•㘇ᴎ↣䱨⾦থߎ号িDŽ
•ᇚ㘇ᴎϢᮄⱘ䆒໛䜡ৃ㛑䳔㽕⾦DŽϢৠϔ䆒໛ⱘ໮󱂖䜡᠔⫼ᯊ䯈ᇚ໻
ЎޣᇥDŽ
17

30'LJLWDO:LUHOHVV+HDGSKRQHV&%&/$B(QJRQO\IP3DJH 7XHVGD\-DQXDU\
Փ⫼㘇ᴎ
1
1䇗ᭈ㘇ᴎ䷇䞣
ࡼDŽ
೒
㽕๲໻䷇䞣ˈ
ᇚ䷇䞣䇗㡖ᳱ
ࡴো 󰵼ᖫ䕀
ࡼDŽ
㽕ޣᇣ䷇䞣ˈ
ᇚ䷇䞣䇗㡖ᳱ
ޣো  󰵼ᖫ䕀
བ㽕䴭䷇ˈᣝ䷇
䞣䇗㡖DŽ
2
2݇䯁㘇ᴎ䗖䜡఼
 ݇䯁㘇ᴎDŽ
 ᣝԣ䷇乥䗖䜡఼Ϟⱘᓔ ݇ᣝ䪂ˈⳈࠄ⬉⑤ 㪱⠭/('䮾⚕DŽ
•བᵰ䷇乥䗖䜡఼ᣕ㓁ߚ䩳≵᳝Ϣ㘇ᴎ䖲᥹ˈ䷇乥䗖䜡఼ᇚ㞾ࡼ݇䯁DŽ
18
