Crestron Electronics TS-70 Series User manual

TS-70 Series
7 in. and 10.1 in. Tabletop Touch Screens
Product Manual
Crestron Electronics, Inc.

Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Regulatory Model: M201923004, M201923005
Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a
limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating
system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement.
Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_
agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource.
Crestron, the Crestron logo, Crestron Fusion, Crestron Home, Crestron Toolbox, PinPoint, Rava, Smart Graphics, and
XiOCloud are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other
countries. 2N is either a trademark or a registered trademark of 2N Telekomunikace in the United States and/or other
countries. 22 Miles is either a trademark or a registered trademark or 22 Miles, Inc. in the United States and/or other
countries. Appspace and the Appspace logo are either trademarks or registered trademarks of Appspace, Inc. in the
United States and/or other countries. AskCody is either a trademark or a registered trademark of AskCody in the United
States and/or other countries. Bluetooth is either a trademark or registered trademark of Bluetooth SIG, Inc. in the
United States and/or other countries. EMS Software and the EMS logo are either trademarks or registered trademarks
of EMS Software, LLC in the United States and/or other countries. Gingco.net is either a trademark or a registered
trademark of Gingco.net in the United States and/or other countries. G Suite, Google, and Google Calendar are either
trademarks or registered trademarks of Google, Inc. in the United States and/or other countries. Indoor Finders is either
a trademark or a registered trademark of IntelliGroups, LLCin the United States and/or other countries. iOffice is either
a trademark or a registered trademark of iOffice, LPin the United States and/or other countries. Kardham Digital is
either a trademark or a registered trademark of Kardham Digital in the United States and/or other countries. Matrix
Booking is either a trademark or a registered trademark of Matrix Booking in the United States and/or other countries.
Active Directory, Microsoft, Microsoft Teams, and Office 365 are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries. New Wave Apps is either a trademark or a registered
trademark of New Wave Apps in the United States and/or other countries. NFS is either a trademark or a registered
trademark of NFS Technology Group in the United States and/or other countries. OfficeSpace is either a trademark or a
registered trademark of OfficeSpace Software Inc. in the United States and/or other countries. Pepperdash is either a
trademark or a registered trademark of Pepperdash Technology Corporation in the United States and/or other
countries. Door Tablet is either a trademark or a registered trademark of Public.Class Limited in the United States
and/or other countries. Robin and the Robin logo are either trademarks or registered trademarks of Robin Powered, Inc.
in the United States and/or other countries. SharingCloud is either a trademark or a registered trademark of
SharingCloud in the United States and/or other countries. Sonos is either a trademark or a registered trademark of
Sonos, Inc. in the United States and/or other countries. Space Connect is either a trademark or a registered trademark
of Spaceconnect Pty Ltd in the United States and/or other countries. SpaceIQ is either a trademark or a registered
trademark of Space IQ, LLC in the United States and/or other countries. Telelogos is either a trademark or a registered
trademark of Telelogos SASin the United States and/or other countries. EventBoard, Teem, and the Teem logo are
either trademarks or registered trademarks of Teem, LLC in the United States and/or other countries. Zoom and Zoom
Rooms are either trademarks or registered trademarks of Zoom Video Communications, Inc. in the United States and/or
other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to
either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the
marks and names of others. Crestron is not responsible for errors in typography or photography.
©2021 Crestron Electronics, Inc.

Contents
Overview 1
Features 1
TS-770 Features 2
TS-770-GV Features 8
TS-770R Features 13
TS-1070 Features 16
TS-1070-GV Features 22
TS-1070R Features 27
Physical Description 30
Specifications 31
TS-770 Specifications 32
Product Specifications 32
Dimension Drawings 36
TS-770-GV Specifications 38
Product Specifications 38
Dimension Drawings 41
TS-770R Specifications 43
Product Specifications 43
Dimension Drawings 46
TS-1070 Specifications 47
Product Specifications 47
Dimension Drawings 51
TS-1070-GV Specifications 53
Product Specifications 53
Dimension Drawings 56
TS-1070R Specifications 58
Product Specifications 58
Dimension Drawings 61
Installation 62
TS-770 and TS-1070 Installation 63
Place the Touch Screen 63
Connect the Touch Screen 64
Install the Cable Grommet 64
Configure the Touch Screen 65
Select an Application 69
TS-770-GV and TS-1070-GV Installation 70
Place the Touch Screen 70
Connect the Touch Screen 71
Install the Cable Grommet 71
Product Manual — Doc. 8555E Contents • iii

Configure the Touch Screen 72
Select an Application 74
TS-770R and TS-1070R Installation 76
Place the Touch Screen 76
Connect the Touch Screen 77
Install the Cable Grommet 77
Configure the Touch Screen 78
Configure the Crestron Home App 80
Configuration 81
Local Configuration 82
Access the Setup Screens 82
Ethernet Setup 84
IP Table Setup 87
Audio Setup 90
Display Setup 91
Standby Timeout 93
ApplicationSelection 94
Wi-Fi Setup 95
Bluetooth Beacon 101
Virtual Toolbar 102
Diagnostics &Advanced 105
About 115
Web Configuration 117
Actions Menu 118
Status 122
Settings 127
Security 141
802.1x Configuration 152
Application Selection 155
Connect to XiO Cloud Service 157
Operation 158
Resources 160
Crestron Support and Training 160
Programmer and Developer Resources 160
Related Documentation 160
iv • Contents Product Manual — Doc. 8555E

Product Manual — Doc. 8555E TS-70 Series • 1
Overview
The Crestron® TS-770 and TS-1070 are tabletop touch screens that feature web browsing,
Smart Graphics® software and HTML5 UItechnology, custom-programmable virtual buttons,
H.265/H.264 streaming video, a Rava®SIPintercom , Wi-Fi® network connectivity , and PoE+
(Power over Ethernet Plus)network power. The touch screens also provide built-in applications
for room scheduling, conferencing, and home control.
NOTE:The TS-770 and TS-1070 are functionally similar. For simplicity within this
documentation, the term "touch screen"is used except where otherwise noted.
Crestron offers the following variations for its standard touch screen models. Certain settings
described in this document are not applicable to these models.
lThe TS-770-GV and TS-1070-GVseries touch screens eliminate the microphone, the
Bluetooth® communications beacon, and Wi-Fi network connectivity to comply with
government applications demanding extra privacy and security.
lThe TS-770R and TS-1070Rseries touch screens are designed specifically to run the
Crestron Home™ OShome control application.
Features
Refer to the following sections for more information on the features provided by various TS-70
Series models.
lTS-770 Features (on page2)
lTS-770-GV Features (on page8)
lTS-770R Features (on page13)
lTS-1070 Features (on page16)
lTS-1070-GV Features (on page22)
lTS-1070R Features (on page27)

2 • TS-70 Series Product Manual — Doc. 8555E
TS-770 Features
The Crestron® TS-770 is a stylish and versatile tabletop touch screen that is ideal for residential
and enterprise applications. The TS-770 features a 7 in. (178 mm) capacitive touch screen display
with custom-programmable control buttons and support forSmart Graphics® software and
HTML5-based custom UIprojects. PoEand Wi-Fi® network connectivity and a modern tabletop
design allow the touch screen to be deployed just about anywhere.
Key features include:
lNext generation Crestron® tabletop touch screen
l7 in. (178 mm) widescreen active-matrix color display and 1280x800WXGA display
resolution
lCapacitive touch screen display
lCustom-programmable virtual control buttons
lSupports Crestron HTML5 and SmartGraphics® software custom user projects
lBuilt-in Rava® SIPintercom
lBuilt-in speakers and microphone
lH.265, H.264, or MJPEG streaming video display
lNative apps for Crestron Home™ OS, Sonos® home sound control, Zoom Rooms™
conferencing control, and various room scheduling services
lBuilt-in Bluetooth® communications beacon
lBuilt-in web browsing

Product Manual — Doc. 8555E TS-70 Series • 3
lSingle wire Ethernet connection with PoEor PoE+ power
lWi-Fi® network connectivity
lUSB2.0 port
lEnterprise grade security and authentication
lWeb, cloud, or device-based configuration
Advanced Touch Screen Control
The TS-770 offers a sleek and powerful user interface for controlling technology in a home,
boardroom, classroom, or command center. The touch screen provides an intuitive interface that
is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status
display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and
automatic brightness controls ensure optimal visibility under varying lighting conditions.
Custom-Programmable Virtual Buttons
The TS-770 provides a universal status bar that is populated with virtual buttons for quick
access to common touch screen functions. The touch screen comes preconfigured with virtual
buttons for Power, Home, Lights, Up, Down, and Microphone. Each button can be programmed
via a Crestron control system to provide custom functionality, and unused buttons can be hidden
individually. The universal status bar is expanded or hidden using simple swipe gestures on touch
screen display.
Dynamic User Interfaces
The TS-770 supports custom user interfaces created with Crestron HTML5 User Interface and
Smart Graphics technologies, allowing greater flexibility for UI developers and programmers.
lCrestron HTML5 User Interface enables UIdesigners to develop rich, front-end user
interfaces with increased reusability and efficiency using modern web methodologies.
Crestron HTML5 User Interface development tools are provided to simplify creating user
interfaces built on standard web technologies
lSmart Graphics enables programmers to integrate fluid gesture-driven controls, animated
feedback, rich metadata, embedded apps and widgets, and full-motion video into their
user interfaces. Smart Graphics provides dynamic features such as graphical buttons and
sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers, and
customizable themes.
Voice Recognition
With built-in voice recognition, spoken commands can be issued to the TS-770 to quickly turn
devices on or off, select and play a specific media source, change the channel, choose a lighting
scene, lower the window shades, lock the doors, arm the security system, or enter a password.
Simply say a command and Crestron does the rest.1,2
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TS-770 to display live streaming
video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or similar), or a
DigitalMedia™ switcher.3Video is delivered to the touch screen over Ethernet, eliminating the
need for any extra video wiring.

4 • TS-70 Series Product Manual — Doc. 8555E
Rava SIPIntercom
Rava SIP Intercom Technology enables hands-free VoIP communication with other Rava-enabled
touch screens and door stations. Rava works over Ethernet, supporting 2-way intercom and
paging without requiring any special wiring. VoIP phone capability is also possible through
integration with a SIP-compatible IP phone system or SIP server, allowing hands-free telephone
functionality complete with speed-dialing, caller ID, custom ringers, and other enhancements.
Built-in echo cancellation affords full-duplex performance for clear, seamless voice
communication using the integrated microphone and speakers.2
Sonos App
Sonos and Crestron have partnered to provide a powerful whole-house music experience. From
any touch screen in the house, browse for tracks, artists, or playlists using all the services
available from Sonos and instantly play them in any room using Sonos® wireless speakers or a
Crestron Sonnex® multiroom audio system. The Sonos app runs natively on the TS-770, enabling
enhanced control of Sonos products as part of a complete Crestron system. The app checks for
updates nightly so it’s always current, and support for the Sonos S2 App is provided.1

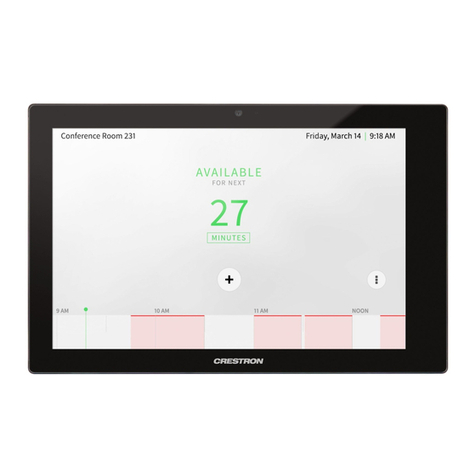

Crestron Room Scheduling App
As part of a complete enterprise room scheduling solution, the TS-770 can be deployed as a
scheduling panel via the Crestron room scheduling app. ACrestron scheduling panel can be
installed at the entrance of a meeting room to provide indication of the room’s availability and a
view of its schedule for the day. If desired, the room can be reserved on the spot for an ad hoc
meeting. ACEN-ODT-C-POE occupancy sensor can also be paired to the touch screen, allowing
for occupancy status to be reported instantly to the scheduling app for no-shows and
unscheduled room usage.3,4
Running the Crestron Scheduling App, the TS-770 integrates directly with Crestron Fusion®
software, Microsoft Exchange Server® software (for users of Outlook® software and Office365®
software), the Google Calendar™ calendaring app (including G Suite™ software), CollegeNET®
25Live® scheduling software, or Ad Astra™ software. IBM® Notes® software is also supported
through a Crestron Fusion on-premises server.
Third-Party Scheduling Apps
The TS-770 also includes support various third-party scheduling applications. New providers are
made available via firmware updates. Whatever provider you choose, setup is as simple as
connecting the touch screen to the network and choosing an app from the web-based setup
menu or built-in setup screens. The selected app downloads from the cloud and installs on the
touch screen without any programming or control system required.5,6
Zoom Rooms App
The Zoom Rooms™ conferencing control application enables the TS-770 to be used as a touch
screen control panel for a Zoom Rooms software-based conferencing and collaboration solution.
The TS-770 offers a superior alternative to a consumer tablet device, providing a more reliable
and secure platform. The TS-770 may be configured to run the Zoom Rooms app exclusively, or
to allow toggling between the Zoom Rooms app and touch screen control mode. The latter
option is used to integrate Zoom Rooms conferencing into a larger AV system while providing
touch screen control for both.7

Product Manual — Doc. 8555E TS-70 Series • 5
NOTE: The Zoom ultrasonic proximity signal is supported up to an average of 9 ft (2.74 m) from
the TS-770 touch screen to an end user device. The range will vary based on environmental
noise, the sensitivity of the end user device, and the orientation to the touch screen.
Crestron Home OSControl
The TS-770 may be used to control a Crestron Home™ OS whole home solution. Select the
Crestron Home app from the touch screen to control lighting, shades, climate, media, security,
and cameras, including the ability to create and recall scenes that create a desired ambiance
throughout a home. A TS-770 may be installed in each room to provide easy access to various
Crestron Home functions for both the room and the home.
Bluetooth Beacon
The built-in Bluetooth® proximity detection beacon enhances the intelligence and personalization
of a Crestron system by enabling a smartphone or tablet device to always know what room it is
in. It works with the Crestron Go App and Crestron App to determine when the mobile device is
in or near the same room as the beacon, and signals the mobile app to automatically display the
appropriate controls and information for the room.2,8
Web Browsing
Using its built-in web browser, the TS-770 provides access to online program guides and other
web-based services, and it can be used to control DVRs and other devices without having to pick
up a separate tablet or smartphone.1
Wired and Wi-Fi Connectivity
An Ethernet LAN connection is all that is required to wire the TS-770, containing all control,
video, intercom, and power signals within a single wire.
For deployments without access to Ethernet, the touch screen can also be connected the
network over Wi-Fi communications via a local wireless access point (WAP).
Power over Ethernet
Using PoE technology, the TS-770 gets its operating power directly through the network cable.
PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power
wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-163) offer a total networking
solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU3) is also
available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
High-Speed USBPort
The TS-770 provides a high-speed USB2.0 port for connecting supported Crestron accessories
to the touch screen.3

6 • TS-70 Series Product Manual — Doc. 8555E
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such
as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service
integration. These features are imperative to protect your network against service interruptions
and malicious intrusions, and to ensure compliance with your organization’s network policies.
Cloud-based provisioning and management streamlines the process of configuring, monitoring,
and updating every touch screen on the network. Additional support for SNMP allows the touch
screen to be monitored by your IT administrator.
XiOCloud Service
The TS-770 is compatible with the XiO Cloud® service, which is an IoT (Internet of Things) based
platform for remotely provisioning, monitoring, and managing Crestron devices across an
enterprise or an entire client base. Built on the Microsoft® Azure® software platform and utilizing
Microsoft's industry-leading Azure IoT Hub technology, XiO Cloud enables installers and IT
managers to deploy and manage thousands of devices in the time it previously took to manage
just one. Unlike other virtual machine-based cloud solutions, Azure services provide unlimited
scalability to suit the ever-growing needs of an enterprise. For more information, visit
www.crestron.com/xiocloud.
Crestron ONEApp Support
The TS-770 is compatible with the Crestron ONE™ mobile room control app. The Crestron
ONEapp creates a peer-to-peer network over Bluetooth communications between a mobile
device and the TS-770 in the room, allowing mobile-optimized room controls to be pushed to the
device from the touch screen. Programmers can specify the controls that display on the mobile
app by mapping joins from Smart Graphics projects to the mobile project. A SW-MOBILITY
license is required to enable mobile room control functionality.
Optional Mounting Accessories
The TS-770/1070-SMKallows the touch screen to be mounted permanently to a tabletop and
permits up to 330 degree swivel rotation.

Product Manual — Doc. 8555E TS-70 Series • 7
Notes:
1. Voice recognition, web browsing, weather information, and certain other functions require an Internet
connection.
2. The microphone and Bluetooth® transceiver may be defeated programmatically at any time.
3. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
4. Room scheduling mode requires the TS-770 to be designated exclusively for room scheduling use, which precludes
use of certain features and functions described in this spec sheet. For design assistance, contact the Crestron
True Blue support team at www.crestron.com/support.
5. Refer to the firmware release notes for a list of all scheduling apps that are supported by that firmware release.
6. Additional subscriptions and/or licenses may be required. Refer to each provider’s website for details about the
capabilities and requirements of its scheduling application and services. Third-party apps typically run on the TS-
770 as they do on a tablet device. The TS-770 runs only one app, which is selected at setup. Only the apps
approved and delivered by Crestron can run on the TS-770.
7. A complete Zoom Rooms solution requires a mini PC or Mac computer running Zoom software, a Zoom Rooms
subscription, plus additional peripherals and cables. Visit zoom.us/zoomrooms for more information about Zoom
Rooms capabilities, hardware requirements, and subscription plans. For design assistance, contact the Crestron
True Blue support team at www.crestron.com/support.
8. The TS-770 provides an integrated, equivalent alternative to the standalone PP-100-W beacon. For more details,
refer to the PP-100-W spec sheet. Bluetooth technology is used solely for proximity detection and does not
transmit or receive any control, multimedia, or personal data. Crestron Bluetooth beacons are only visible to
Bluetooth enabled devices that are specifically programmed and configured to work with them.

8 • TS-70 Series Product Manual — Doc. 8555E
TS-770-GV Features
The Crestron® TS-770-GV is a stylish and versatile tabletop touch screen that is ideal for
residential and enterprise applications. The TS-770-GV features a 7 in. (178 mm) capacitive
touch screen display with custom-programmable control buttons and support forSmart
Graphics® software and HTML5-based custom UIprojects. PoEconnectivity and a modern
tabletop design allow the touch screen to be deployed just about anywhere.
NOTE:The TS-770-GV series is a modified version of the TS-770 series, which eliminates the
microphone, the Bluetooth® communications beacon, and Wi-Fi® network connectivity to
comply with government applications demanding extra privacy and security.
Key features include:
lNext generation Crestron® tabletop touch screen
l7 in. (178 mm) widescreen active-matrix color display and 1280x800WXGA display
resolution
lCapacitive touch screen display
lCustom-programmable virtual control buttons
lSupports Crestron HTML5 and SmartGraphics® software custom user projects
lBuilt-in speakers
lH.265, H.264, or MJPEG streaming video display
lBuilt-in web browsing

Product Manual — Doc. 8555E TS-70 Series • 9
lSingle wire Ethernet connection with PoEor PoE+ power
lUSB2.0 port
lEnterprise grade security and authentication
lWeb or device-based configuration
Advanced Touch Screen Control
The TS-770-GV offers a sleek and powerful user interface for controlling technology in a home,
boardroom, classroom, or command center. The touch screen provides an intuitive interface that
is fully customizable with easy-to-use capacitive controls, true feedback, and real-time status
display. Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and
automatic brightness controls ensure optimal visibility under varying lighting conditions.
Custom-Programmable Virtual Buttons
The TS-770-GV provides a universal status bar that is populated with virtual buttons for quick
access to common touch screen functions. The touch screen comes preconfigured with virtual
buttons for Power, Home, Lights, Up, and Down. Each button can be programmed via a Crestron
control system to provide custom functionality, and unused buttons can be hidden individually.
The universal status bar is expanded or hidden using simple swipe gestures on touch screen
display.
Dynamic User Interfaces
The TS-770-GV supports custom user interfaces created with Crestron HTML5 User Interface
and Smart Graphics technologies, allowing greater flexibility for UI developers and
programmers.
lCrestron HTML5 User Interface enables UIdesigners to develop rich, front-end user
interfaces with increased reusability and efficiency using modern web methodologies.
Crestron HTML5 User Interface development tools are provided to simplify creating user
interfaces built on standard web technologies
lSmart Graphics enables programmers to integrate fluid gesture-driven controls, animated
feedback, rich metadata, embedded apps and widgets, and full-motion video into their
user interfaces. Smart Graphics provides dynamic features such as graphical buttons and
sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers, and
customizable themes.1
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TS-770-GV to display live
streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or
similar), or a DigitalMedia™ switcher.2Video is delivered to the touch screen over Ethernet,
eliminating the need for any extra video wiring.

10 • TS-70 Series Product Manual — Doc. 8555E
Sonos App
Sonos and Crestron have partnered to provide a powerful whole-house music experience. From
any touch screen in the house, browse for tracks, artists, or playlists using all the services
available from Sonos and instantly play them in any room using Sonos® wireless speakers or a
Crestron Sonnex® multiroom audio system. The Sonos app runs natively on the TS-770-GV,
enabling enhanced control of Sonos products as part of a complete Crestron system. The app
checks for updates nightly so it’s always current, and support for the Sonos S2 App is provided.1
Crestron Room Scheduling App
As part of a complete enterprise room scheduling solution, the TS-770-GV can be deployed as a
scheduling panel via the Crestron room scheduling app. ACrestron scheduling panel can be
installed at the entrance of a meeting room to provide indication of the room’s availability and a
view of its schedule for the day. If desired, the room can be reserved on the spot for an ad hoc
meeting. ACEN-ODT-C-POE occupancy sensor can also be paired to the touch screen, allowing
for occupancy status to be reported instantly to the scheduling app for no-shows and
unscheduled room usage.2,3
Running the Crestron Scheduling App, the TS-770-GV integrates directly with Crestron Fusion®
software, Microsoft Exchange Server® software (for users of Outlook® software and Office365®
software), the Google Calendar™ calendaring app (including G Suite™ software), CollegeNET®
25Live® scheduling software, or Ad Astra™ software. IBM® Notes® software is also supported
through a Crestron Fusion on-premises server.
Third-Party Scheduling Apps
The TS-770-GV also includes support various third-party scheduling applications. New providers
are made available via firmware updates. Whatever provider you choose, setup is as simple as
connecting the touch screen to the network and choosing an app from the web-based setup
menu or built-in setup screens. The selected app downloads from the cloud and installs on the
touch screen without any programming or control system required.4,5
Zoom Rooms App
The Zoom Rooms™ conferencing control application enables the TS-770-GV to be used as a
touch screen control panel for a Zoom Rooms software-based conferencing and collaboration
solution. The TS-770-GV offers a superior alternative to a consumer tablet device, providing a
more reliable and secure platform. The TS-770-GV may be configured to run the Zoom Rooms
app exclusively, or to allow toggling between the Zoom Rooms app and touch screen control
mode. The latter option is used to integrate Zoom Rooms conferencing into a larger AV system
while providing touch screen control for both.6
NOTE: The Zoom ultrasonic proximity signal is supported up to an average of 9 ft (2.74 m) from
the TS-770-GV touch screen to an end user device. The range will vary based on environmental
noise, the sensitivity of the end user device, and the orientation to the touch screen.
Crestron Home OSControl
The TS-770-GV may be used to control a Crestron Home™ OS whole home solution. Select the
Crestron Home app from the touch screen to control lighting, shades, climate, media, security,

Product Manual — Doc. 8555E TS-70 Series • 11
and cameras, including the ability to create and recall scenes that create a desired ambiance
throughout a home. A TS-770-GV may be installed in each room to provide easy access to
various Crestron Home functions for both the room and the home.
Web Browsing
Using its built-in web browser, the TS-770-GV provides access to online program guides and
other web-based services, and it can be used to control DVRs and other devices without having
to pick up a separate tablet or smartphone.1
Wired Connectivity
An Ethernet LAN connection is all that is required to wire the TS-770-GV, containing all control,
video, intercom, and power signals within a single wire.
Power over Ethernet
Using PoE technology, the TS-770-GV gets its operating power directly through the network
cable. PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated
power wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-16) offer a total
networking solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU) is
also available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
High-Speed USBPort
The TS-770-GV provides a high-speed USB2.0 port for connecting supported Crestron
accessories to the touch screen.2
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such
as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service
integration. These features are imperative to protect your network against service interruptions
and malicious intrusions, and to ensure compliance with your organization’s network policies.
Cloud-based provisioning and management streamlines the process of configuring, monitoring,
and updating every touch screen on the network. Additional support for SNMP allows the touch
screen to be monitored by your IT administrator.
Optional Mounting Accessories
The TS-770/1070-SMKallows the touch screen to be mounted permanently to a tabletop and
permits up to 330 degree swivel rotation.

12 • TS-70 Series Product Manual — Doc. 8555E
Notes:
1. Web browsing, weather information, and certain other functions require an Internet connection.
2. Item(s) sold separately. Refer to each product’s spec sheet for complete information.
3. Room scheduling mode requires the TS-770-GV to be designated exclusively for room scheduling use, which
precludes use of certain features and functions described in this spec sheet. For design assistance, contact the
Crestron True Blue support team at www.crestron.com/support.
4. Refer to the firmware release notes for a list of all scheduling apps that are supported by that firmware release.
5. Additional subscriptions and/or licenses may be required. Refer to each provider’s website for details about the
capabilities and requirements of its scheduling application and services. Third-party apps typically run on the TS-
770-GV as they do on a tablet device. The TS-770-GV runs only one app, which is selected at setup. Only the apps
approved and delivered by Crestron can run on the TS-770-GV.
6. A complete Zoom Rooms solution requires a mini PC or Mac computer running Zoom software, a Zoom Rooms
subscription, plus additional peripherals and cables. Visit zoom.us/zoomrooms for more information about Zoom
Rooms capabilities, hardware requirements, and subscription plans. For design assistance, contact the Crestron
True Blue support team at www.crestron.com/support.

Product Manual — Doc. 8555E TS-70 Series • 13
TS-770R Features
The Crestron® TS-770R is a stylish and versatile tabletop touch screen that is designed
specifically to run the Crestron Home™ OSapplication. The TS-770R features a 7 in. (178 mm)
capacitive touch screen display. PoEand Wi-Fi® network connectivity and a modern tabletop
design allow the touch screen to be deployed just about anywhere.
Key features include:
lNext generation Crestron® tabletop touch screen featuring a native Crestron Home™
OSapplication
l7 in. (178 mm) widescreen active-matrix color display and 1280x800WXGA display
resolution
lCapacitive touch screen display
lBuilt-in Rava® SIPintercom
lBuilt-in speakers and microphone
lH.265, H.264, or MJPEG streaming video display
lSingle wire Ethernet connection with PoEor PoE+ power
lWi-Fi® network connectivity
lUSB2.0 port
lEnterprise grade security and authentication
lWeb or device-based configuration

14 • TS-70 Series Product Manual — Doc. 8555E
Advanced Touch Screen Control
The TS-770R offers a sleek and powerful user interface for controlling technology in the home via
the Crestron Home app. The touch screen provides an intuitive interface that is fully
customizable with easy-to-use capacitive controls, true feedback, and real-time status display.
Abuilt-in proximity sensor wakes the screen without requiring any user interaction, and
automatic brightness controls ensure optimal visibility under varying lighting conditions.
Streaming Video
Native support for H.265, H.264, and MJPEG formats allows the TS-770R to display live
streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR, or
similar), or a DigitalMedia™ switcher.3Video is delivered to the touch screen over Ethernet,
eliminating the need for any extra video wiring.
Rava SIPIntercom
Rava SIP Intercom Technology enables hands-free VoIP communication with other Rava-enabled
touch screens and door stations. Rava works over Ethernet, supporting 2-way intercom and
paging without requiring any special wiring. VoIP phone capability is also possible through
integration with a SIP-compatible IP phone system or SIP server, allowing hands-free telephone
functionality complete with speed-dialing, caller ID, custom ringers, and other enhancements.
Built-in echo cancellation affords full-duplex performance for clear, seamless voice
communication using the integrated microphone and speakers.2
Sonos App
Sonos and Crestron have partnered to provide a powerful whole-house music experience. From
any touch screen in the house, browse for tracks, artists, or playlists using all the services
available from Sonos and instantly play them in any room using Sonos® wireless speakers or a
Crestron Sonnex® multiroom audio system. The Sonos app runs natively on the TS-770R,
enabling enhanced control of Sonos products as part of a complete Crestron system. The app
checks for updates nightly so it’s always current, and support for the Sonos S2 App is provided.1
Crestron Home OSControl
The TS-770R may be used to control a Crestron Home™ OS whole home solution. Select the
Crestron Home app from the touch screen to control lighting, shades, climate, media, security,
and cameras, including the ability to create and recall scenes that create a desired ambiance
throughout a home. A TS-770R may be installed in each room to provide easy access to various
Crestron Home functions for both the room and the home.
Wired and Wi-Fi Connectivity
An Ethernet LAN connection is all that is required to wire the TS-770R, containing all control,
video, intercom, and power signals within a single wire.
For deployments without access to Ethernet, the touch screen can also be connected the
network over Wi-Fi communications via a local wireless access point (WAP).

Product Manual — Doc. 8555E TS-70 Series • 15
Power over Ethernet
Using PoE technology, the TS-770R gets its operating power directly through the network cable.
PoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power
wiring. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-163) offer a total networking
solution with built-in PoE for multiple touch screens. A PoE Injector (PWE-4803RU3) is also
available to support a single touch screen.
NOTE: Refer to the “Power” specifications for more details.
Enterprise-Grade Security
Crestron touch screens employ enterprise-grade networking with robust security features such
as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory® service
integration.
Optional Mounting Accessories
The TS-770/1070-SMKallows the touch screen to be mounted permanently to a tabletop and
permits up to 330 degree swivel rotation.
Notes:
1. Certain other functions require an Internet connection.
2. The microphone may be defeated programmatically at any time.
3. Item(s) sold separately. Refer to each product’s spec sheet for complete information.

16 • TS-70 Series Product Manual — Doc. 8555E
TS-1070 Features
The Crestron® TS-1070 is a stylish and versatile tabletop touch screen that is ideal for residential
and enterprise applications. The TS-1070 features a 10.1 in. (257 mm) capacitive touch screen
display with custom-programmable control buttons and support forSmart Graphics® software
and HTML5-based custom UIprojects. PoEand Wi-Fi® network connectivity and a modern
tabletop design allow the touch screen to be deployed just about anywhere.
Key features include:
lNext generation Crestron® tabletop touch screen
l10.1 in. (257 mm) widescreen active-matrix color display and 1920x1200WUXGA display
resolution
lCapacitive touch screen display
lCustom-programmable virtual control buttons
lSupports Crestron HTML5 and SmartGraphics® software custom user projects
lBuilt-in Rava® SIPintercom
lBuilt-in speakers and microphone
lH.265, H.264, or MJPEG streaming video display
