Crestron CS-SHADE-ROLLER-BATT User manual

CS-SHADE-ROLLER-BATT
Crestron® BatteryPowered Shades
Product Manual
Crestron Electronics, Inc.

Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron Service Providers (CSPs) under a
limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating
system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement.
Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_
agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource.
©2021 Crestron Electronics, Inc.

Contents
Overview 6
Features 6
Long-life Battery Operation 7
QMT®3 Series Architectural or Décor Mounting Hardware 7
Easy Manual-to-Motorized Shade Upgrade 7
Natural and Artificial Daylight Control 7
Security and Privacy 7
Quiet Shade Motors 7
Brushless Motor Technology 8
Easy Installation 8
Crestron Design Tool Shades (CDTS) Software 8
Physical Description 8
Specifications 9
CS-SHADE-ROLLER-BATT 10
CSM(I)-QMTDC-163-1-SG 11
Installation 13
Mount the Shade Brackets 14
CSA-ARCH3 Brackets 14
CSA-DECOR3 Brackets 16
Mount the Shade Assembly 19
CSA-ARCH3 Brackets 19
CSA-DECOR3 Brackets 20
Mount Battery Pack and Insert Batteries 22
CSA-ARCH3 Brackets 22
CSA-DECOR3 Brackets 26
Level and Center the Shade Assembly 30
Motor Wiring 32
Routing the Cables 32
Making the Connections 32
Replace a Motor 33
Remove the Roller Shade Assembly 33
Replace the Motor 34
Reinstall the Roller Shade Assembly 34
Convert a Manual Shade to a Motorized Shade 35
Remove the Roller Shade Assembly 35
Replace the Manual Clutch with a Motor 35
Replace the Fascia Mount (Optional) 36
Configuration 37
Product Manual — Doc. 9206A Contents • iii

Test and Adjust Shade Limits 37
Test the Shade Travel 37
Adjust the Shade Limits 38
Wireless Communications 39
Join a Wireless Network 39
Leave a Wireless Network 41
Verifying Communications Status 41
Operation 42
Controls and Indicators 42
LEDs 43
Troubleshooting 44
Trouble Situation 44
Error State 45
iv • Contents Product Manual — Doc. 9206A

v • Contents Product Manual — Doc. 9206A

Product Manual — Doc. 9206A CS-SHADE-ROLLER-BATT • 6
Overview
Crestron® battery-powered shades (CS-SHADE-ROLLER-BATT) add beauty, convenience, and
comfort to any interior space.1Install battery-powered shades in locations where power and
control wires cannot be run. A battery pack powers the shade motor while the SG radio provides
control and status of the shade.
This section provides the following information:
•Features
•Physical Description
Features
Key features include:
lEasy installation in post-construction or retrofit applications
l3 year (average) battery life
lInstall shades where power and control cabling cannot be run
lUse the CSM-QMTDC-163-1-SG shade motor for an easy manual-to-motorized shade
upgrade using existing hardware
lDesigned for use with Crestron® QMT®3 Series Architectural or QMT3 Series Décor shade
hardware
lFor roller shades 22 to 96in. (559 to 2,439mm) wide using Décor shade hardware
lFor roller shades 24 to 96in. (610 to 2,439mm) wide using Architectural shade hardware
lDigital Quiet Motor Technology™ provides silent operation and precise positioning
lPatented automatic torque calibration technology detects obstructions to prevent
damage
lProgrammable stop points afford customizable scene presets
lReal-time remote activity monitoring and status feedback
lLocal pushbutton interface for setup and testing
lOnboard multicolor diagnostic LED
lQuick and easy installation
lDependable, brushless motor design provides reliable, long-life operation
lFully integrated electronics — no external interface module required
lControl system integration using SG wireless communications
lPowered using 8 D cell batteries in an external battery pack
lLimited Lifetime Warranty

7 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206A
Long-life Battery Operation
Power is supplied to the QMT® shade motor via 8 D cell batteries2(not supplied). The batteries
are stored in an external battery compartment that is mounted in the fascia of QMT3 Series
Architectural shade hardware. When mounting with QMT3 Series Décor shade hardware, the
battery compartment can be hidden behind the roller shade fabric, valence, or drapes, and can
be color-matched to the bracket hardware.
QMT®3 Series Architectural or Décor Mounting
Hardware
Designed for use with Crestron® QMT®3 Series Architectural (CSS-ARCH3) or QMT3 Series
Décor (CSS-DECOR3) mounting hardware.1QMT3 series mounting hardware is a compact
mounting system that allows a Crestron shade to be mounted on a wall, ceiling, or window jamb.
The CSA-ARCH3 fascia for battery-operated shades includes an integrated battery holder that
neatly stores the battery compartment. The battery holder swings open to provide easy access
for battery replacement.
Easy Manual-to-Motorized Shade Upgrade
Convert manually operated shades to motorized shades using the CSM-QMTDC-163-1-SG shade
motor. You can keep your existing shade tube, fabric, and brackets.
Natural and Artificial Daylight Control
Protect fine furnishings and floor coverings from harmful UV rays with intelligent shading
solutions. Shades can track the rising and setting of the sun to prevent extra solar heat gain in
the summer and utilize its warmth in the winter for added energy efficiency. Crestron shades
can also work with an entertainment system to close shades and prevent glare on a TV when it is
turned on, automatically creating the ideal viewing scenario.
Security and Privacy
Automated shades provide privacy and security. Shades allow natural light in with
semi-translucent shades, or use blackout shades to completely block views. In the event of a
forced entry into a home, shades integrated with a security system can be set to raise
automatically, allowing an intruder to be easily spotted from the outside.
Quiet Shade Motors
Crestron automated shades feature low-voltage Digital QMT® shade motors for quiet operation.
Crestron shades help manage daylight without audible disruptions to the space.

Product Manual — Doc. 9206A CS-SHADE-ROLLER-BATT • 8
Brushless Motor Technology
The Crestron Digital QMT shade motor is a brushless design, which translates into exceptional
reliability, smoother operation, and ultra-quiet performance. It provides superior torque in a
small package.
Easy Installation
Crestron shades are easy to install. Brackets are easily mounted, and the motor clicks into place
with no special tools required.
Crestron Design Tool Shades (CDTS) Software
The Crestron Design Tool Shades (CDTS) is a web-based tool used for quoting and ordering
Crestron roller shades and drapery tracks. The software may be used to easily create proposals
for customers and place orders directly to Crestron.
Notes:
1. Battery-powered shade motors cannot be used with roman shades, horizontal sheers, dual-roll brackets,
couplers, and pockets.
2. Estimated battery life is based on two open/close cycles per day. High environmental temperatures and shades
taller than 60 in.(1524mm) can reduce the battery life.
Physical Description
Controls and Indicators
UP, SET, DN (3) Pushbuttons for setup and testing
Status (1) Multicolor LED for motor status indication and diagnostics

9 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206A
Specifications
This section provides the following information:
•CS-SHADE-ROLLER-BATT
•CSM(I)-QMTDC-163-1-SG

Product Manual — Doc. 9206A CS-SHADE-ROLLER-BATT • 10
CS-SHADE-ROLLER-BATT
Specifications for the CS-SHADE-ROLLER-BATT are below.
Shade Motor
CSM-QMTDC-163-1-SG For details, refer to the CSM-QMTDC-163-1-SG product page.
CSMI-QMTDC-163-1-SG For details, refer to the CSMI-QMTDC-163-1-SG product page.
Shade Brackets
CSS-ARCH3 For details, refer to the CSS-ARCH3 product page.
CSS-DECOR3 For details, refer to the CSS-DECOR3 product page.
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (noncondensing)
Dimensions
System Width Décor shade hardware: 22 to 96in. (559 to 2,439mm);
Architectural shade hardware: 24 to 96in. (610 to 2,439mm);
Architectural shade hardware with blackout channels: 29 to 96in. (737 to
2,439mm);
Depending upon shade height and fabric selection
Compliance
Regulatory Model: M202034001
UL, cUL, FCC, IC, CE, RCM

11 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206A
CSM(I)-QMTDC-163-1-SG
Specifications for the CSM-QMTDC-163-1-SG and CSMI-QMTDC-163-1-SG QMT® shade motors1
are below.
Motor
Torque 3/4Nm max;
Torque values vary throughout the shade travel and are based on the shade
configuration
Speed 10 - 18 RPM
Duty Cycle 8 minutes on / 40 minutes off at 3/4 Nm
Shade Width Décor shade hardware: 22 to 96in. (559 to 2,439mm);
Architectural shade hardware: 24 to 96in. (610 to 2,439mm);
Architectural shade hardware with blackout channels: 29 to 96in. (737 to
2,439mm);
Depending upon shade height and fabric selection
Power Requirements
Battery Pack 8 D cell batteries (not supplied) in an external battery compartment;
3 year (average) battery life2;
Architectural shade hardware: The battery pack secures to the fascia via the
integrated battery pack holder on the battery-operated shade fascia;
Décor shade hardware: The battery pack can be mounted to a flat surface that
is hidden behind the roller shade fabric or color-matched to the mounting
hardware
Wireless Communications
RF Transceiver SG 2-way RF;
Domestic: 915 Mhz;
International:868 MHz;
IEEE 802.15.4 compliant
Range (Typical) 230 ft (70 m) indoor, to SG wireless gateway;
Subject to site-specific conditions and individual device capabilities
Gateway Requires a Universal Wireless Gateway (CEN-GW1 or CENI-GW1, sold
separately)

Product Manual — Doc. 9206A CS-SHADE-ROLLER-BATT • 12
Connector
(1) 3-conductor attached lead with inline detachable terminal block;
Connects to battery compartment
Controls and Indicators
UP, SET, DN (3) Pushbuttons for setup and testing
Status (1) Multicolor LED for motor status indication and diagnostics
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (noncondensing)
Dimensions
Diameter 1.63 in. (42 mm)
Length 13.25 in. (337 mm)
Compliance
Regulatory Model: M202034001
UL, cUL, FCC, IC, CE, RCM
Notes:
1. Battery-powered shade motors cannot be used with roman shades, horizontal sheers, dual-roll brackets,
couplers, and pockets.
2. Estimated battery life is based on two open/close cycles per day. High environmental temperatures and shades
taller than 60 in.(1524mm) can reduce the battery life.

13 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206A
Installation
This section provides the following information:
•Mount the Shade Brackets
•Mount the Shade Assembly
•Mount Battery Pack and Insert Batteries
•Level and Center the Shade Assembly
•Motor Wiring
•Replace a Motor
•Convert a Manual Shade to a Motorized Shade

Product Manual — Doc. 9206A CS-SHADE-ROLLER-BATT • 14

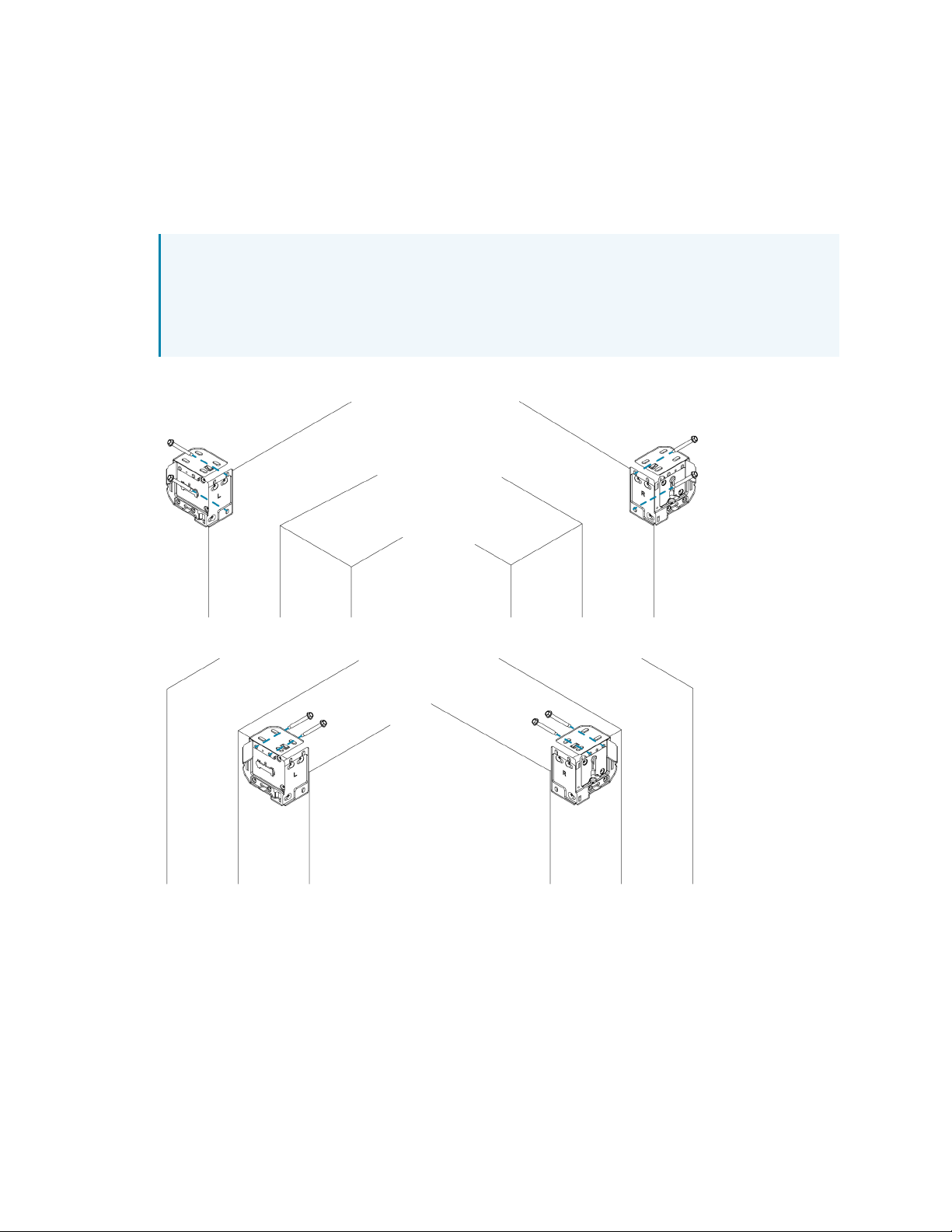

Mount the Shade Brackets
The CS-SHADE-ROLLER-BATT is compatible with CSA-ARCH3 and CSA-DECOR3 mounting
brackets.
CSA-ARCH3 Brackets
To mount the brackets:
1. Check for a proper fit by holding the roller shade assembly in the approximate mounting
location. Use the fascia to measure the proper distance between mounting brackets. The
brackets should be mounted flush with the end of the fascia.
2. Mark the locations of the brackets and make sure that the mounting points are level and
on the same plane. Use a laser level or snap a chalk line to mark the locations of the
brackets. Space the brackets according to the specifications on the order form.

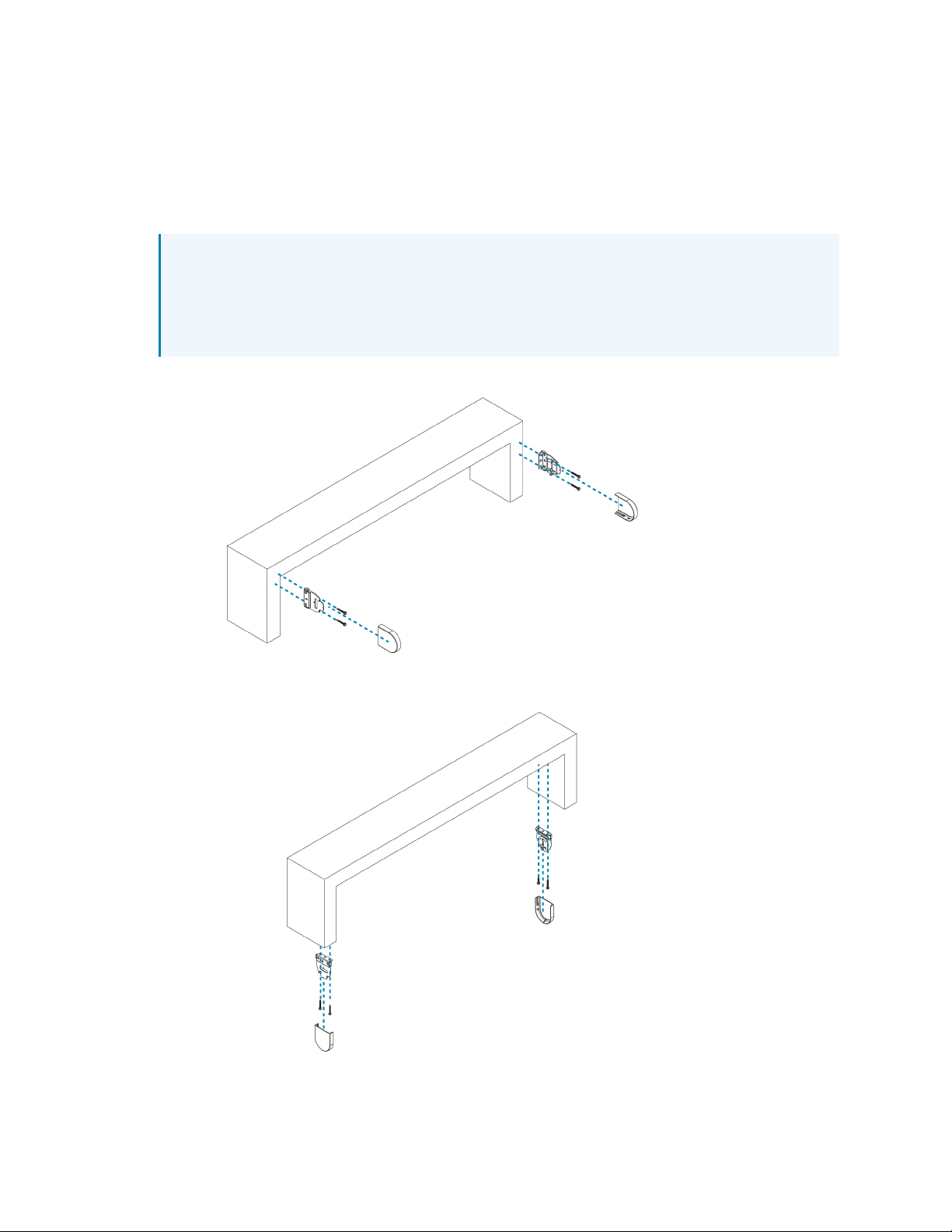

3. If applicable, attach the end caps to the mounting brackets. Attach the end cap marked
LEFT to the motor bracket (stamped with an L) and the end cap marked RIGHT to the
idler bracket (stamped with an R). The end caps snap into place.

15 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206A
4. Mount the brackets to the outside of the window frame (outside mount) or the inside of
the window frame (inside mount). Use hardware that is appropriate for the mounting
surface. Make sure the brackets are level and mounted to a flat surface.
lMotor Bracket (L): Mounts on the left-side of the window opening.
lIdler Bracket (R): Mounts on the right-side of the window opening.
NOTES:
lThe stamped Land Ron the bracket should face the wall and window.
lFor inside mounts, secure the mounting brackets into the window jamb or the
window header.
Outside Mount (CSA-ARCH3-BRKT)
Inside Mount (CSA-ARCH3-BRKT)

Product Manual — Doc. 9206A CS-SHADE-ROLLER-BATT • 16
CSA-DECOR3 Brackets
To mount the brackets:
NOTE:The motor bracket must be installed on the left side of the window.
1. Check for a proper fit by holding the roller shade assembly in the approximate mounting
location.
2. Mark the locations of the brackets and make sure that the mounting points are level and
on the same plane. Use a laser level or snap a chalk line to mark the locations of the
brackets. Space the brackets according to the specifications on the order form.
3. If applicable, attach the end caps to the mounting brackets. Attach the end cap marked
LEFT to the motor bracket (stamped with an L) and the end cap marked RIGHT to the
idler bracket (stamped with an R). The end caps snap into place.

17 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206A
4. Mount the brackets to the outside of the window frame (outside mount) or the inside of
the window frame (inside mount). Use hardware that is appropriate for the mounting
surface. Make sure the brackets are level and mounted to a flat surface.
lMotor Bracket (L): Mounts on the left-side of the window opening.
lIdler Bracket (R): Mounts on the right-side of the window opening.
NOTES:
lThe stamped Land Ron the bracket should face the wall and window.
lFor inside mounts, secure the mounting brackets into the window jamb or the
window header.
Outside Mount
Inside Mount

Product Manual — Doc. 9206A CS-SHADE-ROLLER-BATT • 18
Rotate the Keyhole
When the idler bracket is mounted, the keyhole in the idler bracket must be parallel with the wall;
the head of the adjustment screw must face down. Rotate the keyhole so that it is in the correct
orientation.
1. Using a Phillips screwdriver, remove the four screws holding the idler mount in the left-
hand bracket and then remove the idler mount. Keep all hardware for reassembly.
2. Reassemble the idler mount and the bracket so that the keyhole is parallel to the wall
when the bracket is mounted. The screw head on the vertical adjustment screw must face
down.
3. Secure the idler mount with the screws removed in step 1.

19 • CS-SHADE-ROLLER-BATT Product Manual — Doc. 9206A
Mount the Shade Assembly
Mount the roller shade assembly to the mounting brackets.
CAUTIONS:
lThere is risk of personal injury and equipment damage if the shade or associated parts
fall during installation. Use care when mounting. Use proper mounting hardware (for
example, screws or bolts) for the mounting surface when securing the brackets to the
surface.
lTwo or more people are required to properly mount the shades.
NOTE:The motor must be installed on the left side of the window.
CSA-ARCH3 Brackets
To mount the roller shade assembly:

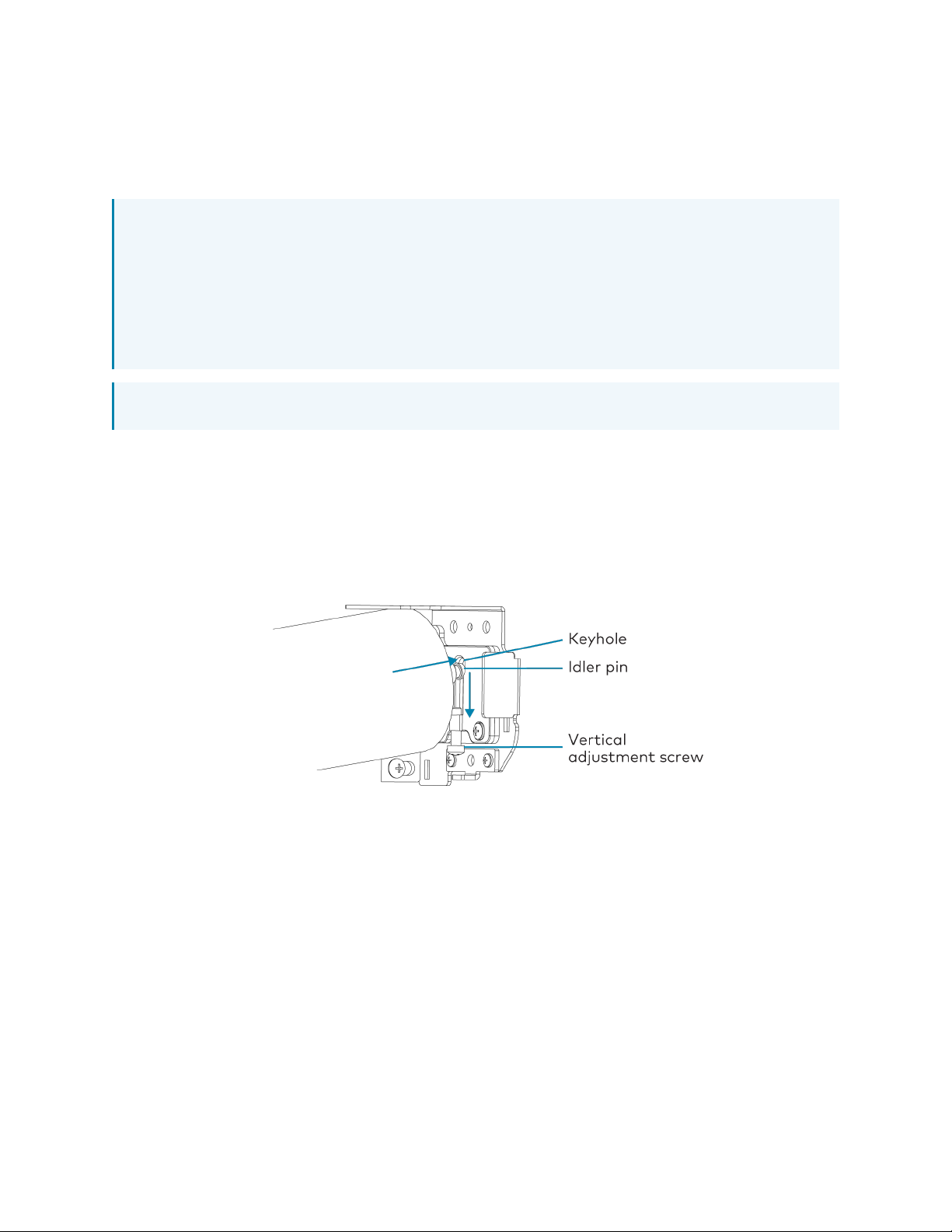

1. Insert the idler pin into the top of the keyhole on the right bracket, and slide it down into
the keyhole. The idler pin sits on the vertical adjustment screw.
Insert the Idler Pin into the Keyhole (CSA-ARCH3-BRKT)
2. Raise the motor end of the roller shade assembly to the motor bracket.

Product Manual — Doc. 9206A CS-SHADE-ROLLER-BATT • 20
3. Push the roller shade assembly toward the idler bracket to compress the spring on the
idler pin.
Align the Motor with the Motor Bracket (CSA-ARCH3-BRKT)
4. Push the tab on the motor assembly into the hole in the motor bracket. When the shade is
properly seated, the two clips spring down to secure the motor to the bracket. Make sure
that the shade is properly mounted before letting go.
Secure the Motor to the Motor Bracket (CSA-ARCH3-BRKT)
CSA-DECOR3 Brackets
To mount the roller shade assembly:
1. Insert the idler pin into the top of the keyhole on the right bracket, and slide it down into
the keyhole. The idler pin sits on the vertical adjustment screw.
Insert the Idler Pin into the Keyhole
2. Raise the motor end of the roller shade assembly to the motor bracket.
