Crooza DBX-6788 User manual

CROOZA©
ELECTRIC VEHICLE WITH MUSIC FUNCTION
Not recommended for children under 3 years!
This vehicle is not allowed to be used as a means of transportation and cannot be operated in
public streets.
WARNING: Never leave charging unattended!
The remote control mustn’t be given to children, especially when they are sitting in the
vehicle! Keep the remote control away from other children.
Read this manual carefully before the operation.
The vehicle must be operated only under adult supervision!
www.crooza.de

-2-
ELECTRIC SHOCK
WARNING
•Unfixed batteries may fall off the overturned vehicle and cause injury. Ensure that the batteries have been fixed
carefully.
•FIRE PREVENTION
- The electric system of the vehicle is not allowed to be altered. Alterations may lead to fire, black-out of the
electric systems and serious injuries.
- Using wrong batteries and chargers may lead to fire, explosion and serious injuries.
- Only adults are allowed to handle batteries. The batteries, which are quite heavy, are filled with electrolyte.
Leaking batteries may lead to serious injuries.
- Do not let your children to charge the batteries. Children may get injured by an electric shock. Only adults are
allowed to charge the batteries and the charging process must be supervised by an adult continuously.
Never leave charging unattended!
- Please check the batteries, cable connections and the connector of the charger before charging the batteries. If
you find any defects, do not charge them until they are repaired by an expert. The batteries mustn’t be charged
without a good fuse. The vehicle must be off while charging.
- Charging through contaminated socket can lead to short-circuit and other defects. Therefore, it must be
refrained.
- The charging process must be carried out safely, FAR from easily inflammable materials. Look out excessive
smoke and heat generation.
- The motors produce HEAT and spark! Be careful during the contact with the motors.
- The charger must be used only in a dry environment.
SAFE DRIVING
WARNING
PREVENTING INJURIES
•The vehicle must be operated only under adult supervision!
•Remote control must be used only by adults and kept away from children!
•Never use the vehicle in darkness!
•The vehicle mustn’t be used as a means of transportation! In order to prevent risks, it mustn’t be operated in
public streets, highways, rock pools, river beds etc. Ensure that there are no means of transport in the vicinity.
•Operation only on flat and firm grounds/areas!
•Operation only on safe grounds!
E.g: In areas
- without swimming pools or ponds. Risk of drowning!
- without inclination (excessive speed development, unexpected vehicle rolling) and slopes.
- far from stairs, ramps, slopes, streets and boulevards.
•Operating Directives
Ensure that the following rules are followed for a safe operation:
- Always sitting properly on the seat and fastening seatbelt.
- No driving without shoes.
NOTICE
•Small items are included in the package at delivery status (risk of swallowing). Assembling must be conducted
under adult supervision.

-3-
Specifications
Age properly: 3-6 years old
Vehicle Size 110x61x47 Weight: 9.35 kg Temperature range: 0-40 °C
Load capacity 30kg max. Speed: 3-3.5 km/h Motor: 6V Direct current
Charging time: When the batteries are charged more than 8-15 hours, the vehicle works for approx. 3-
4 hours under normal load conditions.
The batteries mustn’t be charged longer than 16 hours once.
Charger: Input: AC220-240V (AC110V) / 50Hz
Output: DC6V / 800mA
Battery: 1 x Electrolyte Battery (6V4,5Ah) Charging lifetime: approx. 300
PACKAGE CONTENT
Main body Shock absorber
1. Unit 1. Unit
Steering wheel Wheel trim
1. Unit 1. Unit
Remote control Wheel
1. Unit 1. Unit
Set of screws
Charger
1. Unit 1. Unit
Operation manual
1. Unit

-4-
Features
1. Front cover 6.Seat
2. Motor hood 7.Main body
3. Rear mirror 8.Wheel trim
4. Multifunction Steering
wheel 9.Rubber ring
5. Spoiler
Assembly Instructions
WARNING: Assembling must be conducted under adult supervision!
1. Attaching the rear wheels
As shown in Fig. 1: on the side without gear, 1x washer, 1x spacer, 1x washer, 1x wheel, 1x washer and the fixing ring
are attached. On the side with gear, 1x wheel, 1x washer and a fixing ring are attached. After attaching the wheel trim
on the both sides, the process is completed.
Necessary parts: 4x washers, 1x spacer, 2x wheels, 2x rings, 2x wheel trims
2. Attaching the front wheels
As shown in Fig. 2: on both sides 1x washer, 1x wheel, 1x washer and the fixing ring are attached. After attaching the
wheel trim on the both sides, the process is completed.
Necessary parts: 4x washers, 2x wheels, 2x rings, 2x wheel trims
For a more detailed manual and pictures, visit www. crooza.de

-5-

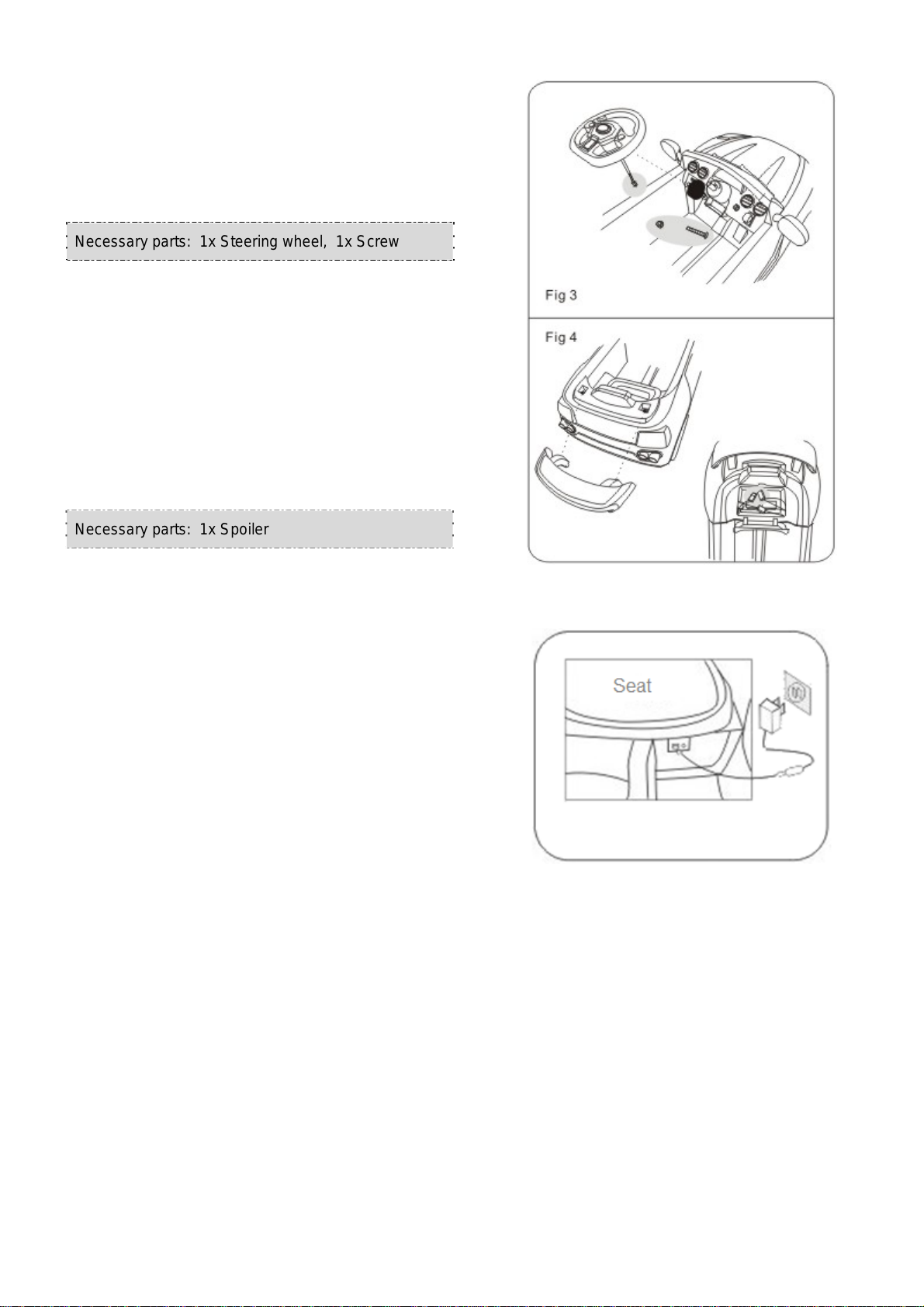

3. Assembling the steering wheel
Cable is connected, steering wheel is put on the control
rod and screwed.
Necessary parts: 1x Steering wheel, 1x Screw
4. Attaching the spoiler
The spoiler is connected as shown in Fig. 4.
IMPORTANT! For safety reasons, the battery is
disconnected at delivery status. In order to attach
the battery, lift the seat and connect the battery
cable.
Necessary parts: 1x Spoiler
5. Charging the vehicle
The charging socket is outside under the seat and
accessible from outside.
Before the first operation, it must be charged as
described above. The charging indicator flashes up
while charging.
The charging process must be conducted
continuously under adult supervision! The charging
process must always be under supervision!
The vehicle must be off and never be turned on
while being charged!
Only use the provided charger.
In order to extend the lifetime of the battery, it must
be charged at least once three months even if the
vehicle won’t be used in the meantime.
The battery must be kept away from heat sources
and water.
The charger is not a toy and not suitable for
children!
Children are not allowed to charge the vehicle on
their own!
Read the notice under the Point 5
‘Charging the Batteries & Warnings’
on the Page 9

-6-
Remote control
Assembling
Completed
Telescopic antenna
attached and
screwed firmly.
Changing the batteries.
Battery cover
Signal
On/Off switch
Forward/Backward
switch Right/Left switch
Turn on the remote control.
Control-LED flashes up. After
Forward/Backward switches are
confirmed, the vehicle starts moving.
Upon release, the vehicle stops.
When Right/left switches are pressed,
the vehicle moves to the right and the
left.
Open the battery cover, put 3x 1.5V batteries and
attach the battery cover. When you don’t use the
remote control, turn it off to save the batteries.
If the operating distance decreases, check the batteries and change them if needed.
3x 1,5V Battery picker

-7-
4. Operating Mode
IMPORTANT!
For safety reasons, the battery is disconnected at delivery status. In order to attach the battery, lift the seat and
connect the battery cable.
After battery attachment, the following functions must be regarded:
1. The switch on the right side of the dashboard is the Main Switch. When ‘ON’ is switched, the vehicle is activated
and the motor sound is heard. (Info: Charging is possible only when ‘‘0’’ is switched.)
When it comes to using keys; insert the key and turn it to the right.
2. When the pedal is pressed additionally, the vehicle moves.
3. If the switch on the left side of the dashboard is on ‘Forward’, the vehicle moves forward when pedal is pressed.
4. If the switch on the left side of the dashboard is on ‘Backward’, the vehicle moves backward when pedal is pressed.
5. In the middle position (Pos. ‘‘0’’), the vehicle doesn’t move.
6. When the left switch on the dashboard is turned to ‘‘I’’, the head lamp flashes up.
7. When the right switch on the right side is on ‘‘I’’, the indicator is activated and different sounds like ‘‘turn right’’, ‘‘turn
left’’, horn and music are heard. They can be selected via the buttons on the steering wheel.
8. The music setting can be connected with external sources like MP3-Players, Radios, CD-Players etc. In this case,
the features of the steering wheel are deactivated.
9. The loudness of the music can be set by turning the sound switch.
10. The status of the battery can be seen at battery status indicator.
11. The seat can be set according to the size of your child by unpinning the screws.
SAFETY CHECK BEFORE OPERATION
There must be no rattling sounds like loose or broken parts. If you are unsure, please consult an
experienced mechanic.
SAFETY INSTRUCTIONS
WARNING: Holding tightly during operation.
WARNING: Children under 3 years are not allowed to operate the vehicle because of the
small parts which can be swallowed.

-8-
GENERAL WARNINGS
The operation of the vehicle can lead to dangerous situations. Electrically powered vehicles can move
automatically, which may cause dangerous situations. Therefore, it’s possible that the control of the
vehicle may be lost during the operation, and this may lead to injuries or even death.
LIKE EVERY MOBILE PRODUCT, THE OPERATION OF THE VEHICLE CAN LEAD TO INJURIES OR DEATH
EVEN IF ALL THE SAFETY RULES ARE OBEYED AND SAFETY EQUIPMENTS ARE APPLIED. THE
OPERATION OF THE VEHICLE IS AT USER’S OWN RISK AND PURSUANT TO COMMON SENSE!
Please follow the local laws and regulations. The vehicle is not a means of transportation and is not allowed to be
operated in public streets and on pavements. It is important that no skaters, bycyclists, other children, animals etc.
cross the vehicle way. The rights of others using a specific area must be taken into account and respected.
The vehicle has been designed to be operated on straight, clean, dry and flat surfaces, and shows the best
performance when the given conditions are fulfilled. The operation on uneven, rough and slippery surfaces can
lead to the loss of traction control or undesirable high speeds (at inclinations) and consequently dangerous
situations. High speeds like downhill driving must be refrained.
Functional measures such as wearing safety helmets, knee and elbow protectors are significant precautions to
prevent injuries.
The vehicle mustn’t be loaded with more than 30 kg.
No stunts or tricks must be performed with the vehicle. Improper uses like jumping, sliding etc. must be refrained.
Operations against the common sense or ignoring warnings can lead to injuries or even death.
OPERATION IS AT USER’S RISK. PARENTS ARE RESPONSIBLE FOR THEIR CHILDREN.

-9-
5. Charging the Batteries & Warnings
1. The charging socket is outside under the seat. Ensure that the
power voltage complies with the features of the charger. Connect
the charger to the socket and attach the other end to the charging
jack of the vehicle. The charging indicator near the charging jack
flashes up and the charging begins. The vehicle must be off while
being charged.
2. Maximum charging time is 16 hours.
3. During charging, both the battery and the charger get warm. That’s
normal and doesn’t indicate a defect. If there is excessive heat
generation, charging must be stopped.
4. Try to discharge the batteries completely before charging again (Deep discharge; that is, avoid discharging
completely). Empty batteries must be charged 8-15 hours. Never charge the batteries longer than 16 hours
once. Otherwise, the batteries can get damaged and their lifetime can get shorter.
5. In order to extend the lifetime of the battery, it must be charged at least once three months even if the vehicle
won’t be used in the meantime.
6. Charging must be conducted only by adults and supervised continuosly. Do not allow your child to charge the
vehicle.
7. Never throw the battery into fire or water. Do not try to open the battery. If the battery leaks, avoid
physical contact.
8. Check the batteries and the charger against possible defects and abnormalities before every charging. Before
beginning the charging process, ensure that all the parts related to charging are in correct places.
9. During the charging process, the main switch is in the middle position (OFF) and the vehicle is not operated.
10. Defected batteries or chargers must be replaced only by original ones. When needed, contact the manifacturer
via [email protected]
11. The charger is not a toy and must be kept away from children!
12. WARNING: For the safety of your child and to avoid injuries led by the gearbox of the vehicle, the direction
mustn’t be changed while driving (even on remote mode).
SAFETY INSTRUCTIONS
1. Use the vehicle only on flat areas. If there are high inclinations in the way, the vehicle may tumble
down.
2. The remote control mustn’t be given to children! Keep the remote control away from other
children.
3. The vehicle mustn’t be used as a means of transportation! In order to prevent risks, it mustn’t be operated
in public streets, highways, rock pools, river beds etc.
4. RISK OF CHOKING! After unpacking, dispose of the package immediately. The package is not a toy;
children mustn’t be allowed to play with it. Keep the original box and the Transport protector-
Styrofoam for possible guarantee situations.
5. Removable parts of the vehicle mustn’t be swallowed or played with. Supervise your children while they
are driving the vehicle.
6. The vehicle is for children under 30 kg. Do not overload the vehicle.
7. During the operation, do not touch the wheels or the wheel parts.
8. Electric cables and components mustn’t be modified. Maintenance and reparation must be conducted by
a professional expert.
9. Do not clean the vehicle with water. Use a soft wet cloth for cleaning.
10.If the vehicle won’t be operated for a long time, the batteries must be taken off. Keep the batteries in a
cool and dry place. Keep the batteries away from heat and fire. Charging batteries once 2 months
regularly extends the battery life.
11.Recharging the batteries as soon as the speed decreases extends their life.
12.Avoid short-circuit of cable ends.
13.Do not use the vehicle in rainy weather or on a wet ground.
14.Use the specified fuses only.

-10-
Instructions for A Safe Operation
DANGER ! Explain the instructions below to your child
Right after seeing the vehicle, your child will want to drive it
immediately. Children are not capable of judging, realizing and
assessing dangers. Unsupervised operations (like dismounting)
can lead to serious injuries. Before letting your child drive the
vehicle, you must check the area and your child’s ability to judge
and drive the vehicle safely. Even if children are instructed before,
they are not capable of foreseeing the dangers and turning away
from them. There are no other directly supervision options for
adults. Set up safety rules adapted to local conditions alongside
the instructions below about using the vehicle. Ensure that these
instructions are followed. All of these rules must be obeyed by the
children who will play with your child as well.
Instructions for a safe operation:
Ensure that children learn and obey the rules below:
1. Always sitting properly on the seat.
2. No driving without sturdy shoes.
3. Only one (1) child must drive the vehicle. If children sit
improperly or stand in the vehicle, they may fall off; the vehicle
may overturn and this may lead to serious injuries.
4. Do not allow your child to drive the vehicle in the streets or
roads where motored vehicles are driven.
5. Do not allow your child to drive the vehicle near swimming
pools, ponds, barriers (e.g: furniture, trees with low branches
etc.) or overhanging building parts (e.g: stairs, wall projections
etc.).
6. Never use the vehicle in darkness!
•An unexpected barrier may cause an accident.
•Driving only in daylight or well-lit areas.
7. Forbid driving in sloped areas.
8. Do not allow your child to drive up and down the stairs.
•Even if the pedal isn’t stepped, it may reach a high and
dangerous speed.
•The vehicle may overturn.
•The motor may stop suddenly and the vehicle may roll down
together with the child.
9. Moving things must be kept away. Revolving things like motor,
gearbox and wheels can jam the fingers, hair etc. and lead to
serious injuries. Do not allow your child to operate the vehicle in
lateral or over-head position.
10.Do not use any easily inflammable materials near the vehicle.
The vehicle has electric switches which spark (like all the
switches) when triggered. Easily inflammable liquids can catch
fire.
11.Take the batteries off to prevent an unsupervised operation.
WARNING
PREVENTING INJURIES
•The vehicle must be operated only under
adult supervision!
•Never use the vehicle in darkness!
•Operate the vehicle only on flat grounds!
•Operation only on safe grounds!
E.g: In areas
- without swimming pools or ponds. Risk of
drowning!
- without slopes.
- far from stairs, ramps, slopes, streets and
boulevards.
•Operating Directives
- For a safe operation, ensure that these
rules are learnt and followed by the
children.
- Always sitting properly on the seat.
- Always tight holding
- No driving without shoes.

-11-
IMPORTANT!
For the safety of your child and to avoid injuries led by the
gearbox of the vehicle, teach your child not to change
direction while driving.
•Practise on steering with your child and show him/her
by which speed the steering wheel must/can be
turned.
•As soon as the pedal is unstepped, the vehicle stops
automatically.
•Ensure that your child knows how to steer and to stop
the vehicle.
•The stop-function may not work in sloped areas.
Ensure that the vehicle is used only on flat grounds.
ATTENTION!
The vehicle must be operated ONLY outdoors.
A big part of floor coverings, which have been
misplaced, can be damaged by the vehicle.
The manufacturer and the importer are not
responsible for the damages occuring on floor
coverings or other building parts.
WARNING!
The vehicle has small parts which can be swallowed by children.
Warning: At delivery status, the positive pole (red cable) of the battery is not attached for safety reasons.Please
attach the red cable after the whole assembly and put it under the seat carefully.
Maintenance Instructions
Check if all the screws, nuts and caps are set correctly and firmly. Ensure that none of the plastic parts are
damaged and broken.
In snowy or rainy weather, keep the vehicle in a dry room which has a ceiling. Even if the vehicle won’t be used,
charge the batteries at least once a month.
A dirty vehicle can be cleaned with a soft wet cloth. Avoid any contact of water with the electric system, batteries
and the switches of the vehicle.
Contact of water with motor and electric components can lead to corrosion and damage on the motor and the
electric components.
Do not use the vehicle on the sand. Sand in the motor, gearbox or electric components causes blockades and
blackouts of the related parts.
The vehicle can be cleaned with a dry cloth. In order to restore the original gleam of the vehicle, you can work on
the plastic parts of the vehicle with a wax free furniture polish. NEVER use a car polish.
For a safe operation, it is recommended that the cabling is checked regularly against short-circuits.

-12-
Troubleshooting
Problem Possible Cause Solution
No sound, no light, the
vehicle doesn’t move 1. Cable connections are loose.
2. Check the fuse.
3. Main switch is not on ‘‘I’’.
Check the cable connections. Ensure
that the batteries are in their place
under the steering wheel. Change the
fuse. Turn the main switch to ‘‘I’’.
Although the motor
works, the vehicle
doesn’t move
1. Check if the rear wheels turn as well.
2. Loose motor connection
3. Defected gearbox
Ensure that the the rear wheels touch
the ground. Remove the gearbox and
tighten the screws. Change the
gearbox.
Motor doesn’t work 1. Loose cable
2. Fuse
3. No contact with the gas pedal.
Check if the cable connections are
correct.
Change the fuse.
Change the foot switch
Forward motion is OK,
backward motion
doesn’t function or
backward motion is
OK, forward motion
doesn’t function
1. Check the Forward/Backward switch with
a circuit analyzer
Check if the cable connected to the
switch is placed correctly.
Change the Forward/Backward switch.
Speed is very low 1. Check if the batteries supply more or less
than 6V.
2. Connect the motor (together with the
gearbox) directly with the battery and
check if the speed increases.
3. Remove the gearbox and check if it is in a
good situation.
Charge the batteries again.
The reason for speed loss might be the
condition of the area in which the
vehicle is operated.
Change the motor and gearbox.
Batteries cannot be
charged 1. Check if the output voltage of the charger is 6V.
2. Plug the charger, remove the connector
from both sides of the battery and check
directly the battery if 6±0,1V is supplied.
3. Check the connector of the charger and
the soldering point.
Change the charger.
Change the batteries.
Ensure that the charger is connected
correctly.
Check the fuse.
Remote control
doesn’t work 1. Check if the vehicle is on.
2. Turn the switch to ‘‘ON’’ to control
remotely.
3. Ensure that the Control-Display of the
remote control flashes up.
Check the places of 0-I switches on the
vehicle.
Check the batteries of the remote
control.
Check the fuse.
Change the control unit.
Replacement parts can be found on Online-Shop on www.crooza.de

-13-
Instructions Related to the Maintenance and Disposal of the Batteries
MAINTENANCE
If a battery is leaky, remove the battery which has acid
escaping by avoiding skin contact and put the
battery in a plastic bag. Please check the
description on the right side to learn how the
battery can be disposed in the right way.
In the even of skin or eye contact, rinse the affected
part in running water for at least 15 minutes and
see a doctor.
When acid is swallowed, water, milk etc. must be
drunk or egg white eaten immediately. Never try to
throw up. Call the doctor instantly.
Before the first operation, the batteries must be
charged for at least 12 hours once. Never charge
the batteries longer than 16 hours once.
Overloading and excessive discharge shorthen the
battery life and operating period substantially.
Before every operation, the batteries must be charged
8-12 hours.
The batteries must stand vertical while being charged.
Avoid discharging the batteries completely before
charging them again.
Charge the batteries for a long time before putting the
vehicle away.
Even if the vehicle won’t be used, charge the batteries
at least once a month.
Batteries left empty will definitely stop working later.
LOSS OF THE GUARANTEE!
Never leave leaking batteries in the vehicle. Leaking
liquid can damage the vehicle.
Do not keep the batteries on the surfaces like the
countertops in kitchens; they may get damaged.
Take precautions to protect the contact surface
before you put the batteries down.
Do not keep the batteries in a place where the
temperature is above 24 °C and below -23°C.
Only use 6V batteries.
Ensure that the batteries are not loose in the vehicle.
Always use a battery fastener to lock the batteries.
Check the batteries and the charger against
imperfections and defects before every charging. If
you detect a defect, do not charge the batteries
until the defected part is repaired.
DISPOSAL
The provided battery is overflow-protected and welded.
It must be ecologically disposed and recycled.
Do not throw the battery into fire. It may leak or explode
Do not dispose the batteries together with normal
domestic waste. Disposing the batteries with
normal domestic waste is prohibited by law!
Protect the environment by not disposing the batteries
with normal domestic waste (2202/96/EC). Get
information about recycling and disposing options
from the local administration in your vicinity.
Batteries separately disposed
(not with domestic waste!)
Do not throw the battery into fire!
Don’t open!
The symbol „crossed-out waste container“ on the
product and in the manual indicates that electric
and electronic devices must be collected and
disposed separately from normal domestic waste.
There are various collection systems about
recovery and recycling available in the EU.
For more information, please consult your local
authorities or your dealer.

-14-

-15-

IMPORTANT!
1. All the illustrations serve the visualization and specification of the product. If you notice differences
between the illustration and the product, follow the construction of the product.
2. Technical modifications in whole or in part to increase the product quality are expressively reserved
without prior notice.
dubax-marketing oHG
WEEE-Reg.-Nr.: DE 33541416
64295 Darmstadt / Germany
[email protected]
Model: DBX-6788
crooza©is a registered brand of dubax-marketing oHG
All rights reserved.
Copying and Distributing - even in parts - only with written consent of Dubax-Marketing oHG Darmstadt.
