CROSSZONE CZ-1 User manual

Parts Names

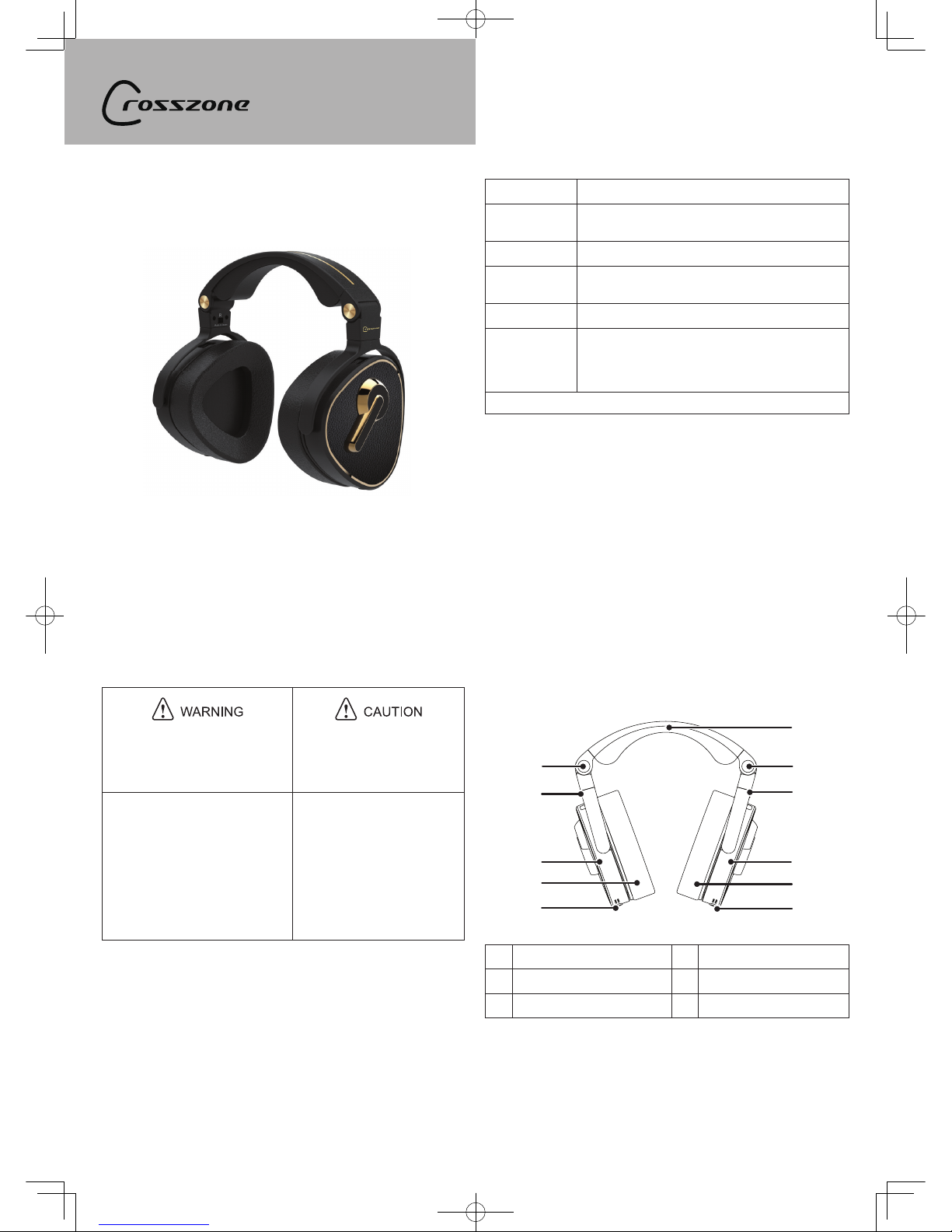

Before operating the product, please refer to the diagram below to confirm
various parts of the headphones.
1
2
6
6
2
33
44
55
1 Headband 4 Housing
2 Hinge (Adjustment Angle 50 °) 5 Ear Pad
3Joint (Adjustment Angle ±15 °) 6 Headphone Jack
CZ-1 Stereo Headphone
Instruction Manual
Thank you for purchasing the CROSSZONE CZ-1 headphones. For proper use,
please read this manual carefully. In addition, please put the instruction manual
and warranty card away for future reference.
Safety Precautions
Safety issues have been taken into full account while designing this product.
Incorrect use of the product may cause accidents. In order to prevent the
occurrence of accidents, please follow the instructions below.
This icon indicates a situation which
could result in death or severe injury
to persons who disregard these
instructions and handle the product
incorrectly.
This icon indicates a situation
which could result in personal
injury or physical damage, if these
instructions are disregarded and
the product is handled incorrectly.
• Never use this product during
the operation of automobiles,
motorcycles, bicycles and other
vehicles, so as to avoid traffic
accidents.
• Never use the product at dangerous
places (railway crossings, stations,
construction sites, roads with running
vehicles or bicycles) so as to avoid the
occurrence of accidents due to the
failure to hear your surroundings.
• Do not listen at high volume levels
for long periods of time to prevent
hearing damage.
• If you feel your skin uncomfortable
during use, please stop using it
immediately
• Do not disassemble or attempt to
repair this product by yourself.
Precautions for Use
• Please read the instruction manual of the audio device carefully before using it.
• Please pay attention to adjust the volume in the public transport facilities and
public places, so as not to disturb others.
• Turn down the volume of the audio device prior to connecting the headphones.
• This product is made of metal materials. Depending on the seasons, it may
give you the feeling of cold when you touch it, and it may generate static
electricity.
• Do not throw, hit or drop this product, otherwise malfunction may be caused.
• If this product is not in use for a long time, please keep it in a dry and clean
place.
• Hold the headphone connector plug to connect and unplug it. Do not pull the
headphone cable, otherwise the headphone cable may break.
Product Specifications
Design and specifications are subject to change without notice.
Device Type Closed Dynamic Stereo Headphone
Frequency
Range 20Hz~40kHz
Impedance 75Ω
Sound Pressure
Sensitivity 97dB/mW
Weight Approx.485g (Body Only)
Accessories
1.5m Headphone Cable (Φ3.5mm Plug),
3.5m Headphone Cable (Φ6.3mm Plug),
Φ3.5mm ⇔ 6.3mm Plug Adaptor,
Instruction Manual, Warranty Card
Made in Japan

Main Features
• Natural External Sound Localization (Front Side Localization) supported by
ART (Acoustic Resonance Technology).
Each earpiece is equipped with two driver units to play the main sound
sources (tweeter/ woofer) and another reserved driver unit to play the
sound sources of the opposite channel, a natural sound field is carried out
without any music source selection by the adoption of ADC (Acoustic Delay
Chamber) technology.
• Actualization of natural sound quality and good balance of sound frequency.
As the diaphragm plate on the two driver units for the main sound sources
(Tweeter 23mm/ Woofer 40mm) is coated with beryllium and the brass
frame is adopted for the woofer driver, the balance of natural sound is well
reproduced from lowest to highest frequencies.
• The comfortable fitting design allows long periods of listening without
fatigue or discomfort.
We all have different head sizes and so the structural design of most
headphones results in uncomfortable lateral pressure on the head. The CZ-1
is different, the headband is made from die cast magnesium which retains its
shape and is not easily deformed. This result is a much lower lateral pressure,
allowing for comfortable long term listening.
• A striking visual design, born from the unique product characteristics.
Due to the tridimensional configuration of the three driver units, the housing
has a unique triangular shape. The ADC structure that allows for the ART
technology is in fact the reason for the unique triangular design.
• Dedicated cables to support high sound quality and high-resolution
A dedicated high quality cable is supplied with the CZ-1. The OFC (oxygen
free copper) cable features an anti-noise, twisted structure. As there are
8 cores (4 X 2) separated from the plug at the amplifier side, this assures
left-right channel separation. In addition, as the housing cable connector
has a waterproof structure, sound quality variation due to air leakage is well
controlled.
The high quality cable supplied can be connected to either the left or the right
earpiece. This adds to comfort and convenience when using the CZ-1. This
feature also reduces wear and stress on the cable and the headset. (Left /
right channel integrity is maintained, whichever side the cable is connected)
※Standard accessorized cables are two cables of 1.5m (for mobile) and 3.5m
(for listening room).
• “Made in Japan” words that inspire quality and trust
All parts are sourced locally from the EMS makers’ precision machining
technology. Assembly and optimization is carried out in Okaya City, Nagano
Prefecture, JAPAN. Superior quality is assured
For Customers in Europe
This symbol [crossed-out wheel bin WEEE Annex IV] indicates separate
collection of electrical waste and electronic equipment in the European
countries. Please do not throw the equipment into domestic refuse. Please use
the return and collection systems available in your country for proper, safe
disposal of this product
• WEEE Directive (2012/19/EU)
“CE” mark indicates that this product complies with the European
requirements for safety, health, environment and customer protection. “CE”
marked Headphones are intended for sales in Europe.
CE Declaration of Conformity
• CE/EMC Directive (2014/30/EU)
• RoHS Directive (2011/65/EU)
How to Take Care of Headphones
When you clean the body of the headphone, do not use abrasive, alcohol-based
or organic cleaner.
• If the headphone cable is contaminated, clean it using a dry cloth. Prolonged
contamination may cause degradation and hardening of the cable, thus
resulting in malfunction..
• If the headphone cable is contaminated, clean it using a dry cloth. Prolonged
contamination may cause degradation and hardening of the cable, thus
resulting in malfunction.
• Connecting a contaminated headphone plug may lead to noisy operation. If the
headphone plug is contaminated, clean it using a dry cloth.
• Use a dry cloth to wipe off the dirt on the ear pads. Adherence of sweat or
water to the ear pads may cause discoloration; please use a dry cloth to wipe
them. It is recommended that the product be stored in a well-ventilated place
to keep it dry.
※Ear pads are consumables. Prolonged use and storage of ear pads may
cause degradation. Change them in time. If you want to replace ear pads or
other parts, please contact the dealer or customer service center.
How to Use Headphones
After putting on the headphones, please allow the earpieces to gravitate to the
front, leaning the ear pads of the headphone slightly against the rear to better
experience external sound localization.
1. Connect the headphone plug to the headphone jack and audio jack, and turn
down the audio volume to the minimum level before connecting.
2. Adjust the head band so that the ear pads fit your ears well; and then wear
the headphones according to the identifying letters for left and right (LR) on
the headphone. The LR identifying letters are on the left and right inner sides
of the head band.
3. When playing music, adjust the volume to your satisfaction

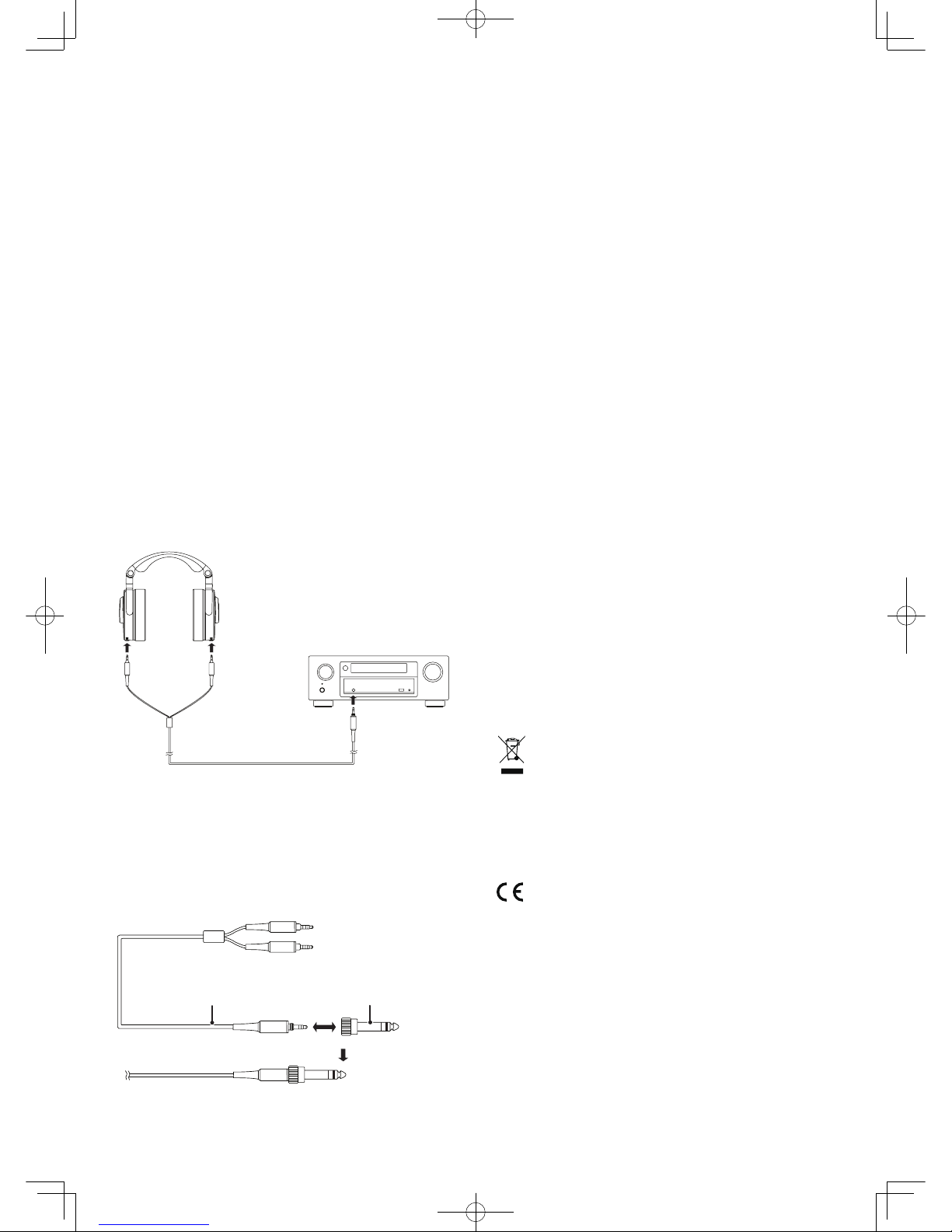

Connection Example
Regardless of inserting the plug into the left or right jack, the headphone works
the same.
※Insert the headphone plug completely into the jack, otherwise no sound will
be heard.
※ Choose the corresponding headphone cable according to the size of the
audio jack.
※ This product works better while connected to a high performance audio
device.
How to Use Plug Adaptor (Φ3.5mm ⇔Φ6.3mm)
You may use the plug adaptor provided in the accessories to convert the
Φ3.5mm plug (with a 1.5m cable) to the Φ6.3mm plug.
※Screw down the Φ3.5mm headphone plug after inserting it into the plug
adaptor.
※The plug adaptor is already fitted on a 1.5m headphone cable while being
supplied.
1.5m Headphone Cable
(Φ3.5mm Plug)
Φ3.5mm ⇔Φ6.3mm
Plug Adaptor
Audio Device
