Crown GLTS-30 User manual
MANUAL 10100 REV 0 (04/21)
$21.00
GAS POWER TILT SKILLETS
MANUAL SECTION CO
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this
manual for the life of the equipment:
Model #:
___________________________
Serial #:
___________________________
Date Purchased:
_____________________
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing or
servicing this equipment.
Model GLTS-40
CROWN FOOD SERVICE EQUIPMENT
A Middleby Company
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
Gas Power Tilt Skillets
GLTS-30 & GLTS-40
Installation & Operation Manual
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21)
PAGE 2 OF 16
G P T S
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained and aware of
precautions. Accidents and problems can be caused by failure to follow fundamental rules and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to the operator,
service personnel, or to the equipment.
CAUTION
WARNING
NOTICE
This symbol warns of immediate hazards that will result in severe injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in injury, product
damage, or property damage.
This symbol refers to information that needs special attention or must be fully
understood, even though not dangerous.
DANGER
WARNING
Improper installation, operation, adjustment, alteration, service or maintenance can cause property damage, injury
or death. Read the installation, operating and maintenance instructions thoroughly before installing, operating or
servicing this equipment.
NOTICE
This manual should be retained for future reference.
NOTICE
This product is intended for commercial use only. NOT FOR HOUSEHOLD USE.
Copyright © 2021 by Crown. All rights reserved. Published in the United States of America.
SPECIFICATIONS
IMPORTANT NOTES FOR INSTALLATION AND OPERATION
WARNING
This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
WARNING
FOR YOUR SAFETY:
PURCHASER: Instructions to be followed in the event the operator of this appliance smells gas must be posted
in a prominent location. This information shall be obtained by consulting the local gas supplier.
Keep the appliance area free and clear from combustibles.
DO NOT
Adequate clearances MUST be maintained for servicing and proper operation.
Contact the factory, the factory representative or a local service company to perform maintenance and repairs
should the appliance malfunction. Refer to warranty terms.
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21) PAGE 3 OF16
G P T S
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Table of Contents
Important Notes For Installation and Operation.................................................................... 2
Service Connections............................................................................................................. 4
Installation Instructions ......................................................................................................... 5
Operation .............................................................................................................................. 7
Periodic Maintenance ........................................................................................................... 10
Cooking Guidelines............................................................................................................... 11
Troubleshooting .................................................................................................................... 14
TC
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21)
PAGE 4 OF 16
G P T S

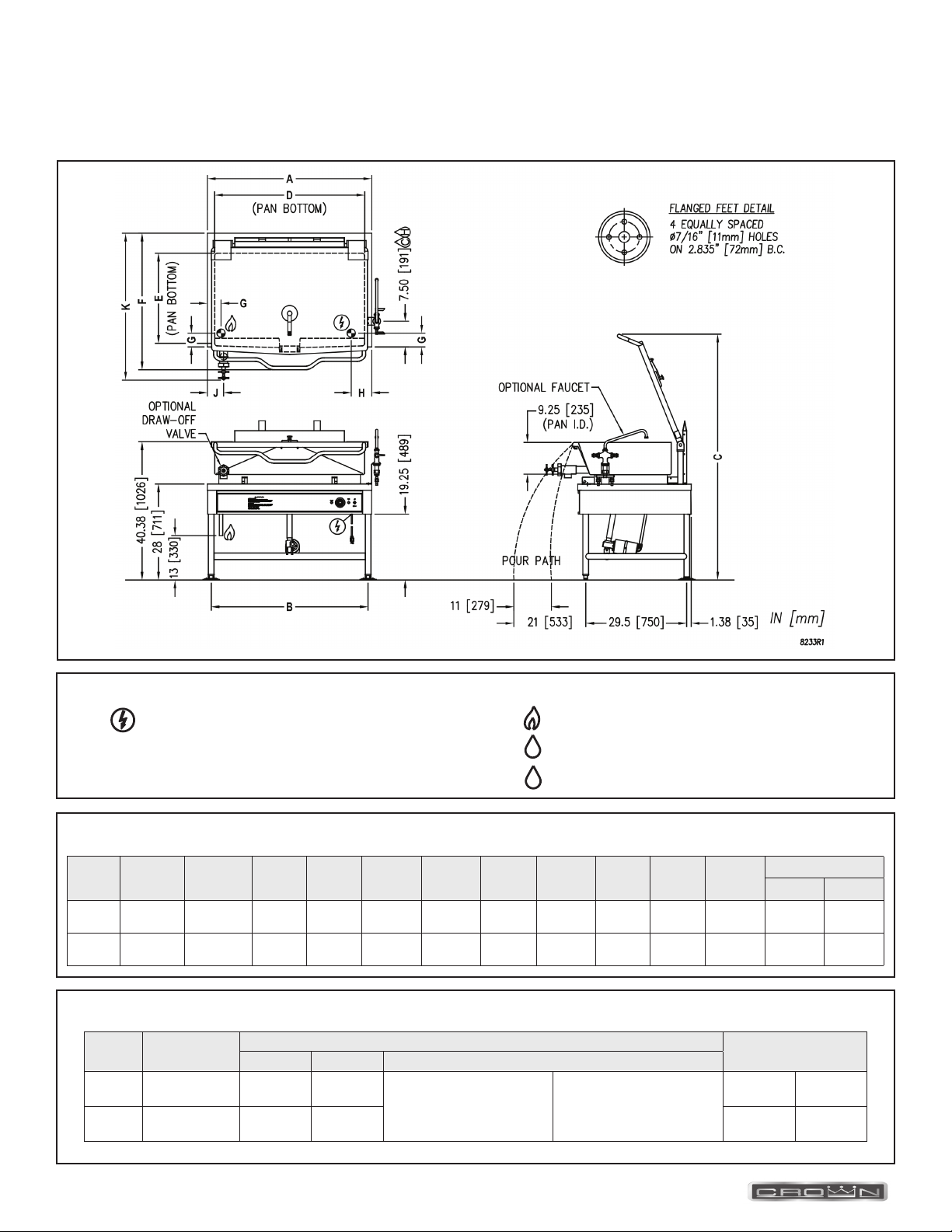

SERVICE CONNECTIONS
SERVICE CONNECTIONS
GAS CHARACTERISTICS
DIMENSIONS
* For use on non-combustible floors only.
SERVICE CONNECTIONS
be 120 Volts, 60 Hz, single phase with grounding wire. Unit
furnished with 6’ cord and 3 prong plug. Total max amps 4.0. C
H
A B C D E F G H J
K
Ø2 Ø3
GLTS-30 30 Gallons
(114 liters)
inches
(millimeters)
36”
(914 mm)
33.88”
(860 mm)
72.25”
(1835 mm)
33.5”
(851 mm)
23.5”
(597 mm)
39.50”
(1003 mm)
4”
(102 mm)
6”
(152 mm)
3.75”
(95 mm)
42.88”
(1089 mm)
48.5”
(1232 mm)
GLTS-40 40 Gallons
(152 liters)
inches
(millimeters)
48”
(1219 mm)
45.88”
(1165 mm)
71.75”
(1822 mm)
43.5”
(1105 mm)
23”
(584 mm)
39.88”
(1013 mm)
4”
(102 mm)
6”
(152 mm)
4.75”
(121 mm)
42.88”
(1089 mm)
48.5”
(1232 mm)
BTU/HR
GLTS-30 550 lbs.
[249 kg] 80,000 23.4 Natural
6” - 14”
(152 mm - 356 mm)
Propane
11” - 14”
(279 mm - 356 mm)
Sides 3”
(76 mm)
GLTS-40 736 lbs.
[334 kg] 100,000 29.3 Back 6”
(152 mm)
- GAS CONNECTION: Supply gas through 3/4” pipe.
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21) PAGE 5 OF16
G P T S
UNPACKING
IMMEDIATELY INSPECT FOR SHIPPING DAMAGE
Immediately after unpacking the steamer, check for possible shipping damage. If the steamer is found to be damaged,
save the packaging material and contact the carrier within 15 days of delivery.
Prior to installation, verify that the type of gas supply (natural or propane) and electrical service agree with the
and equipment requirements do not agree, contact your dealer immediately.
INSTALLATION INSTRUCTIONS
INSTALLATION
L
The equipment must be kept free and clear of combustible substances. The tilting braising pan, when installed, must have
minimum clearance from combustible and non-combustible construction of 3” (76 mm) from sides and 6” (152 mm) from
The installation location must allow adequate clearances for servicing and proper operation. A minimum front clearance of
36” (914 mm) is required.
clearance for air openings into the combustion chamber must be provided. Make sure there is an adequate supply of air in
the room suitable for the amount of combustion gas feeding the braising pan burners.
Do not permit fans to blow directly at the tilting braising pan, and wherever possible, avoid open windows next to the tilting
braising pan. Avoid wall-type fans which create air cross currents within the room.
I C S
Installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1INFPA
54, or the Natural Gas and Propane Installation Code, CSA B149.1, as applicable.
pressure testing of that system at pressures in excess of 1/2 psi (3.5 kPa).
during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
Electrical grounding must be provided in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.2, as applicable.
Ventilation must be provided in accordance with local codes, or in the absence of local codes, with ANSI/NFPA 96 Standard
for Ventilation and Fire Protection of Commercial Cooking Operations.
F C
Information on the construction and installation of ventilating hoods may be obtained from the standard for “Vapour
Removal from Cooking Equipment”, NFPA No. 96 (latest edition), available from the National Fire Protection Association,
Batterymarch Park, Quincy, MA, 02269.
WARNING
ELECTRICAL GROUNDING INSTRUCTIONS
This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard
and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. (120V units only).
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21)
PAGE 6 OF 16
G P T SINSTALLATION
L A
1. Set the appliance in place and level left to right and front-to-back using spirit level.
4. Set unit back in position and re-level left to right and front to back.
G C
WARNING
Do not connect the appliance to the electrical supply until after the gas connection has been made.
All gas supply connections and any pipe joint compound used must be resistant to the action of propane gases.
The gas inlet is located under the control panel on the left-hand side.
Connect gas supply to the tilting braising pan. The gas supply line must be at least the equivalent of 3/4” iron pipe with an
Make sure the pipes are clean and free of obstructions, dirt and piping compound.
WARNING
CAUTION
petroleum or propane gases.
After piping has been checked for leaks, all piping receiving gas should be fully purged to remove air.
NOTICE
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21) PAGE 7 OF16
G P T S OPERATION
OPERATION
Figure 1
B F U
Using a non-corrosive, grease-dissolving commercial cleaner, clean the protective metal oils from all surface parts and the
dry with a soft clean cloth.
CONTROLS
Green Ignition Light .............
Red Temperature Light ........
Thermostat............................
from 1 to 10. (See COOKING GUIDELINES in this manual for temperature ranges for
settings 1-10.)
Tilt Switch..............................
NOTICE
S- P
3. Turn on power switch.
4. Turn THERMOSTAT dial to desired setting. The red TEMPERATURE LIGHT will come on. This will turn on the
electronic ignition which will light the burners.
If the green IGNITION LIGHT does not come on after 30 seconds, turn THERMOSTAT OFF and then ON again for restart.
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21)
PAGE 8 OF 16
G P T SOPERATION
minutes, then repeat Steps 1 through 4 to restart.
7. Turn power switch and THERMOSTAT to OFF when braising pan is not in use.

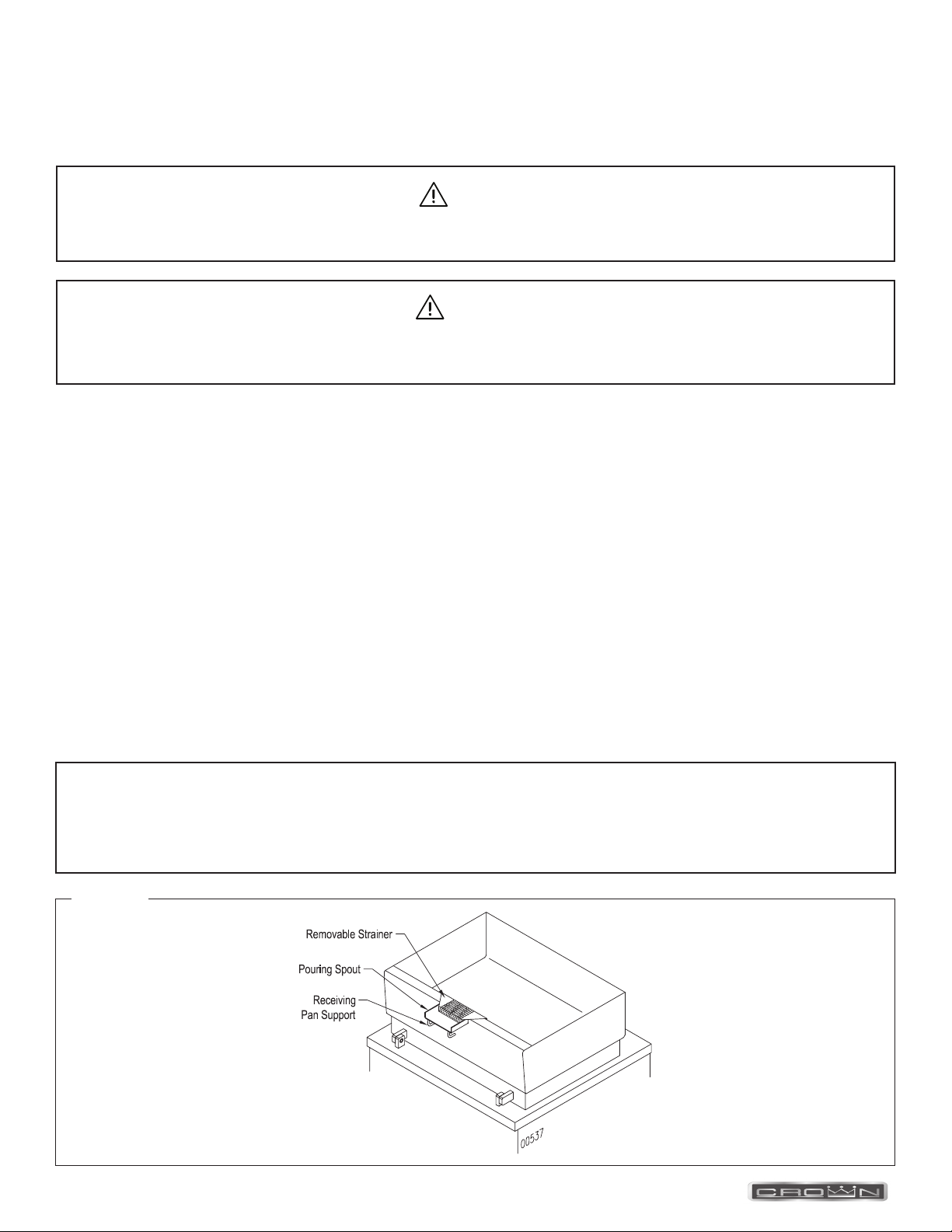

Figure 2
WARNING
In the event of main burner ignition failure, a 5 minute purge period must be observed prior
to re-establishing ignition source.
CAUTION
D S P
T B P
1. DO NOT try to tilt braising pan with lid down.
2. Make sure the receiving pan is in place.
braising pan will empty when raised to the top tilt position.
operate once the pan has been tilted.
4. Food is poured through the removable strainer (Figure 2) into a food receiving pan positioned under the lip of the
pouring spout (Figure 2).
NOTICE
Excessive, consecutive lifts may cause the motor to overheat and activate the thermal overload causing the motor
to shut down.
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21) PAGE 9 OF16
G P T S P M
P M
WARNING
Disconnect the power supply to the appliance before cleaning or servicing.
C
After each use, allow the tilting braising pan to cool and clean it. Keep exposed cleanable areas of the tilting braising pan
clean at all times. Do not get water in electrical box or any electrical component.
1. Thoroughly wash pan, pouring spout (See Figure 2), lid and exterior surfaces with detergent and warm water.
If necessary, soak pan to remove food that is stuck to pan surface. Rinse thoroughly and wipe dry with a soft
clean cloth.
2. Clean removable strainer and receiving pan support (see Figure 2) with detergent and warm water. Rinse thoroughly
and wipe dry with a soft clean cloth.
4. Visually ensure tube lighter ports (Figure 3) are unobstructed.
Figure 3
CAUTION
Do not use cleaning agents that are corrosive.
CAUTION
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21)
PAGE 10 OF 16
G P T S
CAUTION
The appliance and its parts are hot. Use care when operating, cleaning and servicing the appliance.
WARNING
Disconnect the power supply to the appliance before cleaning or servicing.
A
All tilting braising pans are adjusted at the factory.
At least twice a year, have an authorized service person clean and adjust the tilting braising pan for maximum performance.
P M
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21) PAGE 11 OF16
G P T S COOKING GUIDELINES
COOKING GUIDELINES
The guidelines given below are suggested quantities, temperature settings, and estimated numbers of orders per load and
The following temperatures should be used:
C M T (°F) Thermostat Setting
Simmering 200 Maximum 1 - 4
Sautéing 225 - 275 5 - 6
Searing 300 - 350 7 - 8
Frying 325 - 375 8 - 9
Grilling 350 - 450 9 - 10
ITEM
PORTION
SIZE TEMP.(°F)
BATCHES
PER HOUR
GLTS-30 PER LOAD GLTS-40 PER LOAD
QTY. PORTIONS QTY. PORTIONS
BREAKFAST FOODS
Bacon 3 slices 350 12 2 lb 10 3 lb 15
Eggs
- Boiled - Hard 1 egg 225
5
50 eggs 50 75 eggs 75
- Boiled-Soft 1 egg 225
8
50 eggs 50 75 eggs 75
- Fried 1 egg 400
4
30 eggs 30 45 eggs 45
- Poached 1 egg 225
5
36 eggs 36 60 eggs 60
- Scrambled 1-1/2 eggs 300-200
1
18 gal. 720 28 gal. 1100
French Toast 3 slices 450
7
35 slices 12 50 slices 17
Regular Oatmeal 1/2 cup 250
2
20 lb (100 cups) 500 40 lb (200 cups) 1000
Pancakes 2 each 400 10 30 each 15 50 each 25
FISH
Clams 1 pint 400 10 10 quarts 20 15 quarts 30
Fish Cakes 2 - 3 oz 400
5
70 - 3 oz 35 110 - 3 oz 55
Haddock Fillet 4 oz 400
4
60 - 4 oz 60 90 - 4 oz 90
Halibut Steak 5 oz 450
3
60 - 4 oz 60 90 - 4 oz 90
Lobster 1 - 1 lb 350
4
20 - 1 lb 20 30 - 1 lb 30
5 oz 450
3
50 - 5 oz 50 75 - 5 oz 75
SAUCES, GRAVIES, SOUPS
Brown Gravy 1 oz 350 - 200
2
18 gal. 2300 35 gal. 4500
Cream Sauce 2 oz 250 - 175
1
18 gal. 1150 35 gal. 2250
Cream Soup 6 oz 200
1
18 gal. 375 35 gal. 725
French OnionSoup 6 oz 225
1
18 gal. 350 35 gal. 700
Meat Sauce 4 oz 350 - 200
1
18 gal. 575 35 gal. 1100
VEGETABLES
CANNED 3 oz 400
6
30 lb 125 45 lb 200
FRESH
3 oz 400
3
25 lb 125 50 lb 250
Beets 3 oz 400
1
30 lb 125 60 lb 300
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21)
PAGE 12 OF 16
G P T SCOOKING GUIDELINES
ITEM
PORTION
SIZE TEMP.(°F)
BATCHES
PER HOUR
GLTS-30 PER LOAD GLTS-40 PER LOAD
QTY. PORTIONS QTY. PORTIONS
VEGETABLES (continued)
FRESH (continued)
Broccoli 3 oz 400
3
25 lb 125 40 lb 200
Cabbage 3 oz 400
5
20 lb 80 30 lb 125
Carrots 3 oz 400
2
35 lb 150 70 lb 300
3 oz 250
5
15 lb 75 25 lb 125
Corn 1 ear 400
8
50 ears 50 75 ears 75
Potatoes 3 oz 400
2
40 lb 200 60 lb 300
Spinach 4 oz 250 10 40 lb 200 9 lb 35
Turnips 4 oz 400
2
20 lb 100 30 lb 150
FROZEN
Beans, FrenchGreen 3 oz 400
6
15 lb 60 22-1/2 lb 90
Lima Beans 3 oz 250
4
15 lb 60 22-1/2 lb 90
Broccoli 3 oz 400
8
12 lb 50 18 lb 75
Sliced Carrots 3 oz 250
6
15 lb 60 22-1/2 lb 90
3 oz 250
3
15 lb 50 22-1/2 lb 90
Corn 3 oz 250 18 15 lb 50 22-1/2 lb 90
3 oz 250
7
15 lb 50 22-1/2 lb 90
Peas 3 oz 400 10 15 lb 75 22-1/2 lb 110
Spinach 3 oz 400
3
15 lb 75 22-1/2 lb 110
DESSERTS, PUDDINGS, SWEET SAUCES
ButterscotchSauce 1 oz 200
1
18 gal. 2300 35 gal. 4500
Cherry Cobbler 3 oz 200
1
18 gal. 750 35 gal. 1500
Chocolate Sauce 1 oz 200
1
18 gal. 2300 35 gal. 4500
CornstarchPudding 4 oz 200
1
18 gal. 575 35 gal. 1100
Fruit Gelatin 3 oz 250
2
18 gal. 750 35 gal. 1500
MEAT-POULTRY
BEEF
American ChopSuey 6 oz 400 - 225
2
18 gal. 350 35 gal. 700
Beef Stew 8 oz 300
-
18 gal. 280 35 gal. 560
Corned BeefHash 5 oz 400
5
16 lb 50 25 lb 75
Cheeseburger 3 oz 300 12 7 lb 35 10 lb 50
Hamburger 3 oz 300 15 7 lb 35 10 lb 50
Meatballs 1 oz 400 - 225
3
12-1/2 lb 65 18 lb 100
Pot Roast 2 oz 350 - 200 120 lb 500 180 lb 750
Salisbury Steak 5 oz 400
3
16 lb 50 24 lb 75
Sirloin Steak 6 oz 400
5
15 lb 40 22-1/2 lb 60
Swiss Steak 4 oz 300 - 200
1
25 lb 110 40 lb 160
CHICKEN
Pan Fried 2-1/4’s 350
3
50 pieces 25 80 pieces 40
2 oz 350 - 200 16 - 5 lb 200 24-5 lb 265
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21) PAGE 13 OF16
G P T S COOKING GUIDELINES
ITEM
PORTION
SIZE TEMP.(°F)
BATCHES
PER HOUR
GLTS-30 PER LOAD GLTS-40 PER LOAD
QTY. PORTIONS QTY. PORTIONS
MEAT-POULTRY (continued)
FRANKFURTERS
Grilled 2 oz 300
8
22 lb 176 33 lb 264
Boiled 2 oz 250 12 16 lb 128 25 lb 200
PORK
Bacon 3 slices 350 12 2 lb 10 3 lb 15
Ham Steak 3 oz 400
8
10 lb 50 15 lb 75
Pork Chops 5 oz 350
4
15 lb 50 25 lb 75
Sausage Links 3 links 350
7
30 lb 120 45 lb 180
TURKEY
2 oz 400 - 200
–
3 - 26-30 lb 200 4 - 26-30 lb 275
On Carcass 2 oz 400 - 200
–
4 - 16-20 lb 175 6 - 16-20 lb 265
MISCELLANEOUS
Grilled Cheese Sandwich
1
sandwich 400
8
35 sandwiches 35 50 sandwiches 50
Macaroni & Cheese 8 oz 200
2
18 gal. 300 35 gal. 525
Rice 4 oz 350 - 225
1
20 lb raw 320 40 lb raw 650
Spaghetti 4 oz 350 - 225
2
8 lb raw 200 12 lb raw 300
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21)
PAGE 14 OF 16
G P T STROUBLESHOOTING
TROUBLESHOOTING
B NN C O
1. Gas supply to unit is “OFF”.
3. Thermostat is not turned “ON”.
4. Pan not in lowest position.
5. Ignition control not functioning.
6. Unit electrical supply is not plugged in or turned on.
B P C D
2. Burner air not adjusted properly.
4. Incorrect pressure at supply.
NOTICE
Contact the factory, the factory representative or local service company to perform maintenance and repairs.
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21) PAGE 15 OF16
G P T S
N
INSTALLATION & OPERATION MANUAL 10100 REV 0 (04/21)
PAGE 16 OF 16
G P T S
GLTS-30 & GLTS-40
Gas Power Tilt Skillets
that replacement parts and occasional professional service may be necessary to extend the useful life of this appliance.
to the model number, serial number, and type of your appliance.
CROWN FOOD SERVICE EQUIPMENT
A Middleby Company
70 Oakdale Road, Downsview (Toronto) Ontario, Canada, M3N 1V9
Telephone: 919-762-1000 www.crownsteamgroup.com
Other manuals for GLTS-30
1
This manual suits for next models
1
Table of contents
Other Crown Skillet manuals
