Crown CT42033 User manual

CT42033
CT42034
CT42035
CROWN-AT_Man.CT42033/34/35_07.2019_V.1.0_INTL-06
en Original instructions
es Manual original
ru Оригинальноеруководство поэксплуатации
kz Пайдалану нұсқаулығының түпнұсқасы
kz

English
2
Attention: CT42033:
Technical data:
Before cleaning or maintaining the appliance, the power plug must be removed from the
socket-outlet
Attention: Before assembly and starting operation, read the operating instructions carefully
Check that the mains voltage corresponds to the details on the type plate
Only connect to a proper 220-240 volt, 50Hz socket
Minimum fuse protection 13A
Pull the mains plug out of the socket when: the unit is not in use, before opening the unit, before
cleaning and maintenance
Never clean with solvents
Do not use the cable to pull the plug out of the socket
When unit is ready for use, do not leave unattended
Safeguard from children
Care must be taken that the mains connection lead is not damaged by being driven over, crushed,
stretched, etc
The unit must not be operated if the mains connection lead is not in perfect condition
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent to a
similarly qualified person in order to avoid a hazard.
On no account vacuum: burning matches, glowing ashes and cigarette ends, inflammable,
corrosive, fire hazard or explosive substances, vapours and liquids
This unit is not suitable for vacuuming dust which is damaging to health
Store the unit in a dry place
Do not operate a defection unit
Servicing only by an authorized after-sales service point
Use only for operations for which the unit is intended
Take great care when cleaning stairs
Use only manufacturer’s attachments and spare parts
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
IPX4 is only granted by connect an IPX4 plug to socket-out of the appliance or the cover of
the socket-out is closed.
Items supplied:
1、Handle
2、ON/OFF switch
3、Top section
4、Filter basket
5、Safety float valve
6、Clasp
7、Container
8、Vacuum hose connection
9、Idler wheel
10、Flexible vacuum hose
11、Vacuum tube
12、Air inlet
13、Large vacuum nozzle
14、Dustpartion bag
15、Crevice nozzle
16、Socket outlet
MODE CT42033 CT42034
Volage rating (V)
Rated power (W)
Capacity (L)
Vacuum (Kpa)
Cord length (m)
Waterproof grade
220-240/50-60HZ
1400
30
17
4.5
IPX4
220-240/50-60HZ
1400
30
17
4.5
IPX4
CT42035
220-240/50-60HZ
1400
60
17
4.5
IPX4
1
2
3
8
9
7
6
16

English
3
English
4

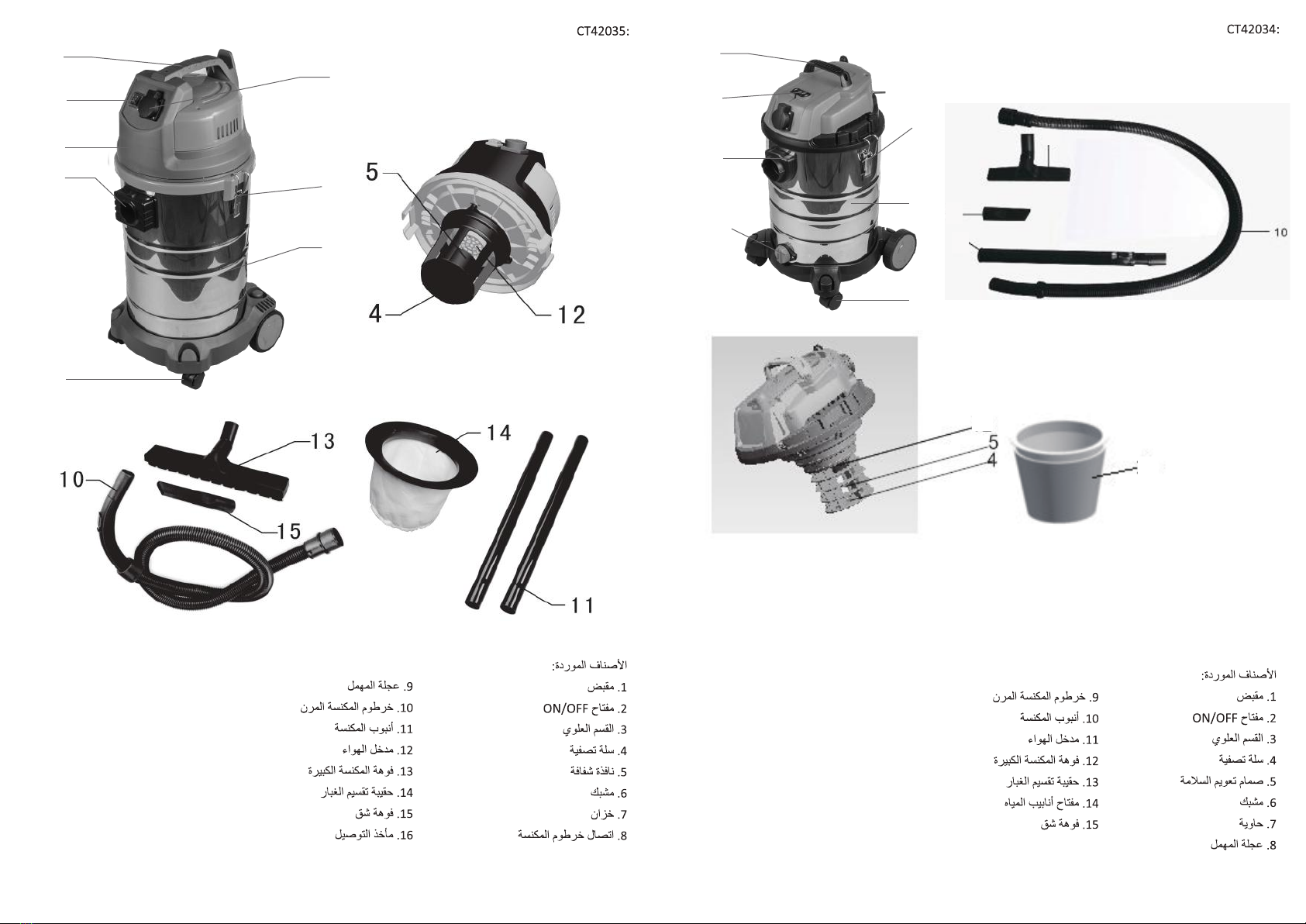

CT42034: CT42035:
Items supplied: Items supplied:
1、Handle
2、ON/OFF switch
3、Top section
4、Filter basket
5、Safety float valve
6、Clasp
7、Container
8、Idler wheel
9、Flexible vacuum hose
10、Vacuum tube
11、Air inlet
12、Large vacuum nozzle
13、Dustpartion bag
14、Turn on the water pipe
15、Crevice nozzle
1、Handle
2、ON/OFF switch
3、Top section
4、Filter basket
5、Transparent window
6、Clasp
7、Tank
8、Vacuum hose connection
9、Idler wheel
10、Flexible vacuum hose
11、Vacuum tube
12、Air inlet
13、Large vacuum nozzle
14、Dustpartion bag
15、Crevice nozzle
16、Socket outlet
1
2
3
8
9
7
6
16
1
2
6
7
8
3
15 9
10
11
12
13
14
15

English
6
English
5
Please note:
Wet vacuum - cleaning

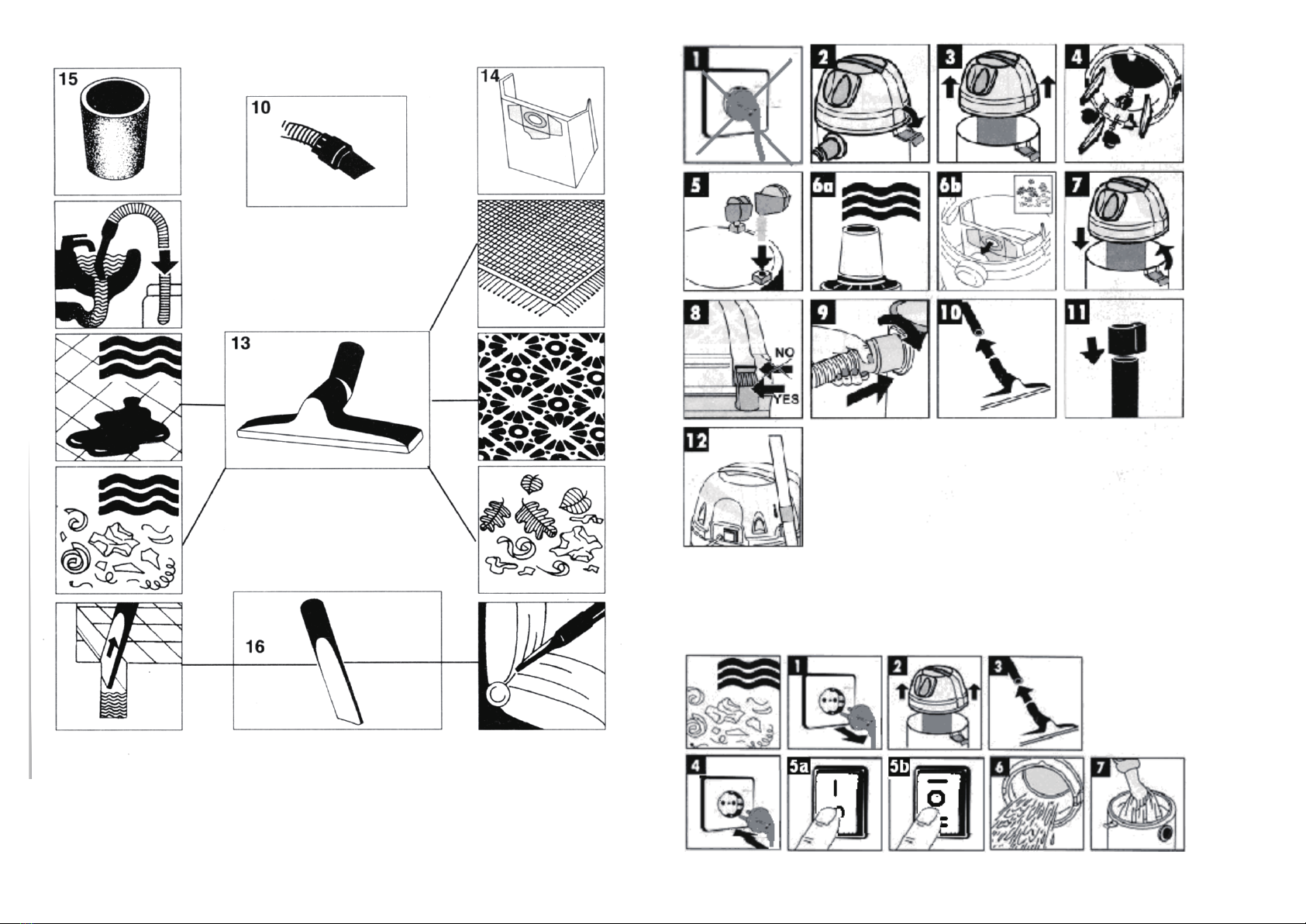

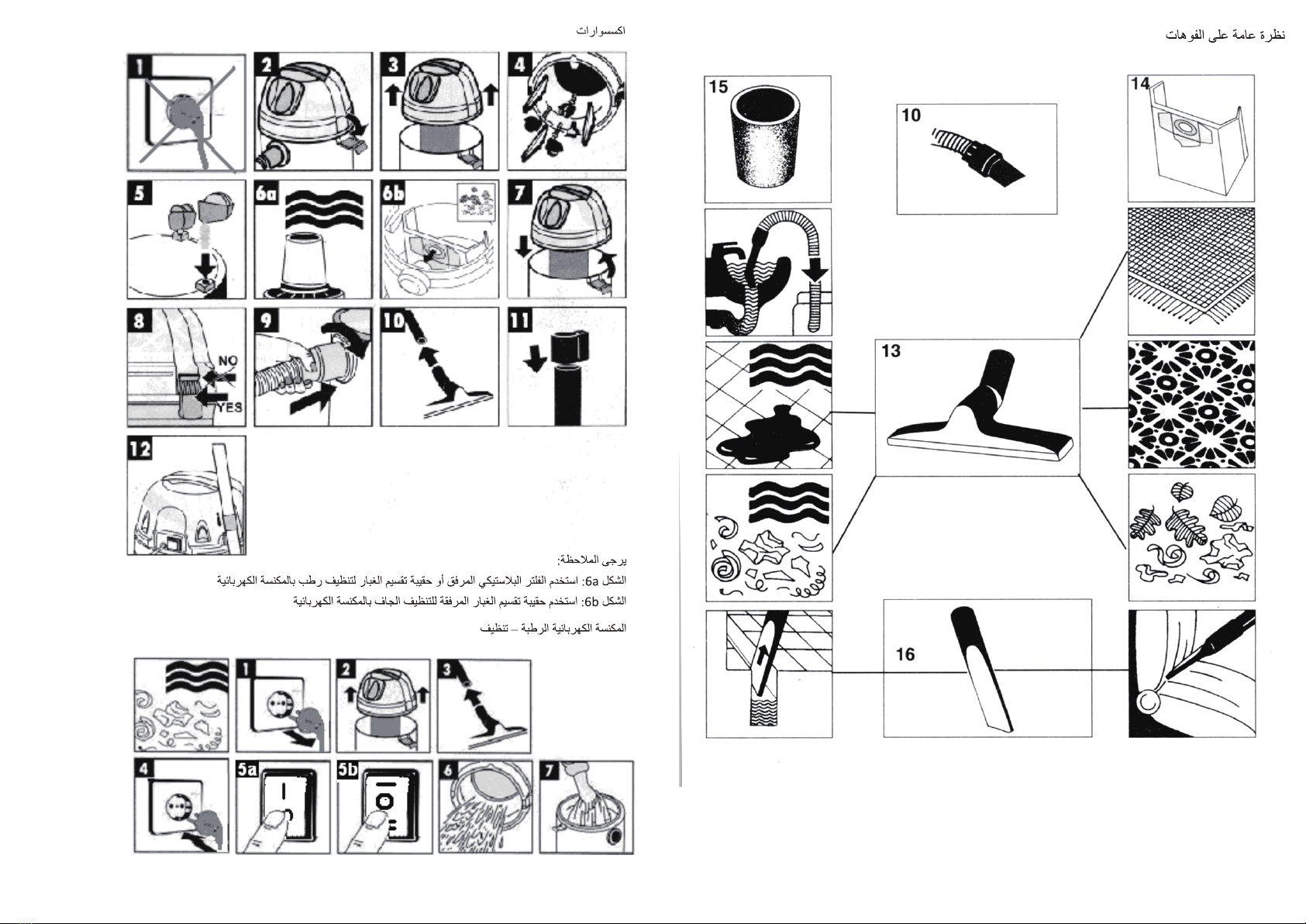

Overview of nozzles Assembly
Figure 6a:Use the supplied foamed plastic filter or dust partition bag for wet
vacuum-cleaning
Figure 6b:Use the supplied dust bag for dry vacuum-cleaning

English
7
English
8
Dry vacuum-cleaning
Maintenance – cleaning
Correct Disposal of this product
Unplug before change filter (Figure 1)
Pull the supplied foamed plastic filter or dust partition bag over the filter basket (Figure 2) for wet
vacuum-cleaning.
Insert the plug and turn on the switch, then appliance starts to work (Figure 4 & 5a or 5b)
For CT42033,CT42034,CT42035, W: When push the switch to the “I” position, the vacuum cleaner
will work; when push the switch to the “O” position, vacuum cleaner will not work.
For CT42033,CT42034,CT42035, W: When push the switch to the “I” position, the vacuum cleaner
will work alone; when push the switch to the “O” position, vacuum cleaner will not work; when push
the switch to the “II” position, while the tool which is connected with the socket working, the vacuum
cleaner also work 3-5 seconds later, while the tool stop working, the vacuum cleaner also stop
working.
The outer facility for the socket’s power is below 2000W.
The dust bag included upon delivery is not suitable for wet vacuum-cleaning!
Unplug before change filter or dust partition bag (Figure 1), then take out the bag and empty the dust
or replace the bag. Slip the dust bag onto the socket(figure 2) for dry vacuum-cleaning.
Insert the plug and turn on the switch, then appliance starts to work (Figure 5 & 6a or 6b)
For CT42033,CT42034,CT42035, W: When push the switch to the “I” position, the vacuum cleaner
will work; when push the switch to the “O” position, vacuum cleaner will not work.
For CT42033,CT42034,CT42035, W: When push the switch to the “I” position, the vacuum cleaner
will work alone; when push the switch to the “O” position, vacuum cleaner will not work; when push
the switch to the “II” position, while the tool which is connected with the socket working, the vacuum
cleaner also work 3-5 seconds later, while the tool stop working, the vacuum cleaner also stop
working.
The outer facility for the socket’s power is below2000W.
The dust bag is suitable only for dry vacuum-cleaning!
Warranty Information
The manufacturer provides warranty in accordance with the legislation of the customer's own
country of residence, with a minimum of 1 year (Germany: 2 years), starting from the date on which
the appliance is sold to the end user.
The warranty only covers defects in material or workmanship.
The repairs under warranty may only be carried out by an authorized service centre. When making a
claim under the warranty, the original bill of purchase (with purchase date) must be submitted.
The warranty will not apply in cases of:
- Normal wear and tear
- Incorrect use, e.g. overloading of the appliance, use of non-approved accessories
- Use of force, damage caused by external influences
- Damage caused by non-observance of the user manual, e.g. connection to an unsuitable mains
supply or non-compliance with the installation instructions
- Partially or completely dismantled appliances
Unplug before maintenance (Figure 1)
Take off the foamed plastic filter or dust partition bag (Figure 3), and wash by water (Figure 5)
IMPORTANT: Do not use detergents to clean the filter. The filter must be thoroughly dry before the
machine is used.
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this
product for environmental safe recycling.
