CRY SOUND CRY2623 User manual

CRY2623 Industrial Acoustic Imager
User Manual V2.1
M e a s u r e B e t t e r S o u n d

User Manual V2.1
Measure Better Sound
1
Warranty and Calibration
Within two years from the date of purchase, we provide free warranty
service for abnormal and malfunction caused by product quality. Free warranty
service does not include the non-product quality problems caused by
improper use, accidental drop, etc.
In case of equipment failure caused by improper use or accidental drop, we
promise to provide maintenance service at cost price.
The equipment has been calibrated when delivered to the user. However, in
the long term use process, we suggest that you send the equipment to our
office every two years for equipment calibration, testing and maintenance.
Contact us
Global Headquarter
Tel: [phone] 0571-88225128
E-mail: [e-mail]
Add: No.31-1, XianXing Road ,Yuhang，Hangzhou，Zhejiang, China
Web: WWW.CRYSOUND.COM
Dongguan Branch Company
Tel: [phone]
Fax: [phone]
Add: 7th Floor, B1Building, Songhuzhigu, Liaobu Town, Dongguan,
Guangzhou, China

User Manual V2.1
Measure Better Sound
2
Overview
CRY2623 are hand-held industrial acoustic imager that support audible and
ultrasonic frequencies.
The instrument uses the microphone array beamforming technology to
acquire the sound source distribution data, and collects the video images in
real time with the high-definition camera. By integrating the sound source
distribution data with the video image, the changing sound source is
dynamically presented on the display screen.
CRY2623 Industrial Acoustic Imager helps you quickly detect potential
pressurized gas leaks and vacuum leaks in noisy industrial environments.Used
in power systems, it can help you quickly identify potential partial discharge
fault points.
The industrial acoustics imager is made of aluminum alloy shell, which is
strong and durable and can adapt to the complex and changeable working
environment.
The equipment is simple and convenient to operate, and can be used
quickly. It only needs to adjust two parameters, the test frequency range and
test dynamic range to meet the vast majority of test requirements.Support
camera mode, video mode,and the data recording on the job site is
flexible.Large capacity TF data memory card can be expanded, and test results
can be exported and reported quickly.

User Manual V2.1
Measure Better Sound
3
Safety instruction
To prevent possible fire or personal injury,please note:
Please read this safety instruction carefully before using the product
Use the product only for the specified usage
Do not disassemble the equipment without authorization
In case of equipment malfunction or abnormal heat,please stop
using
Please contact the manufacturer for maintenance requirement
Do not place the device near heat source, flame or high temperature
environment
Please do not charge the device in a high temperature environment
(over 45℃)
If internal lithium-ion battery leakage occurs, please stop using the
device
If the leakage contaminate eyes, wash with water immediately and
seek medical attention
If the leakage contaminated skins, wash with water immediately and
seek medical attention

User Manual V2.1
Measure Better Sound
4
Terminology
USB Power Delivery (USB PD)
A power delivery protocol based on USB3.1,which is often used to transmit
more power in USB interface.
Sound Pressure Level (SPL)
A physical quantity used to express the magnitude of sound waves,the unit
is decibels (dB). It is also used as dBSPL.
Audible domain
The frequency range of sound that can be perceived by human ears
generally refers to the sound that frequency is in the frequency band of
20Hz-20KHz.
Ultrasonic
Generally refers to the frequency of more than 20kHz sound, the human ear
cannot perceive.
Sound image
It refers to the two-dimensional data table representing the intensity
distribution of sound sources in the space plane after the signal collected by
microphone array is calculated by the sound source location algorithm.
Palette
The color data used in the color mapping of an Sound cloud chart.
Sound cloud image
The sound pressure level data of each resolution point on the sound image
is mapped to a certain color number on the palette according to a certain
conversion formula to form a color image, and then it is fused with the visible
image to form an sound cloud image.

User Manual V2.1
Measure Better Sound
2
Test frequency range
When a frequency range is selected within the full frequency range
supported by the device, the device will only measure and display a sound
cloud image that is within this frequency range. Sound outside this frequency
range will not be displayed.
Frequency peak
A peak in spectrum，it denotes a strong sound energy distribution at this
particular frequency.
Dynamic range
The scale of the intensity of the sound source that can be shown on the
sound cloud image.
Field of view
For camera, it is an angle formed by camera and the two diagonal points of
the rectangular picture which is captured by the camera.
For sound cloud image,it is a angle formed by microphone array and the
two diagonal points of the rectangular sound image which is captured by the
microphone array.

User Manual V2.1
Measure Better Sound
1

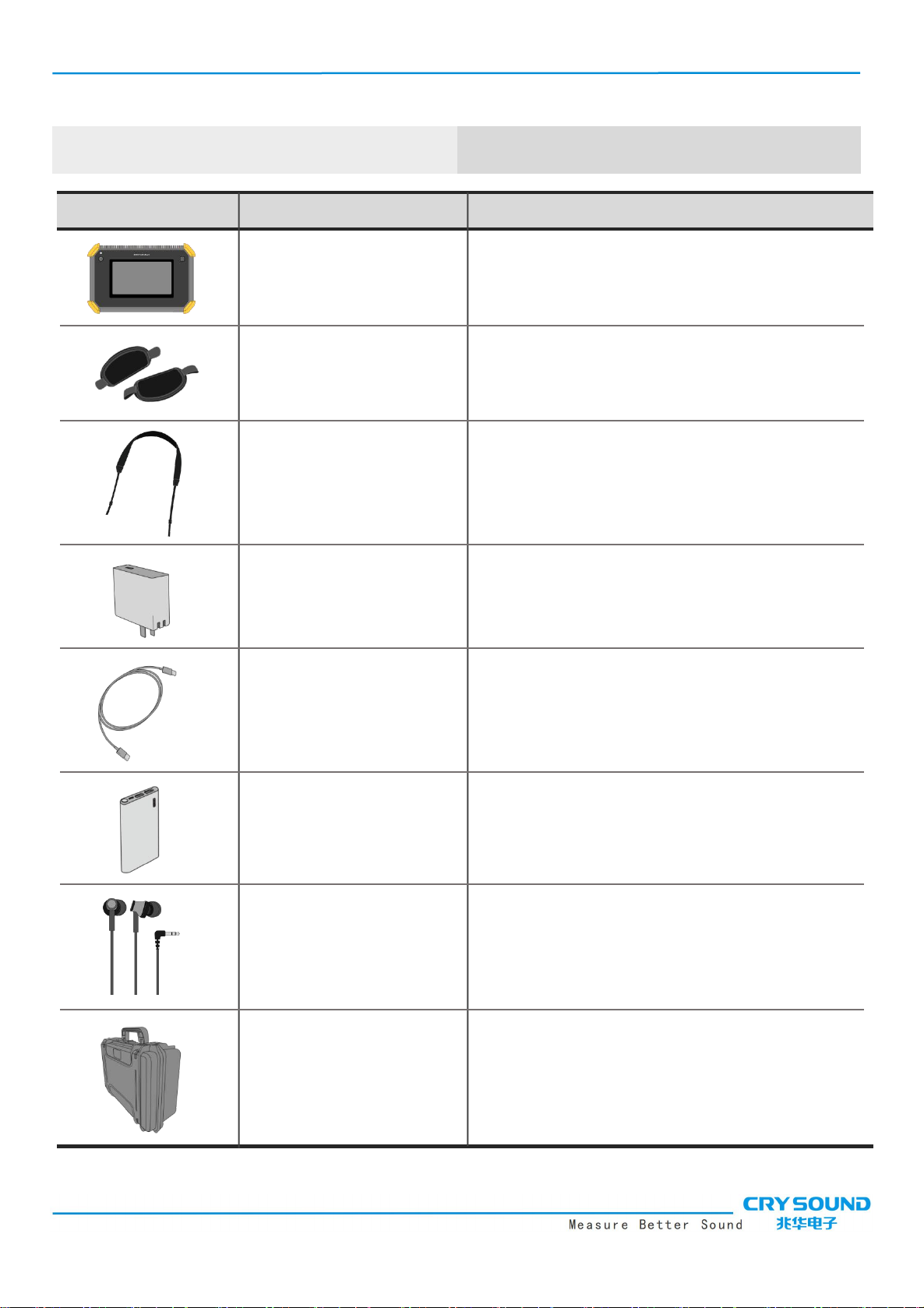

Device and accessories
Protective box
A storage protection box for the
device and its accessories
Description
Name
Used as backup power supply for
device
Apperance
Cable used to charge the device
Charge connector
Power adapter for equipment
charging
Straps accessories, help to
improve the grip feeling
Hand straps
CRY2623
shoulder strap accessories
The industrial acoustic imager
Shoulder strap
Charge cable
Power bank
headphone
Connecting equipment is used to
monitor ultrasonic wave, etc

User Manual V2.1
Measure Better Sound
2
Battery and charging
Battery information
Built-in lithium-ion battery nominal capacity 6600mAh@7.2V.
Charging information：
Please charge the device through the USB Type-C port marked with the
charging logo “ ”.The device supports USB PD quick charging protocol.
It is recommended to use a power adapter or power bank that supports 12V to
20V voltage output and the minimum output power is not less than 15W to
charge the device.
Charging and endurance instructions：
a)After inserting the charger, the charging indicator is always on, indicating
that it is charging; The charging indicator is off, indicating that it is fully
charged; Keep device turn off on charging.Be sure to charge the device when
the device is turned off.
b)When the battery is fully charged, the device displays 4 grids of electricity
and can be used for about 4 hours; 3 grids can be used for about 2.5 to 3 hours;
2 grids can be used for about 1.5 to 2 hours; 1 grid can be used for about half
an hour to 1 hour.
c)When the battery's charge gets low, you'll see the low battery warning on
the screen.Please charge in time.

User Manual V2.1
Measure Better Sound
3
Once again, please pay attention to the following contents for safe
use
Do not place the device near heat source, flame or high
temperature environment
Do not expose to the sun for a long time or use the equipment in
the sun for a long time
Do not disassemble the equipment without authorization
Please do not charge the device in a high temperature
environment (over 45℃)
If the equipment fails or is abnormal, please stop using it
Please contact the manufacturer for maintenance requirement
In order to extend the battery life, we suggest
Please do not charge the device for more than 24 hours.
If it is not used for a long time, please charge the battery regularly.
It is recommended to store at -20℃ to +45℃
Note: When the battery capacity is low, please contact the
manufacturer to replace the battery. Do not disassemble the device
without permission.

User Manual V2.1
Measure Better Sound
4

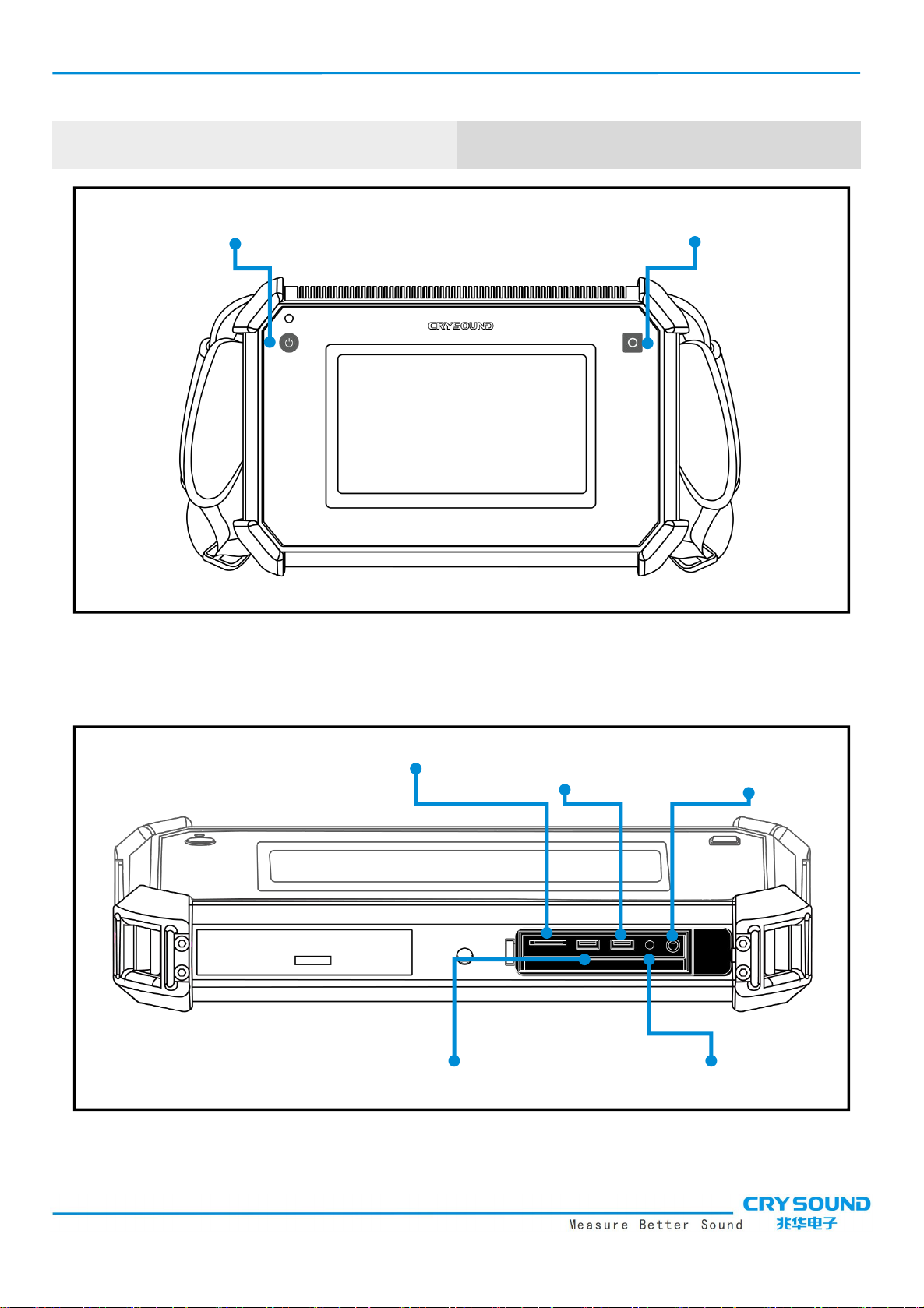

Function
Charging indicator
Monitor
headphone socket
Power Button
Function Button
TF Card
USB Type-C Communication
USB Type-C
charging interface

User Manual V2.1
Measure Better Sound
5

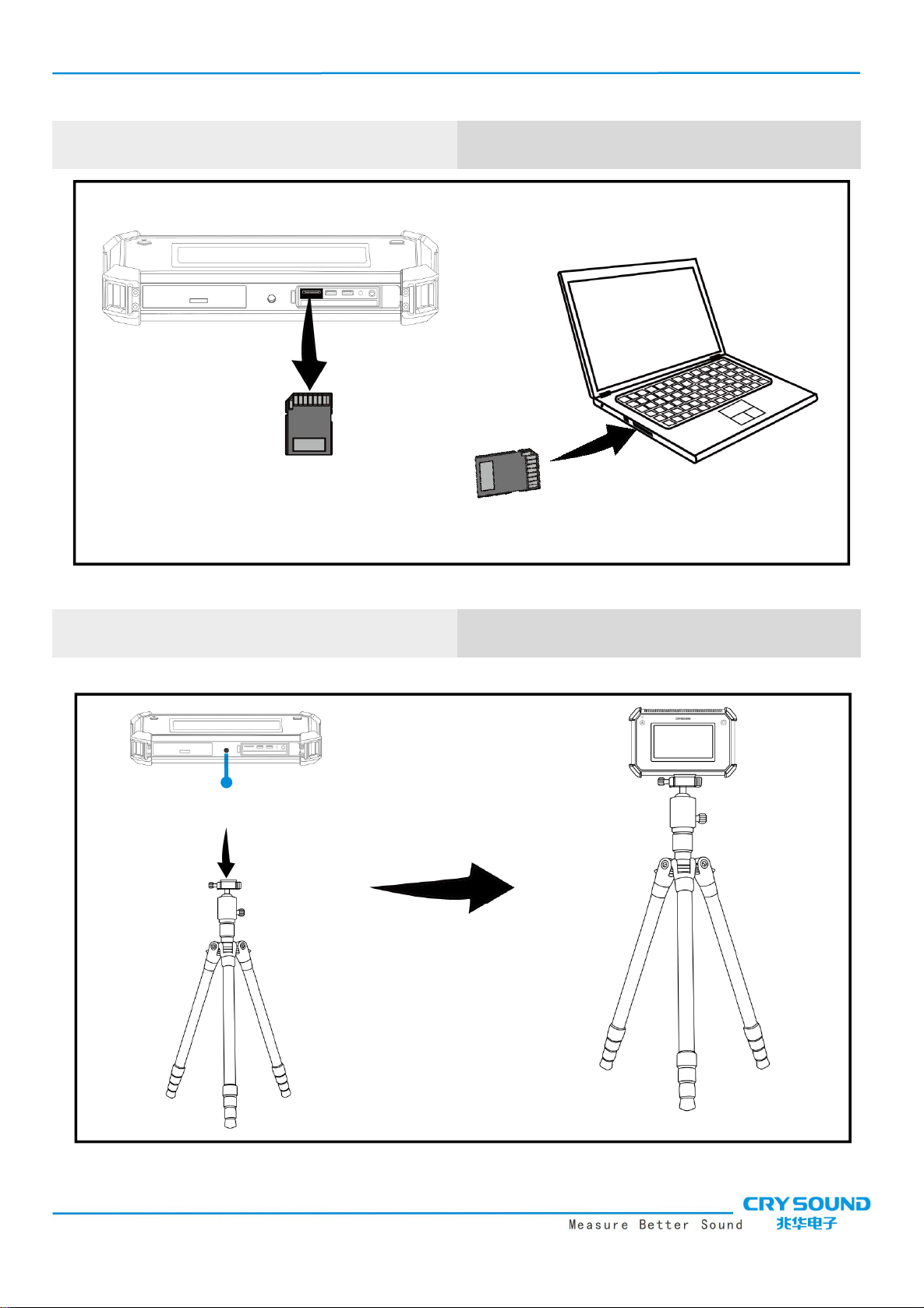

Expand TF card
Tripod
Threaded mouth
三脚架
三脚架

User Manual V2.1
Measure Better Sound
6
Hand straps and shoulder strap
②
①
③
①
②
③

User Manual V2.1
Measure Better Sound
7

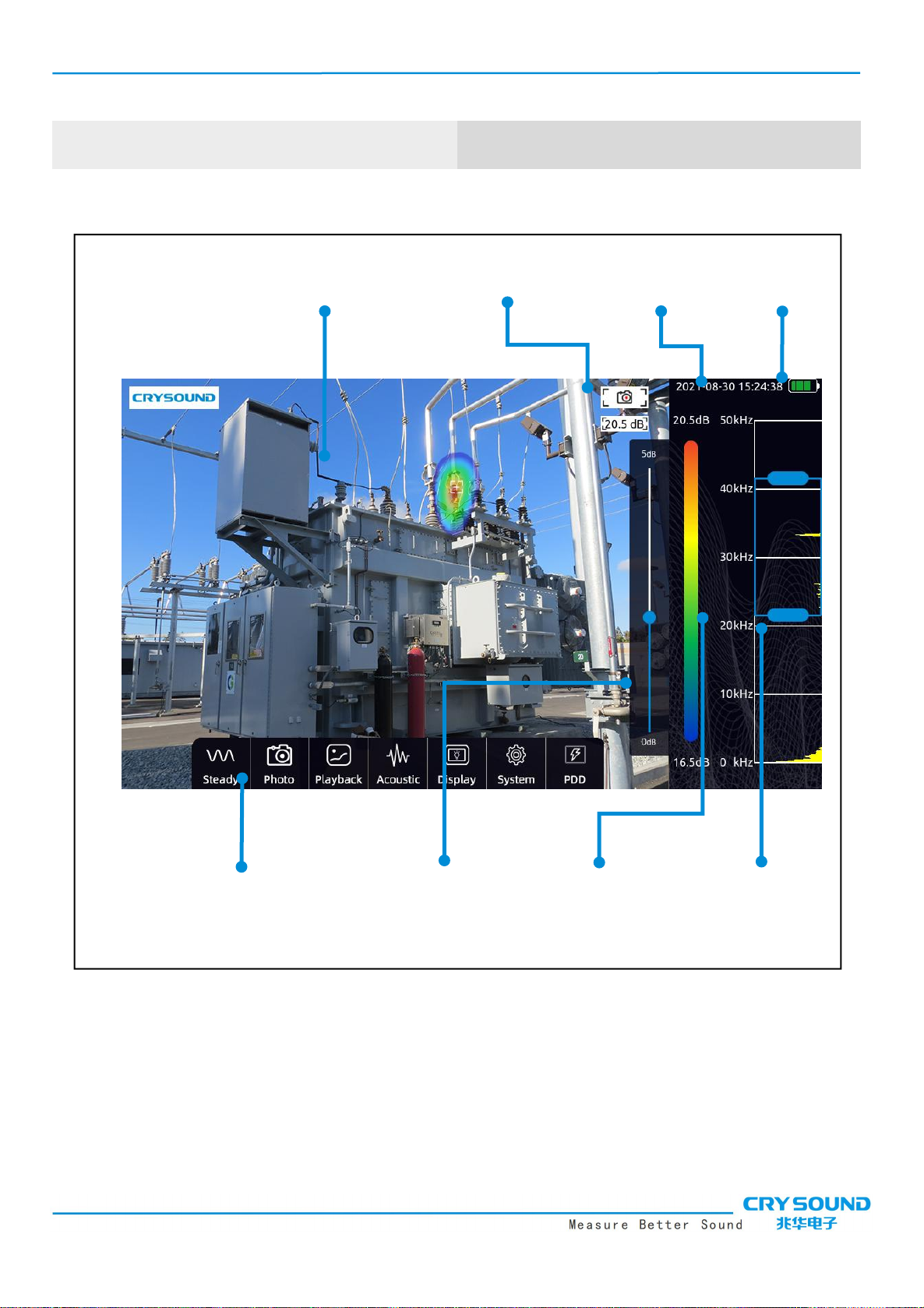

Software interface
Spectrum and
select box of test
frequency range
Battery
state
Video area
Work mode icon
System time
Function menu
Palette
Dynamic range
quick setup

User Manual V2.1
Measure Better Sound
8

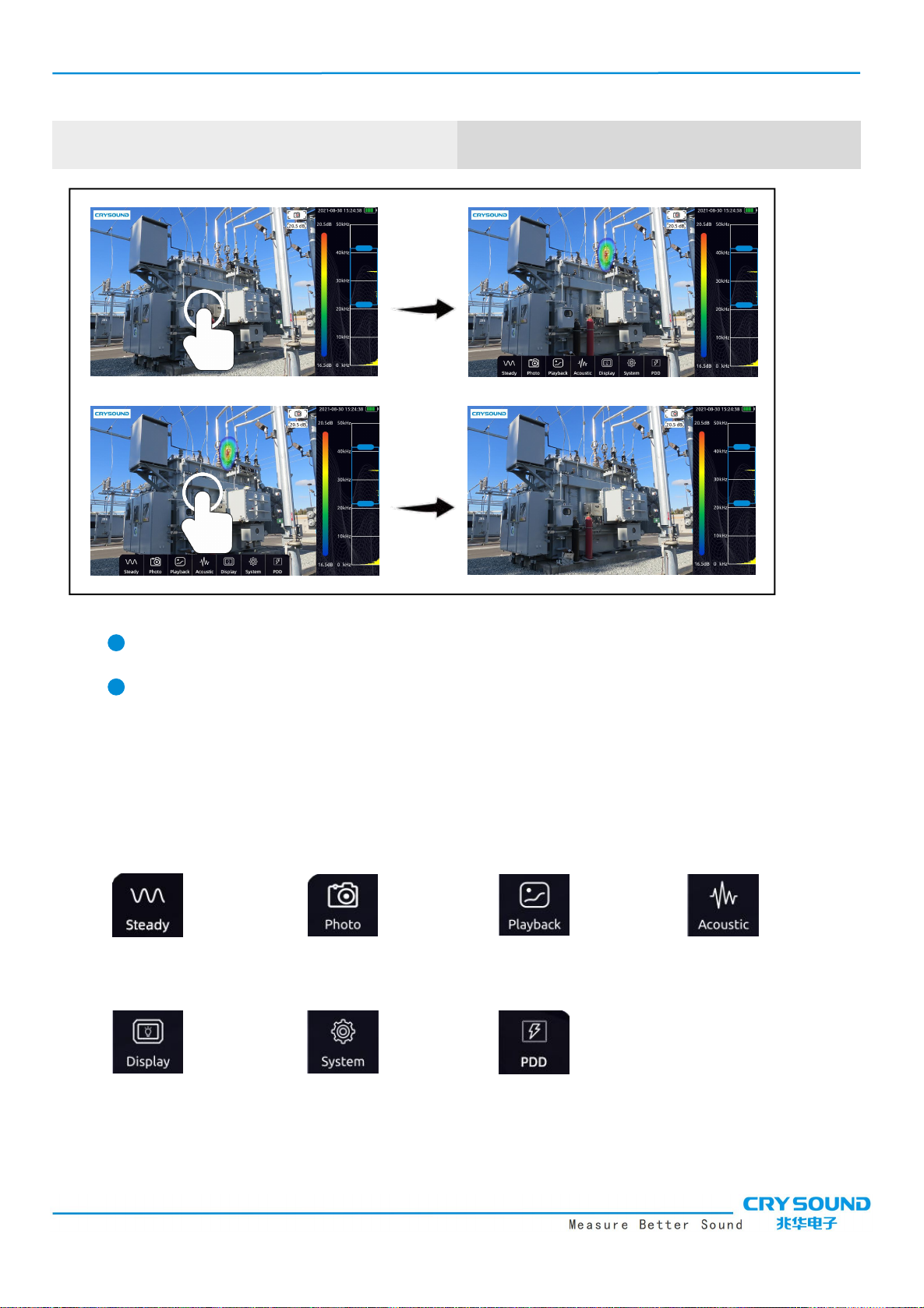

Function menu
Click in the video area of the screen to call out the menu bar
Click again or do nothing for seconds, the menu will hidden
automatically
The Function menu include
Playback
System
Work mode
switch button
Acoustic
Display
steady-state
Partial discharge
spectrum

User Manual V2.1
Measure Better Sound
9

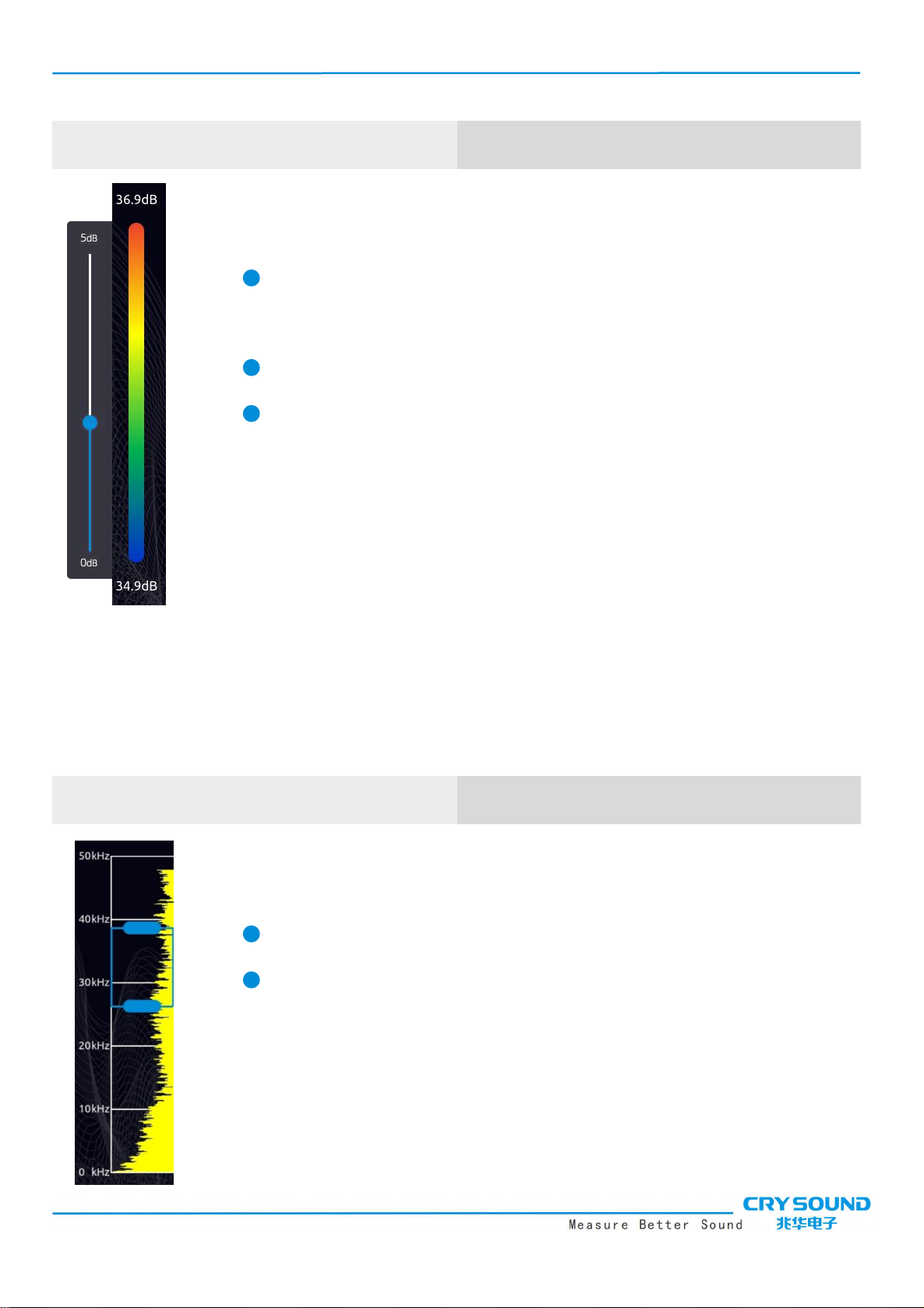

Palette and dynamic range
Click the palette on the main interface to call out the
dynamic range dialog
Click the area outside the dynamic range dialog to hide
Dynamic range parameter can be adjusted into this
dialog
Test frequency range
Press on select box to move it
Press on a single side of select box to adjust up limit or
down limit

User Manual V2.1
Measure Better Sound
10
Transient and steady state modes
Click the transient / steady state mode button to switch the working mode
of the equipment.
In the transient mode, the equipment has a very fast response speed to the
transient signal and can quickly respond to the change of sound source. It is
suitable for locating rapidly changing sound source models, such as partial
discharge sound source.
In the steady-state mode, the equipment will reduce the response speed
to the signal, and the cloud image will be relatively stable. It is suitable for the
observation of stable signals.

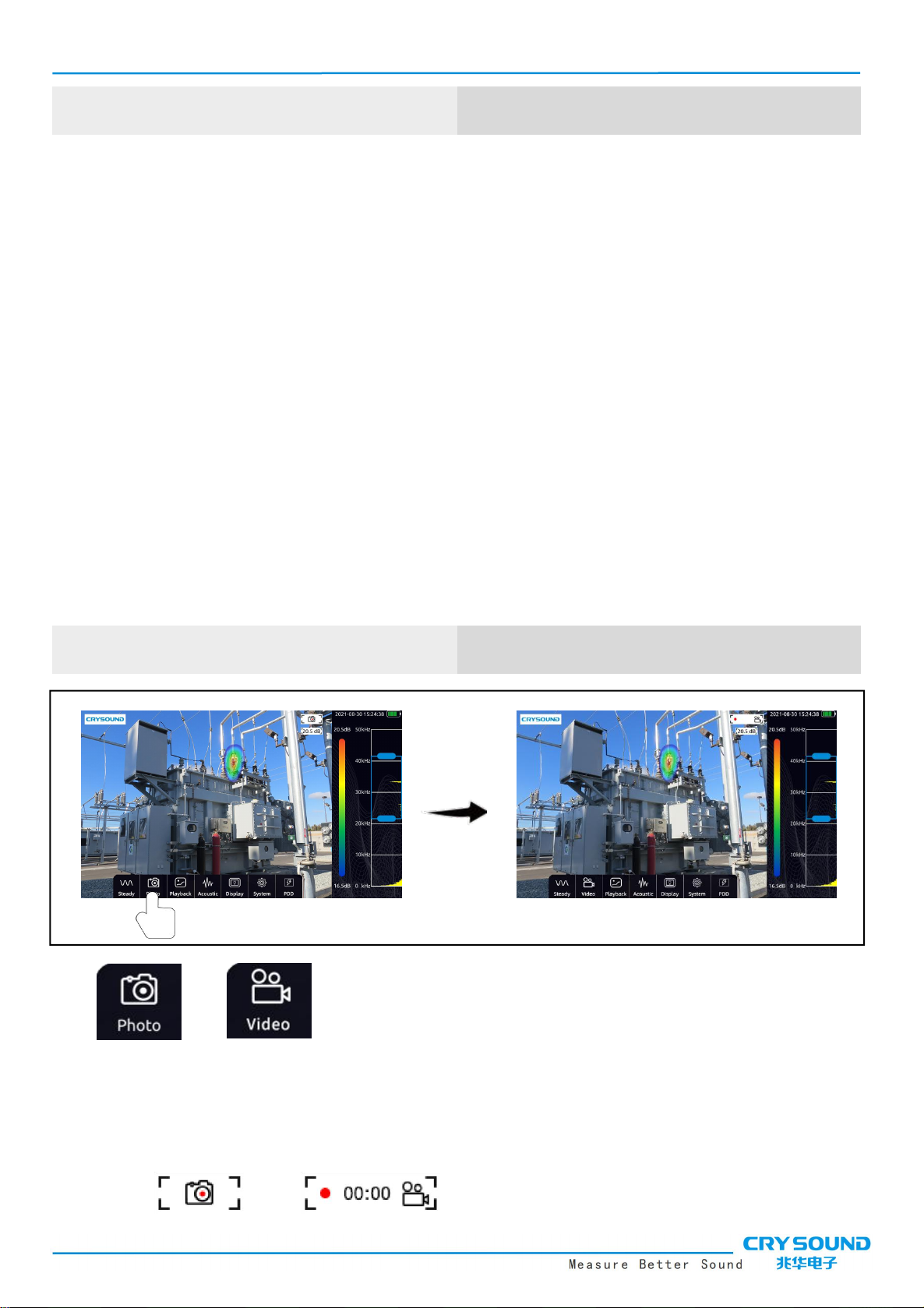

Video and photo
Click the button on the left of the menu bar to switch between camera
mode and video mode.

User Manual V2.1
Measure Better Sound
11
The icon in the upper right corner of the video area will remind you of the
work mode which the device is currently in.
a. In camera mode, press the function button to take a picture.
b. In video mode, press the function button to start recording,press again to
stop or it will automatically stop when video exceeds 5 minutes.
During video recording, you can know the duration of current recording
through the icon in the upper right corner of the video area.

User Manual V2.1
Measure Better Sound
12

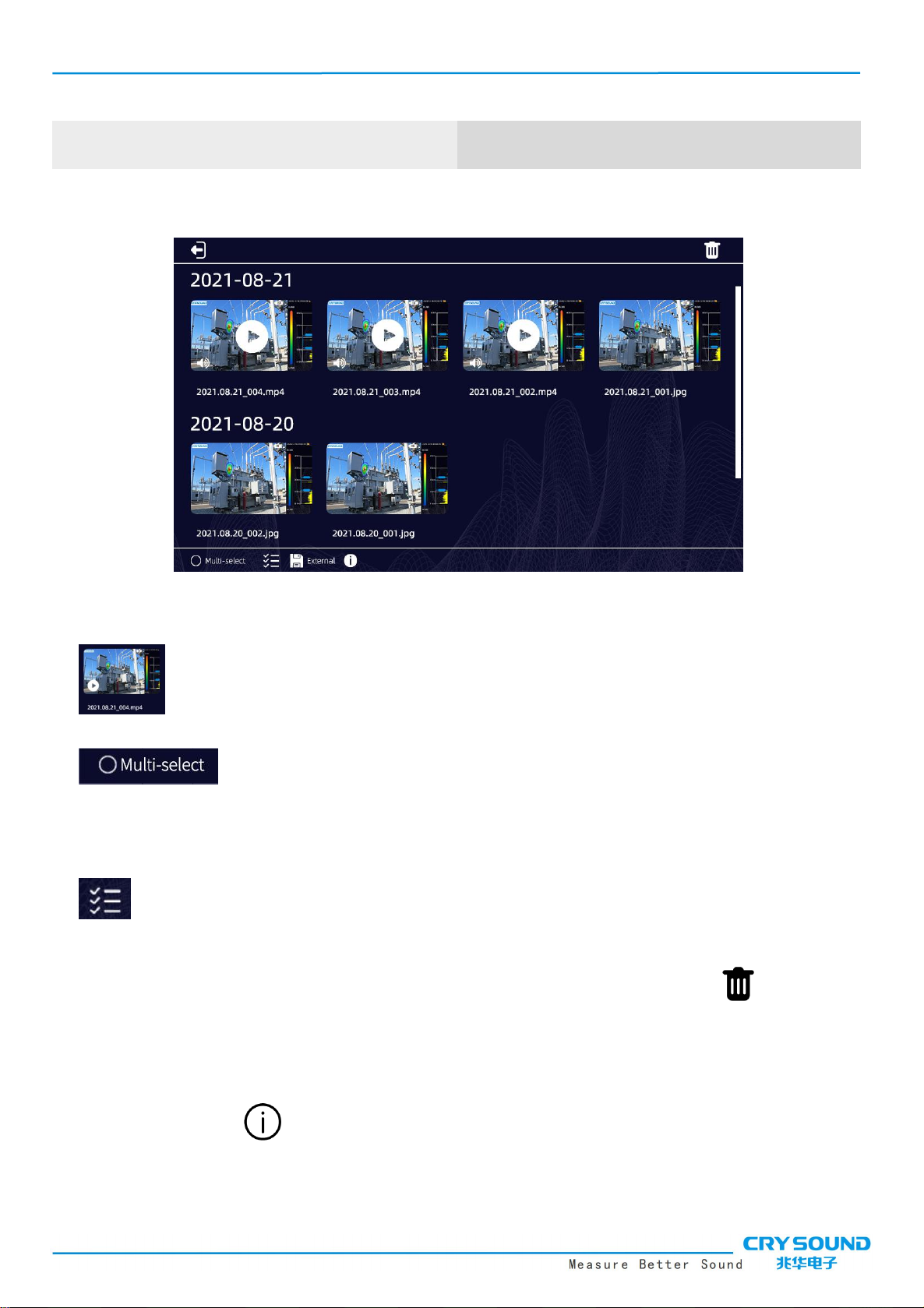

Playback
Pictures and recorded video data can be viewed in the playback window.
a. Click a picture or video to check full size image or play a video.
b. Click Multiple Selection to select multiple videos or photos
for deletion.
c. Click the select all button to select all.
d. After selecting a video or photo, click the upper right corner“ ”to delete
the data.
e. Press button“ ”to check usage information of current storage space.

User Manual V2.1
Measure Better Sound
2

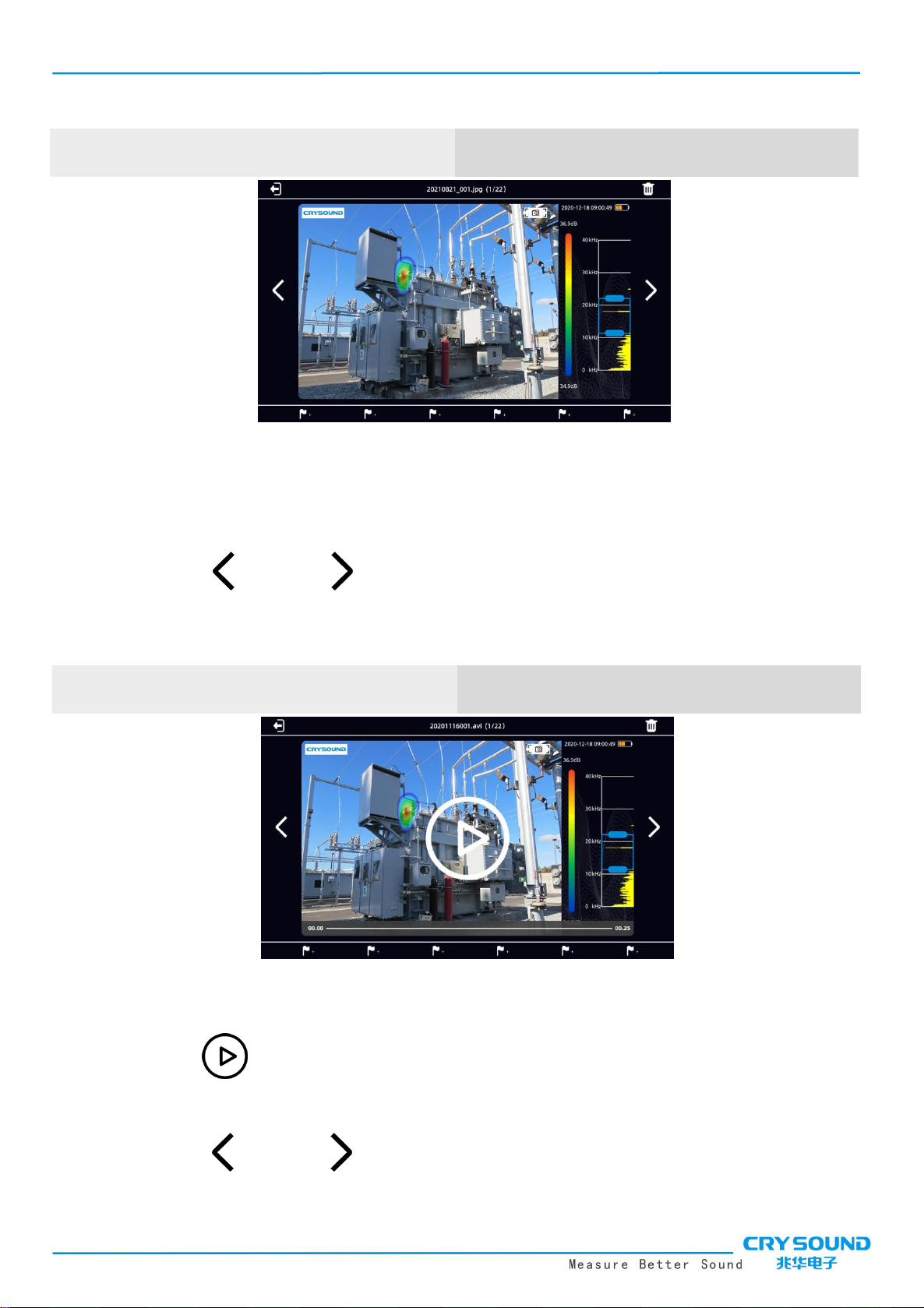

Picture Playback
Double click the picture to enlarge and play back the picture. After
enlarging the picture, you can drag the picture with your finger, and
double-click the picture again to restore the original size.
Press the“ ”and“ ” or touch and sliding left and right to view the
next or before.
Video playback
Click the video thumbnail to zoom in and play the video.
Press on ” ”to playback a video.
Press the video to stop.
Press the“ ”and“ ” or touch and sliding left and right to view the
next or before.

User Manual V2.1
Measure Better Sound
3
Drag the progress bar below the video to adjust the playback progress.
