crystal fires JEWEL HOLE IN THE WALL User guide

issue 3
1
UNIT 1 VALENTINES BUILDING
AINTREE RACECOURSE
BUSINESS PARK
AINTREE
LIVERPOOL
L9 5AY
JEWEL
HOLE IN THE WALL
Horizon trim version
DECORATIVE FUEL EFFECT GAS FIRE
THIS APPLIANCE IS CAT I2H
FOR USE WITH NATURAL GAS
ONLY
G20 AT 20mbar
IN G.B. AND I.E.
USERS
INSTALLATION & SERVICING
BOOK

issue 3
2
INDEX
FRONT COVER
2.INDEX
3.TECHNICAL DATA
4.INSTALLATION GENERAL
5.HEARTH
6.INSTALLATION
7. BESPOKE FIRETRAY INSTALLATION CRITERIA
8. FIRETRAY SIZES
9.FIG A
10. INSTALLATION
11.INSTALLATION /ODS/ SERVICING
15 USERS INSTRUCTIONS
19.FUEL LAYOUT
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE YOU START
INSTALLING THE APPLIANCE KEEP THIS BOOKLET HANDY FOR FUTURE
REFERENCE

issue 3
3
..................BOX SIZES.............
technical data horizon trim
TRIMS available in black stone or brushed steel
GAS TYPE: G20 NATURAL
GAS PRESSURE : 20 MBAR
CONNECTION:8mm OD TUBE
SPARK GAP: 2.5-4mm
INJECTOR : REMOTE TYPE CAT 82/500
HEAT INPUT(GROSS)
HIGH : 6.9kW
LOW :4.1kW
CAT:12H
DATA LABEL LOCATION FRONT BOTTOM SECTION OF APPLIANCE
895 mm
650mm
760 mm
300 mm
IT IS HIGHLY RECCOMENDED A FLUE
LINER IS INSTALLED WITH THIS APPLIANCE
USING A CRYSTAL FIRES GATHER HOOD
IF THE FLUE IS NOT NEW

issue 3
4
INSTALLATION GENERAL
IMPORTANT NOTES
THE JEWEL HIW IS DESIGNED AND TESTED TO THE REQUIREMENTS OF
BSEN509:2000 AND IS FITTED WITH AN ATMOSPHERE SENSING DEVICE
THE JEWEL SUNRISE CAN ONLY BE USED IN CONJUNCTION WITH A
CONVENTIONAL CLASS 1 FLUE OR A 5” FLUE LINER WHEN INSTALLED WITH A
CRYSTAL FLUE SPIGOT SHOWN IN FIG a
A NON COMBUSTABLE HEARTH MUST BE PROVIDED TO COMPLY WITH THE
BUILDING REGULATIONS OR A SUITABLE PROPRIETARY FIRE SURROUND WITH A
100 DEGREES C RATING.
UNLESS INSTALLED 300mm ABOVE FLOOR LEVEL(SEE SEPARATE PAGE)
THE CHIMNEY OR FLUE(UNLESS NEW)MUST BE SWEPT BEFORE INSTALLATION IF
IT HAS BEEN USED FOR SOLID FUEL
* INSTALLER
THE APPLIANCE MUST BE INSTALLED BY A COMPETENT PERSON ,IE A CORGI
REGISTERED INSTALLER IN ACCORDANCE WITH THE CURRENT GAS
SAFETY(INSTALLATION AND USE)REGULATIONS 1994 OR THE RULES IN
FORCE.FAILURE TO DO SO COULD LEAD TO PROSECUTION
*REGULATIONS
THE FOLLOWING ARE THE RELEVANT CODES OF PRACTICE AND BRITISH
STANDARDS:
BS5781 PART 2 AND 3 1991 BS8303 1986 BS 5440 PART 1 1990 BS 6891
1988 BS 6461 PARTS 1 & 2 1984 BS 715 1989
THE BUILDING REGULATIONS ISSUED BY THE DEPARTMENT OF THE ENVIROMENT
THE BUILDING STANDARDS(SCOTLAND)(CONSOLIDATION)REGULATIONS ISSUED BY
THE SCOTTISH DEVELOPMENT OFFICE
*VENTILATION
GREAT BRITAIN
NO SPECIAL VENTILATION BRICKS OR VENTS ARE NORMALLY REQUIRED INTO
THE ROOM CONTAINING THE APPLIANCE,PROVIDED NORMAL ADVENTITIOUS ROOM
VENTILATION EXISTS. THE INSTALLER MUST SATISFY THIS POINT BY
CARRYING OUT A MANDATORY SPILLAGE TEST.
IRELAND
PURPOSE PROVIDED VENTILATION MUST BE PROVIDED AND MUST HAVE A
MINIMUM FREE AREA OF 100CM2
*WARNING
THIS APPLIANCE HAS A NAKED FLAME, AS WITH ALL SUCH FIRES IT
IS RECOMMENDED THAT A FIREGUARD SHOULD BE USED FOR THE
PROTECTION OF CHILDREN, THE ELDERLY AND INFIRM. FIRE
GUARDS SHOULD CONFORM TO BS8423 (FIREGUARDS FOR FIRES
AND HEATING APPLIANCES FOR DOMESTIC USE-SPECIFICATION)

issue 3
5
USERS INSTALLATION AND SERVICING INSTRUCTIONS
Horizon trim bespoke version
APPLIANCE MUST BE FITTED MINIMUM 300mm TO BOTTOM OF TRIM,
FLOOR LEVEL
HEARTH
NO PURPOSE MADE HEARTH IS
REQUIRED WITH THIS GAS
APPLIANCE PROVIDING
IT IS WALL MOUNTED AT A
MINIMUM HEIGHT OF 300mm
TO THE BOTTOM OF THE
APPLIANCE TRIM

issue 3
6
INSTALLATION REQUIREMENTS
LOCATION AND FLUES
CONVENTIONAL CHIMNEY
A CONVENTIONAL BRICK OR STONE CHIMNEY AS USED FOR A SOLID FUEL
APPLIANCE WITH A MINIMUM EFFECTIVE CROSS SECTIONAL DIMENSION OF 225
* 225mm(9 * 9 ins)WITH A MINIMUM OF 3 METRES EFFECTIVE HEIGHT.
A LINED FLUE WITH A MINIMUM DIAMETER OF 175 mm(7ins),
OR A LINED FLUE WITH A MINIMUM DIAMETER OF 125mm when used with a
crystal fires flue spigot.see fig.a
UNDER NO CIRCUMSTANCES MUST A 125mm LINER BE USED WITHOUT THE
CRYSTAL FIRES FLUE SPIGOT
THE CHIMNEY MUST BE SWEPT PRIOR TO INSTALLATION IF NOT NEW
NOTE.
THE FLUE MUST NOT BE RESTRICTED BY DAMPERS OR REGISTER PLATES.THE
FLUE MUST SERVE ONLY ONE APPLIANCE AND NOT HAVE ANY BRANCHES OR
TRAPS WHICH MAY IMPEDE THE NATURAL DRAUGHT.IF ANY TERMINAL IS FITTED
IT MUST BE SUITABLE FOR THE PURPOSE.
HEARTH.IF INSTALLED BELOW 300mm
A NON COMBUSTIBLE HEARTH MUST BE PROVIDED BENEATH THE APPLIANCE
WITHIN THE FIREPLACE OPENING.
A FIRE RESISTING HEARTH MUST ALSO BE PROVIDED SYMMETRICALLY DISPOSED
ABOUT THE FIREPLACE OPENING A MINIMUM THICKNESS OF 12 mm WITH THE
PERIMETER 50mm ABOVE THE FLOOR LEVEL.
THE WIDTH MUST EXTEND A MINIMUM OF 50mm EITHER SIDEOF THE FIREPLACE
OPENING AND A DEPTH OF 300mm FROM THE FRONT OF THE FIREPLACE
OPENING.
ANY COMBUSTABLE MATERIAL ABOVE THE OPENING MUST BE REMOVED UP TO A
HEIGHT OF 1 METRE ABOVE THE HEARTH LEVEL.
INSTALLATION REQUIREMENTS
SOFT FURNISHINGS
CARE SHOULD BE TAKEN TO PREVENT ANY DAMAGE BEING CAUSED TO
SURROUNDING SOFT FURNISHINGS OR DECORATION.E.G MANY EMBOSSED VINYL
WALL COVERINGS MAY BECOME DISCOLOURED IF PLACED TOO CLOSE TO THE
APPLIANCE.

issue 3
7
JEWEL HOLE IN WALL FIRETRAY
WHEN FITTED INTO A BESPOKE FIREPLACE
THE JEWEL HOLE IN THE WALL CAN BE INSTALLED INTO A
BESPOKE FIREPLACE PROVIDING CERTAIN CRITERIA ARE MET AS
PER TEST APPROVALS.
THE CRITERIA ARE AS FOLLOWS
ALL MATERIALS USED MUST BE FIREPROOF AND SUITABLE FOR THE
PURPOSE INTENDED.
FIRE BOX SIZES
MAXIMUM 225mm
MAXIMUM 565mm
300mm MINIMUM
SIZES FROM TOP OF
FIRETRAY
FIRETRAY
MINIMUM
SET IN
50MM
300mm maximum depth
FLUE OUTLET MUST BE MINIMUM 160mm * 355mm
OR
CLASS 1 175mm FLUE LINER/PIPE WITH SPIGOT CONNECTED TO
FIRE
OR
125mm FLUE LINER/PIPE USING CRYSTAL FIRES GATHERHOOD
SEE PAGE 10

issue 3
8

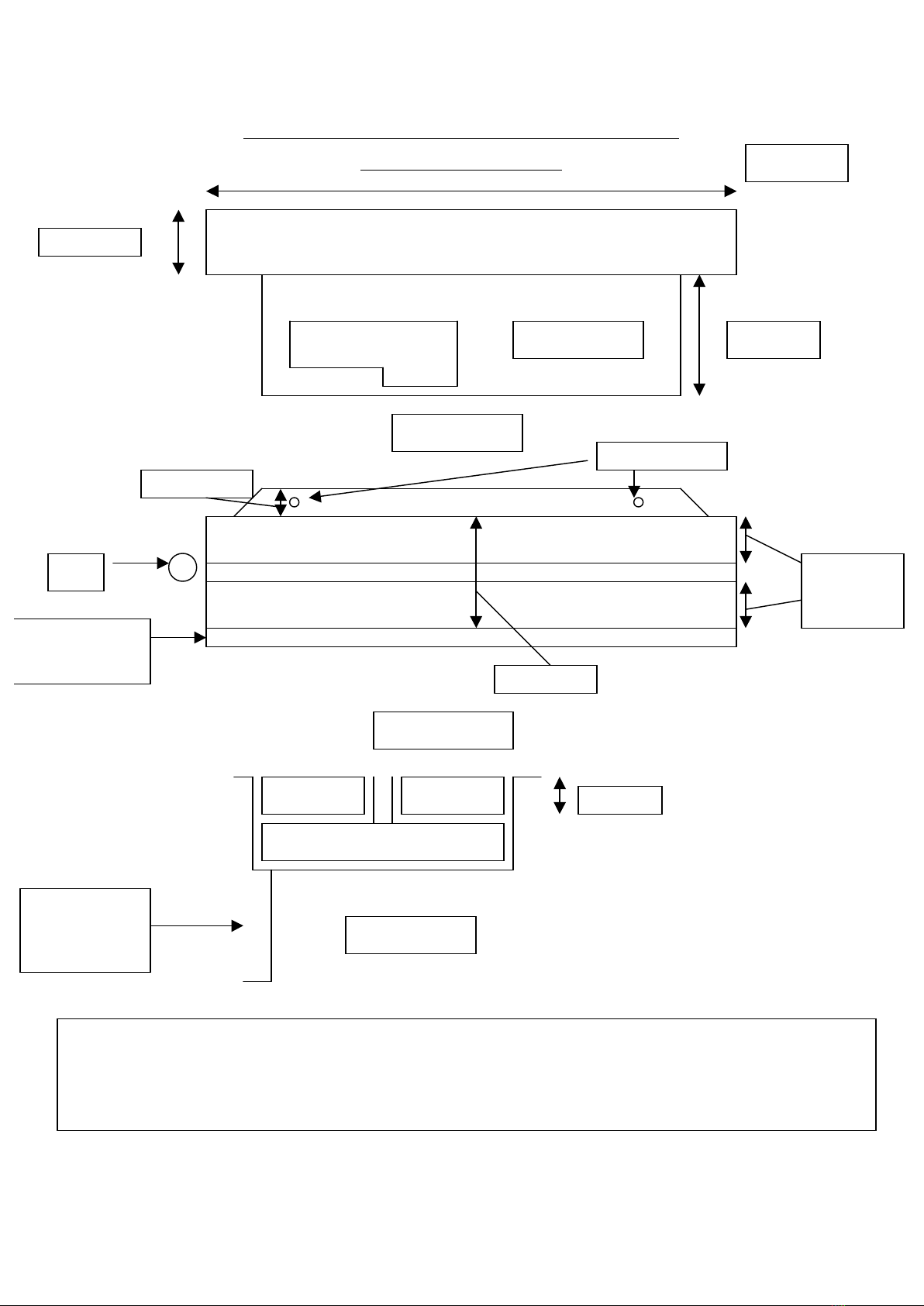

FIRETRAY SIZES FOR BESPOKE
INSTALLATION
520mm
50mm
120mm
10mm flange
overhang
40mm
40mm
each fibre
stip
ods
98 mm
Front view
Top view
20mm
Side view
When fitting jewel hole in wall firetray into a bespoke surround ,the firetray must be secured in position
using two screw holes on rear of tray ,
Adequate ventilation of a minimum of 60cm2 must be allowed to “A” as shown above
Ventilation
See below
A
Fixing points

issue 3
9

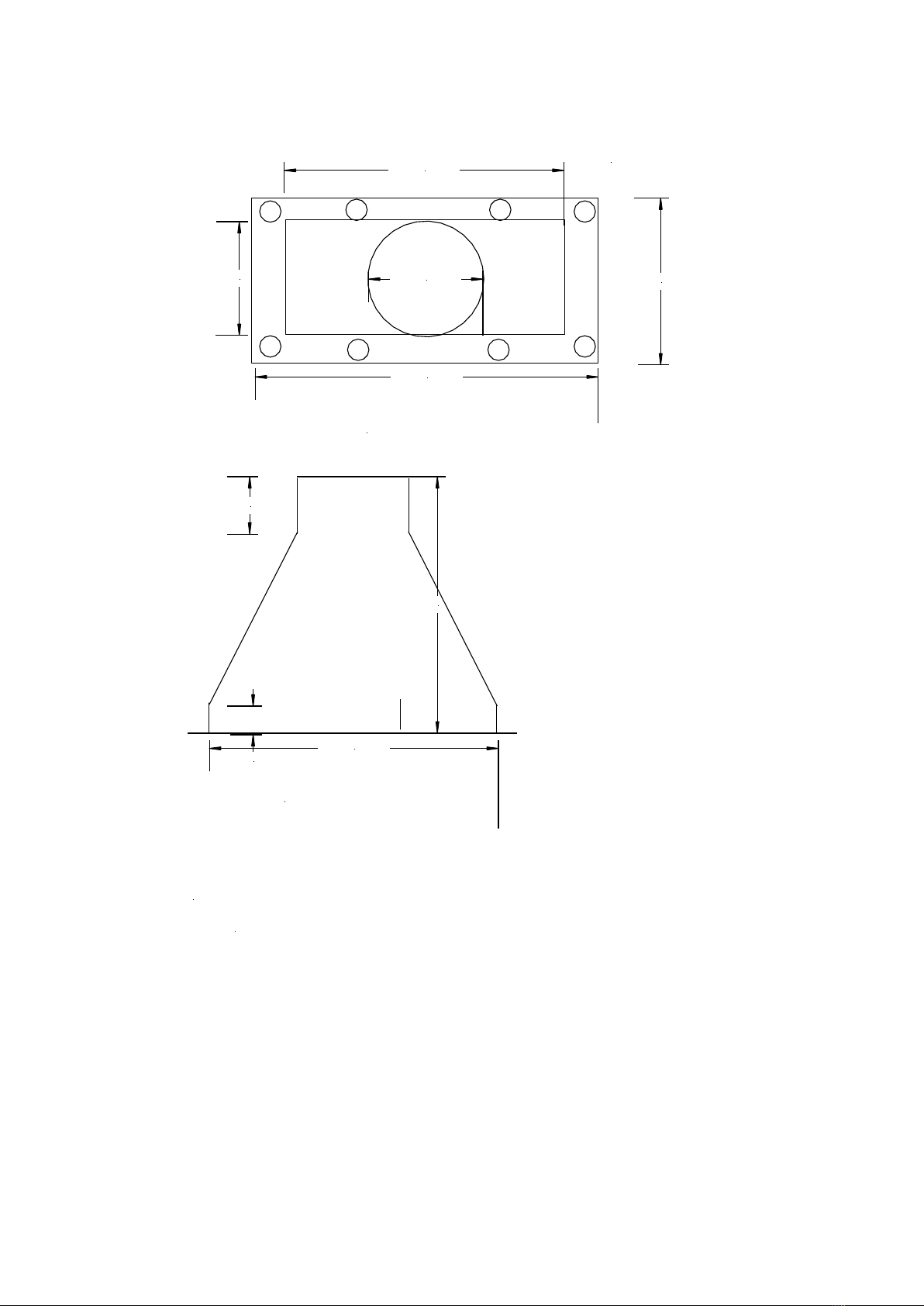

PLAN VIEW
407mm
210mm
120mm
355mm
160mm
fig a
JEWEL HOLE IN WALL SPIGOT
60mm
300mm
40mm
+/_ 3mm
355mm
front view
TO SUIT 125mm FLUE LINER
CONNECT FLUE LINER TO FLUE SPIGOT AND SECURE.LEAVE IN
BUILDERS OPENING 25mm ABOVE TOP OF FIRE BOX.
INSERT BOX INTO OPENING AND SECURE SPIGOT USING 8
SELFTAPPING SCREWS SUPPLIED.

issue 3
10
INSTALLATION STEPS
CHECK FLUE
CHECK THAT THE CHIMNEY CONFORMS TO THE REQUIRED SPECIFICATIONS AS
PREVIOUSLY STATED
EXAMINE THE CONDITION AND CARRY OUT ANY REMEDIAL WORK IF THE FLUE
HAS BEEN USED FOR SOLID FUEL IT SHOULD BE SWEPT AND A SMOKE TEST
CARRIED OUT TO CHECK THAT SATISFACTORY SMOKE CLEARANCE HAS BEEN
ESTABLISHED
IF ALL THE SMOKE IS NOT DRAWN INTO THE FLUE ,PRE HEAT THE FLUE WITH
A BLOW TORCH OR SIMILAR AND RE CHECK.IF THERE IS ANY UNCERTAINTY
EXAMINE FOR THE CAUSE AND,IF NECCESARY SEEK EXPERT ADVICE.
GAS SUPPLY
IT IS RECCOMENDED A CONCEALED CONNECTION IS MADE USING RIGID OR
SEMI RIGID TUBING,FROM THE REAR OF THE UNIT TAKING INTO ACCOUNT THE
REQUIREMENTS OF BS 6891 1988 DEALING WITH ENCLOSED PIPES.
A SUITABLE ISOLATING COCK SHOULD ALWAYS BE FITTED IN THE SUPPLY FEED
TO THE FIRE TO FACILITATE SERVICING.

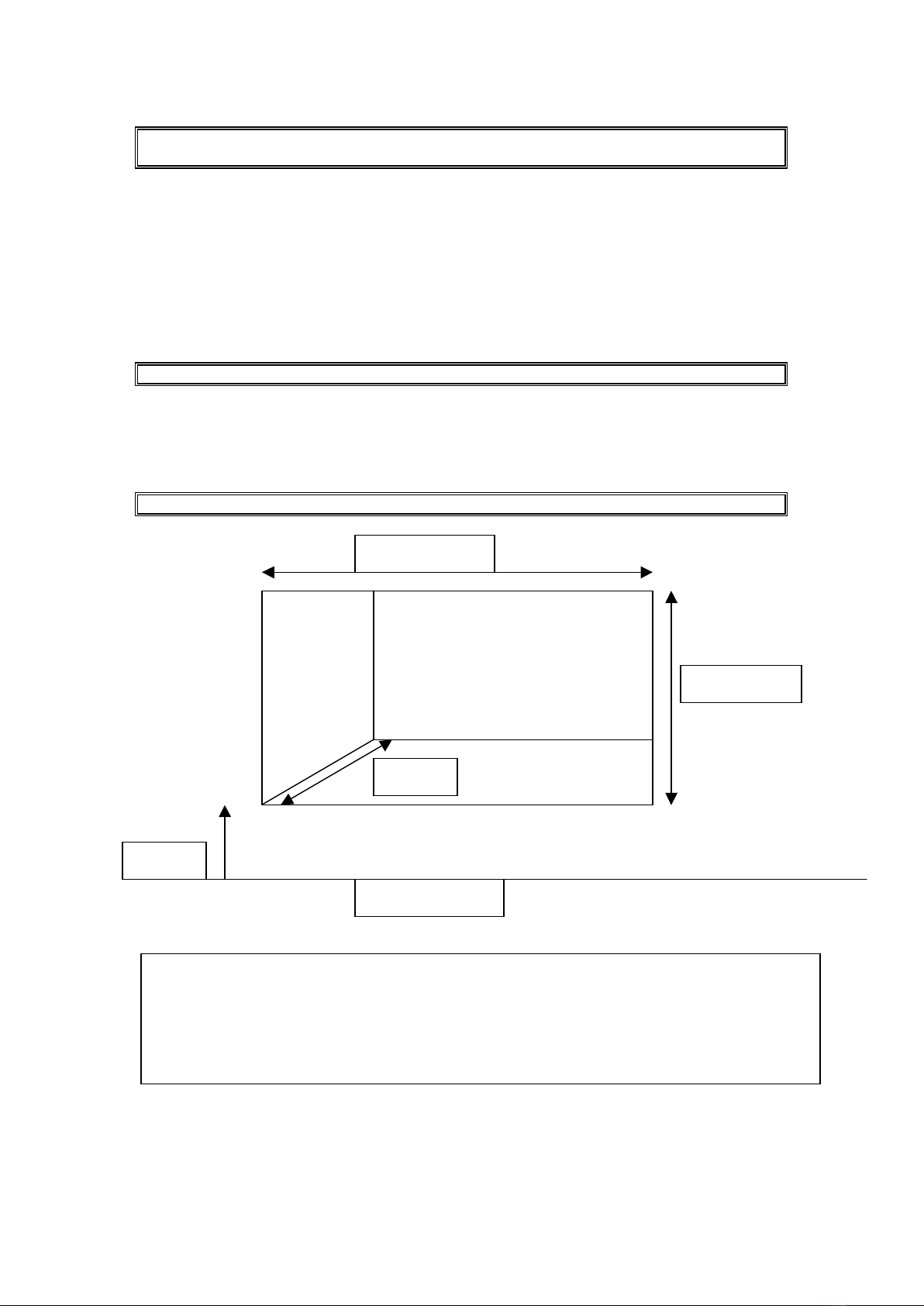

SECURE FIRE TO THE FIREPLACE horizon bespoke version
330m
300mm
780 mm
420 mm
FLOOR LEVEL
Make a builders opening to the sizes above
These sizes are the horizon trim bespoke sizes

issue 3
11
MARK POSITION OF FLANGE HOLES,DRILL AND PLUG AND FIX FIRE TO
FIREPLACE ENSURING A GOOD SEAL IS MADE BETWEEN FIREBOX AND FIREPLACE
USING FOAM SEAL SUPPLIED.
300 mm
DEEP
CHECKING GAS PRESSURE AND SOUNDNESS
REMOVE THE PRESSURE TEST POINT SCREW FROM THE INLET ELBOW AND
CONNECT PRESSURE GAUGE.
TURN ON GAS TO APPLIANCE.
ROTATE THE CONTROL TO THE IGNITION POSITION AND PUSH IN TO ALLOW THE
AIR IN THE PIPEWORK TO BE PURGED.
PUSH IN PIEZO IGNITION SWITCH
CHECK THAT THE ELECTRODE IS SPARKING .
CONTINUE SPARKING UNTIL PILOT IGNITION IS ESTABLISHED.
TURN THE GAS CONTROL KNOB ON TO THE HIGH POSITION AND ALLOW TO RUN
FOR FIVE MINUTES.
CHECK THE INLET PRESSURE IS 20 MBAR. +/- 1mbar
CHECK FOR GAS SOUNDNESS.
TURN OFF GAS SUPPLY,DISCONNECT PRESSURE GAUGE AND REPLACE PRESSURE
TEST POINT SCREW.
FIT TRIMS
THE JEWEL HOLE IN THE WALL COMES WITH 2 TRIMS PACKED IN SEPARATE
BOX.THE FIRST INNER TRIM IS SCREWED TO THE MAIN BOX USING SIX SELF
TAPPING SCREWS. 3 TO THE LEFT AND 3 TO THE RIGHT.
THE FINAL TRIM FITS TO THE FRONT FLANGE USING MAGNETS ALREADY PLACED
ON THE BOX FLANGE.
INSTALLATION STEPS
TEST FOR SPILLAGE
CHECK FOR SATISFACTORY CLEARANCE OF COMBUSTION PRODUCTS
CLOSE ALL DOORS AND WINDOWS IN THE ROOM CONTAINING THE FIRE.
TURN ON GAS SUPPLY,LIGHT THE FIRE AND SET THE CONTROLS TO HIGH
LEAVE THE FIRE BURNING FOR FIVE MINUTES AND INSERT A LIGHTED SMOKE
MATCH ON A VERTICAL PLANE 50mm INSIDE THE CANOPY AND 180mm FROM
EITHER SIDE OF THE OPENING
ALL THE SMOKE MUST BE DRAWN INTO THE FLUE.
IF SPILLAGE OCCURS ALLOW A FURTHER TEN MINUTES.
SHOULD SPILLAGE STILL OCCUR TURN OFF THE FIRE AND SEEK EXPERT ADVICE
IF AN EXTRACTOR FAN IS SITUATED IN THE ROOM THIS TEST SHOULD BE
REPEATED WITH THE FAN RUNNING
IF THERE IS A CONNECTED ROOM WITH AN EXTRACTOR FAN,THE TEST SHOULD
BE REPEATED WITH ALL THE DOORS TO THAT ROOM OPENED AND THE EXTRACTOR
FAN RUNNING.
Flange holes

issue 3
12
INSTALLATION STEPS
INSTRUCT USER
DEMONSTRATE THE LIGHTING AND EXTINGUISHING PROCEDURES TO THE USER
AND REMOVAL AND REFITTING OF THE TRIM FOR CLEANING.
THE CURING EFFECT OF HEATING THE LOGS AND OTHER CERAMICS COMPONENTS
WILL CAUSE AN INITIAL ODOUR.
THE APPLIANCE SHOULD BE SERVICED ANNUALLY BY A COMPETENT PERSON IN
ACCORDANCE WITH THESE INSTRUCTIONS AND THE APPLIANCE CHECKED FOR
SPILLAGE IN ACCORDANCE WITH THE METHOD DETAILED IN THESE
INSTRUCTIONS
HAND THESE INSTRUCTIONS TO THE USER.
SERVICING NOTES
GENERAL NOTES.
SERVICING SHOULD BE CARRIED OUT ANNUALLY BY A COMPETENT PERSON SUCH AS
A CORGI REGISTERED PERSON IN ACCORDANCE WITH THE RELEVANT REGULATIONS
,TO ENSURE THE SAFE AND CORRECT OPERATION OF THE APPLIANCE
BEFORE COMMENING ANY SERVICE OR REPLACEMENT OF PARTS TURN OFF GAS
SUPPLY TO FIRE
AFTER SERVICING CHECK FOR GAS SOUNDNESS
AT LEAST ONCE A YEAR CHECK FOR DEBRIS
IF SOOT HAS ACCUMULATED CHECK TO ESTABLISH CAUSE AND RECTIFY IF
NECCASARY CLEAN FLUE OR CHIMNEY ACCORDINGLY
EXAMINE THE FUEL FOR SIGNS OF CRACKING AND REPLACE IF NECCESARY.SEE
FUEL LAYOUT PROCEDURE BEFORE ATTEMPTING TO REPLACE FUEL WHICH SHOULD
ONLY BE REPLACED AS A COMPLETE SET WITH NO EXTRA FUEL ADDED
1 REMOVAL OF FUEL IF FITTED
REMOVE LOOSE FUEL
2REPLACEMENT OF GAS CONTROL
REMOVE FUEL SET AS 1
DICONNECT FIRE AT INLET ELBOW
REMOVE FIRE TRAY BY UNSCREWING TWO SCREWS AT FRONT BOTTOM SECTION OF
FIRE TRAY
REMOVE CONTROL KNOB,DISCONNECT GAS CONNECTIONS TO VALVE INCLUDING
PILOT CONNECTIONAND THERMOCOUPLE CONNECTION
REMOVE LOCKNUT HOLDING GAS CONTROL TO FRONT BOTTOM SECTION
RE ASSEMBLE IN REVERSE ORDER
TURN ON GAS SUPPLY,CHECK FOR SOUNDNESS AND RE COMMISION APPLIANCE
3 REPLACEMENT OF INJECTOR
REPEAT 2 REMOVE GAS CONTROL
DISCONNECT GAS CONNECTIONS TO INJECTOR
UNSCREW INJECTOR WHILST AT THE SAME TIME HOLDING THE LOCKNUT

issue 3
13
WITH A SPANNER AND CLEAN OR REPLACE
RE ASSEMBLE IN REVERSE ORDER
TURN ON GAS SUPPLY .CHECK FOR SOUNDNESS AND RECOMMISSION THE APPLIANCE
4 REPLACEMENT OF OXY-PILOT ASSEMBLY
DISCONNECT FIRE AT INLET ELBOW
REMOVE FIRETRAY BY UNSCREWING 5 SCREWWS AT FRONT OF TRAY AND TWO AT
BACK
DISCONNECT THERMOCOUPLE FROM GAS VALVE
DISCONNECT GAS CONNECTION FROM PILOT ASSEMBLY
REMOVE IGNITOR LEAD FROM PILOT ASSEMBLY
UNDO SCREWS SECURING OXY-PILOT TO FIRETRAY
RE-ASSEMBLE IN REVERSE ORDER
TURN ON GAS SUPPLY,CHECK FOR GAS SOUNDNESS AND RE-COMMISSION
APPLIANCE.

issue 3
14

issue 3
15
BECHERS DRIVE
AINTREE RACECOURSE
BUSINESS PARK
AINTREE
LIVERPOOL
L9 5AY
JEWEL
HOLE IN THE WALL
DECORATIVE FUEL EFFECT GAS FIRE
Horizon trim version
THIS APPLIANCE IS CAT I2H
FOR USE WITH NATURAL GAS
ONLY
G20 AT 20mbar
IN G.B. AND I.E.
USERS INSTUCTIONS

issue 3
16
IF A FLUE LINER IS NOT INSTALLED WITH THIS APPLIANCE WE HIGHLY
RECOMMEND THE BURNER IS INSPECTED FOR DEBRI ON A WEEKLY
BASIS AND IF NECCESARY REMOVE AS REQUIRED.
IF DEBRI CONTINUES SEEK EXPERT ADVISE
USERS INSTRUCTIONS FOR JEWEL GAS APPLIANCE
YOUR JEWEL GAS APPLIANCE IS A DECORATIVE LIVE FUEL EFFECT
GAS FIRE ,DUE TO ITS NEWNESS THE FIRE MAY GIVE OFF SLIGHT
SMELL FOR A SHORT PERIOD AFTER INSTALLATION .THIS IS QUITE
NORMAL AND WILL DISAPPEAR AFTER A FEW HOURS OF OPERATION.
THE APPLIANCE TO WHICH THESE INSTRUCTIONS APPLY MUST BE
INSTALLED BY A COMPETENT PERSON(EG. A C.O.R.G.I MEMBER IN
ACCORDANCE WITH THE CURRENT EDITION OF THE GAS SAFETY
INSTALLATIONS AND USE REGULATIONS OR THE RULES IN
FORCE)APPROVED BY THE HEALTH AND SAFETY EXECUTIVE AND
MUST BE IN ACCORDANCE WITH THE INSTALLATION AND SERVICING
INSTUCTIONS SUPPLIED.
SERVICING SHOULD BE CARRIED OUT REGULARLY BY A COMPETENT
PERSON ( EG A C.O.R.G.I MEMBER)IN ACCORDANCE WITH THE CURRENT
EDITION OF THE GAS SAFETY (INSTALLATION AND USE) REGULATIONS
OR THE RULES IN FORCE.TO ENSURE THE CORRECT AND SAFE
OPERATION OF THE APPLIANCE .DEBRIS SHOULD ALSO BE REMOVED
FROM BEHIND THE APPLIANCE AT REGULAR INTERVALS.
BEFORE INSTALLATION OF THE APPLIANCE THE CHIMNEY MUST BE
SWEPT AND THEN INSPECTED REGURLARLY TO ENSURE THAT IT
REMAINS FREE OF OBSTRUCTION.
A FIRE GUARD COMPLYING TO BS8423 ,MUST BE FITTED IF THE ROOM
WILL BE OCCUPIED BY YOUNG CHILDREN THE ELDERLY ,OR INFIRM
PEOPLE. ON NO ACCOUNT MUST ANY RUBBISH BE THROWN ON TO THE
FIRE OR THE LAYOUT OF THE FIREBED DISTURBED.
IT IS HIGHLY RECCOMENDED
A
FLUE LINER IS INSTALLED
WITH THIS
APPLIANCE IF THE FLUE IS
NOT NEW
THE LOWER HINGED TRIM MUST BE LOWERED
INITIALLY TO LIGHT THE PILOT LIGHT AND THEN
REPLACED BEFORE TURNING APPLIANCE TO ON
POSITION

issue 3
17
OPERATING INSTRUCTIONS
MERTIK MAXITROL REMOTE CONTROL SYSTEM
OPERATION
LIGHTING PROCEDURE
1. TURN KNOB A(FIGURE 1) SLIGHTLY LEFT TOWARDS THE IGNITION
POSITION(SHOWN IN FIG 1 ABOVE) UNTIL REACHING STOP,PRESS DOWN AND
HOLD FOR FIVE SECONDS
(ONLY PILOT GAS FLOWS)
2. CONTINUE PRESSING DOWN KNOB A WHILE TURNING FURTHER LEFT TO
ACTIVATE PIEZO,CONTINUE TO HOLD DOWN FOR 10 SECONDS AFTER PILOT
HAS BEEN LIT,IF PILOT DOES NOT LIGHT,STEPS 1 AND 2 CAN BE REPEATED
IMMEDIATELY.
3. UPON LIGHTING,RELEASE KNOB AAND TURN FURTHER LEFT TO ON POSITION
(SHOWN IN FIGURE 1 ABOVE)PILOT GAS FLOWS AND MAIN BURNER FLOWS IN
ACCORDANCE TO THE FLAME SETTING(KNOB B AS SHOWN IN FIG 1 ABOVE)
ADJUSTING THE FLAME SETTINGS
TO TURN THE FIRE ON AND/OR TO ADJUST THE
FLAME STTING, PRESS THE ON BUTTONS ON THE
REMOTE HANDSET.CONTINUE PRESSING UNTIL
DESIRED FLAME SETTING IS OBTAINED.PRESS
AND HOLD THE OFF BUTTON TO REVERSE THE
SETTING.THE RECEIVER IS EQUIPPED WITH A
BUILT IN DELAY, RECOGNIZABLE BY THE FLICKERING
LIGHT,TO FACILITATE FINE ADJUSTMENT OF THE FLAME
THE MOTORIZED VALVE IS EQUIPPED WITH A SLIP
CLUTCH ,ALLOWING MANUAL ADJUSTMENT OF MAIN
GAS BY TURNING KNOB B

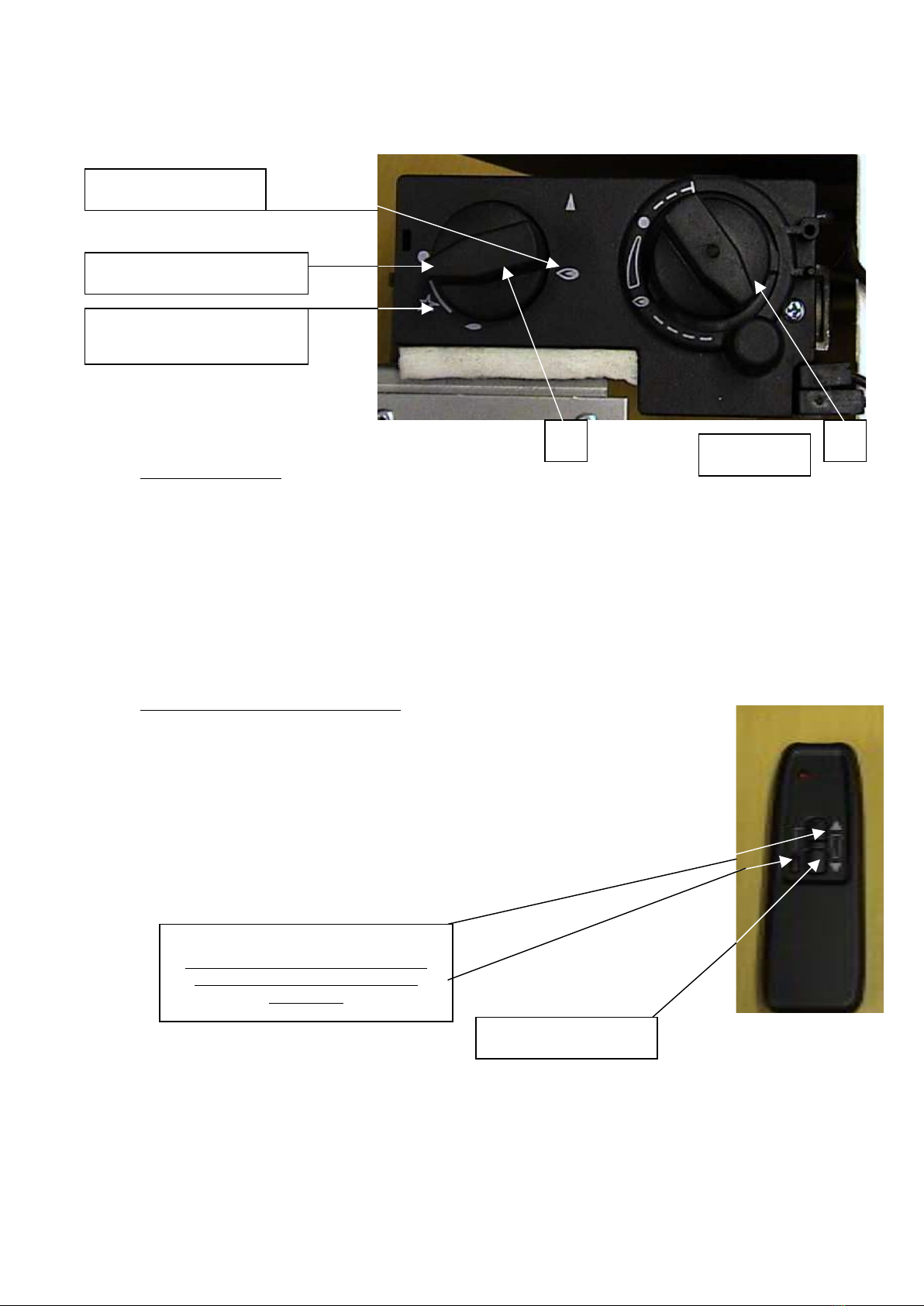

FIGURE 1
A
B
ON POSITION
OFF POSITION
IGNITION /PILOT
POSITION
OFF BUTTON
ON BUTTONS
TO PRESS THE ON BUTTON YOU
MUST PRESS THE 2 BUTTONS
TOGETHER

issue 3
18
SHUT OFF PROCEDURE
1.TURN KNOB A RIGHT UNTIL REACHING STOP. IN THIS POSITION ONLY
PILOT GAS FLOWS
2.TO SHUT OFF VALVE COMPLETELY,PRESS DOWN SLIGHTLY AND
CONTINUE TURNING RIGHT FROM PILOT POSITION TO THE OFF
POSITION.THE SAFETY INTERLOCK PREVENTS RE-IGNITION OF THE
PILOT FLAME UNTIL THERMOCOUPLE HAS COOLED DOWN
SUFFICIENTLY(ELAPSED TIME WILL VARY BASED ON THERMOCOUPLE
TYPE)
3.SWITCHING OFF THE REMOTE IS NOT NECCESARY.
THE SENSOR AND BATTERY HOLDER A INSERTED BENEATH THE RIGHT
SIDE OF THE FIRE.TO REPLACE BATTERIES ALLOW FIRE TO COOL FOR
AT LEAST 30 MINUTES THEN PULL OUT BATTERY HOLDER, THE COVER
CAN SLIDE OFF AS ABOVE AND THE BATTERIES CAN BE
REPLACED.(USE ONLY LIKE FOR LIKE ALKALINE AA BATTERIES)
REPLACEMENT PARTS
BATTERY HOLDER AND SENSOR CRYSMERTIKHOLDER
GAS VALVE CRYSMERTIKVALVE
REMOTE HANDSET CRYSMERTIKHANDSET
INSTALLATION INFORMATION
GAS SUPPLY: THE GAS CONNECTION CAN BE FROM EITHER THE
LEFT OR RIGHT HAND SIDE OF THE FIRE.ENSURE THAT THE GAS
PIPE DOES NOT PREVENT THE REMOVAL OF THE BATTERY HOLDER
AND SENSOR OR ACCESS TO OPERATE THE GAS CONTROL KNOBS
LIGHTING WITH A TAPER
IF IGNITION FAILS, THE APPLIANCE CAN BE LIT WITH A TAPER BY
TURNING THE CONTROL KNOB TO THE IGNITION POSITION ,KEEP IT
PRESSED IN AND LIGHT THE PILOT ON THE LEFT HAND SIDE WITH A
TAPER AND THEN FOLLOW THE OPERATING INSTRUCTIONS FROM
ABOVE.
LIGHTING WITH A TAPER IS ONLY A TEMPORARY MEASURE AND A
SERVICE CALL TO RECTIFY THE FAULT MUST BE DONE AS SOON AS
POSSIBLE.

issue 3
19
CLEANING
BEFORE CLEANING ANY PART OF THE FIRE ,ENSURE THAT THE GAS IS
TURNED OFF AND FIRE IS COOL
COAL BED LAYOUT
PERIODICALLY SMALL DEPOSITS OF SOOT MAY GATHER ON THE FUEL
BED AND BURNER, THIS MUST BE REMOVED BY REMOVING FUEL AND
BRUSHING ANY DEPOSITS WITH A SOFT BRUSH AND VACUUMING THE
BURNER, THEN REPLACE FUEL USING THE FOLLOWING PROCEDURE.
THIS APPLIANCE IS DESIGNED TO BE INSTALLED WITHOUT ANY FUEL
PIECES HOWEVER ANY CERAMIC FUEL MAY BE USED WITH THE JEWEL
HOLE IN THE WALL AS A DECORATIVE MEASURE ONLY,AND
MUST NOT IMPINGE THE FLAMES IN ANY WAY,THE DECORATIVE
FUEL MAY BE PLACED ONLY AS DIRECTED BELOW
ANY FUEL PIECES MUST ONLY BE THE WIDTH OF THE BURNER IN
TOTAL AND NO HIGHER THAN 80mm
BURNER WIDTH
PILOT LIGHT
MAIN BURNER
ANY FUEL PIECES CAN BE POSITIONED FRONT AND BACK AS SHOWN
BUT MUST NOT IMPINGE ANY FLAMES OR CROSS THE BURNER
AS SHOWN CORRECTLY ABOVE

issue 3
20
PILOT LIGHT
MAIN BURNER
ANY FUEL PIECES CAN BE POSITIONED FRONT AND BACK AS SHOWN
BUT MUST NOT IMPINGE ANY FLAMES OR CROSS THE BURNER
SHOWN INCORRECT BELOW
INCORRECT ABOVE AS SHOWN AS THE FUEL
PIECES ARE CROSSING THE BURNER
PILOT LIGHT
MAIN BURNER
ANY FUEL PIECES CAN BE POSITIONED FRONT AND BACK AS SHOWN
BUT MUST NOT IMPINGE ANY FLAMES OR CROSS THE BURNER
INCORRECT AS SHOWN ABOVE ONE FUEL PIECE IS
CROSSING THE BURNER AND IMPINGING THE
FLAME
