crystal fires Ruby User guide

BECHERS DRIVE
AINTREE RACECOURSE
BUSINESS PARK
AINTREE
LIVERPOOL
L9 5AY
RUBY
DECORATIVE FUEL EFFECT GAS FIRE
THIS APPLIANCE IS CAT I2H
FOR USE WITH NATURAL GAS
ONLY
G20 AT 20mbar
IN G.B. AND I.E.
INSTALLATION & SERVICING
BOOK
ISSUE 2 1

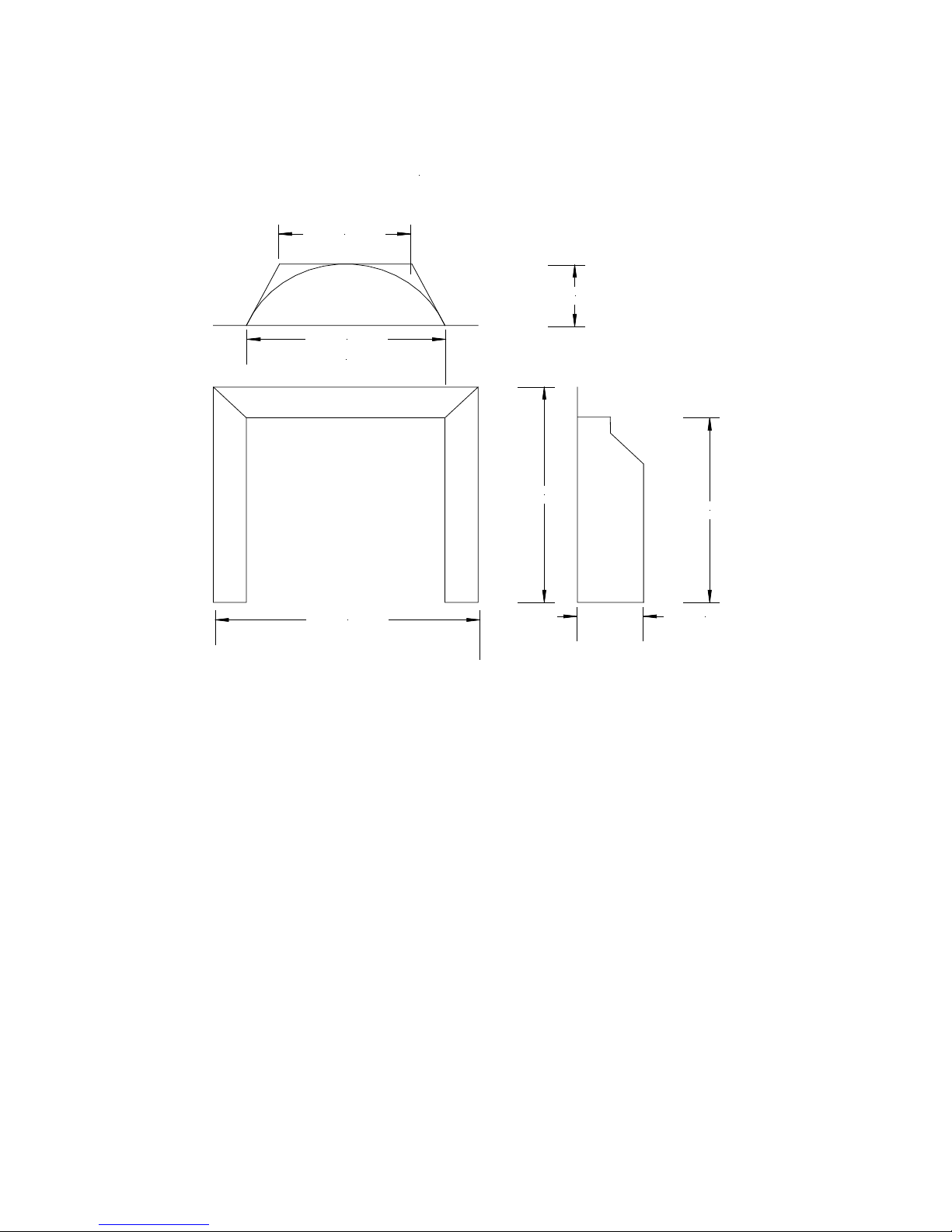

SIZES INCLUDING
STANDARD TRIM
180mm
465mm
270mm
600mm
180mm
550mm
383mm
width of curve
SIZES INCLUDING TRIM
RADIANT BOX
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE YOU START
INSTALLING THE APPLIANCE.
KEEP THIS BOOKLET HANDY FOR FUTURE REFERENCE
ISSUE 2 2

ISSUE 2 3
TECHNICAL DATA
GAS TYPE: NATURAL GAS
GAS PRESSURE: 20mbar
CONNECTION 8mm TUBE
INJECTOR manual control: CAT 82/420 BRAY
INJECTOR remote control: CAT 82/400 BRAY
HEAT INPUT 6.5kW HIGH
4.1kW LOW
CAT 12H DATA BADGE ON FRONT BOTTOM SECTION OF APPLIANCE
IMPORTANT NOTES
THIS APPLIANCE IS FITTED WITH AN ATMOSPHERE SENSING DEVICE
AND CAN ONLY BE FITTED IN CONJUNCTION WITH THE FOLLOWING
FLUES.
CONVENTIONAL BRICK OR STONE CHIMNEY.
A PRE CAST FLUE CONFORMING TO BS 1289 PT 1
OR A METAL FLUE BOX CONFORMING TO BS715
A NON COMBUSTIBLE HEARTH MUST BE PROVIDED TO COMPLY WITH
THE BUILDING REGULATIONS OR A SUITABLE PROPRIETARY FIRE
SURROUND WITH 100 DEGREES C RATING.
THE CHIMNEY OR FLUE (UNLESS NEW) MUST BE SWEPT BEFORE
INSTALLATION, IF IT HAS BEEN USED FOR SOLID FUEL
INSTALLER
THIS APPLIANCE MUST BE INSTALLED BY A COMPETENT PERSON
IE. A C.O.R.G.I. REGISTERED INSTALLER(IN GREAT BRITAIN) IN
ACCORDANCE WITH THE
CURRENT EDITION OF THE GAS SAFETY (INSTALLATION AND USE)
REGULATIONS OR THE RULES IN FORCE. FAILURE TO DO SO COULD
LEAD TO PROSECUTION.
VENTILATION GREAT BRITAIN
NO SPECIAL VENTILATION BRICKS OR VENTS ARE NORMALLY
REQUIRED INTO THE ROOM CONTAINING THE APPLIANCE, PROVIDED
NORMAL ADVANTAGEOUS ROOM VENTILATION EXISTS, THE
INSTALLER MUST SATISFY THIS POINT BY A MANDATORY SPILLAGE
TEST.
IRELAND. PURPOSE PROVIDED VENTILATION MUST BE PROVIDED AND
MUST HAVE A MINIMUM FREE AREA OF 100CM2 IN ACCORDANCE WITH
I.S.813 DOMESTIC GAS INSTALLATIONS ISSUED BY THE NATIONAL
STANDARDS AUTHORITY OF IRELAND.

WARNING
THIS APPLIANCE HAS A NAKED FLAME, AS WITH ALL SUCH FIRES IT
IS RECOMMENDED THAT A FIREGUARD SHOULD BE USED FOR THE
PROTECTION OF CHILDREN, THE ELDERLY AND INFIRM. FIRE
GUARDS SHOULD CONFORM TO BS8423 2002 (FIREGUARDS FOR FIRES
AND HEATING APPLIANCES FOR DOMESTIC USE-SPECIFICATION)
INSTALLATION REQUIREMENTS
PRE CAST FLUES
A PRECAST FLUE CONFORMING TO THE REQUIREMENTS OF BS 1289
PART 1.FOR DETAILS OF THE DIMENSIONS REQUIRED TO LOCATE
POSITION OF THE APPLIANCE WITHIN THE OPENING/STARTER BLOCKS
SEE FIG 1.
WITH A MINIMUM 3 METERS EFFECTIVE HEIGHT.
400mm
560mm
200mm 300mm
765mm
50mm
FIG 1
NOTE
AN INSPECTION SHOULD BE MADE TO ENSURE THAT THE INTERNAL
WALLS OF THE FLUE ARE CLEAR OF MORTAR FANGS PRIOR TO
INSTALLING THE APPLIANCE.
A 50mm SPACER CAN BE FITTED TO ALLOW MORE DEPTH IF REQUIRED
USING THE FOLLOWING PROCEDURE.
MARK POSITION OF FLANGE HOLES, DRILL AND PLUG AND FIX SPACER
USING FOAM SEAL SUPPLIED. THEN SCREW FIRE TO SPACER SEALING
WITH FOAM SEAL SUPPLIED AND SCREWS SUPPLIED WITH SPACER.
ISSUE 2 4

CONVENTIONAL CHIMNEY
A CONVENTIONAL BRICK OR STONE CHIMNEY AS USED FOR SOLID
FUEL APPLIANCE WITH A MINIMUM EFFECTIVE CROSS SECTIONAL
DIMENSION OF 225*225mm, WITH A MINIMUM OF 3 METERS EFFECTIVE
HEIGHT.
A LINED FLUE WITH A MINIMUM DIAMETER OF 125mm WITH THE
FIREPLACE COMPONENTS CONFORMING TO BS 1251
A BUILDERS OPENING A MINIMUM OF 560mm HIGH AND 400mm WIDE
WITH A MINIMUM DEPTH OF 230mm TO ALLOW SUFFICIENT VOLUME OF
DEBRIS COLLECTION.
TO OBTAIN THIS DEPTH IT IS NECESSARY TO REMOVE THE CHAIRBRICK
ANY PERMANENT FLUE RESTRICTION OR VARIABLE DAMPER MUST BE
REMOVED OR LOCKED FULLY OPEN.
THE CHIMNEY MUST BE SWEPT PRIOR TO INSTALLATION IF NOT NEW.
THE CHAIRBRICK MUST BE REMOVED ON ALL INSTALLATIONS.
400mm
560mm 300mm
965mm
50mm
230mm
fig 2
ISSUE 2 5

THE RELEVANT BRITISH STANDARDS MUST BE FOLLOWED
BS 5871 :PART 3
BS 5440: PART 1 AND 2
BS 6891
BS 8303
BS 1251
AND I.S 813 FOR IRELAND
A BRICK CHAMBER TO THE SIZES IN FIG 2 IN AN EXISTING BRICK OR
STONE CHIMNEY A 125mm MINIMUM DIAMETER FLUE LINER
CONFORMING TO BS715 MAY BE USED, PROVIDING IT IS SEALED AT
THE TOP AND BOTTOM OF THE EXISTING BRICK OR STONE CHIMNEY.
NOTE
ANY OF THE ABOVE FLUES MUST NOT BE RESTRICTED BY DAMPERS OR
REGISTER PLATES, THE FLUE MUST SERVE ONLY ONE APPLIANCE AND
NOT HAVE ANY BRANCHES OR TRAPS WHICH MAY IMPEDE THE
NATURAL DRAUGHT .IF ANY TERMINAL IS FITTED IT MUST BE
SUITABLE FOR THE PURPOSE.
300mm
765mm
50mm
FIG 3
AS FOR FIG 2
THE FRONT FACE SEAL MUST BE FLAT TO ENSURE A GOOD SEAL IS
FORMED BETWEEN THE REAR AND BASE OF THE APPLIANCE AND
CHIMNEY TO AVOID ANY REDUCTION IN THE NATURAL DRAUGHT.
ALWAYS ENSURE THE HEARTH IS LEVELED OFF TO HELP ENSURE
NO NATURAL DRAUGHT IS LOST BELOW BASE (SEE FIG 3)
ISSUE 2 6

INSTALLATION REQUIREMENTS

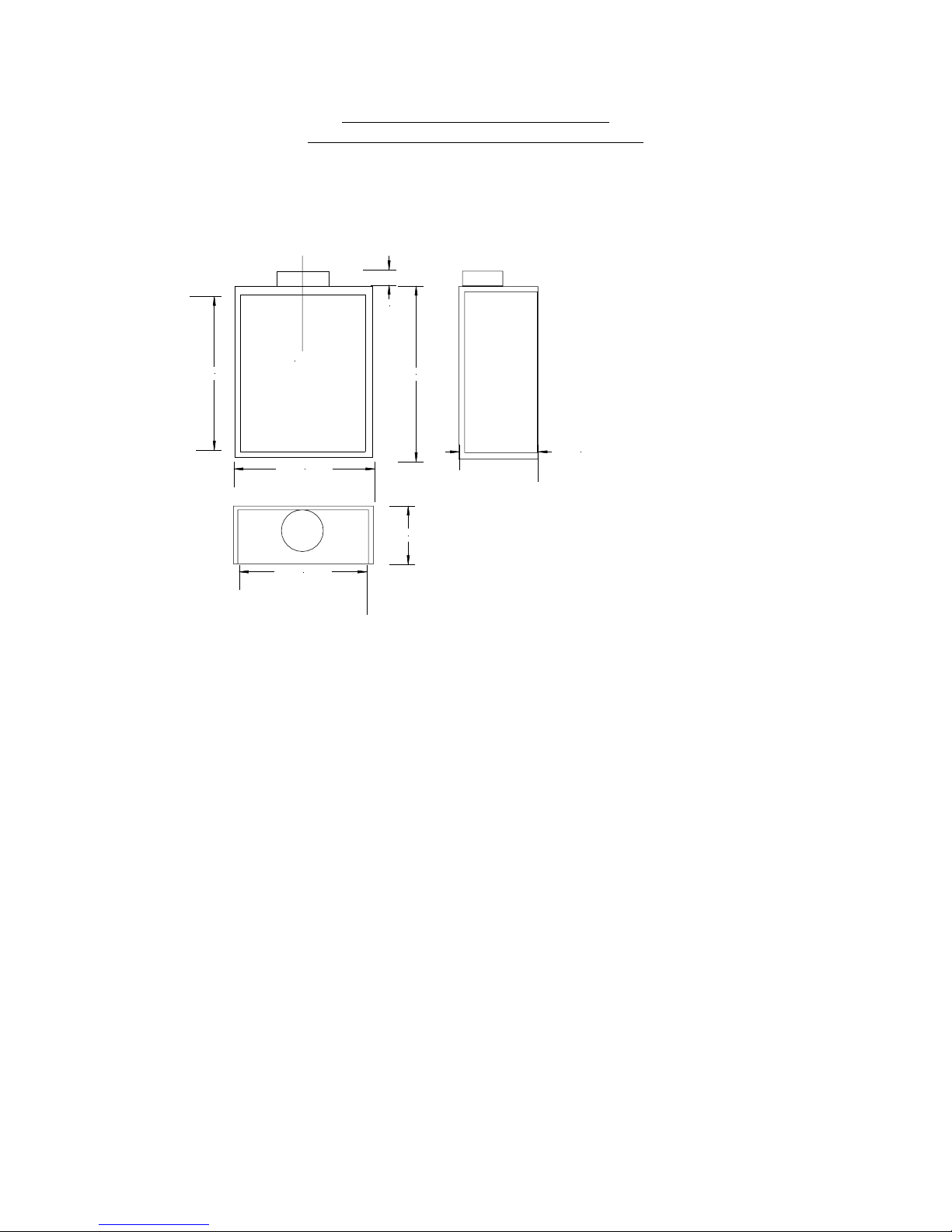

5”(125mm) FLUE PIPE AND STARTER BOX
A DOUBLE WALLED SELKIRK RECESSED FLUE BOX BUILT TO THE
REQUIRMENTS OF BS 715 WITH AN INSULATED FLUE HAVING A
MINIMUM DIAMETER OF 125mm(5”) AND A MINIMUM EFFECTIVE
OVERALL HEIGHT OF 3 METRES (10FT)
457mm
610mm
c
560mm
143mm
330mm
407mm
330mm
RECESSED GAS FLUE BOX DIMENSIONS(NOT INCLUDING FIBREGLASS
INSULATION) NOTE
THE METAL FLUE BOX MUST BE INSULATED WITH FIBREGLASS OR
EQUIVALENT TO A THICKNESS OF 25mm
NOTE
WHERE INSTALLATION IS FOR A METAL FLUEBOX.THE SURROUND
MUST HAVE A TEMPERATURE RATING OF 150 DEGREES C
NOTE
IF A FLUE BOX IS TO BE USED WITH A EXISTING BRICK OR STONE
CHIMNEY A 125mm MINIMUM DIAMETER FLUE LINER CONFORMING TO
BS 715 CAN BE USED NOTE
A BRICK CHAMBER TO THE SIZES IN FIG 2 .IN AN EXISTING BRICK OR
STONE CHIMNEY A 125mm (5”) MINIMUM DIAMETER FLUE LINER
CONFORMING TO BS 715 MAY BE USED,PROVIDING THAT IT IS SEALED
AT THE TOP AND BOTTOM OF EXISTING BRICK OR STONE CHIMNEY.
NOTE
ANY OF THE ABOVE FLUES MUST NOT BE RESTRICTED BY DAMPERS
OR REGISTER PLATES.THE FLUEMUST SERVE ONLY ONE APPLIANCE
AND NOT HAVE ANY BRANCHES OR TRAPS WHICH MAY IMPEDE THE
NATURAL DRAUGHT .IF ANY TERMINAL IS FITTED IT MUST BE
SUITABLE FOR THE PURPOSE
ISSUE 2 7

ISSUE 2 8

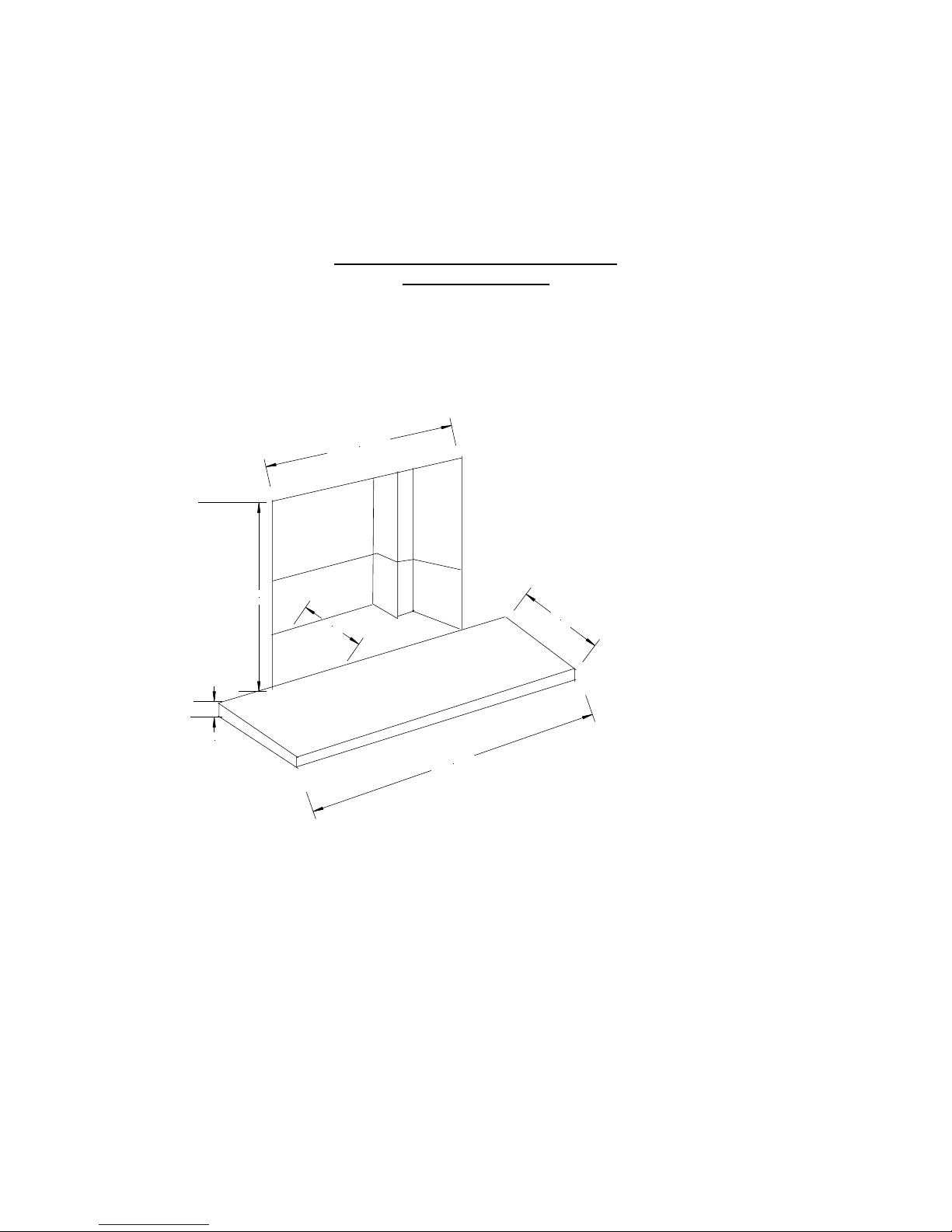

A NON COMBUSTIBLE HEARTH MUST BE PROVIDED BENEATH THE
APPLIANCE WITHIN THE FIREPLACE OPENING.
A FIRE RESISTANT HEARTH MUST ALSO BE PROVIDED
SYMMETRICALLY DISPOSED ABOUT THE FIREPLACE OPENING A
MINIMUM THICKNESS OF 12mm WITH THE PERIMETER 50mm ABOVE THE
FLOOR LEVEL
THE WIDTH MUST EXTEND A MINIMUM OF 150mm EITHER SIDE OF THE
FIREPLACE OPENING AND A DEPTH OF 300mm FROM THE FUEL BED
ANY COMBUSTIBLE MATERIAL MUST BE REMOVED ABOVE THE
OPENING TO A HEIGHT OF 900 mm ABOVE THE HEARTH LEVEL.
PURPOSE BUILT SUPERIMPOSED FIRE RESISTANT HEARTHS AND BACK
PANELS, SPECIFIED AS SUITABLE BY THE MANUFACTURERS MAY BE
USED, OR A SUITABLE PROPRIETARY FIRE SURROUND WITH A 1OO
DEGREES C RATING.
CARE SHOULD BE TAKEN TO PREVENT ANY DAMAGE BEING CAUSED
TO SURROUNDING SOFT FURNISHINGS OR DECORATION.
MANY EMBOSSED VINYL WALL COVERINGS MAY BECOME
DISCOLOURED IF PLACE TOO CLOSE TO THE APPLIANCE
CHECK FLUE
CHECK THAT THE CHIMNEY CONFORMS TO THE REQUIRED
SPECIFICATIONS AS PREVIOUSLY STATED.
EXAMINE THE CONDITION AND CARRY OUT ANY REMEDIAL WORK
IF THE FLUE HAS BEEN USED FOR SOLID FUEL IT MUST BE SWEPT AND
A SMOKE TEST CARRIED OUT TO CHECK THAT SATISFACTORY SMOKE
CLEARANCE HAS BEEN ESTABLISHED.
IF ALL THE SMOKE IS NOT DRAWN INTO THE FLUE , PRE HEAT THE
FLUE WITH A BLOW TORCH OR SIMILAR AND RE CHECK, IF THERE IS
ANY UNCERTAINTY EXAMINE FOR THE CAUSE AND IF NECESSARY
SEEK EXPERT ADVICE. GAS SUPPLY
IT IS RECOMMENDED A CONCEALED CONNECTION IS MADE USING SEMI
RIGID TUBING ON THE LEFT SIDE OF THE APPLIANCE TAKING INTO
ACCOUNT THE REQUIREMENTS OF BS 6891 1988 DEALING WITH
ENCLOSED PIPES.
AN ISOLATING VALVE IS BUILT IN TO THE APPLIANCE AS PART OF THE
PRESSURE TEST POINT ELBOW.
SECURE FIRE TO FIREPLACE
MARK POSITION OF FLANGE HOLES, DRILL AND PLUG AND FIX FIRE TO
FIREPLACE ENSURING A GOOD SEAL USING FOAM SEAL SUPPLIED.

ISSUE 2 9
CHECKING GAS PRESSURE AND SOUNDNESS
REMOVE THE PRESSURE TEST POINT SCREW FROM THE INLET ELBOW AND
CONNECT PRESSURE GAUGE.
TURN ON GAS TO APPLIANCE.
ROTATE THE CONTROL TO THE IGNITION POSITION AND PUSH IN TO ALLOW THE
AIR IN THE PIPEWORK TO BE PURGED.
PUSH IN PIEZO IGNITION SWITCH
CHECK THAT THE ELECTRODE IS SPARKING.
CONTINUE SPARKING UNTIL PILOT IGNITION IS ESTABLISHED.
TURN THE GAS CONTROL KNOB ON TO THE HIGH POSITION AND ALLOW TO RUN
FOR FIVE MINUTES.
CHECK THE INLET PRESSURE IS 20 MBAR. +/- 1mbar
CHECK FOR GAS SOUNDNESS.
TURN OFF GAS SUPPLY, DISCONNECT PRESSURE GAUGE AND REPLACE PRESSURE
TEST POINT SCREW.
FUEL BED LAYOUT
PERIODICALLY SMALL DEPOSITS OF SOOT MAY GATHER ON
THE FUEL BED AND BURNER, THIS MUST BE REMOVED BY
REMOVING FUEL AND BRUSHING ANY DEPOSITS WITH A
SOFT BRUSH AND VACUUMING THE BURNER, THEN REPLACE
FUEL USING THE FOLLOWING PROCEDURE.

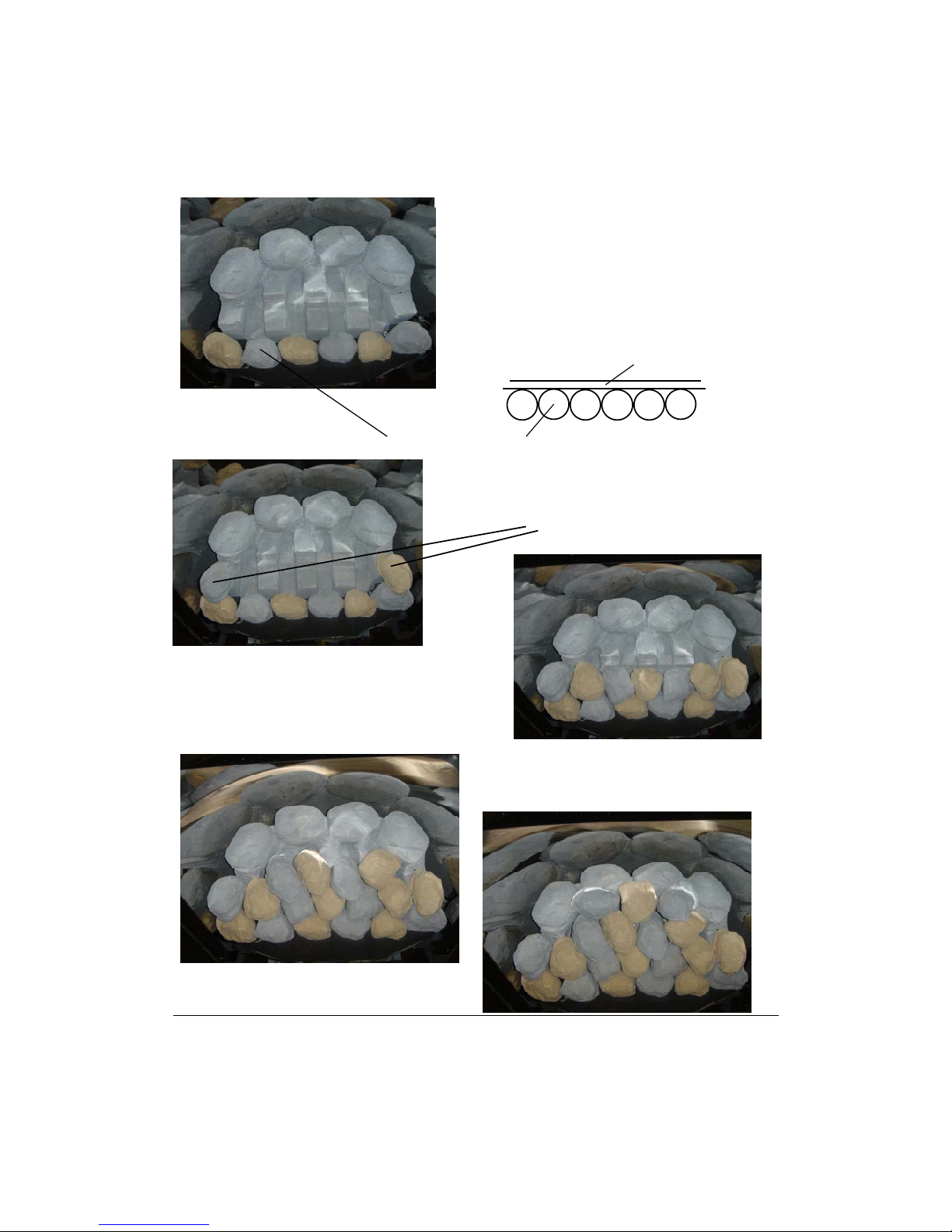

RUBY RANDOM PEBBLE LAYOUT
SIX RANDOM PEBBLES FIT
FLUSH
ON TOP OF FRONT FIBRE,
PUSHED AS FAR TOWARDS THE
BACK FIBRE BUT NOT OVER THE
BURNER.
IF THE FLAMES WAS TURNED ON
NOW THE FRONT PEBBLES
WOULD NOT IMPINGE THE
FLAME
BURNER

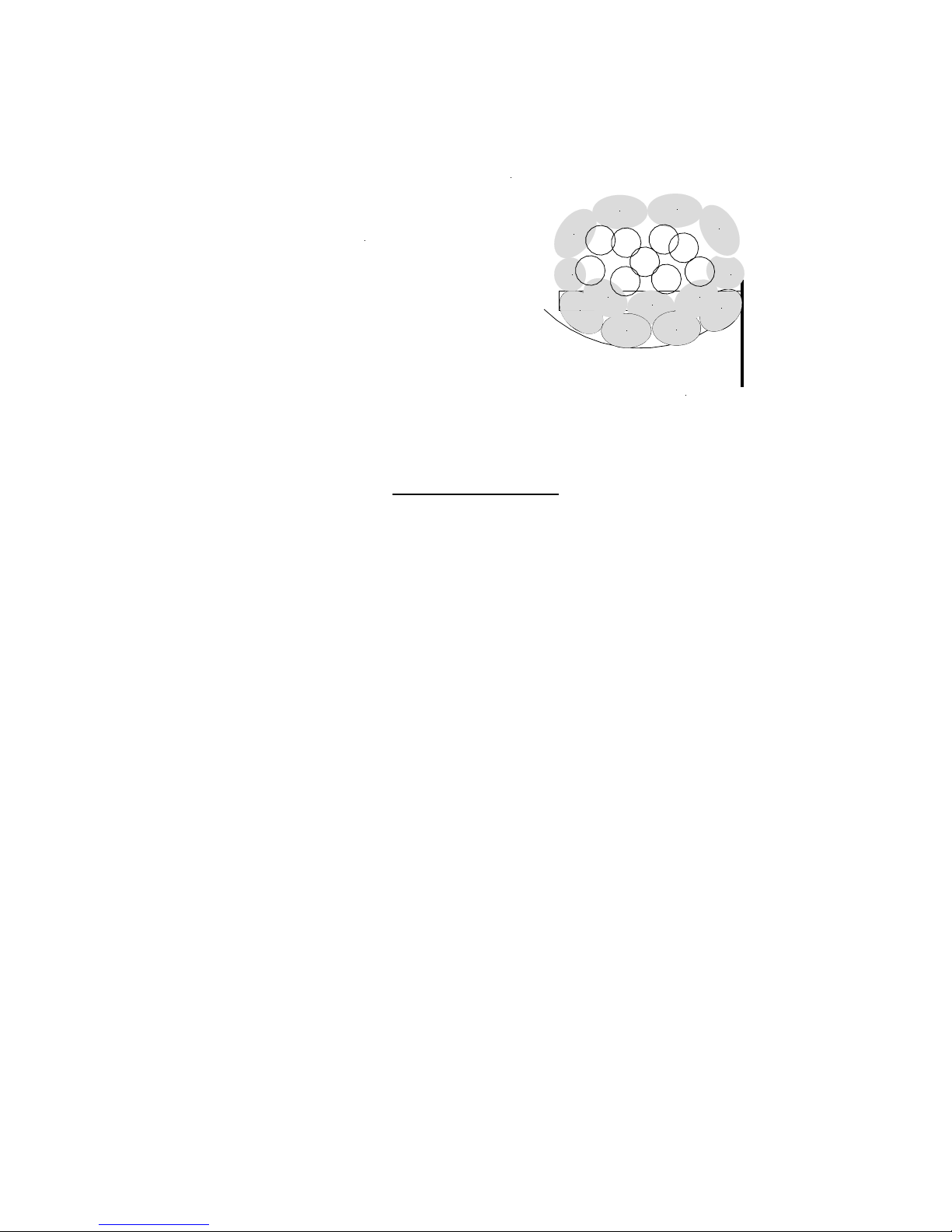

RANDOM PEBBLE PIECES
TWO RANDOM FUEL PIECES
SIT ON TWO SIDES AS SHOWN
5 PIECES SIT BETWEEN THE TWO ON THE
SIDES AS SHOWN
FINAL 3 SIT CENTRAL AS SHOWN
4 RANDOM PIECES SIT AS SHOWN
ISSUE 2 10

ISSUE 2 11
TEST FOR SPILLAGE
CHECK FOR SATISFACTORY CLEARANCE OF COMBUSTION PRODUCTS
CLOSE ALL DOORS AND WINDOWS IN THE ROOMS CONTAINING THE
FIRE.
TURN ON GAS FIRE AND SET THE CONTROL TO HIGH
LEAVE THE FIRE BURNING FOR FIVE MINUTES AND INSERT A LIGHTED
SMOKE MATCH ON A VERTICAL PLANE
50 mm DIRECTLY UNDER FRONT EDGE OF CANOPY AND 50mm FROM
EITHER SIDE OF THE OPENING
ALL SMOKE MUST BE DRAWN INTO THE FLUE
IF SPILLAGE OCCURS ALLOW A FURTHER TEN MINUTES
SHOULD SPILLAGE STILL OCCUR TURN OFF THE FIRE AND SEEK
EXPERT ADVICE
IF AN EXTRACTOR FAN IS SITUATED IN THE ROOM , THIS TEST SHOULD
BE REPEATED WITH THE FAN RUNNING
IF THERE IS A ROOM WITH AN EXTRACTOR FAN, THE TEST SHOULD BE
REPEATED WITH ALL THE DOORS TO THAT ROOM OPENED AND THE
EXTRACTOR FAN RUNNING
FITTING TRIMS
FIT THE TRIM WITH FOUR MAGNETS PLACED ON THE VERTICAL SIDE FLANGES
OF THE FIREBOX (ONE AT THE TOP AND ONE AT THE BOTTOM)
OFFER THE TRIM UP AND PUSH INTO POSITION
PLACE FRET CENTRALLY IN FRONT TO COVER THE CONTROLS
INSTRUCT USER
DEMONSTRATE THE LIGHTING AND EXTINGUISHING PROCEDURES TO THE USER
AND REMOVAL AND REFITTING OF THE TRIM FOR CLEANING.
THE APPLIANCE SHOULD BE OPERATED WITH THE GAS CONTROL NOT TURNED ON
MORE THAN LOW FOR THE FIRST FIVE HOURS OF USE TO ALLOW THE FIBRE
FUEL TO CURE SLOWLY.
THE CURING EFFECT OF HEATING THE FUEL AND OTHER CERAMICS COMPONENTS
WILL CAUSE AN INITIAL ODOR.
THE APPLIANCE SHOULD BE SERVICED ANNUALLY BY A COMPETENT PERSON IN
ACCORDANCE WITH THESE INSTRUCTIONS AND THE APPLIANCE CHECKED FOR
SPILLAGE IN ACCORDANCE WITH THE METHOD DETAILED IN THESE
INSTRUCTIONS
HAND THESE INSTRUCTIONS TO THE USER.

ISSUE 2 12
SERVICING NOTES
GENERAL NOTES.
SERVICING SHOULD BE CARRIED OUT ANNUALLY BY A COMPETENT PERSON SUCH AS
A CORGI REGISTERED PERSON IN ACCORDANCE WITH THE RELEVANT REGULATIONS,
TO ENSURE THE SAFE AND CORRECT OPERATION OF THE APPLIANCE
BEFORE COMMENING ANY SERVICE OR REPLACEMENT OF PARTS TURN OFF GAS
SUPPLY TO FIRE
AFTER SERVICING CHECK FOR GAS SOUNDNESS
AT LEAST ONCE A YEAR CHECK FOR DEBRIS
IF SOOT HAS ACCUMULATED CHECK TO ESTABLISH CAUSE AND RECTIFY IF
NECESSARY CLEAN FLUE OR CHIMNEY ACCORDINGLY
EXAMINE THE FUEL FOR SIGNS OF CRACKING AND REPLACE IF NECESSARY. SEE
FUEL LAYOUT PROCEDURE BEFORE ATTEMPTING TO REPLACE FUEL WHICH SHOULD
ONLY BE REPLACED AS A COMPLETE SET WITH NO EXTRA FUEL ADDED.
1 REMOVAL OF FUEL PIECES
REMOVE LOOSE FUEL PIECES
REMOVE FRONT FIBRE BASE
REMOVE MAIN FIBRE BASE
2 REPLACEMENT OF GAS CONTROL
REMOVE FUEL SET AS 1
DISCONNECT FIRE AT INLET ELBOW
REMOVE FIRETRAY BY UNSCREWING TWO SCREWS AT FRONT BOTTOM
SECTION OF FIRE TRAY
REMOVE CONTRO KNOB,DISCONNECT GAS CONNECTIONS TO VALVE
INCLUDING PILOT CONNECTION AND THERMOCOUPLE CONNECTION
REMOVE LOCKNUT HOLDING GAS CONTROL TO FRONT BOTTOM
SECTION .
RE ASSEMBLE IN REVERSE ORDER
TURN ON GAS SUPPLY.CHECK FOR SOUNDNESS AND RE COMMISION
APLIANCE
3 REPLACEMENT OF INJECTOR
REMOVE FUEL PIECES SEE 1
REPEAT 2 REMOVE GAS CONTROL
DISCONNECT GAS CONNECTION TO INJECTOR
UNSCREW INJECTOR “B” WHILST AT THE SAME TIME HOLDING
LOCKNUT WITH A SPANNER AND CLEAN OR REPLACE.
SEE DIAGRAM BELOW.

"B"
INJECTOR
LOCKNUT
RE ASSEMBLE IN REVERSE ORDER
TURN ON GAS SUPPLY. CHECK FOR SOUNDNESS AND RECOMMISION
THE FIRE.
REPLACEMENT OXY PILOT ASSEMBLY
DISCONNECT FIRE AT INLET ELBOW
REMOVE FIRETRAY
DISCONNECT THERMOCOUPLE AT GAS VALVE
DISCONNECT GAS CONNECTION FROM PILOT ASSEMBLY
REMOVE IGNITOR LEAD FROM PILOT ASSEMBLY
UNDO SCREWS SECURING OXY PILOT TO FIRETRAY
RE-ASSEMBLE IN REVERSE ORDER
TURN ON GAS SUPPLY,CHECK FOR SOUNDNESS AND RE-COMMISION
APPLIANCE CLEANING
BEFORE CLEANING ANY PART OF THE FIRE ,ENSURE THAT THE GAS IS
TURNED OFF AND FIRE IS COOL.
BLACK PAINT
USE ONLY CLEAN DAMP CLOTH ,DO NOT USE ANY CLEANING AGENTS
BRASS TRIM/CHROME
USE BRASSO,OR CHROME CLEANER ENSURING YOU REMOVE THE
BRASS TRIM FROM THE APPLIANCE BEFORE CLEANING
IMPORTANT
THE PAINT AND BRASS FINISH ARE DURABLE BUT WILL BE DAMAGED
IF PLASTER,CEMENT,OR WALLPAPER PASTE COMES IN CONTACT WITH
IT
COALS AND CERAMICS
IF FOR ANY REASON IT IS NECCESARY TO REMOVE CERAMIC
PARTS,THEN BEFORE REPLACEMENT THE BURNER SHOULD BE
CHECKED THAT NO PARTICLES HAVE DEPOSITED ON THE BURNER
AND IF NECCESARY VACUUM THEM CAREFULLY,THEN REFER TO
INSTRUCTIONS FOR REPLACING CERAMICS.
CERAMICS SHOULD BE CLEANED BY SHAKING ANY DEBRIS
NO BRUSHING OR VACUUMING SHOULD BE PERFORMED .
INSTALLER SPARE PARTS
FUEL BED RUBY001 MAIN MATRIX RUBY002
FRONT FIBRE RUBY 003 INSTUCTIONS RUBY 004
TRIM RUBY 005 ODS COMPLETE RUBY 006
GAS VALVE RUB007
INJECTOR REMOTE CONTROL RUBY007 CAT 82/400
ISSUE 2 13
INJECTOR MANUAL CONTROL RUBY008 CAT 82/420

BECHERS DRIVE
AINTREE RACECOURSE
BUSINESS PARK
AINTREE
LIVERPOOL
L9 5AY
RUBY
DECORATIVE FUEL EFFECT GAS FIRE
THIS APPLIANCE IS CAT I2H
FOR USE WITH NATURAL GAS
ONLY
G20 AT 20mbar
IN G.B. AND I.E.
USERS INSTUCTIONS
ISSUE 2 14

ISSUE 2 15
USERS INSTRUCTIONS FOR RUBY GAS APPLIANCE
YOUR RUBY GAS APPLIANCE IS A DECORATIVE LIVE FUEL EFFECT GAS
FIRE ,DUE TO ITS NEWNESS THE FIRE MAY GIVE OFF SLIGHT SMELL FOR
A SHORT PERIOD AFTER INSTALLATION .THIS IS QUITE NORMAL AND
WILL DISAPPEAR AFTER A FEW HOURS OF OPERATION.
THE APPLIANCE TO WHICH THESE INSTRUCTIONS APPLY MUST BE
INSTALLED BY A COMPETENT PERSON(EG. A C.O.R.G.I MEMBER IN
ACCORDANCE WITH THE CURRENT EDITION OF THE GAS SAFETY
INSTALLATIONS AND USE REGULATIONS OR THE RULES IN
FORCE)APPROVED BY THE HEALTH AND SAFETY EXECUTIVE AND
MUST BE IN ACCORDANCE WITH THE INSTALLATION AND SERVICING
INSTUCTIONS SUPPLIED.
SERVICING SHOULD BE CARRIED OUT REGULARLY BY A COMPETENT
PERSON ( EG A C.O.R.G.I MEMBER)IN ACCORDANCE WITH THE CURRENT
EDITION OF THE GAS SAFETY (INSTALLATION AND USE) REGULATIONS
OR THE RULES IN FORCE.TO ENSURE THE CORRECT AND SAFE
OPERATION OF THE APPLIANCE .DEBRIS SHOULD ALSO BE REMOVED
FROM BEHIND THE APPLIANCE AT REGULAR INTERVALS.
BEFORE INSTALLATION OF THE APPLIANCE THE CHIMNEY MUST BE
SWEPT AND THEN INSPECTED REGURLARLY TO ENSURE THAT IT
REMAINS FREE OF OBSTRUCTION.
A FIRE GUARD COMPLYING TO BS8423 ,MUST BE FITTED IF THE ROOM
WILL BE OCCUPIED BY YOUNG CHILDREN THE ELDERLY ,OR INFIRM
PEOPLE. ON NO ACCOUNT MUST ANY RUBBISH BE THROWN ON TO THE
FIRE OR THE LAYOUT OF THE FIREBED DISTURBED.
OPERATING INSTRUCTIONS.
THE APPLIANCE DATA BADGE IS POSITIONED ON THE FRONT BOTTOM SECTION
OF THE APPLIANCE AND CARIES THE CONTROL KNOB POSITIONS.THE FULL
LIGHTING PROCEDURE IS AS FOLLOWS.
1.PUSH CONTROL KNOB IN AS FAR AS POSSIBLE ON GAS CONTROL
2.TURN KNOB ANTICLOCKWISE TO IGNITION POSITION STILL KEEPING KNOB IN
AS FAR AS POSSIBLE.
3.THE IGNITION BUTTON WILL IGNITE THE PILOT WITH THIS OPERATION KEEP
THE KNOB PRESSED IN FOR 15 SECONDS.IF THE PILOT FAILS TO LIGHT TURN
THE CONTROL KNOB CLOCKWISE TO THE OFF POSITION, WAIT 3 MINUTES AND
REPEAT THE PROCEDURE
4.WHEN THE PILOT FLAME IS ALIGHT THE CONTROL KNOB SHOULD BE ALLOWED
TO SPRING OUT SLIGHTLY.TURN THE KNOB FULLY ANTICLOCKWISE TO THE HIGH
POSITION.THE PILOT FLAME WILL THEN IGNITE THE MAIN BURNER.THE PILOT
FLAME CAN BE VIEWED TO THE RIGHT OF THE FIRE JUST BEHIND THE FRONT
LOG SET
5.THE APPLIANCE CAN BE ADJUSTED BETWEEN HIGH AND LOW BY MOVING THE
CONTROL KNOB TO SUIT,THE KNOB WILL NEED TO BE DEPRESSED SLIGHTLY TO
MOVE FROM LOW HIGH AND IGNITION.
6.TO TURN THE FIRE OFF,DEPRESS THE KNOB SLIGHTLY AND TURN IT TO
PILOT POSITION.
7.TO COMPLETELY EXTINGUISH THE FIRE DEPRESS THE KNOB SLIGHTLY AND
TURN TO OFF POSITION.
8.SHOULD THE SPARK IGNITION FAIL TO OPERATE.TURN THE CONTROL KNOB TO
THE OFF POSITION AND WAIT 3 MINUTES.TURN THE KNOB TO THE IGNITION
POSITION AND THEN LIGHT THE PILOT WITH A TAPER.”LIGHTING THE PILOT

WITH A TAPER IS AN EMERGENCY MEASURE ONLY AND THE APPLIANCE SHOULD
BE SERVICED AS SOON AS POSSIBLE”.AND THEN PROCEED AS STATED IN
PARAGRAPHS 2/7.
IMPORTANT .THIS APPLIANCE IS FITTED WITH AN OXYGEN DEPLETION SENSOR
INCORPORATED INTO THE PILOT BODY.SHOULD THE FIRE REEATEDLY
EXTINGUISH ITSELF THEN SPECIALIST ADVISE SHOULD BE SOUGHT,AS THIS
MAY INDICATE SPILLAGE INTO THE ROOM OF COMBUSTION PRODUCTS.
OFF
PILOT
IGN
LOW HIGH
GB/IE
CAT1
2h
G20
AT
20mbarhot
HEAT INPUT HIGH 6.5Kw LOW 4.1Kw gross
RUBY DECORATIVE INSERT
JET CAT82/480 BRAY
CRYSTAL FIRES 7 D BECHERS DRIVE L9 5AY
THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE
WITH THE RULES IN FORCE AND USED ONLY IN A SUFFICIENTLY
VENTILATED SPACE .CONSULT INSTRUCTIONS BEFORE
INSTALLATIONS AND USE OF THIS APPLIANCE
JET CAT82/420 BRAY
FIG 1
CLEANING
BEFORE CLEANING ANY PART OF THE FIRE ,ENSURE THAT THE GAS IS
TURNED OFF AND FIRE IS COOL.
BLACK PAINT.
USE ONLY CLEAN DAMP CLOTH ,DO NOT USE ANY CLEANING AGENTS
BRASS TRIM
USE BRASSO,ENSURING YOU REMOVE THE BRASS TRIM FROM THE
APPLIANCE BEFORE CLEANING
IMPORTANT
THE PAINT AND BRASS FINISH ARE DURABLE BUT WILL BE DAMAGED
IF PLASTER,CEMENT,OR WALLPAPER PASTE COMES IN CONTACT WITH
IT
COALS AND CERAMICS
IF FOR ANY REASON IT IS NECCESARY TO REMOVE CERAMIC
PARTS,THEN BEFORE REPLACEMENT THE BURNER SHOULD BE
CHECKED THAT NO PARTICLES HAVE DEPOSITED ON THE BURNER
AND IF NECCESARY VACUUM THEM CAREFULLY,THEN REFER TO
INSTRUCTIONS FOR REPLACING CERAMICS.
CERAMICS SHOULD BE CLEANED WITH A SOFT BRUSH
ISSUE 2 16

TAPER
RUBY GAS FIRE LIGHTING WITH TAPER
TO LIGHT WITH TAPER ,PUSH
LIGHTED TAPER AS SHOWN
WHILST FOLLOWING THE OPERATING
INSTRUCTIONS
"D" "D" "D"
"D" "D"
"D"
"D"
"D" "D" "D"
"D"
"B" "B"
FUEL BED LAYOUT
PERIODICALLY SMALL DEPOSITS OF SOOT MAY GATHER
ON THE FUEL BED AND BURNER, THIS MUST BE REMOVED
BY REMOVING FUEL AND BRUSHING ANY DEPOSITS WITH
A SOFT BRUSH AND VACUUMING THE BURNER, THEN
REPLACE FUEL USING THE FOLLOWING PROCEDURE.
ISSUE 2 17

RUBY RANDOM PEBBLE LAYOUT
SIX RANDOM PEBBLES FIT
FLUSH
ON TOP OF FRONT FIBRE,
PUSHED AS FAR TOWARDS THE
BACK FIBRE BUT NOT OVER THE
BURNER.
IF THE FLAMES WAS TURNED ON
NOW THE FRONT PEBBLES
WOULD NOT IMPINGE THE
FLAME
BURNER
RANDOM PEBBLE PIECES
TWO RANDOM FUEL PIECES
SIT ON TWO SIDES AS SHOWN
5 PIECES SIT BETWEEN THE TWO ON THE
SIDES AS SHOWN
FINAL 3 SIT CENTRAL AS SHOWN
4 RANDOM PIECES SIT AS SHOWN
CUSTOMER SPARE PARTS
FUEL BED RUBY001 MAIN MATRIX RUBY002
FRONT FIBRE RUBY 003 INSTUCTIONS RUBY 004
BRASS TRIM RUBY 005
ISSUE 2 18
