crystal fires JEWEL SUNRISE User guide

UNIT 1 VALENTINES BUILDING
AINTREE RACECOURSE
BUSINESS PARK
AINTREE
LIVERPOOL
L9 5AY
JEWEL
SUNRISE/PETIT/CUBE
DECORATIVE FUEL EFFECT GAS FIRE
THIS APPLIANCE IS CAT I2H
FOR USE WITH NATURAL GAS
ONLY
G20 AT 20mbar
IN G.B. AND I.E.
USERS
INSTALLATION & SERVICING
BOOK
issue 3 1

issue 3 2
INDEX
FRONT COVER
2.INDEX
3.TECHNICAL DATA
4.INSTALLATION GENERAL
5.HEARTH
6.INSTALLATION
7.FIG A
8. INSTALLATION
9.INSTALLATION /ODS/ SERVICING
12. USERS INSTRUCTIONS
14.FUEL LAYOUT
22.REMOTE INSTRUCTIONS
NAME MODEL No GC No
SUPER HEATRAVE SUNRISE
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE YOU START
INSTALLING THE APPLIANCE KEEP THIS BOOKLET HANDY FOR FUTURE
REFERENCE

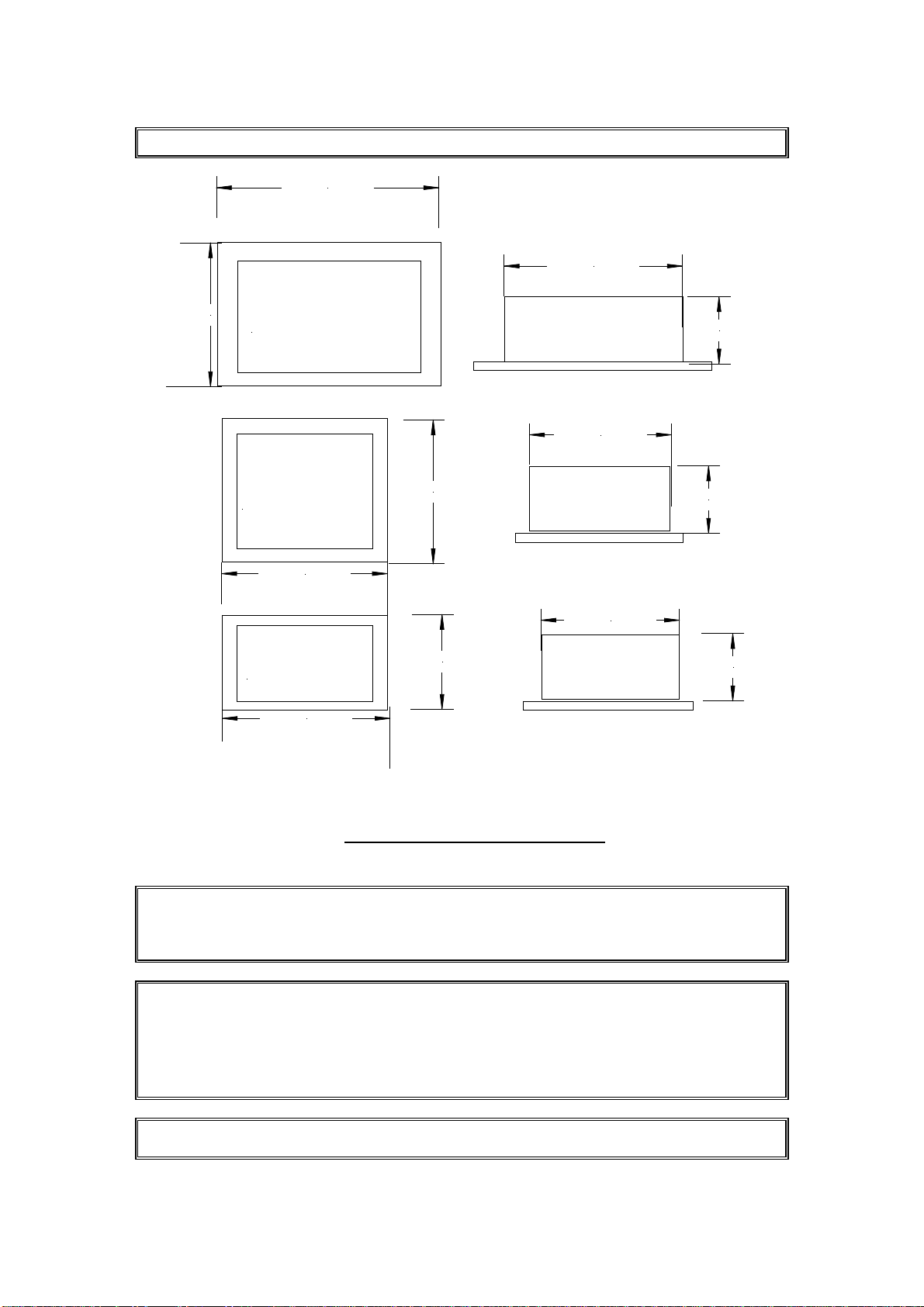

......................TECHNICAL DATA.............
SUNRISE
CUBE
PETIT
760mm
607mm
692mm
692mm
300mm
300mm
300mm
680mm
840mm
680mm
530mm
607mm
SIZES INCLUDING TRIM
GAS TYPE: G20 NATURAL
GAS PRESSURE : 20 MBAR
CONNECTION:8mm OD TUBE
SPARK GAP: 2.5-4mm
INJECTOR :MANUAL TYPE CAT 82/460 BRAY
INJECTOR : REMOTE TYPE CAT 82/440
HEAT INPUT(GROSS)
HIGH : 6.9kW
LOW :4.1kW
CAT:12H
DATA LABEL LOCATION FRONT BOTTOM SECTION OF APPLIANCE
issue 3 3

issue 3 4
INSTALLATION GENERAL
IMPORTANT NOTES
THE JEWEL SUNRISE IS DESIGNED AND TESTED TO THE REQUIREMENTS OF
BSEN509:2000 AND IS FITTED WITH AN ATMOSPHERE SENSING DEVICE
THE JEWEL SUNRISE CAN ONLY BE USED IN CONJUNCTION WITH A
CONVENTIONAL CLASS 1 FLUE OR A 5” FLUE LINER WHEN INSTALLED WITH A
CRYSTAL FLUE SPIGOT SHOWN IN FIG a
A NON COMBUSTABLE HEARTH MUST BE PROVIDED TO COMPLY WITH THE
BUILDING REGULATIONS OR A SUITABLE PROPRIETARY FIRE SURROUND WITH A
100 DEGREES C RATING.
UNLESS INSTALLED 300mm ABOVE FLOOR LEVEL(SEE SEPARATE PAGE)
THE CHIMNEY OR FLUE(UNLESS NEW)MUST BE SWEPT BEFORE INSTALLATION IF
IT HAS BEEN USED FOR SOLID FUEL
* INSTALLER
THE APPLIANCE MUST BE INSTALLED BY A COMPETENT PERSON ,IE A CORGI
REGISTERED INSTALLER IN ACCORDANCE WITH THE CURRENT GAS
SAFETY(INSTALLATION AND USE)REGULATIONS 1994 OR THE RULES IN
FORCE.FAILURE TO DO SO COULD LEAD TO PROSECUTION
*REGULATIONS
THE FOLLOWING ARE THE RELEVANT CODES OF PRACTICE AND BRITISH
STANDARDS:
BS5781 PART 2 AND 3 1991 BS8303 1986 BS 5440 PART 1 1990 BS 6891
1988 BS 6461 PARTS 1 & 2 1984 BS 715 1989
THE BUILDING REGULATIONS ISSUED BY THE DEPARTMENT OF THE ENVIROMENT
THE BUILDING STANDARDS(SCOTLAND)(CONSOLIDATION)REGULATIONS ISSUED BY
THE SCOTTISH DEVELOPMENT OFFICE
*VENTILATION
GREAT BRITAIN
NO SPECIAL VENTILATION BRICKS OR VENTS ARE NORMALLY REQUIRED INTO
THE ROOM CONTAINING THE APPLIANCE,PROVIDED NORMAL ADVENTITIOUS ROOM
VENTILATION EXISTS. THE INSTALLER MUST SATISFY THIS POINT BY
CARRYING OUT A MANDATORY SPILLAGE TEST.
IRELAND
PURPOSE PROVIDED VENTILATION MUST BE PROVIDED AND MUST HAVE A
MINIMUM FREE AREA OF 100CM2*WARNING
THIS APPLIANCE HAS A NAKED FLAME,AS WITH ALL SUCH FIRES IT IS
RECOMMENDED THAT A FIREGUARD SHOULD BE USED FOR THE PROTECTION OF
CHILDREN,THE ELDERLY AND INFIRM.FIRE GUARDS SHOULD CONFORM TO BS
6539 (1984)(FIREGUARDS FOR USE WITH SOLID FUEL APPLIANCES).

SUNRISE /CUBE/PETIT 4 SIDED ADDENDUM SHEET
USERS INSTALLATION AND SERVICING INSTRUCTIONS
FLOOR LEVEL
APPLIANCE MUST BE FITTED MINIMUM 300mm TO BOTTOM OF TRIM,
HEARTH
NO PURPOSE MADE HEARTH IS
REQUIRED WITH THIS GAS
APPLIANCE PROVIDING
IT IS WALL MOUNTED AT A
MINIMUM HEIGHT OF 300mm
TO THE BOTTOM OF THE
APPLIANCE TRIM
issue 3 5

issue 3 6
INSTALLATION REQUIREMENTS
LOCATION AND FLUES
CONVENTIONAL CHIMNEY
A CONVENTIONAL BRICK OR STONE CHIMNEY AS USED FOR A SOLID FUEL
APPLIANCE WITH A MINIMUM EFFECTIVE CROSS SECTIONAL DIMENSION OF 225
* 225mm(9 * 9 ins)WITH A MINIMUM OF 3 METRES EFFECTIVE HEIGHT.
A LINED FLUE WITH A MINIMUM DIAMETER OF 175 mm(7ins),
OR A LINED FLUE WITH A MINIMUM DIAMETER OF 125mm when used with a
crystal fires flue spigot.see fig.a
Under no circumstances must a 125 mm liner be used without the
crystal fires spigot
THE CHIMNEY MUST BE SWEPT PRIOR TO INSTALLATION IF NOT NEW
NOTE.
THE FLUE MUST NOT BE RESTRICTED BY DAMPERS OR REGISTER PLATES.THE
FLUE MUST SERVE ONLY ONE APPLIANCE AND NOT HAVE ANY BRANCHES OR
TRAPS WHICH MAY IMPEDE THE NATURAL DRAUGHT.IF ANY TERMINAL IS FITTED
IT MUST BE SUITABLE FOR THE PURPOSE.
HEARTH.
A NON COMBUSTIBLE HEARTH MUST BE PROVIDED BENEATH THE APPLIANCE
WITHIN THE FIREPLACE OPENING.
A FIRE RESISTING HEARTH MUST ALSO BE PROVIDED SYMMETRICALLY DISPOSED
ABOUT THE FIREPLACE OPENING A MINIMUM THICKNESS OF 12 mm WITH THE
PERIMETER 50mm ABOVE THE FLOOR LEVEL.
THE WIDTH MUST EXTEND A MINIMUM OF 50mm EITHER SIDEOF THE FIREPLACE
OPENING AND A DEPTH OF 300mm FROM THE FRONT OF THE FIREPLACE
OPENING.
ANY COMBUSTABLE MATERIAL ABOVE THE OPENING MUST BE REMOVED UP TO A
HEIGHT OF 1 METRE ABOVE THE HEARTH LEVEL.
INSTALLATION REQUIREMENTS
SOFT FURNISHINGS
CARE SHOULD BE TAKEN TO PREVENT ANY DAMAGE BEING CAUSED TO
SURROUNDING SOFT FURNISHINGS OR DECORATION.E.G MANY EMBOSSED VINYL
WALL COVERINGS MAY BECOME DISCOLOURED IF PLACED TOO CLOSE TO THE
APPLIANCE.

PLAN VIEW
407mm
210mm
120mm
355mm
160mm

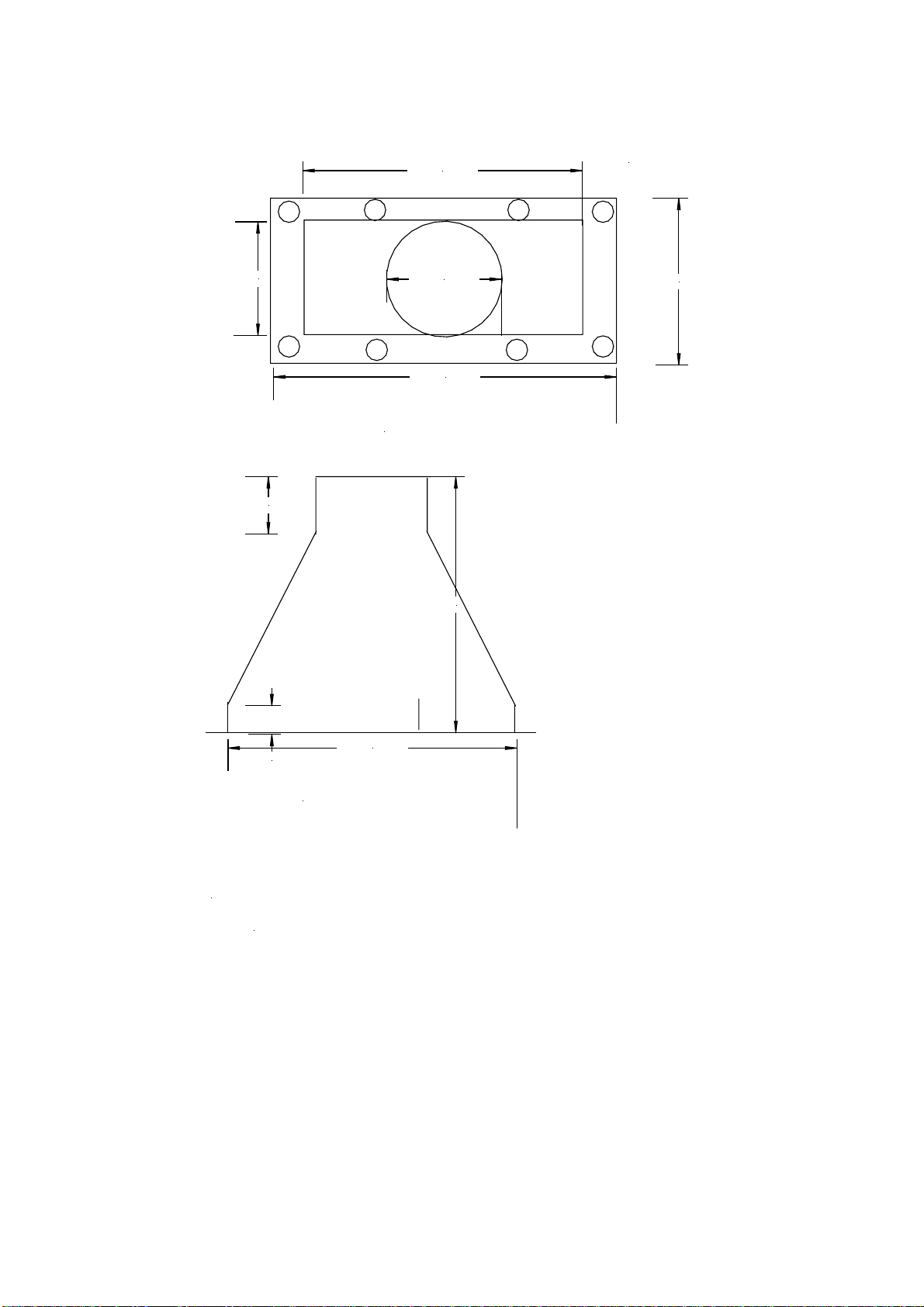

fig a
sunrise/cube /petit flue spigot
60mm
300mm
40mm
+/_ 3mm
355mm
front view
TO SUIT 125mm FLUE LINER
CONNECT FLUE LINER TO FLUE SPIGOT AND SECURE.LEAVE IN
BUILDERS OPENING 25mm ABOVE TOP OF SUNRISE BOX.
INSERT BOX INTO OPENING AND SECURE SPIGOT USING 8
SELFTAPPING SCREWS SUPPLIED.
issue 3 7

INSTALLATION STEPS
CHECK FLUE
CHECK THAT THE CHIMNEY CONFORMS TO THE REQUIRED SPECIFICATIONS AS
PREVIOUSLY STATED
EXAMINE THE CONDITION AND CARRY OUT ANY REMEDIAL WORK IF THE FLUE
HAS BEEN USED FOR SOLID FUEL IT SHOULD BE SWEPT AND A SMOKE TEST
CARRIED OUT TO CHECK THAT SATISFACTORY SMOKE CLEARANCE HAS BEEN
ESTABLISHED
IF ALL THE SMOKE IS NOT DRAWN INTO THE FLUE ,PRE HEAT THE FLUE WITH
A BLOW TORCH OR SIMILAR AND RE CHECK.IF THERE IS ANY UNCERTAINTY
EXAMINE FOR THE CAUSE AND,IF NECCESARY SEEK EXPERT ADVICE.
GAS SUPPLY
IT IS RECCOMENDED A CONCEALED CONNECTION IS MADE USING RIGID OR
SEMI RIGID TUBING,FROM THE REAR OF THE UNIT TAKING INTO ACCOUNT THE
REQUIREMENTS OF BS 6891 1988 DEALING WITH ENCLOSED PIPES.
A SUITABLE ISOLATING COCK SHOULD ALWAYS BE FITTED IN THE SUPPLY FEED
TO THE FIRE TO FACILITATE SERVICING.
SECURE FIRE TO THE FIREPLACE
MARK POSITION OF FLANGE HOLES,DRILL AND PLUG AND FIX FIRE TO
FIREPLACE ENSURING A GOOD SEAL IS MADE BETWEEN FIREBOX AND FIREPLACE
USING FOAM SEAL SUPPLIED.
issue 3 8
300 mm
DEEP

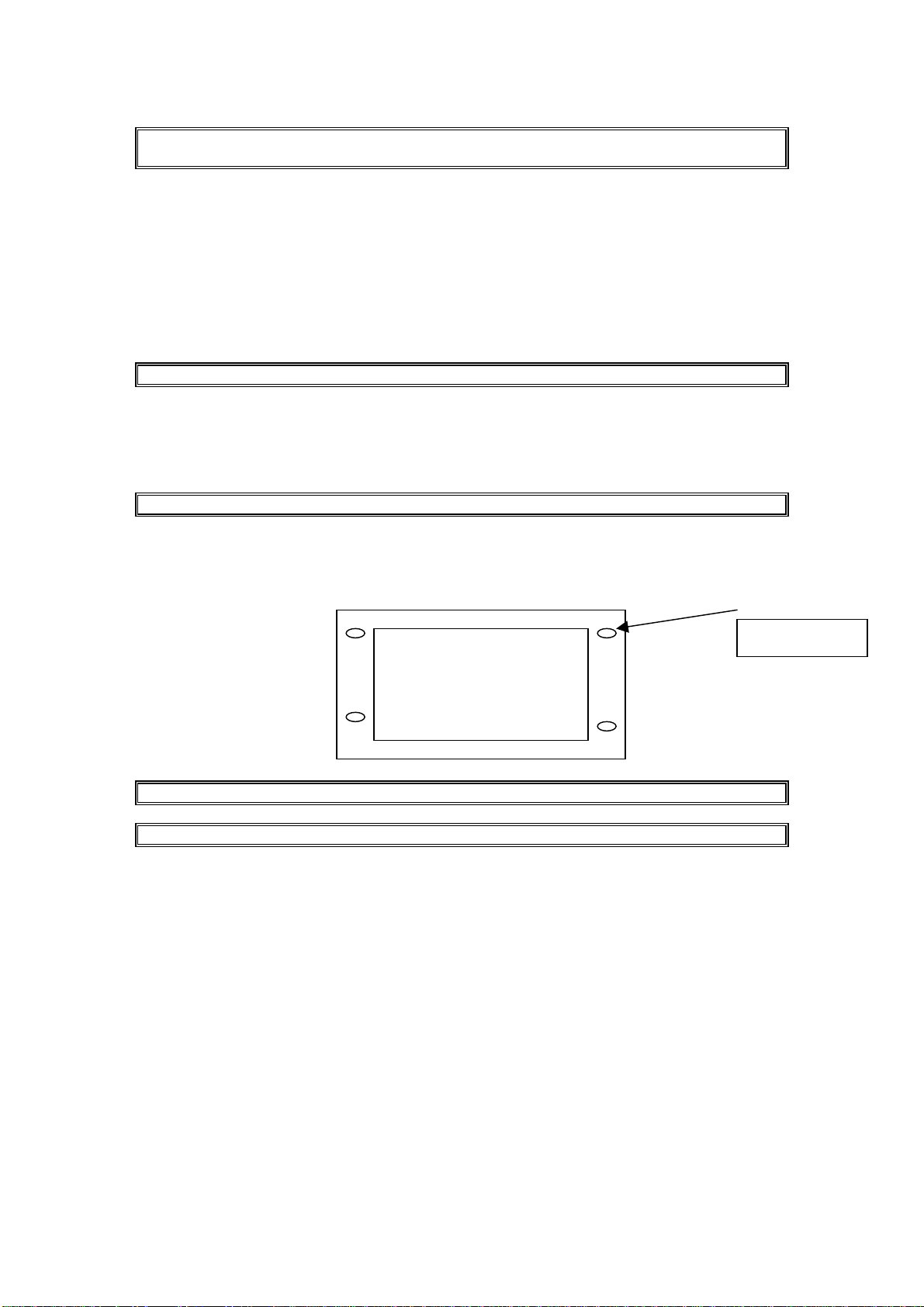

Flange holes
INSTALLATION STEPS
CONNECT GAS SUPPLY TO INLET ELBOW ,fuel BED ,SEE THESE INSTRUCTIONS.
CHECKING GAS PRESSURE AND SOUNDNESS
REMOVE THE PRESSURE TEST POINT SCREW FROM THE INLET ELBOW AND
CONNECT PRESSURE GAUGE.
TURN ON GAS TO APPLIANCE.
ROTATE THE CONTROL TO THE IGNITION POSITION AND PUSH IN TO ALLOW THE
AIR IN THE PIPEWORK TO BE PURGED.
PUSH IN PIEZO IGNITION SWITCH
CHECK THAT THE ELECTRODE IS SPARKING .
CONTINUE SPARKING UNTIL PILOT IGNITION IS ESTABLISHED.
TURN THE GAS CONTROL KNOB ON TO THE HIGH POSITION AND ALLOW TO RUN
FOR FIVE MINUTES.
CHECK THE INLET PRESSURE IS 20 MBAR. +/- 1mbar
CHECK FOR GAS SOUNDNESS.
TURN OFF GAS SUPPLY,DISCONNECT PRESSURE GAUGE AND REPLACE PRESSURE
TEST POINT SCREW.

issue 3 9
INSTALLATION STEPS
TEST FOR SPILLAGE
CHECK FOR SATISFACTORY CLEARANCE OF COMBUSTION PRODUCTS
CLOSE ALL DOORS AND WINDOWS IN THE ROOM CONTAINING THE FIRE.
TURN ON GAS SUPPLY,LIGHT THE FIRE AND SET THE CONTROLS TO HIGH
LEAVE THE FIRE BURNING FOR FIVE MINUTES AND INSERT A LIGHTED SMOKE
MATCH ON A VERTICAL PLANE 50mm INSIDE THE CANOPY AND 180mm FROM
EITHER SIDE OF THE OPENING
ALL THE SMOKE MUST BE DRAWN INTO THE FLUE.
IF SPILLAGE OCCURS ALLOW A FURTHER TEN MINUTES.
SHOULD SPILLAGE STILL OCCUR TURN OFF THE FIRE AND SEEK EXPERT ADVICE
IF AN EXTRACTOR FAN IS SITUATED IN THE ROOM THIS TEST SHOULD BE
REPEATED WITH THE FAN RUNNING
IF THERE IS A CONNECTED ROOM WITH AN EXTRACTOR FAN,THE TEST SHOULD
BE REPEATED WITH ALL THE DOORS TO THAT ROOM OPENED AND THE EXTRACTOR
FAN RUNNING.
INSTALLATION STEPS
FITTING TRIMS
FIT THE TRIM WITH FOUR MAGNETS PLACED ON THE VERTICAL SIDE FLANGES
OF THE FIREBOX(ONE AT THE TOP AND ONE AT THE BOTTOM)
OFFER THE TRIM UP AND PUSH INTO POSITION
PLACE FRET CENTRALLY IN FRONT TO COVER THE CONTROLS
INSTRUCT USER
DEMONSTRATE THE LIGHTING AND EXTINGUISHING PROCEDURES TO THE USER
AND REMOVAL AND REFITTING OF THE TRIM FOR CLEANING.
THE APPLIANCE SHOULD BE OPERATED WITH THE GAS CONTROL NOT TURNED ON
MORE THAN LOW FOR THE FIRST FIVE HOURS OF USE TO ALLOW THE FIBRE
LOGS TO CURE SLOWLY.
THE CURING EFFECT OF HEATING THE LOGS AND OTHER CERAMICS COMPONENTS
WILL CAUSE AN INITIAL ODOUR.
THE APPLIANCE SHOULD BE SERVICED ANNUALLY BY A COMPETENT PERSON IN
ACCORDANCE WITH THESE INSTRUCTIONS AND THE APPLIANCE CHECKED FOR
SPILLAGE IN ACCORDANCE WITH THE METHOD DETAILED IN THESE
INSTRUCTIONS
HAND THESE INSTRUCTIONS TO THE USER.

issue 3 10

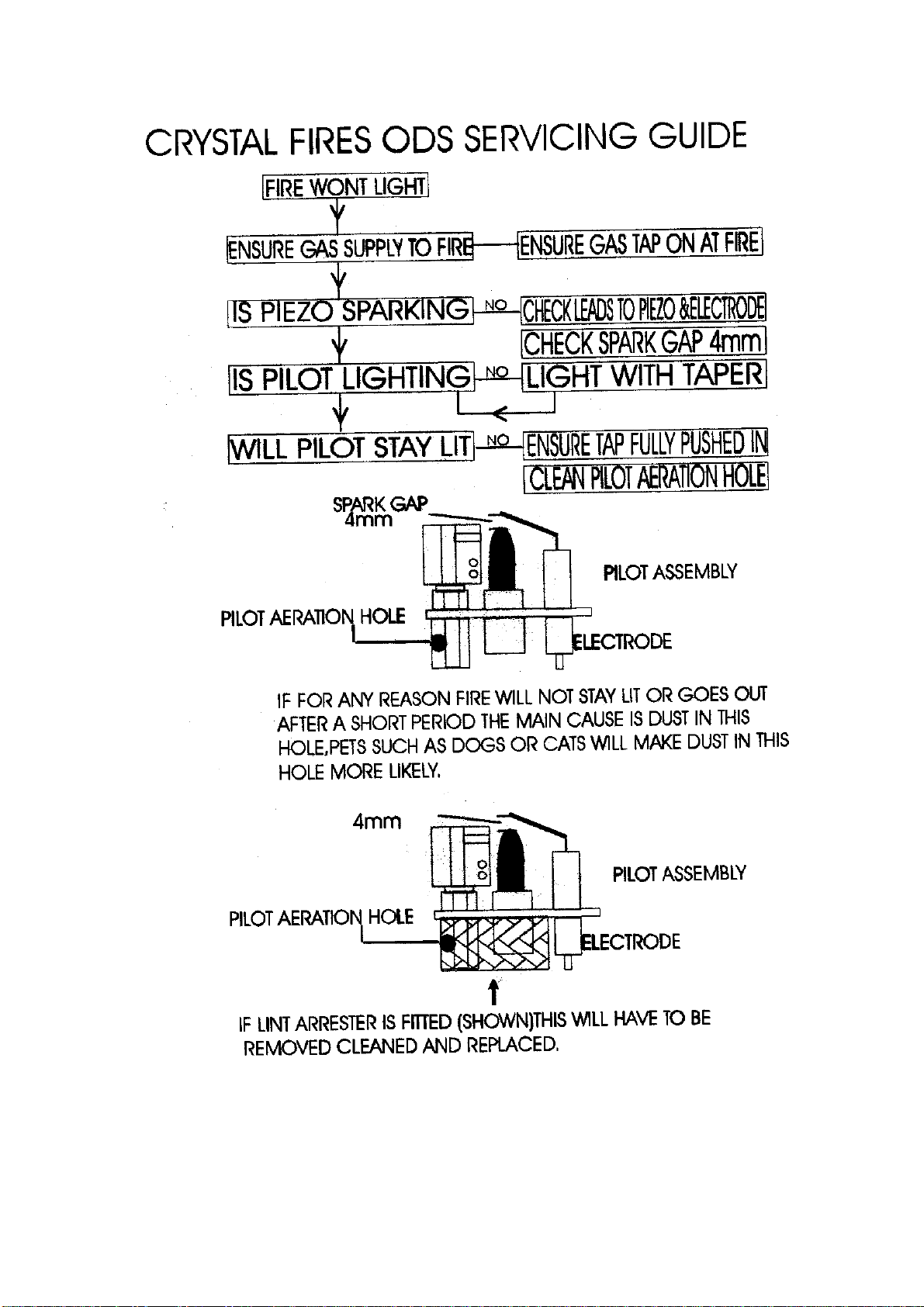

SERVICING NOTES
GENERAL NOTES.
SERVICING SHOULD BE CARRIED OUT ANNUALLY BY A COMPETENT PERSON SUCH AS
A CORGI REGISTERED PERSON IN ACCORDANCE WITH THE RELEVANT REGULATIONS
,TO ENSURE THE SAFE AND CORRECT OPERATION OF THE APPLIANCE
BEFORE COMMENING ANY SERVICE OR REPLACEMENT OF PARTS TURN OFF GAS
SUPPLY TO FIRE
AFTER SERVICING CHECK FOR GAS SOUNDNESS
AT LEAST ONCE A YEAR CHECK FOR DEBRIS
IF SOOT HAS ACCUMULATED CHECK TO ESTABLISH CAUSE AND RECTIFY IF
NECCASARY CLEAN FLUE OR CHIMNEY ACCORDINGLY
EXAMINE THE FUEL FOR SIGNS OF CRACKING AND REPLACE IF NECCESARY.SEE
FUEL LAYOUT PROCEDURE BEFORE ATTEMPTING TO REPLACE FUEL WHICH SHOULD
ONLY BE REPLACED AS A COMPLETE SET WITH NO EXTRA FUEL ADDED
1 REMOVAL OF FUEL
REMOVE LOOSE FUEL
REMOVE FRONT FIBRE SET
REMOVE REAR FIBRE SET
2REPLACEMENT OF GAS CONTROL
REMOVE FUEL SET AS 1
DICONNECT FIRE AT INLET ELBOW
REMOVE FIRE TRAY BY UNSCREWING TWO SCREWS AT FRONT BOTTOM SECTION OF
FIRE TRAY
REMOVE CONTROL KNOB,DISCONNECT GAS CONNECTIONS TO VALVE INCLUDING
PILOT CONNECTIONAND THERMOCOUPLE CONNECTION
REMOVE LOCKNUT HOLDING GAS CONTROL TO FRONT BOTTOM SECTION
RE ASSEMBLE IN REVERSE ORDER
TURN ON GAS SUPPLY,CHECK FOR SOUNDNESS AND RE COMMISION APPLIANCE
3 REPLACEMENT OF INJECTOR
REMOVE FUEL SEE 1
REPEAT 2 REMOVE GAS CONTROL
DISCONNECT GAS CONNECTIONS TO INJECTOR
UNSCREW INJECTOR WHILST AT THE SAME TIME HOLDING THE LOCKNUT
WITH A SPANNER AND CLEAN OR REPLACE
RE ASSEMBLE IN REVERSE ORDER
TURN ON GAS SUPPLY .CHECK FOR SOUNDNESS AND RECOMMISSION THE APPLIANCE
4 REPLACEMENT OF OXY-PILOT ASSEMBLY
DISCONNECT FIRE AT INLET ELBOW
REMOVE FIRETRAY BY UNSCREWING 5 SCREWWS AT FRONT OF TRAY AND TWO AT
BACK
DISCONNECT THERMOCOUPLE FROM GAS VALVE
DISCONNECT GAS CONNECTION FROM PILOT ASSEMBLY
REMOVE IGNITOR LEAD FROM PILOT ASSEMBLY
UNDO SCREWS SECURING OXY-PILOT TO FIRETRAY
RE-ASSEMBLE IN REVERSE ORDER
TURN ON GAS SUPPLY,CHECK FOR GAS SOUNDNESS AND RE-COMMISSION
APPLIANCE.

issue 3 11

1 VALENTINES BUILDINGS
BECHERS DRIVE
AINTREE RACECOURSE
BUSINESS PARK
AINTREE
LIVERPOOL
L9 5AY
JEWEL
SUNRISE/CUBE /PETIT
DECORATIVE FUEL EFFECT GAS FIRE
THIS APPLIANCE IS CAT I2H
FOR USE WITH NATURAL GAS
ONLY
G20 AT 20mbar
IN G.B. AND I.E.
issue 3 12
USERS INSTUCTIONS

issue 3 13
USERS INSTRUCTIONS FOR JEWEL GAS APPLIANCE
YOUR JEWEL GAS APPLIANCE IS A DECORATIVE LIVE FUEL EFFECT
GAS FIRE ,DUE TO ITS NEWNESS THE FIRE MAY GIVE OFF SLIGHT
SMELL FOR A SHORT PERIOD AFTER INSTALLATION .THIS IS QUITE
NORMAL AND WILL DISAPPEAR AFTER A FEW HOURS OF OPERATION.
THE APPLIANCE TO WHICH THESE INSTRUCTIONS APPLY MUST BE
INSTALLED BY A COMPETENT PERSON(EG. A C.O.R.G.I MEMBER IN
ACCORDANCE WITH THE CURRENT EDITION OF THE GAS SAFETY
INSTALLATIONS AND USE REGULATIONS OR THE RULES IN
FORCE)APPROVED BY THE HEALTH AND SAFETY EXECUTIVE AND
MUST BE IN ACCORDANCE WITH THE INSTALLATION AND SERVICING
INSTUCTIONS SUPPLIED.
SERVICING SHOULD BE CARRIED OUT REGULARLY BY A COMPETENT
PERSON ( EG A C.O.R.G.I MEMBER)IN ACCORDANCE WITH THE CURRENT
EDITION OF THE GAS SAFETY (INSTALLATION AND USE) REGULATIONS
OR THE RULES IN FORCE.TO ENSURE THE CORRECT AND SAFE
OPERATION OF THE APPLIANCE .DEBRIS SHOULD ALSO BE REMOVED
FROM BEHIND THE APPLIANCE AT REGULAR INTERVALS.
BEFORE INSTALLATION OF THE APPLIANCE THE CHIMNEY MUST BE
SWEPT AND THEN INSPECTED REGURLARLY TO ENSURE THAT IT
REMAINS FREE OF OBSTRUCTION.
A FIRE GUARD COMPLYING TO BS8423 ,MUST BE FITTED IF THE ROOM
WILL BE OCCUPIED BY YOUNG CHILDREN THE ELDERLY ,OR INFIRM
PEOPLE. ON NO ACCOUNT MUST ANY RUBBISH BE THROWN ON TO THE
FIRE OR THE LAYOUT OF THE FIREBED DISTURBED.
OPERATING INSTRUCTIONS.
THE APPLIANCE DATA BADGE IS POSITIONED ON THE FRONT BOTTOM SECTION
OF THE APPLIANCE AND CARIES THE CONTROL KNOB POSITIONS.THE FULL
LIGHTING PROCEDURE IS AS FOLLOWS.
1.PUSH CONTROL KNOB IN AS FAR AS POSSIBLE ON GAS CONTROL
2.TURN KNOB ANTICLOCKWISE TO IGNITION POSITION STILL KEEPING KNOB IN
AS FAR AS POSSIBLE.
3.THE IGNITION BUTTON WILL IGNITE THE PILOT WITH THIS OPERATION KEEP
THE KNOB PRESSED IN FOR 15 SECONDS.IF THE PILOT FAILS TO LIGHT TURN
THE CONTROL KNOB CLOCKWISE TO THE OFF POSITION, WAIT 3 MINUTES AND
REPEAT THE PROCEDURE
4.WHEN THE PILOT FLAME IS ALIGHT THE CONTROL KNOB SHOULD BE ALLOWED
TO SPRING OUT SLIGHTLY.TURN THE KNOB FULLY ANTICLOCKWISE TO THE HIGH
POSITION.THE PILOT FLAME WILL THEN IGNITE THE MAIN BURNER.THE PILOT
FLAME CAN BE VIEWED TO THE RIGHT OF THE FIRE JUST BEHIND THE FRONT
LOG SET
5.THE APPLIANCE CAN BE ADJUSTED BETWEEN HIGH AND LOW BY MOVING THE
CONTROL KNOB TO SUIT,THE KNOB WILL NEED TO BE DEPRESSED SLIGHTLY TO
MOVE FROM LOW HIGH AND IGNITION.
6.TO TURN THE FIRE OFF,DEPRESS THE KNOB SLIGHTLY AND TURN IT TO
PILOT POSITION.
7.TO COMPLETELY EXTINGUISH THE FIRE DEPRESS THE KNOB SLIGHTLY AND
TURN TO OFF POSITION.
8.SHOULD THE SPARK IGNITION FAIL TO OPERATE.TURN THE CONTROL KNOB TO
THE OFF POSITION AND WAIT 3 MINUTES.TURN THE KNOB TO THE IGNITION
POSITION AND THEN LIGHT THE PILOT WITH A TAPER.”LIGHTING THE PILOT

WITH A TAPER IS AN EMERGENCY MEASURE ONLY AND THE APPLIANCE SHOULD
BE SERVICED AS SOON AS POSSIBLE”.AND THEN PROCEED AS STATED IN
PARAGRAPHS 2/7.
IMPORTANT .THIS APPLIANCE IS FITTED WITH AN OXYGEN DEPLETION SENSOR
INCORPORATED INTO THE PILOT BODY.SHOULD THE FIRE REEATEDLY
EXTINGUISH ITSELF THEN SPECIALIST ADVISE SHOULD BE SOUGHT,AS THIS
MAY INDICATE SPILLAGE INTO THE ROOM OF COMBUSTION PRODUCTS.
OFF
PILOT
IGN
LOW HIGH
GB/IE
CAT1
2h
G20
AT
20mbarhot
HEAT INPUT HIGH 6.9Kw LOW 4.1Kw gross
JEWEL DECORATIVE INSERT
JET CAT82/460 BRAY
CRYSTAL FIRES 7 D BECHERS DRIVE L9 5AY
THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE
WITH THE RULES IN FORCE AND USED ONLY IN A SUFFICIENTLY
VENTILATED SPACE .CONSULT INSTRUCTIONS BEFORE
INSTALLATIONS AND USE OF THIS APPLIANCE
FIG 1
CLEANING
BEFORE CLEANING ANY PART OF THE FIRE ,ENSURE THAT THE GAS IS
TURNED OFF AND FIRE IS COOL.
BLACK PAINT.
USE ONLY CLEAN DAMP CLOTH ,DO NOT USE ANY CLEANING AGENTS
BRASS TRIM
USE BRASSO,ENSURING YOU REMOVE THE BRASS TRIM FROM THE
APPLIANCE BEFORE CLEANING
IMPORTANT
THE PAINT AND BRASS FINISH ARE DURABLE BUT WILL BE DAMAGED
IF PLASTER,CEMENT,OR WALLPAPER PASTE COMES IN CONTACT WITH
IT
COALS AND CERAMICS
IF FOR ANY REASON IT IS NECCESARY TO REMOVE CERAMIC
PARTS,THEN BEFORE REPLACEMENT THE BURNER SHOULD BE
CHECKED THAT NO PARTICLES HAVE DEPOSITED ON THE BURNER
AND IF NECCESARY VACUUM THEM CAREFULLY,THEN REFER TO
INSTRUCTIONS FOR REPLACING CERAMICS.
CERAMICS SHOULD BE CLEANED WITH A SOFT BRUSH
issue 3 14

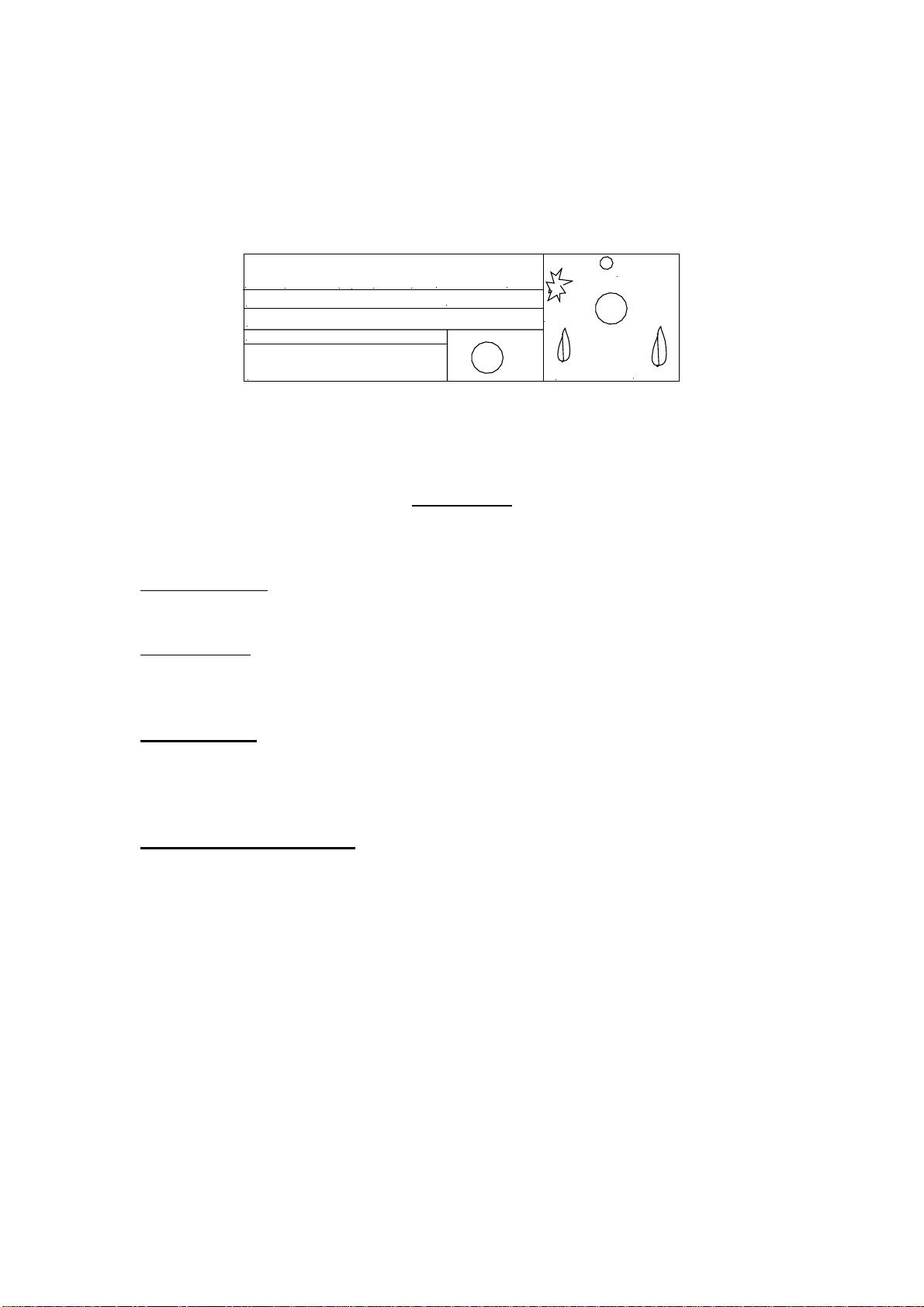

JEWEL GAS FIRE LIGHTING WITH TAPER
"D" "D" "D"
"D" "D"
"D"
"D"
"D" "D" "D"
"D"
"B" "B"
TO LIGHT WITH TAPER ,PUSH
LIGHTED TAPER AS SHOWN
WHILST FOLLOWING THE OPERATING
INSTRUCTIONS
TAPER

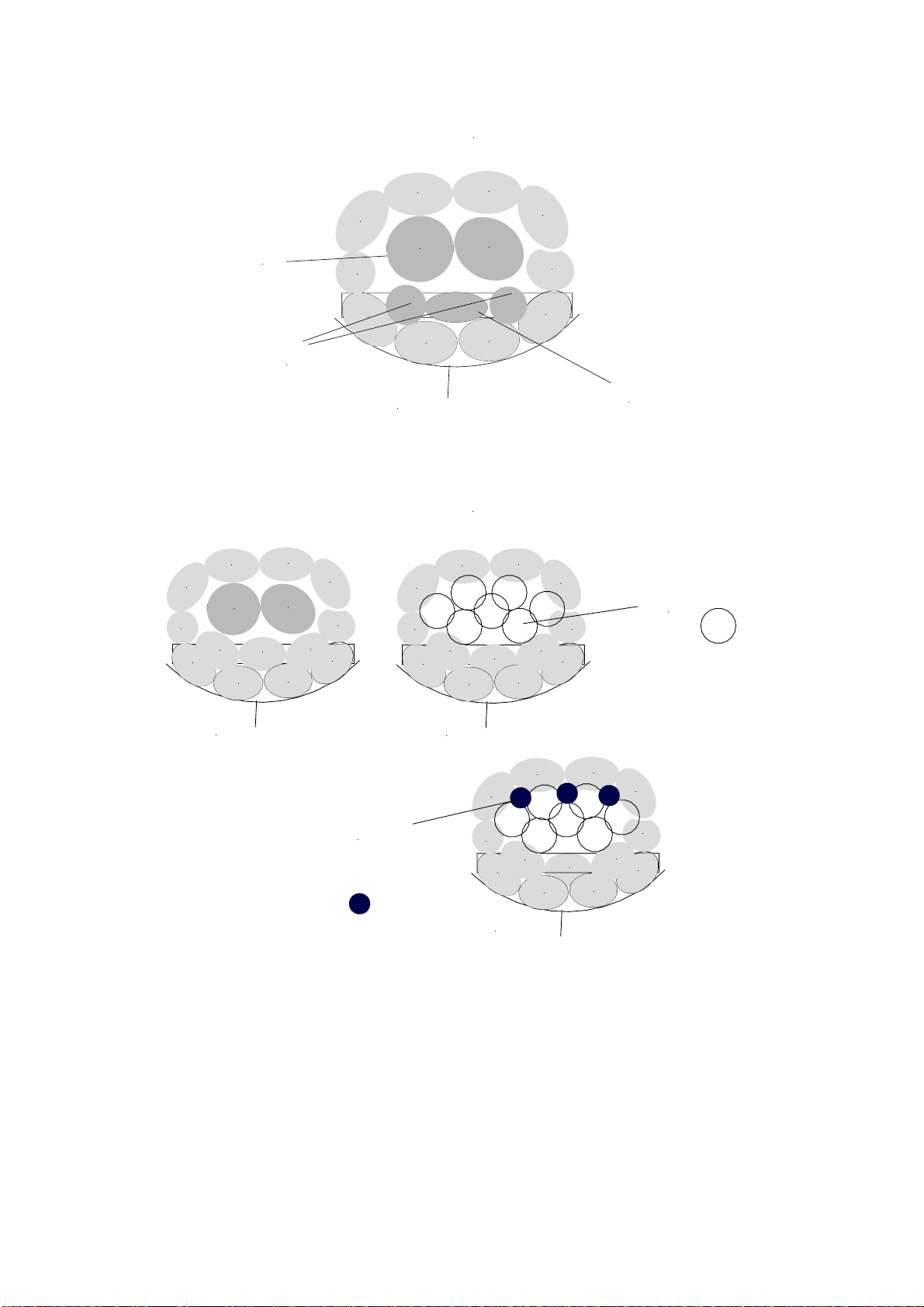

COAL BED LAYOUT
PERIODICALLY SMALL DEPOSITS OF SOOT MAY GATHER ON THE FUEL
BED AND BURNER, THIS MUST BE REMOVED BY REMOVING FUEL AND
BRUSHING ANY DEPOSITS WITH A SOFT BRUSH AND VACUUMING THE
BURNER, THEN REPLACE FUEL USING THE FOLLOWING PROCEDURE.

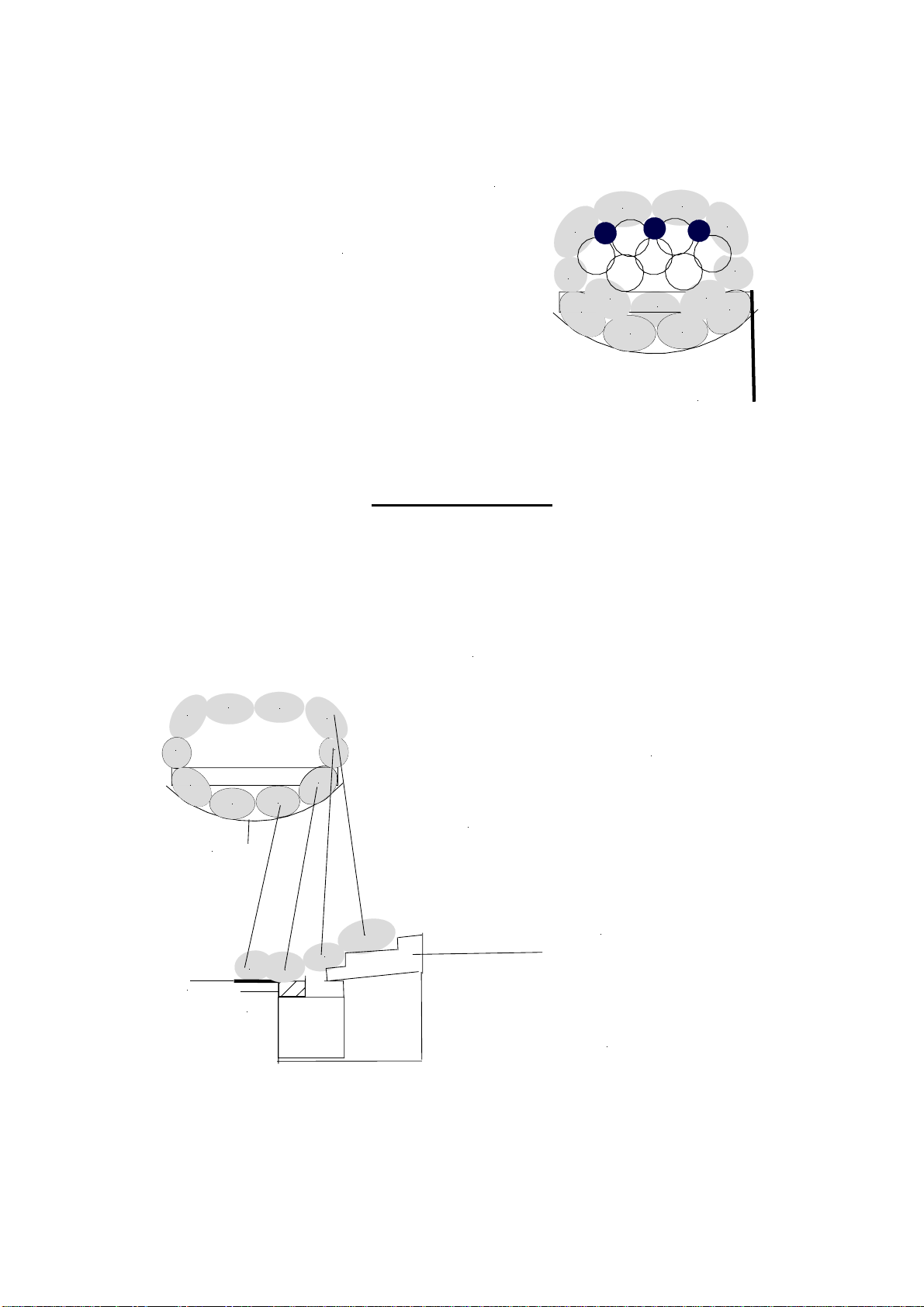

JEWEL GAS FIRE FUEL BED LAYOUT TOP VIEW
BOTTOM
OUTER LAYER
SIDE VIEW ,BOTTOM OUTER LAYER
CURVED METAL FRONT
FRONT
FIBRE
CURVED
METAL
FRONT
MATRIX
SITS BEHIND
BRACKET
ON MAIN
BURNER
LINES CORRESPOND TO
FUEL PIECE
DIFFERENT VIEW
"D" "D"
"D"
"D"
"D" "D" "D"
"D" "D" "D"
"D"
"B" "B"
"B"
issue 3 15

JEWEL GAS FIRE FUEL BED LAYOUT TOP VIEW
MIDDLE FUEL PIECES
CURVED METAL FRONT
"D"
"D" "D" "D"
"D" "D"
"D"
"A"
"A" FUEL
PIECE
FLAT SIDE
DOWN
TOUCHING
TWO FRONT
"D"
"B"
TWO
"B"
FUEL
PIECES
CENTRAL
TO
REAR
TWO
LARGE
ROUND
FUEL
PIECES
TOUCHING
FONT
"D"
PIECES
FLAT
SIDE
DOWN
"D"
"B"
"B" "B"
spss
JEWEL GAS FIRE FUEL BED LAYOUT TOP VIEW
TOP FUEL PIECES
CURVED METAL FRONT
"D" "D" "D"
"D" "D"
"D"
"B" "B"
"B"
"D"
"B"
"D" "D"
"D"
CURVED METAL FRONT
"D" "D" "D"
"D" "D"
"D"
"D"
"D" "D" "D"
"D"
CURVED METAL FRONT
"D" "D" "D"
"D" "D"
"D"
"D"
"D" "D" "D"
"D"
"D"
7
LARGER
FUEL
PIECES
AS
SHOWN
FINAL 3 SMALL
ROUND
FUEL PIECES
ARE
POSITIONED AS
SHOWN
"B" "B"
"B" "B"
CUSTOMER SPARE PARTS
FUEL BED JEW001 MAIN MATRIX JEW002
FRONT FIBRE JEW 003 INSTUCTIONS JEW 004
BRASS TRIM JEW 005
issue 3 16

DRIFTWOOD SET UP FOR SUNRISE/JEWEL/SUPER
AND LAGOON.
ALL PIECES MARKED UNDERNEATH WITH A
LETTER
LEFT

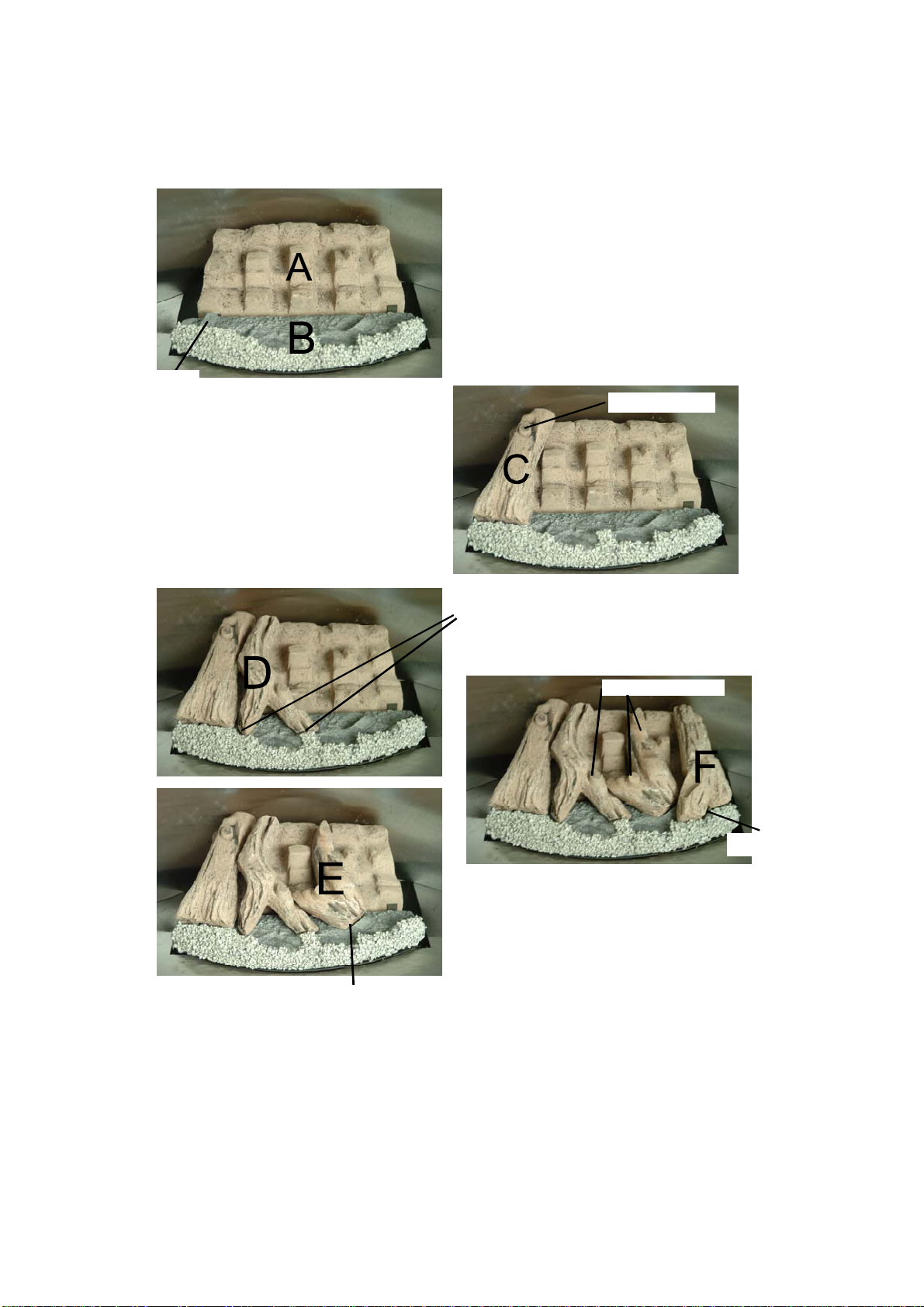

MAIN MATRIX (A) FITS AT REAR OF BURNER
AS SHOWN,BEHIND THE TABS OF MATRIX
BRACKET.
FRONT BASE (B) FITS AS SHOWN ENSURING
BOTTOM IN CHANNEL OF MAIN BURNER WITH
CUTOUTS OVER SCREWS
FRONT AND BACK ARE ALIGNED WHEN
RIGHT
WITH MATRIX AND FRONT BASE FITTED PIECE
(C). IS FITTED TO THE LEFT HAND SIDE,THE
FRONT BASE HAS A LUG AND THE UNDERSIDE
OF (C) .HAS A SLOT, THE (C) PULLS FORWARD AS
FAR AS POSSIBLE TO TOUCH THE FRONT OF THE
BASE AS SHOWN, THE REAR HAS A GROOVE CUT
AT THE BACK AND THE MATRIX CAN BE MOVED
SLIGHTLY SO (C) FALLS IN AND HASCORRECT
POSITIONING ,
THIS PROCESS ENABLES THE REAR MATRIX THE
FRONT MATRIX AND DRIFTWOOD (C) TO ENSURE
ALL OTHER PIECES ALIGN CORRECTLY.
LUG
LEFT
DRIFTWOOD (D) IS FITTED WITH TWO POINTS AS SHOWN
FULLY FORWARD AND AS CLOSE TO PIECE (C)AS POSSIBLE
THE PIECE WILL JUST SIT LYING ON THE PILLAR OF THE
REAR MATRIX AND WILL BE TWISTED TO THE RIGHT AS
MUCH AS POSSIBLE AND FIRMLY POSITIONED.
ABOVE
PIECE (F) SITS TO THE RIGHT OF (E) INTO SHAPE OF SLOT
MATCHING SHAPE OF DRIFTWOOD PIECE (F),
THE REAR OF THE PIECE (F) SLOTS INTO INDENTATION ON
REAR MATRIX.
THE PIECE IS PULLED FULLY FORWARD TO FRONT BASE
LEFT
PIECE (E) SITS INTO SLOT ON FRONT PIECE FOLLOWING THE
ANGLE WITH THE SHAPE OF PIECE (E)THE LEFT SIDE
BRANCH JUST SITS ON (D)WITH THE BRANCH GOING TO THE
REAR BETWEEN THE TWO PILLARS ON THE MAIN MATRIX.
SLOT TO THE SHAPE OF (E)
SLOT
LOCATION POINT
LOCATION POINTS
issue 3 17

LEFT
DRIFTWOOD PIECE (G),SITS AS SHOWN PIECE G HAS A ROUND
CUT OUT TO THE REAR FRONT AND PIECE (D) HAS A LOCATING
POINT ,THE CUT OUT FITS ONTO THE LOCATING POINT WITH
THE BRANCH RUNNING TO THE REAR AND SLOTTING BETWEEN
DRIFTWOOD PIECES (D) & (E),
LOCATION POINTON PIECE (D) SEE PREVIOUS PICTURES
BELOW

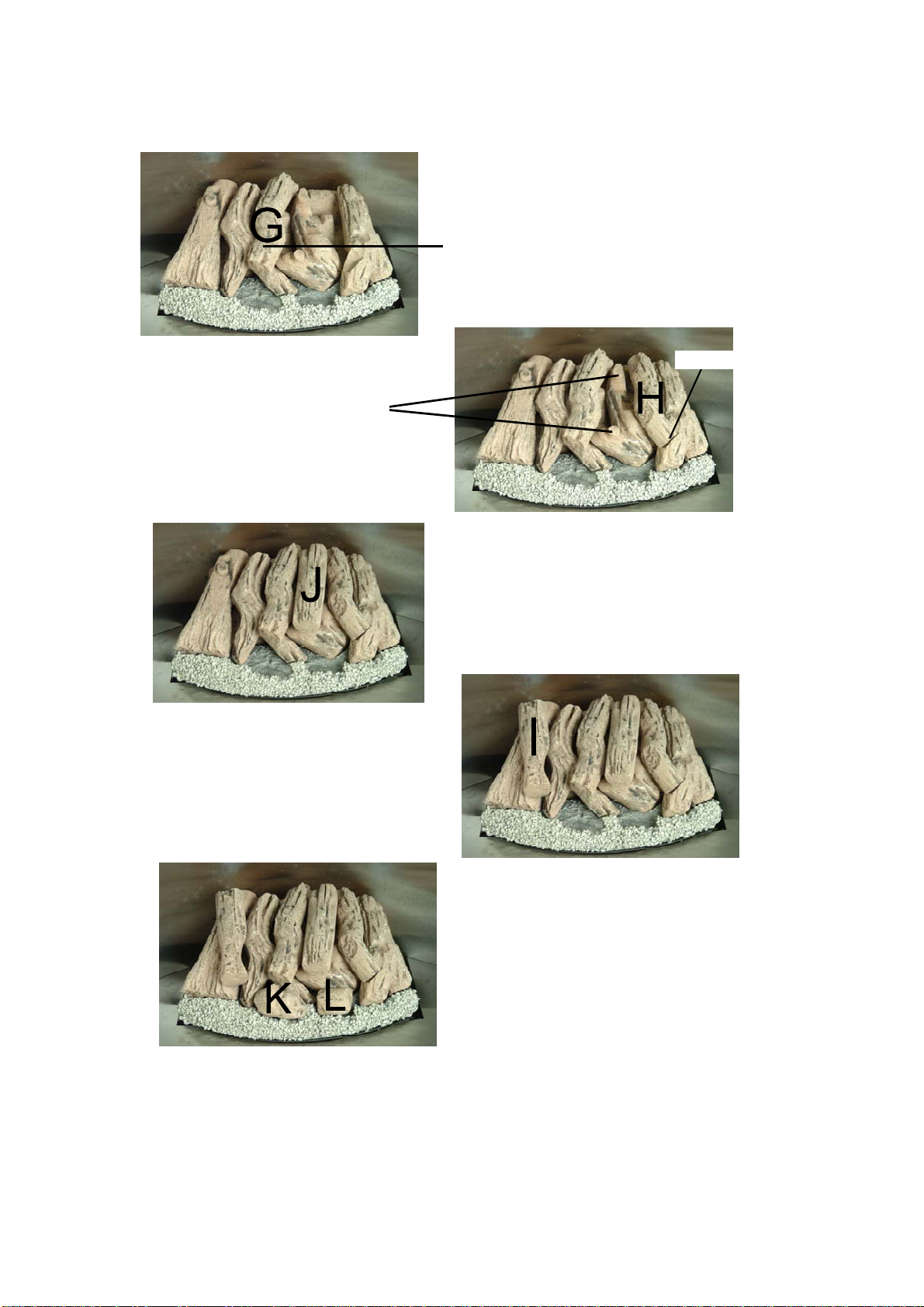

PIECE (H) SITS AS SHOWN ONTO THE LOCATION POINT &
BETWEEN DRIFTWOOD PIECES (E) & (F).TWISTING FULLY TO
THE RIGHT UNTIL FIRMLY POSITIONED
LOCATION POINT
BELOW
PIECE (J)IS FITTED ON TOP OF PIECE (E) DIRECTLY
ONTO LOCATING POINTS
PIECE I HAS TWO HOLES TO FIT DIRECTLY ON TO
LOCATING POINTS
FULLY DOWN AND
FIRMLY IN PLACE LOCATION POINTS
BELOW
PIECE (I) FITS ON TOP OF PIECE(C) USING
LOCATION POINT ON PIECE (C) AND HOLE IN
PIECE (I).
ENSURING IT IS FULLY LOCATED AND SITTING
FIRM IN POSITION RESTING ON PIECE (C) AND
PIECE (D)
AS SHOWN BELOW
BELOW
SMALL PIECES (K) &(L) SIT AS SHOWN BELOW
WHEN ALL PIECES ARE FITTED THERE SHOULD BE
LITTLE MOVEMENTOF ALL THE BOTTOM PIECES
AND SOME SLIGHT MOVEMENT IF ANY ON THE TOP
PIECES
OCCASIONALLY SMALL DEPOSITS OF SOOT MAY
GATHER ON THE DRIFTWOOD PIECES,IF THIS HAPPENS
PLEASE REMOVE WHEN COLD ,ALL THE PIECES DUST
WITH A SOFT PAINTBRUSH AND REPLACE IN ORDER US-
ING THIS ARRANGEMENT .
issue 3 18

LOG SET LAYOUT

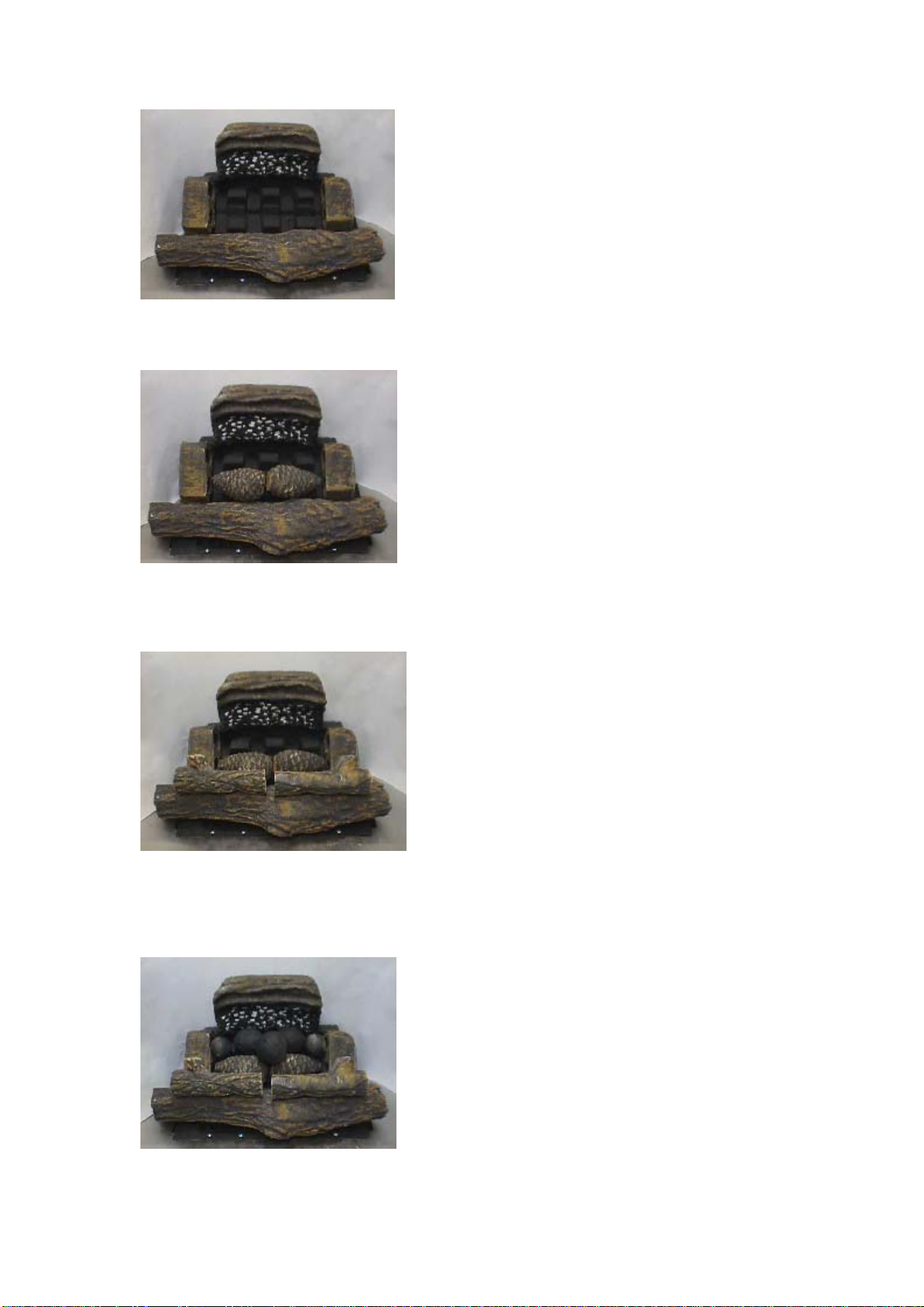

THE MATRIX FITS BEHIND BRACKETS, AND FRONT FIBRE IN WELL OF FRONT OF THE
BURNER ,FLAT (BRCKETS MARKED WITH WHITE DOTS)
THE MAIN FRONT LOG CAN NOW BE PUSHED CENTRAL UP TO TWO STOP POINTS
ON THE BURNER SITTING ON CARRIER ON LEFT AND RIGHT.
ONCE MAIN LOG IS PUSHED UP TO LUGS .THE TWO SIDE LOGS CAN BE PLACED,THESE
TWO SIDE LOGS ARE HOLLOW AND ARE FITED ON EACH SIDE OF THE MATRIX. AS
SHOWN
THE TWO SIDES LIE ON THE MATRIX TOUCHING THE FRONT LOG
WITH THE FLAT SIDES FACING UPWARDS.
issue 3 19

THE LOG SET REAR CAN NOW BE PLACED ON TOP OF MATRIX CENTRAL
BETWEEN THE SIDE LOGS AS SHOWN.
THE TWO FIR CONES CAN NOW BE PLACED ON THE MATRIX BETWEEN THE
TWO SIDE LOGS AND TOUCHING THE MAIN FRONT LOG.WITH THE POINTS
LOOKING OUT AS SHOWN.
THE TWO FRONT SMALL LOGS NOW SIT ON TOP OF MAIN LOG WITH THE BRANCHES
LYING ON THE TWO SIDE HOLLOW LOGS.
THERE SHOULD BE A 25mm GAP BETWEEN THE CENTRE OF THE TWO LOGS
AS SHOWN.
issue 3 20
