Overview 1

XP2i Operation Manual

Overview



INTRODUCTION

Thank you for choosing the XP2i Digital Test Gauge from Crystal Engineering Corporation. Your XP2i is a combination of leading edge technology and rugged

industrial design.

Accuracy is 0.1% “of reading”, 0.02% “of Full Scale” or 0.05% “of Full Scale”

–

so any XP2i can typically replace several gauges you may have been using.

The XP2i is fully temperature compensated

–

so there is no change in accuracy throughout the entire operating temperature range!

The XP2i’s case is made from rugged aluminum alloy utilizing a gasket to seal the enclosure against dust and water intrusion. Even the RS-232 connector is

fully sealed (with or without the red cover or rubber boot). Circuitry is mounted in shock absorbing elastomer supports and the batteries are easily accessible

by removing four screws. But you won’t need to change the batteries often, since 3 AA batteries operate the XP2i for up to 1500 hours of continuous use.

Other features include:

• Continuous capture of peak and valley pressure readings

• PSV mode

• Programming interface

• User-dened units

• Intrinsically Safe

• All welded 316 stainless steel sensor

We hope your XP2i meets your expectations, and we're interested in any comments or suggestions you may have. You can send us a note at:

[email protected]. Many features in this and our other products are a direct result of your comments!

Crystal Engineering is the company that designs, manufactures, markets, and services the nVision reference pressure recorder, XP2i,and 30 Series pressure

calibrators, M1 Pressure Gauge, MultiCal multimeter pressure adapters, and a variety of industry specic pressure measuring equipment. Crystal Engineering

pioneered features like full temperature compensation and“of reading” rated gauges and calibrators. Pressure measuring equipment is the only thing we do

and that’s why we say:

™

Your XP2i can be customized, through the use

of our free CongXP™ software. Your personal

computer can disable, enable, or modify a

variety of features of your XP2i. Look for the

logo for

programmable features, like:

• A user dened pressure scale, and/or disable

unused pressure units

• Password protection to prevent

unauthorized changes

• Disable keypad recalibration, (peak)

button, and/or (units)button

• Expand or decrease allowable Zero range

• Set the gauge to a dierent density of water

factor (4° C, 60° F, or 68° F)

• Store a 12 digit ID or tag number in

non-volatile memory

• Adjust calibration values

Overview 2

XP2i Operation Manual



OPERATING INSTRUCTIONS

The XP2i is shipped with batteries installed, so it’s ready to use. Press and hold the (on/o)button. The XP2i will rst test all LCD segments. Release

the (on/o)button when the XP2i indicates pressure.

The XP2i always resumes operation in the mode and the units of the pressure last used, and it does not automatically rezero when turned on.

Connect the XP2i to your system.

! CAUTION: Use a wrench (¾" or 19mm) for installation and removal of XP2i! There is a limit to how much rotational force can be applied to the case, so

don’t rely on, or use, the case to screw the XP2i into a tting, and don’t use the case to remove the XP2i tting, either.

! CAUTION: Never insert any object into the pressure connection! The sensor diaphragm is very thin and can be damaged or destroyed by solid or sharp

objects. Cleaning of the sensor must be done with appropriate solvents only.

! WARNING: Severe injury or damage can occur through improper use of pressure instruments! Do not exceed recommended pressure limits of tubing

and ttings. Be certain all pressure connections are secured.

Most XP2i’s are intended for gauge pressure measurement. That is, they indicate the dierence between applied pressure and ambient barometric pressure.

However, the (zero)button can be used to force an XP2i to read zero pressure at any applied pressure, up to the full scale rating of the gauge. The factory

default setting limits the maximum zero value to 20 psi, but this limit can be changed with .

Some XP2i’s are rated for absolute pressure. Absolute gauges indicate the dierence between applied pressure and an internal vacuum reference. Absolute

pressure is always positive. For instance barometric pressure at sea level is on average about 14.7 psi (approximately 100 kPa or 1 bar), so at sea level this is the

lowest expected pressure indication. However, absolute gauges can be“zeroed” (unless prevented by CongXP). After zeroing an absolute gauge it is possible

to indicate a negative or positive gauge pressure.

! WARNING: This gauge can display zero pressure when connected to a source of pressure! Do not rely on the display indication before disconnecting—

it may not be indicating true pressure. Never disconnect pressure instrumentation without rst relieving system pressure!

Functions 3

XP2i Operation Manual

Functions

units Units Button

Pressing this button causes the XP2i to select the next available unit of pressure measurement.

See Pressure Ranges, Display Scales, & Resolution on page 28 or the list of pressure units available for your model.

Units that you don’t need or never use can be turned o. You can also dene a special unit for your XP2i with CongXP. You can

use the XP2i to display directly in a unit not otherwise available, such as feet of seawater, or foot-pounds of torque. When you select your custom unit from the

keypad, the screen displays the USER icon.

peak Peak Button

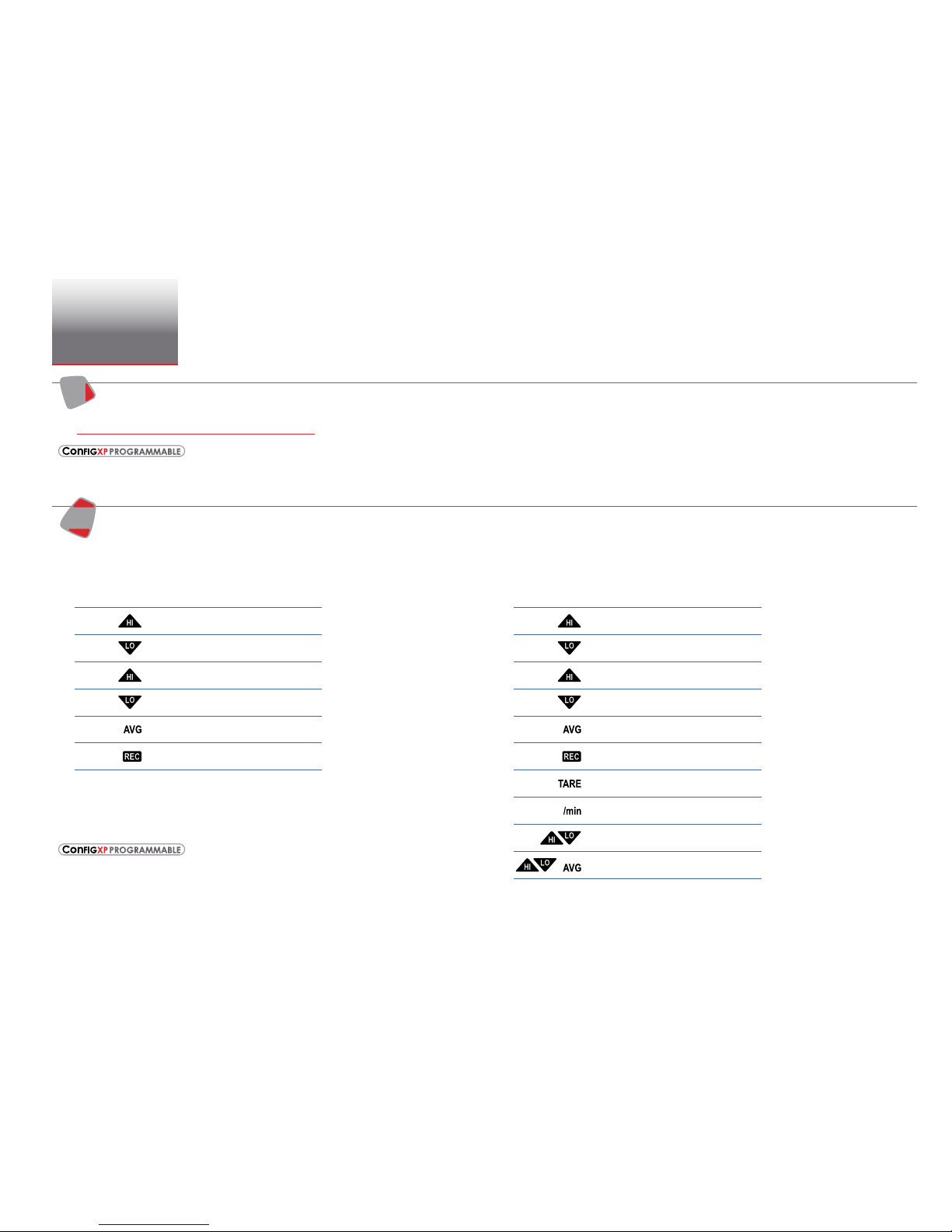

On the XP2i, pressing the (peak)button causes the display to cycle

through the following , depending on your setting in CongXP.

<No Icon> . . . . Live Pressure display

. . . . Maximum detected pressure

. . . . Minimum detected pressure

(blinking) . . . . PSV Mode, maximum *

(blinking) . . . . PSV Mode, minimum *

. . . . Average pressure

. . . . DataLoggerXP datalogging mode

*From the factory this setting is disabled. Use CongXP to enable.

Peak High and Peak Low values are not saved when the gauge shuts o; they will reset to the current

reading when the XP2i is turned on or reset.

In some cases the ability to display a peak value may not be needed, or

may even be dangerous. CongXP allows you to disable this button.

XP2is can average 1 to 10 readings, recalculated every time pressure is measured (4 times per second).

Enable and set the number of readings to be averaged with CongXP.

On the -DD, dual-line display XP2i, pressing the

(peak)

button causes the display to cycle

through the following, depending on your setting in CongXP:

<No Icon> . . . . Live Pressure display

. . . . Maximum detected pressure

. . . . Minimum detected pressure

(blinking) . . . . PSV Mode maximum *

(blinking) . . . . PSV Mode minimum *

. . . . Average pressure

. . . . DataLoggerXP datalogging mode

(remaining points displayed on lower line)

. . . . Tare *

. . . . Rate of change *

. . . . Dierential Mode *

+ . . . . Average Dierential Mode *

Functions 4

XP2i Operation Manual

clear

zero

Resetting (Clearing) Recorded Peak Values

Peak values can only be cleared when displaying either a Peak High or Peak Low recorded pressure. Press the (clear)button for at least ½ second. Dashed

lines will briey appear across the display indicating that both Peak values have been cleared. Both Peak High and Peak Low values will then display the cur-

rent applied pressure. Pressing the (clear)button while either the Peak High (

) or Peak Low (

) icon is displayed will not aect the zero value. If you

need to rezero the gauge, you must turn o both peak icons by pressing the (peak)button.

clear

zero

Zero

If you attempt to zero the gauge while applying a pressure which exceeds the Zero Limit (set in CongXP, defaults to 20 psi),

the command will be ignored and“--HI-”will be displayed.

XTo Zero the XP2i

Turn o peak indication by pressing the (peak)button repeatedly until the HI and LO icons are o, then press the (zero)button for at least ½ second when

the gauge is vented to atmosphere.

The display will then briey ash all dashed lines ( ), indicating that it has been re-zeroed. Absolute gauges will now indicate gauge pressure.

! WARNING: This gauge can display zero pressure when connected to a source of pressure! Do not rely on the display indication before disconnecting—

it may not be indicating true pressure. Never disconnect pressure instrumentation without rst relieving system pressure!

XTo Clear the Zero Value on an XP2i

Turn o peak indication as described above, then press and hold the (zero)button until the display changes from ( ) to ( ).

This is especially useful for absolute gauges that have been zeroed to use for gauge pressure measurement.

Functions 5

XP2i Operation Manual

Tare (-DD, Dual-Line Display XP2i Only)

Tare is a constant value subtracted from the true pressure. For instance, if you were mixing gases by partial pressure, you might want to ll a tank to 1760 psi

with air, then add another 440 psi of helium. To reduce the chance of error, you could tare the gauge at 1760 psi. Then you would add helium until the indica-

tion reached 440.

PSI

TARE

PSI

TARE

PSI

TARE

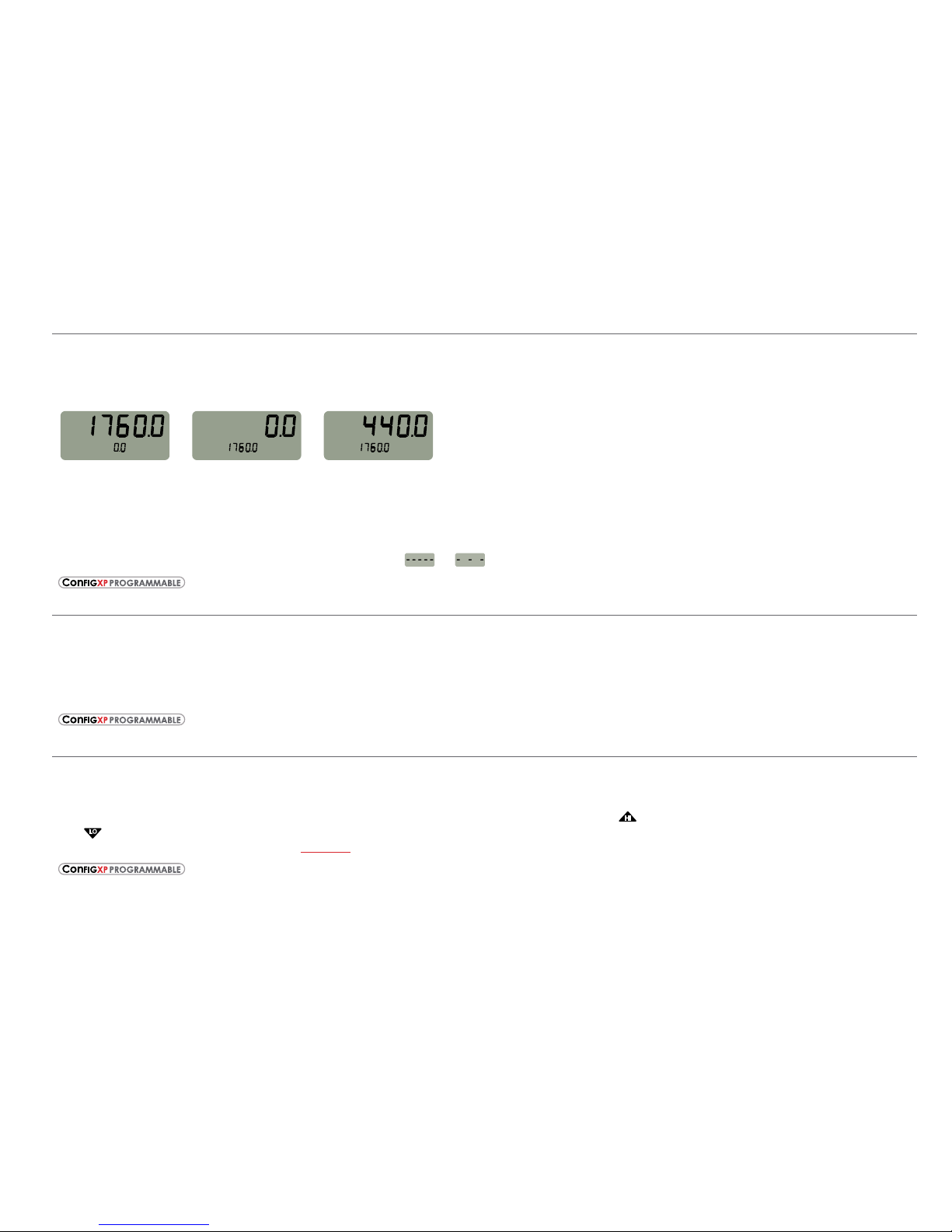

Fill to pressure Press the Tare button Top-o with helium

In contrast to the Zero function discussed previously, Tare is not subject to the Zero Limit set in CongXP. Tare is available only when the TARE icon is on. To

use the Tare feature, press the (peak)button repeatedly until the screen displays the TARE icon. The TARE icon will ash to remind you that live pressure may

not be indicated on the screen. Apply pressure to the gauge until you reach the desired value. Press the (zero)button. The top line will change from true

pressure to zero. The amount of the tare will be displayed on the second line.

To clear the tare, press and hold the (zero)button until the tare value changes from ( ) to ( ).

The Tare function is disabled by default, but can be enabled with CongXP.

Rate (-DD, Dual-Line Display XP2i Only)

Rate is the measurement of pressure change per minute. When in Rate mode, the second line will display the rate, and the /min icon will display. Rate is

calculated at every pressure measurement (4 times per second), and the displayed value is the average of the most recent 3 to 10 calculations. By increasing

the number of calculations in the average, the XP2i will indicate a more stable rate. However, the XP2i will react more slowly to changes in rate.

To use the rate feature, press the (peak)button repeatedly until the /min icon displays. As pressure changes, the second line will indicate rate of change.

The rate function is disabled by default, but can be enabled and congured with CongXP. The number of calculations can also

be set with the digital interface.

Dierential Mode (-DD, Dual-Line Display XP2i Only)

Dierential mode allows the XP2i-DD gauge (the master) to be connected to a second XP2i or XP2i-DD gauge (the slave) and display the pressure dierence

between the two gauges. A standard RS232 cable (p/n 2400) and null modem adapter (p/n 3456) or a null modem cable are required to directly connect the

gauges. You must use CongXP to enable this feature, and once enabled, use the (peak)button on the master gauge until the Peak High (

) and Peak

Low (

) icons are displayed simultaneously. An XP2i-DD gauge must be running rmware version R0114 or later, and an XP2i gauge must be running

rmware version R0014 or later for this feature to work. Use XP2iUpdate to upgrade to the latest rmware.

The dierential mode is disabled by default, but can be enabled and congured with CongXP.

Functions 6

XP2i Operation Manual

Automatic Shut-o

The XP2i has a shuto timer and will turn o automatically after 20 minutes of non-operation. Pressing any button or sending any command via the RS-232

connection resets the shuto timer for another 20 minutes of operation. The XP2i will briey display Auto O 20 when turned on.

To disable the shuto feature, turn on the XP2i by pressing the (on/o)and (zero)buttons simultaneously. The XP2i will briey display the words No Auto

O to indicate that it will not turn o. The shuto feature can be enabled again when turning the XP2i on, by pressing the same (on/o)and (zero)buttons.

These settings are retained when the product is powered down.

Note: This key combination will not toggle the auto-shuto feature if CongXP is set to require a password before changing settings.

Backlight

Pressing the (backlight)button instantly lights the display at maximum brightness. Hold down the button for 1 second to keep it on. The display will ash

briey, indicating that it will stay on for 1 minute. If you press the (backlight)button again, the backlight will go into a lower brightness setting to extend bat-

tery life, and remain on for 2 minutes after the last key is pressed. Press the (backlight)button once more and the light will go out.

If you start the XP2i in the No Auto O mode, you may select the brightness level in the same way. The light will never time out and turn o. Turn o the XP2i,

or press the (backlight)button repeatedly, to turn o the backlight.

Measuring Vacuum

All versions of the XP2i can be used to measure moderate vacuum, though only ranges of 300 psi (and 20 bar or 2000 kPa) and lower are actually tested and

certied for vacuum operation.

When measuring pressure less than ambient barometric conditions, a minus (-) sign will appear.

Absolute gauges (models with a “B” in front of“XP2i”in the part number) will NOT indicate a negative sign when vacuum is applied, unless the (zero)button

has been pressed while a pressure greater than full vacuum is applied to the gauge. If your absolute gauge does indicate a negative pressure, you can clear

the zero value (“unzero”) by pressing the (zero)button until the display changes from ( ) to ( ).

! CAUTION: XP2is are not recommended for continuous use below -14.5 psig.

For continuous use below -14.5 psig with high accuracy, choose our XP2i-DP Dierential Pressure Gauge.

Functions 7

XP2i Operation Manual

Water Density (Inches of Water)

The following applies only to models where inches of water is a selectable pressure unit. As shipped from the factory, the XP2i is set to display inches of water

corresponding to the density of water at 4° C (39.2° F). You may require a dierent water density for your application, so the XP2i can be set to use the density

of water at 20° C (68° F) or 15.6° C (60° F) instead.

To check and/or change the water density setting from the keypad, turn on the XP2i by pressing the (on/o)button and the (peak)button simultaneously.

The display will indicate either 4C, 60F, or 68F.

Press the (units)button until the display cycles to the desired water density, then press the (zero)button to store the selection (this will not zero the gauge).

Select and set the desired density of water.

Note: If the XP2i is password protected, or inches of water is disabled, you will not be able to view or change the water density from the keypad.

Overpressure Conditions

The XP2i will read pressure up to approximately 110% of the rated pressure range. Above 110% percent of the range the display will start ashing and the

readings will not be reliable. The zero function does not aect the point at which the display starts ashing to indicate overpressure, so depending on the zero

value it is possible that the display can start ashing without the maximum pressure being displayed.

For instance, if a 100PSIXP2i is zeroed when 30 psi is being applied, it will indicate that the overpressure condition has been reached at 80 psi

(i.e., 110% x 100 psi – 30 psi = 80 psi).

Overpressure can aect accuracy, but the eect is only temporary unless the sensor has been destroyed. See Pressure Ranges, Display Scales, & Resolution

on page 28 for maximum overpressure.

PSVtest Mode

PSVtest mode is designed for PSV and PRV (“Pressure Safety Valve” and “Pressure Relief Valve”, respectively) as well as for Rupture Disc (also known as “Burst

Disc”) testing. It increases the measurement rate of the XP2i gauge to approximately eight times per second, to capture the peak pressure when the valve

opened, and adds a method of automatically capturing the closing reseat pressure.

Use CongXP to activate PSVtest Mode. When the Peak High icon (

) ashes, PSVtest mode is enabled. A special feature of PSVtest is that Peak Low is au-

tomatically reset to the Peak High value whenever a new Peak High value is detected. Once pressure stops increasing, as when a PSV opens (and the pressure

drops below the maximum pressure) XP2i detects the new minimum pressure values (the Peak Low), capturing the closing pressure of a PSV.

Press the (peak)button once to view the captured reseat pressure. The Peak Low icon (

) will ash on the display.

To clear the peaks, press the (clear)button while the display shows the High (

) or Low (

) icons.

Application note AN-006

–

Pressure Safety Valve Testing detailing the operation of the PSVtest mode is available on our website, and includes examples on how

to use the gauge in relief valve and burst disk testing.

Functions 8

XP2i Operation Manual

Low Battery Indication

The Battery icon ( ) uses three bars to display the battery level. When the icon displays all three bars, the batteries are full. The XP2i will continue to operate

accurately while the icon is visible. When the batteries are exhausted, the letters batt will appear across the display. After batt appears, no pressure measure-

ments will be possible until the batteries are replaced.

Battery Replacement

The XP2i uses 3 AA batteries. Loosen the four rear panel screws to gain access to the battery compartment. These four panel screws are captive inside the

panel and are not removable. Pull the panel up to expose the battery compartment. After replacing the batteries, the XP2i will start operating immediately

(without having to press the (on/o)button). This indicates that a complete reset has occurred, and is normal.

! WARNING: Do not remove or change the batteries in hazardous locations.

! WARNING: T4 or T3 Temperature Class is based on selection of approved battery. See the table below.

! CAUTION: Do not mix battery types or manufacturers.

ATEX/IECEx: The XP2i is Intrinsically Safe only if powered by one of the following battery types:

Approved Battery Type Ta= Marking

Rayovac Max Plus 815 -20 to 50° C Ex ia IIC T4 Ga

Energizer E91*

Energizer EN91*-20 to 50° C Ex ia IIC T3 Ga

Duracell MN1500

*Energizer is manufactured by Energizer Holdings, Inc., and the Eveready Battery Company, Inc.

Many other battery types and models have been tested but failed to meet the requirements for Intrinsic Safety—do not assume other models are equivalent.

The XP2i can be operated from an external power supply (AC adapter kit PN: 2984).

! WARNING: Do not use AC adapter in hazardous locations.

CSA: The XP2i is Intrinsically Safe only if powered by one of the following battery types:

CSA: The XP2i est un système à sécurité Intrinsèque seulement s’il est alimenté par un des Piles de type suivant:

Approved Battery Type

(Approuvé Type de Batterie) Ta= Marking

(Marquage)

Rayovac Max Plus 815 -20 to 45° C Class I, Division 1, A, B, C, D T4

(Classse I, Division 1, A, B, C, D T4)

Energizer E91

-20 to 50° C Class I, Division 1, A, B, C, D T3C

(Classse I, Division 1, A, B, C, D T3C)

Energizer EN91

Rayovac Max Plus 815

! WARNING: Use of Duracell MN1500 batteries is not approved for CSA certication.

Functions 9

XP2i Operation Manual

Reset

If for some reason the XP2i needs to be reset, remove any battery for at least one minute, then reinstall the battery. If the reset is successful, the XP2i will

start operating without pressing the (on/o)button. Reset will clear the zero, peak values will be reset to the current reading, and the XP2i will be set to the

default engineering units.

! WARNING: Do not remove or change the batteries in hazardous locations.

Communications/Programming

The XP2i responds to a query-based command language which allows remote control of the gauge. Please refer to the XP2i Programming Instructions for

documentation of this feature.

Data Logging with DataLoggerXP 10

XP2i Operation Manual

Data Logging with DataLoggerXP



WHAT IS DATALOGGERXP?

DataLoggerXP is an optional data logging mode available for the XP2i gauge. You may purchase the DataLoggerXP option with your original order

or add it later.

With the XP2i’s long battery life, and Ultra Low Power (ULP) mode, you can log data over an entire year, without the need for external power supplies or

battery replacements.

Download the DataLoggerXP software from the Crystal website and use it to save the data recorded on your XP2i.

Note: An evaluation mode allows you to record 100 data points before requiring purchase.

With an XP2i and DataLoggerXP you can:

• Record up to 32000 pressure measurements (data points) into non-volatile ash memory.

• Save battery life and record over an entire year with Ultra Low Power (ULP) mode.

• Change data collection parameters, with or without a computer.

• Start and stop multiple collection runs from the keypad.

• Record pressure readings at intervals as fast as once per second or as slow as once every 18 hours.

• Record the averages, averages and peaks, or just the pressure indication.

• Store an indicated pressure by pushing one button.

• View the data on any Windows-equipped computer.

• Save the data les directly into Microsoft® Excel spreadsheets (requires Excel 2003, 2007, or 2010), or as comma separated text les.

Data Logging with DataLoggerXP 11

XP2i Operation Manual

DataLoggerXP Terminology

Clear. . . . . . . . . . . . . . . . . . . . . Removes all stored data from the XP2i memory. Individual runs cannot be removed.

Download . . . . . . . . . . . . . . . The act of copying stored data from the XP2i to a computer using DataLoggerXP software.

Events . . . . . . . . . . . . . . . . . . . Non-data readings, optionally displayed as part of a run. These include tare values, low battery indications, or logging parameters.

Logging Interval . . . . . . . . . The time, in seconds, between each data point.

Logging Type . . . . . . . . . . . . The type of data stored for each reading.

Logging Parameters . . . . . The Logging Interval and Logging Type are referred to, in this document, as the Logging Parameters.

Run . . . . . . . . . . . . . . . . . . . . . . A set of one or more readings taken by the XP2i. The user can specify dierent logging parameters for each successive run.

Note: A maximum of 64 runs can be stored in memory.

Typical Usage

While there are a variety of ways in which the DataLoggerXP software and XP2i can be used, a typical way to use the DataloggerXP

might be like this:

1Set the logging parameters

–

either with DataLoggerXP software or directly from the keypad.

2 Enable data logging mode (the Record icon ( ) will illuminate).

3 Take a recording.

4 Use DataloggerXP software to download your data into an Excel worksheet or a text le.

Data Logging with DataLoggerXP 12

XP2i Operation Manual



INSTALLING THE SOFTWARE

DataLoggerXP can either be installed from a CD provided by Crystal Engineering, or downloaded from the Crystal Engineering website.

We recommend you check the website for the latest version.

Installing from the CD

Run the Setup.exe application located on the install CD. This is typically D:\Setup.exe, but may be dierent on your computer.

Installing from the Internet

Visit ametekcalibration.com and select the DataLoggerXP software page to download the latest version of the software.

Once the setup application begins, follow the on-screen prompts to complete the installation. If DataloggerXP is being upgraded, the prior version does not

need to be uninstalled, as the new version will be installed over any existing version.



AUTHORIZING A GAUGE

The gauge must be authorized using a purchased authorization key to obtain the full 32 000 data point recording capability. The key is specic to a gauge’s

serial number, and can only be used with the gauge it was meant to authorize.

To Authorize a Gauge

1 Connect the gauge to your computer.

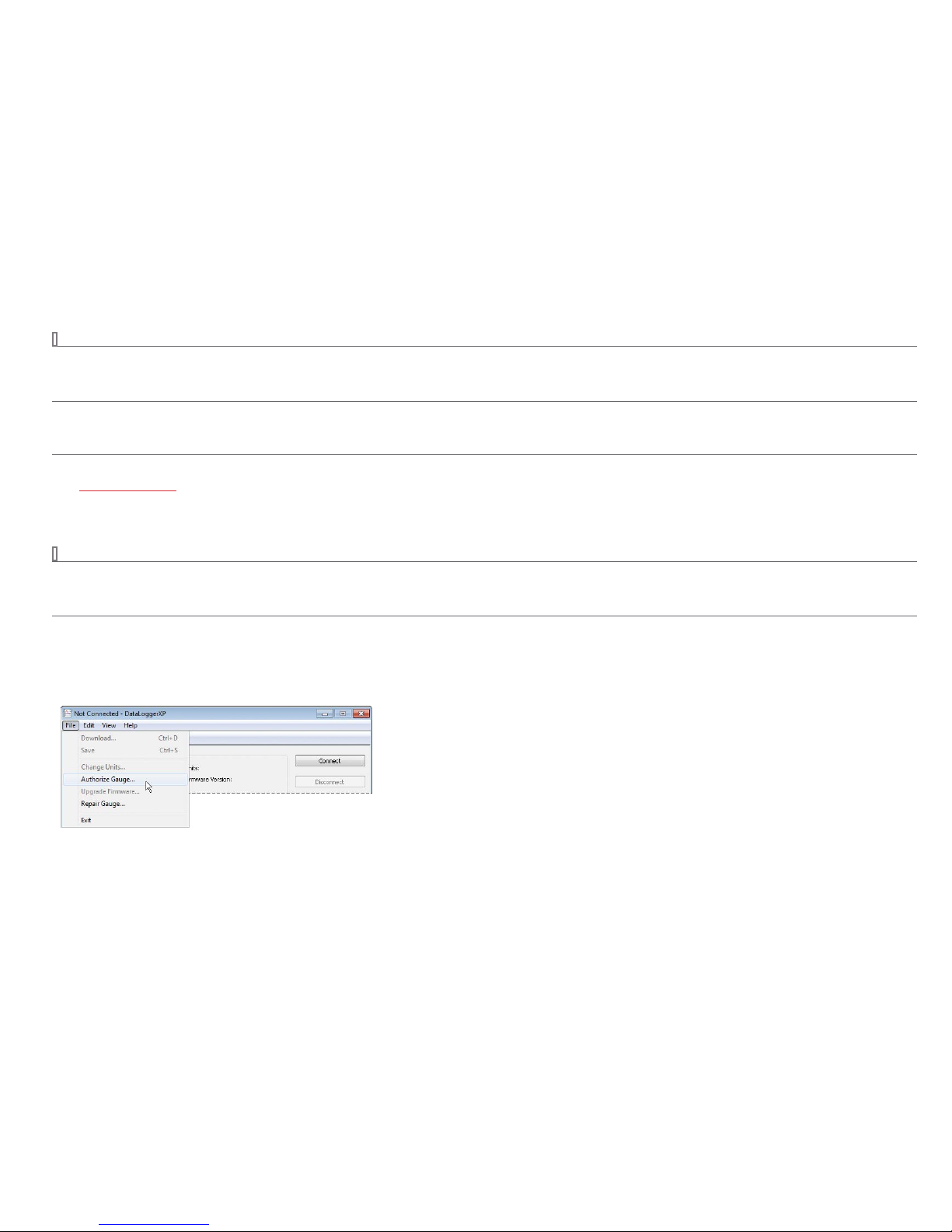

2 From the File menu, choose Authorize Gauge to start the Authorization Wizard.

3 Follow the on-screen instructions.

Data Logging with DataLoggerXP 13

XP2i Operation Manual



DATALOGGERXP SOFTWARE OPERATION

As described in the prior section, the DataLoggerXP application provides complete control of the settings for data logging mode on the XP2i. You can change

logging parameters and download data using the application. In this section, you will nd a description of each of the functional areas of the application.

The DataLoggerXP Main Window

Working in the Main Window

XSetting the Options

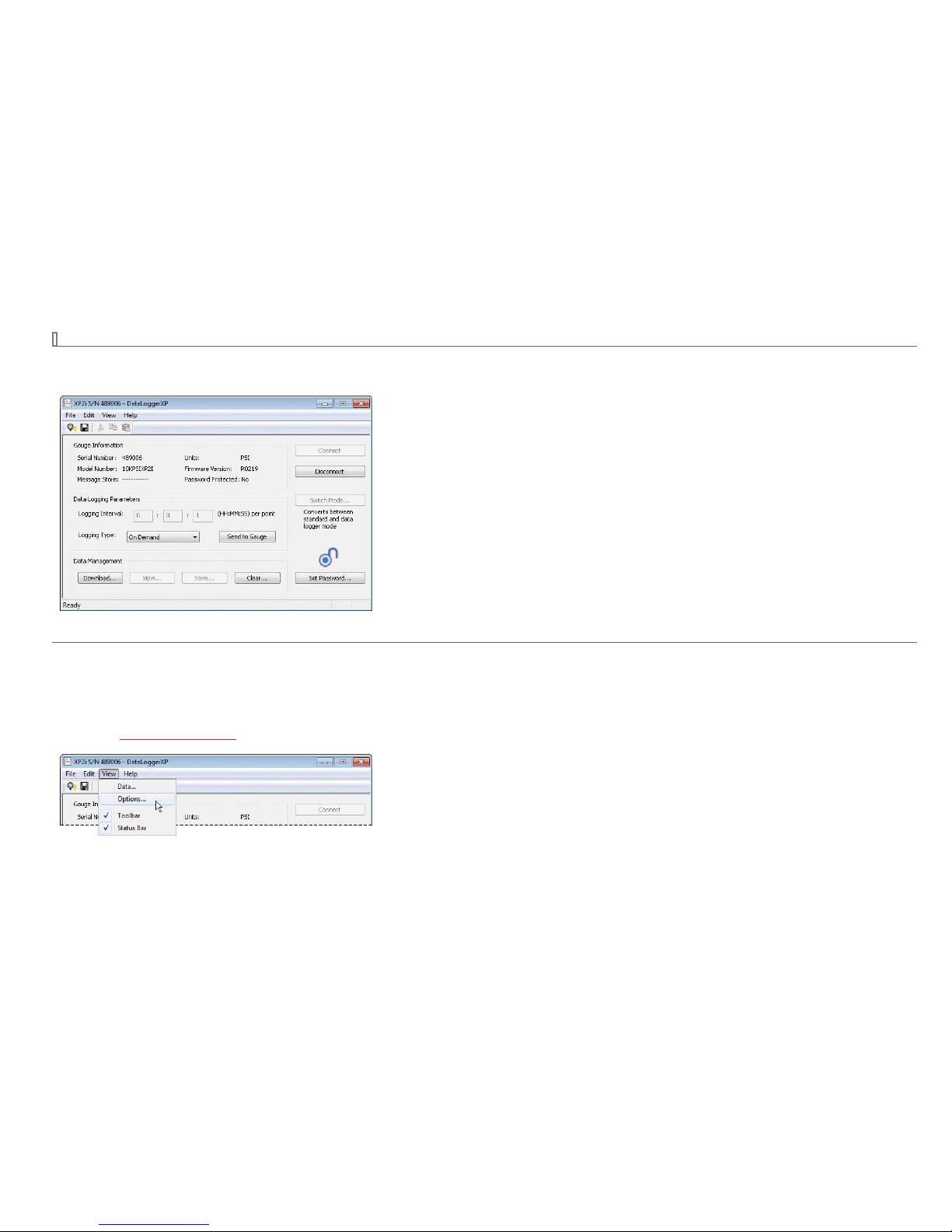

By default, DataLoggerXP is congured for automatic serial port detection. However, in some cases automatic serial port detection may not work.

To select a specic serial port, open the Options dialog box, by choosing View > Options. Select the serial port and press OK to save any changes.

If your installation supports additional langauges, you can choose the language from the Select Language drop-down list. The settings for Excel templates

are covered in Excel Templates on page 22.

Data Logging with DataLoggerXP 14

XP2i Operation Manual

XTo Connect to the Gauge

1 Plug the serial cable into the computer and XP2i gauge ports.

2 In the DataLoggerXP main window, click Connect.

The program will retrieve the current logging parameters, and then allow downloading, viewing, and saving data, as well as updating the logging

parameters.

XPassword Protection

The password protection feature of the gauge allows you to prevent unauthorized changes to the data logging parameters. Once the password is set, the

Send to Gauge button will require the password. Changing logging parameters and Auto-O settings through the keypad will be disabled. Passwords can

only be set or removed using DataLoggerXP or CongXP. In the event you lose the password, you will need to contact the factory for an unlock code, which

will remove the password protection. To set a password:

1 In the DataLoggerXP main window, click the Set Password button.

2 In the Change Password dialog box, enter and conrm your password and click OK.

Data Logging with DataLoggerXP 15

XP2i Operation Manual

Data Logging Parameters

Logging parameters can be set up one of two ways: on a computer connected to an XP2i, or from the XP2i keypad. This second option allows the user to make

changes in the logging parameters while in the eld. Once the logging parameters have been selected, the gauge can begin recording data. The two param-

eters that aect data logging (logging interval and logging type) are covered below.

XLogging Interval

The logging interval controls how frequently the gauge takes a measurement. XP2i data logging features a minimum recording time of 1 second and a

maximum recording time of 18 hours.

XTo Choose a Logging Type

From the Logging Type drop-down list, choose a logging type.

The gauge may operate in ve logging types:

• Actual: The gauge stores the value displayed on the gauge at each logging interval.

• Average: The gauge calculates and stores the average of all readings taken (4 per second) during each logging interval. For example, if the recording interval

is 10 seconds, the logged value is the average of the last 40 readings (10 seconds x 4 readings/second).

• Average with Peaks: The highest and lowest value of each logging interval is recorded along with the average value.

• On Demand: This mode diers from the other three, in that the logging interval does not apply. Press the (peak)button to store the displayed pressure

value and the current timestamp.

• Actual-ULP: Similar to Actual; Ultra-Low Power mode extends recording time to over an entire year on one set of batteries. The gauge will display ULP

instead of the live pressure. Stop the recording to view the live pressure display.

Data Logging with DataLoggerXP 16

XP2i Operation Manual

Data Management

XTo Download Data from the Gauge

1 Connect the gauge to your computer.

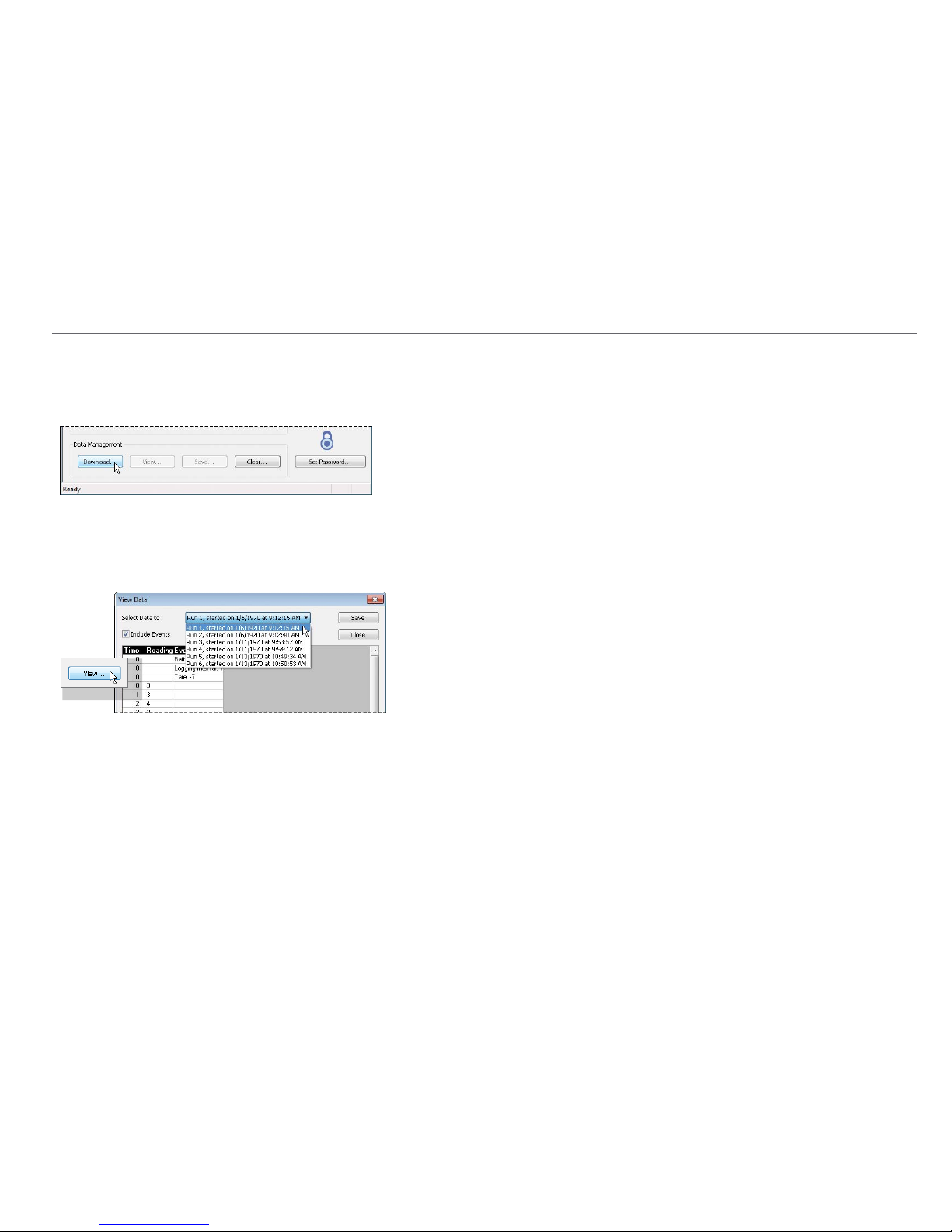

2 In the DataLoggerXP main window, click the Download button.

Depending on the number of readings, it can take up to 15 seconds to download all the data. Once the data has been downloaded, the View and

Save buttons will be available.

XTo View a Data Run

In the DataLoggerXP main window, click the View button to open the Data View dialog box.

In the Data View dialog box, you can select the run you wish to display, and choose to include or exclude recording events. Events are non-data readings, such

as tare values, low battery indications, or logging parameters.

Data Logging with DataLoggerXP 17

XP2i Operation Manual

XTo Save a Data Run

In either the DataLoggerXP main window or the View Data dialog box, click the Save button.

Save button in the DataLoggerXP main window.

Save button in the View Data dialog box.

You may download one recording run at a time. Each run will be saved to a separate le. The application will rst ask for which data run to save, and then the

name of the le to save. A le can be saved as either an Excel workbook or comma separated text le (”.txt” or “.csv”) format.

XTo Save a File in Excel Format

From the Save as type dropdown box in the Save As dialog box, choose either an Excel template le (ending in “.xlt”), or an Excel workbook le

(ending in “.xls”).

If you choose the Excel template (“.xlt”) a new Excel document will be created using that template. If you choose the Excel worksheet (“.xls”), you must have

already selected the default Excel template in the Options dialog box. The Excel le will be created and saved using this default template.

For more information, see Excel Templates on page 22.

If the le name does not include a “.xlt” or “.xls” extension, the data will be saved as a comma separate text le (ending either “.txt” or “.csv”) of that name.

XTo Clear All Data Runs

In the DataLoggerXP main window, click the Clear button to erase all runs from the gauge, making all memory available for the next sequence of runs.

Data Logging with DataLoggerXP 18

XP2i Operation Manual



XP2I DATALOGGERXP GAUGE OPERATION

When in data logging mode, XP2i provides data logging capability along with many of the features of a standard XP2i. In order to allow operation as a data

logger, some of the standard functionality of the standard XP2i is suspended.

Maximum Number of Readings

An XP2i with the authorized DataLoggerXP option can record up to 32 000 data points. By holding down the (units)button you can see the number of avail-

able data points on the gauge after the status is displayed. To avoid starting a recording, release the (units)button after you see the number of available
