Lennox Hearth Products Signature Montebello Series User manual

1
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
VENTED GAS FIREPLACE - DIRECT VENT MODELS
P/N 875,027M REV. A 06/2005
MODELS
DIRECT VENT
MONTEBELLO®SERIES
This appliance may be installed in an aftermar-
ket permanently located, manufactured home
(USA only) or mobile home, where not prohib-
ited by local codes. This appliance is only for
use with the type of gas indicated on the rating
plate. This appliance is not convertible for use
with other gases, unless a certified kit is used.
FOR YOUR SAFETY: Do not store or use gasoline
orotherflammablevaporsorliquidsinthevicinity
of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow your gas suppliers
instructions.
• If your gas supplier cannot be reached, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
OTL Report No. 116-F-22-5
WARNING:IFTHEINFORMATIONINTHISMANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SION MAY RESULT CAUSING PROPERTY DAM-
AGE, PERSONAL INJURY OR LOSS OF LIFE.
sledoMtlovilliMsledoMcinortcelE
N04MSLN54MSL
L04MSLL54MSL
EN04MSLEN54MSL
A French manual is available upon request. Order Form Number
875,027CF.
Ce manuel d’installation est disponible en francais, simplement en
faire la demande. Numéro de la pièce 875,027CF.
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
LENNOX HEARTH PRODUCTS
HOMEOWNER'S CARE AND
OPERATION INSTRUCTIONS
LSM40 Shown

2NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
These appliances are designed to operate
on natural or propane gas only.
Millivolt Models -
Input of millivolt models is shown in the fol-
lowing table:
CONGRATULATIONS!
InselectingthisLENNOXDirect-VentGasApplianceyouhavechosenthefinestandmost
dependable fireplace to be found anywhere. A beautiful, prestigious, alternative to a
woodburningfireplace. WelcometoaFamilyoftensofthousandsofsatisfiedLENNOX
Fireplace Owners.
Please read and carefully follow all of the instructions found in this manual. Please pay
special attention to the safety instructions provided in this manual. The Homeowner's
Care and Operation Instructions included here will assure that you have many years of
dependable and enjoyable service from your LENNOX product.
INTRODUCTION
The Fireplace models covered in this manual
are Direct-Vent sealed combustion gas fire-
places designed for residential application.
Direct-Vent appliances operate with the com-
bustionchambercompletelyisolatedfromthe
inside atmosphere. All air for combustion is
broughtinfromtheoutsideand exhaustgases
are vented through the same direct vent, vent
system.
The millivolt appliances are designed to oper-
ateoneithernaturalorpropanegas.Amillivolt
gas control valve with piezo ignition system
provides safe, efficient operation.
The electronic appliances are designed to op-
erate on natural gas only. An electronic inter-
mittent pilot system provides safe, efficient
operation.Externalelectricalpowerisrequired
to operate these units.
These appliances comply with National Safety
Standards and are tested and listed by Omni-
Test Laboratories (Report No. 116-F-22-5) to
ANSIZ21.50-2003(inCanada,CSA-2.22-2003),
and CAN/CGA-2.17-M91 in both USA and
Canada, as vented gas fireplaces.
TheInstallationmustconformtolocalcodes
or, in the absence of local codes, with the
NationalFuelGas Code, ANSI Z223.1/NFPA
54 , or the Natural Gas and Propane Instal-
lation Code, CSA B149.1 . The appliance,
when installed, must be electrically
grounded in accordance with local codes
or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70 , or
the Canadian Electrical Code, CSA C22.1 .
DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THE APPLIANCE OR
ITS COMPONENTS. ANY MODIFICATION OR
ALTERATION MAY VOID THE WARRANTY,
CERTIFICATIONANDLISTINGSOFTHISUNIT.
GENERAL INFORMATION
Note: Installation and repair should be per-
formedbyaqualifiedserviceperson.Theappli-
ance should be inspected annually by a quali-
fied professional service technician. More fre-
quent inspections and cleanings may be re-
quired due to excessive lint from carpeting,
bedding material, etc. It is imperative that the
control compartment, burners and circulating
airpassagewaysoftheappliancebekeptclean.
S'assurer que le brùleur et le compartiment
des commandes sont propres. Voir les in-
structions d'installation et d'utilisation qui
accompagnent l'appareil.
Provideadequateclearancesaroundairopen-
ings and adequate accessibility clearance for
service and proper operation. Never obstruct
the front openings of the appliance.
Duetohightemperaturestheapplianceshould
be located out of traffic and away from furni-
ture and draperies. Locate furniture and win-
dow coverings accordingly.
TABLE OF CONTENTS
Introduction..................................... page 2
General Information......................... page 2
Operation/Care of Your Appliance.... page 3
Variable Flame Adjustment .............. page 4
Glass Cleaning................................. page 4
Maintenance .................................... page 4
Maintenance Schedule..................... page 5
Front Glass Enclosure Panel,
Removal and Installation ............... page 6
Burner Adjustments......................... page 6

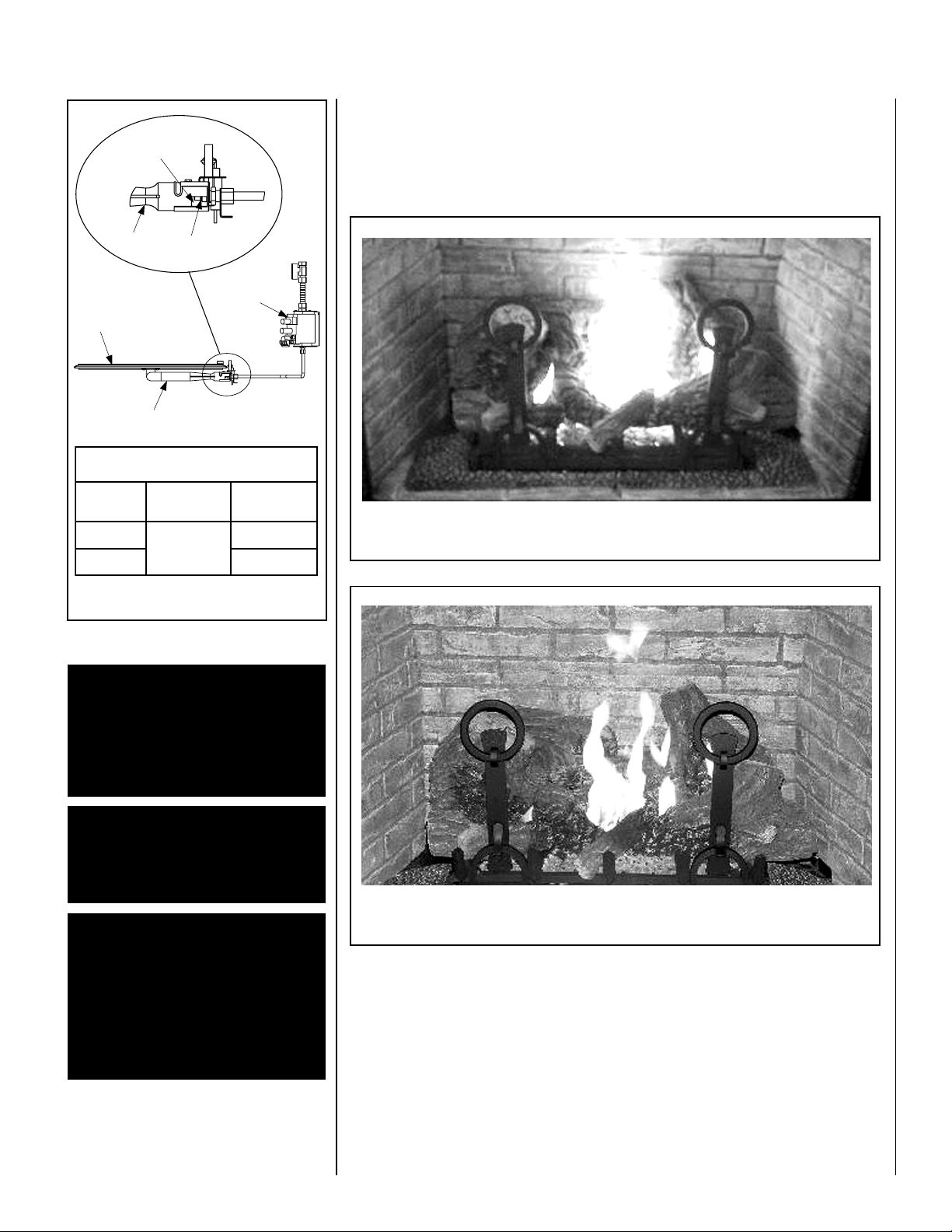

Flame Appearance and Sooting ....... page 6
Adjustment ...................................... page 6
Log Placement................................. page 7
Glowing Embers (Rockwool)
Placement...................................... page 8
Millivolt Appliance Checkout............ page 8
Electronic Appliance Checkout......... page 8

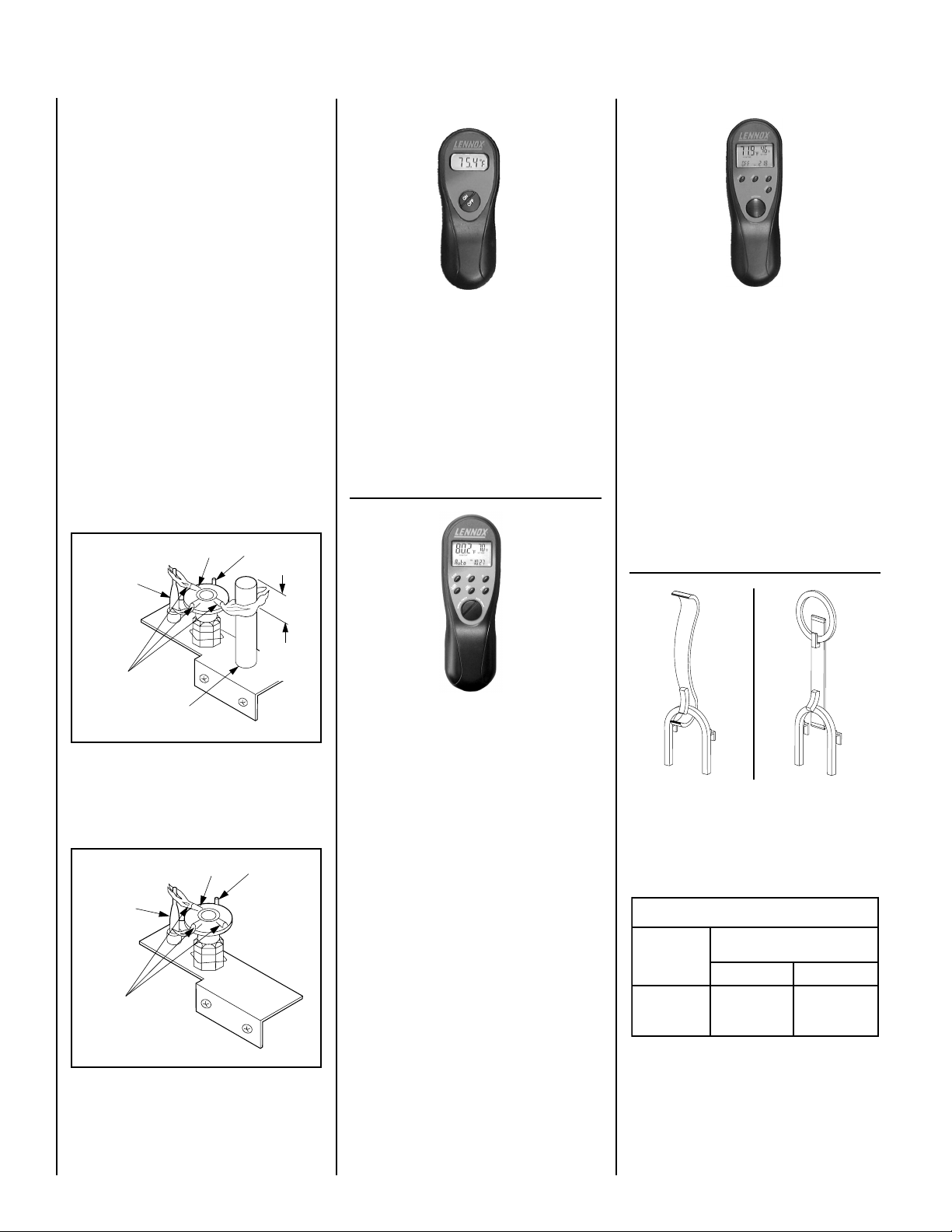

Accessory Components................... page 8

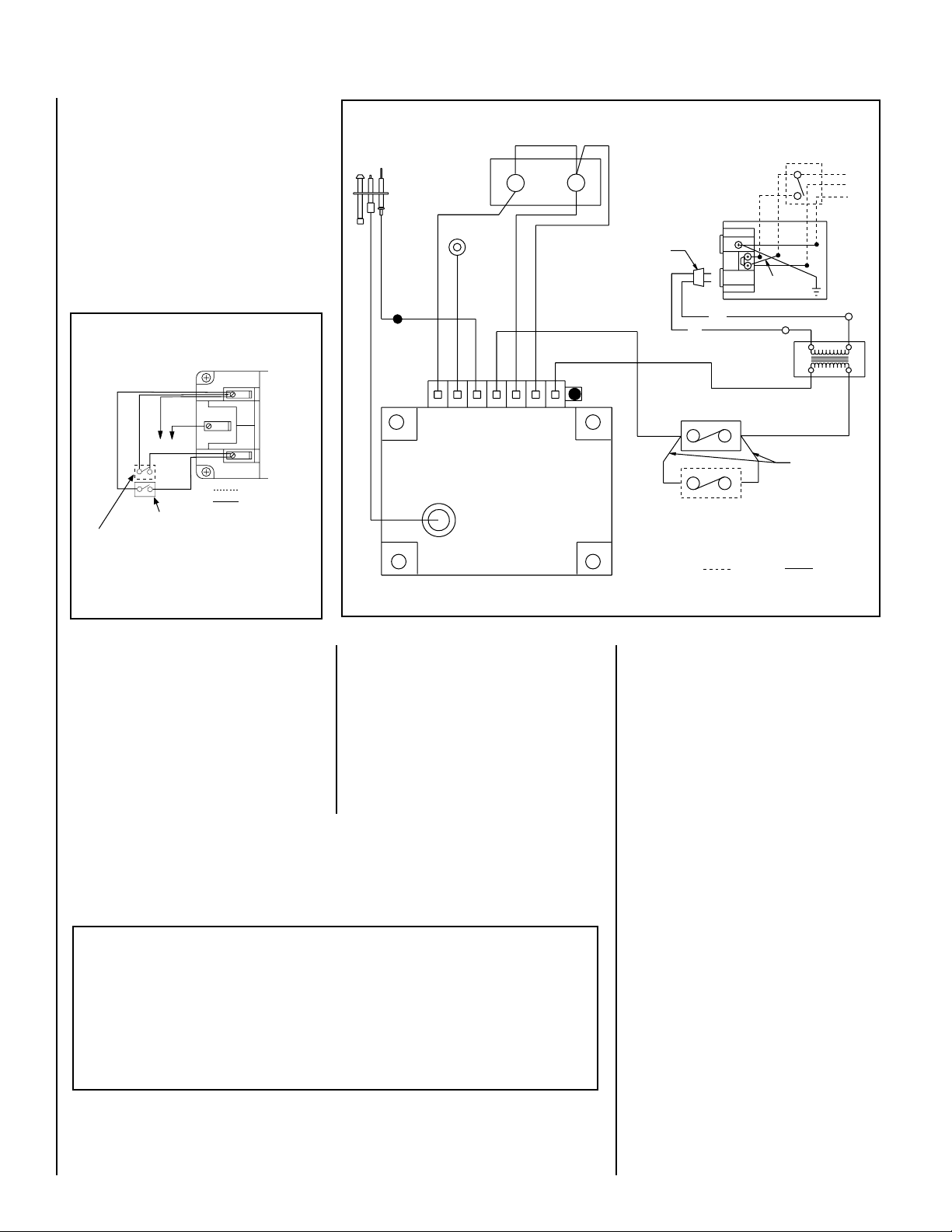

Wiring Diagrams.............................. page 10
Warranty.......................................... page 10
Replacement Parts .......................... page 10
Product Reference Information ....... page 10

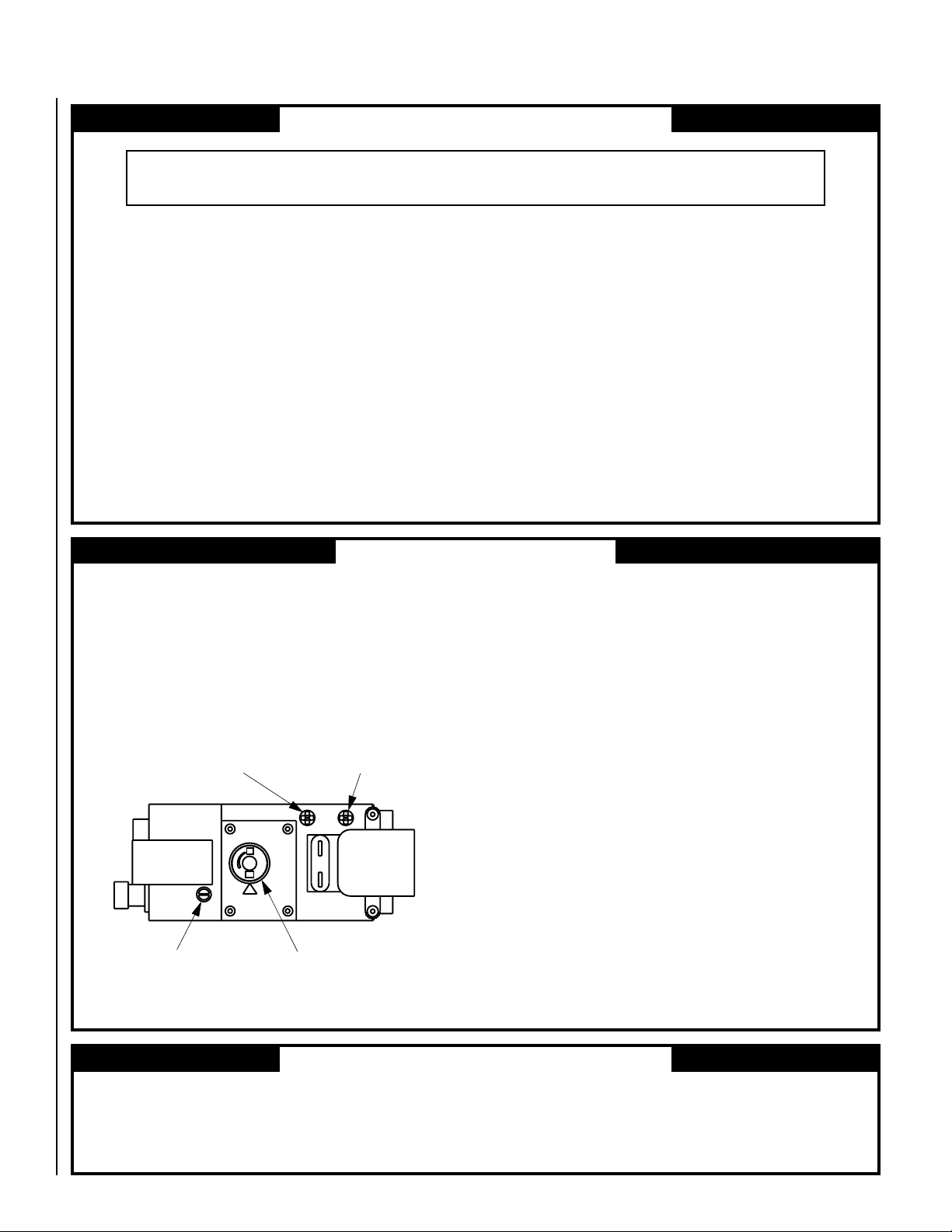

Lighting Instructions –Millivolt....... page 11
Lighting Instructions –Electronic.... page 12
Troubleshooting Guide –Millivolt.... page 13
Troubleshooting Guide –Electronic. page 14

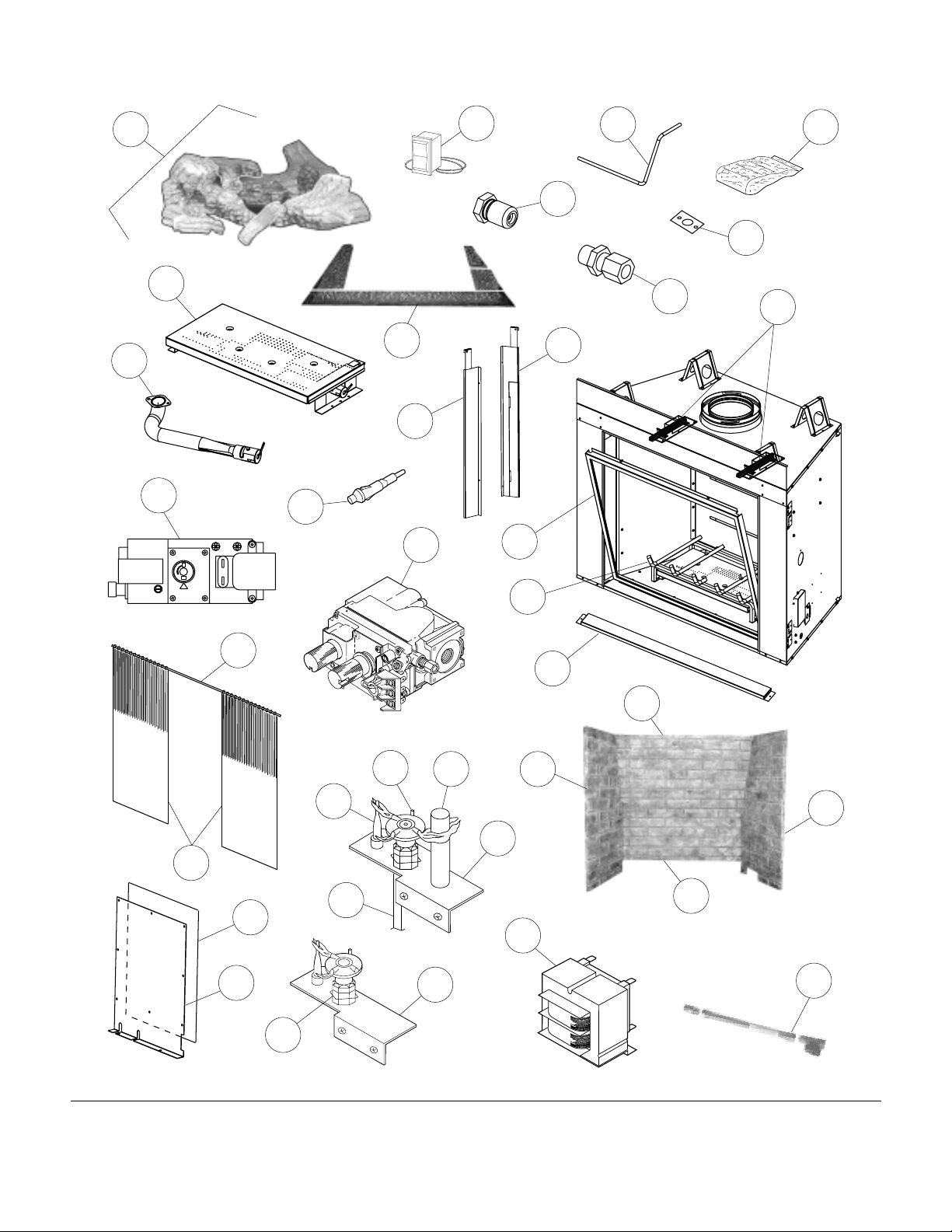

Replacement Parts List.................... page 15
WARNING:IMPROPERINSTALLATION,
ADJUSTMENT,ALTERATION, SERVICE
ORMAINTENANCECAN CAUSE INJURY
OR PROPERTY DAMAGE. REFER TO
THIS MANUAL. FOR ASSISTANCE OR
ADDITIONAL INFORMATION CONSULT
A QUALIFIED INSTALLER, SERVICE
AGENCY OR THE GAS SUPPLIER.
WARNING: THESE APPLIANCES ARE
VENTED GAS FIREPLACES. DO NOT
BURN WOOD OR OTHER MATERIAL IN
THESE APPLIANCES.
htiwsledoMtlovilliM
evlaVsaGdetaludoM-yllaunaM
saGlarutaNsaGenaporP
.oNledoM
tupnI
etar
)H/UTB(
.oNledoM
tupnI
etar
)H/UTB(
04MSL 000,04 ot 000,05 04MSL 000,04 ot 000,05
54MSL 000,74 ot 000,06 54MSL 000,24 ot 000,55

3
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning are similar to
thefluwithheadaches,dizziness and/or nau-
sea. If you have these signs, obtain fresh air
immediately. Turn off the gas supply to the
appliance and have it serviced by a qualified
professional, as it may not be operating
correctly.
OPERATION AND CARE OF YOUR
APPLIANCE
Appliance operation may be controlled by the
followingmeans:the factory provided ON-OFF
controlswitch,aremotelylocatedoptionalwall
switchoroptionalremotecontrol. Themounted
ON-OFF control switch is located on the right
hand side of the appliance. See
Figure 1.
GasControls/ControlCompartmentAccess
Thegascontrolscanbefoundontherighthand
side of the appliance.
On millivolt systems, the piezo ignitor, Hi/Lo
flameadjustmentknob,andpilotandmaingas
ON/OFF control knob are located on the right
sidel. On both millivolt and electronic systems
the gas valve is located on the right side of the
appliance. See
Figure 1.
Electronic Models -
Electronicmodelshaveamanually-modulated
gasvalve. Inputofelectronicmodelsisshown
in the following table:
Table 1 shows the units' gas orifice size for
theelevationsindicated.
Maximum manifold pressure is 3.5 in. w.c.
(0.87kPa)fornaturalgasand10in.w.c.(2.49
kPa) for LP/Propane gas.
Do not use these appliances if any part has
beenunderwater.Immediatelycallaqualified,
professional service technician to inspect the
appliance and to replace any parts of the
control system and any gas control which
have been under water.
Nepasseservirdecetappareils'ilaétéplongé
dansl'eau,complètementouenpartie. Appeler
untechnicienqualifiépourinspecterl'appareil
et remplacer toute partie du système de
contrôleettoutecommandequiontétéplongés
dans l'leau.
Test gage connections are provided on the
front of the millivolt gas control valve (identi-
fied OUT for the manifold side and IN for inlet
pressure. A ¹⁄₈" NPT test gage connection is
provided on the electronic gas control valve
adjacent to the outlet to the main burner.
Minimum inlet gas pressure to these appli-
ances is 5.5 inches water column (1.24 kPa)
for natural gas and 11 inches water column
(2.74kPa)forpropaneforthepurposeofinput
adjustment.
Table 1
Figure 1
Control Compartment Access -
Millivolt Control Valve Shown
These appliances must not be connected to a
chimney or flue serving a separate solid fuel
burning appliance.
Any safety guard or screen removed for ser-
vicingthe appliance mustbe replaced priorto
operating the appliance.
WARNING: FAILURE TO COMPLY
WITH THE INSTALLATION AND OPER-
ATING INSTRUCTIONS PROVIDED IN
THIS DOCUMENT WILL RESULT IN AN
IMPROPERLY INSTALLED AND OP-
ERATING APPLIANCE, VOIDING ITS
WARRANTY. ANY CHANGE TO THIS
APPLIANCE AND/OR ITS OPERATING
CONTROLS IS DANGEROUS. IM-
PROPER INSTALLATION OR USE OF
THIS APPLIANCE CAN CAUSE SERI-
OUS INJURY OR DEATH FROM FIRE,
BURNS, EXPLOSION OR CARBON
MONOXIDE POISONING.
WARNING: CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE HAZ-
ARDS OF HIGH SURFACE TEMPERA-
TURES. USE CAUTION AROUND THE
APPLIANCE TO AVOID BURNS OR
CLOTHING IGNITION. YOUNG CHIL-
DRENSHOULDBECAREFULLY SUPER-
VISED WHEN THEY ARE IN THE SAME
ROOM AS THE APPLIANCE.
WARNING: DO NOT PLACE CLOTH-
ING OR OTHER FLAMMABLE MATERI-
ALS ON OR NEAR THIS APPLIANCE.
AVERTISSEMENT: SURVEILLER LES
ENFANTS. GARDER LES VÊTEMENTS,
LES MEUBLES, L'ESSENCE OU AUTRES
LIQUIDES À VAPEUR INFLAMMABLES
LOIN DE L'APPAREIL.
htiwsledoMcinortcelE
evlaVsaGdetaludoM-yllaunaM
saGlarutaNsaGenaporP
.oNledoM
tupnI
etar
)H/UTB(
.oNledoM
tupnI
etar
)H/UTB(
04MSL 000,04 ot 000,05 04MSL 000,04 ot 000,05
54MSL 000,74 ot 000,06 54MSL 000,24 ot 000,55
Maximum inlet gas supply pressure to these
appliances is 10.5 inches water column (2.61
kPa) for natural gas and 13.0 inches water
column (3.23 kPa) for propane.
The appliance must be isolated from the gas
supply piping system (by closing its individual
manualshut-offvalve)duringanypressuretest-
ing of the gas supply piping system at test
pressuresequaltoorlessthan¹⁄₂ psig(3.5kPa).
Theappliance andits individualshut-off valve
must be disconnected from the gas supply
piping system during any pressure testing of
that system at pressures in excess of ¹⁄₂ psig
(3.5 kPa).
Piezo
Ignitor
Gas Valve
ON/OFF Switch
Access Plate
Right Side
Modesty Panel
Hi-Lo
Extension Knob
ledoM
.oN
ezisecifirO noitavelE
)sretem(teeF
.taN.porP
04MSL "5941.0 )52#( "680.0 )44#( 0054-0 )2731-0(
54MSL "161.0 )02#( "980.0 )34#(

4NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
CAUTION: DO NOT ATTEMPT TO TOUCH THE
FRONT ENCLOSURE GLASS WITH YOUR
HANDS WHILE THE FIREPLACE IS IN USE.
Figure 3
SIT Electronic Gas Valve
Figure 2
Maintenance
The appliance and venting system should be
thoroughly inspected before initial use and at
least annually by a qualified service techni-
cian. However, more frequent periodic in-
spectionsandcleaningsshouldbeperformed
bythehomeowner.Homeownermust contact
a qualified service technician at once if any
abnormal condition is observed.
Keepsidecontrolcompartmentcleanbyvacu-
uming or brushing at least twice a year. More
frequent cleaning may be required due to
excessivelintfromcarpeting,beddingmateri-
als, etc. It is important that control compart-
ments, burners and circulating air passage-
ways of the appliance be kept clean.
Alwaysturnoffgastothepilot(millivoltappli-
ances)beforecleaning.Beforere-lighting, re-
fer to the lighting instructions in this manual.
Instructions are also found on pull-out light-
inginstructionlabelsattachedtothegasvalve.
Always keep the appliance area clear and free
fromcombustiblematerials,gasolineandother
flammable liquids.
Remember, Millivolt appliances have a con-
tinuous burning pilot flame. Exercise caution
whenusingproductswithcombustiblevapors.
H
I
LO
W
TPTH TP TH
P
I
L
O
T
P
I
L
O
T
O
N
it
O
F
F
Variable Flame Height Adjustment
Manifold Pressure Port
Inlet Pressure Port
Main Gas
Control Knob
IN OUT
SIT Millivolt Gas Valve
WARNING: DO NOT USE ABRASIVE
CLEANERS. NEVER CLEAN THE GLASS
WHEN IT IS HOT.
Inlet Gauge Port
Pilot Adjustment Screw Hi-Lo Flame
Adjustment Knob
Manifold Gauge Port
HI
LO
After that the glass should be cleaned two or
three times during each heating season, de-
pending on the circumstances present.
Note: Clean glass after first two weeks of
operation.
Glass Cleaning
It will be necessary to clean the glass periodi-
cally. Duringstart-up itisnormal forconden-
sationto form on theinside of theglass. This
can cause lint, dust and other airborne par-
ticles to cling to the glass surface. Also initial
paint curing may deposit a slight film on the
glass. It is therefore recommended that the
glassbecleanedtwoorthreetimeswithanon-
ammonia household cleaner and warm water
(agasfireplaceglasscleanerisrecommended).
Electronic appliances are fitted with an ON/
OFFRockerSwitchforappliance ON/OFFcon-
trol. See
Figure 1 for its location.
Once the pilot is lighted, the ON/OFF rocker
switch will control the appliance ON/OFF op-
eration. To operate: Toggle the switch be-
tween its ON and OFF positions.
Ifyourelectronicapplianceisequippedwithan
optional remote wall switch or remote control
kittheappliancemainburnermaybeturnedon
and off with the wall switch or remote control.
Variable Flame Height Adjustment
Allappliancesareequippedwithavariablegas
control valve. Flame height for these models
may be adjusted through a range between
fixed low and high settings, alternately, while
the appliance is in operation.
Use the extension knob ( refertoFigure1 ), to
adjust the flame height as desired by sliding
the knob over the variable flame adjustment
knob located on the front of the valve ( referto
Figure2 ). Replace the extension knob back
to the hanger after the adjustment.
Operationofmillivoltandelectronicgascon-
trolsystemsaredifferent.Beforelightingand
operating your appliance determine if you
have a millivolt or electronic appliance.
RefertoFigure 1 foraccesstothegascontrol
valve. Millivolt appliances will be fitted with
the gas control valve shown in
Figure 2 .
Appliances with electronic systems will be
fitted with the electronic valve shown in
Figure 3 .Familiarize yourself with the gas
control valve that your appliance uses.
Millivolt Appliances -
To light millivolt appliances refer to the de-
tailedlighting instructionsfoundon
page 11 .
Millivolt appliance lighting instructions may
also be found on the pull out lighting instruc-
tion labels attached to the gas control valve.
Millivolt appliances are fitted with an ON/OFF
Rocker Switch for appliance ON/OFF control.
See
Figure 1 for its location. Once the pilot is
lighted, the ON/OFF rocker switch will control
the appliance ON/OFF operation. To operate:
Toggle the switch between its ON and OFF
positions.
If your millivolt appliance is equipped with an
optionalremote wallswitch orremote control
kit and the pilot is lit, the appliance main
burner may be turned on and off with the wall
switch or remote control.
Electronic Appliances -
To light electronic appliances refer to the de-
tailed lighting instructions found on
page 12
of these instructions respectively. Electronic
appliance lighting instructions may also be
found on the pull out lighting instruction
labels attached to the gas control valve.

5
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Periodically (After the Burning Season)
Maintenance Task Accomplishing Person Procedure
Cleaning Firebox Interior
Check Flame Patterns and Flame Height
Checking Vent System
Cleaning Front Glass Enclosure Panel
Homeowner
Homeowner
Homeowner
Homeowner
Carefullyremovelogsandrockwool. Vacuum
out interior of the firebox. Clean firebox
bottom and log grate. Replace logs and
Rockwool as detailed in this manual.
Maintenance Task Accomplishing Person Procedure
Inspecting/Cleaning Burner, Logs
and Controls
Check Flame Patterns and Flame Height
Inspecting/Cleaning Pilot and Burner
Checking Vent System
Appliance Checkout
Replacing Rockwool Ember Materials
Qualified Service Technician
Qualified Service Technician
Qualified Service Technician
Qualified Service Technician
Qualified Service Technician
Homeowner/Qualified Services Technician
Inspectvalve and ensureit isproperly operat-
ing. Check piping for leaks. Vacuum the
controlcompartment,fireplacelogsandburner
area.
Refer to
Figures 6 (LSM40) or 7 (LSM45)
on page 7
and verify the flame pattern and
heightdisplayed bythe applianceconforms
to the picture. Flames must not impinge on
the logs.
Refer to Figure 8 (Millivolt) or Figure 9 (Elec-
tronic) on page 8 .Removeanysurfacebuild-up
on pilot and burner assembly. Wipe the pilot
nozzles,ignitor/flamerodandhood. Ensurethe
pilot flame engulfs the flame sensor as shown.
Inspect the vent system at the top and at the
base(within thefirebox)for signsofblockage
orobstruction. Lookfor any signsof disloca-
tion of the vent components.
Perform the appropriate appliance checkout
procedure detailed in this manual.
Remove old ember materials and vacuum the
rockwoolplacementarea. Placenewrockwool
as described in this document.
Maintenance Schedule
Annually (Before the onset of the Burning Season)
Clean as necessary following the directions
providedinthismanual. DO NOT TOUCH OR
ATTEMPT TO CLEAN GLASS WHILE HOT.
Inspect the vent system at the top and at the
base (within the firebox) for signs of block-
age or obstruction. Look for any signs of
dislocation of the vent components.
Refer to Refer to
Figures 6 (LSM40) or 7
(LSM45) on page 7 and verify the flame
patternandheightdisplayedbytheappliance
conforms to the picture. Flames must not
impinge on the logs.
