Introduction
INJ-IG02-PH(E) is an industrial grade, single port, gigabit Ethernet
PoE (Power over Ethernet) injector that can pass electrical power safely,
along with data, on Ethernet cabling. Unlike standard PoE compliant
devices, INJ-IG02-PH(E) can feed PoE power when the device is powered
up and provide up to 60W through non-standard use of all 4 pairs of
category 5 cable.
Housed in a rugged DIN rail or wall mountable enclosure, this
product is designed for harsh environments, such as industrial
networking, intelligent transportation systems (ITS) and is also suitable
for many military and utility market applications where environmental
conditions exceed commercial product specifications. Standard
operating temperature range models (-10°C to 60°C) and wide operating
temperature range models (-40°C to 75°C) fulfill the special needs of
industrial automation applications.
Package List
•INJ-IG02-PH(E) device
•Terminal block
•Din Rail with screws
Features
•Provide one-port PoE
•Provide power up to 30W (2 pair mode) and 60W (4 pair mode)
•48VDC (44VDC~57VDC) input power
•Smart LED indication
•Support current-overloading protection for PoE application
•Industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4
•Wide operating temperature range -40°C~75°C (INJ-IG02-PHE)
•IP30 rugged metal housing

6
Specifications
Ethernet Interface
•Standards: IEEE 802.3, 802.3u, 802.3ab
•Data input: Cat. 5e (or above) RJ-45 (shielded) 10/100/1000M x 1
•Data + PoE output: Cat. 5e (or above) RJ-45 (shielded) 10/100/1000M
x 1
Power
•48VDC (44VDC~57VDC) input power
•Reverse polarity protection: Yes
•Overload protection: Yes
•Connector: terminal block
•PoE Power Output: 30W (2 pair), 60W (4 pair)
•Power Consumption:
PoE Mode
Power Consumption
In 30W Mode
(2 Pair)
In 60W Mode
(4 Pair)
Input Power Consumption
(Input 48VDC)
31.2W
61W
Output Power
30W
60W
Mechanical
•Water & Dust Proof: IP30 Protection
•Dimensions: 70 mm (D) x 30 mm (W) x 103 mm (H)
•Mounting: DIN-Rail, Wall Mount (Optional)
•Weight: 210 g
Environmental
•Operating Temperature: -10°C~60°C (INJ-IG02-PH); -40°C~75°C (INJ-
IG02-PHE)
•Storage Temperature: -40°C~85°C
•Humidity: 5%~95% (Non-condensing)

7
Certifications
•EMC: CE
•EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE
•Railway Traffic: EN50121-4
•Immunity for Heavy Industrial Environment: EN61000-6-2
•Emission for Heavy Industrial Environment: EN61000-6-4
•EMS (Electromagnetic Susceptibility) Protection Level:
➢EN61000-4-2 (ESD) Level 3, Criteria B
➢EN61000-4-3 (RS) Level 3, Criteria A
➢EN61000-4-4 (Burst) Level 3, Criteria A
➢EN61000-4-5 (Surge) Level 3, Criteria B
➢EN61000-4-6 (CS) Level 3, Criteria A
➢EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m,
Criteria A
•Shock: IEC 60068-2-27
•Freefall: IEC 60068-2-32
•Vibration: IEC 60068-2-6
MTBF (MIL-HDBK-217)
•463,016 Hours

8
Panels
No.
Description
1
Gigabit Ethernet LAN port
2
Gigabit Ethernet & PoE LAN port
3
LED indicators
4
Terminal block
5
Grounding connection
6
Grounding sign
Figure 1. Front Panel
7
Figure 2. Top Panel
2
8
1
4
6
3
4
5

9
Connectors
INJ-IG02-PH(E) has two standard shielded RJ-45 connectors for
Ethernet cable connections. The connector labeled GbE (Data input) will
connect to Ethernet switch, while the connector labeled GbE+PoE (Data
+ PoE output) will connect to PoE PD device such as IP Camera, Access
Point, IP Phone, Digital Signage or any other PoE power device.
WARNING: “GbE+PoE”port will always provide power when the device is powered
up. This port is used to connect to PoE PD device. DO NOT connect this port to any
non-PoE PD devices; otherwise, this may cause damages to this device or result in
short circuit.

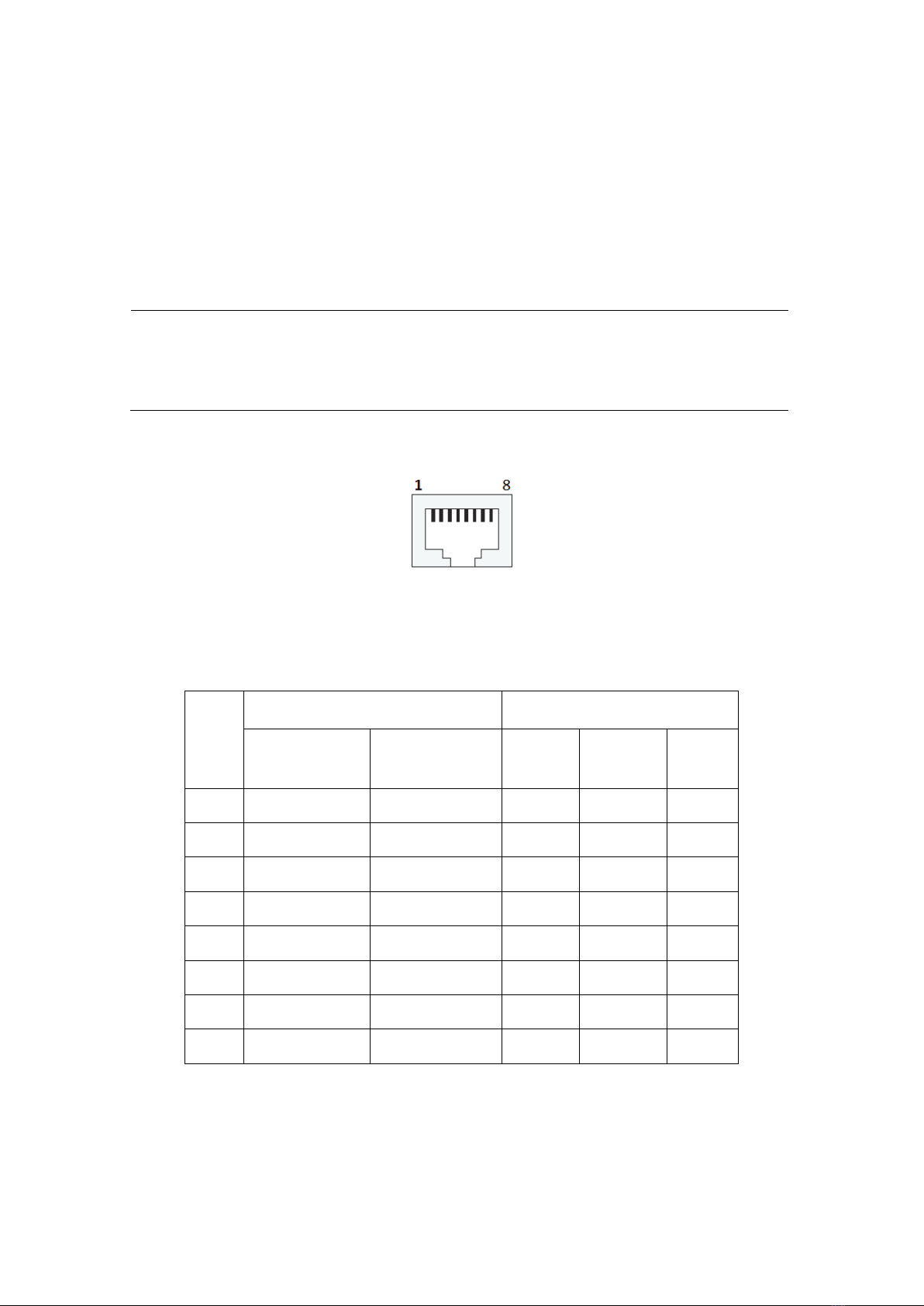

RJ-45 Ethernet Port Pinouts
Figure 3. RJ-45 Ethernet Port Pinouts
RJ-45 Ethernet & PoE Pin Assignments
Pin
No.
RJ-45 Ethernet
PoE Output
100Base-TX
1000Base-T
2 Pair/
Alt A
2 Pair/
Alt B
4 Pair
1
RX+
TRD 0+
V+
V+
2
RX-
TRD 0-
V+
V+
3
TX+
TRD 1+
V-
V-
4
-
TRD 2+
V+
V+
5
-
TRD 2-
V+
V+
6
TX-
TRD 1-
V-
V-
7
-
TRD 3+
V-
V-
8
-
TRD 3-
V-
V-

10

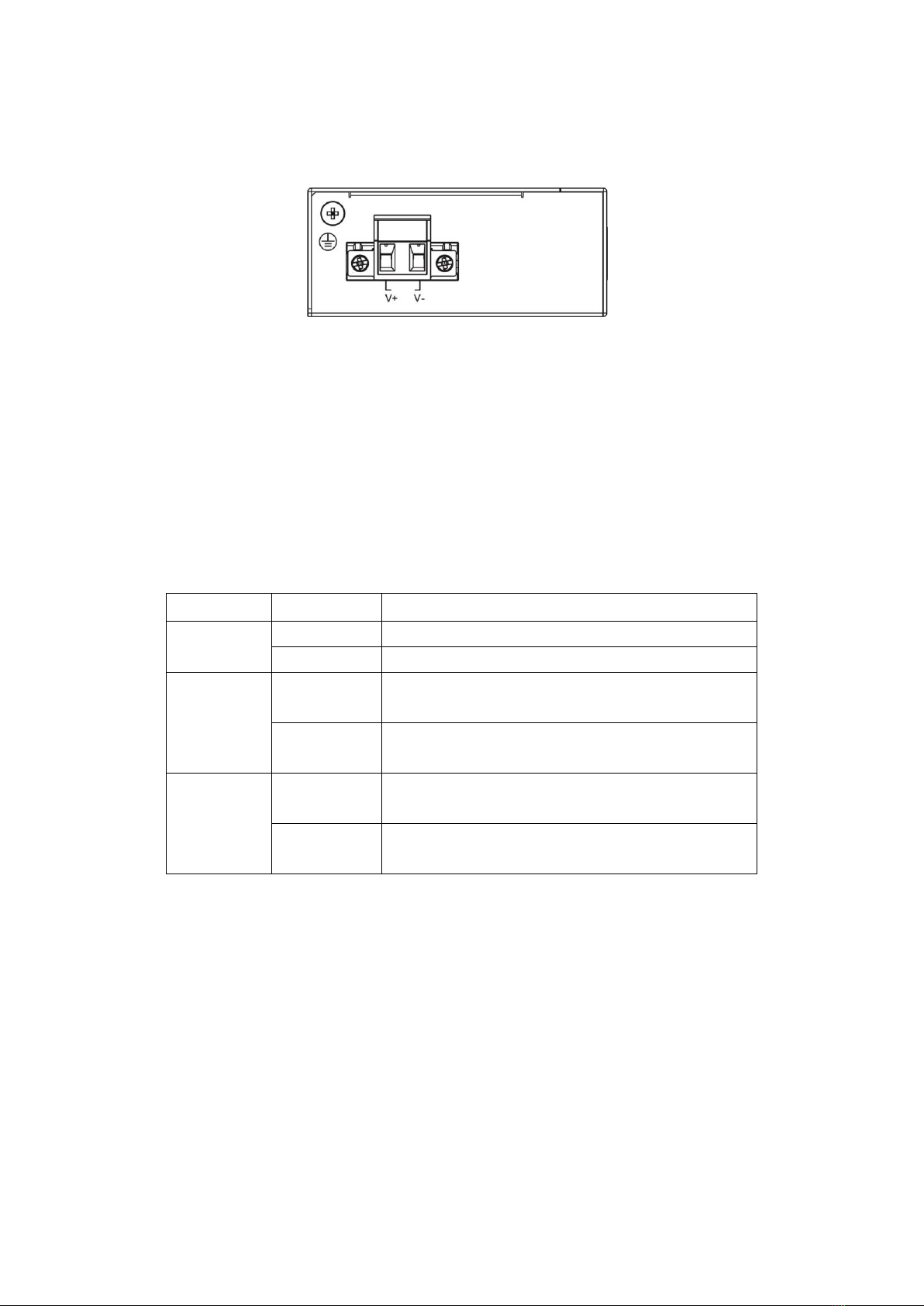

Power Connection
Figure 4. Terminal Block
INJ-IG02-PH(E) is powered up by an external power supply
(44VDC~57VDC). To connect to the power supply, insert V+ and V- wire
into power contacts. Then, tighten the wire-clamp screws to prevent
power wires from loosening. If the power supply is connected correctly,
then the PWR LED on the front panel will light in green.
LED Indicators
LED
Color
Description
PWR
Green
Lit if power is connected and active.
Off
Power is not connected.
Alt A/PoE
Green
Feed PoE power normally (1&2, 3&6 wire
pairs).
Off
Power is not connected or under
abnormal condition.
Alt B/PoE
Green
Feed PoE power normally (4&5, 7&8 wire
pairs).
Off
Power is not connected or under
abnormal condition.

11
Installation

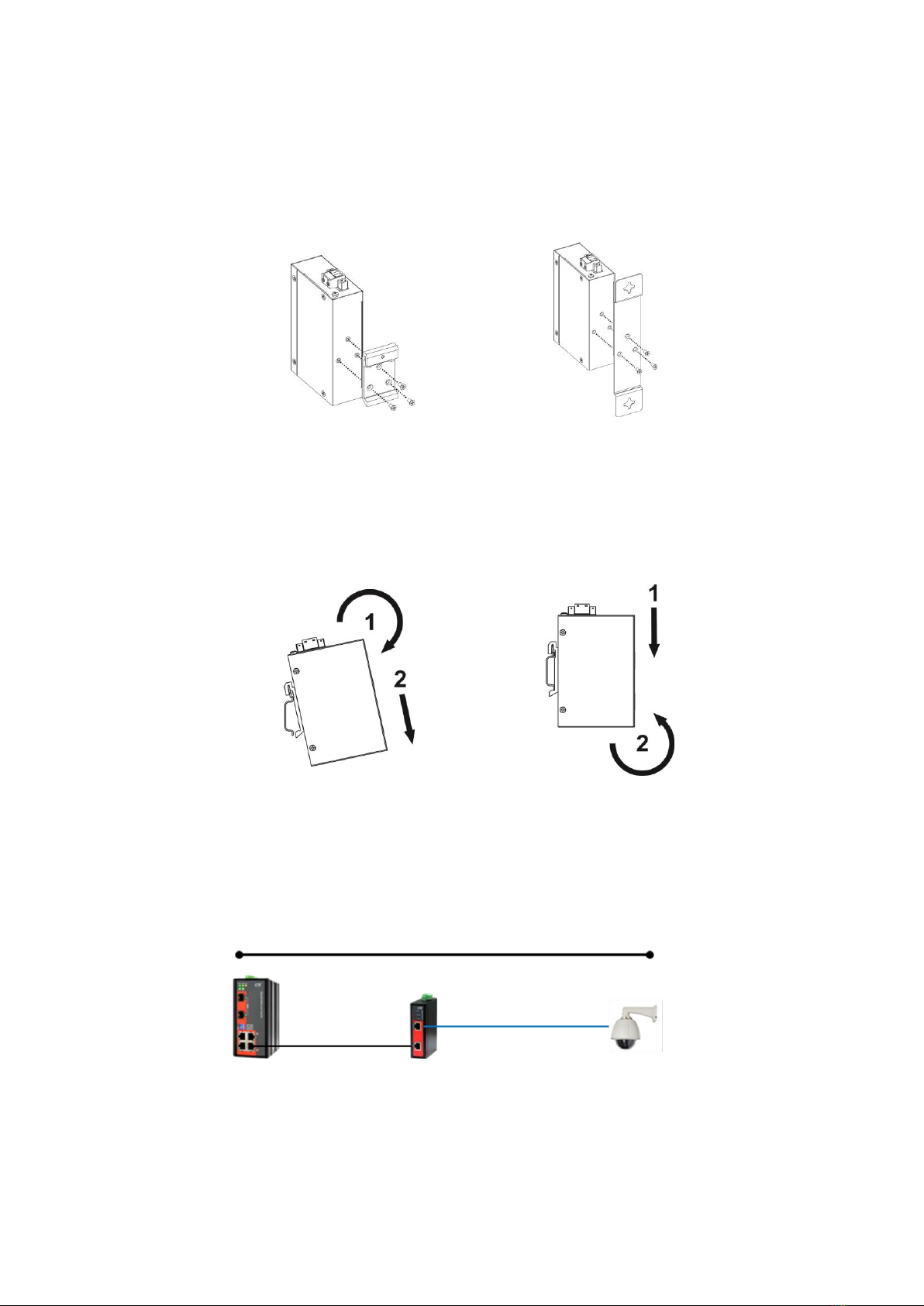

The injector comes with both wall mount and DIN rail hardware
brackets. When installing the DIN rail bracket, be sure to correctly align
the orientation pin.
Figure 5. DIN Rail Figure 6. Wall Mounting
The injector with DIN Rail bracket has a steel spring in the upper
rail of the bracket. This spring is compressed for mounting and un-
mounting by applying downward force.
Figure 7. Mounting Figure 8. Un-mounting
Application
Figure 9. Injector Application
Non-PoE
Ethernet Switches
Up to 330 feet or 100 meters
INJ-IG02-PH(E)
PoE PD Device
Data
Data +
30W or 60W PoE

12
Version
Date
Description
1.1
2020/10/30
Use new document format
