Installation and Maintenance Manual
CTC Hot Water Storage Tanks
IMPORTANT
• Read carefully before use, keep for future reference
• Translation of the original instructions.

Installation and Maintenance Manual
CTC Hot Water Storage Tanks

Table of Contents
Safety instructions _______________________________________________________ 9
1. Important to remember! ____________________________________ 10
1.1 Transportation__________________________________________________ 10
1.2 Positioning ______________________________________________________10
1.3 Recycling ________________________________________________________10
1.4 After commissioning_________________________________________ 10
2. Operation and Maintenance _____________________________ 11
3. Removing and fitting insulation________________________ 12
4. Pipe installation__________________________________________________ 13
5. CTC Hot Water Storage Tank 2.300 ________________ 14
6. CTC Hot Water Storage Tank 2.500 (3 bar) ____ 15
7. CTC Hot Water Storage Tank 2.500 (6 bar) ____ 16
8. CTC Hot Water Storage Tank 2.750 (3 bar) ____ 17
9. CTC Hot Water Storage Tank 2.750 (6 bar) ____ 18

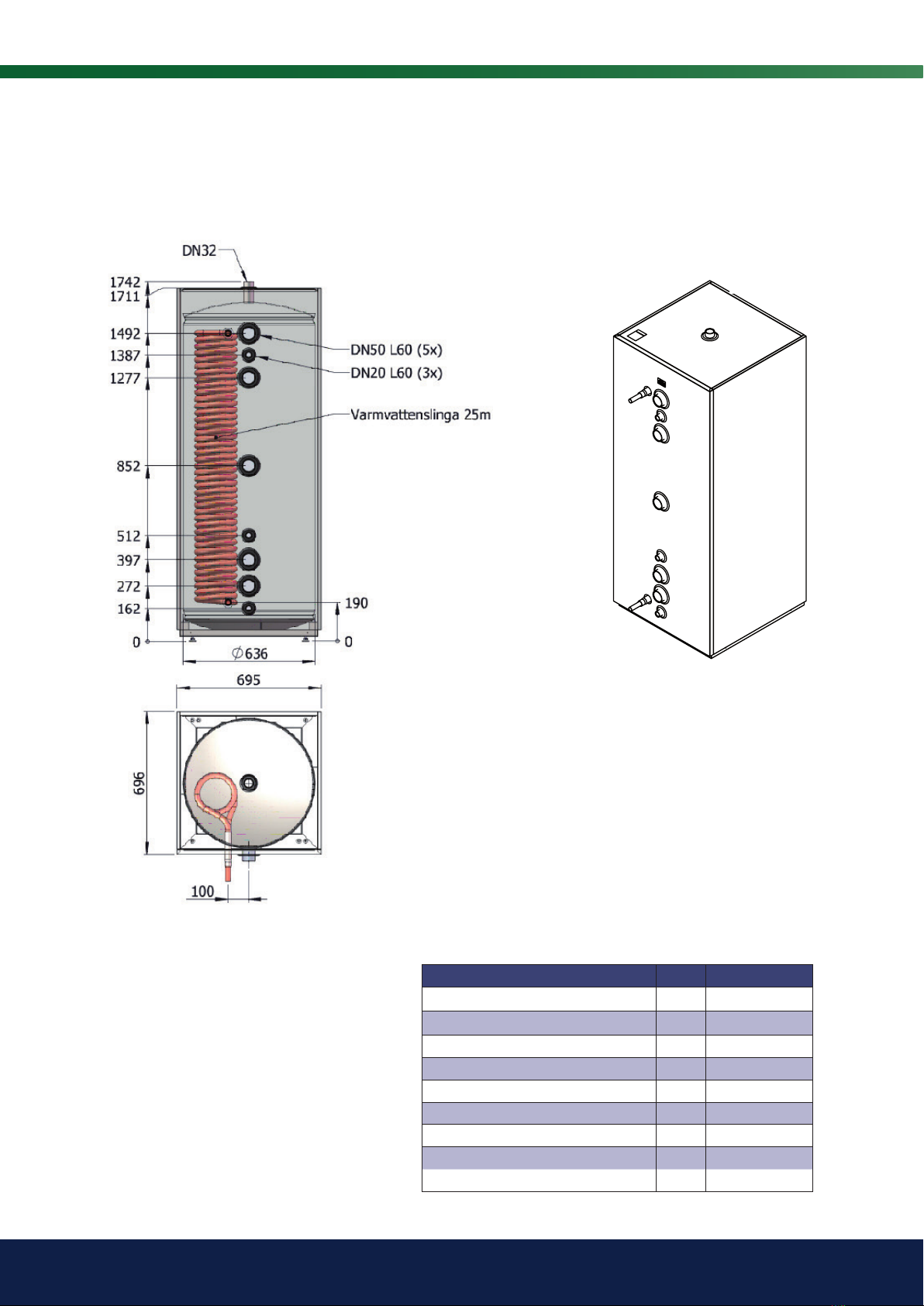

10. CTC Hot Water Storage Tank 1.300/20 __________ 19
11. CTC Hot Water Storage Tank 1.500/25 __________ 20
12. CTC Hot Water Storage Tank 1.500/50 (3 bar)21
13. CTC Hot Water Storage Tank 1.500/50 (6 bar)22
14. CTC Hot Water Storage Tank 1.750/50 (3 bar) 23
15. CTC Hot Water Storage Tank 1.750/50 (6 bar)24
16. CTC Hot Water Storage Tank 1. 750/75 (3 bar)25
17. CTC Hot Water Storage Tank 1.750/75 (6 bar)26
Warranty conditions___________________________________________________ 27
No liability is accepted for any misprints. Subject to design changes.
For your own reference
Fill in the information below. It may come in useful if anything should happen.
Product: Manufacturing number:
Installer: Name:
Date: Tel. no.:

Checklist
The checklist must always be completed by the installation engineer
• In the event of servicing, this document may need to be provided
• Installation must always be carried out according to the Installation and Maintenance Instructions
• Installation must always be carried out according to professional standards
Following installation, the unit must be inspected and functional checks performed as
indicated below:
Pipe installation
The system filled, positioned and adjusted according to professional standards and the instructions
Product placed to facilitate service
Pumps, valves, etc. sized according to required flows
System tested for leakage and correctly sealed
Bleeding performed (subsequent bleeding may be necessary)
Safety equipment fitted and inspected/functionally tested
Overflow pipes from safety valves routed to floor drain
Tank system flushed with cold freshwater as per these instructions
Secondary visit to inspect seals and check that system bleeding performed
Electrical installation
Safety switch installed
Cable routing correct according to applicable regulations
Correct fuse installed (group fuse)
Information provide to customer (according to the specific installation)
Start-up with customer/installer
Review of heating unit connected to the tank system
Installation and Maintenance Manual given to the customer
Check and filling, heating circuit
Fine-tuning information, valve settings, etc.
Information about operational disruptions and appropriate measures
DHW mixing valve placement and settings
Safety valve function test
Warranties and insurance
Installation verification/warranty filled in and posted
Information and procedures for reporting faults
______________________________________ ______________________________________
Date/Customer Date/Installer
!If these instructions are not followed when installing, operating and maintaining
the system, Enertech’s obligation under the applicable warranty terms is not bind-
ing

8CTC Hot Water Storage Tanks
Congratulations on your new product!
You have just purchased a CTC Hot Water Storage Tank, which we hope you will be very pleased with.
CTC’s Hot Water Storage Tanks are coil tanks and volume tanks of 300-750 litres and are designed for almost
all types of energy sources. They are available in several models and sizes, and can also be combined to fit most
heating systems and properties.
All the tanks are well-insulated with polyurethane for the lowest possible energy loss.
CTC Hot Water Storage Tank 1 is a series of coil tanks for efficient DHW heating. DHW heating is via finned copper
coils, which are heated by the radiator water in the tank.
CTC Hot Water Storage Tank 2 is a series of volume tanks that can be connected together to achieve the desired
storage volume.
A hot water storage tank is necessary for wood boilers in order to store energy, since wood boilers often produce
more energy than can be consumed at any given time. The size of the tank depends on the size and type of wood
boiler installed.

9CTC Hot Water Storage Tanks

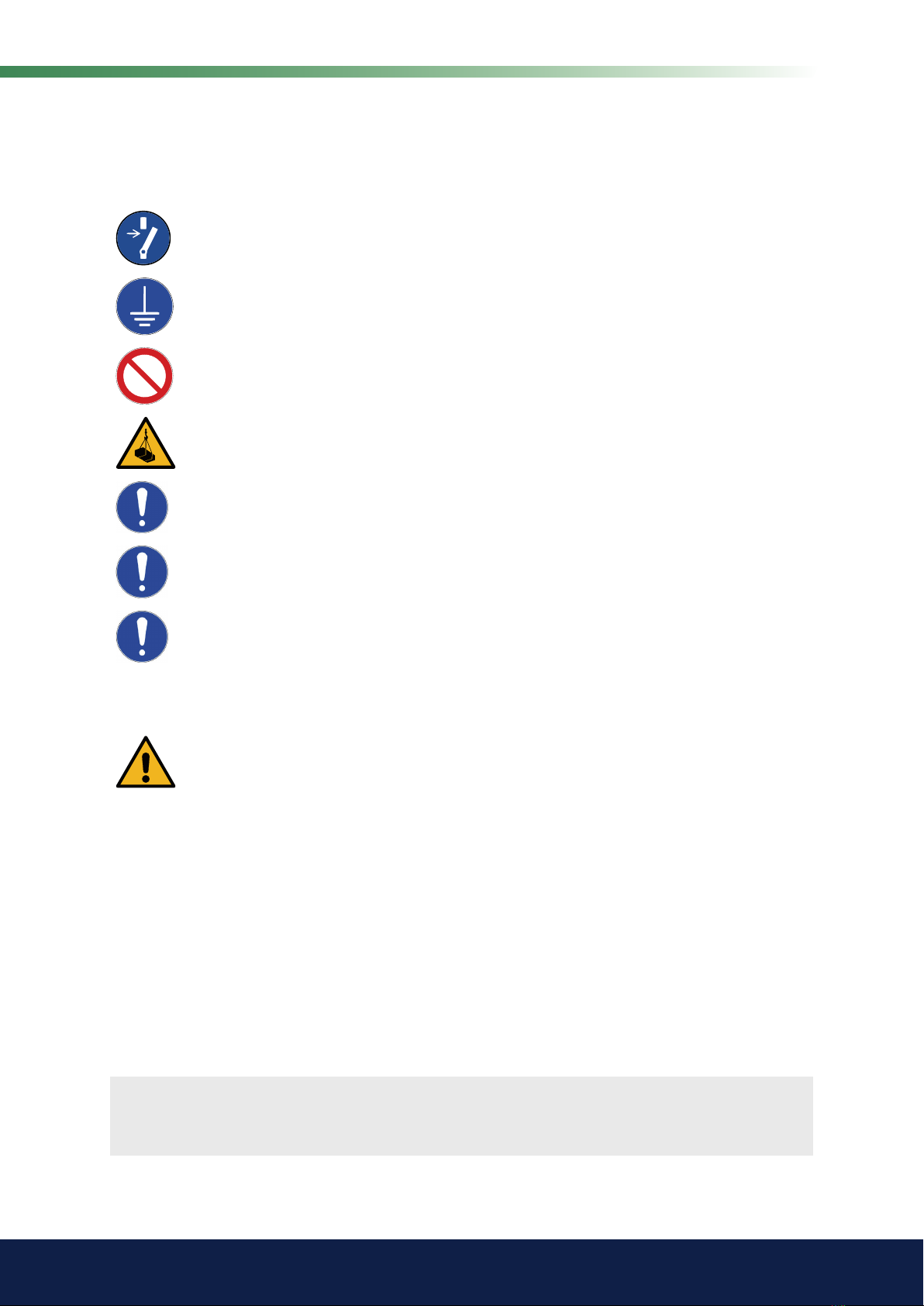

Säkerhetsföreskrifter
Bryt strömmen med allpolig brytare före alla ingrepp i produkten.
Produkten måste kopplas till skyddsjord
Produkten klassas som IPX1. Produkten får ej spolas med vatten.
Vid hantering av produkten med lyftögla eller liknande se till att lyftdon, öglor
och övriga delar är oskadade. Vistas aldrig under upphissad produkt.
Ingrepp i produkten får endast utföras av behörig person.
Kontroll av säkerhetsventil:
-Säkerhetsventil för panna/system och tappvarmvatten ska kontrolleras
regelbundet.
Denna apparat kan användas av barn från 8 års ålder och uppåt, samt personer
med nedsatt fysisk, sensorisk eller mental förmåga, brist på erfarenhet eller
kunskap, om de under överseende eller med givna instruktioner fått kunskap om
hur apparaten används på ett säkert sätt och förstår riskerna det medför. Barn
ska inte leka med apparaten. Rengöring och underhåll ska inte utföras av barn
utan överseende.
Om denna anvisning ej följs vid installation, drift och skötsel är Enertech:s
åtagande enligt gällande garantibestämmelser ej bindande
!Information i denna typ av ruta [!], är extra viktig för korrekt installation och
användning av produkten.
Safety instructions

10 CTC Hot Water Storage Tanks
1. Important to remember!
Check the following in particular on delivery and installation:
1.1 Transportation
• Transport the CTC Hot Water Storage Tank to the installation site before
removing the packaging. The product must be transported and stored in an
upright position.
• Handle the CTC Hot Water Storage Tank in one of the following ways:
–Forklift
–Lifting eye which is fitted in the sleeve in the middle of the top of the tank.
–Lifting strap around the pallet. NB: Can only be used with the packaging
on. Remember that the product has a high centre of mass and should be
handled with caution.
1.2 Positioning
• Remove the packaging and check before installation that the product has not
been damaged in transit. Report any transport damage to the carrier.
• Place the product on a solid surface, preferably concrete foundation, and
stabilise using the adjusting screws at the bottom of the tank. Models without
adjustment screws can be stabilised with spacers. This must be done before
connecting the hot water storage tank to piping and before it is filled with water.
If the product needs to be placed on a soft carpet, base plates must be
placed under the adjustable feet.
• Remember to leave an open area of at least 1 metre in front of the product for
servicing. Space is also needed around the product for fitting insulation and the
top panel.
• The product must not be placed below floor level.
• Connections that are not being used must be appropriately plugged. During water
filling, condensation may occur on the tank exterior. This may be visible as water on
the floor underneath the tank. This condensation will stop once the tank is heated.
The floor drain must be located in the same area.
1.3 Recycling
• The packaging must be deposited at a recycling station or with the installation
engineer for correct waste management.
• Obsolete products must be disposed of correctly and transported to a waste
station or distributor/retailer offering this service.
Do not discard the product with household waste.
1.4 After commissioning
• The installation engineer advises the property owner on the construction and
servicing of the system.
• The installer completes a checklist and provides contact information – the
customer and installer engineer sign the list, which is kept by the customer.
• Make sure to register for warranty and insurance on the CTC website: www.
ctc.se/registrera-din-installation-for-garanti/
!The product must
be transported and
stored in an upright
position.

11CTC Hot Water Storage Tanks
2. Operation and
Maintenance
Once CTC Hot Water Storage Tank has been installed, you and your installer
should together check that the system is in perfect operating condition. Let the
installer show you how the system works and how it should be maintained. Bleed
the radiators after approximately three days of operation and refill the water if
necessary.
Pressurise before filling the radiator system (surrounding water). The operating
pressure must not exceed the pressure indicated on the rating plate. A safety valve
must always be equipped.
Safety valve for tank and heating circuit
Check regularly that the valve is working properly by manually turning the valve
knob so that water comes out. Check that water is coming out of the overflow
pipe. The overflow pipe outlet must always be open. Hot water can drip from the
safety valve.
Regularly check all connections for any leaks (including peripheral equipment such as
the boiler, etc.).
Draining the tank
The tank must be disconnected from power when it is being drained. The drain
valve can be connected directly onto one of the lower connections, if one is free,
or to a low lying pipe. When draining the whole system, the mixing valve must be
fully open, i.e. turned anticlockwise as far as it will go. Air must be supplied to the
closed system.
Downtime
If there is a risk of the water freezing when the system is not in use, all the water
must be drained from the tank and the radiator system. The DHW coils, which
hold approx. 6 litres, are emptied by feeding a hose all the way down the cold
water connections and then siphoning out the water.
Noise
Sudden pressure changes in the tap water system may cause noise. This is due
to pressure surges which occur when, for instance, an older type of single-lever
mixer is closed suddenly. The fault is not in the CTC Hot Water Storage Tank,
and the problem can be easily rectified by replacing the mixer with a soft-closing
one. If an unusual sound comes from hard-closing dishwasher and washing
machines, this can be remedied using a shock arrestor. A shock arrestor can also
be an alternative to soft-closing water taps. Minimising pressure surges benefits
the whole of the tap water system throughout the property.
If you hear a rasping sound from the product, check that it has been properly
bled. Turn the boiler safety valve so that any air can be evacuated. Top up with
water where required, so that the correct pressure is achieved. If this noise
recurs, call a technician to check the cause.

12 CTC Hot Water Storage Tanks

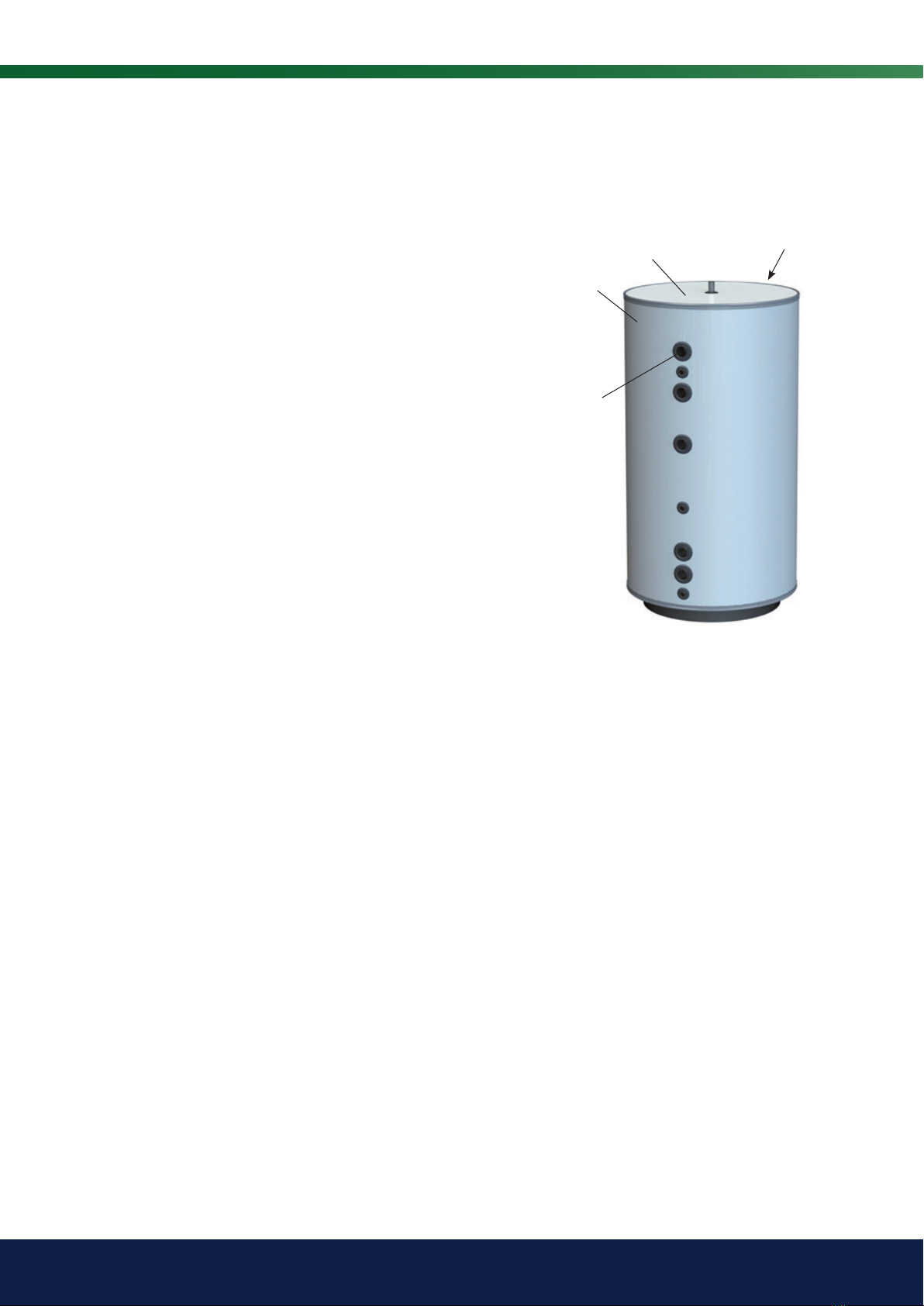

3. Removing and fitting
insulation
These instructions apply to the following hot water storage tank models: 2.
4.
3.
1.
• CTC Hot Water Storage Tank 1. 500/50 (6 bar)
• CTC Hot Water Storage Tank 1. 750/50
• CTC Hot Water Storage Tank 1. 750/75
• CTC Hot Water Storage Tank 2. 750
It takes 2 people to remove and fit the insulation.
Removal
1. Remove the cover trays (1) around the sleeves.
2. Release the clamps (2) on the back of the tank, carefully open the
hook-and-loop fasteners. Remove the clamp from the hook upside
down.
3. Hold the panel (3) and go around the tank in each direction, making
sure that the insulation comes off properly and is not snagged around
the sleeves. Carefully lay it down with the insulation facing upwards.
4. Remove the top panel (4).
Fitting
1. Fit the top panel.
2. Lift up the panel carefully and go around the tank. While one person
holds the panel on the back of the tank, the other person goes to the
front and gently pushes the insulation panel over the sleeves.
3. Attach the clamp to the hook upside down, but do not fasten yet. Start
from the front in the middle of the tank and go in each direction, while
pressing the insulation against the tank so that the hook-and-loop
fasteners attach to each other. Press the strip to the top panel. Start at
the front and work your way around. Tap lightly with a plastic hammer
so that the panel fits correctly into the strip’s groove.
4. Tighten the buckle, make sure that the strip is straight and does not
twisted, then tighten the lower one in the same way.
5. Refit the cover washers.

13CTC Hot Water Storage Tanks
4. Pipe installation
The installation must be carried out in accordance with current heating
and DHW standards. See BBR (Boverkets Byggregler) and DHW
Recommendations (Varm- och hetvattenanvisningar (VVA 1993)). The product
must be connected to an expansion vessel in an open or closed system. Do
not forget to flush the radiator system before connection.
Connections, placement and dimensions
Refer to each product’s Technical Data.
Pipe connections on the unit
If annealed piping is used, support sleeves must be fitted.
Mixing valve
Install a mixing valve for the hot tap water in order to avoid the risk of scalding.
Safety valves
Safety valves for the tap water circuit and boiler are included with delivery.
Connect the overflow pipes to the floor drain directly or, if the distance is more
than two metres, to a funnel. Water may drip from the overflow pipe. It must
therefore slope towards the floor drain, be installed frost-free and left open/
without pressure.
Filling valve – heating circuit
Fit a filling valve between the cold water connection and the radiator return
pipe, or between the cold water pipe and the expansion pipe.
Drainage valve
Fit the drainage valve to one of the CTC Hot Water Storage Tank’s lower
connections. The drainage valve can also be fitted into a low lying pipe.
Manometer – system pressure
Fit a manometer to the expansion pipe or radiator return pipe.
Expansion vessel connection
Adjust the expansion vessel to the appropriate pre-pressure for the property.
This must be done before the system is filled with water.
If an open expansion vessel is used, the distance between the expansion
vessel and the highest placed radiator must not be below 2.5 m, in order to
avoid introducing oxygen into the system.
Insulation
For optimal efficiency, make sure that after installation all pipe parts,
connections and used and unused plugged connections are insulated. Use
insulation components and supplement these with Armaflex insulation with a
minimum thickness of 10-15mm or equivalent. Make sure the insulation at
the connections reaches all the way to the hot water storage tank insulation
and that it has no gaps, so as to prevent any loss of heat.
!The safety valve’s
opening pressure
is determined by
the component in
the system which
tolerates the lowest
pressure.

14 CTC Hot Water Storage Tanks

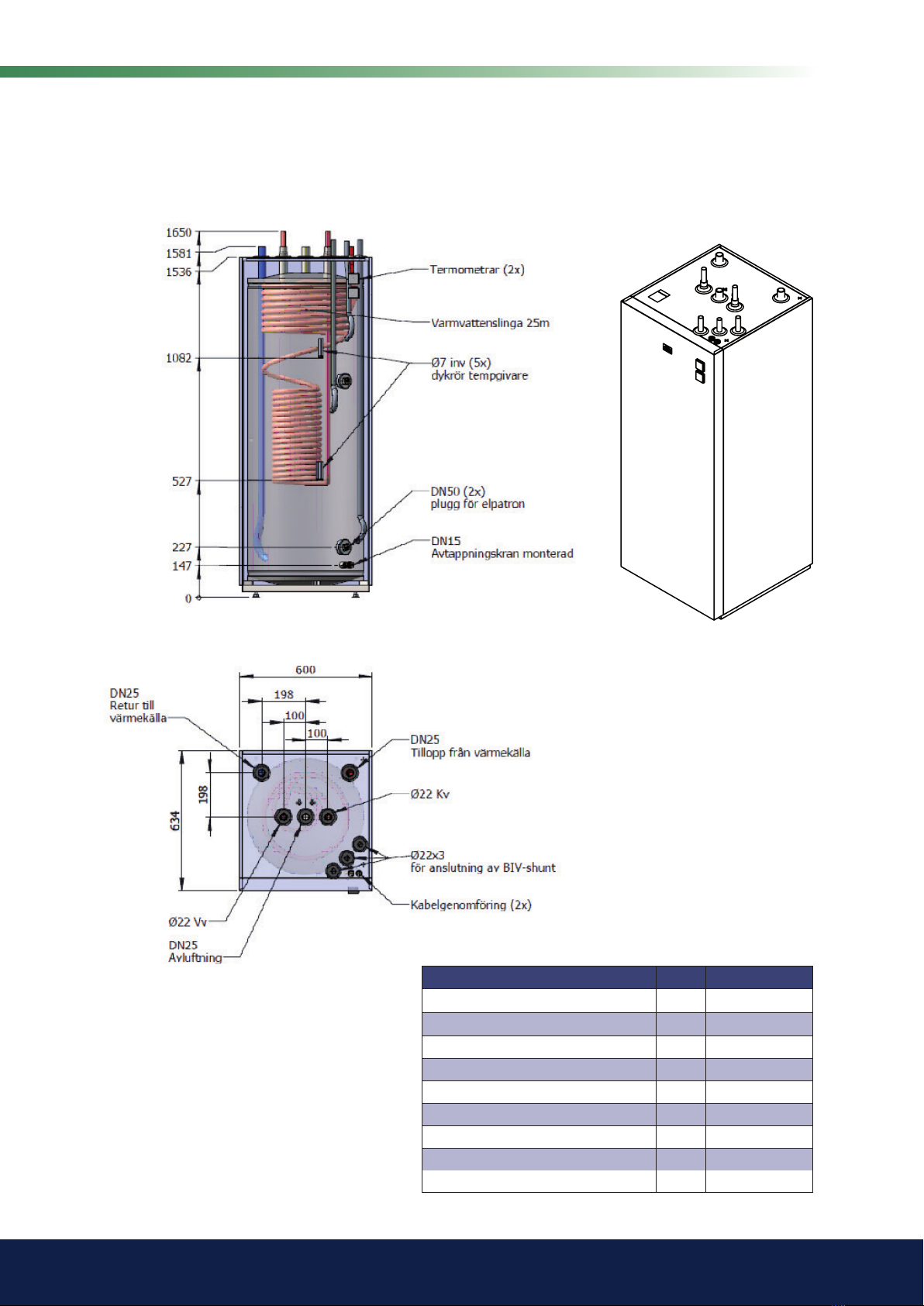

5. CTC Hot Water Storage Tank 2.300
Article number 588354301
Width mm 600
Depth mm 634
Height (max) mm 1575
Operating pressure (max) bar 3
Test pressure bar 4.3
Operating temp (max) ºC 100
Weight kg 91
Ceiling height mm 1665
E
art. nr
Utgåva
Ämnes nr
Ersätter
art. nr
Ersättes av
Grupp
Produkt
Reg. nr
Benämning
Tol.system
Kontr.
Normgr.
Skala
Ritad
Material
Datum
Sign.
Distr till/Antal
Ytjämnhet RA
Godk. prod
Om ej annat angives gäller ovanstående
Denna ritning är Enertech AB's egendom. Den får ej användas till skada för företagets intressen.
Diese Zeichnung ist das Eigentum der Enertech AB und darf nicht zum Scha- den dieser Gesellschaft verwendet werden.
This drawing is the property of Enertech AB and is not to be used against the interest of this com- pany
1:1
JJ
2017-09-11
CTC Ackumulatortank 2. 300
Tankar
5588354
JA
blad 2/3
A
65
111
Manufacturing label
100
DETAIL A
SCALE 1 : 10
Dimensions 60 x 80
Dimension 298 x 150 mm
Packing label
Manufacturing label
Panna / Boiler: 3BAR / 0,3MPa
Panna / Boiler : 300L
100 °C
7313-1725-0010
Drifttryck / Operating pressure (PS)
Vattenvolym / Water Volume (V)
Beräkningstemp / Calc. temp l (TS)
Serie. nr: / Serial no:
ART NR / UTG
Benämning / Designation:
Modell / Model : TIDA-300L/A Volymtank
CTC Ackumulatortank 2. 300
BoRö AB
Bangårdsvägen 1
SE-952 31 Kalix
SWEDEN
Typ / Type: TIDA-300L/A Volymtank
588354301
CTC Ack.tank 2. 300
GTIN NR: RSK NR:
Made in Sweden Enertech AB, Näsvägen 8, Ljungby
Made in Sweden by
STAPLING FÖRBJUDET
DO NOT STACK
For more detailed technical information, such as materials and tolerances etc., see Borö drawing. TIDA-300L/A Volymtank
Technical Data
:
Borö AB is responsible for the correct technical data on decals
Borö AB is responsible for assuming stackable allowable products
CTC Emblem
:
Enertechs part nr for CTC Emblem is
584233301
and
positioned according to drawing
Barcode 128 (OBS streckkoden måste göras om på
etiketter och kan ej plockas från ritningen)
Serial nr: 354389
4
5
5
Optional delivery performance from Enertech AB
1 pc. Manual
163 274 01
"
CTC PKT Ackumulatortankar 6 bar-en
"
Delivery performance
:
4 pcs packing label, one on each side
1 pc. Manual
162 601 13-1 "Instruktions och skötselanvisning CTC Ack. tankar"
1 pc. Energy label according to (EU) No 812/213
Pallet and packaging must be designed so that the entire product is
contained within the packaging
Ändr. meddel. Datum Nr Ändring Ritad av: Kontr. av:
00253 2020-12-16 4 Barcode för Serienummer tillkom. JJ SJ
00259 2021-04-09 5
Ny Manual och 16260113-01 ersatte 162 401 49-1. "Optional delivery
performance" tillkom
JJ SJ
Borö art nr: 304-588354301-E17
Enertech art nr: 588354301
RSK nr: 6519840
GTIN nr: 7333077084578
E
art. nr
Utgåva
Ämnes nr
Ersätter
art. nr
Ersättes av
Grupp
Produkt
Reg. nr
Benämning
Tol.system
Kontr.
Normgr.
Skala
Ritad
Material
Datum
Sign.
Distr till/Antal
Ytjämnhet RA
Godk. prod
Om ej annat angives gäller ovanstående
Denna ritning är Enertech AB's egendom. Den får ej användas till skada för företagets intressen.
Diese Zeichnung ist das Eigentum der Enertech AB und darf nicht zum Scha- den dieser Gesellschaft verwendet werden.
This drawing is the property of Enertech AB and is not to be used against the interest of this com- pany
1:20
JJ
2017-09-11
CTC Ackumulatortank 2. 300
Tankar
5588354
JA
blad 1/3

15CTC Hot Water Storage Tanks

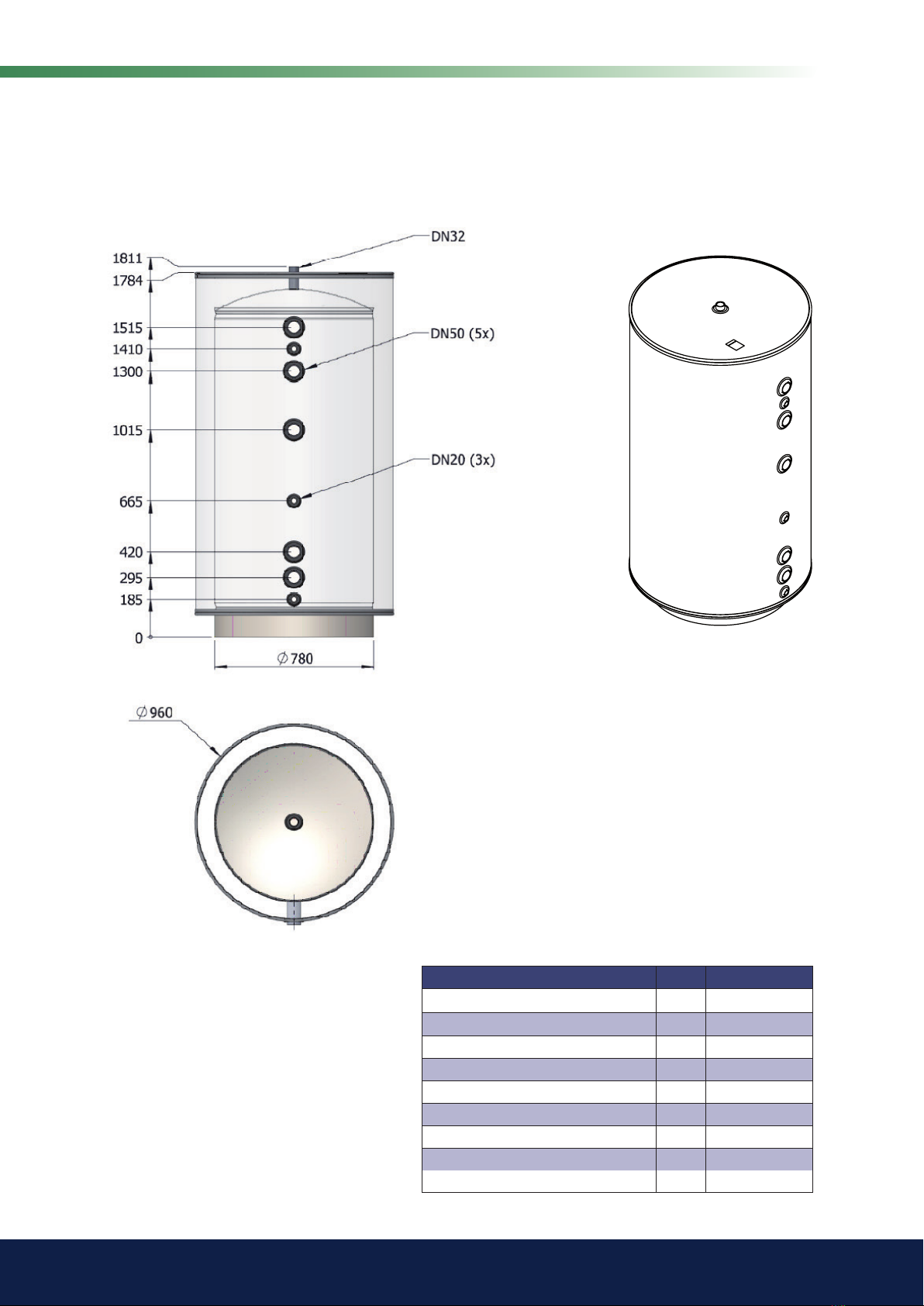

6. CTC Hot Water Storage Tank 2.500
(3 bar)
100
50
50
Manufacturing label
For more detailed technical information, such as materials and tolerances etc., see Borö drawing. TIV 500L FA
Dimensions 60 x 80
Dimension 298 x 150 mm
Packing label
Manufacturing label
Barcode 128 (OBS streckkoden måste göras om
på ettiketteroch kan ej plockas från ritningen)
Panna / Boiler: 3BAR / 0,3MPa
Panna / Boiler : 500L
100 °C
7313-1725-0010
Drifttryck / Operating pressure (PS)
Vattenvolym / Water Volume (V)
Beräkningstemp / Calc. temp l (TS)
Serie. nr:
ART NR / UTG
Benämning / Designation:
Modell / Model : TIV-500L/A FA E17
CTC Ackumulatortank 2. 500
BoRö AB
Bangårdsvägen 1
SE-952 31 Kalix
SWEDEN
Typ / Type: TIV-500L/A FA E17
588350301
CTC Ack.tank 2. 500
GTIN NR: RSK NR:
Made in Sweden
Serial nr: 354389
Enertech AB, Näsvägen 8, Ljungby
Made in Sweden by
STAPLING FÖRBJUDET
DO NOT STACK
Technical Data
:
Borö AB is responsible for the correct technical data on decals
Borö AB is responsible for assuming stackable allowable products
CTC Embelm
:
Enertechs art. nr for CTC Emblem is 584233301 and
positioned according drawing
2
3
Optional delivery performance from Enertech AB
1 pc. Manual
163 274 01
"
CTC PKT Ackumulatortankar 6 bar-en
"
Delivery performance
:
4 pcs packing label, one on each side
1 pc. Manual
162 601 13-1 "Instruktions och skötselanvisning CTC Ack. tankar"
1 pc. Energy label according to (EU) No 812/213
Pallet and packaging must be designed so that the entire product is
contained within the packaging
3
Ändr. meddel. Datum Nr Ändring Ritad av Kontr. av
00253 2020-11-02 2 Barcode för Serienummer tillkom. JJ SJ
00259 2021-04-09 3
Ny Manual och 16260113-01 ersatte 162 401 49-1. "Optional delivery
performance" tillkom
JJ SJ
Borö art nr: 501V-588353301
Enertech art nr: 588353301
RSK nr: 6519841
GTIN nr: 7333077084585
E
art. nr
Utgåva
Ämnes nr
Ersätter
art. nr
Ersättes av
Grupp
Produkt
Reg. nr
Benämning
Tol.system
Kontr.
Normgr.
Skala
Ritad
Material
Datum
Sign.
Distr till/Antal
Ytjämnhet RA
Godk. prod
Om ej annat angives gäller ovanstående
Denna ritning är Enertech AB's egendom. Den får ej användas till skada för företagets intressen.
Diese Zeichnung ist das Eigentum der Enertech AB und darf nicht zum Scha- den dieser Gesellschaft verwendet werden.
This drawing is the property of Enertech AB and is not to be used against the interest of this com- pany
1:20
JJ
2017-09-11
CTC Ackumulatortank 2. 500
Tankar
3588353
JA
blad 1/3
Article number 588353301
Width mm 695
Depth mm 696
Height (max) mm 1750
Operating pressure (max) bar 3
Test pressure bar 4.3
Operating temp (max) ºC 100
Weight kg 113
Ceiling height mm 1870

16 CTC Hot Water Storage Tanks

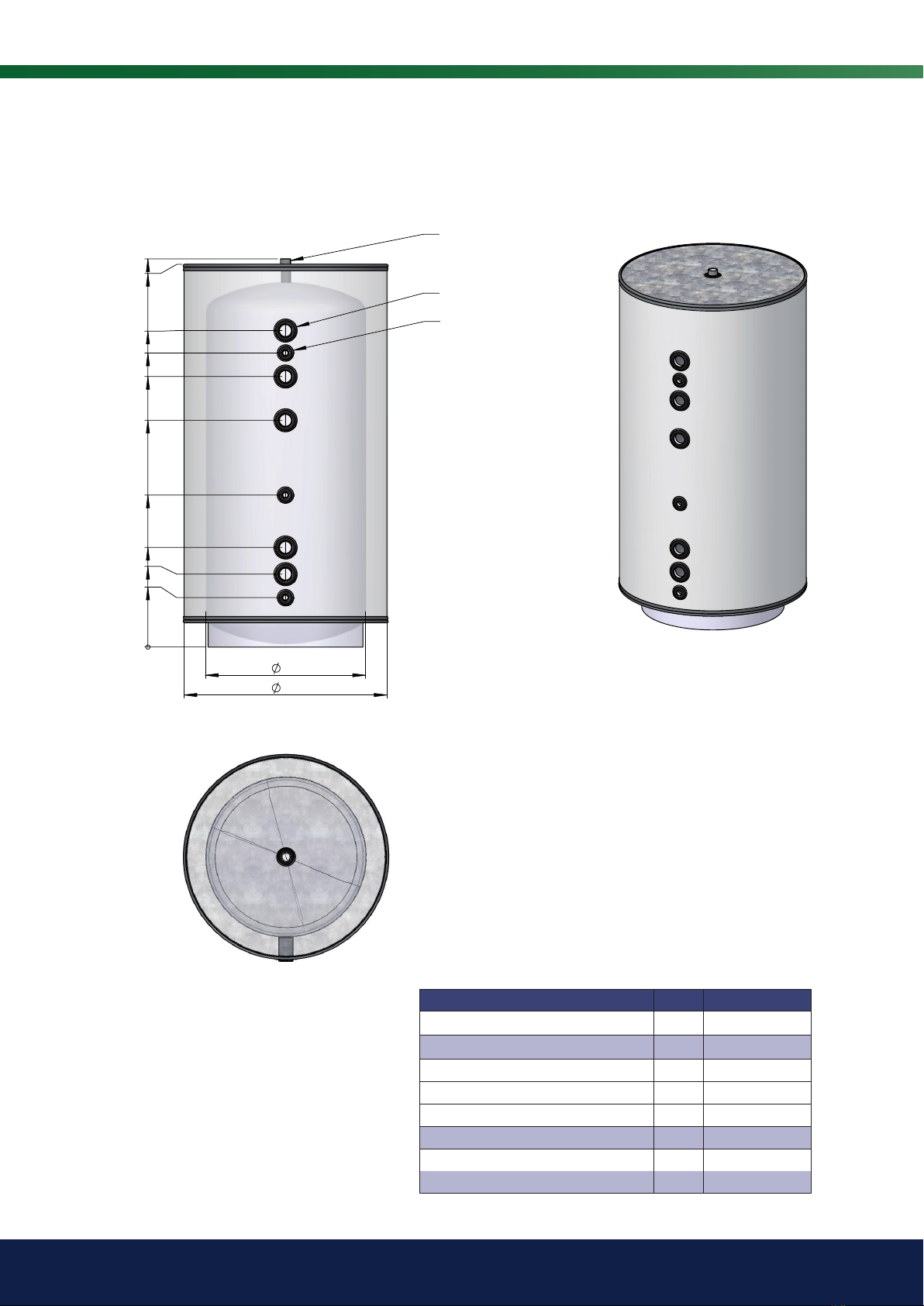

7. CTC Hot Water Storage Tank 2.500
(6 bar)
Article number 589903001
Diameter mm 840
Height (max) mm 1780
Operating pressure rad. (max) bar 6
Operating pressure DHW (max) bar -
Operating temp (max) ºC 100
Weight kg 102
Ceiling height mm 1890
Article number
650
840
0
325
905
215
450
1360
1465
1748
1772
565
1250
DN32
Expansion/Avluftning
DN50
Tillopp från värmekälla
DN20
Termometer/Givare
DN50
Alt tillopp från värmekälla
DN50
Ansl för elpatron
DN20
Termometer/Givare
DN20
Avtappning
DN50
Retur till värmekälla
UTUSTNING:
Ingen •
TEKNISKA DATA:
Diameter.............................840 mm
Höjd (max)........................1780 mm
Arbetstryck rad (max)..............6 bar
Arbetstryck vv (max)...............-- bar
Arbetstemp (max)................100 °C
Vikt.....................................102 Kg
Reshöjd.............................1890 mm
Varmhållningsförlust.............104 W
Volym..................................503 L
Energiklass..............................C
Isolering glasull:
Sidor...................................110 mm
Topp...................................145 mm
Rev.Nr: Typ av ändring Datum Namn
Denna handling får ej utan vårt medgivande kopieras. Den får ej heller delgivas annan eller eljest obehörlighen användas. Överträdelse härav beivras med stöd av gällande lag. This document must not be copied without our written permission and the contents there of must not be imparted to a third party or be used for any unauthorized purpose.
3D-Part:
R:\1-Värmeprodukter\Tankar\TIP\500L\6bar\TIP-500L FA 6 bar (alla)_Ø650
Drawing:
R:\1-Värmeprodukter\Tankar\OEM\Enertech\502-589903001 (CTC ACKUMULATORTANK 2.500 6bar) (TIP-500L_A FA 6bar)
502-589903001
CTC ACKUMULATORTANK 2.500
Enertech
Datum:
EN ISO 13920-DG
Godkänd av:
Kund/Notering:
Namn:
Art. Nr:
Skala:
Revision:
Blad Nr: Vikt Kg: Konstruerad av: Format:
=
Ritningsnummer:
6 bar
Check-datum:
JOE
Gen. tol:
Generell Ra:
2021-04-07 1:15 A3 /1 1
650
840
0
325
905
215
450
1360
1465
1748
1772
565
1250
DN32
Expansion/Avluftning
DN50
Tillopp från värmekälla
DN20
Termometer/Givare
DN50
Alt tillopp från värmekälla
DN50
Ansl för elpatron
DN20
Termometer/Givare
DN20
Avtappning
DN50
Retur till värmekälla
UTUSTNING:
Ingen •
TEKNISKA DATA:
Diameter.............................840 mm
Höjd (max)........................1780 mm
Arbetstryck rad (max)..............6 bar
Arbetstryck vv (max)...............-- bar
Arbetstemp (max)................100 °C
Vikt.....................................102 Kg
Reshöjd.............................1890 mm
Varmhållningsförlust.............104 W
Volym..................................503 L
Energiklass..............................C
Isolering glasull:
Sidor...................................110 mm
Topp...................................145 mm
Rev.Nr: Typ av ändring Datum Namn
Denna handling får ej utan vårt medgivande kopieras. Den får ej heller delgivas annan eller eljest obehörlighen användas. Överträdelse härav beivras med stöd av gällande lag. This document must not be copied without our written permission and the contents there of must not be imparted to a third party or be used for any unauthorized purpose.
3D-Part:
R:\1-Värmeprodukter\Tankar\TIP\500L\6bar\TIP-500L FA 6 bar (alla)_Ø650
Drawing:
R:\1-Värmeprodukter\Tankar\OEM\Enertech\502-589903001 (CTC ACKUMULATORTANK 2.500 6bar) (TIP-500L_A FA 6bar)
502-589903001
CTC ACKUMULATORTANK 2.500
Enertech
Datum:
EN ISO 13920-DG
Godkänd av:
Kund/Notering:
Namn:
Art. Nr:
Skala:
Revision:
Blad Nr: Vikt Kg: Konstruerad av: Format:
=
Ritningsnummer:
6 bar
Check-datum:
JOE
Gen. tol:
Generell Ra:
2021-04-07 1:15 A3 /1 1

17CTC Hot Water Storage Tanks
8. CTC Hot Water Storage Tank 2.750
(3 bar)
Article number 588352301
Diameter mm 960
Height (max) mm 1825
Operating pressure rad. (max) bar 3
Operating pressure DHW (max) bar 10
Test pressure bar -
Operating temp (max) ºC 100
Weight kg 120
Ceiling height mm 2085
968
107
1785
250
150
For more detailed technical information, such as materials and tolerances etc., see Borö drawing. TIP-750L/A FA
Delivery performance
:
4 pcs packing label, one on each side
1 pc. Manual
162 601 13-1 "Instruktions och skötselanvisning CTC Ack. tankar"
Pallet and packaging must be designed so that the entire product is
contained within the packaging
Dimensions 60 x 80
Dimension 298 x 150 mm
Packing label
Manufacturing label
Barcode 128 (OBS streckkoden måste göras om på
etiketter och kan ej plockas från ritningen)
Panna / Boiler: 3BAR / 0,3MPa
Panna / Boiler : 750L
100 °C
7313-1725-0010
Drifttryck / Operating pressure (PS)
Vattenvolym / Water Volume (V)
Beräkningstemp / Calc. temp l (TS)
Serie. nr / Serial no:
ART NR / UTG
Benämning / Designation:
Modell / Model : TIP-750L/A FA
CTC Ackumulatortank 2. 750
BoRö AB
Bangårdsvägen 1
SE-952 31 Kalix
SWEDEN
Typ / Type: TIP-750L/A FA
588352301
CTC Ack.tank 2. 750
GTIN NR: RSK NR:
Made in Sweden
Serial no: 354389
Enertech AB, Näsvägen 8, Ljungby
Made in Sweden by
STAPLING FÖRBJUDET
DO NOT STACK
Technical Data
:
Borö AB is responsible for the correct technical data on decals
Borö AB is responsible for assuming stackable allowable products
3
4
Optional delivery performance from Enertech AB
1 pc. Manual
163 274 01
"
CTC PKT Ackumulatortankar 6 bar-en
"
4
Ändr. meddel. Datum Nr Ändring Ritad av Kontr. av
00253 2020-11-02 3 Barcode för Serienummer tillkom. JJ SJ
00259 2021-04-09 4
Ny Manual och 16260113-01 ersatte 162 401 49-1. "Optional delivery
performance" tillkom
JJ SJ
Borö art nr: 752-588352301
Enertech art nr: 588352301
RSK nr: 6519842
GTIN nr: 7333077084592
E
art. nr
Utgåva
Ämnes nr
Ersätter
art. nr
Ersättes av
Grupp
Produkt
Reg. nr
Benämning
Tol.system
Kontr.
Normgr.
Skala
Ritad
Material
Datum
Sign.
Distr till/Antal
Ytjämnhet RA
Godk. prod
Om ej annat angives gäller ovanstående
Denna ritning är Enertech AB's egendom. Den får ej användas till skada för företagets intressen.
Diese Zeichnung ist das Eigentum der Enertech AB und darf nicht zum Scha- den dieser Gesellschaft verwendet werden.
This drawing is the property of Enertech AB and is not to be used against the interest of this com- pany
1:20
JJ
2017-09-11
CTC Ackumulatortank 2. 750
Tankar
4588352
JA
blad 1/3
E
art. nr
Utgåva
Ämnes nr
Ersätter
art. nr
Ersättes av
Grupp
Produkt
Reg. nr
Benämning
Tol.system
Kontr.
Normgr.
Skala
Ritad
Material
Datum
Sign.
Distr till/Antal
Ytjämnhet RA
Godk. prod
Om ej annat angives gäller ovanstående
Denna ritning är Enertech AB's egendom. Den får ej användas till skada för företagets intressen.
Diese Zeichnung ist das Eigentum der Enertech AB und darf nicht zum Scha- den dieser Gesellschaft verwendet werden.
This drawing is the property of Enertech AB and is not to be used against the interest of this com- pany
1:1
JJ
2017-09-11
CTC Ackumulatortank 2. 750
Tankar
4588352
JA
blad 2/3

18 CTC Hot Water Storage Tanks
9. CTC Hot Water Storage Tank 2.750
(6 bar)
Article number 589904001
Diameter mm 950
Height (max) mm 1820
Operating pressure rad. (max) bar 6
Operating pressure DHW (max) bar 10
Operating temp (max) ºC 100
Weight kg 145
Ceiling height mm 2040
750
950
0
231
341
466
711
1061
1266
1376
1481
1791
1817
DN50 (5x)
DN20 (3x)
DN32 inv
TEKNISKA DATA:
Diameter.............................950 mm
Höjd (max)........................1820 mm
Arbetstryck rad (max)..............6 bar
Arbetstryck vv (max)..............10 bar
Arbetstemp (max)................100°C
Vikt.....................................145 Kg
Reshöjd.............................2040 mm
Varmhållningsförlust.............127 W
Volym..................................689 L
Energiklass..............................C
Isolering glasull:
Sidor...................................110 mm
Topp...................................145 mm
UTUSTNING:
Ingen •
Rev.Nr: Typ av ändring Datum Namn
Denna handling får ej utan vårt medgivande kopieras. Den får ej heller delgivas annan eller eljest obehörlighen användas. Överträdelse härav beivras med stöd av gällande lag. This document must not be copied without our written permission and the contents there of must not be imparted to a third party or be used for any unauthorized purpose.
3D-Part:
R:\1-Värmeprodukter\Tankar\TIP\750L\6 bar\TIP-700L FA 6 bar (alla)_Ø750-Unival
Drawing:
R:\1-Värmeprodukter\Tankar\OEM\Enertech\702-589904001(CTC ACKUMULATORTANK 2.750 6bar) (TIP-700L_A FA 6 bar)
702-589904001
CTC ACKUMULATORTANK 2.750
JOS
Enertech
Datum:
EN ISO 13920-DG
Godkänd av:
Kund/Notering:
Namn:
Art. Nr:
Skala:
Revision:
Blad Nr: Vikt Kg: Konstruerad av: Format:
=
Ritningsnummer:
6 bar
Check-datum:
JOE
Gen. tol:
Generell Ra:
2021-04-07 1:15 A3 2020-08-12 /1 1
750
950
0
231
341
466
711
1061
1266
1376
1481
1791
1817
DN50 (5x)
DN20 (3x)
DN32 inv
TEKNISKA DATA:
Diameter.............................950 mm
Höjd (max)........................1820 mm
Arbetstryck rad (max)..............6 bar
Arbetstryck vv (max)..............10 bar
Arbetstemp (max)................100°C
Vikt.....................................145 Kg
Reshöjd.............................2040 mm
Varmhållningsförlust.............127 W
Volym..................................689 L
Energiklass..............................C
Isolering glasull:
Sidor...................................110 mm
Topp...................................145 mm
UTUSTNING:
Ingen •
Rev.Nr: Typ av ändring Datum Namn
Denna handling får ej utan vårt medgivande kopieras. Den får ej heller delgivas annan eller eljest obehörlighen användas. Överträdelse härav beivras med stöd av gällande lag. This document must not be copied without our written permission and the contents there of must not be imparted to a third party or be used for any unauthorized purpose.
3D-Part:
R:\1-Värmeprodukter\Tankar\TIP\750L\6 bar\TIP-700L FA 6 bar (alla)_Ø750-Unival
Drawing:
R:\1-Värmeprodukter\Tankar\OEM\Enertech\702-589904001(CTC ACKUMULATORTANK 2.750 6bar) (TIP-700L_A FA 6 bar)
702-589904001
CTC ACKUMULATORTANK 2.750
JOS
Enertech
Datum:
EN ISO 13920-DG
Godkänd av:
Kund/Notering:
Namn:
Art. Nr:
Skala:
Revision:
Blad Nr: Vikt Kg: Konstruerad av: Format:
=
Ritningsnummer:
6 bar
Check-datum:
JOE
Gen. tol:
Generell Ra:
2021-04-07 1:15 A3 2020-08-12 /1 1

19CTC Hot Water Storage Tanks
10. CTC Hot Water Storage Tank 1.300/20
Article number 588351301
Width mm 600
Depth mm 635
Height (max) mm 1665
Operating pressure (max) bar 3
Test pressure bar 4.3
Operating temp (max) ºC 100
Weight kg 116
Ceiling height mm 1710
A
111
65
Manufacturing label
100
DETAIL A
SCALE 1 : 10
Dimensions 60 x 80
Dimension 298 x 150 mm
Packing label
Manufacturing label
Panna / Boiler: 3BAR / 0,3MPa
Slinga / Coil : 10BAR / 1,0MPa
Panna / Boiler : 300L
100 °C
7313-1725-0010
Drifttryck / Operating pressure (PS)
Vattenvolym / Water Volume (V)
Beräkningstemp / Calc. temp l (TS)
Serie. nr: / Serial no:
ART NR / UTG
Benämning / Designation:
Modell / Model : TIDA-300L/20
CTC Ackumulatortank 1. 300/20
BoRö AB
Bangårdsvägen 1
SE-952 31 Kalix
SWEDEN
Typ / Type: TIDA-300L/20
588351301
CTC Ack.tank 1. 300/20
GTIN NR: RSK NR:
Made in Sweden
Serial nr: 354389
Enertech AB, Näsvägen 8, Ljungby
Made in Sweden by
STAPLING FÖRBJUDET
DO NOT STACK
For more detailed technical information, such as materials and tolerances etc., see Borö drawing. TIDA-300L/20
Technical Data
:
Borö AB is responsible for the correct technical data on decals
Borö AB is responsible for assuming stackable allowable products
CTC Emblem
:
Enertechs part. nr for CTC Emblem is
584233301
and
positioned according drawing
Barcode 128 (OBS streckkoden måste göras om på
etiketter och kan ej plockas från ritningen) 4
5
Optional delivery performance from Enertech AB
1 pc. Manual
163 274 01
"
CTC PKT Ackumulatortankar 6 bar-en
"
Delivery performance
:
4 pcs packing label, one on each side
1 pc. Manual
162 601 13-1 "Instruktions och skötselanvisning CTC Ack. tankar"
1 pc. Energy label according to (EU) No 812/213
Pallet and packaging must be designed so that the entire product is
contained within the packaging
5
Borö art nr: 304-588351301
Enertech art nr: 588351301
RSK nr: 6519843
GTIN nr: 7333077084608
Ändr. meddel. Datum Nr Ändring Ritad av: Kontr. av:
00253 2020-11-02 4 Barcode för Serienummer tillkom. JJ SJ
00259 2021-04-09 5
Ny Manual och 16260113-01 ersatte 162 401 49-1. "Optional delivery
performance" tillkom
JJ SJ
E
art. nr
Utgåva
Ämnes nr
Ersätter
art. nr
Ersättes av
Grupp
Produkt
Reg. nr
Benämning
Tol.system
Kontr.
Normgr.
Skala
Ritad
Material
Datum
Sign.
Distr till/Antal
Ytjämnhet RA
Godk. prod
Om ej annat angives gäller ovanstående
Denna ritning är Enertech AB's egendom. Den får ej användas till skada för företagets intressen.
Diese Zeichnung ist das Eigentum der Enertech AB und darf nicht zum Scha- den dieser Gesellschaft verwendet werden.
This drawing is the property of Enertech AB and is not to be used against the interest of this com- pany
1:20
JJ
2017-09-11
CTC Ackumulatortank 1. 300/20
Tankar
5588351
JA
blad 1/3
E
art. nr
Utgåva
Ämnes nr
Ersätter
art. nr
Ersättes av
Grupp
Produkt
Reg. nr
Benämning
Tol.system
Kontr.
Normgr.
Skala
Ritad
Material
Datum
Sign.
Distr till/Antal
Ytjämnhet RA
Godk. prod
Om ej annat angives gäller ovanstående
Denna ritning är Enertech AB's egendom. Den får ej användas till skada för företagets intressen.
Diese Zeichnung ist das Eigentum der Enertech AB und darf nicht zum Scha- den dieser Gesellschaft verwendet werden.
This drawing is the property of Enertech AB and is not to be used against the interest of this com- pany
1:1
JJ
2017-09-11
CTC Ackumulatortank 1. 300/20
Tankar
5588351
JA
blad 2/3
(Area: 6 m2)

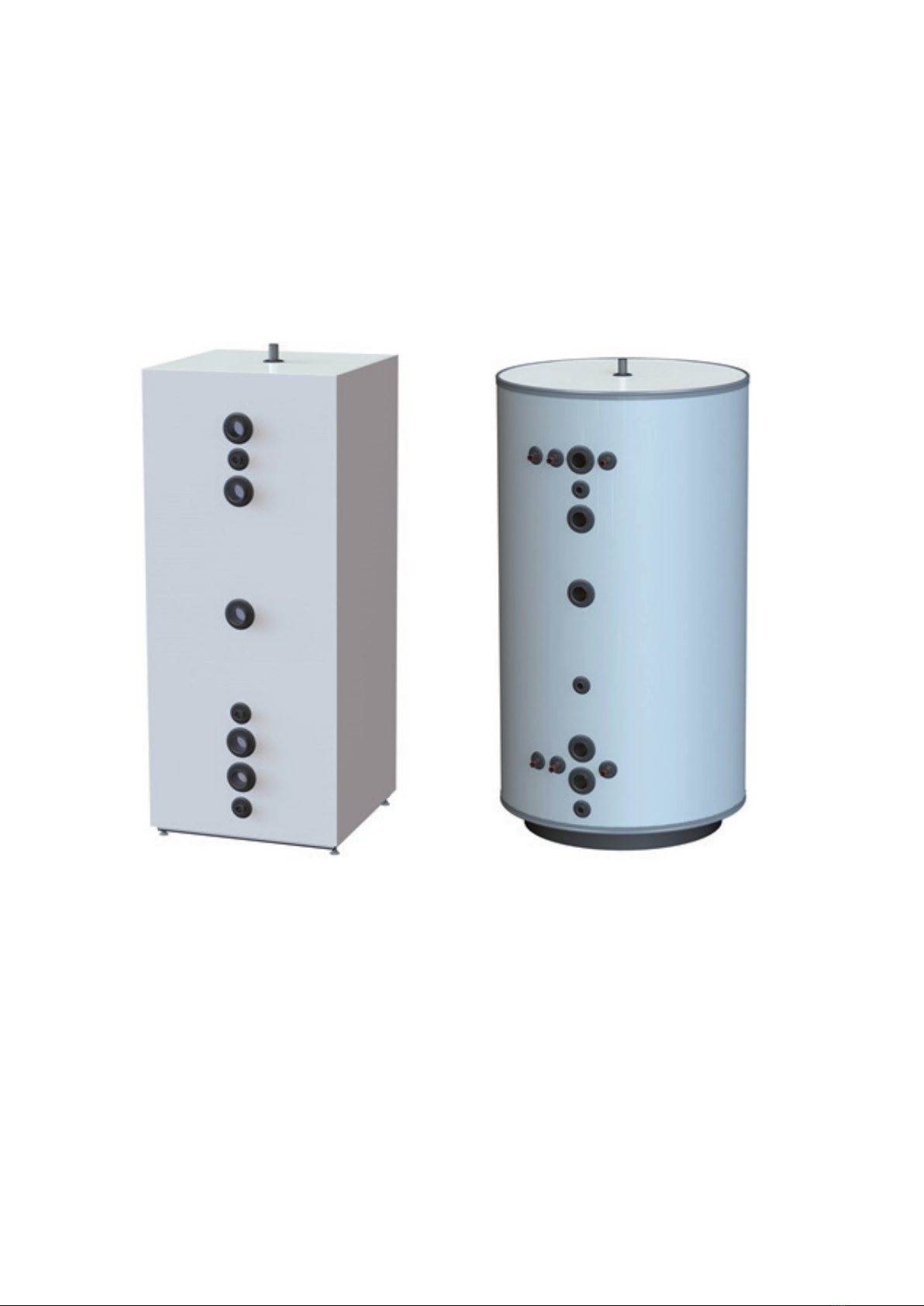

20 CTC Hot Water Storage Tanks
Article number 588350301
Width mm 695
Depth mm 696
Height (max) mm 1750
Operating pressure (max) bar 3
Test pressure bar 4.3
Operating temp (max) ºC 100
Weight kg 138
Ceiling height mm 1870
E
art. nr
Utgåva
Ämnes nr
Ersätter
art. nr
Ersättes av
Grupp
Produkt
Reg. nr
Benämning
Tol.system
Kontr.
Normgr.
Skala
Ritad
Material
Datum
Sign.
Distr till/Antal
Ytjämnhet RA
Godk. prod
Om ej annat angives gäller ovanstående
Denna ritning är Enertech AB's egendom. Den får ej användas till skada för företagets intressen.
Diese Zeichnung ist das Eigentum der Enertech AB und darf nicht zum Scha- den dieser Gesellschaft verwendet werden.
This drawing is the property of Enertech AB and is not to be used against the interest of this com- pany
1:1
JJ
2017-09-11
CTC Ackumulatortank 1. 500/25
Tankar
3588350
JA
blad 2/3
11. CTC Hot Water Storage Tank 1.500/25
A
50
50
Manufacturing label
100
DETAIL A
SCALE 1 : 10
For more detailed technical information, such as materials and tolerances etc., see Borö drawing. TIV 500L/1xB25L FA
Dimensions 60 x 80
Dimension 298 x 150 mm
Packing label
Manufacturing label
Barcode 128 (OBS streckkoden måste göras om på
etiketter och kan ej plockas från ritningen)
Panna / Boiler: 3BAR / 0,3MPa
Slinga / Coil : 10BAR / 1,0MPa
Panna / Boiler : 500L
100 °C
7313-1725-0010
Drifttryck / Operating pressure (PS)
Vattenvolym / Water Volume (V)
Beräkningstemp / Calc. temp l (TS)
Serie. nr / Serial no:
ART NR / UTG
Benämning / Designation:
Modell / Model : TIV-500L 1xB25L FA E17
CTC Ackumulatortank 1. 500/25
BoRö AB
Bangårdsvägen 1
SE-952 31 Kalix
SWEDEN
Typ / Type: TIV-500L 1xB25L FA E17
588350301
CTC Ack.tank 1. 500/25
GTIN NR: RSK NR:
Made in Sweden
Serial no: 354389
Enertech AB, Näsvägen 8, Ljungby
Made in Sweden by
STAPLING FÖRBJUDET
DO NOT STACK
Technical Data
:
Borö AB is responsible for the correct technical data on decals
Borö AB is responsible for assuming stackable allowable products
CTC Emblem
:
Enertechs art. nr for CTC Emblem is
584233301
and
positioned according drawing
2
3
Optional delivery performance from Enertech AB
1 pc. Manual
163 274 01
"
CTC PKT Ackumulatortankar 6 bar-en
"
Delivery performance
:
4 pcs packing label, one on each side
1 pc. Manual
162 601 13-1 "Instruktions och skötselanvisning CTC Ack. tankar"
1 pc. Energy label according to (EU) No 812/213
Pallet and packaging must be designed so that the entire product is
contained within the packaging
3
Ändr. meddel. Datum Nr Ändring Ritad av Kontr. av
00257 2020-11-02 2 Barcode för Serienummer tillkom. JJ SJ
00259 2021-04-09 3
Ny Manual och 16260113-01 ersatte 162 401 49-1. "Optional delivery
performance" tillkom
JJ SJ
Borö art nr: 501V-588350301
Enertech art nr: 588350301
RSK nr: 6519844
GTIN nr: 7333077084615
E
art. nr
Utgåva
Ämnes nr
Ersätter
art. nr
Ersättes av
Grupp
Produkt
Reg. nr
Benämning
Tol.system
Kontr.
Normgr.
Skala
Ritad
Material
Datum
Sign.
Distr till/Antal
Ytjämnhet RA
Godk. prod
Om ej annat angives gäller ovanstående
Denna ritning är Enertech AB's egendom. Den får ej användas till skada för företagets intressen.
Diese Zeichnung ist das Eigentum der Enertech AB und darf nicht zum Scha- den dieser Gesellschaft verwendet werden.
This drawing is the property of Enertech AB and is not to be used against the interest of this com- pany
1:20
JJ
2017-09-11
CTC Ackumulatortank 1. 500/25
Tankar
3588350
JA
blad 1/3
(Area: 6 m2)
