CTC Union EcoPart 400 SERIES Manual

Providing sustainable energy solutions worldwide
162 105 51-5 2016-07-07
Installation and Maintenance Manual
CTC EcoPart 400
Model 406-417
400V 3N~ / 230V 1N~
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE

1. Disconnect the cooling module’s power cable con-
nector and hoses.
2. Attach the two carrying handles to the bottom of the
cooling module.
3. Unscrew the cooling module’s screws. 4. Pull the cooling module by first lifting the front edge
slightly with the carrying handles.
5. Lift the cooling module using the carrying handles and
shoulder straps.
6. Lift the cooling module into the product using the
carrying handles and shoulder straps. Remove the
carrying handles and reconnect the power cable,
hoses and screws.
Removing the cooling module

Installation and maintenance manual
CTC EcoPart 400
Model 406-417
400 V 3N~ / 230 V 1N~
162 105 51-5 2016-07-07
1. Disconnect the cooling module’s power cable con-
nector and hoses.
2. Attach the two carrying handles to the bottom of the
cooling module.
3. Unscrew the cooling module’s screws. 4. Pull the cooling module by first lifting the front edge
slightly with the carrying handles.
5. Lift the cooling module using the carrying handles and
shoulder straps.
6. Lift the cooling module into the product using the
carrying handles and shoulder straps. Remove the
carrying handles and reconnect the power cable,
hoses and screws.
Removing the cooling module

4
CTC EcoPart 400
General information
As your own reminder
Fill in the information below. It may come in useful if anything should happen.
Product : Manufacturing number :
Installer: Name:
Date: Tel. no.:
Electrical installer: Name:
Date: Tel. no.:
Enertech AB provides the information with reservation for any typing errors and subject to modification.
Table of contents
Check list ______________________________________________________________________ 6
Important to remember! ______________________________________________ 7
Safety Instructions _______________________________________________________ 7
1. Connection alternative CTC EcoPart 400 __________ 8
1.1 General_____________________________________________________________8
2. Technical data _______________________________________________________ 9
2.1 Table 400V 3N~ ________________________________________________9
2.2 Table 230V 1N~_______________________________________________ 11
2.3 Component location_________________________________________13
2.4 Dimensional drawing _______________________________________ 13
2.5 Refrigerant system ___________________________________________14
2.6 Operating range_______________________________________________14
3. Installation____________________________________________________________ 15
3.1 Connection of the heat medium side__________________ 16
3.1.1 Charge pump_______________________________________________ 16
3.1.2 Control/power supply____________________________________16
3.1.3 Pump curve _________________________________________________16
3.2 Connecting the brine system_____________________________17
3.3 Brine pump _____________________________________________________20
4. Electrical installation___________________________________________ 22
4.1 Electrical installation 400 V 3N~_________________________ 22
4.2 Electrical installation 230 V 1N~_________________________ 23
4.3 Alarm output ___________________________________________________23
4.4 Groundwater heating________________________________________24
5. Communication connections_____________________________ 25
5.1 CTC Basic Display (accessory) __________________________25
5.2 Option 1 – Connection of one heat pump ___________26
5.3 Option 2 – Series connection of heat pumps_______27
5.4 Option 4 – CTC EcoEl v3 __________________________________28
5.5 Option 5 – CTC EcoZenith i550 v3_____________________29
5.6 Option 6 – CTC EcoLogic v3_____________________________30
5.7 Wiring diagram 400V 3N~_________________________________32
5.8 Wiring diagram 230V 1N~_________________________________34
6. First start _____________________________________________________________ 35
7. Operation and Maintenance ______________________________ 36
7.1 Periodic maintenance _______________________________________36
7.2 Operation stop_________________________________________________36
7.3 Service mode __________________________________________________36
8. Fault Tracing/Appropriate Measures ________________ 37
8.1 Air Problems____________________________________________________37
8.2 Alarms ____________________________________________________________37
Declaration of conformity__________________________________________ 38

5
CTC EcoPart 400
General information
Congratulations on buying your new product
The complete heat pump for rock,
ground or lake
The CTC EcoPart 400 is a heat pump which takes heat from rock,
ground or lake and supplies it to the existing heating system in the house.
CTCEcoPart400 is fully utilised before the normal heating system is
switched on and helps heat the house.
The heat pump can be connected to a CTC EcoEl/CTCEcoZenith or to the
existing boiler via the CTC EcoLogic control system.
The CTC EcoPart 400 has been designed to operate with high efficiency and
low noise level.
Keep this handbook containing the installation and maintenance instructions.
If it is looked after properly, you will be able to enjoy the use of your
CTCEcoPart400 for many years. This manual will provide all the information
you will need.
CTCEcoPart400 is available in four different versions
CTCEcoPart406-417 LEP
• A rated brine pump (Low Energy Pump - LEP)
• No charge pump
CTCEcoPart414-417 2xLEP
• A rated brine pump (Low Energy Pump - LEP)
• Class-A charge pump (Low Energy Pump - LEP)

6
CTC EcoPart 400
General information
Check list
The check list must be completed by the installer.
• If service is needed, you may be required to provide this document.
• Installation must always in accordance with the installation and maintenance instructions.
• Installation must always be carried out in a professional manner.
Following installation, the unit must be inspected and functional checks performed as
indicated below:
Pipe installation
The heat pump has been filled, positioned and adjusted in the correct manner according to the
instructions.
The heat pump is positioned so that it can be serviced.
Capacity of the charge/radiator pump (depending on type of system) for the flow required.
Open radiator valves (depending on type of system) and other relevant valves.
Tightness Test
Bleed the system.
Check proper operation of the requisite safety valves.
Requisite waste pipes connected to the floor drain (depending on type of system).
Electrical installation
Power switch
Correct tight wiring
Requisite sensors fitted.
Accessories
Customer information (adapted to the relevant installation)
Start-up with customer/installer
Menus/controls for selected system
Installation and maintenance manual supplied to the customer
Check and filling, heating system
Information on fine adjustments
Alarm information
Functional test of safety valves fitted
Guarantee and insurance
Information on procedures for fault registration
______________________________________ ______________________________________
Date / Customer Date / Installer

7
CTC EcoPart 400
General information
Important to remember!
Check the following points in particular at the time of delivery and installation:
• The product must be transported and stored in a standing position.
When moving the product, it can be placed temporarily on its back.
• Remove the packaging and check before installation that the product
has not been damaged in transit. Report any transport damage to the
supplier.
• Place the product on a solid foundation, preferably made of concrete.
If the product needs to be placed on a soft carpet, base plates
must be placed under the adjustable feet.
• Remember to leave a service area of at least 1 m in front of the
product.
• The product must not be placed below floor level either.
• Avoid placing the product in rooms where the walls are of lightweight
design, as people in the adjoining room may be disturbed by the
compressor and vibrations.
• Ensure that pipes used between the heat pump and the heating system
are of adequate dimensions.
• Ensure that the circulating pump has sufficient capacity to pump the
water to the heat pump.
Safety Instructions
The following safety instructions must be observed when handling, installing
and using the heat pump:
• Close the safety switch before doing any work on the product.
• Correct flushing of the system shall be carried out before the system is
filled with a recommended brine/heating fluid.
• When handling the product with a hoist ring or similar device, make
sure that the lifting equipment, eyebolts etc. are not damaged. Never
stand under the hoisted product.
• Never jeopardize safety by removing bolted covers, hoods or similar.
• Never jeopardize safety by deactivating safety equipment.
• Any work done on the product’s cooling system should be done by
authorised personnel only.
• This product is intended for indoor installation only.
This appliance is not intended for use by persons ( including children ) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
!If these instructions are not followed when installing, operating and maintaining
the system, Enertech’s commitment under the applicable warranty terms is not
binding

8
CTC EcoPart 400
General information
1.1 General
Below are illustrations of the different connection alternatives available for the
CTC EcoPart 400. In some cases a CTC Converter and CTC Basic Display
may be needed. See the chapter on Connecting the control system
Alternative A
The CTC EcoPart 400 can be connected to the products below.
1. Connection alternative
CTC EcoPart 400
CTC EcoZenith i250 CTC EcoZenith i550 Pro
CTC EcoLogic Pro/Family
CTC EcoPart 400
CTC EcoPart 400
CTC EcoPart 400
CTC EcoPart 400
CTC Basic Display CTC EcoLogic Pro
CTC EcoLogic
V3
CTC EcoZenith i550 ProCTC EcoZenith
V3
CTC EcoEl
V3
CTC Converter
CTC Basic Display
CTC Basic Display
ON
RS485 TX
RS485 RX
COM TX
COM RX
CTC EcoPart 400
CTC EcoPart 400
CTC EcoPart 400
CTC Basic Display CTC EcoLogic Pro
CTC EcoLogic
V3
CTC EcoZenith i550 ProCTC EcoZenith
V3
CTC EcoEl
V3
CTC Converter
CTC Basic Display
CTC Basic Display
ON
RS485 TX
RS485 RX
COM TX
COM RX

9
CTC EcoPart 400
General information
2. Technical data
2.1 Table 400V 3N~
EcoPart 406 EcoPart 408 EcoPart 410 EcoPart 412
3x400V
kW 2.7 3.5 4.2 5.1
A 5.8 6.5 8.1 9.6
A 16.6 17.7 19.8 23.5
A 10 10 10 16
IPX1
EcoPart 406 EcoPart 408 EcoPart 410 EcoPart 412
kg 1.9 1.9 1.9 2.3
ton 3.370 3.370 3.370 4.080
FV50S Polyolester (POE)
MPa 3.1 (31 bar)
kg 138 143 148 164
mm 600 x 760 x 672
EcoPart 406 EcoPart 408 EcoPart 410 EcoPart 412
l 2.3 2.9 2.9 3.4
°C -5/20
bar 0.2/3.0
l/s 0.22 0.31 0.38 0.44
l/s 0.37 0.51 0.64 0.73
EcoPart 406 EcoPart 408 EcoPart 410 EcoPart 412
°C 110
l/s 0.14 0.20 0.24 0.28
l/s 0.28 0.39 0.48 0.56
EcoPart 406 EcoPart 408 EcoPart 410 EcoPart 412
@ -5/45 kW 4.68 6.84 8.33 9.88
COP 1) @ -5/45 - 3.09 3.34 3.30 3.30
@ 0/35 | 0/45
0/55
kW 5.90 | 5.48
5.17
8.19 | 7.87
7.55
9.97 | 9.55
9.28
11.75 | 11.24
10.97
@ 0/35 | 0/45
0/55
kW 1.29 | 1.55
1.87
1.79 | 2.16
2.53
2.17 | 2.60
3.11
2.55 | 3.07
3.71
COP 1) @ 0/35 | 0/45
0/55
- 4.57 | 3.54
2.76
4.58 | 3.64
2.99
4.60 | 3.68
2.98
4.60 | 3.66
2.96
@ 5/35 | 5/45
5/55
kW 6.81 | 6.49
6.08
9.44 | 9.05
8.65
11.42 | 10.99
10.58
13.53 | 12.95
12.57
COP 1) @ 5/35 | 5/45
5/55
- 5.24 | 4.15
3.18
5.02 | 4.04
3.30
5.20 | 4.16
3.28
5.11 | 4.11
3.35
A 4.5 5.2 6.8 8.2
dB(A) 43.0 42.5 48.5 48.0
Electrical data
Electrical data
Rated power
Rated current
Max starting current
Maximal group fuse
IP class
Other data
Refrigerant quantity (R407C, fluorinated
greenhouse gases GWP 1774)
CO2 equivalent
Compressor oil
Interrupt value switch HP
Weight
Width x Height x Depth
Brine system
Water volume (V)
Brine system min./max. temp. (TS)
Brine system min./max. pressure (PS)
Brine system min. flow, ∆t = 5 K
Brine system nominal flow, ∆t = 3 K
Brine system pump Class A circulation pump (LEP)
Pump capacity See diagram in the Pipe installation chapter
Heating system
Max temperature heating medium (TS)
Heating medium system min flow 2)
Heating medium system nominal flow 3)
2) At ∆t = 10 K and 0/35 °C heat pump operation.
3) At ∆t = 5 K and 0/35 °C heat pump operation.
Operational data for heat pump
Output from compressor 1)
Output from compressor 1)
Input power 1)
Output from compressor 1)
Max. operating current Compressor
Sound power according to EN12102
1) EN14511:2007, incl. heating medium pump and brine pump
No annual leakage control of the refrigerant is required

10
CTC EcoPart 400
General information
EcoPart 414 EcoPart 417
3x400V
kW 6.0 7.4
A 12.2 13.9
A 29.1 32.0
A 16 16
IPX1
EcoPart 414 EcoPart 417
kg 2.7 2.7
ton 4.790 4.790
Polyolester (POE)
MPa 3.1 (31 bar)
kg 168 168
mm 600 x 760 x 672
EcoPart 414 EcoPart 417
l 4.07 4.07
°C -5/20
bar 0.2/3.0
l/s 0.53 0.63
l/s 0.88 1.05
EcoPart 414 EcoPart 417
°C 110
l/s 0.34 0.40
l/s 0.68 0.81
UPM GEO 25-85
EcoPart 414 EcoPart 417
@ -5/45 kW 12.09 14.05
COP 1) @ -5/45 - 3.24 3.19
@ 0/35 | 0/45
0/55
kW 14.47 | 13.93
13.40
16.24 | 16.14
15.87
@ 0/35 | 0/45
0/55
kW 3.19 | 3.83
4.54
3.72 | 4.47
5.17
COP 1) @ 0/35 | 0/45
0/55
- 4.54 | 3.64
2.95
4.36 | 3.61
3.07
@ 5/35 | 5/45
5/55
kW 16.48 | 15.98
15.28
19.25 | 18.42
18.16
COP 1) @ 5/35 | 5/45
5/55
- 5.13 | 4.11
3.28
5.02 | 4.05
3.38
A 9.14 11.5
dB(A) 53.0 55.5
14-17 kW 3-fas 400V 3N~ Svenneversionen + Low Energy Pumps
Electrical data
Electrical data
Rated power
Rated current
Max starting current
Maximal group fuse
IP class
Other data
Refrigerant quantity (R407C, fluorinated
greenhouse gases GWP 1774)
CO2equivalent
Compressor oil
Interrupt value switch HP
Weight
Width x Height x Depth
Brine system
Water volume (V)
Brine system min./max. temp. (TS)
Brine system min./max. pressure (PS)
Brine system min. flow, ∆t = 5 K
Brine system nominal flow, ∆t = 3 K
Brine system pump Class A circulation pump (LEP)
Pump capacity See diagram in the Pipe installation chapter
Heating system
Max temperature heating medium (TS)
Heating medium system min flow 2)
Heating medium system nominal flow 3)
Heating medium pump (2xLEP only)
2) At ∆t = 10 K och 0/35 °C heat pump operation.
3) At ∆t = 5 K och 0/35 °C heat pump operation.
Operational data for heat pump
Output from compressor 1)
Output from compressor 1)
Input power 1)
Output from compressor 1)
Max. operating current Compressor
Sound power according to EN12102
1) EN14511:2007, incl. heating medium pump and brine pump
No annual leakage control of the refrigerant is required

11
CTC EcoPart 400
General information
2.2 Table 230V 1N~
EcoPart 406 EcoPart 408 EcoPart 410
1x230V
kW 2.7 3,4 4.4
A 14.0 19,5 21.6
A 30 30 30
IPX1
EcoPart 406 EcoPart 408 EcoPart 410
kg 1,9 1,9 1,9
ton 3.370 3.370 3.370
FV50S Polyolester (POE)
MPa 3.1 (31 bar)
kg 138 143 148
mm 600 x 760 x 672
EcoPart 406 EcoPart 408 EcoPart 410
l 2.3 2,9 2,9
°C -5/20
bar 0.2/3.0
l/s 0.27 0,31 0,38
l/s 0.37 0,51 0,64
EcoPart 406 EcoPart 408 EcoPart 410
°C 110
l/s 0.14 0,20 0,24
l/s 0.28 0,39 0,48
EcoPart 406 EcoPart 408 EcoPart 410
@ -5/45 kW 4.68 6.84 8.33
COP 1) @ -5/45 - 3.09 3.34 3.30
@ 0/35 | 0/45
0/55
kW 5.90 | 5.48
5.17
8.19 | 7.87
7.55
9.97 | 9.55
9.28
@ 0/35 | 0/45
0/55
kW 1.29 | 1.55
1.87
1.79 | 2.16
2.53
2.17 | 2.60
3.11
COP 1) @ 0/35 | 0/45
0/55
- 4.57 | 3.54
2.76
4.58 | 3.64
2.99
4.60 | 3.68
2.98
@ 5/35 | 5/45
5/55
kW 6.81 | 6.49
6.08
9.44 | 9.05
8.65
11.42 | 10.99
10.58
COP 1) @ 5/35 | 5/45
5/55
- 5.24 | 4.15
3.18
5.02 | 4.04
3.30
5.20 | 4.16
3.28
A 13.0 18.5 20.6
dB(A) 43.0 42.5 48.5
Other data
Refrigerant quantity (R407C, fluorinated
greenhouse gases GWP 1774)
CO2equivalent
Compressor oil
Interrupt value switch HP
Weight
Width x Height x Depth
Brine system
Water volume (V)
Brine system min./max. temp. (TS)
Brine system min./max. pressure (PS)
Brine system min. flow, ∆t = 5 K
Brine system nominal flow, ∆t = 3 K
Brine system pump Class A circulation pump (LEP)
Pump capacity See diagram in the Pipe installation chapter
Heating system
Max temperature heating medium (TS)
Heating medium system min flow 2)
Heating medium system nominal flow 3)
2) At ∆t = 10 K and 0/35 °C heat pump operation.
3) At ∆t = 5 K and 0/35 °C heat pump operation.
Electrical data
Electrical data
Rated power
Rated current
Max starting current
IP class
Operational data for heat pump
Output from compressor 1)
Output from compressor 1)
Input power 1)
Output from compressor 1)
Max. operating current Compressor
Sound power according to EN12102
1) EN14511:2007, incl. heating medium pump and brine pump
No annual leakage control of the refrigerant is required

12
CTC EcoPart 400
General information
EcoPart 412 EcoPart 414
1x230V
kW 5.2 6.3
A 27.1 33.2
A 30 30
IPX1
EcoPart 412 EcoPart 414
kg 2.3 2.7
ton 4.080 4.790
Polyolester (POE)
MPa 3.1 (31 bar)
kg 164 164
mm 600 x 760 x 672
EcoPart 412 EcoPart 414
l 3.4 4.07
°C -5/20
bar 0.2/3.0
l/s 0.44 0.53
l/s 0.73 0.88
EcoPart 412 EcoPart 414
°C 110
l/s 0.28 0.34
l/s 0.56 0.68
EcoPart 412 EcoPart 414
@ -5/45 kW 9,88 12.09
COP 1) @ -5/45 - 3,30 3.24
@ 0/35 | 0/45
0/55
kW 11.75 | 11.24
10.97
14.47 | 13.93
13.40
@ 0/35 | 0/45
0/55
kW 2.55 | 3.07
3.71
3.19 | 3.83
4.54
COP 1) @ 0/35 | 0/45
0/55
- 4.60 | 3.66
2.96
4.54 | 3.64
2.95
@ 5/35 | 5/45
5/55
kW 13.53 | 12.95
12.57
16.48 | 15.98
15.28
COP 1) @ 5/35 | 5/45
5/55
- 5.11 | 4.11
3.35
5.13 | 4.11
3.28
A 25.0 27.1
dB(A) 50.3 53.0
Other data
Refrigerant quantity (R407C, fluorinated
greenhouse gases GWP 1774)
CO2equivalent
Compressor oil
Interrupt value switch HP
Weight
Width x Height x Depth
Brine system
Water volume (V)
Brine system min./max. temp. (TS)
Brine system min./max. pressure (PS)
Brine system min. flow, ∆t = 5 K
Brine system nominal flow, ∆t = 3 K
Brine system pump Class A circulation pump (LEP)
Pump capacity See diagram in the Pipe installation chapter
Heating system
Max temperature heating medium (TS)
Heating medium system min flow 2)
Heating medium system nominal flow 3)
2) At ∆t = 10 K and 0/35 °C heat pump operation.
3) At ∆t = 5 K and 0/35 °C heat pump operation.
Electrical data
Electrical data
Rated power
Rated current
Max starting current
IP class
Operational data for heat pump
Output from compressor 1)
Output from compressor 1)
Input power 1)
Output from compressor 1)
Max. operating current Compressor
Sound effect according to EN12102
1) EN14511:2007, inclusive:
Heating medium pump (EP406/408 - Stratos Tec 25/6 and EP410/412 - Stratos Tec 25/7)
Brine system pump (EP406/410 - Wilo Stratos Para 25/8 and EP412 - Wilo Stratos Para 25/12)
No annual leakage control of the refrigerant is required

13
CTC EcoPart 400
General information
1. Compressor
2. Evaporator
3. Condenser
4. Drying filter
5. Expansion valve
6. High pressure switch
7. Terminal board
8. High pressure sensor
9. Low pressure sensor
10. Drain valve cold side/Brine
11. Drain valve warm side/Water
12. Adapter for pump installation
13. Circulation pump cold side
14. Adjustable feet
15. Conduit for communication cable
16. Conduit for mains cable
17. Brine in Ø28 mm (from rock)
18. Brine out Ø28 mm (to rock)
19. Heat medium out Ø22 (EcoHeat 406-412)
Heat medium out Ø28 (EcoHeat 414-417)
20. Heat medium in Ø22 (EcoHeat 406-412)
Heat medium in Ø28 (EcoHeat 414-417)
21. Hot gas sensor
22. Brine sensor in
23. Brine sensor out
24. Condenser sensor in
25. Condenser sensor out
26. Service socket
1
7
16
6
21
8
24
14
22
325 215
4
5
9
23
13
17181920
10
11
2.3 Component location
2.4 Dimensional drawing
760
559 531
672
70 80 110 80
608
163 80 110 80 163
608
80 110 80 163 163
596
12
26

14
CTC EcoPart 400
General information
1 3 24
5
8
6
7
9 10 11
12 13 1514
16
17
1. Brine (heat source)
2. Water
3. Evaporator
4. Condenser
5. Compressor
6. Expansion valve (electronic)
7. Drying filter
8. Refrigerant exchanger
9. Low pressure sensor
10. High pressure sensor
11. High pressure switch
12. T suction gas
13. T discharge
14. T brine
15. T water out
16. T water in
17. Control expansion valve
2.5 Refrigerant system
2.6 Operating range
CTC EcoPart’s pressure-controlled operations monitoring means that the
brine temperature (B) and heat medium temperature (H) can automatically be
increased where this is possible.
Operating condition: B temp/H temp °C
1 -5 / 25
2 20 / 25
3 -5 / 61
4 20 / 64
Operating limits as per the table above are defined in accordance with EN 14511-4.

15
CTC EcoPart 400
General information
3. Installation
This chapter is aimed at anyone responsible for one or more of the
installations required to ensure that the product works the way the property
owner wants.
Take your time going through functions and settings with the property owner
and answer any questions. Both you and the heat pump benefit from a user
who has completely understood how the system operates and should be
maintained.
The installation must be carried out in accordance with current standards
and regulations, see BS EN6700 and building regulations. The product
must be connected to an expansion vessel in an open or closed system
in accordance with vented and unvented regulations (G3 or G4 in 2011
amendments). Do not forget to flush the radiator system clean before
connection. Apply all the installation settings based on the description in the
chapter on First start.
The heat pump operates with a primary flow/return temperature across the
condenser of up to 65/58 °C.
Transportation
Transport the unit to the installation site before removing the packaging.
Handle the product in the following manner:
• Forklift
• Lifting band around the pallet. Note! Can only be used with the
packaging on.
Unpacking
Unpack the heat pump when it is placed next to its installation site. Check
that the product has not been damaged in transit. Report any transport
damage to the supplier. Also check that the delivery is complete according
to the list below.
Standard delivery
• CTC EcoPart 400 heat pump
• Safety valve 1/2" 3 bar
• Filler manifold 520-G25
• Brine vessel
• Rubber grommet D=60
• 2 x Edge mouldings 186 mm
• Communications cable 5 m
• Connector straight 28 x G32 *
*CTC EcoPart 414-417 only
!The product must
be transported and
stored in a standing
position.

16
CTC EcoPart 400
General information
3.1 Connection of the heat medium side
Primary and return lines of at least Ø22 mm copper pipe are to be connected
to the heat pump for CTC EcoPart 406-412, for CTC EcoPart 414-417, at
least Ø28 mm must be used. Route the pipes so that no other highest point is
present where air can collect and obstruct circulation. If however this cannot be
done, provide this highest point with an automatic bleeder.
3.1.1 Charge pump
The choice of charge pump depends on the type of system. To ensure proper
operation the flow in the heat medium circuit should not be less than the value in
the table under Technical data. Ensure that the circulation pump is large enough,
so that there is sufficient flow through the heat pump. If the flow is too low, there
is a risk the high pressure switch will trigger.
The charge pump can either be connected to the CTC EcoPart 400 (provided it
is installed internally) or connected to the product which is used to control it. For
internal installation one of the following is normally selected:
CTC EcoPart 406 - 408 Yonos Para PWM 7,0 Item no 586396 303
CTC EcoPart 410 - 412 Yonos Para PWM 7,5 Item no 586396 302
CTC EcoPart 414 - 417 UPM GEO 25-85 Item no 586396 301
3.1.2 Control/power supply
CTC EcoLogic Pro
Up to 10 heat pumps can be connected to a CTC EcoLogic Pro. In such a
case, the charge pumps in heat pumps 1 and 2 can be connected to the
CTCEcoLogicPro. A charge pump for heat pumps 3-10 must be installed and
connected to the CTC EcoPart 400.
CTC EcoLogic v3
The charge pump (not speed-controlled) must be connected to the
CTCEcoLogic v3.
CTC EcoZenith v3
Use a 0-10 V pump from CTC or a non speed-controlled pump connected to
the CTC EcoZenith.
CTC EcoEl v3
The charge pump (not speed-controlled) must be connected to the
CTCEcoElv3.
3.1.3 Pump curve
Grundfos UPM GEO 25-85
(CTC EcoPart 414-417 2xLEP only)

17
CTC EcoPart 400
General information
3.2 Connecting the brine system
The brine system, i.e. the ground collector loop, must be assembled and
connected by a qualified tradesman in accordance with current regulations
and design guidelines.
Extreme care must be taken to ensure that no dirt gets on the collector
hoses, which must be washed clean before being connected. The protective
caps must remain in place at all times while work is in progress.
The temperature in the brine system can go below 0°C. This is why it is
important not to use any water-based lubricant etc. during installation. It is
also important that all the components are insulated against condensation to
prevent the build-up of ice.
Connections

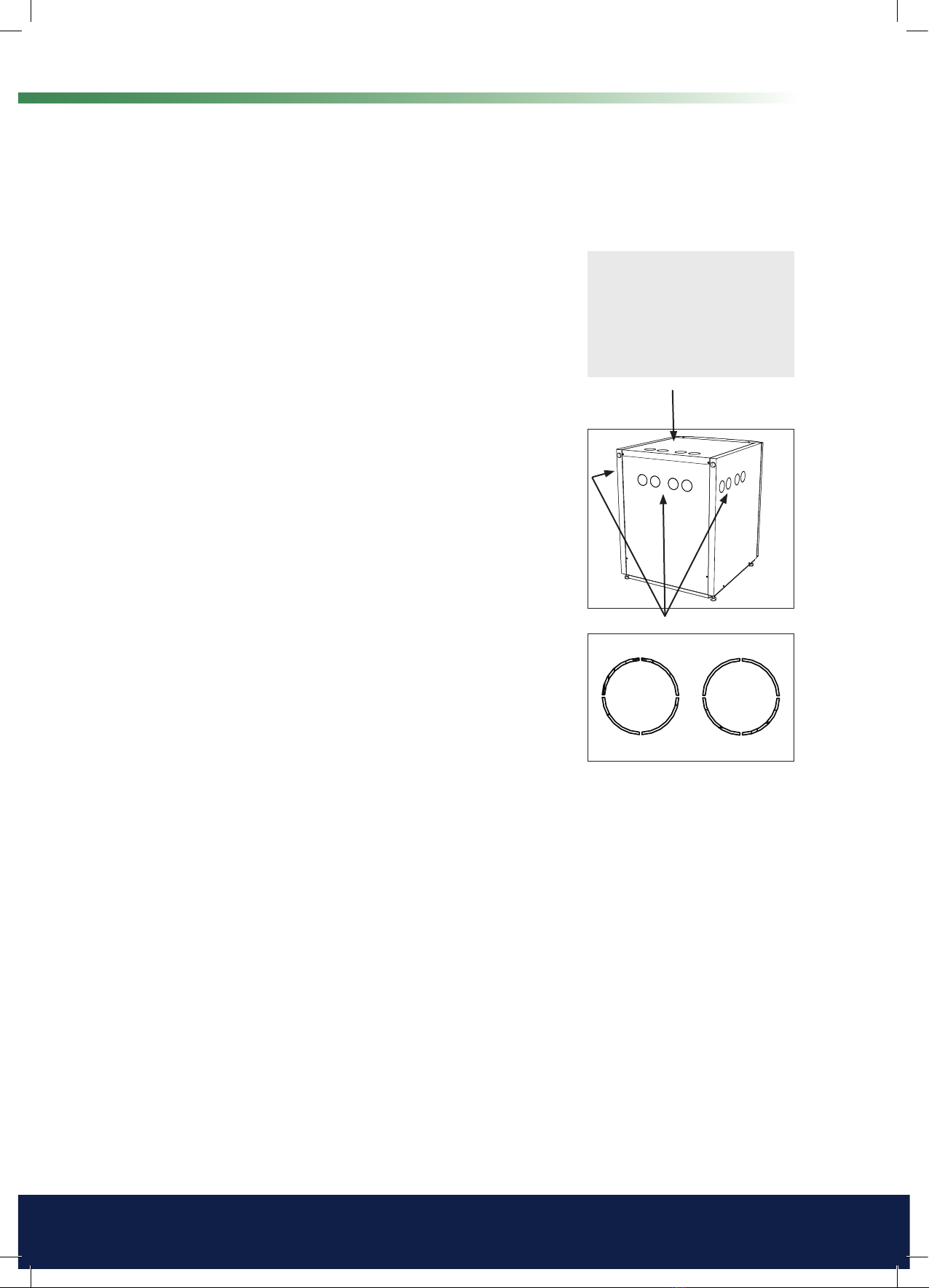

The brine system may be connected to the right, left or top of the heat
pump, as well as to its rear. Cut away the cover plate on the side where the
brine system is to be connected. The insulation on the inside of the cover
plate has been grooved to enable an opening to be cut for the brine hoses
provided. When the opening has been made through both the insulation and
cover plate, carry out the installation as follows:
1. In order to protect the hoses, fasten the protective edging provided
around the edge of the opening in the insulation plate. Adjust the length
of the protective edging to suit the opening as required.
2. Pass the hoses through the opening in the side cover plates and connect
them. Ensure that the insulation covers all parts of the brine connection
to prevent ice and condensation forming.
3. Then install the collector system according to the schematic diagram
below.
You can also connect the primary flow on one side and the return on the
other. See the chapter on Measurement details for measurements and
dimensions. The pipe between the heat pump and brine loop should be not
less than Ø28 mm in dimension.
!We recommend
that you follow
the installation
instructions from
the local Heat Pump
Association.

18
CTC EcoPart 400
General information
105
103
104
98d
100
101
102
99
97
96
98c
98a
cTc
98b
96 Level/expansion vessel
97 CTC filling kit
98 Shut-off valve
99 Filter
100 3-way valve
101 External filling pump
102 Mixing vessel
103 Brine pump
104 Evaporator
105 Safety valve 3 bar

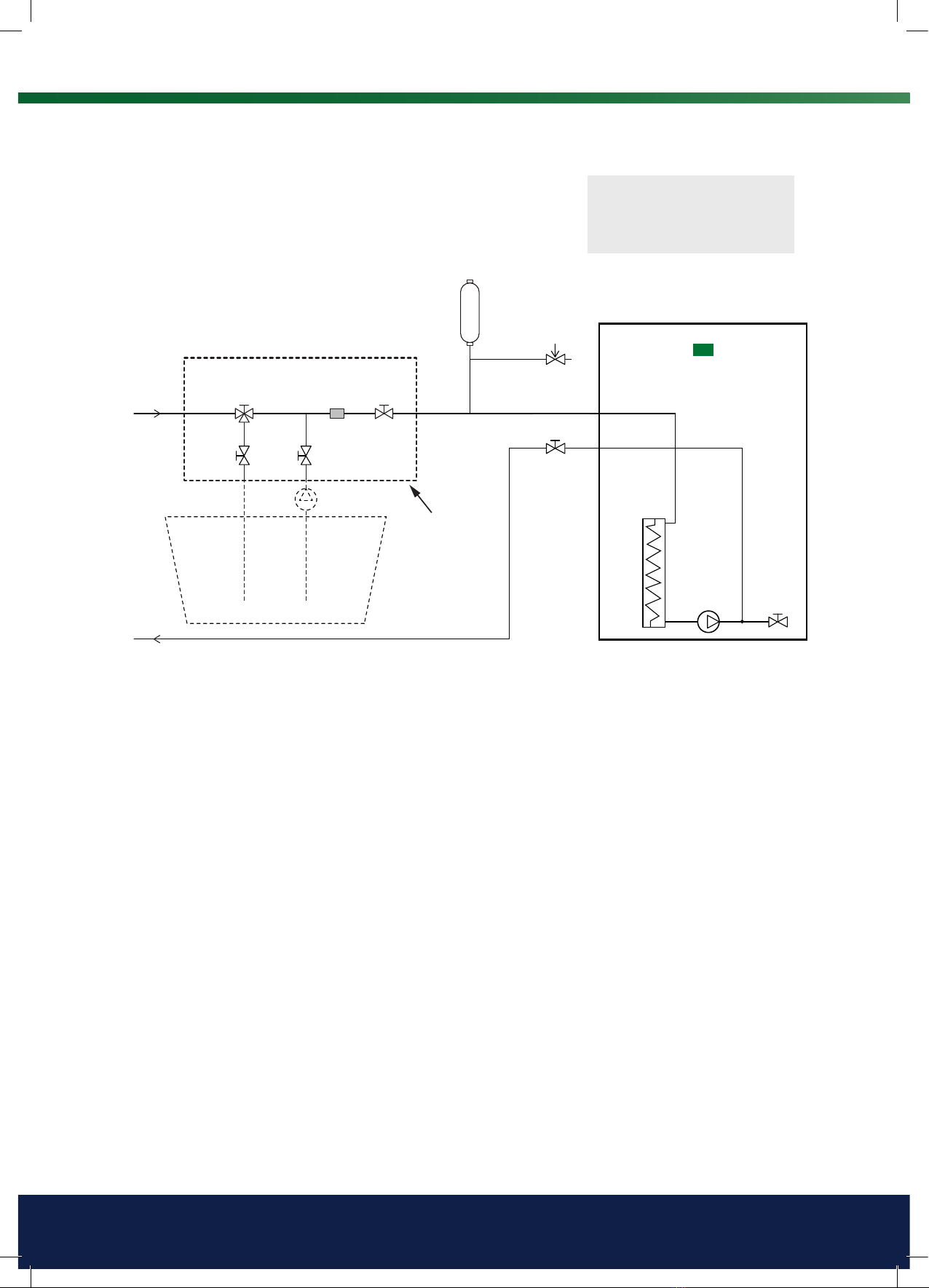

Schematic diagram
The filling equipment is represented by the parts displayed with dashes. Note!
Collector hoses must have a bleeding facility as air pockets can occur. Always
check the filter (99) when filling and bleeding the brine system. !The mixing vessel
and pump must be
of a good size.

19
CTC EcoPart 400
General information
Valves
To facilitate servicing of the cooling unit, shut-off valves must be fitted to both
the incoming and outgoing connections. Fit bifurcated valves so that you can fill
and bleed the collector circuit later on.
Bleeding
The collector circuit must not contain any air. Even the smallest amount of air
can jeopardise the heat pump's operation. See the section Refilling and venting
below.
Insulation against condensation
All pipes in the brine system must be insulated against condensation to prevent
the possibility of severe build-up of ice and condensation.
Refilling and venting
Mix water and antifreeze solution in an open vessel. Connect hoses to the shut-
off valves (98a and 98b) as shown in the figure. Note! The hoses must have a
minimum diameter of 3/4”. Connect a powerful external pump (101) for refilling
and bleeding. Then reset the three-way valve (100) and open the valves (98a
and 98b) so that the brine passes through the mixing container (102). Also make
sure that the valve (98d) is open.
For start up of the brine pump, see the relevant manual for the
CTCEcoPart400’s controller.
Allow the brine to circulate in the system for a long period of time until it is
completely free of air. There can still be air in the system, even though no
air accompanies the liquid out. Reset the three-way valve (100) so that any
remaining air can come out.
Bleed the level vessel (96) by loosening the plug on top of the level tank.
Now close the valve (98a) while the filling pump continues to run. The filling
pump (101) now pressurises the system. Also close the valve (98b) and shut off
the filling pump.
If the level in the level vessel is too low, close the valves (98c and 98d). Unscrew
the plug and fill the vessel to around 2/3 full. Screw the plug back in and open
the valves (98c and 98d).

20
CTC EcoPart 400
General information
Performance curves and technical data, standard housings
53
6
UPM2K 25-70 180, 1 x 230 V, 50/60 Hz
Electrical data, 1 x 230 V, 50 Hz
Dimensional sketches and position of control box
Technical data
Revision date: 1 November 2011
TM05 2044 4311 - TM04 9200 3710
Speed P1 [W] I1/1 [A]
Min. 40.05
Max. 55 0.46
TM04 9212 3810 - TM04 9482 4310
Pump type
Dimensions [mm]
Connection Net weight
[kg]
Quantity per
pallet
L1 L2 L3 B3 B4 B5 H1 H2
UPM2K 25-70 180 3 132 94 46 63 25 108 G 1 1/2 2.63 -
System pressure: Max. 1.0 MPa (10 bar) Enclosure class: IPX4D
Minimum inlet pressure: 0.05 MPa (0.5 bar) at 95 °C liquid
temperature Insulation class: H
Liquid temperature: -10 °C to +95 °C (TF 95) Equipment class: I
Motor protection: Overload protection Approval and marking: VDE, CE
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6
Q [m³/h]
0
1
2
3
4
5
6
7
[m]
H
0
10
20
30
40
50
60
[kPa]
p
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7
Q [l/s]
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6
Q [m³/h]
0
10
20
30
40
50
60
[W]
P1
EEI ≤0.23
39
8
UPML, UPMXL
UPMXL GEO 25-125 180 PWM, 1 x 230 V, 50/60 Hz
Performance curves and technical data
UPMXL GEO 25-125 180 PWM, 1 x 230 V, 50/60 Hz
Electrical data, 1 x 230 V, 50 Hz
Dimensional sketches and control box positions
Technical data
TM05 7252 0813
Speed P1[W] I1/1 [A]
Min. 3 0.06
Max. 180 1.4
TM05 7428 3312
Pump type
Dimensions [mm]
L1 L2 L3 B3 B4 B5 H1 H2 Connection Net weight
[kg]
Quantity per
pallet
UPMXL GEO 25-125 180 3.5 131 117 50 64 38 104 G 1 1/2 2.7 -
System pressure: Max. 1.0 MPa (10 bar) Enclosure class: IPX2D
Minimum inlet pressure: 0.01 MPa (0.10 bar) at 95 °C liquid temperature Insulation class: H
Liquid temperature: -10 °C to +95 °C (TF 95) Equipment class: I
Motor protection: Overload protection Approval and marking: VDE, CE
EEI ≤0.23
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
Q [m³/h]
0
2
4
6
8
10
12
[m]
H
0
20
40
60
80
100
120
[kPa]
p
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6
Q [l/s]
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
Q [m³/h]
0
40
80
120
160
[W]
P1
Type XXXX XX-XX XXX
XXXV ~
XX/XXHz
GFXXX
EuP Ready
I1/1(A) P1(W)
X.XX
X.XX
XX
XX
Max.
Min.
P/N:XXXXXXX
PC:XXXXXX
IP XX
TF XX
Max.X.XMPa
AHigh Efficiency
XX
EEI<0.23
The circulation pumps in CTCs products are of the energy efficiency class A.
• CTC EcoHeat/EcoPart 406-408 has pump UPM2K 25-70 180.
• CTC EcoHeat/EcoPart 410-417 & CTC GSi 12 has pump UPMXL GEO 25-125 180.
Brine pump3.3 Brine pump
