CTC Union EcoEl 1550 Instruction Manual

CTC EcoEl 1
Installation- and maintenance
CTC EcoEl
Model 1550 and 1800
161 505 26/6
2010-04-13

CTC EcoEl
2
General informationContents
Contents
For your own memory
Fill in the information below. It may be useful if anything should happen
Product Manufacturing No
Installer Telephone No
Date of installation
General information
Introduction 3
Important points! 4
Safety instructions 5
Heating curve 6
Construction EcoEl 8
How the control system works 9
CTC EcoEl menu map 12
CTC EcoEl menu map 14
End user information
Detailed menu description EcoEl 16
Other information: 28
CTC EcoEl operation temperatures 28
Indoor sensor 28
Where there is a fault on the outdoor/
indoor sensor 28
Summer basement heating 28
Operation and maintenance 29
Fault tracing/suitable measures 30
Information and alarm texts 32
Connected to a CTC Heat pump 33
Installation
Introducion 37
Hydraulic installation 37
Electrical installation* 41
First start 45
System settings 46
Technical data
Tabel 46
Measurements and connections 46
Declaration of conformity 47
*) Wiring diagram placed center fould.
With reservation for typing errors. Subject to alterations in design.

CTC EcoEl 3
General information
Welcome
Congratulations! You have just bought a CTC EcoEl, which we hope you will be very
pleased with. In the following handbook, you can read about how to operate your
electrical boiler. One chapter is written for the property owner and one chapter for the
installation contractor.
Keep this handbook with the installation and maintenance instructions. The CTC EcoEl
is designed to last for many years, and it is here you will find the information you need
to operate and maintain the unit correctly and ensure its longevity.
The complete electrical boiler
CTC EcoEl is a complete electrical boiler which can provide your detached house’s
heating and hot water requirements. It is equipped with a motorised mixing valve valve
which ensures correct and even temperatures are supplied to your radiators.
CTC EcoEl has a control system which:
◗Monitors all functions of the electrical boiler as well as potentially connected CTC
EcoAir or CTC EcoPart heat pumps.
◗Permits individual settings.
◗Displays required values, such as temperatures, operation times, energy consumption,
and fault recording.
◗In a simple and well structured way, allows settings to be adjusted and fault tracing
Your CTC EcoEl is equipped with a built in copper coil providing copious amounts of
hot water. CTC EcoEl also has a so called summer time cellar heating function and a
floor heating block, which maximises the temperature supplied to the floor circuits.
Using the built in night time reduction function, you can set and change house tem-
peratures during the day and from day to day in the Week program.
Easily accessible electric components and good fault tracing functions in the control
program make CTC EcoEl service friendly. It is supplied with a room sensor as stand-
ard, which is equipped with a light diode which flashes in the event of a fault.
The CTC EcoEL is designed for easy connection of the air/water heat pumps CTC
EcoAir or the ground source heat pump CTC EcoPart. When connected the complete
functions of the heat pump are controlled from the CTC EcoEl control system and
menu display.

CTC EcoEl
4
General information
Important points!
Upon delivery and installation carefully check the following important points:
◗The EcoEl must be transported and stored standing.
◗When moving the product inside the house it can be temporarily placed on its
back.
◗Unpack and check before installation that the product has not been
damaged during transport.
Report eventual transport damage to the transporter.
◗Place the EcoEl on a solid foundation, recommended a concrete bed.
If the electrical boiler shall be placed on a soft carpet, some type of base plate must
be placed under the adjustable feet.
◗For easy access upon service, the area in front of the product must be at least 1 meter.
The product must also not be placed below floor level.

CTC EcoEl 5
General information
Safety instructions
The following safety instructions must be observed upon handling, installation and use
of the heat pump:
◗Ensure that the product is currentless before any interventions.
◗Do not flush the heat pump with water.
◗When handling the product with a crane etc., make sure that the lifting
equipment, loops etc. are not damaged. Never place yourself under the
elevated heat pump.
◗Never risk your safety by dismantling casings, covers etc that are screwed
tight.
◗Never risk your safety by setting safety equipment out of function.
◗Interventions in the electric or cooling system must be done only by a
qualified person.
◗ Safety valve control:
The safety valve for boiler/heating system and DHW must be controlled on a regular
basis. See chapter Operation and maintenance.

CTC EcoEl
6
General information
!The set heating curve
is always prioritised.
The room sensor can
only call on the mixing
valve to increase temper-
atures to a specific level
beyond the set heating
curve. Where operating
without a room sensor,
the selected graph de-
termines the temperature
supplied to the radiators.
Heating curve
The heating curve is a central part of the product’s control system. It is the heating
curve which determines the temperature requirement for your property at different
outdoor temperatures. It is important that the heating curve is correctly adjusted, so
that you achieve the best function and economy possible.
One property requires a radiator temperature of 30°C when the outdoor temperature
is 0°C. A different property requires 40°C. The difference between different properties
is determined by radiator surface area, the number of radiators and how well insulated
the house is.
Adjustment of heating curve basic values
The heating curve for your property is set using two values in the product control
system. This is set in the menu Installer/Settings/Setting house paramt/
Inclination and Adjustment.
Arriving at the correct heating curve can take some time. The best way to achieve this
is to select operation without room sensor in the initial period. The system then oper-
ates using outdoor temperatures only.
During the adjustment period it is important that:
◗Night reduction function is not selected.
◗All radiator thermostat valves are fully open.
◗Outdoor temperature is not higher than +5°C. (If the outdoor temperature is
higher when the system is installed, use the factory set graph until the outdoor
temperature falls to this level.)
◗The radiator system functions well and is correctly adjusted for the different
circuits.
Inclination and adjustment
Inclination 50:
The value defies the outgoing temperature of the water supplied to the radiators at an
outdoor temperature of –15°C, e.g. 50°C.
A lower value is set where a radiator system has larger radiator areas (a low temperature
system).
Floor heating systems require much lower temperatures. An even lower value should
therefore be selected.
The value must be increased for high temperature systems to achieve high enough in-
door temperatures.
Adjustment 0:
The inclination defines how much the temperature of the water supplied to the radia-
tors should be increased for falling outdoor temperatures. The adjustment specifies that
the temperature level can be raised or be lowered at specific outdoor temperatures.
Example:
Inclination 50 means that the temperature of the water supplied to the radiators is 50°C when
the outdoor temperature is –15°C (if adjustment is set to 0). If the adjustment is set to +5, the
temperature is instead 55°C.
The graph is increased by 5°C at all temperatures, i.e. the graph is parallel displaced by 5°C.

CTC EcoEl 7
General information
Examples of heating curves
Below you find three charts where you can see how the heating curve changes by differ-
ent settings of the Inclination. The gradient of the curve shows which temperature the
heating system requires at different outdoor temperatures.
Inclination:
Adjustment:
Prime flow
temperature
Prime flow
temperature
The set value of the gradient is
the primary flow temperature
at an outdoor temperature of
-15 °C.
Outdoor
temperature
Outdoor
temperature
The curve can then be parallel
displaced (Adjustment) the re-
quired number of degrees to be
adapted for different heating
systems/houses.
Gradient 50 °C
Adjustment 0 °C
Gradient 50 °C
Adjustment + 5 °C

CTC EcoEl
8
General information
!To low adjusted values
might imply that the re-
quired indoor tempera-
ture is not being reached.
Then you have to adjust
the heating curve accord-
ing to need.
Suitable standard values
At the time of the installation it is seldom possible to instantly set the heating curve
exactly . The values to the right may then be a good starting-point before the more ac-
curate adjustment is set.
Radiators with small heat emission surfaces require higher primary flow temperatures.
Menu:
Installer/Settings/Setting house paramt ----->Inclination
Floor heating only Inclination 35
Low temperature system (well insulated house) Inclination 40
Standard temperature system (older house) Inclination 50
High temperature system
(older house, small radiators, poorly insulated) Inclination 60
Adjustment (if the outdoor temperature is lower than 0 degrees)
◗At too cold indoors: Increase the value at Inclination a couple of degrees.
Wait one day before the next adjustment.
◗At too warm indoors: Decrease the value at Inclination
a couple of degrees. Wait one day before the next adjustment.
Adjustment (if the outdoor temperature is higher than 0 degrees)
◗At too cold indoors: Increase the value at Adjustment a couple of degrees.
Wait one day before the next adjustment.
◗At too warm indoors: Decrease the value at Adjustment
a couple of degrees. Wait one day before the next adjustment.
!When the standrad
values are fairly correct
adjusted, the curve can
be displaced directly in
the normal display menu
Indoor°C.

CTC EcoEl 9
General information
Construction EcoEl

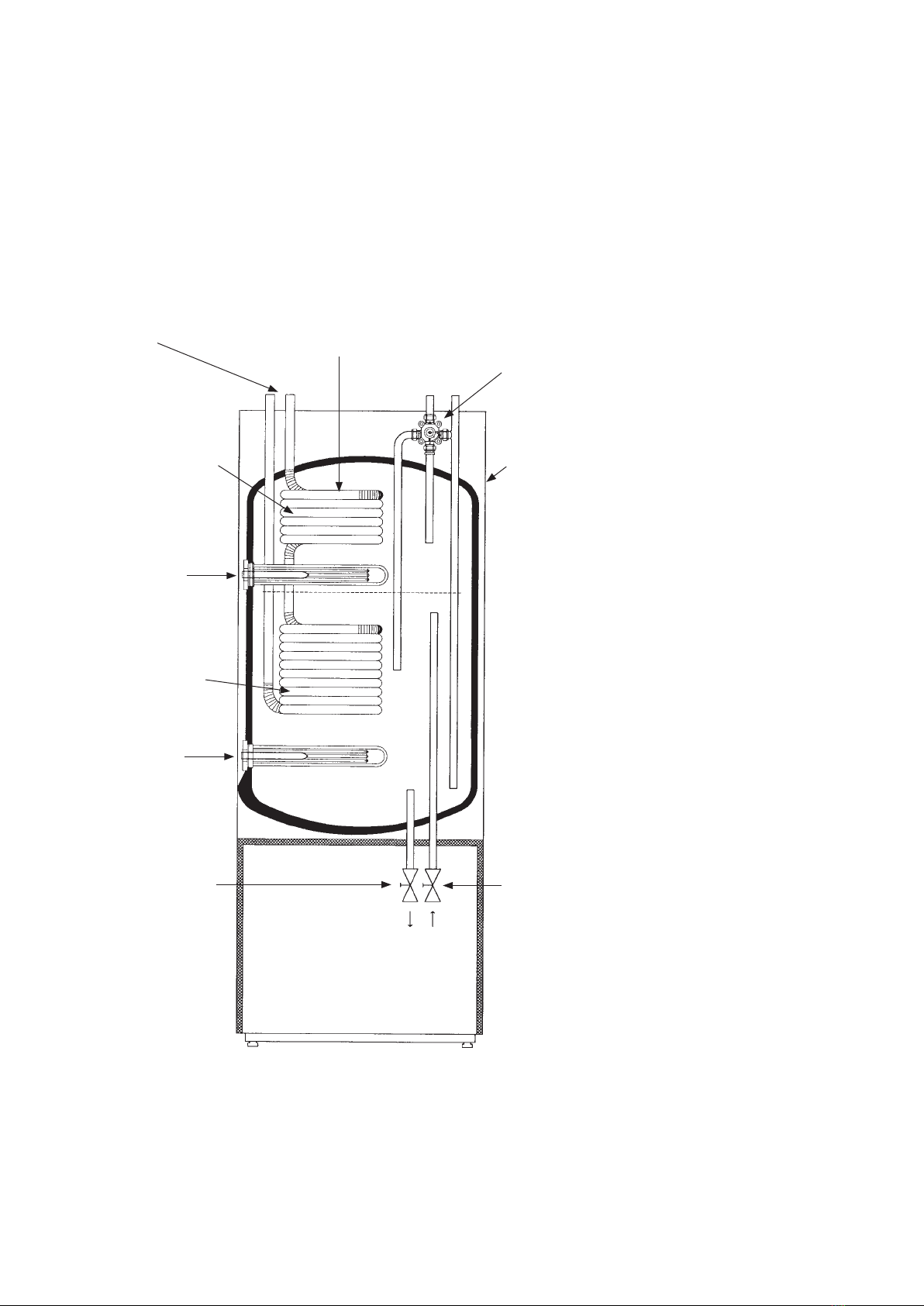

The picture below shows the fundamental construction of the product.
Fresh water connections
Here you connect the fresh
water connections of the
property. The cold water is
led down to the lower part of
the coil.
Gilled coil for hot water
The product is equipped with a well dimensioned
gilled coil in copper. The product is not supplied
with any parts which can rust and break. The
temperature can be kept low without risk of
legionella bacteria.
Bivalent mixing valve
The automatized mixing valve
ensures that an even heat
reaches the radiator system
continously. The valve has
double doors and first collects
the hot radiator water from the
water heated by the heating
pump.
Upper part
In the upper part of the coil the
water is heated to the selected
hot water temperature.
Immersion heaters
A built-in immersion heater
functions as peak heat if the
effective output is not sufficient
along with the rising of the hot
water temperature.
Lower part
In the lower part of the coil the
water is pre-heated by the heat
pump. The major part of the coil
is located in this part.
!Note: Do not connect
the product accord-
ing to this construc-
tion sketch, see instead
the measurements on
page 30 and the chapter
”Plumbing system”.
Drainage valve
Used for drainage of the pro-
duct and/or radiator system.
When EcoEl connected to heat
pump, this would be the flow
pipe to the heat pump.
Insulation
The tank of the boiler is
insulated with die cast
polyurethane foam for
minimal heat losses.
Connection for heat pump
When EcoEl connected to heat
pump, this would be the flow
pipe from the heat pump.
Immersion heaters
Lower immersion heater

CTC EcoEl
10
General information
How the control system works
All settings are set on the well structured control panel. The control panel also provides you
with information on operation and temperatures. Information is displayed in the display
screen. All the information you need is easily obtained by a few keystrokes and by making a
few selections in the different menus.
How the buttons are used
Accessing the menus, to display operation information or set your own values, is sim-
ple. The button functions are described below.

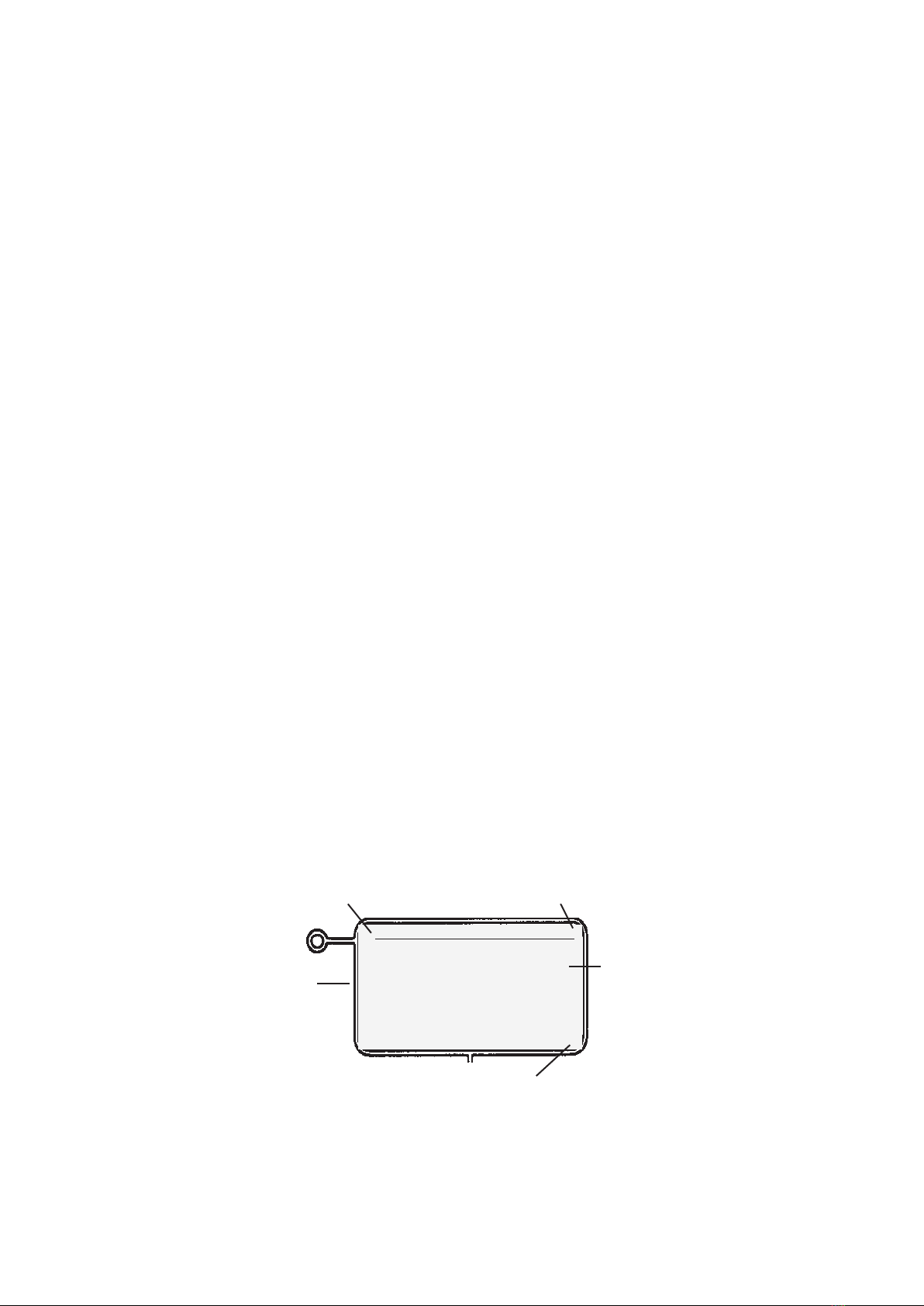

A The display screen
1. Menu name
The name of the menu you are in is displayed here. When you are not in the
menu system the product name, day and time (normal display) are displayed.
2. Row marker
You can scroll the cursor up or down the screen to the row you want to select.
The cursor is moved using the increase or reduce button (D).
The cursor becomes filled and black when a row is selected. Press the “undo” button
(B) to deselect a row selection.
3. More rows indicator
The arrow shows that there are rows below which are not visible in the display.
Scroll the cursor downwards to view these rows. The arrow disappears where there
are no more rows below.
4. More rows indicator
The arrow shows that there are rows above which are not visible in the display.
Scroll the cursor upwards to view more rows. The arrow disappears where there are
no more rows above.
5. Information area
All information, temperatures, values etc. are displayed here.
4
1
2
3
A
EcoEl Mon 8:03
Indoor
Boiler °C 50
►Operation data
Stored operation
Night reduction
Installer
▲
▼
5

CTC EcoEl 11
General information
B C
D
A
E
B Button – “step backwards” or “undo”
Use this button to step backwards in the menu system to the previous menu. You can
also use this button to deselect a selected row.
C Button – “OK”
Use this button to approve/confirm a value or a selection.
D Button – “increase” or “reduce”
Use the button to increase or reduce a value. The button can also be used to move the
row marker upwards or downwards.
E Button – “Reset alarm”
Use this button to reset the product after an alarm has been triggered. Only displayed
where an alarm has been triggered.

CTC EcoEl
12
General information
CTC EcoEl menu map
Indoor
Adjustment
- +
(50)
● ● ● ●
EcoEl Mon 00:00
IndoorTemp °C
Boiler °C
►Operation data
Stored oper data
Night reduction
Installer
Operation data
Outdoor °C -5
Boiler °C 44 (56)
Primfl °C 47 (49)
Boiler lower °C 48 (50)
Heatingcir. pump On/Off
El power kW 0.0
Current A 11 (20)
Mixing valve
Program ID
Program date
Stored oper data
Total Operation h
El heat kWh 0
Max Prim °C 42
Night reduction
►Activated Yes/No
Typ WeekProgram
Prim red °C -5
WeekProgram/Block
Installer
Settings
Service

CTC EcoEl 13
General information
WeekProgram
Mon ▲06-▲-22
Tue ▲06-▲-22
Wed ▲06-▲-22
Thu ▲06-▲-22
Fri ▲06-▲-23
Sat ▲08-▲-23
Sun ▲08-▲-22
Block
Decr. Sun 18:00
Incr. Fri 16:00
Decr. - -
Incr. - -
Settings
Lang. English
Product EcoEl
Indoor sens Yes/No
Boiler °C 50
Boiler max kW 3
Boiler lower °C 50
Boiler lower kW 3
Main fuse A 20
External Control NS
Setting house paramt
Holiday On/Off
Prim red °C -2
HP max DHW Yes
Save setting
Load setting
Load factory setting
Service
Function test
Alarm info
Alarm info
Latest alarm
-
Stored alarms
-
-
Function test
ElRelay 1.5/3 kW
ElRelay 3/6 kW
Boiler lower Off
Charg. pump Off
Heatingcir. pump Off
Setting house paramt
Max Primfl. °C 55
Min Primfl. °C Off
Heating Off °C 16
Heating curve
Inclination 50
Adjustment 0

CTC EcoEl
14
General information
Indoor
Adjustment
- +
(50)
CTC EcoEl menu map
With the heat pump CTC EcoAir (or CTC EcoPart) connected.
● ● ● ●
EcoAir Mon 00:00
Indoor °C
Boiler °C
Add. DHW VV Yes/No
►Operation data
Stored oper data
Night reduction
Installer
Add. DHW
Activated Yes/No
Typ WeekProgram/time
WeekProgram
Operation data
Outdoor °C -5
Boiler °C 44 (56)
Primfl °C 47 (49)
Boiler lower °C 48 (50)
Horgas °C 44
Compr Off
Fan Off
Charg.pump Off
HP in/out °C 48/48
Outdoor HP °C -5
Heatingcir. pump On
El power kW 0.0
Current A 11 (20)
Mixing valve Opening
Delay valve ¹180
Program ID
Program date
Stored oper data
Total Operation h
El heat kWh 0
Max Prim °C 42
Compressor
Total Operation h
Operation/24h h:min
Starts/24h st 14
Night reduction
►Activated Yes/No
Type WeekProgram
Prim red °C -5
WeekProgram/Block
Installer
Settings
Service

CTC EcoEl 15
General information
Service
Function test
Alarm info
Factory setting coded
Settings
Lang. English
Product EcoAir
Heat pump Permitted
Indoor sensor Yes/No
Boiler °C 50
Boiler max kW 3
Boiler lower °C 50
Boiler lower kW 3
Delay valve min 180
Main fuse A 20
Add. DHW min 120
Add. DHW boiler °C 60
ExternalControl NR
Setting house paramet.
Min outdoortemp. °C -10
Holiday On/Off
HP max DHW Yes
Save setting
Load setting
Load factory setting
WeekProgram
Mon ▲06-▲-22
Tue ▲06-▲-22
Wed ▲06-▲-22
Thu ▲06-▲-22
Fri ▲06-▲-23
Sat ▲08-▲-23
Sun ▲08-▲-22
Setting house paramet.
Max Primfl °C 55
Min Primfl °C Off
Heating off °C 16
Heat curve
Inclination °C 50
Adjustment °C 0
Function test
ElRelay el 1.5/3 kW
ElRelay el 3/6 kW
Boiler lower Off
Compr Off
Fan Off
Charg. pump Off
Heatingcir. pump Off
Mixing valve
Diod sensor Off
Alarm info
Latest alarm
-
Stored alarms
-
Factory setting code
Code 0 0 0
Summer oper. °C 16
HP max °C 55
HP min °C 35
Alarm hotgas °C 130
Diff start/stop 5
Start delay min 10

CTC EcoEl
End user information
16
Main menu/Normal display menu
This menu is the system’s basic menu. The system returns to this menu if no buttons
are pressed within a 10 minute period. All other menus can be accessed from this
menu.
EcoEl Mon 00:00 Displays the product selected, the day and the time. Day and time can be set by
selecting this row.
I
ndoorTemp °C Displays current room temperature. The set temperature is displayed in brackets.
Select this row to change set temperature. Can be set in the range 0.0… 35.0°C.
IndoorTemp °C If a room sensor has not been fitted, temperature is adjusted using the outdoor
temperature. Select this row to adjust the temperature of the water supplied to
radiators. See the room temperature menu below.
If “NS” is displayed, night time lowering of temperature is running.
Boiler °C The product’s maximum temperature is displayed here. The product sensor is
positioned at the top of the tank. Display only.
Operation data Select this menu to view all product current operating data, all current temperatu-
res, active components etc.
Stored operation data Select this menu to view operating data which has been saved over a longer time
period.
Night reduction You can select here whether you want to activate night time lowering of
temperature. Two periods of lower temperatures per day, seven days a week can be
programmed. Lowering can also be programmed for blocks of days.
Installer This menu contains two sub menus. One menu is used to set all basic settings and
one menu is used by service personnel.
Night reduction: off (constant normal temperature)
Temp. boiler upper:
Power
50 °C
6 kW
Temp. boiler lower:
Power
40°C
6 kW
Indoor sensor: none
Main fuse: 20A
House parameters: Inclination 50, Adjustment 0 °C
Night reduction: No
Detailed menu description
Factory set values
The product is supplied with a set factory set values which are suitable for a normal
house with a normal radiator system. These values can be changed as required. House
parameters should be particularly checked. Ask your installation contractor to determine
the correct values. The following basic values are set by the factory:
EcoEl Mon 00:00
IndoorTemp °C
Boiler °C
►Operation data
Stored oper data
Night reduction
Installer

CTC EcoEl
End user information
17
Indoor Temp
. . . . .. . . .
(50)
-+
Adjustment
Menu Time setting (at the top of the normal display menu)
Day and time can be set here. The clock is metered by the mains electricity
network frequency (50 Hz). If there is a power cut, reset the clock. The clock re-
starts at the time immediately before the power cut ± 5 minutes. Summer time/
winter time is set manually.
Day Mon Set current day (Monday...Sunday).
Time 00:00 Set current time (00:00… 11:59 pm)
Menu Indoor temperature(the menu can be accessed
directly from the main menu)
(when “operation without room sensor” is
selected)
The room temperature is set in this menu if a room sensor has not been fitted
(selected in the settings menu). The house’s basic settings are first set in the
“house parameters” menu, usually with the help of the installation contractor.
Basic settings are then fine tuned using this menu.
If the indoor temperature is experienced as being too low or too high, move the
cursor towards + (increase) or – (reduce). Move a little at a time and see what effect
this has on indoor temperatures (1 day) before making further changes. Several ad-
justments may be necessary at different outdoor temperatures. However, a correct
setting will be arrived at which will not require further changing. A reference value
(for example 50) is displayed under the bar. This value depends on the basic value
set. If the bar does not extend far enough to allow the correct indoor temperature
to be obtained, the basic setting must be adjusted in the Installer/Settings/Setting
house paramet. The cursor is then centred in relation to the new values.
NOTE: radiator thermostats must be fully open and fully functioning
when adjusting the system.
Time setting
Day Mon
Time 00:00

CTC EcoEl
End user information
18
Menu Operation data (the menu is directly accessed from the
main menu)
This menu displays current product and system temperatures and operating data.
Values in brackets are either required values or automatically generated values
which the product aims to achieve (expected values).
Outdoor °C -5 Displays current outdoor temperature.
The product uses this value to determine a number of different operating data.
Boiler°C 47 (56) Displays the upper boiler section temperature (electric boiler) and the temperature
which the boiler aims to achieve. This value automatically increases if a poor radiator
system requires higher temperatures.
Primfl °C 47 (49) Displays the temperature of the water supplied to the house’s radiators, and the
temperature which the system aims to achieve. This value will vary during operation
depending on set parameters and current outdoor temperatures.
Boiler lower °C 48 (50) Displays the lower boiler section temperature (electric boiler) and the temperature
which the boiler aims to achieve.
Heatingcir.pump Displays the heating circuit (radiator) pump’s operating status. The pump stops in
On/Off the summer time when there is no heating requirement. The pump is however
exercised occasionally to avoid it jamming.
El power kW 6.0 Displays auxiliary power of the electric boiler (0…9 kW).
The electric boiler connects power in steps of 1.5 kW (6 connection steps).
Current A 11 (20) Displays the house’s total current consumption on the hardest loaded phase. The
house’s main fuse size is displayed in brackets. Assumes that the current sensor
upplied has been fitted to the incoming cables. If the current drawn exceeds the
main fuse size, the electric boiler automatically steps down a power step to protect
the fuses, for example when several high consumption equipment units in the house
are being used.
Mixing valve A micro switch in the mixing valve valve’s motor ensures that auxiliary heating is not
used unnecessarily.
Program ID Control program identity.
Program date Control program version date.
Operation data
Outdoor °C -5
Boiler °C 44 (56)
Primfl °C 47 (49)
Boiler lower °C 48 (50)
Heatingcir. pump On/Off
El power kW 0.0
Current A 11 (20)
Mixing valve
Program ID
Program date

CTC EcoEl
End user information
19
Menu Stored operation data
(the menu can be directly accessed from the main menu)
Operation values across longer periods of time are reported in this menu.
Total Operation h Displays the total time the product has been connected to power.
El heat kWh Displays the product’s total calculated approximate consumption.
This is not a direct energy measurement. The household energy is outside this
display.
Max prim °C 55 Displays the maximum temperature of the water supplied to the radiators.
The value can indicate the radiator system/the house’s temperature requirement.
The lower the value in the winter season, the better the system is adapted to heat
pump operation.
The value can be reset by pressing the “OK” button in this menu.
Menu Night reduction (the menu can be directly accessed
from the main menu)
Night time lowering of temperatures can be activated and set in this menu.
Night time temperature lowering means that the indoor temperature is lowered
during scheduled periods, for example at night or when you are at work. Two
types of night time temperature lowering can be selected. Week Program is se-
lected to schedule daily lowering of temperatures. Block is selected to schedule
night temperature lowering periods which last for several days.
Activated Yes/No Here you can select whether scheduled temperature lowering is active. Where “No”
is selected, there is no temperature lowering.
Typ WeekProgram The type of lowering is selected here:
WeekProgram means that periods of lower temperatures can be scheduled for all
days of the week, with the option of two periods of lower temperatures per day.
The schedule repeats every week.
Block means that lowering is scheduled for several days of the week, for example
Monday to Friday. Two lower temperature periods can be scheduled.
The schedule repeats every week.
Prim red °C -5 Here you can set how many degrees the room temperature is to be lowered during
the lower temperature periods. NB: –5 means that the room temperature is lowe
red 5°C below the ordinary temp. If the room sensor is not included in operation,
the lowering is applied to the primary flow temperature. Rule of thumb: a 3–4°C
lower primary flow temperature gives around 1°C lower room temp in a normal
system.
WeekProgram or Block Scheduling is set under these menus, see next section.
Stored oper data
Total Operation h h
El heat kWh 0
Max prime °C 42
Night reduction
►Activated Yes/No
Typ WeekProgram
Prim red °C -5
WeekProgram/Block

CTC EcoEl
End user information
20
Menu Week program
(Night reduction/WeekProgram)
Lowering times during days of the week can be scheduled in this menu. The
schedule repeats every week. The picture shows the factory values, which
can be changed. If further lowering periods are required, intermediate times
can be programmed.
▲= the temperature is raised (to normal temp) at the times specified after the
arrow.
▼= the temperature is lowered the number of degrees specified at the time
specified after the arrow
Ex. 1
Mon ▲06 ▼- - ▲- - ▼22 : On Monday morning at 6.00 am, the temperature is raised to normal and remains
normal throughout the day until 10.00 pm when the temperature is lowered.
Ex. 2
Mon ▲06 ▼12 ▲16 ▼22 : At 6:00 am, the temp is raised to normal, at 12:00 pm the temp is lowered until
4:00 pm. Between 4:00 pm and 10:00 pm the temp is normal, after which the
temperature is lowered.
Block menu (Night reduction/Block)
Temperature lowering for several days of the week can be set in this menu.
For example, if you work somewhere else during the week but are at home
at the weekend.
Decr Sunday 18:00 Set the first day and time at which the temperature should be lowered.
Incr Friday 16:00 Set the day and time at which the temperature is to be returned to normal.
If two lowering periods are required in the week, they are programmed in
chronologic order.
Ex:
Decr Sunday 18:00
Incr Wednesday 16:00
Decr Thursday 21:00
Incr Friday 16:00
Menu Installer
(the menu can be accessed directly from the main menu)
This menu contains two sub menus. The Settings menu is used by the in-
stallation contractor and the user and the Service menu is used when fault
tracing.
Settings Select this menu to adjust the settings to your own requirements.
Service This menu is used by service personnel for fault tracing and diagnostics.
The menu also contains an encoded section with alarm limits, where
manufacturer’s settings are stored.
WeekProgram
Mon ▲06 ▼- - ▲- - ▼22
Tue ▲06 ▼- - ▲- - ▼22
Wed ▲06 ▼- - ▲- - ▼22
Thu ▲06 ▼- - ▲- - ▼22
Fri ▲06 ▼- - ▲- - ▼23
Sat ▲08 ▼- - ▲- - ▼23
Sun ▲08 ▼- - ▲- - ▼22
Installer
Settings
Service
Block
Decr. Sun 18:00
Incr. Fri 16:00
Decr. - -
Incr. - -
