CTI Rudi Embedded System Series User manual
Rudi Embedded System with NVIDIA
Jetson TX2, TX2i or TX1
Connect Tech Inc. Tel: 519-836-1291
42 Arrow Road Toll: 800-426-8979 (North America only)
Guelph, Ontario Fax: 519-836-4878
N1K 1S6 Email: sales@connecttech.com
www.connecttech.com support@connecttech.com
CTIM-00479 Revision 0.08 2019-04-08
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 2 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Table of Contents
Table of Contents...................................................................................................................................2
Preface...................................................................................................................................................4
Disclaimer .......................................................................................................................................................4
Customer Support Overview...........................................................................................................................4
Contact Information ........................................................................................................................................4
Limited Product Warranty...............................................................................................................................5
Copyright Notice.............................................................................................................................................5
Trademark Acknowledgment..........................................................................................................................5
Revision History ....................................................................................................................................6
Introduction...........................................................................................................................................7
Product Features and Specifications ......................................................................................................7
Product Overview................................................................................................................................10
Connector Locations (Front) .........................................................................................................................10
Connector Locations (Rear) ..........................................................................................................................11
Connector Summary......................................................................................................................................12
Switch Summary...........................................................................................................................................13
Block Diagram.....................................................................................................................................14
Detailed Feature Description................................................................................................................15
Power Input...................................................................................................................................................15
Power Input (Alternate 2 pin Terminal ESG505/506)...................................................................................15
USB OTG......................................................................................................................................................16
I/O Connector................................................................................................................................................16
10/100/1000 Ethernet (GBE).........................................................................................................................17
USB 3.0.........................................................................................................................................................17
USB 2.0.........................................................................................................................................................17
HDMI............................................................................................................................................................18
Antenna 1 ......................................................................................................................................................18
Antenna 2 ......................................................................................................................................................18
CAN Bus.......................................................................................................................................................19
SD Card.........................................................................................................................................................19
SIM Card.......................................................................................................................................................19
Switch Description...............................................................................................................................20
Power Button.................................................................................................................................................20
Reset Button..................................................................................................................................................20
Recovery Button............................................................................................................................................20
Force Recovery Mode ...................................................................................................................................21
RTC Battery ..................................................................................................................................................21
Expansion Options...............................................................................................................................22
miniPCIe Expansion Card.............................................................................................................................22
mSATA Expansion Card...............................................................................................................................22
Rudi Operation....................................................................................................................................23
System LEDs .......................................................................................................................................23
Current Consumption Details ..............................................................................................................24
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 3 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Accessories...........................................................................................................................................25
Power Brick...................................................................................................................................................25
CAN Bus Terminal Connector......................................................................................................................25
Dual Band Antenna .......................................................................................................................................26
Mounting Brackets ........................................................................................................................................26
MISC I/O Breakout Cable.............................................................................................................................27
Software / BSP Details .........................................................................................................................28
Connect Tech’s Custom L4T BSP (CTI-L4T) ..............................................................................................28
NVIDIA Linux For Tegra (L4T)...................................................................................................................28
NVIDIA Jetpack for L4T ..............................................................................................................................28
Mechanical Details...............................................................................................................................29
Rudi Embedded System ................................................................................................................................29
Mechanical Mounting Package .....................................................................................................................30
Bottom Disassembly Instructions (ESD CAUTION!) ..................................................................................31
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 4 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Preface
Disclaimer
The information contained within this user’s guide, including but not limited to any product specification, is
subject to change without notice.
Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or
typographical errors or omissions contained herein or for discrepancies between the product and the user’s
guide.
Customer Support Overview
If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech
reseller from which you purchased the product. In most cases the reseller can help you with product installation
and difficulties.
In the event that the reseller is unable to resolve your problem, our highly qualified support staff can assist you.
Our support section is available 24 hours a day, 7 days a week on our website at:
http://connecttech.com/support/resource-center/. See the contact information section below for more
information on how to contact us directly. Our technical support is always free.
Contact Information
Mail/Courier
Connect Tech Inc.
Technical Support
42 Arrow Road
Guelph, Ontario
Canada N1K 1S6
Email/Internet
www.connecttech.com
Note:
Please go to the Connect Tech Resource Center for product manuals, installation guides, device driver, BSPs
and technical tips. Submit your technical support questions to our support engineers.
Telephone/Facsimile
Technical Support representatives are ready to answer your call Monday through Friday, from 8:30 a.m. to
5:00 p.m. Eastern Standard Time. Our numbers for calls are:
Toll Free: 800-426-8979 (North America only)
Telephone: 519-836-1291 (Live assistance available 8:30 a.m. to 5:00 p.m. EST, Monday to Friday)
Facsimile: 519-836-4878 (on-line 24 hours)
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 5 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Limited Product Warranty
Connect Tech Inc. provides a one year Warranty for the Rudi Embedded System. Should this product, in
Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc.
will, at its option, repair or replace this product at no charge, provided that the product has not been subjected
to abuse, misuse, accident, disaster or non-Connect Tech Inc. authorized modification or repair.
You may obtain warranty service by delivering this product to an authorized Connect Tech Inc. business
partner or to Connect Tech Inc. along with proof of purchase. Product returned to Connect Tech Inc. must be
pre-authorized by Connect Tech Inc. with an RMA (Return Material Authorization) number marked on the
outside of the package and sent prepaid, insured and packaged for safe shipment. Connect Tech Inc. will
return this product by prepaid ground shipment service.
The Connect Tech Inc. Limited Warranty is only valid over the serviceable life of the product. This is defined
as the period during which all components are available. Should the product prove to be irreparable, Connect
Tech Inc. reserves the right to substitute an equivalent product if available or to retract the Warranty if no
replacement is available.
The above warranty is the only warranty authorized by Connect Tech Inc. Under no circumstances will
Connect Tech Inc. be liable in any way for any damages, including any lost profits, lost savings or other
incidental or consequential damages arising out of the use of, or inability to use, such product.
Copyright Notice
The information contained in this document is subject to change without notice. Connect Tech Inc. shall not
be liable for errors contained herein or for incidental consequential damages in connection with the furnishing,
performance, or use of this material. This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to
another language without the prior written consent of Connect Tech, Inc.
Copyright
2017 by Connect Tech, Inc.
Trademark Acknowledgment
Connect Tech, Inc. acknowledges all trademarks, registered trademarks and/or copyrights referred to in this
document as the property of their respective owners. Not listing all possible trademarks or copyright
acknowledgments does not constitute a lack of acknowledgment to the rightful owners of the trademarks and
copyrights mentioned in this document.
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 6 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Revision History
Revision
Date
Changes
0.00
2016/12/22
Initial Release
0.01
2017/02/24
Added disassembly instructions, mounting bracket details,
updated part numbers
0.02
2017/08/04
Added cable drawing links, removed drawings from doc
0.03
2017/08/28
Updated 3D model link
0.04
2017/10/19
Updated the power adapter reference P/N for ESG505/506’s
Added TX2 relevant info
0.05
2017/12/12
Updated TX2 specs
0.06
2018/01/19
Updated photos
0.07
2018/02/06
Updated product name & URL
0.08
2019/04/08
Updated to TX2i, Updated HDMI and PNs
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 7 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Introduction
Connect Tech’s Rudi is a small form factor embedded system based on the NVIDIA® Jetson™
TX2/TX2i/TX1. Housed in a compact enclosure with optional mounting brackets. Rudi features revolutionary
the NVIDIA Maxwell™ or Pascal™based architecture with 256 CUDA cores delivering over 1 TeraFLOP of
performance with a 64-bit Quad or Hex core ARM A57 CPU.
Product Features and Specifications
Feature
Rudi Embedded System
Processor
NVIDIA Jetson TX2/TX2i/TX1
Memory
TX2: 8GB LPDDR4; TX1: 4GB LPDDR4
Storage
TX2: 32GB eMMC; TX1: 16GB eMMC
Display
1x HDMI Type A Link (Supports up to HDMI 2.0 UHD 4K [2160p] at
60Hz)
Ethernet
2x Gigabit Ethernet (10/100/1000) Links
USB
3x USB 2.0, 2x USB 3.0 Links
WiFi
IEEE 802.11 ac
Bluetooth
Bluetooth 4.0 (24 Mbps)
Serial
2x RS-232 (Default: 1 console, 1 general purpose)
CAN Bus
1x CAN Bus 2.0b
Power Operation
Auto Power On in Event of Power Failure
External Power On/Off Control Button
Power Requirement
+12V DC Input Nominal
Operating Temperature
-20oC to +80oC with Minimum Airflow of 25 CFM for Standalone
Operation
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 8 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Dimensions
Without Mounting Bracket:
135mm x 50mm x 105mm (5.31" x 1.97" x 4.13")
Weight
0.703kg / 1.55lb (base enclosure only)
Accessories (included)
12V Power Supply Brick (90~264 Vac), Power supply adapter
(ESG505/506 only), and a CAN Bus Terminal Connector
Accessories (optional)
Dual Band Antenna, Edge Mounting Brackets, I/O breakout cable.
Warranty and Support
1 Year Warranty and Free Support
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 9 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Ordering Part Numbers
Rudi Enclosure with TX2
or TX1 and DC Barrel
Power Connector
Manual Power On/Off Switch
Auto-Power On Mode
ESG503-x1 –North America
ESG503-x2 –EU
ESG503-x3 –Israel
ESG503-x4 –Korea
ESG503-x5 –China
*the ‘x’ in the part number denotes module type:
0 = TX1
2 = TX2
ESG504-x1 –North America
ESG504-x2 –EU
ESG504-x3 –Israel
ESG504-x4 –Korea
ESG504-x5 –China
*the ‘x’ in the part number denotes module type:
0 = TX1
2 = TX2
Ordering Part Numbers
Rudi Enclosure with TX2
or TX1 and 2 Pin Locking
Terminal Power
Connector
Manual Power On/Off Switch
Auto-Power On Mode
ESG505-x1 –North America
ESG505-x2 –EU
ESG505-x3 –Israel
ESG505-x4 –Korea
ESG505-x5 –China
*the ‘x’ in the part number denotes module type:
0 = TX1
2 = TX2
ESG506-x1 –North America
ESG506-x2 –EU
ESG506-x3 –Israel
ESG506-x4 –Korea
ESG506-x5 –China
*the ‘x’ in the part number denotes module type:
0 = TX1
2 = TX2
Ordering Part Numbers
for Accessories
MSG067
Mounting Bracket (x2)
MSG066
Dual Band SMA Antenna
CBG258
MISC I/O Cable:
2x6 Pin (0.100” pitch) to Flying
lead (12” length)
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 12 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Connector Summary
Designator
Connector
Description
12V PWR
Power Input
Power Input Connector –2.1mm Barrel.
Or Two Pin Terminal Connector 3.5mm Pitch
OTG USB
USB micro
USB 2.0 micro Type A/B Connector
USB 3.0 A
USB 3.0 Port A
USB 3.0 SuperSpeed Type A Connector
USB 3.0 B
USB 3.0 Port B
USB 3.0 SuperSpeed Type A Connector
USB 2.0 A
USB 2.0 Port A
USB 2.0 Port 1 Type A Connector
USB 2.0 B
USB 2.0 Port B
USB 2.0 Port 2 Type A Connector
HDMI
HDMI
HDMI Type A Connector
GbE 1
Gigabit Ethernet Port 1
Gigabit Ethernet (10/100/1000) Port 1 RJ-45 (TX2/TX2i/TX1)
GbE 2
Gigabit Ethernet Port 2
Gigabit Ethernet (10/100/1000) Port 2 RJ-45 (Intel)
ANT 1
Antenna 1
NVIDIA Jetson TX2/TX2i/TX1 J8 U.FL (Wifi)
ANT 2
Antenna 2
NVIDIA Jetson TX2/TX2i/TX1 J9 U.FL (Bluetooth)
SD Card
SD Card
Full Size SD card Push/Push Connector
Sim Card
Sim Card
Standard Size SIM Card Push/Push Connector (used with
onboard miniPCIe site only).
CAN Bus
3 Pin Terminal Block
3 Pin Terminal Block 3.5mm pitch
I/O
12 Pin Header Block
12 Pin 0.100” 6x2 Header Block (I2C, GPIO and UARTs)
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 13 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Switch Summary
Designator
Function
Description
Power Button
Power ON/OFF
Rudi System Power ON/OFF Button
Reset
Hardware Reset
Rudi System Reset push button
Recovery
Force Recovery
Used for TX2/TX2i/TX1 system programming (used in
conjunction with the dual purpose USB OTG port).
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 15 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Detailed Feature Description
The Rudi Embedded System is an NVIDIA Jetson TX2/TX2i/TX1 based embedded system. The Rudi comes
with an NVIDIA Jetson TX2/TX2i/TX1 preloaded with the latest Linux for Tegra (Ubuntu) with the Connect
Tech Board Support Package installed.

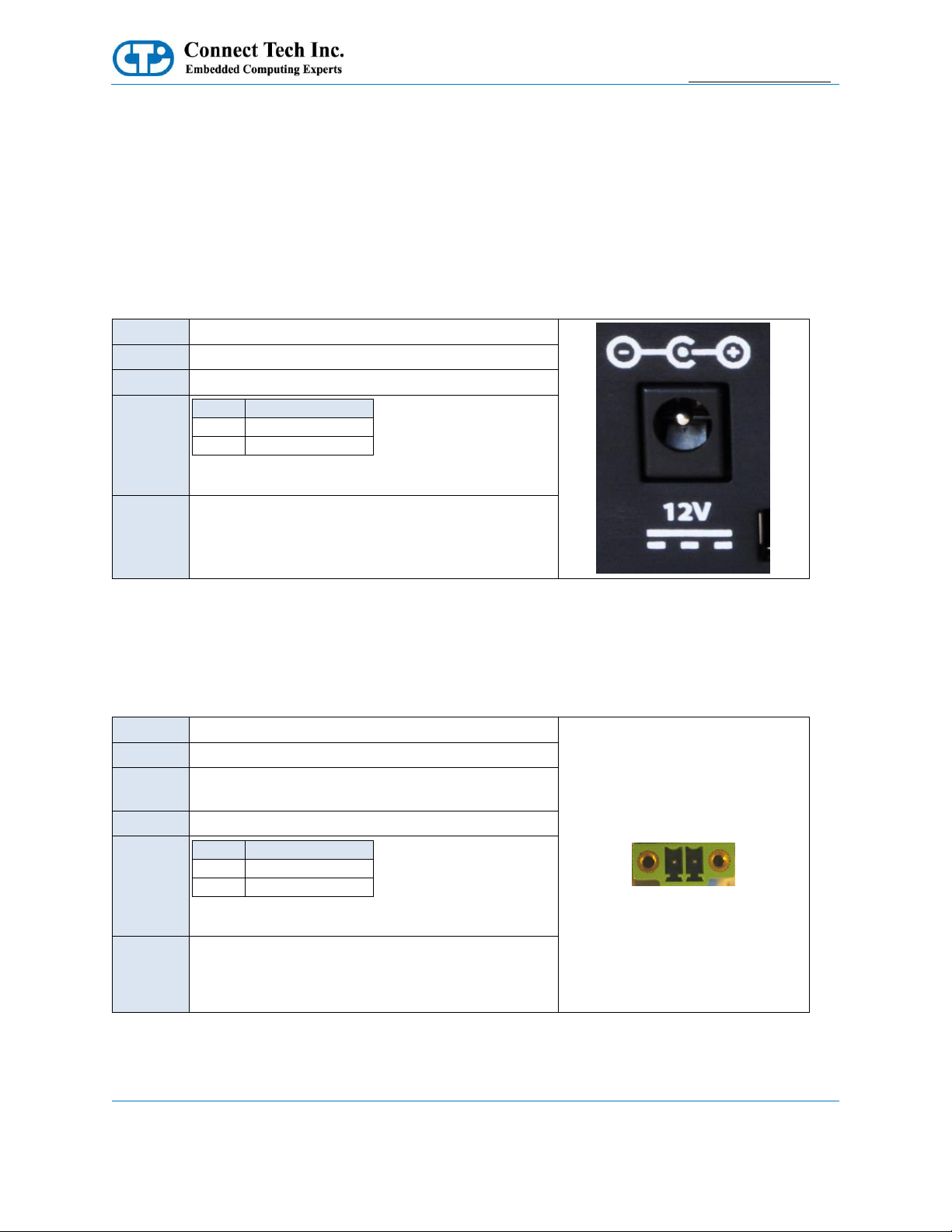

Power Input
The Rudi Embedded System accepts a single power input to power the entire system. An input range of
+12.0V +/- 10% DC is required. In addition, both reverse polarity protection, and surge protection has been
designed into the Rudi Embedded System.
Function
Power
Location
Rear panel 12V PWR
Type
DC Barrel Connector 2.0mm center pin 2.5A Max rated
Pinout
Pin
Description
Inner
Power
Outer
GND
Power Input Range: +12V +/-10%
Features
The power input has reverse polarity and surge protection
built in.
Power Input (Alternate 2 pin Terminal ESG505/506)
The Rudi Embedded System accepts a single power input to power the entire system. An input range of
+12.0V +/- 10% DC is required. In addition, both reverse polarity protection, and surge protection has been
designed into the Rudi Embedded System.
Function
Power
Location
Rear panel 12V PWR
Type
Two (2) Pin Terminal Connector 3.5mm pitch with screw
locking.
Mating
1847055
Pinout
Pin
Description
Left
GND
Right
POWER
Power Input Range: +12V +/-10%
Features
The power input has reverse polarity and surge protection
built in.
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 16 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
USB OTG
Function
USB 2.0 port (Host or Target device capable)
Location
Front panel OTG
Type
Micro USB Type A/B
Features
Multi-function port. Used as a 3rd USB 2.0 Host port, or
during Force Recovery mode it becomes a Target device
port that can attach to another host to interface directly to
the TX2/TX2i/TX1 for flash reprogramming operations.

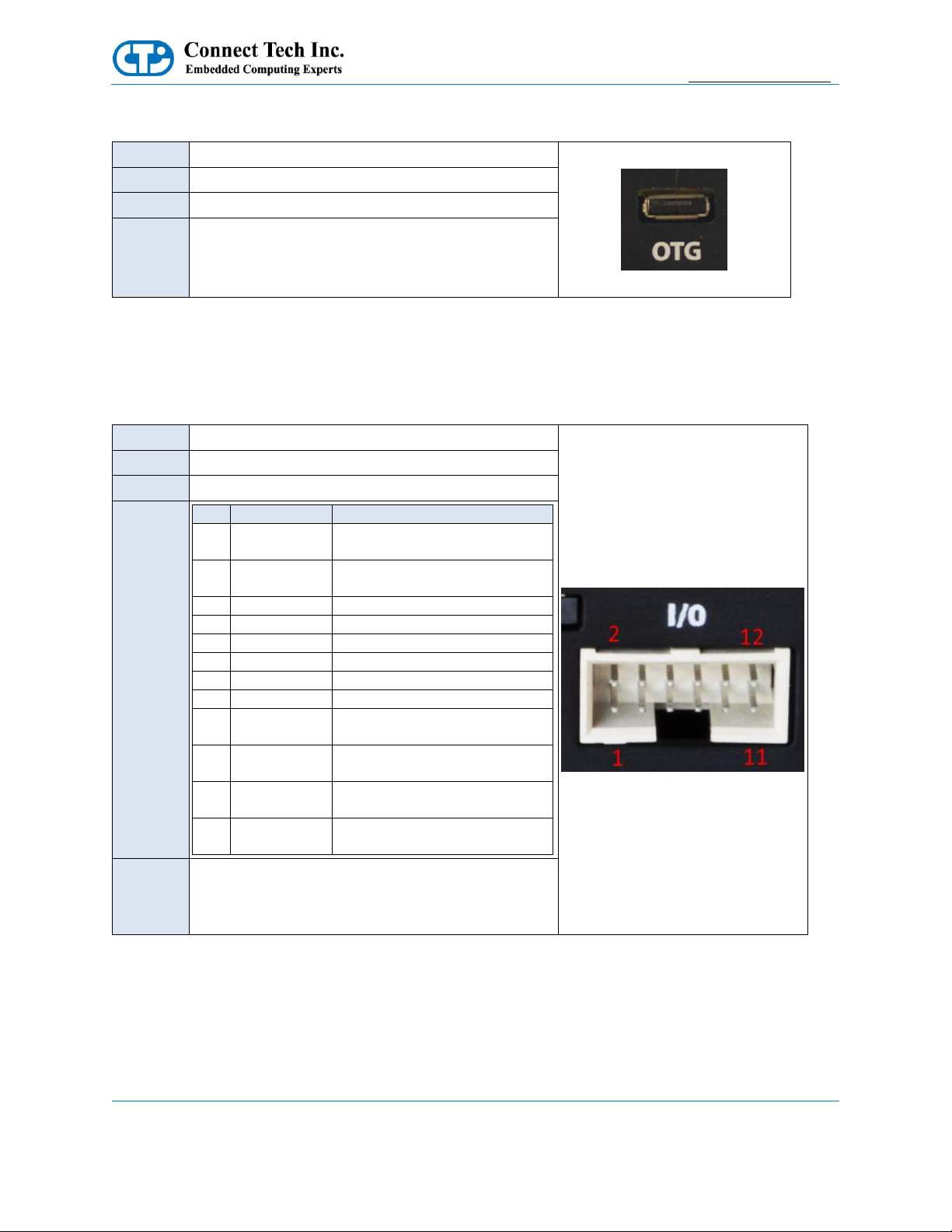

I/O Connector
The Rudi Embedded System has a console port to allow for remote or headless use of the System. With an RS-
232 Link, the RS232 Console port allows for additional debug of the Rudi Embedded System.
Function
Misc I/O Features (I2C, GPIO, UARTs)
Location
Rear panel I/O connector
Type
2x6 0.100” pitch Header Block
Pinout
Pin
Signal
Description
1
I2C_CLK
3.3V General Purpose I2C Bus
Clock. (Attached to TX1 I2C-0)
2
I2C_DATA
3.3V General Purpose I2C Bus
Data. (Attached to TX1 I2C-0)
3
GND
Digital GND
4
GND
Digital GND
5
GPIO1
3.3V General Purpose I/O
6
GPIO2
3.3V General Purpose I/O
7
GPIO3
3.3V General Purpose I/O
8
GPIO4
3.3V General Purpose I/O
9
UART1_RX
General Purpose UART RS-232
Receive.
10
UART1_TX
General Purpose UART RS-232
Transmit.
11
UART0_RX
Console UART RS-232
Receive.
12
UART0_TX
Console UART RS-232
Transmit.
Features
This port includes a variety of add-on features for General
purpose use. One I2C bus, Four GPIOs and two UARTs.
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 17 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08

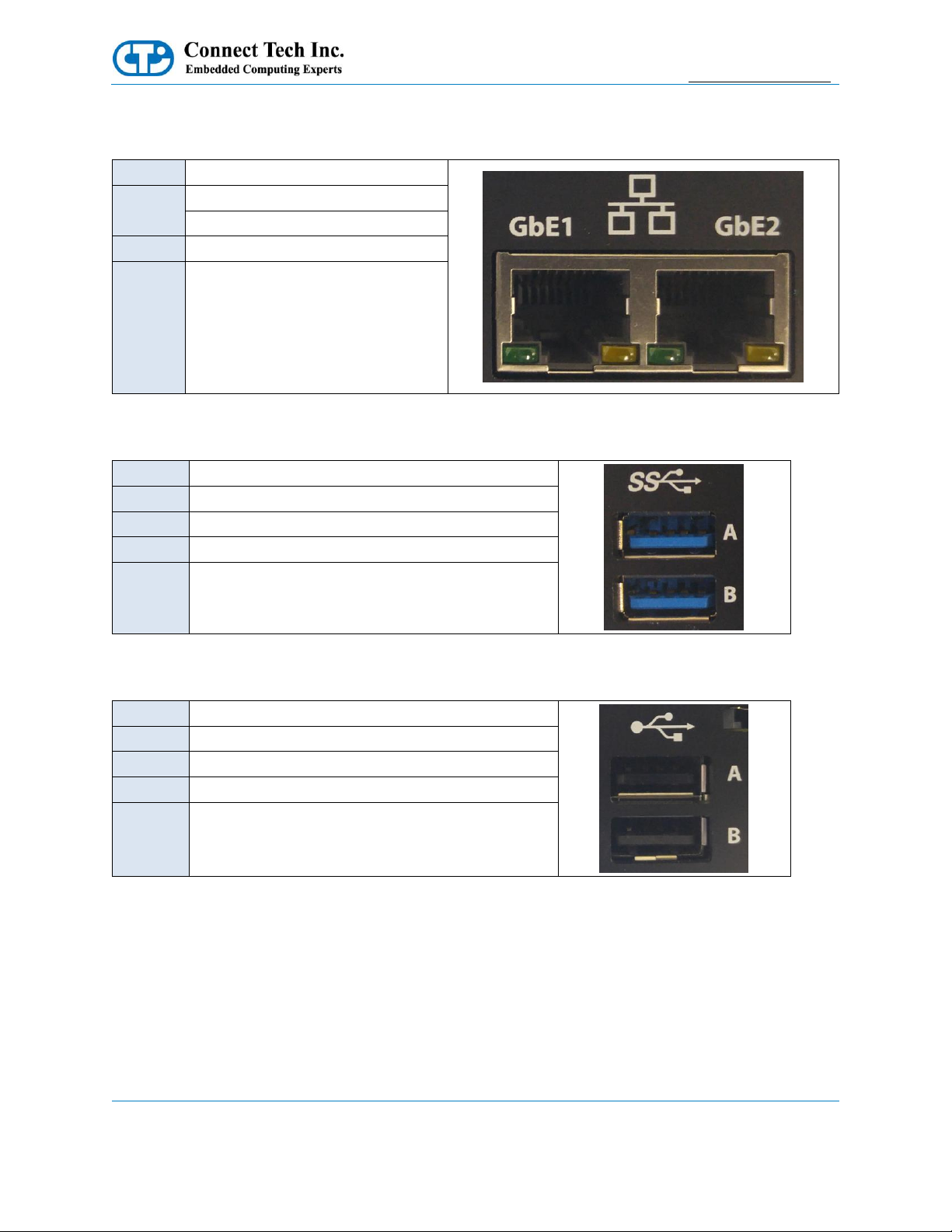

10/100/1000 Ethernet (GBE)
Function
Gigabit Ethernet Connector
Location
Front panel GbE1 and GbE2
Type
Standard RJ45 receptacle
Pinout
Standard GbE pinout
Features
GbE 1 –TX2/TX2i/TX1 direct
controller port capable of 10/100/1000
Base-T Gigabit Ethernet
GbE 2 –PCIe Intel based controller port
capable of 10/100/1000 Base-T Gigabit
Ethernet.
USB 3.0
Function
USB 3.0
Location
Front panel SS-A, SS-B
Type
Industry Standard USB 3.0 Type A Connector
Pinout
Standard USB 3.0 pinout
Features
SuperSpeed USB 3.0 interfaces capable of either USB 3.0
or USB 2.0 interfaces.
USB 2.0
Function
USB 2.0
Location
Rear panel USB-A, USB-B
Type
Industry Standard USB 2.0 Type A Connector
Pinout
Standard USB 2.0 pinout
Features
Full Speed USB 2.0 interfaces. Note these ports are
disabled during Force Recovery Mode.
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 18 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
HDMI
Function
HDMI v1.4b Display Interface
Location
Front panel HDMI
Type
Standard HDMI Type A receptacle.
Pinout
Standard HDMI 1.4b pinout
Features
HDMI Display output, capable of resolution up to
3840×2160.
Antenna 1
The Rudi Embedded System enables access to the NVIDIA Jetson WiFi and Bluetooth modems. The external
SMA Antenna 1 Connector is attached internally to the J8 U.FL on the Jetson TX2/TX2i/TX1.
Function
Antenna 1
Location
Front panel ANT1
Type
Micro High Frequency SMA Connector (Female socket)
Features
Dual Band capable WiFi Antenna port 2.4/5.8GHz
Antenna 2
The Rudi Embedded System enables access to the NVIDIA Jetson WiFi and Bluetooth modems. The external
SMA Antenna 2 Connector is attached internally to the J9 U.FL on the Jetson TX2/TX2i/TX1.
Function
Antenna 2
Location
Front panel ANT2
Type
Micro High Frequency SMA Connector (Female socket)
Features
Bluetooth Antenna port –2.45GHz
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 19 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
CAN Bus
Function
CAN Bus
Location
Rear panel CAN BUS
Type
Three pin 3.5mm Terminal connector
Pinout
‘+’ = CAN_H
‘-‘ = CAN_L
GND = Isolated CAN Bus GND signal.
Features
CAN Bus 2.0b capable interface with an internally
isolated GND reference.
Mating connector P/N options:
Phoenix Contact - # 1840379
On Shore Technology Inc. - # OSTTJ0311530
SD Card
Function
Full size SD Card
Location
Rear panel SD CARD
Type
Full size Push/Push SD Card
connector
Features
Standard Full size Secure Digital Card
interface for use with SDHC and
Standard SD Cards.
SIM Card
Function
Full Size SIM Card
Location
Rear panel SIM
Type
Full size Push/Push SIM card connector
Features
Full size SIM card interface that is used exclusively with
the mPCIe port when used in conjunction with a mPCIe
Cell modem expansion card.
Rudi Embedded System with NVIDIA Jetson TX2, TX2i or TX1
Users Guide
www.connecttech.com
Document: CTIM-00479
Revision: 0.08
Page 20 of 34
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2019-04-08
Switch Description
The Rudi Embedded System has a single Power Button on the Front Faceplate.
Power Button
Function
Power Button
Notes
A nearly flush switch with an easy toggle press to turn the
system on. A Blue light in the centre will indicate the
system is fully powered.
The System will turn off if the PWR button is held for
several seconds.
Reset Button
Function
Reset Button
Notes
System Reset button. The button is slightly recessed so it
is protected from accidental contact. The paperclip sized
hole provides access.
Recovery Button
Function
Recovery Button
Notes
Used in conjunction with the USB OTG port for
reprogramming the TX2/TX2i/TX1 onboard eMMC
drive.
By holding this button and powering on the system (or
toggling reset), the TX2/TX2i/TX1 will enter recovery
mode for reprogramming. It also turns the USB OTG
port into a target device port instead of a host port to
enable another system to discover it over USB.
Table of contents
