Ctt Sport User manual

THE CHAMELEON®

TACTICAL TRANSMITTER - SPORT

Unique on the market: small, waterproof, sophisticated settings, and

designed for a hands free experience.

MICHAEL AND BART

BELLON® ANNOUNCE THE

CHAMELEON®!TACTICAL

TRANSMITTER - SPORT

CTT®

Congratulations on your top notch

transmitter!

The CTT®!Sport is speciﬁcally designed by

Michael and Bart Bellon® to fulﬁl the needs of

most modern dog trainers who need ﬁne

tuning, roughness in exterior, toughness,

practicality and realistic features. The CTT®

Sport is tuned by Martin System technology.

The CTT® Sport is specially designed to be

practical and easy to use. Modern dog training

is based on timing, minimum motion from the

handler and discretion towards the

environment. Due to different ways to afﬁx the

CTT® Sport to your body and due to the

discretion of the Finger-Kick: your transmitter

can be invisible.

Figure 2 shows the main components

of the display: the rotation knob with

special o-ring for smoother tuning

(increases, decreases levels of

stimulation, 0 = clicker, and OFF); the

LED display (not lighted for tactical

reasons); the magnetic start point; and

the Program button that has the

following functions:

1. an “ON” button

2. A navigating button

3. A pairing button (to the Finger-Kick)

4. A stimulation button in SOS

Chameleon® II

collar receiver

with Feather

contact

accessories.

Figure 2.

LED

display

Magnetic start point

Rotation knob

Special o-ring for

smoother tuning

Figure 1.

Figure 3.

Display

when

viewing

Option “P”

Program

button

Figure 4.

Composition of the Remote CTT®

The CTT® Sport is ﬁtted with two

identiﬁcation codes and is a one dog

system. There are two programmable

stimulation options. See Figure 1. A

Chameleon® collar receiver (Figure 4)

comes by factory settings accepting 4

identity codes (4 masters). You can pair your

Chameleon® with a CTT® Sport and up to 3

more independent transmitters that are

compatible with the Chameleon®. Each

CTT® Sport has one identity code with two

preset options and an Option “P” (Figure 3).

See Page 5 for more information about how

to use Option “P”.

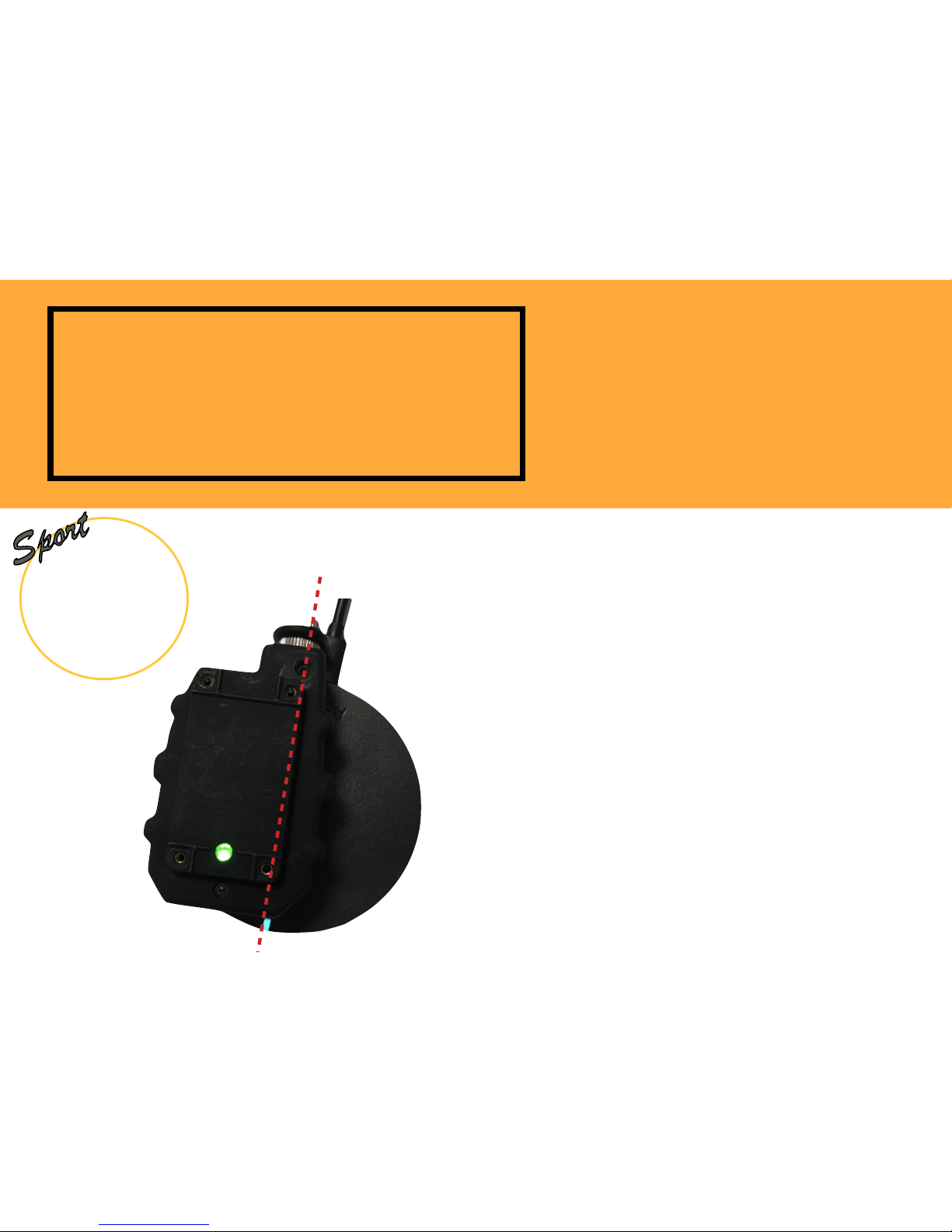

THE BACKSIDE OF

THE CTT® SPORT

1. CONNECTION, FIXATION PLATE (STAINLESS STEEL)

2. CONNECTION HOLES TO CONNECT WITH SCREWS TO THE BACKSIDE

OF THE CTT® SPORT

3. HOLE IN STAINLESS STEEL FIXATION PLATE FOR ATTACHMENT OF

LANYARD OR STRAP

4. LED HOLE

Holes for ﬁxation of plate via screws:

Metal plate that is under the molded injection

will afﬁx the CTT® Sport to a strong magnet.

LED will be

GREEN if

in loading

procedure

on induction

plate

A wrench and 5 screws

will be provided.

1. Speaker icon (tone

and vibration as factory

setting. This can be

changed with USB Emily*)

2. Warning tone

3. Flash, momentary, nick

mode

4. Rising Stimulation mode

5. Continuous stimulation

6. Stimulation level

7. Option Dog 1, A

8. Option Dog 1, B

9. Option “P” comes from

factory with setting set on

Level 18.

10. Martin System Logo

*USB Emily is an accessory and

can be purchased separately.

USB Emily can customise features

of Chameleon® II, Chameleon®I,

and micro collar receiver (Martin

System). USB Emily is available on

bartbellonshop.com or

shop.martinsystem.com.

CTT® Display Configuration

Option “P”

•Power supply: 3,7V 250 mAh lithium polymer/auto off feature

•for tactical reasons, no lighted display

•Range: 400 m (under optimal conditions) with Chameleon® II 2018 (all other Chameleons® and Martin System micro collar receivers will get 200m)

•Frequency 869,500MHz

•Maximum Radio Power 5000 MW

•no external antenna

•Number of Stimulation Levels: 1-17

•Click tone at 0 (Factory setting). Can be changed to warning tone with USB Stick Emily which works with Chameleon® receivers and the micro

from Martin System.

•Operating temperature: -5°C to +40°C

•Waterproof (1 meter for one hour)

•Rechargeable by induction

•The Chameleon® can accept 4 ID codes and so can be paired to After pressing a Finger-Kick that is paired to option “P”, all stimulation levels of

collar will be deleted. (Only light, tone, vibrations.) The CTT® Sport is fitted with two identification codes and is a one dog system. There are two

programmable stimulation options. One identification code is used only to remove stimulation. Note that the Chameleon® can be paired from

factory setting to both identification codes. The micro collar with 4 masters can also be paired at factory settings to both identification codes. The

micro collar can be tuned with USB Emily to accept 4 identification codes.

2,7 cm

Technical speciﬁcations of the CTT® Sport

1. Can control 1 dog.

2. The CTT® Sport can give you immediate access (via Finger-Kick) to 2 preset programs/levels

for one dog (if the collar receiver is a Chameleon® II or a micro collar)

3. You will need USB Emily to install the “Disable Stimulation on Level 18” on your

Chameleon® or micro collar in order to use “Option P” as a Delete Kick! After using

“Option P”, you must use Emily again because due to setting install the “Disable

Stimulation on Level 18” on your Chameleon® or micro collar, a Finger-Kick paired to

Option “P” will delete all electricity!

Standby time: CTT® Sport shuts off after 3.5 hours to conserve battery.

After going 6 times for 3.5 hours on standby or active use,

5,5cm

9,5cm

Dimensions

The Finger-Kick uses the CTT® Sport as a relay for radio transmission so it is

important that the Finger-Kick is in the remote’s range (i.e. less than 5 meters).

Once the Finger-Kick is successfully paired with the CTT® Sport, the linking is

unique and can not disturb another user of similar material. To pair the Finger-

Kick to the CTT® Sport, please consult page 9 of this manual.

THE FINGER-KICK (BLUETOOTH RING/

STIMULATION BUTTON)

Technical

Characteristics of the

Finger-Kick

Dimensions: 27x30x17 mm

Weight: 6 grams

Waterproof

Battery: CR1025, 3V 30mAh

Frequency: 2,4 GHz

Power < 1mW

No charging necessary

ON/OFF

Press and immediately release the program button to turn on your CTT® Sport. When the CTT® Sport is on, there is

information on the display. After you push a paired Finger-Kick one time, the following information will be on the display:

1. The level of stimulation that is activated by depressing the Finger-Kick

2. With which electronic program the Finger-Kick is linked

Reading the Display on the

CTT®!Sport

Reading the display, the arrow for each possible setting

goes from Dog 1A, to Dog 1B, to Option “P”.

The little arrow at left side of display indicates DOG 1.

The little arrow at right side of display indicates Option “P.

Program A is when the arrow is at the top of the left (Dog

1A) and Program B is when the arrow is on the bottom of

the left.

SOS

In the case of emergency — SOS — you can work with the

program button as your stimulation button. For example, if

you lose your Finger-Kick or when the battery from the

Finger-Kick is unexpectedly empty, you can use the

program button as an SOS button. In SOS mode, the

display will always refer to Dog 1A at continuous

stimulation. You can still modify the stimulation level but

you cannot change the mode in SOS functioning. More on

how to set the SOS functioning later in the manual.

Note: When you press the Finger-Kick, the CTT®!Sport will

always refer back to the last setting on that Finger-Kick.

• CONTINUOUS STIMULATION

• CONTINUOUS STIMULATION WITH

TONE

• WARNING TONE FOLLOWED

BY STIMULATION WITH TONE

• MOMENTARY/FLASH/NICK

STIMULATION

• MOMENTARY/FLASH/NICK

STIMULATION WITH TONE

•RISING STIMULATION

• RISING STIMULATION WITH TONE

THE LIST OF MODES THAT ARE

SHOWN ON YOUR DISPLAY:

OFF

To turn OFF your CTT® Sport,

turn the rotation knob under 0.

The display will go blank. The

transmitter is now OFF. You

cannot turn off the CTT® Sport

when your transmitter is

showing Option “P” on the

display.

CTT®

HOW TO MANIPULATE THE CTT® SPORT IN SOS MODE

In the case that your CTT® Sport is in SOS functioning (where the program button is your stimulation button):

1. Press and release the program button to switch on the transmitter.

2. The display will now refer to Dog 1, A and the program is reduced to continuous stimulation only at the level you choose with the rotation

knob.

3. A second press on the program button will inevitably send a continuous stimulation at the preset level to your collar.

4. To turn off the CTT® Sport, just turn the rotation knob under 0. The display will go blank and the transmitter is now OFF. You cannot turn

off the CTT® Sport when your CTT® Sport is on Option “P”.

5. After three and a half hours, your CTT® Sport will automatically switch off. This count down will start after your last manipulation with the

transmitter.

Note that due to modern manufacturers obliged standards, if stimulation is activated for more than 10 seconds, the receiver (Chameleon® II, Chameleon®!I,

micro, or TT collar) will shut down automatically for 10 seconds and then will respond again. (More information about the Chameleon® II, micro and TT collar

can be found on www.bartbellonshop.com.)

•Be certain that your CTT® Sport is charged (see charging procedures).

•Make sure that your Finger-Kick is working properly.

•Make sure that there is no other CTT® Sport,CTT®, PT3000,PT3004, or TT1000 transmitter which is ON within 20 meters from the unit that you want to pair with your Finger-Kick.

•Decide with with which dog (1 or 2) and with which preset (A or B) you want the Finger-Kick to be paired. From now on, we will call this choice of dog and preset an “option”. When pairing your Finger-Kick,

you get the easiest results when your mode on the CTT® Sport is set to rising with tone. Modes and levels are easily adjusted once your Finger-Kick is paired.

•When you press and release, you will navigate from the last used option and if you continue to press and release, you will scroll through them all.You will see when the options change because they are

marked with an icon at the left or the right sides of your transmitter. (See page 4 for diagram).

•For best results,do not cup the small CTT® Sport in your hands when pairing your Finger-Kick. Please hold it by the rotation knob or set it down on a ﬂat surface.

•Once you have set your choice with which option you want the Finger-Kick to be linked, press and hold the program button for 15 seconds. During this time,the display will navigate two times through all

possible programs.After this navigation, the display will begin to ﬂash. When the display is ﬂashing, release the program button and there is a 10s window with with to pair your Finger-Kick. To pair the

Finger-Kick,press for one second and then release the Finger-Kick while the display is ﬂashing and keeps pressing and releasing until the display stops ﬂashing. If pairing is not successful, repeat this

procedure. If there are still problems, contact the service centre.

•To double check if the pairing was successful, press and release your program button and the display arrow will now navigate to another option. Now press your Finger-Kick. If the display jumps back to the

option where you paired the Finger-Kick, you know your Finger-Kick is paired.

•It is possible to link each option (Dog 1A, Dog 1B, and option “P”) with a Finger-Kick.After pairing a Finger-Kick to Option “P”, if you push the Finger-Kick linked to that option, you will need USB Emily to

reinstall your CTT® Sport to factory settings or to your custom settings because pushing a Finger-Kick that is paired to Option “P” will delete the possibility to use stimulation. (Note that you will need USB

Emily to install the “Disable Stimulation on Level 18” on your Chameleon® or micro collar in order to use “Option P” as a Delete Kick! To reinstall the electricity after using “Option P”, you must use Emily

because after setting install the “Disable Stimulation on Level 18” on your Chameleon® or micro collar, a Finger-Kick paired to Option “P” will delete all electricity!)

•It is possible to change the pairing of a Finger-Kick to another option. Note that a Finger-Kick can only be paired to one option at a time.The former option to which the Finger-Kick was paired will

automatically become un-paired. Anytime a Finger-Kick is re-paired to another option, on the same or on a different transmitter, the Finger-Kick will automatically wipe out past pairings.

•If a CTT®!Sport is in SOS mode, all the Finger-Kicks are automatically unpaired.

•To pair a ﬁnger-kick again to the CTT® Sport if you want to go out of SOS function, press and hold the program button for 15 seconds. The display will not scroll through the options but will stay on continuous

electricity on the level you did select for 15 seconds. The display will disappear. Release the program button and press the Finger-Kick or the Program Button again. Automatically the last Finger-Kick setting
