Cucina GCWJE-M1 User manual
Instruction Manual
Model Ref: GCWJE-M1
Slow Juicer
GCWJE-M121012015
Index
Important Safety Information.........................
Product Overview...........................................
Assembling your Slow Juicer.........................
How to use your Slow Juicer.........................
Cleaning........................................................
Troubleshooting Guide..................................
After Sales Support.......................................
02
03
04
06
08
08
09
01
Thank you for choosing the Cucina Slow Juicer.
Remove all packaging material. You may wish to keep the packaging
for future use or storage for your appliance. Alternatively, dispose of
accordingly.
Important Safety Information
Read all of the instructions before using this appliance and keep safe for future
reference.
When using electrical appliances, basic precautions should always be followed,
including the following:
This appliance is for domestic use only. Do not use outdoors or on wet surfaces.
Do not handle the plug or appliance with wet hands.
Do not immerse the main body in water.
Do not touch moving parts.
Do not insert objects into the appliance when operating. If food becomes lodged or
blocked, switch off the appliance and unplug from the mains before attempting to
clean.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, if they have been given supervision or instruction concerning the use of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
This product is not a toy.
Do not use the appliance if any parts appear to be faulty, missing or damaged.
Do not leave the appliance unattended when connected to the mains supply.
Do not operate the appliance when it is empty.
Always unplug from the mains supply before carrying out any cleaning, performing
user maintenance or changing accessories.
Switch off the appliance by the power switch before removing from the plug from the
mains supply.
Keep hair, loose clothing, fingers and all parts of the body away from openings of the
appliance.
Do not use the appliance if it has been dropped or damaged in any way.
Check to ensure that the electricity supply matches that shown on the rating plate.
Only use the attachments/accessories supplied with the product or recommended
by Giani Ltd.
If the supply cord is damaged, it must be replaced by a qualified service agent in
order to avoid a hazard.
Only use this appliance for its intended domestic use. Giani Ltd will not accept any
liability if the appliance is subject to improper use, or failure to comply with these
instructions.
The parts and accessories are not suitable for cleaning in a dishwasher.
The maximum operating time is 15 minutes. Do not exceed this time or it
will damage the motor.
02
!

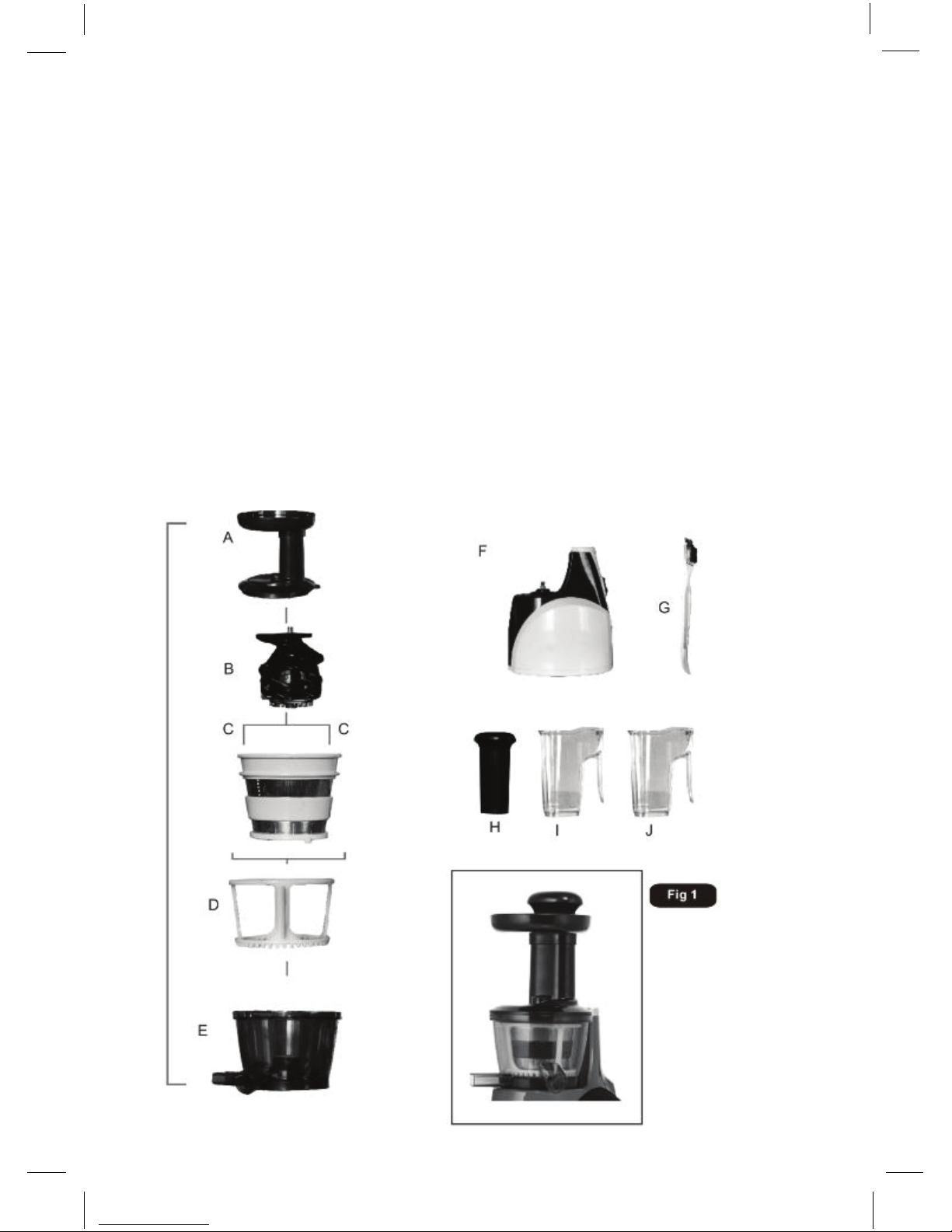

Product Overview
03
A. Hopper
B. Squeezing Screw
C. Strainer
D. Spinning Brush
E. Bowl
F. Base
G. Cleaning Brush
H. Pusher
I. Pulp Cup
J. Juice Cup
Assembling your Slow Juicer continued
04

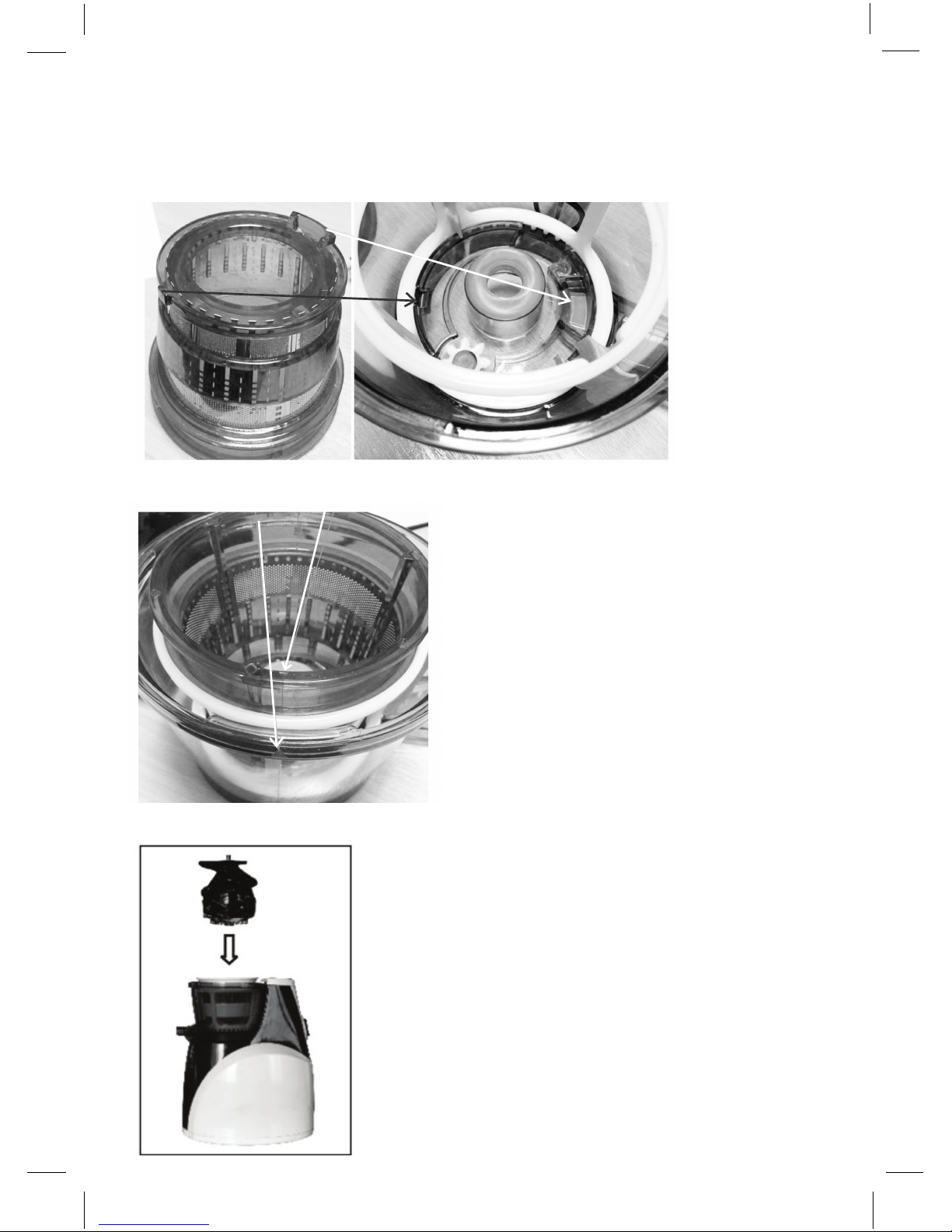

Fit the bowl to the main unit.
Fit the sieve into the bowl.
Always ensure that the teeth on the spinning brush interlock with the drive gear in the
bottom of the juicing jug.
05
Always ensure the pulp outlet on the sieve housing is inserted into the pulp outlet in
the bottom of the jug.
The arrows on the jug and the sieve should line up.
Insert the squeezing screw into the sieve and turn until it locates in position.
Assembling your Slow Juicer continued
06
Fit the hopper to the top of the bowl, aligning the arrows on the hopper and the bowl.
Twist the hopper clockwise into the head of the main unit until it clicks in position.
There is a safety switch in the head of the main unit. The unit will only work when the
lid is locked in place.
How to use your Slow Juicer
Before first use, clean all removable parts in warm soapy water and dry thoroughly.
Ensure that the slow juicer is correctly assembled.
Position the pulp jug under the pulp outlet on the left of the unit and position the juice
jug under the juice outlet on the right of the unit.
Prepare your ingredients by cutting and de-seeding them if required.
Plug in the slow juicer to the mains socket.
Insert your prepared ingredients into the feed chute on the hopper.

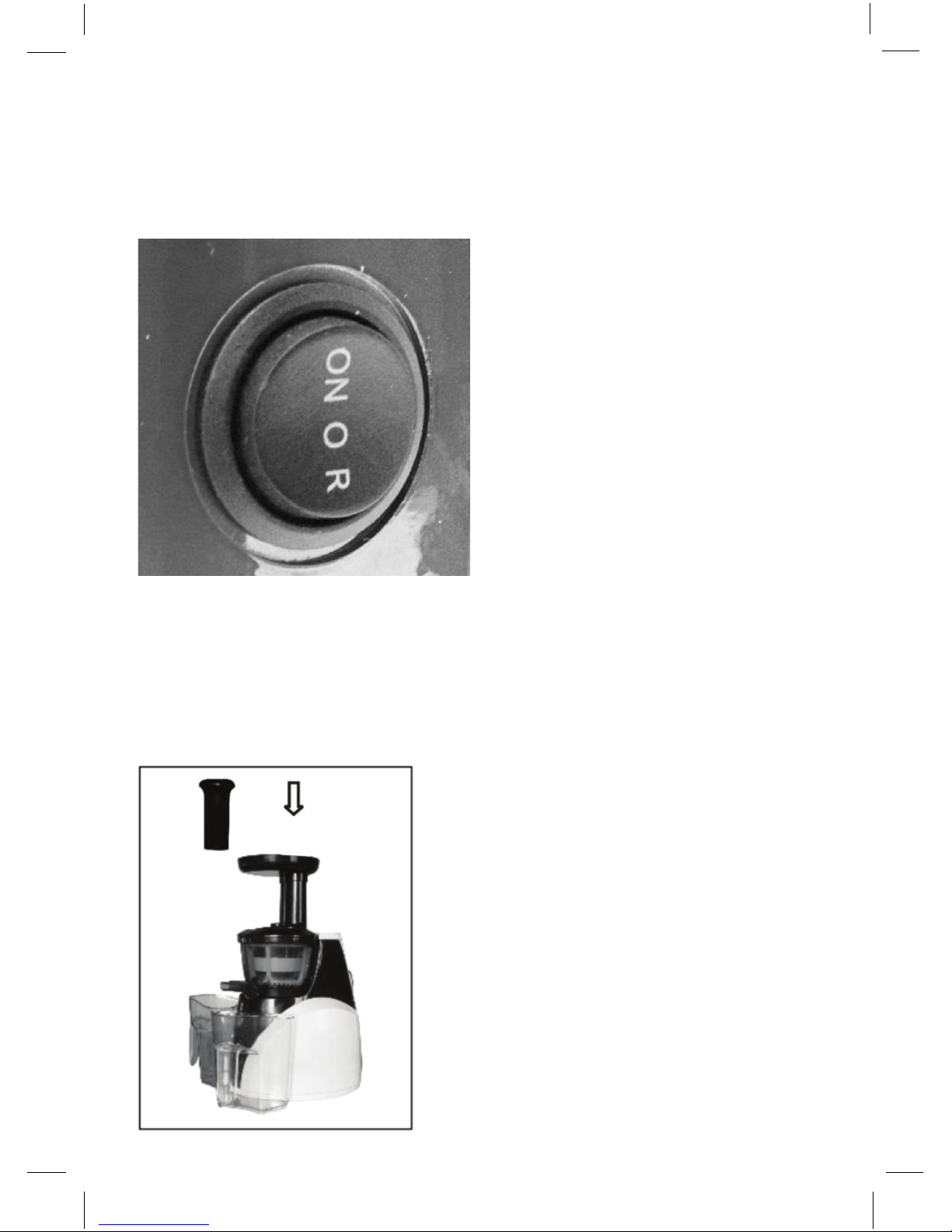

Switch on the juicer with the switch at the rear of the unit..
Assembling your Slow Juicer continued
07
How to use your Slow Juicer Continued
If there is a blockage in the juicer, stop the juicer immediately. The reverse function
can be used to help un-block and clear the obstruction. When the obstruction has
been cleared, the parts should be cleaned thoroughly before using again
Do not attempt to juice hard materials such as seeds, pips, ice or frozen foods.
This will damage the unit.
Always clean the juicer and the parts using the brush provided after each use.
Do not overfill the hopper. Insert food slowly to allow the juicer time to work. The
pusher should only be used if food becomes lodged. Push down gently.
Troubleshooting Guide
Problem Possible Cause What To Do
08
No power to juicer
The motor has stopped
Leaking underneath the
bowl
Staining on parts
Squeaking noise when
juicing
Too much pulp coming
out with juice
Juicer not plugged in
Incorrect assembly
There is a blockage in
the juicing bowl
The motor has cut out
due to over-use
The rubber plug is not
correctly inserted
This is the natural color
from juice
Friction between the
squeezing screw and
bowl or food
There is excess food in
the bowl clogging the
strainer
Check the juicer is plugged in
Press the reverse button to
clear the blockage
Switch off, unplug and allow
to cool down for 30 minutes
before using again
Remove all parts and check
the position of the rubber
plug
This is normal. To reduce
discolouration, ensure you
rinse and clean the appliance
immediately after use
The squeaking sound is
perfectly normal. Do not run
the juicer without any food
Cut food, especially fibrous
food into smaller pieces
Re-assemble the juicer as per
the instructions. Ensure the
lid is locked correctly
Cleaning
Periodically clean the rubber parts of the spinning brush on the sieve.
Thoroughly clean all parts immediately after use to maintain the performance of the
product and minimise staining.
Do not use harsh chemicals or abrasives to clean the parts of the juicer.
Never clean the parts in a dishwasher. This will damage the parts.
After Sales Support
If you need help using your Slow Juicer, please contact Giani Ltd:
Tel: 0161 480 6204
Email: [email protected]
Website: www.gianiuk.co.uk
(replacement instruction manuals are available to download)
09
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
The Waste Electrical and Electronic Equipment Regulations
Kingdom on 1st July 2007. The Regulations have been
designed to prevent/reduce the amount of waste electrical
and electronic equipment by promoting its reuse,
recycling and recovery. The separate collection of
WEEE saves energy and resources and avoids hazardous
Electrical and electronic equipment is any product
that relies on electricity or batteries to perform
its primary function, for example a kettle or a watch.
Products which are covered by the WEEE Regulations have a crossed out wheelie
bin symbol on either the product itself or the packaging.
The symbol aims to encourage you to identify and dispose of a WEEE product
separately from other household waste when it reaches the end of its life.
old electrical and electronic equipment. Giani UK Ltd has contributed towards
From 1st July 2007, Giani UK Ltd is required to oer a free method of disposal of your
the development of WEEE collection facilities, known as Designated Collection
Facilities (DCF), for consumers to use throughout the UK.
If you have old electrical or electronic product
that has reached the end of its life, you can
deposit it free of charge for segregation at
Civil Amenity Sites which are registered as DCF.
www.recycle-more.co.uk
Please have your postcode ready to type
in the recycling bank locator.
You can also call the recycle-more helpline
on 08450682572
